Introduction
Operating heavy machinery like the Caterpillar 312 excavator requires a combination of skill, responsibility, and adherence to safety standards. While the allure of mastering such equipment can be strong, it's essential to recognize the importance of proper training and the legal requirements that govern who can operate these machines.
Legal Age Requirements
In the United States, federal law mandates that individuals must be at least 18 years old to operate heavy machinery, including excavators. This regulation is in place to ensure that operators possess the necessary maturity and physical capabilities to handle such powerful equipment safely. Employers are also required to verify that operators have completed appropriate training and certification before allowing them to operate machinery.
Training and Certification
Becoming proficient in operating an excavator involves more than just understanding the controls. Comprehensive training programs are essential to equip operators with the knowledge and skills needed for safe and efficient operation.
Key Components of Excavator Training

• Safety Protocols: Training includes learning about jobsite safety, hazard recognition, and emergency procedures.

• Machine Operation: Operators are taught how to handle various tasks such as digging, lifting, and maneuvering the excavator.

• Maintenance Practices: Understanding routine maintenance helps in prolonging the life of the equipment and preventing breakdowns.

• Regulatory Compliance: Training ensures that operators are aware of and comply with local, state, and federal regulations.


The Whacker Neuson 8085T compact track loader is a versatile machine widely used in construction, landscaping, and other heavy-duty applications. Like all sophisticated machinery, it is not immune to operational issues. One common problem faced by operators is attachment lock and electrical circuit conduit issues. These problems can cause attachment malfunctions, hinder the overall performance of the machine, and disrupt workflows if not addressed promptly.
In this article, we will explore the root causes of attachment lock issues and electrical circuit conduit malfunctions in the Whacker Neuson 8085T, discuss diagnostic steps, and propose solutions to resolve these problems. By understanding the intricacies of these systems, you can better maintain your equipment and reduce downtime.
Understanding the Attachment Lock System
The attachment lock system on the Whacker Neuson 8085T is a key feature that allows operators to safely and efficiently attach or detach various work tools and implements. This hydraulic system is designed to securely lock attachments in place during operation, preventing accidental detachment while providing easy tool changes.
However, issues with the attachment lock can severely affect machine functionality. Common symptoms of attachment lock problems include:

• Failure to Lock/Unlock Attachments: The attachment either does not lock into place or fails to disengage, preventing tool changes.

• Weak Locking Force: The attachment lock may not hold the attachment securely, resulting in slippage or detachment during use.

• Erratic Locking Mechanism: The locking process may be inconsistent, with attachments locking/unlocking at irregular intervals.


• Cause: Hydraulic pressure is essential for the operation of the attachment lock system. If there is insufficient pressure due to leaks, pump failure, or issues with the hydraulic system, the lock may fail to function properly.

• Symptoms: The attachment fails to lock or unlock properly, or the process is slow and inconsistent.

• Solution: Check the hydraulic fluid levels and inspect the hydraulic lines for leaks. If the pump is damaged, replace it. You may also need to bleed the hydraulic system to ensure proper pressure.


• Cause: Hydraulic valves control the flow of fluid to the locking mechanism. If the valves are clogged with dirt or debris, or if they are worn out, the attachment lock may not function correctly.

• Symptoms: Slow or erratic locking/unlocking of attachments.

• Solution: Clean or replace the hydraulic valves to ensure smooth fluid flow. Regularly replace hydraulic filters to prevent contamination.


• Cause: The attachment lock system in the Whacker Neuson 8085T may rely on electrical circuits to control the hydraulic valves. If there is a wiring fault or electrical malfunction, the lock may not engage or disengage as intended.

• Symptoms: The attachment lock fails to respond, or there are electrical faults such as blown fuses or intermittent behavior.

• Solution: Inspect the electrical wiring and connections for damage, corrosion, or loose terminals. Replace any faulty wiring and check fuses or relays connected to the attachment lock circuit.


• Cause: Over time, the attachment lock mechanism itself may suffer from wear and tear. This could include bent components, worn-out locking pins, or misalignment of the locking mechanism.

• Symptoms: The lock does not engage properly, or the attachment is loosely attached.

• Solution: Inspect the attachment lock for physical damage. Replace worn-out parts, realign any misaligned components, and ensure all locking pins are in place.


• Loss of Power to Components: Certain attachments or features fail to operate.

• Blown Fuses or Burnt Wiring: Frequent issues with fuses blowing or wires burning out.

• Erratic Operation: Electrical components that behave inconsistently or intermittently.


• Cause: Physical damage to the electrical wiring or conduit can result from external impacts, excessive heat, or general wear and tear. This can interrupt the power supply to various components, including the attachment lock system.

• Symptoms: Loss of power, frequent blown fuses, or components not functioning correctly.

• Solution: Inspect the wiring and conduits for visible damage, such as abrasions, cuts, or burns. Replace any damaged sections of the wiring or conduit. Use high-quality, durable wire conduits to prevent future issues.


• Cause: Corrosion at electrical connectors or terminals can prevent proper power flow, resulting in malfunctions. This is especially common in environments with exposure to moisture or chemicals.

• Symptoms: Intermittent electrical issues, poor connectivity, or failure to operate.

• Solution: Clean and inspect all electrical connectors. Use corrosion-resistant coatings or dielectric grease to prevent future corrosion. Ensure that connectors are tightly secured to ensure proper conductivity.


• Cause: If too many electrical components are connected to the same circuit, it can cause overloading and damage the system. This can lead to blown fuses, tripped breakers, or burnt wiring.

• Symptoms: Frequent fuse failures, inconsistent operation of electrical components.

• Solution: Ensure that electrical components are correctly distributed across circuits. Avoid overloading any single circuit, and check that all components are properly rated for the system.


• Cause: Fuses or relays may blow or fail due to electrical surges, poor quality, or long-term wear.

• Symptoms: Complete loss of function for specific components or systems.

• Solution: Inspect and replace blown fuses or faulty relays. Use high-quality, appropriate-rated fuses for each electrical component.


1. Regularly Check Hydraulic Systems: Perform routine inspections of the hydraulic fluid levels, hoses, filters, and valves. Ensure that there are no leaks, and replace filters every 500 hours of operation or as recommended by the manufacturer.

2. Inspect Electrical Wiring and Conduits: Periodically check for any signs of wear, damage, or corrosion in the electrical wiring. Clean terminals and connectors, and replace any frayed or exposed wires.

3. Keep the Attachment Lock Mechanism Clean: Dirt and debris can clog the attachment lock system, causing it to malfunction. Clean the system regularly to keep it free from contaminants.

4. Use the Right Attachments: Ensure that the attachments are compatible with your loader and that they are properly locked into place before use. Avoid using excessive force when engaging or disengaging attachments.


Introduction
The Caterpillar 330LN excavator is equipped with an advanced electronic control system that integrates various components, including the monitor and controller, to ensure optimal performance. However, operators may encounter communication errors between these components, leading to operational issues. Understanding the causes and solutions for these errors is crucial for maintaining the machine's efficiency.
Understanding the Communication System
The CAT 330LN utilizes a digital communication network to facilitate data exchange between the monitor and the controller. This system relies on data lines and connectors to transmit signals that control various machine functions. Any disruption in this communication can lead to errors affecting the machine's performance.
Common Error Indicators
Operators may observe the following indicators when communication errors occur:

• Monitor Display Issues: The monitor may display error messages or fail to show data correctly.

• Controller Fault Indicator: A yellow LED on the controller may illuminate, signaling a communication problem.

• Diagnostic Codes: The system may generate specific diagnostic codes indicating communication faults.


1. Wiring Issues: Damaged or corroded data lines can disrupt signal transmission.

2. Connector Problems: Loose or corroded connectors can impede electrical connections.

3. Electrical Interference: External electromagnetic interference can affect signal integrity.

4. Software Glitches: Outdated or corrupted software can cause communication failures.


1. Inspect Wiring and Connectors: Examine all data lines and connectors for signs of wear, corrosion, or loose connections.

2. Clean Connectors: Use contact cleaner to remove corrosion and ensure a clean connection.

3. Check for Fault Codes: Utilize diagnostic tools to retrieve and interpret any fault codes generated by the system.

4. Update Software: Ensure that the monitor and controller software is up to date to prevent compatibility issues.

5. Test Components: Use diagnostic equipment to test the functionality of the monitor and controller.

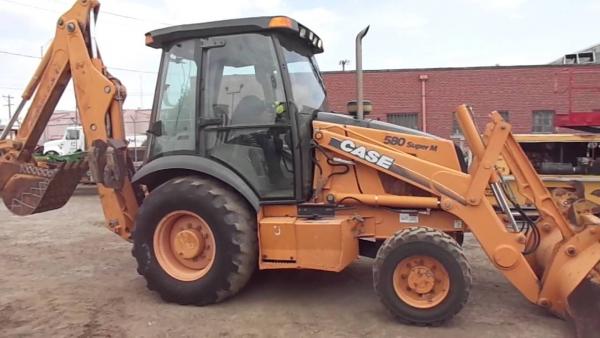

The Case 580 Super M backhoe loader is renowned for its durability and versatility in construction and agricultural applications. However, like any heavy machinery, it can experience brake-related issues over time. One common problem reported by operators is soft or sinking brake pedals, which can compromise safety and operational efficiency. Understanding the underlying causes and implementing effective solutions is crucial for maintaining optimal performance.

Understanding the Brake System
The Case 580 Super M is equipped with a hydraulic brake system, utilizing master cylinders, brake pistons, and hydraulic lines to actuate the brakes. The system operates by converting hydraulic pressure into mechanical force to engage the brake assemblies. A soft brake pedal typically indicates a loss of hydraulic pressure or fluid, leading to insufficient braking force.

Common Causes of Soft Brake Pedals

1. Internal Leaks in Master Cylinders: Over time, the seals within the master cylinders can degrade, allowing hydraulic fluid to bypass without pressurizing the brake system effectively. This results in a soft or sinking brake pedal.

2. Brake Piston Seal Failures: The brake pistons within the rear axle housing are susceptible to seal wear. Damaged seals can lead to hydraulic fluid leakage into the axle housing, reducing brake effectiveness.

3. Air Entrapment in the Hydraulic Lines: Air pockets within the hydraulic lines can compress under pressure, leading to inconsistent brake pedal feel and reduced braking efficiency.

4. Contaminated or Low Brake Fluid: Contaminants or moisture in the brake fluid can cause corrosion and degradation of internal components, leading to brake performance issues.


1. Visual Inspection for External Leaks: Examine all hydraulic lines, fittings, and connections for signs of leakage. Even minor external leaks can lead to significant loss of hydraulic pressure.

2. Check Brake Fluid Levels and Quality: Ensure that the brake fluid is at the recommended level and appears clean. Discolored or milky fluid may indicate contamination.

3. Bleed the Brake System: Using the appropriate procedure, bleed the brake system to remove any air trapped within the hydraulic lines. This can help restore pedal firmness.

4. Pressure Testing Brake Components: Utilize a hydraulic pressure gauge to test the integrity of the master cylinders and brake pistons. A drop in pressure can indicate internal leaks.


1. Replace Faulty Master Cylinders: If internal leakage is detected within the master cylinders, replacement is necessary. Ensure that the new cylinders are compatible with the Case 580 Super M specifications.

2. Repair or Replace Brake Pistons: For seal failures in the brake pistons, disassemble the rear axle housing to access the pistons. Inspect for wear or damage and replace seals or pistons as needed.

3. Flush and Replace Brake Fluid: Drain the existing brake fluid and replace it with fresh, manufacturer-recommended fluid. This helps remove contaminants and moisture that can affect brake performance.

4. Regular Brake System Inspections: Implement a routine maintenance schedule to inspect and service the brake system components, ensuring early detection of potential issues.


• Use High-Quality Brake Fluid: Always use the brake fluid specified by Case for the 580 Super M to ensure optimal performance and longevity of the brake system.

• Regularly Check for Leaks: Periodically inspect all hydraulic lines and connections for signs of wear or leakage.

• Avoid Overloading the Machine: Excessive loads can strain the brake system, leading to premature wear and potential failures.

• Store the Machine Properly: When not in use, store the backhoe in a dry environment to prevent moisture ingress into the brake system.


The Caterpillar D6H bulldozer is a highly respected piece of heavy machinery known for its durability and performance in challenging work environments. However, like all machines, the D6H is not immune to operational issues. One problem that can arise with this model, and other heavy equipment, is excessive coolant consumption. When a machine "drinks" water (or coolant), it can cause serious engine problems, including overheating, loss of performance, or even complete engine failure. Understanding the causes, potential solutions, and preventative measures is key to maintaining the longevity and efficiency of the D6H dozer.
Understanding the Problem: What Does "Drinking Water" Mean?
When an engine “drinks water,” it refers to an issue where the engine coolant is being consumed at an abnormal rate, causing the system to lose coolant more quickly than normal. This could result in the engine running hotter than intended, leading to potential overheating and significant damage if not addressed promptly.
For the Caterpillar D6H, this problem is not uncommon, especially as the machine ages and endures heavy-duty use. There are several potential reasons for this coolant consumption, each with its own set of symptoms and solutions.
Possible Causes of Coolant Consumption
Excessive coolant consumption in a D6H dozer can stem from various sources. Below are some of the most common causes:
1. Blown Head Gasket

• Cause: The head gasket is responsible for sealing the engine block and cylinder head. If it blows, coolant can leak into the combustion chamber, where it is burned along with the fuel. This can lead to a significant loss of coolant over time.

• Symptoms: White smoke from the exhaust, loss of coolant with no visible leaks, engine misfire, or loss of power.

• Solution: Replacing the head gasket is essential. This is a complex repair that requires professional mechanical assistance. If the engine block or cylinder head is damaged due to the coolant leak, further repairs may be necessary.


• Cause: Overheating, corrosion, or excessive wear can cause cracks in the cylinder head or engine block. These cracks allow coolant to enter the combustion chamber or external parts of the engine, causing coolant loss.

• Symptoms: Similar to a blown head gasket, signs include coolant loss, engine overheating, and white exhaust smoke. In severe cases, external coolant leaks can be seen.

• Solution: The affected parts should be inspected and pressure-tested. Cracks in the cylinder head or engine block often require either welding, patching, or replacement of the damaged components. In extreme cases, the engine might need to be replaced.


• Cause: A simple leak in the radiator, hoses, water pump, or seals can cause coolant to escape. This is often easier to diagnose, as visible signs of a coolant leak can appear on the ground or around the engine.

• Symptoms: Visible coolant puddles or drips under the dozer, low coolant levels in the radiator or reservoir, and overheating.

• Solution: Inspect all components of the cooling system for leaks. Common culprits include cracked radiator hoses, worn-out seals, or a corroded radiator. Replacing or repairing the affected parts will resolve the issue.


• Cause: The water pump circulates coolant throughout the engine. If the pump fails or wears out, it can cause coolant loss, either through leaks or insufficient circulation.

• Symptoms: Leaking coolant around the pump, engine overheating, or fluctuating temperature readings.

• Solution: Replacing the water pump is necessary if it shows signs of failure. It's also important to check the pump's seal and the surrounding hoses for leaks.


• Cause: Over time, the coolant can become contaminated with oil or other fluids, causing it to lose its effectiveness. Additionally, using the wrong type of coolant mixture can lead to improper cooling and excess coolant consumption.

• Symptoms: Discolored coolant, oil in the coolant, or the engine running at high temperatures even with full coolant levels.

• Solution: If contamination is suspected, the coolant system should be flushed thoroughly, and fresh, clean coolant should be added. Be sure to use the manufacturer-recommended coolant type and mixture.


• Cause: A malfunctioning thermostat can cause the engine to overheat, which may lead to coolant loss through evaporation or excessive pressure build-up.

• Symptoms: Overheating, fluctuating engine temperature, and possible coolant loss.

• Solution: Replacing the thermostat with a new, properly calibrated one can resolve overheating issues and prevent further coolant loss.


1. Check for External Leaks: Start by inspecting the radiator, hoses, water pump, and engine for any visible coolant leaks. Look for puddles of coolant on the ground or around the engine compartment.

2. Inspect the Oil: Look for signs of coolant in the oil. If the oil appears milky or frothy, it could indicate a blown head gasket or a cracked cylinder head, allowing coolant to mix with the oil.

3. Perform a Compression Test: If you suspect a blown head gasket or cracked engine block, a compression test will help determine if there is a loss of compression due to a coolant leak into the cylinders.

4. Pressure Test the Cooling System: A cooling system pressure test can help identify hidden leaks in the radiator, hoses, or other parts of the system that might not be immediately visible.

5. Check the Exhaust: If you notice white smoke coming from the exhaust, it is a strong indication that coolant is entering the combustion chamber. This is typically caused by a blown head gasket or a cracked engine component.


1. Routine Cooling System Inspections: Regularly inspect the radiator, hoses, water pump, and other components for wear and tear. Look for any signs of corrosion or damage that could lead to leaks.

2. Check Coolant Levels: Always monitor the coolant levels in the radiator and reservoir. Low coolant levels can lead to overheating and damage, so topping off coolant regularly is important, especially during hot weather or heavy usage.

3. Use Quality Coolant: Always use the recommended coolant type for your machine and ensure that the mixture of antifreeze and water is properly balanced to avoid freezing or overheating issues.

4. Monitor Engine Temperature: Keep an eye on the engine temperature gauge. If the temperature rises above normal, it could be an early warning sign of a cooling system issue that could lead to coolant consumption.

5. Replace Seals and Gaskets on Time: Worn-out gaskets, seals, and O-rings can lead to leaks that contribute to coolant loss. Replace these components during routine maintenance.

6. Prevent Overheating: Avoid overloading the dozer or using it in extreme conditions without proper cooling breaks. Overheating can exacerbate issues with the engine and cooling system, leading to increased coolant consumption.


The 1890s saw significant advancements in the world of internal combustion engines, and one standout example of these innovations was the Golden Gate Gas Engine. Developed during a time of rapid industrialization and the expansion of mechanized equipment, the Golden Gate Gas Engine was a testament to early engineering ingenuity. It was designed to provide reliable power for a variety of industrial applications, from pumping water to powering early machinery in factories and farms. This article delves into the history, design, and significance of the Golden Gate Gas Engine while exploring its operational features, common challenges, and maintenance practices.
The Origins of the Golden Gate Gas Engine
The Golden Gate Gas Engine was produced in the late 19th century, during a period when gas-powered engines were gaining traction as an alternative to steam engines. These early gas engines were pivotal in replacing older, less efficient power sources, offering more compact, reliable, and economically viable solutions for various industries.
The engine was named after the iconic Golden Gate Bridge, a symbol of progress and industrial development in California. While the engine itself was not directly linked to the bridge’s construction, its moniker reflects the broader technological growth that was happening in the region during that time.
Key Features of the 1890s Golden Gate Gas Engine
At its core, the Golden Gate Gas Engine was an internal combustion engine designed to run on gas or a mixture of gas and oil. The engine was relatively advanced for its time, and its key features made it highly suitable for powering a wide range of equipment.

1. Design and Construction
   • Single-cylinder Design: The Golden Gate Gas Engine was typically a single-cylinder engine, which made it simpler in construction compared to multi-cylinder engines. This design was common in early engines and contributed to ease of maintenance and operation.

   • Cast Iron Frame: The engine was housed in a durable cast iron frame, which helped to absorb vibrations and increase the engine's overall longevity.

   • Flywheel: The engine was equipped with a large flywheel that helped smooth out the operation by storing energy during the power stroke and releasing it during the compression and intake strokes.

2. Power Output
   • While the Golden Gate Gas Engine was relatively small by modern standards, it offered considerable power for the time. It typically had an output ranging from 2 to 25 horsepower, depending on the specific model.

   • This power output made it suitable for various tasks, such as powering pumps, small agricultural machines, and early factory equipment.

3. Fuel Type
   • The engine was designed to run on gas, which was a common fuel source at the time. Gasoline or natural gas could be used, although gasoline was the more widely available and preferred option for many applications.

   • The engine's ability to operate on gas made it an attractive option for industries that were transitioning from steam engines, which required constant maintenance and had a higher operational cost.

4. Ignition System
   • The ignition system of the Golden Gate Gas Engine was typically a simple magneto system, which used a rotating magnet to generate electricity and create the spark needed to ignite the fuel-air mixture.

   • The magneto ignition system was reliable for its time, though it was somewhat rudimentary compared to modern electrical ignition systems.


1. Agriculture
   • The engine was often used to power irrigation pumps, which were vital for farming in areas where water supply was inconsistent or unreliable.

   • It was also used in small agricultural machinery, such as early threshers and grain mills, which allowed farmers to mechanize previously labor-intensive tasks.

2. Industry and Manufacturing
   • In factories, the Golden Gate Gas Engine was used to power machines such as small lathes, mills, and other early mechanical equipment. The engine provided a steady source of power, improving productivity and reducing reliance on manual labor.

   • The engine’s compact size and reliability made it ideal for use in manufacturing plants that required a small but consistent power source.

3. Water Pumping
   • One of the most common uses of the Golden Gate Gas Engine was for powering water pumps. These engines were often employed in rural areas and industrial sites to move large amounts of water, especially for irrigation or mining operations.

   • The engine’s ability to run on gas made it particularly useful in areas where steam engines were impractical due to their size or fuel requirements.


• Problem: The engine’s single-cylinder design, while simple, sometimes led to overheating, especially when it was under heavy load for extended periods. Overheating could result in diminished performance or even engine damage.

• Solution: Regularly checking the cooling system, which in the case of the Golden Gate Engine was often water-based, was critical. Ensuring adequate water flow through the engine helped prevent overheating.


• Problem: The magneto ignition system, while effective, could wear out or fail due to the constant movement and friction involved in generating the spark. When the magneto failed, the engine could no longer start or run efficiently.

• Solution: Regular maintenance and inspection of the magneto were essential. If issues arose, the magneto would need to be cleaned or replaced. Additionally, using proper lubrication helped extend the lifespan of the ignition system.


• Problem: Fuel contamination was a common issue for early gas engines. Dirt, water, or debris in the fuel system could clog fuel lines, injectors, or the carburetor, leading to engine misfires or complete failure.

• Solution: Regularly cleaning the fuel tank, lines, and filters was necessary to prevent fuel contamination. Using clean, high-quality fuel also helped improve engine performance.


• Problem: Poor lubrication could lead to excessive wear on moving parts, especially in the engine’s pistons and bearings. This was a particular concern for early gas engines, which lacked the sophisticated lubrication systems found in modern engines.

• Solution: Ensuring that the engine was regularly lubricated with the appropriate oil helped reduce friction and wear on moving components.


The Caterpillar 311F L Series II is a versatile and compact mid-size crawler excavator designed for a variety of applications, including utility work, landscaping, and small-scale construction projects. Enhancing its functionality with a hydraulic thumb can significantly improve material handling capabilities, allowing operators to grasp and manipulate objects more efficiently.

Understanding Hydraulic Thumbs
A hydraulic thumb is an attachment that works in conjunction with the excavator's bucket to grasp, hold, and manipulate materials. Unlike mechanical thumbs, which require manual adjustment, hydraulic thumbs are operated from the cab using the excavator's hydraulic system. This provides precise control and increases productivity.

Compatibility with the 311F L Series II
The 311F L Series II is equipped with auxiliary hydraulic circuits, making it compatible with hydraulic thumb attachments. However, it's essential to ensure that the specific model of the hydraulic thumb is designed to fit the 311F L's specifications. Manufacturers like Showtime Fabrication offer hydraulic thumbs tailored for Caterpillar 311, 312, 313, and 314 models. For instance, their hydraulic thumb features a 50" length, 24" width, and is constructed from 1.0" thick AR400 steel, designed for material retention. It includes a 65MM main pivot pin made from heat-treated 4142 steel and a USA-made, rebuildable hydraulic cylinder with a 4" bore, 30" stroke, and 2.5" rod. The cylinder is designed for 4000psi operation and includes a hardline to locate hose connections out of harm's way .

Installation Process
Note: Always consult the specific installation manual provided by the thumb manufacturer and Caterpillar to ensure proper installation procedures.

1. Preparation:
   • Ensure the excavator is on a stable surface and the engine is turned off.

   • Gather necessary tools, including wrenches, hydraulic hoses, and mounting hardware.

2. Removing the Existing Bucket:
   • Use the excavator's boom and arm to remove the existing bucket.

   • Secure the bucket in a safe location.

3. Attaching the Thumb:
   • Align the thumb's mounting points with the excavator's arm.

   • Install the main pivot pin and secure it with the provided hardware.

   • Attach the hydraulic cylinder to the thumb and the excavator's arm, ensuring proper alignment.

4. Connecting Hydraulic Lines:
   • Identify the auxiliary hydraulic ports on the excavator.

   • Connect the hydraulic hoses from the thumb's cylinder to the auxiliary ports, ensuring correct flow direction.

   • Tighten all connections to prevent leaks.

5. Testing the Installation:
   • Start the excavator and engage the hydraulic system.

   • Operate the thumb to ensure smooth movement and proper function.

   • Check for any hydraulic leaks and rectify as necessary.


• Hydraulic Flow Requirements: Ensure that the excavator's hydraulic system provides adequate flow and pressure to operate the thumb efficiently.

• Cylinder Size and Stroke: Select a hydraulic thumb with a cylinder size and stroke length compatible with the 311F L's specifications to ensure optimal performance.

• Mounting Compatibility: Verify that the thumb's mounting system is compatible with the 311F L's arm design to facilitate easy installation.

• Maintenance: Regularly inspect the hydraulic thumb for wear and tear, and perform maintenance as recommended by the manufacturer to prolong its lifespan.


Water trucks are essential pieces of equipment used in various industries such as construction, mining, agriculture, and firefighting. These trucks play a crucial role in dust suppression, water delivery, and even emergency response. The chassis of a water truck is the foundational structure that supports the body, tanks, and other essential components of the vehicle.
In this article, we will delve into the design, functionality, and key considerations for water truck chassis, exploring how they are built to withstand the demands of heavy-duty use, their structural components, and the factors to consider when selecting or maintaining a water truck chassis.
What is a Water Truck Chassis?
A water truck chassis serves as the core framework of the vehicle, providing support for the water tank, pump system, hoses, and other equipment necessary for the truck's operation. Unlike typical trucks that may carry freight or general cargo, the chassis of a water truck is designed to handle the additional weight and complexity of a large water tank while also accommodating the distribution of water and pressurized systems.
The chassis must be built to support the added load of a full water tank, which can vary depending on the truck's purpose and design. These trucks often work in harsh environments, including construction sites, quarries, and mines, which places additional demands on the chassis in terms of durability, maneuverability, and load-bearing capacity.
Key Components of a Water Truck Chassis
A water truck chassis is not just a simple vehicle frame but is integrated with various components that enhance its performance and functionality. Key components include:

1. Frame: The main structure that supports the truck's load. Typically made of high-strength steel or alloy, the frame must be able to bear the weight of the water tank, pump system, and the water itself.

2. Suspension System: Water trucks often operate on rough terrain, so a robust suspension system is crucial. Suspension components, such as leaf springs or air suspension, help absorb the shocks and vibrations from uneven surfaces.

3. Axles: These are essential for supporting the weight of the truck and water tank. The number and size of axles depend on the truck's gross vehicle weight rating (GVWR).

4. Drive System: This includes the transmission, drive shafts, and differential. Water trucks often require additional power to handle the heavy load and challenging terrain, so a strong and efficient drivetrain is essential.

5. Brakes: Water trucks require heavy-duty braking systems to ensure safety while hauling large loads of water. These brakes must be able to handle the added weight, especially during downhill driving or when stopping on uneven terrain.

6. Tires: The tires on a water truck must be durable enough to handle rough construction or mining sites. These tires are typically larger and designed to support the weight of the water truck without risk of failure.

7. Mounting Systems for Tank and Equipment: The chassis must be designed to support and secure a large water tank, along with various pumps, nozzles, and hoses used for distributing water.


• Explanation: Water tanks can hold hundreds to thousands of gallons of water. Depending on the application, a full water tank can weigh several tons. Therefore, it is essential to select a chassis that has a sufficient Gross Vehicle Weight Rating (GVWR) to support the tank and any additional equipment.

• Considerations: Choose a chassis with a higher GVWR to account for the weight of the full water tank, any additional equipment, and future wear-and-tear. If the chassis is underbuilt, it may suffer from premature fatigue or structural failure.


• Explanation: Water trucks are often exposed to harsh environments, including rugged terrains, extreme temperatures, and potential chemical exposure from the water or contaminants. A chassis made from high-strength steel or other durable materials is critical for long-lasting performance.

• Considerations: Opt for chassis that feature corrosion-resistant coatings or galvanization to help prevent rust and damage from prolonged exposure to water and other chemicals.


• Explanation: Water trucks often work in construction zones, mines, quarries, and agricultural fields, which can involve off-road conditions. A chassis designed for optimal maneuverability and the ability to traverse rugged terrain is a must.

• Considerations: Choose a chassis with a heavy-duty suspension system, strong axles, and sufficient ground clearance to handle rough roads and obstacles.


• Explanation: The suspension system plays a vital role in the comfort and safety of the vehicle. Water trucks that travel on uneven or rocky terrain need a suspension system that can handle the added stress and keep the chassis stable while preventing excessive wear on the suspension components.

• Considerations: Air suspensions are often preferred for water trucks, as they provide better load control, are more adjustable, and can improve overall ride quality.


• Explanation: The chassis of a water truck must be compatible with the hydraulic systems that power the pumps, hoses, and nozzles used to distribute water.

• Considerations: Look for chassis with pre-installed hydraulic lines or mounts for easy integration of pump systems. Depending on the truck's intended use, you may need additional space for larger pump systems or reservoirs.


• Explanation: Water trucks are typically equipped with heavy-duty tires designed to handle the added weight and demanding terrain. Tire durability is essential for preventing blowouts and maintaining operational uptime.

• Considerations: Select tires with reinforced sidewalls and deep treads for better traction on uneven ground. The tire pressure must also be regularly checked to ensure even wear.


1. Inspect the Suspension and Axles: Regularly inspect the suspension components and axles for wear and tear. Replace worn-out components to maintain the stability and handling of the vehicle.

2. Check the Frame for Cracks or Damage: Periodically inspect the chassis frame for signs of cracks or damage, especially around high-stress areas like the mounts for the water tank. Address any issues immediately to avoid more significant structural damage.

3. Monitor Brake Performance: Given the heavy load that water trucks carry, brake components need regular inspection and maintenance. Ensure that the brake pads are replaced when they show signs of wear and that brake fluid levels are adequate.

4. Tire Inspections: Regularly inspect tires for punctures, sidewall bulges, or tread wear. Ensure that tires are inflated to the correct pressure for optimal performance.

5. Corrosion Prevention: Apply anti-corrosion treatments to the chassis, especially in areas where water or chemicals may accumulate. Keep an eye out for rust or salt damage in wet or coastal environments.

6. Hydraulic System Maintenance: Regularly check hydraulic hoses, pumps, and filters to ensure the system operates efficiently. Replace any worn-out or leaking components promptly.


The 1995 John Deere 410D Backhoe Loader is a versatile and reliable machine widely used in construction, landscaping, and municipal maintenance. However, like all heavy equipment, it can experience hydraulic system issues that may affect performance. This comprehensive guide delves into common hydraulic problems associated with the 410D, their causes, diagnostic procedures, and recommended solutions.

Understanding the Hydraulic System
The hydraulic system of the John Deere 410D is a closed-center system, meaning that the pump continuously circulates fluid through the system, and valves direct the flow to various actuators as needed. Key components include:

• Hydraulic Pump: Delivers pressurized fluid to the system.

• Control Valves: Direct fluid to the appropriate cylinders or motors.

• Hydraulic Cylinders: Execute the mechanical work (e.g., lifting, digging).

• Hydraulic Fluid Reservoir: Stores the hydraulic fluid.

• Filters and Screens: Remove contaminants from the fluid.

• Priority Valve: Ensures steering functions receive adequate flow.


1. Slow or Weak Hydraulic Operation
   Symptoms include sluggish movement of the loader arms, backhoe, or bucket. Possible causes are:
   • Contaminated Hydraulic Fluid: Presence of metal shavings or debris can obstruct flow.

   • Clogged Filters or Screens: Obstructions can impede fluid flow.

   • Low Hydraulic Fluid Levels: Insufficient fluid can lead to cavitation.

   • Worn Hydraulic Pump: Reduced capacity can result in low pressure.

2. Hydraulic Lock or No Movement
   When the system locks up or no movement occurs, potential causes include:
   • Air in the System: Introduced when the system runs dry.

   • Priority Valve Malfunction: Steering may not receive adequate flow.

   • Control Valve Issues: Sticking or damaged valves can prevent movement.

3. Hydraulic Fluid Leaks
   Leaks can lead to low fluid levels and system failure. Common leak sources are:
   • Damaged Hoses or Fittings: Wear or impact damage.

   • Worn Seals or Gaskets: Age and pressure can cause degradation.

   • Cracked Reservoir: Physical damage or corrosion.


1. Check Hydraulic Fluid Levels and Condition
   Ensure the fluid is at the recommended level and appears clean.

2. Inspect for Leaks
   Examine hoses, cylinders, and the reservoir for signs of leakage.

3. Test System Pressure
   Using a pressure gauge, verify that the system operates within the specified pressure range.

4. Examine Filters and Screens
   Replace any clogged or damaged filters and clean screens.

5. Bleed the System
   If air is suspected, bleed the system to remove trapped air.

6. Inspect Control Valves
   Check for sticking or damage.

7. Evaluate the Priority Valve
   Ensure it directs adequate flow to steering functions.


1. Replace Contaminated Hydraulic Fluid
   Drain and replace with the manufacturer-recommended fluid.

2. Clean or Replace Filters and Screens
   Use genuine John Deere parts to maintain system integrity.

3. Repair or Replace Leaking Components
   Address damaged hoses, seals, or fittings promptly.

4. Replace Worn Hydraulic Pump
   If the pump is underperforming, consult with a John Deere dealer for a suitable replacement.

5. Bleed the System
   Follow the manufacturer's procedure to remove air from the system.

6. Service Control Valves
   Clean or replace damaged valves as necessary.

7. Inspect and Service the Priority Valve
   Ensure it functions correctly to prioritize steering flow.


• Regularly Check Fluid Levels and Condition
  Monitor and maintain proper fluid levels.

• Change Hydraulic Fluid and Filters Periodically
  Follow the manufacturer's recommended intervals.

• Inspect Hoses and Fittings for Wear
  Replace damaged components promptly.

• Keep the Hydraulic System Clean
  Avoid introducing contaminants into the system.

• Address Issues Promptly
  At the first sign of trouble, perform diagnostics and make necessary repairs.


Vemco is a name that resonates in the world of heavy equipment, particularly in relation to specialized machinery used in construction, mining, and industrial operations. As a manufacturer of equipment such as crushers, screeners, and other heavy-duty machinery, Vemco has built a reputation for producing durable and high-performance machines. However, like all complex equipment, Vemco machines occasionally encounter issues that need attention.
This article explores some of the common problems faced by users of Vemco equipment, provides troubleshooting solutions, and discusses best practices to ensure that these machines run efficiently.
What is Vemco?
Vemco is a global leader in the design and manufacture of industrial machinery, including crushers, screeners, and conveyor systems. While less commonly known to the average consumer, Vemco’s equipment plays an essential role in industries like construction, mining, and demolition. Their machines are built to withstand heavy-duty applications and provide efficient solutions for material handling, crushing, and sorting.
Some of the notable Vemco equipment includes:

• Vemco Crushers: Used to reduce large pieces of rock or ore into smaller, more manageable sizes for further processing.

• Vemco Screeners: These are used for sorting materials by size and often accompany crushers in aggregate processing plants.

• Vemco Conveyors: These machines are essential for transporting materials across job sites.


• Low hydraulic fluid levels.

• Contaminated hydraulic fluid.

• Worn-out hydraulic seals or cylinders.

• Leaking hydraulic hoses.


• Check hydraulic fluid levels and top off as necessary. Ensure that you are using the correct type of fluid for the system.

• Inspect hydraulic lines and fittings for leaks. Replace any damaged hoses or seals.

• Clean or replace hydraulic filters if contamination is suspected.

• If the issue persists, consult a hydraulic specialist to check the pump and actuator for wear.


• Loose or corroded electrical connections.

• Faulty wiring or damaged fuses.

• Malfunctioning alternator or voltage regulator.

• Overheating components causing power cuts.


• Inspect the machine’s wiring harness for loose or corroded connections. Clean and tighten connections as needed.

• Check fuses and replace any that are blown.

• Test the alternator and voltage regulator to ensure they are operating correctly. Replace any faulty components.

• Check for overheating issues in electrical components, such as the control panel or wiring, and rectify by improving ventilation or reducing load.


• Low coolant levels or contaminated coolant.

• Clogged radiator fins or cooling system.

• Malfunctioning thermostat.

• Engine load too high for prolonged periods.


• Inspect the coolant levels and refill with the manufacturer-recommended coolant type.

• Check the radiator and clean it to remove dirt, debris, or blockages that could restrict airflow.

• Test the thermostat and replace it if it’s not regulating the engine temperature properly.

• Ensure the machine isn’t being overloaded and allow sufficient cooling breaks during high-load operations.


• Clogged air filters or fuel filters.

• Worn-out components in the drive train.

• Incorrect machine settings or calibration.

• Systemic pressure loss in hydraulic or pneumatic systems.


• Clean or replace air filters, fuel filters, and intake screens to improve engine and hydraulic performance.

• Inspect the drive train for wear, including gears and belts. Replace any worn parts that are not performing as expected.

• Check the settings and recalibrate systems as needed.

• If the pressure loss is in the hydraulic system, inspect and repair pressure relief valves and check for any blocked lines.


• Improper material handling or too much material being fed into the machine.

• Damaged or worn-out belts or screens.

• Blockages in the feed hopper.


• Ensure the material being fed into the machine is within the recommended size and capacity.

• Regularly inspect conveyor belts and screens for damage. Replace parts that show excessive wear or tears.

• Clear blockages in the feed hopper and clean the intake area to avoid material buildup.

• Train operators to handle materials properly, reducing the chance of overloading the system.


1. Start with the Power Supply
   • Check the battery and electrical system first. Low voltage or dead batteries are common causes of operational failures.

   • Ensure that the alternator and regulator are functioning properly.

2. Inspect the Hydraulic System
   • Check for hydraulic fluid leaks or signs of contamination.

   • Inspect hydraulic hoses, filters, and seals.

   • Perform a test of the hydraulic pump and cylinders.

3. Examine the Engine and Cooling System
   • Check coolant levels and ensure that the radiator is clean.

   • Inspect the thermostat and cooling system components for proper operation.

4. Verify Component Settings and Calibration
   • For machines that require calibration, verify that all settings match the manufacturer’s specifications.

   • Recalibrate if necessary to ensure proper performance.

5. Look for Blockages
   • In crushers and screeners, make sure the feed hoppers are free from debris.

   • Check conveyor belts and screens for material blockages or damage.


• Schedule Regular Inspections: Regularly inspect hydraulic, electrical, and engine components to catch potential issues early. Perform visual checks for leaks, wear, or damage.

• Lubricate Moving Parts: Keep moving parts, such as conveyors and crushers, well-lubricated to reduce wear and prevent breakdowns.

• Follow Manufacturer’s Maintenance Guidelines: Always adhere to the maintenance schedule outlined in the equipment manual. This includes changing fluids, filters, and checking key components.

• Proper Material Handling: Train operators on how to load the machine correctly to prevent overloading and material blockages.
