Introduction
Mini excavators are indispensable tools in construction, landscaping, and utility work. Their compact size allows them to operate in confined spaces, making them ideal for urban environments. However, like all machinery, their longevity is influenced by usage hours, maintenance practices, and operating conditions. This article delves into the factors affecting a mini excavator's lifespan and provides insights into determining when a machine has been overused.
Average Lifespan of Mini Excavators
The lifespan of a mini excavator is typically measured in operating hours. On average:

• 7,000 to 10,000 hours: This range is considered standard for mini excavators under normal operating conditions with regular maintenance.

• 10,000 to 12,000 hours: With meticulous care and light usage, some high-quality mini excavators can reach this threshold.

• Beyond 12,000 hours: Exceeding this mark is uncommon and often indicates exceptional maintenance or light-duty usage.


• Maintenance Practices: Regular servicing, timely oil changes, and proper lubrication can significantly extend the machine's life.

• Operating Conditions: Machines used in harsh environments or for heavy-duty tasks may experience accelerated wear.

• Brand and Build Quality: Reputable brands with robust engineering tend to offer longer-lasting machines.


• Engine Performance: Diminished power or increased fuel consumption can indicate engine wear.

• Hydraulic System: Sluggish or unresponsive hydraulics may suggest pump or valve issues.

• Undercarriage: Excessive wear on tracks or rollers can lead to costly repairs.

• Structural Components: Loose or worn pins and bushings can affect the machine's stability and precision.


• Regular Inspections: Conduct daily checks for leaks, unusual noises, or loose components.

• Timely Servicing: Adhere to the manufacturer's recommended service intervals.

• Proper Storage: Store the machine in a sheltered environment to protect it from the elements.

• Operator Training: Ensure operators are trained to use the machine efficiently and safely.


Track-driven equipment, such as excavators, bulldozers, and track loaders, plays a crucial role in heavy-duty operations across construction, mining, and agriculture. Unlike wheeled vehicles, these machines rely on continuous tracks to distribute their weight over a larger surface area, providing better traction and stability on rough terrain. However, one of the most important aspects of maintaining these machines is ensuring the proper track tension. Incorrect track tension can lead to a range of issues, including reduced performance, increased wear and tear, and even costly damage. In this article, we'll explore why track tension is vital, how to adjust it, and the benefits of keeping it at optimal levels.
What is Track Tension and Why Does It Matter?
Track tension refers to the amount of tightness or slack in the continuous track system. The tracks on heavy equipment are designed to maintain a certain amount of tension for optimal performance. If the tracks are too loose, they may slip off, causing excessive wear on the undercarriage components. If the tracks are too tight, it can strain the drivetrain and other critical parts, leading to potential damage and a decrease in fuel efficiency.
Proper track tension ensures that the tracks maintain a solid grip while also preventing unnecessary wear on both the tracks and the machine itself. The correct tension helps distribute the load evenly across the track system, enhancing overall machine performance and extending the lifespan of the components.
Signs of Improper Track Tension
To ensure that track tension is correct, it’s important to know the signs of improper tension. Here are a few common indicators:

• Loose Tracks:
  • Excessive slack or play in the tracks can cause them to slip or even derail in extreme cases. This can happen when the track is not sufficiently tensioned, and the result is inefficient power transfer, reduced traction, and potential damage to the track drive system.

  • Signs of loose tracks include noticeable sagging or track sag while the machine is idle.

• Tight Tracks:
  • If the tracks are too tight, you may notice a significant increase in fuel consumption, as the engine has to work harder to move the tracks.

  • Tight tracks can cause excessive friction, leading to increased wear on the undercarriage components, such as the sprockets, rollers, and idlers.

  • Another indicator is the track feeling "stiff" or "hard" when moving, and the overall machine performance may feel sluggish.


1. Park the Machine on Level Ground:
   Ensure the equipment is on flat, level ground before checking or adjusting the track tension. This ensures that the machine’s weight is evenly distributed across the tracks, providing an accurate measurement.

2. Check for Visible Signs of Wear or Damage:
   Inspect the tracks for any visible signs of wear, such as cracks, worn teeth on the sprockets, or damage to the track itself. If the tracks show excessive wear, it might be a sign that the tension is not optimal.

3. Measure the Track Sag:
   Use a measuring tool or a track tension gauge to measure the amount of track sag. There are various methods depending on the model of the machine, but the general rule is to measure the amount of sag when the machine is idle and compare it to the manufacturer's specifications.

4. Adjust the Track Tension:
   • For loose tracks, you will need to tighten them. Most machines have a tensioning system that can be adjusted using a grease gun or hydraulic tensioner. By adding grease to the tensioning cylinder, you can increase the pressure and tighten the track.

   • For tight tracks, you will need to release some of the pressure. This can often be done by venting the grease from the tensioner or using a release valve.

5. Recheck the Tension:
   After adjusting, recheck the track sag and ensure it falls within the recommended range. It's important to make small adjustments and recheck regularly rather than over-tensioning the tracks in one go.

6. Test the Equipment:
   After adjusting the tension, take the machine for a test run. Pay attention to its movement, ensuring that the tracks are running smoothly and that the machine isn't experiencing any unusual behavior like slipping or excessive noise.


• Hydraulic Tensioning Systems:
  Many modern machines are equipped with hydraulic tensioning systems, which allow for easy adjustments using a hydraulic pump or grease gun. These systems are efficient and can be quickly adjusted without the need for manual tools.

• Grease Gun Method:
  Some older machines or models with manual tensioning systems use a grease gun to adjust track tension. By pumping grease into the tensioning cylinder, operators can increase the track tension. To decrease tension, the grease is vented out.

• Track Tension Gauge:
  A track tension gauge is a specialized tool that can measure the deflection or sag in the track. This tool is helpful for determining if the track tension is within the manufacturer’s recommended specifications.


1. Machine Load:
   The weight and load being carried by the machine can affect track tension. A heavily loaded machine may put more strain on the tracks, requiring increased tension to prevent slippage.

2. Environmental Conditions:
   Weather conditions, such as extreme heat or cold, can affect the tension in the tracks. For instance, in cold weather, the metal components of the track system may contract, affecting the tension. Similarly, in hot climates, the track components may expand, requiring adjustments to the tension.

3. Track Wear:
   As tracks age, they naturally stretch and wear down. This can result in the need for more frequent adjustments to maintain the correct tension.

4. Undercarriage Maintenance:
   Regular inspection and maintenance of the undercarriage components, such as rollers, idlers, and sprockets, play a critical role in ensuring proper track tension. Worn or damaged undercarriage parts can lead to uneven tension across the track.


1. Improved Fuel Efficiency:
   Properly tensioned tracks ensure that the machine operates efficiently, reducing fuel consumption by minimizing unnecessary friction and wear.

2. Longer Track Life:
   Maintaining the correct track tension reduces wear and tear on the tracks, sprockets, and other undercarriage components. This results in longer track life and fewer replacements.

3. Better Performance:
   Machines with correctly tensioned tracks provide better traction and smoother operation, especially on challenging terrains.

4. Reduced Maintenance Costs:
   Proper track tension helps prevent excessive wear on critical components, reducing the need for frequent repairs and ultimately saving on maintenance costs.


Introduction: Why Front-Mounting Makes Sense
Mounting a hydraulic pump to the front of a tractor’s crankshaft pulley is a time-tested solution for adding auxiliary hydraulic power to older machines like the Fordson Dexta or Ferguson TEA-20. These tractors often lack factory-installed hydraulic systems capable of powering modern implements, making a front-mounted pump an elegant workaround. When done correctly, this setup offers reliable flow, consistent pressure, and minimal interference with existing drivetrain components.
Understanding the Components and Their Roles
A successful front-mounted hydraulic pump installation requires careful coordination of several mechanical elements:
- Hydraulic pump (e.g., Char-Lynn 10 GPM)
- Flexible coupling (e.g., Lovejoy L or C type)
- Drive shaft or keyed extension
- Crankshaft pulley adapter
- Mounting bracket or support plate
- Pillow block bearing (optional for shaft support)
Terminology Note: Lovejoy Coupling and Pillow Block
- Lovejoy Coupling: A flexible jaw-type coupling that connects rotating shafts while absorbing misalignment and vibration.
- Pillow Block Bearing: A mounted bearing used to support a rotating shaft, often placed between the pump and the crank pulley to reduce stress and maintain alignment.
Designing the Crankshaft Interface
The most critical challenge is connecting the pump to the crankshaft pulley. Since most vintage tractors don’t offer a factory PTO adapter for the front pulley, custom fabrication is often required. A machinist can create a bolt-on plate that attaches to the harmonic balancer or crank pulley, featuring a keyed shaft that matches the pump’s input.
Key design considerations include:
- Ensuring concentric alignment to prevent vibration
- Using grade 8 bolts and lock washers for secure fastening
- Matching shaft diameter and keyway dimensions precisely
- Allowing for thermal expansion and rotational torque
Suggested Parameters for Pump Operation
- Flow rate: 10 GPM at 1,800–2,000 RPM
- Operating pressure: 2,000–2,500 PSI
- Shaft speed: Matches engine RPM (direct drive)
- Coupling torque rating: ≥ pump torque requirement
- Pump inlet size: 1" NPT or SAE 16 (for adequate suction)
Installation Tips and Best Practices
- Use a Lovejoy coupling with rubber spider insert to dampen vibration
- Install a pillow block bearing if the shaft exceeds 12 inches in length
- Ensure the pump is mounted securely to the tractor frame or front bracket
- Check rotation direction—most pumps are clockwise when viewed from the shaft
- Prime the pump before startup to prevent dry running
- Use high-quality hydraulic fluid with anti-foaming additives
Anecdote: The Golf Course Retrofit
A golf course owner in Wisconsin retrofitted an IH tractor with a front-mounted hydraulic pump to power a turf aerator. The setup included a custom crank adapter, Lovejoy coupling, and pillow block bearing. After initial alignment issues caused shaft wobble, the team added a second bearing and achieved smooth operation. The system ran flawlessly for five seasons, proving the viability of front-mounted solutions in commercial settings.
Common Pitfalls and How to Avoid Them
- Misalignment between crankshaft and pump: Use dial indicators during setup
- Incorrect rotation direction: Verify before coupling installation
- Overheating due to undersized reservoir or poor ventilation: Add cooling fins or auxiliary fan
- Vibration from loose couplings: Torque bolts to spec and use thread locker
- Pump cavitation from restricted inlet: Use large-diameter suction hose and avoid sharp bends
Alternative Solutions for Hydraulic Power
If front-mounting proves impractical, consider these alternatives:
- Rear PTO-driven hydraulic pump with reservoir
- Electric hydraulic power pack (for low-flow applications)
- Engine-mounted auxiliary pump (if space allows)
- Hydraulic take-off from transmission (on select models)
Conclusion: Engineering a Reliable Hydraulic Add-On
Front-mounted hydraulic pumps offer a powerful upgrade path for vintage tractors, enabling them to operate modern implements with ease. Success depends on precision machining, proper alignment, and thoughtful component selection. Whether you're restoring a classic Ferguson or outfitting a Fordson for field duty, this approach blends old-school engineering with modern hydraulic capability—bringing new life to machines that still have plenty of work left in them.

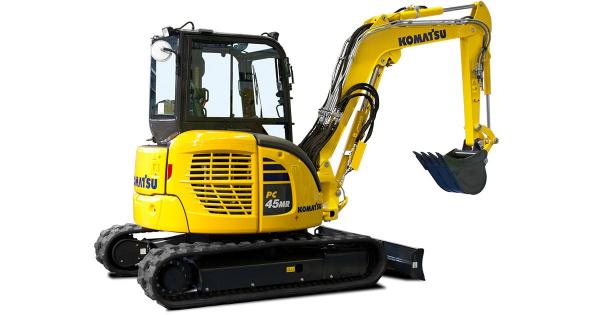

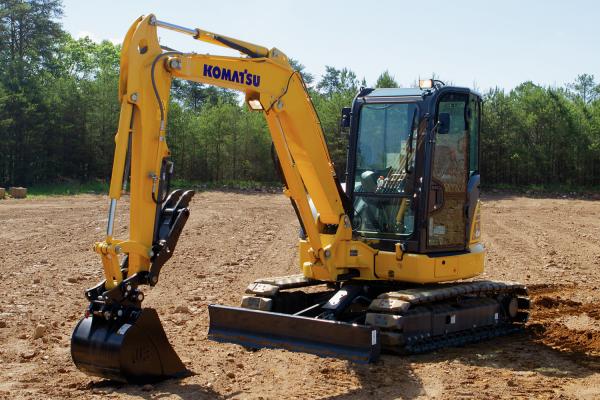

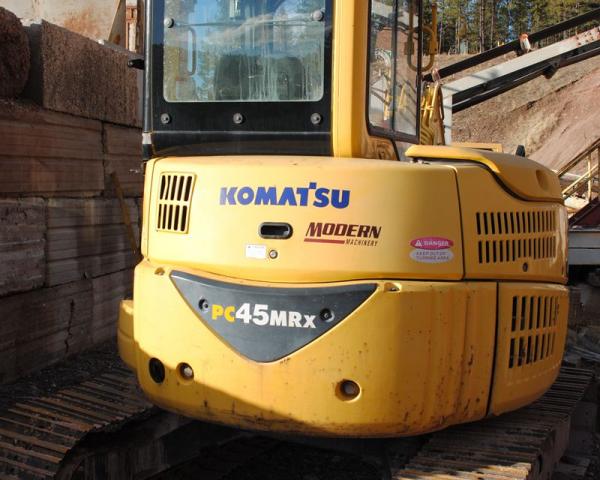

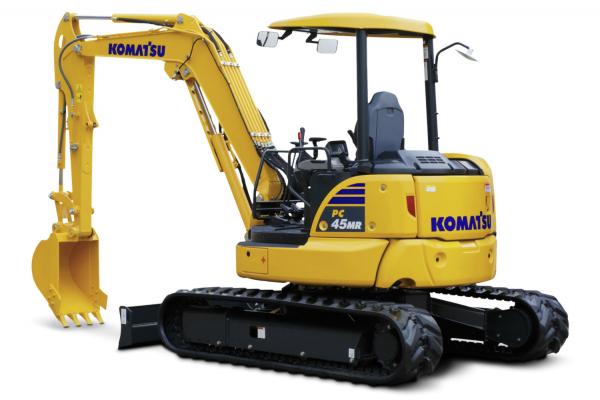

Overview
The Komatsu PC45MR family—featuring models like the PC45MR, PC45MR-3, PC45MR-5, and PC45MRX-1—offers tight-tail-swing hydraulic excavators ideal for urban, utility, and confined-space operations. These machines blend compact dimensions with substantial digging power and smart hydraulics.
Key Specifications & Features
Engine & Performance

• Powered by a Komatsu 4-cylinder, direct-injection engine (model 4D88E-7) delivering around 38 hp @ 2,400 rpm .

• Operating weight ranges between 10,700 and 11,000 lbs, depending on canopy or cab, with rubber track undercarriage .

• Engineered for tight jobsite maneuverability, the minimal tail swing extends only about 60 mm beyond the tracks .


• Equipped with Komatsu’s HydrauMind system enabling two selectable work modes that adjust hydraulic behavior for fuel savings or higher productivity .

• Features variable displacement piston pumps and dedicated swing and blade pumps, delivering 153 L/min (40 gpm) flow to working circuits .


• Dig depth up to approximately 12 ft, and maximum reach around 19–20 ft, depending on boom and arm configuration .

• Compact undercarriage—track width around 1.96 m—enables transport on narrow trailers or through tight spaces .


• Spacious, accessible cabin or canopy with excellent visibility, comfortable suspension seat, and intuitive joystick controls .

• Service access is simplified by wide-opening engine hoods, side panels, tilting operator station, and grouped grease points on booms .

• Integrated KOMTRAX telematics provide monitoring for maintenance, operation history, and remote diagnostics .


• Users can choose among rubber, steel, or road-liner tracks, plus optional attachments like power-angle blades and auxiliary hydraulics for tools like breakers or thumbs .


• Tight Tail Swing (MR): Minimal protrusion behind the excavator’s footprint for operation in cramped areas.

• HydrauMind: A smart hydraulic setup that optimizes power usage and control responsiveness.

• KOMTRAX: Komatsu’s wireless machine-monitoring system offering telematics and maintenance alerts.


• Match track type to ground conditions—rubber tracks for paved or delicate surfaces, steel for rough or abrasive terrain.

• Utilize KOMTRAX data to schedule maintenance proactively and maintain peak hydraulic efficiency.

• Choose auxiliary hydraulics for attachments to avoid manual coupling—enhances safety and productivity.

• For tight areas, the minimal tail swing offers major shields against structural contact; always observe full swing clearance.


• Compact Excavator Class: 38 hp, ~10,700–11,000 lbs weight.

• Hydraulic System: HydrauMind with selectable modes and auxiliary options.

• Work Range: ~12 ft dig depth, ~20 ft reach.

• Access & Maintenance: Great service access, KOMTRAX enabled.

• Operator Environment: Comfortable seat, excellent visibility, user-friendly controls.


In heavy equipment operations, particularly those involving earth-moving machines such as excavators, bulldozers, and loaders, the cooling system is one of the most critical components. However, these machines are often exposed to harsh environments, especially in areas with dry, dusty conditions. Sand, dirt, and other particulates can clog the radiator, causing the engine to overheat and ultimately leading to costly downtime. To combat this, many operators turn to anti-sandblast radiator screens, an essential tool designed to protect the radiator from these abrasive elements.
Understanding the Role of Radiator Screens
A radiator’s primary function is to cool the engine by dissipating heat from the coolant. This is done through a series of cooling fins and tubes that allow air to flow through and reduce the temperature of the coolant. However, in dusty or sandy environments, debris can easily accumulate on the radiator, restricting airflow and reducing its efficiency. This can result in the engine overheating, which leads to breakdowns and possible damage to the engine.
Radiator screens, particularly anti-sandblast models, serve to prevent this from happening by filtering out sand, dust, and other abrasive materials before they can reach the radiator. They act as a first line of defense against particles that can clog the cooling system and reduce the performance of the engine.
What Is an Anti-Sandblast Radiator Screen?
Anti-sandblast radiator screens are designed to be tough and durable, offering superior protection against the harmful effects of airborne particulates. These screens are typically made from materials that are resistant to abrasion, such as stainless steel or coated mesh, and are engineered to withstand the high-velocity impact of sand, dust, and other materials.
The purpose of the sandblast screen is to allow air to pass through while blocking out the bulk of debris. This ensures that the radiator stays clean and functions at optimal levels, improving engine efficiency and extending the lifespan of the machinery.
Key Features of Anti-Sandblast Screens

1. Durable Materials: High-quality materials like stainless steel mesh or wire are often used for the construction of anti-sandblast screens. These materials are chosen for their resistance to wear and tear, making them ideal for handling abrasive environments.

2. Custom Fit: Radiator screens are typically designed to fit specific models of equipment, such as bulldozers, excavators, or wheel loaders. The screen is tailored to ensure maximum coverage of the radiator and optimal airflow.

3. Easy Installation and Maintenance: These screens are designed for easy installation and removal, making it simple for operators to clean and maintain the screens without requiring excessive downtime. In many cases, screens are equipped with mounting brackets that allow for quick attachment or removal from the equipment.

4. Prevent Clogging: The mesh is fine enough to filter out sand and dirt but still allows for sufficient airflow to the radiator, ensuring it continues to perform efficiently. This reduces the risk of the radiator becoming clogged, which could lead to engine overheating and potential engine failure.


1. Prevent Overheating: The primary benefit of an anti-sandblast radiator screen is its ability to keep the radiator clean and functioning properly. By preventing debris from clogging the radiator, the screen ensures that the engine stays cool, which prevents overheating. Overheating can cause significant engine damage, resulting in costly repairs and extended downtime.

2. Increase Equipment Longevity: By protecting the radiator and cooling system from debris, the anti-sandblast screen helps to prolong the lifespan of the equipment. Sand and dust can cause erosion and clogging over time, but with a screen in place, this wear and tear are minimized, allowing the equipment to run smoothly for longer periods.

3. Reduce Maintenance Costs: Preventing debris from entering the radiator reduces the need for frequent radiator cleanings and repairs. This lowers overall maintenance costs and reduces the frequency of service calls.

4. Improve Efficiency: Keeping the radiator free of debris ensures that the engine operates at peak efficiency. A clean and effective radiator leads to improved performance, lower fuel consumption, and better overall productivity.


• Construction Sites: Heavy machinery on construction sites often deals with dusty conditions, especially when moving earth, sand, or gravel. Radiator screens are essential to ensure that the machines stay cool and avoid overheating.

• Mining Operations: In mining environments, equipment is frequently exposed to abrasive dust and dirt. The use of anti-sandblast screens helps prevent radiators from becoming clogged and keeps machines running at optimal temperatures.

• Agricultural Operations: Tractors, harvesters, and other agricultural machines are often used in dusty fields or during harvest periods, where airborne dust can cause radiator issues. Installing radiator screens can help mitigate these problems.

• Landscaping and Forestry: Machines used for landscaping or forestry work, such as skid steers or bulldozers, frequently operate in areas with heavy debris and dirt. Radiator screens are a simple and effective way to ensure that the engine stays cool in these environments.


1. Ensure Proper Fit: It’s crucial to ensure that the screen fits snugly against the radiator. A poorly fitted screen may allow debris to bypass the mesh, reducing its effectiveness.

2. Regular Cleaning: Even though the screen helps prevent clogging, it will still need to be cleaned regularly. Dust and dirt can accumulate on the screen over time, obstructing airflow and reducing its efficiency. It is important to remove and clean the screen regularly to ensure continued performance.

3. Inspect for Damage: Periodically inspect the screen for any signs of damage, such as holes or tears. If the screen becomes damaged, it may no longer provide adequate protection, so it’s important to replace it promptly.

4. Monitor Engine Temperature: After installation, monitor the engine temperature regularly. If the temperature rises beyond normal operating levels, it may indicate that the screen is clogged or damaged and needs attention.


Introduction: Why Serial Numbers Matter
In the world of heavy equipment, a serial number is more than just an identifier—it’s the key to understanding a machine’s origin, age, configuration, and service history. For Caterpillar (CAT) machines, decoding the serial number can reveal the year of manufacture, which is essential for sourcing parts, verifying emissions compliance, and assessing resale value. Whether you're restoring a backhoe or verifying a dozer’s lineage, knowing how to interpret CAT serial numbers is a must-have skill.
Understanding the Structure of CAT Serial Numbers
Caterpillar serial numbers typically follow a structured format that includes:
- Prefix code (usually three characters)
- Sequence number (usually five digits)
- Arrangement number (optional, for configuration details)
- Engine serial number (separate but often linked)
For example, a serial number like 4ZN21172 breaks down as:
- 4ZN: Prefix code identifying the model and manufacturing location
- 21172: Sequence number indicating production order
Terminology Note: Prefix Code and Arrangement Number
- Prefix Code: A three-character identifier assigned to a specific model and factory. For instance, “4ZN” corresponds to a CAT 416C backhoe loader built in the late 1990s.
- Arrangement Number: A supplemental code that details the machine’s configuration, including engine type, transmission, and attachments.
Determining the Year of Manufacture
Caterpillar maintains internal records that link prefix codes and sequence numbers to production years. In the case of serial number 4ZN21172, the machine was manufactured in the first quarter of the year 2000.
While CAT does not publicly release a full serial-to-year database, experienced technicians and dealers often use proprietary lookup tools or printed guides to cross-reference serial numbers.
Suggested Parameters for Serial Number Verification
- Prefix code: 3 characters (e.g., 4ZN, C5M, 8BL)
- Sequence number: 5 digits (e.g., 21172)
- Year range: Typically spans 10–15 years per prefix
- Location code: Embedded in prefix (e.g., “Z” often denotes North American plants)
Recommendations for Serial Number Research
- Contact your local CAT dealer with the full serial number
- Use online lookup tools or request access to CAT’s SIS (Service Information System)
- Check the machine’s data plate, often located near the operator station or engine bay
- Compare with similar machines listed in auction databases or fleet records
Anecdote: The Auction Surprise
A contractor once purchased a used CAT 416C backhoe at auction, believing it was a 1997 model based on visual cues. After decoding the serial number (4ZN21172), he discovered it was actually built in 2000. This revelation helped him negotiate better insurance terms and confirmed compatibility with Tier 1 emissions regulations, which were introduced in the late 1990s.
Serial Number vs. Model Year: A Common Misunderstanding
It’s important to note that the model year printed on marketing materials or manuals may not match the actual build year. For example, a machine labeled “2000 model” may have been built in late 1999. Always rely on the serial number for precise dating.
Historical Context: Why CAT Changed Its Serial Format
In the 1980s and early 1990s, CAT used simpler serial formats. As product lines expanded and global manufacturing increased, the company adopted more complex coding to track variations in engine types, emissions packages, and regional configurations. This shift helped streamline parts ordering and warranty tracking across continents.
Alternative Solutions for Hard-to-Trace Machines
If the serial plate is missing or unreadable:
- Check stamped numbers on the frame or engine block
- Look for service records or dealer maintenance logs
- Use component casting numbers to estimate age
- Consult retired CAT technicians or online communities with legacy knowledge
Conclusion: Serial Numbers as a Window into Machine History
Decoding a Caterpillar serial number is like reading a machine’s birth certificate. It tells you when and where it was made, and often hints at its configuration and intended market. Whether you're maintaining a fleet, buying used equipment, or restoring a classic CAT, mastering serial number interpretation empowers you to make informed decisions and avoid costly mistakes. In the world of iron and hydraulics, a few digits can tell a story that spans decades.

Introduction
Experiencing a slowdown or sluggish performance from a CAT 257B’s track drive over time often comes down to declining hydraulic efficiency. If you're finding that counter-rotation requires extra throttle or responsiveness has faded after around 2,500 hours, you're not alone—and you may be able to restore performance with a few targeted adjustments.
Observing the Issue
Some operators have noticed that their loaders, which once responded briskly, now demand higher engine RPMs just to achieve smooth track counter-rotation. This degradation in drive responsiveness can be frustrating but is frequently linked to reduced hydraulic drive pressures through general wear or misadjustment over time.
Terminology to Know

• Track Drive Pressure – The hydraulic pressure pushing each final drive motor.

• Counter-Rotation – When one track moves forward and the opposite track reverses, enabling zero-radius turns.

• Hydrostatic Transmission – A system where hydraulic pumps and motors drive movement; efficiency depends on precise pressure settings.

• Pressure Adjustment Procedure – A calibration operation, typically quick, that restores the hydraulic system to spec.


• Monitor system pressures annually or every few hundred operating hours.

• Keep spare filters on hand and use OEM fluids.

• Log performance over time to spot gradual losses before they affect productivity.


• Diagnose: Confirm increased RPM needed for full-track spins.

• Service: Check/replace hydraulic filters; evaluate fluid condition.

• Adjust: Follow pressure recalibration steps—dealer support recommended unless you have the service manual.

• Test: Run under load and evaluate responsiveness post-adjustment.

• Escalate: If still lacking, test drive motors or consult for pump evaluation.


Introduction: The Importance of Panel Light Literacy
Operating a John Deere 650G crawler dozer without understanding its instrument panel is like flying blind. The panel lights are not mere decorations—they’re vital indicators of system health, safety, and performance. Yet, over time, sun exposure, wear, and missing lens covers can render these lights unreadable. This guide aims to demystify the panel layout, explain each light’s function, and offer practical advice for interpreting and responding to alerts.
Instrument Panel Layout and Light Functions
The John Deere 650G typically features a row of six warning lights below the main STOP indicator. These lights monitor critical systems and alert the operator to potential failures. From left to right, the lights generally represent:
- Engine Oil Pressure
- Coolant Temperature
- Transmission Oil Temperature
- Brake Pressure
- Battery Charging System
- Hydraulic Oil Temperature
Terminology Note: STOP Light and Transmission Temp
- STOP Light: A master warning indicator that illuminates when any critical system reaches a failure threshold. It demands immediate shutdown and inspection.
- Transmission Oil Temperature: A measure of heat within the transmission fluid. Excessive temperature can indicate overloading, poor cooling, or internal wear.
Transmission Temperature Light: A Case of Misunderstood Urgency
In one real-world scenario, an operator noticed a single light illuminating beneath the STOP indicator and halted operation immediately. Later investigation revealed it was the transmission oil temperature warning. While the instinct to stop was correct, the lack of label clarity delayed diagnosis.
Transmission overheating can result from:

• Prolonged pushing in high gear

• Clogged transmission cooler

• Low transmission fluid level

• Slipping clutches or worn torque converter


• Normal operating temperature: 180–220°F

• Warning threshold: ≥240°F

• Fluid level: Within sight glass or dipstick range

• Cooler flow rate: As per OEM spec (check with flow meter if needed)


• Replace faded or missing lens covers with OEM replacements

• Use a label maker or printed overlays to mark each light clearly

• Keep a laminated reference card in the cab for quick identification

• Clean panel regularly to prevent dust and condensation buildup

• Test each light during pre-operation checks using the key-on sequence


• Radiator blockage

• Fan belt failure

• Low fluid levels

• Excessive ambient heat or load


• Brake fluid leak or air intrusion

• Oil pump failure

• Blocked oil pickup screen

• Worn bearings or seals


• Conduct daily fluid checks before startup

• Monitor panel lights during operation, not just at startup

• Use infrared thermometers to spot overheating components

• Install aftermarket audible alarms for critical warnings

• Train operators to recognize and respond to each light


When comparing Komatsu's PC210 and PC200 models, many operators and fleet managers find it important to understand the nuances of both machines to make the best decision for their specific needs. These two models belong to Komatsu's well-regarded line of tracked excavators, but they cater to different applications, size requirements, and performance levels. Here’s a comprehensive breakdown of the differences between the Komatsu PC210 and PC200 to help you understand how they compare in terms of performance, features, and overall usability.
Engine Power and Performance
Both the Komatsu PC200 and PC210 are equipped with powerful engines, but their specifications vary slightly to offer different levels of power and performance.

• Komatsu PC200: The PC200 is generally powered by a Komatsu SAA6D102E-2 engine, which delivers a horsepower of around 138 hp. This model provides a good balance of power and fuel efficiency, making it suitable for medium to heavy-duty tasks.

• Komatsu PC210: The PC210, on the other hand, uses the Komatsu SAA6D107E-1 engine, delivering about 160 hp. This extra horsepower gives the PC210 an advantage when it comes to tasks requiring more power, such as heavy digging or lifting operations. It also allows the PC210 to handle more demanding job sites with improved efficiency.


• Komatsu PC200: The PC200 typically has an operating weight in the range of 20,000 to 22,000 kg (44,000 to 48,500 lbs). Its slightly smaller size makes it ideal for tighter spaces and jobs that don't require extreme lifting capacities.

• Komatsu PC210: The PC210 is a heavier machine, with an operating weight of around 21,000 to 24,000 kg (46,000 to 52,000 lbs), depending on the configuration. The increased weight contributes to its stability and improved lifting capability, especially in rough or uneven terrains.


• Komatsu PC200: The hydraulic system on the PC200 offers good performance for general construction work, with a flow rate of around 250–270 liters per minute (66–71 gallons per minute). It is efficient for most medium-duty tasks and offers a good balance between power and fuel consumption.

• Komatsu PC210: The PC210 features a more advanced hydraulic system with a flow rate of 290–320 liters per minute (77–84 gallons per minute). This higher flow rate translates to faster cycle times and improved productivity when working with heavy attachments or in challenging conditions.


• Komatsu PC200: The PC200 has a lifting capacity that generally ranges around 6,000 to 7,000 kg (13,200 to 15,400 lbs) at full reach. This makes it a solid choice for medium-duty lifting tasks and construction work that requires solid, reliable lifting power.

• Komatsu PC210: The PC210, with its increased engine power and hydraulic performance, can lift up to 7,500 to 8,000 kg (16,500 to 17,600 lbs) at full reach. This allows for more versatility, particularly when working with heavier materials or in situations where higher lifting capacity is needed.


• Komatsu PC200: The PC200 offers good fuel efficiency, with a fuel consumption rate around 15–20 liters per hour (4–5 gallons). Its relatively smaller engine size and simpler hydraulic system contribute to its lower fuel consumption.

• Komatsu PC210: With its larger engine and more advanced hydraulic system, the PC210 consumes slightly more fuel, averaging 18–25 liters per hour (4.8–6.6 gallons). However, its higher efficiency and faster cycle times compensate for the increased fuel use, especially for tasks requiring heavy lifting or digging.


• Komatsu PC200: The PC200 provides a standard operator cabin with air conditioning, adjustable seats, and user-friendly controls. While it may lack some of the newer technologies found in more recent models, it remains a solid choice for operators who value comfort and reliability.

• Komatsu PC210: The PC210 includes many upgrades, such as a more advanced electronic monitoring system, improved seat and cabin design, and enhanced air conditioning systems. These features make the PC210 a more comfortable machine for long work hours, especially for operators working in extreme conditions.


• Komatsu PC200: The PC200 is generally more affordable, both in terms of initial purchase cost and maintenance. It is a great option for businesses that require a versatile machine for medium-duty tasks but do not need the higher lifting capacity or advanced features of the PC210.

• Komatsu PC210: The PC210, being a more powerful and larger machine, carries a higher initial cost. However, its increased lifting capacity, hydraulic performance, and fuel efficiency make it a better long-term investment for operations that require high productivity and reliability.


Introduction
Working on a commercial project, the task involves digging a shallow cut—about four feet deep—adjacent to a newly paved parking surface perched about four feet higher. The soil consists of loose, sandy material, and there's little space to slope the walls safely. The primary concern is preventing collapse that could damage the paving above.
Understanding the Challenge
In soil mechanics, loose sand is classified as Type C soil, the least stable type. Such soils are prone to sudden collapse—especially when unsupported cuts are made next to elevated asphalt surfaces. With tight working room, you can’t deploy safe sloping (tilting the cut at an angle) or benching (stepping back the sides), both of which are common trench safety measures. This creates a risk of ground movement and expensive pavement damage.
Terminology Spotlight

• Sloping — angling excavation walls to relieve soil pressure

• Benching — creating stepped, tiered excavations to improve stability

• Shoring — installing temporary supports to hold soil in place

• Helical Anchors — screw-like steel rods installed into soil to support or tie back structures

• Blindside Forming — using formwork along an excavation’s outer face to allow concrete placement on the tight side without removing permanent structures


• Lime stabilization is usually less effective in sandy soils, since it relies on clay content for binding.

• Cement stabilization, however, chemically bonds in sandy soils and can strengthen the face prior to excavation—especially useful if there's time for it to cure.


• Place temporary posts or light shoring frames along the excavation's edge.

• These can be braced internally or anchored into existing paving or walls, providing immediate support during digging.


• If the nearby wall is structurally sound, it can serve as a brace point for formwork or shoring legs—saving space and materials while providing stability.


• Some contractors deploy screw-in anchors from the pavement side to stabilize the cut.

• While creative, many manufacturers hesitate to guarantee this method’s structural reliability—approach with caution and proper engineering advice.


• Install a rigid form along the unseen face of the excavation before placing footing concrete.

• This method supports the excavation and allows footing installation even with minimal working clearance.


• Controlled water jetting can compact the sandy face slightly, reducing collapse risk—especially when combined with timely shoring bracing.


• Classify soil and confirm it's Type C (loose sand).

• Evaluate pavement structure to see if it can bear anchorage loads.

• Decide if cement injection is viable and allow adequate curing time.


• Deploy temporary shoring posts and back-bracing.

• Use blindside forms to allow footing pours without removing pavement.

• Engage in mechanical compaction or jetting if space allows.


• Verify structural integrity of new footing and surrounding pavement.

• Document installed shoring and any soil treatment applied.

• Consider permanent drainage or retaining structures if future adjacent work is anticipated.


• Cement-based soil curing (preferred for sandy soils)

• Temporary shoring with braced posts

• Blindside formwork for concrete placement

• Selective use of helical anchors (with engineering backing)

• Water jetting to compact exposed face


• Conduct soil classification and strength assessment

• Protect existing pavement from disturbance

• Allow injecting materials to properly cure

• Perform daily checks on shoring and adjacent structures
