The Scenario: Repositioning a Topsoil Stockpile
During a pond excavation project, a crew stripped and stockpiled topsoil and sand to the side of the site. Later, due to a change in pond dimensions, the pile had to be moved an additional 60–80 feet. The question arose: which machine would have moved the material faster—a Case 1150 dozer or a Kobelco SK200 Mark 8 excavator?
The pile was approximately 15 feet high and 20–30 feet long, composed of loose topsoil. The operator spent a full day pushing the material with the dozer, prompting reflection on whether another method might have been more efficient.
Understanding the Machines Involved
- Dozer (Case 1150): A medium-sized crawler dozer with a straight or semi-U blade, designed for pushing material over short distances.
- Excavator (Kobelco SK200 Mark 8): A 20-ton class hydraulic excavator with a reach of approximately 32 feet and a bucket capacity of around 1.0–1.2 cubic yards.
- Scraper (Towed Pan or Motor Scraper): A specialized earthmoving machine designed to cut, load, haul, and dump material over medium to long distances.
Terminology Note: Slot Dozing and Double Handling
- Slot Dozing: A technique where the dozer creates a confined path (slot) to contain material, increasing blade load and efficiency.
- Double Handling: Moving the same material more than once due to poor planning or design changes, leading to wasted time and fuel.
Dozer Efficiency: The Power of Slot Pushing
Experienced operators agree that a dozer, when used correctly, can outperform an excavator in short-distance material relocation. The key is to climb onto the pile and use gravity to assist in slot dozing. This method allows the blade to carry a full load with minimal spillage, especially when the material is loose and dry.
However, inefficiency arises when operators attempt to side-cut or push from the base without establishing a slot. This leads to reduced blade capacity and longer cycle times.
Excavator Limitations: Reach and Rehandling
While excavators excel at digging and loading, their efficiency drops when tasked with moving material horizontally over distances beyond their reach. In this case, the 32-foot reach of the Kobelco would require multiple cycles to reposition the pile 60–80 feet. Each cycle involves:

• Digging

• Swinging

• Dumping

• Repositioning


• Inexperienced operator

• Poor slot setup

• Material cohesion (e.g., clay vs. sand)

• Equipment wear or underperformance


The TD-20 dozer, manufactured by International Harvester (IH), is a reliable and powerful piece of heavy equipment used for various tasks such as earthmoving, grading, and construction. However, like any heavy machinery, the TD-20 can experience issues that make it difficult to start. If you're encountering hard starting problems with your TD-20, this guide will walk you through some of the most common causes, troubleshooting steps, and solutions to get your dozer running smoothly again.
Common Causes of Hard Starting Issues
Several factors could contribute to starting difficulties in the TD-20 dozer. These issues can range from simple maintenance problems to more serious engine issues. The main causes of hard starting in the TD-20 can be grouped into several categories:
1. Fuel System Issues
A malfunctioning fuel system is one of the most common reasons for hard starting in a dozer. Fuel-related problems can prevent the engine from receiving the proper amount of fuel or the right fuel quality, causing starting difficulties.

• Clogged fuel filters: Over time, fuel filters can become clogged with dirt, debris, and impurities, restricting the flow of fuel to the engine.
  • Solution: Inspect and replace the fuel filters if necessary. Regularly servicing and replacing fuel filters will ensure proper fuel flow.

• Dirty fuel injectors: Fuel injectors that are clogged or not functioning correctly can result in poor fuel atomization, making it difficult for the engine to start.
  • Solution: Clean or replace the fuel injectors. Use a fuel injector cleaner or have them professionally serviced to restore proper function.

• Fuel contamination: Water, dirt, or debris in the fuel tank can cause engine misfire and prevent smooth starting.
  • Solution: Drain the fuel tank and clean it out. Always use clean, high-quality fuel to avoid contamination.


• Weak or dead battery: If the battery is not holding a charge or has low voltage, the starter motor may not be able to turn the engine over.
  • Solution: Test the battery voltage and replace it if necessary. Ensure the battery terminals are clean and securely connected.

• Faulty starter motor: If the starter motor is malfunctioning, it may fail to engage the engine, making it impossible to start the dozer.
  • Solution: Check the starter motor for wear and tear or electrical issues. If the motor is faulty, it should be replaced or repaired.

• Loose or corroded electrical connections: Corrosion or loose connections on battery cables, the starter motor, or ground wires can cause starting problems.
  • Solution: Inspect all electrical connections, clean corrosion off terminals, and tighten any loose connections. Ensure that all cables are in good condition.


• Worn-out spark plugs: Over time, spark plugs can become worn, leading to weak or inconsistent sparks, causing difficulty in ignition.
  • Solution: Inspect and replace the spark plugs if necessary. Ensure that the spark plugs are gapped correctly according to the manufacturer’s specifications.

• Faulty ignition coil: The ignition coil generates the electrical spark needed to ignite the fuel. A malfunctioning coil can result in a no-start situation.
  • Solution: Test the ignition coil for faults and replace it if necessary.

• Failed glow plugs: In diesel engines, glow plugs are used to preheat the engine to facilitate easier starting. A failure in one or more glow plugs can result in hard starting, especially in cold weather.
  • Solution: Test and replace any faulty glow plugs. Always check that the glow plugs are functioning properly before attempting a cold start.


• Low coolant levels: Low coolant can cause the engine to overheat, which can damage internal components and make starting difficult.
  • Solution: Check the coolant level and ensure it’s filled to the correct level. Inspect the cooling system for leaks or blockages.

• Malfunctioning thermostat: A thermostat that is stuck closed can prevent proper circulation of coolant, causing the engine to overheat.
  • Solution: Inspect the thermostat for proper operation and replace it if it’s not functioning correctly.


• Dirty or clogged air filters: A clogged air filter reduces airflow to the engine, which can cause it to run poorly or fail to start.
  • Solution: Inspect and clean or replace the air filter. Regular air filter maintenance is essential to keep the engine running smoothly.

• Air intake leaks: Leaks in the air intake system can cause a lack of proper air pressure, which can affect the engine’s starting performance.
  • Solution: Inspect the intake system for leaks and repair any holes or cracks in hoses or seals.


• Worn piston rings: If the piston rings are worn, they may not seal the combustion chamber properly, resulting in low compression and poor starting.
  • Solution: Perform a compression test to determine if the piston rings need to be replaced.

• Valve problems: Bent or worn-out valves can also result in low compression.
  • Solution: Inspect the valve system and check for signs of wear. Replace any faulty valves.


1. Check the fuel system: Inspect fuel filters, injectors, and the fuel tank for contamination or blockages.

2. Test the electrical system: Verify that the battery is fully charged, connections are secure, and the starter motor is functioning.

3. Inspect the ignition system: Check spark plugs, the ignition coil, and glow plugs for wear or malfunction.

4. Verify coolant and air intake: Ensure that the engine is properly cooled and that the air intake system is clean and leak-free.

5. Test engine compression: Perform a compression test to determine if internal engine components are in good condition.




Introduction
Massey Ferguson’s venture into industrial backhoe loaders began as an extension of its agricultural roots, evolving into a series of highly capable machines engineered for rugged construction and utility applications. From its origins in modified tractors to purpose-built backhoe loaders, the brand charted a remarkable journey through innovation, changing ownership, and global manufacturing.
Historical Progression of MF Industrial
Massey Ferguson transformed tractors into loader-backhoe hybrids in the 1950s. The formal Industrial & Construction Machinery division launched in 1966 . Throughout the 1960s and '70s, MF expanded its range of backhoe loaders—including models like the 250/252, built on MF 3303, featuring 60-hp engines and digging depths up to 13'6" . Over time, ownership shifted: from Massey Ferguson to Fermec in the 1990s, and eventually to Terex and AGCO’s Brazilian licensee Iochpe-Maxion .
Model Lineup & Specs Overview
Massey Ferguson industrial backhoe models span a wide range, catering to varied workloads:

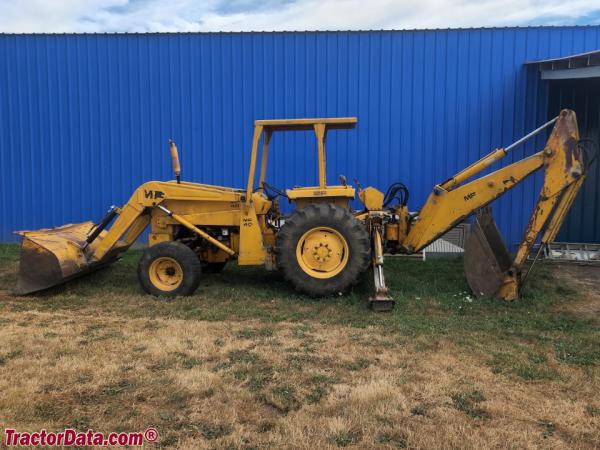

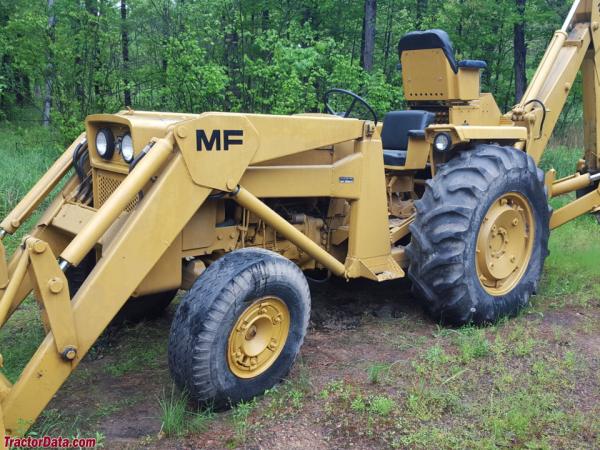

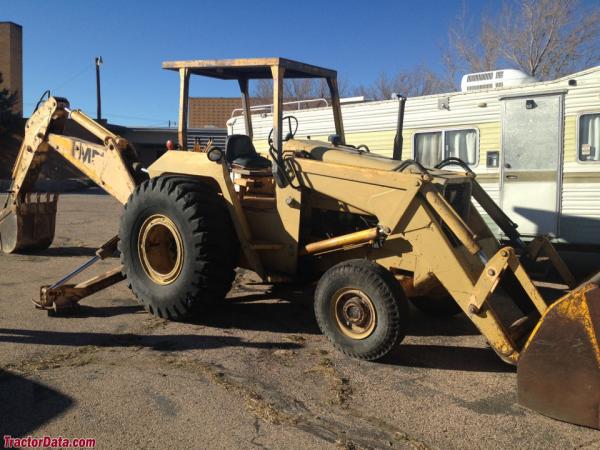

Selected Backhoe-Loader Models by MF Industrial:

• 20C: 46 hp (1976–1982)

• 30D: 45 hp (1982–1984)

• 40B: 59 hp (1976–1982)

• 50C–F/H series: 65–77 hp (spanning late 1970s to early 1990s)

• 70: 108 hp (1969–1977), among the most powerful of its era


• Engine: Perkins A4.248, ~77 hp

• Backhoe Reach: ~19.6 ft; Extended Reach: ~23.9 ft

• Breakout Force: ~10,754 lb

• Loader Lift Capacity: ~6,017 lb at full height

• Transmission: 4-forward, 4-reverse power shuttle; top speed ~17.6 mph

• Hydraulics: Open-center, ~33 gal/min

• Operating Weight (2WD): ~13,671 lb


• Backhoe Loader / TLB: A tractor equipped front loader and rear backhoe for combined functionality .

• Breakout Force: The maximum force the bucket can exert to break material loose.

• Power Shuttle Transmission: Enables smooth direction changes under load without clutching.

• Open-Center Hydraulic System: Pumps continuously circulate fluid; flow depends on valve positions.


• For vintage restoration or parts sourcing: refer to model-specific documentation and consult clubs or forums for original schematics.

• For practical use: match machine horsepower and backhoe reach to jobsite requirements—larger engines and hydraulics mean deeper digs and heavier loads.

• For collectors or operators: preserve original components like selector arms, valve blocks, and backhoe linkage to maintain value.


Overview of the Problem
The Genie S-60 boom lift, particularly older models like the 1995 unit powered by a Deutz diesel engine, can exhibit a perplexing issue: the engine starts normally, but the voltmeter reads zero and all control functions remain disabled. Occasionally, pressing the start switch a second time causes the voltmeter to jump to 14 volts and restores full control functionality—including the high idle solenoid. However, this workaround becomes unreliable over time, leaving operators stranded with a running engine but no operational controls.
Understanding the Electrical System Architecture
To troubleshoot this issue, it’s essential to understand the Genie S-60’s electrical and control system. Key components include:
- Ignition start module
- Contact relays (notably CR2)
- Fuel shutoff solenoid
- Alternator and excitor circuit
- Voltage regulator
- Control switches (ground and basket)
- High idle solenoid
Terminology Note: Excitor Wire and Contact Relay
- Excitor Wire: A wire that supplies initial voltage to the alternator’s field coil, enabling it to begin charging.
- Contact Relay (CR2): An electromechanical switch that energizes multiple circuits, including the alternator, fuel solenoid, and control logic.
Symptoms and Diagnostic Clues
The most telling symptom is the zero reading on the voltmeter after startup, followed by a sudden jump to 14 volts when the start switch is pressed again. This behavior suggests that the alternator is not being excited properly during the initial start sequence. Without excitation, the alternator cannot begin charging, and the control system may interpret this as a fault, disabling functions.
Field Anecdote: The “Tap-to-Start” Trick
One operator discovered that holding the start switch for a fraction longer—just a millisecond—allowed the system to initialize correctly. This workaround, while clever, points to a deeper issue: inconsistent voltage delivery during startup. It’s reminiscent of a case from a Midwest rental yard where a Genie Z-45 exhibited similar symptoms. The culprit? A corroded excitor wire terminal that intermittently failed to deliver voltage during cranking.
Step-by-Step Diagnostic Strategy
1. Check the excitor wire at the alternator
– Use a multimeter or test light to verify voltage during and after startup
– If no voltage is present, trace the wire back to CR2 and the ignition module
2. Test the alternator manually
– Disconnect the excitor wire
– Start the engine and apply 12V directly to the excitor terminal
– If the alternator begins charging, the alternator is functional and the issue lies upstream
3. Inspect CR2 relay
– Confirm that the relay energizes during startup
– Check for continuity across the relay terminals
– Replace if contacts are worn or coil is weak
4. Evaluate the ignition start module
– This module sends the signal to energize CR2
– If faulty, it may fail to trigger the relay consistently
5. Verify fuel shutoff solenoid operation
– If the engine runs and shuts off correctly, CR2 is likely functioning
– However, partial failure of CR2 could still affect other circuits
Suggested Parameters for Healthy Operation
- Excitor wire voltage during startup: ≥12V
- Alternator output voltage: 13.8–14.2V at idle
- CR2 coil resistance: 60–120 ohms
- Battery voltage during cranking: ≥10.5V
Common Causes of High Idle and Control Failures
- Weak or corroded excitor wire connection
- Failing CR2 relay with intermittent contact
- Voltage drop during cranking due to weak battery or poor ground
- Faulty ignition start module
- Alternator internal fault (e.g., bad diode or regulator)
- Control switch wear or misalignment
Recommendations for Repair and Prevention
- Replace CR2 relay with OEM or high-quality aftermarket unit
- Clean and tighten all excitor wire terminals
- Test battery under load and replace if voltage drops below threshold
- Inspect alternator belt tension and pulley alignment
- Use dielectric grease on electrical connectors to prevent corrosion
- Document voltage readings and relay behavior for future reference
Anecdote: The “Ghost Voltage” Mystery
In a similar case involving a Genie S-65, technicians chased a phantom voltage issue for weeks. The voltmeter would spike randomly, and controls would fail mid-operation. Eventually, they discovered a cracked alternator housing that allowed moisture to short the excitor terminal intermittently. The lesson? Never underestimate the impact of environmental wear on electrical components.
Alternative Solutions and Upgrades
- Install a manual alternator excitation switch for diagnostic use
- Upgrade to a self-exciting alternator with built-in regulator
- Replace aging control switches with sealed, weather-resistant models
- Add a startup delay module to ensure stable voltage before control activation
Conclusion: Precision Matters in Electrical Diagnostics
The Genie S-60’s high idle and control issues stem from a delicate interplay between voltage delivery, relay timing, and alternator excitation. While the machine may start and run, the absence of proper charging voltage can disable critical functions. By methodically testing each component—from the excitor wire to the ignition module—technicians can restore reliable operation and avoid the frustration of intermittent failures. In the world of aerial lifts, a few volts can make the difference between a productive day and a dead machine.

Mini excavators are versatile and efficient machines, especially in tight spaces where larger machines can't operate. When paired with the right attachments, mini excavators can perform a wide variety of tasks, from digging to lifting and even breaking rock or concrete. One of the most effective attachments for heavy-duty tasks like breaking rock, concrete, or asphalt is a hydraulic hammer, also known as a breaker. This article will explore key considerations when choosing a hammer for mini excavators, as well as the types of hammers available, their applications, and tips for maintenance and troubleshooting.
Why Use a Hammer with a Mini Excavator?
Mini excavators are ideal for working in confined spaces like urban construction sites, landscaping projects, and small-scale demolitions. The addition of a hammer to a mini excavator extends its functionality, enabling it to perform tasks traditionally carried out by larger, more specialized equipment. Hydraulic hammers can be used for:

• Breaking up concrete: Hammers are ideal for demolishing concrete foundations, roadways, and slabs.

• Rock breaking: In mining or excavation projects, hammers can break through tough rock or bedrock.

• Pavement removal: Removing asphalt or pavement can be easily achieved using a hydraulic hammer.

• Tough digging applications: When a bucket alone isn’t sufficient, a hammer can break tough soil or compacted earth.


1. Pneumatic Hammers
   • Pneumatic hammers are powered by compressed air. They tend to be lighter and more cost-effective but are less commonly used on mini excavators due to their reliance on external air supply systems.

2. Hydraulic Hammers
   • Hydraulic hammers are the most commonly used type of hammer for mini excavators. These hammers are powered by the hydraulic system of the excavator itself, providing more consistent and powerful breaking force.

   • Impact-style hammers: These hammers deliver a quick, high-impact blow to the material being broken.

   • Accumulator-based hammers: These use an internal gas accumulator to store energy and provide continuous force with each strike, offering more power for demanding tasks.

3. Boxer Hammers
   • These are a variation of hydraulic hammers, often used for smaller applications. They are compact, easy to maintain, and ideal for mini excavators working on smaller-scale projects.


• Demolition: Breaking concrete or brick structures for demolition.

• Paving removal: Tearing up old asphalt or paving to make way for new construction or repairs.

• Rock excavation: Breaking through tough rock or bedrock in quarries or other excavation projects.

• Trenching and digging: In certain situations, a hammer can be used in digging applications to break through hard soil or compacted earth.

• Underground work: Mini excavators equipped with hammers are often used in trenchless construction methods where digging through rock or tough soils is required.


1. Loss of power
   • Possible Cause: Low hydraulic pressure, clogged hydraulic lines, or incorrect oil viscosity.

   • Solution: Check hydraulic fluid levels, replace or clean filters, and ensure the correct oil is being used.

2. Hammer not firing
   • Possible Cause: Air or moisture in the hydraulic system, worn-out internal components, or malfunctioning valves.

   • Solution: Purge the system of air, inspect and replace damaged parts, and perform regular maintenance checks.

3. Excessive vibration or noise
   • Possible Cause: Loose or worn-out parts, or improper lubrication.

   • Solution: Inspect for loose bolts or damaged components, lubricate moving parts, and replace worn parts as necessary.

4. Wear and tear on the hammer chisel
   • Possible Cause: Prolonged use without proper maintenance or using the hammer on materials it’s not designed for.

   • Solution: Regularly inspect the chisel for signs of wear, and replace it when necessary. Additionally, ensure the hammer is being used on appropriate materials.


Overview
The CAT 420D backhoe loader equipped with a mechanical quick coupler offers significant operational flexibility—allowing rapid changes of rear buckets and work tools without the need for pins. Understanding which bucket sizes and types are compatible, how the coupler works, and how to troubleshoot or adapt it enhances efficiency and versatility in the field.
Mechanical Quick Coupler Fundamentals
A mechanical quick coupler on a CAT 420D enables tool changes via a locking mechanism that secures the bucket to the linkage, often using a lever or latch system. This allows operators to switch between various attachments swiftly. Some models, like the IT (Integrated Toolcarrier) version, expand this capability with pilot-operated controls, flat-face hydraulic disconnects, and return-to-dig automation—completing most tool swaps in under 30 seconds from the cab .
Bucket Compatibility – What Sizes Are Available?
A direct field report from a CAT 420D user confirms that CAT did make a 12-inch bucket that works with the mechanical quick coupler—specifically, a 3-tooth digging bucket (part number 219-3384) alongside the more common 24-inch bucket .
Driving Operational Efficiency
Using a quick coupler substantially improves productivity—not just with buckets, but across a range of attachments like grapples, thumbs, rakes, hammers, and compactors. “Pin grabber” style quick couplers are particularly versatile and allow the operator to pivot between tasks quickly and safely .
Troubleshooting & Adaptation
If your machine doesn’t have a quick coupler but you'd like one, conversion kits are available that replace the pin-on linkage with a Cat IT quick-attach faceplate—maintaining full lift capacity and enabling Cat IT-compatible tools. Options include manual lock or added hydraulic locking for enhanced convenience .
Field Insight – Common Coupler Challenges
One user noted that a hydraulic quick coupler, commonly used on CAT 420D models, failed to operate because the electric solenoid received no power. By manually testing the solenoid (hot-wiring), it proved mechanically functional. The issue lay in the electrical circuit—possibly a short to ground or a wiring fault. A bent or broken ball valve lever (used to lock or unlock the coupler hydraulically) was also highlighted as a subtle yet critical point of failure .
Summary Table Converted to List
Available Bucket Options (Mechanical Quick Coupler):

• 24-inch standard rear bucket (commonly fitted)

• 12-inch 3-tooth digging bucket (CAT part 219-3384)


• Fast attachment changes (often under 30 seconds)

• Expanded attachment compatibility (hammers, grapples, thumbs, rakes, etc.)

• Improved productivity and versatility across jobsite tasks


• Pin-on linkage replacement with Cat IT quick-attach faceplate

• Manual locking available; hydraulic locking optional

• Maintains rated lift capacity while increasing tool flexibility


• Solenoid not receiving power—test wiring and control circuit

• Ball valve lever may be bent or broken—inspect for mechanical obstructions or damage

• Confirm proper function of coupling logic and safety interlocks


• If you frequently switch between tasks, consider outfitting with a quick coupler for operational efficiency.

• Keep a smaller bucket (like 12 inches) on hand for precision digging or when working in tight spaces.

• Regularly inspect electrical connectors and valve levers—simple failures here can disable coupling.

• For non-equipped machines, retrofit kits provide excellent value, especially with hydraulic lock versions for total control from the cab.


The Problem: Sudden Hydraulic Shutdown Without Warning
The Ford 555 backhoe, particularly early models from the late 1970s and early 1980s, is known for its robust mechanical design and straightforward hydraulic system. However, even these workhorses can experience abrupt hydraulic failure. In one case, the machine was operating normally—digging a septic field—when all hydraulic functions suddenly stopped. The front loader could barely lift a few inches, and the backhoe was completely unresponsive.
No strange noises were reported, the engine ran smoothly, and the hydraulic fluid appeared clean, full, and free of air bubbles. A new filter had already been installed. The pump seemed to be working, as it could discharge fluid into a bucket with good pressure. Yet, the system remained dead.
Understanding the Hydraulic Architecture of the Ford 555
The Ford 555 uses a gear-type hydraulic pump mounted directly to the engine. It supplies pressurized fluid to a series of control valves, which then direct flow to the loader, backhoe, and stabilizers. Key components include:

• Hydraulic reservoir and suction line

• Gear pump (engine-driven)

• Main control valve stack (with integrated relief valves)

• Loader and backhoe cylinders

• Return lines and filter assembly


• Installing a pressure gauge on the pump outlet to verify actual system pressure

• Using a flow meter to measure pump output under load

• Cracking cylinder lines to check for internal bypass (fluid returning too quickly)

• Inspecting control valve slices for stuck spools or damaged seals

• Verifying relief valve settings—incorrect reassembly can cause overpressure or deadhead conditions


• Pump output pressure: 2,500–2,800 PSI (depending on model)

• Flow rate: 15–20 GPM at rated RPM

• Relief valve setting: Typically 2,500 PSI

• Cylinder leakage test: Return line should show minimal flow when idle


• Blocked suction line or collapsed hose

• Internal pump wear (even if it appears functional)

• Stuck or misassembled relief valve

• Control valve spool jammed by debris

• Cylinder bypass due to worn seals

• Airlock or cavitation from low fluid or suction leak


• Always mark relief valve settings before disassembly

• Replace suction hoses if soft, collapsed, or aged

• Clean or replace suction screens and filters regularly

• Use high-quality hydraulic fluid with proper viscosity

• Document pressure readings and flow tests for future reference


• Replacing with modern joystick-style directional control valves

• Installing a pressure-compensated pump for smoother operation

• Adding test ports for easier future diagnostics


Overview
A compact loader that suddenly displays amber Driver Alert, Parking Brake, and Engine Condition lights is trying to tell you something — usually more than one thing at once. These symptoms commonly point to service items (filters, water in fuel), sensor/switch issues, or diagnostic data trapped in the machine that needs to be read. This article walks through what those lamps mean, practical troubleshooting steps, likely root causes, recommended fixes, and preventive actions — all written so a technician or owner-operator can follow it in the field.
What the Lamps Mean (short primer)

• Driver Alert (amber exclamation) — a general warning lamp that indicates one or more system-level alerts have been logged. It’s the machine’s “pay attention” light.

• Engine Condition Indicator (amber) — indicates an engine-related fault that may reduce performance or require service; amber implies caution (not an immediate shutdown red fault).

• Parking Brake Indicator — shows parking brake status or a parking-brake-system fault; if it stays on after a reset it can mean a sensor, switch, or hydraulic/electrical interlock issue.

• Hydraulic lockout / other related indicators — these often appear with the above lights and influence how the machine behaves after an estop/reset.


• PSR (Product Status Report) — a snapshot of logged diagnostics and parameter values read by a service tool.

• Cat ET / service tool — manufacturer diagnostic software that reads fault codes, sensor data, and event logs.

• Fuel separator / water bowl — collect water and sediment from diesel; if full or not drained, water fuel contamination can trigger engine-condition warnings.

• Primary / secondary air filter — engine air filtration; clogged filters raise intake restriction and can set engine-related warnings.

• Level 1 checks — operator manual basic checks (fluid levels, drain separators, visual inspections).


1. Do the basic operator checks first
   • Confirm engine oil, coolant, hydraulic oil, and fuel levels.

   • Drain the fuel separator/water bowl and check for water or debris.

   • Inspect air filters (primary and secondary) for clogging or heavy restriction.

   • Inspect visible wiring and connectors at key switches (parking brake switch, E-stop) for corrosion or looseness.

2. Reproduce and observe behavior
   • Start the machine cold and note when lights appear (immediately, after warm-up, when brake is toggled).

   • Note whether Driver Alert is steady or flashing, whether Parking Brake light stays on only after estop reset, and whether there is any change when toggling the parking brake twice.

3. Get diagnostic data (PSR / fault codes)
   • If the instrument cluster does not allow code reading via keypad, use a service tool (Cat ET) or take the machine to a dealer or independent shop that can produce a PSR.

   • The PSR will show fault codes, active/inactive events, and parameter snapshots (fuel pressures, intake restriction, battery voltages, etc.). This is the single most useful next step.

4. Interpret common probable causes from codes + symptoms
   • Fuel contamination / water — Engine Condition amber + history of draining separator → replace fuel filter(s) and re-drain separator; consider fuel polish if contamination is significant.

   • Air intake restriction — amber engine lamp + decreased performance → replace primary & secondary air filters, check precleaner and air inlet for blockage.

   • Parking brake sensor/switch or wiring — Parking Brake light stays on after reset → inspect switch, bracket, connector, and mounting; test continuity; check for stored codes referencing parking-brake circuit.

   • ECU / sensor anomalies — intermittent amber faults may come from sensors (MAP, temp sensors) or transient conditions recorded by ECM; PSR will help pinpoint.

   • Electrical voltage / charging issues — low or fluctuating voltage can set odd faults; check battery and alternator charging.

5. Execute corrective actions and verify
   • Replace suspect consumables (primary & secondary air filters, fuel filter, engine oil if overdue).

   • Repair/replace faulty switches or wiring found.

   • Clear codes after repair and test run to confirm lights stay out and no new faults appear.

   • If faults persist and are not obvious, escalate to Cat ET-level diagnostics for data-stream analysis and guided troubleshooting.


• New primary and secondary air filters (model-specific)

• Fuel filter cartridge(s) and seal kit

• Fuel-water separator drains / collection container

• Basic multimeter and continuity probes for switch/wiring checks

• Service tool access (Cat ET) or budget to have a local shop/dealer perform PSR download (often quick, low labor charge)

• Hand tools and safety gear (gloves, eye protection)


• Drain separator + replace fuel filter — low difficulty; 30–90 minutes.

• Replace air filters — low difficulty; 15–30 minutes.

• Repair/replace parking brake switch or harness — moderate, depends on access; 0.5–2 hours.

• Service tool diagnosis (PSR/ET) — quick if shop has equipment; 30–60 minutes for PSR download, followed by troubleshooting time.

• If ECM or complex sensors implicated — may require dealer intervention, parts ordering, or advanced diagnostics; time varies.


• If the Driver Alert is flashing amber when you try to disengage the parking brake, try toggling the brake twice (some machines clear the lamp on the second press). This behavior has been reported in field cases.

• Do Level-1 manual checks reliably and log what you tried before the shop visit — this saves technician time and may point clearly to a filter or water-in-fuel issue.

• If you must trailer the machine to a dealer, ask them to perform a PSR while the machine is on the trailer; many dealers will do a quick status check in about an hour of shop time.


• Drain water from the fuel separator at regular intervals and after any suspicious fuel deliveries.

• Replace primary & secondary air filters per hours recommended by the operator manual or more frequently in dusty environments.

• Keep a log of amber warnings and maintenance actions — trends help pinpoint intermittent issues.

• Include a periodic PSR download in routine service intervals to spot early-stage sensor drifts or logged transient events.


• You cannot access or interpret diagnostic codes without a service tool.

• Lights remain after replacing filters and basic checks.

• You suspect ECM, sensor network, or complex hydraulic/electrical interactions.

• You lack tools or safe access to repair parking-brake hardware or wiring.


Dozer winches are valuable tools for operators working in rugged environments where additional pulling power is needed. These winches are typically mounted on bulldozers and are used for a wide variety of tasks, from moving heavy loads to helping clear obstacles on construction sites. In this article, we’ll dive into the functionality of dozer winches, common issues, and maintenance tips to help you maximize their effectiveness.
What is a Dozer Winch?
A dozer winch is a heavy-duty winch system installed on a bulldozer to provide additional pulling capacity. These winches are often used in logging, construction, and land clearing projects where the dozer may need to pull large loads or tow objects over long distances.
The winch is typically mounted on the rear of the dozer and uses a heavy-duty drum, cable, and motor to pull loads. Some winches are designed for continuous operation, while others are intended for specific tasks, such as clearing debris or pulling logs.
How Dozer Winches Work
A dozer winch operates through a cable wound around a drum, which is driven by a hydraulic motor or a mechanical system linked to the dozer’s engine. The operator controls the winch through a series of levers, which allow them to spool out or reel in the cable, effectively pulling or releasing the load.
Most winches on dozers are powered hydraulically, which means the hydraulic system of the dozer provides the necessary power to operate the winch. This setup is ideal because it allows the winch to work without drawing power directly from the engine, keeping fuel efficiency in check while providing ample force for heavy-duty tasks.
Key Components of a Dozer Winch

1. Winch Drum: The drum is the core component where the winch cable is wound. It’s typically made from durable metal to withstand the tension of heavy pulls.

2. Hydraulic Motor: The hydraulic motor is responsible for rotating the winch drum. It uses hydraulic pressure from the dozer’s system to provide the necessary torque.

3. Winch Cable: The steel cable, sometimes referred to as the winch line, is used to attach to the load and pull it. This cable is often rated to handle heavy loads, and its durability is crucial for successful operation.

4. Fairlead: This component is a guide through which the winch cable passes. It helps prevent tangling and ensures that the cable is evenly spooled on the drum.

5. Control System: Operators control the winch through a hydraulic control lever or button on the dozer’s console. This system allows for smooth operation, making it easy to spool the cable in and out.


1. Land Clearing: Dozer winches are often used in land clearing operations to pull logs, stumps, and other debris from the site. This reduces the amount of manual labor required and accelerates the process.

2. Logging: In logging, winches help pull cut trees to staging areas or transport logs from the cutting site to a logging truck. These winches are particularly useful in remote areas where traditional transport may not be feasible.

3. Construction and Roadbuilding: When working on large-scale construction projects, dozer winches are invaluable for pulling materials like steel or heavy equipment across rough terrain.

4. Towing: Dozer winches are often used for towing other machines, trailers, or equipment across difficult landscapes. This is especially helpful when other towing mechanisms are unavailable or impractical.

5. Rescue Operations: In some cases, dozer winches are used in emergency situations to pull vehicles, equipment, or personnel out of mud, snow, or other challenging conditions.


1. Winch Cable Does Not Pull Properly
   • Potential Causes:
     • A jammed cable or tangled winch line.

     • Insufficient hydraulic pressure.

     • Worn-out winch motor.

   • Solutions:
     • Inspect the cable for any knots, kinks, or tangles. If the cable is damaged, it may need to be replaced.

     • Check the hydraulic fluid levels and ensure the system is functioning properly. Low hydraulic fluid can lead to poor winch performance.

     • Test the motor for wear and tear. If the motor is failing, it may need to be repaired or replaced.

2. Winch Cable Breaks Frequently
   • Potential Causes:
     • Overloading the winch with too much weight.

     • Poor-quality or worn-out cable.

     • Incorrect spooling technique, leading to uneven tension on the cable.

   • Solutions:
     • Always ensure that the winch is not overloaded and that you’re using the correct weight limits as specified by the manufacturer.

     • Regularly inspect the winch cable for signs of wear or fraying, and replace it if needed.

     • Ensure the cable is spooled evenly, which will prevent uneven tension and reduce the risk of breakage.

3. Winch Motor Overheats
   • Potential Causes:
     • Prolonged use of the winch without proper rest.

     • A malfunctioning hydraulic pump or system.

     • Contaminated hydraulic fluid.

   • Solutions:
     • Avoid continuous operation of the winch without giving it rest periods. Overuse can lead to overheating.

     • Check the hydraulic pump and system for leaks or malfunctions. The pump may need to be repaired or replaced.

     • Flush the hydraulic system and replace the fluid to remove any contaminants.

4. Winch Cable Gets Stuck in Drum
   • Potential Causes:
     • A poorly maintained fairlead or damaged winch components.

     • The cable has become misaligned within the winch drum.

   • Solutions:
     • Inspect the fairlead for damage or blockage. A damaged fairlead may need to be replaced or repaired.

     • Re-align the cable within the drum. If the cable is off-center, it can prevent the winch from operating smoothly.


• Inspect the Cable Regularly: The winch cable is under significant strain and should be inspected frequently for signs of wear or damage. Replace it if it shows any fraying, cuts, or corrosion.

• Check Hydraulic Fluid: Low hydraulic fluid can affect winch performance. Regularly check the fluid levels and ensure they are within the recommended range.

• Lubricate Moving Parts: Keep the winch components, including the drum and hydraulic motor, well-lubricated to reduce friction and prevent wear.

• Clean the Winch: Dirt, debris, and mud can build up on the winch, causing it to malfunction. Clean the winch regularly to ensure it operates smoothly.

• Test the Winch Periodically: Test the winch in different conditions to ensure that all components are functioning correctly. This helps you catch potential problems early before they become major issues.


The Coupler Conundrum: More Than Just a Nozzle
In the world of heavy equipment maintenance, the grease gun coupler is a deceptively simple yet critical component. It’s the interface between the grease gun and the zerk fitting—a small metal nipple that allows grease to enter bearings, bushings, and joints. A good coupler ensures a tight seal, efficient delivery, and minimal mess. A bad one leaks, pops off, or refuses to fit recessed zerks, turning routine lubrication into a frustrating ordeal.
Technicians across industries—from agriculture to construction—have long debated the merits of various coupler designs. Some swear by locking couplers, others prefer traditional four-jaw models, and many cycle through brands in search of one that lasts longer than a few weeks.
Terminology Note: Zerk Fitting and Jaw Design

• Zerk Fitting: A standardized grease fitting, typically threaded into a component, allowing grease to be injected under pressure.

• Jaw Design: Refers to the internal gripping mechanism of the coupler. Common types include two-jaw, three-jaw, and four-jaw configurations.


• LockNLube: Excellent grip and ease of use; prone to leaking over time; doesn’t fit all zerks.

• Lubrimatic: Consistently reliable; four-jaw design preferred; avoid “heavy-duty” versions that break under stress.

• Lincoln, Milwaukee, Alemite: Mixed reviews; some leak straight out of the package.

• NAPA: Better than most; three-jaw versions less effective; four-jaw models last longer.

• CarQuest Two-Jaw: Extremely tight grip; difficult to remove; best for stubborn fittings.


• Jaw count: Four jaws preferred for durability and grip

• Seal type: Replaceable rubber seals extend service life

• Nose diameter: Slim profile for recessed fittings

• Pressure rating: Minimum 6,000 PSI for heavy equipment use

• Material: Hardened steel or zinc-plated brass for corrosion resistance


• Clean zerk fittings before and after greasing to prevent grit intrusion

• Replace worn or burred zerks to prevent coupler damage

• Keep coupler threads tight but not over-torqued

• Store grease guns upright to prevent seal degradation

• Use a screwdriver and rag to clear debris from coupler jaws


• Specialty coupler kits with angled or needle tips

• Flexible hoses with quick-disconnect ends

• Air-powered grease guns with variable pressure control

• Custom-machined adapters for legacy or non-standard zerks
