The Case 580K backhoe loader stands as a testament to engineering excellence in the construction and agricultural sectors. Renowned for its durability, versatility, and user-friendly design, it has become a staple on job sites worldwide. This article delves into its specifications, operational capabilities, common issues, and maintenance tips, providing a holistic understanding of this iconic machine.

Engine and Powertrain
At the heart of the Case 580K lies the Case 4-390 engine, a turbocharged 4-cylinder diesel powerhouse delivering 68 horsepower at 2,200 RPM. With a displacement of 239 cubic inches (3.9 liters) and a bore and stroke of 4 inches by 5 inches, it offers a net torque of 188 lb-ft at 1,600 RPM. This engine is paired with a fully synchronized 4-speed forward and reverse shuttle transmission, enabling smooth gear transitions and efficient power delivery.

Hydraulic System and Loader Specifications
The hydraulic system of the 580K is designed for optimal performance, featuring a front-mounted positive displacement gear-type tandem pump with a flow capacity of 26 gallons per minute (98 liters per minute) and a relief valve pressure of 2,550 psi. The loader boasts a bucket capacity of 2 cubic yards (1.53 cubic meters) and a bucket width of 82 inches (208 cm). Its maximum lift capacity reaches 1,980 lbs (898 kg), with a maximum dump height of 9 feet (2.74 meters).

Backhoe Performance and Reach
The backhoe is engineered for deep excavation tasks, offering a standard digging depth of 15 feet (4.57 meters), extendable to 18 feet (5.49 meters). The bucket dig force is 9,800 lbs (4,445 kg), increasing to 10,760 lbs (4,881 kg) when extended. The maximum reach from the swivel is 18 feet (5.49 meters), extending to 21 feet (6.4 meters), facilitating efficient trenching and material handling.

Dimensions and Weight
The 580K's compact design ensures maneuverability in tight spaces. It has a transport length of 16.9 feet (5.15 meters), a transport width of 6.81 feet (2.08 meters), and a wheelbase of 7 feet (2.13 meters). The ground clearance is 1.17 feet (0.36 meters), and the height to the top of the suspended cab is 8.95 feet (2.73 meters). The operating weight varies between 13,426 lbs (6,090 kg) for the 2WD model and 13,912 lbs (6,310 kg) for the 4WD variant.

Common Issues and Maintenance Tips
While the Case 580K is celebrated for its reliability, like any machine, it is not without its challenges. Users have reported issues such as:

• Hydraulic Slop: Over time, the bushings on the backhoe can wear out, leading to "sloppy" movements. A practical solution involves welding a bead inside the bushing to shrink it, allowing for easier removal and replacement.

• Electrical Gremlins: Some owners have encountered electrical issues, particularly with the Return-to-Dig (RTD) sensor. This magnetic switch, located at the bottom of the loader control valve, can become misaligned or faulty. Regular inspection and adjustment are recommended.

• Transmission Concerns: A "jumpy" swing motion, especially when operating multiple functions simultaneously, may indicate issues with the hydraulic system or the need for system recalibration.

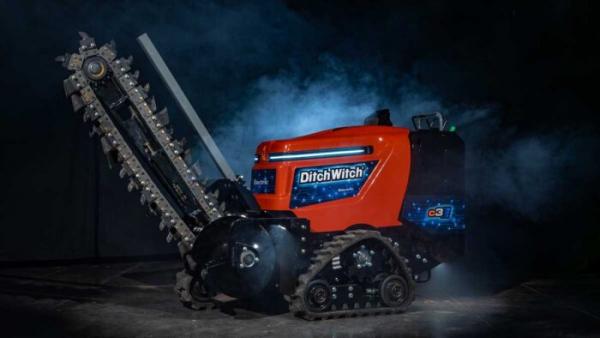

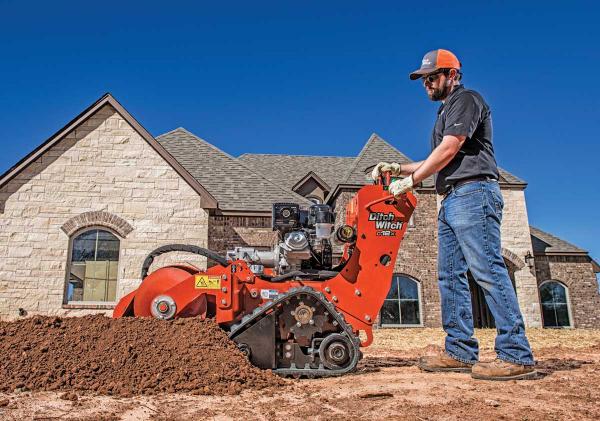

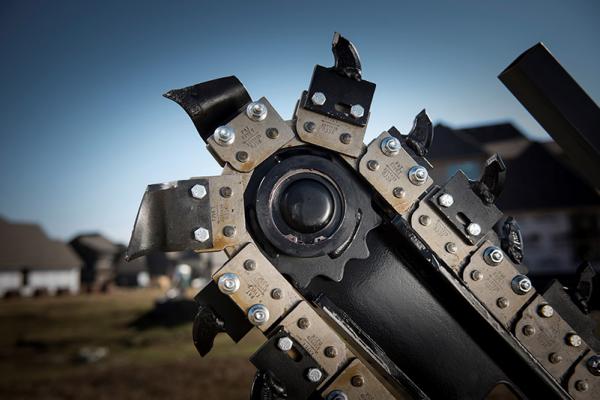

Ditch Witch trenchers are renowned for their durability and efficiency in various digging applications. However, like all mechanical equipment, they are susceptible to electrical issues that can impede their performance. Understanding and diagnosing these problems is crucial for maintaining the machine's operational integrity.

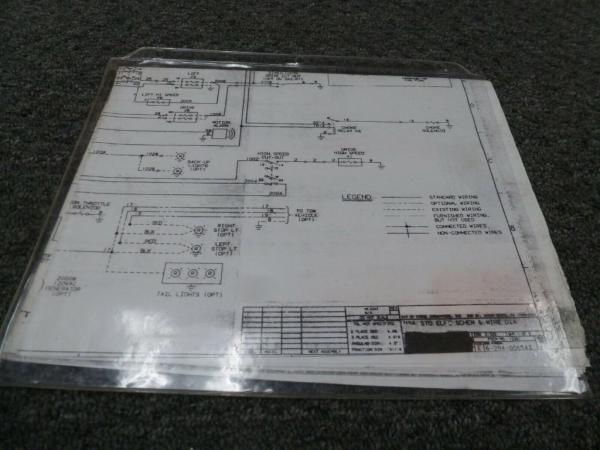

Common Electrical Problems in Ditch Witch Trenchers

1. Starter Motor Failures
   One of the prevalent issues is the starter motor's failure to engage or operate intermittently. This can be attributed to several factors:
   • Worn Brushes or Armature: Over time, the brushes or armature within the starter motor can wear out, leading to poor contact and malfunction.

   • Faulty Solenoid: The solenoid acts as a switch to engage the starter motor. A malfunctioning solenoid can prevent the starter from operating correctly.

   • Corroded Connections: Corrosion at the battery terminals or starter connections can impede the flow of electricity, causing starting issues.

   Diagnostic Steps:
   • Visual Inspection: Check for any visible signs of wear or corrosion on the starter motor and associated wiring.

   • Voltage Test: Using a multimeter, test the voltage at the starter terminal when the ignition is turned on. A significant voltage drop may indicate a faulty connection or component.

   • Component Testing: If the starter motor is suspected, consider bench testing it or replacing it with a known good unit to confirm functionality.

2. Blown Fuses and Circuit Breakers
   Electrical systems in trenchers are protected by fuses and circuit breakers. A blown fuse or tripped circuit breaker can disrupt the operation of critical components.
   Common Causes:
   • Overloaded Circuits: Operating multiple high-power-consuming accessories simultaneously can overload the circuit, causing fuses to blow.

   • Short Circuits: Damaged wiring or components can create short circuits, leading to blown fuses.

   • Faulty Components: A malfunctioning component can draw excessive current, leading to fuse failure.

   Diagnostic Steps:
   • Fuse Inspection: Regularly check all fuses for continuity. Replace any blown fuses with ones of the same amperage rating.

   • Circuit Testing: Use a multimeter to check for continuity in the circuits. A lack of continuity may indicate a broken wire or faulty component.

   • Component Isolation: Disconnect components one at a time to identify the source of the overload.

3. Ignition Switch Issues
   The ignition switch is pivotal in controlling the power flow to the engine and accessories. Problems with the ignition switch can prevent the engine from starting or cause erratic behavior.
   Symptoms:
   • No Response: Turning the key results in no activity from the engine.

   • Intermittent Operation: The engine starts and stops unpredictably.

   • Accessory Malfunctions: Electrical accessories fail to operate when the ignition is turned on.

   Diagnostic Steps:
   • Switch Testing: Test the ignition switch for continuity using a multimeter.

   • Wiring Inspection: Check the wiring connected to the ignition switch for any signs of wear or damage.

   • Component Replacement: If the ignition switch is found to be faulty, replace it with a new one.


• Regular Inspections: Conduct routine checks of the electrical system, including wiring, connectors, and components, to identify potential issues before they become major problems.

• Proper Storage: Store the trencher in a dry, sheltered location to protect it from environmental factors that can cause electrical components to corrode.

• Use of Quality Parts: Always use high-quality, manufacturer-recommended parts for replacements to ensure compatibility and reliability.


The Sweco Trail Dozer is a unique piece of heavy equipment with a specialized purpose, offering a blend of simplicity and efficiency. These machines have been pivotal in certain construction and forestry applications due to their compact design and versatility. In this article, we’ll explore the history of the Sweco Trail Dozer, its features, and provide practical insights into how to keep these machines running efficiently. We’ll also touch upon the importance of dozers in various industries and the evolving role of such equipment in modern construction.
Introduction to the Sweco Trail Dozer
The Sweco Trail Dozer was designed primarily for light to medium-duty tasks, including trail building, road grading, and land clearing. Sweco, a company known for producing compact, powerful dozers, made the Trail Dozer specifically for work in confined spaces and challenging terrains where larger, traditional dozers would not be suitable.
With its relatively small size, this dozer can be maneuvered in areas that are otherwise inaccessible to larger machines. Its design includes a crawler undercarriage and a blade that’s capable of moving substantial amounts of dirt, making it ideal for tasks like landscaping, clearing paths through wooded areas, and even some road maintenance work.
Key Features of the Sweco Trail Dozer

1. Compact Design: The Sweco Trail Dozer is smaller than most conventional dozers, which makes it highly maneuverable. It is well-suited for working in forests, on trails, or in tight spaces.

2. Track System: Like traditional dozers, the Sweco is equipped with tracks instead of tires, allowing it to work efficiently in muddy, rocky, or sandy conditions. The tracks distribute the machine’s weight over a larger surface area, minimizing the risk of getting stuck.

3. Blade Options: The dozer typically comes with a variety of blade options to suit different tasks, whether it's a straight blade for grading or a more angled blade for pushing material.

4. Durability: Built to last, the Sweco Trail Dozer is designed for the harsh conditions of land clearing and roadwork, which means it’s rugged and able to withstand tough environments.

5. Engine Power: Though smaller than other dozers, the Sweco Trail Dozer doesn’t compromise on power. The engine provides just the right amount of horsepower to perform tasks without overloading the system.

6. Versatility: The dozer's blade and size allow for various attachments, making it versatile for tasks beyond just dozing, including trenching or clearing brush.


• Trail Construction and Maintenance: Whether for logging roads, hiking paths, or construction trails, the compact nature of the Sweco makes it an ideal tool for clearing paths through forests or rugged terrain.

• Land Clearing: The dozer can be used to clear brush, small trees, and other vegetation to prepare land for agricultural use, construction projects, or wildlife management areas.

• Utility Work: For utility companies that need to clear paths for pipelines, cables, or power lines, the Sweco Trail Dozer provides a cost-effective and efficient solution.

• Road Grading: In environments where roads need to be maintained or created in rural or forested areas, this dozer excels due to its ability to grade roads without the bulk of a larger dozer.


• Buying: When purchasing a used Sweco Trail Dozer, carefully inspect the machine for wear, particularly in the tracks, blade, and hydraulic system. Check the engine hours to gauge the potential lifespan of the machine. If possible, ask for service records to understand its maintenance history.

• Servicing: Having a reliable technician for regular service checks will help prolong the life of the dozer. Be sure to follow the manufacturer’s recommended maintenance schedule for oil changes, hydraulic fluid replacements, and track adjustments.

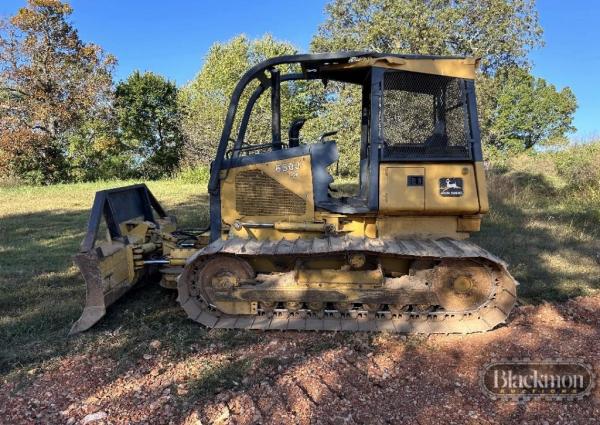

The 2007 John Deere 650J Crawler Dozer is a robust machine known for its reliability and performance in various construction and landscaping tasks. However, like any complex piece of machinery, it can experience issues that affect its operation. One such problem reported by operators is the engine running but the dozer failing to accelerate properly. This issue can stem from several potential causes, ranging from electrical faults to mechanical failures.
Potential Causes and Diagnostic Steps

1. Electrical Connections and Grounding Issues
   A common cause of acceleration problems in the 650J dozer is poor electrical connections. Loose or corroded battery terminals, ground straps, or alternator connectors can lead to insufficient power delivery to critical components, affecting engine performance. It's essential to inspect all electrical connections for tightness and cleanliness. Special attention should be given to the alternator's cam-lock connector, as it has been known to back off and cause charging issues.

2. Throttle Position Sensor (TPS) Malfunction
   The Throttle Position Sensor plays a crucial role in regulating engine speed by providing input to the Transmission Control Unit (TCU). If the TPS is faulty or misaligned, it can send incorrect signals, leading to poor acceleration or erratic engine behavior. Diagnostic trouble codes such as 'CAN THROTTLE MISSING FROM TCU' may appear, indicating communication faults between the TPS and TCU. In such cases, inspecting the TPS for proper operation and recalibrating or reprogramming the TCU may be necessary.

3. Transmission Control Unit (TCU) Software Issues
   Software glitches in the TCU can disrupt the communication between the throttle sensor and the transmission system, leading to acceleration problems. Resetting or reprogramming the TCU can resolve these issues. It's advisable to consult the machine's service manual or a qualified technician for the correct procedures.

4. Hydraulic System Problems
   Since the 650J dozer utilizes a hydrostatic transmission, issues within the hydraulic system can impact acceleration. Low hydraulic fluid levels, clogged filters, or air in the system can cause sluggish response or complete loss of movement. Regular maintenance, including checking fluid levels and replacing filters, is crucial to prevent such problems.

5. Fuel Delivery Issues
   Inadequate fuel supply can lead to engine performance issues. Clogged fuel filters, air in the fuel lines, or a malfunctioning fuel pump can restrict fuel flow, causing the engine to run but not accelerate properly. Inspecting the fuel system for blockages and ensuring proper fuel pressure can help diagnose this issue.


• Inspect and Clean Electrical Connections: Ensure all battery terminals, ground straps, and alternator connectors are clean and tightly secured.

• Test and Calibrate the Throttle Position Sensor: Check the TPS for proper operation and recalibrate or replace it if necessary.

• Reprogram the Transmission Control Unit: If software issues are suspected, reset or reprogram the TCU following the manufacturer's guidelines.

• Maintain the Hydraulic System: Regularly check hydraulic fluid levels, replace filters, and bleed the system to remove any air.

• Inspect the Fuel System: Check for fuel line blockages, replace clogged filters, and ensure the fuel pump is functioning correctly.


In the world of heavy equipment maintenance and repair, small components often play a critical role in ensuring the functionality and longevity of a machine. One such component is the relief valve spring, which is vital in maintaining proper hydraulic pressure and ensuring the safety of the system. When this small but crucial spring is lost or damaged, it can lead to various operational issues, leaving operators and technicians scrambling to fix the problem.
This article will explore the role of the relief valve spring, the implications of losing or damaging it, and the steps to take to address the issue. We will also discuss common troubleshooting tips, how to replace the spring, and how to ensure the system operates safely once repaired.
What is a Relief Valve Spring and Why Is It Important?
The relief valve spring is an integral part of a hydraulic system's relief valve. It controls the pressure within the hydraulic system, preventing the system from being over-pressurized. The relief valve is designed to open when the pressure exceeds a safe threshold, allowing excess pressure to escape and preventing damage to critical components.
The spring in the relief valve applies a specific amount of force to the valve, allowing it to open at the desired pressure. When the pressure falls back below the set point, the spring forces the valve to close again. This process helps to protect the hydraulic system and maintain consistent and safe operation.
Key Functions of the Relief Valve Spring:

1. Pressure Regulation: Maintains the correct hydraulic pressure within the system by controlling when the relief valve opens.

2. System Protection: Prevents over-pressurization, which can damage components like hoses, pumps, and cylinders.

3. Flow Control: Ensures that hydraulic fluid is properly regulated, allowing the machine to perform its tasks effectively without risking damage to the system.


1. Excessive Pressure: Without the spring, the relief valve may fail to open when pressure exceeds the safe limit, causing excessive pressure to build up within the system. This can lead to component failure, leaks, and costly repairs.

2. Inconsistent Performance: The hydraulic system may experience erratic performance, with inconsistent fluid flow and pressure. This could manifest as slow operation, uneven lifting or lowering, or inability to operate at full capacity.

3. Damage to Other Components: Over-pressurization due to a faulty relief valve can lead to significant damage to other hydraulic components, such as the hydraulic pump, hoses, or actuators. In severe cases, it can cause a complete failure of the hydraulic system.

4. Safety Hazards: The inability to regulate hydraulic pressure can lead to dangerous conditions, especially if the machine is operating under heavy loads or in close proximity to workers or other equipment.


• Tip: If the spring appears to be broken, it will need to be replaced. A bent or misaligned spring may still be usable after being properly re-seated or straightened.


• Unusual noises (such as whistling or hissing) from the hydraulic system

• Sudden loss of pressure or fluctuating pressure

• Slow or jerky movement of hydraulic actuators or cylinders

• Leaking hydraulic fluid around hoses or joints


• Tip: If the system has been over-pressurized, you may need to replace any damaged components to restore optimal function.


• Tip: Use the exact part specified by the manufacturer to ensure compatibility with the relief valve and the overall hydraulic system.


1. Safety First: Before you begin working on the hydraulic system, make sure to depressurize the system by turning off the machine and releasing any stored pressure.

2. Locate the Relief Valve: Find the relief valve on your machine. The location will vary depending on the type of equipment, but it's often near the hydraulic pump or control valve.

3. Remove the Old Valve: Using the appropriate tools, remove the relief valve assembly from the machine. You may need to unscrew a retaining nut or bolt to access the valve.

4. Replace the Spring: Once the valve is removed, carefully replace the old or missing spring with a new one. Ensure that the spring is properly seated and aligned to ensure optimal pressure control.

5. Reinstall the Valve: After replacing the spring, reinstall the relief valve assembly and tighten any fasteners. Make sure all connections are secure and that no hydraulic fluid is leaking from the system.

6. Test the System: Once the new spring is installed, re-pressurize the system and test the hydraulic function. Operate the equipment at various speeds and loads to ensure that the pressure regulation is functioning properly.


• Regular Maintenance: Regularly check the condition of the relief valve spring as part of your preventative maintenance routine. This can help identify wear and tear early and prevent future failures.

• Use Genuine Parts: Always replace the relief valve spring with a genuine part recommended by the manufacturer to ensure compatibility and performance.

• Monitor System Pressure: Install pressure gauges to monitor the performance of the hydraulic system and catch any potential pressure issues early.


In the world of construction and heavy equipment, the transportation of materials is just as crucial as the actual operation of machinery. Whether it’s moving aggregates, sand, or construction debris, having the right trailer for the job is essential to both efficiency and safety. One of the most popular options for hauling heavy loads is the pup dump trailer, a versatile and compact option for hauling material, often used in tandem with a larger semi-trailer.
This article will explore the pup dump trailer, its features, advantages, challenges, and how it can optimize hauling operations. We’ll also discuss how this equipment has evolved, the different types of dump trailers available, and the factors to consider when purchasing a new one for the U.S. market.
What is a Pup Dump Trailer?
A pup dump trailer is a smaller, often two-axle dump trailer designed to be towed by a semi-truck or tractor. It is called a “pup” because of its smaller size compared to full-length trailers. These trailers are typically used for hauling heavy materials like gravel, dirt, and sand over short to medium distances.
Pup dump trailers are commonly used in tandem with a tractor-trailer setup, where the pup serves as the secondary trailer, typically attached behind the primary one. This setup allows for greater payload capacity, more efficient operations, and flexibility in transporting large volumes of material, while still maintaining maneuverability on smaller roads and job sites.
Advantages of Using a Pup Dump Trailer
1. Increased Payload Capacity
The primary advantage of a pup dump trailer is the added payload capacity. The trailer is designed to allow a tractor to haul two trailers at once, effectively doubling the hauling capacity without needing to upgrade to larger, more cumbersome single trailers.

• Benefit: This is especially useful in construction, waste management, and aggregate industries where transporting large quantities of material is often required.


• Benefit: Pup trailers allow for easier unloading in areas where space is at a premium, ensuring efficient deliveries in challenging locations.


• Benefit: Lower initial cost, but still capable of handling the demands of heavy-duty hauling.


• Benefit: Having a versatile piece of equipment like a pup dump trailer allows businesses to serve a variety of industries, increasing the potential for new contracts.


• Solution: Proper training on how to manage the load distribution and balance the weight between both trailers is essential. Using advanced load sensing technologies can also assist in monitoring and adjusting weight distribution in real-time.


• Solution: Operators must be aware of the increased turning radius and plan routes accordingly. Additionally, modern trucks equipped with articulating steering systems can help reduce the turning radius.


• Solution: Ensure that the total combined weight of the tractor and trailers does not exceed legal weight limits. Some jurisdictions may require specific permits for hauling oversized loads, so it is important to check local laws.


• Tip: Choose a model that aligns with the types of materials you’ll be hauling. For example, if you’re hauling heavier aggregates, opt for a trailer with a higher weight capacity.


• Tip: If you need a more cost-effective solution, a steel model might be the right choice. However, if weight reduction is a priority, especially when hauling lighter materials, an aluminum trailer might be more suitable.


• Tip: For longer hauls or rough terrain, an air-ride suspension provides greater comfort and minimizes strain on both the trailer and the cargo.


• Tip: Ensure that the dumping system is compatible with your equipment and capable of handling the loads you typically transport. Hydraulic systems should be regularly maintained to prevent breakdowns.


• Tip: If you're purchasing both a truck and a pup dump trailer, ensure they are compatible in terms of size, weight, and towing capacity.

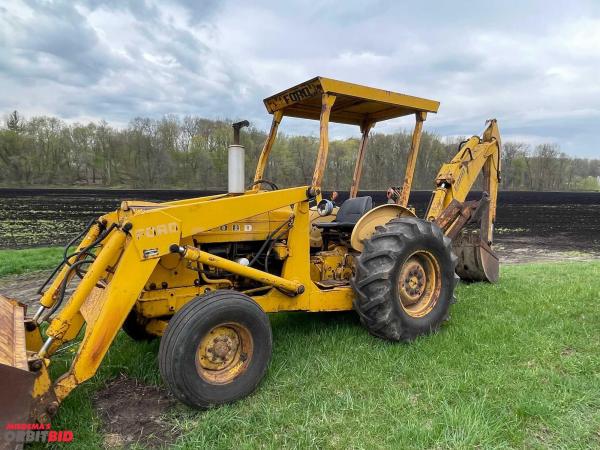

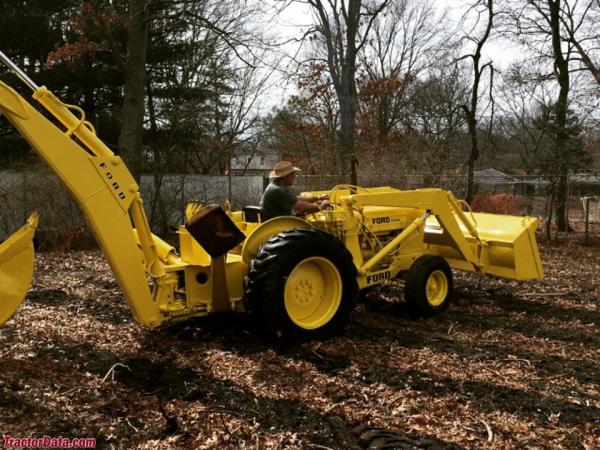

The Ford 4500 Industrial Tractor Loader, produced between 1965 and 1975, stands as a testament to Ford's commitment to durable and versatile machinery. Designed to handle a variety of tasks, from construction to agriculture, this model has become a staple in many operations due to its robust build and reliable performance.
Engine Specifications and Performance
At the heart of the Ford 4500 lies a 3-cylinder Ford diesel engine, delivering approximately 63.7 horsepower. This engine is known for its strong low-end torque and simple mechanical injection system, making it both powerful and easy to maintain. The engine's design ensures that the tractor can handle demanding tasks with ease, providing operators with the power needed for various applications.
Hydraulic System Capabilities
The Ford 4500 is equipped with an open-center hydraulic system powered by an engine-mounted gear pump. This system drives both the loader and backhoe functions, offering a total hydraulic flow of 26.6 gallons per minute. The loader circuit operates at 21.3 gallons per minute, while the backhoe circuit provides 8 gallons per minute. This ample hydraulic capacity allows for efficient operation of attachments, enhancing the tractor's versatility.
Transmission and Drive Options
Operators can choose between a 4-speed manual transmission or the Select-O-Speed transmission, which offers 8 forward and 2 reverse gears. This flexibility allows the Ford 4500 to adapt to various tasks, providing the right speed and torque for different applications. Additionally, the tractor is available in both two-wheel drive and four-wheel drive configurations, further enhancing its adaptability and traction in diverse working conditions.
Dimensions and Weight
The Ford 4500 has a wheelbase of 79.4 inches and weighs between 4,510 and 7,233 pounds, depending on the configuration and attachments. Its compact size and weight make it maneuverable in tight spaces while still providing the stability needed for heavy-duty tasks.
Attachments and Versatility
One of the standout features of the Ford 4500 is its ability to accommodate various attachments, including the 740 loader and the 755 backhoe. These attachments expand the tractor's capabilities, allowing it to perform tasks such as digging, lifting, and material handling. The versatility of the Ford 4500 makes it a valuable asset in construction, landscaping, and agricultural operations.
Maintenance and Common Issues
Like any piece of machinery, the Ford 4500 requires regular maintenance to ensure optimal performance. Common issues reported by owners include hydraulic system problems, such as loss of lift power or chattering during operation. These issues can often be traced back to low hydraulic fluid levels, clogged filters, or worn components. Regular inspection and maintenance of the hydraulic system are crucial to prevent these problems.
Conclusion
The Ford 4500 Industrial Tractor Loader remains a reliable and versatile machine, capable of handling a wide range of tasks. Its robust engine, powerful hydraulic system, and adaptability make it a valuable tool for many operators. With proper maintenance, the Ford 4500 can continue to serve effectively for years, proving its enduring value in the field.

Experiencing a situation where the starter motor of a John Deere 450B continues to crank even after releasing the key can be concerning. This issue often points to problems within the starter solenoid or associated electrical components. Understanding the underlying causes and implementing effective diagnostic procedures can help restore proper functionality.
Understanding the Starter System
The starter system in the John Deere 450B comprises several key components:

• Starter Motor: Responsible for turning the engine over to initiate combustion.

• Solenoid: Acts as a relay to engage the starter motor when the ignition switch is turned to the start position.

• Ignition Switch: Sends the signal to the solenoid to activate the starter motor.

• Battery: Supplies the necessary electrical power to the starter system.


1. Faulty Starter Solenoid
   A common cause of continuous cranking is a malfunctioning starter solenoid. Over time, the internal contacts of the solenoid can wear out or become welded together due to high current flow, preventing them from disengaging properly. This issue can lead to the starter motor remaining engaged even after the ignition switch is released.

2. Sticking Starter Bendix
   The Bendix drive is a component that engages the starter motor's pinion gear with the engine's flywheel. If the Bendix becomes sticky or corroded, it may fail to disengage after the engine starts, causing the starter motor to continue cranking.

3. Electrical Short Circuits
   Wiring issues, such as short circuits or damaged insulation, can cause unintended current flow to the starter motor, leading to continuous cranking. Inspecting the wiring for any signs of wear or damage is essential in diagnosing this issue.


1. Visual Inspection
   • Check the starter solenoid for any visible signs of damage or wear.

   • Inspect the wiring for any frayed or exposed wires that could cause short circuits.

   • Ensure all connections are clean, tight, and free from corrosion.

2. Testing the Solenoid
   • Disconnect the small wire from the solenoid that receives the signal from the ignition switch.

   • With the ignition switch in the start position, check for voltage at the solenoid terminal.

   • If voltage is present and the starter motor continues to crank after releasing the ignition switch, the solenoid is likely faulty and needs replacement.

3. Inspecting the Bendix Drive
   • Remove the starter motor from the engine.

   • Manually engage and disengage the Bendix drive to check for smooth operation.

   • If the Bendix is sticky or does not disengage properly, clean or replace it as necessary.


• Regular Cleaning: Keep the starter motor and solenoid clean to prevent dirt and debris from causing operational issues.

• Lubrication: Apply appropriate lubricants to moving parts like the Bendix drive to ensure smooth operation.

• Electrical System Checks: Periodically inspect the electrical system for signs of wear or damage, and address any issues promptly.

• Battery Maintenance: Ensure the battery is in good condition and properly charged to prevent strain on the starter system.


In recent years, environmental regulations have placed increased pressure on industries that rely heavily on heavy equipment and machinery to meet stringent emissions standards. One of the major shifts has been the introduction of Tier 4 emissions standards by the Environmental Protection Agency (EPA) in the United States, designed to reduce harmful exhaust emissions from off-road vehicles and equipment. This has left many operators and businesses with older equipment wondering whether they should upgrade their machinery or retrofit their existing engines to meet these newer standards.
This article explores the implications of Tier 4 upgrades for older engines, common challenges faced by businesses, the technologies involved, and the possible solutions for staying compliant without breaking the bank.
What is Tier 4 Emission Standard?
Tier 4 is part of the EPA’s emission regulations for non-road engines, which apply to construction equipment, agricultural machines, and other heavy-duty engines. The goal of the Tier 4 regulations is to significantly reduce pollutants such as nitrogen oxides (NOx) and particulate matter (PM), which are harmful to both human health and the environment.
The Tier 4 regulations have been implemented in two phases:

1. Tier 4 Interim (2014): Introduced to gradually reduce emissions and prepare the market for full Tier 4 standards.

2. Tier 4 Final (2015 and beyond): The stricter standards that require more advanced emissions control technologies, including selective catalytic reduction (SCR) systems, diesel particulate filters (DPF), and other advanced technologies.


• Solution: Operators may need to evaluate whether it’s more cost-effective to retrofit their existing machinery or to replace it with new Tier 4-compliant equipment. In some cases, leasing equipment or financing upgrades through manufacturers may help offset the initial high costs.


• Solution: Seek professional help from certified mechanics and retrofit specialists who have experience with these systems. It’s important to have expert guidance on how to integrate these technologies without compromising the performance or reliability of the engine.


• Solution: Before attempting an upgrade, operators should thoroughly research the specific model of their equipment to ensure compatibility with Tier 4 systems. In some cases, it may be more efficient to replace the engine entirely rather than attempt a retrofit.


• Solution: Build a regular maintenance schedule that includes the cleaning and monitoring of emission-control systems. For machines that have been retrofitted, it may be useful to set aside more time for checks and maintenance, particularly for the DPF, which can become clogged and affect engine performance.


1. Age and Condition of Existing Equipment: If the equipment is relatively new and in good condition, retrofitting or upgrading to Tier 4 may be a good option. For older equipment that is nearing the end of its life, it may be more cost-effective to replace it entirely.

2. Cost vs. Benefit: The cost of upgrading or replacing equipment should be weighed against the potential long-term savings in fuel efficiency, reduced maintenance costs, and compliance with environmental regulations.

3. Government Regulations and Incentives: In some regions, governments offer financial incentives for upgrading to Tier 4-compliant equipment, such as tax credits, grants, or subsidies. These incentives can help offset the costs of upgrading or replacing machinery.


The Caterpillar D6D is a powerful and versatile bulldozer that has been a staple in construction and heavy machinery for decades. As with any complex piece of machinery, the D6D requires proper maintenance to ensure its continued performance. One critical component that plays a vital role in the maneuverability of the D6D is the steering valve. Understanding how this system works, common problems, and how to maintain or troubleshoot it is crucial for keeping the bulldozer in optimal working condition.
Understanding the Steering Valve System in the Caterpillar D6D
The steering valve in the D6D is a hydraulic component responsible for controlling the hydraulic flow to the steering cylinders. These cylinders are directly linked to the steering mechanism, which allows the operator to turn the bulldozer smoothly.
Hydraulic steering systems are common in heavy machinery because they provide precise control with relatively low effort from the operator. The steering valve itself works by directing hydraulic fluid to the appropriate steering cylinders based on the movement of the steering controls. When everything functions correctly, the operator can smoothly navigate the bulldozer, even in challenging terrain.
However, problems with the steering valve can lead to significant difficulties in operation, including slow or unresponsive steering, which could impair the bulldozer’s efficiency and safety. Therefore, it is essential to keep the steering system well-maintained and understand potential issues.
Common Problems with the D6D Steering Valve
Below are the most common issues that operators may experience with the steering valve on the Caterpillar D6D, along with possible causes and suggested solutions.
1. Unresponsive Steering
One of the most common symptoms of a failing steering valve is unresponsive steering. The bulldozer may not turn as expected, or the operator might have to apply significantly more effort than usual to change direction.

• Cause: This can occur due to low hydraulic fluid levels, air trapped in the hydraulic system, or a malfunctioning steering valve that is not properly directing hydraulic fluid to the steering cylinders.

• Solution: Start by checking the hydraulic fluid levels and top them up if needed. If the fluid is low, it could cause a lack of pressure in the system, leading to slow or unresponsive steering. If the fluid levels are fine, check for leaks in the hydraulic lines or the steering valve itself. Additionally, consider bleeding the system to remove any trapped air, which could interfere with hydraulic pressure.


• Cause: This issue is often caused by dirty or contaminated hydraulic fluid, worn-out components in the steering valve, or even faulty hydraulic seals.

• Solution: Flush the hydraulic fluid and replace it with fresh fluid. Make sure the hydraulic filters are clean to prevent contaminants from circulating in the system. Inspect the steering valve for signs of wear, and replace any damaged components, such as seals or internal parts. If the problem persists, the valve might need to be professionally rebuilt or replaced.


• Cause: Steering drift is often caused by worn seals or valves within the steering system, which can result in the continuous flow of hydraulic fluid to the steering cylinders.

• Solution: Inspect the seals on the steering valve and replace any that appear to be worn or damaged. Additionally, check the valve for any signs of internal leakage. If the problem continues, the entire valve assembly may need to be replaced or overhauled.


• Cause: Leaks can occur in the hydraulic lines, steering valve seals, or connections within the hydraulic system.

• Solution: Perform a thorough inspection of the entire hydraulic system, focusing on the areas around the steering valve, hoses, and connections. Tighten any loose fittings and replace damaged hoses or seals. If the leak is coming from the steering valve itself, it may need to be repaired or replaced.


• Hydraulic Pump: The pump generates the necessary hydraulic pressure that powers the steering system.

• Steering Valve: The central component responsible for controlling the hydraulic flow to the steering cylinders.

• Steering Cylinders: These hydraulic cylinders receive the fluid from the steering valve and use it to turn the wheels of the bulldozer.

• Hydraulic Fluid: Essential for the smooth operation of the hydraulic system, the fluid transfers energy from the pump to the cylinders.

• Seals and O-Rings: These prevent hydraulic fluid from leaking out and keep the system under the correct pressure.

• Filters: The filters keep the hydraulic fluid clean by trapping debris and contaminants that could damage the system.
