The Caterpillar 3406E is one of the most iconic diesel engines in the heavy equipment and trucking industries. Known for its reliability, power, and long-lasting performance, this engine has been a staple in a variety of applications, from construction equipment to long-haul trucks. However, as with any complex engine, issues such as a cracked engine block can occasionally arise, leading to significant operational disruptions and repair costs. Understanding the causes of a cracked 3406E engine block, diagnosing the problem, and implementing proper solutions can help mitigate these challenges.
Understanding the CAT 3406E Engine
The CAT 3406E is part of Caterpillar's 3400 series, specifically designed for high performance and durability. This engine was widely used in trucks, particularly for long-distance hauling, as well as in some industrial applications. It’s known for its robust construction, high torque output, and adaptability to various environmental conditions.
Key specifications of the CAT 3406E engine include:

• Engine Type: 6-cylinder, turbocharged, and aftercooled

• Displacement: 14.6 liters

• Horsepower: Varies between 425 to 550 horsepower

• Torque: Between 1,650 and 1,850 lb-ft, depending on the configuration

• Fuel System: Electronic Unit Injector (EUI) or Common Rail Injection in newer models

• Emissions: The 3406E engine was primarily designed to meet pre-EGR emissions standards before stricter regulations were implemented in later models.


1. Overheating
   One of the most common causes of engine block cracks is overheating. Overheating can cause thermal expansion of the engine materials, particularly the aluminum and iron alloys used in the block. If the cooling system fails to maintain a proper temperature, or if the engine runs at too high a temperature for too long, the block can expand unevenly, causing cracks to form.

2. Improper Cooling System Maintenance
   The cooling system in the CAT 3406E engine is responsible for regulating the engine’s temperature. If the coolant levels are too low, or if there’s a failure in the water pump, thermostat, or radiator, the engine can overheat. Coolant leaks or clogged coolant passages can also prevent the engine from cooling properly, contributing to the risk of cracks.

3. Hydrostatic Locking or Hydrolocking
   Hydrostatic lock occurs when a cylinder fills with liquid (usually coolant or water), causing an imbalance in pressure during the compression stroke. This sudden pressure increase can force the engine block to crack, especially if the liquid in the cylinder is not able to compress. This can happen if there is a breach in the head gasket or a coolant leak into the cylinders.

4. Physical Impact or Stress
   Physical stress from improper handling, accidents, or excessive loads can cause cracks in the engine block. For example, rough handling during maintenance, an impact from a falling object, or running the engine under extremely high pressure can cause damage.

5. Manufacturing Defects
   While rare, some engine blocks may have inherent defects from the manufacturing process. These defects can lead to premature cracking under normal operational conditions. Defects such as casting flaws or improper alloy composition can compromise the engine’s structural integrity.


• Coolant Leaks: A noticeable coolant leak around the engine block, particularly near the lower side or near the gasket, is often a sign of a crack.

• White Smoke from Exhaust: White smoke could indicate coolant entering the combustion chamber, which can happen when the crack allows coolant to seep into the engine.

• Loss of Power: A cracked engine block can lead to a loss of compression or pressure, resulting in reduced engine power.

• Overheating: Persistent engine overheating, despite having a functioning cooling system, can be a sign that coolant is leaking due to a cracked block.

• Coolant Contamination: If the oil becomes milky or you see signs of coolant mixing with the oil, it may indicate a crack in the engine block.


1. Visual Inspection
   The first step in diagnosing a cracked block is to inspect the engine visually. Look for visible cracks, leaks, or signs of coolant around the block, especially near the head gasket area.

2. Compression Testing
   Performing a compression test can reveal if there is a loss of compression in one or more cylinders. Low compression in multiple cylinders might indicate a crack in the block or cylinder head.

3. Cooling System Pressure Test
   A cooling system pressure test involves pressurizing the cooling system to check for leaks. If the system loses pressure, it may indicate a crack allowing coolant to escape.

4. Oil and Coolant Analysis
   Mixing coolant with oil is a common result of a cracked block. If you notice a milky substance in the oil or a significant drop in coolant levels, it’s time to investigate further.

5. Leak Down Test
   A leak-down test checks the air-tightness of the engine’s combustion chambers. A significant loss of air from one or more cylinders could point to a crack in the block.


1. Block Repair
   In some cases, a cracked engine block can be repaired. This is often done using welding or epoxy sealing to fill the crack and restore the integrity of the block. However, repairs are typically only feasible for small, non-structural cracks. This is more of a temporary fix than a permanent solution.

2. Engine Replacement
   If the crack is too severe or the damage too widespread, replacing the engine block may be the only option. Depending on the severity of the crack, it might be more cost-effective to replace the entire engine rather than attempting to repair a severely damaged block.

3. Rebuild the Engine
   In cases where the engine block is still in good condition but the damage is limited, a full engine rebuild might be possible. This typically involves disassembling the engine, replacing damaged parts, and resealing the engine block.

4. Replacement of Head Gaskets and Related Components
   Sometimes, a crack near the gasket can cause coolant to leak into the engine. Replacing the head gasket and inspecting the surrounding areas for additional damage may resolve the problem.


• Regular Coolant System Checks: Maintain proper coolant levels and regularly inspect the coolant for signs of contamination. Ensure that the radiator, water pump, and thermostat are functioning correctly.

• Proper Warm-Up: Allow the engine to warm up properly before putting it under heavy load to prevent thermal shock.

• Monitor Engine Temperature: Regularly check the engine’s temperature gauge to ensure that the engine is not overheating. Overheating is a leading cause of engine block cracks.

• Use Quality Lubricants and Coolants: Always use recommended oils and coolants for your engine to ensure proper lubrication and cooling.

• Periodic Inspections: Regularly inspect the engine for visible cracks, leaks, or other signs of wear.

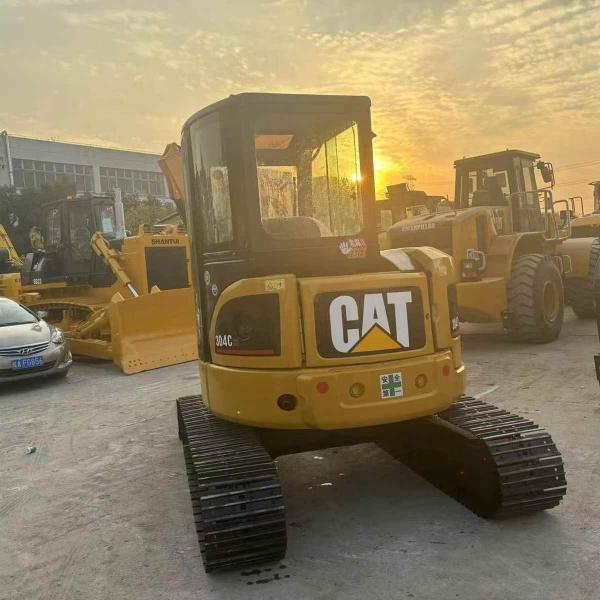

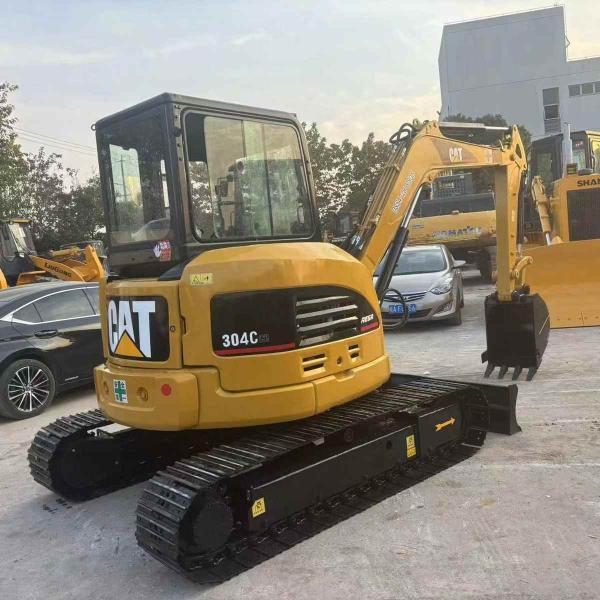

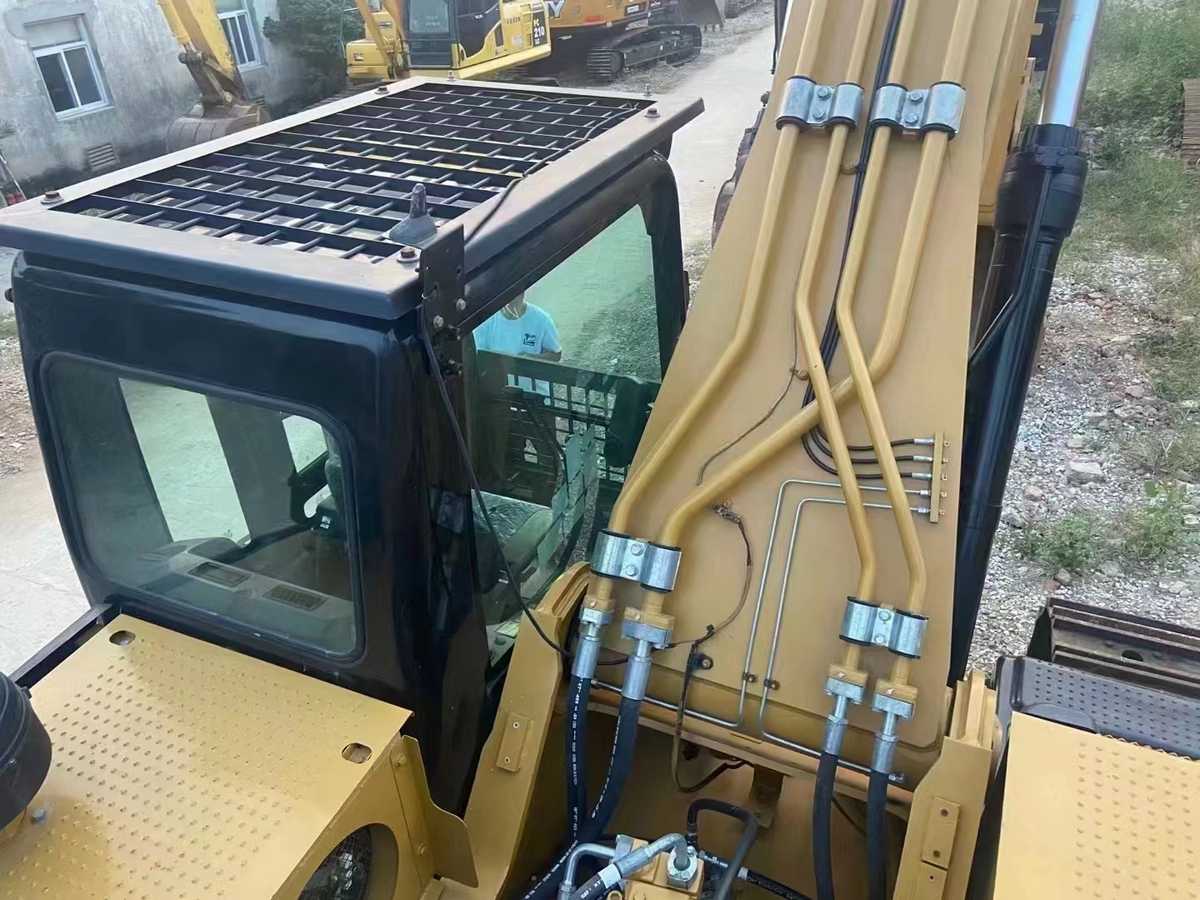

A Compact Excavator with Smart Features
The Caterpillar 304C CR is a compact radius mini excavator designed for tight job sites and precision digging. Introduced in the mid-2000s, it features a 3.3-ton operating weight, a 40.2 hp diesel engine, and a hydraulic system optimized for smooth control. One of its standout features is the auto idle function, which automatically reduces engine RPM when controls are inactive, conserving fuel and reducing noise. However, like many electronically managed systems, this feature can be disabled or malfunction due to operator error or minor electrical faults.
Terminology Clarification

• Auto Idle: A system that lowers engine speed when hydraulic controls are untouched for a set period, improving fuel efficiency.

• Fuel Lift Pump: A low-pressure pump that delivers fuel from the tank to the injection pump.

• ID10T Test: A humorous reference to operator error, implying the issue was caused by a simple oversight.


• Always verify fuel level visually or by topping off before diagnosing fuel delivery issues.

• Auto idle systems can be toggled off via dashboard controls or menu settings—check before assuming failure.

• Fuel lift pump failure typically presents as hard starting, sputtering under load, or complete stall—not just idle control loss.

• A full tank reduces the chance of air ingestion and ensures consistent fuel pressure, especially on slopes or uneven terrain.


• Train operators to check auto idle settings at the start of each shift.

• Encourage full fuel tank practices to avoid misdiagnosis and downtime.

• Replace fuel filters every 500 hours or annually, whichever comes first.

• Keep a laminated quick-reference guide in the cab for common troubleshooting steps.


The 6.7L ISB Cummins engine is a popular and reliable powertrain, commonly found in a range of vehicles and heavy equipment, particularly in medium-duty trucks, construction machinery, and agricultural applications. Known for its efficiency, performance, and longevity, this engine has earned a reputation as a dependable workhorse. Whether used in a personal vehicle or a commercial truck, the 6.7L ISB Cummins offers a balance of power, fuel efficiency, and low maintenance requirements, making it a go-to choice for many industries.
Key Features and Applications
The 6.7L ISB Cummins engine belongs to the ISB (Intermediate Series B) family, known for its advanced technology, high fuel efficiency, and low emissions. This engine has been widely used in many diesel-powered vehicles and machinery, including:

1. Commercial Trucks: Often seen in medium-duty and light-duty trucks, including models from Freightliner, Dodge, and others.

2. Construction Equipment: The engine is used in various construction machines like bulldozers, excavators, and wheel loaders.

3. Agricultural Equipment: Its reliability also makes it a preferred choice for agricultural machinery such as tractors and harvesters.


• Engine Type: Inline 6-cylinder, turbocharged, and intercooled

• Displacement: 6.7 liters (408 cubic inches)

• Horsepower: Varies between 200 and 400 hp, depending on the application and specific configuration

• Torque: Typically between 500 lb-ft to 1,000 lb-ft

• Fuel System: Common rail direct injection (CRDI)

• Turbocharger: Yes, for enhanced power and fuel efficiency

• Emissions Control: Equipped with a diesel particulate filter (DPF) and selective catalytic reduction (SCR) for lower emissions


1. Fuel System Problems
   Fuel-related issues can manifest in several ways, such as poor fuel delivery or excessive fuel consumption. The engine may struggle to start, lose power, or exhibit reduced fuel efficiency. Here’s how to address such issues:
   • Clogged Fuel Filters: Over time, fuel filters can get clogged with debris, causing restrictions in fuel flow. Regularly replacing fuel filters ensures smooth operation.

   • Fuel Injector Problems: Faulty or clogged fuel injectors can result in poor combustion, causing power loss or rough idling. Diagnosing the injectors with a scanner and replacing any faulty components can resolve this issue.

2. Overheating and Cooling System Failures
   Overheating is a common issue with diesel engines that can lead to severe damage if not addressed quickly.
   • Thermostat Failure: If the thermostat is stuck closed, it may not allow the coolant to circulate properly, leading to engine overheating. Replace the thermostat to restore normal function.

   • Radiator Blockages: Over time, radiators can become clogged with debris or dirt, reducing their efficiency. Cleaning the radiator and ensuring there are no obstructions will improve cooling performance.

3. Turbocharger Failure
   Turbochargers are responsible for improving engine efficiency by boosting air intake pressure. If the turbo fails, the engine may experience reduced power and poor acceleration.
   • Symptoms of Turbo Failure: A sudden loss of power, excessive exhaust smoke, or strange noises coming from the turbo are signs of a potential failure.

   • Inspection and Replacement: Regularly inspect the turbocharger for leaks, cracks, or unusual wear. If damage is found, replace the turbocharger to restore engine performance.

4. Low Oil Pressure and Oil Leaks
   Oil pressure issues are a sign of trouble in the engine’s lubrication system. Low oil pressure can cause engine components to overheat and wear prematurely.
   • Oil Pump Malfunctions: The oil pump is responsible for circulating oil throughout the engine. If the oil pump is malfunctioning, the engine may experience low oil pressure. Replacing the pump or checking for blockages can resolve the issue.

   • Oil Leaks: Leaks in the gasket seals, oil cooler, or oil filter housing can cause a significant drop in oil levels. Inspecting these areas for leaks and replacing damaged seals will prevent oil loss.

5. Electrical Issues
   Electrical system problems can disrupt engine performance, particularly with the electronic control module (ECM) or sensors.
   • Faulty Sensors: Sensors like the mass air flow (MAF) sensor or crankshaft position sensor can malfunction and trigger engine codes or poor performance.

   • ECM Malfunctions: A malfunctioning ECM can affect fuel delivery, timing, and overall engine control. Using a scanner to read the codes and perform a diagnostic check can pinpoint the issue.

6. Excessive Exhaust Smoke
   Excessive exhaust smoke, especially black smoke, is often an indication of improper combustion.
   • Causes of Black Smoke: Black smoke generally occurs when the engine is burning too much fuel. This could be caused by faulty injectors, a clogged air filter, or turbocharger issues. Inspecting and replacing the necessary components should eliminate the issue.


• Regular Oil Changes: Make sure to follow the manufacturer’s recommendations for oil changes. This will help maintain proper lubrication and reduce engine wear.

• Clean Air Filters: A clean air filter ensures proper airflow to the engine, enhancing fuel efficiency and preventing carbon build-up.

• Monitor the Coolant Levels: Keep an eye on coolant levels and check the cooling system for leaks or damage. Overheating is a leading cause of engine damage.

• Inspect Belts and Hoses: Check belts and hoses for wear and tear, and replace them before they fail. A broken belt or hose can lead to overheating or loss of power.

• Regular Diagnostics: Using diagnostic tools to monitor the engine’s health is an excellent way to identify potential issues early. This includes checking for any fault codes stored in the ECM.


Sudden Hydraulic Loss and the Telltale Whine
A 1984 Caterpillar 953 track loader experienced a sudden loss of hydraulic function following a loud whine that lasted approximately ten seconds. No fluid was found on the ground, but upon inspection, the hydraulic reservoir was nearly full and emitted steam when opened. The fluid had thinned dramatically, resembling water in consistency. These symptoms strongly suggest internal pump failure, likely due to overheating and cavitation.
Terminology Clarification

• Cavitation: The formation of vapor bubbles in a hydraulic fluid due to low pressure, which collapse violently and damage internal surfaces.

• Vane Pump: A type of hydraulic pump using sliding vanes to move fluid; known for smooth flow but sensitive to contamination and wear.

• Cartridge Kit: A replaceable internal assembly for vane pumps, including the rotor, vanes, and cam ring.

• Pressure Relief Valve: A safety component that limits system pressure to prevent damage; if stuck, it can cause excessive heat and noise.


• Drain and inspect the hydraulic fluid for contamination or discoloration.

• Remove the pump and disassemble carefully, noting vane orientation.

• Replace the rotor, vanes, and cam ring with a matched kit.

• Clean all mating surfaces and reinstall with fresh seals.

• Prime the pump before startup to prevent dry running.


• The pressure relief valve reset after cooling.

• Air trapped in the system vented during shutdown.

• The fluid regained viscosity after sitting.


• Replace hydraulic filters and inspect them for metal shavings or seal fragments.

• Monitor fluid temperature during operation; install a gauge if needed.

• Use high-quality hydraulic oil with anti-foam and anti-wear additives.

• Service pressure relief valves annually to prevent sticking.

• Consider installing a fluid cooler if operating in hot climates or under heavy load.


Hitachi's EX120 is a popular hydraulic excavator known for its durability, power, and efficiency in various construction and digging operations. As with all heavy machinery, regular maintenance and diagnostics are critical to ensure the equipment operates optimally. One key component for diagnostics is the diagnostic port, which is used to access the machine’s control system for troubleshooting and error code reading.
Understanding the Diagnostic Port
The diagnostic port on the Hitachi EX120 excavator allows technicians and operators to connect a diagnostic tool or scanner to the machine’s control system. This enables the retrieval of fault codes, system health data, and other diagnostic information necessary for troubleshooting. Accessing the diagnostic port is crucial when the machine experiences unusual behavior or operational issues, as it helps identify the underlying problem quickly.
The diagnostic port is typically located in a convenient but protected area of the machine to ensure that it is both accessible and secure during use. The location of this port is essential for efficiency and timely maintenance work.
Location of the Diagnostic Port on the Hitachi EX120
On the Hitachi EX120 excavator, the diagnostic port is generally located near the operator’s cabin or inside the engine compartment. To identify the precise location, the operator needs to follow these steps:

1. Inside the Operator’s Cabin
   • The diagnostic port may be situated near the control panel or on the side of the cabin.

   • It could be housed behind a cover or a small panel to keep it protected from dust, dirt, and potential damage.

   • It may be labeled with the word "Diagnostic" or an icon representing a connection port.

2. Engine Compartment
   • The engine compartment often contains various access points for maintenance and diagnostic tools. The diagnostic port may be located near the electronic control module (ECM) or near other key electrical components.

   • It may require the removal of a cover or panel to gain access.

3. In Close Proximity to the Fuse Box
   • On some models, the diagnostic port is located close to the fuse box or wiring harnesses to make connecting diagnostic tools easier without interfering with other operational systems.


1. Engine Problems
   • The tool can read engine-related fault codes such as misfires, low power, excessive fuel consumption, or abnormal temperature readings. These codes can point to issues such as a failing fuel injector, clogged filters, or an air intake problem.

2. Hydraulic System Issues
   • Hydraulic pressure and flow errors are common issues that are often detected using the diagnostic port. The diagnostic tool can identify problems with the hydraulic pump, pressure relief valves, or even faults in the hydraulic cylinders.

3. Transmission and Gearbox Errors
   • Any malfunction or irregularity in the transmission system, such as poor shifting, can be traced back to the diagnostic port. Fault codes can provide insights into the cause, whether it's related to fluid pressure or electronic control faults.

4. Sensor Failures
   • A significant number of machines today are equipped with various sensors that monitor everything from fuel levels to hydraulic pressures. Malfunctioning sensors can be identified via the diagnostic tool, helping pinpoint the failure before it leads to further damage.

5. Electrical System Faults
   • Electrical issues like faulty wiring, blown fuses, or malfunctioning controllers can be quickly identified through the diagnostic port, which helps in avoiding downtime due to undiagnosed problems.


1. Locate the Diagnostic Port
   As mentioned, the port is located inside the operator's cabin or engine compartment. Ensure the machine is safely turned off and all systems are shut down before beginning any diagnostic work.

2. Connect the Diagnostic Tool
   Once the port is located, connect your diagnostic tool (usually an OBD-II scanner or proprietary Hitachi diagnostic device) to the port. Ensure the tool is compatible with the EX120 model.

3. Access and Read the Codes
   Turn the machine's ignition to the "on" position (without starting the engine). The diagnostic tool should power on and connect to the machine’s system. Follow the tool’s instructions to read and record any diagnostic trouble codes that appear.

4. Interpret the Codes
   After retrieving the codes, interpret them using the diagnostic tool’s manual or refer to the machine's operator manual for specific explanations of each code. This will give you a clear understanding of which components are malfunctioning.

5. Address the Problem
   Depending on the diagnostic results, you may need to replace faulty components, adjust settings, clean filters, or address other issues identified by the tool.


1. Routine Fluid Checks
   Regularly check the hydraulic fluid levels and quality. Low or dirty fluid can cause many of the issues detected by the diagnostic tool, including overheating or erratic machine performance.

2. Replace Worn Components
   Over time, components like the fuel system, filters, and seals can wear down. Keep an eye on these parts and replace them as necessary to prevent major issues from occurring.

3. System Calibration
   Make sure that all systems are properly calibrated to avoid false readings or malfunctions. Regular system checks and recalibrations ensure that the machine operates as intended.

4. Inspect the Electrical System
   Since many diagnostics relate to electrical issues, it is wise to perform regular inspections of the electrical components. Look for loose connections, damaged wires, and signs of corrosion or wear.


A Compact Dozer with a Loyal Following
The Case 450E crawler dozer, produced during the late 1980s and early 1990s, was part of Case’s compact dozer lineup aimed at contractors, farmers, and municipalities needing a nimble machine for grading, clearing, and site prep. With an operating weight around 14,000 lbs and a 4-cylinder diesel engine delivering roughly 65 horsepower, the 450E offered a balance of power and maneuverability. Its mechanical simplicity and parts availability have kept many units in service decades after production ended.
Terminology Clarification

• Injector Pump: A precision fuel delivery component that meters and pressurizes diesel into the engine’s combustion chambers.

• Governor Seals: Internal seals that regulate engine speed by controlling fuel delivery based on throttle input.

• Gumming: A condition where degraded fuel or seal material clogs internal passages, leading to erratic performance or failure.

• Rebuild: A process involving disassembly, cleaning, replacement of worn parts, and reassembly to restore original function.


• Use diesel fuel additives that restore lubricity and protect seals.

• Replace fuel filters annually and drain water separators monthly.

• Inspect throttle linkage and return springs for wear or binding.

• If throttle response degrades, test fuel pressure and delivery before assuming mechanical failure.

• Keep a service log to track injector pump age and performance history.


The Caterpillar 962G is a popular wheel loader used in construction, material handling, and other heavy-duty applications. Known for its durability and powerful performance, this machine is built to handle tough tasks. However, like all machinery, it is susceptible to certain issues that can affect its operation and efficiency. One of the most common problems reported by operators is the heating of the transmission modulator valve.
Understanding the Transmission Modulator Valve
The transmission modulator valve is an essential component in the transmission system of the Caterpillar 962G. Its primary function is to regulate the hydraulic pressure that controls the shifting of gears in the transmission. By adjusting the pressure, the modulator valve ensures that the transmission shifts smoothly and efficiently, providing optimal power delivery and fuel efficiency.
Overheating of this valve can lead to several performance issues, such as erratic shifting, loss of power, or even transmission failure if not addressed in time.
Causes of Modulator Valve Heating

1. Clogged Filters or Contaminated Fluid
   One of the most common causes of overheating in the modulator valve is clogged filters or contaminated transmission fluid. When the hydraulic fluid becomes contaminated with dirt, metal particles, or moisture, it can impair the valve’s ability to regulate pressure properly. This increased resistance can cause the valve to overheat, leading to further damage to the transmission system.

2. Low Fluid Levels
   Low hydraulic fluid levels can also cause overheating. The fluid is responsible for lubricating and cooling the transmission components, including the modulator valve. When the fluid level is insufficient, the valve may not receive enough lubrication, causing it to heat up. Additionally, low fluid levels can lead to cavitation, which further exacerbates the heating problem.

3. Faulty Modulator Valve
   A worn or faulty modulator valve itself can be a direct cause of heating. Over time, the internal components of the valve can wear out due to constant use and exposure to heat. When this happens, the valve may not function as efficiently, causing it to overheat. This issue may be compounded if the valve is not properly calibrated, leading to uneven pressure regulation and overheating.

4. Improper Calibration or Malfunctioning Sensors
   The modulator valve relies on sensors and electronic controls to regulate hydraulic pressure. If these sensors malfunction or are improperly calibrated, the valve may not function as intended, leading to excessive heating. Additionally, issues with the wiring or electrical connections can prevent the modulator valve from receiving the correct signals, further contributing to the overheating problem.


1. Erratic Shifting
   One of the first signs of modulator valve heating is erratic shifting. The transmission may shift too early, too late, or may fail to shift at all. This can lead to a jerky or rough driving experience, and it may be difficult to achieve the desired speed and power for the task at hand.

2. Loss of Power
   A heating modulator valve can cause a loss of power during operation. The loader may struggle to move heavy loads or perform tasks that it could easily manage under normal conditions. This decrease in power can severely affect productivity on the job site.

3. Increased Temperature Readings
   The transmission temperature gauge may show abnormally high readings. This is often accompanied by a warning light or alert on the machine’s dashboard, indicating that the transmission system is overheating.

4. Unusual Noises
   In some cases, operators may hear strange noises coming from the transmission, such as whining, grinding, or popping. These sounds can be indicative of internal damage, which may have been caused by overheating components like the modulator valve.


1. Inspect the Fluid
   The first step in diagnosing overheating issues is to inspect the transmission fluid. Check for signs of contamination, such as discoloration, cloudiness, or the presence of metal particles. Ensure that the fluid levels are correct, and top off or replace the fluid if necessary. Regular fluid changes are crucial to prevent overheating and ensure smooth transmission performance.

2. Check for Clogs
   Inspect the hydraulic filters for any signs of clogging. If the filters are clogged, replace them immediately to improve fluid flow and prevent further overheating. Clean or replace any components that show signs of excessive wear or damage.

3. Examine the Modulator Valve
   A thorough inspection of the modulator valve should be conducted. Look for any signs of wear, leakage, or malfunction. If the valve appears to be damaged, it may need to be repaired or replaced. In some cases, recalibrating the valve can help restore normal function and prevent overheating.

4. Inspect the Sensors and Wiring
   Check the sensors and electrical connections associated with the modulator valve. Ensure that they are functioning properly and that there are no loose or damaged wires. Recalibrate the sensors if necessary to ensure that the modulator valve receives the correct signals.

5. Monitor Temperature Levels
   After addressing the potential issues, monitor the temperature levels to ensure that the modulator valve and transmission are functioning within the normal operating range. If the overheating problem persists, further investigation may be needed to identify the root cause.


1. Regular Fluid Changes
   Ensure that the transmission fluid is changed at the recommended intervals. This helps prevent contamination and keeps the system running efficiently. Use high-quality fluid recommended by the manufacturer to ensure proper lubrication and cooling.

2. Routine Inspections
   Regularly inspect the modulator valve, filters, and fluid levels. Catching issues early can prevent major problems and extend the life of the transmission system.

3. Proper Calibration
   Ensure that the modulator valve and associated sensors are properly calibrated according to the manufacturer’s specifications. This will help prevent uneven pressure regulation and overheating.

4. Use Quality Parts
   Always use OEM (Original Equipment Manufacturer) parts for repairs and replacements. These parts are designed to work with the system’s specifications, ensuring long-term reliability and performance.


Grease Is a Sponge Not a Sealant
Grease is often misunderstood as a simple sticky lubricant, but its internal structure is more like a sponge soaked in oil. The thickening agent—called the thickener—holds the base oil and additives in suspension. During operation, the oil seeps out to lubricate moving parts, and when the equipment cools, the sponge-like matrix can reabsorb the oil. This property is known as reversibility, and it’s critical for maintaining lubrication under fluctuating temperatures and loads.
Types of Thickeners and Their Roles
The thickener determines the grease’s water resistance, temperature stability, and compatibility with other greases. Common types include:

• Lithium Complex: Most widely used, offering good heat resistance and mechanical stability.

• Aluminum Complex: Highly water-resistant, excellent reversibility, and ideal for wet or high-temperature environments.

• Calcium 12 Hydroxy: Good water resistance, but less common in modern formulations.

• Polyurea: Used in sealed-for-life bearings, with high oxidation resistance.

• Clay-Based (Bentone): Rare, non-melting, used in extreme temperature applications.


• Aluminum Complex: Compatible with calcium 12 hydroxy and borderline with lithium complex.

• Lithium Complex: Compatible with lithium 12 hydroxy and most other lithium-based greases.

• Polyurea: Often incompatible with other types; use caution when switching.


• NLGI #2: Standard for most applications.

• NLGI #1: Softer, used in cold climates for better pumpability.


The John Deere 350D LC, part of the 350D series, is a highly versatile and powerful excavator designed for a wide variety of tasks, including earthmoving, construction, mining, and landscaping. As part of the Deere family, the 350D LC combines cutting-edge technology, reliable engineering, and operator-friendly features, making it a popular choice for heavy-duty applications in industries requiring high productivity and efficiency.
Key Features of the John Deere 350D LC

1. Engine and Performance
   • The 350D LC is equipped with a 6-cylinder, turbocharged diesel engine that provides impressive horsepower. The engine is designed to offer optimal fuel efficiency while maintaining the power needed for demanding tasks. The engine’s output is typically around 200 horsepower, giving the excavator the strength necessary for digging, lifting, and trenching.

   • With a fuel-efficient powertrain and robust power delivery, the 350D LC offers a balance between performance and operating costs.

2. Hydraulic System
   • One of the standout features of the John Deere 350D LC is its hydraulic system. It is designed to provide maximum force and efficiency when moving materials or handling heavy attachments. The hydraulic pumps and cylinders are fine-tuned to provide excellent flow and pressure, enabling the machine to perform demanding tasks smoothly.

   • The excavator is equipped with an advanced hydraulic valve system that enhances precision during operation, making it easier to control digging depth, lift capacity, and bucket position.

3. Undercarriage and Stability
   • The 350D LC features a heavy-duty undercarriage designed to handle rough terrain and high operational stresses. The tracks provide the stability needed when operating on uneven surfaces, while the long reach and robust design help ensure balanced weight distribution, reducing wear and increasing durability.

   • The undercarriage is also designed for easy maintenance, with components like sprockets and rollers that are built to last in tough conditions.

4. Operator Comfort
   • The cab of the 350D LC is engineered for operator comfort and visibility, providing a spacious and ergonomic working environment. The operator’s seat is adjustable, allowing for better posture and reduced fatigue during long shifts.

   • The controls are designed for intuitive use, with easy-to-understand joysticks and control levers. The cab also includes air conditioning, high-quality sound insulation, and a low-vibration design, ensuring that the operator can focus on the task at hand without distractions.

5. Bucket and Attachment Options
   • The 350D LC comes with a wide variety of bucket and attachment options, enabling it to tackle a diverse range of tasks. Whether it's digging, grading, or lifting, the excavator’s hydraulic power system can be paired with different attachments, such as tilt buckets, hydraulic hammers, or augers.

   • The machine’s versatility makes it suitable for various applications in construction, demolition, forestry, and utility work.


1. Excavation and Earthmoving
   • The 350D LC excels in excavation and earthmoving tasks, such as digging foundations, trenches, and other large-scale digging operations. Its powerful engine and hydraulic system ensure efficient material movement and digging capability.

2. Construction and Demolition
   • Whether it’s for site preparation, building roads, or demolishing structures, the 350D LC is highly effective. Its size and power allow it to move heavy debris and earth, making it a reliable tool for construction and demolition contractors.

3. Material Handling
   • The excavator’s lift capacity and stability make it an excellent choice for material handling tasks, such as moving large pipes, steel beams, and construction materials. It is also commonly used in industrial settings where handling bulky materials is required.

4. Landscaping and Grading
   • The 350D LC can be used in grading and landscaping applications. It is well-suited for leveling, smoothing, and grading soil, making it ideal for creating foundations for buildings or preparing land for new projects.

5. Mining and Quarrying
   • In mining operations, the John Deere 350D LC can be used for tasks such as removing overburden, digging, and moving materials. Its powerful hydraulics and high digging forces make it well-suited for tough mining environments.


1. Engine and Hydraulic Maintenance
   • Regular oil changes, filter replacements, and inspection of hydraulic fluid levels are critical to keeping the engine and hydraulic system running smoothly. Neglecting these areas could lead to reduced performance and mechanical failure.

2. Undercarriage Inspection
   • The undercarriage components, such as the track rollers, sprockets, and idlers, should be inspected for wear. Regular lubrication and adjustment of the track tension can prevent premature wear and enhance the lifespan of these components.

3. Air Filter and Cooling System
   • Regular cleaning of the air filter is essential to maintain optimal engine performance. Additionally, keeping the radiator and cooling system clean will prevent overheating, especially in demanding work environments.

4. Bucket and Attachment Maintenance
   • Ensure that buckets, attachments, and quick couplers are checked for wear. Greasing pivot points and checking for cracks or structural damage can prevent downtime during operation.


A Century of Compaction Innovation
Sakai Heavy Industries, founded in 1918 in Osaka, Japan, began as a manufacturer of parts for automobiles and locomotives. By 1929, it had produced Japan’s first internal combustion engine road roller, marking the start of its leadership in compaction technology. Over the decades, Sakai expanded globally, establishing a strong presence in Southeast Asia and North America. In 1976, Sakai America was founded in Delaware, and by 2000, domestic manufacturing began in Adairsville, Georgia. Today, Sakai is known for its high-performance soil compactors and asphalt rollers, with models like the SV414, SW884, and CR271 widely used in roadbuilding and site preparation.
Terminology Clarification

• Vibratory Roller: A compaction machine that uses a rotating eccentric weight to generate vibration, increasing soil or asphalt density.

• Operator’s Manual: A document that provides instructions for safe operation, maintenance schedules, and control layouts.

• Shop Manual: A technical guide for mechanics, including hydraulic schematics, torque specs, and disassembly procedures.

• SV Series: Sakai’s line of soil compactors, typically single-drum machines used for subgrade and base compaction.

• SW Series: Double-drum asphalt rollers designed for finish compaction on paved surfaces.


• Sakai America’s Equipment Library offers downloadable brochures and manuals for current and legacy models. This includes the SV204, SV414, SW774, SW884, and CR271 series.

• Manualslib.com hosts over 80 Sakai manuals, including shop manuals and operating instructions for models like the SV201, SV204D, SW770, and HS67ST.

• eManualsOnline provides paid access to workshop manuals with detailed repair procedures, wiring diagrams, and troubleshooting guides.

• Manualzz.com features scanned operator manuals for specific models such as the SV414 series, with step-by-step instructions and safety protocols.


• Performing scheduled maintenance (e.g., oil changes, filter replacements)

• Diagnosing hydraulic or electrical faults

• Understanding vibration frequency settings and amplitude adjustments

• Ensuring compliance with safety standards and emissions regulations


• Always store printed manuals in a sealed, weatherproof binder inside the cab.

• For digital manuals, keep copies on a USB drive and cloud storage for field access.

• If a manual is lost or damaged, replace it immediately to maintain safety compliance.

• Cross-reference engine manuals separately, as many Sakai machines use engines from Kubota, Isuzu, or Deutz.
