The Challenge of Sod Encroachment
Maintaining gravel roads in rural townships often means dealing with more than just grading and pothole repair. One persistent issue is the gradual encroachment of sod from the shoulders into the driving surface. Over time, grass and weeds creep inward, narrowing the road and trapping gravel in the vegetative mat. This not only reduces the usable width of the road but also impedes drainage, leading to water pooling, potholes, and erosion.
In many areas, especially where budgets are tight and equipment is limited, operators must find creative ways to manage sod without the benefit of dedicated loaders or dump trucks. The solution often lies in technique, timing, and persistence.
Terminology Clarification

• Windrow: A linear pile of material (e.g., sod, gravel, debris) created by a grader or other equipment during road maintenance.

• Toe and Heel of the Blade: The leading and trailing edges of a grader blade. Adjusting their height and angle affects how material is cut and moved.

• Water Table: The shallow ditch or depression along the road shoulder that facilitates drainage.

• Berm: A raised strip of earth or sod along the edge of the road, often formed unintentionally by repeated grading.


• Rolling and Windrowing: By repeatedly rolling sod clumps back and forth in windrows, the material begins to break down. This process helps separate embedded gravel from organic matter. After a few weeks of drying, the sod becomes brittle and easier to regrade or remove.

• Blade Control Strategy: On the initial pass, some operators cut with the toe of the blade while raising the heel. This technique concentrates the sod in the center of the blade, breaking it into smaller pieces and reducing the number of passes needed. Though it results in a rougher ride, it accelerates decomposition and gravel recovery.

• Seasonal Timing: Late winter or early spring, when frost is still in the ground but beginning to thaw, is an ideal time for shoulder trimming. The frozen soil holds sod roots in place, allowing operators to slice off the sod lip cleanly without disturbing the underlying gravel. This method is particularly effective in northern climates.


• One-Way Disk Blades: Mounted in place of a grader wing, these tools cut a wide swath of sod and flip it into a windrow. When used in dry conditions, they effectively separate vegetation from gravel. However, they are less effective in clay-heavy soils.

• Custom Reclaimers: One contractor developed a machine resembling an oversized rototiller with integrated screening belts. It separates sod and dirt from usable gravel, which is then redistributed onto the road. While effective, such machines are costly and typically used by larger municipalities.


A Forgotten Machine in Paradise
On the island of Maui, where volcanic slopes meet sugarcane fields and coastal winds, an old road roller sits abandoned under rusting skies. Sun, salt, and decades of neglect have transformed this once-valuable piece of construction equipment into an industrial relic — a reminder of the machines that helped shape roads, ports, and plantations across the Hawaiian islands.
Finding such a roller raises questions: What brand might it be? What period of road construction history does it belong to? And how did it end up here, a long way from the booming industrial centers that produced machines like this?
Road Rollers and Their Role in Hawaii’s Expansion
Before modern compactors with high-output diesel engines and vibration systems, compaction relied on static weight. Old steel-wheel rollers — often weighing 6 to 12 tons — compressed crushed stone and clay by sheer mass. Roads that circle Maui’s terrain, including the famous Hana Highway, required relentless compaction work, especially during the mid-20th century infrastructure expansion.
Historical records from industrial manufacturers show that rollers produced between the 1930s and 1950s were built using:

• Riveted thick-steel frames

• Chain drive or basic mechanical transmission systems

• Two or three large smooth drums

• Slow travel speeds (around 3–6 mph)

• Low-compression gasoline or early diesel engines, often 30–70 hp


• Frame construction: Rivets often suggest pre-1955 design.

• Drum arrangement: Tandem (two drums) vs. three-wheel configurations.

• Engine style: Vertical gasoline engines were common early; later models used inline diesels.

• Steering mechanism: Long steering tillers indicate older mechanical systems.


• Buffalo-Springfield
  An American brand established in the late 19th century, well-known for steel-wheel rollers used in roadbuilding across the world. Their machines commonly reached far-flung locations through government infrastructure programs.

• Hyster
  Before becoming famous for lift trucks, Hyster manufactured heavy rollers suitable for rail lines, ports, and rural roads. Many U.S. territories imported these due to their affordability.

• Rex or Austin-Western
  Produced reliable machinery for smaller municipalities and contractors, often shipped to islands for local development projects.


• Pitted drums reducing effectiveness for motion

• Frozen steering joints

• Missing lubrication and seized bearings

• Weathered paint leaving only hints of original branding


• From plantation industry to diversified economy

• From isolated rural roads to paved island-wide networks

• From imported manual labor to mechanized construction fleets


• Preservation Display
  Clean and stabilize rust, repaint historically accurate colors, and display near a museum or public works center.

• Mechanical Resurrection
  Restore for demonstration use at historical fairs and parades. This requires:
  • Reboring engine cylinders

  • Installing custom bearings

  • Fabricating unavailable parts

• Educational Use
  Showcasing early engineering methods and rural development


Understanding the Scope of the Conversion
Transferring a dump bed and PTO (Power Take-Off) system from one truck to a cab-chassis unit involves more than just bolting parts together. It requires mechanical adaptation, hydraulic integration, electrical wiring, and often fabrication work. The complexity depends on the compatibility between the donor truck and the recipient chassis, the condition of the components, and whether the PTO system is transmission-mounted or engine-driven.
Terminology Clarification

• Cab-Chassis Truck: A truck sold without a rear body, intended for custom upfitting such as dump beds, service bodies, or box vans.

• PTO (Power Take-Off): A device that transfers engine power to auxiliary equipment like hydraulic pumps or compressors.

• Subframe: A structural frame mounted between the dump bed and truck chassis to distribute load and absorb stress.

• Hoist Cylinder: A hydraulic cylinder that lifts the dump bed, powered by the PTO-driven pump.


• Labor: 20–30 hours at $100–150/hour = $2,000–$4,500

• PTO Setup: Including pump, hoses, reservoir, and controls = $1,500–$3,000

• Fabrication and Welding: Modifying mounts, brackets, and subframe = $500–$1,500

• Electrical Integration: Wiring lights, switches, and safety interlocks = $300–$800

• Miscellaneous Parts: Fittings, fasteners, hydraulic fluid, paint = $300–$600


• Transmission Type: Not all transmissions support PTO mounting. Automatic transmissions may require specialized PTO units or external hydraulic setups.

• Frame Length and Height: The dump bed must align with the new chassis dimensions. Frame extensions or bed shortening may be necessary.

• Hydraulic Pressure Requirements: The pump must match the hoist cylinder’s pressure and flow needs. Undersized systems will result in slow or incomplete lifts.

• Control Layout: Cab-mounted switches and levers must be installed ergonomically and safely.


• Inspect the donor bed and PTO system for wear, leaks, and corrosion. Rebuilding components before transfer may be more cost-effective than reinstalling worn parts.

• Consult the cab-chassis manufacturer for PTO compatibility and mounting guidelines. Some newer trucks require electronic PTO engagement or CAN bus integration.

• Choose a shop with dump body experience, not just general truck repair. Proper subframe alignment and hydraulic tuning are critical for safety and performance.

• Ask for a written estimate with itemized labor and parts. This helps avoid surprises and ensures accountability.


A Versatile Loader with a Sensitive Electrical Backbone
The Caterpillar 277B, part of the B-series multi-terrain loaders introduced in the early 2000s, was designed for high flotation and low ground pressure applications. With a 72-horsepower engine and suspended undercarriage, it became a favorite in landscaping, construction, and agriculture. However, like many machines of its generation, the 277B relies heavily on its electrical system to manage ignition, safety interlocks, and engine control. When that system fails, even a healthy engine can become unresponsive.
Terminology Clarification

• ECM (Electronic Control Module): The brain of the machine, managing engine functions, safety interlocks, and diagnostics.

• Circuit Breaker (CB): A resettable electrical protection device that interrupts current flow during overload or short circuit.

• Voltage Drop Test: A diagnostic method to detect resistance in a circuit by measuring voltage loss under load.

• Starter Solenoid: An electromechanical switch that engages the starter motor when energized.


• Perform voltage drop tests from the positive battery post to the starter solenoid and main relay while attempting to start. This reveals hidden resistance in cables or connectors.

• Test ground paths from the negative battery post to the starter and chassis. A poor ground can mimic total power loss.

• Inspect the ECM location, typically under the cab floor, which may be buried in dirt or moisture. Corrosion here can disrupt signal flow and cause intermittent failures.

• Use a multimeter under load, not just for static voltage readings. Ohm tests alone cannot detect internal cable damage.


• Replace battery cables with high-quality, sealed units rated for vibration and moisture.

• Clean all terminals with a wire brush and apply dielectric grease.

• Install a battery disconnect switch to isolate the system during storage.

• Elevate or seal the ECM compartment to prevent future contamination.

• Keep a wiring diagram on hand for tracing circuits and verifying relay positions.


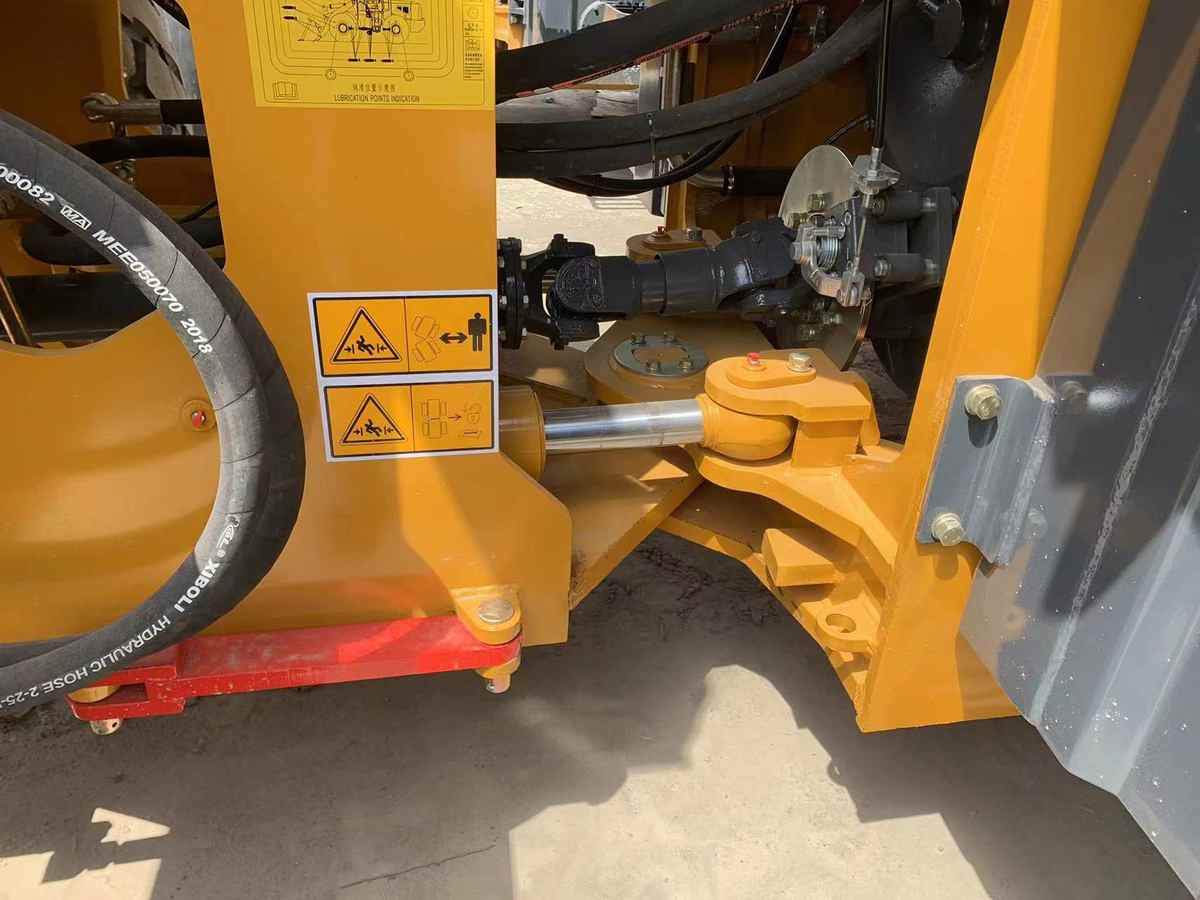

What Is a Bushing and Why It Matters
A bushing is a replaceable cylindrical sleeve installed between two moving parts to reduce friction and absorb shock. In construction machinery, bushings are used in loader arms, excavator booms, bucket pivots, and steering linkages. They protect the more expensive components — like pins and frame housings — from direct wear. Over time, dirt intrusion, heavy loads, and poor lubrication gradually enlarge internal clearances. Replacing a worn bushing restores tightness, improves precision, and prevents premature failure of the mating pin.
Even a small increase in clearance, such as 0.5 mm to 1 mm, can translate into several centimeters of looseness at the tip of a bucket or attachment. Because of this amplification effect, proper installation technique and tolerance control are essential.
Common Types of Bushings in Heavy Equipment

• Bronze or brass bushings for high-load pivot points

• Hardened steel bushings for severe abrasion environments

• Composite bushings with embedded lubrication pockets

• Grease-grooved bushings designed for regular lubrication


• Interference fit too tight, making insertion difficult

• Misalignment between opposing bores

• Burrs or damage in the housing preventing proper seating

• Improper depth control, causing grease holes to misalign

• Overheating or cracking during installation


1. Measure Before Installing
   • Use inside micrometers or bore gauges for the housing

   • Compare to manufacturer specs

   • Ensure roundness and surface finish are within tolerance

2. Clean and Prepare Surfaces
   • Remove rust, paint, and debris

   • Lightly chamfer edges to assist entry

   • Ensure grease holes and grooves are properly oriented

3. Cooling and Heating Technique
   • Chill the bushing using dry ice or freezer

   • Warm the housing slightly using a heat gun (not a torch)

   • Thermal expansion makes the fit smoother and reduces damage

   • Maintain temperature differences safely; avoid overheating steel beyond 120°C to prevent altering hardness

4. Apply Lubrication Only If Approved
   • Some OEMs specify dry installation for maximum friction fit

   • Others allow thin lubrication layers to reduce friction during pressing

5. Use a Proper Press or Driver
   • Force applied evenly along the outer edge, not the inner bore

   • Avoid hammering directly, which causes oval deformation and micro-cracks

6. Check After Seating
   • Confirm alignment of grease passages

   • Verify that the new pin slides smoothly with correct preload

   • Record measurements for future maintenance tracking


• Correct seam orientation (usually facing the grease path)

• Controlled torque on retainers to avoid pinching


• Line boring and welding build-up to restore original diameter

• Installing a repair sleeve or oversized bushing

• Replacing the entire boss if severe cracking exists


• Grease on schedule — typically every 8–25 operating hours depending on the component

• Avoid water pressure washing directly into grease seals

• Inspect for rotational movement — a rotating bushing usually indicates a loose fit

• Track hours to predict replacement timing before excessive wear leads to structural repairs


A Simple Solution for Fuel Cutoff
In diesel-powered equipment, shutting down the engine requires interrupting fuel delivery—not spark ignition. One operator, working with a 4-cylinder Mitsubishi diesel engine, replaced a mechanical pull cable with a toggle switch wired to the fuel shut-off solenoid. This setup allowed the engine to be stopped electrically, without affecting other systems powered by the ignition switch. The toggle switch was wired inline between the ignition terminal and the solenoid, enabling manual control of fuel cutoff.
Terminology Clarification

• Fuel Shut-Off Solenoid: An electrically actuated valve that controls fuel flow into the injection pump. When energized, it allows fuel to flow; when de-energized, it stops the engine.

• Toggle Switch: A manually operated switch that opens or closes an electrical circuit.

• Battery Disconnect: A master switch that cuts power to the entire electrical system, often used for theft prevention or maintenance isolation.

• Normally Open (N.O.) Button: A momentary switch that completes a circuit only when pressed, commonly used in starter or kill switch setups.


• Activating a fuel shut-off solenoid

• Closing an inline electric fuel valve

• Mechanically moving the fuel rack via cable or lever


• Identify the fuel solenoid terminal and confirm voltage requirements (usually 12V).

• Run a wire from the ignition switch’s battery terminal to one side of the toggle.

• Connect the other side of the toggle to the solenoid.

• Mount the toggle in a protected, accessible location.

• Use heat-shrink terminals and fuse the circuit for safety.


• Always test the toggle switch with the engine running to confirm proper shutdown.

• Avoid routing wires near hot surfaces or moving parts.

• Label the switch clearly to prevent confusion during operation.

• If using an inline electric valve, ensure it is rated for diesel fuel and has a spring-return (normally closed) design.


Understanding Sideways Play in Gear-Driven Equipment
Sideways play is a lateral or side-to-side movement noticed in components driven by gears, especially in construction and agricultural machinery with mechanical swing systems or gear-controlled linkages. This unwanted motion often comes from accumulated internal clearances in gear teeth, shafts, and bearings. Even a small amount of wear in multiple mating parts adds up, creating noticeable looseness at the working end of the machine.
In practice, operators detect sideways play when a bucket, platform, or attachment wiggles a few centimeters left or right even when the controls are still. While not always a direct safety issue, it affects operator confidence, precision, and long-term durability of affected components.
Why Gear Clearances Exist
Manufacturers purposely design clearance into a gear system. Reasons include:

• Thermal expansion of steel components under load

• Lubrication film between gear teeth

• Manufacturing tolerances in casting, machining, and assembly

• Shock absorption to prevent tooth breakage


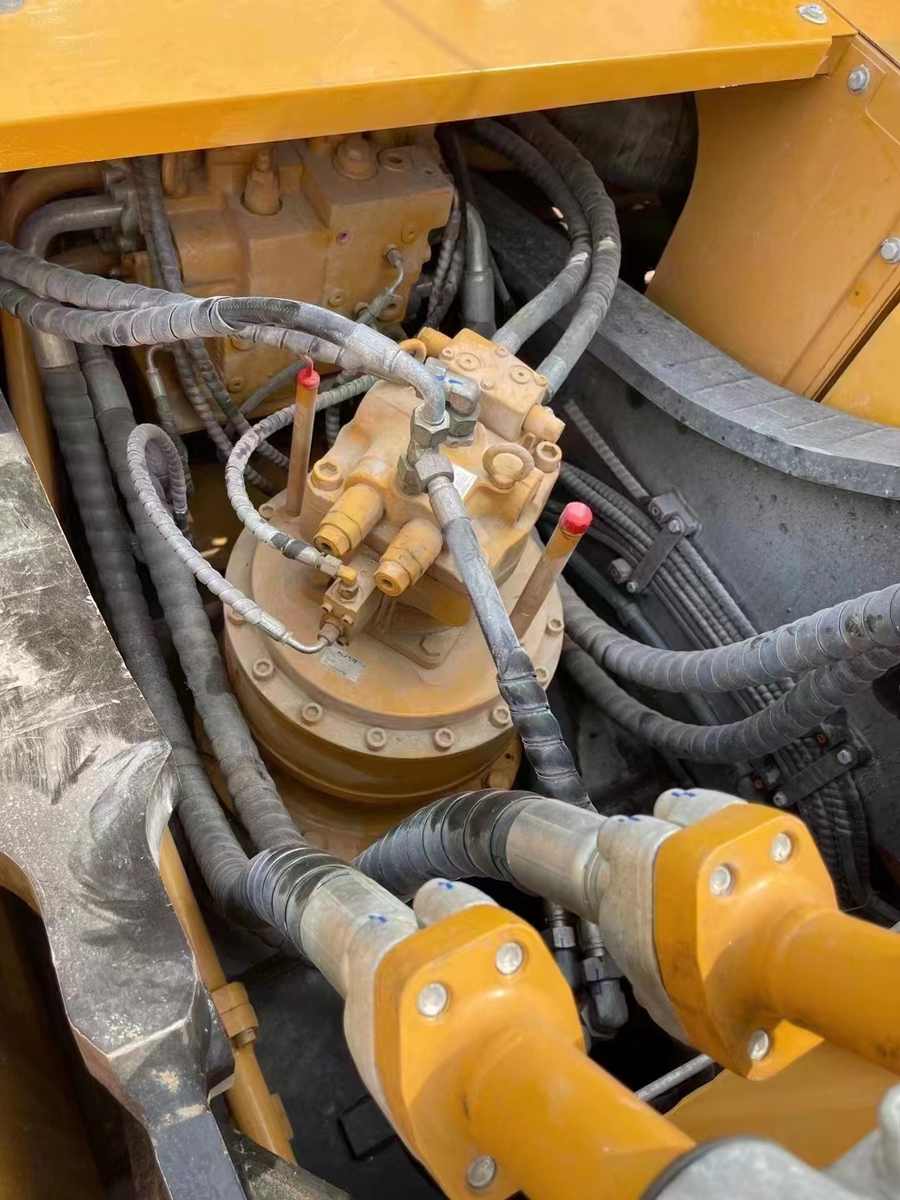

• Swing drive systems using planetary gear reducers

• Rotary platforms mounted on slewing rings

• Gearboxes that control booms, elevator sections, or indexing turrets

• Mechanical steering assemblies in older wheeled machines


• Buckets shifting side-to-side even when fully raised

• Delayed reaction when slewing direction changes

• Audible clicking or clunking when reversing swing direction

• Uneven wear patterns on work tools

• Increased operator fatigue due to constant correction


• Faster wear of gears due to poor mesh alignment

• Side-loading of bearings causing overheating or failure

• Stress cracks in housings or joint weldments

• Reduced resale value and job-site safety concerns


1. Inspect and measure components
   • Check backlash with proper gauges

   • Measure bearing preload and shaft end-play

   • Compare find-ings to manufacturer tolerances

2. Adjust shims or gear spacing if designed for adjustment
   • Some reducers include shim packs to reset backlash

   • Adjust gradually and ensure gears still rotate freely

3. Replace worn bearings
   • Roller bearings losing preload cause lateral shaft motion

   • Even a few hundredths of a millimeter movement matters

4. Resurface or replace bushings
   • Bushings on shafts inside reducers wear oval over time

   • New bushings restore concentricity

5. Upgrade lubrication practices
   • Use correct viscosity grease or oil

   • Maintain contamination-free lubrication

   • Follow proper maintenance interval (often every 250–500 hours on swing systems)

6. Replace severely worn gears
   • For machines with long service life or high-hour fleets

   • Ensures proper contact ratio and reduces backlash

7. Check structural components
   • Bolts, housings, and mounts can elongate or loosen

   • Precision torqueing and thread-locking can help


• Backlash: Clearance between mating gear teeth allowing a degree of free motion before torque transfers

• Preload: Force applied to bearings to eliminate internal clearance

• Slew System: Rotational mechanism allowing a structure to swing, often gear-driven

• Planetary Gearbox: Compact reduction gear using a sun gear, planet gears, and a ring gear

• Wear Pattern: Area where contact stress polishes or pits components, indicating misalignment or overload


• Check gearboxes every 1,000 hours for excessive heat, metal flakes in oil, or rising backlash readings

• Log measurements during routine services to detect trends

• Budget for bearing replacement before gear replacement — it often solves most of the play

• Keep attachments properly greased; loose tooling amplifies gearbox wear symptoms

• Train operators to avoid slamming direction changes repeatedly under heavy load


A Mid-Size Excavator with Big Responsibilities
The John Deere 370LC hydraulic excavator, introduced in the late 1990s, was designed for heavy-duty earthmoving, demolition, and utility work. With an operating weight of approximately 80,000 lbs and powered by a 225 hp diesel engine, it featured advanced hydraulics, a long undercarriage for stability, and electronic monitoring systems. Though production was limited compared to the more common 330LC and 450LC models, the 370LC earned a reputation for reliability and balance in mid-size fleet operations.
Terminology Clarification

• Track Seal: A component that prevents hydraulic oil from leaking out of the final drive and keeps contaminants from entering.

• Swivel Joint (Rotary Manifold): A hydraulic coupling that allows fluid to pass between the upper and lower structures of the excavator while rotating.

• Top Idler: A guide wheel that supports the upper portion of the track chain, helping maintain tension and alignment.


• Release track tension using the grease valve on the adjuster.

• Remove track pads and split the chain using a master pin or cutting torch.

• Extract the idler and recoil assembly with proper lifting equipment.

• Replace seals, inspect bearings, and reassemble with fresh grease.


• Swivel Joint Seal Failure: Internal leakage can reduce pressure to the travel motors without visible oil loss.

• Pump Pressure Sensor (P Sensor): A faulty sensor can cause both tracks to slow down simultaneously.

• Electronic Control Faults: Monitor readings and fault codes can reveal issues with valve timing or pump command signals.


• Clean track frames regularly to remove embedded debris.

• Inspect idler rotation during routine maintenance.

• Replace damaged idlers promptly to avoid chain misalignment.


Background and model history
The machine in question is a Caterpillar 320CU – a variant of the 20-ton (roughly) class hydraulic excavators built by Caterpillar. The “CU” suffix stands for “Utility” in many cases, and denotes a configuration designed for general excavation duties rather than ultra-heavy or mining work. According to spec sheets, the 320CU (and closely related 320C/320CL variants) has an approximate operating weight of 22,300 kg (≈49,200 lb) for one version.
For example, one specification sheet lists the length (standard) as about 8,730 mm (≈28 ft 8 in) and the width in the region of 2,800-3,150 mm (≈9 ft 2 in) for the 320CU.
Such machines enjoy a long life in construction and civil-works duties, and the 300-series by Caterpillar has been around for decades, refined across generations for better power-to-weight, operator comfort and hydraulics.
Grey Market Concept and Implications
The term “grey-market” when applied to heavy equipment usually means a machine originally built for marketing outside the domestic (for example U.S.) market and then imported or otherwise used outside the original region. In many cases, that means machines built for the Japanese or Asian domestic market, or for export, but not with U.S. dealer support or equipment certification to U.S. standards. As one technician notes: “Grey market machines can differ significantly from U.S. models … wiring for certain accessories … components may be different as well.”
For example, a user pointed out that his machine had a serial prefix “APA…” which corresponds to a Japanese-built 320C U variant.
The strictly practical implications of grey market status include:

• Parts numbering may differ from the U.S. domestic version. One bore-pin or joint-pin part might be listed under a U.S. part number (for the U.S version of 320C) but appear to be half an inch shorter than the one installed on the grey-market machine.

• Service manuals may not be readily available in English; the documentation might reference Japanese manufacturing or parts lists that differ slightly.

• Dealer support, warranties or standard U.S. compliance may not fully apply.

• Resale value may be lower due to perceived risk or parts / support uncertainty.
  In one discussion someone summarized:


Quote:“Grey market machines are basically manufactured for use in countries other than the U.S.… Most commonly referred to are Japanese machines.”
So purchasing a grey-market 320CU means understanding you may be stepping outside the standard parts/support ecosystem—and that those trade-offs must be weighed against potential savings or availability.

• The machine in question is a 2001 model 320CU (sometimes written 320 C U) built by Caterpillar in Japan (as indicated by serial prefix “APA00508”).

• The owner discovered the boom-to-stick bushing and pin (thumb-joint between boom foot and stick) is worn and needs replacement. The pin dimension as fitted is about 19¾ in (≈501.65 mm) long for “measurement B”.

• The catalogued part the dealer references is part number 250-2402, for the non-Japanese version (CLM/CLZ prefix) of a 320C U. But that pin is approximately ½ inch shorter than the pin currently in the machine.

• The operator was unable to locate the part-number plate on the boom (that small 3" × 2" tag that identifies the weld-boss casting). Without that tag, accurate part matching becomes harder.

• One experienced contributor noted that alternative part numbers for that joint include 4I-4809, 4I-4813 for older versions and 264-1702 (503 mm long, 89.85 mm diameter) for a Japanese equivalent.
  In short: This grey-market Japanese built 320CU presents a mismatch in parts numbering versus U.S domestic model parts. The pin currently in place is likely the Japanese spec version hence the dealer’s U.S part doesn’t fit exactly.


• Boom: The main arm attached to the excavator house that lifts and swings the stick and bucket.

• Stick (or “arm”): The extending link between boom tip and bucket pivot.

• Bushing: A cylindrical liner inserted in the pin-joint boss to reduce wear between pin and boss material. Over time these wear, develop play, and need replacement.

• Pin: The steel shaft that passes through the bushings and holds the joints together (boom-foot to stick, etc.). Critical for structural stability and precise geometry.

• Serial Number Prefix: For Caterpillar machines, the first few letters (e.g., “APA”, “CLM”, “TT”, etc) indicate factory of origin, model variant and region. Helps match correct parts.

• Grey Market: Machinery produced for one region or market but imported or used in another outside the normal dealer network—potential parts/support differential.

• Parts Manual / Specalog: Official documentation listing parts, codes, and service instructions. For grey-market machines, these may use different part codes or be harder to source.


• Misalignment of the joint causing premature wear of bushings/pins/housings.

• Excess play or slop in the joint reducing stability of boom/stick.

• Hardware not fully seating, causing accelerated structural fatigue.

• Potential safety concerns if loads are transferred through poorly fit joints.
  Beyond the mechanical risk, additional issues to keep in mind with grey-market machines include:

• Parts may take longer to source or require special import from overseas. The spec numbers may differ, making ordering more complicated.

• Some dealers may refuse to sell parts or may mark them up heavily because the machine is out-of-region. In various user reports: “Our local dealer won’t sell us parts for it because it is grey market.”

• Documentation (service letters, wiring diagrams, manuals) may not align exactly with U.S domestic variants, making troubleshooting harder.

• Resale value may be lower because of perceived support risk. One arborist forum contributor: “Grey market stuff can be a good buy … but if you’re going to buy it and run it until it falls apart (and you can get it cheap enough) it might be worth it. As an investment, I would pass.”


1. Obtain full serial number (prefix + number) and check parts manuals specific to that prefix. In this case, “APA…” indicates Japanese built 320C U. Knowing that helps target correct part numbers rather than U.S domestic ones.

2. Measure the joint (pin) dimensions yourself: diameter, length, shoulder lengths, boss-to-boss centre distance. Do not assume the U.S part works. The owner measured “B” at 19¾″ (≈501.65 mm) which was short of the Japanese spec 503 mm pin.

3. Locate the boom/stick plate (the small cast/welded tag on the boom foot) with the part numbers to confirm the correct boom/arm assembly. Without it you may be guessing.

4. Contact Caterpillar parts department with prefix and serial and ask for cross-reference parts. There may exist service letters that cover joint specs for the Japanese version. One forum contributor mentioned dealer knowledge: “I have a contact at my dealer who is versed in ways to search ‘similar’ parts through Caterpillar.”

5. Budget extra time / cost for parts: Even if the part is available, differences in codes or shipping may delay repair.

6. Verify machine history: For a machine built for the Japanese/domestic market, check how long it has been in the U.S., hours of operation, any modifications, whether emissions / safety features comply with local job-site standards.

7. Consider resale implications: If you purchase a grey-market 320CU, accept that in the event of resale you may not get the same value as a domestic spec machine—unless the next buyer is aware and comfortable with the same status.

8. When replacing joints (bushings/pins): use all new bushings and pins as a set; ensure proper tolerances and clearances. Measuring pin and bushing wear is critical for structural safety. Use correct part-numbers, tighten to spec, check for play after reassembly.


Restoring the Foundation of a Workhorse
When it comes to vintage industrial equipment, few components are as overlooked yet as critical as the axle beneath a portable air compressor. In this case, the owner of a well-used compressor decided to replace a makeshift axle with a reproduction of the original factory design. The goal was not just to restore mobility, but to return the machine to its intended structural integrity and towing safety.
The Problem with Improvised Axles
Over the years, many portable compressors—especially those built in the mid-20th century—have had their axles replaced with whatever was available at the time. This often meant using undersized tubing, mismatched hubs, or even repurposed trailer axles. While functional in the short term, these substitutions can lead to:

• Uneven tire wear due to improper alignment

• Excessive flexing or sagging under load

• Unsafe towing behavior at highway speeds

• Difficulty sourcing replacement bearings or hubs


• Precision machining of the axle stubs to match the original hub bore and bearing spacing

• Welding the stubs into a heavy-wall square tube crossmember

• Ensuring the axle drop and spring perch spacing matched the compressor’s frame

• Painting the assembly to prevent corrosion


• Axle Stub: The short shaft on either end of an axle that supports the wheel hub and bearings.

• C1018 Steel: A general-purpose low-carbon steel with good machinability and weldability, commonly used in structural applications.

• Spring Perch: The bracket or pad where the leaf spring mounts to the axle.

• Drop Axle: An axle with a vertical offset to lower the ride height of the trailer or equipment.


• If the original axle is missing, use frame measurements and tire wear patterns to estimate correct geometry.

• When machining axle stubs, verify bearing sizes and seal diameters to match available hub assemblies.

• Consider adding grease zerks to the axle ends for easier maintenance.

• Use grade 8 hardware for spring mounts and U-bolts to ensure long-term durability.

• Always test tow the compressor at low speed before highway use.
