Bosch fuel pumps have played a central role in the evolution of diesel and gasoline engines for decades. Founded in 1886 in Stuttgart, Germany, Bosch quickly became one of the world’s leading suppliers of automotive and industrial components. By the mid-20th century, Bosch fuel injection systems were powering millions of vehicles and heavy machines worldwide. Their pumps became synonymous with precision engineering, durability, and efficiency, making them a cornerstone of modern engine technology.
Development History
Bosch introduced mechanical fuel injection pumps in the 1920s, revolutionizing engine performance by delivering precise amounts of fuel under pressure. By the 1960s, Bosch pumps were widely used in trucks, tractors, and construction equipment. The company’s innovations included inline pumps, rotary pumps, and later common rail systems. Sales of Bosch fuel systems reached millions annually, with applications ranging from passenger cars to heavy-duty excavators. The company’s commitment to research and development ensured that its pumps remained at the forefront of technology.
Technical Features
Bosch fuel pumps are designed to deliver consistent fuel pressure and volume to the engine. Key features include:

• Precision-machined components for accurate fuel metering

• Hardened steel plungers and barrels to withstand high pressures

• Integrated governors to regulate engine speed

• Seals and gaskets engineered to resist wear and leakage

• Compatibility with both diesel and gasoline systems depending on design


• Wear in plungers and barrels leading to reduced pressure

• Leaks from aging seals and gaskets

• Contamination from dirty fuel causing clogging and scoring

• Malfunctioning governors resulting in unstable engine speeds

• Difficulty starting engines due to poor fuel delivery


• Plunger: A small piston inside the pump that pressurizes fuel.

• Governor: A device that regulates engine speed by controlling fuel delivery.

• Common Rail: A modern fuel injection system where fuel is stored under high pressure and delivered electronically.

• Fuel Metering: The precise measurement of fuel delivered to the engine.


• Use only clean, high-quality fuel to prevent contamination

• Replace filters at manufacturer-recommended intervals

• Inspect seals and gaskets regularly for leaks

• Test pump output with diagnostic tools to detect early wear

• Train operators to recognize signs of poor fuel delivery such as hard starts or smoke


Overview Of CAT B Series Wheel Loaders
Caterpillar’s wheel loader line has been one of the company’s core product families since the 1950s. By the time the “B” series appeared in the 1980s and early 1990s, CAT had already sold tens of thousands of loaders worldwide in sizes ranging from compact yard machines to quarry-class giants. The B series covered multiple models, including machines comparable to the 920–950 size class and integrated toolcarriers such as the IT14B and IT28B.
These loaders were designed for construction sites, material yards, small quarries and municipal work. Typical rated bucket capacities in the 920–950 size range ran from roughly 1.7 to 3.5 cubic yards, with operating weights in the 10–18 tonne bracket depending on model and configuration. The IT (Integrated Toolcarrier) variants used a parallel-lift linkage and quick coupler to swap between buckets, forks and other tools quickly. This gave contractors the flexibility of a forklift and a loader in one machine, which is why many IT models went into rental fleets and landscaping operations.
Over the years, some operators have praised the B series as tough and dependable, while others have called certain B models “weak links” compared to the earlier or later generations. Sorting out that mixed reputation requires looking at what kind of work they do, how they are maintained, and how they compare with similar John Deere loaders of the same era.
Why Some Operators Call CAT B Models Junk
Stories circulate in the industry about specific B series models, especially larger ones such as the 980B, being problematic or “junk.” This reputation often comes from

• Transmission and drivetrain issues on hard production work

• Aging electrical and hydraulic systems that were never updated

• Machines pushed well beyond intended duty cycles with limited maintenance


• Worn-out powertrains on very high-hour units

• Undercooling in severe duty when radiators and coolers are not kept clean

• Operator abuse, such as aggressive shifting and pushing against solid walls without proper technique


• Parallel lift
  • Keeps forks level when lifting pallets

  • Ideal for handling pipe, lumber, and palletized material

• Quick coupler
  • Allows rapid changes between bucket, forks, grapple, snow blade, etc.

• Reduced pure digging performance compared with Z-bar
  • Bucket rollback and dump angles are usually smaller

  • Breakout force is often lower


• The quick coupler and parallel lift are excellent for yard work, material handling and light loading

• In heavy production loading (loading trucks all day out of a pile), the toolcarrier linkage feels slower and less aggressive than a Z-bar loader

• The bucket cycle is softer and less “snappy,” reducing productivity in fast-paced loading but fine for moderate workloads


• CAT IT14B or similar B series CAT

• John Deere 544B (late 1970s era)

• John Deere 544E (newer, more modern design)


• John Deere 544B
  • Older design, limited to a 2-speed transmission in many units

  • Tendency to run hot when worked very hard, especially if cooling system is not perfectly clean

  • Fuel consumption can feel higher compared with equivalent CAT IT loaders

  • Acceptable for moderate work such as loading topsoil, bark and light aggregates

• John Deere 544E
  • More refined hydraulics and drivetrain

  • Better suited for higher production loading

  • More gears and better match between engine power and transmission

• CAT IT28B / IT14B
  • 4-speed transmission and good drivability

  • Toolcarrier linkage is less aggressive than Z-bar, slower bucket performance

  • Strong choice when you need versatility more than maximum bucket breakout


• IT-style CAT B loaders excel in material handling, yards, and moderate work

• Deere 544B can be a solid machine if cooling and transmission are cared for but is not a high-end production loader by today’s standards

• A newer 544E is generally preferred for hard, continuous loading due to more favorable transmission and hydraulic performance


• Z-bar loaders with stronger breakout and fast dump/rollback cycles are favored

• Toolcarrier linkages may be considered underpowered or slow

• Slightly newer designs (C and later) may show better component life and efficiency


• Short bursts of loading when customers arrive

• Periods of idling, light grading, and fork work

• Occasional truck loading but not continuous “flat out” work


• Powershift transmissions can last thousands of hours if serviced correctly

• Heat, dirty oil, and abuse (shifting between forward and reverse without pausing) are major killers

• Machines used in quarry or heavy rock loading suffer far more drivetrain stress than yard machines


• Visual inspection
  • Check for dents, broken panels, missing engine doors

  • Look at hoses for recent replacements, cracks and leaks

  • Inspect bucket and pins for excessive wear or slack

• Hour meter realism
  • A 40-year-old loader claiming under 2,000 hours is probably on its second or third meter

  • Condition of pedals, linkages and seat often tells more than the gauge

• Transmission and driveline test
  • Drive the machine from cold and warm

  • Check for smooth shifting, no slipping or hesitation

  • Listen for whining or clunking in axles and differentials

• Cooling system behavior
  • Work the loader hard for a period and watch temperature

  • Older Deere 544B machines are known to run hot if cooling is marginal

• Hydraulics and linkage
  • Cycle the boom and bucket repeatedly

  • Watch for slow response, chatter or lack of power at idle and higher RPM

• Leak check
  • Inspect around transmission case, axles, differentials and hydraulic pump


• Engine oil
  • Modern heavy-duty diesel oils meeting current API ratings (for example, API CK-4 or later) are commonly used in older engines

  • Viscosity is usually 15W-40 in many climates, with 10W-30 options in colder regions

• Hydraulic fluid
  • Many CAT loaders use a specific transmission/drive train oil such as TO-4 type in transmissions, axles, and sometimes wet brakes

  • Hydraulics may require a dedicated hydraulic oil or a multi-purpose fluid depending on design


• Change engine oil at conservative intervals, especially if hours are unknown

• Replace filters immediately after purchase

• Consider taking baseline oil samples from engine and transmission and using analysis to monitor wear trends


• The quick coupler made swapping between bucket and forks very fast

• The toolcarrier linkage was perfect for loading palletized bagged product into pickup trucks

• Bucket cycle time was slower than a modern Z-bar loader, but his yard did not require nonstop production


• CAT B model wheel loaders are not inherently bad, but they are older machines that must be judged by condition, maintenance history and intended workload

• Integrated toolcarrier versions like IT14B and IT28B trade some digging performance for versatility and quick tool changes

• Compared with John Deere 544B and 544E loaders, CAT B series loaders can be more fuel-efficient and better geared for mixed work, while newer Deere models may excel in high production applications

• Transmission “problems” often trace back to overheating, poor maintenance or abuse rather than pure design flaws

• Careful inspection, realistic expectations and proper fluid selection are more important than model letter alone


The John Deere 650G crawler dozer is a mid-sized machine that became a staple in construction and forestry during the 1980s and 1990s. John Deere, founded in 1837, had already established itself as a leader in agricultural and construction equipment, selling millions of machines worldwide. The 650G was part of Deere’s G-series lineup, designed to balance maneuverability with durability. Thousands of units were sold across North America, making it one of the most recognized dozers in its class. Like many diesel-powered machines, however, it faced challenges with oil pressure systems, which are critical for engine longevity and performance.
Development History
The 650G was introduced as an improvement over earlier F-series models, with enhanced hydraulics, stronger undercarriage components, and a more efficient diesel engine. Deere’s focus was on producing a crawler dozer that could handle grading, land clearing, and utility work while being easy to maintain. By the mid-1990s, the G-series had become a popular choice for contractors and municipalities, contributing significantly to Deere’s construction equipment sales.
Technical Features
Key specifications of the John Deere 650G included:

• Six-cylinder diesel engine producing approximately 90 horsepower

• Operating weight around 16,000 pounds

• Powershift transmission with multiple forward and reverse speeds

• Hydraulic system designed for smooth blade control

• Oil lubrication system with mechanical pump and pressure sensors


• Worn oil pumps reducing pressure output

• Blocked oil passages restricting flow

• Faulty pressure sensors giving false readings

• Oil leaks from seals and gaskets lowering system pressure

• Use of incorrect oil viscosity leading to poor lubrication


• Oil Pump: A mechanical device that circulates oil through the engine for lubrication.

• Viscosity: The thickness of oil, which affects its ability to flow and protect components.

• Pressure Sensor: A device that measures oil pressure and sends signals to the operator.

• Bearing Wear: Damage to engine bearings caused by insufficient lubrication.


• Inspect oil levels and ensure proper viscosity for operating conditions

• Replace worn oil pumps to restore pressure output

• Clean or replace blocked oil passages and filters

• Test sensors with diagnostic tools to confirm accuracy

• Repair leaks in seals and gaskets to maintain pressure


• Check oil levels daily before operation

• Replace filters and fluids at manufacturer-recommended intervals

• Inspect oil pumps and sensors during scheduled servicing

• Use oil with the correct viscosity for environmental conditions

• Train operators to recognize early warning signs of low pressure


Background Of The CAT D7 Line
The Caterpillar D7 series is one of the classic medium–large track-type tractors in earthmoving history. Since its origins in the 1930s, the D7 has evolved through multiple generations, including the D7E, D7F, D7G, D7H and later electronic and Tier-rated variants. By the 1970s, when the D7F was prominent, Caterpillar had already produced tens of thousands of D7-sized dozers worldwide, placing them on construction sites, logging operations, mines and military projects across many continents.
The D7F typically used a Caterpillar 3306 diesel engine, a robust inline-six that became one of Caterpillar’s most successful powerplants. This engine family powered graders, loaders, generators and marine units as well as track-type tractors. In many fleets, machines built around the 3306 routinely crossed 10,000 hours with proper maintenance, and remanufacturing programs further extended their lives.
Within this context, the D7F sits at an interesting point in Caterpillar’s history it combined proven mechanical engineering with increasingly sophisticated powertrain options such as powershift transmission and torque converter drives, which improved productivity but also introduced new questions for owners buying older used machines.
Direct Drive Or Power Shift On A D7F
A common question with D7F tractors is whether a particular machine is equipped with a direct drive transmission or a powershift transmission with torque converter. This matters because

• Operating characteristics are different

• Fuel use and productivity differ by task

• Overhaul costs and complexity are not the same


• The presence and type of transmission control lever in the cab

• The arrangement of transmission housings and torque converter case

• The serial number prefix and arrangement numbers in the technical data


• Smooths out shock loads from changing soil conditions

• Allows the engine to stay closer to its most efficient rpm

• Reduces stalling when pushing hard in heavy material


• Transmission oil temperature monitoring

• Periodic converter stall testing to verify performance

• Higher sensitivity to oil contamination and overheating


• Converter stall speed

• Transmission oil temperature under load

• Condition of oil (metal particles, discoloration, burnt smell)

• History of any major powertrain rebuilds


• Is the tractor worth investing in, given its age

• How strong is the engine, especially the 3306, in this particular unit

• Is the transmission powershift or direct drive, and what condition is it in

• Are undercarriage and final drives sound enough to justify the purchase


• Direct drive
  • Fewer hydraulic components

  • Clutch and gear wear more predictable

  • Often cheaper to repair but requires skilful operation

• Powershift with torque converter
  • Easier to run, especially with less experienced operators

  • Good for production work with frequent directional changes

  • More expensive to overhaul, sensitive to overheating and contamination


• Engine arrangement

• Transmission type

• Final drive ratio

• Attachments (winch, rippers, blade type)

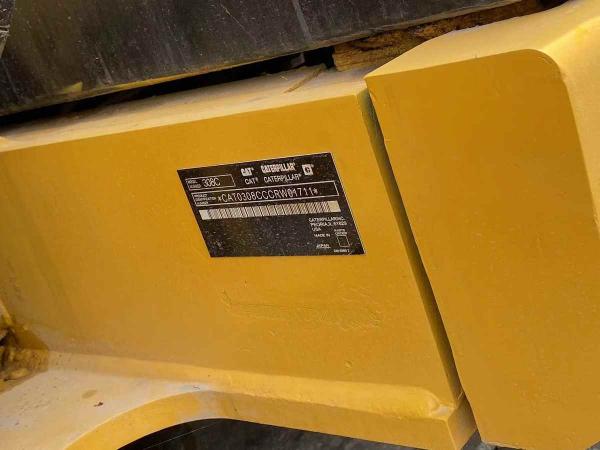

• Record the full serial number from the tractor plate and, if possible, from the engine plate

• Compare that against parts references or dealer records

• Verify that engine and transmission versions match what is expected for that serial range


• Earlier models like the D7E set the mechanical foundation

• The D7F refined powertrain and operator ergonomics

• Later D7G and D7H versions incorporated further hydraulic improvements and, eventually, more advanced controls

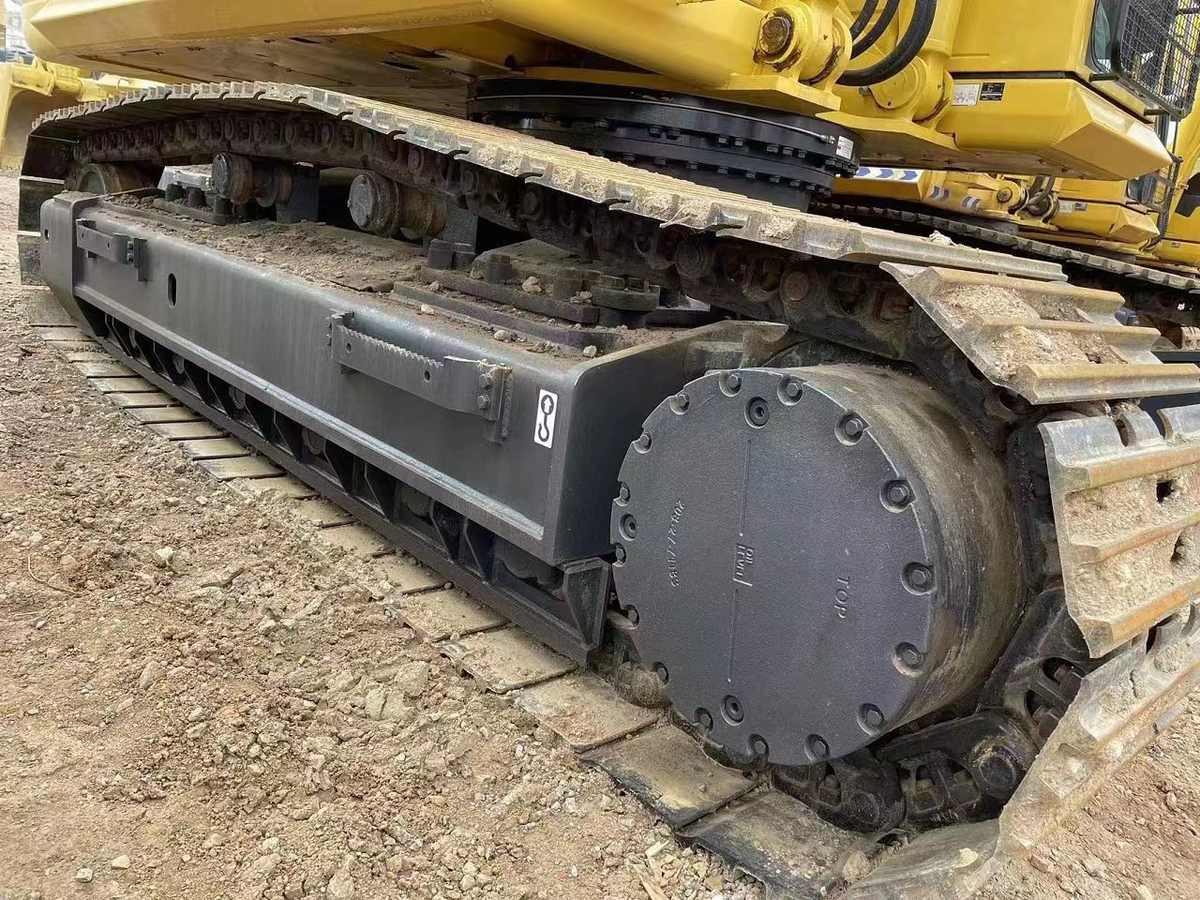

• Inspect undercarriage carefully
  • Measure remaining life on rails, rollers, idlers, and sprockets

  • Undercarriage can be one of the most expensive wear items on any track-type tractor

• Check powertrain function under load
  • Perform a controlled push in heavy material

  • Observe for slipping, hesitation, or abnormal noises in transmission

  • Watch oil temperature and any warning indicators

• Use oil analysis for engine and transmission
  • Take samples from engine oil and transmission/torque converter oil

  • Look for elevated levels of wear metals or contamination over several samples

• Evaluate hydraulics and attachments
  • Check lift and tilt cylinders, blade linkage, and any rippers or winch

• Confirm availability of parts and service
  • Although D7F is an older model, many wear parts remain available through OEM or aftermarket channels


• Checked cooler lines and transmission oil cooler for blockage

• Measured converter stall speed

• Pulled an oil sample and sent it for analysis


• The D7F is a historic medium–large track-type tractor powered commonly by a Caterpillar 3306 engine, known for durability when maintained properly

• Machines may be equipped with direct drive or powershift with torque converter, each with distinct operating and maintenance characteristics

• Powershift systems improve ease of operation and productivity but can be costly to overhaul and require careful monitoring of oil temperature and cleanliness

• Serial numbers and arrangement data are critical for determining exact configuration and sourcing the right parts

• Thorough inspection, oil analysis and proper cooling system checks are essential for making good decisions on used D7F tractors

• With thoughtful maintenance and realistic expectations, a D7F can still serve effectively in applications where its weight and power are well matched to the workload


Volvo Construction Equipment has long been recognized for its innovation and reliability, with roots tracing back to 1832 in Sweden. By the 2000s, Volvo had become one of the largest global manufacturers of heavy machinery, selling hundreds of thousands of units annually. As environmental regulations tightened, Volvo integrated advanced emissions systems into its machines, including the use of Diesel Exhaust Fluid (DEF) to meet Tier 4 Final and Euro Stage V standards. While these systems reduced harmful emissions, they also introduced new challenges for operators, particularly when DEF-related issues arise.
Development History of Emissions Systems
Diesel engines traditionally produced high levels of nitrogen oxides (NOx) and particulate matter. To comply with stricter regulations, manufacturers adopted Selective Catalytic Reduction (SCR) technology, which uses DEF to neutralize NOx emissions. Volvo was among the first to implement SCR across its fleet of wheel loaders, excavators, and haul trucks. By 2015, nearly all Volvo heavy equipment relied on DEF systems, making proper maintenance essential for performance and compliance.
Technical Features of DEF Systems
The DEF system in Volvo machines includes several critical components:

• DEF tank storing urea-based fluid

• Pump and dosing module delivering DEF into the exhaust stream

• SCR catalyst where chemical reactions reduce NOx emissions

• Sensors monitoring fluid levels, quality, and exhaust composition

• Control units managing injection timing and regeneration cycles


• Crystallization of DEF in lines and injectors due to improper storage or freezing

• Sensor malfunctions leading to false warnings or reduced engine power

• Contaminated DEF causing clogging and poor catalyst performance

• Software glitches in control modules resulting in incomplete dosing cycles

• Reduced productivity when machines enter “limp mode” due to DEF faults


• DEF (Diesel Exhaust Fluid): A solution of urea and deionized water used in SCR systems.

• SCR (Selective Catalytic Reduction): A process that reduces NOx emissions by injecting DEF into exhaust gases.

• Limp Mode: A reduced-power state triggered when emissions systems detect faults.

• Crystallization: The formation of solid deposits when DEF evaporates or freezes.


• Use only certified DEF to avoid contamination

• Store DEF in temperature-controlled environments to prevent crystallization

• Inspect sensors and dosing modules regularly for wear or malfunction

• Replace filters and clean tanks at manufacturer-recommended intervals

• Train operators to recognize early warning signs and respond promptly


Overview Of The Bobcat S175 And Its Engine Layout
The Bobcat S175 is one of the most widely recognized skid steer loaders in the 1,700 lb (770 kg) rated operating capacity class. Produced in the early to mid-2000s, it helped Bobcat maintain its strong market share in compact loaders, a segment where Bobcat has historically sold hundreds of thousands of units worldwide since the brand’s origin in the late 1950s. The S-series machines, including the S150, S160, S175, and S185, share a similar frame and engine bay layout, which is why many service procedures and component locations look alike across these models.
The S175 typically uses a 4-cylinder diesel engine (commonly a Kubota or similar compact industrial diesel, depending on production year). In this layout, most service points are grouped at the rear of the machine behind the swing-out tailgate and above or around the fuel filter and oil filter. Understanding this basic arrangement makes it much easier to locate small but important components such as the oil pressure sender and its electrical connector.
The oil pressure sender (or oil pressure sensor) is a device that converts engine oil pressure into an electrical signal. That signal is fed to the machine’s monitoring system, which drives warning lights, buzzers, or digital codes if pressure falls outside safe limits. If the connector is loose, damaged, or unplugged, the machine can throw fault codes or shut down to protect the engine, even if the actual oil pressure is fine.
What The Manual Means By Oil Pressure Sender Connector
When the service manual tells you to “check the oil pressure sender connector,” it is referring to the small two-wire or three-wire plug that clips onto the oil pressure sensor body. This connector supplies a reference voltage and ground to the sensor and carries the signal back to the controller.
For the operator or mechanic, checking the connector generally involves

• Making sure it is fully seated on the sensor

• Inspecting the plastic housing for cracks or broken locking tabs

• Looking for corrosion, pushed-back pins, or chafed wiring near the plug

• Confirming the wiring harness is supported and not rubbing on sharp edges or hot surfaces


• Open the tailgate and, if equipped, tilt the cab for better access according to the safety procedure in the manual

• Locate the engine oil filter and the fuel filter assembly at the rear/right side of the engine compartment (orientation can vary slightly by engine version)

• Look along the side of the engine block near the fuel filter head and oil galleries for a small threaded sensor body with an electrical plug attached

• The sensor is typically screwed into an oil gallery port pointing outward or slightly downward from the block

• The connector will be a small molded plug with one clip tab that snaps onto the end of the sensor


• Oil pressure sender
  • Small cylindrical or hex-shaped metal body

  • Threaded base screwed into the block or oil gallery

  • One small electrical connector on the end

• Coolant temperature sensor
  • Often threaded into the cylinder head or thermostat housing

  • Near coolant hoses and water outlet

• Fuel pressure or fuel temperature sensor (if equipped)
  • Mounted on or near the fuel filter head

• Charge pressure or hydraulic pressure senders
  • Located on hydraulic manifolds, filter heads, or pump housings, not on the engine block


• Illuminate a low oil pressure warning icon

• Trigger an audible alarm

• Log an error code related to oil pressure

• Reduce engine power or even shut down after a timed delay to protect the engine


• A loose connector can cause intermittent fault codes even when actual oil pressure is stable at 50–55 psi at full throttle

• Broken or corroded pins can mimic a genuine low-pressure fault and cause unnecessary shutdowns

• Replacing the sensor without fixing a damaged connector or harness can give only temporary relief before the problem returns


• Prepare the machine
  • Park on level ground

  • Lower the lift arms and attachment to the ground

  • Engage the parking brake and shut off the engine

  • Disconnect the battery if you will be working around the harness for an extended period

• Access the sensor area
  • Open the tailgate

  • Tilt the cab if needed for more room

  • Use a good work light to see above and around the fuel filter

• Inspect the connector
  • Locate the small sensor threaded into the block above or near the fuel filter area

  • Identify its plug, then press the locking tab and gently unplug it

  • Check the connector shell for cracks, missing locking tab, or melted sections

  • Look closely at the pins or sockets for green corrosion, rust, or bent terminals

• Clean and reseat
  • Use electrical contact cleaner rated for automotive use to clean the terminals

  • Let it dry fully

  • Apply a thin layer of dielectric grease around (not inside) the terminal area if appropriate for your climate

  • Plug the connector back on firmly until the locking tab clicks

• Check the harness
  • Follow the wire a short distance along the harness

  • Look for spots where it has rubbed against brackets, hoses, or sharp edges

  • Secure loose sections with proper loom and ties to prevent future wear


• Verify oil level
  • Make sure engine oil is at the correct level and of the proper grade

• Listen and observe
  • An engine with true low oil pressure may have noisy lifters or bearings, especially at hot idle

• Mechanical gauge test
  • Install a temporary mechanical oil pressure gauge in place of, or tee’d into, the sender port

  • Run the engine to operating temperature and record pressure at idle and high idle


• Around 20–30 psi at hot idle

• Around 50–60 psi at high idle under normal conditions


• Confusing the oil pressure sender with another sensor
  • For example, unplugging a temperature sender or a hydraulic pressure sender by mistake and creating additional warning codes

• Pulling on wires instead of the connector body
  • This can break internal crimp joints or loosen terminals

• Cross-threading or overtightening the sender
  • The port is usually in an aluminum or cast iron housing; improper torque can damage threads or crack the housing

• Neglecting to support the harness
  • After working around the engine, they leave the harness hanging loose, which later rubs through on a bracket or engine cover


• Replace the worn connector shell

• Clean the terminals

• Clip it back firmly and secure the short harness section with a new clamp


• Expect the oil pressure sender to be mounted on the engine block in an oil gallery, typically above or near the fuel filter area

• The “oil pressure sender connector” is the small electrical plug on the end of that sensor, and it must be firmly seated and clean to give reliable readings

• Always inspect the connector and nearby harness for damage, corrosion, and loose locking tabs before assuming the engine has a mechanical problem

• Use a mechanical gauge test to separate real low oil pressure from sensor or wiring faults when in doubt

• Handle connectors and senders carefully to avoid creating new issues while trying to fix existing ones
