Introduction
The JLG 45IC, a mid‑1990s industrial boom lift, remains widely used in construction, maintenance, and industrial facilities due to its reliability and straightforward mechanical design. However, as these machines age, operators occasionally encounter throttle‑control irregularities—particularly when Addco electronic throttle modules are involved. One commonly reported symptom is a lockout condition triggered when the operator delays using the foot pedal after switching to platform controls.
This article explores the mechanical and electronic background of the JLG 45IC, explains the Addco throttle system, analyzes the lockout behavior, and provides practical troubleshooting strategies. It also includes terminology notes, historical context, and real‑world anecdotes to create a complete, readable, and original technical narrative.

Development History of the JLG 45IC
JLG Industries, founded in the late 1960s, quickly became one of the world’s leading manufacturers of aerial work platforms. By the 1990s, the company had already sold tens of thousands of boom lifts globally, and the 45‑foot class was among its most popular segments.
The JLG 45IC was introduced as an internal‑combustion counterpart to the electric 45 series. Key characteristics included:

• A working height of roughly 51 feet

• A platform capacity typically around 500 pounds

• A robust internal‑combustion engine designed for outdoor and industrial environments

• A hydraulic and electronic control system that incorporated safety redundancies


• Dead‑man system: A safety mechanism requiring continuous operator input to maintain machine operation. If the operator stops providing input, the system disables motion.

• Foot pedal enable: A pedal that must be pressed to activate platform controls.

• Timeout circuit: A programmed delay that disables functions if the operator does not act within a specific time window.

• Lockout condition: A state where the controller prevents operation until the system is reset.


• The controller interprets the inactivity as a potential safety risk

• A red indicator light appears

• The system enters lockout

• The operator must reset the platform power switch to restore functionality


• Slight delays in electrical signal transmission due to corrosion

• Worn foot pedal switches

• Sticky platform power knobs

• Slower response from aging Addco modules

• Operators unfamiliar with older safety logic


• Machine starts normally from the ground controls

• Idle‑up works correctly

• Switching to platform controls triggers normal green‑light operation

• If the operator does not press the foot pedal quickly, the red light appears

• The system refuses to respond until the power knob is cycled


• Foot pedal position

• Platform power switch state

• Hydraulic function selection


• Power switch ON

• Foot pedal NOT pressed

• No hydraulic function selected


• Pull out the platform power knob

• Press the foot pedal immediately

• Select a function within a few seconds


• Oxidized connectors

• Loose wiring

• Sticky switches


• Test voltage inputs

• Check ground integrity

• Replace the controller if necessary


• Train operators on the timing behavior

• Keep platform controls clean and dry

• Replace worn switches before they fail

• Document recurring lockouts to identify patterns

• Consider upgrading wiring harnesses on heavily used machines


Background of the Komatsu 200 Series
The Komatsu 200 series has long been a cornerstone in mid‑sized hydraulic excavators. These machines, weighing roughly 20 metric tons (about 44,000 pounds), have been sold globally in large numbers since the introduction of the earlier “Dash‑5” versions in the 1990s and early 2000s. The “Dash‑7” generation represents a later evolution, incorporating updated hydraulic systems and improved operator comfort compared with its predecessors. In field tests reported by industry analysts, Dash‑7 machines demonstrated measurable performance gains over Dash‑6 models, moving material faster and with improved fuel efficiency due to stronger digging forces and more responsive hydraulic controls. These improvements enhanced overall productivity by roughly 8–11 percent, based on comparative field work where operators loaded heavy trucks under identical conditions with each machine generation.
Hydraulic System Pressure and Pilot Control
A recurring theme in the experience of many operators involves hydraulic pressure behavior in the Komatsu 200‑7 models. In a properly functioning system, the pilot control — a low‑pressure subsystem that directs hydraulic flow to the main control valves — should maintain a stable reference pressure, often designed to be around several hundred pounds per square inch (psi) to ensure consistent responsiveness of boom, arm, and track functions. When this pilot pressure drops below design values, operators can notice sluggish movements or loss of hydraulic power. In one reported case, an operator observed that the system only delivered around 100 psi when warm, while the expected range was closer to 500 psi in that part of the pilot circuit. This situation initially pointed to a potential fault in the pilot reducing valve, a key component that regulates the transition between high‑pressure pump output and the lower pilot circuit requirements. Replacement of this valve temporarily restored some responsiveness but did not fully correct the pressure issue, indicating that simply swapping parts without a system‑wide diagnostic may not solve deeper hydraulic control challenges.
Swing Brake and Contamination Issues
Another frequent maintenance concern highlighted by operators involves the swing brake system and contamination in the hydraulic reservoir. The swing brake is a mechanical brake that stops the upper structure from rotating unintentionally when the machine is idle or parked. In several service cases, dismantling and cleaning the brake assembly revealed fragments of fiber material and brass components that had entered the fluid circuit and settled in tanks or screens. Such debris can interfere with valve operation and reduce overall hydraulic efficiency. This kind of contamination often results from incomplete cleanup during previous repairs or from deterioration of friction materials over time. Thorough flushing of the tank and careful inspection of filters and screens is essential after any component failure, not only to restore proper function but to prevent future blockages that could degrade pilot pressure or damage sensitive hydraulic components.
Comparison of Dash‑5 and Dash‑7 Models
Operators with experience across multiple generations frequently note differences between the Dash‑5 and Dash‑7 variants. Dash‑5 machines are often described as more straightforward in design and, in many cases, more forgiving in terms of hydraulic performance under heavy use. A machine with more than 11,000 hours of service might still perform reliably with relatively little intervention, whereas a 200‑7 with just over 5,000 hours might show more complex pressure‑related symptoms. This does not necessarily indicate inferior engineering; rather, later models typically use finer‑tuned hydraulic systems and tighter tolerances, which can make them more sensitive to deviations in fluid condition, component wear, and pilot control settings. Regular preventive maintenance, including fluid sampling and pressure checks, becomes even more important in these newer designs.
Diagnostic Best Practices
A structured approach to diagnosing hydraulic issues on these machines rests on measuring actual pressures at several key points in the system. Placing gauges at the pilot manifold, near the pressure‑reducing valve and at points feeding the joystick and pedal controls, helps identify where pressure losses occur. This technique allows technicians to isolate whether the problem is upstream at the pump, within control valves, or due to leakage or blockage in the distribution network. When pilot pressure drops significantly as the machine warms up, temperature‑related fluid viscosity changes might also play a role. Hydraulic oil that becomes too thin with heat will transmit pressure less effectively and can make seals and valve spools less responsive. Monitoring fluid temperature along with pressure trends can help distinguish between true component failure and thermal performance issues.
Maintenance Actions and Recommendations
In addition to targeted diagnostics, several broad recommendations help owners and technicians maintain reliable performance:

• Always flush the hydraulic tank thoroughly after any major failure to remove microscopic debris and prevent future valve sticking.

• Use the oil type and viscosity grade specified by the manufacturer, since incorrect fluid can significantly affect control valve performance as temperature changes.

• Regularly replace filters and inspect screens to catch contamination early.

• When replacing pilot control components, compare readings before and after replacement under both cold and warm conditions to confirm whether the underlying issue is resolved or if further investigation is required.

• Consider investing in portable gauges that can be connected easily to multiple points in the hydraulic circuit during routine checks.


Overview
Owners of older tractor‑loader‑backhoes often look for ways to expand their machine’s versatility, and one of the most common upgrades is adding pallet forks to the front loader. For the Case 580E, a model produced during a pivotal era in the company’s history, the question of compatibility and mounting systems becomes especially important. Although the machine is robust and widely used, its loader arm geometry and pin spacing differ from later generations, which affects the choice of quick‑attach systems and fork frames.
This article explores the technical considerations, historical context, and practical solutions for equipping a Case 580E with forks, while also offering additional insights, terminology notes, and real‑world examples from the field.

Background of the Case 580E
The Case 580 series has been one of the most commercially successful backhoe‑loader lines in North America. By the late 1980s, when the 580E was in production, Case had already sold hundreds of thousands of machines across the 580 family. The 580E represented a transition between earlier mechanical designs and the more modern, hydraulically refined models that followed.
Key characteristics of the 580E included:

• A loader breakout force commonly exceeding 6,000 pounds

• A diesel engine in the 60–70 horsepower range

• A loader lift capacity typically around 3,000 pounds at full height

• A pin‑on bucket system that predated the standardized quick‑attach systems used today


• Move pallets of materials

• Handle lumber, pipe, and bundled goods

• Load and unload trucks

• Assist in farm, warehouse, and construction logistics


• Pin‑on system: A mounting method where the bucket or attachment is directly secured to the loader arms using steel pins. Older machines like the 580E commonly use this system.

• Quick‑attach (QA): A standardized interface allowing attachments to be swapped rapidly without removing pins. Modern loaders often use skid‑steer‑style QA or proprietary systems.

• Loader arm geometry: The angles, spacing, and mechanical layout of the loader arms, which determine compatibility with attachments.

• Fork carriage: The frame that holds the forks and connects to the loader.


• Variations in pin diameter

• Changes in horizontal spacing between loader arms

• Differences in vertical pin offset

• Loader arm curvature that affects attachment angle


• Correct pin spacing

• Proper alignment with the loader arms

• Safe load handling

• Full compatibility with the machine’s hydraulic geometry


• Cutting and repositioning mounting ears

• Reinforcing welds

• Ensuring correct tilt angles

• Verifying load capacity


• Salvage yards

• Specialty attachment builders

• Dealers who handle older equipment


• Loader lift capacity at full height

• Reduced rollback angle when using adapters

• Increased forward load leverage

• The risk of tipping when handling heavy pallets


• Measure pin diameter, spacing, and offset before purchasing any adapter

• Compare loader geometry with later Case models to assess compatibility

• Consider whether a pin‑on fork frame may be safer and more reliable

• Consult a fabricator if no off‑the‑shelf solution fits

• Test load handling with incremental weights

• Inspect welds and mounting points regularly


Overview of the Case 580B Shuttle System
The Case 580B is a classic backhoe loader originally produced by Case Corporation starting in the early 1970s. It combines a front loader and a rear backhoe on a robust chassis designed for versatility in construction, agriculture, and utility work. The machine evolved over decades, with tens of thousands sold worldwide. Its powertrain typically includes a multi‑speed transmission and, in some variants, a power shuttle system that allows the operator to change direction forward or reverse without using the clutch pedal in the conventional way. The shuttle system uses hydraulic pressure applied to clutch packs via a control spool, which is actuated through a pedal and cam linkage. Understanding the interplay between clutch pedal adjustment, spool pressure, and shuttle operation is essential for diagnosing movement issues on these machines.
Clutch Pedal Position and Pressure Regulation
On the shuttle‑equipped Case 580B, the clutch pedal both engages and disengages hydraulic pressure to the clutch packs. When the pedal is depressed, it should drop hydraulic pressure to near zero, allowing the machine to shift direction smoothly. When the pedal is released, pressure should build back into the system, typically into a range around 150–180 psi depending on manufacturer specifications and machine condition. A common issue arises when the pressure regulator valve associated with the clutch does not generate adequate pressure at the control spool — particularly at port C of the power shuttle control spool, which is the key pressure point for engaging forward or reverse drive. If the pressure never reaches the required value, forward and reverse motion will be weak or nonexistent. One mechanic trying to address this added a set of small metal shims to the pressure regulator valve in hopes of increasing the preload on the internal spring. Although this improved movement slightly — the machine could “crawl” forward and backward at high engine speed — it still did not reach the target pressure value, and movement remained weak. Adjusting these shims too far can collapse the spring inside the regulator, potentially making pressure regulation impossible.
Spool Stroke and Cam Linkage Geometry
A critical dimension in many service manuals for the 580B shuttle control valve is the spacing between the cam follower and a bolt on the spool assembly. For proper operation, this distance must fall within a specific range — for example, a measurement such as 3.575 inches is often cited. If the cam follower cannot engage the spool over the full required stroke, pressure will never build correctly on the shuttle control spool, leading to poor clutch engagement and drive pressure. One technician found he could only achieve a value about 0.25 inch short of the required dimension even at maximum cam bolt rotation. This shorter engagement stroke often correlates with low pressure at the control spool and indicates either linkage misadjustment or worn components in the cam and follower mechanism. Accurate linkage geometry ensures the correct mechanical advantage from pedal to spool and avoids pressure loss. A simple small story illustrates this point: a farmer once battled a similar issue for weeks on a different backhoe because of a mismatched pedal return spring that prevented full cam travel; once replaced, pressure and shuttle response returned to normal.
Hydraulic Fluid Condition and System Wear
Fluid condition is another determinant of shuttle and clutch pressure performance. Old, contaminated, or overfilled fluid can foam, lose viscosity, or fail to transmit pressure effectively, especially in systems using specialized fluids like Case TCH or Case Hytran Ultra rather than generic hydraulic oils. On older machines, changing all fluids and filters often brings measurable improvement. In cold weather, heavy fluid can significantly hinder pressure buildup; many operators report that machines reluctant to move at ambient temperatures below 50 °F will behave normally once the oil warms up. This is because fluid viscosity changes with temperature, affecting pump efficiency and clutch pack engagement — a phenomenon well known in heavy equipment with power transmission systems.
Clutch Pack Wear and Mechanical Shuttle Considerations
In some cases, problems may not stem from adjustment alone but from worn clutch packs or mechanical shuttle components. The shuttle unit on a 580B with a dry clutch behaves somewhat like a truck clutch: worn plates or springs can prevent full disengagement or engagement regardless of pedal adjustment. When clutch packs no longer separate properly, the transmission input shaft may still turn even in neutral, making shifting difficult and causing sluggish movement. This wear is cumulative: a 50‑year‑old machine with thousands of hours on it may have clutch pack components out of specification. Without proper separation, hydraulic pressure regulation alone cannot restore full function. Professional rebuilds of clutch packs, while more expensive than linkage adjustments, often succeed when adjustment limits are exhausted.
Diagnostics and Adjustment Sequence
A systematic approach to resolving shuttle and clutch issues involves several steps:

• Confirm the free travel of the clutch pedal and adjust linkage so that pressure drops fully when the pedal is depressed.

• Measure and adjust the cam follower to spool bolt distance, ensuring it falls within manufacturer specified values.

• Check hydraulic fluid levels and type, replacing with the correct fluid and ensuring no foaming or contamination.

• Monitor shuttle pressure with a gauge during operation to confirm pressures rise and fall appropriately with pedal movement.

• Inspect for wear in the shuttle valve, cam linkage, and clutch packs; excessive wear often necessitates part replacement rather than adjustment alone.


• Sluggish forward or reverse movement even with high engine rpm.

• Only slight movement or crawling when under load.

• Pressure at the control spool never reaching the expected value.

• Forward and reverse movement only possible with wheels lifted off the ground.

• Pressure changes when clutch pedal is pressed and released but never within specification.


• Use fluid types recommended by the original manufacturer rather than universal hydraulic oils.

• Ensure linkage adjustment follows exact specifications rather than guesswork; proper geometry matters more than pedal feel.

• Replace worn springs and plates during major clutch work to restore separation force.

• When diagnosing pressure issues, observe system behavior under cold and warm conditions, as fluid viscosity significantly affects hydraulic systems.

• Keep detailed records of adjustments and results to avoid repeated trial‑and‑error.


Unexpected Fixes
Sometimes solutions come from the most unexpected places. One mechanic shared how he used a common dishwasher detergent to clean a severely clogged radiator in heavy machinery. The radiator, part of a large engine model, had coolant that looked like chocolate mousse, completely obstructing proper function. By dissolving the detergent in hot water and performing two hot rinses, the radiator returned to its intended state without damaging the system. This unconventional method not only saved time but also avoided costly repairs that could have run into hundreds of dollars.
Effective Cleaning Techniques
Another approach highlighted the importance of dosage and temperature. Using approximately 10 pounds of detergent in hot water allowed the solution to reach all crevices of the cooling system. Two subsequent hot rinses ensured no residue remained, which is crucial because leftover chemicals can react with coolant and engine metals. In comparison, pre-mixed liquids or smaller quantities were less effective, emphasizing the need to understand chemical reactions and fluid dynamics when maintaining large engines.
Learning From Different Machines
The lessons extended beyond one type of machinery. For instance, a John Deere 7410 tractor with a plastic-tank radiator faced similar overheating issues due to high iron content in well water. Applying the same cleaning principles prevented a costly replacement and reinforced the idea that the type of materials used in equipment—metal versus plastic—affects maintenance strategies. It also shows that older methods can adapt to new machinery challenges, demonstrating that even experienced mechanics can learn innovative solutions.
Practical Experience in the Field
Fieldwork remains crucial. One user described working a Caterpillar excavator in a trench pushing wet material on a 4:1 grade, encountering water accumulation and shale layers. High-track machines minimized the risk of roller damage in wet conditions. Sharing these firsthand experiences allows others to anticipate operational challenges and plan preventative maintenance. Practical insight like this often surpasses manuals in addressing real-world conditions.
Knowledge Sharing and Community Learning
A key takeaway is that knowledge sharing within the community accelerates problem-solving. Mechanics exchanged strategies ranging from chemical cleaning techniques to handling high-stress operational environments. Such collaboration reflects the principle that old dogs can indeed learn new tricks, whether it’s experimenting with unconventional cleaning methods or adapting to changing field conditions. The combined experience of seasoned professionals and innovative thinking creates a learning environment where both new and old techniques coexist.
Conclusion
Maintenance and problem-solving in heavy machinery benefit from creative thinking, precise application of methods, and community knowledge sharing. Whether dealing with clogged radiators or challenging excavation conditions, mechanics who embrace learning and experimentation can extend the life of equipment and reduce costs. In this industry, being open to unconventional solutions while respecting machine specifications often separates effective operators from the average, proving that even seasoned professionals can adopt new tricks to solve old problems.

The Bobcat 943 skid steer loader belongs to a generation of machines produced during the late 1980s and early 1990s, a period when Bobcat was rapidly expanding its product line and global market share. Bobcat, founded in North Dakota in the 1950s, became one of the world’s most recognized compact equipment manufacturers, with millions of skid steers sold worldwide. The 943 model was built for heavy lifting and demanding job‑site work, featuring a robust hydrostatic drive system that allowed precise control and strong pushing power.
As these machines age, however, hydrostatic performance issues become increasingly common. One recurring problem involves the left drive becoming weak after the hydraulic oil warms up. This article explores the symptoms, diagnostic logic, underlying causes, and practical solutions for this issue, while adding technical explanations, industry context, and real‑world stories.

Symptoms of a Weak Left Drive
According to the retrieved information, the machine operates normally for about ten minutes—until the hydraulic oil reaches operating temperature. Once warm, the left drive becomes noticeably weak, especially when pushing into a dirt pile. Under load, the left side may stop moving entirely, while reverse still functions but produces a squealing noise from the drive motor.
These symptoms point toward a hydraulic issue that worsens with heat, suggesting internal leakage or loss of pressure in the left‑side hydrostatic circuit.

Understanding the Hydrostatic Drive System
A skid steer like the Bobcat 943 uses a closed‑loop hydrostatic drive system, meaning hydraulic fluid circulates continuously between the pump and drive motor.
Terminology notes:

• Hydrostatic pump: A variable‑displacement pump that controls speed and direction by changing the angle of its swash plate.

• Drive motor: Converts hydraulic pressure into rotational motion to turn the wheels.

• Charge pressure: Low‑pressure oil supplied to keep the closed loop full and prevent cavitation.

• Servo: A hydraulic control mechanism that adjusts the pump swash plate angle.


• If charge pressure drops when the left drive weakens, the pump is likely at fault.

• If charge pressure remains stable, the motor is more likely the problem.


• Forward motion caused only minimal engine load.

• Reverse motion caused significantly more engine load, even with the lines blocked.


• Pump stroke refers to the maximum displacement of the pump. If the pump cannot reach full stroke, it cannot deliver full hydraulic flow or pressure.


• Internal leakage increases

• Pressure drops

• Pump efficiency declines

• Weakness appears under load


• Monitor charge pressure during operation.

• Compare forward and reverse engine load with lines capped.

• Inspect servo pistons and seals for wear.

• Check actuator arm movement for stiffness or imbalance.

• Evaluate pump case drain flow (excessive flow indicates internal leakage).

• Inspect hydraulic oil condition and temperature.


• Rebuilding the hydrostatic pump

• Replacing servo seals and pistons

• Replacing worn actuator components

• Flushing the hydraulic system

• Upgrading to higher‑quality hydraulic oil

• Installing an auxiliary cooler if overheating is an issue


Overview of Gehl CTL60 and Takeuchi TL130
The Gehl CTL60 and Takeuchi TL130 are compact track loaders (CTL) widely used in construction, landscaping, and agricultural work for their versatility, traction, and power in confined spaces. Gehl, an American company founded in 1859, became known for innovative agricultural and construction equipment and later merged into larger industrial groups, while Takeuchi, a Japanese manufacturer established in 1963, pioneered compact excavators and loaders globally. Both the CTL60 and TL130 fall into the compact loader class with operating capacities typically around 1,500–2,000 lbs (680–910 kg) and engine outputs in the 40–50 hp range. These machines rely heavily on their hydraulic systems to power traction drives, lift arms, bucket functions, and auxiliary circuits.
Role of Hydraulic Fluid in Compact Track Loaders
Hydraulic fluid in loaders like the CTL60 and TL130 performs several critical functions:

• Power Transmission: It transfers engine power to hydraulic motors and cylinders that move the loader arms, buckets, and tracks.

• Lubrication: It reduces friction and wear within pumps, valves, motors, and actuators.

• Cooling: As fluid circulates under pressure, it absorbs heat from components and must dissipate it efficiently.

• Contaminant Suspension: Additives in quality hydraulic fluids help suspend water and debris, protecting sensitive components.


• ISO VG 46 or 68 hydraulic oil, depending on ambient temperature range.

• AW (Anti‑Wear) hydraulic fluid with rust and oxidation inhibitors to protect internal components.

• Hydraulic fluid meeting OEM specifications ensures optimal pump life and control response.


• Viscosity: Resistance to flow; measured in centistokes (cSt) at specific temperatures (e.g., 40 °C and 100 °C).

• Anti‑Wear Additives: Chemicals that form a protective layer on metal surfaces under high pressure to reduce wear.

• Oxidation Inhibitors: Extend fluid life by slowing chemical breakdown at high temperatures.

• Foam Suppressants: Reduce foam formation that can interfere with pump suction and control precision.


• Jerky or slow actuator response when viscosity is too high in cold weather.

• Excess heat build‑up when fluid viscosity is too low in hot conditions.

• Increased wear in pumps and valves due to lack of anti‑wear additives.

• Foaming or aeration, reducing hydraulic control precision and increasing component stress.


• Follow scheduled fluid changes: Many OEMs recommend hydraulic fluid replacement every 1,000–2,000 hours, depending on operating severity.

• Use quality filtration: Replace or clean hydraulic filters at intervals specified by service manuals; clogged filters starve pumps and introduce wear.

• Monitor fluid condition: Dark, burnt‑smelling fluid or excessive metal particles in fluid indicates the need for service and possible component wear.

• Check for leaks: Track loaders often operate in dusty environments where leaks can go unnoticed; low fluid levels can quickly damage pumps.


• Idling loaders briefly during cold start: Allowing fluid to circulate warms the system before heavy loads.

• Avoiding rapid, high‑load movements when fluid is cold: Cold fluid is more viscous, placing extra stress on pumps and seals.

• Keeping cooling systems clean: Radiators and oil coolers free of debris enhance fluid temperature control.

• Using breathers and seals that prevent contamination: Water and dirt intrusion accelerate fluid degradation and wear.


• Slow or weak actuators: Check fluid level, fluid grade, and filter condition.

• Overheating hydraulics: Evaluate fluid viscosity, radiator cleanliness, and pressure relief valve function.

• Unstable control response: Inspect for air in fluid (foam), loose fittings, or worn control valves.


Mini excavators have become one of the most versatile categories of compact machinery in modern construction and land‑management work. Since their introduction in Japan in the late 1960s, global sales have grown to more than 300,000 units annually, driven by their ability to work in tight spaces, perform precision digging, and operate with relatively low operating costs. Brands such as Kubota, Takeuchi, Caterpillar, and Bobcat dominate the market, with mini excavators now found on farms, homesteads, construction sites, and forestry operations.
However, one area where these machines consistently struggle is traction on snow and ice—especially on steep terrain. A user working on a 15‑acre hillside property described concerns about winter performance, recovery capability, and the feasibility of using a mini excavator for snow management and vehicle recovery. This article expands on those concerns, explores the physics behind traction issues, and provides practical solutions and real‑world examples.

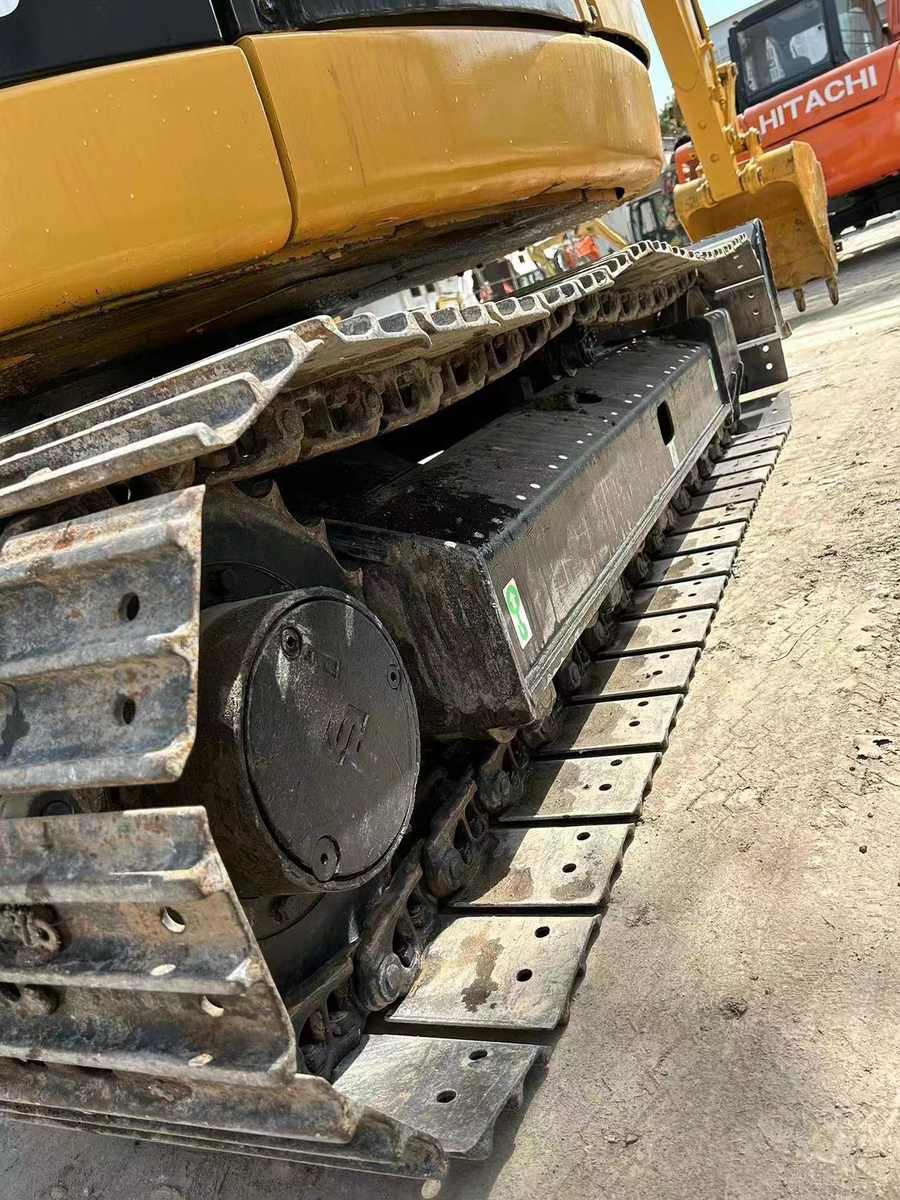

Why Mini Excavators Struggle on Snow and Ice
Mini excavators are engineered primarily for digging, not for pushing or pulling loads over slippery surfaces. Several design characteristics contribute to poor winter traction:

• Rubber tracks are optimized for dirt, mud, and soft ground, not ice.

• Low ground pressure, while beneficial for landscaping, reduces friction on hard frozen surfaces.

• Limited travel‑motor torque restricts pushing power.

• Short wheelbase and narrow stance reduce stability on slopes.

• Front blade design is intended for grading, not plowing.


• Rubber tracks are thick and reinforced, making installation difficult.

• Studs may not penetrate deeply enough to anchor securely.

• Excessive stud length can damage internal track layers.

• Studs may tear out under heavy torque.

• Studded tracks can damage paved surfaces.


• They cause severe damage to pavement.

• They increase vibration and noise.

• They add weight, reducing flotation on soft ground.

• They are expensive to install and maintain.


• Excellent digging ability

• Poor traction on ice

• Limited pushing power

• Good maneuverability in tight spaces


• Strong pushing capability

• High traction with snow tires or tracks

• Low ground clearance can be a drawback

• Ideal for plowing and snow blowing


• High ground clearance

• Strong traction with chains

• Powerful hydraulics

• Less maneuverable in tight areas


• Clear snow

• Recover a stuck Jeep

• Tow a trailer

• Carry logs with a thumb attachment

• Build dirt‑bike trails


• Install short screw‑in studs designed for rubber tracks.

• Add weight to the undercarriage to increase ground pressure.

• Use the front blade for stability rather than pushing.

• Operate at low speed to reduce sliding.

• Avoid steep slopes when possible.

• Keep tracks clean of packed snow and ice.

• Consider hybrid track systems with embedded steel cleats.


Machine Overview and History
The John Deere 50D is a compact crawler excavator designed for utility, landscaping, and light construction work. John Deere, founded in 1837 as a plow manufacturer, expanded into construction equipment in the 20th century and developed the 50D as part of its 20–6 ton mini and compact excavator line in the early 2000s. The 50D is valued for its maneuverability, durability, and versatility on smaller job sites while maintaining the reliability associated with the Deere brand. Its compact size allows it to operate in confined spaces without sacrificing key performance metrics.
Engine and Powertrain
The 50D is equipped with a diesel engine optimized for compact machinery. While small, these engines are designed to deliver sufficient torque for digging and lifting tasks. Operators report that proper maintenance of fuel systems and starter components is critical for reliable operation, especially in extreme temperatures. Issues such as starter relay failures, solenoid heat sensitivity, and battery condition can significantly affect starting performance. In hot weather, overheating components, particularly around the fuel system and rear engine compartment, can lead to stalling or starting difficulties, highlighting the importance of monitoring engine heat and airflow.
Electrical and Starting System
This model uses starter relays, typically labeled K1 and K2, to control cranking. K2 is easily accessible, while K1 may require panel removal. The pilot lever switch also interacts with electrical circuits, affecting engine operation. A common issue is that components in the starter or fuel solenoid can overheat, causing the engine to stall after running for some time. Technicians have observed that opening the rear hood often restores normal function, suggesting that cooling and ventilation around electrical components and the fuel pump are vital for uninterrupted operation.
Hydraulic and Operational Considerations
Hydraulics on the 50D are designed for precision and smooth control of the boom, arm, and attachments. The machine can run all day if airflow is adequate and the radiator and cooling system are free of dust and debris. Dust accumulation can significantly reduce heat dissipation, affecting both the engine and hydraulic systems. Regular cleaning of the radiator and oil cooler is recommended to maintain optimal airflow and prevent overheating. Operators have noted that even with professional cleaning, dirt can remain trapped, requiring more thorough maintenance when accessible.
Maintenance and Troubleshooting
Key maintenance practices for the 50D include:

• Checking battery connections and terminals to prevent intermittent starting issues.

• Inspecting and testing starter relays (K1/K2) and pilot lever switches.

• Monitoring fuel solenoid and pump temperatures to prevent heat-related stalls.

• Cleaning the radiator and oil cooler to ensure proper airflow.

• Replacing worn starter components promptly to avoid recurring failures.


A lowboy trailer is one of the most essential tools in heavy‑equipment transportation, designed to haul machines that exceed the height limits of standard trailers. These trailers have been a backbone of the construction and transportation industries since the mid‑20th century, when manufacturers began producing detachable‑gooseneck and hydraulic‑assisted models to accommodate increasingly large machinery. Today, tens of thousands of lowboys operate across North America, many of them undergoing periodic refurbishment to extend their service life.
A five‑year‑old 55‑ton lowboy trailer recently underwent a complete refurbishment, illustrating the level of care and technical attention required to keep such equipment in top condition. The project involved structural restoration, corrosion removal, repainting, and mechanical adjustments, ultimately returning the trailer to near‑new condition.

Initial Condition and Need for Refurbishment
The trailer had been purchased with the understanding that it required a full repaint. Although only five years old, the frame and structural members showed significant corrosion, especially from winter road salt exposure.
Terminology note: Structural members refer to the main load‑bearing steel beams that support the trailer deck and distribute weight across the axles.
Corrosion on a lowboy trailer is more than cosmetic—it can weaken welds, reduce load capacity, and accelerate fatigue cracking. In regions where salt is heavily used on winter roads, trailers often require major refurbishment every 5–10 years to maintain structural integrity.

Disassembly and Surface Preparation
The refurbishment began by removing:

• Wooden deck planks

• Air reservoirs

• Hydraulic cylinders

• Air valves and air lines

• Various fittings and hardware


• Even coating thickness

• Reduced contamination

• Proper curing temperature

• Long‑lasting corrosion resistance


• Fenders trap dirt and salt

• Cleaning becomes more difficult

• Rust accelerates under enclosed spaces

• Painting and blasting are harder with fenders installed


• Longer service life

• Higher resale value

• Lower long‑term repair costs

• Better safety performance


• Restores structural integrity

• Extends trailer lifespan by 5–10 years

• Improves appearance and resale value

• Reduces risk of roadside failures

• Ensures compliance with safety regulations
