Introduction
The Bobcat 610, a skid steer loader introduced in the 1970s, has been a reliable machine for various construction and landscaping tasks. However, as with any aging equipment, certain components may require attention over time. One such component is the alternator, which plays a crucial role in charging the battery and powering electrical systems. This guide provides a comprehensive overview of replacing the alternator on a Bobcat 610, including common issues, recommended solutions, and step-by-step instructions.
Understanding the Bobcat 610 Electrical System
The Bobcat 610 is equipped with a 12-volt electrical system. The original alternator setup includes an externally regulated alternator, which can sometimes be prone to issues such as voltage fluctuations or failure. Upgrading to an internally regulated alternator can simplify the system and improve reliability.
Common Issues with the Original Alternator

• Voltage Fluctuations: Users have reported inconsistent charging, with voltage levels varying unexpectedly during operation.

• Component Availability: Finding replacement parts for the original alternator can be challenging due to the age of the machine.

• Complex Wiring: The external regulator adds complexity to the electrical system, making troubleshooting more difficult.


• Simplified Wiring: Eliminates the need for an external regulator, reducing wiring complexity.

• Improved Reliability: Internally regulated alternators are generally more reliable and easier to maintain.

• Availability of Parts: Replacement parts for internally regulated alternators are more readily available.


• Voltage: 12 volts

• Amperage: 35 to 50 amps, depending on the electrical load of your machine

• Mounting Style: Ensure the alternator has a mounting configuration compatible with the Bobcat 610's bracket

• Pulley Type: Match the pulley type to the existing belt system


• Delco 10SI Series: A popular choice for many applications, offering reliability and ease of installation.

• Delco 12SI Series: Provides higher amperage output, suitable for machines with additional electrical accessories.


1. Remove the Old Alternator: Disconnect the battery, remove the drive belt, and unbolt the old alternator from its bracket.

2. Prepare the New Alternator: Install the appropriate pulley onto the new alternator if not already equipped.

3. Mount the New Alternator: Position the new alternator onto the existing bracket and secure it with bolts.

4. Connect the Wiring: Connect the battery cable to the output terminal, the ignition wire to the "I" terminal, and the ground wire to the "F" terminal.

5. Install the Drive Belt: Reinstall the drive belt, ensuring proper tension.

6. Reconnect the Battery: Reconnect the battery and start the engine to test the new alternator's functionality.


• No Charging: Check all wiring connections for tightness and corrosion. Ensure the alternator is properly grounded.

• Overcharging: Verify that the alternator's voltage regulator is functioning correctly.

• Undercharging: Test the alternator's output voltage using a multimeter. If readings are low, the alternator may need replacement.


The Hitachi EX300LC-2 is a hydraulic crawler excavator that was produced from 1993 to 1999. It is renowned for its robust performance and versatility in various heavy-duty applications, including construction, mining, and demolition projects. This article provides an in-depth overview of the EX300LC-2's specifications, common operational issues, and maintenance recommendations to ensure optimal performance.
Specifications
The EX300LC-2 boasts impressive specifications that contribute to its efficiency and reliability:

• Operating Weight: Approximately 66,600 lbs (30,200 kg)

• Engine: Powered by an Isuzu 6BG1T engine

• Maximum Output: 217.3 hp (162 kW)

• Hydraulic System: Features a hydraulic system with a flow capacity of 144.3 gpm (545 L/min)

• Maximum Digging Depth: 22.45 ft (6.84 m)

• Maximum Reach Along Ground: 35.77 ft (10.9 m)

• Maximum Loading Height: 24.58 ft (7.48 m)

• Tail Swing Radius: 10.83 ft (3.3 m)

• Track Width: 31.5 in (800 mm)


1. Engine Stalling: Operators have reported instances where the engine stalls during operation. This can be caused by various factors, including fuel delivery issues, electrical faults, or sensor malfunctions.

2. Erratic Idling: Fluctuating idle speeds can occur due to problems with the throttle position sensor, wiring harnesses, or the engine control unit (ECU). Rapid flashing of the idle display is often an indication of such issues.

3. Hydraulic System Leaks: Over time, seals and hoses in the hydraulic system may wear out, leading to leaks and reduced hydraulic performance.

4. Fuel Delivery Problems: Blockages in the injector pump or air trapped in the fuel lines can cause uneven fuel delivery, leading to engine performance issues.


1. Regular Inspections: Conduct routine inspections of the engine, hydraulic system, and electrical components. Look for signs of wear, leaks, or loose connections.

2. Fuel System Maintenance: Regularly replace fuel filters and ensure that the fuel lines are free from blockages. Bleed the fuel system to remove any air pockets that may have formed.

3. Hydraulic System Care: Check for hydraulic fluid leaks and monitor fluid levels. Replace seals and hoses as needed to prevent leaks and maintain hydraulic efficiency.

4. Electrical System Checks: Inspect the wiring harnesses for signs of damage or corrosion. Ensure that all electrical connections are secure and free from debris.

5. Engine Maintenance: Regularly change the engine oil and replace the oil filter. Monitor the engine's performance and address any issues promptly to prevent more significant problems.


Introduction
The Caterpillar 315CL hydraulic excavator, introduced in the early 2000s, has been a reliable workhorse in construction and excavation projects. However, like any heavy machinery, it is susceptible to fuel system issues that can impede performance. Understanding common fuel-related problems and their solutions is essential for operators and maintenance personnel to ensure the longevity and efficiency of the 315CL.
Common Fuel System Issues

1. Engine Power Loss After Extended Operation


1. Engine Stalling Under Load


• Clogged Fuel Filters: Over time, fuel filters can become clogged with debris and contaminants, restricting fuel flow and leading to power loss.

• Air in the Fuel System: Air pockets can form in the fuel lines, disrupting the continuous flow of fuel to the engine.

• Faulty Fuel Pump: A malfunctioning fuel pump may not generate sufficient pressure, causing inadequate fuel delivery.

• Contaminated Fuel: Using low-quality or contaminated fuel can lead to sediment buildup, affecting fuel flow and engine performance.

• Fuel Line Leaks: Leaks in the fuel lines can result in air entering the system or fuel escaping, both of which can disrupt engine operation.


1. Inspect Fuel Filters: Check for signs of clogging or contamination. Replace filters if necessary.

2. Bleed the Fuel System: Use the manual priming pump to remove air from the fuel lines, ensuring a continuous fuel supply.

3. Check Fuel Lines for Leaks: Inspect all fuel lines for signs of wear or damage. Replace any compromised lines.

4. Test Fuel Pump Pressure: Using a fuel pressure gauge, verify that the fuel pump is delivering the correct pressure as specified in the service manual.

5. Examine Fuel Quality: Drain a small amount of fuel from the tank and inspect it for clarity and odor. Discard any contaminated fuel.


• Regularly Replace Fuel Filters: Adhere to the manufacturer's recommended intervals for fuel filter replacement to prevent clogging.

• Use High-Quality Fuel: Always use clean, high-quality diesel fuel to minimize the risk of contamination.

• Monitor Fuel System Components: Regularly inspect the fuel pump, lines, and injectors for signs of wear or damage.

• Keep the Fuel Tank Clean: Periodically clean the fuel tank to remove any sediment or water accumulation.


Introduction
The Terex TA30 Gen 7 articulated dump truck, introduced in 2005, is a robust and versatile machine designed for heavy-duty applications in construction, mining, and infrastructure projects. Known for its durability and performance, the TA30 Gen 7 has become a popular choice among operators and fleet managers seeking a reliable off-highway truck.
Technical Specifications

• Engine: Cummins QSM11, 6-cylinder, turbocharged diesel engine

• Engine Power: Approximately 287 kW (384 hp)

• Gross Vehicle Weight: Approximately 22.5 tons

• Payload Capacity: Up to 28 tons

• Dump Body Capacity: Approximately 17.5 m³

• Top Speed: Approximately 50.4 km/h

• Dimensions: Length – 9.76 m; Width – 2.9 m; Height – 3.45 m

• Turning Radius: Approximately 8.47 m

• Loading Height: Approximately 2.9 m


• Engine Maintenance: Regular oil changes and air filter replacements to maintain engine efficiency.

• Hydraulic System Checks: Inspecting hoses and fittings for leaks and ensuring fluid levels are adequate.

• Tire Inspections: Checking for signs of wear and ensuring proper inflation to prevent uneven tire wear.


The Caterpillar 320C is a hydraulic excavator that was introduced in the early 2000s as part of Caterpillar's C-Series lineup. This model was designed to offer a balance between power, efficiency, and versatility, making it suitable for various construction and excavation tasks. Over time, the 320C gained popularity in international markets, leading to the emergence of grey market units.
What Is a Grey Market Machine?
A grey market machine refers to equipment that has been imported into a country through unauthorized channels, bypassing the manufacturer's official distribution network. These machines are typically intended for sale in other regions, and their importation into a new market often occurs without the consent of the original equipment manufacturer (OEM). As a result, grey market machines may lack official support, documentation, and warranty services in the importing country.
The Case of the Caterpillar 320C
The Caterpillar 320C excavator was primarily manufactured for markets outside North America, including Japan and other parts of Asia. These units were often sold through regional dealers and were not intended for direct sale in the U.S. or Canada. However, due to their reliability and performance, some of these machines found their way into North American markets through grey market channels.
Challenges Associated with Grey Market 320C Units

1. Documentation and Manuals: One of the primary challenges with grey market 320C machines is the availability of documentation. Service manuals, parts catalogs, and operator's manuals may be in foreign languages, such as Japanese, making it difficult for operators and technicians to perform maintenance and repairs.

2. Parts Compatibility: While many components of the 320C are standardized, some parts may differ between models intended for different markets. This can lead to challenges in sourcing compatible parts, potentially causing delays and increased costs during maintenance.

3. Warranty and Support: Grey market machines typically do not come with official warranties or support from the OEM in the importing country. This means that any repairs or parts replacements must be handled through independent service providers, which may not have access to the latest technical information or genuine parts.

4. Regulatory Compliance: Machines intended for other markets may not meet local regulatory standards, including emissions and safety requirements. This can lead to legal issues and potential fines if the machine is used in regulated environments.


1. Cost Savings: Grey market machines are often priced lower than their counterparts sold through official channels, offering potential savings for buyers.

2. Proven Performance: The Caterpillar 320C is known for its durability and performance, attributes that are consistent across different market versions.

3. Availability of Parts: In some cases, parts for grey market machines can be sourced through third-party suppliers or by cross-referencing part numbers with similar models sold in the local market.


Introduction
The Komatsu D37P-5 Crawler Dozer, introduced in the late 1980s, represents a significant advancement in mid-sized bulldozer technology. Designed for versatility and efficiency, it has been a preferred choice for various construction, mining, and landscaping projects. This article delves into its specifications, performance capabilities, and maintenance considerations.
Specifications

• Engine: Equipped with a Komatsu S4D102E engine, delivering approximately 81 horsepower.

• Operating Weight: Approximately 12,015 lbs (5,450 kg), making it suitable for both maneuverability and stability.

• Blade Type: Power Angle Tilt (PAT) blade, offering enhanced versatility in various applications.

• Track Width: 600 mm, providing a balance between ground pressure and flotation.

• Hydraulic System: Gear-type pump with a capacity of 25.2 U.S. gal/min (95.5 l/min) at rated engine RPM, ensuring efficient operation of attachments.

• Transmission: Hydrostatic transmission with three forward and three reverse speeds, allowing for precise control.


• Engine Oil and Filter: Regularly check and replace to ensure engine longevity.

• Hydraulic System: Monitor fluid levels and replace filters as needed to maintain hydraulic efficiency.

• Undercarriage: Inspect tracks and rollers for wear and replace components to prevent costly repairs.

• Cooling System: Ensure radiator and hoses are free from obstructions and leaks to prevent overheating.


The Dresser TD7G bulldozer, a product of International Harvester's construction equipment line, is renowned for its durability and versatility. Equipped with a 13.5 GPM hydraulic system at full throttle and a system pressure of approximately 2000 PSI, it offers a solid foundation for various attachments, including hydraulic winches. This article delves into the considerations, setup, and operational aspects of integrating a hydraulic winch into the TD7G's hydraulic system.
Understanding Hydraulic Winch Requirements
Hydraulic winches, such as the Warn 30XL, are designed to operate efficiently within specific hydraulic parameters. For optimal performance, a hydraulic motor should receive a flow rate of around 13.5 GPM and a pressure of approximately 2000 PSI. It's crucial to note that while the TD7G's hydraulic system provides the necessary flow and pressure, the actual performance of the winch may vary based on factors like hose diameter, valve restrictions, and the condition of the hydraulic components.
Plumbing the Hydraulic Winch
Integrating a hydraulic winch into the TD7G involves careful planning of the hydraulic plumbing. One approach is to install a diverter valve in the lines leading to the blade's angle cylinders. This valve, which can be manual or electric, allows the operator to switch between controlling the blade and the winch. The diverter valve's power beyond port should be connected to the blade control valves, ensuring that the winch's operation doesn't interfere with the blade's functionality.
Alternative Integration Methods
Another method involves using a motor valve with a power beyond sleeve. This setup requires plumbing the pump output to the motor valve's pressure inlet, with the power beyond output feeding into the blade control valves. The motor valve's tank return should be teed into the dozer's existing return line. This configuration ensures that the winch operates independently of the blade controls, providing flexibility in operations.
Performance Expectations
When operating a hydraulic winch on the TD7G, it's essential to manage expectations regarding performance. For instance, while the Warn 30XL winch is rated for a maximum line pull of 30,000 lbs, the TD7G's hydraulic system may only provide sufficient pressure for approximately 22,500 lbs at full throttle. This reduction is due to the system's pressure limitations and should be considered when planning recovery or pulling operations.
Maintenance and Troubleshooting
Regular maintenance is vital to ensure the longevity and efficiency of the hydraulic winch system. Operators should monitor hydraulic fluid levels, inspect hoses for wear, and check for any signs of leaks. Additionally, it's advisable to periodically test the system's pressure and flow rates to confirm they align with the winch's specifications. Addressing issues promptly can prevent costly repairs and downtime.
Conclusion
Integrating a hydraulic winch into the Dresser TD7G bulldozer enhances its versatility, making it suitable for a broader range of tasks, including recovery operations and material handling. By understanding the hydraulic requirements, carefully planning the plumbing, and maintaining the system, operators can maximize the performance and lifespan of both the dozer and the winch.




Introduction

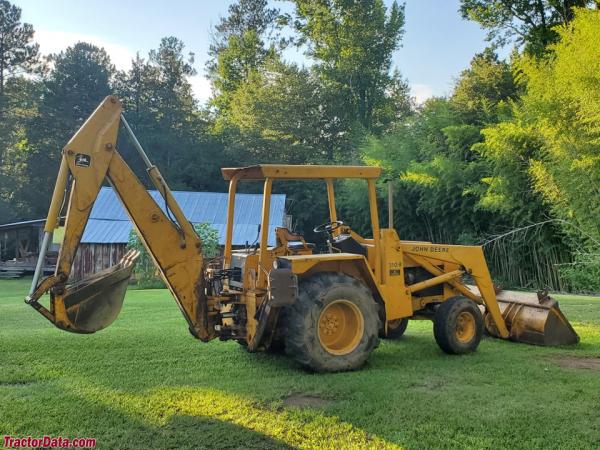

The John Deere 310B backhoe, introduced in the mid-1980s, has been a reliable machine for many operators. However, like all equipment, it can experience issues over time. One common problem reported by owners is related to the cooling system, specifically the phenomenon of coolant "burping" or expulsion from the overflow. This article delves into the potential causes, diagnostic steps, and solutions for this issue.
Understanding the Cooling System
The cooling system in the 310B backhoe is designed to regulate engine temperature by dissipating excess heat. It comprises components such as the radiator, thermostat, water pump, hoses, and the expansion tank. The expansion tank serves as a reservoir for coolant, allowing for thermal expansion and preventing pressure buildup.
Common Causes of Coolant Burping

1. Air in the Cooling System: Air pockets can form if the system isn't properly filled or if there's a leak, leading to erratic coolant flow and expulsion from the overflow.

2. Faulty Radiator Cap: The radiator cap maintains system pressure. If it's malfunctioning, it can cause the coolant to boil and overflow.

3. Blown Head Gasket: A compromised head gasket can allow exhaust gases to enter the cooling system, increasing pressure and forcing coolant out.

4. Cracked Cylinder Head or Block: Cracks can permit combustion gases into the coolant, leading to overheating and coolant loss.

5. Thermostat Malfunction: A stuck thermostat can restrict coolant flow, causing localized overheating and pressure spikes.


1. Visual Inspection: Check for visible leaks around hoses, the radiator, and the expansion tank.

2. Pressure Test: Using a radiator pressure tester, pressurize the system to the specified PSI and observe for drops, indicating leaks.

3. Compression Test: This test checks for leaks between cylinders and into the cooling system, which can point to a blown head gasket.

4. Coolant Analysis: Collect a sample of the coolant and have it analyzed for the presence of oil or combustion gases.

5. Radiator Cap Test: Test the radiator cap's pressure rating to ensure it maintains the correct system pressure.


• Bleeding the System: If air is present, the system needs to be bled. This involves running the engine with the radiator cap off, allowing air to escape as the engine reaches operating temperature.

• Replacing Faulty Components: If the radiator cap, thermostat, or hoses are found to be defective, replace them with OEM parts to ensure proper function.

• Head Gasket or Engine Repair: If a blown head gasket or cracked head/block is diagnosed, the engine will require disassembly for repair or replacement.


• Regular Coolant Checks: Periodically inspect coolant levels and condition. Milky or discolored coolant can indicate contamination.

• Routine Pressure Tests: Annually test the radiator cap and system pressure to ensure integrity.

• Keep the System Clean: Flush the cooling system as per the manufacturer's recommendations to remove debris and scale buildup.


Introduction
The Cummins M11 engine, introduced in 1994, marked a significant advancement in diesel engine technology. Building upon the foundation of the L10 engine, the M11 offered improved performance, durability, and efficiency. Over the years, it has been widely utilized in various applications, including heavy-duty trucks, buses, construction equipment, and marine vessels.
Engine Specifications

• Configuration: Inline 6-cylinder

• Displacement: 10.8 liters (659.1 cu in)

• Bore x Stroke: 125 mm x 147 mm

• Compression Ratio: 16.3:1

• Fuel System: Initially mechanical; later models equipped with CELECT and CELECT Plus electronic controls

• Turbocharger: Holset variable geometry turbocharger (in later models)

• Governed Speed: Up to 2,100 rpm

• Peak Torque: Up to 1,550 lb-ft (2,102 N·m)

• Horsepower Ratings:
  • 280 hp (209 kW)

  • 310 hp (231 kW)

  • 330 hp (246 kW)

  • 350 hp (261 kW)

  • 370 hp (276 kW)

  • 400 hp (298 kW)

  • 425 hp (317 kW)

  • 450 hp (336 kW)

  • 500 hp (373 kW)


• Heavy-Duty Trucks: Providing reliable power for long-haul and regional transportation.

• Buses and Coaches: Offering durability and efficiency for public and private transit.

• Construction Equipment: Supplying robust performance for machinery operating in demanding environments.

• Marine Vessels: Delivering dependable power for various marine applications.

• Agricultural Equipment: Ensuring consistent performance in farming machinery.


• Regular Oil Changes: Ensuring proper lubrication and longevity of engine components.

• Air and Fuel Filter Replacement: Maintaining clean intake and fuel systems for efficient combustion.

• Cooling System Inspection: Preventing overheating by checking coolant levels and radiator condition.

• Turbocharger Maintenance: Ensuring proper operation and preventing damage.





Overview

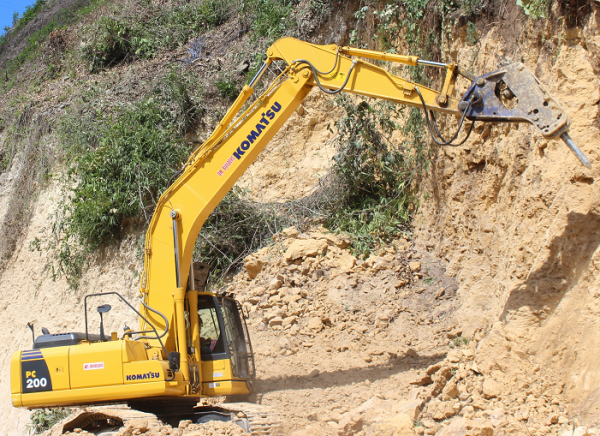

The Komatsu PC200-8 is a widely used hydraulic excavator known for its reliability and performance in various construction and mining applications. However, some operators have reported an issue where the boom stops raising when the swing function is activated, resuming normal operation only after the swing is deactivated. This phenomenon, often referred to as "swing and boom interference," can hinder productivity and may indicate underlying hydraulic system concerns.
Understanding the Hydraulic System
The PC200-8 utilizes a closed-center load sensing hydraulic system, which ensures that hydraulic fluid is directed to the appropriate functions based on operator input. This system relies on precise coordination between various components, including the main control valve, hydraulic pumps, and actuators. Any disruption or imbalance in this coordination can lead to performance issues such as the swing and boom interference described.
Potential Causes

1. Hydraulic Pressure Imbalance: The simultaneous demand for hydraulic fluid by both the swing and boom functions can exceed the system's capacity, leading to pressure drops and erratic behavior.

2. Faulty Proportional Valves: The proportional valves control the flow of hydraulic fluid to different functions. If these valves malfunction or become uncalibrated, they may not prioritize the boom function correctly when the swing is engaged.

3. Swing Brake Issues: The swing brake is designed to hold the upper structure in place when not in motion. If the brake is not fully disengaged or is dragging, it can create additional resistance, affecting hydraulic flow and function coordination.

4. Electrical Sensor Malfunctions: Modern excavators like the PC200-8 rely on electronic sensors to monitor and control hydraulic functions. A malfunctioning sensor can send incorrect signals to the control system, leading to improper function coordination.


1. Check Hydraulic Fluid Levels and Quality: Low or contaminated hydraulic fluid can affect system performance. Ensure that the fluid is at the recommended level and is free from contaminants.

2. Inspect Proportional Valves: Test the proportional valves for proper operation. This may involve checking for electrical continuity and ensuring they respond correctly to input signals.

3. Examine Swing Brake Operation: Verify that the swing brake is fully disengaging when the swing function is activated. Any resistance from a partially engaged brake can disrupt hydraulic flow.

4. Test Electrical Sensors: Use diagnostic tools to check the functionality of sensors related to the swing and boom functions. Replace any faulty sensors as needed.


• Regular System Checks: Perform routine inspections of the hydraulic system, including fluid levels, filters, and components, to ensure optimal performance.

• Timely Sensor Calibration: Regularly calibrate sensors to maintain accurate readings and proper function coordination.

• Proper Brake Maintenance: Ensure that the swing brake is properly maintained and fully disengages when not in use.

• Operator Training: Educate operators on the importance of smooth and coordinated function usage to prevent system overloads.
