Overview

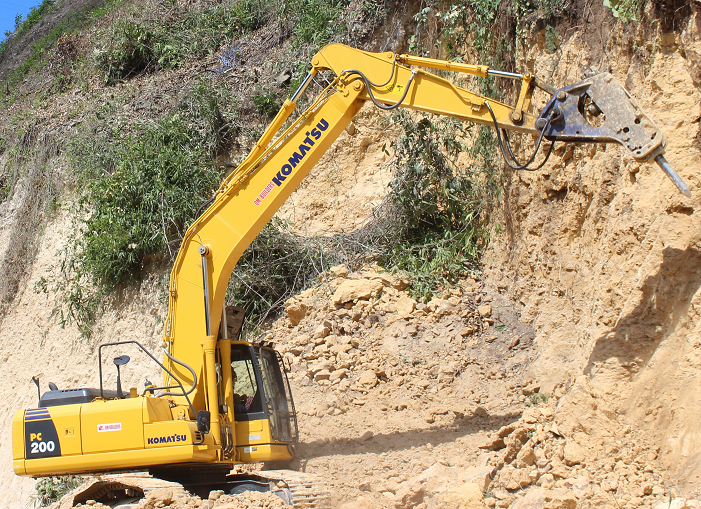

The Komatsu PC200-8 is a widely used hydraulic excavator known for its reliability and performance in various construction and mining applications. However, some operators have reported an issue where the boom stops raising when the swing function is activated, resuming normal operation only after the swing is deactivated. This phenomenon, often referred to as "swing and boom interference," can hinder productivity and may indicate underlying hydraulic system concerns.
Understanding the Hydraulic System
The PC200-8 utilizes a closed-center load sensing hydraulic system, which ensures that hydraulic fluid is directed to the appropriate functions based on operator input. This system relies on precise coordination between various components, including the main control valve, hydraulic pumps, and actuators. Any disruption or imbalance in this coordination can lead to performance issues such as the swing and boom interference described.
Potential Causes
- Hydraulic Pressure Imbalance: The simultaneous demand for hydraulic fluid by both the swing and boom functions can exceed the system's capacity, leading to pressure drops and erratic behavior.
- Faulty Proportional Valves: The proportional valves control the flow of hydraulic fluid to different functions. If these valves malfunction or become uncalibrated, they may not prioritize the boom function correctly when the swing is engaged.
- Swing Brake Issues: The swing brake is designed to hold the upper structure in place when not in motion. If the brake is not fully disengaged or is dragging, it can create additional resistance, affecting hydraulic flow and function coordination.
- Electrical Sensor Malfunctions: Modern excavators like the PC200-8 rely on electronic sensors to monitor and control hydraulic functions. A malfunctioning sensor can send incorrect signals to the control system, leading to improper function coordination.
- Check Hydraulic Fluid Levels and Quality: Low or contaminated hydraulic fluid can affect system performance. Ensure that the fluid is at the recommended level and is free from contaminants.
- Inspect Proportional Valves: Test the proportional valves for proper operation. This may involve checking for electrical continuity and ensuring they respond correctly to input signals.
- Examine Swing Brake Operation: Verify that the swing brake is fully disengaging when the swing function is activated. Any resistance from a partially engaged brake can disrupt hydraulic flow.
- Test Electrical Sensors: Use diagnostic tools to check the functionality of sensors related to the swing and boom functions. Replace any faulty sensors as needed.
A similar issue was reported on a Komatsu PC200-8 excavator where the boom would not raise when the swing was activated. Upon inspection, it was found that a loose connection on the shuttle valve pressure sensor was causing the problem. After securing the connection, the issue was resolved, and normal operation resumed.
Maintenance Tips
- Regular System Checks: Perform routine inspections of the hydraulic system, including fluid levels, filters, and components, to ensure optimal performance.
- Timely Sensor Calibration: Regularly calibrate sensors to maintain accurate readings and proper function coordination.
- Proper Brake Maintenance: Ensure that the swing brake is properly maintained and fully disengages when not in use.
- Operator Training: Educate operators on the importance of smooth and coordinated function usage to prevent system overloads.
The swing and boom interference issue on the Komatsu PC200-8 excavator is typically related to hydraulic system imbalances or component malfunctions. By following the diagnostic steps and maintenance tips outlined above, operators can identify and resolve the issue, ensuring continued productivity and longevity of the equipment.
