ID：1825273

The 2018 Volvo EC350D is a 35-ton hydraulic excavator engineered for demanding construction, mining, and infrastructure projects. With 9,500 operating hours and currently located in Leshan, Sichuan, this machine combines high digging force with efficient hydraulic performance. Part of Volvo’s D-series, the EC350D is renowned for reliability, operator comfort, and fuel efficiency, making it a popular choice for contractors requiring consistent productivity in challenging environments.
Development and Manufacturer Background
Volvo Construction Equipment (Volvo CE) traces its roots to 1832, with a long history of innovation in heavy machinery. Volvo CE is recognized globally for building durable and efficient excavators that meet strict environmental and safety standards. The EC series, particularly the D-generation, was developed to enhance hydraulic efficiency, improve fuel economy, and optimize operator ergonomics.
The EC350D, introduced in the mid-2010s, gained global acceptance for its versatility and reliability. By 2018, Volvo CE had sold thousands of units worldwide, with the EC350D becoming a staple in markets across Asia, Europe, and North America. Its South Korean manufacturing base ensures high-quality components and assembly, reflecting Volvo’s commitment to international standards.
Core Specifications

• Operating weight: 34,300 – 38,700 kg

• Bucket capacity: 1.0 – 2.53 m³

• Boom type: Conventional

• Bucket type: Backhoe

• Country of origin: South Korea


• Engine model: Volvo D8K

• Rated power: 197 kW at 1800 rpm

• Cylinder bore × stroke: 110 × 138 mm

• Maximum torque: 1,340 Nm

• Displacement: 7.8 L


• Swing speed: 10.3 rpm

• Gradeability: 35°

• Maximum drawbar pull: 261 kN

• Travel speed: 3.3 / 5.1 km/h

• Swing torque: 126 Nm


• Maximum pump flow: 2 × 288 L/min

• Travel circuit pressure: 33.3 MPa

• Swing circuit pressure: 27.9 MPa

• Control circuit pressure: 3.9 MPa

• Working circuit pressure: 33.3 / 36.3 MPa

• Arm cylinder: 1 × 170 × 1,700 mm

• Boom cylinders: 2 × 150 × 1,530 mm


• Fuel tank: 580 L

• Hydraulic tank: 215 L

• Engine oil: 32 L

• Coolant: 41 L

• Hydraulic system: 465 L


• Transport length: 11,190 mm

• Transport width: 3,190 mm

• Transport height: 3,230 mm

• Cab height: 3,030 mm

• Counterweight ground clearance: 1,180 mm

• Minimum ground clearance: 500 mm

• Tail swing radius: 4,120 mm

• Track length: 4,630 mm

• Track gauge: 2,590 mm

• Track shoe width: 600 mm

• Track contact length: 3,700 mm


• Maximum digging radius: 11,110 mm

• Maximum digging depth: 7,480 mm

• Maximum digging height: 10,330 mm

• Maximum dumping height: 7,250 mm

• Maximum vertical digging depth: 5,890 mm

• Maximum digging radius at ground level: 10,900 mm


• Ground-level access to filters

• Extended engine oil change intervals

• Centralized lubrication options




ID：1825270

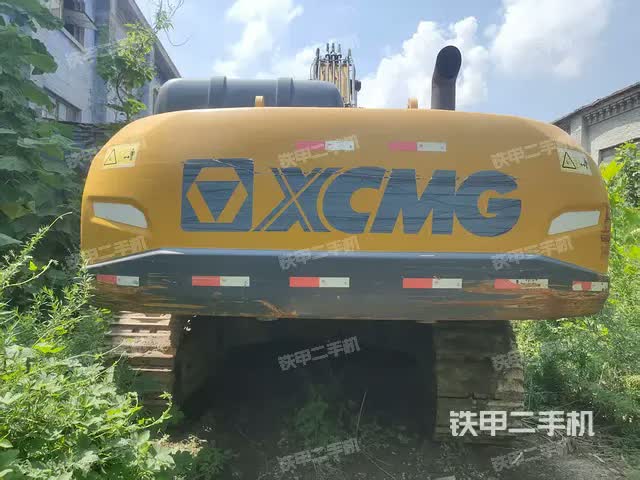

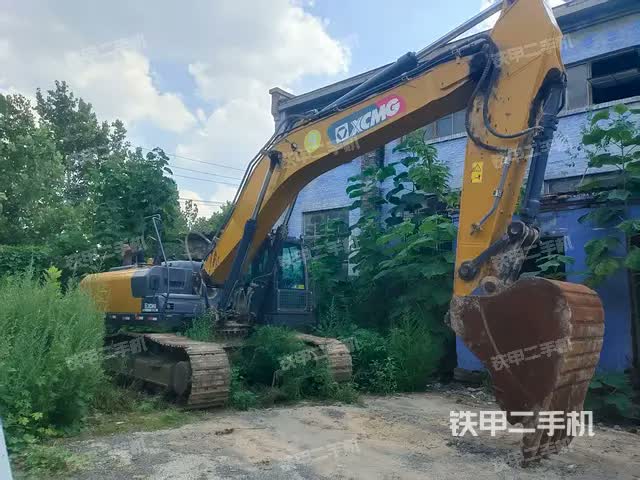

The 2021 XCMG XE370D is a 37-ton hydraulic excavator positioned in the large-size construction machinery category. With 2,600 operating hours and currently located in Weifang, Shandong, this machine demonstrates a balance between raw digging power and refined hydraulic control. Designed to meet the heavy-duty requirements of mining, quarrying, and large-scale infrastructure projects, the XE370D is part of XCMG’s D-series lineup, known for its durability and fuel efficiency.
The Development of the XE370D
XCMG, officially known as Xuzhou Construction Machinery Group, was founded in 1989 but has roots tracing back to the 1940s. Over the decades, it has grown into one of the world’s top five construction equipment manufacturers, exporting machinery to over 180 countries. The XE series excavators were introduced in the late 2000s to compete with global brands like Caterpillar, Komatsu, and Volvo, but at a more competitive cost. The D-generation models brought stronger hydraulic systems, environmentally compliant engines, and operator-friendly cabins.
By 2021, XCMG had become China’s leading excavator exporter, with annual sales surpassing 20,000 units across multiple weight classes. The XE370D specifically gained traction in Asia and Africa due to its high digging force and reliability in demanding mining operations.
Core Specifications

• Operating weight: 36,800 kg

• Bucket capacity: 1.7 – 1.9 m³

• Boom length: 6,400 mm

• Arm length: 3,200 mm

• Bucket type: Backhoe


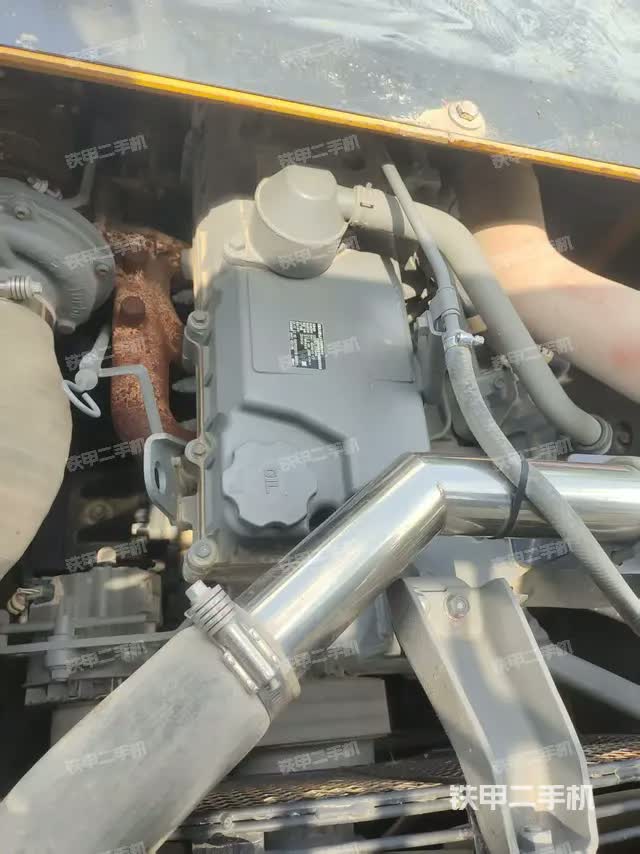

• Engine model: GH-6HK1XKSC-03

• Rated power: 212 kW at 2000 rpm

• Maximum torque: 1080 Nm at 1500 rpm

• Cylinder configuration: 6 cylinders, 7.79 L displacement


• Ground pressure: 66.7 kPa

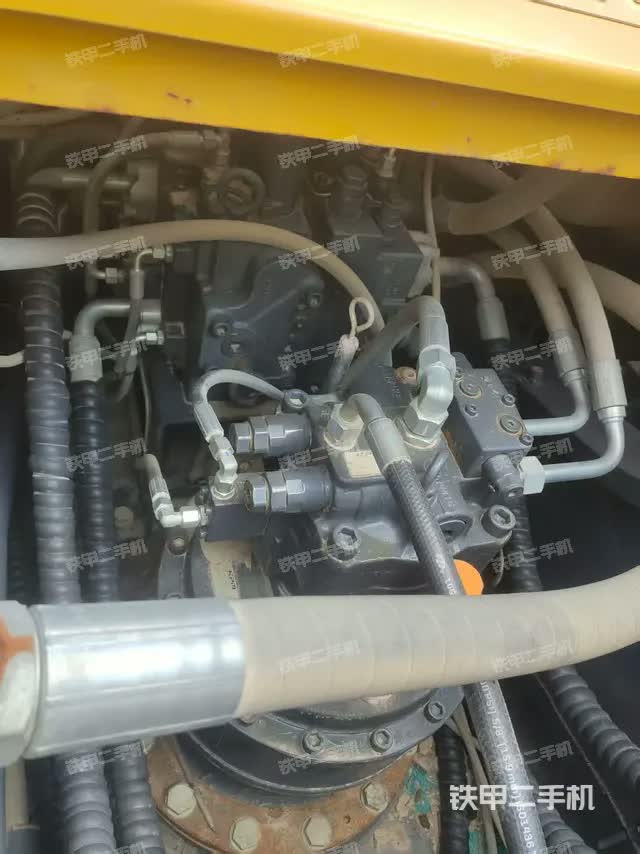

• Swing speed: 9.7 rpm

• Gradeability: 70%

• Bucket digging force: 263 kN

• Arm digging force: 188 kN

• Maximum drawbar pull: 285 kN

• Travel speed: 3.2 / 5.4 km/h


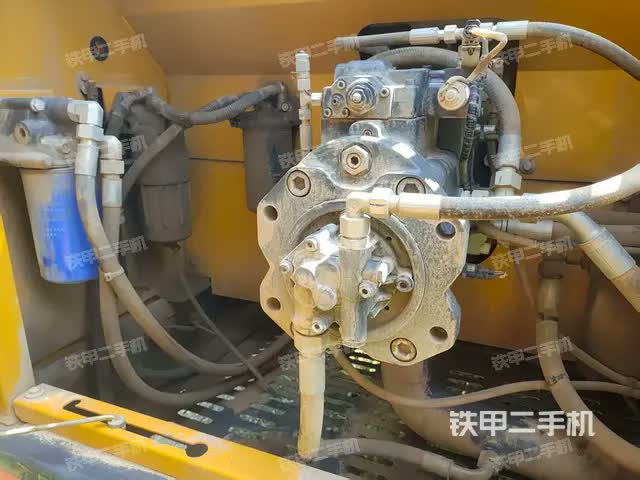

• Maximum pump flow: 2 × 296 L/min

• Hydraulic configuration: dual variable-displacement axial piston pumps


• Fuel tank: 660 L

• Hydraulic tank: 350 L

• Engine oil capacity: 30 L


• Transport length: 11,388 mm

• Transport width: 3,190 mm

• Transport height: 3,530 mm

• Counterweight ground clearance: 1,197 mm

• Minimum ground clearance: 500 mm

• Front working device minimum swing radius: 4,369 mm

• Tail swing radius: 3,700 mm

• Track length: 5,035 mm

• Track gauge: 2,590 mm

• Shoe width: 600 mm

• Total track width: 3,190 mm


• Maximum digging radius: 11,114 mm

• Maximum digging depth: 7,423 mm

• Maximum digging height: 10,445 mm

• Maximum dumping height: 7,287 mm

• Maximum vertical digging depth: 6,776 mm


• Filters accessible from ground level

• Extended service intervals (engine oil replacement at 500 hours)

• Centralized lubrication options available




ID：1825269

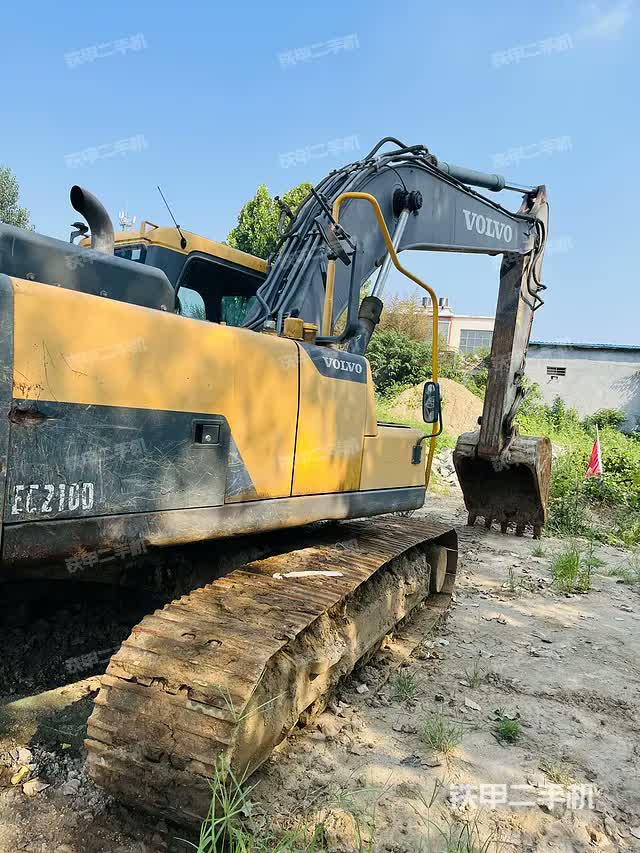

The Volvo EC210D, manufactured in 2017, represents a balance between reliability, efficiency, and versatility. This unit has accumulated 10,000 operating hours and is located in Yangzhou, Jiangsu. As a 21-ton class hydraulic excavator, it belongs to the medium-sized range of construction machinery, ideal for infrastructure, quarrying, and urban development projects.
Development History of the EC210D
Volvo Construction Equipment, a branch of the Swedish industrial giant Volvo Group founded in 1832, is known worldwide for its innovation in machinery and emphasis on sustainability. The EC210 series traces back to the early 2000s when demand for efficient medium-sized excavators surged across Asia and Europe. The “D” generation improved fuel efficiency by up to 10% compared to its predecessors and introduced better hydraulic control, making it a popular choice in China and Southeast Asia. By 2017, the EC210D had gained a significant market share, with thousands of units sold annually in developing regions where infrastructure expansion required dependable and efficient machines.
Key Specifications

• Operating Weight: 18,100 – 22,800 kg

• Bucket Capacity: 0.52 – 1.22 m³

• Boom Length: 5,700 mm

• Arm Length: 2,900 mm

• Configuration: Backhoe


• Engine Model: Volvo D5E

• Rated Power: 123 kW at 2,000 rpm

• Cylinders: 4, displacement 4.7 L

• Bore × Stroke: 108 × 130 mm

• Maximum Torque: 670 Nm at 1,600 rpm


• Swing Speed: 12.3 rpm

• Bucket Digging Force: 123 kN

• Arm Digging Force: 96 kN

• Maximum Drawbar Pull: 183 kN

• Travel Speed: 3.5 – 5.8 km/h


• Main Relief Pressure: 32.4 / 36.3 MPa

• Main Pump Flow: 2 × 212 L/min

• Pump Type: Variable axial piston pumps

• Pilot System Pressure: 3.9 MPa

• Pilot Pump Type: Gear pump


• Fuel Tank: 375 L

• Hydraulic Tank: 160 L

• Engine Oil: 17 L

• Coolant: 15 L

• Hydraulic System Total: 300 L


• Transport Length: 9,745 mm

• Width: 2,800 mm

• Height: 3,080 mm

• Cab Height: 2,930 mm

• Counterweight Clearance: 1,025 mm

• Minimum Ground Clearance: 460 mm

• Track Length on Ground: 3,370 mm

• Track Shoe Width: 600 mm

• Number of Bottom Rollers per Side: 7

• Number of Top Rollers per Side: 2


• Max Digging Reach: 9,930 mm

• Max Digging Depth: 6,730 mm

• Max Digging Height: 9,220 mm

• Max Dumping Height: 6,430 mm

• Max Vertical Digging Depth: 5,620 mm

• Reach at Ground Level: 9,380 mm


• Perform regular hydraulic oil analysis to detect contamination.

• Replace filters at intervals specified in the maintenance manual (usually every 500 hours).

• Inspect track wear components such as rollers and idlers every 1,000 hours.

• Ensure correct DPF cleaning if equipped, as emission compliance requires periodic regeneration.


The Role of CNC in Agricultural Equipment Evolution
Agricultural machinery has undergone a dramatic transformation over the past century. From rudimentary hand-forged components to precision-engineered systems, the industry has embraced automation and digital manufacturing to meet growing global food demands. One of the most significant advancements in this space is the integration of CNC (Computer Numerical Control) machining in the production of agricultural accessories.
CNC machining allows manufacturers to produce complex parts with tight tolerances, repeatability, and minimal waste. In agricultural applications, this translates to more reliable linkages, wear-resistant bushings, and custom brackets for implements like seeders, sprayers, and harvesters. As farms become more mechanized and data-driven, the demand for precision components continues to rise.
Terminology Explained

• CNC Machining: A manufacturing process where pre-programmed computer software controls the movement of tools to shape metal, plastic, or composite materials.

• Agricultural Accessories: Supplemental components used to enhance or repair farm machinery, including couplers, hydraulic fittings, gear housings, and mounting brackets.

• Tolerance: The allowable deviation from a specified dimension, critical in ensuring parts fit and function correctly.


• Hydraulic couplers with precise thread profiles for leak-free connections

• Reinforced mounting plates for heavy-duty implements

• Wear-resistant bushings for pivot points on tillage equipment

• Custom sprockets and pulleys for variable-speed drives

• Sensor brackets for GPS and yield-monitoring systems


• Mechanization of smallholder farms

• Expansion of precision agriculture

• Aging equipment requiring retrofits

• Localized manufacturing initiatives


• Material selection: Components must withstand corrosive fertilizers, UV exposure, and mechanical shock.

• Design variability: Farmers often modify equipment, requiring bespoke parts not found in catalogs.

• Supply chain fragmentation: Small workshops may lack access to high-grade alloys or standardized tooling.


• Maintain a digital archive of worn or broken parts for future replication

• Partner with regional CNC shops for small-batch production

• Use corrosion-resistant materials like 304 stainless steel or anodized aluminum for exposed components

• Standardize thread types and mounting dimensions across equipment when possible

• Invest in basic CAD training to communicate design needs effectively


The Caterpillar 308E Mini Hydraulic Excavator, equipped with the C3.3B engine, is renowned for its compact design and robust performance. However, like many modern machines, it incorporates advanced emission control systems that can present challenges if not properly maintained. This article delves into common exhaust-related issues faced by operators and provides insights into diagnostics, maintenance, and solutions.
Understanding the Exhaust System
The exhaust system in the 308E includes components such as the Diesel Particulate Filter (DPF), Exhaust Gas Recirculation (EGR) valve, and various sensors. These elements work in unison to reduce harmful emissions and ensure compliance with environmental standards. The DPF captures soot particles, while the EGR valve recirculates a portion of exhaust gases back into the engine to lower nitrogen oxide emissions.
Common Exhaust-Related Problems

1. DPF Regeneration Failures
   A prevalent issue is the failure of the DPF regeneration process. Regeneration is a self-cleaning mechanism that burns off accumulated soot in the DPF. If this process fails, it can lead to reduced engine performance and potential damage to the DPF. Operators have reported instances where the machine sputters and shuts down before reaching optimal operating temperatures, often due to DPF-related issues.

2. Sensor Malfunctions
   Faulty sensors, such as the Mass Air Flow (MAF) and Differential Pressure (DP) sensors, can disrupt the exhaust system's functionality. For instance, a failed MAF sensor can lead to incorrect air-fuel mixture readings, affecting combustion efficiency. Similarly, issues with the DP sensor can hinder accurate monitoring of the DPF's condition, leading to improper regeneration cycles.

3. Harness Failures
   The engine harness connecting various sensors and components is susceptible to wear and damage. Improper routing or exposure to harsh conditions can lead to harness failures, resulting in communication breakdowns between the engine control module and exhaust system components. This can manifest as warning lights or error codes related to the exhaust system.


• Check for Error Codes: Utilize diagnostic tools to retrieve any stored error codes from the engine control module. Codes related to the DPF, EGR valve, or sensors can provide insights into the specific problem area.

• Inspect Sensors and Wiring: Visually examine the MAF and DP sensors for signs of damage or contamination. Ensure that wiring connections are secure and free from corrosion.

• Monitor Exhaust Parameters: Using diagnostic equipment, monitor exhaust temperature and pressure readings to assess the performance of the DPF and EGR system.


1. Regular DPF Maintenance
   Schedule periodic DPF regeneration cycles to prevent soot buildup. If manual regeneration is required, follow the manufacturer's guidelines to ensure proper cleaning.

2. Sensor Calibration and Replacement
   Regularly calibrate sensors to maintain accurate readings. Replace faulty sensors promptly to prevent cascading issues within the exhaust system.

3. Harness Inspection and Upgrades
   Inspect the engine harness for signs of wear or damage. Consider upgrading to improved harness designs if recurrent issues are identified.

4. Software Updates
   Ensure that the engine control module's software is up to date. Manufacturers often release updates that enhance system performance and address known issues.


The Case 815B Soil Compactor, introduced in the mid-1980s, was a significant advancement in compaction technology. Manufactured by Case Construction Equipment, the 815B was designed to meet the growing demands of the construction industry for efficient soil compaction. It featured a 216 horsepower engine and a blade width of 12 feet, making it suitable for large-scale projects such as road construction and landfills.
Specifications of the Case 815B

• Engine Power: 216 hp (161 kW)

• Blade Width: 12 ft (3.66 m)

• Operating Weight: Approximately 44,170 lbs (20,035 kg)

• Wheelbase: 11 ft (3.35 m)

• Ground Clearance: 1 ft (0.30 m)

• Fuel Capacity: 122 gallons (462 liters)


1. Importance of Operator Training: Proper training ensures operators are aware of the machine's capabilities and limitations, reducing the risk of accidents.

2. Regular Maintenance: Routine checks and maintenance can identify potential issues before they lead to failures.

3. Safety Protocols: Adhering to safety protocols, such as wearing seatbelts and using rollover protective structures (ROPS), can prevent injuries.




Introduction

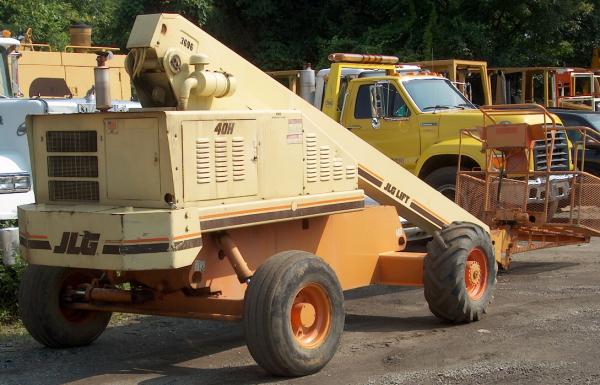

The JLG 40H is a versatile all-terrain articulating boom lift, widely used in construction and maintenance tasks requiring elevated access. A critical component of its operation is the governor system, which regulates engine speed to ensure optimal performance. However, some operators have reported intermittent issues where the governor functions erratically, causing the engine to rev up inconsistently or remain at idle despite input from the footswitch. This article delves into the potential causes of such problems and offers guidance on troubleshooting and resolution.
Understanding the Governor System
The governor system in the JLG 40H is responsible for adjusting the engine speed based on load demands. It ensures that the engine operates efficiently, providing sufficient power for lifting and driving functions. The system comprises several key components:

• Electronic Governor (E331 or E201): Monitors engine speed and adjusts fuel delivery accordingly.

• Actuator: Physically adjusts the throttle based on signals from the governor.

• Footswitch: Allows the operator to request increased engine speed.

• Boom Position Sensors: Provide feedback to the governor regarding the boom's position, influencing engine speed adjustments.


• Intermittent Engine Speed Response: The engine occasionally responds to the footswitch but often remains at idle.

• Erratic Engine Behavior: The engine may rev up unexpectedly or fail to maintain a consistent speed.

• Delayed Response: There is a noticeable lag between pressing the footswitch and the engine's reaction.


• Faulty Relays: The relays controlling the governor system may be defective, leading to inconsistent operation.

• Wiring Issues: Loose or corroded connections, especially at the E201 or E331 governor control box, can disrupt signals.

• Sensor Malfunctions: Defective boom position sensors can provide incorrect feedback, causing improper speed adjustments.

• Governor Calibration: Improper calibration or tuning of the governor can result in poor performance.


1. Inspect Relays: Check the relays associated with the governor system for signs of wear or damage. Replacing faulty relays can restore proper function.

2. Examine Wiring: Inspect all wiring connections, particularly those leading to the governor control box. Ensure that all connections are secure and free from corrosion.

3. Test Sensors: Verify the operation of boom position sensors. Replace any sensors that are not functioning correctly.

4. Calibrate Governor: Refer to the manufacturer's guidelines to properly calibrate the governor system. This may involve adjusting the actuator and ensuring it responds correctly to input signals.


• Regular Inspections: Conduct routine checks of the governor system components, including relays, wiring, sensors, and actuators.

• Clean Connections: Keep all electrical connections clean and free from corrosion.

• Proper Calibration: Ensure that the governor system is calibrated according to the manufacturer's specifications.


The Case 580C and 580E backhoe loaders are iconic machines in the construction and agricultural sectors, known for their durability, versatility, and performance. These models, produced by Case Construction Equipment, have been instrumental in various tasks, from trenching and digging to material handling and landscaping.
Case 580C: A Legacy of Power and Precision
Introduced in the mid-1970s, the Case 580C marked a significant advancement in backhoe loader design. Powered by a 207 cubic inch (3.4L) J.I. Case 4-cylinder diesel engine, the 580C delivered approximately 57 horsepower, making it a robust choice for demanding tasks. The machine featured an 8-speed mechanical shuttle transmission, allowing operators to shift gears smoothly and efficiently.
Key specifications of the 580C include:

• Operating Weight: Approximately 14,250 lbs (6,464 kg)

• Dig Depth: Standard 14 feet (4.27 meters), extendable to 17.98 feet (5.48 meters)

• Loader Lift Capacity: Around 5,000 lbs (2,268 kg)

• Loader Breakout Force: Approximately 7,200 lbs (3,266 kg)

• Backhoe Bucket Capacity: 0.71 cubic meters (0.93 cubic yards)


• Operating Weight: Approximately 10,660 lbs (4,834 kg)

• Dig Depth: Standard 14 feet (4.27 meters), extendable to 17.8 feet (5.42 meters)

• Loader Lift Capacity: Around 4,390 lbs (1,990 kg)

• Loader Breakout Force: Approximately 7,040 lbs (3,194 kg)

• Backhoe Bucket Capacity: 0.6 cubic meters (0.79 cubic yards)


Introduction
The Caterpillar 320E and 324E hydraulic excavators are part of Caterpillar's renowned series of medium-sized excavators. While both machines share similarities in design and functionality, they cater to different operational needs. The 320E is designed for lighter tasks, whereas the 324E offers enhanced capabilities for more demanding applications. One notable difference between these models is their auxiliary hydraulic systems. Upgrading the auxiliary hydraulics from a 320E to a 324E configuration can significantly enhance the machine's versatility and efficiency.
Understanding Auxiliary Hydraulics
Auxiliary hydraulics refer to the hydraulic systems that power attachments such as hammers, shears, and grapples. These systems are crucial for expanding the functionality of an excavator beyond its standard capabilities. The performance of auxiliary hydraulics is determined by factors such as flow rate, pressure, and control type.
Key Differences Between Cat 320E and Cat 324E Auxiliary Systems

• Flow Rate:
  • 320E: Lower

  • 324E: Higher

• Pressure:
  • 320E: Standard

  • 324E: Enhanced

• Control Type:
  • 320E: Mechanical

  • 324E: Electronic

• Suitability for Attachments:
  • 320E: Basic

  • 324E: Advanced


1. Assessment and Planning: Evaluate the specific requirements of the attachments to be used and determine the necessary specifications for the auxiliary system.

2. Component Selection: Choose compatible components such as pumps, valves, and control systems that meet the desired specifications.

3. Installation: Install the selected components, ensuring proper integration with the existing hydraulic system.

4. Testing and Calibration: Test the upgraded system to ensure it operates correctly and calibrate the controls for optimal performance.


Introduction
The Case 580 CK backhoe, a prominent model from the 1960s and 1970s, is renowned for its durability and versatility in construction and agricultural applications. However, one recurring issue that operators encounter is brake system malfunctions. Understanding the mechanics of its brake system and common problems can aid in effective troubleshooting and maintenance.
Brake System Overview
The 580 CK employs a dry, mechanical band brake system. When the brake pedal is engaged, a band tightens around a drum, causing internal steel balls to roll up ramps. This action expands the drum, pressing friction material against the brake housing to slow down the machine. The system's design is relatively simple, relying on mechanical linkages without hydraulic assistance.
Common Brake Issues

1. Brake Lock-Up
   A frequent problem is the brakes locking up unexpectedly. This can occur when the steel balls become lodged at the top of the ramps inside the drum, preventing the drum from retracting properly. Cleaning the balls and ramps, and ensuring they are free from rust and debris, can resolve this issue.

2. Loss of Braking Power
   Over time, brake linings can wear down, leading to reduced braking efficiency. Additionally, if the brake housing becomes worn or cracked, it can affect the system's performance. Regular inspection and timely replacement of worn components are essential.

3. Oil Contamination
   Leaks from the differential or axle seals can introduce oil into the brake system, leading to slippage and diminished braking force. Identifying and repairing seal leaks promptly is crucial to maintain brake functionality.


• Regular Inspections: Periodically check the brake system for signs of wear, oil leaks, and rust accumulation.

• Cleaning: Use appropriate solvents to clean the brake components, ensuring all parts are free from contaminants.

• Component Replacement: Replace worn or damaged brake linings, seals, and springs to restore optimal braking performance.

• Proper Lubrication: Apply light lubrication to moving parts to prevent rust and ensure smooth operation.
