Introduction
Excavators are indispensable machines in construction, demolition, and mining industries. Among their various components, the cab serves as the operator's command center, offering protection, comfort, and visibility. However, cabs are susceptible to damage due to various factors, including accidents, falling debris, or operational errors. Understanding the significance of cab protection and the steps involved in repair is crucial for maintaining both safety and productivity on the job site.
The Role of the Excavator Cab
The cab of an excavator is designed to provide a safe and comfortable environment for the operator. It houses essential controls, instrumentation, and climate control systems, ensuring that the operator can perform tasks efficiently and safely. Additionally, modern cabs are equipped with features such as ROPS (Roll-Over Protective Structures) and FOPS (Falling Object Protective Structures) to safeguard the operator in case of accidents.
Common Causes of Cab Damage
Cab damage can occur due to several reasons:

• Accidental Collisions: Impact with trees, rocks, or other obstacles can cause dents or cracks in the cab.

• Falling Debris: During demolition or excavation, materials may fall onto the cab, leading to potential damage.

• Operational Errors: Improper handling or sudden movements can result in the cab being struck or tipped.

• Environmental Factors: Exposure to extreme weather conditions can weaken cab materials over time.


• Minor Repairs: For small dents or scratches, body fillers and repainting can restore the cab's appearance.

• Glass Replacement: Cracked or shattered windows should be replaced promptly to maintain visibility and safety.

• Structural Repairs: Welding and reinforcement might be required for bent frames or compromised ROPS/FOPS structures.

• Complete Replacement: In cases of extensive damage, sourcing a new or used cab assembly might be the most cost-effective solution.


• Conduct Regular Inspections: Routine checks can identify potential issues before they escalate.

• Use Protective Guards: Installing cab guards or mesh screens can shield the cab from falling debris.

• Operate Within Safe Limits: Avoid overreaching or operating in unstable conditions that could lead to accidents.

• Maintain Clear Communication: Ensure that ground personnel are aware of the excavator's movements to prevent collisions.


The John Deere 310C backhoe loader, a robust machine introduced in the early 1990s, has been a cornerstone in construction and agricultural operations. Renowned for its durability and versatility, it features a powerful engine and a comprehensive hydraulic system. However, like all heavy machinery, the hydraulic cylinders are susceptible to wear and damage over time. Addressing hydraulic cylinder issues promptly is crucial to maintain the machine's performance and longevity.
Understanding Hydraulic Cylinder Failures
Hydraulic cylinders in the 310C backhoe are integral to various functions, including lifting, digging, and swinging operations. Common signs of cylinder failure include:

• Oil Leaks: Visible hydraulic fluid around the cylinder indicates seal failure.

• Reduced Performance: Slower or uneven movement of the boom, bucket, or dipper arm.

• Unusual Noises: Grinding or squealing sounds during operation.


1. Safety First: Ensure the machine is on a stable surface, the engine is off, and the hydraulic pressure is relieved.

2. Remove the Cylinder: Detach the cylinder from the machine, noting the orientation and connections.

3. Disassemble the Cylinder: Using appropriate tools, remove the gland nut and piston. Be cautious of the internal components and their arrangement.


• Cylinder Barrel: Check for scoring or pitting.

• Piston and Rod: Ensure they are free from cracks or excessive wear.

• Seals and O-Rings: Replace any worn or damaged seals.


1. Install New Seals: Lubricate and install the new seals and O-rings.

2. Reassemble Components: Carefully reassemble the piston, rod, and gland nut, ensuring all parts are aligned correctly.

3. Test the Cylinder: Before reinstalling, test the cylinder for leaks and proper operation.


• Regular Inspections: Periodically check for signs of wear or leaks.

• Use Quality Parts: Always use OEM or high-quality aftermarket parts.

• Proper Storage: Store cylinders upright to prevent damage.


The CAT 320C and Its Hydraulic Architecture
The Caterpillar 320C excavator, introduced in the early 2000s, was part of CAT’s C-series lineup aimed at mid-size earthmoving operations. With an operating weight of around 21 metric tons and a 138 hp engine, the 320C was designed for trenching, lifting, and site prep. Its hydraulic system featured a variable displacement axial piston pump capable of delivering up to 80 gallons per minute, regulated by electronic and mechanical controls to match engine load and operator input.
Caterpillar’s design philosophy for the 320C emphasized fuel efficiency and responsive hydraulics. The machine’s load-sensing system was intended to destroke the pump under low demand, reducing engine load and conserving fuel. However, when this system fails, the pump may remain at full displacement regardless of actual hydraulic demand—leading to engine stalling even when unloaded.
Terminology Explained

• Destroking: The process of reducing pump displacement to lower hydraulic output and engine load.

• PRV Valve: Pressure Regulating Valve, which helps modulate pump output based on system demand.

• PSV Solenoid: Pump Solenoid Valve, an electronically controlled valve that adjusts pump displacement.

• Swash Plate: A component inside the pump that changes angle to vary displacement.

• SBS Pump: A designation used for certain CAT hydraulic pumps, often with servo-controlled regulators.


• Hydraulic functions remain fast and responsive.

• Engine stalls abruptly when any hydraulic lever is moved.

• Hydraulic oil overheats quickly during operation.

• Disconnecting the pump’s electrical connectors has no effect.

• Wiring near the right-hand armrest appears repaired or tampered with.


• Failed PRV or PSV Solenoid: If the solenoid fails or wiring is damaged, the pump may default to maximum displacement.

• Worn Actuator Components: Internal wear between the servo spool and housing can prevent proper regulation.

• Binding Swash Plate Bearings: If the cradle bearings seize, the pump may remain locked in high-displacement mode.

• Electrical Faults: Damaged wiring near the armrest or control module may prevent proper signal transmission to the pump regulator.


• Inspect wiring harness from the armrest switch to the pump regulator.

• Test PSV solenoid function with a multimeter and verify voltage at the connector.

• Manually adjust the PSV screw to reduce displacement and observe engine response.

• Check pump ID tag for SBS designation and confirm regulator type.

• Inspect swash plate bearings for binding or wear.


• Replace hydraulic filters every 500 hours to prevent contamination.

• Inspect electrical connectors and harnesses quarterly.

• Monitor hydraulic oil temperature and install auxiliary cooling if needed.

• Use OEM-grade solenoids and regulators during rebuilds.

• Document all wiring repairs and label circuits for future diagnostics.


The Case 1830 skid steer, a compact and versatile machine, has been a staple in construction and landscaping for decades. However, like all machinery, it is susceptible to wear and tear, particularly in its hydraulic system. A common issue reported by operators is hydraulic fluid leaks, often observed as oil pooling at the bottom of the machine. Addressing these leaks promptly is crucial to maintain the machine's performance and prevent further damage.
Common Causes of Hydraulic Leaks

1. Worn or Damaged Hydraulic Hoses: Over time, hydraulic hoses can become brittle, crack, or develop leaks due to constant pressure and movement. These leaks often manifest as oil stains on the machine's underside.

2. Faulty Seals and O-Rings: Seals and O-rings play a vital role in preventing fluid leaks at connection points. A worn or damaged seal can lead to persistent leaks. For instance, one operator reported that replacing a flat and weak O-ring at the swash plate shaft resolved a significant leak .

3. Loose or Improperly Installed Fittings: Hydraulic fittings that are not properly tightened or have been disturbed during maintenance can become sources of leaks. Regular inspection and proper installation are essential to prevent such issues.

4. Overfilled Hydraulic Reservoir: An overfilled hydraulic reservoir can cause excess pressure, leading to leaks. It's important to maintain the fluid level within the recommended range to avoid this problem.


1. Visual Inspection: Begin by thoroughly cleaning the machine's underside to remove any accumulated oil and debris. This will provide a clear view of potential leak sources.

2. Pressure Test: With the machine running, observe areas where oil appears to be accumulating. A pressure test can help identify the exact location of the leak.

3. Check Hydraulic Hoses and Fittings: Inspect all hydraulic hoses for signs of wear, cracks, or leaks. Ensure that all fittings are properly tightened and secure.

4. Examine Seals and O-Rings: Pay close attention to seals and O-rings at connection points. Replace any that appear worn or damaged.

5. Monitor Fluid Levels: Check the hydraulic fluid level regularly and ensure it is within the recommended range. Overfilling can lead to leaks and other issues.


• Regular Inspections: Conduct routine inspections of the hydraulic system to catch potential issues early.

• Use Quality Components: Always use high-quality hoses, seals, and O-rings to ensure longevity and reliability.

• Proper Training: Ensure that operators are trained in the proper use and maintenance of the machine to prevent unnecessary wear and tear.

• Adhere to Manufacturer's Guidelines: Follow the manufacturer's recommendations for hydraulic fluid types and maintenance schedules to keep the system in optimal condition.


Introduction to Driveshafts
A driveshaft, also known as a propeller shaft or Cardan shaft, is a mechanical component designed to transmit torque and rotation, enabling power transfer between different parts of a machine or vehicle. In heavy equipment, driveshafts play a crucial role in connecting the engine or transmission to the wheels or tracks, ensuring efficient movement and operation.
Historical Development
The concept of the driveshaft dates back to the mid-19th century. Early applications included transferring power from water wheels to machinery in mills. The term "driveshaft" itself first appeared in patents from the 1860s, referring to shafts transmitting power in woodworking and agricultural machines. By the late 19th century, the automotive industry began adopting driveshafts, with the 1898 Renault Voiturette being one of the first gasoline-powered cars to feature one .
Design and Functionality
Driveshafts are designed to handle torsion and shear stress, which arise from the difference between input torque and load. To accommodate variations in alignment and distance between components, driveshafts often incorporate universal joints, spline joints, or prismatic joints. These features allow for relative movement and flexibility, essential for maintaining power transmission efficiency in heavy equipment .
Materials and Construction
The choice of materials for driveshafts is critical to their performance and durability. Common materials include high-strength steel, aluminum, and composite materials like carbon fiber. For instance, Dana Incorporated offers driveshafts with torque capacities ranging from 1,500 to over 120,000 Nm, utilizing materials and designs that minimize maintenance and enhance longevity .
Torque Capacity and Performance
The torque capacity of a driveshaft is a key performance indicator, determining its ability to handle the rotational force transmitted through it. For heavy-duty applications, driveshafts must be engineered to withstand high torque levels without failure. For example, the GWB Series 598 driveshafts are designed to handle torque ranges from 2,117 to 17,000 kNm, catering to the demands of industrial applications .
Maintenance and Longevity
Regular maintenance is essential to ensure the longevity and reliability of driveshafts. This includes routine inspections for wear and tear, lubrication of universal joints, and checking for any signs of imbalance or misalignment. Neglecting maintenance can lead to premature failure, resulting in costly repairs and downtime.
Case Studies and Industry Applications
In the steel production industry, driveshafts are subjected to extreme conditions, including high temperatures and heavy loads. JTEKT's driveshafts are designed to handle these challenges, with features that facilitate easy inspection and maintenance, thereby reducing the risk of unexpected failures .
Conclusion
Driveshafts are integral components in heavy equipment, ensuring the efficient transfer of power across various systems. Their development has evolved significantly, from simple mechanical linkages to sophisticated systems capable of handling immense torque and stress. Understanding their history, design, and maintenance is crucial for anyone involved in the operation or servicing of heavy machinery.

The use of 15W-40 engine oil in hydraulic systems is a topic that has garnered attention due to its potential advantages and associated risks. While some operators have reported satisfactory performance, it's essential to understand the implications of such practices.
Understanding 15W-40 Engine Oil
15W-40 is a multi-grade engine oil commonly used in diesel engines. The "15W" indicates the oil's viscosity at low temperatures, while the "40" denotes its viscosity at high temperatures. This oil is formulated with additives to enhance engine cleanliness, reduce wear, and protect against corrosion.
Hydraulic Oil Requirements
Hydraulic systems demand oils with specific properties to ensure efficient operation. These include appropriate viscosity, anti-wear additives, oxidation stability, and compatibility with seals and materials used in hydraulic components. Hydraulic oils are designed to perform under high pressure and varying temperatures, maintaining their properties over extended periods.
Potential Benefits of Using 15W-40 in Hydraulics

• Viscosity Range: The multi-grade nature of 15W-40 allows it to perform across a wide temperature range, which can be beneficial in environments with fluctuating temperatures.

• Availability: In some regions, 15W-40 engine oil is more readily available than specialized hydraulic fluids, making it a convenient alternative.


• Additive Differences: Engine oils contain detergents and dispersants to keep engines clean, which are not necessary in hydraulic systems and may not be compatible with hydraulic seals.

• Viscosity Stability: Over time, the viscosity of engine oils can change due to shear forces, potentially leading to inadequate lubrication in hydraulic systems.

• Seal Compatibility: The additives in engine oils may not be compatible with the seals used in hydraulic systems, leading to potential leaks and system failures.

• System Performance: Using engine oil in hydraulic systems may result in sluggish operation, increased wear, and reduced efficiency.


• Consult Manufacturer Guidelines: Always refer to the equipment manufacturer's recommendations regarding fluid specifications.

• Use Appropriate Fluids: When possible, use fluids specifically designed for hydraulic systems to ensure optimal performance and longevity.

• Regular Maintenance: Implement a regular maintenance schedule to monitor fluid levels, check for leaks, and replace fluids as necessary.


Introduction
In large-scale earthmoving projects, selecting the appropriate equipment is crucial for optimizing efficiency and cost-effectiveness. Two primary types of machinery employed for transporting excavated materials are scrapers and haul trucks. Each has distinct advantages and limitations, making them suitable for different project requirements.
Scrapers: Versatility and Efficiency
Scrapers are self-loading machines designed to excavate, transport, and discharge materials in a single pass. They are particularly effective in flat to moderately sloped terrains and are commonly used in road construction, land grading, and mining operations.
Advantages of Scrapers:

• Self-Loading Capability: Scrapers can load themselves without the need for additional equipment, reducing labor costs and operational complexity.

• High Productivity: In optimal conditions, scrapers can achieve faster cycle times compared to haul trucks, leading to increased productivity.

• Cost Efficiency: Operating a scraper typically requires fewer personnel and less fuel, contributing to lower operational costs.


• Terrain Constraints: Scrapers are less effective in steep or uneven terrains where traction and stability are compromised.

• Material Restrictions: They perform best with loose or semi-compacted materials; dense or rocky soils can cause operational challenges.

• Limited Hauling Distance: Scrapers are suited for short to medium hauling distances; for longer distances, haul trucks may be more efficient.


• High Payload Capacity: Haul trucks can carry significantly larger loads compared to scrapers, making them suitable for extensive material transport.

• Adaptability: They can operate in a variety of terrains, including steep and uneven surfaces, providing versatility in different project environments.

• Durability: Built to withstand harsh conditions, haul trucks offer longevity and reliability in demanding operations.


• Higher Operational Costs: Haul trucks require more fuel and maintenance, leading to increased operational expenses.

• Need for Additional Equipment: Loading haul trucks typically necessitates the use of excavators or loaders, adding to the complexity and cost of operations.

• Slower Cycle Times: Due to the need for loading and longer travel distances, haul trucks may have slower cycle times compared to scrapers.


• Self-Loading:
  • Scrapers: Yes

  • Haul Trucks: No

• Payload Capacity:
  • Scrapers: Moderate

  • Haul Trucks: High

• Terrain Adaptability:
  • Scrapers: Limited to flat/moderate slopes

  • Haul Trucks: High (suitable for steep terrains)

• Operational Costs:
  • Scrapers: Lower

  • Haul Trucks: Higher

• Cycle Time Efficiency:
  • Scrapers: High (in optimal conditions)

  • Haul Trucks: Moderate (due to loading and travel time)

• Maintenance:
  • Scrapers: Lower (fewer components)

  • Haul Trucks: Higher (more components to maintain)


Backhoe loaders, traditionally known for their digging and lifting capabilities, have found an innovative application in tire maintenance—specifically, in breaking the bead of large tires. This unconventional use leverages the backhoe's hydraulic power and stability to perform tasks typically reserved for specialized equipment.
Understanding Tire Bead Breaking
The bead of a tire is the inner edge that sits on the rim, forming an airtight seal. Over time, especially in agricultural and off-road vehicles, this bead can become difficult to separate from the rim due to corrosion, rust, or prolonged pressure. Breaking the bead is a crucial step in tire maintenance, allowing for repairs or replacements.
Challenges in Bead Breaking
Large tires, such as those on tractors, construction vehicles, and military equipment, often present challenges in bead breaking. Traditional methods may involve manual tools or hydraulic machines, which can be cumbersome and costly. Moreover, transporting these specialized tools to remote locations can be impractical.
Utilizing Backhoe Loaders for Bead Breaking
Resourceful operators have discovered that backhoe loaders can serve as effective bead breakers. By using the backhoe's hydraulic system and stabilizers, the operator can apply controlled pressure to the tire bead, effectively separating it from the rim. This method is particularly advantageous in field settings where access to specialized equipment is limited.
Procedure for Using a Backhoe Loader as a Bead Breaker

1. Preparation: Position the backhoe loader near the tire to be serviced.

2. Stabilization: Deploy the stabilizers to ensure the machine is level and secure.

3. Hydraulic Application: Utilize the backhoe's hydraulic system to apply pressure to the tire bead, gradually breaking the seal.

4. Inspection: Once the bead is broken, inspect the tire and rim for any damage before proceeding with repairs or replacements.


• Cost-Effective: Reduces the need for specialized bead-breaking equipment.

• Accessibility: Utilizes existing machinery, making it ideal for remote locations.

• Efficiency: Speeds up the tire maintenance process, minimizing downtime.


• Skill Requirement: Operators must be trained to safely apply hydraulic pressure to avoid damage.

• Equipment Compatibility: Not all backhoe loaders may be suitable for this task; compatibility should be assessed.

• Safety Protocols: Proper safety measures must be in place to protect the operator and equipment.




Introduction to Forestry Mulching
Forestry mulching is a land-clearing method that utilizes specialized machinery to shred trees, brush, and other vegetation into mulch. This technique is employed in various applications, including land reclamation, wildfire prevention, and habitat restoration. Unlike traditional methods that involve burning or hauling debris, mulching offers a more sustainable and efficient approach to vegetation management.
Historical Development of Mulching Equipment
The evolution of mulching equipment has been marked by significant technological advancements. Early mulching machines were primarily designed for agricultural purposes, focusing on soil preparation and crop residue management. Over time, these machines were adapted for forestry applications, leading to the development of more robust and specialized equipment capable of handling larger trees and dense vegetation.
In the 1990s, companies like Fecon and FAE introduced mulching attachments for skid steers and excavators, expanding the versatility and accessibility of mulching operations. These innovations allowed for more precise and efficient land clearing, particularly in challenging terrains.
Types of Mulching Equipment

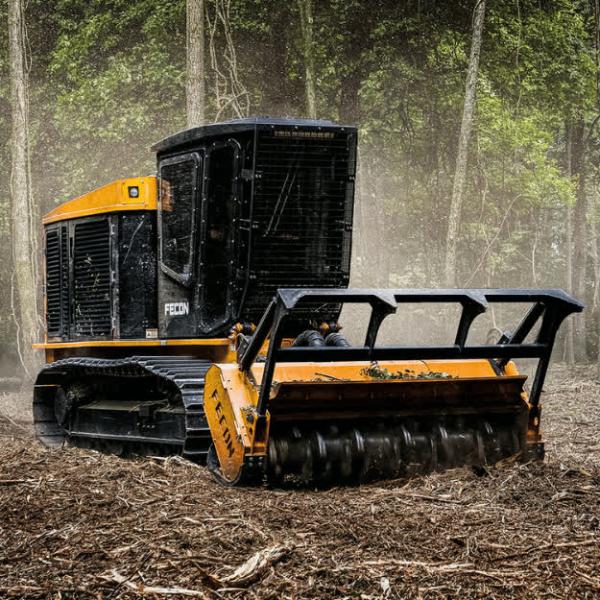

1. Mulching Tractors: These are self-propelled machines equipped with powerful mulching heads. They are suitable for large-scale land clearing projects and can operate in various terrains.

2. Excavator-Mounted Mulchers: These attachments are mounted on excavators, providing flexibility and maneuverability in confined spaces. They are ideal for urban vegetation management and selective clearing.

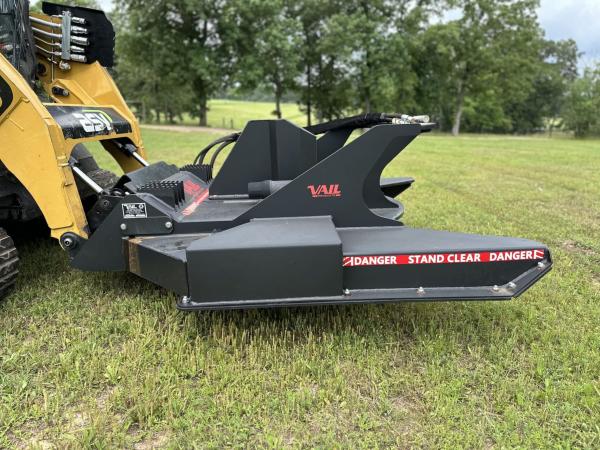

3. Skid Steer-Mounted Mulchers: Compact and versatile, these attachments are used for smaller-scale projects and are effective in residential and commercial land clearing.

4. Drum Mulchers: Characterized by a cylindrical drum with fixed tools, these mulchers are designed for high-efficiency mulching of dense vegetation.

5. Disc Mulchers: Featuring a horizontal disc with rotating tools, disc mulchers are suitable for handling larger trees and are commonly used in forestry operations.


• Rotor Speed: The speed at which the mulching head rotates, affecting the efficiency and quality of mulching. For instance, the Rayco C120 Forestry Mulcher offers rotor speeds of 2,200 RPM and 2,500 RPM, depending on the model .

• Cutting Width: The width of the area that the mulcher can process in a single pass. Models like the John Deere MH60D Mulching Head provide cutting widths of 60 inches and 70 inches .

• Cutter Teeth: The type and configuration of teeth affect the mulcher's ability to handle different materials. For example, the Rayco C120 features 36 carbide-tipped reversible teeth, while the Bobcat Drum Mulcher offers sharpenable planer teeth .

• Carrier Compatibility: Mulching equipment is designed to be compatible with various carriers, including skid steers, excavators, and tractors. The Fecon Bull Hog line, for instance, offers attachments that can be mounted on different carriers to suit specific needs .


• Land Reclamation: Clearing overgrown or abandoned agricultural land to restore its usability.

• Wildfire Prevention: Reducing fuel loads by removing dense vegetation, thereby decreasing the risk of wildfires.

• Habitat Restoration: Clearing invasive species to promote the growth of native plants and improve biodiversity.

• Utility Right-of-Way Maintenance: Ensuring clear paths for power lines, pipelines, and other infrastructure.


The Cummins 3.3-liter engine, commonly found in various industrial applications, utilizes a Zexel VE-type mechanical fuel injection pump. This combination offers reliable performance for equipment such as forklifts, generators, and agricultural machinery. Understanding the operation, maintenance, and troubleshooting of this system is crucial for ensuring optimal engine performance.
Overview of the Zexel VE Injection Pump
The Zexel VE injection pump is a mechanical, distributor-type pump known for its durability and efficiency. Key features include:

• Mechanical Governor: Regulates fuel delivery based on engine speed.

• Distributor Head: Directs fuel to each injector in the correct sequence.

• Internal Lift Pump: Draws fuel from the tank to the injection pump.

• Forced Lubrication: Uses fuel to lubricate internal components.


1. Engine Cranks but Won't Start
   • Symptoms: The engine turns over but does not start.

   • Possible Causes:
     • Air in the fuel system.

     • Faulty fuel shut-off solenoid.

     • Clogged fuel filter.

     • Malfunctioning internal lift pump.

   • Solutions:
     • Bleed the fuel system to remove air.

     • Inspect and test the fuel shut-off solenoid for proper operation.

     • Replace the fuel filter if clogged.

     • Check the internal lift pump for functionality.

2. Rough Idle or Stalling
   • Symptoms: The engine runs roughly at idle or stalls unexpectedly.

   • Possible Causes:
     • Contaminated fuel.

     • Worn or damaged injectors.

     • Incorrect timing.

   • Solutions:
     • Drain and replace contaminated fuel.

     • Test and replace faulty injectors.

     • Verify and adjust timing as per manufacturer specifications.

3. Loss of Power
   • Symptoms: The engine lacks power under load.

   • Possible Causes:
     • Fuel delivery issues.

     • Air intake restrictions.

     • Exhaust system blockages.

   • Solutions:
     • Inspect and clean the air filter and intake system.

     • Check for exhaust restrictions.

     • Ensure the fuel system is delivering adequate fuel pressure.


• Regular Fuel System Checks: Periodically inspect fuel lines for leaks or cracks, and ensure all connections are tight.

• Filter Replacement: Replace the fuel filter at recommended intervals to prevent clogging and ensure proper fuel flow.

• Lubrication: Ensure the internal lift pump is functioning correctly to provide adequate lubrication to the injection pump.

• Timing Verification: Regularly check and adjust the injection timing to maintain optimal engine performance.
