Background and Evolution
The Dresser 175C is the final iteration of a lineage that began with International Harvester’s model 175 track-type loader in the early 1960s. The original models, derived from the TD-15B dozer, featured integrated loader towers, planetary final drives, and Z-bar linkage—offering impressive breakout force and visibility advantages. The 175C, introduced in 1972 under Dresser branding, upgraded to a turbocharged DT-466 engine producing approximately 140 flywheel hp. Total production of the lineage exceeded 13,000 units, and it found popularity in demanding sectors like logging and demolition .
Key Specifications

• Engine & Powertrain
  • Engine: International DT-466B, turbocharged 6-cylinder diesel (~466 cu in / 7.6 L), ~150 hp .

  • Transmission: Powershift with torque converter; 3 forward and 3 reverse ranges, top speed around 6.4 mph .

• Hydraulic System
  • Open-center system with dual gear pumps delivering about 30 GPM.

  • Relief valve set to approximately 2,500 psi.

  • Pilot-operated lever controls, with provisions for auxiliary valves .

• Loader Performance
  • Operating weight: roughly 38,000 lbs.

  • Bucket capacity: between 2.5 to 3.0 cubic yards.

  • Breakout force exceeding 21,000 lbs.

  • Track gauge ~70 in, ground clearance ~16 in, cab height around 122 in .

• Maintenance Focus
  • Key service items include hydraulic filters, transmission fluid, and undercarriage components.

  • Common wear areas: hydraulic pump (whine, pressure drop), transmission (clutch packs, overheating), pins/bushings in the loader linkage .


• Structural Integrity: ROPS that appear pushed or bent may indicate prior impact. Examine for frame misalignment or signs of collision damage .

• Protective Components Missing: Absent engine shields or broken grill sections risk damage to vital systems like the oil cooler. Verify all guards are present and intact .

• Undercarriage Wear: Rusted or worn track rails, loose rollers, and worn pins can mean significant rebuilding cost. Look for good “meat” on rails and roller spacing .

• Hr Meter Reliability: Be wary of low-hour machines, especially those used in high-demand environments like coal pits—hour meters may not reflect actual usage .


• Engine: DT-466B, ~150 hp

• Transmission: Powershift, 3 F/3 R, ~6.4 mph

• Hydraulics: ~30 GPM, 2,500 psi

• Weight: ~38,000 lbs

• Bucket: 2.5–3 yd³; Breakout: >21,000 lbs

• Undercarriage: 70 in gauge, 16 in clearance


• Get Real Access: Request close-up photos or video of the engine bay, undercarriage, loader pins, and cab.

• Confirm Year via VIN/Serial: That tag helps match parts and model year accurately .

• Inspect Hydraulics: Pump noise, sluggish response, or steady pressure loss suggest rebuild needs.

• Plan for Undercarriage Refurb: Track components can be a major cost—budget accordingly.

• Maintenance Records Matter: Units with documented oil change, undercarriage repair, or transmission service histories are more valuable.


Unexpected Dashboard Signal
In one particular incident involving a 2006 Volvo ECR88 compact excavator, an operator noticed that the console lights illuminated as expected when turning the ignition key—but nothing happened afterward. The machine appeared powered but remained completely unresponsive when trying to start. This odd symptom—a silent cockpit—prompted a deeper investigation into the electrical and control systems.
Significance of Console Lighting
The console lights function as a health check indicator—showing that power is reaching key systems and that warning lights like stop or temperature lamps are working. In such cases, lights turning on but no engine turnover indicates that while the basic low-voltage systems are functional, the starting circuit or safety interlocks may be compromised.
Possible Electrical and Safety Chain Faults
Volvo’s ECR88 design incorporates safety interlocks that prevent starting unless the operator’s armrest is raised or other safety-related signals are cleared. A failed starter relay, solenoid, or safety relay could block engine cranking entirely—even if console power is present.
Operator Narrative and Diagnosis
A service technician shared a scenario where, after extensive troubleshooting, the issue turned out to be related to the hydraulics safety relay—a relay that only allows the starter to engage when the operator’s controls are in the correct (safe) position. Once bypassed or replaced, the console still lit up, but now the engine would crank. This type of relay is often referred to in forums as part of the safety chain, and has to be both present and energized.
Testing Flow and Practical Checks
In real-world service situations, mechanics approach the fault systematically:

• Verify battery voltage and fuse integrity

• Confirm that glow plug indicators behave normally

• Test starter relay by listening for a click and measuring voltage output

• Check for safety signal continuity associated with the operator’s armrest position

• If all above pass but still no cranking, inspect the starter solenoid and relay assembly


• Inspect and test safety relays—especially those linked to the operator control lockout.

• Replace worn starter relays or solenoids, prioritizing OEM or high-quality replacement parts.

• Clean or reinstall wiring connections around the control panel—look for oxidized contacts behind the dash.

• Consider upgrading to relay designs with more durability or protection against vibration.

• Regular preventive diagnostics, especially for machines over 10 years old, can avoid unexpected downtime.


Introduction to Pool Excavation
Installing an above ground pool may appear simpler than constructing an inground version, yet the groundwork is equally critical. The excavation process defines how stable, durable, and safe the pool will be over its lifespan. A level foundation prevents uneven water pressure that can strain the pool’s walls and liner. Poorly executed excavation often leads to costly repairs such as liner tears, leaks, or structural deformation. Data from the Association of Pool and Spa Professionals indicates that roughly 40% of early pool failures result from improper ground preparation rather than material defects.
Evaluating the Site
The first step in excavation is assessing the terrain. Professionals check for slope, soil type, and drainage patterns. Sandy soils are easier to dig but require stabilization to prevent shifting, while clay-based soils, though stable, can be difficult to grade precisely. Rocky soil often demands additional equipment like a skid steer or mini excavator with a hydraulic breaker. Beyond soil, proximity to trees is a concern since root systems may destabilize the base or puncture liners over time. Contractors also ensure the site complies with local codes, including distance from property lines, septic systems, or underground utilities.
Excavation Equipment Choices
A range of equipment can be used depending on pool size and soil conditions:

• Skid steers are favored for maneuverability in small backyards.

• Mini excavators provide digging precision while reducing turf damage.

• Plate compactors are essential for compressing soil layers.

• Laser levels and string lines help maintain grade accuracy.


• Mark the pool perimeter with stakes and string.

• Strip sod and topsoil to create a clean work surface.

• Excavate to a depth that matches the pool wall height while compensating for sand or base material.

• Establish a perfectly level floor, verified through laser leveling.

• Compact each soil layer to reduce settlement risk.

• Add a sand or fine gravel layer to cushion the liner.


• Always over-excavate slightly to allow for a sand cushion.

• Use geotextile fabric under the base to block weeds and stabilize shifting soils.

• Compact soil thoroughly before laying sand.

• Allow for proper drainage by sloping soil gently away from the pool perimeter.

• Consult local building codes and obtain necessary permits.


Incident Overview
During a routine task of seating a tire on a Ford A66 loader, a sudden wheel failure occurred—a ring came loose, causing rapid deflation and the tire to dislodge forcefully. To everyone’s relief, no one was nearby when the event unfolded. In its wake, the wheel and connected axle slid clean out of the housing, revealing a failure of the axle “keeper”—a bolted clamp designed to secure the axle in place. The keeper had fractured, allowing the axle to drop out of its housing.
Maintenance and Repair Process
Once inspected, the internal components revealed that the keeper had marred the serrations in the planetary gear housing. Fortunately, these were cleaned and smoothed effectively. The repair involved some trial-and-error shimming to achieve proper bearing preload:

• Disassemble, insert various thickness shims, re-tighten, check axial play

• Repeat until minimal but appropriate endplay is achieved


• Insert three lead shot balls—slightly thicker than desired shims—spaced evenly inside the axle end

• Torque down the keeper, remove it, and measure the balls with a micrometer

• Average their thicknesses to identify the correct shim pack size


• Always use proper supports—never rely on unstable blocks or jacks that could collapse under load.

• Use sturdy timber cribbing or certified stands when dismantling heavy axle assemblies.

• Conduct a comprehensive teardown of the axle system to inspect internal gears, bearings, seals, and the retention keeper.


Origins and Legacy
The Caterpillar Medium Wheel Loader line began in 1960 with three models: the 944, 922, and notably the 966, which featured roughly 140 horsepower and a bucket capacity of 2.75 yd³ (≈ 2.1 m³) . The 966 series quickly became foundational—over 100,000 units in this class were placed into service due to their reliability, durability, and strong aftermarket support . The 966C, produced through the early to mid-1970s, carried the legacy onward by refining power and functionality.
Performance and Specifications
Key technical details illustrate the versatility of the 966C:

• Engine: Cat 3306 diesel producing around 170 hp, fed by a 640 in³ (≈10.5 L) six-cylinder turbocharged design .

• Operating Weight: Approximately 36,900 lb (16,738 kg), providing stability and traction on varying terrain .

• Bucket Capacity: About 4.1 cubic yards (≈3 m³), allowing significant material handling in each bucket load .

• Breakout Force: Approximately 25,578 lb (≈11,602 kg), delivering strong lifting and loading capability .

• Dimensions:
  • Length (bucket on ground): ~22.4 ft

  • Width (over tires): ~9.1 ft

  • Height to top of cab: ~11.7 ft

  • Hinge pin height at full raise: ~13.7 ft

• Performance:
  • Raise time: 6.2 s; dump time: 1.6 s; lower time: 3.8 s .

  • Fuel tank capacity: ~65 gal (≈246 L); hydraulic fluid: ~52 gal (≈197 L) .

  • Max reverse speed around 28.1 mph, forward speed approximately 23.7 mph .


• Regular servicing: Staying on top of oil, filters, and hydraulics helps maintain efficiency.

• Routine component checks: Tires, linkage, and seals—wear occurs but replacements are available even today.

• Ride smooth: Overloading and rough terrain increase wear—mindful operation prolongs service life.


Overview and Heritage
The Caterpillar 916 wheel loader made its debut in 1986, marking an enduring chapter in Cat’s lineup of compact, high-performance machinery. Built around the reliable Cat 3204 diesel engine, this model quickly became a go-to for operators needing efficient power without massive bulk. Crafted in Canada, the 916 carries a legacy of versatility, tailored for environments ranging from tight industrial plants to rural roadwork. Despite being an older model, it remains beloved for its straightforward durability and ease of maintenance. As of recent records, Caterpillar continues recognition of the model through 2025 .
Technical Profile
The 916 balances compactness with robust capability. Key specifications include:

• Operating weight: approximately 18,938 lb (8.5 t) .

• Engine: Cat 3204, 84.5 hp (63 kW), four cylinders, 317 cu in (5.2 L) displacement .

• Bucket capacity: ranges from 1.2 to 1.5 m³ (approx. 1.7 to 2 yd³) .

• Breakout force: around 18,838 lb (85 kN) .

• Hydraulic cycle: raise – 6.3 s, dump – 1.3 s, lower – 3.1 s .

• Dimensions (approximate):
  • Length: 20.9–22 ft (6.26 m) .

  • Width: ~7 ft 10 in (2.38 m) .

  • Height to cab top: ~10 ft 4 in (3.15 m) .

• Travel speed: up to 16 mph (25 km/h) in both forward and reverse .

• Fuel/hydraulic capacities: about 33 gal fuel, 19 gal hydraulic .


• Regularly serviced hydraulic systems and filters keep operation smooth.

• Rebuilt engines and transmission components help extend service life, with units still clocking over 10,000 hours reliably.

• Replacement parts are still available through Cat’s parts network, thanks to Caterpillar’s enduring support for legacy models.


• Operating weight: ~18,900 lb

• Engine: Cat 3204, ~85 hp

• Bucket capacity: ~1.7–2 yd³

• Breakout force: ~18,800 lb

• Speed: up to 16 mph

• Hydraulic cycle: Raise – 6.3 s, Dump – 1.3 s, Lower – 3.1 s

• Fuel capacity: ~33 gal

• Dimensions: ~21 ft length, 8 ft width, 10 ft height


Introduction
Finding the right cab and chassis to support a service body is crucial—it's about creating a mobile workshop that balances capability, durability, and safety. Reflecting on the evolution of service vehicles and the modern manufacturers shaping the market can provide valuable insights for anyone looking to build or replace a service-body system.
Development of Cab-Chassis and Service Bodies
The concept of a vehicle chassis paired with a custom body stretches back to the early 20th century. General-purpose utility and service bodies became particularly widespread by the 1920s and 1930s, often built onto basic truck chassis. During the Great Depression and wartime, demand for specialized bodies actually grew, fueling innovation in the field . The standardized service body design—boxy, with lockable cabinets on each side and a reinforced rear deck—was already established by the mid-20th century and has changed relatively little since .
Choosing the Right Chassis
Selecting the right chassis is foundational—its specifications determine payload capacity, performance, safety, and long-term costs. Key factors to consider include:

• Gross Vehicle Weight Rating (GVWR)
  Choosing a chassis with a GVWR suited to your payload and equipment needs ensures legal compliance and reliable handling .

• Intended Tasks and Features
  Whether you're equipping for mobile service, welding, or crane operations, select a chassis that supports your specialized equipment seamlessly .

• Operational Environment
  If your truck operates in tight urban spaces or rough terrain, turning radius, driveline configuration, and tire selection matter. Fuel economy and reliability are also key for long-service routes .


• Reading Truck Body
  With over 65 years in the business, Reading designs and fits durable work truck bodies using American craftsmanship and offers nationwide support .

• The Shyft Group Brands
  Includes DuraMag, Royal Truck Body, Utilimaster, and others—all providing vocation-specific service bodies, built for durability and performance .

• Innovative Body Options
  In 2020, Reading unveiled the Aluminum Classic II—its strongest aluminum service body with a GVWR up to 19,500 lbs, high-access compartments, and modern locking systems . Meanwhile, Stellar Industries introduced the aluminum Low Cab Forward service body, combining tight turning capabilities with ample storage and robust crane integration features .


• Standardization vs Custom Needs
  Though standard bodies work well for many applications, some operators—like the handyman who transformed his 1964 Chevy cab-chassis with a modern service body—show how custom installations can reflect both function and personal style. That retro installation sparked nostalgia in passersby and even social media attention .

• Feature Highlights to Look For
  • Strong, corrosion-resistant understructures rated for demanding loads

  • High, accessible compartments (e.g., 50″ lift height options)

  • Advanced locking systems and integrated electronics (e.g., key fob integration)

  • Body designs that distribute heavy loads (like cranes) through reinforced frames, not compartment doors


• Define essential tasks (e.g., maintenance, crane lifting, mobile repairs) and choose equipment accordingly.

• Review chassis specs—GVWR, cab type, drivetrain, and maneuverability.

• Evaluate body features: material (steel vs aluminum), compartment height, security, load distribution.

• Consider total lifecycle costs: initial purchase, fuel consumption, maintenance, and resale.

• Explore manufacturers—not just for the product but for dealer support, customization, and warranties.


Introduction
The Broderson 15-ton rough terrain crane is a compact but powerful lifting machine widely used in construction, industrial maintenance, and oilfield operations. Known for its versatility in confined job sites, this crane combines maneuverability with a reliable lifting capacity. Like all hydraulic and diesel-powered equipment, its performance and longevity rely heavily on proper lubrication. Checking and maintaining oil levels is not only routine upkeep but also a safeguard against catastrophic failures. For operators unfamiliar with the layout of these machines, locating the oil checkpoints can initially be confusing, as the engine, hydraulic system, and swing drive each have their own oil monitoring requirements.
Broderson Crane Development and Legacy
Broderson Manufacturing Corporation, founded in the mid-1970s in Kansas, carved its niche by producing small- to medium-capacity cranes tailored for industrial and rough-terrain applications. Unlike larger crawler or tower cranes, Broderson models were designed to work in tight spaces while still providing lifting capacities ranging from 2.5 tons to over 18 tons. The 15-ton model became one of its most popular machines, with thousands delivered across North America. Sales figures show steady growth through the 1980s and 1990s, particularly as refineries and steel mills increasingly favored compact cranes for plant maintenance. By the early 2000s, Broderson was recognized as a leader in carry deck and rough terrain cranes, with its machines deployed worldwide.
Key Oil Systems on the Crane
To keep the crane operational, three primary oil systems need regular inspection:

• Engine Oil: Lubricates internal engine components such as pistons, bearings, and camshafts. Low oil levels here can result in engine seizure. On Broderson cranes, the dipstick and filler are usually located on the side of the diesel engine block, often accessible by lifting a side panel.

• Hydraulic Oil: Powers the boom extension, swing mechanism, and outriggers. Hydraulic oil is checked via a sight gauge or dipstick located on the hydraulic reservoir, usually mounted near the crane’s base. Keeping hydraulic oil clean and at proper levels prevents cavitation and maintains lifting precision.

• Swing Drive and Transmission Oil: The swing drive mechanism allows the upper structure to rotate, while the transmission transfers power to the wheels. Both have their own oil reservoirs with level plugs or dipsticks, usually accessible through service hatches.


1. Park the crane on a level surface and engage the parking brake.

2. Shut down the engine and wait a few minutes to allow fluids to settle.

3. For the engine oil, remove the dipstick, wipe it clean, reinsert, and pull again to read the level. Ensure the oil sits within the marked range.

4. For the hydraulic oil, inspect the sight glass or dipstick at the reservoir. Hydraulic oil should appear clean, without foaming or cloudiness.

5. For the swing drive or transmission, open the service hatch and locate the fill plug or dipstick. Oil should reach the manufacturer’s recommended level mark.

6. Refill only with the recommended grade of oil, as mixing incompatible types can cause premature wear.


• Low Engine Oil: Causes overheating, increased wear, and potential catastrophic failure.

• Contaminated Hydraulic Oil: Dirt or water intrusion leads to sluggish boom movement and premature pump wear.

• Overfilled Reservoirs: Can cause foaming, aeration, and erratic system performance.


• Perform oil checks before every shift.

• Change engine oil every 250 hours or as specified by the manufacturer.

• Replace hydraulic filters at least once a year or more often in dusty environments.

• Send oil samples for lab analysis in high-duty operations, which helps detect metal particles or coolant leaks early.





Introduction

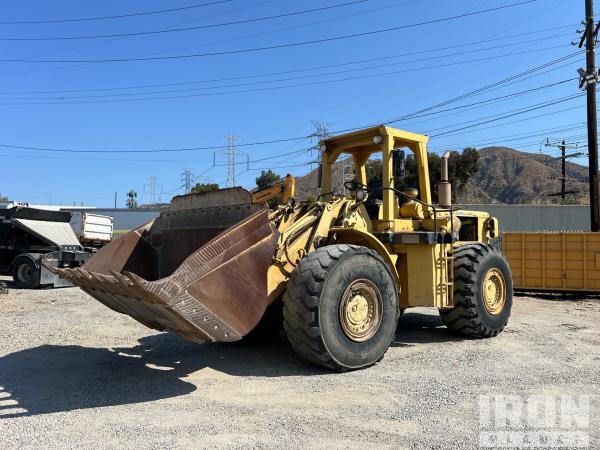

The Caterpillar 980B wheel loader, introduced in the early 1970s, has become a symbol of reliability and performance in heavy construction and mining operations. Manufactured between 1970 and 1978, this model was designed to handle demanding tasks such as material handling, stockpiling, and loading trucks. With its robust build and powerful engine, the 980B quickly gained popularity among operators and fleet owners.
Engine and Performance
The 980B is equipped with a turbocharged 3406 diesel engine, delivering approximately 270 horsepower. This powertrain enables the loader to achieve a maximum operating weight of around 51,500 pounds (23,364 kg) and a bucket capacity ranging from 4.0 to 5.25 cubic yards (3.1 to 4.0 cubic meters). The machine's performance is further enhanced by its hydrostatic drive system, providing smooth and efficient power transfer.
Dimensions and Weight

• Length: 24 ft 10 in (7.57 m)

• Width: 9 ft 9 in (2.97 m)

• Height: 11 ft 7 in (3.53 m)

• Operating Weight: 51,500 lbs (23,364 kg)


Introduction
The Terex S-11E elevating motor scraper, introduced in the early 1970s, was designed for efficient earthmoving tasks. However, like many vintage machines, it can experience drive system issues over time. One common problem reported by operators is overheating of the power unit, torque converter, or hydraulic clutch, leading to operational failures. This article delves into potential causes and solutions for these drive system issues.
Understanding the Drive System
The S-11E's drive system comprises several key components:

• Power Unit: Converts engine power to hydraulic energy.

• Torque Converter: Transfers and amplifies engine torque to the drive train.

• Hydraulic Clutch: Engages and disengages the drive to the wheels.

• Final Drive Motors: Transmit power to the wheels, enabling movement.


1. Overheating Components
   Operators have reported that after several loads, the power unit and associated components overheat to approximately 250°F, causing the scraper to cease movement. This is often accompanied by the driveshaft stopping. Such overheating can result from:
   • Insufficient Hydraulic Fluid: Low fluid levels can cause inadequate lubrication and cooling.

   • Clogged Oil Cooler: Debris or sludge buildup can impede heat dissipation.

   • Worn Hydraulic Components: Aging parts may not function efficiently, leading to increased friction and heat.

2. Sluggish or Unresponsive Movement
   When cold, the scraper may only move in lower gears (1 or 2). This sluggishness can be attributed to:
   • Thickened Hydraulic Fluid: Cold temperatures can cause fluid to thicken, affecting flow and responsiveness.

   • Faulty Torque Converter: A malfunctioning converter may not transmit power effectively.

   • Hydraulic Clutch Issues: Problems with the clutch can prevent proper engagement, leading to movement issues.


• Check Hydraulic Fluid Levels: Ensure fluid is at the recommended levels and is of the correct type.

• Inspect Oil Cooler: Clean or replace the oil cooler if it's clogged or inefficient.

• Examine Hydraulic Components: Look for signs of wear or damage in the power unit, torque converter, and hydraulic clutch.

• Test Hydraulic Pressure: Verify that system pressures are within manufacturer specifications.

• Replace Worn Parts: If components are found to be faulty, replace them with OEM parts to ensure compatibility and performance.
