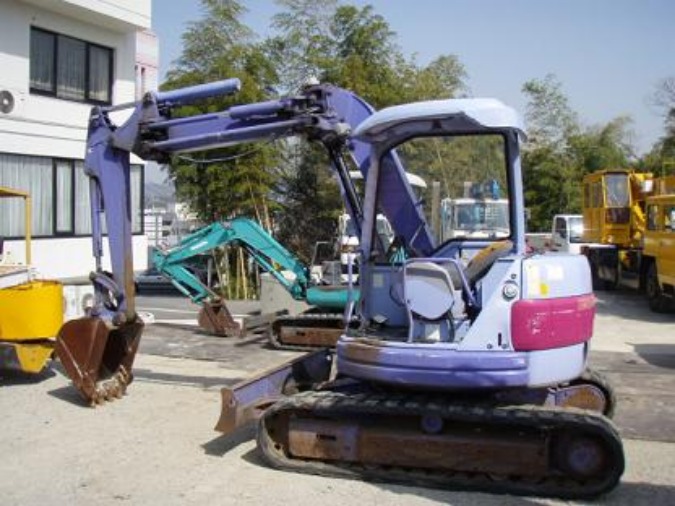

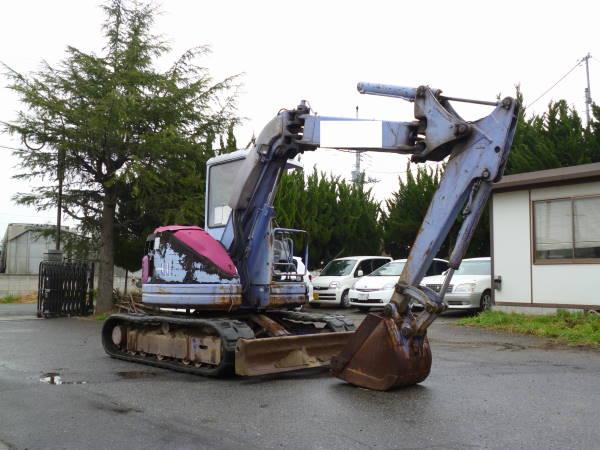

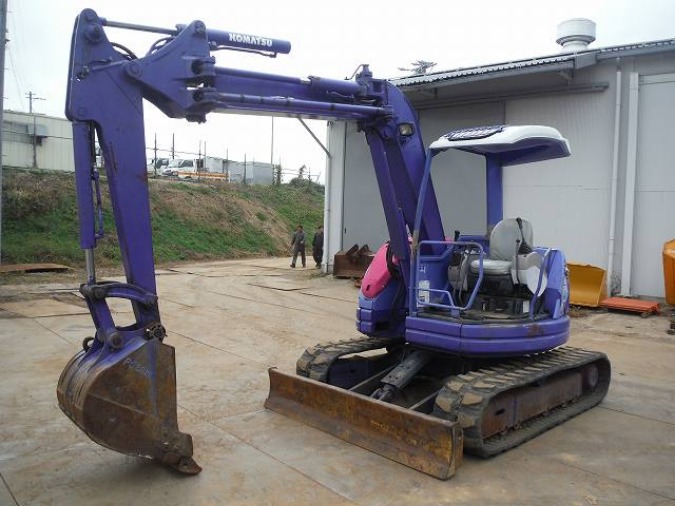

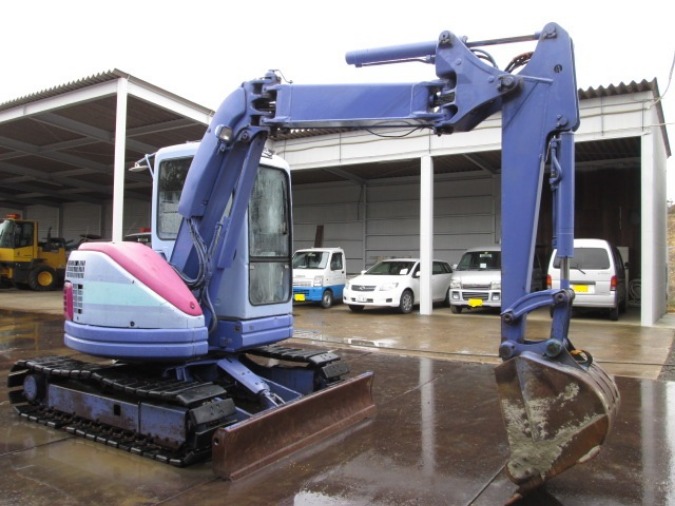

The Komatsu PC50UU-2 is a compact yet robust mini-excavator that has garnered attention for its performance and versatility. Manufactured by Komatsu, a renowned Japanese heavy equipment manufacturer, this model is designed to cater to various construction and landscaping needs, especially in confined spaces where larger machinery cannot operate efficiently.
Key Specifications

• Engine Power: Equipped with a Komatsu 4D84 engine, the PC50UU-2 delivers approximately 39 horsepower, providing ample power for its size.

• Operating Weight: Weighing around 5,100 kg (11,200 lbs), it strikes a balance between portability and capability.

• Dimensions:
  • Length: Approximately 5,335 mm

  • Width: 2,000 mm

  • Height: 2,550 mm

  • Tail Swing Radius: 1,000 mm

• Digging Depth: Can reach up to 3,800 mm, allowing for deep excavations.

• Boom Type: Features a two-piece offset boom, enhancing its ability to work alongside structures without repositioning .


• Hydraulic Performance Degradation: Some users have reported a gradual decline in hydraulic performance, particularly with the boom and arm functions. This can often be attributed to issues such as internal leaks in the control valves or problems with the hydraulic pump output pressure. Regular maintenance and timely replacement of worn components can mitigate these issues .

• Electrical System Faults: The machine's electrical system, including sensors and wiring, may experience faults over time. For instance, the arm angle sensor might malfunction, leading to error codes. Addressing such issues involves inspecting and recalibrating sensors and ensuring all electrical connections are secure and free from corrosion .

• Travel Motor Issues: Problems with the travel motor can manifest as one side of the machine failing to move. Potential causes include faulty oil filling valves in the main operation valve, issues with the walking motor safety valve, or damage to the terminal drive. Diagnosing and repairing these components requires a systematic approach to isolate the root cause .


• Regular Inspections: Conduct routine checks of the hydraulic system, electrical components, and undercarriage to identify wear and tear early.

• Use Genuine Parts: Always replace worn or damaged components with genuine Komatsu parts to maintain the machine's integrity and performance.

• Proper Lubrication: Ensure all moving parts are adequately lubricated to reduce friction and prevent premature wear.

• Monitor Fluid Levels: Regularly check and maintain appropriate levels of hydraulic fluid, engine oil, and coolant to prevent overheating and system failures.


The Fiat 70CI, a compact utility tractor, is known for its reliability and versatility in various agricultural and construction tasks. However, like many older machines, it can experience issues such as oil leaks from the rear main seal. This article provides a comprehensive guide to diagnosing and replacing the rear main seal on a Fiat 70CI, drawing from practical experiences and technical insights.

Understanding the Rear Main Seal
The rear main seal is a critical component located at the rear of the engine, sealing the gap between the crankshaft and the engine block. Its primary function is to prevent engine oil from leaking out while allowing the crankshaft to rotate freely. Over time, seals can wear out due to heat, pressure, and friction, leading to oil leaks.

Identifying the Problem
A common symptom of a failing rear main seal is the presence of engine oil in the clutch housing. This can be observed through the inspection cap above the clutch. If the engine oil level is low and there's evidence of oil in the clutch area, it's likely that the rear main seal needs attention.

Accessing the Rear Main Seal
Replacing the rear main seal on the Fiat 70CI involves several steps:

1. Drain Fluids: Begin by draining the engine oil and any other fluids to prevent spills and ensure safety during the repair process.

2. Remove the Clutch Housing: Detach the clutch housing to gain access to the rear of the engine. This may involve removing bolts and other components that secure the housing in place.

3. Inspect the Flywheel: Once the clutch housing is removed, inspect the flywheel for any signs of damage or wear. The flywheel may need to be removed to access the rear main seal.

4. Remove the Old Seal: Carefully remove the old rear main seal. This may require specialized tools to avoid damaging the crankshaft or the engine block.

5. Install the New Seal: Install the new rear main seal, ensuring it is seated correctly and securely. It's crucial to use a seal that matches the specifications of the Fiat 70CI to prevent future leaks.

6. Reassemble Components: Once the new seal is in place, reassemble the clutch housing and any other components that were removed during the process.

7. Refill Fluids: After reassembly, refill the engine with the appropriate type and amount of oil.


• Outer Diameter: 135 mm

• Inner Diameter: 114 mm

• Width: 13 mm


• Regularly check the engine oil level and top up as necessary.

• Inspect the clutch housing for signs of oil leaks.

• Perform routine maintenance on the tractor, including checking for wear and tear on seals and gaskets.


The Anatomy of a Controlled Descent Gone Wrong
In the world of heavy haul transport, descending a grade with a multi-axle load demands precision, coordination, and fully functional braking systems. A widely circulated video captured a catastrophic moment where a transporter carrying a massive machine lost control during a downhill run. What should have been a routine descent turned into a near-disaster, exposing a cascade of mechanical and managerial failures.
The transporter, pushed by a rear truck and guided by a lead truck, approached the crest of a hill with poor surface preparation and minimal margin for error. As the convoy broke over the crown, the lead truck appeared to lose traction, and the transporter began to overtake it. The result was a jackknife, a partial derailment, and a scramble of personnel trying to avoid injury.
Undercarriage and Brake System Vulnerabilities
Multi-axle transporters rely heavily on synchronized braking across all axles. In this incident, several observers noted that half the trailer brakes were visibly non-functional. Whether due to air line failure, poor maintenance, or misconfiguration, the lack of braking capacity rendered the transporter uncontrollable once gravity took over.
Key components that failed or were misused:

• Inadequate brake distribution across axles

• Bald tires on the push truck, reducing friction

• Absence of a proper tow/push bar, replaced by a weak chain

• Poor tie-downs that shifted weight off the lead truck’s drive axles


• Jackknife: A condition where the trailer swings out from the towing vehicle, often during braking failure

• Push Truck: A vehicle positioned behind the load to assist with propulsion or braking

• Breakover Point: The crest of a hill where the slope transitions from uphill to downhill

• Transporter: A specialized trailer used for hauling oversized or heavy equipment

• Tow Bar: A rigid connection between vehicles used for controlled pushing or pulling


• Inspect and test all trailer brakes before descent

• Use proper tow/push bars instead of chains

• Distribute weight evenly across axles

• Trim breakover points to reduce sudden shifts

• Clear downhill paths of equipment and personnel

• Break large machines into manageable components

• Train crews on emergency procedures and evacuation zones


The 8.3L Cummins engine, known for its durability and performance, powers a variety of applications, including buses, trucks, and marine vessels. However, like any mechanical system, it is susceptible to issues over time. One common problem that owners and operators encounter is oil leaks. These leaks can stem from various sources within the engine, and identifying the exact cause is crucial for effective repair.
Common Sources of Oil Leaks

1. Timing Gear Housing and Front Cover Gasket


1. Injector Pump Mounting O-Ring


1. Rear Main Seal and Cam Plug


1. Oil Cooler Connections


1. Blow-By and Crankcase Dilution


• Clean the Engine: Use a degreaser to clean the engine thoroughly. This will help in identifying the exact location of the leak.

• Pressurize the System: Applying pressure to the engine oil system can help in locating leaks more effectively.

• Use Dye: Some technicians add a fluorescent dye to the oil. Under UV light, the dye will glow, making it easier to spot the leak's origin.


• Regular Inspections: Periodically inspect the engine for signs of oil seepage.

• Use Quality Parts: Always use OEM parts for replacements to ensure proper fit and function.

• Monitor Engine Performance: Keep an eye on engine performance metrics. A sudden drop in oil pressure or increased oil consumption can indicate a developing leak.

• Timely Repairs: Address minor leaks promptly before they develop into major issues.


The T250 and Its Hydraulic Architecture
The Bobcat T250 compact track loader was introduced in the early 2000s as part of Bobcat’s high-performance lineup, offering a rated operating capacity of 2,500 lbs and a robust hydraulic system capable of powering demanding attachments. With a high-flow auxiliary circuit and electronic control integration, the T250 became a popular choice for contractors using augers, trenchers, and brush cutters. Its hydraulic system includes solenoid-controlled valves, pressure sensors, and a joystick interface that allows precise control over flow direction and speed.
Despite its reliability, the T250’s auxiliary hydraulics can develop quirks—especially when attachments are rarely used or when solenoids sit idle for extended periods.
Symptoms of Unintended Hydraulic Activation
A common issue occurs when an attachment, such as a post-hole auger, continues to operate even after the auxiliary function is turned off. In one case, the auger spun counterclockwise persistently—even after the machine was restarted and pressure was released. This behavior suggests a stuck or energized solenoid valve that fails to close properly, allowing fluid to bypass the control logic.
This type of malfunction can be confusing, especially when the joystick appears to be in the neutral position and the auxiliary switch is disengaged. It raises questions about whether there is a separate solenoid responsible for enabling the auxiliary circuit, or if the directional solenoids themselves are responsible for both flow initiation and direction.
Terminology Clarification

• Auxiliary Hydraulics: A secondary hydraulic circuit used to power attachments

• Solenoid Valve: An electrically actuated valve that controls fluid flow based on input signals

• PWM (Pulse Width Modulation): A method of controlling hydraulic flow by varying the duty cycle of voltage sent to a solenoid

• Joystick Control: The operator interface used to command hydraulic functions

• Flow Direction: The path hydraulic fluid takes through the attachment, determining rotation or movement


• Cycle auxiliary functions monthly, even if attachments are not in use

• Use dielectric grease on solenoid connectors to prevent corrosion

• Flush hydraulic fluid annually to remove varnish and moisture

• Exercise valve stems manually during service intervals

• Monitor diagnostic codes and address them before symptoms escalate


The Hyundai 757-9, more broadly known as the HL757-9 wheel loader, is a robust machine built for heavy-duty earthmoving. Produced from around 2019, it features a 6.7 liter, six-cylinder Cummins QSB engine delivering approximately 170–173 hp and weighing roughly 14.5 tonnes. It sports a 2.8 m³ bucket, front and rear limited-slip differentials, and a load-sensing hydraulic steering system with a variable displacement piston pump—delivering smooth control in ideal conditions.

Jerky Steering Causes
Owners have reported steering that jerks or lurches when turning, far beyond the expected smooth movement. A key culprit may be a depleted or defective steering accumulator — a hydraulic cushion designed to absorb sudden pressure spikes and provide smooth steering. If that accumulator fails, steering becomes abrupt.
Other technical factors to consider include:

• Trapped air or contamination in steering hydraulics disrupting oil flow.

• Worn seals or linkages in steering cylinders or joints.

• Unbalanced hydraulic pressures in the steering circuit.


• Steering accumulator
  • Test whether the accumulator holds hydraulic pressure or spring tension. A loss of function here often directly causes jerky control.

• Bleed the hydraulic system
  • Remove trapped air by properly bleeding steering lines, especially after maintenance or fluid service.

• Inspect hoses, cylinders, and seals
  • Look for leaks, degraded seals, or damaged linkage components that may cause inconsistent steering motion.

• Check hydraulic fluid and filters
  • Contaminated or degraded fluid can impair cylinder and valve performance; replace fluid/filters as needed.


• Accumulator: A pressure-dampening hydraulic component that stores fluid under pressure to absorb shocks and smooth out steering inputs.

• Load-sensing system: A hydraulic design that adjusts pump output according to need, boosting efficiency while maintaining responsive control.

• Limited-slip differential: Helps maintain traction during turns by evenly distributing torque across wheels, supporting stable steering.

• Hydraulic bleed: The process of purging air from hydraulic lines to ensure consistent pressure and smooth actuation.


• Test and service steering accumulators as per maintenance schedule.

• Bleed hydraulic lines after any fluid change or air exposure.

• Inspect seals, hoses, and joints regularly for wear or leakage.

• Use clean, correct spec hydraulic fluid and replace filters routinely.

• Record steering issues promptly; minor jerks may foreshadow accumulator failure.


Understanding Hydraulic Leaks
Hydraulic systems power a vast range of heavy machinery—from excavators and loaders to forklifts and hydraulic presses. A hydraulic oil leak may appear insignificant at first, but its implications can be serious—impacting system efficiency, environmental safety, and operator well-being. A leak may be external (oil escaping visibly) or internal (fluid escaping between chambers without outward evidence) .
Sources of Leaks
Major causes of hydraulic oil leaks include:

• Damaged hoses and loose fittings—common failure points where wear or poor installation allows fluid escape .

• Worn or incompatible seals, including static (O-ring, flange) and dynamic (rod, piston, wiper) types .

• Aging lines and thermal stress—repeated temperature changes can degrade hose material, causing cracks and leaks .

• Internal clearances and component wear in cylinders, valves, pumps, or motors causing internal fluid loss (inefficiency) .

• Contamination (air or water) compromising fluid properties and increasing leakage risk .


• Increased fluid consumption—some facilities use up to four times more oil due to unresolved leaks .

• Decreased performance—leaks reduce system pressure, affecting power output, responsiveness, and efficiency .

• Environmental hazards—oil spills threaten soil, groundwater, and ecosystems .

• Slip and fall risks—fluid on walkways poses safety hazards; downtime due to injuries can be costly. Hydraulic oil leaks can also create potential fire hazards under high heat .

• Escalating maintenance costs—fluid loss, repairs, and downtime can drain budgets, especially when forgotten leaks lead to cascading failures .


• Visual inspection—look for drips, wet areas, or pooling oil .

• Audible cues—listen for unusual sounds: whining, rumbling, or hissing often indicate air intrusion or leak-related inefficiency .

• Performance monitoring—track slow operation, erratic motion, or overheating symptoms .

• Internal leak detection—measure flow and pressure (e.g. via case drain monitors) for signs of internal bypass or component wear .

• Advanced sensors—new algorithms using pressure sensors and AI (like LSTM neural networks) offer near 96 % accuracy in detecting internal leakage in real time .


• Safety first: Depressurize before inspecting, wear gloves, and contain spills.

• Identify leak type: External or internal, based on what symptoms are present.

• Inspect likely points:
  • Hoses, fittings, and seals

  • Cylinder components

  • Rotary joints or valves

  • Reservoir or housing cracks

• Temporarily mitigate leaks using approved sealants only when safe—always clean area before application .

• Repair or replace damaged parts with proper seals, fittings, or hoses.

• Prove resolution with a test run—monitor for recurrence.

• Document findings to identify patterns and inform preventive steps.


• External leaks often reduce system pressure by 10–30 %, weakening performance and load capacity.

• Internal leakage through worn components can diminish pump efficiency by up to 20 %, increasing energy consumption.

• Water or air contamination contributes to 80–90 % of hydraulic system failures .

• Quick maintenance saves—industrial downtime can cost upwards of $9,000 per minute .


The JD450B and Its Undercarriage Design
The John Deere 450B crawler dozer, introduced in the early 1970s, was part of Deere’s push into compact earthmoving equipment for contractors, farmers, and municipalities. With a reputation for mechanical simplicity and ruggedness, the 450B featured a modular undercarriage system anchored by a front crossbar that connected the track frames to the main chassis. This crossbar plays a critical role in maintaining track alignment and structural rigidity during operation.
Over time, the mounting threads on the track rail where the crossbar bolts attach can become stripped due to vibration, corrosion, or over-torquing. When this happens, the crossbar loses its secure connection, leading to misalignment, excessive wear, and potential undercarriage failure.
Understanding the Bolt Configuration and Load Distribution
The front crossbar is secured to each track frame using a combination of vertical and horizontal bolts. Early JD450B models used six bolts per side—four vertical bolts through the top of the track frame and two horizontal bolts through the side. These bolts typically measured 5/8" x 2" and passed through shoulder bushings designed to allow slight movement or “float” during operation. Later updates to the crossbar design eliminated the bushings and upgraded to rigid 3/4" bolts for improved stability.
When threads are stripped in the track frame, the most vulnerable points are the horizontal bolt holes. These are often the first to fail due to side loading and limited thread engagement.
Terminology Clarification

• Crossbar: A structural beam connecting the left and right track frames at the front of the dozer

• Track Frame: The steel assembly that houses the rollers, idlers, and track chain

• Shoulder Bushing: A sleeve that allows limited movement of a bolt within a mounting hole

• Heli-Coil: A threaded insert used to repair damaged threads in metal components

• Keensert: A heavy-duty threaded insert with locking keys for high-load applications


• Install Heli-Coils: These stainless steel inserts restore the original thread size and are ideal for moderate loads. Installation requires drilling out the damaged threads, tapping a new hole, and inserting the coil.

• Use Keenserts: These are more robust than Heli-Coils and include locking keys to prevent rotation. They are preferred in high-vibration environments or where bolt torque is critical.

• Convert to Through-Bolts: By accessing the inside of the track frame, longer bolts can be inserted with locknuts on the opposite side. This method bypasses damaged threads entirely and provides a secure mechanical connection.


• Clean the area thoroughly and inspect for cracks or distortion

• Determine whether thread repair or through-bolt conversion is appropriate

• If using inserts, drill and tap holes to match Heli-Coil or Keensert specifications

• If converting to through-bolts, remove roller guard and roller for access

• Install grade 8 or 9 bolts with locknuts and torque to specification

• Reassemble roller and guard, checking for clearance and alignment

• Test undercarriage movement and monitor for vibration or shifting


On the Caterpillar 416C backhoe loader, correctly filling the rear axle with fluid is essential for ensuring smooth operations and long-term reliability. The rear axle uses approximately 6 US gallons (24 liters) of transmission or differential fluid when refilling during service. This capacity ensures proper lubrication of gears and bearings and preserves differential functionality.

Development and Legacy of the 416C
The Caterpillar 416C belongs to the C-series of backhoe loaders, traceable to the original 416 model introduced by Caterpillar in 1985. That machine resulted from five years of intensive market research, prototype testing, and component analysis. The project began with a small cross-functional team whose efforts helped shape the machine’s rugged frame, hydraulics and operator comfort.
By the time production ceased in 2000, more than 44,000 units of the 416C were manufactured and delivered globally, demonstrating its widespread acceptance in both construction and agricultural markets. Caterpillar itself, founded in 1925 through the merger of Holt Manufacturing and Best Tractor Company, has grown into the world’s leading heavy equipment manufacturer, accounting for over 16 percent of global heavy-equipment sales as of 2022.

Rear Axle Fluid Basics
When servicing the rear axle of a Cat 416C backhoe loader, here are the key specifications:

• Rear axle fluid capacity: 6 US gal (24 L)

• Front axle (4WD) fluid: approximately 2 US gal (7.5 L)

• Fluid grade should align with Caterpillar’s Machine Fluids Recommendations for differential/transmission services.


• Use correct fill volume — Overfilling can cause aeration and underfilling can starve lubrication.

• Match Caterpillar fluid specs — Fluid viscosity, additive chemistry, and sealed OEM grade matter for gear life.

• Inspect seals and breather vents — Especially after heavy use, ensure no leaks or pressure buildup.

• Replace fluid at intervals — Heavy-duty use in dusty or high-load environments increases contamination risk.

• Record service events — Tracking fill dates and volumes helps identify early wear patterns or leak trends.


• Rear axle fluid: Lubricant for gears and bearings inside the rear differential.

• Breather vent: Pressure relief port that prevents internal pressure buildup from heat.

• OEM spec fluid: Manufacturer-recommended fluid ensuring compatibility with materials and design.

• AERATION: Presence of air in fluid, potentially reducing lubrication efficiency.


• Confirm fill volume: 6 gal (24 L) for rear axle

• Use Caterpillar-approved differential/transmission oil

• Inspect seals and breather vents for integrity

• Replace fluid at intervals based on use intensity

• Log fill date, fluid type, and machine hours for trend tracking


Volvo excavators, designed and manufactured by Volvo Construction Equipment—a global subsidiary of the Volvo Group—incorporate an auto-idle feature that shifts the engine into a lower idle RPM after a brief idle period. This simple yet impactful function plays a key role in fuel economy and operational efficiency. Volvo CE, with roots tracing back to founding firms in 1832 and evolving through mergers such as Bolinder-Munktell and Volvo BM, has grown into a world-class heavy machinery provider. It has produced over 700,000 heavy-moving machines in the past decade, including roughly 45,000 heavy units in 2023 alone .

Fuel Savings and Environmental Impact
Auto-idle automatically drops engine speed to a preset idle—typically around 800 RPM or up to 1,000 RPM—after several seconds of inactivity. The default interval is 5 seconds, but operators can adjust it between 3 and 20 seconds . This reduction translates directly into lower fuel usage, and that means fewer CO₂ emissions—each litre of diesel saved equates to approximately 2.6 kg less carbon dioxide released .

Idle Settings and Operator Control
Volvo’s newer excavators feature selectable work modes, numbered from low to high, keyed to engine speed and hydraulic flow:

• Modes 1–2: Idle at approximately 800–1,000 RPM—ideal for warm-up and fuel conservation

• Modes 3–4: Around 1,100–1,200 RPM—balanced flow and pressure for precision tasks
  Operators simply rotate a control dial to match engine and hydraulic behavior to the task .


• Auto-idle: Automatic engine speed reduction when no controls are used for a short interval.

• Auto-shutdown: Engine turns off after prolonged inactivity to conserve fuel and reduce emissions.

• Work modes: Configurable settings tying engine RPM to excavator hydraulics and control sensitivity.

• Pressure switch: Sensor that detects hydraulic or control pressure changes, feeding information to the machine’s controller.

• RPM: Revolutions per minute—indicator of engine speed, critical for balancing power and fuel use.


• Confirm auto-idle is enabled and set to a low activation interval (3–5 seconds)

• Check that idle RPM aligns with mode (around 800–1,000 RPM)

• Verify auto-shutdown settings and warning timelines

• If idle behavior is erratic, inspect and test pressure switches and wiring integrity

• Monitor fuel usage, idle time, and CO₂ savings to validate benefits
