The Caterpillar 259D Compact Track Loader is renowned for its versatility and performance in various applications. Proper maintenance, particularly greasing, is essential to ensure the longevity and optimal functioning of the machine's components. This guide provides detailed insights into the greasing requirements for the CAT 259D, focusing on the power detach pins and hydraulically adjustable forks.

Understanding the Importance of Greasing
Greasing is crucial for reducing friction, preventing wear, and protecting components from contaminants. Regular lubrication ensures smooth operation, extends the lifespan of parts, and minimizes downtime due to mechanical failures. For the CAT 259D, specific areas require attention to maintain peak performance.

Recommended Grease Types for CAT 259D
Caterpillar recommends using their own branded greases for optimal performance:

• Cat Prime Application Grease (NLGI 2): Suitable for medium-load applications, providing excellent protection against wear and corrosion.

• Cat Extreme Application Grease (NLGI 1): Designed for high-load conditions, offering superior protection under extreme pressures.


1. Locate the Grease Fittings: Identify the grease zerks on the power detach pins.

2. Clean the Fittings: Before applying grease, clean the grease fittings to remove any dirt or debris.

3. Apply Grease: Using a grease gun, apply the recommended grease until it begins to emerge from the pin joint.

4. Check for Proper Lubrication: Ensure that grease is evenly distributed around the pin.

5. Inspect for Leaks: After greasing, check for any signs of grease leakage, which could indicate worn seals or fittings.


1. Identify Lubrication Points: Locate the grease fittings on the adjustable forks.

2. Clean the Fittings: Remove any dirt or debris from the grease fittings to prevent contamination.

3. Apply Grease: Using a grease gun, apply the recommended grease until it begins to emerge from the joint.

4. Check for Smooth Operation: Manually adjust the forks to ensure smooth movement.

5. Inspect for Wear: Regularly check for signs of wear or damage to the forks and lubrication points.


• Grease Fitting Blockages: If grease does not enter the fitting, remove and clean the zerk fitting. Ensure the grease gun is functioning properly and compatible with the zerk size. Inspect grease lines for damage or kinks that may restrict flow.

• Excessive Grease Leakage: If grease leaks from joints, it may indicate over-greasing or worn seals. Reduce the amount of grease applied and inspect seals for damage.

• Grease Contamination: Always clean grease fittings before application to prevent dirt and debris from entering the joints.


Introduction
Hydraulic rams, or cylinders, are integral components in various machinery, from construction equipment to industrial presses. Over time, these rams may become stuck due to factors like corrosion, debris, or internal pressure. Properly removing a stuck hydraulic ram requires a systematic approach to ensure safety and prevent damage to the equipment.
Understanding the Hydraulic Ram
A hydraulic ram operates by converting hydraulic energy into linear mechanical force. It consists of a cylinder barrel, piston, rod, gland, and seals. The piston moves within the barrel, driven by hydraulic fluid, to perform tasks such as lifting, pushing, or pulling. Common applications include excavators, loaders, and presses.
Common Causes of a Stuck Hydraulic Ram
Several factors can cause a hydraulic ram to become stuck:

• Corrosion: Moisture and contaminants can lead to rust inside the cylinder, causing the piston to seize.

• Debris: Dirt or metal shavings can obstruct the movement of the piston.

• Internal Pressure: Residual hydraulic pressure can keep the piston extended or retracted.

• Seal Failure: Damaged seals can cause internal friction, hindering movement.


• Depressurize the System: Relieve all hydraulic pressure by operating the control valves.

• Lockout/Tagout: Implement lockout/tagout procedures to prevent accidental activation.

• Personal Protective Equipment (PPE): Wear safety goggles, gloves, and steel-toed boots.

• Work Area: Ensure the work area is clean and well-lit.


1. Preparation:
   • Clean the exterior of the hydraulic ram to remove dirt and debris.

   • Place a catch pan beneath the ram to collect any residual hydraulic fluid.

2. Disconnect Hydraulic Lines:
   • Use appropriate tools to disconnect the hydraulic hoses from the ram.

   • Cap or plug the open ports to prevent contamination.

3. Remove Mounting Pins:
   • Use a hammer and punch to remove any retaining pins securing the ram to the equipment.

   • Keep the pins and hardware in a safe place for reinstallation.

4. Extract the Ram:
   • If the ram is stuck in the extended position, use a come-along or chain hoist to apply gentle force to retract it.

   • If stuck in the retracted position, apply heat to the cylinder barrel using a torch to expand the metal and loosen the ram.

   • Always apply heat evenly and avoid overheating, which can damage seals and other components.

5. Disassemble the Ram:
   • Once removed, secure the ram in a vice.

   • Remove the gland nut using a spanner wrench or pipe wrench.

   • Extract the piston and rod assembly.

   • Inspect all components for wear or damage.


• Clean Components: Thoroughly clean all parts using a suitable solvent.

• Replace Seals: Install new seals to ensure proper function.

• Lubricate: Apply clean hydraulic oil to all moving parts.

• Reassemble: Reverse the disassembly steps to reassemble the ram.

• Test: Reinstall the ram onto the equipment and test its operation under low pressure before full use.


• Persistent Sticking: If the ram remains stuck despite applying force, inspect for internal corrosion or debris.

• Seal Damage: Damaged seals can cause internal friction; replace them promptly.

• Uneven Heating: When applying heat, ensure even distribution to prevent warping or seal damage.


The D6N and Its High-Pressure Common Rail System
The Caterpillar D6N dozer, introduced in the early 2000s, was part of Cat’s mid-size track-type tractor lineup designed for grading, land clearing, and site prep. With an operating weight of around 40,000 lbs and a net power rating near 150 hp, the D6N featured a High-Pressure Common Rail (HPCR) fuel system—an advancement over the older HEUI (Hydraulically actuated Electronically controlled Unit Injector) systems used in previous models.
The HPCR system relies on an electric lift pump to deliver low-pressure fuel to the high-pressure pump, which then feeds the fuel rail and injectors. This setup offers better atomization, improved emissions control, and more precise fuel delivery. However, it also introduces complexity in diagnostics when fuel delivery fails.
Return Line Failure and No-Start Condition
In one field case, a D6N experienced a sudden blowout of the fuel return line while running. The leak was repaired quickly, but the engine refused to start afterward. Despite extensive bleeding and replacement of all three fuel filters, fuel could not be delivered to the high-pressure rail. The electric lift pump ran, and fuel reached the filters, but nothing emerged from the rail—indicating a blockage or pressure regulation failure.
This scenario suggests that the return line failure may have been symptomatic of a deeper issue, possibly involving the low-pressure regulation system or a failed pressure relief valve.
Terminology Clarification

• HPCR (High-Pressure Common Rail): A fuel system that uses a shared rail to deliver pressurized fuel to all injectors

• Lift Pump: An electric or mechanical pump that supplies fuel from the tank to the high-pressure pump

• Fuel Rail: A manifold that distributes high-pressure fuel to the injectors

• Pressure Relief Valve: A safety valve that limits fuel pressure in the rail to prevent damage

• Bleeding: The process of removing air from the fuel system to restore flow


• Failed Pressure Regulator: If the regulator fails open, fuel may bypass the rail entirely and return to the tank

• Stuck Rail Pressure Control Valve: A valve jammed in the closed position can block fuel entry into the rail

• Air Lock in High-Pressure Pump: Air trapped in the pump can prevent it from building pressure

• Damaged Rail Sensor or ECM Fault: If the Engine Control Module detects abnormal pressure, it may inhibit fuel delivery

• Lift Pump Weakness: Although fuel reaches the filters, it may not be at sufficient pressure to feed the high-pressure pump


• Check lift pump voltage and amperage draw

• Inspect fuel lines for kinks or obstructions

• Test pressure at the filter base using a mechanical gauge

• Remove and inspect the rail pressure control valve

• Scan for fault codes using ET or compatible diagnostic tools


• Replace fuel filters at recommended intervals

• Inspect return lines for wear and secure fittings

• Monitor lift pump behavior during startup

• Keep diagnostic tools on hand for electronic systems

• Train operators on HPCR-specific symptoms and procedures




Introduction
In the realm of land clearing and forestry operations, the combination of specialized machinery plays a pivotal role in enhancing efficiency and productivity. Two such machines that have garnered attention are the GyroTrac GT13 and the Bobcat T320 compact track loader equipped with a forestry attachment. This article delves into the specifications, functionalities, and considerations of these machines, providing insights into their performance and suitability for various forestry tasks.

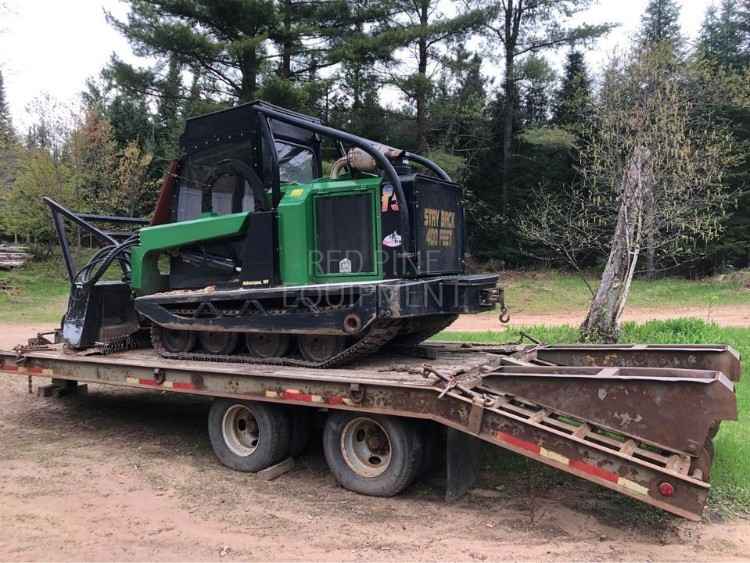

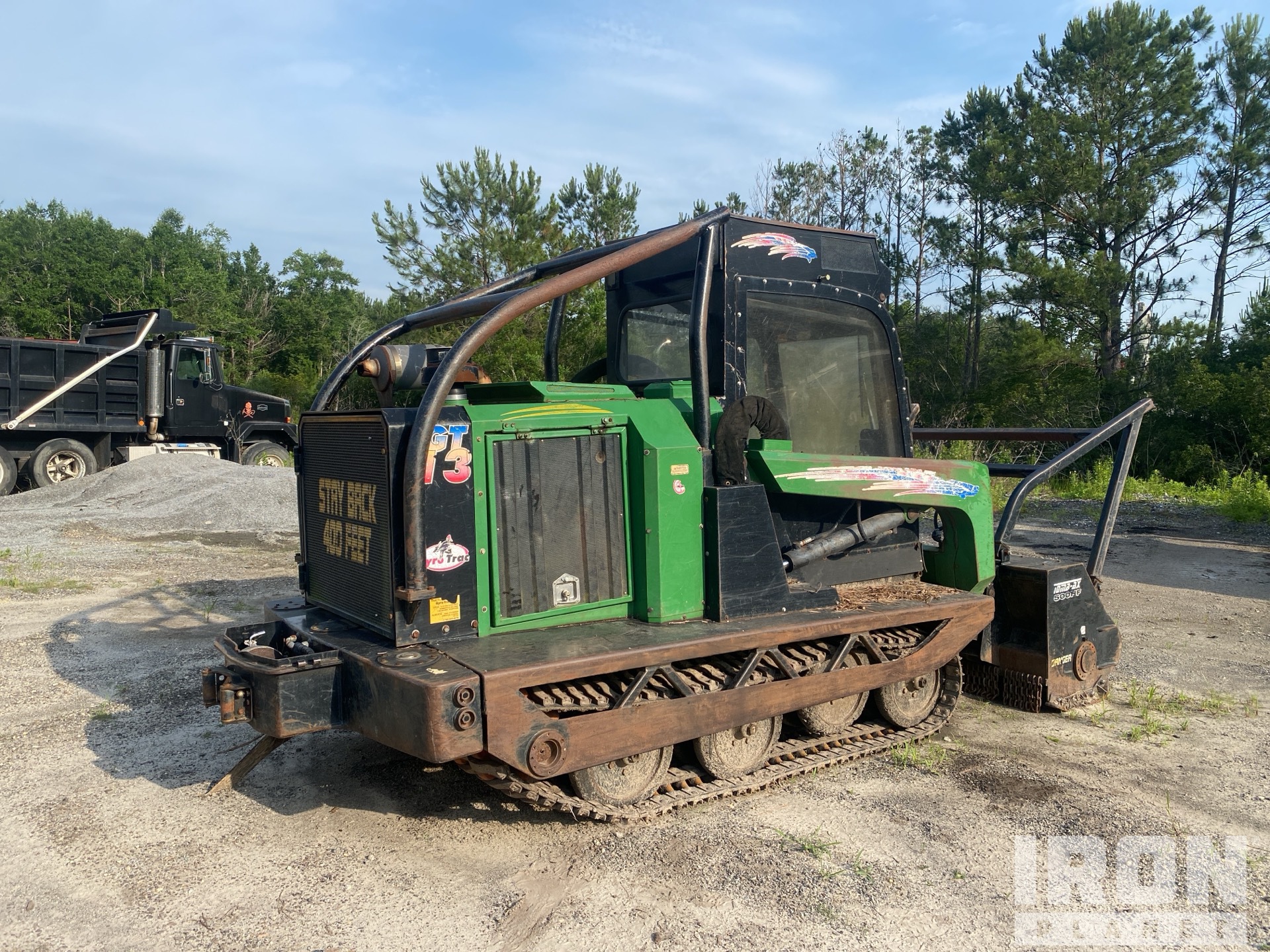

GyroTrac GT13: Specifications and Features
The GyroTrac GT13 is a dedicated forestry mulcher designed for heavy-duty land clearing operations. While specific details about the GT13 model are limited, GyroTrac's product line includes various models tailored for different forestry needs. For instance, the GT-365 model boasts the following specifications:

• Engine: Cummins STAGE V Turbo Diesel B6.7
  • Horsepower: 250 hp @ 1900 RPM

  • Torque: 696 ft-lbs @ 1900 RPM

  • Fuel Capacity: 97 US gal. (367 liters)

  • Fuel Consumption: Estimated Max Fuel Consumption: 14 gal/hr

• Cutter-Head: 700 HF Cutter-Head
  • Number of Teeth: 30

  • Cut Width: 92" (165 cm)

  • Cut Depth: 34" (86 cm)

  • Weight: 5,180 lbs (2,355 kg)

  • Hydraulic Flow: Up to 120 gpm (454 lpm)

  • Operating Pressure: Up to 6,000 PSI

• Dimensions:
  • Length: 246 in (625 cm)

  • Width: 102 in (259 cm)

  • Height: 125.25 in (259 cm)

  • Weight: 37,000 lbs (16,783 kg)

  • Ground Clearance: 16.2 in (41.2 cm)

  • Ground Pressure: 4.8 psi (0.33 bar)

  • Maximum Speed: 3.5 mph


• Engine:
  • Horsepower: 92 hp (69 kW)

  • Turbocharged: Yes

  • Fuel Tank Capacity: 26 gal (98.4 L)

• Performance:
  • Rated Operating Capacity (ISO): 3,100 lbs (1,406 kg)

  • Operating Weight: 9,702 lbs (4,405 kg)

  • Ground Pressure (Rubber Tracks): 3.9 psi (0.27 bar)

  • Auxiliary Hydraulic Flow:
    • Standard Flow: 21.2 gpm (80 lpm)

    • High Flow: 37 gpm (140 lpm)

• Dimensions:
  • Length (with Bucket): 12 ft (3.66 m)

  • Length (without Bucket): 10 ft (3.05 m)

  • Width Over Tracks: 7 ft (2.13 m)

  • Height (Top of Cab): 7 ft (2.13 m)


• GyroTrac GT13: Ideal for large-scale land clearing operations requiring the removal of substantial vegetation and trees. Its dedicated mulching capabilities allow for efficient processing of large volumes of material.

• Bobcat T320 with Forestry Attachment: Best suited for smaller-scale projects or areas with limited access. Its compact size and versatility make it effective for clearing brush and smaller trees.


• Regular Maintenance: Adhere to the manufacturer's recommended maintenance schedules, including oil changes, filter replacements, and inspections.

• Hydraulic System Care: Regularly check hydraulic fluid levels and inspect hoses for wear to prevent system failures.

• Attachment Maintenance: For the T320, ensure that the forestry attachment is properly maintained, including sharpening or replacing teeth on the mulcher head as needed.

• Operator Training: Ensure that operators are adequately trained in the use of these machines to maximize efficiency and safety.


The Caterpillar TC30 forklift, introduced in the early 1960s, was a pivotal model in Caterpillar's expansion into the materials handling sector. Manufactured by Towmotor Corporation, a company acquired by Caterpillar in 1966, the TC30 represented a blend of Towmotor's engineering expertise and Caterpillar's robust industrial design. This collaboration aimed to produce a forklift that combined durability with advanced technology for its time.

Key Specifications

• Engine: The TC30 was typically equipped with a 4-cylinder Continental gasoline engine, known for its reliability and ease of maintenance.

• Lift Capacity: Designed for moderate-duty applications, the TC30 had a lift capacity of approximately 3,000 pounds (1,361 kg).

• Mast Configuration: The forklift featured a two-stage mast, providing a maximum lift height of around 130 inches (3.3 meters).

• Transmission: It utilized a hydrostatic transmission, offering smooth acceleration and deceleration without the need for manual gear shifting.

• Tires: The TC30 was equipped with solid cushion tires, making it suitable for indoor operations on smooth surfaces.


Blue smoke emanating from a diesel engine's exhaust is a clear indication that the engine is burning oil. This phenomenon is often a sign of underlying mechanical issues that require prompt attention to prevent further damage and ensure the engine's longevity.
Causes of Blue Smoke
Several factors can lead to the emission of blue smoke from a diesel engine:

1. Worn Piston Rings: Piston rings are crucial for sealing the combustion chamber. Over time, these rings can wear out, allowing oil to seep into the combustion area, where it burns and produces blue smoke.

2. Faulty Valve Seals: Valve seals prevent oil from entering the combustion chamber through the valves. Damaged or worn seals can lead to oil leakage, resulting in blue smoke.

3. Turbocharger Issues: In turbocharged engines, the turbocharger's seals can fail, causing oil to enter the intake or exhaust systems. This oil burns within the engine, producing blue smoke.

4. PCV Valve Malfunction: The Positive Crankcase Ventilation (PCV) valve regulates the release of gases from the engine's crankcase. A malfunctioning PCV valve can lead to excessive oil consumption and blue smoke emissions.

5. Overfilled Oil: Excess oil in the engine can cause increased pressure, leading to oil entering areas where it shouldn't, resulting in blue smoke.


• Compression Test: This test measures the pressure within each cylinder. Low compression readings can indicate worn piston rings or valves.

• Leak-Down Test: This test helps identify the source of compression loss by pressurizing each cylinder and listening for escaping air.

• Visual Inspection: Checking for oil leaks around the turbocharger, valve seals, and PCV valve can help pinpoint the source of oil entering the combustion chamber.


• Replacing Worn Components: This includes installing new piston rings, valve seals, or turbocharger seals to prevent oil leakage.

• PCV Valve Replacement: Replacing a faulty PCV valve can restore proper crankcase ventilation and reduce oil consumption.

• Oil Level Adjustment: Ensuring the engine oil is at the correct level can prevent overpressure and oil seepage.

• Regular Maintenance: Adhering to the manufacturer's recommended maintenance schedule can prevent premature wear of engine components.


• Use High-Quality Oil: Opt for oils that meet the engine manufacturer's specifications to ensure proper lubrication and reduce wear.

• Regular Oil Changes: Changing the oil at recommended intervals helps maintain engine cleanliness and performance.

• Monitor Engine Performance: Pay attention to any changes in engine behavior, such as increased oil consumption or unusual exhaust smoke, and address them promptly.


The TL130 and Its Instrument Panel Design
The Takeuchi TL130 compact track loader, introduced in the early 2000s, was part of Takeuchi’s push into the North American market with a focus on durability and operator comfort. With a rated operating capacity of 1,900 lbs and a robust undercarriage, the TL130 became a popular choice for contractors and landscapers. Its cab layout included a digital gauge cluster mounted on the right side of the operator station, displaying engine vitals, warning lights, and system status.
Unlike analog panels, the TL130’s gauge cluster integrates a circuit board with LED indicators, a sealed lens, and a molded plastic housing. This modular design improves visibility and diagnostic capability but makes repairs more complex and expensive when damaged.
Impact Damage and Component Vulnerability
In one incident, a TL130 was undergoing trailer maintenance when the trailer shifted unexpectedly. A tire struck the cab interior, destroying the gauge cluster. The damage included:

• Cracked outer casing

• Shattered lens

• Broken circuit board controlling LED warning lights


• Gauge Cluster: A centralized panel displaying machine status through digital or analog indicators

• LED Warning Lights: Light-emitting diodes that signal faults or system alerts

• Circuit Board: An electronic board that routes signals to display components

• Lens: The transparent cover protecting the gauge face

• Assembly: A complete unit including housing, electronics, and display components


• Salvaging the circuit board and testing continuity

• Fabricating a new housing from ABS plastic or aluminum

• Replacing the lens with polycarbonate or acrylic

• Rewiring LED connections and resealing the unit


• Search by part number, not just model

• Contact independent mechanics who specialize in Takeuchi repairs

• Check online auction platforms for parts machines

• Ask local rental yards if they have retired units for sale


• Install cab guards or internal bump stops near vulnerable panels

• Use wheel chocks and jack stands during trailer maintenance

• Keep the cab clear of loose tools and parts during service

• Add a protective film over the gauge lens to reduce impact risk


ASV skid steer loaders, renowned for their durability and performance, require meticulous attention to oil maintenance to ensure longevity and optimal functionality. Proper lubrication is crucial for the engine, hydraulic system, and drive components, each demanding specific oil types and maintenance intervals.

Engine Oil Specifications
ASV recommends using high-quality engine oils that meet or exceed the specifications outlined in the operator's manual. For instance, the RT-40 model, equipped with a Kubota D1803-CR-T engine, requires 7.4 quarts (7 liters) of engine oil, including the filter . The normal oil change interval is every 500 service hours or one year, whichever comes first. Under harsh operating conditions, such as extreme temperatures or heavy loads, more frequent oil changes may be necessary.

Hydraulic Oil Requirements
The hydraulic system is vital for the loader's lifting and digging capabilities. ASV specifies the use of multi-viscosity hydraulic oils that meet or exceed the JD20 specification. For example, Chevron Rykon MV was previously recommended, and its successor, Chevron Rando HD Premium MV, is now a suitable replacement . The RT-40 model has a hydraulic tank capacity of 3.5 gallons (13.25 liters) . Regular oil analysis is advised to monitor the condition of the hydraulic fluid and determine the optimal replacement intervals.

Drive System Lubrication
The drive system, encompassing the tracks and undercarriage, requires specific lubrication to prevent wear and ensure smooth operation. ASV provides detailed maintenance schedules for greasing intervals, typically every 10 hours of operation, to maintain the integrity of these components.

Cold Weather Considerations
In colder climates, selecting the appropriate oil viscosity is essential to ensure proper flow and prevent damage during startup. ASV's Posi Lube, a multi-viscosity 5W-30 hydraulic oil, was previously recommended for cold weather operations. While no longer available, similar multi-viscosity oils with equivalent specifications can be used .

Maintenance Tips

• Regular Oil Changes: Adhere to the recommended oil change intervals to prevent engine sludge buildup and maintain optimal performance.

• Use OEM-Approved Fluids: Always use oils and lubricants that meet ASV's specifications to ensure warranty compliance and equipment longevity.

• Monitor Fluid Levels: Regularly check oil levels and top up as necessary to prevent component damage due to low lubrication.

• Filter Replacements: Replace oil and hydraulic filters at the recommended intervals to maintain system cleanliness and efficiency.

• Cold Weather Precautions: In cold conditions, allow the engine to warm up before operation to ensure proper oil circulation and prevent startup issues.


The Tragedy That Sparked Legal Action
In 2005, a fatal accident at a construction site in Abbeymead, Gloucester, exposed critical flaws in equipment access control and operator training. Lance Taylor, a 23-year-old laborer from Thornbury, Bristol, was operating a mini excavator without formal qualifications. While leaning out of the cab window, he inadvertently activated a control lever. The boom arm rose and crushed his head between the cab and the arm, killing him instantly.
The machine was running, the keys had been left in the ignition, and no lockout procedures were in place. The incident was not only tragic—it was preventable.
Legal Consequences and Regulatory Breaches
Macob Administration Limited, the construction company overseeing the site, was prosecuted under the Provision and Use of Work Equipment Regulations 1998. Specifically, they were found in breach of:

• Regulation 9(1): Ensuring that equipment is used only by trained and competent individuals

• Regulation 28(a): Preventing unauthorized access to dangerous machinery


• Lockout Procedure: A safety protocol that disables equipment to prevent accidental activation

• Competent Person: An individual with the necessary training, experience, and knowledge to perform tasks safely

• Mini Excavator: A compact hydraulic digging machine used for trenching and small-scale excavation

• Provision and Use of Work Equipment Regulations (PUWER): UK legislation governing the safe use of machinery and tools in the workplace


• Documented training for all equipment operators

• Daily toolbox talks and site-specific safety briefings

• Lockout/tagout systems for all machinery

• Written records of safety meetings and operator certifications

• Strict control over ignition keys and machine access


• Implement lockout systems on all equipment

• Remove keys from machines when not in use

• Conduct formal training and certification for all operators

• Enforce a zero-tolerance policy for unauthorized machine use

• Perform regular audits of safety procedures and access control

• Encourage a culture of accountability and peer enforcement


The Caterpillar D5N is a mid-size track-type tractor that was produced from 2003 to 2006. It was designed to offer a balance between power, maneuverability, and fuel efficiency, making it suitable for a variety of applications, including construction, land clearing, and grading.

Key Specifications

• Engine: The D5N is powered by the Cat 3126B DITAAC engine, a 7.2-liter, six-cylinder turbocharged diesel engine. It delivers a net power of 121 horsepower (90.3 kW) at 2,000 rpm, providing ample power for demanding tasks.

• Operating Weight: Depending on the configuration, the operating weight ranges from approximately 28,000 to 29,000 pounds (12,700 to 13,200 kg), which contributes to its stability and traction.

• Dimensions:
  • Length with blade: Approximately 16.7 feet (5.1 meters)

  • Width over tracks: Approximately 9.1 feet (2.8 meters)

  • Height to top of cab: Approximately 10 feet (3.05 meters)

  • Ground clearance: Approximately 1.4 feet (0.43 meters)

• Blade: The D5N typically comes equipped with a Variable Pitch Angle Tilt (VPAT) blade. The blade capacity is around 2.6 cubic meters (3.4 cubic yards), and the blade width is approximately 11 feet (3.35 meters) for the Low Ground Pressure (LGP) version.

• Track System: The LGP version features wider tracks (30 inches or 760 mm) to distribute weight over a larger area, reducing ground pressure and improving flotation on soft or wet ground.


• Hydraulic System: Regularly check and replace hydraulic filters and fluid to maintain efficient operation.

• Undercarriage: Inspect track tension, rollers, and sprockets for wear. Proper maintenance can extend the life of the undercarriage components.

• Cooling System: Ensure the radiator and cooling fans are clean and functioning correctly to prevent overheating.

• Engine: Follow the manufacturer's recommended intervals for oil changes and air filter replacements.
