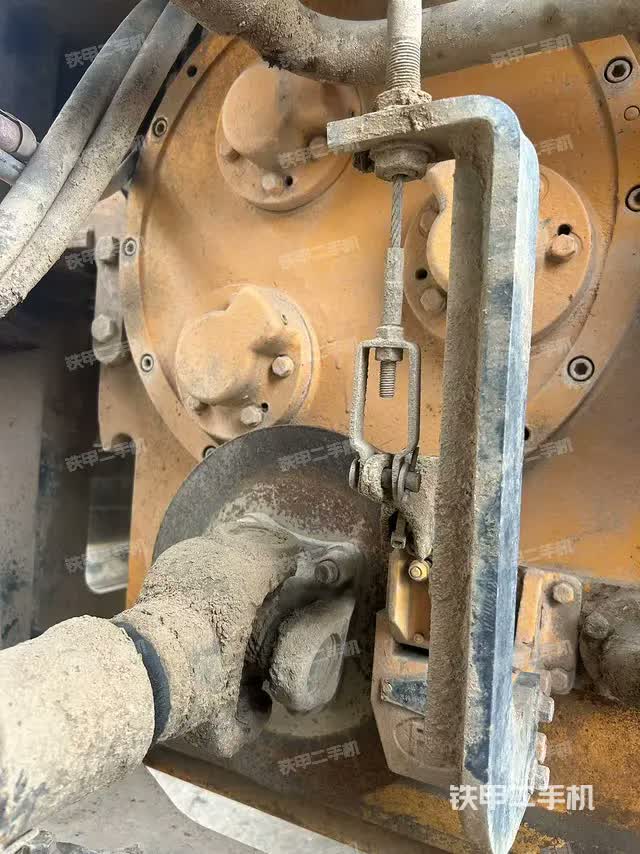

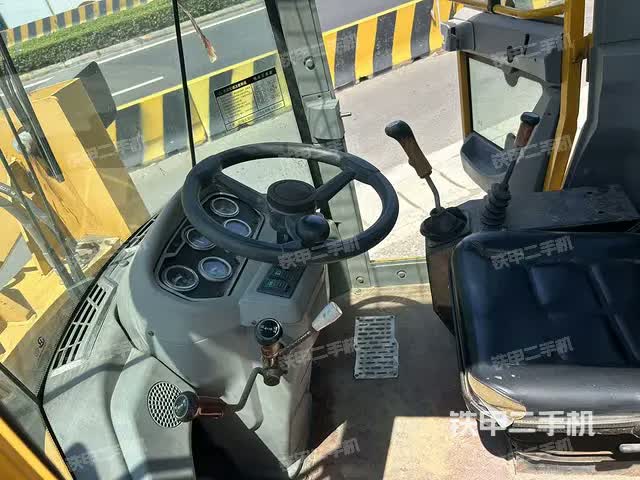

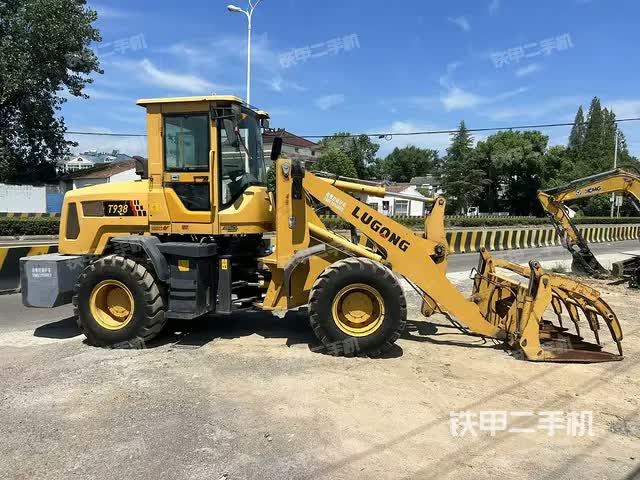

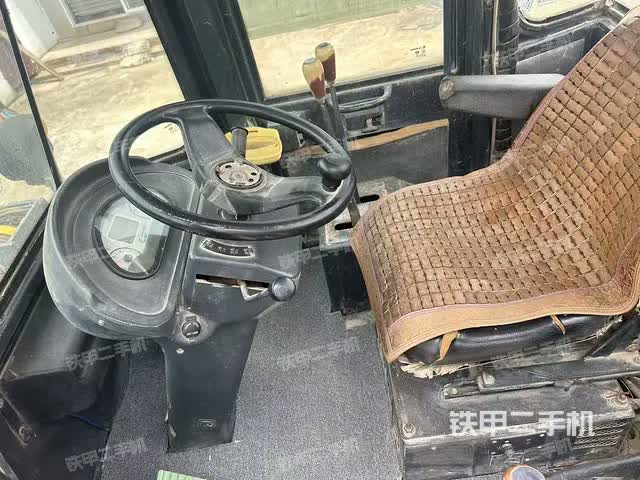

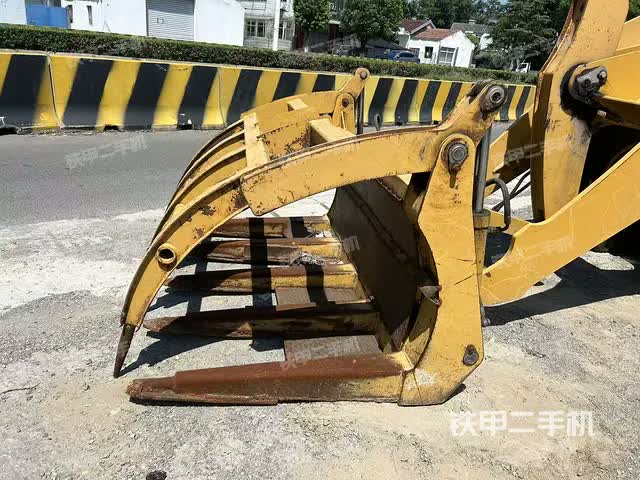

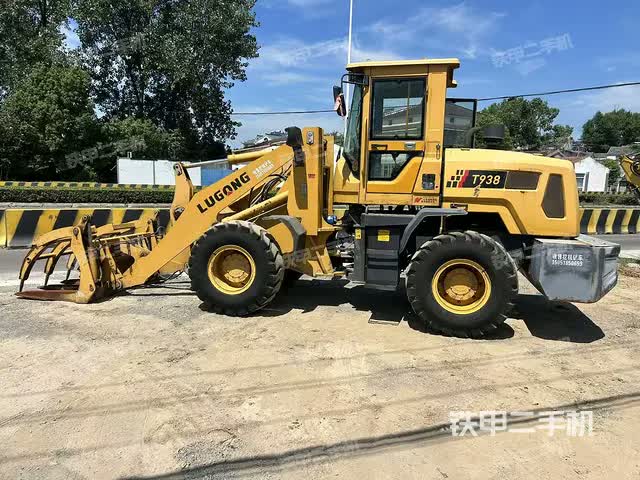

ID：1825800

• Brand: Shandong Lugong

• Model: T938

• Year of Manufacture: 2022

• Operating Hours: 800 hours

• Location: Jiangsu-Yangzhou

• Last Updated: 13 hours ago


• Rated Power: 60–80 kW at standard RPM

• Engine Type: Diesel, optimized for fuel efficiency and longevity


• Bucket Capacity: 1.0 m³

• Rated Load: Under 3 tons

• Operating Weight: 1,800 kg

• Max Dump Height: 3,900 mm


• Compact design for easy maneuvering in narrow spaces

• Simple hydraulic system reduces maintenance complexity

• Economical fuel consumption suitable for extended work hours

• Durable frame and reinforced bucket support extended service life

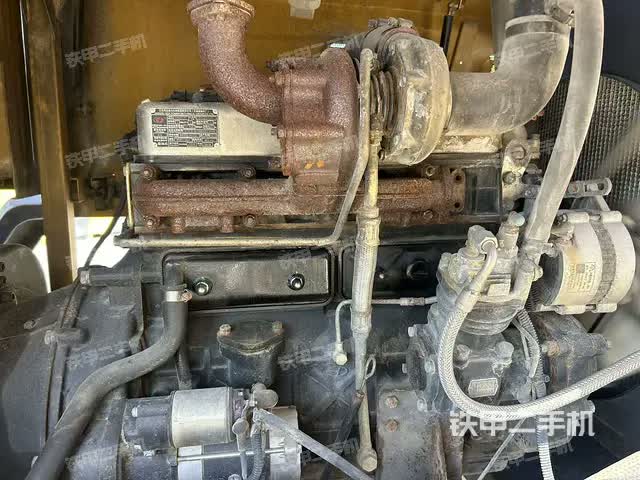

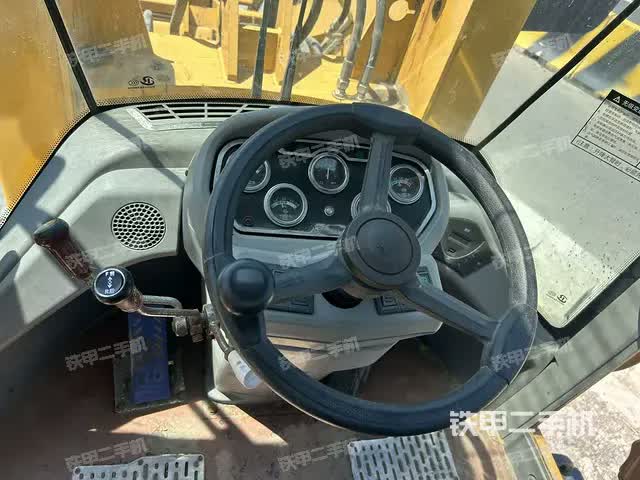

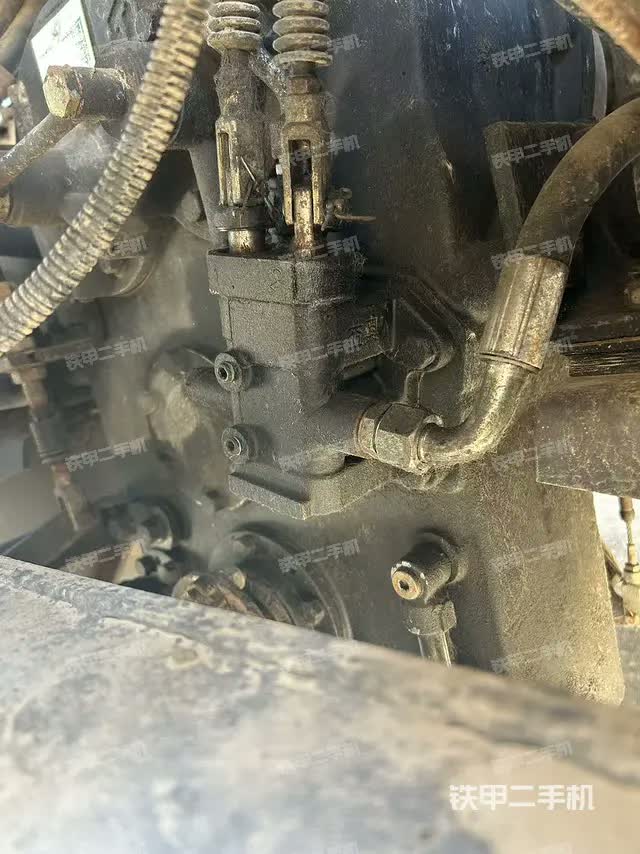

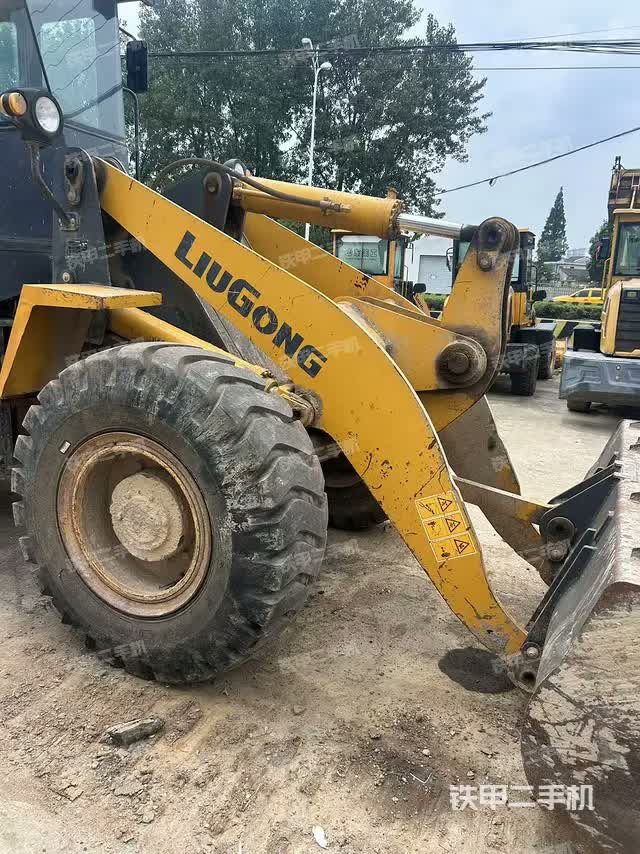

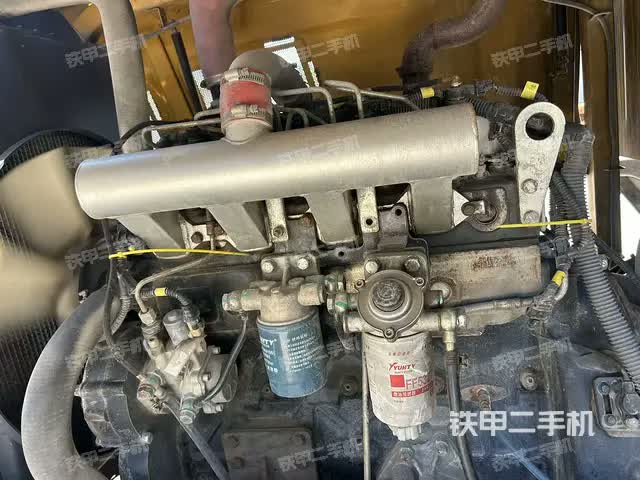

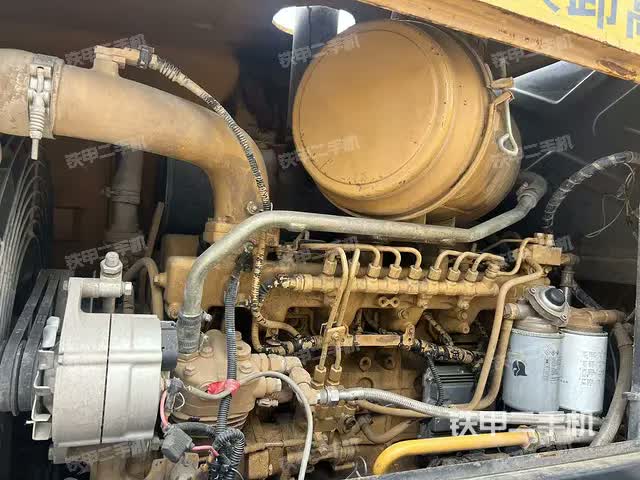

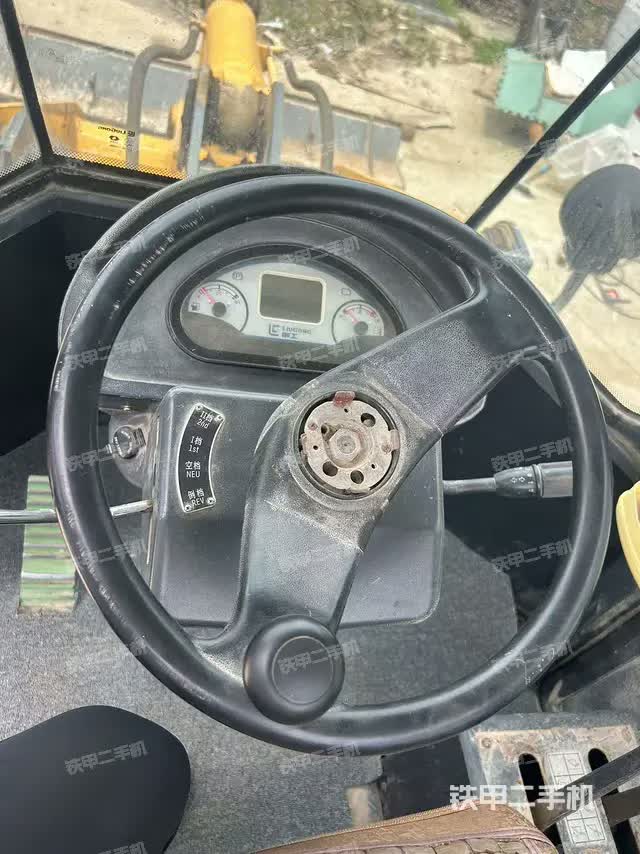

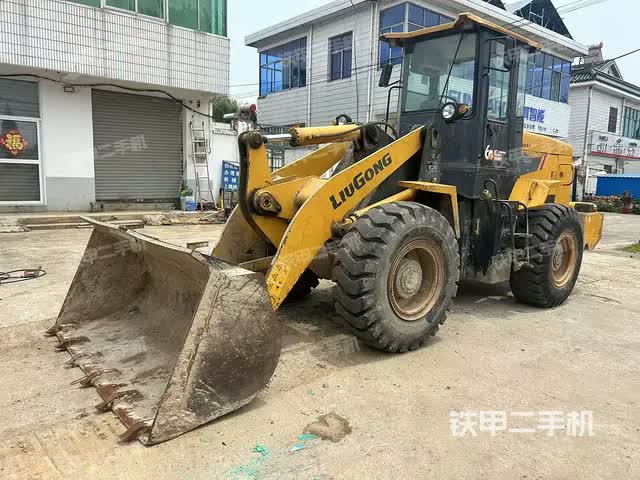

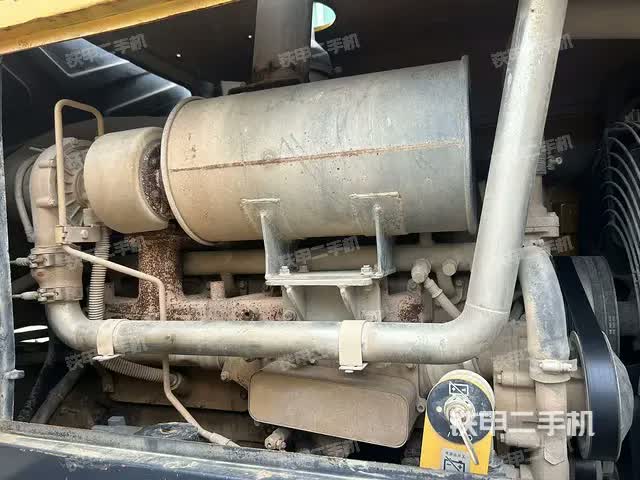

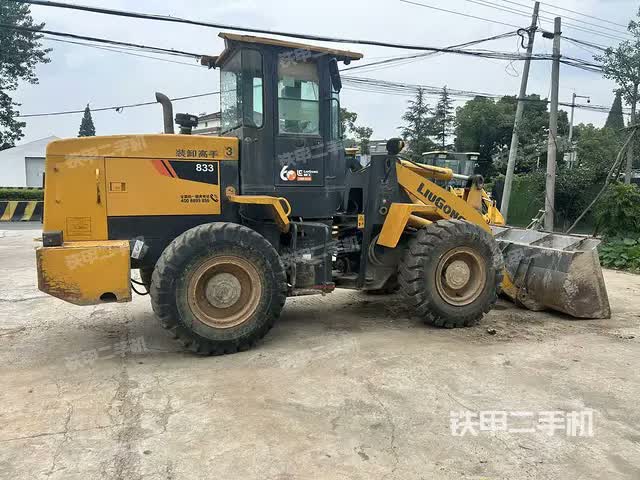

ID：1825799

• Brand: LiuGong

• Model: CLG833

• Year of Manufacture: 2019

• Operating Hours: 3,600 hours

• Location: Jiangsu-Wuxi

• Last Updated: 13 hours ago


• Rated Power: 92 kW at standard RPM

• Engine Type: Diesel, built for long-term reliability and fuel efficiency


• Bucket Capacity: 1.7 m³

• Rated Load: 3-5 tons

• Rated Payload: 3,000 kg

• Breakout Force: 100 kN

• Operating Weight: 10,100 kg

• Max Dump Height: 2,911 mm

• Max Traction Force: 90 ± 5 kN


• Minimum Turning Radius (inner wheel line): 5,393 ± 50 mm

• Turning Radius (bucket outer edge): 5,876 ± 50 mm


• Balanced weight distribution enhances stability during high-load operations

• Ergonomic cab design reduces operator fatigue during long shifts

• Durable undercarriage and reinforced frame improve lifespan in harsh environments

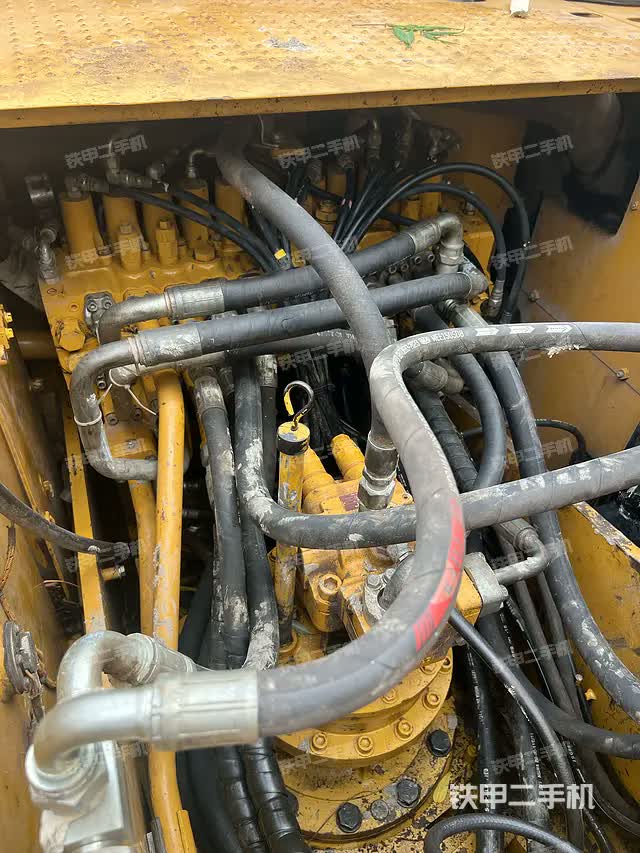

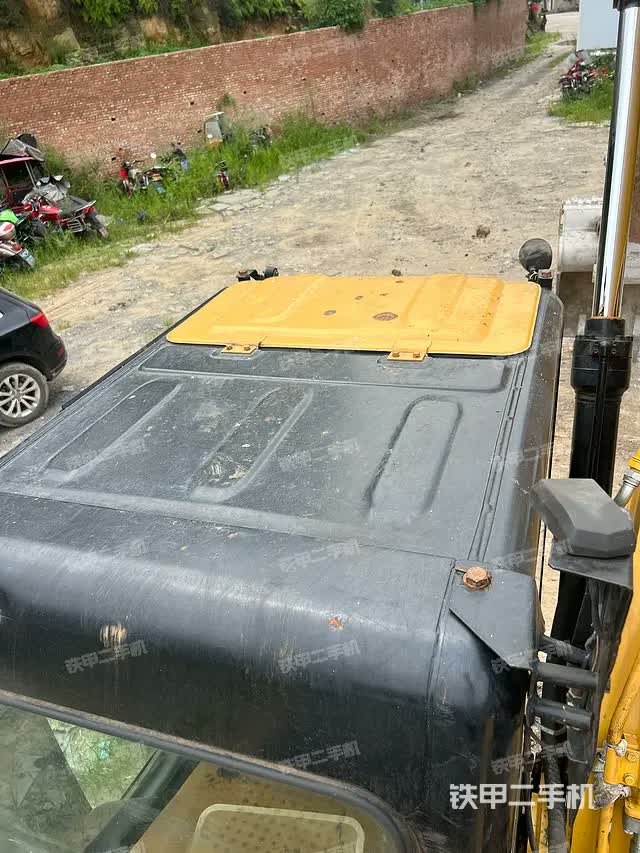

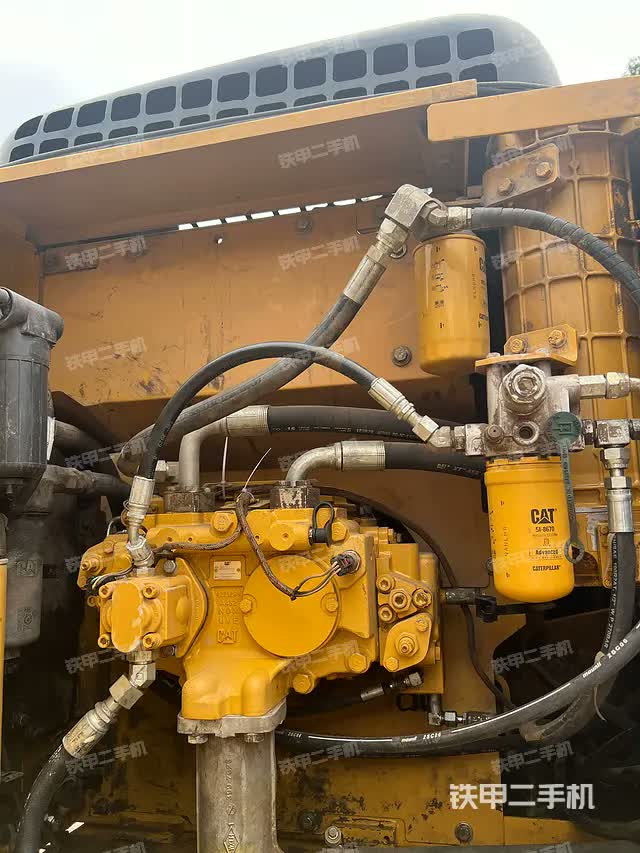

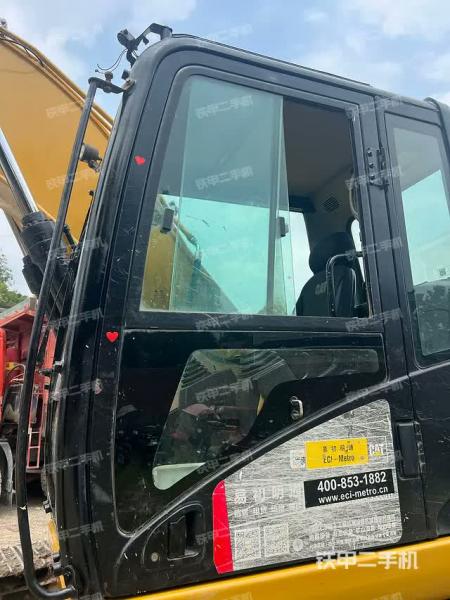

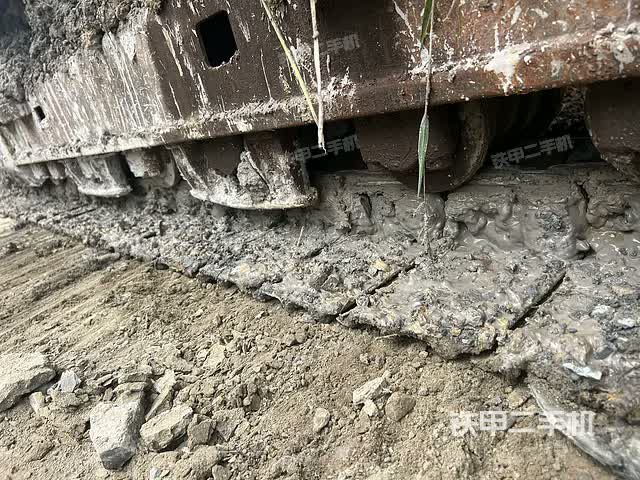

ID：1825766

• Brand: Caterpillar
• Model: 320D2 Hydraulic
• Year of Manufacture: 2017
• Hours of Operation: 8,000 hours
• Location: Neijiang, Sichuan Province
• Last Updated: Updated 13 hours ago

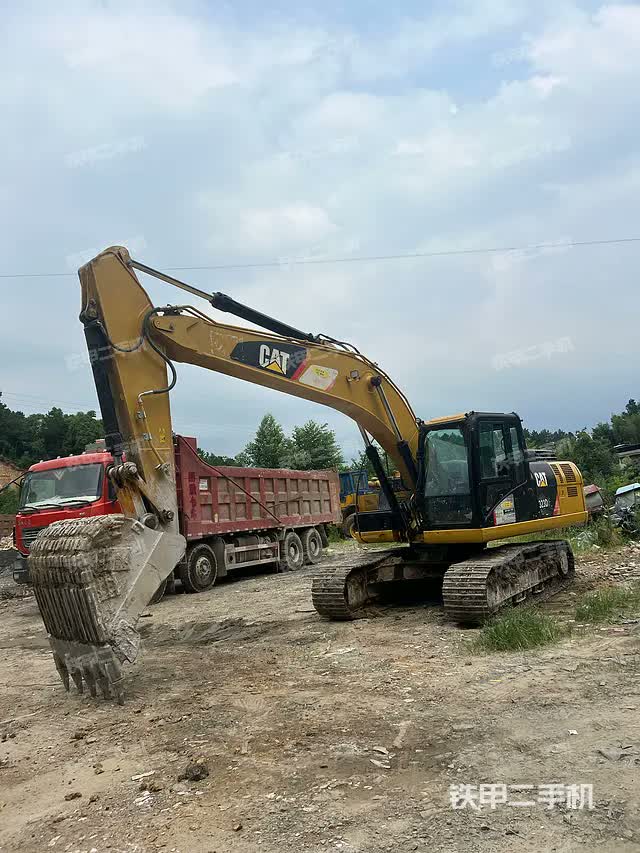

The 2017 Caterpillar 320D2 is a mid-sized hydraulic excavator designed for heavy-duty construction and earthmoving tasks. With a total of 8,000 operating hours and stationed in Neijiang, Sichuan, this machine represents a reliable option for operators seeking efficiency and performance in a durable package. The 320D2 combines Caterpillar’s legacy of precision engineering with robust hydraulic systems for versatile applications.

• Operating Weight: 21,100 kg

• Rated Load Capacity: 20 tons

• Bucket Capacity: 1 m³

• Boom Length: 5,700 mm

• Arm Length: 2,500/2,900 mm (HD type)

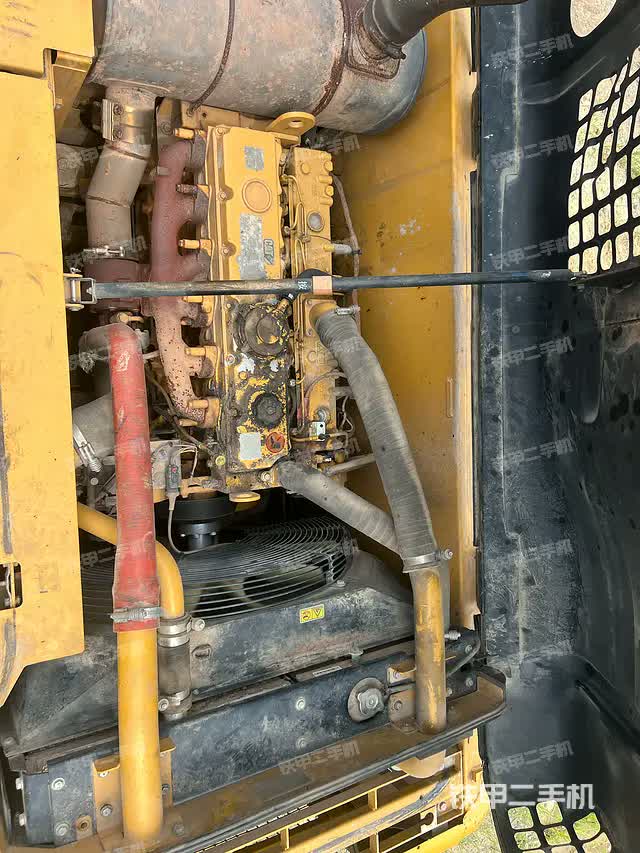

• Engine: Cat C7.1, 6-cylinder, 7.01 L, 112 kW @ 1,800 RPM, Tier 2 emission

• Bucket Type: Backhoe

• Origin: Xuzhou, China


• Swing Speed: 10.9 rpm

• Gradeability: 70% / 35°

• Bucket Digging Force: 125 kN

• Arm Digging Force: 104 kN

• Max Traction Force: 205 kN

• Travel Speed: 5.4 km/h

• Swing Torque: 61.8 kNm


• Main Relief Pressure: 35 MPa

• Max Main Pump Flow: 404 L/min

• Travel Hydraulic Circuit Pressure: 35 MPa

• Swing Hydraulic Circuit Pressure: 25 MPa

• Pilot Pump Flow: 32.4 L/min

• Pump Type: Axial piston pump + pilot pump

• Bucket Cylinder: 1 × 120 mm × 1,104 mm

• Arm Cylinder: 1 × 140 mm × 1,504 mm

• Boom Cylinder: 1 × 120 mm × 1,260 mm


• Fuel Tank: 410 L

• Hydraulic Tank: 138 L

• Engine Oil Replacement: 22 L

• Coolant: 25 L

• Hydraulic System Oil: 260 L


• Transport Length: 9,460 mm

• Transport Width: 2,800 mm

• Transport Height: 3,030 mm

• Cab Height: 2,950 mm

• Counterweight Ground Clearance: 1,020 mm

• Minimum Ground Clearance: 450 mm

• Rear Swing Radius: 2,750 mm

• Track Length: 4,080 mm

• Track Width Options: 600 / 700 / 790 mm

• Track Gauge: 2,200 mm

• Ground Contact Length: 3,270 mm


• Max Digging Depth: 6,720 mm

• Max Digging Height: 9,490 mm

• Max Dumping Height: 6,490 mm

• Max Vertical Digging Depth: 5,690 mm

• Max Reach at Ground Level: 9,890 mm

• Max Effective Digging Depth: 6,380 mm


The D20A and Its Transmission Architecture
The Komatsu D20A is a compact crawler dozer built for light grading, land clearing, and agricultural support. Introduced in the 1980s, it became popular in Japan and Southeast Asia before gaining traction in export markets. With an operating weight around 8,000 lbs and a power rating near 40 hp, the D20A was designed for maneuverability and simplicity. Its transmission system uses a torque converter paired with a multi-speed gear train and clutch packs to deliver power to the tracks.
Unlike hydrostatic drive systems found in newer models, the D20A relies on mechanical linkages and hydraulic actuation to shift between forward and reverse. This makes it easier to service but also prone to wear-related failures—especially in machines that have seen decades of use.
Symptoms of Forward Drive Loss
Operators have reported that the D20A intermittently loses forward transmission function while reverse remains unaffected. The oil levels are full, and no broken gears are visible inside the case. The machine behaves as if the brakes are engaging unexpectedly, preventing forward movement.
This condition suggests a failure in the forward clutch pack, hydraulic control valve, or internal seals that regulate pressure to the transmission. It may also indicate that the brake bands are dragging or misadjusted, creating resistance that mimics transmission failure.
Terminology Clarification

• Torque Converter: A fluid coupling that transfers engine power to the transmission

• Clutch Pack: A series of friction discs that engage or disengage drive in a specific direction

• Brake Band: A curved friction surface that slows or locks a rotating drum

• Hydraulic Control Valve: A component that directs pressurized fluid to actuate clutches or brakes

• Transmission Case: The housing that contains gears, shafts, and clutch assemblies


• Worn Forward Clutch Pack: Friction discs may be glazed or thinned, reducing engagement force

• Internal Seal Failure: Hydraulic seals inside the clutch piston may leak, preventing pressure buildup

• Brake Band Drag: Misadjusted or seized brake bands can resist forward movement

• Valve Body Contamination: Debris or varnish buildup can block fluid channels

• Directional Valve Malfunction: The spool valve controlling forward/reverse may stick or bypass fluid


• Drain and inspect transmission fluid for metal particles or discoloration

• Remove the valve body and check for debris or scoring

• Test clutch pack engagement manually by applying air pressure to the piston

• Inspect brake band clearance and adjust per factory specs

• Verify that the directional valve moves freely and seats correctly


• Change transmission fluid every 500 hours or annually

• Use only manufacturer-approved hydraulic oil

• Inspect clutch pack thickness during major service intervals

• Adjust brake bands quarterly or after heavy use

• Clean valve body passages during rebuilds or fluid changes


The Mack E7-427 engine is a notable model in Mack Trucks' lineup, renowned for its robust performance and reliability. Introduced in the late 1990s, the E7-427 was part of Mack's E7 series, which was designed to meet the demands of heavy-duty trucking.

Engine Specifications

• Model: E7-427

• Displacement: 11.9 liters

• Configuration: Inline 6-cylinder

• Horsepower: 427 hp at 1,800 RPM

• Torque: Approximately 1,660 lb-ft

• Fuel Type: Diesel

• Turbocharged: Yes

• Engine Brake: Yes (commonly equipped with Jake Brake)


Introduction
Operating diesel engines at elevations exceeding 5,000 feet presents unique challenges that can affect engine performance, starting reliability, and overall efficiency. The reduced atmospheric pressure at higher altitudes leads to lower oxygen availability, which can hinder combustion processes. Understanding these challenges and implementing appropriate solutions is crucial for ensuring optimal engine performance in such environments.
Impact of High Altitude on Diesel Engine Performance
At higher elevations, the decrease in atmospheric pressure results in a lower oxygen concentration in the intake air. This reduction in oxygen can lead to incomplete combustion, characterized by symptoms such as:

• Hard Starting: Engines may exhibit difficulty in starting due to inadequate combustion temperatures.

• Increased Exhaust Smoke: Incomplete combustion can produce excessive black smoke from the exhaust.

• Reduced Power Output: Engines may experience a noticeable decrease in power, affecting performance.


1. Pre-Heating the Intake Air: Utilizing intake air heaters or flame-start systems can increase the temperature of the incoming air, facilitating better combustion. These systems heat the air before it enters the combustion chamber, improving the ignition process.

2. Optimizing Fuel Injection Timing: Adjusting the fuel injection timing can compensate for the reduced oxygen levels. Advanced timing can lead to more efficient combustion, improving starting performance.

3. Enhancing Glow Plug Systems: Ensuring that glow plugs are functioning correctly is vital. Inadequate glow plug performance can result in poor starting conditions. Regular maintenance and testing of glow plugs can prevent such issues.

4. Utilizing Starting Fluids Cautiously: While starting fluids can aid in engine ignition, they should be used with caution, especially in diesel engines equipped with glow plugs or preheating systems. Improper use can lead to engine damage.

5. Regular Maintenance Checks: Routine inspections of the fuel system, air intake components, and exhaust systems ensure that all parts are functioning optimally. This proactive approach can identify potential issues before they affect engine performance.


The CAT 420E IT and Its Drivetrain Configuration
The Caterpillar 420E IT (Integrated Toolcarrier) backhoe loader was designed to offer enhanced versatility for contractors needing both digging and material handling capabilities. Introduced in the mid-2000s, the 420E IT featured a four-wheel drive system with electronic engagement, allowing operators to switch between two-wheel and four-wheel drive modes depending on terrain and traction needs. The system is controlled via a dash-mounted switch that activates solenoids and valves to engage the front axle.
Unlike older mechanical linkages, the 420E IT uses an electrically actuated clutch pack to engage the front drive. This setup improves responsiveness and reduces wear, but it also introduces diagnostic complexity when the system fails to disengage.
Symptoms of Continuous Engagement
Operators have reported that the four-wheel drive remains active even after the switch is turned off. This is typically observed when all four wheels are lifted off the ground and the front wheels continue to rotate. While this may appear to be a malfunction, it’s often a misinterpretation of how the system behaves under no-load conditions.
When the machine is suspended, residual hydraulic pressure and drivetrain drag can cause the front wheels to spin, even if the clutch pack is disengaged. The correct method to test disengagement is to lower the front wheels to the ground while keeping the rear wheels elevated. If the front wheels remain stationary during throttle input, the system is disengaged. If they spin, four-wheel drive is still active.
Terminology Clarification

• Clutch Pack: A set of friction discs used to engage or disengage power transfer in the drivetrain

• Solenoid: An electrically controlled valve or actuator that triggers mechanical movement

• Integrated Toolcarrier (IT): A configuration that allows quick attachment changes and improved material handling

• Drivetrain Drag: Residual movement caused by internal friction or fluid pressure

• No-Load Condition: A state where wheels are free to spin without resistance from ground contact


• Lift the rear wheels off the ground while keeping the front wheels on solid ground

• Turn off the four-wheel drive switch and start the engine

• Apply throttle and observe front wheel movement

• If the front wheels remain stationary, the system is disengaged

• If they spin, inspect the solenoid, wiring, and clutch pack for faults


• Check for fault codes using a diagnostic scanner

• Inspect solenoid connectors for corrosion or loose pins

• Test voltage at the solenoid during switch activation

• Listen for audible clicks when the switch is toggled


• Clean electrical connectors quarterly

• Replace worn switches with OEM components

• Flush hydraulic fluid every 1,000 hours

• Inspect clutch pack wear during drivetrain service intervals

• Avoid prolonged operation in four-wheel drive on hard surfaces


The Caterpillar TC30 is a compact, internal combustion forklift designed for indoor material handling tasks. Manufactured by Towmotor Corporation, a subsidiary of Caterpillar Tractor Co., the TC30 was introduced in the 1960s. This model was part of Caterpillar's expansion into the material handling equipment market, complementing its extensive line of construction machinery.

Key Specifications

• Load Capacity: 3,000 lbs

• Fuel Type: LP Gas

• Tire Type: Cushion tires

• Transmission: 2-speed forward/reverse

• Lift Height: Approximately 12'9"

• Service Weight: Approximately 5,500 lbs

• Engine: Continental 4-cylinder LP gas engine


Introduction
Checking the transmission fluid level is a crucial maintenance task that ensures the smooth operation of your vehicle's transmission system. The method of checking can vary depending on the vehicle's make and model, as well as the type of transmission system it employs. This guide provides an in-depth look at the procedures and considerations involved in checking transmission fluid levels.
Transmission Fluid Basics
Transmission fluid serves multiple purposes: it lubricates the moving parts within the transmission, cools the system, and facilitates smooth gear shifts. The fluid's level and condition are vital indicators of the transmission's health. Low or degraded fluid can lead to poor performance, overheating, and potential transmission failure.
When to Check the Fluid
The optimal time to check transmission fluid is when the vehicle is warmed up, as this allows the fluid to expand to its normal operating volume. However, the engine's status—running or off—depends on the manufacturer's specifications.
Checking Fluid with the Engine Running
For many vehicles, especially those with automatic transmissions, the engine should be running during the fluid check. This ensures that the transmission pump is circulating the fluid throughout the system, providing an accurate reading. The vehicle should be on a level surface, and the transmission should be in 'Park' or 'Neutral,' depending on the manufacturer's instructions.
Checking Fluid with the Engine Off
Some manufacturers recommend checking the transmission fluid level with the engine off, particularly for certain models or types of transmissions. In these cases, it's essential to follow the specific guidelines provided in the vehicle's owner's manual to ensure an accurate reading.
Using the Dipstick
Many vehicles are equipped with a dipstick for checking transmission fluid levels. To use the dipstick:

1. Locate the dipstick, often marked with a bright-colored handle.

2. Remove the dipstick and wipe it clean with a lint-free cloth.

3. Reinsert the dipstick fully, then remove it again to check the fluid level.

4. Compare the fluid level to the markings on the dipstick.

5. Inspect the fluid's color and consistency; healthy fluid is typically red or pink and has a slightly sweet odor.


• Low Fluid Level: Can cause slipping, erratic shifting, or overheating.

• Dirty or Burnt Fluid: Indicates the need for a fluid change.

• Leaks: Visible fluid spots under the vehicle may suggest a leak.


The D38E and Its Steering System Design
The Komatsu D38E, produced in the late 1990s, was part of Komatsu’s compact crawler dozer lineup aimed at utility contractors, landowners, and municipalities. With an operating weight around 18,000 lbs and a power rating near 90 hp, the D38E was built for maneuverability and light-to-medium grading tasks. Its steering system is based on wet clutches and brakes—similar in principle to an automotive disc brake system, but immersed in oil for cooling and longevity.
Unlike older lever-controlled dozers, the D38E features joystick steering, which actuates hydraulic valves to engage the steering clutches and brakes. This setup offers smoother control but introduces complexity in diagnostics when steering becomes weak or unresponsive.
Symptoms of Steering Weakness
Operators have reported that the D38E struggles to turn effectively, especially under load or during tight maneuvers. In joystick-controlled models, this can manifest as sluggish response or failure to pivot when the joystick is engaged. Unlike traditional clutch-and-brake systems, there’s no direct mechanical feedback—making it harder to isolate the problem without pressure testing.
Common symptoms include:

• Delayed or incomplete turns

• One side failing to disengage or brake

• Joystick movement without corresponding track response

• Reduced steering effectiveness after warm-up


• Wet Clutch: A clutch system operating in oil to reduce wear and dissipate heat

• Steering Brake: A friction brake used to slow one track during turning

• Joystick Valve: A hydraulic control unit that interprets joystick movement into clutch/brake actuation

• Pressure Check: A diagnostic procedure measuring hydraulic pressure at key points in the system

• GL-1 Oil: A non-detergent gear oil compatible with wet clutch systems


• Incorrect Hydraulic Fluid: Using incompatible oil can reduce clutch friction or cause seal swelling. GL-1 is recommended for wet clutch systems.

• Low Fluid Level or Contamination: Water or debris in the hydraulic fluid can impair clutch engagement and brake response.

• Worn or Misadjusted Brakes: Brake bands may require manual adjustment. Contrary to assumption, they are not self-adjusting.

• Joystick Valve Bypass: Internal leakage or wear in the joystick valve can prevent full pressure from reaching the clutch actuators.

• Clutch Pack Wear: After 3,900 hours, clutch discs may be worn or glazed, reducing engagement force.


• Check fluid level and condition in the steering clutch compartment

• Verify oil type and replace with GL-1 if necessary

• Perform brake adjustment using factory specs (typically involves backing off and retightening adjustment bolts)

• Conduct hydraulic pressure tests at the joystick valve and clutch actuators

• Inspect for signs of bypass or internal leakage in the valve body


• Inspect undercarriage wear—replacement can cost up to $10,000

• Check for signs of hydraulic leaks around the steering valve

• Test steering response under load and during pivot turns

• Ask for service records, especially fluid changes and brake adjustments

• Consider hiring a mechanic to perform a full inspection before purchase


• Change hydraulic fluid every 500 hours or annually

• Use only GL-1 oil in clutch compartments

• Adjust brakes quarterly or as needed

• Keep joystick valve clean and inspect seals during service

• Monitor steering response and address changes promptly
