The Bobcat 335 and Its Shared Cab Design
The Bobcat 335 compact excavator, produced in the mid-2000s, shares its cab layout with the more common 331 model. This design includes a molded dashboard console housing the instrument panel, ignition switch, and various electrical components. While the machine is known for its reliability and ease of service, accessing the instrument panel for replacement or repair can be deceptively tricky due to hidden clips and limited clearance.
Why Instrument Panels Fail and Need Replacement
Over time, the LCD display on the Bobcat 335 may fail due to vibration, moisture intrusion, or electrical degradation. In one case, the screen had been non-functional for months, and the operator opted to replace the panel after the machine failed to start. Although all relays and fuses were intact, the lack of display and ignition feedback prompted a full panel swap.
Terminology Clarification

• Instrument Panel: The dashboard-mounted unit displaying engine data, warnings, and system status.

• Console Clips: Spring-loaded fasteners that hold the panel in place within the molded console.

• Ignition Switch Retaining Nut: A threaded fastener securing the ignition switch from inside the console.

• Molded Console: A solid plastic housing that integrates the dashboard and control surfaces.


• Use a plastic trim tool or thin pry bar to gently lift the panel upward.

• While lifted, press inward on both side edges to release the spring clips.

• Avoid pulling directly outward, as this may snap the clip tabs.

• Once released, tilt the panel forward to expose wiring harnesses.

• Disconnect all connectors carefully, noting their orientation for reinstallation.


• Reach inside the console cavity to locate the ignition switch body.

• Use a deep socket or needle-nose pliers to loosen the retaining nut.

• Slide the switch out from the front and disconnect its wiring.


• Apply dielectric grease to all connectors during reinstallation to prevent corrosion.

• Consider replacing the ignition switch with a weather-sealed model if operating in wet environments.

• Label all wires before disconnection to avoid miswiring.

• If the panel is being replaced due to LCD failure, inspect the voltage regulator and ground connections to prevent recurrence.


JCB’s Mid-Size Telehandler and Perkins Powertrain
The JCB 505-22 telehandler was introduced in the 1990s as part of JCB’s expanding lineup of compact and mid-size material handlers. With a rated lift capacity of 5,000 lbs and a reach of 22 feet, it was designed for construction, agriculture, and industrial use. The model often came equipped with a Perkins 1004-4 diesel engine—a naturally aspirated 4-cylinder unit producing approximately 76 horsepower. This engine was known for its mechanical simplicity and long service intervals, making it a popular choice for fleet operators and independent contractors alike.
Injector Pump Configuration and Mounting Challenges
The Perkins 1004-4 engine uses a gear-driven injector pump mounted to the front gear housing. Replacing this pump is not a plug-and-play task. The drive gear is bolted from the rear, and access is restricted by the bulkhead and surrounding components. In some cases, it may appear that engine removal is necessary, but experienced technicians have found that by reaching behind the bulkhead and removing a small access panel, the gear bolt can be reached and unfastened without pulling the engine.
Terminology Clarification

• Injector Pump: A mechanical or electronic device that pressurizes and delivers fuel to the engine’s injectors.

• Drive Gear: A toothed wheel that transmits rotational force from the camshaft or crankshaft to the injector pump.

• Bulkhead: A structural partition in the engine bay that separates compartments and often restricts access.

• Bleed Screws: Small valves on the injector pump used to purge air from the fuel system during priming.


• No fuel at bleed screws despite pressure at the pump inlet

• Air bubbles in the fuel lines

• Weak flow from the shutoff solenoid


• Always verify engine serial number and pump model before ordering parts

• Use a mirror and flashlight to locate hidden access panels behind the bulkhead

• Replace old fuel lines and clamps to prevent air intrusion

• Prime the system using the manual lift pump or electric pump before cranking

• Keep a copy of the Perkins 1004-4 workshop manual for timing diagrams and torque specs


Why Suspension Seats Fail and Air Ride Matters
The Case 580 Super L (580SL) backhoe loader, introduced in the early 1990s, remains one of the most widely used utility machines in North America. With its robust hydraulic system, reliable diesel engine, and enclosed cab option, it’s a staple on farms, construction sites, and municipal fleets. However, one persistent complaint among operators is the rapid wear and discomfort of the factory-installed mechanical suspension seat. These seats often tear, lose spring tension, or bottom out after a few seasons of use—especially in machines with enclosed cabs where the seat is protected from weather but subjected to constant vibration.
Air ride seats offer a solution by replacing mechanical springs with a pneumatic bladder system that adjusts to the operator’s weight and absorbs shock more effectively. This upgrade not only improves comfort but also reduces fatigue and long-term back strain.
Terminology Clarification

• Air Ride Seat: A seat equipped with an air suspension system that uses compressed air to cushion the operator from vibration and shock.

• Swivel Base: A rotating platform that allows the seat to turn, useful for backhoe operation.

• Sears Seating: A manufacturer known for producing high-quality air ride seats for agricultural and construction equipment.

• Suspension Seat: A seat with mechanical springs or dampers designed to absorb vertical movement.


• Adjustable armrests

• Fore-aft slide rails

• Integrated compressor (12V)

• Swivel base rated for 180 degrees


• Measure the mounting bolt pattern on the original seat base before ordering.

• Ensure the cab has sufficient clearance for the seat’s height and swivel radius.

• If the machine lacks a 12V accessory port, wire the compressor directly to the fuse panel with an inline fuse.

• Retain the original seat for resale or backup; reupholstering and listing it online can recover part of the upgrade cost.


• Larger footprint

• Higher voltage compressor (24V)

• Limited swivel range


Komatsu equipment is well-known for its durability and robust performance in demanding construction and mining environments. However, like any heavy machinery, it is prone to various issues over time, particularly with the drivetrain. One common problem that operators face is a sluggish or rough drive, where the machine moves very slowly, even when the throttle is fully engaged. This type of issue can occur in several models of Komatsu machines, including bulldozers, excavators, and wheel loaders. In this article, we will explore the potential causes of sluggish drive performance in Komatsu machines and provide possible solutions.
Potential Causes of Sluggish Drive
Several factors could be responsible for the sluggish performance of a Komatsu machine. Understanding the root cause is essential in determining the right course of action for repair. Below are the most common issues that could cause a Komatsu machine to drive slowly or feel rough during operation.
1. Hydraulic System Issues
Komatsu machines heavily rely on hydraulic systems to control the movement of the tracks, wheels, and other essential components. If there is a fault in the hydraulic system, the performance of the machine can be significantly affected. Common hydraulic issues include:

• Low Hydraulic Fluid Levels: If the hydraulic fluid level is too low, the system will not be able to generate sufficient pressure to power the machine's movements.

• Contaminated Hydraulic Fluid: Contamination from dirt, debris, or water can cause the hydraulic system to malfunction, leading to sluggish movement or loss of power.

• Faulty Hydraulic Pumps: The hydraulic pumps provide the necessary pressure for moving the machine's drive system. If the pumps are worn out or malfunctioning, the drive may feel sluggish.

• Clogged Filters: Over time, hydraulic filters can become clogged with debris, leading to a decrease in fluid flow and a subsequent reduction in machine performance.


• Low Transmission Fluid: Insufficient transmission fluid can cause the gears to slip or fail to engage properly, resulting in a slow drive.

• Worn-out Gears or Clutches: Over time, the gears and clutches in the transmission system can wear out, causing poor engagement and sluggish operation.

• Transmission Fluid Contamination: Similar to hydraulic fluid, transmission fluid can also become contaminated with dirt, metal shavings, or moisture, which can cause the transmission to fail.


• Fuel System Malfunctions: If there is a problem with the fuel delivery system, such as clogged fuel filters or a failing fuel pump, the engine may not receive the necessary amount of fuel, leading to low power output.

• Dirty Air Filters: A clogged or dirty air filter can restrict airflow into the engine, resulting in a lack of power and a rough drive.

• Engine Overheating: If the engine is overheating, it may enter a protective mode and reduce power output to prevent further damage. This could be due to a malfunctioning cooling system or low coolant levels.


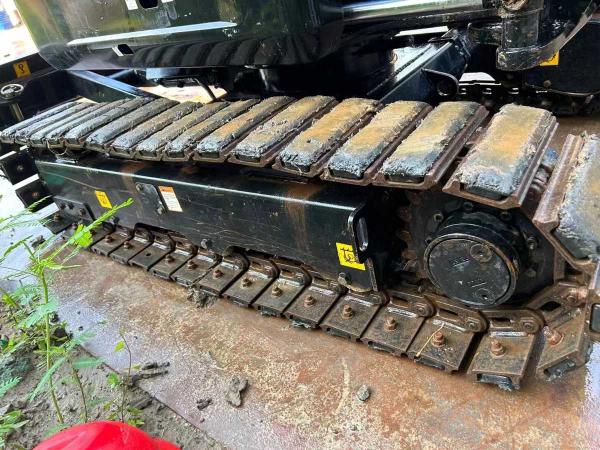

• Low Track Tension: If the track tension is too low, the tracks may slip or not engage properly, causing slow movement.

• Worn-out Drive Sprockets: Over time, the drive sprockets can wear out, reducing their ability to grip the track and transfer power efficiently.

• Track Obstructions: Debris, mud, or large rocks can get lodged in the tracks, obstructing movement and causing sluggish performance.


• Faulty Sensors: Sensors that monitor engine speed, hydraulic pressure, and transmission performance may fail, leading to incorrect readings and poor machine performance.

• Wiring Issues: Damaged or corroded wiring can disrupt the flow of information to critical components, causing the machine to run inefficiently.


• Check fluid levels and top up with the appropriate hydraulic oil if necessary.

• Change the hydraulic fluid and replace filters if the fluid appears dirty or contaminated.

• Inspect the hydraulic pumps and valves for signs of wear and replace if necessary.

• Clean or replace hydraulic filters to ensure smooth fluid flow.


• Verify transmission fluid levels and add more if needed.

• Flush the transmission and replace the fluid if it is contaminated.

• Inspect gears and clutches for wear and replace them if necessary.


• Replace fuel filters and inspect the fuel system for any blockages or leaks.

• Clean or replace the air filter to ensure the engine gets the proper airflow.

• Check the engine coolant system and ensure there are no leaks or overheating issues.


• Check track tension and adjust it according to the manufacturer’s specifications.

• Inspect the drive sprockets and replace them if they show signs of excessive wear.

• Clean the tracks of any debris that might be obstructing movement.

• For wheel-driven models, inspect the axles and wheel bearings for wear and tear.


• Use diagnostic tools to check for any faulty sensors or electrical issues.

• Repair or replace damaged wiring to ensure proper communication between components.


Understanding the Role of the Air Compressor and Mounting Gasket
The Cummins C8.3 engine, widely used in vocational trucks, construction equipment, and agricultural machinery, is known for its balance of power and serviceability. One of its auxiliary components—the engine-mounted air compressor—plays a critical role in supplying compressed air for braking and pneumatic systems. This compressor is typically gear-driven and bolted directly to the engine’s front gear housing or accessory drive plate. The mounting gasket between the compressor and engine block seals oil and air passages, and when it fails, it can lead to oil leaks, air loss, or even coolant seepage depending on the configuration.
Common Symptoms of Gasket Failure

• Oil seepage around the compressor base

• Air system pressure loss over time

• Residual sealant or caulking applied by previous owners

• Loose or missing support bracket bolts

• Visible cracks in the aluminum accessory drive housing


• Accessory Drive Plate: A cast aluminum housing on the front of the engine that supports gear-driven accessories.

• Holset Compressor: A brand of engine-mounted air compressors commonly used with Cummins engines.

• Olive Seals: Small blue seals used on coolant line fittings to prevent leaks.

• Timing: Some compressors are gear-timed to reduce vibration, though minor misalignment typically does not affect function.


• Drain coolant and air system before removal.

• Disconnect coolant lines and air discharge lines.

• Remove the power steering pump if mounted behind the compressor (some configurations allow it to be shifted without full removal).

• Carefully unbolt the compressor and inspect the mounting surface for cracks or warping.

• Clean all mating surfaces with brake cleaner and a lint-free cloth.


• Gasket #26 (rear interface)

• Olive seals for coolant lines (typically 4 required)

• Mounting bolts (if corroded or stretched)

• Rear support bracket bolt (if missing)


• Always inspect support brackets during routine service.

• Avoid using silicone or caulk as a long-term sealant—it masks symptoms without solving the root cause.

• If air leaks persist after gasket replacement, inspect the compressor head and discharge fittings.

• For manuals, paper versions are often more reliable than digital copies and can be sourced from reputable resellers.


Maintaining the hydraulic fluid level in heavy machinery, such as the Case 580K, is critical for ensuring optimal performance and avoiding costly repairs. As a vital component in construction and farming equipment, hydraulic systems control many aspects of operation, including lifting, digging, and power steering. This article discusses the importance of proper hydraulic fluid levels, potential consequences of neglecting them, and the steps involved in maintaining the fluid in your Case 580K tractor loader.
Importance of Hydraulic Fluid in the Case 580K
The Case 580K is equipped with a robust hydraulic system designed to handle a variety of tasks on construction and agricultural sites. Hydraulic systems use fluid to transfer power, allowing operators to perform heavy-duty tasks such as lifting materials, operating attachments, and controlling machine movements. Proper fluid levels are essential for several reasons:

1. Efficient Operation: Hydraulic fluid transmits power through the system, making it essential for smooth and efficient functioning. Low or dirty fluid can lead to sluggish performance and may reduce the overall efficiency of the machine.

2. Preventing Wear and Tear: Hydraulic fluid acts as a lubricant for various parts of the hydraulic system, reducing friction between moving parts. Without sufficient fluid, metal components may grind against each other, causing excessive wear and even failure of critical parts.

3. Cooling: Hydraulic fluid also helps dissipate the heat generated during the operation of hydraulic components. Low fluid levels can result in overheating, which can lead to permanent damage to hydraulic pumps and motors.

4. Corrosion Prevention: Clean hydraulic fluid helps prevent rust and corrosion within the system. Contaminants in the fluid can damage seals and valves, leading to leaks and potentially costly repairs.


1. Erratic or Slow Response: If the hydraulic system is responding sluggishly or erratically, it could indicate that the fluid level is low. For example, if the loader arms or bucket lift movements are slower than usual, this is a sign that the hydraulic fluid needs checking.

2. Unusual Noises: A hydraulic system running low on fluid often produces whining or grinding noises, as the pump struggles to function without adequate lubrication.

3. Fluid Leaks: Leaking hydraulic fluid from hoses, seals, or cylinders is a direct sign that there is an issue with the hydraulic system. Leaks often occur when seals wear down due to poor maintenance or contamination of the fluid.

4. Pressure Loss: Low fluid levels can also cause a drop in system pressure, resulting in loss of power for the hydraulic system and failure to operate attachments like the bucket, backhoe, or grapple.


1. Park the Machine on Level Ground: Ensure the machine is on flat, level ground to ensure an accurate reading. If the machine is on an incline, the reading may be inaccurate.

2. Locate the Dipstick: The hydraulic dipstick is typically located near the hydraulic reservoir. On the Case 580K, the dipstick is found near the side of the machine, often marked with a clear symbol or label indicating “hydraulic fluid.” Make sure the engine is off before proceeding.

3. Clean the Dipstick: Before taking a reading, wipe the dipstick clean with a cloth to ensure no debris or old fluid affects the reading.

4. Check Fluid Level: Insert the dipstick fully back into the tube, then remove it again to check the fluid level. The dipstick will have markings that indicate whether the fluid level is within the normal range.

5. Add Fluid if Necessary: If the level is below the recommended range, add hydraulic fluid as needed. It is important to use the correct type and grade of fluid for your specific machine, which can be found in the Case 580K owner’s manual or through the manufacturer’s specifications.

6. Recheck the Fluid Level: After adding fluid, recheck the level with the dipstick to ensure it is within the optimal range.


1. AW (Anti-Wear) Fluids: These are the most common hydraulic fluids used in machinery like the Case 580K. They contain additives that help prevent wear and corrosion.

2. Mineral Oil-based Fluids: This type of fluid is commonly used in systems with moderate pressure, temperature, and contamination levels.

3. Synthetic Fluids: While more expensive, synthetic fluids can perform better in extreme temperatures and high-stress environments.

4. Biodegradable Fluids: For environmentally sensitive areas, biodegradable hydraulic fluids are often used as they are less harmful in case of spills.


1. Foaming: Air bubbles in the hydraulic fluid can cause foaming, which results in decreased lubrication and system efficiency.

2. Discoloration: A sudden change in the color of the hydraulic fluid, such as turning milky or dark brown, can indicate contamination from water or excessive heat.

3. Sluggish Performance: Contaminated fluid can cause sluggish or inconsistent movement of the machine's hydraulic components, such as the loader arm or backhoe.


A Legacy of Durability and Simplicity
The Case 1845C skid steer loader, introduced in the late 1980s and produced through the early 2000s, remains one of the most iconic and widely used compact machines in North America. With over 60,000 units sold, its reputation for mechanical simplicity, reliability, and ease of maintenance has made it a favorite among farmers, landscapers, and small contractors. Powered by a Cummins 4B diesel engine producing around 58 horsepower, the 1845C features a rated operating capacity of 1,750 lbs and a tipping load of approximately 3,500 lbs.
Understanding the Float Function and Hydraulic Linkage
One of the most misunderstood features on the 1845C is the float function, which allows the loader arms to follow ground contours without hydraulic resistance. This is especially useful for grading and plowing. The float is activated by pushing the left-hand control lever down past its normal range until it locks into a detent position. However, on older machines, this detent mechanism may be rusted or obstructed by debris.
In one restoration case, the float detent was jammed with rust and dirt, and an aftermarket spring had been added externally to compensate for lost internal tension. Upon disassembly, it was discovered that a key internal washer (part #20) had been replaced with a flat washer, preventing proper spool travel. After cleaning and reinstalling the correct components, the float function was restored.
Terminology Clarification

• Float Function: A hydraulic mode where the loader arms are allowed to move freely downward without pressure, useful for surface following.

• Detent: A mechanical catch that holds a control lever in a fixed position.

• Spool Valve: A sliding valve inside the hydraulic control block that directs fluid flow.

• Auxiliary Hydraulics: Additional hydraulic lines used to power attachments like plows or grapples.


• Cleaning couplers thoroughly before connection

• Capping unused lines to prevent contamination

• Ensuring compatible hydraulic oil types between machine and attachment

• Cycling the attachment functions several times to purge air


• Replace missing or modified internal valve components with OEM parts

• Keep the machine indoors during winter to prevent chain case water intrusion

• Drain and inspect chain cases annually

• Use dielectric grease on electrical connectors to prevent corrosion

• Maintain a log of all modifications and repairs for future reference


Forklifts are an essential piece of machinery in various industries, known for their ability to lift, transport, and stack heavy loads. These versatile machines are used across warehouses, construction sites, and manufacturing facilities, but their true potential often goes beyond simple lifting tasks. This article explores the broad capabilities of forklifts, diving into their uses, types, and additional functionalities, providing a deeper understanding of what can be achieved with this critical equipment.
Basic Functionality of a Forklift
At its core, a forklift is designed to lift and move heavy items, typically loaded onto pallets, around a warehouse or job site. The primary function is to lift loads vertically and horizontally, using a set of forks or tines at the front of the machine. Forklifts come in various sizes and configurations to accommodate different load capacities and operating environments.
Key Uses of a Forklift

1. Material Handling: The most common use of a forklift is material handling. Whether in a warehouse, retail distribution center, or manufacturing plant, forklifts are used to move inventory from one place to another. They can transport items ranging from boxes and crates to large equipment and raw materials.

2. Loading and Unloading: Forklifts are critical for loading and unloading goods from trucks or shipping containers. With their ability to lift loads off the ground, they facilitate the swift transfer of goods onto delivery trucks or shelving units.

3. Stacking and Racking: Forklifts are used to stack goods in vertical shelving units, maximizing the use of available space. In warehouses, forklifts can reach high racking systems to store items efficiently, making them indispensable in high-density storage environments.

4. Transporting Heavy Equipment: On construction sites, forklifts can be used to transport heavy equipment, tools, and materials. They can move large machinery parts or construction supplies from one point to another with ease, improving efficiency on site.

5. Palletizing and Depalletizing: Forklifts are frequently used for palletizing, the process of stacking products onto pallets for easy transportation or storage. They are also essential for depalletizing—unloading items from pallets to ensure smooth operations during distribution.


1. Counterbalance Forklifts: These are the most common type of forklift, where the weight of the machine counterbalances the load. Ideal for indoor use in warehouses, they can carry large and heavy loads and work in tight spaces.

2. Reach Trucks: These forklifts are specialized for narrow aisle environments. Reach trucks have a unique design that allows them to extend their forks to reach into racking systems, enabling operators to pick items from higher shelves.

3. Pallet Jacks: Smaller and more basic than larger forklifts, pallet jacks are used for moving pallets over short distances. They are often employed in retail and small warehouse environments for lighter, smaller loads.

4. Telehandlers (Rough Terrain Forklifts): These forklifts are built for construction and outdoor work, with extended reach and the ability to lift loads to higher elevations. They can be fitted with various attachments like buckets or lifting hooks for different tasks.

5. Order Pickers: These are specialized forklifts designed for picking orders from high racks in warehouses. The operator platform lifts along with the forks, allowing the operator to pick items directly from shelves.

6. Side Loaders: Used in environments where loads need to be lifted from the side (such as lumber yards or heavy manufacturing), side loaders have the forks positioned on the side of the vehicle, offering better maneuverability in narrow aisles.


1. Fork Extensions: When a forklift is required to handle larger pallets or non-standard loads, fork extensions can be added. These extensions increase the length of the forks, allowing the machine to carry wider or longer items.

2. Clamps: Various types of clamps can be attached to forklifts to handle specific loads. For example, paper roll clamps are used to move large rolls of paper in the printing industry, while barrel clamps are used to carry cylindrical objects like barrels.

3. Forklift Sweepers: Forklifts can be equipped with sweeping attachments that enable them to clean up debris and dust in the workplace. This attachment is common in warehouses and factories to maintain a clean environment.

4. Snow Plows: In regions with harsh winters, forklifts can be fitted with snowplows or snow blades to clear pathways around warehouses, construction sites, or industrial yards.

5. Forklift Cranes: A crane attachment for forklifts can be used to lift extremely heavy loads that might not be suitable for standard forks. These attachments increase the machine's load capacity and enable lifting jobs that require more lifting power.

6. Man Baskets: For tasks that require working at heights, forklifts can be fitted with man baskets, which are secure platforms for operators to work safely on elevated surfaces like construction scaffolding or high shelves.

7. Drum Handlers: Drum handlers can be added to forklifts to lift and transport large drums, commonly used in the chemical, pharmaceutical, or food processing industries.


• Training and Certification: Operators should be properly trained and certified to use forklifts. Understanding load limits, proper handling techniques, and how to operate in confined spaces is critical.

• Inspecting the Equipment: Forklifts should be inspected regularly to ensure they are in good working condition. This includes checking the brakes, tires, and hydraulic systems.

• Wear Safety Gear: Operators should wear appropriate safety gear, including helmets, steel-toed boots, and high-visibility vests, to protect themselves in case of an accident.

• Clear Signage and Barriers: In busy areas like warehouses, proper signage and physical barriers should be in place to guide operators and pedestrians safely.


The Physics of Impact and Why Dump Trucks Are Not Battering Rams
Dump trucks are engineered for hauling—not for high-speed collisions. Their frames are designed to absorb vertical loads from gravel, soil, or demolition debris, not horizontal shock from concrete barriers. When a dump truck collides with a fixed object like a highway divider, the energy transfer is catastrophic. The rigid barrier doesn’t yield, and the truck’s momentum is instantly converted into deformation, frame twist, and potential cab intrusion.
In one widely circulated incident, a dump truck was driven head-on into a concrete barrier, resulting in severe damage to the front axle, radiator, and cab structure. The driver walked away, but the truck was totaled. This kind of stunt, whether accidental or intentional, highlights the importance of understanding vehicle dynamics and respecting the limits of heavy equipment.
Terminology Clarification

• Cab Intrusion: When structural deformation pushes into the operator’s space, increasing injury risk.

• Frame Twist: Permanent warping of the truck’s chassis due to uneven force application.

• Impact Load: Sudden force applied over a short time, often exceeding design tolerances.


• Payload capacity: 20,000 to 80,000 lbs depending on class

• Frame rail tensile strength: typically 120,000 psi

• Hydraulic lift angle: up to 45 degrees

• Top speed: governed to 55–65 mph for safety


• Use a skid steer or wheel loader with a barrier clamp attachment

• Employ a forklift with a custom cradle

• Use a crane with certified lifting chains and spreader bar

• Never use a vehicle’s bumper or tires to push rigid structures


• Conduct daily safety briefings emphasizing equipment limits

• Install dash cameras to monitor and discourage reckless behavior

• Train drivers on load physics and impact risk

• Maintain a clear policy: no contact with fixed structures unless authorized


The CAT 301.5 mini excavator, like many other heavy equipment machines, is built for power and precision in tight spaces. However, when it refuses to start, it can halt operations and lead to significant downtime. This article explores common causes of starting issues in the CAT 301.5 mini excavator and provides step-by-step guidance on how to diagnose and address these problems. Whether you're an experienced mechanic or a new operator, understanding the underlying mechanics of your equipment can save you both time and money.
Common Starting Issues in the CAT 301.5 Mini Excavator
Starting problems in the CAT 301.5 can stem from various sources, from fuel delivery issues to electrical malfunctions. The mini excavator is equipped with an advanced system that integrates both electronic and mechanical components, so pinpointing the cause requires a systematic approach. Below are some of the most common issues to consider:

1. Battery Problems: One of the first things to check is the battery. If the battery is old, weak, or improperly charged, it may not have enough power to crank the engine. The mini excavator relies on a 12-volt battery, which is crucial for starting the engine. Corrosion on the battery terminals or loose connections can also cause intermittent power loss, preventing the machine from starting.

2. Fuel Delivery Issues: Another frequent cause of starting problems is fuel delivery. If the fuel filter is clogged or if there is air in the fuel system, the engine may not receive the proper fuel flow. The CAT 301.5 is designed to run on diesel fuel, and maintaining a clean fuel system is critical to ensuring proper engine operation.

3. Faulty Starter Motor: If the battery is in good condition and the fuel system is functioning properly, the next component to check is the starter motor. A faulty or worn starter motor can fail to engage the engine, leading to a no-start condition. Starter motors can wear out over time, especially if they are subjected to harsh operating conditions.

4. Ignition System Issues: The ignition system of the CAT 301.5 mini excavator includes components such as the glow plugs and relays. If the glow plugs are not functioning correctly, the engine may not be able to fire up, especially in cold weather. Faulty ignition relays can also prevent the starter from receiving the necessary electrical signals to operate.

5. Safety Interlocks: Mini excavators like the CAT 301.5 are equipped with various safety interlocks that prevent the engine from starting under certain conditions. These interlocks may include seat switches, hydraulic lockout switches, or other systems that ensure the machine is in a safe operating condition. If any of these interlocks are faulty or misadjusted, the engine may fail to start.

6. Fuses and Wiring Issues: A blown fuse or damaged wiring can also cause the mini excavator to fail to start. If any critical circuits are interrupted, such as those connected to the ignition system or fuel system, the engine may not crank. Regularly checking and maintaining the wiring harnesses can prevent these issues.


1. Check the Battery: Start by inspecting the battery for charge and condition. Use a multimeter to check the voltage. A fully charged battery should read around 12.6 volts. If the voltage is lower, recharge or replace the battery as needed. Also, inspect the battery terminals for corrosion and ensure they are tightly connected.

2. Inspect Fuel System: Check the fuel filter for clogs or signs of contamination. A dirty filter can restrict fuel flow, preventing the engine from starting. Inspect the fuel lines for leaks, and verify that the fuel tank is adequately filled. Bleed the fuel system if air is suspected to have entered.

3. Test the Starter Motor: If the battery and fuel system are in good condition, the next step is to check the starter motor. Test the starter relay and ensure that it is engaging when the ignition switch is turned on. If the starter motor does not engage, it may need to be repaired or replaced.

4. Check the Ignition System: Inspect the glow plugs, especially if starting in cold conditions. Glow plugs should heat up when the ignition is turned on and be visually checked for wear or damage. Verify the operation of the ignition relay by testing for continuity with a multimeter. If any issues are found, replace the faulty components.

5. Verify Safety Interlocks: Check the safety interlocks, such as the seat switch or hydraulic lockout. If the safety switches are malfunctioning, they can prevent the engine from starting. Test each switch and ensure they are in working condition.

6. Inspect Wiring and Fuses: Inspect the wiring for any visible damage, corrosion, or loose connections. Check all critical fuses related to the starting and fuel systems. Replace any blown fuses and repair any damaged wires.


1. Regular Battery Maintenance: Keep the battery terminals clean and tight. Test the battery voltage regularly and replace the battery every 3-5 years, depending on usage. Use a battery charger if the excavator is not used frequently.

2. Fuel System Care: Replace the fuel filter at recommended intervals and ensure the fuel tank is kept clean. Use fuel additives during the colder months to prevent gel formation in the diesel fuel.

3. Starter Motor Care: Check the starter motor during regular maintenance intervals, especially if you notice sluggish starting or clicking sounds when turning the key. Lubricate moving parts to reduce wear.

4. Electrical System Inspection: Inspect all electrical components and wiring regularly, checking for wear or corrosion. Replace fuses as necessary and clean the terminals to ensure optimal electrical flow.

5. Winterizing the Excavator: In colder climates, be sure to winterize the mini excavator by checking the glow plugs and fuel system. Adding a fuel stabilizer can help prevent gelling, while using an engine block heater can help with cold starts.
