Restoring the Foundation of a Workhorse
When it comes to vintage industrial equipment, few components are as overlooked yet as critical as the axle beneath a portable air compressor. In this case, the owner of a well-used compressor decided to replace a makeshift axle with a reproduction of the original factory design. The goal was not just to restore mobility, but to return the machine to its intended structural integrity and towing safety.
The Problem with Improvised Axles
Over the years, many portable compressors—especially those built in the mid-20th century—have had their axles replaced with whatever was available at the time. This often meant using undersized tubing, mismatched hubs, or even repurposed trailer axles. While functional in the short term, these substitutions can lead to:

• Uneven tire wear due to improper alignment

• Excessive flexing or sagging under load

• Unsafe towing behavior at highway speeds

• Difficulty sourcing replacement bearings or hubs


• Precision machining of the axle stubs to match the original hub bore and bearing spacing

• Welding the stubs into a heavy-wall square tube crossmember

• Ensuring the axle drop and spring perch spacing matched the compressor’s frame

• Painting the assembly to prevent corrosion


• Axle Stub: The short shaft on either end of an axle that supports the wheel hub and bearings.

• C1018 Steel: A general-purpose low-carbon steel with good machinability and weldability, commonly used in structural applications.

• Spring Perch: The bracket or pad where the leaf spring mounts to the axle.

• Drop Axle: An axle with a vertical offset to lower the ride height of the trailer or equipment.


• If the original axle is missing, use frame measurements and tire wear patterns to estimate correct geometry.

• When machining axle stubs, verify bearing sizes and seal diameters to match available hub assemblies.

• Consider adding grease zerks to the axle ends for easier maintenance.

• Use grade 8 hardware for spring mounts and U-bolts to ensure long-term durability.

• Always test tow the compressor at low speed before highway use.


The Genie GTH - 1544 is a heavy-duty telehandler built for demanding job-site material handling and lifting tasks. It belongs to Genie’s GTH series of telescopic forklifts (telehandlers) which are designed to combine lift capacity, reach, terrain capability and operator comfort. Although newer models have been introduced, the GTH-1544 remains well regarded for its capability and robustness. According to documented specifications, it offers up to 15,000 lb (6,804 kg) maximum lift capacity, a maximum lift height around 44 ft (13.41 m) and a maximum forward reach of about 27 ft (8.31 m).

Development and Manufacturing Context
Genie is a brand of the Terex Corporation (initially established in Redmond, Washington as Genie Industries) and has made its name in aerial work platforms and telehandlers. The GTH‐series represents the telehandler variant of their product line, intended for applications in construction, industrial, maintenance and rental markets. The GTH - 1544 was part of Genie’s offering to satisfy higher capacity (>10 000 lb) telehandlers, bridging the gap between compact machines and full rough-terrain cranes or forklifts. While exact sales volumes are not publicly broken out, the broader telehandler market has seen global growth in the 2010s as construction and material-handling demands have increased.

Key Specifications and Features
Some of the most relevant technical specifications and features for the GTH-1544 include:

• Maximum lift capacity: 15,000 lb (6,804 kg).

• Capacity at maximum height: approximately 10,000 lb (4,536 kg).

• Capacity at maximum forward reach: about 3,500 lb (1,587 kg).

• Maximum lift height: around 44 ft (13.41 m).

• Maximum forward reach: approximately 27 ft 3 in (8.31 m).

• Drive system: full-time four-wheel drive (4WD), hydrostatic or hydro-mechanical transmission designed for rough terrain.

• Frame-leveling capability: The chassis allows handling of loads on side slopes (up to about 7°) to stabilize the platform.

• Cab and operator features: ergonomic joystick control, tiltable power-assisted steering, optional fully enclosed cab with climate control.

• Weight and dimensions: For example, transport weight ~33,686 lb (15,280 kg) as listed in one spec sheet.


• Construction sites where heavy materials (e.g., steel beams, prefabricated components, HVAC units) must be lifted to elevated floors.

• Industrial facilities for maintenance, equipment placement or storage operations where reach and capacity are critical.

• Rental fleets serving contractors who require a versatile telehandler capable of both large capacity and reasonable reach.

• Infrastructure projects (bridges, elevated works) where terrain is uneven and a rough-terrain telehandler is beneficial.


• Regular inspection of telescopic boom and wear points: The boom extends and retracts (noted in one spec as ~16/14 sec extension/retraction for one configuration) so keep lubrication and bearings in good condition.

• Hydraulic system maintenance: Check hydraulic fluid condition, filters, and hose integrity. As telehandlers operate heavy loads, any loss of hydraulic performance impacts lift and reach capacity.

• Tire and drive-train checks: Given rough terrain operation, monitor tire condition (standard size 17.5x25 in in one spec) and differential/axle components for wear.

• Load chart awareness: Operators must match loads to capacity at lift height and reach – for example, while max capacity is 15,000 lb, at full reach the capacity drops significantly (3,500 lb at max reach). Failing to follow load charts can lead to tipping or equipment damage.

• Transport considerations: With a weight of ~15+ metric tons, transport to site requires appropriate trailer and logistics. One spec sheet lists ~15.28 t (15,280 kg) transport weight.

• Operator training and attachments: Proper training in telehandler operation, particularly with attachments (forks, buckets, QT carriages) is vital. Using attachments rated properly and securing loads is key for safety.


• High lift capacity combined with substantial reach gives the GTH-1544 versatility.

• Robust drivetrain and rough-terrain capability mean it can operate where wheeled forklifts cannot.

• Leveling chassis and full 4WD enhance stability in uneven terrain.


• Due to its large size and weight, it may be less maneuverable than smaller telehandlers in tight job-sites.

• Fuel consumption and transport/logistics cost will be higher than lighter machines.

• As with any high-capacity machine, maintenance demands (hydraulics, boom components) are more intensive and replacement parts cost more.

• Operators must strictly follow load charts; failure to account for load reduction at full reach can be hazardous.


A Compact Dozer with Big Expectations
The Komatsu D21A-6 is a compact crawler dozer designed for precision grading, light clearing, and utility work. With an operating weight around 8,000 lbs and a 40 hp diesel engine, it offers hydrostatic drive and lever-controlled steering clutches. Its small footprint and maneuverability make it popular among landowners, contractors, and municipalities. Despite its size, the D21A-6 shares many mechanical principles with larger dozers, including dry-type steering clutches and brake bands.
Terminology Clarification

• Steering Clutch: A friction-based mechanism that disengages power to one track, allowing the machine to turn.

• Brake Band: A curved friction surface that stops the rotation of a disengaged track.

• Dry Clutch: A clutch system that operates without hydraulic fluid, relying on mechanical pressure and friction plates.

• Torque Converter: A fluid coupling that multiplies engine torque and allows smooth gear transitions.


• Delayed or incomplete turns

• Loss of steering response under load

• Increased lever effort

• Audible slipping or chatter


• Remove seat and side panels to access clutch housings

• Extract clutch packs using threaded pullers or slide hammers

• Replace all friction and steel plates as a set

• Inspect and replace springs, bearings, and seals

• Adjust brake bands and clutch lever free play


• 8–10 friction discs per side

• 8–10 steel separator plates

• Return springs

• Carrier bearings

• Brake band linings


• Replace both sides simultaneously to balance steering

• Use OEM-grade or heavy-duty friction materials

• Clean all components with brake cleaner and lint-free cloths

• Torque bolts to spec and use thread locker where needed


Overview of the D8H / D342 Combination
The CAT D8H is a track-type tractor built by Caterpillar, widely used in heavy-duty earth-moving applications throughout the 1970s and 1980s. Its power unit, the D342-series diesel engine, features six cylinders, and its design embodies the robustness required for high-torque environments. Over time, trainers, farmers, contractors and hobbyists alike have worked on maintaining and refurbishing these machines, including servicing fuel injectors. Injector removal and installation (“R&I”) on the D342 presents its unique set of challenges—knowing what to expect and how to proceed can make the difference between a smooth service job and one that creates long-term headaches.
Injector Location and Fuel System Basics
On the D342 engine:

• Fuel injectors sit at the top of each cylinder, mounted into the cylinder head; they inject fuel directly into the combustion chamber or pre-combustion chamber depending on configuration.

• High-pressure fuel lines connect the injection pump to each injector; incorrect routing, numbering or torque of those lines can lead to misfires or poor performance. For example, one reference lists the firing order as 1-5-3-6-2-4 and confirms the front cylinder is “#1”.

• The service manual (which may need to be procured) details torque specs, required tools (such as injector pullers, torque wrenches, and cleaning supplies) and sequence for tightening.


• Engine misfire at idle or under load (indicating injector may be fouled, leaking or out of tolerance).

• Routine maintenance when engine overhaul is done or part of multicomponent service (head gasket, valve adjustment, etc.).

• Physical damage or leaks around injector seating, such as carbon build-up, cracked injector nozzle, or sticking.

• Incorrect high-pressure fuel line routing or numbering that leads to mis-timing of fuel delivery.


1. Secure the machine: Park on level ground, ensure engine cool, battery disconnected to prevent accidental start.

2. Gain access: Remove valve cover or parts of the rocker cover as needed to expose injectors and fuel lines. Clean the area thoroughly to prevent debris from entering the cylinders when injectors are removed.

3. Label fuel lines: Mark or photograph the routing and numbering of high-pressure lines to ensure correct reinstallation. On some D342 engines, cylinder numbers run from front (#1) to rear, and line routing must match injection pump outlets.

4. Relieve fuel pressure: Loosen fuel system components slowly to relieve residual pressure and avoid spray of diesel under high pressure.

5. Remove injector hold-down: Unbolt the clamp securing the injector. Remove any seals or O-rings carefully.

6. Extract the injector: Use appropriate puller if injector is seized; care to remove straight and avoid damaging the seat bore. Inspect the injector body, nozzle, and the seat in the head for damage or carbon build-up.

7. Inspect associated components: At this stage inspect O-rings, copper washers, injector cup seals (sometimes called “capsel injectors”), and fuel line connections for signs of wear or leakage.

8. Clean injector bore and sealing surface: Remove carbon deposits, ensure the seat is clean, and ensure correct surface finish—any irregularity may impair sealing and lead to pre-ignition or leakage.

9. Install injector: Apply a small amount of clean engine oil to O-rings if specified. Insert injector carefully into the seat. Reinstall hold-down clamp and torque to specification. Replace copper washer or seal if required.

10. Attach fuel line and torque: Connect high-pressure line to the injector, ensuring correct line routing and numbering. Torque the line fitting per manual.

11. Bleed the fuel system: Once all injectors are reinstalled, prime the fuel system to remove air. Start engine and monitor for misfire, smoke, leaks around injector or line fittings.

12. Test and monitor: Run the engine under idle, no‐load conditions, then gradual load. Monitor for proper idling, smooth operation, good fuel consumption, absence of smoke, and no injection line leaks.


• Injector puller or sliding hammer may be required if injector is seized in the seat.

• Torque wrench for injector hold-down nuts and fuel line fittings. Typical range for D-series injectors hold-down: ~50–60 Nm (check manual).

• Clean lint-free cloths, injector bore cleaning brushes, diesel‐safe cleaner.

• Replacement injector O-ring/cup (capsel) commonly about US$50 each for older D342 injectors.


• If you notice a persistent misfire at idle even after injector installation, check for carbon build-up around the injector tip, or looped fuel line routing which can cause vibration or loosen.

• If one cylinder lacks fuel delivery, verify the high‐pressure line connection and check pump outlet gallery pressure; sometimes the pump gear or transfer pump fails and exhibits symptoms similar to injector fault.

• Always adhere to correct line numbering; on a D342 the pump ports correlate to injector ports and misnumbering leads to poor performance or engine damage.

• After service, monitor for fuel leakage around injectors, especially at the start; any sign of leakage means immediate shutdown until corrected because diesel leaks under high pressure are dangerous.


• Every 500–1000 operating hours (as typical for heavy dozer service) inspect injector cup seals, look for seepage or sign of blow‐by.

• Maintain clean fuel: use correct filters, prevent water ingress—it extends injector life and prevents premature seat damage.

• Keep the engine oil and coolant in spec, because overheat, contaminant ingress or incorrect oil viscosity accelerate injector wear.


Understanding Track Tensioners and Their Role

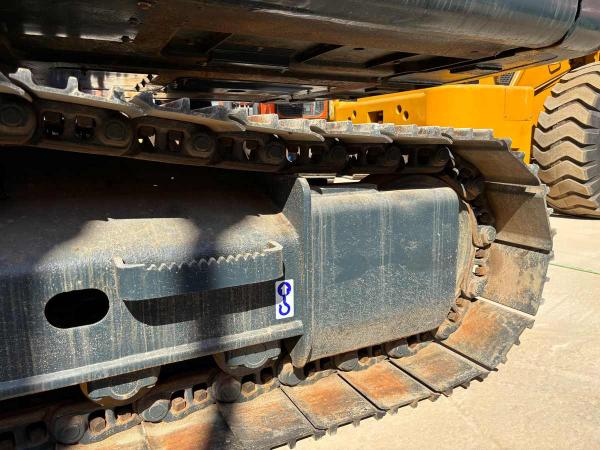

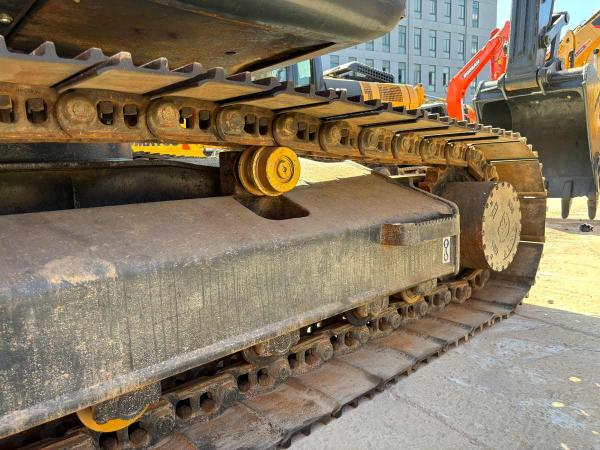

On the Caterpillar 315 excavator, the track tensioner plays a critical role in maintaining the correct tension of the track chain (undercarriage). Proper tension ensures the track stays engaged with the sprocket and idlers, reduces the risk of derailment, and helps avoid excessive wear on track links, rollers, and idlers.
The track tensioner assembly typically comprises a cylinder (or spring-package), a grease or hydraulic adjuster, and associated seals and relief valves.
Common Symptoms of Tensioner Problems
While working on 315 series machines, operators and technicians have reported several recurring issues tied to the tensioner assembly:

• The track slack increases over time, even though it had been correctly tensioned.

• Lubricant (grease) leaks from the track adjuster housing or around the idler-frame area.

• The tensioner does not respond when grease is pumped in—i.e., the track cannot be tightened further.

• The guard or protective cover over the grease-fitting is obstructive, making access difficult and maintenance delayed.


• Seal failure or casing damage: When the adjuster cylinder or grease block’s seals fail, grease bleeds out and pressure is lost, resulting in slack track.

• Blockage or improper access to grease fitting: The design of the guard and limited clearance can prevent proper greasing, causing undervaluation of maintenance.

• Spring-package fatigue (in spring type adjusters): Over time, the spring loses its preload and cannot maintain proper tension under track load.

• Hydraulic or grease relief valve stuck open: If the relief valve allows fluid or grease to escape too easily, the adjuster cannot maintain pressure. Reference material from Caterpillar describes this procedure for checking track tension, including releasing grease to loosen the track when too tight.


• Park the machine on level ground, lower the bucket to lock the undercarriage, apply parking brake.

• Remove debris from the idler and tensioner area to gain access to the grease fitting or adjuster chamber.

• Attempt to add grease (or hydraulic oil depending on design) via the tensioner’s fitting; if there is no response (track remains slack), suspect seal or cylinder failure.

• Inspect the adjuster cylinder and idler housing for visible leaks of grease fluid or hydraulic oil. Leaks are a red-flag.

• If equipped with a relief valve, check the setting and operation: the valve should hold pressure—that is, minimal escape of grease when properly tensioned.

• Check track sag according to the manual’s spec (for example, gap between sprocket and idler). Caterpillar documents: loosen relief valve to allow tension to release if too tight.

• Remove the idler if necessary to access internal adjuster components (bearing seals, spring pack). Some user-reports on forum recall this for older 315 machines.


• Replace the grease adjuster block or complete tensioner cylinder if seals are damaged or the mechanism is seized.

• Replace the guard or reposition the grease fitting if access is chronically obstructed, to ensure proper greasing schedule.

• If using spring-package style, replace worn springs and preload as per specifications.

• After service, properly tension the track: pump in grease until the correct sag is achieved, then operate machine slightly to seat components and re-check sag. Too much tension can cause undue wear; too little causes derailment risk.

• Include the tensioner in scheduled preventative maintenance: check for leaks, verify grease condition, and ensure adjuster is responsive.


A Telehandler Built for Heavy Loads
The Lull 1044C-54 telehandler was designed for demanding construction and industrial applications, offering a lift capacity of 10,000 lbs and a reach of 54 feet. Powered by a John Deere 4045TF275 diesel engine, this machine combines rugged mechanical design with hydraulic precision. Lull, originally a standalone brand, was later absorbed into JLG Industries, which continued to support parts and service for legacy models. The 1044C-54 remains popular among contractors for its load stability and boom control, especially in masonry and framing work.
Terminology Clarification

• Telehandler: A telescopic handler used to lift and place materials at height, often equipped with forks or buckets.

• Fuel Shut-Off Solenoid: An electrically actuated valve that controls fuel flow to the injection pump, shutting off the engine when de-energized.

• Governor Flex Ring: A rubber ring inside Stanadyne injection pumps that deteriorates over time, causing fuel starvation or erratic engine behavior.

• Stanadyne DE10 Pump: A rotary diesel injection pump used in many John Deere engines, known for its compact design and internal governor system.


• Check the return fitting on top of the injection pump. Remove and inspect for debris. Clean thoroughly and reinstall.

• Test the fuel shut-off solenoid by applying 12V directly to the terminal. Listen for a click and verify that it remains energized during operation.

• Inspect the oil pressure switch, which may be wired to disable the solenoid if pressure drops. A stuck switch can falsely trigger shutdown.

• Observe fuel flow at the injectors during cranking. If fuel is absent after shutdown, the solenoid or pump is likely at fault.


• Replace the governor flex ring every 2,000 hours or 10 years, whichever comes first.

• Use fuel additives that condition seals and prevent varnish buildup.

• Keep electrical connections clean and protected with dielectric grease.

• Monitor oil pressure with a mechanical gauge to verify switch accuracy.

• Maintain a service log for all pump and solenoid work.


Overview of Wind Turbine Projects
Wind turbine projects are large-scale endeavours that transform wind energy into electricity and integrate it into the power grid. These projects range from a single turbine installation for a farm to utility-scale wind farms supporting hundreds of turbines. For example, one major project in Kenya, the Lake Turkana Wind Power Project, comprises 365 turbines with a total capacity of 310 MW and covers around 40 000 acres of land.
Key Phases of Development
Developing a wind turbine project involves multiple stages, each of which must be completed carefully to ensure success. The major phases are:

• Site selection and feasibility studies

• Permitting and regulatory approvals

• Design, engineering, procurement and construction (EPC) — the “balance of plant” (BOP) elements such as foundations, roads, cabling and substations are key components.

• Grid-connection and commissioning

• Operation, maintenance, and in many cases repowering or decommissioning at end-of-life


• Supply chain constraints (turbine blades, towers) — delays or lack of components can stall projects. For example, an offshore project in New Jersey was paused because suitable blades could not be sourced.

• Environmental, community and visual-impact concerns — large turbines (300 m high in some proposals) spark debate about landscape, wildlife and tourism.

• Maintenance, reliability and quality of components — as turbine sizes grow and fleets age, component failures (such as blade breakage) become more critical.


• Conduct thorough resource measurement (wind speed data over at least 12–24 months) to validate site potential.

• Choose turbine technology that fits the wind regime, terrain and grid infrastructure.

• Secure grid-connection early, as transmission delays are often a bottleneck.

• Maintain strong project governance, ensure timely procurement and logistics planning.

• Engage local communities early and transparently to mitigate opposition and social risk.

• Plan for long-term operations, including maintenance, monitoring, repowering.


Bypassing Lockout and Diagnosing Safety Interlocks
The New Holland LX885 skid steer, introduced in the mid-1990s, was part of the brand’s push into high-performance compact equipment. With a 60-horsepower diesel engine and a rated operating capacity of 1,850 lbs, the LX885 became popular among contractors and farmers for its durability and ease of service. However, like many machines of its era, it relies on a series of safety interlocks to control hydraulic function—particularly the lift arms and bucket.
In one case, an LX885 that had sat idle for eight years was revived by jumping the starter and injection pump. The engine ran smoothly, and the machine moved forward and backward, but the lift arms remained locked. This pointed to a failure in the Electronic Instrument Cluster (EIC) or one of the safety switches.
Terminology Clarification

• EIC (Electronic Instrument Cluster): The dashboard module that monitors and controls safety interlocks, including seat and seatbelt sensors.

• Lockout System: A safety feature that disables hydraulic functions unless certain conditions are met, such as operator presence and seatbelt engagement.

• Service Mode Switch: A manual override that enables full hydraulic function for maintenance or emergency use.

• Toggle Switch Panel: A hidden control panel often located behind a sliding door in the cab, containing fuses and override switches.


• Faulty seat switch

• Disconnected or corroded seatbelt sensor

• Failed EIC module

• Blown fuse in the upper-right cab panel


• Replace rusted seat components and test continuity across the seat switch terminals.

• Clean and reseat all connectors to the EIC and fuse panel.

• Use dielectric grease on electrical contacts to prevent corrosion.

• If the EIC is non-functional, consider installing a manual override system with labeled switches and relays.

• Document all wiring changes and label circuits clearly for future troubleshooting.


Intermittent Steering and Solenoid Failure
The Champion 730A motor grader, a mid-size machine known for its reliability in municipal and forestry road maintenance, uses a hydraulically actuated articulation system controlled by solenoid valves. In one case, the articulation valve began functioning intermittently—first failing in one direction, then ceasing entirely. The operator had recently installed new solenoids, suggesting the issue lay deeper within the valve body or spool assembly.
Terminology Clarification

• Articulation Valve: A hydraulic control valve that manages the pivoting motion of the grader’s frame, allowing tighter turns and improved maneuverability.

• Solenoid: An electromechanical actuator that opens or closes hydraulic passages when energized.

• Spool: A cylindrical internal component that shifts within the valve body to direct fluid flow.

• Manual Override: A mechanical method to actuate the valve without electrical input, used for diagnostics or emergency operation.


• Check voltage at the solenoid terminals to confirm electrical continuity.

• Inspect the solenoid coil for heat damage or corrosion.

• Remove the solenoid and test plunger movement manually.

• Engage the manual override and observe spool response.


• Use lint-free cloths and clean hydraulic fluid to wipe components.

• Avoid aggressive solvents unless specified by the manufacturer. Contact cleaner may be safe for electrical parts but not for seals or anodized surfaces.

• Replace all o-rings with OEM-grade Viton or Buna-N equivalents.

• Inspect the spool for scoring, burrs, or varnish buildup.


• Install inline hydraulic filters rated at 10 microns to reduce contamination.

• Flush the hydraulic system every 2,000 hours or annually, whichever comes first.

• Use synthetic hydraulic fluid with anti-wear additives for better spool lubrication.

• Label solenoid wires clearly to avoid misconnection during maintenance.

• Keep a printed valve schematic in the cab for troubleshooting.


The Case 580K is a well-regarded backhoe loader known for its reliability and versatility in a variety of construction and excavation tasks. However, like any piece of heavy equipment, the 580K can experience mechanical issues that affect its performance. One such issue is when the machine has no power to the neutral switch and the shuttle lever will not disengage from forward. This problem can prevent the equipment from being safely operated or from shifting into neutral, which is essential for stopping or starting the engine. Understanding the causes, diagnostics, and solutions to these issues can help operators and technicians maintain the machine’s efficiency.
Understanding the Case 580K Backhoe Loader
Before diving into troubleshooting, it is essential to have a basic understanding of the Case 580K backhoe loader and its operation. The Case 580K is powered by a 4-cylinder diesel engine, providing between 60-70 horsepower depending on the specific model and configuration. It is equipped with a hydrostatic drive, which uses hydraulic fluid to transfer power from the engine to the wheels and other machine parts. This drive system allows the operator to have smooth, responsive control over the machine.
The neutral switch in this system plays a crucial role by ensuring that the machine is in the neutral position when starting the engine or shifting gears. Without proper functioning of this switch, the shuttle or transmission may fail to disengage, causing problems with starting and operation.
Symptoms of the Problem
When the Case 580K backhoe loader experiences issues with no power to the neutral switch and the shuttle failing to disengage from the forward gear, several key symptoms often arise:

• No Power to Neutral Switch: The engine may not start or the machine may fail to recognize when it is in neutral, preventing operation.

• Shuttle Not Disengaging: The shuttle lever may remain engaged in the forward position, even when attempting to shift to neutral or reverse. This can result in the machine moving unexpectedly when the engine is started.

• Inability to Shift Gears: The machine may not respond to gear shifts, remaining locked in one gear and preventing normal movement.

• Erratic Transmission Behavior: The transmission may shift unpredictably or fail to shift smoothly, indicating issues with the shuttle or neutral switch.


1. Faulty Neutral Safety Switch
   The neutral safety switch is responsible for detecting when the shuttle lever is in the neutral position. If this switch is damaged, worn out, or malfunctioning, it may not send the proper signals to the machine’s electrical system. As a result, the machine may not recognize when it is in neutral, preventing normal operation.

2. Electrical Connection Issues
   A loose, corroded, or damaged electrical connection to the neutral switch can interrupt the flow of power, causing the switch to fail. Faulty wiring, bad ground connections, or worn-out fuses are common culprits in such electrical failures.

3. Shuttle Valve or Transmission Issues
   The shuttle lever engages and disengages the transmission via a shuttle valve. If the valve becomes worn, clogged, or damaged, it may fail to disengage from forward. Transmission fluid leaks or low fluid levels can also prevent proper operation of the shuttle mechanism.

4. Hydraulic Pressure Problems
   Since the shuttle operates using the machine’s hydraulic system, a drop in hydraulic pressure or fluid contamination can lead to sluggish or erratic performance. Hydraulic pressure sensors and valves could be malfunctioning, which would also prevent proper disengagement of the shuttle.

5. Operator Error or Improper Handling
   In some cases, the problem may arise from operator error, such as failing to properly shift the shuttle lever or improperly starting the machine when it is not in neutral. This can cause the shuttle to become stuck in the forward position.


1. Check the Neutral Safety Switch
   Begin by inspecting the neutral safety switch. This can be done by testing the switch with a multimeter to check for continuity. If the switch is faulty, it will need to be replaced. Ensure that the switch is securely connected and not corroded or damaged.

2. Inspect Electrical Connections
   Examine all electrical wiring and connections related to the neutral switch and shuttle system. Look for loose or corroded terminals, damaged wires, and blown fuses. Cleaning and securing connections can often resolve intermittent power issues.

3. Test the Shuttle Valve and Transmission
   If the neutral switch and electrical components are functioning correctly, the next step is to check the shuttle valve and transmission for issues. Ensure the hydraulic fluid levels are correct, and check for leaks around the shuttle valve. If the valve is clogged or malfunctioning, it may need to be cleaned or replaced.

4. Check Hydraulic Pressure and Fluid Levels
   Verify that the hydraulic pressure is within the recommended range and that the hydraulic fluid is clean and at the proper level. Low or dirty hydraulic fluid can cause sluggish shuttle response, and replacing the fluid may be necessary.

5. Perform a System Reset
   In some cases, the issue may stem from an electronic system glitch. Performing a system reset or disconnecting the battery for a short period can help reset the system and clear any temporary errors that may be causing the shuttle to remain engaged.


1. Replacing the Neutral Safety Switch
   If the neutral safety switch is defective, replacing it with a new, OEM (original equipment manufacturer) part should resolve the issue. Be sure to test the new switch to confirm that it is functioning properly before reassembling the components.

2. Repairing or Replacing the Shuttle Valve
   If the shuttle valve is damaged or clogged, cleaning or replacing it may restore proper function. It’s also important to check the hydraulic system for leaks, which could compromise the valve’s performance.

3. Rewiring or Repairing Electrical Connections
   Fixing damaged wiring or securing loose connections can solve electrical issues preventing power from reaching the neutral safety switch. It’s important to inspect the system thoroughly and ensure there are no underlying wiring issues.

4. Hydraulic Fluid Replacement
   If the problem is related to low or contaminated hydraulic fluid, flushing the system and replacing the fluid is necessary. Always use the manufacturer-recommended hydraulic fluid to maintain optimal performance.

5. Operator Training and Handling
   Educating operators on the correct procedures for starting the machine and shifting the shuttle lever can prevent issues related to improper handling. Emphasize the importance of ensuring the shuttle is in neutral before starting the engine and operating the machine.


• Regularly inspect the neutral safety switch and related electrical connections.

• Check hydraulic fluid levels and replace the fluid as per the manufacturer’s guidelines.

• Clean and inspect the shuttle valve for any signs of wear or clogging.

• Train operators on proper machine handling and maintenance practices.

• Conduct periodic system checks and troubleshooting to identify potential issues early.
