The Bobcat T190 is a compact track loader that has gained popularity for its versatility, especially in tight spaces and rough terrains. It is commonly used in landscaping, construction, and agriculture, providing essential lifting and digging capabilities. However, one common issue faced by owners of this machine involves the fuel tank and its associated components. In this article, we’ll explore the potential fuel tank issues with the Bobcat T190, how to diagnose them, and what solutions are available to resolve these problems.
Fuel Tank Design and Common Issues
The fuel tank in a Bobcat T190 is responsible for storing the diesel fuel that powers the machine’s engine. Like any heavy equipment, the fuel tank is a vital component that must function properly to ensure the machine’s performance. Several issues can arise with the fuel tank system, ranging from fuel leaks to problems with the fuel pickup or the venting system.

1. Fuel Leaks: One of the most common issues with the T190 fuel tank is fuel leakage. This can occur due to cracks, damage, or poor sealing of the tank. Fuel leaks not only waste fuel but can also pose serious safety risks. Over time, plastic fuel tanks can degrade due to exposure to UV rays and harsh chemicals, which can lead to cracks and leaks.

2. Clogged Fuel Pickup: The fuel pickup tube inside the tank is responsible for drawing fuel from the tank to the engine. Over time, this pickup tube can become clogged with debris, dirt, or sludge, leading to fuel delivery problems. A clogged pickup can cause the engine to stall, run inefficiently, or fail to start at all.

3. Fuel Tank Venting Problems: Fuel tanks are designed with a vent system to allow air to replace the fuel as it’s used, preventing a vacuum from forming inside the tank. If the vent becomes blocked or clogged, a vacuum can build up, restricting fuel flow to the engine and causing performance issues. This can result in the machine stalling or failing to start due to insufficient fuel delivery.

4. Fuel Contamination: Another issue that can arise with the fuel system is contamination. Water, dirt, or rust can find their way into the fuel tank, leading to engine performance issues. Contaminated fuel can clog fuel injectors and filters, causing the engine to misfire, lose power, or fail to start altogether.


1. Visual Inspection: Start by performing a visual inspection of the fuel tank and surrounding components. Look for any visible cracks, punctures, or leaks in the tank. Check the fuel lines for signs of damage or wear. If there is visible fuel leakage, it may be necessary to replace the tank or repair the damaged area.

2. Check the Fuel Pickup: If the engine is running poorly or stalling frequently, the issue may lie with the fuel pickup tube. Remove the fuel line from the tank and inspect the pickup tube. If there is a significant amount of debris or sludge, clean or replace the pickup tube to restore proper fuel flow.

3. Inspect the Venting System: To check if the fuel tank’s vent is clogged, remove the fuel cap and listen for any hissing sounds. A properly functioning vent will allow air to flow into the tank as fuel is used. If no air is entering the tank or if the engine stalls when the fuel cap is removed, the vent system may be blocked and needs cleaning or replacement.

4. Test Fuel Quality: If you suspect contamination, it is important to test the fuel quality. Drain a small amount of fuel from the tank and inspect it for water or debris. If contamination is detected, the tank should be cleaned, and the fuel system should be flushed to remove any harmful particles.


1. Replacing the Fuel Tank: If the fuel tank is cracked or severely damaged, the best solution is to replace the tank entirely. Ensure that the replacement tank is compatible with the Bobcat T190 to avoid further complications. A new tank will prevent fuel leaks and restore proper fuel delivery.

2. Cleaning the Fuel Pickup Tube: For clogged fuel pickups, the solution is relatively simple. Remove the fuel pickup tube from the tank and clean it thoroughly. A compressed air blower or cleaning brush can help remove any debris or sludge that may be obstructing the fuel flow. After cleaning, reinstall the pickup tube and check for proper operation.

3. Clearing the Venting System: A clogged venting system can be cleaned by removing the vent hose and inspecting it for blockages. Use compressed air to clear any debris or clogs in the vent hose. If the vent cap is damaged, consider replacing it to ensure proper air flow into the tank.

4. Flushing the Fuel System: If the fuel tank has become contaminated with dirt, water, or rust, it’s crucial to flush the entire fuel system. Drain the contaminated fuel from the tank, flush the tank with clean fuel, and replace the fuel filter. This process will help ensure that the fuel system is free from harmful contaminants and will restore engine performance.

5. Using Fuel Additives: To prevent fuel contamination and improve fuel efficiency, consider using fuel additives designed to clean the fuel system and prevent rust and corrosion. These additives can be added directly to the fuel tank and will help maintain the fuel system’s health over time.


1. Regularly Check Fuel System Components: Periodically inspect the fuel tank, lines, and filters for signs of wear and tear. Catching small issues early can prevent more significant problems down the road.

2. Keep the Fuel Tank Clean: Avoid storing fuel for long periods, as old fuel can cause contamination. Always keep the fuel tank clean and free from debris, and refill with fresh fuel regularly.

3. Use High-Quality Fuel: To reduce the risk of fuel contamination, always use high-quality fuel from reputable sources. Avoid filling the tank in areas where dirt or water may enter the fuel.

4. Install a Fuel Filter: Consider installing a high-quality fuel filter in your Bobcat T190 if it doesn’t have one already. A fuel filter will help trap any contaminants before they enter the engine, preventing clogged injectors and performance issues.


The 244J and Its Diagnostic System
The John Deere 244J is a compact wheel loader introduced in the late 2000s, designed for tight-space material handling, snow removal, and light construction. With an operating weight of around 12,000 lbs and a 73 hp diesel engine, it features articulated steering and a hydrostatic transmission. John Deere, founded in 1837, has long emphasized serviceability and diagnostic transparency in its equipment. The 244J includes an onboard fault code system that alerts operators to engine, hydraulic, and electrical issues.
Fault code E601D is one such diagnostic alert, typically triggered by fuel system irregularities. While John Deere does not publicly list all fault codes, field experience and service manuals suggest that E601D relates to fuel delivery or pressure anomalies—often caused by clogged filters or air intrusion.
Terminology Notes

• Fault Code: A numerical or alphanumeric alert generated by the machine’s ECU to indicate a specific malfunction.

• ECU (Electronic Control Unit): The onboard computer that monitors and controls engine and hydraulic systems.

• Fuel Filter: A component that removes contaminants from diesel fuel before it reaches the injection pump.

• Air Intrusion: The presence of air bubbles in the fuel line, which can disrupt pressure and cause engine hesitation or shutdown.


• Fault code E601D displayed on screen

• Engine runs but lacks power

• Hesitation or stalling under load

• No visible fuel leaks


• Replace both fuel filters with OEM-rated components

• Bleed the fuel system to remove air

• Inspect fuel lines for cracks or loose fittings

• Check lift pump function and pressure output

• Monitor fault code recurrence after repair


• Replace fuel filters every 250 hours or as recommended by John Deere

• Use winter-grade diesel in cold climates to prevent gelling

• Install a water separator to reduce contamination risk

• Keep spare filters and bleed tools in the cab for field repairs

• Document fault codes and resolutions for future reference


Track loaders are indispensable machines in the construction and agricultural sectors, known for their versatility and ability to maneuver on rough terrain. However, many users have noted that track loaders often lack tilt capabilities, a feature commonly found in other heavy equipment like skid steers or excavators. This absence raises questions about design choices and functionality. Understanding why tilt is absent in track loaders requires a closer look at the machine’s design, operational needs, and the engineering considerations behind this feature.
What is Tilt and Why is it Important?
Tilt functionality in machinery refers to the ability of the loader’s attachment or bucket to tilt forward or backward, providing more control over the material being moved. Tilt is essential in various tasks, such as grading, leveling, and dumping materials efficiently. Machines equipped with tilt capabilities allow operators to work more precisely and reduce wear on attachments.
For example, a tilt function in a skid steer helps to keep a bucket or attachment level while loading or unloading materials, improving the overall handling and preventing spillage. In contrast, track loaders typically rely on the tilting of the entire loader arms rather than individual attachment tilt, offering a different operational approach.
The Track Loader Design and Functionality
Track loaders, also known as crawler loaders, combine the features of a bulldozer and a skid steer loader. These machines are equipped with tracks instead of wheels, allowing them to handle rough, uneven terrain better than wheeled machines. They are designed to perform tasks such as digging, lifting, and pushing material over large areas, often in conditions where wheel-based equipment would struggle.

1. Loader Arm and Bucket Mechanism: Unlike skid steers, track loaders use a different mechanism for lifting and moving material. The loader arms are designed to lift and tilt the bucket in a set arc, but they do not have a separate tilt mechanism for the bucket itself. This results in a more rigid lifting motion compared to the flexibility of machines with tilt features.

2. Stability Over Flexibility: Track loaders are engineered for maximum stability, especially when operating on slopes or rough ground. A tilt function can add complexity to the hydraulic system, potentially reducing stability. Without tilt, track loaders benefit from a simpler hydraulic design, which reduces the risk of hydraulic issues or mechanical failure during operations.

3. Attachment Interchangeability: Track loaders often use specialized attachments such as buckets, forks, and blades, which may or may not have tilt capabilities built in. In some cases, operators opt for attachments with built-in tilt functions, but these are not part of the base machine’s design. The attachment tilt allows for better versatility without adding unnecessary complexity to the core hydraulic system.


1. Hydraulic System Constraints: The hydraulic system in track loaders is optimized for lifting and pushing, but adding a tilt function requires additional hydraulics, which can complicate the system. This design choice ensures that the loader operates efficiently without overloading the hydraulic components. The simplicity of this system is preferred for tasks that require heavy lifting, pushing, or digging, as adding tilt would decrease the machine’s lifting capacity and increase maintenance needs.

2. Focus on Durability and Strength: Track loaders are designed to handle heavy-duty tasks such as grading, land clearing, and digging through rough terrain. The strength and durability of the loader arms are prioritized over the flexibility that a tilt function provides. The absence of tilt helps preserve the overall structural integrity of the machine, which is vital when operating in harsh environments.

3. Specialized Attachments: Instead of relying on a built-in tilt function, track loaders can be equipped with specialized attachments that allow for the tilt functionality. For instance, certain buckets, grapples, or forks come with their own hydraulic tilt mechanisms, offering operators the flexibility needed for specific tasks. This approach allows for greater customization of the loader’s capabilities while keeping the base machine more versatile and affordable.

4. Improved Performance in Tough Terrain: Track loaders excel in environments where traditional wheeled equipment struggles. The focus is on providing traction and stability in uneven ground, rather than the versatility offered by tilt mechanisms. The decision to forgo tilt functionality in the base design ensures that operators can rely on the machine for stability and strength, especially when dealing with challenging soil types, slopes, or muddy conditions.

5. Cost Efficiency: Incorporating tilt mechanisms into track loaders can increase the overall cost of the machine. By eliminating tilt in the base design, manufacturers keep track loaders more cost-effective, ensuring that operators are not paying for features they may not need. In contrast, users who require tilt functions can invest in specialized attachments that suit their specific requirements, reducing unnecessary overhead.


1. Tilt Attachments: Some attachments, such as tilt buckets or forks, allow operators to achieve tilt functionality. These attachments are designed to be easily swapped in and out, providing the added flexibility required for specific tasks like grading, material handling, or landscaping.

2. Upgrade to Skid Steer or Wheeled Loader: If tilt functionality is a high priority, operators might consider using a skid steer or wheeled loader, both of which typically come with built-in tilt capabilities. These machines are designed to handle a wider variety of tasks with more flexibility in attachments and operations.

3. Custom Tilt Solutions: Some manufacturers offer aftermarket solutions or custom modifications that can be added to track loaders. These systems are designed to retrofit onto the machine’s existing hydraulics and provide tilt functionality when needed. These solutions offer the versatility of tilt without the need to purchase an entirely new machine.


The JD 323E and Its Electronic Start System
The John Deere 323E is a compact track loader introduced in the mid-2010s, designed for grading, material handling, and light excavation. With a 74 hp diesel engine and electrohydraulic controls, it features a sealed cab, joystick steering, and a push-button start system. John Deere, founded in 1837, has long emphasized operator safety and electronic integration in its equipment. The 323E includes a lap bar and seatbelt interlock system, which must be engaged before the machine will start or move.
Unlike older models with mechanical ignition switches, the 323E uses a digital keypad and electronic relays to control startup. This system is sensitive to fuse integrity, sensor signals, and relay function.
Terminology Notes

• Lap Bar Interlock: A safety system that disables machine movement unless the lap bar is lowered.

• Push-Button Start: An electronic ignition system activated by a keypad and start button.

• Relay Box: A sealed enclosure containing relays that control electrical circuits.

• Remote Start Activated: A diagnostic message indicating the machine is in remote start mode, which may block manual startup.


• No engine crank after pressing start

• Lap bar warning despite bar being lowered

• Seatbelt light remained on

• No fuse panel visible at first glance


• Blown Fuses: Often caused by short circuits during testing or sensor faults.

• Faulty Lap Bar or Seatbelt Switches: Dirt, corrosion, or loose connectors can prevent signal transmission.

• Relay Failure: A stuck or burned relay may block power to the starter circuit.

• Remote Start Mode: If activated, this mode may prevent manual startup until reset.


• Inspect fuse box and replace any blown fuses with OEM-rated replacements.

• Test lap bar and seatbelt switches for continuity and proper engagement.

• Check relay box for loose or corroded terminals.

• Look for “Remote Start Activated” message on the display and reset if needed.

• Use a multimeter to verify voltage at the starter relay and ignition circuit.


• Label fuse and relay locations for quick access during field repairs.

• Use dielectric grease on connectors to prevent corrosion.

• Avoid wire testing without isolating circuits to prevent accidental shorts.

• Train operators on interlock behavior and diagnostic messages.

• Keep spare fuses and relays in the cab for emergency repairs.


Transmission fluid is essential for the smooth operation of any machinery with a hydraulic or mechanical transmission system. If bubbles are observed in the transmission fluid, especially in equipment such as the CAT 931B, it can signal potential issues that need to be addressed. Understanding the causes of these bubbles and how to resolve the problem is crucial to ensuring the longevity and efficiency of the machine.
What Causes Bubbles in Transmission Fluid?
Bubbles or foaming in the transmission fluid can be caused by several factors, ranging from improper fluid levels to internal mechanical issues. These bubbles can lead to a significant decrease in the efficiency of the transmission system, causing overheating, reduced power output, and eventual component damage. Identifying the cause is key to addressing the issue before it leads to more severe mechanical failures.

1. Low Fluid Levels: One of the most common causes of bubbles in transmission fluid is insufficient fluid. If the transmission fluid is too low, air can enter the system and cause it to foam. This disrupts the proper functioning of the transmission, as air pockets can prevent the fluid from properly lubricating the moving parts. Checking the fluid level and ensuring it is within the manufacturer’s recommended range is a simple yet effective solution.

2. Contaminated Fluid: Over time, transmission fluid can become contaminated with dirt, debris, or other foreign particles. These contaminants can cause the fluid to foam when the system is under pressure, leading to air pockets in the transmission. Regular fluid changes and using the correct type of fluid can help prevent contamination. Contaminated fluid is also more likely to break down, losing its ability to lubricate and cool the system.

3. Faulty Seals or Gaskets: Seals and gaskets are essential for maintaining the integrity of the transmission system. If these seals are damaged or worn out, they can allow air to enter the transmission fluid system. This results in bubbles or foam, as the air becomes trapped within the fluid. Replacing worn seals or gaskets is often necessary to fix this issue.

4. Overheating: Excessive heat can cause transmission fluid to break down and become foamy. Heat can cause the fluid’s viscosity to decrease, which in turn reduces its ability to lubricate and cool the transmission components. Overheating may be caused by heavy workloads, inadequate cooling systems, or malfunctioning cooling components. If overheating is the cause, addressing the root cause of the temperature issue is essential.

5. Pump Failure: The transmission pump is responsible for circulating the fluid throughout the system. If the pump is malfunctioning, it may introduce air into the fluid, causing bubbles to form. Pump failure is a more serious issue and may require the replacement or repair of the pump to restore proper fluid circulation.


1. Reduced Lubrication: Bubbles in the fluid cause air pockets that prevent proper lubrication. This results in increased friction and wear on the transmission components, leading to premature failure.

2. Overheating: As bubbles form in the fluid, they reduce its ability to carry heat away from the transmission. This can lead to overheating, which, in turn, can cause damage to seals, gaskets, and internal components.

3. Power Loss: The foaming of the fluid causes a loss of pressure within the system, resulting in a reduction in power transfer. This can affect the machine’s performance, making it less responsive and reducing its efficiency.

4. Component Wear: Lack of adequate lubrication and cooling can cause wear on the transmission components, such as gears and bearings. This increases the likelihood of costly repairs or part replacements in the future.

5. Erratic Shifting: In systems with automatic transmission, the presence of air bubbles can lead to erratic shifting or difficulty in engaging gears. This reduces the machine’s ability to operate smoothly, particularly under heavy load conditions.


1. Check Fluid Levels: The first step is to check the fluid levels to ensure that they are within the correct range. If the fluid is low, top it up with the correct type of fluid as specified by the manufacturer. Low fluid levels are the most common cause of bubbles, so this step may solve the problem.

2. Inspect for Leaks: If the fluid levels are low, inspect the system for leaks. Worn seals, gaskets, or hoses may allow fluid to escape, leading to low levels and the formation of air bubbles. Replace any damaged components as needed.

3. Change the Fluid: If the transmission fluid is contaminated or degraded, it should be changed. Contaminated fluid will not properly lubricate or cool the system and can lead to foaming. Use the manufacturer’s recommended type of fluid to ensure compatibility and optimal performance.

4. Check for Overheating: Monitor the temperature of the transmission fluid. If overheating is the cause of the foaming, inspect the cooling system for issues such as a clogged radiator, faulty thermostat, or malfunctioning cooling fans. Fixing the cooling system should prevent further overheating and foaming.

5. Inspect the Pump: If the pump is malfunctioning, it may need to be repaired or replaced. A damaged or worn pump can introduce air into the system, leading to foaming. Check the pump’s performance and replace it if necessary.

6. Replace Damaged Components: If any seals, gaskets, or internal components are damaged, replace them immediately. Worn or broken parts can cause air to enter the system, resulting in bubbles and reduced transmission performance.


Why Won’t the Volvo EC290 Shift into High Track Speed
The EC290 and Volvo’s Excavator Evolution
The Volvo EC290 is a mid-size crawler excavator introduced in the early 2000s, designed for heavy-duty earthmoving, demolition, and utility trenching. With an operating weight around 29 tons and powered by a Volvo D7D engine producing over 200 hp, the EC290 was part of Volvo’s push to modernize excavator design with improved hydraulics, operator comfort, and electronic control systems. Volvo Construction Equipment, a division of the Swedish industrial giant AB Volvo, has long emphasized reliability and serviceability in its machines.
One feature of the EC290 is its dual-speed travel system, allowing operators to switch between low and high track speeds depending on terrain and task. This system relies on solenoids, relays, and hydraulic valves to engage high-speed mode when conditions permit.
Terminology Notes

• Travel Speed Solenoid (A4): An electrically actuated valve that shifts the travel motor into high-speed mode.

• Relay: A switch that uses low-voltage signals to control high-current circuits, often used to trigger solenoids.

• Hydraulic Travel Motor: A motor that drives the tracks using pressurized fluid, capable of shifting between speed ranges.

• ECU (Electronic Control Unit): The onboard computer that manages engine and hydraulic functions.


• No response when activating high-speed travel

• Solenoid replaced but problem remains

• No voltage detected at A4 solenoid

• Machine otherwise operates normally


• No Power to Solenoid: Indicates an electrical fault upstream—possibly a failed relay, broken wire, or ECU issue.

• Faulty Travel Speed Switch: The switch itself may be worn or disconnected.

• Blown Fuse or Relay: A failed relay in the cab or fuse box can prevent voltage from reaching the solenoid.

• ECU Logic Fault: If the ECU detects a condition that prevents high-speed travel (e.g. hydraulic overload, incline), it may block activation.


• Test voltage at the travel speed switch and relay output

• Inspect wiring harness for damage or corrosion

• Check fuse panel for blown fuses related to travel control

• Use diagnostic software to scan ECU for fault codes

• Manually energize the solenoid with external power to confirm function


• Inspect wiring harnesses annually for wear and corrosion

• Label relays and fuses in the cab for quick troubleshooting

• Use dielectric grease on connectors to prevent moisture intrusion

• Train operators to report speed issues early, before full failure

• Keep spare solenoids and relays in field kits for remote repairs


Swing cylinders are crucial components in many types of heavy machinery, particularly in excavators, cranes, and other tracked or wheeled machines that require rotational movement. These cylinders enable the equipment to perform tasks requiring full rotation or swinging action, such as digging, lifting, or positioning materials. Understanding the function, common issues, and maintenance of swing cylinders is essential for anyone involved in operating or maintaining heavy equipment.
What are Swing Cylinders?
Swing cylinders are hydraulic cylinders designed to control the swinging movement of a piece of equipment. In excavators, for instance, they allow the upper part of the machine (the house) to rotate relative to the lower part (the undercarriage). The swing motion is fundamental to various tasks, including digging, placing materials, or reaching different areas in tight spaces. These cylinders are typically powered by the machine’s hydraulic system, which uses pressurized fluid to create force.
The Function of Swing Cylinders
Swing cylinders perform a key function in enabling rotational movement. When hydraulic fluid is pumped into one side of the cylinder, it extends, causing the attached machinery to swing in one direction. When the fluid is directed to the other side of the cylinder, the cylinder retracts, moving the machine in the opposite direction. This allows the equipment to perform tasks that require precise positioning, such as lifting loads, digging trenches, or placing objects in specific locations.
For example, in an excavator, the swing cylinder moves the upper part of the machine, allowing the operator to reach different angles while digging. Without these cylinders, the operator would be limited to a more restricted work area, making the machine far less versatile.
Common Issues with Swing Cylinders
While swing cylinders are robust and designed for heavy-duty work, they are not immune to wear and tear. Over time, these cylinders can develop various issues that affect the machine's performance. Understanding these issues and how to address them is critical to ensuring the continued functionality of the equipment.

1. Leaks: One of the most common problems with swing cylinders is leaking hydraulic fluid. This can occur due to worn seals or damaged components within the cylinder. Leaks can result in decreased hydraulic pressure, leading to sluggish or unresponsive movement. Regular inspection of seals and hoses is essential to prevent leaks from becoming a significant issue.

2. Cylinder Drift: This refers to the unintended movement of the equipment when the operator is not commanding it. Cylinder drift happens when the hydraulic fluid bypasses the piston or seal, causing the swing to move on its own. This can be caused by worn seals or internal damage within the cylinder, affecting the performance and precision of the machine.

3. Slow Swinging Motion: A slow or weak swinging motion can indicate several issues, including low hydraulic fluid levels, a failing hydraulic pump, or internal damage to the swing cylinder. This is especially problematic in tasks requiring quick or smooth swings, such as material placement or positioning.

4. Excessive Heat: If the swing cylinders are exposed to excessive heat, either from the hydraulic fluid or external sources, it can lead to system failure. Heat can degrade the seals and fluid inside the cylinder, causing premature wear or damage. Regularly checking fluid temperatures and ensuring that the cooling system is functioning properly is key to preventing overheating.

5. Internal Wear or Corrosion: Over time, the internal components of a swing cylinder, such as the piston or barrel, may become worn or corroded. This can result in reduced efficiency, leaks, or even failure of the cylinder. Regular maintenance and proper storage of equipment in clean environments can reduce the chances of internal wear.


1. Regular Inspections: Perform visual inspections of the swing cylinders, hoses, and fittings regularly. Look for signs of wear, leaks, or damage. Check the hydraulic fluid levels to ensure they are within the recommended range and top up as necessary.

2. Seal Maintenance: The seals in swing cylinders prevent hydraulic fluid from leaking. If these seals are damaged, they can cause fluid loss and loss of pressure, which will compromise the performance of the swing cylinder. Replace seals at the first sign of wear to avoid more significant damage.

3. Cleanliness: Keep the cylinder and surrounding areas clean. Dirt and debris can damage the seals and internal components, leading to premature failure. Always wipe down the cylinder after use and avoid exposing it to harsh environmental conditions, such as rain or mud, without proper covers or protection.

4. Hydraulic Fluid Quality: Use the correct type and grade of hydraulic fluid for your equipment. Poor-quality fluid or improper fluid levels can cause damage to the cylinder and other hydraulic components. Ensure that the fluid is clean and free of contaminants to maintain optimal performance.

5. Lubrication: Ensure that all moving parts of the swing cylinder are properly lubricated. Lubrication helps reduce friction, prevent wear, and extend the life of the cylinder. Follow the manufacturer’s guidelines for lubrication intervals and amounts.

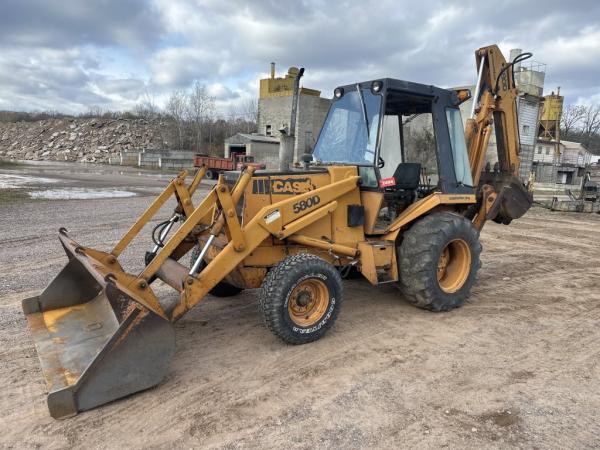

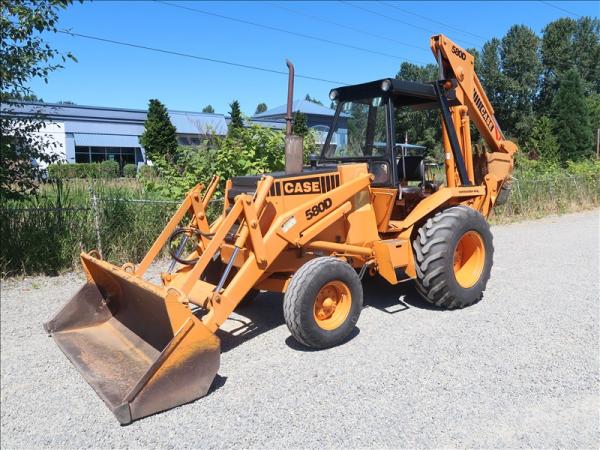

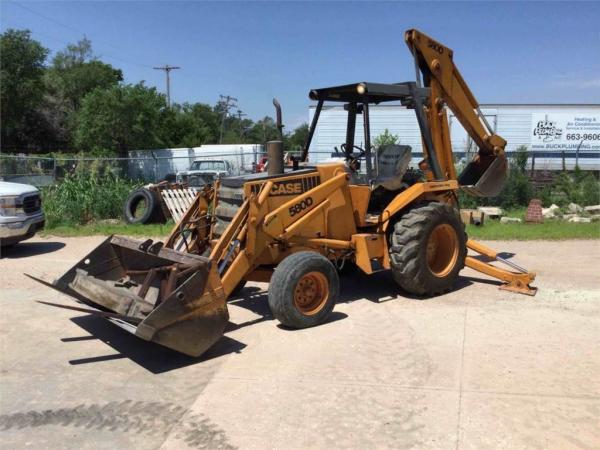

The Case Legacy in Loader Backhoes
Case Construction Equipment, founded in 1842, revolutionized the backhoe loader market in the mid-20th century. By the 1970s, Case had become a dominant force in North America, with the 580 series leading the charge. The 580K, introduced in the early 1990s, built on the legacy of earlier models like the 580B and 580C, offering improved hydraulics, operator comfort, and attachment versatility. One key feature across these machines was the use of standardized bucket ear dimensions, which allowed owners to swap buckets and couplers across generations with minimal modification.
Terminology Notes

• Bucket Ear: The steel plates welded to the bucket that house the pin holes for mounting to the dipper arm and linkage.

• Pin-to-Pin Spacing: The center-to-center distance between the mounting pins, critical for coupler alignment.

• Quick Coupler: A device that allows fast attachment changes without manual pin removal.

• Grading Edge: A flat cutting edge on a bucket, used for smoothing and leveling rather than digging.


• Pin-to-Pin Spacing: 14 inches center to center

• Ear Width (Top): 10 inches between inner faces

• Ear Width (Bottom): 5 inches between inner faces


• Measure pin spacing and ear width before purchasing used buckets.

• Inspect coupler condition, especially locking holes and wear surfaces.

• Use grading-edge buckets for finish work and ditch maintenance.

• Keep a range of bucket sizes to match jobsite needs and soil conditions.

• Verify compatibility with coupler type, especially on older machines.


• Grease pins regularly to prevent seizure and wear.

• Check ear alignment during installation to avoid stress on coupler arms.

• Replace worn bushings and pins to maintain tight fit.

• Document bucket dimensions for future purchases or fabrication.

• Store buckets on level ground to prevent ear distortion.


The Takeuchi TB25 and Its Role in Compact Excavation
The Takeuchi TB25 was introduced in the late 1980s as part of Takeuchi’s early push into the compact excavator market. Takeuchi, founded in 1963 in Japan, was one of the first manufacturers to produce compact track loaders and mini-excavators. The TB25 was designed for utility trenching, landscaping, and small-scale construction, offering a tight tail swing and a simple hydraulic layout. Though long discontinued, many TB25 units remain in service, especially in rural areas and private fleets.
Terminology Notes

• Engine Tag: A metal plate affixed to the engine block that lists model number, serial number, and manufacturer.

• Casting Number: A raised or stamped number on the engine block or head, used to identify engine type and production batch.

• Glow Plug Relay: A component that controls the pre-heating system in diesel engines, critical for cold starts.

• Fuel Cut Solenoid: An electrically actuated valve that shuts off fuel flow when the key is turned off.


• Glow plug relay location: Often mounted near the firewall or under the seat.

• Fuel cut solenoid: Usually located on the injection pump, with a single wire connector.

• Starter mounting pattern: Bolt spacing and flange shape can help identify engine family.


• Clean the engine block thoroughly to expose casting numbers.

• Photograph any visible tags, stamps, or embossed codes.

• Compare starter and alternator mounting patterns with known engine families.

• Trace wiring to glow plug relay and fuel solenoid for layout clues.

• Consult Takeuchi parts manuals or engine supplier catalogs using serial number ranges.


• Preserve engine tags during repainting or cleaning.

• Document casting numbers and wiring diagrams for future reference.

• Use OEM filters and fluids to maintain compatibility.

• Install weatherproof toggle switches if original glow plug relays fail.

• Keep spare solenoids and relays on hand for field repairs.


The Case 580D is a rugged and reliable backhoe loader produced by Case Corporation, primarily in the 1980s and early 1990s. As one of the most popular backhoes in its class, the 580D is known for its versatility on construction sites, its powerful digging capabilities, and its reliability for various tasks, from digging trenches to lifting heavy loads. However, like all heavy machinery, the 580D comes with its own set of challenges, especially as it ages. Understanding common issues, preventative measures, and proper maintenance techniques can help prolong the life of this workhorse and minimize downtime.
Overview of the Case 580D Backhoe Loader
The Case 580D was part of the Case 580 series, a well-known and widely used lineup of backhoe loaders. Introduced in the late 1980s, it boasted a 67 horsepower engine and a solid construction that made it ideal for both rural and urban projects. The machine's hydraulic system and the extendable dipper arm gave it flexibility for digging, lifting, and handling materials. Over time, it became a staple on many job sites because of its power, durability, and ease of maintenance.
The 580D is powered by a four-cylinder diesel engine and features a hydraulic system that operates both the loader and backhoe attachments. The machine's versatility is a major selling point, allowing it to perform a range of tasks using various attachments, including buckets, forks, and augers.
Common Issues with the Case 580D
While the Case 580D is built to last, certain parts of the backhoe loader can experience wear and tear over time. Below are some of the most common issues that owners and operators may face with the 580D:

1. Hydraulic System Failures
   The hydraulic system is the backbone of the Case 580D’s functionality, as it powers both the backhoe and the loader. Hydraulic issues are often at the top of the list of concerns for operators, especially when it comes to leakage, loss of power, or erratic performance.
   • Symptoms: Slow operation, weak lifting power, or a complete failure to function.

   • Causes: Leaking hydraulic hoses, worn-out hydraulic pumps, or low fluid levels.

   • Solutions: Regularly inspect hydraulic hoses for wear or cracks, top up hydraulic fluid, and change the oil and filters according to the manufacturer’s guidelines. If the pump or control valve is malfunctioning, professional inspection and repairs may be required.

2. Engine Starting Issues
   Starting problems are a common frustration with aging machinery like the Case 580D, particularly when the starter motor, battery, or wiring begins to degrade.
   • Symptoms: Difficulty starting the engine, or the engine fails to start altogether.

   • Causes: A weak or dead battery, worn starter motor, or loose connections.

   • Solutions: Regularly check the battery and replace it every few years. Clean all battery terminals and inspect the starter motor and wiring for corrosion or wear. Make sure the connections are tight and free from any debris.

3. Transmission and Gearbox Problems
   The Case 580D’s transmission system is integral for smooth operation, allowing for shifting between gears while loading or digging. Transmission issues can arise, particularly in older models, causing jerky movements or a complete inability to shift gears.
   • Symptoms: Rough shifting, difficulty engaging or disengaging gears, or unusual noises during operation.

   • Causes: Low or dirty transmission fluid, worn clutch components, or faulty shift cables.

   • Solutions: Ensure that the transmission fluid is regularly topped up and replaced. Inspect the shift cables for proper tension and lubrication. If the clutch is slipping, it may require adjustment or replacement.

4. Loader Arm and Bucket Wear
   The loader arm and bucket are exposed to heavy lifting and digging tasks, leading to potential wear, cracking, or damage over time.
   • Symptoms: Reduced lifting capacity, cracks in the loader arm or bucket, or loose connections.

   • Causes: Regular wear from use, fatigue cracks due to overloading, or poorly maintained pin connections.

   • Solutions: Inspect the loader arm and bucket for cracks or signs of excessive wear. Tighten any loose pins or bolts, and replace the bucket teeth if they are worn down. When using the loader arm, avoid exceeding the machine’s weight limits to reduce wear.

5. Electrical System Failures
   The electrical system, including wiring, lights, and alternators, can fail over time due to age or exposure to harsh working conditions.
   • Symptoms: Flickering lights, electrical components not functioning, or the battery not charging.

   • Causes: Corrosion on connectors, a failing alternator, or a worn-out wiring harness.

   • Solutions: Regularly clean the electrical connections and replace any damaged or corroded wiring. If the alternator is not charging properly, have it tested and replaced if necessary.

6. Cooling System Overheating
   Overheating can be a significant issue in older machines, especially when the cooling system is not maintained properly.
   • Symptoms: The engine temperature gauge reads high, or the machine begins to lose power due to overheating.

   • Causes: Low coolant levels, clogged radiator, or a faulty water pump.

   • Solutions: Regularly check coolant levels and top them off as needed. Clean the radiator of any debris, and replace the water pump or thermostat if it’s malfunctioning. Keeping the engine clean from dirt and dust can also help ensure proper cooling.


1. Routine Fluid Checks: Regularly check the oil, coolant, and hydraulic fluid levels to prevent system failures. Change these fluids based on the manufacturer’s service intervals to avoid contamination and ensure smooth operation.

2. Scheduled Inspections: Conduct periodic inspections of key components, including the engine, transmission, hydraulic system, and electrical system. Look for signs of wear or damage, and replace worn parts before they cause more significant issues.

3. Keep the Machine Clean: Dirt and debris can clog filters and cause the engine to overheat. Clean the machine regularly, focusing on the radiator, air filters, and cooling fins.

4. Use the Right Parts: When replacing components, always use OEM (original equipment manufacturer) parts. Non-OEM parts may not meet the necessary quality standards and could lead to further issues down the road.

5. Operator Training: Ensure that operators are well-trained on the proper usage of the backhoe loader. Overloading the machine or using improper digging techniques can cause unnecessary wear and tear on the equipment.
