Introduction
The Hyundai 290 series excavators, renowned for their robust performance and versatility, are increasingly being utilized for post pounding applications. Equipped with powerful hydraulic systems and advanced control mechanisms, these machines are well-suited for tasks such as fence installation, foundation piling, and other post-driven projects. However, to maximize efficiency and ensure safety, it's essential to understand the nuances of adapting a Hyundai 290 excavator for post pounding.
Understanding the Hyundai 290 Excavator
The Hyundai 290 excavator series encompasses various models, including the R290LC-9 and R290LC-7, among others. These machines typically feature:

• Operating Weight: Approximately 29 to 31 tons, providing a stable base for heavy-duty tasks.

• Engine Power: Ranges between 200 to 220 horsepower, delivering ample power for demanding operations.

• Hydraulic System: Advanced hydraulics capable of handling high-flow attachments, crucial for post pounding efficiency.

• Boom and Arm Configuration: Designed for optimal reach and digging depth, facilitating precise post placement.


1. Attachment Selection: Equip the excavator with a suitable hydraulic post driver or breaker. Attachments like the Premier Attachments PD500 or PD750 are designed for mini excavators but can be adapted for larger machines with appropriate mounting brackets. These attachments deliver reliable performance in tight spaces and tough conditions.

2. Hydraulic Flow Adjustment: Ensure the excavator's hydraulic system is calibrated to match the requirements of the post driver. This may involve adjusting the flow rate and pressure settings to optimize the attachment's performance.

3. Boom Configuration: Utilize a long reach boom to enhance the excavator's ability to reach and drive posts at varying distances. Some manufacturers offer long reach booms specifically designed for pile driving applications.

4. Safety Measures: Implement safety protocols such as using a spotter, ensuring proper lighting, and conducting ground assessments to prevent accidents during operation.


• Hydraulic System Malfunctions: Issues such as intermittent hydraulic shutdowns or EPPR valve malfunctions can cause system instability. Regular maintenance, including cleaning or replacing the EPPR valve and maintaining fluid quality, can restore stable hydraulic function.

• Engine Performance Issues: Problems like engine bogging during hydraulic operation often stem from hydraulic pump load or pressure imbalances. Monitoring pump pressures and inspecting components for leaks or wear can help prevent stalling caused by hydraulic overload.


• Hyundai Excavator Service Manuals: Detailed guides on maintenance and attachment integration.

• Attachment Manufacturers: Suppliers offering compatible post drivers and mounting solutions.

• Industry Forums: Platforms where professionals share experiences and solutions related to excavator adaptations.


Introduction
Transporting Bobcat skid-steer loaders, commonly referred to as "Bobcats," requires careful planning and the right equipment to ensure safety and efficiency. Whether relocating a functional machine or moving an inoperative one, understanding the best practices and tools available is crucial.
Understanding Bobcat Transport Needs
Bobcats are versatile machines used in various industries, including construction, landscaping, and agriculture. Their compact size allows them to access tight spaces, but this also presents challenges when it comes to transportation. The primary concerns during transport include securing the machine properly, ensuring it remains stable, and preventing damage to both the loader and the transport vehicle.
Methods for Transporting Functional Bobcats

1. Using a Trailer with Proper Tie-Downs
   • Description: For functional Bobcats, the most straightforward method is to drive the machine onto a flatbed or tilt-bed trailer.

   • Procedure:
     • Align the trailer on a level surface.

     • Drive the Bobcat onto the trailer, ensuring the weight is evenly distributed.

     • Use heavy-duty straps or chains to secure the machine at multiple points.

     • Ensure the loader's bucket or attachments are lowered to the ground to prevent movement.

   • Considerations:
     • Always check the weight capacity of the trailer.

     • Verify that the trailer's brakes are in good condition, especially when transporting on inclines.

2. Utilizing a Skid-Steer Transporter
   • Description: Specialized transporters are designed to carry skid-steer loaders safely.

   • Features:
     • Low-profile design for easy loading.

     • Integrated ramps for smooth transitions.

     • Built-in tie-down points for securement.

   • Benefits:
     • Reduces the risk of damage during loading and unloading.

     • Provides a dedicated solution for transporting Bobcats.


1. Using a Tow Truck with a Winch
   • Description: A tow truck equipped with a winch can pull the inoperative Bobcat onto a flatbed or tilt-bed trailer.

   • Procedure:
     • Secure a heavy-duty strap or chain to a solid point on the Bobcat.

     • Attach the other end to the winch on the tow truck.

     • The tow truck operator slowly winches the Bobcat onto the trailer.

     • Once on the trailer, secure the machine using appropriate tie-downs.

   • Safety Tips:
     • Ensure the tow truck operator is experienced in handling such operations.

     • Use a snatch block if necessary to change the direction of the pull and reduce strain on equipment.

2. Manual Dragging
   • Description: In situations where mechanical assistance is unavailable, manually dragging the Bobcat may be an option.

   • Procedure:
     • Place plywood or similar material under the tracks or wheels to reduce friction.

     • Use a vehicle or another machine to gently pull the Bobcat to the desired location.

     • Ensure the path is clear of obstacles to prevent damage.

   • Considerations:
     • This method is labor-intensive and may not be suitable for all situations.

     • Always assess the terrain and potential risks before proceeding.


• Skid-Lift Scissor Lift Attachment:
  • Allows the Bobcat to lift itself, providing additional clearance for loading onto trailers.

  • Offers hydraulic controls for precise adjustments.

• Vacuum Lifting Systems:
  • Utilize suction to lift and move heavy objects, reducing the need for manual labor.

  • Can be used in conjunction with Bobcats for handling materials.


• Proper Training: Ensure all operators are trained in the equipment and procedures.

• Use of Personal Protective Equipment (PPE): Wear appropriate PPE, including gloves, helmets, and steel-toed boots.

• Regular Equipment Inspections: Before each transport, inspect all equipment for wear and tear.

• Clear Communication: Maintain open lines of communication among all team members during the transport process.


Introduction to Oil Filter Cutters
Oil filter cutters are specialized tools designed for opening spin-on oil filters to allow inspection of filter media for contaminants. In heavy equipment maintenance and diagnostics, cutting open oil filters is a common practice used to analyze internal debris such as metal shavings, sludge, or other contaminants that can indicate wear or failure modes in engines or hydraulic systems. Understanding the types, features, and maintenance of oil filter cutters helps technicians perform effective inspections, prolong machine life, and prevent costly breakdowns.

Key Features and Types of Oil Filter Cutters

• Purpose and Use:
  Oil filter cutters are mainly used to safely and cleanly open the metal canister of spin-on filters without damaging the filter media. This helps mechanics visually assess trapped contaminants, enabling evidence-based maintenance decisions.

• Construction Materials:
  Most quality oil filter cutters feature robust frames made from aluminum or steel, balancing durability with manageable weight. Cutting wheels and rollers are typically made of heat-treated steel for wear resistance.

• Design Elements:
  • Cutting Wheel: Usually ground with a double-taper edge to facilitate easier penetration and smooth cuts.

  • Rollers: Heavy-duty double rollers guide the filter through the cutting process, preventing binding and ensuring an even cut around the circumference.

  • Adjustable Frame: Accommodates a wide range of filter diameters and lengths, including aircraft-style filters and large heavy-equipment filters.

  • Manual Operation: Most cutters operate by rotating the filter against the cutting wheel by hand; some may be attached to drill motors for mechanized use.

• Types of Oil Filters Compatible:
  • Spin-on filters (common in engines and hydraulic systems)

  • Aircraft-style filters known for larger and non-standard shapes

  • Heavy equipment filters with thicker metal bodies and larger sizes


• Clean and Safe Opening:
  The cutter eliminates the risk of filter media damage and messy spills which often happen with makeshift cutting methods such as grinders or saws.

• Efficient Contaminant Inspection:
  Accessing the inside of the filter allows for early detection of wear metals, sludge buildup, or other harmful agents signaling engine or hydraulic system distress.

• Durability and Longevity:
  Heat-treated steel cutting blades and rugged roller assemblies promise a long service life, minimizing tool replacement costs.

• Wide Compatibility:
  The adjustable design fits various sizes and shapes of filters across different equipment brands and machine types, including industrial, agricultural, and aircraft filters.


• Aluminum or steel frame providing a sturdy base

• Two heavy-duty rollers to guide filters evenly for smooth cuts

• Two hardened steel cutting wheels for efficient penetration

• Pins and spacers to adjust and secure blade positioning

• Compatible with filter diameters ranging approximately from 3 inches up to 7+ inches or specialized sizes


• Securely mount the filter in the cutter frame, ensuring rollers and cutting wheels make proper contact.

• Rotate the filter or cutting assembly slowly and evenly to achieve a clean cut without metal burrs or filter media harm.

• Inspect cutting wheels regularly for wear; replace if dull to maintain cutting efficiency.

• Lubricate moving parts periodically to prevent corrosion and ensure smooth operation.

• Use personal protective equipment (PPE) such as gloves and eye protection when cutting to avoid injury from sharp edges or flying debris.

• Collect and properly dispose of filter elements and oil residues following environmental regulations.

• Store cutters in dry environments to prevent rust and maintain tool life.


• Spin-On Oil Filter: A cartridge built into a metal canister that screws onto equipment and is replaced as a unit.

• Cutting Wheel: The blade mechanism designed to slice through the metal filter canister.

• Double Roller: Paired rollers that hold and guide the filter during cutting to prevent binding.

• Heat-Treated Steel: Steel that has been thermally processed to increase hardness and durability.

• Aircraft-Style Filter: Larger, often irregularly shaped filters used in aviation and heavy machinery requiring versatile cutting tools.

• Contaminants: Unwanted particles such as metal shavings, dirt, or sludge caught in the filter element.

• Filter Media: The internal material inside the oil filter that traps contaminants.


• Designed for cleanly cutting open spin-on oil filters of various sizes

• Aluminum or steel frame construction for lightweight durability

• Heavy-duty double rollers prevent binding and ensure smooth, even cuts

• Heat-treated steel cutting wheels with double-taper edges enhance cutting performance

• Compatible with heavy equipment, aircraft, and automotive filters alike

• Simple manual operation with options for mechanized use

• Regular maintenance extends tool life: blade replacement and lubrication

• Improves diagnostic capability by revealing filter media contaminants


• Choose cutters rated for the largest filter size used in your service operation.

• Match cutting wheels and rollers with filter thickness and material type to avoid premature wear.

• Train technicians on safe handling and cutting techniques to minimize injury risk.

• Maintain a clean and organized inspection area with oil containment and disposal facilities.

• Coordinate filter inspections with oil analysis to form a comprehensive machine health program.

• Consult manufacturer catalogs or dealer resources for replacement parts and cutter upgrades.

• Consider investing in digital filter inspection tools such as microscopes or particle counters for advanced diagnostics.


Introduction
The JLG 40HA is a versatile articulated boom lift widely used in construction and maintenance tasks. However, like any complex machinery, it can encounter issues that prevent it from starting. Understanding the common causes and solutions can help operators and technicians efficiently diagnose and address these problems.
Common Causes of Starting Issues

1. Faulty Shutdown Solenoid
   A prevalent issue with the JLG 40HA is a malfunctioning shutdown solenoid. This component controls the fuel supply to the engine; if it fails, the engine may not start. Symptoms include the engine cranking without starting. To diagnose, test the harness leading to the solenoid for voltage and ground while cranking the engine. If both are present, remove the solenoid and connect it directly to power and ground to check for operation. If the solenoid doesn't activate, it likely needs replacement.

2. Alternator Charging Issues
   The JLG 40HA's engine relies on a functional alternator to charge the battery. If the alternator isn't charging properly, the engine may shut down automatically to prevent damage. Symptoms include the engine starting briefly and then stopping. Have the alternator tested to ensure it's charging the battery adequately.

3. Electrical System Faults
   Electrical issues such as blown fuses, faulty relays, or corroded connections can disrupt the starting circuit. Inspect all fuses and relays associated with the starting system. Check for continuity and replace any faulty components. Ensure all electrical connections are clean and secure to facilitate proper operation.

4. Engine Mechanical Problems
   Mechanical issues like a broken timing belt, faulty oil pressure switch, or issues with the ignition circuit can prevent the engine from starting. Inspect the timing belt for integrity and replace it if necessary. Check the oil pressure switch for proper function and replace it if faulty. Verify the ignition circuit components for continuity and replace any defective parts.


1. Check Battery Voltage
   Ensure the battery is fully charged and in good condition. A weak or dead battery can prevent the engine from starting.

2. Test Shutdown Solenoid
   As previously mentioned, test the shutdown solenoid for proper operation. If it fails to activate, replace it.

3. Inspect Alternator Output
   Test the alternator to confirm it's charging the battery. A malfunctioning alternator can lead to starting issues.

4. Examine Electrical Components
   Inspect all fuses, relays, and wiring associated with the starting system. Replace any faulty components and clean corroded connections.

5. Assess Engine Components
   Check the timing belt, oil pressure switch, and ignition circuit for proper function. Replace any defective parts as needed.


• Regular Inspections
  Conduct routine inspections of the electrical and mechanical systems to identify potential issues before they lead to starting problems.

• Battery Maintenance
  Keep the battery terminals clean and ensure the battery is fully charged. Replace the battery if it's old or shows signs of wear.

• Component Lubrication
  Lubricate moving parts as recommended by the manufacturer to prevent wear and ensure smooth operation.

• System Calibration
  Periodically calibrate the electrical and hydraulic systems to maintain optimal performance.


Introduction
The Caterpillar 931B Crawler Loader, a robust machine from the 1970s and 1980s, is renowned for its durability and versatility in various construction tasks. A critical component of its undercarriage system is the track adjuster, which maintains the proper tension of the tracks. Over time, the seals within the track adjuster can wear out, leading to hydraulic fluid leakage and compromised track tensioning. This guide provides a detailed overview of the track adjuster seal replacement process for the 931B model, incorporating insights from industry manuals and expert recommendations.
Understanding the Track Adjuster System
The track adjuster in the 931B operates hydraulically to maintain optimal track tension. It comprises several key components:

• Hydraulic Cylinder: Powers the extension and retraction of the track adjuster.

• Seals: Prevent hydraulic fluid leakage and contamination.

• Spring: Provides mechanical force to assist in track tensioning.

• Yoke and Head Assembly: Connects the adjuster to the front idler.


• Visible Hydraulic Fluid Leaks: Around the track adjuster area.

• Rapid Track Wear: Due to improper tension.

• Difficulty in Track Adjustment: Indicating loss of hydraulic pressure.

• Erratic Track Behavior: Such as sudden loosening or tightening.


1. Preparation:
   • Ensure the machine is on a stable surface and the engine is off.

   • Relieve any hydraulic pressure in the system.

   • Place safety blocks under the machine for added security.

2. Removal of Components:
   • Detach the front idler by removing the securing bolts.

   • Remove the yoke assembly, which connects the track adjuster to the front idler.

   • Extract the head assembly from the track adjuster cylinder.

3. Seal Extraction:
   • Carefully remove the old seals from the head and cylinder assemblies.

   • Inspect the sealing surfaces for wear or damage.

4. Installation of New Seals:
   • Lubricate the new seals with clean hydraulic oil to facilitate installation.

   • Install the inner seal with the lip facing the inside of the spring.

   • Install the outer seal with the lip facing the front idler.

   • Ensure all seals are seated properly to prevent future leaks.

5. Reassembly:
   • Reinstall the head assembly into the cylinder.

   • Attach the yoke assembly and secure it with the appropriate bolts.

   • Reattach the front idler to the machine.

6. Testing:
   • Operate the machine and check for any signs of hydraulic fluid leakage.

   • Verify that the track adjuster maintains proper tension.

   • Monitor the system for any unusual noises or behaviors.


• Regular Inspections: Conduct routine checks for hydraulic fluid levels and signs of leakage.

• Proper Lubrication: Ensure all moving parts are adequately lubricated to reduce wear.

• Timely Seal Replacement: Replace seals at the first sign of wear to prevent further damage.

• Use Quality Parts: Always use OEM or high-quality aftermarket seals to ensure longevity and performance.


• Caterpillar 931B Service Manual

• Caterpillar Parts Manual for 931B

• Industry Best Practices for Undercarriage Maintenance


Introduction to Hydraulic Return Filters
Hydraulic return filters play a crucial role in maintaining the health and efficiency of heavy equipment hydraulic systems. Positioned typically in the return line to the hydraulic reservoir, these filters remove contaminants such as dirt, metal particles, and debris from the hydraulic fluid after it has circulated through the system. By filtering the oil before it returns to the tank, they prevent abrasive materials from re-entering hydraulic components, thereby reducing wear, preventing failures, and prolonging machine life.
A clogged or malfunctioning hydraulic return filter can trigger warning messages like "hydraulic return filter plugged," signaling that fluid flow through the filter is restricted. Addressing this issue promptly is vital to avoid pressure drop, sluggish hydraulics, and potential damage.

Understanding Hydraulic Return Filter Function and Location

• Function:
  Return filters purify hydraulic oil coming back from actuators, valves, and cylinders before it re-enters the reservoir. This prevents contaminants internal to the system (wear debris) or external ingress from circulating and damaging pumps and components.

• Common Locations:
  Return filters are usually tank-mounted inside or on top of the hydraulic reservoir and may be semi-immersed in the fluid to avoid air entrainment and cavitation. They can be large cartridge elements or spin-on types, facilitating replacement during maintenance.

• Associated Filters:
  Besides the return filter, hydraulic systems often include suction filters (protect pumps from incoming fluid contamination) and pressure filters (protect components downstream of the pump). Maintenance schedules often recommend changing all relevant filters together.


• Symptoms of a Plugged Filter:
  • Warning lights or messages on machine displays indicating "hydraulic return filter plugged."

  • Hydraulic functions operate sluggishly or lose power after some operating time, especially as fluid heats up and thickens.

  • Hydraulic pressure increases on the inlet side of the filter and drops downstream.

  • Noise from hydraulic valves or pumps may increase due to flow restrictions.

  • Machine may show no significant functional differences at idle but degrade under load.

• Causes of Filter Plugging:
  • Accumulated dirt, sludge, and metal particles from component wear.

  • Lack of regular filter changes causing filter media clogging.

  • Contaminated or degraded hydraulic fluid accelerating debris generation.

  • Faulty or malfunctioning pressure relief valves causing irregular flow and premature clogging.


• Sensor or Indicator Faults:
  Sometimes the filter is changed but the warning remains due to faulty pressure differential sensors or clogged indicator tubes. Sensor inspection or replacement may be necessary if the machine continues to signal plugged filters post-maintenance without performance loss.

• Fluid Viscosity and Operating Temperature:
  Hydraulic fluid thickening at temperature rises can increase pressure differentials across filters, triggering warnings. Cooling issues or fluid change intervals can contribute.

• Improper Filter Installation or Quality:
  Using incorrect or low-quality filters can lead to bypass or premature blockage. Always use OEM or equivalent high-efficiency filters designed for the machine.


• Regular Filter Replacement Intervals:
  As a rule of thumb, replace return filters every 1,000 to 2,000 operating hours or as recommended by the manufacturer. Replace associated suction and case drain filters simultaneously to optimize hydraulic cleanliness.

• Filter Change Procedure:

  1. Relieve system pressure and put the machine in a safe state.

  2. Place oil pans or absorbent mats to catch fluid during filter removal.

  3. Remove the filter cartridge or spin-on filter carefully, capturing residual oil.

  4. Clean the filter head and inspect for debris or damage.

  5. Lubricate the new filter gasket with clean hydraulic oil before installation.

  6. Install the new filter hand-tight per torque specs, avoiding overtightening.

  7. Start the machine and check for leaks or warning lights.

• System Flushing:
  If the hydraulic system shows heavy contamination, consider flushing to remove sludge and debris that clog filters prematurely.

• Sensor and Indicator Check:
  Test for correct sensor function and reset warning indicators post-filter change to avoid false alarms.

• Fluid Analysis and Change:
  Regular hydraulic fluid testing helps identify contamination, viscosity issues, and oxidation, guiding fluid change intervals and additives use.


• Monitor hydraulic system warning lights daily during operation.

• Avoid operating with plugged filter warnings; prolonged use may cause hydraulic component damage.

• Keep spare filters in stock for quick replacements on site.

• Use only filters specified by the equipment manufacturer to maintain warranty and reliability.

• Periodically inspect hydraulic hoses and fittings feeding the filter housing for leaks or blockages.


• Hydraulic Return Filter: A filter removing contaminants from the fluid returning to the hydraulic reservoir.

• Pressure Differential Sensor: A device detecting differences in pressure before and after the filter to indicate clogging.

• Spin-On Filter: A disposable hydraulic filter unit that screws onto a threaded base for easy replacement.

• Filter Bypass Valve: A valve allowing fluid flow around the filter if clogging becomes severe, preventing system starvation but allowing unfiltered fluid circulation.

• Hydraulic Fluid Viscosity: Thickness of the fluid affecting flow characteristics, varying with temperature.


• Replace return filters regularly per manufacturer schedules.

• Change associated hydraulic filters (case drain, suction) alongside return filters.

• Use OEM or high-quality equivalent filters to ensure effective filtration.

• Inspect and test pressure differential sensors and reset warnings after replacement.

• Monitor system pressures and temperatures to anticipate filter loading.

• Conduct hydraulic fluid analysis and replace fluid if contaminated or degraded.

• Ensure proper filter installation and gasket lubrication during changes.

• Investigate persistent filter warnings for sensor or system anomalies.

• Maintain a clean workspace and prevent external contaminant ingress during filter changes.


• Develop a preventive maintenance log for hydraulic filters and fluid changes.

• Train operators and technicians to recognize signs of filtration issues early.

• In dusty or severe service conditions, increase frequency of filter changes.

• Coordinate with equipment dealers or service centers for up-to-date filter specifications and catalogues.

• Use inline pressure gauges or electronic monitors for continuous system health tracking.




Introduction

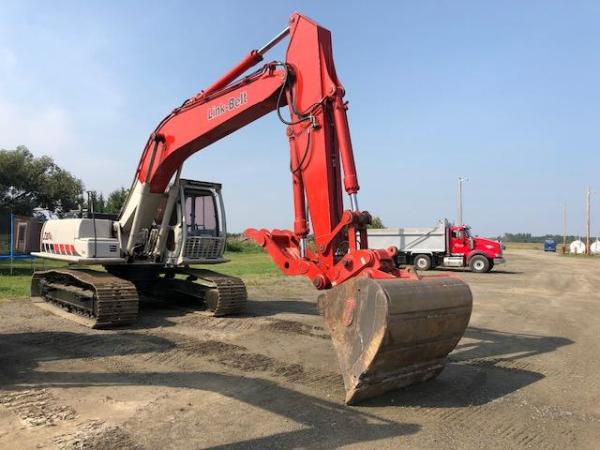

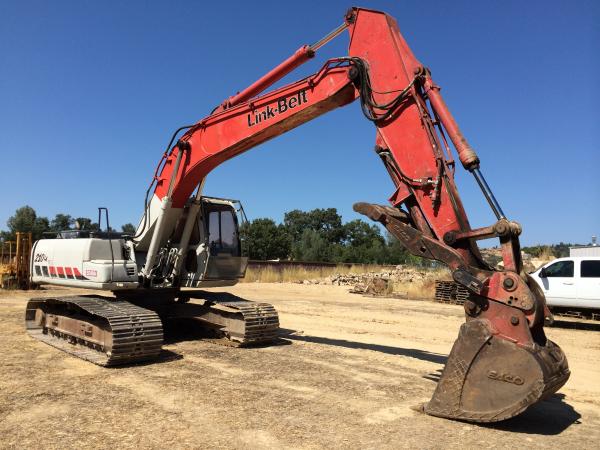

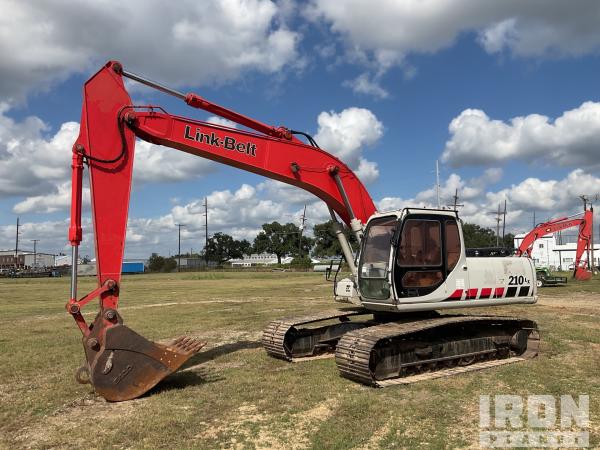

The Link-Belt 210LXS is a mid-sized hydraulic crawler excavator renowned for its robust performance in various construction and excavation tasks. Manufactured by Link-Belt Excavators, a subsidiary of LBX Company, the 210LXS model is designed to offer a balance between power, efficiency, and operator comfort.
Key Specifications

• Engine Power: The 210LXS is equipped with a 138 hp (103 kW) Isuzu BB-6BG1T diesel engine, providing ample power for demanding tasks.

• Operating Weight: Approximately 44,800 lbs (20,321 kg), making it suitable for a wide range of applications without compromising mobility.

• Digging Depth: Up to 22 ft (6.7 m), allowing for deep excavation work.

• Maximum Reach: Approximately 32 ft (9.8 m), facilitating extended reach for various tasks.

• Bucket Capacity: Ranges from 0.5 to 0.86 cubic yards (0.38 to 0.66 cubic meters), depending on the attachment used.


1. Fuel System Problems: Some units have experienced fuel starvation and air ingress, leading to hard starts and stalling during operation. It's essential to check the fuel line sequence and ensure there are no blockages or leaks.

2. Electrical Faults: Instances of electrical issues have been noted, such as erratic gauge readings and persistent beeping alarms. These problems often stem from faulty wiring or sensor malfunctions.

3. Hydraulic System Failures: The hydraulic system is crucial for the excavator's performance. Regular maintenance and timely replacement of hydraulic filters can prevent common failures.


• Regular Inspections: Conduct daily checks of the engine, hydraulic system, and undercarriage.

• Fluid Changes: Adhere to the manufacturer's recommended intervals for oil and filter changes.

• Component Replacements: Replace worn-out parts promptly to prevent further damage and maintain efficiency.

• Operator Training: Ensure that all operators are adequately trained to handle the machine, reducing the risk of misuse and subsequent issues.


Introduction
The Komatsu PC200LC-3 is a mid-sized hydraulic crawler excavator renowned for its durability and versatility in various construction and excavation tasks. Manufactured between 1988 and 1995, this model has become a staple in the heavy equipment industry. Despite its age, many units remain operational, testament to Komatsu's engineering excellence.
Technical Specifications

• Engine: Komatsu SAA6D107E-1, 6-cylinder turbocharged diesel

• Net Power: 148 HP (110 kW) at 2,000 RPM

• Operating Weight: Approximately 19.14 tons (19,160 kg)

• Transport Dimensions:
  • Length: 9.38 meters

  • Width: 3.09 meters

  • Height: 2.94 meters

• Track Width: 710 mm

• Bucket Capacity: 1.4 cubic meters

• Maximum Digging Depth: 7.68 meters

• Maximum Horizontal Reach: 10.69 meters


1. Hydraulic Pressure Loss and Engine Stalling
   A prevalent issue with the PC200LC-3 is hydraulic pressure loss, particularly under boom load conditions, leading to engine stalling. This problem often arises from internal valve failures or relief valve malfunctions. Regular inspection and maintenance of the hydraulic system, including checking for internal leaks and ensuring proper valve function, are crucial.

2. Hydraulic Valve Failures
   The hydraulic valves in the PC200LC-3 are susceptible to internal porting issues, which can cause significant operational problems. In some cases, internal breaks have led to unexpected machine behavior. It's advisable to monitor the hydraulic system closely and replace valves showing signs of wear or damage.

3. Electrical System Failures
   Electrical issues, such as wiring fires or short circuits, have been reported in older Komatsu models. These problems can lead to complete system failures if not addressed promptly. Regular inspection of the wiring harnesses and electrical components, along with timely replacement of faulty parts, can mitigate these risks.


• Regular Hydraulic System Checks: Monitor hydraulic fluid levels and pressure regularly. Replace filters and fluids as per the manufacturer's schedule to ensure optimal performance.

• Electrical System Inspections: Conduct routine checks of the electrical wiring and components to identify and rectify potential issues before they lead to system failures.

• Engine Maintenance: Regularly service the engine, including oil changes and air filter replacements, to maintain its performance and longevity.

• Undercarriage and Track Maintenance: Inspect the undercarriage and tracks for wear and damage. Replace worn components promptly to prevent further damage and ensure safe operation.


Introduction to the Case 450 Drive Shaft
The drive shaft in the Case 450 dozer is a fundamental component within the final drive system, transmitting power from the transmission to the sprockets that move the tracks. Its proper function ensures smooth power delivery, reliable machine movement, and overall operational efficiency. Understanding the specifications, maintenance needs, common issues, and solutions associated with the Case 450 drive shaft is crucial for operators, mechanics, and fleet managers aiming to maximize uptime and reduce costly repairs.
This detailed guide covers technical data, component features, troubleshooting advice, terminology, real-world case insights, and practical recommendations related to the Case 450 dozer drive shaft system.

Technical Specifications and Key Features

• Drive Shaft Type:
  The Case 450 utilizes a sprocket shaft within the final drive assembly, often referred to as the final drive sprocket shaft.

• Dimensions and Characteristics:
  • Length: Approximately 11.5 inches to 11 3/8 inches depending on serial number and model version.

  • Splines: 33 spline count on the shaft end for secure mechanical fitment.

  • Outer Diameter of Spline: Approximately 2-13/16 inches.

  • Quantity: The machine typically uses two sprocket shafts, one per track final drive.

• Part Numbers and Variants:
  • Common replacement part number: A51737 for the sprocket shaft of later serial Case 450 models.

  • Earlier serial models may use shorter sprocket shafts (~10.5 inches) with part number A50484.

  • Shaft weights: Generally heavy-duty to withstand considerable torque and load stresses (weights vary, e.g., around 50-60 lbs depending on exact spec).

• Final Drive Configuration:
  • The drive shaft works within a spur and bull gear type single reduction final drive system, known for robust torque multiplication and reliability.


• Shaft Wear and Damage:
  Splines can wear out or become damaged due to contamination, misalignment, or lack of lubrication, leading to slippage or poor power transfer.

• Seal Failure:
  Seal components around sprocket shafts protect against oil leaks and contamination ingress. Worn seals cause lubricant loss, accelerating shaft and gear wear.

• Bearing and Housing Problems:
  Bearings supporting the drive shaft may wear or fail under heavy loads, causing misalignment, vibration, and eventual shaft damage.

• Corrosion and Contamination:
  Exposure to dirt, water, and abrasive material leads to accelerated deterioration of the shaft and adjoining parts if not properly sealed and maintained.

• Misalignment and Installation Errors:
  Incorrect installation during maintenance can lead to uneven loads on the shaft splines and accelerated wear or failure.


• Regular Inspection:
  Periodically check sprocket shaft splines, seals, and bearings for wear and damage during scheduled service intervals.

• Lubrication and Seal Replacement:
  Use OEM or high-quality lubricants to maintain proper oil film and replace seals with genuine parts to prevent leaks.

• Timely Component Replacement:
  Replace worn sprocket shafts, seals, or bearings promptly to avoid cascading damage within the final drive.

• Cleaning and Protection:
  Keep drive assembly clean and protected from contaminants during work to prolong shaft life.

• Proper Installation Procedures:
  Follow manufacturer torque settings, alignment protocols, and assembly sequence to ensure correct shaft and final drive assembly installation.


• Drive Shaft / Sprocket Shaft: The shaft transferring rotational power to the final drive sprocket which engages with the track chain.

• Spline: Series of ridges on the shaft that fit matching grooves inside the mating part, securing torque transmission.

• Final Drive: The final gearbox assembly converting hydraulic motor power into track movement through gears and shafts.

• Seal: A device preventing oil leakage and entry of dirt or water into sensitive mechanical assemblies.

• Single Reduction Final Drive: A gear reduction system using one stage of gearing to amplify torque.

• Bearing: Component facilitating smooth rotation and supporting shafts against load.


• Sprocket shaft length approximately 11.5 inches (later serials) or shorter in early models.

• 33 spline configuration with roughly 2-13/16 inch spline diameter.

• Final drives use single reduction spur and bull gear designs.

• Shaft requires clean lubrication and good seal integrity to prevent wear.

• Replace seals and bearings during shaft service to maintain assembly health.

• Use genuine OEM parts confirmed by part numbers (e.g., A51737) for replacements.

• Regular inspection for spline wear, seal leaks, and bearing condition is critical.

• Follow correct installation procedures to avoid misalignment and premature failure.


• Maintain a stock of OEM sprocket shafts, seals, and bearing kits for quick repairs in remote locations.

• Train maintenance staff on final drive disassembly and shaft handling to avoid damage.

• Implement oil analysis for final drive fluid to detect early contamination or wear products.

• Consider preventative replacement if worn splines or seals are detected before catastrophic failure occurs.

• Consult official service manuals for serial number-specific parts and torque specifications.





Introduction
The Komatsu 700H series dozers are renowned for their robust performance in heavy-duty applications. However, like any complex machinery, they are susceptible to specific component failures. One such critical component is the speed sensor, which plays a pivotal role in the dozer's operation. Understanding its function, common issues, and troubleshooting methods is essential for maintaining optimal performance.
Function of the Speed Sensor

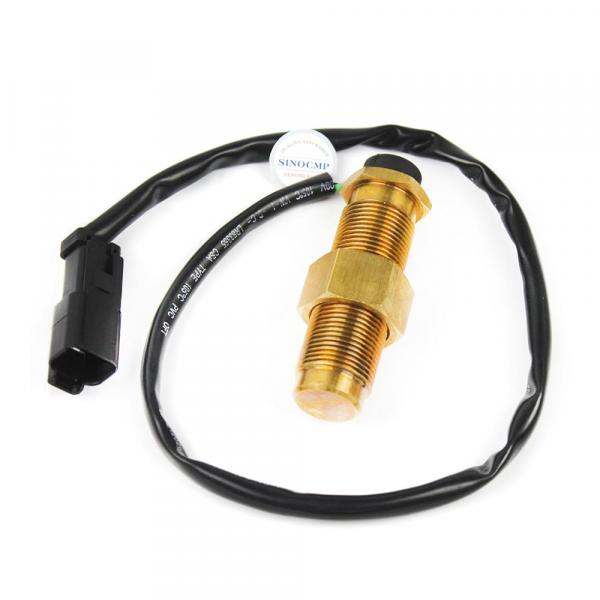

The speed sensor in the Komatsu 700H dozer monitors the rotational speed of the tracks. This data is crucial for the machine's control system to adjust hydraulic pressures, manage travel speeds, and ensure smooth operation. A malfunctioning speed sensor can lead to erratic behavior, such as unintended jerking or uneven tracking.
Common Symptoms of Speed Sensor Failure
Operators may notice several signs indicative of a failing speed sensor:

• Unintended Jerking: The dozer may lurch forward or to the side without input from the operator.

• Uneven Tracking: One track may move faster than the other, causing the dozer to veer off course.

• Error Codes: Diagnostic systems may display fault codes related to speed sensor malfunctions.


1. Visual Inspection: Check for any visible damage to the sensor or its wiring.

2. Electrical Testing: Using a multimeter, measure the sensor's output voltage. Refer to the machine's service manual for the expected voltage range.

3. Sensor Replacement: If the sensor is faulty, replace it with an OEM part to ensure compatibility and reliability.


• Regular Cleaning: Keep the sensor and surrounding areas free from dirt and debris.

• Routine Inspections: Conduct regular checks of the sensor's wiring and connections.

• Use OEM Parts: Always replace faulty sensors with original equipment manufacturer parts to maintain system integrity.
