Introduction
The Case 580E Loader Backhoe, a staple in the construction and agricultural sectors, has seen varied pricing trends over the years. Understanding its market value is crucial for potential buyers and sellers. This article delves into the factors influencing the pricing of the Case 580E, provides current market data, and offers insights into making informed purchasing decisions.

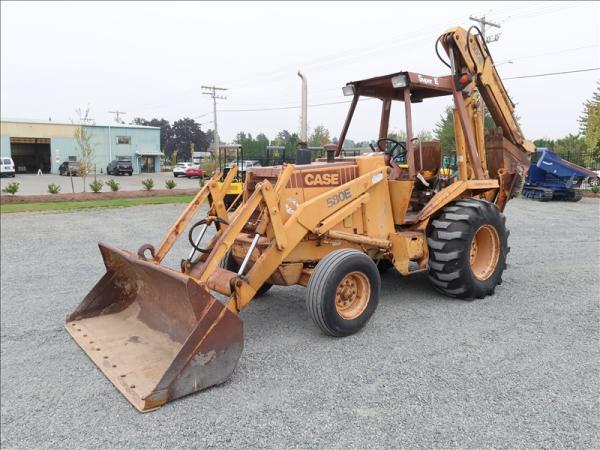

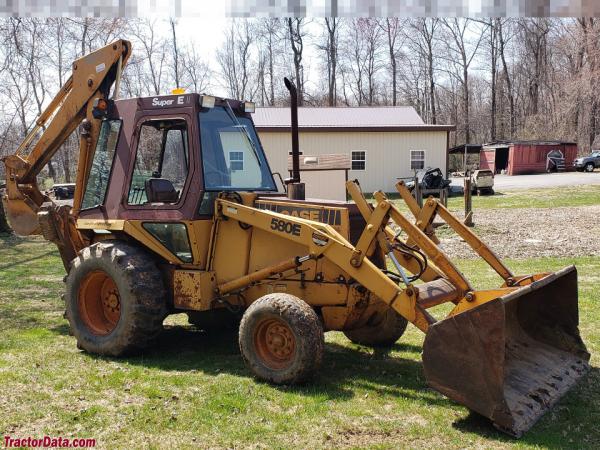

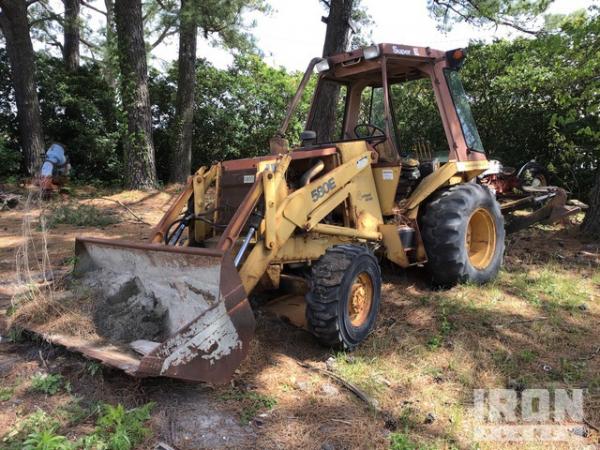

Understanding the Case 580E Loader Backhoe
Manufactured by Case Construction Equipment, the 580E model is renowned for its durability and versatility. Key specifications include:

• Engine: Approximately 69 horsepower, typically powered by a Cummins 4-390 diesel engine.

• Transmission: 4-speed manual transmission with shuttle shift.

• Drive Type: Available in both 2WD and 4WD configurations.

• Hydraulics: Open-center hydraulic system with a pump flow of around 30 GPM.

• Digging Depth: Approximately 14.5 feet.

• Operating Weight: Between 10,660 to 11,280 pounds, depending on configuration.


1. Condition: Machines with low operating hours and well-maintained components command higher prices.

2. Attachments: Inclusion of additional attachments, such as extendahoe or hydraulic thumb, can increase value.

3. Location: Regional demand and availability can cause price fluctuations.

4. Market Trends: Economic conditions and industry demand influence equipment pricing.


• Low End: Approximately $10,000 for units with higher operating hours or in need of repairs.

• Mid Range: Between $14,500 to $18,500 for well-maintained machines with moderate hours.

• High End: Up to $30,141 for units in excellent condition with low hours and additional features.


• Inspect Hydraulic Systems: Ensure there are no leaks and that the system operates smoothly.

• Check Engine Performance: Listen for unusual noises and check for excessive smoke.

• Examine Tires and Undercarriage: Worn tires or undercarriage components can be costly to replace.

• Review Maintenance Records: Consistent maintenance history can indicate a well-cared-for machine.


Introduction to Caterpillar 315BL Hydraulic High-Flow Challenges
The hydraulic system in the Caterpillar 315BL excavator is a vital component that controls boom, arm, bucket, and attachment functions with precision and power. A common issue faced by operators is the failure of the hydraulic system to engage high flow, resulting in sluggish hydraulic operation and loss of expected attachment performance regardless of engine speed or throttle settings. This condition affects productivity, machine responsiveness, and task efficiency.
This guide dives deeply into the probable causes of such hydraulic system slowdowns on the 315BL, explains system operation principles, offers step-by-step diagnostics, clarifies critical terminology, and outlines practical maintenance and repair solutions. Real-world experiences and case examples illustrate how to successfully troubleshoot and fix high-flow engagement problems.

Understanding the Hydraulic System High-Flow Function

• The 315BL uses dual hydraulic pumps whose flow can combine to deliver approximately 60 gallons per minute (GPM) of hydraulic fluid to attachments in high-flow mode, doubling the normal pump output.

• High flow is controlled by a combination of pilot valves and physical pump supply valves:
  • A two-pump flow pilot valve inside the cab activates hydraulic pressure to open the main pump flow circuit for combined output.

  • A pump supply ball valve (often located near the cab, sometimes by cab windows) physically enables the second pump flow to combine with the first.

• Both valves must be open and functional for the system to engage and maintain high flow.


• Pilot Valve Closed or Faulty:
  If the pilot valve responsible for activating two-pump flow is closed or malfunctioning, the system will remain in single-pump mode, limiting hydraulic flow.

• Pump Supply Ball Valve Closed or Blocked:
  A closed, clogged, or malfunctioning pump supply valve prevents the physical joining of the two pump flows, reducing total hydraulic volume.

• Hydraulic Flow Control Configuration:
  Incorrect valve settings or switches can inadvertently keep the system in single-acting or single-pump mode.

• Hydraulic Spool Valve or Control Valve Issues:
  If the attachment spool valves that direct hydraulic flow malfunction or stick, the hydraulic fluid flow to attachments can be restricted regardless of pump output.

• Hydraulic Oil Condition and Filter Blockage:
  Contaminated or degraded hydraulic fluid and clogged filters restrict fluid flow and diminish system pressure, causing slow hydraulics.

• Mechanical Problems in Pumps:
  Damage or wear in internal pump components reduces output volume and pressure.

• Air Entrapment or System Leaks:
  Air bubbles or leaks reduce hydraulic efficiency and can cause delayed or weak attachment response.


1. Check Pilot Valve and Pump Supply Ball Valve Positions:
   • Physically locate and inspect the pilot valve and ball valve for two-pump flow engagement.

   • Verify that both are fully open and not stuck in closed positions.

2. Inspect Hydraulic Lines and Fittings for Blockages or Damage:
   • Examine lines connected to these valves for leaks, kinks, or debris causing flow restriction.

3. Test Hydraulic Flow Using Flow Meters:
   • Measure actual hydraulic flow being delivered to the attachment circuit. Significant differences between single and two-pump flow indicate valve or pump issues.

4. Check Hydraulic Fluid and Filters:
   • Ensure fluid is clean, at proper levels, and filters are not clogged or overdue for change.

5. Inspect Control and Spool Valves:
   • Verify spool movement is smooth and that valves are free from internal blockage or wear.

6. Verify Pump Operation:
   • Check for unusual noises or vibrations.

   • Conduct pump output tests if possible, using OEM diagnostics or technician tools.

7. Check for Air in System and Leak Points:
   • Bleed air from hydraulic circuits to eliminate cavitation effects.

   • Inspect seals, hoses, and fittings for leaks and repair as needed.


• Open any closed pilot or ball valves related to the two-pump flow operation. Ensure valves are properly lubricated and free to operate.

• Replace faulty pilot valves or ball valves if manual operation feels stiff or they fail to hold the open position.

• Clean or replace hydraulic filters on return and supply lines according to manufacturer schedules.

• Flush and replace hydraulic fluid if contamination or degradation is detected.

• Service or rebuild hydraulic pumps if output remains low despite valve correction and fluid maintenance.

• Apply preventive maintenance schedules focusing on hydraulic system health, including valve inspection and timely fluid changes.

• Train operators on correct valve settings and system configurations to avoid inadvertent disabling of high-flow functions.

• Use OEM parts for replacement valves and hydraulic components to ensure compatibility and durability.


• Two-Pump Flow: Hydraulic system operation mode where output from two pumps combines to deliver increased fluid volume.

• Pilot Valve: A small control valve using low hydraulic pressure to control larger hydraulic circuits or valves.

• Ball Valve: A valve featuring a rotating ball to allow or stop fluid flow, often manually operated.

• Spool Valve: A directional control valve that directs hydraulic fluid to various actuators by shifting an internal spool.

• Hydraulic Flow Meter: A device measuring the rate of fluid movement in gallons or liters per minute.

• Single Acting/Dual Acting: Describes hydraulic cylinders where fluid acts on one side (single) or both sides (dual) to create movement.

• Hydraulic Cavitation: Formation of vapor pockets in fluid caused by low pressure, which damages pumps.


• Always verify pilot and pump supply ball valves for two-pump flow are open and operational.

• Regularly inspect and replace hydraulic filters to ensure unobstructed fluid flow.

• Maintain clean, contaminant-free hydraulic fluid at correct levels.

• Check for valve and spool movement smoothness and absence of internal jams.

• Test hydraulic pump health if flow deficiencies persist after valve correction.

• Bleed system air and check for leaks to maximize hydraulic efficiency.

• Educate operators on hydraulic system controls and valve settings preventing accidental deactivation.

• Use quality OEM parts for all hydraulic system repairs and maintenance.


• Implement a hydraulic system diagnostic protocol including flow and pressure testing during scheduled maintenance.

• Monitor system performance indicators such as hydraulic pressure gauges and control responsiveness for early fault detection.

• Consider installing flow meters or pressure sensors for real-time monitoring on critical hydraulic circuits.

• Consult service manuals and authorized Caterpillar technical support for complex troubleshooting.

• Keep a maintenance log documenting hydraulic service dates, valve positions, and component replacements to track and anticipate system needs.




Introduction
In the realm of heavy machinery, aftermarket decals play a pivotal role beyond mere aesthetics. These decals serve as essential components for safety compliance, brand identity, and equipment maintenance. Whether you're operating a fleet of construction vehicles or managing a single piece of equipment, understanding the significance and options available for aftermarket decals is crucial.
The Importance of Aftermarket Decals

1. Safety Compliance: Decals provide vital safety information, including hazard warnings, operational instructions, and maintenance guidelines. For instance, OSHA (Occupational Safety and Health Administration) mandates specific decals on machinery to ensure operator safety.

2. Brand Identity: Custom decals featuring company logos and slogans help in establishing brand presence on job sites and during transport.

3. Maintenance and Operational Guidance: Decals indicating maintenance schedules, operational limits, and safety procedures aid in prolonging equipment lifespan and ensuring efficient operation.


• Safety Decals: These include warning signs, operational instructions, and hazard indicators.

• Branding Decals: Custom logos, company names, and contact information.

• Instructional Decals: Maintenance schedules, operational limits, and procedural guidelines.


• Vinyl: Offers flexibility and resistance to UV rays and water.

• Polycarbonate: Known for its impact resistance and durability.

• Reflective Materials: Enhance visibility in low-light conditions.


• Customization Options: Ability to replicate OEM designs or create unique decals.

• Material Quality: Use of durable, weather-resistant materials.

• Turnaround Time: Quick production and delivery times.

• Customer Support: Responsive service for inquiries and issues.


1. Pro Decal: Offers a vast library of over 10,000 decal sets for various equipment types.

2. Equipment Decals: Provides high-quality aftermarket decal kits for heavy machinery.

3. Machinery Parts Warehouse: Offers a large selection of decal packages for most makes, including safety decals.

4. QuipCal: Specializes in replacement machine decals, safety and warning decals, as well as company branding and identity decals.

5. StickerApp: Provides ultra-durable custom stickers for industrial purposes, designed to last 6-7 years and are weatherproof against the elements.


Caterpillar D4H dozers are renowned for their durability and performance in various construction and agricultural applications. However, like any heavy machinery, they are susceptible to wear and tear, particularly in the undercarriage system. One common issue that operators may encounter is the shearing of master link bolts in the track assembly. Understanding the causes, implications, and solutions to this problem is crucial for maintaining the dozer's efficiency and longevity.
Understanding the Master Link and Its Bolts
The master link is a critical component in the track chain assembly of a dozer. It connects the two ends of the track chain, allowing for the continuous movement of the tracks. The master link bolts secure the master link to the track links, ensuring the integrity of the track assembly. These bolts are designed to withstand significant stresses during operation.
Causes of Master Link Bolt Shear
Several factors can contribute to the shearing of master link bolts:

• Overloading: Excessive weight or force applied to the dozer can increase the stress on the master link bolts, leading to potential failure.

• Improper Torque: Incorrectly torqued bolts, whether over-tightened or under-tightened, can cause uneven stress distribution, making them more prone to shearing.

• Wear and Fatigue: Continuous operation without proper maintenance can lead to wear and fatigue of the bolts, reducing their strength over time.

• Corrosion: Exposure to harsh environmental conditions can cause corrosion, weakening the bolts and making them susceptible to failure.


• Track Failure: A sheared bolt can cause the master link to detach, leading to track failure and potential damage to other undercarriage components.

• Operational Downtime: Repairing or replacing the master link and bolts can result in significant downtime, affecting productivity.

• Increased Repair Costs: Addressing the damage caused by sheared bolts, including potential damage to the track chain and other components, can lead to increased repair costs.


• Regular Inspection: Conduct routine inspections of the undercarriage, focusing on the master link bolts for signs of wear, corrosion, or damage.

• Proper Torqueing: Ensure that master link bolts are torqued to the manufacturer's specifications. Both over-tightening and under-tightening can lead to issues.

• Use of Quality Bolts: Always use high-quality, OEM or equivalent bolts to ensure strength and durability.

• Corrosion Protection: Apply anti-corrosion treatments to the bolts and surrounding areas to prevent rust and degradation.

• Timely Replacement: Replace any worn or damaged bolts promptly to maintain the integrity of the track assembly.


Introduction to the Volvo L90F Wheel Loader
The Volvo L90F is a robust, versatile wheel loader designed for demanding jobs in construction, industrial applications, logging yards, and material handling tasks. It is well-regarded for high productivity, powerful hydraulic systems, and operator comfort. Its advanced load-sensing hydraulics and Torque Parallel (TP) linkage ensure efficient lifting, breakout forces, and precise bucket control.
This guide delves into the L90F’s key specifications, highlights a detailed case involving cooling system challenges encountered in field operation, and provides practical advice for diagnostics and solutions. Terminology explanations and real-world insights aim to assist owners, operators, and maintenance technicians in maintaining optimal performance and reliability.

Core Specifications of the Volvo L90F

• Engine:
  • Model: Volvo D6E LA E3, 6-cylinder, turbocharged diesel

  • Power Output: Approximately 128 kW (174 hp) net (ISO 9249, SAE J1349 standards) at 1700 rpm

  • Maximum Torque: ~736 Nm at 1600 rpm

  • Displacement: 5.7 liters

• Operating Weight:
  Ranges between 15,000 – 17,000 kg (33,000 – 37,500 lbs) depending on configuration

• Bucket Capacity:
  Adjustable between 2.1 – 7.0 m³ (2.7 – 9.1 yd³) according to the job requirement

• Breakout Force:
  Around 118.5 kN (26,600 lbf), enabling powerful digging and lifting

• Tipping Load at Full Turn:
  Approximately 9,570 kg (21,100 lbs), reflecting excellent machine stability

• Hydraulic System:
  Advanced load-sensing axial piston pumps with variable displacement allowing efficient power distribution
  • Steering system priority

  • Double-acting 2-spool main valve controlled by a 2-spool pilot valve

  • Torque Parallel (TP) linkage maintains parallel attachment movement ensuring precise load control

• Transmission:
  Volvo Automatic Power Shift (APS) countershaft transmission with:
  • Fully automatic shifting through four gears with selectable programs including AUTO mode

  • Torque multiplication ratio around 2.45:1

  • Maximum speeds up to ~46 km/h (28.6 mph), depending on gear

• Axles and Suspension:
  • Front axle fixed with differential lock

  • Oscillating rear axle with ±13° articulation and ground clearance of 470 mm (18.5 inches)

  • Fully floating axle shafts and planetary hub reductions ensure durability

• Braking System:
  Dual-circuit hydraulic system with fully sealed oil circulation-cooled wet disc brakes
  Operator-selectable automatic disengagement improves efficiency

• Cab Comfort Features:
  Ergonomic controls, ample ventilation (9 m³/min), optional air conditioning up to 8 kW, and heating capacity of 11 kW support operator productivity


• Missing expansion tank cap causing improper pressure regulation in the cooling system

• Early-stage oil cooler leaks allowing hydraulic oil to mix with coolant

• Cooling system airbound condition that led to overheating even with replacement parts


• A new expansion tank cap and replacement oil cooler were installed

• The cooling system was flushed using water mixed with detergent to remove residues and contaminants

• After refill, overheating occurred rapidly within minutes, indicating air pockets trapped inside the system

• Approximately 4.5 gallons of coolant were drained, and the system refilled multiple times to expel air

• Top radiator hose was removed and refilled carefully using a garden hose until no air bubbles escaped

• Despite these measures, with the engine idling and running, flow through top and bottom radiator hoses was minimal—almost negligible, suggesting inadequate coolant circulation

• Thermostat and water pump were then inspected; the thermostat was removed, but overheating persisted

• The water pump exhibited slight bearing play, though not significant enough on its own to stop coolant flow

• Removal and replacement of all hoses confirmed no blockage present

• Compressed air passed easily through coolant ports, suggesting no significant internal blockages


• The water pump, despite bearing play, is suspected of internal wear or partial failure reducing its pumping efficiency

• Air trapped in hard-to-bleed areas of the cooling system causing intermittent or poor circulation

• Coolant flow is insufficient to remove engine heat despite system cleaning, possibly related to pump impeller wear or cavitation

• Leakage of oil into coolant through the oil cooler accelerating contamination and heat dissipation problems


• Expansion Tank Cap: Maintains system pressure and allows coolant expansion; missing or faulty caps cause pressure loss and overheating

• Oil Cooler: Heat exchanger for hydraulic oil; leaks introduce contamination to coolant reducing heat transfer efficiency

• Airbound System: Condition where trapped air pockets prevent proper coolant flow within the system

• Thermostat: Regulates coolant flow based on engine temperature, blocking flow until warmed

• Water Pump: Circulates coolant; internal wear or damage reduces flow rate causing overheating

• Coolant Hoses: Must allow unobstructed flow; blockages or collapse disrupt cooling

• Cavitation: Formation and collapse of vapor bubbles damaging pump impellers

• Detergent Flush: Cleaning process removing deposits and residues increasing system efficiency


• Install a new, quality expansion tank cap immediately to restore proper system pressure

• Replace leaking oil cooler and inspect for internal coolant-oil passage failures

• Perform multiple coolant system bleeding cycles, focusing on known air trap points such as heater cores, cylinder heads, and radiator top tanks

• Consider replacing the water pump if minimal flow persists despite bleeding and hose clearance; bearings and impellers wear can drastically cut pumping efficiency

• Utilize pressure testing tools to check for head gasket leaks that might introduce combustion gases into the cooling system, causing air locking

• Use correct coolant grade and maintain proper coolant mixture ratios for optimal thermal performance and corrosion protection

• Regularly inspect and replace worn hoses and clamps to prevent collapse or leaks

• Monitor engine temperature during incremental tests post-repair, ensuring coolant flow and heat dissipation are restored


• Missing or faulty expansion caps are a frequent but often overlooked cause of overheating in older or second-hand machinery

• Oil cooler leaks can silently degrade coolant quality and maximum heat transfer, accelerating overheating problems if ignored

• Air pockets entrapped deep in cooling passages are challenging to bleed but critical to resolve for restoring effective cooling

• Slight play in water pump bearings is an early sign that may foreshadow pump inefficiency; preventative replacement can avoid costly engine damage

• Field flushing with detergents can quickly expose air locking and circulation problems but requires careful subsequent flushing to avoid residue build-up


• Ensure expansion tank caps are properly installed and functioning

• Regularly inspect oil coolers for leaks to prevent coolant contamination

• Conduct frequent coolant flushes and proper bleeding to eliminate air pockets

• Assess water pump condition and replace at signs of bearing play or reduced flow

• Monitor thermostat operation but consider by-passing for troubleshooting flow issues

• Maintain coolant hoses, clamps, and radiator clean and unobstructed

• Use genuine Volvo or recommended parts and OEM coolant mixtures

• Document maintenance and inspection activities for ongoing reliability tracking




Introduction

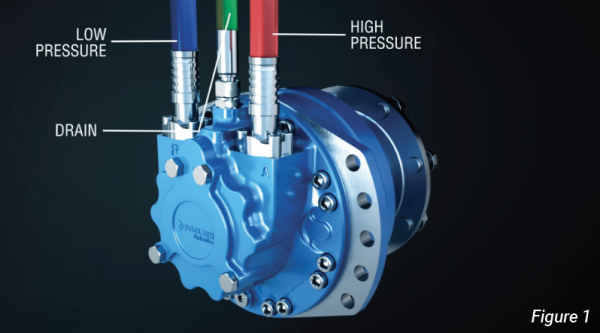

Radial piston motors are integral components in hydraulic systems, renowned for their ability to deliver high torque at low speeds. Their unique design and functionality make them indispensable in various industrial applications, from construction machinery to marine equipment. This article delves into the working principles, advantages, applications, and maintenance of radial piston motors, providing a comprehensive understanding for engineers, technicians, and enthusiasts.
Design and Working Principle

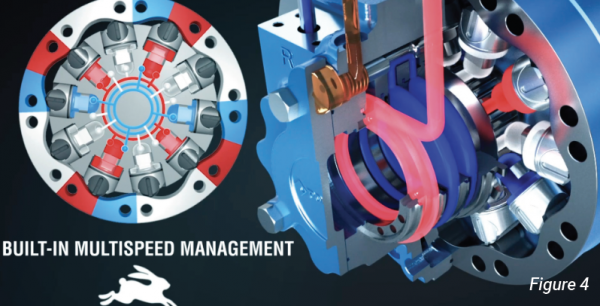

At the heart of a radial piston motor lies a set of pistons arranged radially around a central drive shaft. These pistons operate within a cylindrical barrel, each connected to a cam ring that imparts motion. As pressurized hydraulic fluid enters the motor, it forces the pistons outward, causing them to push against the cam ring. This action generates rotational force, converting hydraulic energy into mechanical motion.
The cam ring's eccentric design ensures that each piston moves in a reciprocating manner, providing consistent torque output. This configuration allows radial piston motors to achieve high efficiency and reliability, even under demanding conditions.
Advantages of Radial Piston Motors

• High Torque at Low Speeds: Ideal for applications requiring substantial force at minimal rotational speeds.

• Durability: Designed to withstand harsh environments and heavy-duty operations.

• Compact Design: Offers space-saving solutions without compromising on power output.

• Versatility: Suitable for both clockwise and counterclockwise operations, enhancing adaptability.

• Low Maintenance: Fewer moving parts reduce wear and tear, leading to extended service life.


• Construction Equipment: Powering machinery like excavators and loaders, where high torque is essential.

• Marine Industry: Used in winches and deck machinery, benefiting from their reliability in marine environments.

• Agriculture: Driving equipment such as harvesters and plows, providing the necessary force for field operations.

• Industrial Manufacturing: Utilized in plastic injection molding machines and other manufacturing processes requiring precise control.


• Lubrication: Ensure that the motor is adequately lubricated with the recommended hydraulic fluid to prevent wear and overheating.

• Seals and Bearings: Regularly inspect seals and bearings for signs of wear or damage, replacing them as necessary to maintain efficiency.

• Contamination Control: Keep the hydraulic system free from contaminants to prevent internal damage and ensure smooth operation.

• Pressure Monitoring: Regularly check system pressure to ensure it remains within the manufacturer's specified range, preventing overloading.


When evaluating mid-sized hydraulic excavators, the Kobelco SK160 and Caterpillar 315CL are prominent models that often come under consideration. Both machines offer robust performance, but they cater to slightly different operational needs and preferences. This article delves into a detailed comparison of these two excavators, examining their specifications, performance metrics, and suitability for various applications.
Kobelco SK160 Specifications

• Operating Weight: Approximately 16,800 kg (37,000 lbs)

• Engine Power: Around 93 hp (69.4 kW)

• Hydraulic Pump Flow Capacity: 308 L/min (81 gpm)

• Hydraulic System Relief Valve Pressure: 34.3 MPa (4,980 psi)

• Swing Speed: 11 rpm

• Fuel Tank Capacity: Approximately 281 liters (74.2 gallons)

• Transport Length: 8.65 meters (28.4 ft)

• Transport Width: 2.59 meters (8.5 ft)

• Transport Height: 2.95 meters (9.7 ft)

• Bucket Capacity: Typically ranges from 0.6 to 1.0 m³

• Undercarriage: Long carriage (LC)

• Track Width: 500 mm (19.7 inches)

• Maximum Digging Depth: Approximately 6.57 meters (21.5 ft)

• Maximum Reach: Around 9.5 meters (31.2 ft)


• Operating Weight: Approximately 16,800 kg (36,840 lbs)

• Engine Power: Approximately 90 hp (67.1 kW)

• Hydraulic Pump Flow Capacity: 280 L/min (74 gpm)

• Hydraulic System Relief Valve Pressure: 34.3 MPa (4,980 psi)

• Swing Speed: 11 rpm

• Fuel Tank Capacity: Approximately 280 liters (74 gallons)

• Transport Length: 8.41 meters (27.6 ft)

• Transport Width: 2.49 meters (8.2 ft)

• Transport Height: 3.0 meters (9.8 ft)

• Bucket Capacity: Typically ranges from 0.7 to 1.2 m³

• Undercarriage: Long carriage (L)

• Track Width: 600 mm (23.6 inches)

• Maximum Digging Depth: Approximately 5.5 meters (18.0 ft)

• Maximum Reach: Around 8.5 meters (27.9 ft)


• Engine Power: Kobelco SK160 – 93 hp; Caterpillar 315CL – 90 hp

• Hydraulic Flow: Kobelco SK160 – 308 L/min; Caterpillar 315CL – 280 L/min

• Maximum Digging Depth: Kobelco SK160 – 6.57 meters; Caterpillar 315CL – 5.5 meters

• Maximum Reach: Kobelco SK160 – 9.5 meters; Caterpillar 315CL – 8.5 meters

• Swing Speed: Both – 11 rpm

• Fuel Tank Capacity: Kobelco SK160 – 281 liters; Caterpillar 315CL – 280 liters


• Kobelco SK160
  • Ideal for tasks requiring deeper digging and extended reach, such as trenching and foundation work

  • Higher hydraulic flow allows for faster cycle times in high-productivity environments

• Caterpillar 315CL
  • Suitable for applications prioritizing durability and ease of maintenance

  • Slightly higher bucket capacity benefits material handling tasks


• Contractors handling urban infrastructure projects might prefer Kobelco SK160 for its superior digging depth and reach in confined spaces

• Companies focused on long-term projects in remote areas might favor Caterpillar 315CL due to its reputation for reliability and ease of servicing


Introduction
The Case 580CK backhoe loader, a staple in construction and agricultural operations, is renowned for its durability and versatility. However, like any heavy machinery, it is susceptible to mechanical issues over time. One such issue that operators may encounter is a malfunctioning differential lock. The differential lock is crucial for providing additional traction by locking the rear wheels together, ensuring both wheels rotate at the same speed. When this system fails, it can lead to reduced maneuverability and increased wear on other drivetrain components.
Common Symptoms of Differential Lock Issues
Operators may notice several signs indicating a problem with the differential lock:

• Inability to Engage or Disengage: The differential lock pedal or lever becomes stiff or unresponsive.

• Uneven Wheel Rotation: One rear wheel spins freely while the other remains stationary, even when the differential lock is engaged.

• Grinding or Clunking Noises: Unusual sounds emanate from the rear axle area during operation.

• Excessive Vibration: The backhoe experiences increased vibrations, especially when turning or operating on uneven terrain.


1. Contaminated or Insufficient Lubrication: Lack of proper lubrication can cause internal components to seize or wear prematurely.

2. Worn or Damaged Components: Over time, parts such as the locking collar, springs, and engagement pins can wear out or become damaged.

3. Corrosion and Rust: Exposure to moisture and harsh conditions can lead to rust buildup, hindering the movement of internal parts.

4. Hydraulic System Failures: For models utilizing hydraulic actuators for the differential lock, issues like fluid leaks or air in the system can impair function.


1. Visual Inspection: Begin by examining the differential lock mechanism for visible signs of damage, rust, or contamination.

2. Check Lubrication Levels: Ensure that the differential housing is filled with the appropriate type and amount of lubricant. Low or contaminated fluid can impede the system's operation.

3. Disassemble the Differential Lock Assembly: Carefully remove any covers or panels to access the differential lock components. Inspect parts like the locking collar, springs, and engagement pins for wear or damage.

4. Clean and Lubricate Components: Thoroughly clean all parts to remove dirt, rust, and old lubricant. Apply a light coat of high-quality grease to moving components to ensure smooth operation.

5. Reassemble and Test: After reassembling the differential lock mechanism, test its function by engaging and disengaging the system several times. Ensure that both rear wheels rotate simultaneously when the lock is engaged and that the system disengages smoothly.


• Regular Lubrication: Schedule routine maintenance to check and replace lubricants as needed.

• Environmental Protection: Operate the backhoe in conditions that minimize exposure to moisture and corrosive elements.

• Component Inspection: Periodically inspect the differential lock components for signs of wear or damage.

• Hydraulic System Maintenance: For models with hydraulic actuators, ensure that the hydraulic fluid is clean and at the proper level.


Introduction to Case 580K Hydraulic and Drive Problems
The Case 580K backhoe loader is a powerful, versatile machine widely used in construction and earthmoving. However, users sometimes face frustrating hydraulic and drive system issues that severely limit machine performance—such as the inability to move forward, sluggish reverse movement, and poor hydraulics response. These problems often arise due to hydraulic pump failures, clogged filters, relief valve malfunctions, or drive transmission faults.
This article provides a detailed, coherent narrative explaining typical causes of such issues, diagnostic steps, terminologies, suggested solutions, and practical advice grounded in real-world troubleshooting and repair experiences.

Typical Symptoms and Problem Description

• The loader refuses to move forward and barely moves backward under low power.

• Hydraulic functions appear weak; the hydraulic system seems bogged down, with controls responding sluggishly and low hydraulic pressure.

• Loud noises from the hydraulic valves when maximum hydraulic flow or pressure is attempted.

• Engine runs strongly but power is not fully transferred to drive functions.

• Frequent hydraulic failures including blown cylinders and ruptured hoses in related cases.

• Rapid hydraulic fluid depletion, indicating leaks or inefficiencies.

• Slow or no movement despite engine and pump appearing functional.


• Hydraulic Pump Failure:
  The main hydraulic pump (often a Webster or equivalent) may fail internally or have worn seals, causing insufficient hydraulic flow and pressure needed for drive and implement functions.

• Clogged Breather Screens and Filters:
  Dirty or clogged breather screens inside the hydraulic reservoir limit fluid flow to the pump suction side, causing cavitation, reduced pressure, and pump damage over time. Main hydraulic filters, if clogged or old, also restrict flow and increase system strain.

• Relief Valve Misadjustments or Failure:
  Relief valves in front and rear valve bodies might be incorrectly set or damaged, causing insufficient hydraulic pressure or forcing valves to lift prematurely, producing noise and poor cylinder performance.

• Hydraulic Hose and Cylinder Failures:
  Repeated hose failures and cylinder leaks cause fluid loss and pressure drops, undermining the entire hydraulic system operation.

• Drive Transmission and Control Valve Issues:
  Mechanical problems or hydraulic control valves responsible for the transmission drive may be malfunctioning, resulting in poor or no power transfer to the wheels or tracks.

• Air Contamination and Fluid Degradation:
  Air trapped in the hydraulic lines or degraded hydraulic fluid adversely affects system response and efficiency.


• Visual and Fluid Checks:
  • Verify hydraulic fluid levels and quality (color, contamination).

  • Inspect reservoir for clogged breather screen and clean/replace as needed.

  • Examine filter condition; replace filters that are old or clogged.

• Pump Testing and Inspection:
  • Remove and visually inspect the hydraulic pump for signs of wear or internal failure.

  • Rotate pump input shaft manually; check flow output if possible.

  • Replace pump seals or the entire pump if damage is found or flow inadequate.

• Relief Valve and Control Valve Testing:
  • Use diagnostic pressure gauges to verify relief valve pressure settings and adjust if necessary.

  • Inspect valve springs and seats for wear; replace malfunctioning valves.

  • Listen for abnormal noises indicating valve lifting or leakage.

• Hydraulic Line and Cylinder Examination:
  • Check all hoses for cracks, kinks, or bulges. Replace damaged hoses promptly.

  • Test cylinders for leaks, rod straightness, and seal integrity. Repair or rebuild as needed.

• Drive System Inspection:
  • Confirm transmission and drive clutch engagement and function.

  • Inspect hydraulic drive motors and linkages for correct operation.

• System Bleeding and Air Removal:
  • Thoroughly bleed hydraulic system to remove trapped air for optimal pressure and flow.


• Regular cleaning or replacement of reservoir breather screens is critical to prevent pump cavitation and failure.

• Use high-quality, manufacturer-recommended hydraulic fluid and change per specified intervals.

• Replace hydraulic filters regularly with OEM or equivalent replacements to maintain fluid cleanliness and system health.

• Relief valves should be tested, adjusted, or replaced periodically to ensure correct system pressure and prevent valve popping noises.

• Pay attention to hose and cylinder maintenance schedules and promptly fix leaks or damaged hoses.

• Consider hydraulic pump rebuild kits or complete replacements if severe wear or seal damage is detected.

• Maintain a detailed service log noting hydraulic component condition and part changes to foresee recurring issues early.

• Operator training on machine hydraulic limits prevents overloading and premature system wear.


• Hydraulic Pump: The main component pressurizing hydraulic fluid to power the backhoe’s systems.

• Breather Screen: A filter covering the reservoir opening, preventing dirt ingress while allowing air flow.

• Relief Valve: Safety valve regulating maximum system pressure by diverting excess fluid.

• Hydraulic Fluid: Liquid used to transmit power within the hydraulic system; quality greatly affects performance.

• Cavitation: Formation of vapor bubbles in fluid due to low pressure, damaging pump components.

• Hydraulic Cylinder: Actuator converting hydraulic pressure into mechanical movement.

• Control Valve: Directs hydraulic fluid flow to specific functions or drive mechanisms.


• Poor or no forward movement caused by hydraulic pump failure and insufficient pressure.

• Sluggish hydraulic functions resulting from clogged breather screens and old filters.

• Loud noises may indicate relief valve popping due to misadjustment or damage.

• Hose and cylinder failures cause hydraulic fluid loss and pressure drops.

• Perform comprehensive diagnostics: fluid checks, pump inspection, valve testing, and line/cylinder examination.

• Regular maintenance: clean breather screens, change hydraulic fluid and filters, adjust relief valves.

• Prompt repair or replacement of pump seals, hoses, valves, and cylinders.

• Bleed hydraulic system properly to eliminate air cavitation effects.

• Use OEM or high quality parts to ensure durability and compatibility.


• Preventative maintenance beats costly breakdowns: prioritize easy fixes like cleaning reservoir components and maintaining fluid cleanliness.

• Keep spares for filters, seals, and hoses for quick repairs minimizing downtime.

• If system continues to struggle despite repairs, consider professional hydraulic diagnostics or pump rebuild services.

• Educate operators on avoiding overloading hydraulic functions beyond machine capacity to reduce component stress.


Skid steer loaders are renowned for their agility and versatility on construction and landscaping sites. By adding a dozer blade attachment, operators can significantly expand their machine's capabilities, enabling tasks such as grading, leveling, and snow removal. This article delves into the features, applications, and considerations of skid steer dozer blades, providing insights for both seasoned professionals and enthusiasts.
Understanding Skid Steer Dozer Blades
A skid steer dozer blade is an attachment that converts a skid steer loader into a mini bulldozer. These blades are designed to push, level, and grade various materials, including soil, gravel, sand, and snow. The primary configurations include:

• 4-Way Dozer Blades: These blades can tilt forward and backward and angle left and right, offering basic maneuverability for tasks like leveling and grading.

• 6-Way Dozer Blades: In addition to the movements of a 4-way blade, 6-way blades can also tilt side to side, providing enhanced control and precision for more complex tasks.


• Blade Width: Typically ranges from 72 inches to 96 inches, depending on the skid steer's size and the scope of work.

• Blade Material: High-strength steel is commonly used for durability and resistance to wear.

• Hydraulic System: Most modern blades feature hydraulic controls for adjusting tilt and angle, allowing for precise adjustments from the operator's seat.

• Mounting System: Quick-attach systems are standard, ensuring easy installation and removal.


• Landscaping: Ideal for leveling yards, creating swales, and spreading mulch.

• Construction Sites: Useful for grading surfaces, preparing foundations, and clearing debris.

• Snow Removal: Effective for clearing driveways, parking lots, and roads during winter months.

• Agricultural Projects: Assist in creating terraces, leveling fields, and managing irrigation ditches.


• Regular Inspection: Check for wear on the blade edge and replace as necessary.

• Hydraulic Maintenance: Periodically inspect hydraulic hoses and connections for leaks or damage.

• Cleaning: After each use, clean the blade to remove soil and debris, preventing buildup that can affect performance.
