Introduction

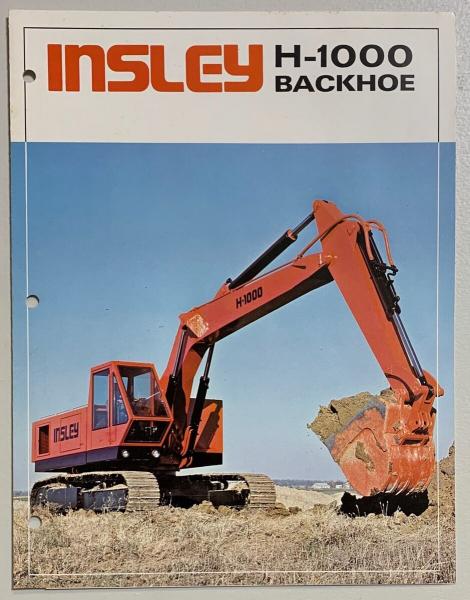

The Insley H-1000-C backhoe stands as a testament to the durability and engineering prowess of late 20th-century construction machinery. Manufactured between 1980 and 1990, this model was designed to meet the demanding needs of heavy-duty excavation tasks. Despite its age, the H-1000-C continues to be a valuable asset for operators seeking a reliable and robust machine.
Technical Specifications

• Engine: Detroit 471-TV, 6-cylinder turbocharged diesel engine

• Engine Power: Approximately 127 kW (170 hp)

• Operating Weight: Approximately 23.85 metric tons (52,540 lbs)

• Transport Dimensions:
  • Length: 10.54 meters (34 ft 7 in)

  • Width: 3.18 meters (10 ft 5 in)

  • Height: 3.00 meters (10 ft 6 in)

• Track Width: 762 mm (30 in)

• Maximum Horizontal Reach: 10.516 meters (34 ft 9 in)

• Dredging Depth: 7.01 meters (23 ft)

• Bucket Width: 1.067 meters (3 ft 6 in)

• Special Features: Air conditioning, adjustable cabin, diesel particulate filter, track adjustment


• Hydraulic System: Regularly check for leaks and ensure that hydraulic fluid levels are within the recommended range.

• Engine Care: Monitor engine performance and address any irregularities promptly to prevent major failures.

• Undercarriage: Given the machine's age, inspect the undercarriage for wear and replace components as necessary to maintain stability and mobility.

• Electrical System: Ensure that all wiring and connections are intact to prevent electrical failures.


Introduction to the Caterpillar 450B Backhoe Loader
The Caterpillar 450B backhoe loader is a powerful and versatile machine designed to meet the demands of construction, excavation, and utility tasks. It combines enhanced machine performance, advanced hydraulic systems, improved operator controls, and ergonomic design to improve productivity and operator comfort. Known for its hydraulic power and smart features, the 450B offers exceptional digging, lifting, and loading capabilities with high efficiency and reliability.
This detailed guide explains the 450B’s technical specifications, key features, operation tips, maintenance recommendations, and practical solutions. It also provides terminology explanations, use cases, and safety advice to support equipment users, technicians, and operators in optimizing their work.

Core Specifications of the Caterpillar 450B

• Engine:
  • Model: Cat C4.4 ACERT, a direct-injection, turbocharged, electronic engine

  • Power Output: Gross power approximately 143 horsepower (106 kW) at 2200 rpm

  • Net Power: Around 131-134 horsepower under various standards (SAE J1349, ISO 9249)

  • Displacement: 4.4 liters (268 cubic inches)

  • Bore x Stroke: 105 mm x 127 mm (4.13 in x 5 in)

  • Emissions: Meets U.S. EPA Tier 4 Final and EU Stage IV standards using Selective Catalytic Reduction and Diesel Oxidation Catalyst technologies

• Operating Weight:
  • Estimated operating weight around 24,000 lbs (10,904 kg)

  • Maximum handling and rollover protective structure (ROPS) capacity up to 29,321 lbs (13,300 kg)

• Backhoe:
  • Excavator-style center pivot backhoe with a digging depth of about 17 feet (5185 mm)

  • Redesigned boom and improved linkage for increased dig forces and lift capacity

• Loader:
  • Enhanced loader linkage with improved breakout forces and lift capacity

  • Integrated Tool Carrier available for quick attachment changes

• Transmission:
  • Autoshift transmission with six forward and three reverse gears

  • Neutral safety switch for operator safety

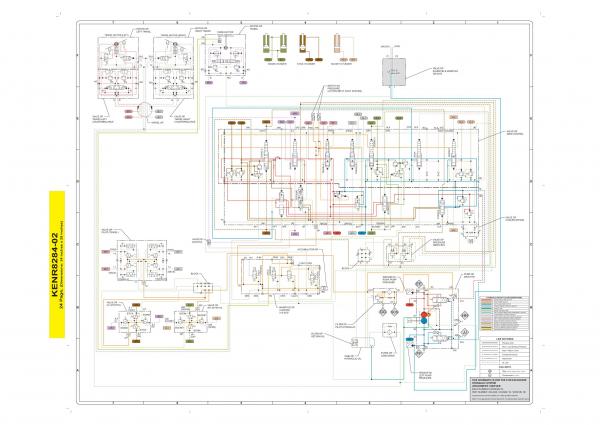

• Hydraulic System:
  • Load-sensing piston pump providing full hydraulic forces even at low engine speeds

  • Adjustable auxiliary flow controls for both loader and backhoe

  • Programmable features for loader bucket kickout, return to dig, and parallel lift modes

• Brakes and Parking:
  • Hydraulically boosted, oil disc brakes with dual pedals and interlocking features

  • Spring Applied Hydraulically Released (SAHR) parking brake activated by button

• Operator Station and Ergonomics:
  • Fully adjustable seat with mounted controls to increase operator comfort and reduce fatigue

  • Variable speed steer reducing steering wheel rotations needed, lowering operator strain

  • Canopy with ROPS/FOPS protection, sound suppression, and various comfort features like dome light, coat restraint, and diagnostic ports

• Electrical and Safety Features:
  • 150-amp alternator and heavy-duty, maintenance-free battery (1000 CCA)

  • Back-up alarm and audible system fault alarms

  • Battery disconnect switch and external lockable battery box for security

• Additional Equipment:
  • Boom transport lock and lift cylinder brace for safe transportation

  • Counterweight of about 974 kg (2,147 lbs) to improve machine stability

  • Coolant with extended-life antifreeze for engine reliability


• Advanced Hydraulic Performance:
  The load-sensing hydraulic system dynamically adjusts pump output to deliver optimal power, improving fuel efficiency and reducing wear. Operators can customize auxiliary hydraulic flow to match attachment requirements, enhancing versatility.

• Improved Operator Controls:
  Loader and backhoe controls are positioned within easy reach, allowing seamless switching between functions and improved productivity. The adjustable seat and ergonomically designed cab reduce operator fatigue, particularly during long shifts.

• Enhanced Machine Stability and Balance:
  Redesigns of the loader linkage and backhoe boom contribute to superior balance and stability across different terrain conditions, allowing safer and more efficient operation.

• Integrated Tool Carrier (IT Coupler):
  This factory option or field-installable feature enables rapid attachment changes with a single tilt loader arm, increasing jobsite versatility by accommodating a wide range of Cat attachments.


• Load-Sensing Piston Pump: A hydraulic pump that varies flow and pressure based on demand to improve efficiency.

• Selective Catalytic Reduction (SCR): Emission control technology reducing nitrogen oxides via a chemical reaction with diesel exhaust fluid.

• Diesel Oxidation Catalyst (DOC): A device that reduces hydrocarbons and carbon monoxide in exhaust.

• SAHR Parking Brake: A spring-applied and hydraulically released parking brake enhancing safety and ease of use.

• Autoshift Transmission: An automatic transmission allowing smooth gear changes without clutch engagement.

• Kickout Function: Automated loader bucket positioning for repetitive dumping or digging tasks to increase efficiency.

• ROPS/FOPS: Roll-Over Protective Structure and Falling Object Protective Structure for operator safety.


• Regularly inspect and maintain hydraulic fluid levels and filters to ensure system efficiency and prevent premature wear.

• Monitor engine coolant and antifreeze levels, and replace per manufacturer schedules to avoid overheating.

• Periodically check brake system function, including the SAHR parking brake and oil-disc brakes.

• Keep battery terminals clean, check alternator output, and ensure secure battery box locking for electrical reliability.

• Regular lubrication and inspection of pivot points and linkage improve component lifespan and smooth operation.

• Train operators on variable speed steer and hydraulic adjustments to maximize efficiency and reduce strain.


• Cat C4.4 ACERT engine with 131-143 hp power and Tier 4 Final compliance

• Operating weight near 24,000 lbs with ROPS/FOPS protection

• 17 ft excavator-style backhoe digging depth

• Autoshift transmission: 6 forward, 3 reverse gears with neutral safety

• Load-sensing piston hydraulic system with customizable auxiliary flow

• Programmable loader bucket kickout, return to dig, and parallel lift modes

• Hydraulic oil disc brakes with SAHR parking brake

• Adjustable ergonomic operator controls and seating

• Variable speed steering to reduce operator fatigue

• Integrated Tool Carrier (IT Coupler) for enhanced versatility

• Robust electrical system with 150-amp alternator and 1000 CCA battery


• Keep up with OEM-recommended maintenance intervals, especially for hydraulic and engine components.

• Use genuine Cat parts and fluids to ensure compatibility and longevity.

• Invest in operator training emphasizing hydraulic flow adjustments and ergonomic controls.

• Regularly inspect all safety features, including brakes, parking brake, and backup alarms.

• Customize auxiliary hydraulics for each attachment to optimize performance and minimize wear.

• Maintain detailed service logs to track maintenance and repairs for improved asset management.


In forestry, land clearing, and site preparation, brush screens are essential attachments for heavy equipment like bulldozers and skid steers. They protect operators from flying debris, enhance machine visibility, and ensure safety in dense vegetation. While commercial options are available, many operators choose to fabricate custom brush screens tailored to their specific needs. This guide explores the considerations, materials, and methods for constructing effective brush screens.
Understanding the Importance of Brush Screens
Brush screens serve multiple purposes:

• Operator Protection: Shielding the cab from branches, rocks, and other debris.

• Improved Visibility: Allowing operators to maintain sightlines while working in dense brush.

• Machine Preservation: Preventing damage to critical components like radiators and hydraulic lines.

• Compliance with Safety Standards: Meeting industry regulations for equipment used in forestry operations.


• Expanded Metal Mesh: Provides visibility while offering protection. However, some operators find it challenging to see through.

• Square Mesh Screen: Offers better visibility and is often sourced from gravel plants.

• Steel Tubing: Used for the frame, ensuring durability and strength.

• Mounting Brackets: Custom-designed to fit specific equipment models.


1. Measure and Plan: Determine the dimensions based on the equipment's size and the desired coverage area.

2. Select Materials: Choose appropriate mesh and steel tubing based on the design considerations mentioned above.

3. Fabricate the Frame: Weld the steel tubing to create a sturdy frame that can support the mesh.

4. Attach the Mesh: Secure the mesh to the frame using welding or bolts, ensuring it's taut and free from sagging.

5. Install Mounting Brackets: Affix the brush screen to the equipment using custom brackets, ensuring it's securely fastened and easily removable if necessary.


• Regular Inspections: Check for any loose bolts, cracks, or wear points regularly.

• Clean the Mesh: Remove accumulated debris to maintain visibility and prevent overheating.

• Reinforce Weak Points: Areas prone to high stress may require additional bracing or thicker materials.


Introduction to Heavy Equipment Setup
Setting up heavy equipment correctly is pivotal to ensuring efficient operation, safety, and longevity of machinery on construction sites, industrial projects, and infrastructure works. The process demands precise planning, coordinated efforts among multiple teams, adherence to manufacturer specifications, and a strong emphasis on safety protocols. This guide unfolds detailed insights, practical advice, and illustrative examples aimed at helping contractors, operators, and maintenance personnel optimize heavy equipment setup.

Fundamental Preparations for Successful Equipment Setup

• Thorough Site Assessment and Layout Planning
  Evaluate ground bearing capacity, spatial clearance, access routes, and existing infrastructure to prevent clashes and guarantee equipment function. Detailed site surveys allow for identifying hazards early and planning foundation or support structures accordingly.

• Review Manufacturer Specifications and Guidelines
  Always consult OEM (Original Equipment Manufacturer) instructions detailing anchor bolt placements, torque settings, alignment tolerances, and assembly sequences. Following OEM data ensures warranty compliance, regulatory adherence, and machine reliability.

• Effective Project Coordination and Schedule Management
  Engage all stakeholders early—engineers, rigging crews, electricians, and safety officers—to preempt delays and clarify responsibilities. Time-sensitive operations benefit from clear communication and collaborative workflow design.


• Use of Precision Leveling and Grouting Practices
  Machinery must be seated flat and stable using shims or grout to achieve level foundations. Uneven surfaces lead to premature wear through vibrations and misalignment.

• Application of Laser Alignment Tools
  Employ laser-guided instruments for shaft-to-shaft alignments, ensuring near-perfect collinearity which minimizes bearing and seal wear. The use of high-precision tools reduces human error and expedites installation.

• Vibration Isolation and Dampening Measures
  Install vibration isolation pads or mounts to protect equipment bases and surrounding structures. Proper damping mitigates fatigue failures and noise issues.


• Lockout/Tagout (LOTO) Procedures
  Before installation or maintenance, isolate energy sources, including hydraulic, electrical, and pneumatic supplies to prevent accidental energization.

• Rigging and Fall Protection
  Utilize certified rigging techniques and personnel. Heavy machinery lifts require adherence to OSHA standards regarding load handling, fall protection, and proximity dangers to safeguard personnel.

• Comprehensive Post-Installation Inspections
  Conduct thorough assessments that include leak detection, alignment verification, functionality checks, and dry-run operations to ensure readiness and safety compliance.


• Cold Commissioning
  Perform electrical and sensor testing without load to verify circuits, interlocks, and safety systems function correctly.

• Hot Commissioning
  Operate machinery under working conditions, constantly monitoring parameters such as pressures, temperatures, and vibrations to confirm performance within specification.

• Documentation and Handover
  Record installation details including torque readings, alignment results, calibration data, and inspection findings. Such documentation facilitates future maintenance and audit compliance.


• Neglecting leveling or rushing the grouting stage, leading to unstable foundations

• Overlooking OEM torque specifications on critical fasteners, risking premature loosening or failure

• Insufficient training of installation teams on specialized equipment requirements

• Poor inter-trade communication causing workflow conflicts and rework

• Failure to document installation changes or adjustments, complicating later troubleshooting


• Maintain a Clear Maintenance and Setup Log for Each Equipment Piece
  Tracking service history, parts used, and setup parameters aids in troubleshooting and ensures consistent quality.

• Invest in Operator and Installer Training
  Skilled personnel reduce installation errors, improve safety, and enhance equipment uptime.

• Use Quality Materials and Tools
  Utilizing proper grade grout, sealants, lubricants, and precision tools guarantees installation robustness.

• Engage Experienced Contractors for Critical Installations
  Partner with firms specializing in heavy machinery setup, capable of managing complex projects with technical rigor.


• OEM Specifications: Manufacturer-provided instructions and tolerances for installation

• Grouting: Process of applying high-strength cementitious material to create a stable foundation for machinery

• Lockout/Tagout (LOTO): Safety procedure to isolate energy sources before maintenance

• Laser Alignment: Precision measurement method to align rotating shafts or machine parts

• Vibration Isolation Pads: Materials used to absorb and reduce vibration transfer from equipment to foundations

• Cold Commissioning: Testing equipment systems without load for safety verification

• Hot Commissioning: Testing equipment under operational conditions to validate performance


• Conduct comprehensive site evaluation and layout planning

• Follow all OEM installation specifications scrupulously

• Utilize laser alignment for critical shaft or component alignments

• Achieve proper leveling and grouting to provide stable equipment foundations

• Implement vibration isolation to protect machinery and surroundings

• Enforce rigorous LOTO and rigging safety protocols

• Complete thorough inspections and commissioning phases before operation

• Maintain detailed installation and maintenance records

• Train installation teams and equipment operators comprehensively

• Engage specialized contractors for complex or large-scale equipment installations




Introduction
The Caterpillar 279C compact track loader is a versatile and robust machine widely used in construction and landscaping. However, like all complex equipment, it can experience electrical issues that may disrupt operations. One common problem reported by operators is the frequent blowing of fuses, leading to various malfunctions. This guide aims to provide a comprehensive understanding of the causes, diagnostics, and solutions for fuse-related issues in the 279C.
Common Causes of Fuse Blowing

1. Short Circuits in Wiring Harnesses
   Over time, the wiring harnesses in the 279C can develop short circuits due to wear, corrosion, or physical damage. These shorts can cause excessive current flow, leading to blown fuses. Inspecting and repairing damaged wiring is crucial to prevent recurring fuse failures.

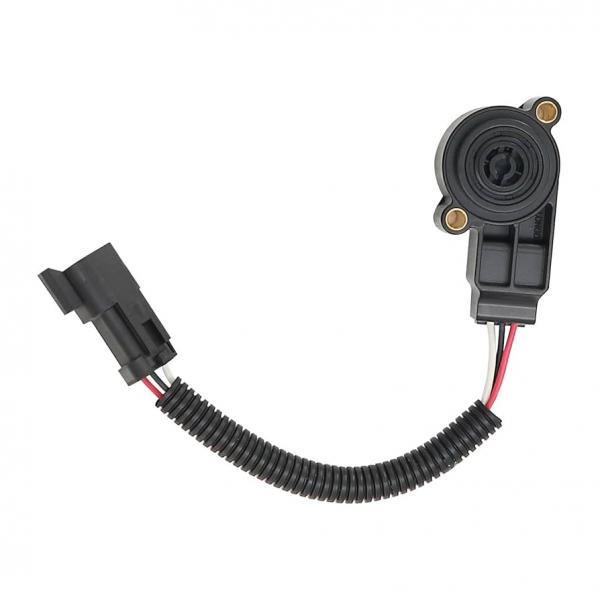

2. Faulty Electrical Components
   Components such as solenoids, relays, and switches can malfunction, drawing more current than designed. This overcurrent can blow fuses and cause system failures. Regular testing and replacement of faulty components are recommended to maintain electrical system integrity.

3. Improper Fuse Ratings
   Installing fuses with incorrect amperage ratings can lead to premature fuse blowing. Always refer to the manufacturer's specifications to ensure the correct fuse is used for each circuit.


1. Visual Inspection

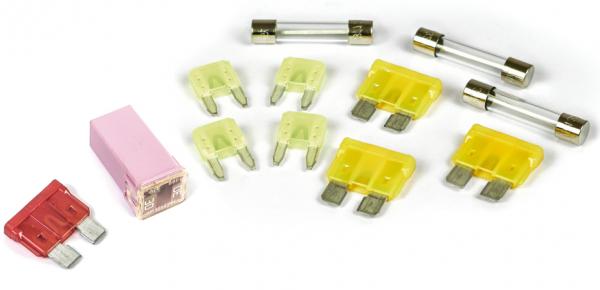

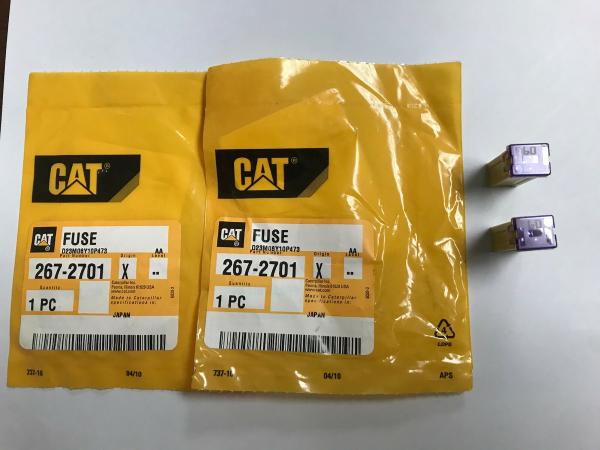

   • Check for Blown Fuses: Inspect all fuses for signs of damage or discoloration.

   • Examine Wiring Harnesses: Look for signs of wear, corrosion, or physical damage.

   • Test Electrical Components: Use a multimeter to check the functionality of solenoids, relays, and switches.

2. Use Diagnostic Tools
   • Diagnostic Software: Utilize Caterpillar's diagnostic software to retrieve fault codes and system data.

   • Multimeter: Measure voltage and current at various points to identify inconsistencies.

3. Component Testing
   • Test Alternator Output: Verify it produces the correct voltage.

   • Check Starter Motor: Ensure it engages and turns the engine over.

   • Inspect Solenoids and Relays: Test for proper operation.


• Regularly Clean Battery Terminals: Prevent corrosion buildup.

• Schedule Routine Inspections: Check wiring and connectors for wear.

• Replace Worn Components Promptly: Address issues before they lead to failures.

• Keep Software Updated: Ensure the machine's control systems have the latest updates.


Introduction to Caterpillar 977K Bucket Pins
The bucket pins on the Caterpillar 977K track loader are critical components that connect the bucket to the loader arm and linkage, enabling smooth articulation and secure attachment during heavy-duty excavation, loading, and material handling tasks. Proper selection, correct sizing, and compatibility of bucket pins ensure operational reliability, minimize wear, and prevent damage or excessive downtime.
This guide provides detailed information on 977K bucket pin dimensions, common issues related to aftermarket part numbers, tips for verifying pin fitment, examples of machine modifications that affect pin sizes, terminology explanations, and practical advice for sourcing and maintaining bucket pins.

Key Specifications and Dimensions of Caterpillar 977K Bucket Pins

• Typical bucket pin dimensions for Caterpillar 977K:
  • Diameter: Approximately 2 1/2 inches (about 64 mm)

  • Length: Around 13 3/4 inches (350 mm)

  • Keeper (retaining pin) hole diameter: About 3/4 inch (19 mm)

• Commonly referenced part numbers and sizes:
  • Many sources list part number 5K6383, which corresponds to a pin with a 2-inch diameter, leading to confusion when measured pins are larger.

  • Correct and confirmed bucket pins that match the physical dimensions above may be different part numbers such as 6K1983, which is approximately 3 inches in diameter and about 8 1/2 inches long for some other pin locations, indicating that pin sizes vary depending on position on the bucket linkage assembly.

• Variations:
  • The 977K loader may have different bucket pins for different linkage points (e.g., pivot pins, linkage pins, keeper pins) with varying dimensions.

  • Machines may have been modified or retrofitted, resulting in non-standard pin sizes or custom replacements.


• Many aftermarket vendors list pins with dimensions that differ from the actual OEM measurements, creating challenges in finding a perfect fit.

• Discrepancies in diameter or length may indicate the machine has been altered or uses upgraded components.

• Ensuring proper pin size requires measuring the existing pins and keeper hole diameters carefully before ordering replacements.

• Some replacement pins require matched keepers or lock rings designed for their specific diameter and hole size.


• Bucket Pin: The cylindrical steel pin that passes through the bucket and linkage ears to form pivot connections.

• Keeper Hole: A hole drilled through the pin near one or both ends where retaining clips, lock pins, or snap rings are installed to prevent pin movement.

• Aftermarket Pin: A non-OEM replacement part made by third-party manufacturers, often varying in quality and dimensions.

• OEM (Original Equipment Manufacturer) Part: Parts produced by the machine manufacturer or certified suppliers designed to exact specifications of the original machine.

• Pin Diameter and Length: Critical dimensions ensuring that the pin fits snugly for optimal function without excessive play.

• Modified Machine: Equipment that has undergone structural or component changes that may affect standard part compatibility.


• Always measure the existing pins accurately before sourcing replacements; include diameter, length, and keeper hole size.

• Confirm part numbers through official Caterpillar parts catalogs or trusted dealers to cross-reference with measured dimensions.

• If dimensions differ significantly from OEM specs, verify whether the machine has modifications or retrofits that require customized pins.

• Use OEM or high-quality aftermarket pins made from hardened steel with proper heat treatment to ensure durability.

• When installing pins, ensure keepers (cotter pins, snap rings) match the pin hole size to secure the assembly safely.

• Regularly inspect pins and bushings for wear; replacement intervals depend on usage severity.

• Seek expert advice or dealer assistance when uncertain about compatibility or installation procedures.


• Bucket pins are typically around 2 1/2" diameter and 13 3/4" length on standard 977K machines.

• Keepers generally use 3/4" diameter holes for secure locking.

• Part number 5K6383 often cited corresponds to smaller 2" pins, possibly for other models or linkage positions.

• Machines may be modified causing differences in pin size and requiring custom parts.

• Always measure existing pins and keeper hole diameters precisely before ordering.

• Prefer OEM or quality aftermarket pins with certified specifications for strength and durability.

• Confirm pin compatibility through official dealer catalogs or verified parts sources.

• Regular inspection and timely replacement prevent bucket linkage failures.

• Use correct keeper pins or clips matched to hole size to ensure safe pin retention.


• Maintain a detailed equipment parts log including pin sizes and replacement history for efficient maintenance.

• Store spare pins and compatible keepers to reduce downtime during repairs.

• Train maintenance personnel in proper measurement techniques and component identification.

• Inspect pin bore holes in bucket linkage for wear to determine if bushings or pins need replacement together.

• Utilize axle grease or anti-seize compound on pins to reduce wear and ease future removal.

• In custom or modified equipment, consult engineering or certified technicians for specially fabricated pins.


Soil compaction is a fundamental process in construction and civil engineering, ensuring that the ground beneath structures is stable, durable, and capable of bearing loads without excessive settlement. The choice of compaction equipment plays a pivotal role in achieving the desired soil density and uniformity. This guide delves into the various types of compaction equipment, their applications, and best practices to optimize compaction efforts.
Understanding Soil Compaction
Soil compaction involves the densification of soil by reducing air voids between particles, thereby increasing its load-bearing capacity and stability. This is achieved through mechanical means that apply force to the soil, rearranging the particles into a denser configuration. Proper compaction is crucial for preventing future settlement and ensuring the longevity of structures built upon the soil.
Types of Compaction Equipment

1. Plate Compactors (Vibratory Plate Compactors)
   • Description: These are compact, walk-behind machines equipped with a flat, vibrating plate. They are ideal for small to medium-sized areas.

   • Applications: Best suited for granular soils like sand and gravel, especially in confined spaces such as trenches, sidewalks, and around utilities.

   • Advantages: High maneuverability and efficiency in small areas.

   • Limitations: Less effective on cohesive soils like clay.

2. Rammers (Trench Rollers)
   • Description: Hand-guided machines that deliver high-impact force through a foot or pad, suitable for confined spaces.

   • Applications: Ideal for compacting cohesive soils in trenches and narrow spaces.

   • Advantages: Effective on cohesive soils; suitable for confined areas.

   • Limitations: Lower coverage area compared to other equipment.

3. Vibratory Rollers
   • Description: Heavy-duty machines with one or two large drums that vibrate to compact soil.

   • Applications: Used for large-scale compaction tasks, such as road construction and large foundations.

   • Types:
     • Smooth Drum Rollers: Best for granular soils; provide uniform compaction.

     • Padfoot Rollers (Sheepsfoot Rollers): Equipped with protrusions to penetrate and compact cohesive soils.

   • Advantages: High efficiency for large areas; suitable for both granular and cohesive soils.

   • Limitations: Require large operational space; may not be suitable for confined areas.

4. Combination Rollers
   • Description: Machines that combine the features of smooth drum and padfoot rollers, offering versatility.

   • Applications: Suitable for projects requiring compaction of both granular and cohesive soils.

   • Advantages: Versatile; reduces the need for multiple machines.

   • Limitations: May not achieve the same level of compaction as specialized equipment.


• Static Compaction: Applies a large, steady force to compress the soil. Suitable for granular soils.

• Impact Compaction: Uses repeated dropping of a heavy weight to compact the soil. Effective for granular soils.

• Vibratory Compaction: Employs high-frequency vibrations to rearrange soil particles. Suitable for both granular and cohesive soils.

• Dynamic Compaction: Involves dropping a heavy weight from a height to compact deep layers of soil. Used for improving weak soils.


1. Soil Moisture Control: Achieve optimal moisture content to facilitate compaction. Too much moisture can lead to soil pumping, while too little can cause inadequate compaction.

2. Layer Thickness: Compact soil in thin layers (typically 4–6 inches) to ensure uniform compaction.

3. Equipment Selection: Choose the appropriate compaction equipment based on soil type, area size, and project requirements.

4. Monitoring and Testing: Conduct field tests, such as the Proctor test, to determine the optimal compaction effort and ensure compliance with specifications.


Introduction to the Caterpillar 950G Wheel Loader
The Caterpillar 950G is a rugged, high-performance medium-sized wheel loader designed for a wide range of demanding tasks in construction, mining, quarrying, and material handling. Renowned for its reliability, productivity, and operator comfort, the 950G combines robust powertrain technology, advanced hydraulics, and operator-focused designs to deliver efficient and precise loading capabilities.
This guide provides a detailed overview of the 950G’s key specifications, technical features, operational advantages, practical maintenance tips, and useful recommendations for maximizing machine longevity and productivity.

Key Specifications and Technical Data

• Engine and Powertrain:
  • Engine Model: Caterpillar 3126B ATAAC (Advanced Turbocharged Aftercooler)

  • Flywheel Power: 183 hp (maximum 196 hp)

  • Peak Torque: 669 ft-lb

  • Total Torque Rise: 53%

  • Bore x Stroke: 4.3 in x 5 in (109.22 mm x 127 mm)

  • Displacement: 439 in³ (7.2 liters)

  • Transmission: Automatic planetary power shift with 4 forward and 4 reverse speeds

  • Variable Shift Control (VSC) for smooth shifting and responsiveness

• Weights and Dimensions:
  • Operating Weight: Approximately 39,198 lbs (17,774 kg)

  • Ground Clearance: 1.32 ft (402 mm)

  • Length with Bucket on Ground: About 26.33 ft (8.0 m)

  • Width Over Tires: 9.49 ft (2.89 m)

• Buckets and Linkage:
  • Bucket Capacities: 2.7 to 3.5 m³ (3.5 to 4.5 yd³)

  • Maximum Bucket Capacity: 4.5 yd³ (3.44 m³)

  • Breakout Force: Approximately 34,666 lbs (153.7 kN)

  • Static Tipping Load (full 40° turn): 23,411 lbs (10,623 kg)

  • Linkage: Optimized Z-bar linkage offering parallel lift capability

  • Performance Series Buckets designed for efficient fill and material retention

• Hydraulic System:
  • Maximum Pump Output: Around 8,500 psi bucket system pressure

  • Hydraulic Cycle Times:
    • Lift: ~6.5 seconds

    • Tilt: ~2.7 seconds

    • Total cycle time: ~11 seconds

  • Pilot System Flow: Approx. 8.9 gal/min at 375 psi and 500 psi pressures

  • Load-sensing hydraulic system with dedicated variable displacement piston pumps

• Brakes and Axles:
  • Brakes: Full hydraulic enclosed wet-disc brakes meeting required standards

  • Front Axle: Fixed

  • Rear Axle: Oscillating with ±13° articulation for smooth travel over uneven terrain

• Fuel and Service Capacities:
  • Fuel Tank: 75.3 gallons (US)

  • Cooling System: 14.5 gallons (US)

  • Crankcase: 8 gallons (US)

  • Transmission: 9 gallons (US)

  • Differentials and Final Drives (front and rear): 9.5 gallons each (US)

  • Hydraulic System: 40 gallons (US)

  • Hydraulic Tank: 23 gallons (US)

• Operator Environment:
  • Pressurized and sound-suppressed cab for reduced noise and dust ingress

  • Adjustable steering column with tilt and telescoping on some models

  • KAB mechanical suspension seat with multiple trim levels and optional 4-point harness

  • Automatic temperature control with air conditioning

  • Computerized monitoring system with intuitive, user-friendly dashboard and high-resolution touch displays

  • Ride control system to smooth operator ride over rough terrain

  • Wet-arm wipers and washers front and rear

  • Standard rearview mirrors (internally mounted) and other operator convenience features such as coat hooks and drink holders

• Electrical System:
  • 24-volt starting and charging system with heavy-duty electric starter and maintenance-free batteries (950 CCA)

  • Halogen lighting systems including work lights, tower lights, and rear-vision lights


• Powerful and Efficient Engine:
  The Cat 3126B engine combines proven turbocharging and aftercooling technologies to deliver strong horsepower and torque with excellent fuel economy. The 53% torque rise ensures consistent power delivery to the bucket and drivetrain.

• Advanced Transmission:
  The automatic planetary power shift transmission with variable shift control allows smooth gear changes under load, enhancing operator comfort and machine responsiveness.

• Optimized Z-Bar Linkage:
  The Z-bar linkage gives high breakout forces at ground level and parallel lift capability, enabling efficient digging, loading, and dumping operations with precise control.

• Hydraulic System:
  The load-sensing hydraulic system with dedicated piston pumps provides high efficiency and hydraulic power precisely when needed, contributing to lower fuel consumption and responsive hydraulic functions.

• Operator Comfort and Safety:
  Sound suppression, pressurized cab, ergonomic controls, and advanced monitoring systems reduce operator fatigue and support longer productive working hours, improving overall site safety and efficiency.

• Versatility and Attachments:
  The 950G supports a variety of buckets and tools suited for general construction, quarry work, or material handling, including Performance Series Buckets designed for high fill and retention rates.


• ATAAC (Advanced Turbocharged Aftercooler): Engine technology that improves air induction efficiency, raising power output and reducing emissions.

• Planetary Power Shift Transmission: Gearbox design that provides multiple speeds and smooth shifting by engaging gears hydraulically without clutching.

• Z-Bar Linkage: A type of loader linkage that offers high breakout force and parallelogram-style lifting for consistent bucket angle.

• Load-Sensing Hydraulic System: A hydraulic circuit that adjusts pump flow based on system demand to improve efficiency and reduce fuel consumption.

• Breakout Force: The force applied by the bucket to break or pry material from the ground.

• Ride Control: Hydraulic dampening system in the lift cylinders improving ride smoothness over rough terrain.

• Static Tipping Load: The maximum load a loader can lift before becoming unstable when steering at a 40° angle.


• Follow manufacturer-recommended service intervals for engine oil, filters, transmission fluid, and hydraulic oil changes to extend machine life.

• Regularly inspect tires and maintain correct tire pressure to optimize traction and fuel efficiency.

• Utilize onboard monitoring systems to track machine performance, fluid temperatures, and warning indicators proactively.

• Use quality Cat XT™ hoses and OEM or equivalent parts when servicing hydraulic systems to ensure durability and compatibility.

• Maintain the hydraulic system’s cleanliness and fluid levels to avoid costly component failures.

• Train operators in using application profiles and job-aid features to maximize machine utilization and fuel savings.

• Monitor bucket wear and replace or rotate buckets as needed for optimal performance and efficiency.

• Inspect the oscillating rear axle articulation and suspension components to ensure smooth machine operation on rough ground.

• Check and maintain cab sealing to preserve pressurization and operator comfort.


• Cat 3126B ATAAC engine delivering up to 196 hp with 669 ft-lb torque

• Automatic planetary power shift transmission with 4F/4R speeds and variable shift control

• Operating weight near 39,200 lbs with ground clearance of 1.32 ft

• Bucket capacities from 3.5 to 4.5 yd³ with breakout force over 34,600 lbs

• Optimized Z-bar linkage with parallel lift and high breakout performance

• Advanced load-sensing hydraulic system with 8,500 psi pressure and fast cycle times

• Full hydraulic enclosed wet-disc brakes, fixed front and oscillating rear axle (+/-13°)

• Pressurized, sound-suppressed cab with ergonomic controls, touch displays, and ride control

• Comprehensive operator aids including application profiles and automatic engine idle shutdown

• Robust electrical system with heavy-duty starter, halogen work lights, and backup alarms




Introduction
The 2009 Caterpillar 279C compact track loader is a versatile machine widely used in construction and landscaping. However, like all complex equipment, it can experience electrical issues that may disrupt operations. This guide provides a detailed overview of common electrical problems, diagnostic steps, and solutions to help operators and technicians address these challenges effectively.
Common Electrical Issues in the 279C

1. Intermittent Power Loss
   Operators have reported instances where the machine loses power intermittently, especially during operation. This can be caused by:
   • Faulty Battery Connections: Loose or corroded battery terminals can lead to inconsistent power supply.

   • Worn Alternator: A malfunctioning alternator may fail to charge the battery adequately.

   • Blown Fuses: Electrical fuses protect circuits; a blown fuse can interrupt power to critical components.

2. Non-Responsive Joystick Controls
   Some users have experienced situations where joystick controls become unresponsive after a short period of use. This issue often points to:
   • Hydraulic Lockout: Engaged inadvertently, this safety feature disables hydraulic functions.

   • Joystick Wiring Issues: Damaged or disconnected wires can disrupt communication between the joystick and the control system.

   • Solenoid Valve Failures: These valves control hydraulic flow; if they malfunction, hydraulic movements may cease.

3. Starting Problems
   Instances where the machine fails to start, despite having power, are not uncommon. Potential causes include:
   • Faulty Starter Motor: A worn-out starter may not engage the engine properly.

   • Ignition Switch Issues: A malfunctioning ignition switch can prevent the starting circuit from completing.

   • Safety Switch Malfunctions: Safety interlock switches ensure the machine operates under safe conditions; if they fail, starting can be inhibited.


1. Visual Inspection
   • Check Battery Terminals: Ensure they are clean and tightly connected.

   • Inspect Wiring Harnesses: Look for signs of wear, corrosion, or disconnections.

   • Examine Fuses: Replace any blown fuses with ones of the correct rating.

2. Utilize Diagnostic Tools
   • Multimeter: Measure voltage at various points to identify inconsistencies.

   • Diagnostic Software: Use Caterpillar's service tools to retrieve fault codes and system data.

3. Component Testing
   • Test Alternator Output: Verify it produces the correct voltage.

   • Check Starter Motor: Ensure it engages and turns the engine over.

   • Inspect Solenoids and Relays: Test for proper operation.


• Regularly Clean Battery Terminals: Prevent corrosion buildup.

• Schedule Routine Inspections: Check wiring and connectors for wear.

• Replace Worn Components Promptly: Address issues before they lead to failures.

• Keep Software Updated: Ensure the machine's control systems have the latest updates.


Introduction to Rear Planetary Drive Gears
Rear planetary drive gears are critical components in heavy machinery such as bulldozers, excavators, and track loaders. These gears transform the rotational energy from hydraulic motors into the torque needed to drive the machine’s tracks, enabling controlled movement over various terrains. Planetary gear systems are compact, powerful, and capable of handling high loads and stresses typical of demanding jobsite conditions.
Understanding how rear planetary drive gears function, recognizing early warning signs of trouble, and implementing proper maintenance are essential to avoid costly breakdowns and downtime.

How Rear Planetary Drive Gears Work

• The planetary gear system includes a central sun gear, multiple planet gears mounted on a carrier, and an outer ring gear.

• Hydraulic motor power rotates the sun gear, which drives the planet gears around it. The planet gears engage with the ring gear, transmitting torque efficiently to the final drive output (the sprocket).

• This arrangement provides high torque multiplication in a compact package, suitable for the limited space in track drive housings.

• Because the gears share load among multiple planet gears, stress distribution helps improve durability.


• Metal Shavings or Chips in Gear Oil:
  The presence of metal debris indicates abnormal wear or component damage inside the planetary assembly. It often precedes gear tooth failure or bearing destruction.

• Unusual Noises:
  Grinding, whining, or knocking sounds when driving may signify worn or damaged gears and bearings.

• Reduced Machine Performance:
  Loss of drive efficiency, slipping tracks, or overheating indicate mechanical problems in the planetary drive.

• Oil Leaks or Contamination:
  Leaking seals cause lubricant loss and entry of dirt or water, accelerating gear and bearing wear.

• Heat Build-Up:
  Excessive operating temperatures degrade lubricant quality and indicate mechanical resistance or inadequate lubrication.


• Insufficient or Contaminated Lubrication:
  Lack of proper gear oil or degraded oil leads to increased friction and wear. Dirt or water contamination severely reduces bearing and gear life.

• Worn or Damaged Bearings:
  Bearings supporting planetary gears may wear unevenly or fail due to load stress or poor maintenance.

• Gear Tooth Damage:
  Broken, chipped, or excessively worn teeth reduce load capacity, increase noise, and can cause complete gear failure.

• Seal Failure and Oil Leakage:
  Aging or damaged seals allow lubricant to escape and contaminants to enter, compounding wear.

• Misalignment or Improper Installation:
  Incorrect assembly or misalignment causes uneven gear load, premature wear, and noise.


• Regular Oil Inspection and Change:
  Drain and replace gear oil at intervals recommended by the equipment manufacturer using suitable viscosity gear lubricants (typically 80W-90 gear oil). Check oil for metal particles, discoloration, or smell of burning.

• Oil Filtration and Sealing:
  Maintain seals in good condition to prevent leaks and contamination. Regularly clean or replace breather filters and inspect seals for deterioration.

• Visual and Physical Inspection:
  During service, remove planetary covers to inspect gears, bearings, and carriers for signs of wear, pitting, cracking, or metal debris.

• Replace Damaged Components Promptly:
  If metal chips or broken teeth are found, replace damaged planetary gears or bearings immediately to avoid complete failure.

• Proper Assembly and Alignment:
  Use manufacturer instructions for torque settings and alignment procedures during reassembly to guarantee correct gear mesh and balance.

• Lubrication Practices:
  Use high-quality, OEM-approved lubricants. Some recommend synthetic or extreme pressure (EP) additives for extended gear life.

• Use Monitoring Tools:
  Employ oil analysis and condition monitoring to detect early signs of wear and plan preventive maintenance.


• Planetary Gear Set: Comprises sun gear, planet gears, and ring gear functioning together for torque multiplication.

• Final Drive: The assembly connecting the planetary gears to the track sprockets, transferring torque to the ground.

• Gear Oil: Specialized lubricant formulated to withstand high pressures and reduce wear in gearboxes.

• Bearing: Mechanical components supporting rotating shafts and gears, enabling smooth rotation.

• Seal: A device preventing lubricant leakage and contaminant ingress in rotating assemblies.

• Torque Multiplication: The increase in torque achieved via gear ratios within the planetary gear set.

• Metal Debris: Small particles of metal worn from gears or bearings indicating wear or damage.

• Lubricant Contamination: The presence of dirt, water, or degradation products causing accelerated wear.


• Change gear oil regularly with manufacturer-recommended grade and monitor for metal particles.

• Inspect planetary gears and bearings during scheduled maintenance or if unusual symptoms occur.

• Replace seals and breather filters to maintain lubricant cleanliness and pressure balance.

• Address any oil leaks immediately to prevent damage.

• Use OEM parts or high-quality replacements for gears, bearings, and seals.

• Follow exact torque and alignment specifications during reassembly to ensure proper gear meshing.

• Consider using oil analysis services to detect early wear and plan repairs accordingly.

• Train maintenance staff on the critical importance of planetary gear preservation.


• Avoid machine overloading to reduce excessive stresses on planetary gears.

• In dusty or wet environments, increase frequency of lubricant checks and seal inspections.

• When disassembling planetary drives, handle components carefully and keep work areas clean to avoid contamination.

• Document maintenance actions, oil changes, and observations to track planetary gear health over time.

• Consult authorized service manuals and technical support for complicated repairs or troubleshooting.
