Technical Landscape and Fault Code Classification
Excavators like the Kobelco SK60 series use an onboard diagnostic system that displays error codes indicating faults in sensors, valves, relays, and control systems. These fault codes are grouped by component type and help maintenance teams quickly identify where issues lie.
Key fault groups include:

• Pressure Sensor Errors (e.g., B‑codes)
  • Boom lift issues, arm extension/retraction errors, bucket digging anomalies, swing, and travel hydraulic pressure sensor faults .

• Proportional Valve and Solenoid Issues (e.g., D‑, E‑, F‑codes)
  • Malfunctions in valves controlling operations like travel, arm retraction, pump control, swing parking, and attachment boost .

• Stepper Motor and Engine Control Faults (e.g., G‑codes, H‑codes)
  • Stepping motor current faults or indexing issues, engine speed sensor failures, and throttle knob malfunctions .

• Engine, ECU, and Communication Failures
  • ROM data errors, CPU exceptions, battery relay issues, CAN communication interruptions, ECU charging circuit failures, and critical engine system faults .


• Cold‑Weather Starting Drama
  A user shared a scenario where, after winter storage, the excavator's stepping motor would cycle then stop, accompanied by misleading dashboard warnings—“low fuel” (code 15) and “battery charge” (code 16)—despite the fuel tank being full and suspecting healthy batteries. After careful diagnosis, the culprit was a frozen, blown-out battery, not the engine electronics . This underscores that false fault codes often mask underlying mechanical or environmental problems.

• Faulty Throttle Motor Calibration
  In another case involving a Kobelco SR60 model, codes E20 (throttle motor current fault) and E21 (failure to find throttle starting point) appeared, forcing the machine into limp mode after extended use. The solution involved checking for binding in throttle linkages, lubrication, and recalibration—highlighting how simple mechanical fixes can resolve electronic errors .


• Pressure Sensor: Detects hydraulic pressure in boom, arm, bucket, or chassis systems.

• Proportional Valve: Electronic valve regulating hydraulic flow; essential for smooth movements.

• Stepper Motor: Controls precise input for throttle or electronic rack positioning.

• CAN: Controller Area Network, facilitating electronic communication across onboard systems.

• ROM/CPU Exception: Indicates software or hardware faults within the engine control unit.


1. Identify the code displayed and refer to system classification (e.g., B, D, G, or engine-related).

2. Check mechanical linkages—throttle arms, stepper motors—especially for binding or lubrication issues.

3. Inspect sensors and wiring for damage, loose connections, or corrosion, and measure signals if necessary .

4. Evaluate control components such as solenoid valves and proportional valves for correct operation.

5. If needed, scan engine control systems for ROM or CPU errors and address hardware or software faults.

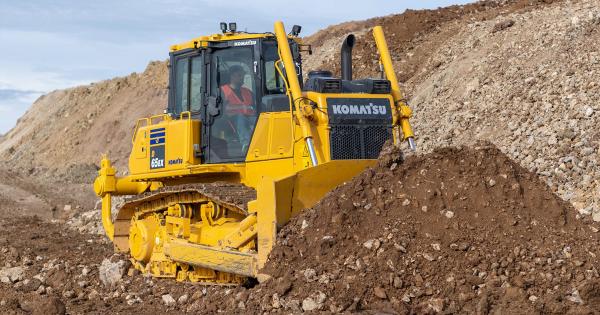

Engine and Performance

• Equipped with a 217 HP (162 kW) engine operating at 1,950 RPM—a Tier 4 Final powerplant delivering both strength and efficiency .

• Features a lock‑up torque converter paired with an automatic transmission, boosting driveline efficiency by around 10% versus traditional setups .


• Combines standard-length tracks (EX) with a wider gauge (PX) to form the WX variant—offering enhanced stability on slopes without needing extra-wide, low-ground-pressure tracks .

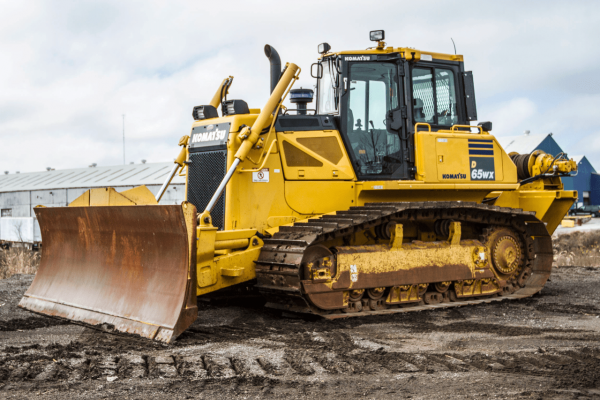

• Standard D65WX‑18:
  • Operating weight: 22,117–23,373 kg (48,760–51,529 lb)

  • Blade capacity: 5.9 m³ (7.7 yd³) .

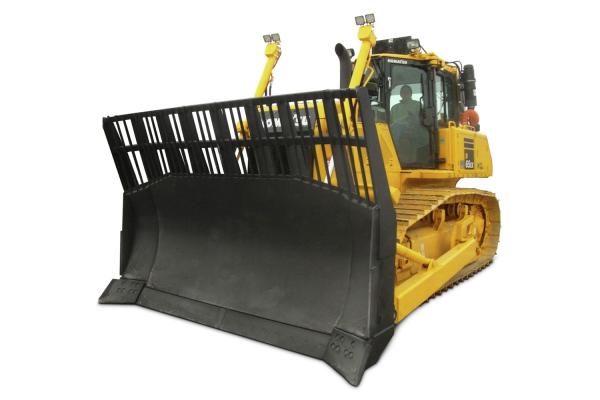

• Waste-handler variant (D65WX‑18 WH):
  • Heavier at 24,199 kg (53,350 lb)

  • Larger blade capacity of 13.1 m³ (17.2 yd³) .

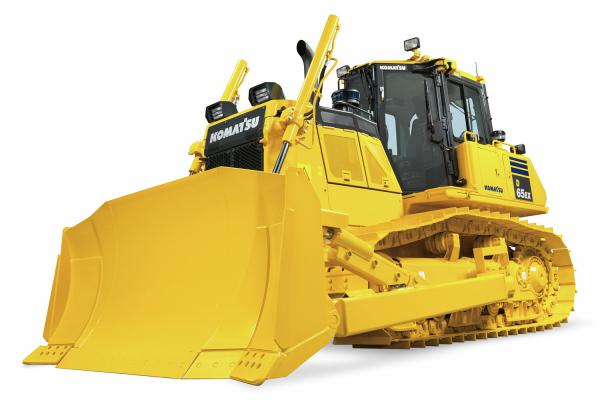

• Available with SIGMADOZER® blades or inside‑mount power‑angle‑tilt (PAT) blades to suit mass excavation or precise grading tasks .

• Waste-handler package (WH models) includes extra guarding, auto‑reversing fan, pre‑cleaner, and improved access for cleaning—ideal for landfill or debris-heavy environments .


• Engine incorporates VGT (Variable Geometry Turbocharger), EGR, and DOC/KDPF aftertreatment to reduce emissions without sacrificing performance .

• Multiple shift modes available:
  • Auto‑shift with lockup ON/OFF

  • Manual shift with auto‑downshift ON/OFF
    These options balance fuel economy with productivity .


• D65WX‑18 dimensions (SIGMADOZER):
  • Width: approx. 6′9″

  • Wheelbase: 9′9″

  • Ground clearance: 16″

  • Turning radius: 6′11″

  • Fuel capacity: 109.6 gal (415 L) .


• Wide‑Track (WX): Undercarriage style combining track length and width for improved ground contact.

• SIGMADOZER®: High-capacity blade designed for aggressive earthmoving.

• PAT (Power‑Angle‑Tilt) Blade: Blade that tilts and angles for precise material shaping.

• Lock‑up Torque Converter: Mechanism that engages clutch to bypass slippage, enhancing drive efficiency.

• VGT, EGR, DOC/KDPF: Emission control systems ensuring Tier 4 compliance without performance loss.


Understanding the Backhoe and Its Uses
A backhoe is a versatile piece of heavy machinery combining a digging bucket on the rear and a loader bucket on the front. Widely used in construction, landscaping, and small-scale excavation, it excels in trenching, material handling, and loading tasks. For prospective buyers, understanding key specifications and common features ensures a purchase that matches their needs.
Essential Technical Terms

• Backhoe arm and boom: The articulated parts controlling the digging bucket; their reach and strength define digging capacity.

• Loader bucket: Front-mounted bucket for scooping and moving materials.

• Hydraulic system: Powers movement of arms, buckets, and steering; condition and pressure ratings matter.

• Stabilizers: Extendable legs that anchor the machine during digging for stability.

• Operating weight: Total machine weight, influencing transport, power, and ground pressure.

• Dig depth and reach: Maximum vertical digging depth and horizontal reach of the backhoe arm.


• Engine condition: Check for smooth idling, no excessive smoke, and solid power output.

• Hydraulics: Inspect hoses and cylinders for leaks, smooth operation, and proper pressure.

• Boom and arm integrity: Look for cracks, weld repairs, or signs of metal fatigue.

• Bucket teeth and edges: Wear indicates usage; replacement availability affects maintenance cost.

• Stabilizer function: Ensure legs fully extend, retract, and lock securely.

• Undercarriage and tires: Check tires for tread wear or tracks for damage.

• Controls and gauges: Test all levers, switches, and monitor display accuracy.

• Service history: Regular maintenance records reduce risk.

• Hours of operation: Lower hours generally mean less wear but also consider usage type.

• Safety features: Roll-over protection system (ROPS), seat belts, and audible alarms should be functional.


• John Deere: Renowned for durability and ease of service.

• Case Construction: Known for hydraulic performance and operator comfort.

• Caterpillar (CAT): High resale value and extensive dealer support.

• New Holland: Balance between cost-effectiveness and capability.

• Kubota: Compact models favored in tight job sites.


• Attachments availability: Thumb buckets, breakers, and augers enhance versatility.

• Fuel efficiency: Smaller engines consume less but may sacrifice power.

• Transport logistics: Ensure transport vehicles accommodate machine size and weight.

• Warranty and support: New machines often come with warranties, while used purchases depend on seller honesty and dealer reputation.


• Engine performance and emission status

• Hydraulic system integrity

• Structural soundness of boom and arm

• Condition of buckets and teeth

• Proper functioning of stabilizers

• Tires or tracks condition

• Operational controls and displays

• Service and repair history

• Machine hours and usage type

• Safety features in place

• Availability and cost of attachments

• Fuel consumption considerations

• Transport and delivery logistics

• Warranty and after-sales support


Overview of Hydraulic System Specs

• Circuit Type: Closed-center design, allowing continuous hydraulic fluid flow even when implements are inactive.


• Pump Type: Variable-flow, axial piston pump—offering responsive pressure control.


• System Pressure:
  • Loader and backhoe: approximately 3,336 psi (23,000 kPa)


  • Transmission/stall test: around 3,000 psi (20,700 kPa)



• Closed-center hydraulics: System design ensuring fluid is always under slight pressure and immediately available upon control activation.

• Variable-flow pump: A pump that adjusts output based on demand—efficient and responsive.

• Pressure tap: A test port where a gauge can be attached to measure fluid pressure.

• Low idle / high idle: Engine speeds used during diagnostics; low idle simulates quiet operation, high idle is for active testing.

• Compensator valve: A pressure-regulating valve that balances pressure under varying loads.


• Remove the access plate on the machine’s floor to uncover the pressure taps, which are typically sealed with plugs.


• Key test points include:
  • (A) Pump pressure

  • (B) Lubrication pressure

  • © Clutch 1 pressure

  • (D) Clutch 2 pressure

  • (E) Forward low clutch pressure

  • (F) Forward high clutch pressure

  • (G) Clutch 3 pressure

  • (H) All-wheel drive clutch pressure

  • (J) Reverse clutch pressure



1. Pump Pressure Test
   • Attach a gauge (up to 600 psi range) at tap (A).

   • With direction control in neutral, parking brake engaged, and engine at low idle, shift to forward gear at high idle.

   • Expect reading: 1,450 ± 100 kPa (210 ± 15 psi).


2. Clutch & Lubrication Pressures
   • Attach correct-pressure gauges (600 psi for most, 60 psi for lube) at taps B, C, D, E, F, G, J.

   • At low idle, with transmission in neutral but direction lever in 1st forward, gauge readings should be approximately:
     • Forward low clutch: 1,325 ± 225 kPa (190 ± 30 psi)

     • Clutch 1: 1,375 ± 225 kPa (200 ± 30 psi)

     • Lubrication: 50 ± 25 kPa (10 ± 5 psi)

   • In 2nd forward:
     • Forward high clutch: 1,325 ± 225 kPa (205 ± 30 psi)

     • Clutch 1: 1,375 ± 225 kPa (200 ± 30 psi)

   • In 3rd forward:
     • Forward low: 1,325 ± 225 kPa (205 ± 30 psi)

     • Clutch 2: 1,475 ± 225 kPa (215 ± 30 psi)

   • In 3rd reverse:
     • Reverse clutch: 1,325 ± 225 kPa (190 ± 30 psi)

     • Clutch 3: 1,475 ± 225 kPa (215 ± 30 psi)



• Low Pressure Standby Test:
  • With all implements lowered and levers held, use high idle to test pump discharge pressure.

  • Expected: approximately 250 psi (1,720 kPa).


• High Pressure Stall Test:
  • Activate a function to stall pump flow (max 10 seconds).

  • Gauges should read 2,750 ± 50 psi (19,000 ± 350 kPa).


• Adjusting Compensator:
  • If stall pressure is off, adjust the pressure compensator spool.
    • Tighten plug to increase pressure, loosen to decrease.

  • For margin errors, adjust the flow spool screw similarly.
    • Re-test after adjustments.



• Always warm hydraulic oil to operating temperature before testing.


• Begin with a thorough visual inspection:
  • Check oil level and clarity—look for bubbles (air), water, or metal/fiber debris.

  • Drain and inspect the suction screen and filter for particles indicating wear or contamination.


• Safety First:
  • Always release hydraulic pressure and secure controls prior to gauge attachment.

  • Follow prescribed safety steps—lower implements, engage parking brake, neutralize levers, and maintain safe distances.





Origins and Early Developments
Diamond mining in Russia took off in the 1950s, especially after the discovery of vast deposits in Siberia's Yakutia region. Among the most famous was the Mirny (Mir) pipe, found in 1955 during a geological search. It evolved into one of the world’s largest open‑pit diamond mines, stretching over 1.2 kilometers wide and over 520 meters deep; open‑pit operations ran from 1957 until 2001, with underground mining continuing thereafter .
In the same period, the Soviet state invested heavily in heavy machinery manufacturing. Facilities like Uralmash produced massive dragline excavators—with booms up to 90–100 meters long—that powered open‑cast coal extraction and shaped mining landscapes across Siberia and the Far East .
Major Open‑Cast Operations Across Russia
Here are some of the most notable open‑cast mining operations:

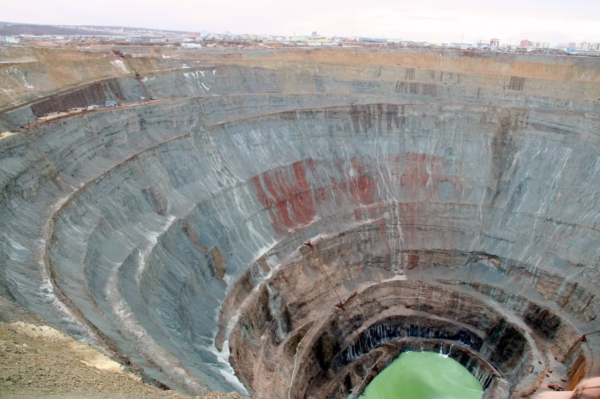

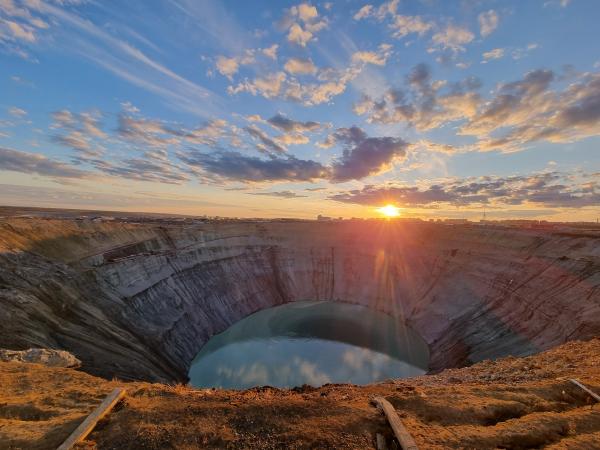

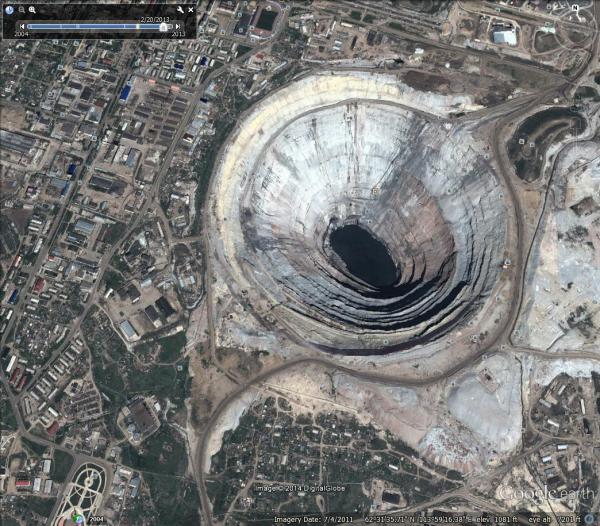

• Mirny Diamond Mine: A monumental open pit, later converted to underground mining.

• Vostochny Gold Mine: Russia’s largest gold‑mine open cast; roughly 1.8 × 1.7 km in area and nearly 580 m deep .

• Kuranakh Gold Deposit (Aldan District): Discovered in 1947 with large‑scale open‑pit extraction beginning about a decade later; uses drilling and blasting, producing over 224,700 oz of refined gold in 2019 .

• Coal Mining Region—Kuznetsk Basin (Kuzbass): Siberia's giant coal heartland, holding an estimated 725 billion tonnes of coal. Open‑pit mining accounts for about 79 % of coal output, with over 224 open‑pit mines in operation in 2020 .

• Kupol Gold and Silver Mine (Chukotka): A combined open‑pit and underground operation started in 2007, producing dore bars of gold and silver; ownership shifted to Highland Gold in 2022 after divestment by Kinross Gold .


• Open‑cast (open‑pit) mining: Surface excavation to access ore bodies from above, especially common for coal, gold, and diamonds.

• Dragline excavator: A heavy-duty machine with a long boom and bucket, used in large-scale drilling and material removal.

• Kimberlite pipe: A volcanic rock formation that often contains diamonds, such as the one exploited by the Mirny mine.

• Dore bar: A semi‑refined alloy of gold and silver produced at mines for further processing.


• Imperial and Soviet Mining Evolution: Russia’s deep mining heritage dates back centuries, from early discoveries in the Urals to modern mining engineering under the Soviet system. These developments have been studied within global mining history to appreciate Russia’s place in the broader evolution of earth sciences .

• Global Position Today: Even though production dipped after the Soviet collapse, Russia remains a global mining powerhouse. In coal alone, output reached approximately 438 million tons in 2023, representing around 6 % of global production .


• Open‑cast mining dominates Russia’s mineral extraction sectors—diamonds, gold, and coal.

• Engineering advances, from huge draglines to AI tools, have been central to operating in Siberia’s harsh environments.

• Environmental and human impacts—from sediment displacement to ghost towns—underscore the resource industry’s dual legacy of ambition and consequence.


Origins of the Quad‑Track Idea
The notion of a quad‑track dozer refers to a piece of equipment fitted with four independent tracks—one at each corner—for enhanced traction, flotation, and maneuverability. Discussions from the early 2000s speculated that Deere experimented with such a format, akin to concepts like the Case IH Quadtrac, though Deere’s entry remained elusive. Enthusiasts recalled seeing prototype images at equipment shows in Europe, sparking talk of a transformative approach to field operations.

Quad‑Track vs. Traditional Track Layouts

• Quad‑Track Configuration: Four separate tracks providing better ground contact and reduced compaction.

• Conventional Track Layout: Two wide tracks across the chassis.

• Key Advantages: Smoother ride, even weight distribution, and potentially better performance on soft or uneven terrains.


• The 9RX 830 stood out as Deere’s most powerful tractor ever, boasting up to 830 hp.


• These models emphasized in‑field efficiency, higher operating speeds, and technology-forward designs.



• Engine power: 470–830 hp

• Undercarriage: Four independent track modules offering improved flotation

• Performance: Enhanced ability to handle large implements, smoother ride, reduced soil compaction


• Quad‑Track: A track layout employing four separate tracks—typically offering improved traction and lower ground pressure.

• Undercarriage: The chassis components that carry the tracks—vital for support, durability, and traction.

• Flotation: The machine’s ability to stay atop soft ground without sinking.

• Horsepower (hp): Indicates engine power; more hp equates to better pulling ability and heavy-duty performance.

• In‑field Efficiency: Operational speed and effectiveness during agricultural tasks like plowing, seeding, or towing.


What Is the “K Boom”?
The “K Boom” typically refers to a fixed or non‑rotating hydraulic boom mounted on the rear section of a truck or base machine. Its name is less about branding and more about the U‑shaped, protective “box” structure that houses hydraulic lines—originally bolted, not welded, to the frame—thus shielding supply and return hoses during operation.
Technical Notes:

• Hydraulic lines: Tubing or hoses that channel pressurized fluid, crucial for boom movement.

• Subframe: A secondary framework anchoring the boom to the truck chassis.

• Chain fall: A manually operated hoist using chain and pulley, often hung from the boom’s hook for vertical load positioning.


• Link‑Belt’s crawler‑mounted excavators and cranes from the early 20th century show how boom design evolved for both mobility and durability .

• Orenstein & Koppel (O&K), a German engineering giant, introduced Europe's first fully hydraulic excavators in 1961 and produced massive machines exceeding 100‑ton capacity .

• The famed Big Brutus electric shovel—built in 1963—symbolizes how boom engineering has scaled to monumental proportions, even forming museum pieces today .


• Fixed Rear Boom ("K‑style")
  • Rigid‑mounted

  • Hydraulic line protection box

  • Limited directional swing

  • Adapted for on‑the‑go lifting using chain falls

• Crawler‑Mounted Hydraulic Boom (Link‑Belt, O&K era)
  • Full 360° rotation

  • Advanced hydraulics

  • Engineered for heavy excavation tasks

• Gigantic Fixed Booms (e.g. Big Brutus)
  • Massive structural strength

  • Electrically powered hydraulic systems

  • Industrial or museum significance today


• Protective routing matters: The boxed hydraulic‑line setup minimizes abrasion or damage during transport or stowage.

• Field modifications are resourceful: Operators can upcycle components like old boom sections, supported by quick‑couplers and auxiliary motors.

• Boom mounting impacts maneuvering: Without rotation, operators must plan lifts carefully or deploy devices like chain falls to maintain vertical load control.

• Historical boom engineering informs safety: From O&K's innovations to Link‑Belt’s mobile designs, past generations shaped modern hydraulic reliability and protective considerations.


Understanding Track Chain Essentials
A track chain is a critical undercarriage component in heavy equipment—like excavators, dozers, and milling machines—providing traction, stability, and supporting movement across challenging terrain . It comprises interconnected links, pins, bushings, pads, sprockets, rollers, and idlers working harmoniously.
Terminology Annotation

• Track Chain: The assembly of links and components forming the traction system.

• Pins and Bushings: Contact surfaces allowing rotation while absorbing friction.

• Sprockets / Rollers / Idlers: Elements that drive, support, and maintain track alignment.

• Track Sag / Tension: Slack in the chain when improperly adjusted.

• Pin and Bushing Turn: Rotating worn sections to prolong life.


• Improved Performance: Aligned and maintained track chains reduce vibration, fuel consumption, and wear on other parts .

• Extended Equipment Life: Fixing worn links or performing pin‑and‑bushing turns can stave off early replacements .

• Enhanced Safety: Preventing track derailment or misalignment lowers the risk of hazardous failures .


• Inspect for wear on track pads, missing or cracked links, and loosened chain components .

• Check chain sag/tension using model-specific procedures (measuring distance from sprocket/roller to chain) .

• Monitor elongation, material fatigue, and abrasion—especially in harsh, abrasive environments .


• Clean the undercarriage daily to remove mud, sand, and debris that accelerate wear .

• Perform pin and bushing turns to redistribute wear zones and enhance alignment, reducing noise and vibrations .

• Replace damaged links, track plates, or connectors: Inspect, remove, then install compatible parts carefully, followed by proper tension adjustment .

• Adjust chain tension properly—neither too loose nor too tight—to avoid premature failure .

• Ensure adequate lubrication where applicable (e.g., SALT vs greased tracks) to protect pins and bushings .


• Portable Pin Presses enable quick removal and replacement of pins on-site, minimizing downtime .

• Cleaners and maintenance gear support routine upkeep efficiently.


• Clean undercarriage after each use

• Regularly inspect for wear, sag, and alignment issues

• Perform pin/bushing turns for wear management

• Replace damaged parts promptly and adjust tension after repair

• Lubricate appropriately and monitor chain condition

• Invest in quality replacement parts and smart tooling

• Train operators to navigate slopes, avoid sharp turns and reverse-heavy use—these behaviors dramatically affect wear rate .


Technical Meaning and System Context
The E05 error code in Komatsu excavators signifies a malfunction in the governor motor system—the component regulating engine speed through throttle control. It may involve the governor motor itself, its circuit, or associated control signals . In some models, this can extend to anomalies in the hydraulic system controller, affecting throttle responsiveness and engine stability .
Terminology Annotations

• Governor motor: A mechanism that adjusts the throttle position electronically to maintain desired engine speed under varying loads.

• Throttle control knob/dial: The operator’s interface to set engine speed, linked to the governor via wiring and electronics.

• Control circuit fault: Includes open or short circuits in wiring, sensors, solenoids, or motor coils affecting signal integrity.


• Test the shut-off solenoid—confirm activation and release when commanded.

• Inspect wiring harnesses for wear, corrosion, or damage.

• Measure voltage/resistance between throttle dial and governor motor to uncover open circuits.

• Validate stepper or governor motor response under normal voltage.

• Use diagnostic software to retrieve full fault history and related subsystems.


• Perform regular inspection of all throttle-related wiring and connectors, especially in humid or dusty environments.

• Keep the monitoring and diagnostic software updated and accessible.

• Replace solenoids or motors at the first sign of sluggish response or unusual sensor readings.

• Train operators to log early warning signs—like unresponsive throttles or control panel anomalies—for prompt attention.


A pugmill conveyor clutch is a mechanical component that engages or disengages the conveyor drive mechanism—often used in heavy-duty mixing and conveying systems like pugmills. Its essential role is to control the motion of the conveyor chain or belt by temporarily applying torque when activated, typically through pneumatic or hydraulic actuation.
Key Purpose and Functionality

• Activates conveyor movement via air‑powered piston that engages pressure plates.

• Provides a controlled connection between drive and driven elements, ensuring safe, on-demand operation.

• Often essential where conveyors need to be stopped, started, or indexed precisely.


• Actuator Mechanism: Usually an air piston (pneumatic cylinder) that, when pressurized, pushes friction plates together.

• Friction Plates: The clutch uses these to transfer torque; when pressed, they couple the drive and conveyor shaft, enabling movement.

• Chain Sprocket Interface: Upon engagement, the clutch transmits motion to a sprocket, which in turn drives the conveyor chain.

• Release Mechanism: When air pressure is released, the plates disengage, halting conveyor motion—allowing for safe stops or pauses.


• Clutch: A device that enables controlled engagement or disengagement of power transmission.

• Friction Reducer / Torque Reducer: Alternate terms sometimes informally used when exact terminology is unclear—but accuracy matters.

• Pneumatic Actuator: A cylinder operated by compressed air to create motion or force.

• Sprocket: A wheel with teeth or cogs that engages a chain, transferring motion.

• Friction Plates: Wearable surfaces that enable torque transfer when pressed together under force.


• Backstop Protection: In inclined conveyors, a one‑way clutch (backstop) prevents the load from rolling back—a safety feature similar in spirit to clutches in pugmill conveyors.


• Indexing Systems: Used where intermittent motion is required—again, conceptually related to clutch-based control of conveyor movement.



• In soil stabilization plants, pugmills are the production workhorses. They mix aggregates with binder and deliver material via conveyor, often controlled by a clutch system to meter flow effectively.


• Modern pugmills may incorporate belt‑drive assemblies, motor‑drive reducers, and complex controls—but the clutch remains a simple, rugged way to manage conveyor start/stop.


• Replacement parts for pugmill systems commonly include paddles, drive motors, shafts, bearings, even spray ports—but often no catalog lists the clutch itself, making proper identification essential.



• Match Torque Ratings: Choose a clutch rated for the specific load—overrating ensures longevity, underrating means frequent wear or failure.

• Actuation Precision: Pneumatic clutches offer rapid response; hydraulics offer smoother engagement—selection depends on operational needs.

• Maintenance Access: Designs with flanged shafts and replaceable plates simplify servicing and reduce downtime.

• Secondary Safety Functions: Clutches that double as backstops or allow overrunning add layers of protection and functionality.
