Understanding the Bobcat 753 Drive System
The Bobcat 753 skid steer loader, popular for its durability and ease of service, uses a hydrostatic drive system composed of two variable-displacement hydraulic pumps (one for each side) that power fixed-displacement drive motors. These motors are directly connected to planetary final drives which transfer torque to the wheels. The hydrostatic system allows for smooth, infinitely variable speed control and counter-rotation steering, making it highly maneuverable in tight spaces.
Drive motors on this machine are piston-type hydraulic motors, designed to operate under high pressure. Over time, these components can fail due to contamination, bearing wear, cavitation, heat damage, or misalignment. Understanding the symptoms and failure points is key to cost-effective repair and long-term reliability.
Common Symptoms of Drive Motor Issues

• Loss of power on one side

• Sluggish movement when the loader is cold or under load

• Unusual whining or growling noises from the drive motor area

• Hydraulic fluid foaming or overheating

• Machine veering to one side during operation

• Complete failure to move despite engine running normally


• Check hydraulic fluid level and condition: Low or contaminated fluid can mimic motor failure

• Swap hydraulic hoses between motors: If the problem switches sides, it’s pump-related

• Check case drain flow: Excessive case drain can indicate internal leakage in the motor

• Listen for noise changes under load: A grinding or knocking sound is often a bearing or shaft issue

• Examine wheel hub rotation: Binding could indicate brake or final drive problems, not motor failure


• Worn piston shoes

• Cracked valve plate

• Damaged cylinder block

• Leaking shaft seal or bearings


• Park the loader on a clean, level surface and lower the arms

• Disconnect battery to prevent unintended hydraulic actuation

• Remove wheel and access the motor through the side panels

• Cap all hydraulic lines to prevent contamination

• Drain hydraulic fluid from the reservoir

• Use lifting equipment if needed—the motor is heavy and awkward

• Mark hoses for correct reinstallation


• Cylinder block with piston bores

• Swashplate which varies the stroke of pistons

• Valve plate with pressure ports

• Shaft with splines that connect to final drive

• Thrust and radial bearings

• Case housing that holds it all together


• Scoring or pitting on the valve plate

• Worn or cracked piston shoes

• Galling on the cylinder block face

• Bearing collapse leading to shaft misalignment

• Shaft seal leaks causing external oil loss


• Cylinder block and valve plate are still usable

• No cracking or warping on housing

• Bearings can be replaced with OEM-equivalent parts

• No shaft scoring that exceeds spec


• Housing is cracked

• Piston bores are egg-shaped

• Parts availability is limited or cost-prohibitive

• Excessive heat damage has altered metal hardness


• Clean all parts in solvent

• Replace all seals, O-rings, and gaskets

• Check swashplate surface finish

• Use assembly lube or clean hydraulic oil for piston and shoe installation

• Torque all fasteners to spec

• Prime the system with clean hydraulic fluid before startup


• Bleed air from lines

• Monitor case drain during break-in

• Listen for abnormal noises

• Check for leaks at hose fittings and shaft seals

• Retorque bolts after 10 hours of operation


• Change hydraulic filters every 250 hours

• Use only clean, manufacturer-approved hydraulic fluid

• Keep case drain lines free of restriction

• Inspect for water ingress or foaming in oil

• Don’t idle the machine with drive pressure for long periods

• Grease wheel hubs and check for abnormal resistance


Why the PC120 Is Hard to Find on Official Platforms
The Komatsu PC120 hydraulic excavator is well-known among operators and contractors for its versatility and reliability. Yet, when looking for details on Komatsu’s official websites, particularly for North America, many discover that the PC120 is conspicuously absent. This often leads to confusion, especially for buyers or mechanics searching for documentation, parts, or resale information.
The root of the problem lies in regional market segmentation. Komatsu, like many heavy equipment manufacturers, tailors its product offerings to specific regions. The PC120 was never officially part of the North American lineup. It was primarily targeted at Asian, African, and some Latin American markets. Machines like the PC120-6, PC120-7, and PC120-8 were widely distributed in Japan, Southeast Asia, and parts of the Middle East. These excavators often made their way into North America via gray market imports, leading to the machine being widely seen but poorly documented locally.
What Is a Gray Market Machine?
A gray market machine is an equipment unit imported into a country outside of the official distribution channels set by the manufacturer. These machines:

• Were originally built for foreign markets

• May have different emission standards, electrical systems, or safety features

• Often lack localized support such as manuals, decals, and parts availability

• Are sometimes incompatible with standard dealer diagnostic tools


• PC120 vs PC128US: The PC128US is an official North American offering with a short-tail swing, more emissions compliance features, and dealer support. The PC120 lacks these in the U.S. but offers simpler mechanical systems that are easier to maintain in remote areas.

• PC120 vs PC138: The PC138 is a newer, more advanced machine. However, the PC120, being older and simpler, is often preferred by smaller contractors who value repairability over electronics.

• PC120 vs PC100: The PC100 is slightly smaller but shares many frame components and hydraulic design similarities with the PC120. Many parts are even interchangeable.


• Fuel-efficient 4D102 or SAA4D95LE-5 engines (depending on variant)

• Simplified hydraulic layout, making it easy to repair and less reliant on electronics

• Sturdy undercarriage, especially in the -6 and -7 models

• Balance of size and power, ideal for small-to-midscale earthmoving tasks

• Durability in harsh environments, from rice paddies in Vietnam to mountainous sites in Nepal


• Parts identification: Without official dealer records, it's sometimes hard to match part numbers.

• Service manual access: Many manuals are only available in Japanese or require translation.

• Diagnostic tools: Newer Komatsu service systems like KOMTRAX or Plug & Play diagnostic readers may not recognize PC120 models.

• Resale complications: Machines without an official serial number trace in the local Komatsu registry may raise red flags with auctioneers or buyers.


• Use third-party parts suppliers who specialize in gray market Komatsu equipment

• Join operator communities to exchange information and part compatibility

• Keep serial number records and seek out parts books from original markets

• Translate Japanese service manuals using specialized translation tools or services

• Avoid unauthorized firmware updates, which can brick some control systems


• Verify origin: Use serial number tracers to determine the region of manufacture.

• Inspect hydraulics: Ensure compatibility with local hydraulic fluids and filters.

• Check emissions compliance: Older PC120s may not meet Tier 2 or Tier 3 standards.

• Confirm undercarriage sizing: Some PC120s have non-standard track gauges or shoe widths.

• Assess availability of parts locally: Build a relationship with import-based suppliers.


Introduction
A curious case emerged with a Komatsu HD465-7 rigid dump truck: front brake pads wore down dramatically unevenly. The outer pads were ground almost to metal, while the inner pads showed entirely normal wear—despite calipers being re-sealed, new pistons installed on both sides, and no obvious hydraulic or mechanical faults. Investigators suspected the issue stemmed from low nitrogen pressure in the brake accumulators. Once corrected and pressure monitored directly at the caliper line, the irregular wear subsided.
Background on the HD465-7 Braking System

• Utilizes wet multiple-disc brakes, which are fully sealed to exclude contaminants, significantly reducing wear and maintenance needs. Adjustments for wear are unnecessary.

• The hydraulic braking system is fully controlled, and includes three independent hydraulic circuits—adding redundancy and safety should one circuit fail.

• These wet disc brakes also operate as a retarder, enabling the truck to maintain control on steep descents, with a high continuous descent capacity (e.g., 785 kW / 1,052 HP) and large brake surface area.


• Air traps in outside pistons, causing them to remain engaged—common in air-over-hydraulic clusters using residual-pressure valves. These maintain pad proximity but can cause drag if stuck. A comparable issue in loader brakes was resolved by removing such valves and drawing fluid from bleed screws with a hand-vacuum pump.

• Imbalanced cooling or environmental heat, which could warp discs such that outer pads bear more load.

• Hydraulic seal asymmetry, where seals slightly restrict piston return on one side, even imperceptibly.


• Accumulator (nitrogen-type): A reservoir storing pressurized gas (nitrogen) alongside hydraulic fluid to stabilize brake response. Proper gas charge ensures pad retraction when brakes are released.

• Wet multiple-disc brake: A brake system where discs operate in an oil bath, allowing better cooling and wear distribution, often maintenance-free regarding wear adjustments.

• Retarder: A braking system that uses hydraulic resistance to sustain control during long downhill runs, reducing reliance on friction brakes.

• Residual-pressure valve: Keeps brake pads close to the disc to reduce pedal travel; however, if valves fail, they can cause continuous pad contact—leading to uneven wear or overheating.


• Always verify accumulator gas pressure and recharge to specification if low. Confirm via pressure gauges mounted on brake lines.

• Use a hand‐vacuum bleed pump to eliminate potential air locks in pistons, especially after caliper servicing.

• Conduct visual inspection of discs for warping or heat distortion—outer disc runout can lead to uneven friction.

• Implement routine preventive checks: periodic audit of braking performance and pad wear patterns can detect early signs of systemic imbalance.


Understanding the Role of Bushings in Excavator Arms
Bushings are critical wear components in excavator attachments such as buckets, booms, and dipper arms. They serve as replaceable sleeves fitted into larger bore holes where pins rotate or oscillate. Their function is to absorb wear and allow for smoother, more consistent pin movement. In compact excavators like the Kobelco SK35-2, bushings play a key role in ensuring tight pivoting, minimizing slack, and maintaining hydraulic precision.
Over time, due to friction, high load cycles, poor lubrication, or contaminants like dirt and grit, bushings can wear out or seize. When that happens, the result is usually pin slop, abnormal noises, or even uneven digging performance. In extreme cases, failure to replace bushings in time can damage the bore itself, leading to costly weld-and-bore repairs.
Symptoms of Worn Bucket Bushings

• Excessive play at the bucket pivot points

• Misalignment of linkage arms

• Irregular bucket movement or lag during operation

• Audible clunking noises when changing bucket direction

• Visible wear marks or scoring on the pins or inside the bushings


• If the pin is worn more than 0.5 mm from its original diameter, it should be replaced.

• If the bushing's internal diameter exceeds the spec by more than 0.25 mm, the bushing is likely worn out.


• Hydraulic press or manual bushing driver

• Slide hammer or air hammer (in stubborn cases)

• Freezer and torch (for thermal contraction/expansion techniques)

• Penetrating oil and wire brush for bore cleaning


1. Clean the area thoroughly to avoid contaminating the bore.

2. Apply penetrating oil and allow it to soak for several hours.

3. Use a driver or press to push out the old bushing.

4. If the bushing is frozen in place, carefully heat the housing and attempt removal with a slide hammer.


• Clean the bore completely, removing rust, debris, and leftover oil

• Use anti-seize compound or high-pressure grease if specified

• Align the bushing to match grease port holes if applicable

• Press in slowly and evenly using a bushing driver or properly sized socket

• Check final alignment—any tilt can cause binding


• Material hardness: hardened steel bushings offer superior wear resistance

• Greasability: some aftermarket bushings come with spiral grooves to enhance grease flow

• Compatibility: even slight differences in outer diameter can affect press-fit integrity


• Never reuse visibly worn or scored pins with new bushings

• Do not attempt to hammer in bushings with improper alignment—use a press

• Always clean bores meticulously before reinstallation

• Do not mix metric and imperial bushings—SK35-2 uses metric sizing

• Grease immediately after installation, even if the machine hasn't been used yet


• Grease daily or at least every 8 hours of operation

• Avoid high-impact motions when bushings are dry or dirty

• Clean the joint areas after working in muddy or sandy conditions

• Inspect pins and bushings during every 100-hour service interval

• Replace in pairs (pin and bushing) to maximize service life


Introduction to the Superpac 540 Compactor
The Superpac 540 is a heavy-duty vibratory compactor dating from the late 1990s, originally built under the Champion or Volvo brand lineage. Known for its reliability in soil and asphalt compaction tasks, it's designed to deliver consistent coverage and high compaction force—critical attributes for road, utilities, and construction crews.
Understanding Bearing Replacement and the Vibe (Vibratory) Side
Replacing the drum bearing—especially on the vibratory side—is one of the more delicate maintenance tasks. The “vibe side” refers to the operating end of the drum where vibration mechanisms are housed. Proper disassembly avoids misalignment or damage to internal components like eccentric weights or vibration mounts.
Terminology:

• Drum bearing: Support that allows the compactor drum to rotate smoothly.

• Vibratory mechanism: Consists of eccentric weights and hydraulic components that generate oscillating motion.

• Eccentric weights: Offset masses creating centrifugal force to vibrate the drum.


1. Preparation
   • Park the machine on level ground and engage safety locks.

   • Disconnect hydraulic and electrical systems to prevent accidental activation.

2. Accessing the Vibratory Drum
   • Remove protective covers and bolts securing the vibratory housing.

   • Safely lift the assembly using proper rigging; bearings can be heavy and may shift.

3. Removing the Drum Bearing
   • Mark the relative position of components to ensure proper reassembly.

   • Use a hydraulic press or bearing puller to extract the bearing evenly without distorting the drum shaft.

4. Inspecting Components
   • Check the drum shaft for wear or scoring.

   • Examine bearing races and inner seals for damage or contamination.

5. Installing the New Bearing
   • Clean and lubricate surfaces before installation.

   • Press the new bearing in straight, then reassemble the vibratory housing, ensuring alignment marks are matched.

6. Verification and Testing
   • Reconnect systems and conduct a low-speed test to confirm smooth rotation.

   • Run vibration test cycles to ensure there are no unusual noises or imbalances.


• Misaligned reassembly can cause premature bearing failure. Always align shaft markings.

• Debris contamination—keep work areas clean to avoid grit entering new seals.

• Undersized pullers may distort bearing bores; always match tool size to workpieces.


• Vibration system calibration: After reassembly, calibrate amplitude using manufacturer specs or reference logs.

• Hydraulic fluid health: Contaminated oil can accelerate bearing wear—check regularly.

• Lubricant selection: Use grease with proper consistency rating for vibratory environments.


• Bearing race: The smooth track on which the bearing rollers or balls move.

• Hydraulic press: Machine for applying uniform pressure to remove or install bearings.

• Shaft scoring: Surface wear or grooves caused by debris or lack of lubrication.

• Vibration amplitude: The vertical movement range of a vibrating component, typically adjustable.

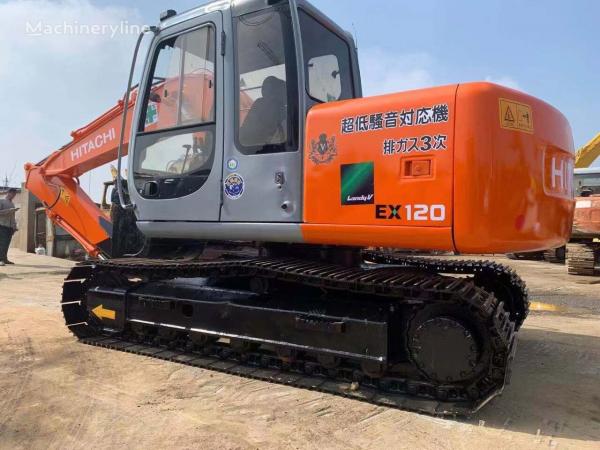

Introduction to Electrical Control in Excavators
Modern excavators such as the Hitachi EX120 rely heavily on integrated electrical systems to manage everything from engine operation to hydraulic functions. One often overlooked but essential component in these systems is the relay diode—a small, inexpensive electronic part that plays a critical role in protecting circuits from voltage spikes and maintaining reliable machine behavior.
Relay diodes are most commonly installed across relay coils to suppress voltage spikes generated when the coil is de-energized. This function, known as flyback suppression, is vital in preventing arcing, control module damage, and erratic system behavior. In heavy machinery applications, especially with older models like the EX120, failing to address issues with relay diodes can result in puzzling electrical symptoms that are easily misdiagnosed.
Symptoms of Relay Diode Failure
A failed or missing relay diode can cause a surprising array of issues in an EX120, often mimicking more severe electrical or ECM (Electronic Control Module) problems. Reported symptoms include:

• Inability to start the engine after shutdown unless the battery is disconnected and reconnected

• Auxiliary fuel pump relay staying energized even with the key off

• Engine shutting down but restart requiring unusual procedures

• Random activation or inactivation of relays after operating for a while

• Fuses blowing intermittently

• Control panel backfeeding power to unrelated circuits


• A relay coil is energized to close a contact, allowing current to flow to a device like a fuel pump.

• When the coil is de-energized, the collapsing magnetic field generates a high-voltage spike (known as inductive kickback).

• Without a diode, this spike searches for a path to ground—often back through the ECM or nearby circuits—leading to erratic behavior or damage.


• Look for a small black cylindrical component with a silver band on one end (the cathode).

• Check across the relay coil terminals for continuity in one direction but not the other using a multimeter diode test function.

• If the diode shows open in both directions or shorted in both directions, it has failed and needs replacement.


• Verify whether the original relay had a built-in diode.

• If not included, solder a diode across the relay terminals manually.

• Use heat-shrink tubing to insulate the leads and avoid short circuits.


• A mechanic once spent days tracing an intermittent starter issue in a Komatsu PC200-6. It turned out a diode had corroded and failed open, allowing voltage spikes to reach the starter relay and lock it in the “on” position, even after the key was removed.

• In another case, a forestry operation in Alberta had two EX120s with identical symptoms. Only one technician recognized the telltale signs of diode failure—burned fuses, relays staying engaged, and control panels lighting up when they shouldn't. Replacing the $0.10 diode saved $2,000 in diagnostic time and part-swapping.


• Regularly inspect relay bases for signs of diode corrosion or failure.

• Use a multimeter to confirm diode functionality during seasonal checkups.

• Maintain a stock of standard 1N4001–1N4007 diodes for emergency repairs.

• Clearly label harness modifications and include diode direction markers when retrofitting.

• When installing aftermarket relays, always check for diode inclusion—don't assume.


Understanding Extension Boom Malfunctions
A telescopic or extension boom extends the reach of cranes, boom lifts, or excavators by sliding inner sections outward. When it becomes stuck—either refusing to retract or extend—that can signal hydraulic, mechanical, or safety-system issues. Immediate action and accurate diagnosis are crucial for preventing damage or unsafe conditions.
Common Causes of a Stuck Extension Boom

• Hydraulic Pressure Loss or Blockage: A failing hydraulic pump or collapsed hose may fail to supply enough pressure, while clogged filters can restrict fluid flow.

• Internal Seal Failure: Worn or damaged seals within extension cylinders prevent smooth movement, especially under load.

• Control Valve Faults: A stuck-open or stuck-closed valve in the hydraulic control block can trap fluid in one section, locking the boom.

• Mechanical Binding or Debris: Physical damage, misalignment, or foreign objects lodged between sliding sections can jam movement.

• Safety or Lockout Systems: Some machines feature interlocks that engage when sensors detect unsafe conditions or system faults.


• Extension Cylinder: The hydraulic component that pushes or pulls boom sections.

• Control Spool Valve: Regulates direction and flow of hydraulic oil.

• Hydraulic Lock: A condition where trapped oil prevents movement in a hydraulic cylinder.

• Load-Hold Valve: Acts to lock a boom under load if pressure is lost.

• Bypass Port: A manual or factory-provided opening allowing hydraulic flow around closed circuits.


1. Secure the Machine
   • Lower any loads.

   • Shut off engine and relieve hydraulic pressure—engage safety rails and lock control levers.

2. Perform a Visual Inspection
   • Examine hydraulic hoses and fittings for leaks or damage.

   • Check boom sections for debris, dents, rust, or deformation.

3. Test Hydraulic Pressure
   • Attach a pressure gauge to boom-cylinder ports.

   • Activate the extension or retraction control—note discrepancies in pressure compared to manufacturer specs.

4. Inspect Hydraulic Control Valves
   • With power applied, carefully listen or feel for valve spool movement—failure to shift suggests internal blockage or control failure.

5. Test for Hydraulic Lock or Load-Hold Problems
   • Try very gently operating the boom in small increments—resistance may indicate trapped fluid or load-hold engagement.

6. Enable Bypass (if available)
   • Some systems offer manual bleed or bypass valves. Opening these may release locked oil path and allow motion.

   • Always follow OEM guidelines for bypass activation to avoid damage.

7. Mechanical Freedown Attempts
   • If hydraulics are clear, a slow, gentle tap on the stuck section (with appropriate tools) may break surface binding—but proceed with caution.

8. Seek Professional Help
   • If pressure or valve diagnostics confirm internal failure—or seals are leaking—professional service and possibly cylinder replacement will be required.


• Secure and depressurize the machine

• Inspect for external damage or obstruction

• Check hydraulic pressure at the cylinder

• Test valve function and look for spool movement

• Confirm or bleed hydraulic lock or load-hold valves

• Engage bypass ports if safe to do so

• Use mechanical release only as a controlled last resort

• Escalate to professional repair when internal components are suspected


Understanding the Jake Brake Concept
A Jake brake—also known as an engine compression release brake—is a device that transforms a diesel engine into a compressor, using engine resistance to slow a vehicle without relying solely on wheel or service brakes. This adds significant braking power, especially for heavy machinery or trucks descending slopes. However, not all engines are designed to integrate these brakes easily, and compatibility considerations can be a deciding factor.
Compatibility with the CAT 3306C Engine

• Some operators note that while the CAT 3406B engine included a highly effective Jake brake, the 3306C is smaller in displacement and power, resulting in proportionately less braking force—even if a Jake brake is installed.


• Replacement parts for CAT 3306 engines equipped with Jake brakes—such as front and rear housings for the 336A brake model—can cost around $750 USD for used units and up to $995 USD for new assemblies.

• Some sources even list individual housings for sale at prices ranging from several hundred dollars.


• Since the 3306C produces lower horsepower than the 3406B, any Jake brake installed will deliver less stopping power, but it remains functionally appropriate relative to engine capacity.


• Even when wiring and solenoids are confirmed working, Jake brakes may fail to activate due to mechanical faults—particularly within the brake actuator or rocker mechanism—pointing to issues beyond electrical diagnostics.


• For any Jake brake retrofit or maintenance, consulting a comprehensive Jake Brake Application Guide is essential. These guides help match engine models and serial numbers to correct brake kits and specify components like slave piston lash settings and trigger valve configurations.


• Jake Brake (Compression Release Brake): Uses engine’s internal compression to slow down, reducing brake wear.

• Housing (Front/Rear): Essential enclosures around the brake assembly; must be matched to engine series.

• Solenoids: Electrically actuated valves that control brake engagement.

• Actuator/Rocker: Mechanical parts that engage the compression release valves.

• Tune-Up Kit: Contains selected parts for servicing and restoring Jake brake functionality (e.g., seals, springs, shims).


• Compatibility: Possible on the CAT 3306C engine, but yields less braking power than larger engines such as the CAT 3406B.

• Parts Availability: Jake brake kits and housings are available both used and new, but they are typically priced at a premium.

• Common Issues: Mechanical faults in actuators or rocker mechanisms often cause brake failure despite proper wiring.

• Essential Resources: Detailed Jake brake application guides are crucial for correct kit selection, adjustment, and setup.




When Heavy Iron Becomes a Showstopper

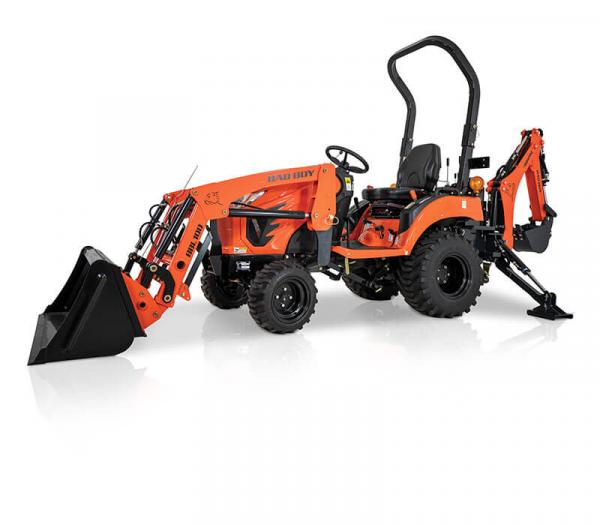

Sometimes, a machine commands attention—towering, gleaming, or roaring with presence—earning the nickname "That bad boy" from passersby and operators alike. It’s often a unique spec, bold graphics, or oversized build that makes an excavator or loader stand out from the daily grind.
Technical Features that Inspire Awe
What often sets these machines apart:

• Massive buckets or attachments—capable of moving surprisingly large volumes of earth.

• Heavy-duty undercarriage—wide tracks, reinforced rollers, and robust travel motors built for stability.

• Custom hydraulics or control upgrades—ensuring rapid response under demanding cycles.

• Unique paint or decals—bold striping or custom colors that turn a machine into an on-site landmark.


• Bad Boy: Informal term for a machine that’s visually, mechanically, or capability-wise extraordinary.

• Hide, Rate, Rise:
  • Hide: The machine blends into its surroundings.

  • Rate: Standard, expected performance level.

  • Rise: Breaks the norm—stands out in presence, performance, or aesthetics.


• A dozer decked out in jet-black paint, with orange logos zipped by—a striking alternative to the usual yellow. The jobsite buzzed about it well before the machine even started digging.

• A mid-size excavator equipped with a massive hammer alongside custom safety-striping was dubbed “The Crusher.” Its first blow shattered concrete so cleanly it felt cinematic.

• A fleet of loaders received training gear-style wraps—high-vis patterns that looked more like motocross jerseys than construction paint, making them impossible to miss.


• Visual Impact: Unique scheme or unusual scale makes people take notice—helpful for branding or morale.

• Operator Pride: Controlling something special or attention-grabbing lifts the daily routine.

• Safety Boost: Bright decals or reflective treatments aren’t just flashy—they can enhance visibility in low-light or cluttered yards.


• Oversized buckets or blades

• Heavy-duty, upgraded undercarriage

• Powerful hydraulic enhancements

• Striking custom paint or graphics

• Attachment combinations that defy expectations (like hammer and auger together)




Overview & Heritage

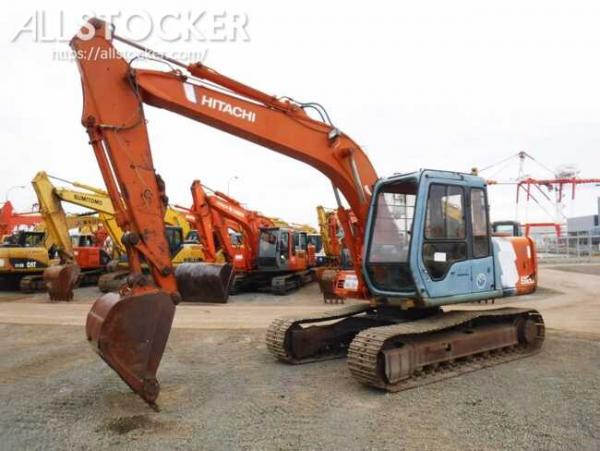

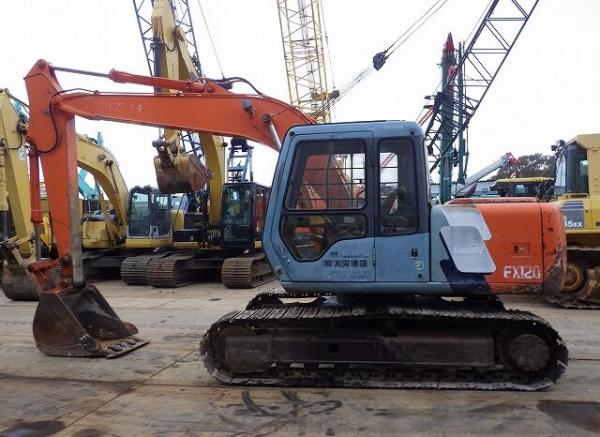

The Hitachi EX120‑3, a mid‑class excavator rated at approximately 12 metric tons, has earned a reputation for reliability and versatility in the 10–15 ton range. Powered by an Isuzu 4BD1T (or A‑4BG1T) turbocharged engine, it consistently delivers dependable performance in diverse conditions.

Technical Specifications at a Glance

• Operating Weight: ~11,800 kg (26,000 lb)

• Bucket Capacity: ~0.45–0.5 m³

• Engine: 4‑cylinder Isuzu A‑4BG1T, ~60 kW (81 hp), ~4.4 L displacement, turbocharged

• Fuel Capacity: ~250 L

• Hydraulics: Pump flow ~190 L/min; system fluid ~135 L; relief pressure near 5,000 psi

• Dimensions: Length ~7.58 m; width ~2.49–2.5 m; height ~2.7 m

• Undercarriage: 500 mm shoes; track gauge ~1.99 m



• Relief Valve: Regulates maximum hydraulic pressure to avoid system damage.

• Safety Locking Valve: Prevents unintended actuator movement, acting as a hydraulic safeguard.

• Dash‑5 Controls: Hitachi’s modular hydraulic control architecture that adjusts machine behavior for efficiency, precision, or power.

• Hydraulic Pump Flow Capacity: Indicates how quickly hydraulic fluid can be delivered to cylinders—higher flow means faster response.
