A digital transformation is underway in heavy equipment cabs. Once dominated by basic analog gauges, today’s machines boast vibrant, ruggedized displays—touchscreens, high-brightness panels, and intuitive interfaces that blend durability with sophistication. What makes these systems "cool"? Not just their tech specs, but how they elevate operator comfort, jobsite safety, and machine performance.

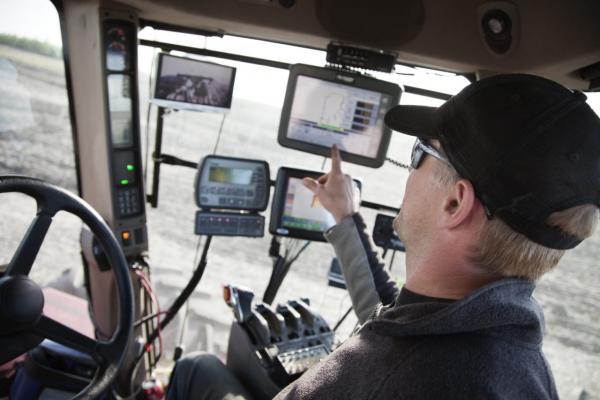

Modern Features That Elevate Operator Experience

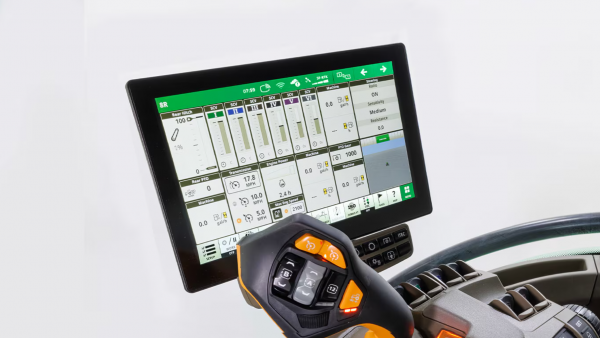

These displays bring a wide array of advanced features that reimagine how operators interact with their machines:

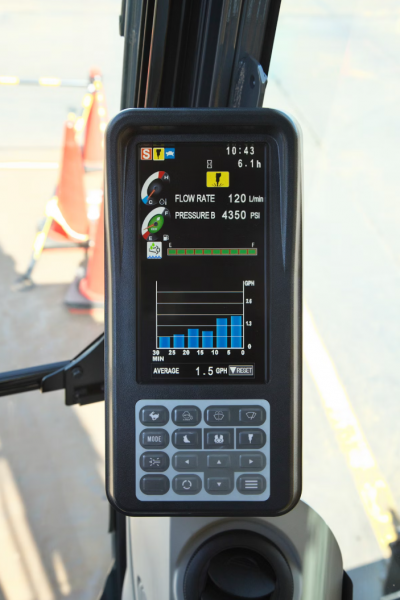

• Sunlight-readable screens (often exceeding 1,000 nits brightness), preserving clarity under harsh outdoor lighting conditions

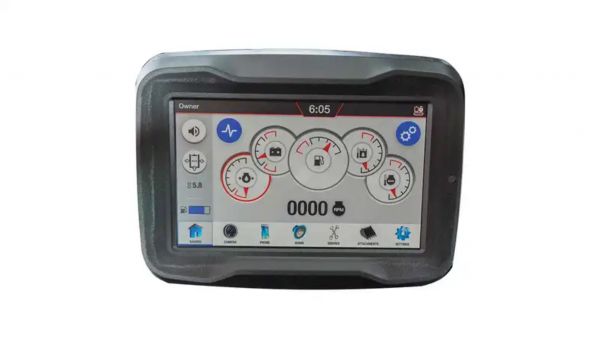

• Touchscreen interfaces with capacitive technology, smartphone-style navigation, and customizable shortcut keys

• High-resolution panel(s); some exceed full HD to render crisp maps, diagnostics, and live camera inputs

• Ergonomic layout: controls and menus integrated into or adjacent to the screen, minimizing fumbling and improving safety


• Enhanced Safety and Precision: Remote cameras displayed in-cab and sunny-day visibility allowed spotters on cranes and excavators to make better decisions with greater accuracy.

• Operator Comfort and Productivity: Touch interfaces that require minimal travel for the operator’s hands reduce fatigue—operators report longer shifts with less strain.

• Efficiency Gains: Menu-driven presets for common tasks enable operators to switch attachments or modes quickly, cutting downtime between jobs.


• Sunlight-readable display – A screen engineered with high brightness and anti-glare tech to maintain visibility in bright outdoor light.

• Capacitive touchscreen – Like a smartphone, this type responds to your finger, enabling smoother swipe, pinch, and tap interactions.

• Shortcut keys – Physical or virtual buttons next to the display that allow instant access to frequent functions.

• Operator profile – Personalized saved settings tied to an individual user, often protected via passcode or key fob.


• A mining fleet retrofitted older haul trucks with modern touchscreen panels offering multi-language support and real-time fuel efficiency graphs. The result: fewer operator errors and smoother shift handovers.

• At a logging site, rugged displays survived frost, moisture, and vibration—thanks to silicone-dampened components and waterproof housing—without failure for over two years .


Introduction: The Compact Powerhouse for Tight Jobs
Mini zero-tail swing excavators in the 5-ton class are invaluable for construction, landscaping, and utility work where space is limited but power and versatility remain critical. Choosing the right used model from the 10 to 12 series range involves balancing size, performance, features, reliability, and budget. This overview delves into popular models in this category, comparing strengths, weaknesses, typical applications, and maintenance considerations to guide buyers in making an informed choice.
Popular Models in the 5-Ton Mini Zero-Tail Swing Class
Several manufacturers offer machines in the 10–12 series size with zero-tail swing design, including:

• Caterpillar 305E2 / 305.5E2

• Bobcat E50

• Kubota KX057-4

• Takeuchi TB260

• John Deere 50G

• Hitachi ZX50U-5


• Zero-Tail Swing Design: This feature ensures the rear of the machine does not extend beyond the track width when rotating, ideal for working in confined spaces and urban environments.

• Operating Weight: Typically ranges from 5,000 to 5,500 kg (approximately 11,000 to 12,100 lbs), balancing stability with transport ease.

• Engine Power: Usually between 30 to 40 horsepower, providing efficient digging, lifting, and trenching capabilities.

• Hydraulic System: Modern models use load-sensing hydraulics for smoother operation and fuel efficiency.

• Operator Comfort: Enhanced with spacious cabs, climate control options, and ergonomic controls in newer models.


• Caterpillar 305E2 / 305.5E2
  • Strengths: Industry-leading durability, excellent resale value, wide dealer network.

  • Considerations: Higher initial cost, maintenance can be more expensive.

  • Applications: Versatile across construction, utility, and landscaping.

• Bobcat E50
  • Strengths: Compact size, user-friendly controls, good visibility.

  • Considerations: Slightly lower hydraulic flow may limit heavy attachments.

  • Applications: Landscaping, light construction, urban utility.

• Kubota KX057-4
  • Strengths: Smooth operation, fuel-efficient engine, strong hydraulics.

  • Considerations: Cab space can be tight for taller operators.

  • Applications: Trenching, excavation in tight quarters, utility.

• Takeuchi TB260
  • Strengths: Robust build, easy maintenance, zero-tail swing precision.

  • Considerations: Dealer network less extensive in some regions.

  • Applications: Demolition, landscaping, site preparation.

• John Deere 50G
  • Strengths: Reliable engine, good hydraulic performance, operator comfort.

  • Considerations: Older models may lack modern features.

  • Applications: Utility work, small-scale construction.

• Hitachi ZX50U-5
  • Strengths: Efficient hydraulics, strong boom and arm forces.

  • Considerations: Parts availability varies by region.

  • Applications: Utility, landscaping, compact site work.


• Hydraulic Leaks: Check cylinders, hoses, and connections.

• Track Condition: Inspect track shoes, rollers, and sprockets for wear.

• Engine Health: Look for smoke, unusual noises, and oil leaks.

• Electrical Systems: Test lights, gauges, and safety switches.

• Attachment Condition: Confirm pins and bushings are not overly worn.


• Zero-Tail Swing: An excavator design where the rear counterweight does not extend beyond the tracks during rotation.

• Load-Sensing Hydraulics: A system that adjusts hydraulic pump output based on demand, improving efficiency.

• Operating Weight: The total weight of the machine ready for operation, including fuel and fluids.

• Boom and Arm Forces: Measurements of hydraulic lifting and digging power.


• Inspect Machines In Person: Look beyond cosmetic condition to hydraulic function and engine health.

• Request Maintenance Records: Machines with regular service schedules tend to last longer.

• Test Operational Functions: Swing, boom, arm, travel, and auxiliary hydraulics should respond smoothly.

• Consider Regional Dealer Support: Parts availability and service ease can vary by brand and location.

• Balance Price and Features: Newer models offer more tech and comfort, but older units may provide better value if well maintained.


When it comes to augmenting hydraulic systems—whether on heavy machinery, agricultural equipment, or DIY projects—auxiliary hydraulic plumbing plays a pivotal role. It enables the addition of attachments, increases operational flexibility, and boosts productivity. But what does it take to implement it properly, and what pitfalls should you watch for?
Understanding the Basics
Auxiliary hydraulic plumbing refers to the setup of additional hoses, valves, and connectors that allow external implements—like breakers, augers, or grapples—to tap into a machine’s hydraulic system.
Key components often include:

• Supply and return lines – These carry fluid to and from the implement.

• Control valve or diverter – Lets you route hydraulic flow to the implement when needed.

• Quick couplers – Facilitate easy connection and disconnection.

• Check valves and pressure relief – Protect the system from back‑flow or over‑pressure.

• Filters – Prevent contamination as new fluid paths are created.


• Pressure imbalances can arise when lines are improperly routed, risking overheating or component damage.

• Contaminant ingress is common during installation—flushing and filtering are vital.

• Compatibility issues: Not all quick couplers or seals are created equal across brands; mismatches can lead to leaks or inefficiency.


• Minimize hose length and bends for efficiency and reliability.

• Position couplers within easy reach so operators aren’t struggling mid-job.

• Use clear labeling or color-coded caps to prevent cross‑connection errors.

• Incorporate filtration and venting steps, especially in dusty or wet environments.


• Thermal expansion: Pressurized hydraulic fluid heats up. Give components room—leave slack or use flexible hoses to accommodate movement.

• Environmental sealing: On outdoor equipment, dust, dirt, and moisture can degrade seals quickly. Invest in high-quality protective caps and dust boots.

• Emergency overrides: Incorporating a manual bypass or shutoff can save hours in urgent failure events.


• Auxiliary hydraulic plumbing – Extensions to a hydraulic system enabling additional external equipment to be powered.

• Supply line – The hose or pipe delivering pressurized fluid to the implement.

• Return line – Conveys hydraulic fluid back to the reservoir.

• Quick coupler – A connector system enabling fast, tool‑free hose connections.

• Diversion valve / control valve – A means to redirect hydraulic flow to auxiliary lines.

• Check valve – A one‑way valve preventing reverse flow.

• Pressure relief valve – Protects against overpressure conditions by diverting fluid when pressure exceeds safe levels.

• Filter – Removes particulates and contaminants from hydraulic fluid.

• Bleed/vent point – Location for removing trapped air or moisture from the system.


Introduction: When Power Meets Resistance
The Caterpillar 305.5 is a popular mini excavator known for its compact size and versatility in confined workspaces. However, operators sometimes encounter bogging—where the machine slows down or stalls under load, losing power and affecting productivity. Understanding the root causes of bogging in this model involves looking at the engine, hydraulic system, operator practices, and environmental factors. This article explores the causes, diagnostic methods, practical solutions, and lessons learned from real-world cases.
Understanding Bogging: What Happens Mechanically
Bogging occurs when the excavator’s engine cannot maintain sufficient RPM under load, causing a loss of hydraulic pressure and sluggish machine response. It is a symptom of powertrain imbalance and can be triggered by:

• Engine underperformance

• Hydraulic system restrictions

• Fuel supply issues

• Operator control and technique

• External environmental conditions


• Fuel Quality and Filter Condition: Dirty fuel or clogged filters reduce fuel flow and cause misfires or power dips.

• Fuel Injection Timing and Nozzle Condition: Improper timing or worn injectors can lead to incomplete combustion and power loss.

• Air Intake and Turbocharger Health: Restricted air filters or turbocharger malfunction reduce air volume, starving the engine.

• Engine Diagnostics: Running fault codes and monitoring engine parameters through CAT’s Electronic Technician (ET) software can identify underlying problems.


• Hydraulic Filter and Fluid Condition: Contaminated fluid or clogged filters reduce flow and increase pump strain.

• Pump Wear or Damage: Excessive internal leakage or wear reduces pump efficiency.

• Relief Valve Settings: Incorrect valve pressures can limit flow or cause premature unloading.

• Hydraulic Oil Temperature: Overheated oil thins and loses viscosity, causing cavitation and flow loss.

• Hydraulic Hoses and Connections: Collapsed or kinked hoses restrict flow, leading to pressure drops.


• Simultaneous Controls: Using multiple hydraulic functions simultaneously can overload the engine.

• Throttle Management: Low throttle settings under heavy load can cause bogging.

• Ground Conditions: Soft or muddy terrain increases track resistance, demanding higher torque.

• Attachment Use: Heavy or non-standard attachments require more hydraulic power and engine output.


• Altitude and Air Density: Higher elevations reduce air intake oxygen, reducing engine power.

• Temperature Extremes: Cold weather thickens fluids; hot weather can cause overheating.

• Fuel Contamination: Water or debris in fuel tanks affects combustion.


• Visual Inspection: Check filters, hoses, fluid levels, and cleanliness.

• Fluid Sampling: Analyze hydraulic and engine oil for contamination.

• Electronic Diagnostics: Use CAT ET software for error codes and sensor data.

• Load Testing: Monitor RPM and pressure during simulated loads.

• Pressure Gauge Tests: Measure hydraulic pressures at key points.


• Bogging: Loss of engine power and hydraulic pressure under load.

• Relief Valve: Hydraulic valve that limits maximum system pressure to protect components.

• Cavitation: Formation of vapor bubbles in hydraulic fluid, causing noise and damage.

• Throttle Management: Controlling engine speed to match hydraulic demand.

• Fuel Injector: Device that sprays fuel into the combustion chamber.


• Regular Fuel and Hydraulic Filter Replacement: Ensures clean fluid supply.

• Routine Diagnostics: Early fault code detection prevents larger failures.

• Operator Training: Teaching smooth, gradual controls reduces engine strain.

• Hydraulic Fluid Monitoring: Maintain proper fluid temperature and viscosity.

• Scheduled Valve Calibration: Ensures correct system pressure and flow.


Overview of the H‑875 Drive Problem
An aging H‑875 crawler, despite appearing functional, exhibits a perplexing failure: once its drive chains are installed, the machine refuses to move; yet, when the chains are removed, it can be towed effortlessly using just the bucket. This indicates that while the tracks are mechanically connected, propulsion fails under their load. It suggests issues in power transmission, clutch systems, or potentially worn internal components.
Key Terminology

• Drive Chain: Heavy‑duty links transferring power from engine/transmission to the tracks.

• Final Drive: The gearbox assembly attached to each track, amplifying torque and reducing speed to drive the tracks.

• Idler/Sprocket: Wheels on the undercarriage guiding and tensioning the drive chain.

• Sprocket Engagement: The condition where the sprocket teeth properly mesh with the chain links. Worn sprockets can produce slippage or disengagement.

• Overload Clutch (if present): A fail-safe mechanism that disengages drive under excessive load to prevent damage, which, if stuck, can immobilize travel.


• Worn or damaged sprocket teeth not adequately engaging the drive chain, causing slippage under load.

• Chain stretch or elongation, reducing tension and mesh.

• Internal final drive seizure—when the idle towing bypasses locked or failed bearings/gears within the final drive assembly.

• A jammed or faulty overload clutch, if designed into the transmission, preventing engagement.

• Misalignment or uneven chain tension, causing one side to bind while the other appears fine.


• Check chain tension: Ensure both left and right tracks have equal, manufacturer‑specified slack.

• Inspect sprocket wear: Look for tooth rounding, chips, or elongated pitch areas.

• Rotate the sprocket by hand (with chain on), checking for smooth engagement; note resistance or slippage.

• Jack up one track (with chains on) and engage drive in neutral or low gear—feel for transmission to the final drive.

• Open final drive housing: Look for metallic debris, gear misalignment, or seized bearings.

• Inspect any overload or torque limiter devices—verify they aren’t locked or malfunctioning.


• Drive Chain Worn or Stretched: Leads to poor sprocket engagement and loss of traction.

• Sprocket Wear or Damage: Compromised gear teeth result in slippage.

• Final Drive Internal Failure: Locked gears or seized bearings stall propulsion under load.

• Overload Clutch Fault: If present and stuck, prevents drive from engaging.

• Unequal Chain Tension or Alignment: Causes uneven load distribution, binding one side.


Introduction: A Costly Mix-up in the Machine’s Veins
In heavy equipment maintenance, few problems are more frustrating—or potentially damaging—than fluid cross-contamination. For a Caterpillar D3G dozer, discovering engine oil inside the hydraulic reservoir is not just an inconvenience—it can signal serious internal leakage, damage to multiple components, and costly downtime. This article explores how such contamination occurs, the systems involved, diagnostic methods, long-term consequences, and real-world maintenance stories that illustrate the importance of vigilance.
System Basics: Two Vital Circuits with Different Roles
The Caterpillar D3G, like most tracked dozers, features two separate fluid systems:

• Engine Lubrication System: Circulates engine oil under pressure to bearings, camshafts, cylinder walls, and other moving parts. Operates under internal combustion heat and is filtered to catch metallic and carbon-based particles.

• Hydraulic System: Uses specialized hydraulic fluid to power blade lifts, rippers, and steering functions via high-pressure pumps, control valves, and cylinders.


• Hydraulic Fluid Discoloration: Hydraulic oil normally has a golden or amber tint. Engine oil darkens quickly from combustion byproducts. Mixed fluid may appear smoky, black, or grey.

• Overfilled Hydraulic Tank: Engine oil migration into the hydraulic tank often raises the fluid level noticeably.

• Hydraulic Performance Drop: Aerated or thinned fluid can reduce cylinder responsiveness, cause cavitation, or generate excess heat.

• Oil Consumption in Engine: Gradual but unexplained loss of engine oil, especially without external leaks, can point toward internal migration.


• Hydraulic Pump Shaft Seal Failure: One of the most common sources. The hydraulic pump is mechanically driven by the engine. If the seal on the pump shaft fails, pressurized engine oil can seep into the hydraulic circuit.

• Pump Case Drain Routing Error: In some setups, a misrouted or modified case drain line can cause oil from the engine to backflow into the hydraulic tank.

• Cooler Failures: Rare, but if an oil-to-oil or oil-to-water cooler is shared between systems, internal rupture can lead to fluid mixing.

• Improper Sealing During Overhaul: Engine or hydraulic pump overhauls performed without replacing critical gaskets or seals may allow cross-system seepage.


• Visual Fluid Comparison: Check both the hydraulic tank and engine oil dipstick. Changes in viscosity, color, and odor offer early clues.

• Sampling and Lab Analysis: Fluid samples can confirm the presence of combustion byproducts in the hydraulic oil, proving engine oil contamination.

• Seal Inspection on Pump Shaft: Removing the hydraulic pump for bench inspection or pressure testing often reveals a leaking shaft seal.

• Engine Oil Pressure Test: A pressure test can confirm whether engine oil is entering the hydraulic system due to excessive crankcase or lube system pressure.

• Case Drain Flow Test: Measuring flow from the case drain while operating the system can help isolate internal pump leakage.


• Damage to Hydraulic Cylinders: Engine oil lacks the anti-wear additives and anti-foam properties of hydraulic fluid, which can lead to cylinder scoring or seal failure.

• Overheating Hydraulic System: Thinner or aerated fluid may cause elevated operating temperatures, risking pump cavitation.

• Pump Failure: Engine oil may not lubricate internal pump vanes or pistons correctly, causing galling and internal scoring.

• Filter Clogging and Debris Circulation: Contaminated oil quickly overwhelms hydraulic filters, allowing unfiltered fluid to damage valve blocks and motors.

• Warranty Issues: If contamination is tied to improper service or third-party parts, manufacturers may decline coverage.


• Replace the Faulty Component: Whether it’s a failed shaft seal or pump assembly, the defective part must be removed and replaced.

• Flush Hydraulic System: Contaminated hydraulic oil must be completely drained. Flushing the system with a light cleaning fluid or filtered hydraulic oil is recommended.

• Replace Hydraulic Filters: Filters must be changed after flushing and again after a few hours of operation with clean oil.

• Top Off Fluids: Refill the engine and hydraulic reservoirs with the correct, OEM-approved fluids.

• Monitor Closely: Watch for recurrence of symptoms. Regular sampling during the following weeks helps ensure system health.


• Preemptive Seal Replacement: During major services like timing cover or hydraulic pump inspections, always replace shaft seals, regardless of current condition.

• Routine Sampling Saves Thousands: Early detection of cross-contamination prevents full system failure and limits repair to a single component.

• Know Your Machine’s Configuration: Some machines have combined systems or share components, increasing the risk of cross-contamination. Always refer to service schematics.


What the Auxiliary ® Terminal Is and Why It Matters
The auxiliary “R” terminal on many alternators serves as a multi‑purpose port: it can supply power to accessories such as tachometers, charge indicator lights, or relays, and in older systems, also provide initial excitation to begin charging . In essence, it both senses voltage regulation needs and feeds low‑current loads.
How the R Terminal Differs from Main Output (B+)

• B+ terminal: This is the heavy‑duty main output delivering high amperage (e.g., 60–200 A) directly to the battery.

• R terminal: Carries only a tiny current (<1 A), not intended for power delivery but signaling and excitation .


• L ("Lamp"): Warning lamp circuit; provides excitation via the indicator bulb when the engine isn't running .

• F ("Field"): Powers the rotor coil in externally regulated alternators.

• S ("Sense"): Monitors battery voltage to fine‑tune charging.

• T, P, or W: Pulse outputs for tachometer or hour‑meter signals .

• D+: Legacy term (e.g., on generators) for the warning light circuit .


• If your engine isn’t charging at idle but only does so at higher RPM, check the R circuit or warning lamp path—especially in setups with LEDs or missing bulbs.

• For hooking up tachometers, using the P, T, or W terminals—or tapping the field via a proper signal source—is essential for accurate RPM readings .

• Irregular voltage on R can disrupt dashboard lighting, battery warning systems, or even fool the ECU if present .


• B+: Main charging output, high current.

• R (Aux): Small‑current, regulatory/excitation or accessory output (tach, charger relay, indicator).

• L (Lamp): Dashboard warning light; excitation path in older systems.

• F (Field): Rotor excitation in externally controlled alternators.

• S (Sense): Voltage feedback for accurate regulation.

• P/T/W: Tachometer or pulsed output for RPM measurement.

• D+: Legacy warning light circuit.


Introduction: Legacy in Steel and Timber
In the world of mechanized logging, a few names carry the weight of innovation and resilience. Among them, Washington Iron Works (WIW) and its Allied Tree Harvester ATH-28 model stand out as powerful, though now rare, symbols of logging's golden mechanical age. These machines, built for brute strength and rugged terrain, represent a time when forestry equipment was less about electronics and more about raw hydraulic muscle, heavy steel, and on-site improvisation.
Origins of the ATH-28: A Collaboration Forged in Timber Country
The ATH-28 was a product of Washington Iron Works, an engineering and manufacturing company with deep roots in the Pacific Northwest. Known for building logging winches, steam engines, and sawmill machinery since the late 1800s, WIW eventually ventured into fully integrated logging machines. The Allied Tree Harvester line, including the ATH-28, was co-developed to mechanize felling, bunching, and stacking operations for high-output forestry operations.
The ATH-28 is one of the largest articulated feller-bunchers ever produced. It was designed to work in steep terrain and remote regions, primarily in the Pacific Northwest and parts of Canada where heavy timber demanded a machine that could handle massive loads with precision.
Mechanical Architecture: Built Like a Tank
The ATH-28 stands apart due to its immense build and design simplicity. Key features include:

• Articulated Frame: The machine utilizes a central articulation joint rather than a skid-steer or tracked chassis. This allows for greater flexibility in maneuvering through uneven and forested terrain.

• Detroit Diesel Powerplant: Most ATH-28s were powered by Detroit Diesel Series 60 or similar large-displacement engines. These engines are known for their durability, ease of repair, and roaring exhaust notes that became synonymous with logging camps.

• Hydraulic System: A robust hydraulic pump and manifold assembly powered the swing arms and saw heads. Pressure lines were overbuilt for reliability, with steel-wrapped hoses and oversized cylinders.

• Cab Structure: While minimalistic by modern standards, the cab offered armored glass and high visibility, designed for safety during high-speed felling operations.

• Saw Head and Bunching Arm: The original units came with a fixed circular saw head capable of slicing through large-diameter trunks in seconds. Some users later retrofitted shear-style heads or updated hydraulic grapples depending on the job.


• Turning Radius: Due to its size, operators had to plan turns well in advance. Steep hills required counterweighting and throttle control.

• Greasing Schedule: Nearly every moving part needed daily lubrication. Skipping a day could result in seized pins or sheared bolts.

• Hydraulic Leaks: Common in older units, these leaks could turn into serious safety issues if left unchecked. Mechanics often carried seal kits and replacement fittings in the field.

• Electrical Simplicity: The lack of onboard computers was both a benefit and a challenge. Troubleshooting was usually mechanical, with voltmeter testing limited to gauges and starting circuits.


• Weight and Transport: The machine's size makes it difficult to move between job sites. Disassembly and reassembly are labor-intensive.

• Parts Availability: With Washington Iron Works no longer manufacturing forestry equipment, spare parts are custom-machined or scavenged from donor units.

• Competition from Modern Machines: Tracked harvesters and computer-aided processors have taken over the work once dominated by giants like the ATH-28. While efficient and lighter, they lack the brute power and all-terrain durability of the older machines.


• Feller-Buncher: A type of forestry machine that cuts and gathers trees before placing them in bunches for processing.

• Articulated Frame: A chassis design with a central pivot point, allowing enhanced maneuverability.

• Hydraulic Shear: A cutting device using hydraulic force to sever tree trunks, often replacing saw heads.

• Detroit Diesel: A brand of robust diesel engines known for industrial and commercial applications.


• Versus CAT 563C: While the CAT offers better electronics and operator comfort, the ATH-28 outclasses it in raw pulling force and structural strength.

• Versus TimberPro 745: The TimberPro is more maneuverable and modular, but its smaller hydraulic system means slower cycle times for large timber.

• Versus John Deere 903M: The Deere machine includes GPS and programmable felling routines, advantages in precision forestry—but not in simplicity or field serviceability.


Overview of the Challenge
When an excavator, like the New Holland E385, is tasked with heavy hammering—such as using a hydraulic breaker—the repeated force can stress the link‑pin connecting the bucket cylinder. Frequent failures of this pin can ground machines, delay projects, and raise repair costs.
Understanding the Mechanics

• The bucket link‑pin connects the cylinder rod to the loader linkage or bucket.

• Breaker use induces powerful, repetitive impact forces that transmit through this pin, leading to fatigue stress.

• Hollow or reduced‑section pins (sometimes used to save weight) are more susceptible to bending or breaking under such cyclical loads.


• Fatigue Failure: A process where material fractures after repeated loading cycles, even if each load is below the material’s ultimate strength.

• Hollow Pin: A tube‑like cylindrical component used in place of solid steel pins—often lighter but structurally weaker in bending.

• Breaker (Hydraulic Hammer): Heavy-duty attachment that delivers high‑energy blows, amplifying dynamic stress on mounting components.


• Use of lighter, hollow-style link pins not designed for impact-intensive duties.

• Absence of proper reinforcement or thickness in the pin under cyclic loading.

• Misalignment or worn bushings that shift or concentrate stress unevenly on the pin.

• Insufficient lubrication allowing accelerated wear, increasing clearance and shock exposure.


1. Inspect Failure Mode
   • Examine broken pin—did it snap, bend, or crack gradually?

   • Check nearby bushings and linkage for wear or deformation.

2. Assess Pin Type & Strength
   • Replace hollow or undersized pins with a solid-steel, break-resistant design.

   • Confirm correct grade—e.g. Grade 8 or equivalent alloy suited for heavy use.

3. Verify Alignment and Bushing Condition
   • Measure sleeve and pivot alignment. Replace worn bushings to minimize lateral movement.

4. Enhance Lubrication
   • Apply high‑pressure grease to lubrication points; consider using pins with built-in greasing ports.

5. Consider Stress Relief Features
   • Strategic design additions like internal cross‑drilled holes for grease or splitpin securing help distribute loads.

6. Follow‑up Observation
   • Monitor performance over multiple operating cycles. Look for signs of fatigue or loosening early to prevent sudden failure.


• Hollow pins save weight but may not stand up to breaker stress.

• Solid, high‑grade pins are more durable in impact-rich environments.

• Alignment, lubrication, and component condition all contribute to longevity.

• Proactive maintenance and the right part selection avoid repeated breakdowns.
