Introduction
In the realm of heavy construction and mining, the combination of articulated dump trucks (ADTs) with scraper attachments has revolutionized material handling, offering enhanced efficiency and versatility. This integration allows for seamless excavation, transportation, and spreading of materials, optimizing operations on large-scale projects.
Historical Evolution
The concept of articulated dump trucks dates back to the 1940s when prime movers designed for pulling scrapers were coupled with rear-dumping or bottom-dumping trailers. This innovation laid the foundation for modern ADTs.
The development of wheel tractor-scrapers further advanced material handling capabilities. In the 1930s, R.G. LeTourneau conceived the idea of the self-propelled motor scraper while recovering from a near-fatal auto accident. This led to the creation of the Tournapull, a machine capable of excavating and transporting earth in a single pass.
Modern Integration
Today's ADTs are equipped with advanced features that enhance their functionality when paired with scrapers. For instance, John Deere's 3812 ADT-Pulled Scraper Pan boasts a 38-cubic-yard capacity and a 12-foot cut width. When paired with the 460 P-Tier or 460E-II ADT, it offers optimized loading efficiency. The integration includes features like gooseneck hitch design for tight turning radii and high-resolution monitors displaying real-time productivity feedback.
Advantages of the ADT-Scraper Combination

1. Enhanced Mobility: The articulated design allows for better maneuverability in challenging terrains, reducing operational delays.

2. Cost Efficiency: By combining the functions of multiple machines, projects can achieve significant cost savings in equipment and labor.

3. Increased Productivity: The seamless integration of ADTs with scrapers ensures continuous material handling, minimizing downtime.


• Compatibility: Ensuring that the ADT and scraper are compatible in terms of hitching systems and operational controls.

• Maintenance: Regular maintenance is crucial to keep both the ADT and scraper in optimal working condition.

• Operator Training: Proper training is essential for operators to handle the integrated system efficiently and safely.


The Caterpillar D3C series dozers are renowned for their durability and versatility in various construction and land-clearing applications. However, like any heavy machinery, they are susceptible to mechanical issues over time. One common problem operators encounter is the failure of the blade to tilt properly. This issue can manifest as the blade not responding to control inputs, erratic movement, or an inability to hold a set position. Understanding the underlying causes and implementing effective troubleshooting steps can help restore the dozer's performance.
Hydraulic System Overview
The blade tilt function on the D3C dozer is powered by its hydraulic system, which includes components such as the hydraulic pump, control valves, cylinders, and hoses. Hydraulic fluid is pressurized by the pump and directed through control valves that regulate the movement of the blade. Cylinders convert this hydraulic energy into mechanical force, tilting the blade as desired. Any malfunction in this system can lead to blade tilt issues.
Common Causes of Blade Tilt Failure

1. Hydraulic Fluid Issues
   Low or contaminated hydraulic fluid is a primary cause of hydraulic system malfunctions. Insufficient fluid levels can lead to inadequate pressure, while contamination can cause wear and blockages in the system. Regularly checking and maintaining proper fluid levels and cleanliness is essential.

2. Faulty Control Valves
   Control valves direct the flow of hydraulic fluid to the cylinders. Worn or damaged valve spools can result in improper fluid distribution, leading to inconsistent or unresponsive blade movement. Inspecting and replacing faulty valves can resolve this issue.

3. Cylinder Leaks
   Hydraulic cylinders are sealed units, but over time, seals can wear out, leading to internal leaks. These leaks reduce the efficiency of the cylinder, causing the blade to move sluggishly or not at all. Rebuilding or replacing worn cylinders can restore proper function.

4. Worn Linkages and Pivot Points
   The mechanical linkages and pivot points connecting the blade to the dozer frame can wear over time, leading to play and misalignment. This wear can cause the blade to tilt unevenly or fail to respond accurately to control inputs. Regular inspection and maintenance of these components are necessary to ensure proper blade movement.


1. Inspect Hydraulic Fluid
   Check the hydraulic fluid level and condition. Ensure the fluid is clean and at the proper level. Replace any contaminated or low fluid to maintain system performance.

2. Examine Control Valves
   Inspect the control valves for signs of wear or damage. Check for smooth operation and replace any faulty valves to ensure proper fluid distribution.

3. Test Hydraulic Cylinders
   Extend and retract the tilt cylinders to check for smooth operation. Listen for unusual noises and check for leaks. Rebuild or replace cylinders that show signs of wear or leakage.

4. Assess Linkages and Pivot Points
   Inspect all mechanical linkages and pivot points for wear or looseness. Tighten or replace components as necessary to eliminate play and ensure accurate blade movement.


• Regular Fluid Checks: Establish a routine to check hydraulic fluid levels and condition. Top off or replace fluid as needed to maintain system performance.

• Scheduled Inspections: Implement a regular inspection schedule for control valves, cylinders, and mechanical linkages to identify and address issues before they lead to failure.

• Component Lubrication: Keep all moving parts well-lubricated to reduce wear and prevent binding or seizing.

• Training Operators: Ensure that operators are trained in proper machine operation and maintenance procedures to prevent misuse and premature wear.




Introduction
Automatic Transfer Switches (ATS) are essential components in modern power systems, ensuring seamless transitions between utility and backup power sources. Cummins, a renowned name in power generation, offers a range of ATS solutions tailored to various applications. This article delves into the intricacies of Cummins ATS, their functionalities, installation considerations, and best practices.
What is an Automatic Transfer Switch?
An ATS is a device that automatically transfers the electrical load from the primary power source (typically the utility) to a secondary source (such as a generator) when it detects a failure or significant fluctuation in the primary source. Upon restoration of the primary power, the ATS switches the load back, ensuring continuous power supply without manual intervention.
Cummins ATS Models and Features

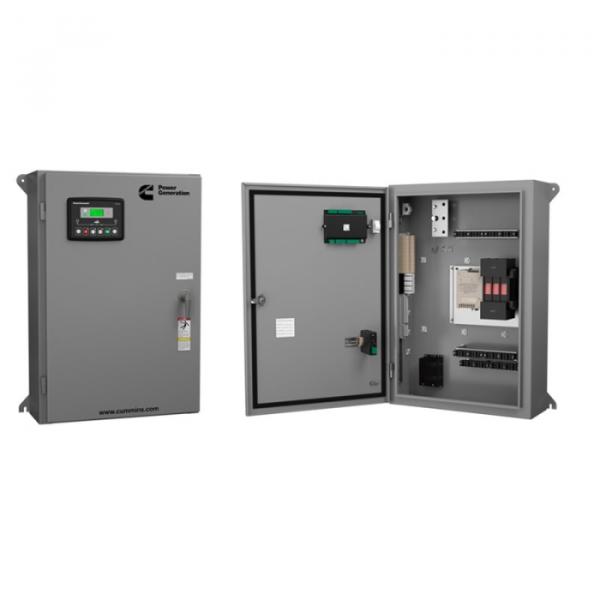

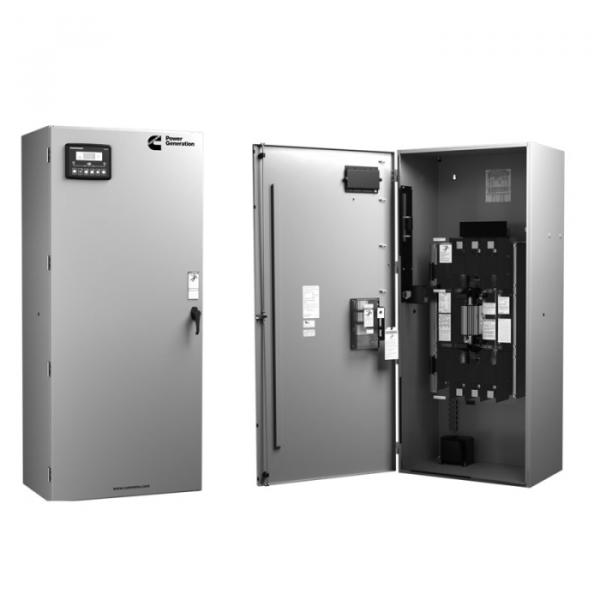

Cummins offers a variety of ATS models, each designed to meet specific needs:

• OTEC Series: These transfer switches monitor both power sources, signal the generator set to start, automatically transfer power, and return the load to the primary power source once stable utility power is available. They are suitable for emergency, legally required, and optional standby applications.

• RA Series: Designed for residential and light commercial applications, the RA series provides reliable and cost-effective solutions. Models like the RA100NSE and RA200SE are popular choices, offering features such as NEMA 3R enclosures and compatibility with Cummins RS/RX generators.

• GTEC Series: These transfer switches are equipped with microprocessor-based controls, allowing for advanced monitoring and diagnostics. They are ideal for data centers and critical infrastructure where uptime is paramount.


1. Location: Install the ATS in a dry, well-ventilated area, away from direct sunlight and corrosive environments.

2. Wiring: Ensure that all wiring complies with local electrical codes and standards. Use appropriately sized conductors to handle the expected load.

3. Control Wiring: Cummins ATS typically requires a constant DC power source for operation. This includes connections for battery positive, battery negative, and a start input signal. It's essential to follow the manufacturer's wiring diagrams to ensure proper functionality.

4. Testing: After installation, conduct thorough testing to verify the ATS's operation. Simulate power failures and restorations to ensure seamless transitions.


• Visual Inspections: Check for signs of wear, corrosion, or damage to components.

• Cleaning: Keep the ATS clean and free from dust and debris.

• Functional Testing: Periodically test the ATS to ensure it operates correctly during power interruptions.

• Firmware Updates: For models with digital controls, ensure that the firmware is up to date to benefit from the latest features and improvements.


Introduction
Compact tractors, such as the 503L model, are indispensable tools for various agricultural and landscaping tasks. However, like all machinery, they are susceptible to wear and mechanical issues. One common problem faced by operators is front spindle wear, which can lead to steering instability, uneven tire wear, and compromised safety. Understanding the causes, symptoms, and solutions to front spindle issues is crucial for maintaining the performance and longevity of these machines.
Understanding Front Spindle Wear
The front spindle is a critical component of a tractor's front axle, serving as the pivot point for the steering mechanism. Over time, factors such as heavy loads, rough terrain, and inadequate lubrication can cause wear on the spindle, leading to play or wobble in the steering system. This wear can manifest as uneven tire wear, difficulty in steering, or audible noises during operation.
Common Causes of Spindle Wear

1. Overloading: Excessive weight beyond the tractor's rated capacity can place undue stress on the front axle and spindle, accelerating wear.

2. Improper Lubrication: Insufficient or contaminated grease can lead to increased friction and wear on the spindle bearings.

3. Rough Terrain: Operating on uneven or rocky surfaces can subject the spindle to shocks and stresses, contributing to wear.

4. Lack of Maintenance: Neglecting regular inspections and maintenance can allow minor issues to escalate into significant problems.


• Steering Play: Excessive movement in the steering wheel without corresponding movement in the wheels.

• Uneven Tire Wear: Tires wearing more on one side than the other.

• Noises: Grinding or squeaking sounds when turning the steering wheel.

• Visual Inspection: Noticeable play or movement in the front axle or spindle area.


1. Visual Inspection: Check for any visible signs of wear, cracks, or damage on the spindle and surrounding components.

2. Manual Movement: With the tractor stationary, attempt to move the front wheel by hand. Excessive movement indicates wear.

3. Lubrication Check: Inspect the grease fittings and ensure they are clean and functional.

4. Torque Specifications: Verify that all bolts and nuts are tightened to the manufacturer's specifications.


1. Bearing Replacement: If the bearings are worn, replacing them with new ones can restore proper function.

2. Spindle Replacement: In cases of severe wear or damage, replacing the entire spindle may be necessary.

3. Lubrication: Regularly grease the spindle bearings to reduce friction and wear.

4. Alignment: Ensure that the front axle is properly aligned to prevent uneven wear.


• Regular Maintenance: Adhere to the manufacturer's recommended maintenance schedule.

• Proper Loading: Avoid exceeding the tractor's rated capacity to reduce stress on the front axle.

• Smooth Operation: Operate the tractor at moderate speeds, especially on rough terrain, to minimize shocks to the front axle.

• Timely Repairs: Address minor issues promptly to prevent them from escalating into major problems.


The Legacy of the 02-331D Skid Steer
The 02-331D skid steer loader is part of a generation of compact equipment that helped redefine jobsite versatility in the early 2000s. While the exact manufacturer behind this model isn't explicitly stated in the original discussion, the naming convention and design cues suggest it may belong to a lesser-known OEM or a private-label variant distributed regionally. These machines were often built under contract by established manufacturers and rebranded for specific markets or dealers.
During the early 2000s, the skid steer market was booming. Compact loaders were increasingly favored for their maneuverability, hydraulic versatility, and ability to operate in confined spaces. Brands like Bobcat, Case, New Holland, and Caterpillar dominated the North American market, but smaller manufacturers also carved out niches by offering competitively priced alternatives. The 02-331D likely emerged in this context—serving contractors who needed reliable performance without the premium price tag.
Common Service Manual Gaps and Diagnostic Frustrations
One of the most persistent issues with off-brand or regionally distributed skid steers is the lack of accessible service documentation. Owners often find themselves with machines that perform well mechanically but lack the support infrastructure of major brands. This includes:

• Missing service manuals

• Inconsistent part numbering

• Limited dealer networks

• Sparse online documentation


• Service Manual: A technical document containing maintenance procedures, specifications, and troubleshooting guides for a specific machine.

• Hydraulic Schematic: A diagram showing the flow of hydraulic fluid through valves, cylinders, and pumps.

• Breakout Force: The amount of force a loader can exert at the bucket edge when lifting or digging.

• Auxiliary Hydraulics: Additional hydraulic circuits used to power attachments like augers, trenchers, or grapples.


• Identify engine and hydraulic component manufacturers to source documentation directly

• Join equipment forums and user groups to crowdsource manuals and schematics

• Use reverse lookup tools to match part numbers with compatible models

• Consider retrofitting standardized diagnostic ports for easier troubleshooting

• Maintain a logbook of repairs and modifications to build a custom service history


Introduction
The year 2009 marked a pivotal point for customer service, as businesses grappled with the aftermath of the global financial crisis. Companies were compelled to adapt swiftly to shifting consumer expectations, technological advancements, and economic constraints. This period witnessed a transformation in how businesses approached customer interactions, emphasizing efficiency, empathy, and innovation.
Economic Pressures and Customer Expectations
The economic downturn of 2008 led to reduced consumer spending, compelling businesses to rethink their customer service strategies. Customers, now more discerning, expected value not just in products but also in service quality. A study by Forrester Research highlighted that, across various industries, good customer service was deemed more important than low prices, with banks and insurers leading this sentiment .
Rise of Self-Service and Digital Channels
With the proliferation of the internet, customers began seeking self-service options. In 2009, web self-service emerged as a dominant trend, allowing customers to resolve issues independently through FAQs, knowledge bases, and automated systems . This shift not only empowered consumers but also reduced operational costs for businesses.
The Importance of Empathy and Personalization
Despite the push for automation, the human element remained crucial. Small businesses, in particular, excelled by offering personalized service and demonstrating genuine empathy. Anthony Tjan, CEO of Cue Ball, noted that small companies often deliver better customer service due to their innate common sense and understanding of the power of empathy .
Technological Advancements and Social Media Integration
The integration of social media into customer service strategies became evident in 2009. Companies recognized the need to monitor and engage with customers on platforms like Twitter and Facebook. Frank Eliason of Comcast pioneered this approach by creating the @ComcastCares Twitter account, directly responding to customer complaints and improving the company's public perception .
Challenges in the Airline Industry
The airline industry faced significant customer service challenges in 2009. Budget cuts led to reduced staff, resulting in longer wait times and diminished service quality. Passengers often found themselves stranded or without assistance, highlighting the critical need for adequate staffing and effective communication during crises .
The Service Recovery Paradox
An interesting phenomenon observed during this period was the Service Recovery Paradox, where customers who experienced a service failure but received effective resolution reported higher satisfaction than those who never encountered issues. This underscored the importance of not just meeting expectations but exceeding them when problems arose .
Conclusion
Customer service in 2009 was characterized by a delicate balance between embracing technological advancements and maintaining the human touch. Businesses that navigated this balance effectively were able to build stronger relationships with their customers, fostering loyalty and trust. The lessons learned during this period continue to influence customer service strategies today, emphasizing the need for adaptability, empathy, and innovation in an ever-evolving landscape.

The Ford LTL 9000 and Its Role in Heavy Haulage
The Ford LTL 9000 was part of Ford’s heavy-duty Class 8 truck lineup, introduced in the late 1970s and refined through the early 1990s. Designed for long-haul and vocational applications, the LTL 9000 featured a robust chassis, aerodynamic styling (for its time), and compatibility with a range of powerplants including Cummins, Caterpillar, and Detroit Diesel engines. By 1993, the model was nearing the end of its production run, as Ford began transitioning its heavy truck division to Sterling Trucks following its sale to Freightliner in 1997.
The LTL 9000 was popular among owner-operators and fleet managers for its durability and ease of service. While not as technologically advanced as modern trucks, it represented a transitional phase—some units featured early electronic engine management systems, while others remained fully mechanical.
Understanding Diagnostic Connectors in Early Electronic Systems
By the early 1990s, Detroit Diesel had introduced the Series 60 engine with Electronic Unit Injection (EUI), which required basic electronic control modules (ECMs) and diagnostic interfaces. Trucks equipped with these engines often included a diagnostic connector, but its location and type varied widely depending on the chassis manufacturer and installation practices.
In the case of the 1993 Ford LTL 9000, the diagnostic connector may be present if the truck is equipped with a Detroit Series 60 engine and the electronic system is intact. However, due to the age and potential modifications over the years, the connector may be missing, relocated, or replaced with a breakout harness.
Terminology Explained

• EUI (Electronic Unit Injection): A fuel injection system where each injector is electronically controlled, allowing for precise timing and fuel delivery.

• ECM (Electronic Control Module): The onboard computer that manages engine parameters and diagnostics.

• Breakout Harness: An adapter cable used to access diagnostic signals when a standard connector is missing or incompatible.

• NEXIQ Interface: A diagnostic tool used to communicate with ECMs via various connector types.


• 6-pin round Deutsch connector (common in early 1990s)

• 12-pin rectangular GM-style connector (used in some vocational installations)

• OEM-specific connectors mounted under the dash, near the fuse panel, or behind the kick panel


• Under the driver’s side dash near the steering column

• Behind the glove box or fuse access panel

• Along the firewall in the engine bay

• Near the ECM itself, often mounted on the engine or frame rail


• Verify engine model and ECM type before attempting diagnostics

• Use a flashlight and mirror to inspect hidden areas under the dash

• If no connector is found, trace wiring from the ECM to locate a breakout point

• Carry multiple adapter cables, including 6-pin and 12-pin types

• Consider installing a permanent diagnostic port for future service ease


Introduction to the Volvo L70B Wheel Loader
The Volvo L70B wheel loader, introduced in the late 1990s, is part of Volvo's BM series, known for their durability and efficiency in various construction and material handling tasks. Equipped with a turbocharged six-cylinder engine, the L70B offers a balance between power and fuel efficiency, making it a popular choice among operators worldwide. However, like any complex machinery, it can experience hydraulic system issues, one of which is the raised servo pressure.
What Is Raised Servo Pressure?
In the context of the L70B, raised servo pressure refers to an increase in hydraulic pressure within the servo system beyond normal operating levels. This system controls various functions, including steering and implement operations. The servo pressure is typically maintained at a specific level to ensure smooth and responsive operation. An elevation in this pressure can lead to erratic behavior, such as unresponsive steering or unintended implement movements.
Common Causes of Raised Servo Pressure

1. Faulty Pressure Relief Valve: The pressure relief valve is designed to regulate the maximum pressure within the hydraulic system. If this valve becomes stuck or malfunctions, it may fail to release excess pressure, leading to elevated servo pressure.

2. Contaminated Hydraulic Fluid: Debris or contaminants in the hydraulic fluid can obstruct valves and passages, causing pressure imbalances. Regular maintenance and fluid changes are essential to prevent this issue.

3. Worn Hydraulic Components: Over time, components such as pumps, valves, and seals can wear out, leading to leaks or inefficiencies that disrupt the hydraulic pressure balance.

4. Improper System Adjustments: Incorrect adjustments to the hydraulic system, such as setting pressures too high, can result in raised servo pressure.


• Monitor Pressure Readings: Using a pressure gauge, check the servo pressure against the manufacturer's specifications.

• Inspect Hydraulic Fluid: Examine the fluid for signs of contamination or degradation.

• Check for Leaks: Look for any visible leaks in the hydraulic system that could indicate worn seals or hoses.

• Review System Settings: Ensure that all hydraulic system settings are in accordance with the manufacturer's guidelines.


• Replacing Faulty Components: Install new pressure relief valves, seals, or other worn components as needed.

• Cleaning the Hydraulic System: Flush the system to remove contaminants and replace the hydraulic fluid.

• Adjusting System Settings: Calibrate the hydraulic system to ensure all pressures and settings are within specified ranges.


• Regular Maintenance: Adhere to a strict maintenance schedule, including fluid changes and system inspections.

• Use Quality Components: Always use OEM or high-quality replacement parts to ensure system integrity.

• Operator Training: Ensure that operators are properly trained to recognize early signs of hydraulic issues and respond accordingly.


Introduction
In various industries, maintaining up-to-date certifications is crucial for ensuring safety, compliance, and operational efficiency. Class 7 re-certification pertains to the renewal of certifications for specific equipment operators, such as those handling forklifts, cranes, or hazardous materials. This process ensures that operators remain proficient and knowledgeable about current standards and practices.
Certification Overview
Class 7 certifications are typically associated with the operation of specialized equipment or the handling of hazardous materials. For instance, in the United States, the Occupational Safety and Health Administration (OSHA) requires forklift operators to undergo re-certification every three years. This involves completing a refresher training course that includes formal instruction and an in-person evaluation.
Re-Certification Process
The re-certification process generally involves several key steps:

1. Training: Operators must complete a refresher training course that covers the latest safety standards and operational procedures.

2. Evaluation: An in-person evaluation is conducted to assess the operator's practical skills and knowledge.

3. Documentation: Upon successful completion, operators receive updated certification credentials.


• Safety: Ensures operators are aware of and adhere to current safety protocols, reducing the risk of accidents.

• Compliance: Helps organizations remain compliant with industry regulations and standards.

• Skill Maintenance: Allows operators to refresh and enhance their skills, leading to improved operational efficiency.


• Scheduling Conflicts: Operators may find it difficult to align training sessions with their work schedules.

• Cost: Training programs and evaluations may incur costs for both operators and employers.

• Access to Training: In some regions, access to accredited training programs may be limited.


The Rise of the D4 Series
The Caterpillar D4 crawler tractor, introduced in the 1930s and refined through the 1940s and 1950s, became a staple in small-to-medium earthmoving operations. By 1950, the D4 was powered by the D315 four-cylinder diesel engine, a robust and torque-heavy unit designed for reliability in harsh conditions. Caterpillar, founded in 1925, had by then established itself as the global leader in tracked machinery, and the D4 was one of its most successful models, with tens of thousands sold across North America, Europe, and Asia.
The D4’s compact size, mechanical simplicity, and versatility made it a favorite among farmers, contractors, and municipalities. Its mechanical governor system, though primitive by today’s standards, was a key component in maintaining engine stability under varying loads.
What Is a Governor and Why It Matters
In diesel engines, the governor regulates fuel delivery to maintain consistent engine speed regardless of load. The mechanical governor in the D315 engine uses flyweights, springs, and linkages to adjust the injector rack position. This ensures the engine doesn’t overspeed or stall when encountering resistance.
Without a functioning governor, the engine becomes unpredictable—revving too high under light load or bogging down under strain. In field conditions, this can lead to broken components, poor grading performance, or even runaway engine scenarios.
Terminology Explained

• Governor Assembly: A mechanical device that controls engine speed by adjusting fuel delivery.

• Pinion Gear: A small gear that engages with larger gears to transmit motion, often part of the governor drive.

• Set Screw: A threaded fastener used to secure rotating components like sleeves or gears.

• Sleeve Coupling: A cylindrical connector that joins two shafts or gears, often used in governor-to-engine interfaces.


• Remove the governor cover to expose internal linkages

• Engage the pinion gear to relieve tension

• Remove the rear cover from the pinion housing

• Extract the 3/8-inch bolts securing the motor plate

• Carefully slide the governor assembly out, ensuring no linkages are bent


• Contact retired mechanics or small-town repair shops with legacy inventory

• Search for donor machines, especially those with intact engine compartments

• Use precision machining to replicate missing set screws and springs

• Consult vintage parts catalogs for part numbers and dimensions


• Inspect all linkages for wear and corrosion

• Replace missing set screws with hardened steel equivalents

• Verify spring tension using factory specs or matched replacements

• Lubricate moving parts with high-viscosity oil to reduce wear

• Test governor response before full engine reassembly
