Introduction
The 2002 Caterpillar 307C is a compact hydraulic excavator renowned for its versatility and efficiency in various construction and agricultural applications. However, some operators have reported issues with slow or weak hydraulics, affecting performance and productivity. Understanding the potential causes and solutions is crucial for maintaining optimal machine function.
Hydraulic System Overview
The CAT 307C's hydraulic system is designed to deliver high pressure and flow to operate various functions such as boom, arm, bucket, and travel. It utilizes a closed-center load sensing system, which adjusts the flow to meet the demands of the operator, ensuring energy efficiency and responsiveness. Key components include the hydraulic pump, control valves, actuators, and filters.
Common Symptoms
Operators experiencing hydraulic issues may notice:

• Sluggish or unresponsive boom, arm, or bucket movements.

• Difficulty in simultaneous operation of multiple functions.

• Reduced travel speed or inability to spin in place.

• Engine running at normal RPM without bogging or stalling.


1. Hydraulic Fluid Contamination: Presence of particles such as aluminum, silicon, copper, and iron in the hydraulic oil can lead to wear and malfunction of internal components like pumps, valves, or cylinders.

2. Clogged Hydraulic Filters: While filters are designed to remove contaminants, they can become clogged over time, restricting fluid flow and reducing system efficiency.

3. Worn or Faulty Control Valves: Issues with the main control valve, such as sticking spools or internal leaks, can disrupt the distribution of hydraulic fluid, leading to performance problems.

4. Pump Malfunctions: Even if the hydraulic pump shows normal pressure readings, internal damage or wear can result in inadequate flow or pressure, affecting system performance.

5. Accumulator Issues: A malfunctioning accumulator can cause pressure fluctuations and inconsistent hydraulic performance.


1. Check Hydraulic Fluid Levels and Quality: Ensure the fluid is at the recommended level and appears clean.

2. Inspect and Replace Filters: Examine all hydraulic filters for clogging and replace them if necessary.

3. Monitor Pump Pressure and Flow: Use diagnostic tools to verify that the pump is delivering the correct pressure and flow rates.

4. Examine Control Valves: Check for any signs of wear or malfunction in the main control valve and its components.

5. Test Accumulator Functionality: Assess the accumulator for proper operation and charge levels.


• Regularly Change Hydraulic Filters: Follow the manufacturer's guidelines for filter replacement intervals.

• Use High-Quality Hydraulic Fluid: Opt for fluids that meet or exceed CAT specifications to ensure optimal performance.

• Perform Routine System Inspections: Regularly check for leaks, unusual noises, or performance issues.

• Maintain Proper Fluid Levels: Ensure that the hydraulic fluid is always at the recommended level to prevent air ingress and cavitation.


Introduction
Transporting heavy equipment such as a 12-ton track hoe (excavator) requires careful consideration of vehicle capabilities, legal weight limits, and safety protocols. Utilizing a single-axle truck and trailer for this purpose is feasible but necessitates meticulous planning to ensure compliance with regulations and safe operation.
Understanding Weight Limits and Regulations
In the United States, the Federal Bridge Formula dictates the maximum allowable weight on axles to prevent excessive road wear and ensure safety. For a single-axle truck and trailer, the combined weight of the vehicle and load must not exceed the Gross Vehicle Weight Rating (GVWR) specified by the manufacturer. Additionally, individual axle weights must comply with state-specific regulations, which can vary. For instance, some states may permit up to 24,000 pounds on a single axle, while others may have stricter limits.
Selecting the Appropriate Trailer
Choosing the right trailer is crucial for safely transporting a 12-ton track hoe. A 12-ton deckover heavy equipment trailer, such as the Eager Beaver 12SSA-19+6, is designed to handle loads up to 24,000 pounds. This trailer features air brakes, a 6' beavertail, and 6' ramps, providing the necessary support and stability for heavy equipment transport.
Calculating Total Weight and Distribution
Before embarking on a hauling operation, it's essential to calculate the total weight of the truck, trailer, and excavator. For example, if the truck weighs 12,000 pounds, the trailer 4,000 pounds, and the excavator 24,000 pounds, the total weight is 40,000 pounds. This total must be within the GVWR limits of the truck and trailer combination. Additionally, proper load distribution is vital; the excavator should be positioned to ensure that axle weights are balanced and within legal limits.
Weighing the Load
Utilizing a certified scale to weigh the loaded truck and trailer is a prudent step. This practice helps verify that the combined weight and axle weights comply with regulations. Adjustments to the load distribution can be made if necessary to achieve compliance.
Safety Considerations
Ensuring the safety of the hauling operation involves several key practices:

• Pre-Trip Inspection: Conduct a thorough inspection of the truck, trailer, and excavator to identify any potential issues.

• Secure Load: Use appropriate tie-downs and securing methods to prevent the excavator from shifting during transit.

• Speed Limits: Adhere to posted speed limits and adjust speed according to road conditions and load weight.

• Legal Compliance: Obtain any necessary permits for overweight or oversized loads as required by state or local regulations.


Introduction
The Komatsu PC60-6 is a widely used hydraulic crawler excavator known for its durability and performance in various construction and mining applications. A common maintenance task involves removing and replacing the O-ring located on the outside of the planetary drive assembly. This O-ring plays a crucial role in sealing the planetary drive to prevent hydraulic fluid leaks and maintain optimal performance.
Understanding the Planetary Drive System
The planetary drive system in the Komatsu PC60-6 consists of several key components:

• Planetary Gears: These gears distribute torque evenly to the tracks, enabling smooth movement.

• Sun Gear: The central gear that drives the planetary gears.

• Ring Gear: Encircles the planetary gears and meshes with them.

• O-Ring: A sealing component placed on the outside of the planetary drive to prevent hydraulic fluid leaks.


• Hydraulic Fluid Leaks: Visible signs of hydraulic fluid pooling around the planetary drive area.

• Reduced Performance: Decreased efficiency in the movement of the tracks.

• Unusual Noises: Grinding or whining sounds emanating from the planetary drive.


• Safety Gear: Gloves and safety glasses to protect against debris and sharp edges.

• Pry Bar or Pick Tool: For gently removing the retaining ring.

• Slide Hammer: To assist in removing the cover plate.

• Replacement O-Ring: Ensure it matches the specifications of the original.

• Cleaning Supplies: Rags and cleaning solvent to remove old seals and debris.


1. Safety First: Engage the parking brake and ensure the excavator is on a stable surface.

2. Locate the Planetary Drive: Identify the planetary drive assembly on the side of the track frame.

3. Remove the Retaining Ring: Use a pry bar or pick tool to carefully remove the retaining ring securing the cover plate.

4. Detach the Cover Plate: Gently tap the cover plate with a rubber mallet to loosen it.

5. Extract the O-Ring: Once the cover plate is removed, locate the O-ring and carefully extract it using appropriate tools.

6. Clean the Area: Thoroughly clean the groove where the O-ring was seated to remove any debris or old sealant.

7. Install the New O-Ring: Place the new O-ring into the cleaned groove, ensuring it sits evenly.

8. Reassemble the Components: Replace the cover plate and secure it with the retaining ring.

9. Test the System: Operate the excavator to check for any leaks or abnormal noises.


• Stubborn Retaining Ring: If the retaining ring is difficult to remove, applying a small amount of penetrating oil can help loosen it.

• Damaged Groove: If the groove where the O-ring sits is damaged, it may need to be repaired or replaced to ensure a proper seal.

• Incorrect O-Ring Size: Always verify the dimensions of the replacement O-ring to ensure compatibility.


Introduction
The Kobelco SK3300 is a robust crawler crane renowned for its lifting capacity and versatility in heavy-duty applications. As with any sophisticated machinery, the SK3300 is equipped with an advanced diagnostic system that monitors various components and systems. When anomalies or malfunctions occur, the system generates fault codes to assist operators and technicians in identifying and addressing issues promptly.
Common Fault Codes and Their Implications
Upon encountering fault codes such as "Rest'd E/G oil filter" and "Pump P1 proportional valve," it's essential to understand their meanings and potential causes:

• Rest'd E/G Oil Filter: This code indicates a reset or malfunction related to the engine oil filter system. Potential causes include clogged filters, issues with the oil pressure sensor, or problems within the oil circulation system.

• Pump P1 Proportional Valve: This fault pertains to the proportional valve controlling the P1 hydraulic pump. Malfunctions can arise from electrical issues, hydraulic pressure inconsistencies, or wear and tear of valve components.


1. Consult the Operator's Manual: The manual provides a comprehensive list of fault codes and their meanings, serving as a valuable reference.

2. Utilize Diagnostic Tools: Employ diagnostic equipment compatible with the SK3300 to retrieve detailed error logs and pinpoint the exact nature of the faults.

3. Inspect Relevant Components: Physically examine the engine oil filter system and the P1 proportional valve for signs of wear, damage, or blockages.

4. Check Electrical Connections: Ensure all wiring and connectors related to the affected systems are secure and free from corrosion or damage.

5. Test Hydraulic Pressure: Verify that hydraulic pressures are within specified ranges to ensure proper valve and pump operation.


• Regular Maintenance: Adhere to the manufacturer's recommended maintenance schedule, including timely oil and filter changes.

• Component Upkeep: Regularly inspect and service hydraulic components, including pumps and valves, to ensure optimal performance.

• Training: Ensure operators are well-trained in recognizing early signs of system malfunctions and are familiar with diagnostic procedures.


Introduction
The Genie GS-1930 is a compact, battery-powered scissor lift designed for indoor use on smooth surfaces. A common issue faced by operators is the appearance of Fault Code 18, accompanied by a warning beep, indicating a problem with the pothole guard system. Understanding the causes and solutions for this error is essential for maintaining the lift's performance and safety.
Understanding Fault Code 18
Fault Code 18 on the Genie GS-1930 signifies a malfunction in the pothole guard system. The pothole guard is a safety feature that automatically deploys when the lift is lowered to prevent the platform from dropping into a pothole or uneven surface. If the system detects an issue with the pothole guard, such as a faulty switch or obstruction, it will trigger Code 18 to alert the operator .
Common Causes of Code 18
Several factors can trigger Fault Code 18:

1. Faulty Limit Switches: The limit switches monitor the position of the pothole guard. If these switches are malfunctioning or have poor connections, they may not accurately detect the guard's status.

2. Obstructions in the Pothole Guard Linkage: Debris or damage in the pothole guard mechanism can prevent proper deployment, leading to the fault code.

3. Electrical Issues: Loose or corroded wiring connections, especially near the pothole guard switches, can disrupt the system's function .

4. Relay or Fuse Problems: A malfunctioning relay or blown fuse supplying power to the pothole guard system can cause it to fail.


1. Inspect Limit Switches: Manually activate each limit switch to ensure they click and function correctly.

2. Check for Obstructions: Examine the pothole guard mechanism for any debris or damage that could impede movement.

3. Examine Wiring Connections: Look for loose, damaged, or corroded wires near the pothole guard switches and repair as necessary.

4. Test Relays and Fuses: Verify that the relay and fuse supplying power to the pothole guard system are functioning correctly.

5. Bypass the System Temporarily: If the issue is intermittent, consider bypassing the pothole guard system to determine if it resolves the problem.




Introduction

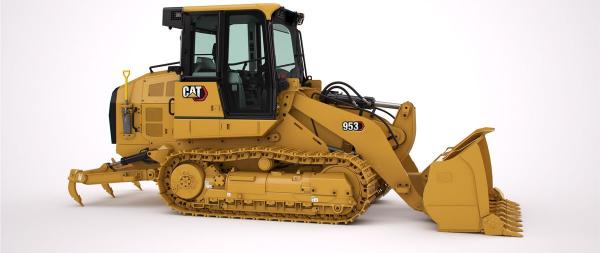

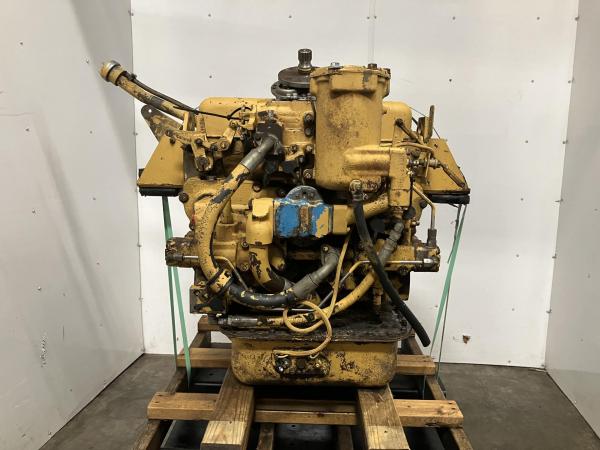

The Caterpillar 953 Track Loader, introduced in the early 1980s, has been a staple in construction and mining operations due to its durability and versatility. One of the critical components of this machine is the shift tower, which plays a pivotal role in the transmission system. Over time, wear and tear can necessitate its replacement to maintain optimal performance.

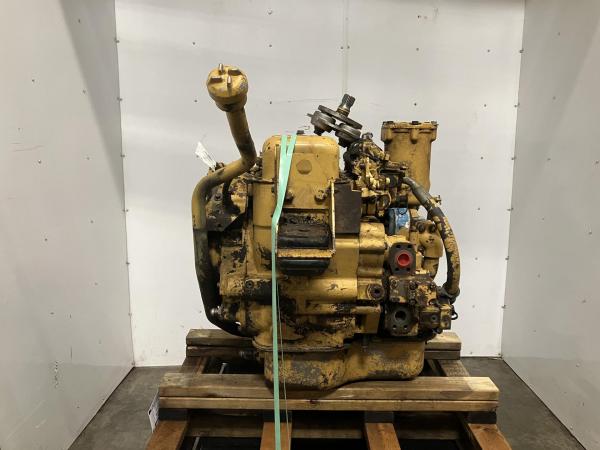

Understanding the Shift Tower

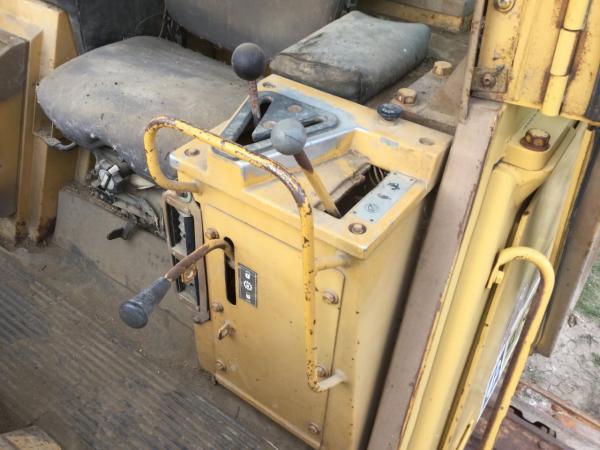

The shift tower, often referred to as the transmission control tower, houses the linkage and control mechanisms that facilitate gear shifting in the transmission system. In the 953 model, this component is integral to the hydrostatic transmission system, which combines hydraulic and mechanical power to drive the machine. A malfunctioning shift tower can lead to issues such as difficulty in changing gears, unexpected gear shifts, or complete transmission failure.
Signs of a Faulty Shift Tower
Operators should be vigilant for several indicators that suggest the shift tower may need replacement:

• Unresponsive Gear Shifts: Difficulty in engaging or disengaging gears can be a sign of internal wear or misalignment within the shift tower.

• Grinding Noises: Unusual noises during gear changes may indicate damaged components within the shift mechanism.

• Erratic Gear Engagement: If the machine unexpectedly shifts gears or fails to stay in a selected gear, the shift tower's internal components might be compromised.


1. Preparation:
   • Ensure the machine is on a stable, level surface.

   • Engage the parking brake and disconnect the battery to prevent accidental starts.

   • Lift the cab or remove any panels obstructing access to the shift tower.

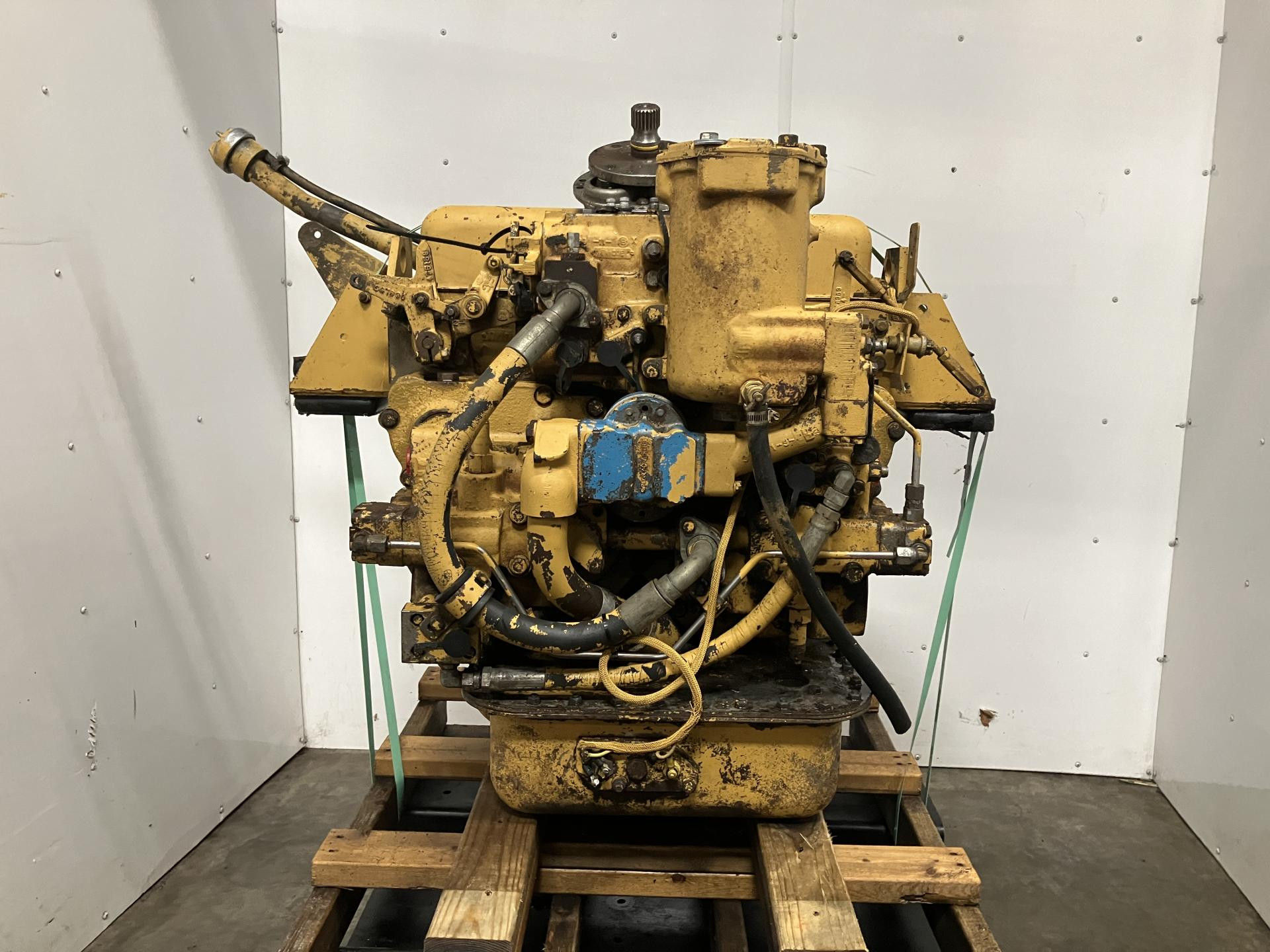

2. Removal:
   • Locate and remove the bolts securing the shift tower to the transmission housing.

   • Carefully detach any linkages or cables connected to the shift tower.

   • Gently lift the shift tower from its position, taking care not to damage surrounding components.

3. Installation of New Shift Tower:
   • Position the new shift tower in alignment with the transmission housing.

   • Reattach any linkages or cables, ensuring proper connections.

   • Secure the shift tower with the appropriate bolts, tightening them to the manufacturer's specifications.

4. Testing:
   • Reconnect the battery and lower the cab or replace any panels.

   • Start the machine and test the gear shifting functionality.

   • Ensure smooth engagement and disengagement of all gears without unusual noises or resistance.


• Regular Inspections: Periodically check for signs of wear or damage to the shift tower and related linkages.

• Lubrication: Apply appropriate lubricants to moving parts to reduce friction and wear.

• Prompt Repairs: Address any issues, such as unusual noises or difficulty shifting, promptly to prevent further damage.


Introduction
Air entrapment in hydraulic systems is a common issue that can lead to inefficient operation, erratic movements, and potential damage to components. Understanding how to effectively bleed air from these systems is crucial for maintaining optimal performance and longevity of heavy equipment.
Signs of Air in the Hydraulic System
Before initiating the bleeding process, it's essential to recognize the symptoms of air presence:

• Erratic Movements: Unpredictable or jerky motions of hydraulic actuators.

• Spongy Pedal Feel: Inconsistent resistance when operating hydraulic controls.

• Foamy Fluid: Presence of bubbles or foam in the hydraulic fluid reservoir.

• Unusual Noises: Hissing or cavitation sounds from the hydraulic pump.


1. Ensure Safety: Before commencing, verify that the hydraulic system is depressurized to prevent accidental discharge of fluid.

2. Fill the Reservoir: Ensure the hydraulic fluid reservoir is filled to the recommended level with the appropriate type of fluid.

3. Locate Bleed Valves: Identify the bleed valves on the hydraulic cylinders or lines. These are typically located at the highest points of the system to allow air to escape.

4. Open Bleed Valves: Using the correct tool, slowly open the bleed valves to allow trapped air to escape.

5. Operate Hydraulic Controls: While the bleed valves are open, operate the hydraulic controls to move the cylinders through their full range of motion. This helps in expelling air from the system.

6. Close Bleed Valves: Once a steady stream of hydraulic fluid without air bubbles is observed, close the bleed valves securely.

7. Check Fluid Level: Recheck the hydraulic fluid level and top up if necessary.

8. Test Operation: Operate the equipment through its full range of hydraulic movements to ensure smooth and consistent performance.


• Avoid Over-Pressurization: Do not operate the hydraulic system at high pressure during the bleeding process, as this can cause damage to seals and other components.

• Monitor Fluid Temperature: Ensure the hydraulic fluid is within the recommended temperature range to prevent cavitation and degradation of fluid properties.

• Use Clean Tools: Always use clean tools and equipment to prevent contamination of the hydraulic system.


The 1987 Caterpillar 953 Track Loader is a robust and versatile machine, widely used in construction and mining operations. However, like all heavy equipment, it can experience mechanical issues over time. One such issue is the occurrence of locked brakes, which can impede the machine's mobility and efficiency. Understanding the underlying causes and implementing effective troubleshooting steps can help restore the loader's functionality.
Understanding the Brake System
The Caterpillar 953 utilizes a hydrostatic transmission system, where braking is achieved through hydraulic pressure. The brakes are spring-applied and hydraulically released. When the operator places the speed/direction control lever in the PARK position, the brake control solenoid valve is de-energized, allowing the springs to apply the brakes. Conversely, when the machine is not in the PARK position, the solenoid valve is energized, directing charge pressure oil to the brakes to release them. This system ensures that the machine remains stationary when not in operation.
Common Causes of Locked Brakes

1. Hydraulic Pressure Issues
   Insufficient hydraulic pressure is a primary cause of locked brakes. If the charge pump or brake control solenoid valve fails to supply adequate pressure, the brakes cannot release, leading to immobility. Regular maintenance and inspection of these components are essential to prevent such issues.

2. Brake Control Valve Malfunction
   The brake control valve regulates the hydraulic flow to the brakes. If this valve becomes clogged or damaged, it can prevent the brakes from releasing properly. Disassembling and inspecting the valve for any obstructions or wear can help identify and resolve this issue.

3. Contaminated Hydraulic Fluid
   Contaminants in the hydraulic fluid can cause blockages and affect the performance of the braking system. Regularly changing the hydraulic fluid and replacing filters can maintain the cleanliness of the system and ensure optimal brake function.

4. Worn or Damaged Brake Components
   Over time, brake components such as seals, friction discs, and brake plates can wear out or become damaged. Inspecting these components and replacing them as necessary can prevent brake lock-up and maintain the loader's performance.


1. Check Hydraulic Fluid Levels and Quality
   Ensure that the hydraulic fluid is at the proper level and is free from contamination. Low or dirty fluid can impair the braking system's functionality.

2. Inspect Brake Control Valve
   Locate the brake control valve and check for any signs of damage or clogging. Clean or replace the valve as needed to restore proper brake operation.

3. Test Hydraulic Pressure
   Using a pressure gauge, test the hydraulic pressure at the brake system. Compare the readings with the manufacturer's specifications to determine if the pressure is within the acceptable range.

4. Examine Brake Components
   Disassemble the brake assembly and inspect components such as seals, friction discs, and brake plates for wear or damage. Replace any faulty parts to ensure effective braking.


• Regular Fluid Changes: Schedule periodic changes of hydraulic fluid and filters to maintain system cleanliness and performance.

• Component Inspections: Regularly inspect brake components for signs of wear or damage and replace them as necessary.

• System Calibration: Ensure that the brake control system is properly calibrated to maintain optimal braking performance.


Introduction
The Caterpillar D6H bulldozer, introduced in the early 1990s, has been a reliable workhorse in various construction and mining projects. However, like any heavy machinery, it requires regular maintenance and attention to ensure optimal performance. One critical aspect to monitor is the transmission temperature, as overheating can lead to significant mechanical issues.
Transmission Temperature Norms
Under standard operating conditions, the transmission temperature of a D6H dozer should ideally remain below 250°F (121°C). Prolonged exposure to temperatures above this threshold can cause the transmission fluid to degrade, leading to increased wear and potential failure of internal components.
Common Causes of Overheating
Several factors can contribute to elevated transmission temperatures:

1. Insufficient Fluid Levels: Low transmission fluid can result in inadequate lubrication and cooling, causing increased friction and heat generation.

2. Clogged Filters: Over time, filters can become clogged with debris, restricting fluid flow and reducing the system's ability to dissipate heat.

3. Faulty Thermostat: A malfunctioning thermostat may fail to regulate the temperature, leading to overheating.

4. Overloading: Operating the dozer beyond its capacity can strain the transmission, generating excessive heat.

5. Environmental Factors: High ambient temperatures and dusty conditions can exacerbate cooling issues.


• Check Fluid Levels: Ensure that the transmission fluid is at the recommended level and top up if necessary.

• Replace Filters: Regularly replace filters to maintain proper fluid flow and prevent clogging.

• Inspect the Cooling System: Ensure that the radiator and cooling fans are functioning correctly and free from obstructions.

• Monitor Operating Conditions: Avoid overloading the dozer and operate within its specified limits.




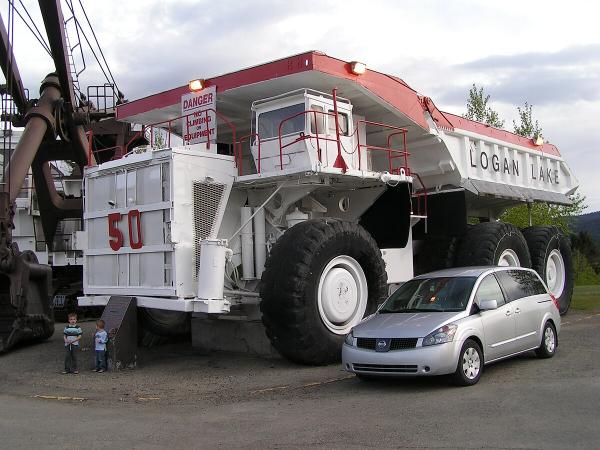

In the annals of mining history, few machines command the awe and respect garnered by the WABCO 3200. This colossal haul truck, introduced in the early 1970s, was a testament to engineering prowess and ambition. Designed to tackle the most demanding mining operations, the WABCO 3200 set new standards in payload capacity and durability.
Genesis of the WABCO 3200
The journey of the WABCO 3200 began in 1970 when Westinghouse Air Brake Company (WABCO) embarked on developing a truck capable of hauling unprecedented loads in open-pit mines. By 1971, the prototype was completed, showcasing a three-axle design powered by a 2,000-horsepower electro-mechanical drive system. This innovative system eliminated the need for traditional mechanical linkages, offering smoother power delivery and reduced maintenance.
Specifications and Capabilities

• Payload Capacity: Initially rated at 200 tons, the WABCO 3200's capacity was later increased to 235 tons, with the subsequent 3200B model reaching 250 tons.

• Dimensions: Approximately 50 feet in length and 25 feet in width, the WABCO 3200 was a formidable presence on any mining site.

• Tires: Equipped with ten 33.00-51 tires, each capable of supporting immense weight.

• Powertrain: The electro-mechanical drive system provided efficient power transmission, crucial for navigating steep gradients and rough terrains.
