When a Case 580 Series 3 backhoe runs but won’t move forward or backward, the issue often lies in the clutch circuit, shuttle relays, or internal transmission components like the relief valve snap ring. This model, part of Case’s long-running 580 lineup, combines mechanical durability with hydraulic complexity, making electrical and hydraulic diagnostics essential for restoring mobility.
Case 580 Series 3 Overview
The Case 580 Series 3 refers to a generation of backhoe loaders produced in the late 1980s and early 1990s, including models like the 580K, 580L, and 580M. These machines were built for versatility in excavation, trenching, and material handling, with four-wheel drive options, extendahoe configurations, and torque converter transmissions.
Case Construction Equipment, founded in 1842, has sold hundreds of thousands of 580-series machines globally. The Series 3 models introduced refinements in cab ergonomics, hydraulic flow, and electronic controls, but also added complexity to troubleshooting.
Terminology Notes

• FNR Lever: The Forward-Neutral-Reverse selector, often mounted on the steering column or loader control.

• Clutch Cutout Button: A switch on the loader joystick that disengages the transmission for precise bucket control.

• Shuttle Relay: An electrical relay that controls hydraulic flow to the shuttle transmission.

• Relief Valve Snap Ring: A retaining ring inside the transmission valve body that can break and disable pressure regulation.


• Check the FNR Lever: A failed or misaligned lever can prevent gear engagement. Inspect for broken wires or loose linkage.

• Inspect the Clutch Cutout Button: If shorted, it may constantly engage the clutch, disabling drive. Disconnect the button to test.

• Test Shuttle and Timer Relays: These control hydraulic actuation of the transmission. Use a multimeter to verify voltage and continuity.

• Inspect the Relief Valve Snap Ring: A broken snap ring can cause loss of hydraulic pressure to the shuttle clutch packs. This is a known failure point on SL (Super L) machines.


• Start with Electrical Checks: FNR lever, clutch button, and relays are easy to test and often the culprit.

• Use OEM Relays and Switches: Aftermarket parts may not match voltage or timing specs.

• Inspect Hydraulic Pressure at the Shuttle Valve: Use a gauge to confirm clutch pack engagement.

• Replace Snap Rings with Hardened Versions: Prevent repeat failures in high-hour machines.

• Document Wiring and Relay Locations: Simplifies future troubleshooting and training.


Murphy Diesel engines, widely known for their durability and efficiency, have been used in various heavy-duty applications, including industrial, agricultural, and construction machinery. These engines, often found in older or vintage equipment, require particular attention to maintenance and troubleshooting due to their mechanical and electrical complexity. One of the common challenges faced by users of Murphy Diesel engines is diagnosing issues related to engine performance, electrical malfunctions, or fuel delivery problems.
In this article, we will explore some typical Murphy Diesel engine problems, provide diagnostic steps, and offer solutions for common issues. Additionally, we will cover preventive maintenance practices to ensure the longevity of these robust engines.

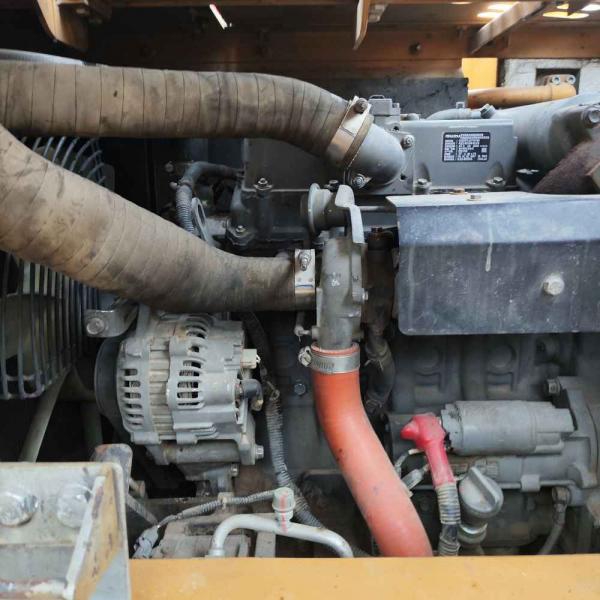

Understanding the Murphy Diesel Engine
Murphy Diesel engines are known for their rugged construction and high torque output, making them ideal for industrial applications where reliability and power are crucial. These engines are often used in agricultural machinery, generators, and industrial pumps. The Murphy Diesel brand, historically significant in the diesel engine market, offers both air-cooled and water-cooled engine models, depending on the specific machinery requirements.
The engine’s performance depends heavily on various systems, including fuel delivery, air intake, and exhaust. Regular inspection of key components is essential for maintaining optimal engine function. Murphy Diesel engines, particularly older models, can sometimes present challenges when it comes to keeping them running efficiently.
Common Problems with Murphy Diesel Engines

1. Fuel Delivery Issues
   • Clogged Fuel Filter: One of the most common fuel-related issues is a clogged fuel filter. Over time, dirt, rust, and debris can accumulate in the fuel system, causing blockages that restrict fuel flow. This results in poor engine performance or complete failure to start.

   • Fuel Injector Problems: Faulty or worn fuel injectors can cause a range of issues, including rough idling, decreased fuel efficiency, and smoke from the exhaust. Clogged or malfunctioning injectors can lead to improper fuel atomization, resulting in incomplete combustion.

   • Air in the Fuel Line: If there is air trapped in the fuel lines, it can prevent the engine from starting or cause it to run erratically. This is often caused by a loose fuel connection, cracked fuel lines, or a failing fuel pump.

2. Electrical System Failures
   • Battery and Charging System: Murphy Diesel engines, like most diesel engines, rely on a robust electrical system to power starter motors, fuel pumps, and other components. A dead battery or a failing alternator can prevent the engine from starting or cause it to stall once running.

   • Faulty Wiring or Connections: Over time, electrical wiring can corrode, especially in harsh working environments. Loose or corroded connections can cause intermittent issues, such as the engine not cranking, sudden shutdowns, or erratic performance. Regular inspection of wiring and connectors is crucial.

   • Glow Plug Malfunctions: Diesel engines require glow plugs to aid in cold starts. If a glow plug malfunctions, the engine may fail to start in cold weather or may take longer to warm up. Glow plugs should be tested periodically to ensure they are functioning correctly.

3. Excessive Smoke and Poor Engine Performance
   • White Smoke: White smoke from the exhaust is often a sign that the engine is burning coolant or oil. This can be caused by a leaking head gasket, cracked cylinder head, or a faulty fuel injector. White smoke can also occur if there is an issue with the air/fuel mixture.

   • Black Smoke: Black smoke typically indicates that the engine is burning too much fuel, often due to an over-fueled condition, a clogged air filter, or faulty fuel injectors. In some cases, black smoke can also point to poor combustion efficiency caused by inadequate compression in the cylinders.

   • Blue Smoke: Blue smoke indicates that the engine is burning oil, often due to worn piston rings or valve seals. This can lead to a decrease in performance and potential engine damage if not addressed.

4. Overheating Issues
   • Radiator and Cooling System Problems: Diesel engines like the Murphy Diesel rely on an efficient cooling system to prevent overheating. A blocked or leaking radiator, faulty thermostat, or low coolant levels can lead to engine overheating. Overheating can cause severe engine damage, including warped heads or cracked blocks.

   • Poor Airflow: If the engine’s cooling fan is malfunctioning or if there is debris obstructing airflow to the engine, it can cause the engine to overheat. Regular cleaning of the radiator and cooling system is important for maintaining proper engine temperature.

5. Compression and Timing Problems
   • Low Compression: Low compression in the cylinders can result from worn piston rings, valves, or a damaged cylinder head. This leads to poor engine performance, difficulty starting, and excessive fuel consumption.

   • Incorrect Timing: Diesel engines rely on precise timing for fuel injection and valve operation. If the timing is off, it can lead to poor performance, excessive smoke, and difficulty starting the engine. Timing adjustments are usually made with specialized tools and should be done by a professional mechanic.


1. Check Fuel System:
   • Inspect the fuel filter for clogs and replace if necessary.

   • Check fuel lines for leaks or air bubbles and repair any damaged sections.

   • Test the fuel injectors for proper operation using an injector cleaning tool.

2. Inspect Electrical System:
   • Check the battery voltage and ensure it is fully charged.

   • Inspect the alternator for proper charging.

   • Test the glow plugs for proper functionality using a multimeter.

   • Inspect all wiring for corrosion, wear, or loose connections.

3. Inspect for Excessive Smoke:
   • Perform a compression test to check for low compression or valve issues.

   • Check the fuel injectors and air filter for clogging or malfunctioning components.

   • Inspect the cylinder head and head gasket for any signs of leaks.

4. Check the Cooling System:
   • Verify coolant levels and ensure that the radiator is free from debris.

   • Inspect the thermostat and radiator cap for signs of failure.

   • Check the water pump and cooling fan for proper operation.

5. Engine Timing:
   • Use a timing light to ensure the engine timing is correctly set.

   • Inspect the timing belt or chain for wear or damage.


1. Fuel System:
   • Regularly replace fuel filters and inspect the fuel lines for wear.

   • Clean or replace fuel injectors as necessary.

   • Bleed the fuel system to remove any air pockets.

2. Electrical System:
   • Regularly check and replace the battery, particularly if it shows signs of corrosion.

   • Replace worn or faulty glow plugs before cold weather sets in.

   • Ensure all electrical connections are clean and secure.

3. Excessive Smoke:
   • For white smoke, inspect the head gasket and cylinder head for leaks.

   • For black smoke, clean or replace the air filter and check the injectors.

   • For blue smoke, inspect and replace worn piston rings or valve seals.

4. Overheating:
   • Replace damaged or corroded radiator components.

   • Ensure the cooling system is flushed regularly to prevent clogging.

   • Test the water pump and cooling fan to ensure adequate airflow.

5. Compression and Timing:
   • Perform a cylinder compression test and replace any damaged components.

   • Adjust engine timing if necessary, and replace any worn timing components.


• Regularly replace fuel and air filters.

• Change engine oil and replace the oil filter at recommended intervals.

• Perform cooling system checks and flush the radiator periodically.

• Inspect the engine's electrical system and replace faulty components.

• Check for fuel system leaks and air bubbles and address any issues immediately.


Transitioning from compact machines to full-size earthmoving equipment like the Caterpillar D6N dozer and John Deere 544J loader offers both excitement and challenges, especially when working in confined urban lots. A recent grading and recompaction project for an apartment complex illustrates how operators adapt to larger machines, manage space constraints, and navigate safety concerns.
Project Scope and Equipment Selection
The job involved removing and recompacting soil to a depth of 5 feet across a 230 by 110-foot lot, bordered by apartments on three sides and a street in front. The site required raising the back by 2 feet and the front by 1 foot, necessitating significant fill material. Dirt was excavated from one half of the lot, stockpiled on the other, and then replaced and compacted in stages.
To handle the volume and depth efficiently, the operator rented a Caterpillar D6N dozer and a John Deere 544J loader. Both machines had approximately 1,500 hours and were in excellent condition. The D6N, with its responsive controls and powerful blade, proved especially enjoyable to operate, despite lacking a cab and air conditioning in 100°F heat. The 544J, equipped with a comfortable A/C cab, offered a smoother ride but less tactile engagement.
Terminology Notes

• D6N: A mid-size dozer from Caterpillar’s lineup, known for its balance of power and maneuverability.

• 544J: A 3-yard wheel loader from John Deere, designed for material handling and site cleanup.

• Recompaction: The process of replacing and compacting soil to meet engineering specifications.

• Shrinkage: Volume loss in soil due to compaction or moisture reduction.


• Limit Use of Third Gear: Operators recommend reserving third gear for emergencies or long-distance travel. High-speed operation increases undercarriage wear and reduces control.

• Throttle Management: Full throttle is often unnecessary. Many machines perform optimally at two-thirds throttle, offering better control and fuel efficiency.

• Compact with Vibration Awareness: Higher speeds can aid compaction but may also damage tracks or disturb nearby structures.


• Use Compact Equipment for Prep Work: Bobcats and skiploaders are ideal for tight corners and finish grading.

• Rent Larger Machines for Bulk Tasks: Dozers and loaders accelerate excavation and fill operations.

• Plan Material Flow Carefully: Stockpile and replace soil in phases to minimize congestion.

• Train Operators on Emergency Protocols: Include medical response and machine shutdown procedures.

• Monitor Operator Health and Fatigue: Long shifts in extreme heat increase risk.


The Bomag 100 AD is a high-performance, double drum vibratory roller commonly used in road construction, soil compaction, and other civil engineering projects. Known for its reliability and efficiency, this equipment is designed to handle heavy-duty tasks and provide smooth and consistent results. However, like any piece of heavy machinery, the Bomag 100 AD can experience operational issues. One such issue is when the machine stops traveling after it warms up. This type of problem can lead to significant downtime and reduce productivity, so it’s important to understand the potential causes and solutions.
In this article, we will explore the possible reasons why a Bomag 100 AD stops traveling after warming up, common troubleshooting steps, and how to prevent this issue from happening in the future.
Understanding the Bomag 100 AD Roller
The Bomag 100 AD is part of the Bomag series of compactors that are used for various soil and asphalt compaction applications. It features advanced vibration technology to achieve optimal compaction and surface quality, making it a popular choice in the construction and infrastructure industries. The roller is powered by a diesel engine and utilizes hydraulic systems to control the movement of its drums, drive train, and other components.
Despite its robust design, the Bomag 100 AD can encounter issues such as losing travel capabilities after the machine warms up. This problem can be caused by various factors, including engine performance issues, hydraulic system malfunctions, or transmission problems.
Potential Causes of Travel Issues After Warming Up

1. Hydraulic System Malfunctions
   The Bomag 100 AD uses a hydraulic system to operate the drive mechanism, steering, and vibration functions. If there’s an issue with the hydraulic system, it can prevent the machine from traveling after it warms up.
   • Low Hydraulic Fluid Levels: One of the most common reasons for travel failure is low hydraulic fluid levels. Hydraulic fluid is essential for the proper functioning of the drive system and other hydraulic components. If the fluid is low or contaminated, it can cause the system to fail once it reaches operating temperature.

   • Hydraulic Pump or Valve Failure: If the hydraulic pump or valves malfunction, it can cause a loss of pressure, which may prevent the machine from moving once it warms up. These issues are often more noticeable under load, when the hydraulic system is working harder.

   • Hydraulic Fluid Overheating: Hydraulic fluid can become too hot during prolonged operation, especially if the system is under heavy load. Overheating fluid can lead to reduced viscosity, causing the hydraulic components to fail. This can result in the machine being unable to travel properly after it warms up.

2. Transmission Problems
   The transmission system in the Bomag 100 AD is responsible for transferring power from the engine to the drive mechanism, allowing the roller to move. If there is an issue with the transmission, the machine may stop traveling after it warms up.
   • Clutch or Drive Motor Issues: A worn or damaged clutch, or a faulty drive motor, can cause the transmission to lose power when it reaches a certain temperature. As these components heat up, they can expand or become less efficient, leading to travel issues.

   • Transmission Fluid Problems: Like hydraulic systems, the transmission system also requires proper lubrication to operate effectively. Low or degraded transmission fluid can cause the transmission to fail when the machine gets warm. Additionally, contaminated fluid can cause internal damage to transmission components, leading to a loss of travel ability.

3. Engine Performance Issues
   Although less common, engine problems can also lead to a situation where the Bomag 100 AD stops moving once the machine warms up. The engine is responsible for powering the hydraulic pump, the drive motor, and the transmission, so if the engine is not performing well, it can impact the overall functionality of the machine.
   • Fuel System Clogs: If the fuel filters or fuel lines are clogged, the engine may not receive the necessary fuel flow once it reaches operating temperature. A restricted fuel supply can cause the engine to stall or reduce power output, preventing the machine from moving.

   • Cooling System Failure: The engine’s cooling system ensures that the engine does not overheat. If the radiator or cooling system malfunctions, the engine could overheat, causing it to lose power or shut down. This can affect the machine’s ability to travel, particularly when the engine is under load.

4. Electrical and Sensor Malfunctions
   Modern machinery like the Bomag 100 AD is equipped with sensors and control units that monitor various components, including the hydraulic system, engine, and transmission. If there is an issue with the electrical system, such as a malfunctioning sensor or control module, it can lead to incorrect readings or the activation of safety protocols that prevent travel.
   • Faulty Sensors: Sensors in the hydraulic and engine systems monitor performance and provide data to the machine’s control unit. A faulty sensor can send incorrect signals to the system, triggering error codes or safety features that prevent the machine from moving.

   • Control Unit or Wiring Issues: The control unit or the wiring system can sometimes malfunction, leading to erratic behavior in the machine. This can cause the machine to stop functioning as expected after it warms up, especially if the system detects a fault.


1. Check Hydraulic Fluid Levels and Condition
   • Start by checking the hydraulic fluid levels. If the fluid is low, top it up with the correct fluid recommended by the manufacturer. Also, inspect the fluid for contamination (dirt, water, or metal particles). If the fluid looks dirty, perform a hydraulic system flush and replace the fluid.

2. Inspect the Hydraulic Pump and Valves
   • Check the hydraulic pump and valves for any signs of wear or damage. If the hydraulic pump is failing, it may need to be replaced. Similarly, inspect the hydraulic valves for blockages or leaks that could affect fluid flow and pressure.

3. Inspect Transmission Fluid Levels
   • Check the transmission fluid levels and ensure the fluid is clean and at the correct level. If the fluid is old or contaminated, drain the system and replace it with fresh transmission fluid.

4. Test the Engine and Fuel System
   • Check the engine’s fuel system for any blockages, particularly in the fuel filters or lines. If the engine isn’t receiving enough fuel, it can lose power and cause travel problems. Also, inspect the cooling system to ensure the engine isn’t overheating.

5. Check Electrical Components and Sensors
   • Inspect the machine’s electrical system, including sensors, control units, and wiring. Look for any damaged wires or loose connections. Use a diagnostic tool to check for error codes or sensor malfunctions that could be affecting performance.


• Regular Fluid Checks: Regularly check hydraulic fluid and transmission fluid levels and replace them as needed.

• Hydraulic System Maintenance: Perform routine hydraulic system checks, including flushing the system and replacing filters as necessary.

• Engine and Cooling System Checks: Ensure the engine and cooling system are in good working condition. Replace fuel filters regularly and check for coolant leaks.

• Electrical System Inspections: Periodically inspect the electrical system, including sensors and wiring, to ensure everything is functioning correctly.


The John Deere 410D is a popular backhoe loader used in construction, agricultural, and utility applications. Known for its durability and versatility, the 410D is a go-to machine for digging, lifting, and trenching tasks. However, like any heavy machinery, it is not immune to mechanical issues, one of which can be a locked-up engine or transmission. When a machine like the 410D locks up, it can be a significant problem, leading to costly repairs and extended downtime. In this article, we will explore the causes of a locked-up John Deere 410D, how to diagnose the issue, and the best steps to take for a resolution.
Understanding the John Deere 410D
The John Deere 410D was introduced in the late 1990s as part of the 410 series of backhoe loaders. It quickly became a reliable tool for contractors and farmers due to its strong hydraulic system, powerful engine, and versatility in handling different tasks. The 410D is equipped with a 4-cylinder, turbocharged engine that produces around 93 horsepower, along with a robust hydrostatic transmission. These features make it capable of performing demanding jobs, including trenching, lifting, and excavating.
When a John Deere 410D "locks up," it generally refers to a situation where the engine or transmission seizes, preventing the machine from starting or operating as normal. A locked-up engine or transmission can be a result of several factors, from mechanical failure to lack of maintenance.
Common Causes of a Locked-Up John Deere 410D

1. Lack of Lubrication (Engine Seizure)
   • Low or No Oil: One of the most common causes of an engine locking up is low or insufficient oil. Without adequate lubrication, the internal engine components can overheat, causing friction that eventually leads to the engine seizing. This can happen due to a leak in the oil system, such as a cracked oil pan, or neglecting to check oil levels regularly.

   • Dirty Oil: Contaminated oil that hasn’t been changed can cause engine components to wear out faster, leading to a situation where the engine locks up due to metal-on-metal contact or overheating.

2. Hydraulic System Failure
   • Hydraulic Lock: The John Deere 410D uses hydraulic systems to power various attachments and functions, such as the backhoe arm, boom, and bucket. If the hydraulic system is overpressurized or the pump fails, it can result in a hydraulic lock, causing the machine to seize up. This is often caused by malfunctioning hydraulic valves, a blocked hydraulic filter, or a failure in the hydraulic pump.

   • Contaminated Hydraulic Fluid: Contaminants in the hydraulic fluid, such as dirt, water, or metal shavings, can cause excessive wear on the hydraulic components, leading to a system failure. Over time, this can result in a locked-up system that prevents normal operation.

3. Transmission Failure
   • Transmission Fluid Issues: The transmission system in the John Deere 410D is responsible for powering the wheels and allowing for smooth movement. If the transmission fluid is low or contaminated, the transmission can seize up. Lack of fluid or worn-out fluid can cause the components inside the transmission to overheat or become damaged, leading to a complete lock-up of the transmission.

   • Worn or Damaged Gears: Over time, the gears inside the transmission can wear down or become damaged due to heavy use or improper maintenance. This can result in the transmission locking up, preventing the machine from shifting properly or even moving at all.

4. Electrical or Control System Failure
   • Faulty Sensors or Wiring: Modern backhoe loaders like the John Deere 410D have sophisticated electrical systems that monitor and control engine and hydraulic functions. A malfunction in the electrical system, such as a faulty sensor, loose wire, or failed control module, can cause the machine to lock up. The system may incorrectly detect a problem and engage safety protocols that prevent the machine from starting or operating.

   • ECU Malfunction: The engine control unit (ECU) is responsible for regulating the engine's performance, including fuel injection, ignition timing, and other critical functions. If the ECU fails, it can prevent the engine from starting or cause it to lock up entirely.

5. Overheating
   • Radiator or Cooling System Failure: If the radiator or cooling system fails to properly regulate the engine’s temperature, it can cause the engine to overheat. Overheating can lead to the internal components expanding and seizing up, ultimately locking the engine. The issue can arise from a clogged radiator, a broken thermostat, or low coolant levels.


1. Check Engine Oil Levels and Condition
   • Inspect the oil level to ensure there is enough lubrication in the engine. If the oil is low or dirty, top it up or perform an oil change.

   • If the engine has seized, check for signs of damage or overheating, such as discoloration of the oil or burnt smell.

2. Examine the Hydraulic System
   • Check the hydraulic fluid level and condition. If the fluid is contaminated or low, it could be causing the hydraulic lock. Flush the system and replace the fluid.

   • Inspect the hydraulic pump and valves for damage or blockages. If there is a mechanical failure, the affected components may need to be replaced.

3. Inspect the Transmission Fluid
   • Check the transmission fluid level and condition. Low or contaminated fluid can lead to transmission failure. If necessary, drain and replace the transmission fluid to restore proper operation.

   • Examine the gears and other transmission components for signs of wear or damage.

4. Look for Electrical Issues
   • Inspect the wiring and connections in the electrical system for loose connections, corrosion, or damage. If there is an issue with the sensors or ECU, it may require professional diagnostics or replacement.

   • Use a diagnostic tool to check for error codes from the ECU, which can pinpoint electrical problems.

5. Check the Cooling System
   • Inspect the radiator, hoses, and cooling system for signs of leaks, clogs, or damage. Ensure that the coolant levels are sufficient and that the system is functioning correctly. Overheating due to a faulty cooling system can cause engine lock-up.


1. Oil and Hydraulic Fluid Change
   • If the problem is due to low or contaminated oil, change the engine oil and hydraulic fluid as part of a regular maintenance routine. This will restore proper lubrication and prevent further damage.

2. Hydraulic System Repair
   • If hydraulic lock is the cause, replace any damaged hydraulic components such as valves, hoses, or pumps. Flush the system to remove any contaminants.

3. Transmission Fluid Replacement
   • If the transmission is locked up, replace the fluid and inspect the transmission for damage. If the gears are worn or damaged, you may need to rebuild or replace the transmission.

4. Electrical System Repair
   • Fix any electrical wiring or sensor issues. Replace faulty sensors or the ECU if necessary. A thorough diagnostic scan can help identify the specific electrical problem.

5. Overheating Prevention
   • Address any issues with the cooling system, such as repairing leaks, replacing worn hoses, or cleaning the radiator. Regularly check coolant levels and flush the cooling system as needed to avoid overheating.


The Hein-Werner C12 is a fully hydraulic excavator powered by a Detroit Diesel 4-53 engine, known for its simplicity, raw lifting power, and crane-style undercarriage. Though slow by modern standards, it remains a viable machine for log handling, demolition, and restoration enthusiasts who value mechanical reliability over electronic complexity.
Hein-Werner’s Industrial Legacy
Hein-Werner Corporation, founded in the early 20th century, was a respected name in hydraulic and mechanical equipment. The C-series excavators were designed during a transitional era when cable-operated machines were giving way to fully hydraulic systems. The C12, in particular, was built for mid-range excavation tasks and often found in logging yards, municipal fleets, and demolition sites.
While exact production numbers are hard to trace, the C12 was widely distributed across North America. Its design emphasized durability, with gear-driven hydraulics and minimal electronics. The operator’s cab was mounted on the left side—a quirk that puzzled some users but offered better visibility for right-handed grapple work.
Terminology Notes

• Detroit Diesel 4-53: A two-stroke, four-cylinder engine producing around 140 hp, known for its distinctive sound and high torque at low RPM.

• Crane-Type Undercarriage: A flat-track design with limited ground clearance, prone to throwing tracks on uneven terrain.

• Gear Pumps: Hydraulic pumps that deliver consistent flow but operate slower than piston pumps; favored for simplicity and durability.

• Swing Box: The gear assembly that allows the upper structure to rotate; bolts may loosen over time, requiring regular inspection.


• Hydraulic Response: Smooth but slow; ideal for precision work but not high-speed excavation.

• Lifting Capacity: Impressive for its size; full-reach lifts of heavy timber are achievable.

• Travel Speed: Limited; best suited for short relocations or stationary tasks.

• Track Stability: Tracks can derail on slopes or soft ground; operators should avoid side-hill travel.


• Swing Box Bolts: Tend to loosen; check torque regularly.

• Boom Mounting Ears: Prone to cracking under heavy loads; reinforce if needed.

• Hydraulic Lines: Replace aged hoses proactively; keep spares on hand.

• Cab Layout: Left-side cab may require adjustment for operators used to right-hand setups.


• Auxiliary Hydraulic Circuit: Some units came with boom-mounted lines for hammers or thumbs. Adding a circuit is feasible by swapping valve blocks or installing a new spool with matching relief pressure.

• Hydraulic Thumb Installation: Salvaged cylinders from older loaders can be repurposed; ensure proper stroke and mounting geometry.

• Lighting and Safety Features: Retrofit with LED work lights and ROPS if used in active job sites.


• Use for Precision Tasks: Ideal for log handling, demolition prep, and stationary lifting.

• Avoid Rough Terrain: Track design limits mobility on uneven ground.

• Maintain Hydraulic Integrity: Clean fluid, tight fittings, and regular inspections are key.

• Embrace Simplicity: No computers, no sensors—just levers, valves, and steel.


When the Maxle on a 2023 Mack Super Dump refuses to lower despite audible pump activity and illuminated controls, the issue likely lies in hydraulic flow restriction, electronic safety interlocks, or a failed pressure relief valve. This problem can stall operations and frustrate drivers, especially when the rest of the truck’s systems appear functional.
Mack Trucks and the Super Dump Configuration
Mack Trucks, founded in 1900 and now part of the Volvo Group, has long been a leader in vocational vehicles. The Super Dump configuration, often built on Mack chassis, includes a trailing axle (Maxle) that extends the legal payload capacity by increasing the bridge length. These setups are popular in asphalt, aggregate, and bulk hauling due to their ability to carry up to 80,000 pounds while remaining road legal.
The Maxle is hydraulically controlled and electronically monitored. It can be raised or lowered via a cab-mounted switch, allowing the operator to adjust axle load distribution based on terrain, speed, or payload.
Terminology Notes

• Maxle: A trailing axle that extends behind the dump body, hydraulically deployed to increase legal payload.

• Pressure Relief Valve: A hydraulic component that limits system pressure to prevent damage; failure can block flow.

• Electronic Safety Interlock: A software or sensor-based system that prevents hydraulic functions under unsafe conditions.

• Hydraulic Block: A manifold or valve assembly that directs fluid to the Maxle cylinder.


• Verify Hydraulic Pressure at the Cylinder: Use a gauge to check if fluid is reaching the Maxle cylinder. No pressure indicates a blockage or valve failure.

• Inspect the Hydraulic Block: If pressure doesn’t pass through the block, the issue may be a stuck valve or failed solenoid.

• Check for Electronic Lockouts: Modern trucks may prevent Maxle deployment if speed, brake status, or load sensors are out of range.

• Review Pressure Gauge Readings on the Maxle Pump: These gauges help adjust downforce and confirm system activity.


• Failed Pressure Relief Valve: If stuck open, it can divert fluid away from the cylinder. Replacement or cleaning may restore function.

• Solenoid Malfunction: A faulty solenoid may prevent valve actuation. Test with a multimeter and replace if needed.

• Software Interlock: Some systems require the truck to be stationary or in neutral. Check the operator’s manual or dealer diagnostics.

• Hydraulic Contamination: Debris in the fluid can clog valves. Flush the system and replace filters if contamination is found.


• Keep Hydraulic Fluid Clean and Warm: Cold or contaminated fluid can cause valve sticking.

• Use Diagnostic Tools to Check Electronic Inputs: Speed sensors, brake switches, and load cells may affect Maxle operation.

• Label Hydraulic Lines and Valves: Simplifies troubleshooting and reduces downtime.

• Document Pressure Readings During Operation: Helps identify gradual valve degradation or pump wear.


Water in hydraulic cylinders is a serious issue that can lead to significant damage to heavy equipment and reduce its performance. Hydraulic systems rely on clean, uncontaminated fluid to operate smoothly. When water contaminates the hydraulic fluid, it can cause rust, seal failure, and loss of hydraulic pressure, all of which can impact the efficiency and lifespan of the machinery. In this article, we will explore the causes of water ingress in hydraulic cylinders, its impact, and the steps you can take to prevent and address this problem.
Understanding the Role of Hydraulic Cylinders
Hydraulic cylinders are essential components in a wide range of machinery, from excavators and skid-steers to cranes and agricultural equipment. They convert hydraulic energy into mechanical motion, allowing heavy equipment to lift, push, pull, or press. These cylinders work by using hydraulic fluid (typically oil) under high pressure to move a piston inside the cylinder. The piston then moves the attached rod, which performs the desired mechanical work.
For hydraulic cylinders to operate efficiently, the hydraulic fluid needs to remain clean and free of contaminants. Any water that enters the hydraulic system can cause serious issues, which is why water ingress into cylinders is a major concern for operators.
Causes of Water in Hydraulic Cylinders

1. Condensation
   • Moisture in the air: One of the most common causes of water in hydraulic cylinders is condensation. Hydraulic systems are exposed to varying temperatures, which can cause moisture in the air to condense and form water droplets inside the system. This is especially common when equipment is left outside or when there are temperature fluctuations, such as moving the machine from a heated garage to a cold outdoor environment.

   • Air temperature and humidity: In humid climates, the presence of water vapor in the air increases the likelihood of condensation, leading to moisture buildup inside the cylinder and hydraulic lines.

2. Leaky Seals
   • Faulty or worn seals: Hydraulic cylinders are equipped with seals that are designed to keep the hydraulic fluid inside the system and prevent contaminants, including water, from entering. If these seals become worn, cracked, or damaged, water can seep into the cylinder, especially when the equipment is exposed to rain, snow, or high humidity environments.

   • Improperly installed seals: If seals are not installed correctly during assembly or maintenance, they may fail to create an effective barrier, allowing water to enter the hydraulic system.

3. Improper Storage and Exposure
   • Exposing machinery to the elements: When hydraulic equipment is stored in areas without proper weather protection, it becomes more susceptible to water ingress. Rain or snow can enter through vents, seals, or other openings, contaminating the hydraulic fluid and affecting the cylinders.

   • Storage in damp environments: Storing equipment in areas with high moisture content, such as wet fields or damp garages, increases the likelihood of water contamination in hydraulic cylinders.

4. Contaminated Hydraulic Fluid
   • Using low-quality hydraulic fluid: In some cases, low-quality or improperly filtered hydraulic fluid can already contain water when it is added to the system. This water can accumulate over time, leading to corrosion and other issues.

   • Cross-contamination during maintenance: During hydraulic fluid changes or other maintenance activities, improper handling can introduce water into the system. For example, water may be introduced through cleaning tools, storage containers, or when the fluid is stored in non-airtight containers.


1. Corrosion
   • Water can cause corrosion of the internal components of the hydraulic cylinder, including the piston rod and cylinder walls. Over time, this corrosion weakens the metal, causing pitting and rough surfaces that can damage seals and cause leakage. Corroded components may need to be replaced, resulting in costly repairs and downtime.

2. Seal Failure
   • Hydraulic seals are designed to keep the fluid contained and prevent contaminants from entering. Water can degrade the rubber or synthetic materials used in seals, leading to swelling, cracking, and eventual failure. When seals fail, hydraulic fluid leaks out, and water can enter, creating a vicious cycle of damage.

3. Decreased Efficiency
   • The presence of water in the hydraulic fluid can reduce its viscosity and alter its ability to transfer force. This decreases the overall efficiency of the hydraulic system, making it harder for the machine to perform tasks. The system may also experience jerky movements, slow response times, or inability to reach full power.

4. Foaming
   • When water mixes with hydraulic fluid, it can cause foaming. Foam in the hydraulic system reduces the fluid’s ability to lubricate the components properly and can cause erratic behavior, overheating, and loss of power. Foaming can also lead to air being drawn into the system, which further affects performance.


1. Proper Storage and Weather Protection
   • Store equipment in dry, sheltered areas whenever possible. Use tarps, covers, or enclosed sheds to protect machinery from rain or snow. For machines that are left outdoors, consider installing a weatherproof cover over the hydraulic components.

2. Regular Seal Inspection and Replacement
   • Inspect hydraulic seals regularly for signs of wear and tear. Replace any damaged or worn seals immediately to prevent water from entering the system. Make sure that seals are properly installed and maintained according to the manufacturer’s specifications.

3. Use Quality Hydraulic Fluid
   • Always use high-quality hydraulic fluid that is designed for your specific machine and operating conditions. Ensure that the fluid is properly filtered and stored to prevent contamination. When changing the fluid, make sure the system is completely drained of old fluid and replace it with fresh, clean fluid.

4. Drain Moisture Regularly
   • Implement a routine for draining moisture from the hydraulic system. Some systems have built-in water drains, and it’s essential to use them regularly, especially if the machine is exposed to humidity or environmental conditions that increase water buildup.

5. Monitor Fluid Levels and Quality
   • Regularly monitor hydraulic fluid levels and check for signs of contamination. Use a fluid testing kit to check for the presence of water and other contaminants. This can help you identify water ingress early before it causes significant damage.


1. Drain the System
   • If you suspect water contamination, the first step is to drain the hydraulic system. This will prevent further damage and allow you to inspect the fluid for signs of contamination.

2. Flush the System
   • After draining the old fluid, flush the hydraulic system with a cleaning solution to remove any remaining water or contaminants. Follow up with a fresh fill of high-quality hydraulic fluid.

3. Inspect and Replace Damaged Components
   • Check for signs of corrosion on the piston rod, seals, and other components. Replace any parts that have been damaged by water, as these may cause further issues if left untreated.

4. Check for Leaks
   • After addressing water contamination, check the system for leaks to ensure that no water can re-enter. Repair any worn seals or faulty components before operating the equipment again.


The International TD15B crawler dozer, once a mid-size workhorse in the 1970s, has earned a reputation for mechanical unreliability, difficult parts sourcing, and transmission quirks that make it a risky investment for modern owners. Despite its appealing price point and heavy-duty frame, the TD15B’s design flaws and engine issues have led many contractors to avoid it altogether.
International Harvester’s Industrial Legacy
International Harvester (IH), founded in 1902, was a major player in agricultural and construction equipment through the mid-20th century. The TD15 series was introduced as a mid-range dozer for land clearing, grading, and earthmoving. The TD15B, a second-generation model, featured a straight blade, planetary final drives, and a torque converter transmission. It was powered by either the IH DT-361 or DT-407 diesel engines, depending on production year.
While IH sold thousands of TD15Bs globally, the model struggled to compete with Caterpillar’s D6C and D7 series, which offered better reliability and parts support. IH’s industrial division eventually merged into Dresser and later Komatsu, further complicating parts availability for legacy machines.
Terminology Notes

• Torque Converter: A fluid coupling between the engine and transmission that allows smooth power transfer but can cause shock loads if not modulated.

• Planetary Final Drives: Gear systems that distribute torque across multiple gears, improving durability but increasing complexity.

• Modulating Clutch: A transmission feature that softens gear engagement; its absence in the TD15B leads to abrupt shifts.

• Jackshaft: A shaft connecting the torque converter to the transmission; vulnerable to snapping under load.


• Sourcing Engine Components: Many parts are discontinued or only available through salvage yards.

• Transmission Rebuilds Are Costly: Few shops specialize in IH industrial transmissions.

• Hydraulic Systems Are Obsolete: Hoses and fittings often require custom fabrication.

• Undercarriage Parts Are Scarce: Track chains, rollers, and sprockets may need to be adapted from other models.


• Avoid TD15Bs for Active Work: Use only for hobby restoration or static display.

• Inspect Engine Casting and Rods: Look for signs of fatigue or poor metallurgy.

• Throttle Down Before Shifting: Prevent transmission shock and jackshaft damage.

• Consider Alternative Models: Caterpillar D6C or D7E offer better reliability and parts support.

• Join Vintage Equipment Forums: For sourcing parts and sharing restoration tips.


The Bobcat 763 is a widely used skid steer loader, known for its versatility and reliability in a range of construction, landscaping, and agricultural tasks. However, like any piece of heavy machinery, it is not immune to issues, and one common problem faced by operators is a traction lock malfunction. This issue can prevent the skid steer from moving properly, leading to significant downtime and frustration. In this article, we’ll explore the causes of traction lock problems in the Bobcat 763, how to diagnose them, and potential solutions.
What is Traction Lock and Why Does It Happen?
Traction lock refers to a situation where one or more of the wheels or tracks on a skid steer loader, like the Bobcat 763, do not rotate properly or are “locked.” This can cause the machine to lose traction or be unable to move, especially when working in soft or uneven terrain. The traction lock system on the Bobcat 763 is designed to provide even power distribution to both sides of the machine to prevent slippage and maintain optimal performance. When this system malfunctions, it can result in the following symptoms:

• The machine moves unevenly or fails to respond to input.

• One side of the machine moves while the other side remains stationary.

• The machine struggles to climb inclines or traverse muddy areas.

• The traction control system engages or disengages erratically.


1. Hydraulic System Problems
   The Bobcat 763’s traction lock system relies heavily on its hydraulic system. If there is a hydraulic issue, such as a loss of pressure or a leak in the hydraulic lines, it can disrupt the proper functioning of the traction system.
   • Low Hydraulic Fluid: A low fluid level can cause hydraulic components, including the traction lock, to malfunction. The hydraulic fluid is essential for proper operation of the drive motors that control movement.

   • Hydraulic Filter Blockage: If the hydraulic filter becomes clogged, it can restrict the flow of fluid, leading to inconsistent operation of the traction system.

   • Hydraulic Pump Failure: If the hydraulic pump fails or becomes worn out, it may not generate enough pressure to power the drive motors effectively, leading to traction issues.

2. Drive Motor Problems
   The drive motors in the Bobcat 763 are responsible for transferring power to the wheels or tracks. If these motors become damaged or fail, the machine will struggle to move or may experience uneven traction.
   • Worn or Faulty Motors: Over time, the drive motors can wear out, especially with high-use machines. This can lead to poor performance and issues with traction.

   • Drive Motor Misalignment: If the drive motors are not aligned properly, it can cause uneven power distribution between the left and right sides of the machine, leading to traction lock issues.

3. Electrical and Control System Malfunctions
   Modern skid steers like the Bobcat 763 have complex electrical and control systems that regulate the traction lock. A malfunction in these systems can cause the traction lock to engage or disengage improperly.
   • Faulty Sensors: The traction control system uses sensors to detect and adjust wheel speed. If a sensor fails, the system may not function correctly, causing traction issues.

   • Wiring Issues: Damaged or loose wiring can disrupt signals to the traction control system, leading to erratic performance.

   • ECU (Electronic Control Unit) Malfunctions: The ECU controls various systems on the Bobcat 763, including the traction control system. If the ECU is malfunctioning, it may not send the correct signals to the traction system.

4. Brake or Axle Problems
   If the brakes or axles on the Bobcat 763 are not functioning correctly, they can cause the traction lock to engage unnecessarily, or the machine might not move at all.
   • Brakes Sticking: If the brakes are not fully releasing, the machine can behave as if it’s stuck in traction lock. This is often the result of a mechanical failure or improper adjustment.

   • Axle Damage: Worn-out or damaged axles can affect the movement of the wheels, causing uneven traction or a complete lockup of one or both sides.


1. Inspect Hydraulic Fluid Levels
   • Check the hydraulic fluid level and top it up if necessary.

   • Inspect the hydraulic fluid for contamination (such as dirt or metal particles) which can indicate a bigger issue with the hydraulic system.

   • If the fluid appears discolored or contaminated, consider performing a full hydraulic system flush.

2. Examine the Hydraulic System for Leaks
   • Look for any signs of leaks in the hydraulic lines, valves, or fittings.

   • Tighten any loose connections and replace any damaged parts.

3. Test the Drive Motors
   • Test the performance of the drive motors by engaging the machine and observing whether both sides of the machine move at the same speed.

   • If one side is lagging or not moving at all, the motor on that side may need repair or replacement.

4. Check Electrical Components
   • Inspect the wiring and sensors related to the traction control system. Ensure all connections are tight and free from corrosion.

   • Test the sensors using a multimeter to check for correct voltage readings. If a sensor is faulty, it should be replaced.

5. Inspect the Brakes and Axles
   • Check the brake system for sticking components. If the brakes appear to be engaged when they shouldn’t be, they may need adjustment or replacement.

   • Inspect the axles for wear or damage. If the axles are worn or broken, they may need to be replaced.


1. Hydraulic System Repairs
   • Top up hydraulic fluid as needed and replace any contaminated fluid.

   • If there are leaks, replace the damaged hoses or fittings.

   • Replace or repair the hydraulic pump if it is not generating sufficient pressure.

2. Drive Motor Replacement
   • If a drive motor is found to be faulty, it may need to be replaced. This could be a costly fix, but it is essential for restoring proper traction.

3. Sensor and Electrical Repairs
   • Replace any faulty sensors or wiring that may be affecting the traction control system.

   • Reprogram or replace the ECU if necessary to ensure the system is functioning properly.

4. Brake and Axle Adjustments
   • Adjust or replace the brake system to ensure the brakes are fully releasing.

   • Repair or replace any worn or damaged axles to restore proper movement.
