Case 850B Dozer Background
The Case 850B is a mid-sized crawler dozer developed by Case Corporation, a company with roots dating back to 1842. Known for its rugged design and reliability, the 850B was widely used in road building, land clearing, and utility trenching throughout the 1980s and 1990s. It typically features a 6-cylinder diesel engine, hydrostatic transmission, and a blade width of around 8 feet. Case sold thousands of these units globally, and many remain in service today due to their mechanical simplicity and ease of repair.
Symptoms of Water in Engine Oil
One of the most alarming issues for any diesel engine is the presence of water in the crankcase. In the Case 850B, this manifests as:

• Milky or frothy oil expelled from the oil fill tube

• Overfilled crankcase with a mix of coolant and oil

• Steam emissions from the engine compartment

• Rapid coolant loss without external leaks


• Cylinder sleeve seal failure: The engine uses wet sleeves sealed by O-rings. Over time, these rubber seals degrade, allowing coolant to enter the crankcase.

• Cracked cylinder sleeves: Corrosion or cavitation can cause pinholes or fractures in the sleeve wall.

• Pitted block surfaces: The area where the sleeve O-rings seat may become pitted, compromising the seal.

• Failed head gasket or warped head: Though less likely if no combustion symptoms are present, this remains a possibility.


• Pressurize the cooling system with the oil pan removed to observe coolant dripping from the sleeve base or block.

• Remove the oil pan in-frame if possible. On the 850B, this requires sliding the pan forward under the crossmember, though clearance is tight due to the oil pump and balancer assembly.

• Inspect sleeves and O-rings for signs of wear, cracks, or rot.

• Check block surface for pitting or erosion around the sleeve seat.


• Hammer and blunt rod: Drive the sleeve upward from the bottom, taking care not to damage the block.

• Homemade pullers: Fabricated from steel plate and threaded rod, these tools apply upward force evenly.

• Heat and lubrication: Applying heat to the block and penetrating oil around the sleeve can ease removal.


• Use high-quality coolant with corrosion inhibitors.

• Flush cooling system annually to remove sediment and scale.

• Monitor oil condition regularly for signs of contamination.

• Replace sleeve O-rings during major service intervals, even if no leak is present.


• Sleeve seat machining: Resurface the block to restore a smooth sealing surface.

• Epoxy repair compounds: Used in low-pressure areas to fill pits, though not a permanent fix.

• Block replacement or remanufactured short block: Costly but effective for severely damaged engines.


The Trojan 114, a popular loader in the construction and materials handling industry, has earned its reputation for reliability and power. However, like all machinery, it can face operational issues that hinder its efficiency. One common problem faced by owners and operators of the Trojan 114 is difficulty in shifting into high range, an issue that can impede the loader's performance, especially in tasks requiring higher speeds. Addressing this issue promptly is crucial to maintaining productivity and extending the lifespan of the machine.
Overview of the Trojan 114 Loader
The Trojan 114 is part of the Trojan loader series, which is known for its rugged build and versatility in various industries, including agriculture, construction, and material handling. This loader is equipped with a powerful engine, robust hydraulics, and a durable transmission system designed to handle heavy lifting and moving tasks efficiently. Despite its strong performance capabilities, mechanical problems can still arise, particularly in the transmission system.
The transmission in the Trojan 114 is responsible for shifting between low and high ranges, which allows the operator to adjust the speed and torque based on the task at hand. However, issues with shifting into high range can severely limit the machine's performance, especially in applications where speed is critical.
The Importance of the Transmission System
In the Trojan 114, the transmission system is a key component that determines the loader’s versatility and operational efficiency. It enables the machine to operate at different speeds by shifting between gears. Typically, loaders like the Trojan 114 have a two-range transmission: a low range for tasks requiring higher torque and a high range for tasks that require faster speeds but lower torque.
If the loader is unable to shift into high range, it can experience several issues, such as:

• Reduced travel speed: The loader will be restricted to operating at lower speeds, making it inefficient for long-distance travel or tasks requiring fast movement.

• Increased fuel consumption: Operating in low range for extended periods can lead to unnecessary fuel consumption.

• Increased wear on the engine: The engine may be forced to work harder in low range, leading to premature wear.


1. Low Hydraulic Pressure
   The transmission system in the Trojan 114 relies on hydraulic pressure to operate smoothly. If there is insufficient hydraulic pressure, it can affect the loader's ability to engage high range. Hydraulic pressure issues can be caused by low fluid levels, a malfunctioning pump, or clogged filters.
   • Symptoms: Difficulty shifting into high range, slow or erratic shifts, or failure to engage the high range at all.

   • Solution: Check the hydraulic fluid levels and replace or top off the fluid as needed. Inspect the hydraulic pump and lines for any leaks or damage. If the pump is worn or damaged, it may need to be replaced.

2. Worn or Damaged Transmission Linkage
   The transmission linkage connects the gearshift lever to the transmission itself, enabling the operator to switch between low and high ranges. Over time, the linkage can wear out, become misaligned, or become damaged, leading to shifting issues.
   • Symptoms: Difficulty moving the gearshift lever, slipping between gears, or inability to engage high range.

   • Solution: Inspect the transmission linkage for signs of wear or damage. Realign or replace the linkage components as needed.

3. Faulty Transmission Control Valve
   The transmission control valve regulates the hydraulic flow to the transmission system, controlling the engagement of the gears. If the valve malfunctions or becomes clogged, it can prevent the transmission from shifting into high range.
   • Symptoms: The loader will not shift into high range or experiences hesitation before engaging high range.

   • Solution: Test the transmission control valve to ensure it is functioning properly. Clean or replace the valve if it is clogged or damaged.

4. Clutch or Gearbox Issues
   The Trojan 114 uses a clutch and gearbox to engage and disengage the gears. If the clutch is worn or the gears are damaged, the loader may struggle to shift into high range.
   • Symptoms: Grinding noise when attempting to shift, or the loader gets stuck in a gear and cannot shift into high range.

   • Solution: Inspect the clutch for signs of wear and replace if necessary. Check the gearbox for any damage or broken components. Gearbox repairs may require professional assistance, as they can be complex.

5. Electrical Problems or Sensor Malfunctions
   Modern loaders like the Trojan 114 are equipped with electronic sensors that help monitor and control the transmission system. A malfunctioning sensor or electrical connection can cause the loader to have trouble shifting into high range.
   • Symptoms: The loader shifts erratically or is stuck in low range despite attempts to shift to high range.

   • Solution: Inspect the electrical system and sensors related to the transmission. Check for loose or corroded connections, and test the sensors for accuracy. Replacing faulty sensors may be necessary.


1. Check Hydraulic Fluid: Inspect the fluid level and condition. If the fluid is low or dirty, replace it and ensure the system is free from air.

2. Inspect the Linkage: Ensure that the transmission linkage is properly aligned and free of wear or damage.

3. Test the Transmission Control Valve: Check the valve for clogs or malfunctions. If needed, clean or replace the valve.

4. Inspect the Clutch and Gearbox: Check for worn or damaged clutch components and inspect the gearbox for any internal damage.

5. Examine Electrical Components: Check for any issues with electrical connections or sensors that may be affecting the shifting mechanism.


• Regularly check and maintain hydraulic fluid levels: Ensure that the fluid is at the correct level and is free from contaminants.

• Inspect the transmission linkage regularly: Look for signs of wear, and lubricate or replace parts as necessary.

• Service the transmission control valve: Clean or replace filters and ensure that the valve is functioning properly.

• Monitor clutch performance: Check for slippage and ensure that the clutch is properly adjusted.

• Keep the electrical system in good condition: Regularly inspect wiring and sensors for faults.


SANY’s Rise in the Excavator Market
SANY Heavy Industry, founded in 1989 in China, has grown into one of the world’s largest construction equipment manufacturers. By 2023, SANY had sold over 100,000 excavators globally, with strong market penetration in Southeast Asia, Africa, and Latin America. The SANY 215C is a mid-sized hydraulic excavator designed for general earthmoving, roadwork, and utility installation. It combines affordability with solid performance, making it popular among contractors seeking reliable machines without the premium price tag of Japanese or American brands.
Overview of the SANY 215C
The SANY 215C typically features an operating weight of around 21 tons, a bucket capacity of 1.0 cubic meter, and a digging depth exceeding 6.5 meters. Its hydraulic system uses a load-sensing design, allowing efficient power distribution and smooth control. The machine is equipped with reinforced boom and arm structures, a spacious cab with ergonomic controls, and a robust undercarriage suited for rough terrain.
One of the notable configurations of the 215C includes the Mitsubishi 4M50 engine—a four-cylinder diesel powerplant known for its balance of torque, fuel efficiency, and durability.

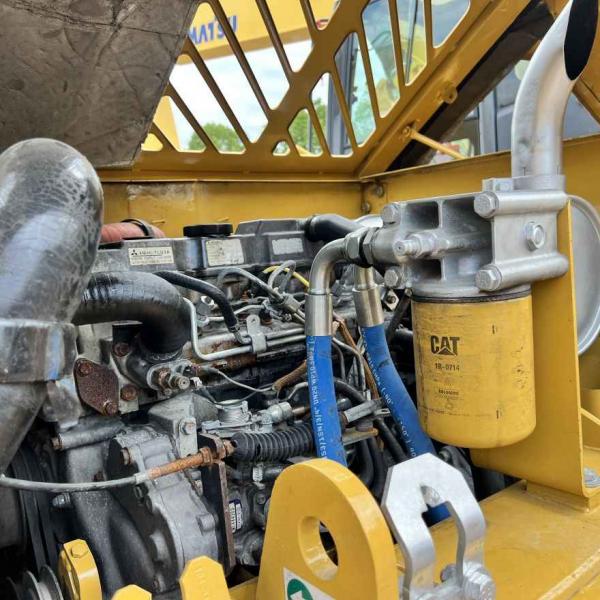

Mitsubishi 4M50 Engine Characteristics

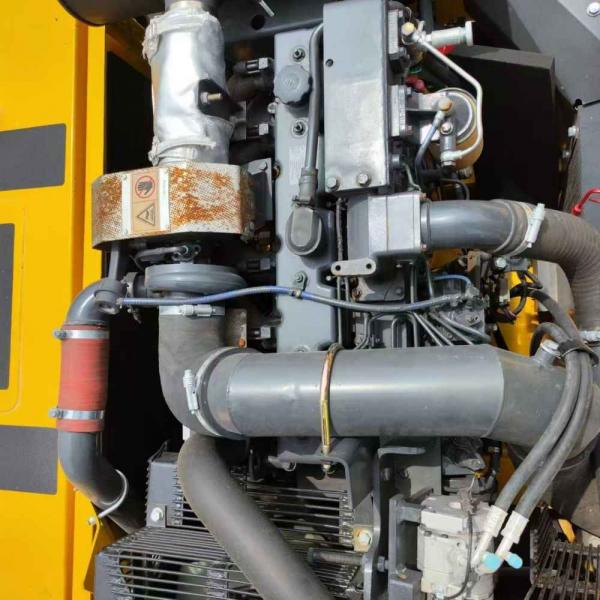

The 4M50 is a 4.9-liter inline-four turbocharged diesel engine originally developed for commercial trucks and industrial equipment. It features:

• Common rail fuel injection: Enhances combustion efficiency and reduces emissions.

• Turbocharger with intercooler: Improves power output and maintains performance under load.

• DOHC (Double Overhead Camshaft): Allows precise valve timing and better airflow.

• Electronic control unit (ECU): Manages fuel delivery and engine diagnostics.


• Local diesel specialists: Mechanics familiar with Mitsubishi truck engines can often service the 4M50.

• Online parts catalogs: Cross-referencing part numbers between truck and excavator variants.

• Custom rebuild kits: Assembled from compatible seals, gaskets, and injectors sourced from multiple suppliers.


• Secure a digital or printed shop manual: Essential for troubleshooting and part identification.

• Use OEM or high-quality aftermarket filters: Protects injectors and turbo from premature wear.

• Monitor ECU fault codes: A basic scan tool compatible with Mitsubishi protocols can save diagnostic time.

• Keep cooling system clean: Flush radiators annually and inspect hoses for leaks.


The Volvo EC240B is a popular model in the medium-sized excavator range, offering versatility and durability for a range of applications including digging, grading, and material handling. However, like all heavy machinery, it can experience issues that affect its performance. One common problem that operators may encounter is slow operation during single-function movements, while simultaneous multi-function movements appear normal. This issue can be perplexing but is typically related to a few key areas of the hydraulic and electronic systems. Understanding the root causes and troubleshooting effectively can help get the machine back to optimal performance.
Overview of the Volvo EC240B
The Volvo EC240B is a 24-tonne tracked excavator, renowned for its fuel efficiency, hydraulic performance, and operator comfort. It is equipped with a 6-cylinder engine and a powerful hydraulic system designed for tough construction and demolition jobs. Despite its robust design, the excavator is still subject to mechanical and hydraulic issues that can lead to operational inefficiencies.
Common symptoms of malfunction can include slow movement when performing single functions, such as extending the boom or operating the arm. While multi-function movements, like boom and arm or boom and bucket working together, may function correctly, single-function tasks tend to be slower than expected. This problem typically arises from issues in the hydraulic system or the control systems responsible for regulating those functions.
Understanding Hydraulic System Basics
The Volvo EC240B uses a sophisticated hydraulic system to power its various functions, including boom lift, arm extension, and bucket operation. The system relies on hydraulic fluid, pumps, and valves to distribute power to different cylinders that perform specific tasks. Proper operation of the hydraulic system ensures smooth, rapid movements.
The system includes:

• Hydraulic Pumps: These are responsible for generating the hydraulic pressure needed to move various components.

• Hydraulic Valves: These control the direction and amount of fluid flowing to each hydraulic actuator (cylinder).

• Hydraulic Cylinders: These are the actuators that perform the mechanical work, moving the boom, arm, or bucket.

• Hydraulic Fluid: The medium that transmits power in the system.


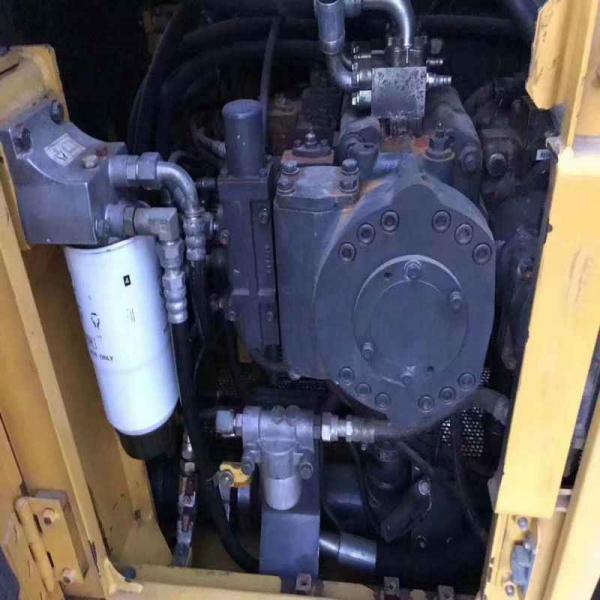

1. Hydraulic Pump Issues
   A slow or malfunctioning hydraulic pump can lead to reduced flow rates and insufficient pressure for single-function movements. This can be caused by pump wear, air in the hydraulic system, or issues with the hydraulic fluid quality or levels.
   • Symptoms: Sluggish movement of a single function, low pressure reading on the hydraulic system, or uneven operation of the boom, arm, or bucket when operated individually.

   • Solution: Inspect the hydraulic pump for signs of wear or damage. Check the hydraulic fluid levels and ensure that there are no air pockets in the system. If the fluid is dirty or contaminated, replace it and clean the system. In severe cases, the pump may need to be rebuilt or replaced.

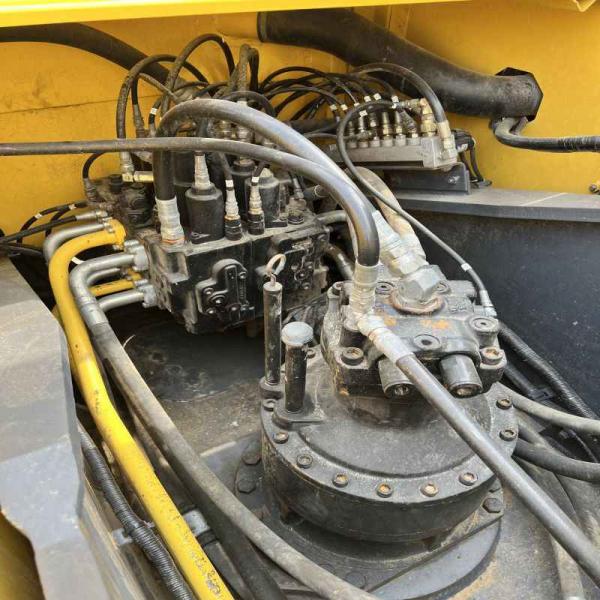

2. Hydraulic Valve Malfunctions
   The hydraulic valves control the flow of fluid to different cylinders. If one of these valves is malfunctioning, it can restrict the flow of hydraulic fluid to the cylinder responsible for the single-function movement. This issue is commonly related to wear and tear, improper valve settings, or a failure of the solenoid valves controlling specific functions.
   • Symptoms: Slower movement or hesitation during the operation of a single function, such as the boom or arm. Multiple functions may still operate correctly in tandem.

   • Solution: Perform a diagnostic check on the hydraulic control valves, particularly the ones linked to the affected function. Look for signs of wear or blockage in the valve or the solenoid. Cleaning the valve or replacing the solenoid can restore normal function. If the valve is faulty, it may need to be replaced.

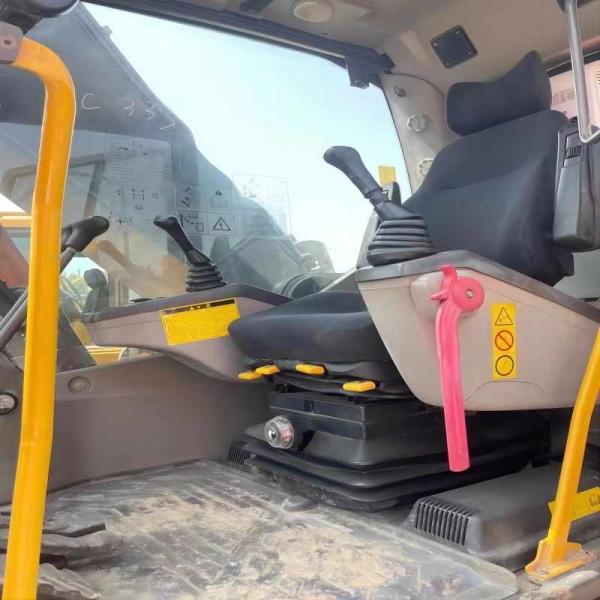

3. Control Lever Calibration or Issues
   The control system on the Volvo EC240B relies on precise calibration to ensure smooth operation. Issues with the joystick or control levers may cause a mismatch between the operator’s input and the machine’s hydraulic response. This is less common but can be a contributor to the issue.
   • Symptoms: Inconsistent or slow response when the operator engages a single function, while multiple functions operate normally.

   • Solution: Check the calibration of the joysticks or control levers. Sometimes recalibration can resolve the issue if the sensors or wiring connected to the levers are misaligned or malfunctioning. In some cases, the control module may require resetting or recalibration.

4. Hydraulic Fluid Contamination or Degradation
   The quality of the hydraulic fluid is crucial for the efficient operation of the machine. Contaminated or degraded hydraulic fluid can cause the pump, valves, and cylinders to work less efficiently, leading to slow or sluggish function during single movements.
   • Symptoms: General sluggishness in hydraulic operations, including slow movements of the boom, arm, or bucket. Overheating of the hydraulic fluid or low fluid levels can exacerbate this problem.

   • Solution: Check the hydraulic fluid quality and condition. If the fluid appears dirty, cloudy, or contaminated with debris, it should be replaced. Additionally, check for any leaks in the hydraulic lines that may cause fluid loss. Always use the recommended fluid type and maintain proper fluid levels.

5. Cylinder Wear or Leakage
   Hydraulic cylinders can wear out over time, particularly if they are subjected to high pressures and heavy workloads. A leaking or damaged cylinder can cause reduced performance in single-function operations.
   • Symptoms: Slow or jerky movement, especially during single-function movements, such as lifting or extending the boom or arm.

   • Solution: Inspect the hydraulic cylinders for signs of leakage, cracks, or damage. Ensure that seals are intact and there is no external leakage. If the cylinder is damaged, it may need to be repaired or replaced to restore smooth operation.


1. Check Hydraulic Fluid: Ensure that the fluid levels are adequate and the fluid quality is up to standard. Replace or top up the fluid if necessary.

2. Inspect the Hydraulic Pump and Valves: Look for any signs of wear or damage. If necessary, consult a technician to check for low pressure or a malfunctioning pump.

3. Test Control System: Ensure that the joysticks and control levers are calibrated and responsive. Recalibrate if necessary.

4. Monitor Hydraulic Pressure: Use a pressure gauge to check for normal pressure readings. Low pressure may indicate a problem with the pump or valves.

5. Look for Leaks: Check all hydraulic lines, cylinders, and valves for signs of leakage or wear. Replace or repair any damaged components.


• Change hydraulic fluid regularly and use the correct fluid for the model.

• Replace filters according to the manufacturer’s recommended schedule.

• Perform periodic inspections of hydraulic hoses and connections for signs of wear or damage.

• Calibrate control systems annually or after any significant repairs.

• Test hydraulic pressure and performance regularly to ensure that all components are functioning properly.


Komatsu PC200-6 Excavator Overview
The Komatsu PC200-6 is a mid-sized hydraulic excavator introduced in the 1990s as part of Komatsu’s sixth-generation lineup. Known for its balance of power, fuel efficiency, and reliability, the PC200-6 was widely adopted across Asia, North America, and Europe. Komatsu, founded in 1921 in Japan, has become one of the world’s leading construction equipment manufacturers, with millions of excavators sold globally. The PC200-6 typically features a Komatsu S6D102 diesel engine producing around 140 horsepower, a maximum operating weight of approximately 20 metric tons, and a hydraulic system capable of delivering up to 200 liters per minute.
Understanding the TVC Controller
One of the key components in the PC200-6’s hydraulic system is the TVC controller (Throttle Valve Control), which manages hydraulic flow and engine speed coordination. This controller ensures that hydraulic demands are matched with engine output, optimizing fuel consumption and preventing overload. In models with serial numbers 82001 and above, the TVC controller is located behind the operator’s seat, mounted on the right side of the cab wall. It features three plug-in connectors—C01 (17-pin), C02 (20-pin), and C03 (16-pin)—which interface with the machine’s electronic control system.
Symptoms of Hydraulic Malfunction
When the TVC controller malfunctions or loses connection, operators may experience:

• Delayed or weak hydraulic response: Boom, arm, or bucket movements may become sluggish.

• Erratic engine RPM during operation: The engine may surge or stall when hydraulic functions are engaged.

• Warning lights or fault codes: The machine’s diagnostic system may flag communication errors or sensor faults.


• Inspect TVC controller connectors: Check for corrosion, bent pins, or loose plugs. Clean with contact cleaner and reseat firmly.

• Verify power supply and grounding: Use a multimeter to confirm voltage at the controller and continuity to ground.

• Scan for fault codes: Use Komatsu’s diagnostic tool to retrieve error codes and identify sensor or communication failures.

• Test hydraulic pressure manually: If electronic diagnostics are inconclusive, use a pressure gauge to verify pump output and actuator response.


• Secure all cab-mounted electronics: Vibration and movement can loosen connectors over time.

• Protect against moisture: Use dielectric grease on plugs and ensure cab seals are intact.

• Update software when available: Some PC200-6 units may benefit from firmware updates to improve controller logic.

• Document serial numbers and connector types: This simplifies future troubleshooting and part sourcing.


The Case CX130B, a well-regarded model in the construction and excavation sectors, is known for its reliability and efficiency. However, like any piece of heavy machinery, it is prone to occasional issues, one of the most frustrating being when the engine starts running rough and eventually shuts down. This problem can be disruptive, especially when working in critical conditions where uptime is essential. Understanding the potential causes of this issue, as well as how to troubleshoot and resolve it, can save time and money.
Understanding the Case CX130B Excavator
The Case CX130B is a 13-tonne crawler excavator that offers a blend of power, performance, and fuel efficiency. It’s equipped with a 4.5-liter turbocharged engine, designed to deliver the necessary power for tasks ranging from digging and lifting to material handling and grading. With an emphasis on high productivity and low operational costs, the CX130B has become a favorite in industries such as construction, agriculture, and landscaping.
Despite its sturdy design, problems with engine performance can arise due to various internal or external factors. One of the more common issues operators face is when the engine begins running rough and subsequently shuts down, disrupting work and causing delays. This issue can stem from several sources, ranging from fuel-related problems to sensor malfunctions.
Common Causes of Rough Running and Shutdowns
Several factors can contribute to the rough running of the Case CX130B engine, eventually leading to a shutdown. Understanding these causes can help with quicker diagnosis and resolution.

1. Fuel System Issues
   One of the first areas to check when an excavator begins running rough is the fuel system. Dirty or contaminated fuel, clogged filters, or issues with the fuel injectors can disrupt the smooth operation of the engine.
   • Symptoms: Loss of power, erratic idling, and engine sputtering or misfiring. The engine may run fine at low speeds but stutter under load.

   • Solution: Begin by inspecting the fuel filters and fuel lines for any blockages or visible damage. If the fuel is contaminated, consider draining the system and replacing the fuel with fresh, high-quality diesel. Cleaning or replacing the fuel injectors can also help resolve misfiring issues caused by a disrupted fuel spray.

2. Air Intake Blockage
   Air is crucial for combustion, and any issues in the air intake system, such as a clogged air filter, can cause the engine to run rough and even shut down. A blocked air filter will prevent the engine from receiving enough air, leading to incomplete combustion.
   • Symptoms: The engine may start fine but lose power and struggle to maintain RPM as the air supply becomes restricted. This issue can cause stalling during operation, especially under load.

   • Solution: Check and replace the air filter if it appears dirty or clogged. Ensuring proper airflow through the intake system is crucial for optimal engine performance.

3. Faulty Fuel Injectors
   Diesel engines, like the one in the Case CX130B, rely heavily on the proper functioning of fuel injectors. A faulty injector can cause uneven fuel delivery, leading to rough running, misfiring, and even stalling.
   • Symptoms: The engine may run rough, emit excessive smoke, or fail to start. When a fuel injector is faulty, it can result in a misfire and an uneven power output.

   • Solution: Test the fuel injectors for proper functionality. If one or more injectors are malfunctioning, they should be replaced or serviced to ensure that fuel is delivered correctly to the combustion chamber.

4. Sensor or Electronic Control Malfunction
   The Case CX130B uses a series of electronic sensors to monitor and adjust various engine parameters such as fuel mixture, exhaust gases, and air intake. A malfunction in one of these sensors or the engine control module (ECM) can cause the engine to behave erratically or shut down unexpectedly.
   • Symptoms: The engine may start and run for a short period before shutting down. You might also notice warning lights or fault codes on the display.

   • Solution: Use a diagnostic scanner to check for any error codes in the system. If there are faults related to sensors, such as the crankshaft position sensor or the mass airflow sensor, replace them accordingly. If the ECM is malfunctioning, it may require reprogramming or replacement.

5. Fuel Pump Problems
   The fuel pump is essential for delivering fuel from the tank to the injectors. If the fuel pump is not functioning properly, it can result in inadequate fuel supply to the engine, leading to rough operation and shutdowns.
   • Symptoms: The engine may start but quickly loses power. If the fuel pump is failing, the engine may sputter and eventually shut off, particularly when under load.

   • Solution: Check the fuel pump for signs of wear or damage. Ensure that it is delivering the correct pressure, as insufficient fuel pressure can disrupt combustion. If necessary, replace the fuel pump with a new one.

6. Electrical Problems
   Loose or corroded electrical connections can disrupt the power supply to key engine components. If the alternator or battery isn’t supplying sufficient voltage, the engine may shut down unexpectedly.
   • Symptoms: Unstable engine performance, starting issues, or intermittent stalling.

   • Solution: Inspect all electrical connections, including the battery terminals, alternator, and wiring harnesses. Clean or replace any corroded or damaged components. Ensure that the battery is charged and the alternator is functioning properly.


1. Inspect Fuel System: Check the fuel filters, fuel lines, and fuel injectors. Replace the fuel filters and clean or replace any clogged components. If the fuel is contaminated, drain the tank and replace it with clean diesel.

2. Check Air Filter and Intake: Inspect the air filter for dirt or damage. Replace the filter if necessary and ensure that the intake system is clear of obstructions.

3. Run Diagnostic Scans: If the engine is still malfunctioning after addressing fuel and air systems, run a diagnostic scan to check for fault codes. These codes can indicate which sensors or parts are malfunctioning.

4. Test Electrical Components: Inspect the battery, alternator, and wiring harnesses for signs of corrosion or damage. Ensure that all electrical connections are secure.

5. Consult the Operator’s Manual: Always refer to the operator’s manual for specific troubleshooting steps for the Case CX130B. Following the manufacturer’s guidelines will ensure that repairs are performed correctly.


• Replace fuel and air filters at regular intervals.

• Inspect fuel injectors and fuel pumps during routine maintenance.

• Keep an eye on electrical connections, especially in harsh working environments.

• Perform regular diagnostic checks to ensure that sensors and the ECM are functioning correctly.


Overview of the Cat 301.8
The Caterpillar 301.8 is a compact hydraulic excavator designed for tight job sites, utility work, and landscaping. Introduced in the early 2000s, it belongs to Caterpillar’s 300-series mini excavators, which have sold hundreds of thousands of units globally. Caterpillar, founded in 1925, is the world’s largest construction equipment manufacturer, and its mini excavators are known for reliability, ease of maintenance, and operator comfort.
The 301.8 typically features a 17.7-horsepower diesel engine, a maximum digging depth of around 7.5 feet, and an operating weight of approximately 4,000 pounds. Its hydraulic system is designed for smooth control of the boom, arm, and bucket, with joystick-operated pilot controls.
Symptoms of Grinding Noise During Operation
A recurring issue reported by operators is a grinding or vibration noise when using the right joystick to raise the boom. The sound is absent when lowering the boom or when using the left joystick, which controls other functions. This intermittent behavior suggests a localized mechanical or hydraulic anomaly.
Potential Causes and Diagnostic Path
Several factors could contribute to this grinding noise:

• Dry or Seized Pins in Linkage
  Pins and bushings in the boom linkage may lack lubrication, causing metal-on-metal contact. This is especially common in machines that operate in dusty environments or have skipped routine greasing. Applying high-pressure grease to all pivot points, especially those connected to the boom cylinder, often resolves the issue.

• Hydraulic Cavitation or Foaming
  If the hydraulic fluid is aerated or foaming, it can cause erratic movement and noise. This may result from low fluid levels, contaminated oil, or a failing return filter. Operators should inspect the hydraulic tank for signs of froth and ensure fluid levels are within specification.

• Joystick Valve Wear or Contamination
  The right joystick may have internal wear or contamination affecting its proportional control. A sticky spool or debris in the valve body can cause uneven pressure delivery, leading to vibration or grinding sensations. Cleaning or replacing the joystick valve may be necessary.

• Boom Cylinder Issues
  Internal scoring or seal degradation in the boom lift cylinder can cause uneven extension, especially under load. This may manifest as grinding or jerking during upward movement. A cylinder rebuild or replacement may be required if diagnostics confirm internal damage.


• Grease all pivot points weekly: Use high-quality lithium-based grease and ensure full coverage.

• Inspect hydraulic fluid monthly: Look for discoloration, contamination, or foaming.

• Replace filters every 500 hours: Include both return and pilot filters.

• Monitor joystick response: Any delay or stiffness may indicate internal wear.

• Warm up the machine in cold weather: Allow hydraulic fluid to reach optimal viscosity before heavy operation.


In the realm of diesel engine maintenance, a leaking injector line is a common but critical issue that can lead to engine inefficiency, performance issues, and even further damage if left unresolved. Diesel engines, particularly in heavy equipment such as excavators, skid steers, and trucks, rely on the injector lines to deliver fuel under high pressure to the injectors. These lines must be kept intact for optimal performance and fuel efficiency. This article will explore the common causes, symptoms, and solutions for dealing with leaking injector lines.

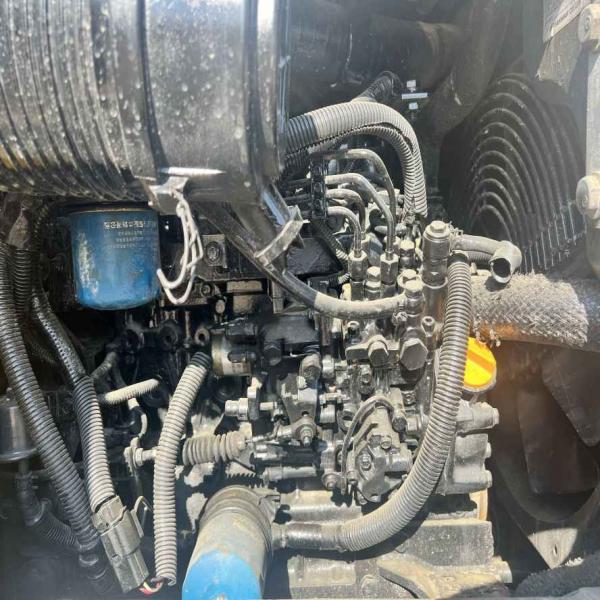

Understanding the Function of Injector Lines
Injector lines, often referred to as fuel lines or injection lines, carry pressurized fuel from the fuel pump to the injectors. These lines are typically made of high-strength steel or flexible materials designed to withstand the pressure and temperature of the fuel delivery system. In diesel engines, fuel must be delivered at very high pressures to ensure proper combustion, making these lines essential for the engine’s overall function.
The injector lines are subject to significant stress due to the constant pressure from the fuel pump and the high temperatures of the engine. A leak in the injector line can disrupt this delicate balance, causing a drop in fuel pressure and ultimately affecting engine performance.
Common Causes of Leaking Injector Lines
Several factors can contribute to the leaking of injector lines. These include:

1. Wear and Tear
   Over time, injector lines can degrade due to constant pressure, high temperatures, and exposure to fuel. The metal or rubber material can wear down, leading to cracks or holes that allow fuel to leak out.
   • Symptoms: Gradual fuel leakage or signs of wetness around the injector lines after the engine has been running for a period of time.

   • Solution: Regular inspection and replacement of injector lines as part of scheduled maintenance.

2. Improper Installation
   When injector lines are installed incorrectly, such as using the wrong torque when tightening the connections or not aligning the lines properly, this can result in leaks. Over-tightening or under-tightening the fittings can also lead to stress on the lines, causing leaks.
   • Symptoms: Leaking fuel around the injector connection points immediately after installation or after the engine has been running for a short time.

   • Solution: Ensure that injector lines are installed according to the manufacturer's specifications, with the correct torque and alignment.

3. Faulty Injector Line Fittings
   The fittings that connect the injector lines to the injectors or the fuel pump can become loose or damaged over time. Corrosion, improper tightening, or wear on these fittings can lead to leaks.
   • Symptoms: Fuel leakage at the connection points, often accompanied by a noticeable fuel smell or visible puddles under the vehicle or equipment.

   • Solution: Inspect and replace damaged or worn-out fittings. Re-tighten fittings if necessary, ensuring they are snug but not over-tightened.

4. Fuel Contamination
   Contaminants in the fuel, such as dirt, water, or other particles, can cause the injector lines to corrode or clog. Corrosion can weaken the metal, leading to cracks or leaks in the lines.
   • Symptoms: A gradual loss of power, rough idling, or the smell of fuel that seems stronger than usual.

   • Solution: Install fuel filters and regularly check the fuel system for contamination. In cases of corrosion, the affected lines may need to be replaced.

5. Overpressurization
   A malfunctioning fuel pump or a faulty pressure regulator can cause the fuel pressure in the lines to rise beyond the designed limits. This excessive pressure can cause the injector lines to rupture or develop leaks.
   • Symptoms: Sudden fuel leaks and a noticeable increase in fuel consumption or smoke from the exhaust.

   • Solution: Inspect and repair the fuel pump or pressure regulator. Replace any damaged injector lines that have been exposed to excessive pressure.


• Visible Fuel Leaks: The most obvious sign of a leaking injector line is visible fuel around the injector or along the line itself. Fuel leaks can accumulate on the engine block or drip onto the ground, posing a fire hazard.

• Engine Misfires or Poor Performance: A leaking injector line can lead to inconsistent fuel delivery to the engine, causing misfires, rough idling, or poor acceleration.

• Increased Fuel Consumption: A leak in the injector line can result in an increase in fuel consumption as the engine compensates for the loss of fuel pressure.

• Strong Fuel Odor: A strong smell of diesel fuel near the engine, especially when the vehicle is running, is often a sign that fuel is leaking from one of the injector lines.

• Engine Warning Lights: In some cases, a leaking injector line may trigger warning lights on the dashboard, particularly if it causes the engine to run lean or too rich.


1. Replace Damaged Injector Lines
   If the injector line is severely damaged or corroded, it will need to be replaced entirely. This is a relatively simple procedure but requires proper knowledge of the vehicle or equipment’s fuel system.
   • Procedure: Disconnect the battery, drain any fuel in the lines, and then remove the damaged injector line. Install the new line by following the manufacturer’s specifications for torque and alignment. Ensure that the fittings are tightened correctly and check for leaks before starting the engine.

2. Tighten or Replace Fittings
   In some cases, the problem may lie with the fittings rather than the injector line itself. If a fitting has come loose or is damaged, it can cause fuel to leak out. Tighten or replace the fittings as needed.
   • Procedure: Use the proper tools to tighten the fittings to the manufacturer’s recommended torque specifications. If the fittings are damaged or corroded, replace them before reassembling the system.

3. Address Fuel Contamination
   To prevent fuel contamination from causing future issues, regularly check and replace fuel filters. Using high-quality fuel and maintaining a clean fuel system can extend the life of the injector lines.

4. Repair the Fuel Pump or Pressure Regulator
   If over-pressurization is the cause of the leak, the fuel pump or pressure regulator may need to be repaired or replaced. This will restore the proper fuel pressure and prevent further damage to the injector lines.
   • Procedure: Inspect the fuel pump and pressure regulator for any signs of malfunction. Replace the components if necessary, and ensure that the system is functioning within the correct pressure range.


• Regularly inspect the injector lines and fittings for signs of wear, corrosion, or damage.

• Replace fuel filters at recommended intervals to prevent contaminants from entering the system.

• Follow the manufacturer's recommendations for injector line maintenance and replacement.

• Use high-quality fuel to reduce the chances of contaminants affecting the injector lines.


The Role of Hydraulic Fluid in Excavator Performance
Hydraulic fluid is the lifeblood of any modern excavator, transmitting power, lubricating components, and dissipating heat. In high-performance machines like the Komatsu PC490LC-10, selecting the correct hydraulic oil is not just a matter of preference—it directly affects efficiency, component longevity, and cold-weather reliability. With the wrong fluid, operators risk sluggish response, premature wear, and even catastrophic system failures.
Komatsu PC490LC-10 Overview
The PC490LC-10 is a heavy-duty hydraulic excavator developed by Komatsu, a Japanese manufacturer with a legacy dating back to 1921. Komatsu is the world’s second-largest construction equipment maker, and the PC490LC-10 reflects its commitment to durability and innovation. Introduced in the early 2010s, this model features a Tier 4 Final Komatsu SAA6D125E-6 engine producing approximately 359 horsepower. With an operating weight of around 106,000 pounds and a bucket capacity up to 3.5 cubic yards, it’s designed for mass excavation, quarry work, and large-scale infrastructure projects.
The hydraulic system is central to its performance, with a closed-center load-sensing system delivering up to 113 gallons per minute. This makes fluid selection critical, especially in regions with wide temperature swings like Minnesota, where winter temperatures can drop below -20°F.
AW46 vs. L-HV46 Hydraulic Fluids
Two common options for hydraulic fluid in this context are AW46 and L-HV46. Both are ISO VG 46 grade oils, meaning they share the same viscosity at 40°C (approximately 46 centistokes), but their performance characteristics differ significantly.

• AW46 (Anti-Wear 46)
  This is a standard mineral-based hydraulic oil with anti-wear additives. It performs well in moderate climates and is widely available at a lower cost. However, its viscosity can increase significantly in cold temperatures, leading to sluggish system response during startup.

• L-HV46 (Low-Viscosity-Index Hydraulic Oil)
  This fluid is engineered with a higher viscosity index (VI), meaning it maintains more consistent viscosity across a broader temperature range. It typically contains additives that improve oxidation resistance and thermal stability. L-HV46 is ideal for cold climates or systems that experience wide temperature fluctuations.


• Drain completely: Ensure all old fluid is removed, including from cylinders and lines.

• Replace filters: Always install new hydraulic filters during a fluid change.

• Warm the machine: If changing fluid in cold weather, pre-warm the system to improve drainage.

• Label and document: Record the fluid type, brand, and change date for future reference.


In the world of earthmoving and grading, the concept of "ending a pass" is critical to achieving a smooth, level, and efficient surface, whether in construction, road building, or other large-scale projects. This article dives into the practice of ending a pass, examining the techniques, challenges, and equipment used to properly complete a pass during grading. The goal is to ensure that the surface is uniform, free of excess material, and ready for the next phase of construction or for laying foundations, pavement, or landscaping.
Understanding the Basics of a Pass in Grading
Before we delve into the specifics of how to end a pass, it’s important to understand what a "pass" means in the context of grading. A pass refers to one complete pass of a machine (such as a bulldozer, motor grader, or skid steer) over the work area. The purpose of each pass is to level or move material, creating a consistent grade across the entire area.
A grading pass is typically followed by another pass that either refines the work from the previous pass or smoothens any rough patches left behind. The goal of multiple passes is to ensure that the ground is properly prepared for its intended use.
Key Techniques for Ending a Pass
Ending a pass successfully requires a combination of proper machine technique, understanding of material behavior, and attention to detail. Below are some critical techniques to consider:

1. Feathering the Edge
   Feathering refers to the technique of gradually tapering off the material towards the end of the pass. It prevents the formation of unwanted ridges or troughs and ensures that the material smoothly transitions into the surrounding area.
   • How to Feather: As the machine approaches the end of the pass, lift the blade slightly and move in a direction that reduces the material volume gradually. This technique avoids creating high spots and allows for a smoother finish.

   • Why it Matters: Feathering prevents abrupt transitions and reduces the need for rework, saving time and material costs.

2. Maintaining Constant Speed and Blade Position
   One of the most important aspects of ending a pass properly is maintaining a consistent speed and blade position. Variations in speed or blade height can result in uneven surfaces, leaving high spots or gouges in the material.
   • Speed Consistency: Maintaining a steady, controlled speed ensures that the material is moved consistently and uniformly.

   • Blade Adjustment: Small adjustments to the blade height during the final part of a pass can make a big difference in the smoothness of the surface. Lifting the blade too high too quickly can leave the surface uneven.

3. Edge Control
   The edge of the material at the end of a pass should be smooth and even with the surrounding area. If the edge is too steep or irregular, it can cause issues in subsequent passes, such as the need for more material to fill in gaps.
   • Control Techniques: As you approach the end of a pass, slowly reduce the blade depth and adjust the angle of the machine to ensure the edge is consistent and blends smoothly with the surrounding ground.

   • Avoid Overloading the Blade: A common mistake when ending a pass is to overload the blade with too much material. This can result in an uneven surface and excessive material being pushed forward, which requires additional passes to correct.

4. Final Pass for Smoothness
   The final pass is crucial for ensuring that the surface is as smooth as possible. For this, a motor grader or bulldozer should make a light, almost “floating” pass over the surface, with minimal blade contact.
   • Light Pass: The lighter the pass, the smoother the surface. The goal here is to remove small ridges, smooth out the surface, and level any remaining bumps or low spots.

   • Use of Laser or GPS Systems: Many modern graders and dozers are equipped with laser or GPS systems that ensure the blade remains at the correct height for precise grading. These systems assist in achieving a level, smooth surface across large areas.


1. Uneven Material Distribution
   If the material being moved is unevenly distributed, it can result in inconsistent grading, particularly at the end of a pass. This is often the result of irregular load sizes or uneven material properties, such as moisture content.
   • Solution: Operators must continuously monitor and adjust their equipment to compensate for variations in material. It’s often necessary to adjust the speed of the machine or the blade position to achieve even material distribution.

2. Operator Fatigue
   Long hours of operating heavy machinery can lead to operator fatigue, which can affect precision during grading. Fatigue is particularly problematic when trying to make fine adjustments at the end of a pass, as even slight misjudgments can lead to significant surface imperfections.
   • Solution: Regular breaks and rotating operators can help minimize fatigue and ensure that all passes are completed with the necessary attention to detail.

3. Inconsistent Machine Settings
   Not all grading machines are set up the same way. Operators must adjust the machine’s settings (blade height, angle, etc.) to fit the specific conditions of each pass. This can be difficult if the machine has not been calibrated properly or if it has not been maintained.
   • Solution: Operators should ensure that their equipment is properly maintained and calibrated, and they should be familiar with the specific settings for the task at hand. Regular maintenance helps minimize problems caused by machine inconsistencies.


1. GPS and Laser Technology
   Modern graders are equipped with GPS and laser systems that can automatically adjust the blade height and angle based on real-time data. This technology allows for precise grading, even in challenging conditions. GPS systems can control the blade in three dimensions, ensuring that the final pass is as smooth and level as possible.

2. 3D Grading Systems
   More advanced 3D systems use digital designs and on-board computers to provide real-time data on the job site. Operators can follow pre-programmed designs, ensuring that each pass is completed exactly according to plan, significantly reducing the chances of errors.
