Legacy Equipment and the Parts Dilemma
As heavy equipment ages, sourcing replacement parts becomes increasingly difficult. This is especially true for machines like the Link-Belt LS3000 excavator and the Warner & Swasey H550 hydraulic cylinder. These machines, once staples of construction and industrial operations, now pose logistical and mechanical challenges due to their age and the obsolescence of their components.
The Link-Belt LS3000 Excavator
The LS3000 was part of Link-Belt’s early hydraulic excavator lineup, developed during the 1970s and 1980s when the company was transitioning from cable-operated cranes to hydraulic machinery. Link-Belt, originally founded in 1874 in Chicago, became known for its robust construction equipment. The LS3000 was powered by a Cummins diesel engine and featured a conventional swing system, open-loop hydraulics, and a mechanical control system. It was widely used in pipeline work, quarry operations, and general excavation.
Despite its durability, the LS3000 is now considered a legacy machine. Production ceased decades ago, and many of its OEM parts are no longer manufactured. This includes critical components such as swing motors, final drives, and hydraulic pumps. Owners often rely on salvage yards, custom fabrication, or retrofitting newer components to keep these machines operational.
Warner & Swasey H550 Cylinder
Warner & Swasey, a Cleveland-based company founded in 1880, was a pioneer in machine tools and hydraulic systems. The H550 cylinder was a heavy-duty hydraulic actuator used in a variety of industrial applications, including cranes, presses, and large excavators. Known for its rugged construction and high-pressure tolerance, the H550 was built to last—but even the most robust cylinders require seals, rods, and gland nuts to be replaced over time.
The challenge lies in the fact that Warner & Swasey ceased manufacturing hydraulic components decades ago. Their product lines were absorbed by other companies, and documentation is scarce. For example, a user seeking a gland nut for an H550 cylinder may find that part numbers are no longer valid, and dimensions must be reverse-engineered from the existing component.
Strategies for Sourcing Obsolete Parts
When OEM parts are no longer available, equipment owners must turn to alternative strategies:

• Salvage Yards: Specialized heavy equipment recyclers may have used parts from decommissioned machines. These can be refurbished or used as-is.

• Custom Machining: For components like gland nuts or cylinder rods, a skilled machinist can fabricate replacements using original dimensions or reverse engineering.

• Hydraulic Shops: Some hydraulic repair shops specialize in rebuilding obsolete cylinders. They may stock compatible seals or offer custom seal kits.

• Cross-Referencing: In some cases, parts from other manufacturers may be compatible. This requires careful measurement and material matching.


• Document Everything: Keep detailed records of part numbers, dimensions, and modifications.

• Network with Other Owners: Online forums, trade shows, and local contractors can be valuable sources of information and parts.

• Invest in Preventive Maintenance: For machines with hard-to-find parts, proactive maintenance is critical to avoid catastrophic failures.

• Consider Upgrades: In some cases, retrofitting newer hydraulic systems or engines may extend the life of the machine and simplify future repairs.


The Caterpillar 301.4C mini excavator is a versatile piece of heavy machinery designed for tight workspaces and various small-to-medium construction tasks. Known for its compact size, efficiency, and reliability, the 301.4C has become a popular choice for operators who need a maneuverable yet powerful machine. Proper servicing and regular maintenance are crucial to keep this machine running smoothly and avoid costly repairs. This article will discuss the importance of servicing the Cat 301.4C, provide a step-by-step guide on how to service it, and highlight key maintenance practices.
Overview of the Cat 301.4C Mini Excavator
The Cat 301.4C is a small, but highly efficient, mini excavator produced by Caterpillar. It features a low operating weight, compact dimensions, and a high lifting capacity relative to its size. It is particularly well-suited for tasks such as trenching, lifting, and small demolition projects in tight spaces where larger machinery cannot access. The 301.4C is equipped with a 4-cylinder diesel engine that provides reliable power while maintaining fuel efficiency.
The 301.4C is also designed with ease of operation in mind. Its hydraulic system offers precise control, and the operator's station is ergonomically designed for comfort and productivity. However, like all machinery, the 301.4C requires proper care and attention to maintain peak performance over time.
Common Maintenance Tasks for the Cat 301.4C
Regular maintenance is key to extending the lifespan of any heavy equipment, and the Cat 301.4C is no exception. Below are some of the most common maintenance tasks that operators should perform regularly to ensure optimal performance:

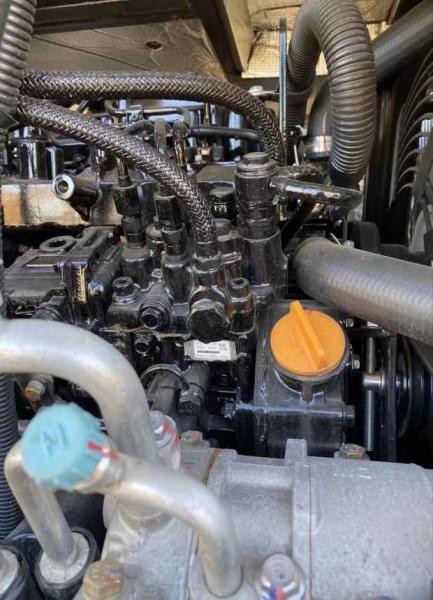

1. Engine Oil and Filter Change
   The engine oil is critical for lubricating the moving parts of the engine and preventing wear. Over time, engine oil breaks down and loses its ability to lubricate effectively, leading to increased friction and the potential for engine damage. Therefore, it is essential to change the engine oil and oil filter at the recommended intervals.
   • Recommended Interval: Typically every 250 hours of operation or as specified in the operator’s manual.

   • Procedure: Drain the old oil, replace the oil filter, and refill with the recommended grade of engine oil. Always use high-quality oil to ensure proper engine lubrication.

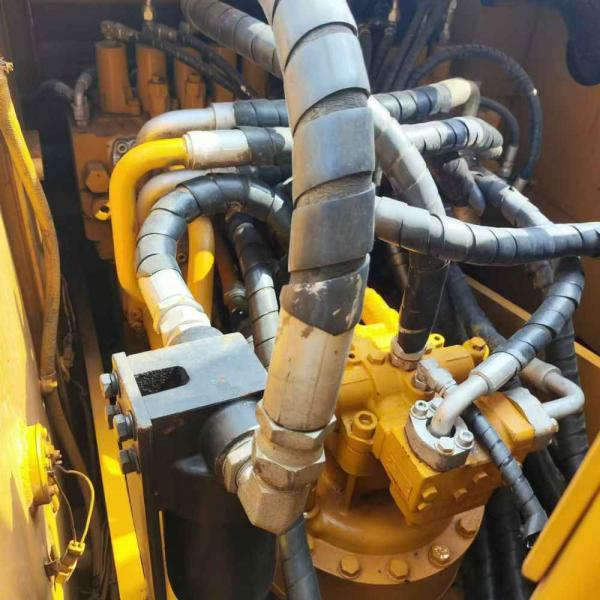

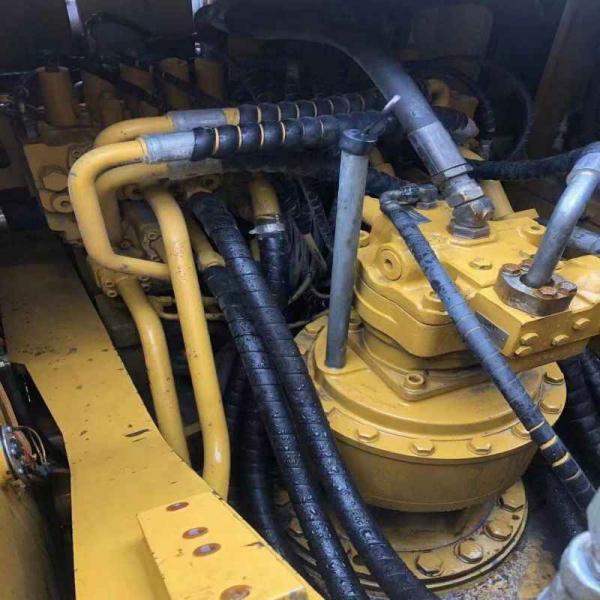

2. Hydraulic System Maintenance
   The hydraulic system in the Cat 301.4C powers the boom, bucket, and arm movements, as well as the travel drive. Regular maintenance of the hydraulic system is crucial to avoid issues such as low hydraulic pressure, erratic movement, or system failure.
   • Hydraulic Fluid: Check the hydraulic fluid levels regularly and top up if necessary. Contaminated or old hydraulic fluid should be drained and replaced at intervals recommended by Caterpillar.

   • Filters: Hydraulic filters need to be replaced regularly to prevent contaminants from damaging the system. A clogged filter can lead to poor hydraulic performance or even system damage.

   • Hoses and Connections: Inspect hydraulic hoses and connections for leaks, cracks, or wear. Damaged hoses should be replaced immediately to prevent hydraulic fluid loss and system malfunction.

3. Air Filter Replacement
   The air filter is responsible for keeping dust and debris out of the engine’s intake system. If the air filter becomes clogged, it can restrict airflow, leading to decreased engine performance and fuel efficiency.
   • Procedure: Check the air filter regularly for dirt buildup and replace it when necessary. A clean air filter improves engine performance and prolongs the life of the engine components.

4. Cooling System Inspection
   The cooling system keeps the engine temperature within safe operating limits. If the system becomes clogged or the coolant levels drop, the engine could overheat, leading to potential damage.
   • Coolant Check: Regularly check the coolant levels and ensure that the coolant is free from contaminants.

   • Radiator Inspection: Inspect the radiator for dirt buildup or any signs of damage. Clean the radiator fins and ensure that the cooling fans are working properly.

   • Coolant Flush: Perform a coolant flush every 1,000 hours of operation to maintain cooling efficiency and prevent corrosion in the system.

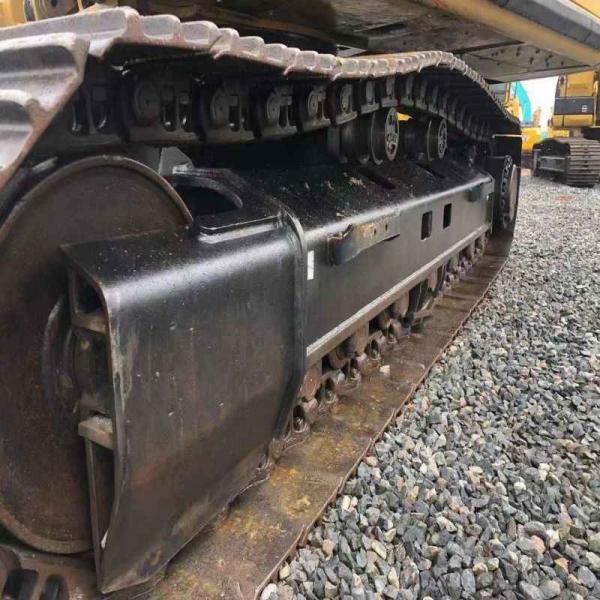

5. Track and Undercarriage Inspection
   The undercarriage, including the tracks, rollers, and sprockets, is critical for the mobility of the Cat 301.4C. Regular inspection and maintenance of the undercarriage help ensure smooth operation and reduce the risk of breakdowns.
   • Track Tension: Check the track tension regularly to ensure that they are properly adjusted. Too much slack can cause the tracks to slip, while too tight a tension can cause excessive wear.

   • Track Wear: Inspect the tracks for any signs of wear or damage. Replace any worn-out tracks to prevent operational issues.

   • Roller and Sprocket Check: Inspect the rollers and sprockets for wear. Lubricate them as necessary to ensure smooth movement of the tracks.

6. Battery Maintenance
   A well-maintained battery ensures reliable starting of the engine. The battery should be kept clean, and the connections should be free of corrosion.
   • Check Voltage: Regularly check the battery voltage and charge it as necessary.

   • Inspect Terminals: Ensure that the battery terminals are clean and the connections are tight. Corroded or loose terminals can prevent the machine from starting or lead to electrical issues.


1. Shut Down and Secure the Machine
   Always turn off the engine and engage the parking brake before beginning any maintenance work. This ensures safety and prevents accidental movements during servicing.

2. Gather Tools and Equipment
   Before beginning maintenance tasks, ensure you have all necessary tools and replacement parts. This may include wrenches, filters, lubricants, coolant, and gloves.

3. Change Fluids
   Drain the old fluids (engine oil, hydraulic fluid, coolant) and replace them with new fluids according to the manufacturer's specifications. Always dispose of used fluids properly to comply with environmental regulations.

4. Inspect and Replace Filters
   Replace the air, oil, and hydraulic filters based on the recommended intervals. Always use OEM (Original Equipment Manufacturer) parts for replacements to maintain the machine’s warranty and performance.

5. Visual Inspections
   After changing fluids and filters, perform a thorough visual inspection of key components, including the undercarriage, hydraulic hoses, electrical connections, and engine compartment. Look for signs of wear, leaks, or damage that may need attention.

6. Lubricate Moving Parts
   Apply grease to the grease points, including the joints, rollers, and other moving parts. Proper lubrication reduces friction, extends the life of the components, and ensures smoother operation.


1. Engine Won’t Start
   • Cause: A dead or faulty battery, clogged fuel filter, or bad starter.

   • Solution: Check the battery voltage, clean the terminals, and inspect the starter. Replace the fuel filter and inspect the fuel system for blockages.

2. Slow or Weak Hydraulic Performance
   • Cause: Low hydraulic fluid levels, clogged filters, or air in the hydraulic system.

   • Solution: Check hydraulic fluid levels, replace filters, and bleed the system to remove air.

3. Track Issues
   • Cause: Incorrect track tension or worn-out tracks.

   • Solution: Adjust the track tension and replace worn tracks or components.


Overview of the Bobcat 863
The Bobcat 863 is a mid-sized skid-steer loader that gained popularity in the late 1990s and early 2000s for its balance of power, maneuverability, and hydraulic performance. Manufactured by Bobcat Company, a division of Doosan Group since 2007, the 863 was part of a broader push to modernize compact equipment with improved operator comfort and engine reliability. Bobcat, originally founded in 1947 in North Dakota, has sold millions of loaders globally, with the 800-series contributing significantly to its market share in North America.
The 863 features a vertical lift path, making it suitable for loading trucks and handling heavy pallets. It typically comes equipped with a Deutz 1011F diesel engine, delivering around 73 horsepower. The rated operating capacity is approximately 1,900 pounds, with a tipping load near 3,800 pounds. Its hydraulic flow supports a wide range of attachments, from augers to trenchers.
Common Issues with High-Hour Units
Machines with over 6,000 hours, like the one discussed, often show signs of wear. One notable symptom is black smoke during startup, which can indicate incomplete combustion. This is typically caused by:

• Dirty or worn fuel injectors: Over time, injectors may clog or fail to atomize fuel properly, leading to rich mixtures and soot.

• Low compression: Worn piston rings or cylinder walls reduce combustion efficiency.

• Faulty glow plugs: In cold weather, poor pre-heating can delay ignition.

• Turbocharger wear: If equipped, a failing turbo can affect air-fuel ratios.


• Hydraulic performance: Check for slow response or whining sounds.

• Drive motor condition: Listen for grinding or slipping.

• Frame integrity: Inspect for cracks near lift arms or pivot points.

• Electrical system: Ensure gauges and warning lights function properly.


• Start the machine cold: Observe smoke, idle stability, and throttle response.

• Check hydraulic fluid color: Milky or dark fluid may indicate contamination.

• Inspect tire wear: Uneven wear suggests alignment or suspension issues.

• Review maintenance records: Look for regular oil changes and filter replacements.


Liebherr, a company renowned for its engineering prowess, manufactures a wide range of heavy machinery, including cranes, excavators, and dozers. Liebherr machines are known for their reliability and advanced technology. However, like all complex equipment, they may occasionally present operational issues. One such issue that has been observed in Liebherr equipment is a loud "roaring" noise when the machine slows down. This noise can be concerning to operators and may indicate underlying problems within the machine’s drivetrain, braking system, or hydraulics.
This article will dive into the possible causes of this "roaring" noise in Liebherr machines, explain how to diagnose the issue, and provide solutions to fix the problem. Understanding the potential causes can help prevent costly repairs and ensure that the machine continues to operate smoothly.
Common Causes of Roaring Noise When Slowing Down
When a Liebherr machine produces a roaring or howling noise while decelerating, the problem is typically related to the mechanical or hydraulic systems. The following are the most common causes of this type of noise:

1. Braking System Malfunctions
   The braking system is one of the first components to check when encountering a roaring noise during deceleration. Many Liebherr machines, especially those used in construction or material handling, rely on hydraulic or air-actuated brakes. A malfunction in the braking system can lead to abnormal noise, which is often caused by:
   • Worn Brake Pads or Shoes: Over time, brake components such as pads or shoes wear down, causing friction that can produce loud noises. When slowing down, worn-out pads may create a squealing or roaring sound.

   • Brake Fluid Contamination: Contaminated hydraulic fluid can affect the braking system’s performance and may cause irregular braking forces, which could result in unusual sounds during deceleration.

   • Air in the Brake Lines: If air has entered the brake lines, it can cause an inconsistent brake response, leading to slippage and increased noise when slowing down.

2. Transmission and Drivetrain Issues
   A roaring noise could also stem from issues within the drivetrain or transmission. The drivetrain components, including gears, bearings, and the differential, all work together to provide power to the wheels or tracks of the machine. Over time, wear and tear or lack of proper lubrication can result in excessive noise. Potential causes include:
   • Worn or Damaged Gears: The gears within the transmission can wear down due to improper lubrication or stress. When slowing down, these gears may make a roaring sound as they fail to mesh properly.

   • Low Fluid Levels or Contaminated Fluid: Hydraulic fluid or transmission fluid that is either low or contaminated can lead to increased friction and noise during operation. Inadequate lubrication can cause the drivetrain components to overheat and generate a loud noise.

   • Differential Issues: If the differential is damaged or malfunctioning, it can cause a roaring noise when decelerating, particularly when the machine is under load.

3. Hydraulic System Problems
   Many Liebherr machines are equipped with powerful hydraulic systems to control various functions such as lifting, turning, and moving. A problem in the hydraulic system, especially with the pump, valves, or fluid pressure, can contribute to abnormal noises during deceleration. The most common issues are:
   • Low Hydraulic Fluid Pressure: If the hydraulic system is not operating at optimal pressure, it can cause the pump to work harder, which may lead to a roaring or whining noise during deceleration.

   • Hydraulic Fluid Contamination: Just like the braking system, the hydraulic system can also be affected by contaminated fluid. Debris or dirt particles in the fluid can cause damage to the hydraulic pump or valves, leading to unusual sounds.

   • Faulty Hydraulic Pump or Valves: A malfunctioning hydraulic pump or valve could result in poor system performance and cause strange noises during operation.

4. Wheel or Track Bearing Issues
   For tracked machines like the Liebherr crawler excavators or bulldozers, the bearings and rollers in the undercarriage are crucial components. If the wheel bearings or track rollers become worn or damaged, they may create a roaring noise when the machine decelerates or moves at lower speeds. This is especially true if there is insufficient lubrication in the undercarriage system.

5. Excessive Load or Overheating
   When a Liebherr machine is carrying an excessive load or is operated for extended periods without adequate breaks, it can lead to overheating of the engine, transmission, or braking system. Overheated components can create loud, high-pitched noises as they fail to operate efficiently. Slowing down after heavy usage may exacerbate these sounds as the machine cools down.


1. Listen to the Noise Carefully
   Pay attention to when the noise occurs. Is it consistent only during deceleration, or does it also happen when the machine is accelerating or idling? This can help narrow down the area of concern. A roaring noise during deceleration is typically linked to the drivetrain, braking system, or hydraulics.

2. Inspect the Braking System
   Begin by checking the brake pads and shoes for wear. If they are worn down, they should be replaced. Additionally, check the hydraulic or air brake fluid levels and look for contamination. If the fluid is dirty or low, flush and replace it as needed. Bleeding the brake lines to remove air is also a crucial step in restoring proper brake function.

3. Examine the Transmission and Drivetrain
   Check the transmission fluid levels and condition. If the fluid appears dirty or the level is low, replace or top it up. Inspect the gears for visible wear or damage. Any irregularities in the gears should be addressed by replacing the affected components. Also, check the differential for issues that could be causing excessive noise.

4. Test the Hydraulic System
   Check the hydraulic fluid levels and inspect for signs of contamination. Use a fluid analysis tool to test the fluid for debris or dirt particles. If the fluid is contaminated, flush the system and replace it with fresh fluid. Inspect the hydraulic pump and valves for damage or malfunction.

5. Examine the Undercarriage
   For tracked machines, inspect the wheel bearings and track rollers for wear and lubrication. If there is any sign of damage or insufficient lubrication, apply fresh grease or replace the worn parts. Regular maintenance of the undercarriage is critical to prevent noise-related issues.


1. Replace Worn Brake Components
   If the brakes are the source of the noise, replacing worn brake pads or shoes should resolve the problem. Ensure that the braking fluid is clean and at the correct level. If the system has air in the lines, bleed the brakes to restore normal operation.

2. Repair or Replace Damaged Drivetrain Components
   If the transmission or drivetrain is causing the noise, replace damaged gears or bearings. Ensure that the transmission fluid is in good condition and at the proper level. If the differential is the source of the problem, it may need to be repaired or replaced.

3. Flush and Replace Hydraulic Fluid
   For hydraulic-related issues, flushing the system and replacing the hydraulic fluid is a critical first step. This will help remove any contaminants and restore the system’s efficiency. If the hydraulic pump or valves are damaged, replace them with genuine Liebherr parts.

4. Lubricate or Replace Undercarriage Components
   For tracked Liebherr machines, ensure that the wheel bearings and track rollers are adequately lubricated. If parts are worn or damaged, they should be replaced to prevent further noise and improve the machine’s performance.


1. Conduct Regular Inspections
   Perform routine checks of the braking system, drivetrain, hydraulics, and undercarriage. Catching issues early can prevent major breakdowns and reduce the likelihood of unusual noises.

2. Change Fluids Regularly
   Ensure that transmission, brake, and hydraulic fluids are replaced according to the manufacturer’s recommendations. Regular fluid changes prevent contamination and ensure that all systems function efficiently.

3. Grease the Undercarriage Frequently
   For tracked machines, frequent lubrication of the undercarriage components is critical. This helps maintain smooth operation and reduces wear and tear.


Why Plumb Alignment Matters in Excavation
In precision excavation, especially when grading, trenching, or installing utilities, ensuring the dipper stick of an excavator is perfectly vertical—or “plumb”—is critical. A misaligned stick can lead to inaccurate depth readings, uneven trench walls, and costly rework. Operators often rely on visual judgment or rudimentary tools, but as jobsite expectations rise, so does the need for reliable, real-time plumb indicators.
Traditional Methods and Their Limitations
Historically, operators used bubble levels or manual sighting to judge plumb. While simple, these methods are prone to error due to machine vibration, operator fatigue, and limited visibility. Digital torpedo levels with magnetic mounts have been introduced, but they often require the machine to be completely stationary for several seconds to stabilize readings. This interrupts workflow and reduces efficiency.
Laser Receivers and Their Evolution
Laser receivers have become the go-to solution for many professionals. Devices like the Spectra Precision CR700, LR50, and LR60 are mounted on the dipper stick or bucket and detect laser signals from a rotating transmitter. These receivers help maintain grade and indicate plumb alignment.

• CR700: Compact and magnetic, ideal for mini excavators. Offers basic plumb feedback but lacks advanced angle compensation.

• LR50: Designed for bucket mounting, but criticized for lacking a plumb indicator and being hard to read when the stick is off-axis.

• LR60: Offers dual-axis plumb indication and angle compensation. Preferred by many for its visibility and reliability when mounted higher on the stick.


• Test Before Purchase: Rent devices like the LR60 or Bullseye 5+ to evaluate performance.

• Mount Strategically: Consider custom mounts to protect receivers while maintaining visibility.

• Avoid Overreliance on Bubble Levels: Use them only as backup tools.

• Invest in Remote Displays: These enhance visibility and reduce operator strain.


The Caterpillar D4H is a versatile and powerful tracked dozer, renowned for its ability to handle demanding work environments. One of the crucial components that help ensure its engine operates within safe parameters is the coolant temperature sender. This sensor plays a pivotal role in monitoring engine temperature, preventing overheating, and ensuring optimal engine performance. However, like any mechanical part, the coolant temperature sender can experience issues over time. This article will explore the function of the coolant temperature sender in the D4H, common problems that may arise, diagnostic steps, and solutions for maintaining a reliable system.
What is a Coolant Temperature Sender?
The coolant temperature sender (also known as a temperature sensor) is a key component of the engine's cooling system. It measures the temperature of the engine coolant and sends that information to the vehicle's dashboard or to the engine control unit (ECU) for monitoring. The sender provides a reading that allows the operator to assess whether the engine is running at an appropriate temperature, helping prevent overheating that can lead to serious engine damage.
In the case of the D4H, this sensor is typically located near the engine's coolant system, either on the engine block or the cylinder head. It detects the temperature of the coolant, converting this data into an electrical signal, which is then displayed as a gauge reading in the operator's cabin or communicated to the vehicle's onboard diagnostics system.
Common Issues with Coolant Temperature Senders
While the coolant temperature sender is generally a reliable component, various issues can affect its performance, leading to inaccurate readings, overheating, or engine malfunction. Below are some common problems encountered in the Caterpillar D4H's coolant temperature sender:

1. Faulty Readings or Inaccurate Temperature Gauges
   One of the most common issues with the coolant temperature sender is a faulty or inaccurate temperature reading. The operator may notice that the temperature gauge on the dashboard displays temperatures that do not align with the actual engine temperature. This can be due to a malfunctioning sender, corroded wiring, or a damaged sensor.

2. Erratic Temperature Readings
   If the sensor is not working correctly, it may send erratic signals to the dashboard or ECU. The temperature gauge may fluctuate wildly, causing confusion and making it difficult for the operator to determine whether the engine is overheating or running at a safe temperature.

3. Total Loss of Temperature Reading
   In some cases, the coolant temperature sender may fail completely, leading to a complete loss of the temperature reading. When this occurs, the operator has no way of knowing the engine's operating temperature, which can be hazardous, especially in hot or heavy-duty working conditions.

4. Overheating Due to Sensor Malfunction
   A malfunctioning sensor can lead to overheating if the system fails to alert the operator that the engine is running too hot. This may occur if the sender fails to detect rising temperatures or if the signal is not properly transmitted to the dashboard, leading to a lack of awareness about the engine’s cooling needs.

5. Wiring and Connector Problems
   Over time, the wiring or connectors attached to the coolant temperature sender can become damaged due to vibration, corrosion, or wear. This can cause poor electrical contact or signal loss, leading to inaccurate readings or failure to transmit information to the engine control unit.


1. Check the Temperature Gauge
   The first step in diagnosing coolant temperature sender problems is to observe the behavior of the temperature gauge. If the gauge is fluctuating erratically or stuck in a certain position, it could be an indication of a sensor malfunction.

2. Inspect the Wiring and Connectors
   Visual inspection of the wiring and connectors is essential. Check for any fraying, signs of corrosion, or loose connections that could be affecting the sensor’s ability to send accurate data. Repair or replace any damaged components to restore the system’s function.

3. Test the Coolant Temperature Sender
   Using a multimeter, technicians can measure the resistance of the coolant temperature sender. A properly functioning sensor should show a consistent resistance reading that corresponds to the coolant’s temperature. A faulty sender may show erratic or out-of-spec resistance, indicating that it needs to be replaced.

4. Check the Coolant Level
   While the sender itself might be the problem, it’s always good practice to ensure the coolant levels are adequate. Low coolant levels can affect the engine’s temperature and cause inaccurate readings, leading the operator to believe there’s an issue with the sender.

5. Verify the Temperature with a Diagnostic Tool
   For a more advanced diagnosis, using a Caterpillar-compatible diagnostic tool can help pinpoint sensor malfunctions. This tool can read sensor data directly from the ECU, allowing technicians to determine if the temperature readings match the actual operating temperature.


1. Replace the Coolant Temperature Sender
   If the sender is found to be faulty, replacing it is often the best solution. A new coolant temperature sender should provide accurate readings and ensure that the operator can monitor the engine temperature effectively. Always choose a high-quality replacement part that meets the specifications for the D4H.

2. Clean or Repair the Wiring and Connectors
   If the issue is related to wiring or connector problems, repairing or cleaning these components can restore proper function. Ensure that all connections are secure and free of corrosion. In some cases, the wiring harness may need to be replaced if it has been significantly damaged.

3. Flush and Replace Coolant
   If the coolant is old, contaminated, or at low levels, it may be worth flushing the cooling system and refilling it with fresh, manufacturer-approved coolant. This not only ensures the temperature sender operates correctly but also helps prevent future overheating issues.

4. Calibrate the Temperature Gauge
   If the sensor is working properly but the temperature gauge continues to show incorrect readings, recalibrating the gauge or ECU may be necessary. This step can help ensure that the gauge reflects the actual coolant temperature accurately.


1. Routine Inspections
   Inspect the coolant temperature sender and associated wiring at regular intervals. Look for signs of wear, corrosion, or physical damage, and address any issues before they result in sensor failure.

2. Coolant Maintenance
   Regularly check coolant levels and quality to ensure that the engine is properly cooled. Use high-quality, manufacturer-recommended coolant and flush the system according to the maintenance schedule to avoid issues that could affect the temperature readings.

3. Protect the Sensor from Contamination
   Ensure that the coolant temperature sender is not exposed to excessive dirt, debris, or contaminants. Keeping the area around the sensor clean can help prolong its lifespan and ensure accurate readings.


The Role of Valves in Industrial Systems
Valves are the unsung heroes of industrial infrastructure. Whether in oil and gas, nuclear power, water treatment, or manufacturing, valves regulate, isolate, and control the flow of fluids—liquids, gases, or slurries—through pipelines and systems. Their importance is often underestimated until a failure occurs, leading to costly downtime or catastrophic accidents. In 2010, the Deepwater Horizon disaster in the Gulf of Mexico was partly attributed to the failure of a blowout preventer (BOP), a critical valve system designed to seal oil wells in emergencies. This incident alone underscores the life-or-death significance of valve reliability.
Key Valve Types and Their Functions
Each valve type is engineered for specific flow characteristics, pressure ratings, and operational environments. Here are the most commonly used valves across industries:

• Gate Valves: Designed for on/off control, gate valves use a flat or wedge-shaped gate to block flow. They are ideal for full open or full close operations but are not suitable for throttling. Common in water supply systems and oil pipelines.

• Globe Valves: These provide better throttling capabilities due to their spherical body and internal baffle. They are used in applications requiring precise flow regulation, such as steam lines and cooling systems.

• Ball Valves: Featuring a rotating ball with a bore, these valves offer quick shutoff and are widely used in gas lines and chemical processing. However, they are not ideal for throttling due to potential damage to the ball and seat.

• Butterfly Valves: Lightweight and compact, butterfly valves use a rotating disc to regulate flow. They are common in HVAC systems and water treatment plants, especially where space is limited.

• Check Valves: These allow flow in one direction only, preventing backflow. They are critical in pump systems and pipelines where reverse flow could damage equipment.

• Blowout Preventers (BOPs): Unique to the oil and gas industry, BOPs are massive valve assemblies installed on wellheads to prevent uncontrolled release of crude oil or natural gas. They can be ram-type or annular and are activated hydraulically or electrically.


• Manual: Handwheels or levers for simple, low-frequency operations.

• Electric Actuators: Used where precise control is needed; common in HVAC and water treatment.

• Pneumatic Actuators: Fast-acting and ideal for hazardous environments where electrical sparks pose risks.

• Hydraulic Actuators: Offer high force and are used in heavy-duty applications like offshore drilling.


• Media Type: Is the fluid corrosive, abrasive, or high-temperature?

• Pressure and Temperature Ratings: Must match system specifications.

• Flow Characteristics: Laminar vs. turbulent flow, head loss, and cavitation risks.

• Maintenance Requirements: Some valves require frequent servicing; others are designed for long-term reliability.

• Installation Constraints: Space, orientation, and accessibility can dictate valve type.


• Routine Inspection: Visual checks, leak detection, and actuator testing.

• Predictive Maintenance: Using sensors and IoT to monitor valve health in real time.

• Proper Installation: Misalignment or over-torquing can reduce valve lifespan.

• Documentation: Keeping detailed records of valve specifications, service history, and failure modes.


The International TD-25B is a powerful crawler dozer, widely recognized for its ruggedness and reliability in tough conditions. However, like all heavy equipment, it is not immune to mechanical issues. One of the more common problems faced by operators of the TD-25B is brake malfunctions, which can hinder the dozer’s performance and safety. This article will explore the common causes behind brake issues in the TD-25B, discuss diagnostic steps, and offer potential solutions to help operators maintain their equipment in optimal condition.
Understanding the Brake System on the International TD-25B
The TD-25B, produced by International Harvester in the 1960s and 1970s, was designed for heavy-duty earthmoving tasks. Its braking system is integral to ensuring both performance and safety, as it allows operators to control the dozer's movement on slopes, during turns, and in tight spaces. The TD-25B is equipped with a hydraulic brake system, often involving a series of brake drums, shoes, and hydraulic lines, which work together to apply braking force when needed.
Due to the heavy load and harsh operating conditions that these machines often endure, the braking components are subject to wear and tear over time. Understanding the system’s design helps identify where issues might arise, leading to more effective troubleshooting.
Common Brake Issues in the TD-25B
Brake problems on the International TD-25B can manifest in various forms, from inconsistent braking power to complete brake failure. The most frequent brake issues include:

1. Loss of Braking Power
   One of the most common complaints is a sudden loss of braking power. This can occur due to a lack of hydraulic fluid pressure, air in the hydraulic lines, or worn-out brake pads or shoes. When braking power diminishes, operators may notice the dozer takes longer to stop or the brakes feel "spongy."

2. Brake Drums and Shoes Wear
   Just like any other mechanical component, the brake drums and shoes wear down over time. If the shoes are worn too thin or the drums become grooved or scored, braking efficiency is reduced, and overheating can occur, further damaging the components.

3. Brake Fluid Contamination
   Hydraulic brake systems depend on clean brake fluid to function properly. Contamination of the fluid, whether by dirt, water, or other debris, can lead to poor brake response, overheating, and even total brake failure. Contaminated fluid can also cause damage to seals and valves within the brake system.

4. Leaking Brake Lines or Cylinders
   Hydraulic brake systems rely on pressure within the brake lines to function. If there is a leak in the brake lines or in one of the brake cylinders, this will cause a drop in hydraulic pressure, leading to reduced or ineffective braking. Leaks can occur from worn seals, damaged lines, or poor connections.

5. Brake Linkage Issues
   The linkage that connects the brake pedals to the hydraulic system can wear or become misaligned over time. This can result in insufficient brake engagement or difficulty in applying the brakes.


1. Check Fluid Levels and Quality
   First, check the brake fluid levels and inspect the fluid for any signs of contamination. Low or dirty fluid is often a leading cause of poor brake performance. If contamination is present, the system should be flushed and refilled with clean hydraulic fluid. Always ensure the correct type and grade of fluid for the TD-25B.

2. Inspect Brake Pads, Shoes, and Drums
   Worn brake pads or shoes can be visually inspected by removing the wheel and examining the components. Brake drums should be checked for grooves or scoring. Any wear beyond the manufacturer's tolerance limits warrants replacement of the affected parts.

3. Test for Leaks
   Inspect all hydraulic lines and cylinders for leaks. If there is visible hydraulic fluid leakage or the brake fluid reservoir is depleting rapidly, this indicates a leak in the system. Leaks often occur at hose connections, valves, or seals, and may require replacing damaged parts or re-tightening loose fittings.

4. Check for Air in the Hydraulic Lines
   If air has entered the hydraulic brake system, it can lead to a “spongy” brake pedal or reduced braking performance. To bleed the air from the system, the brake lines must be purged by releasing the air at the brake cylinders, ensuring the hydraulic fluid flows freely without any air bubbles.

5. Inspect Brake Linkage and Adjustments
   Verify that the brake linkage is in proper alignment and that all components are securely connected. Worn or damaged linkage components should be replaced. Additionally, check that the brake system is properly adjusted according to the manufacturer’s specifications to ensure the correct amount of pressure is applied during braking.


1. Replace Worn Brake Pads and Shoes
   When the brake pads or shoes have worn out, they should be replaced. Always choose high-quality replacement parts that are compatible with the TD-25B. If the brake drums are damaged, they may need to be resurfaced or replaced entirely.

2. Flush and Replace Brake Fluid
   If the brake fluid is contaminated, it’s essential to flush the entire hydraulic brake system and refill it with clean fluid. It’s also a good idea to replace the fluid at regular intervals as part of preventive maintenance to avoid issues down the line.

3. Repair or Replace Leaking Hydraulic Lines and Cylinders
   Leaking brake lines and cylinders should be replaced immediately. If a seal or hose is damaged, it’s important to address the issue promptly to avoid a total loss of braking power. Regular inspections can help identify potential leaks before they become critical.

4. Bleed the Brake System
   If air has entered the hydraulic system, the brakes will need to be bled to remove any air bubbles. Bleeding the system ensures that only fluid is present, restoring the necessary pressure for effective braking.

5. Adjust Brake Linkage
   Ensure that the brake linkage is correctly aligned and functioning as intended. If necessary, adjust the linkage or replace worn components to restore proper brake engagement.


1. Regular Fluid Checks
   Frequently check the brake fluid levels and quality to ensure that the system operates efficiently. Change the fluid at regular intervals to prevent contamination and maintain optimal performance.

2. Scheduled Inspections and Adjustments
   Conduct regular inspections of the brake system, including the brake pads, shoes, drums, and hydraulic lines. Performing these checks can help catch issues early, preventing costly repairs and downtime.

3. Proper Storage and Operation
   When not in use, store the dozer in a clean, dry environment to prevent contamination of the hydraulic system. Additionally, avoid using the brake system for excessive periods or under extreme conditions, which can accelerate wear and tear.


A 2018 Kubota SSV75 experiencing cabin heating failure and an unresponsive A/C button likely suffers from electrical faults in the blend valve circuit or blocked heater hose flow—both common issues in compact equipment with electronically controlled HVAC systems. Resolving these problems requires a mix of mechanical inspection and electrical testing.
Kubota SSV75 Overview
The Kubota SSV75 is a vertical lift skid steer loader introduced in the mid-2010s, designed for heavy-duty material handling, grading, and snow removal. It features a 74.3 hp Kubota diesel engine, high-flow hydraulics, and a sealed cab with optional HVAC. Kubota, founded in 1890 in Osaka, Japan, has become a global leader in compact construction equipment, with the SSV series gaining popularity across North America for its durability and operator comfort.
The HVAC system in the SSV75 includes a thermostat, electronic blend valve, fan switch, and A/C control panel. These components work together to regulate cabin temperature, but faults in any part of the system can lead to heating or cooling failure.
Terminology Notes

• Blend Valve: An electronically actuated valve that mixes hot and cold air to achieve the desired cabin temperature.

• Thermostat: A temperature-sensitive valve that regulates coolant flow to the heater core.

• Heater Hose Shutoff Valve: A manual or automatic valve that controls coolant flow to the heater core.

• Cabin Control Panel: The interface for adjusting fan speed, temperature, and A/C activation.


• Inspect Blend Valve Movement: With the cab raised and engine running, observe whether the blend valve actuates when switching from cold to heat. If it remains static, the issue may be electrical.

• Check Heater Hose Flow: Ensure that coolant is reaching the heater core. Look for shutoff valves near the engine that may be closed or clogged.

• Test Voltage at the Blend Valve Connector: Use a multimeter to confirm that the valve receives signal from the control panel. No voltage suggests a broken wire or failed relay.


• Blown Fuse or Faulty Relay: Check the fuse box for HVAC-related fuses and relays. Replace any that are damaged.

• Control Panel Failure: If the A/C button does not respond, the panel itself may be faulty or disconnected.

• Low Refrigerant Lockout: Some systems disable A/C activation when refrigerant pressure is too low. Check pressure levels and recharge if needed.


• Raise the Cab Safely Before Inspection: Use proper supports and follow Kubota’s safety procedures.

• Label Heater Hose Valves for Seasonal Use: Prevent accidental closure during routine service.

• Use OEM Replacement Parts for HVAC Components: Ensures compatibility and longevity.

• Document Electrical Tests and Component Replacements: Aids future troubleshooting and warranty claims.


Transporting a skid steer from one location to another may seem like a simple task, but the costs associated with the process can vary greatly depending on a variety of factors. Whether you're moving a skid steer across town or across the country, understanding these cost drivers is crucial for budgeting and planning the transportation of your equipment. This article dives deep into the factors that influence skid steer transport costs, common pricing models, and tips on how to manage these expenses.
Factors Influencing Skid Steer Transport Costs
Several elements play a role in determining the cost of transporting a skid steer. Understanding these factors can help operators, fleet managers, and business owners make more informed decisions when it comes to shipping their equipment.

1. Distance
   The distance between the pickup and delivery points is one of the most significant factors affecting transport costs. The further the skid steer needs to travel, the higher the cost. Long-distance shipments often involve more fuel, more time on the road, and sometimes the need for specialized transportation permits if the equipment is oversized.

2. Type of Transport
   There are two primary modes of transport for skid steers: open transport and enclosed transport. Open transport is typically more affordable as it involves shipping the equipment on an open flatbed truck. Enclosed transport, on the other hand, offers greater protection for the skid steer during transit but tends to be more expensive due to the added protection and specialized equipment required.

3. Size and Weight of the Skid Steer
   The size and weight of the skid steer will influence the transport method and cost. Larger or heavier skid steers may require specialized trailers or equipment to load and unload the machinery safely. For example, heavy-duty flatbed trailers or lowboys might be necessary to accommodate the weight of larger skid steers, which can increase transport costs.

4. Location
   Shipping a skid steer to or from a rural location may be more expensive than shipping to or from a more urban area. This is due to the lack of local infrastructure and the longer drive times for transport companies. Transporting equipment to a more remote area may require additional logistical planning, which can add to the overall cost.

5. Transporter Type
   The type of transport service you choose will also impact the price. Full-service transporters, which include both pickup and delivery, will typically be more expensive than companies that offer a drop-off service where you are responsible for picking up the equipment at a designated location. Additionally, working with well-established, reputable companies may come at a premium compared to smaller, local haulers.

6. Time of Year
   The time of year can also affect transport costs. For example, transport costs may increase during peak construction seasons, such as spring and summer, when demand for hauling heavy equipment is high. Bad weather conditions, particularly during winter, can also increase transport costs as drivers may need to take extra precautions.

7. Insurance and Permits
   When transporting equipment, insurance is an important consideration. Skid steers may be valuable assets, and ensuring they are adequately covered during transit is critical. Additionally, if the skid steer is oversized, special permits may be required to transport it legally, which can add to the overall cost.


1. Flat Rate Pricing
   Some transport companies offer flat-rate pricing, which is a fixed fee regardless of the distance or size of the equipment being transported. This can be beneficial if you're transporting a skid steer within a predictable distance, but it might not always be the best deal for longer or more complex shipments. Flat-rate pricing works well when the transport company has a set route or a well-defined service area.

2. Per-Mile Pricing
   More commonly, skid steer transport is priced on a per-mile basis. This means you will be charged a set amount for every mile the transport company travels. While this is a good model for shorter distances, it can lead to higher costs for longer hauls. The price per mile can also vary based on the factors listed above, such as size, location, and mode of transport.

3. Hourly Rates
   Some companies charge by the hour for transport, especially for more complex moves or when additional services are required, such as loading and unloading, or escort vehicles for oversized loads. This model is often used when transport involves special handling or particularly challenging routes.

4. Combination Pricing
   Some transport services offer a combination of flat rates and per-mile pricing. For example, they might charge a base flat rate for the first 50 miles and then switch to a per-mile rate for any additional distance. This can offer flexibility while still providing predictable costs for shorter trips.


1. Loading and Unloading Fees
   Some transport companies charge additional fees for loading and unloading the equipment, especially if they need to use specialized equipment or labor. These charges can add up, particularly for larger machines that require extra handling.

2. Fuel Surcharges
   Some transporters apply a fuel surcharge to the overall cost, especially if fuel prices are volatile. This charge is often a percentage of the total transport cost and can vary depending on market conditions.

3. Storage Fees
   If you need to store your skid steer at a transport terminal or yard before it is delivered, some companies will charge a daily or weekly storage fee. Be sure to clarify whether storage is included in the transport cost or if it will be an additional charge.

4. Expedited Shipping
   If you need your skid steer delivered quickly, expedited shipping options are often available. This can include faster routes or additional transport vehicles to speed up the process. However, expedited shipping typically comes at a higher cost.


1. Consolidate Shipments
   If you’re transporting multiple machines or pieces of equipment, try to consolidate them into a single shipment. This can often reduce the per-unit cost by maximizing the use of the transport vehicle.

2. Plan Ahead
   Planning ahead allows you to book transport services during off-peak seasons when prices are generally lower. It also gives you time to research and compare quotes from multiple transport companies to find the best deal.

3. Negotiate Pricing
   Many transport companies are open to negotiating pricing, especially for repeat customers or larger shipments. Don’t hesitate to ask for discounts or inquire about potential savings if you book during a less busy time.

4. Inspect the Equipment
   Before shipping, ensure your skid steer is in good working condition. A machine that is in poor condition might require special equipment for loading and unloading, leading to higher costs. Ensure the equipment is clean and free of debris, as some transport companies charge extra for cleaning.
