Introduction
In the realm of construction and maintenance, certain tools often go unnoticed until their utility becomes undeniable. These tools, while seemingly mundane, can significantly enhance efficiency and safety on the job site. Their value becomes apparent only after firsthand experience reveals their indispensable nature.
The Value of Lesser-Known Tools
Many professionals have discovered the importance of tools that were initially overlooked. For instance, a quality pair of scissors and a reliable utility knife have proven essential for various tasks, from opening packages to precise cutting jobs. Their versatility and convenience make them staples in any toolkit.
Innovative Gadgets That Simplify Tasks
Advancements in tool design have led to the creation of gadgets that simplify complex tasks. The Worx ZipSnip, a motorized rotary cutter, exemplifies this innovation. It offers clean, straight cuts through materials like plastic, leather, and cardboard, making it a valuable addition to any toolkit.
Similarly, the VamPLIERS screw removal pliers are designed to extract stripped or rusted screws effortlessly. Their unique serrated jaws grip the screw securely, allowing for easy removal without damaging the surrounding material.
Tools That Enhance Precision and Safety
Precision tools are crucial in ensuring the quality and safety of work. The Johnson Rafter Angle Square, for example, is a compact tool that measures 45- and 90-degree angles and doubles as a ruler. Its affordability and functionality make it a must-have for accurate measurements.
Safety is paramount in construction and maintenance. Tools like the Defiant 5 LED Headlight free up hands for tasks in dimly lit areas, enhancing visibility and reducing the risk of accidents. Its long battery life ensures reliable performance during extended use.
Compact Tools for Portability
Portability is a significant consideration for professionals on the move. The Fix Manufacturing Wheelie Wrench is a compact tool that packs ten fold-out bits, including hex, torx, flat, and Phillips drivers. Its removable outer clip adds wrenches, a tire lever, spoke wrenches, and a bottle opener, all in a tool measuring just 2.2″ x 1.3″ x 0.4″.
Conclusion
While traditional tools remain fundamental in construction and maintenance, the integration of innovative gadgets and compact tools has revolutionized the industry. These unexpected essentials not only improve efficiency but also enhance safety and precision on the job site. Embracing these tools can lead to more streamlined operations and better outcomes in construction and maintenance projects.

Transitioning from General Excavation to Utility Installation
Moving from land clearing and general excavation into sewer and water installation is a significant shift, both in terms of technical demands and jobsite dynamics. While the fundamentals of operating heavy machinery remain the same, utility work introduces tighter tolerances, deeper trenches, and a greater emphasis on coordination with ground crews. Operators who’ve spent years digging ditches or moving blasted rock often find themselves adjusting to the precision and patience required in pipe laying.
One operator described his first day on a large subdivision project with a brand-new John Deere 450D excavator. Despite years of experience in excavation, he felt the pressure of working alongside seasoned pipe crews and navigating the expectations of a large firm. The key to success, he found, was listening closely to the pipelayer, staying alert to trench safety, and maintaining a steady, controlled pace.
Terminology Clarification

• Bedding Box: A container used to hold and distribute gravel or stone bedding around pipes.

• Haunching: The process of placing and compacting material around the lower sides of a pipe to prevent movement.

• Caution Tape: A marker tape laid above utility lines to warn future excavators of buried infrastructure.

• Trench Box: A protective structure placed in deep trenches to prevent cave-ins and protect workers.

• Pipe Belly: A sag or dip in a pipe caused by improper compaction or uneven bedding, which can disrupt flow.


• Use small, controlled bucket loads when placing bedding.

• Keep the bucket flat and level to distribute material evenly.

• Watch the pipelayer closely and respond to hand signals or verbal cues.

• Avoid tamping backfill with the bucket unless sufficient cover exists above the pipe crown.


• Always keep the machine level before starting deep trenching.

• Avoid lifting over workers unless absolutely necessary.

• Plan the bucket’s path in case of hydraulic failure—keep people out of that zone.

• Communicate clearly with the tailman and hillman to avoid missteps.


• Let the pipe crew use plate compactors for initial lifts.

• Compact in 6–8 inch layers above the pipe before using the machine.

• Monitor moisture content to ensure proper compaction density.

• Document compaction efforts if required by local inspection protocols.


• Maintain a positive attitude and stay calm under pressure.

• Respect the pipelayer’s authority—he controls the trench.

• Ask questions when unsure, but avoid interrupting workflow.

• Keep your machine clean, organized, and ready for reassignment.


Introduction
Excavators are indispensable in construction, demolition, and landscaping projects. However, their substantial size and weight can lead to situations where they become stuck, especially in soft or muddy terrains. While winches are commonly used for recovery, there are instances where a winch may not be available. In such cases, alternative recovery methods must be employed to extricate the machine safely and efficiently.
Understanding the Challenges
When an excavator becomes immobilized, several factors contribute to the difficulty of recovery:

• Weight and Size: Excavators can weigh several tons, making them challenging to move without appropriate equipment.

• Suction Effect: In muddy or wet conditions, the ground can create a suction effect, firmly holding the tracks or wheels in place.

• Limited Access: In some situations, there may be insufficient space or nearby anchor points to use traditional recovery methods.


1. Manual Digging
   One of the first steps in recovery is to alleviate the pressure around the stuck tracks or wheels. Using shovels or small excavators, operators can dig around the immobilized machine to reduce the suction effect and provide more mobility.

2. Utilizing Nearby Equipment
   If other machinery is available on-site, they can be used to assist in the recovery process. For instance, a bulldozer can be used to push the stuck excavator, or a backhoe can assist in lifting and maneuvering the machine.

3. Creating Traction Paths
   Placing materials such as gravel, wooden planks, or metal plates under the tracks can provide the necessary traction to move the excavator. This method is particularly effective when the ground conditions are soft but not overly saturated.

4. Using Come-Along Winches
   A come-along winch is a manual hand-operated device that can be used to pull the excavator out of its stuck position. By attaching the come-along to a nearby anchor point, such as a tree or another piece of equipment, operators can slowly winch the excavator free.

5. Leveraging Hydraulic Systems
   Some excavators are equipped with hydraulic systems that can be used to lift or shift the machine slightly, providing enough movement to break the suction and allow for manual or mechanical assistance.


• Equipment Damage: Improper recovery methods can lead to damage to the excavator or other machinery involved.

• Injury Risks: Manual recovery methods can expose operators to physical strain and potential injuries.

• Environmental Impact: Aggressive recovery methods can damage the surrounding environment, especially in sensitive areas.


• Conduct Thorough Site Assessments: Before operating, assess the terrain for potential hazards like soft spots or waterlogged areas.

• Use Appropriate Equipment: Select machinery suited for the ground conditions. For instance, compact track loaders are better suited for soft terrains than wheeled excavators.

• Regular Maintenance: Ensure that all equipment is well-maintained to prevent mechanical failures that could lead to immobilization.


Introduction
The John Deere 300D backhoe loader, a staple in construction and agricultural operations, is renowned for its durability and versatility. However, like all machinery, it can experience mechanical issues over time. One such problem reported by operators is difficulty engaging or maintaining reverse gear functionality. Understanding the potential causes and solutions is essential for efficient troubleshooting and repair.
Common Symptoms
Operators have reported the following symptoms related to reverse gear issues:

• Intermittent Reverse Engagement: The backhoe may engage reverse gear initially but loses functionality after a short distance or time.

• Delayed Response: There may be a noticeable delay when shifting into reverse, or the machine may hesitate before moving.

• Complete Loss of Reverse: In some cases, reverse gear becomes entirely non-functional, while forward gears operate normally.


1. Hydraulic System Contamination: Contaminants in the hydraulic fluid can obstruct valves and solenoids, leading to erratic shifting or loss of reverse gear.

2. Worn or Misadjusted Clutch Packs: The forward and reverse clutch packs, which are wet clutches, can wear out or become misadjusted, causing slipping or failure to engage reverse gear.

3. Faulty Reverser Solenoid: The solenoid responsible for engaging reverse gear can fail or become intermittent, especially in older models. Replacing the solenoid may resolve the issue.

4. Electrical Issues: Problems with the wiring or connections to the reverser solenoid can lead to inconsistent operation. Inspecting and repairing electrical connections can restore proper function.

5. Low or Contaminated Transmission Fluid: Insufficient or degraded fluid levels can impair the operation of the transmission, affecting gear engagement. Regular maintenance and fluid checks are crucial.


1. Check Hydraulic Fluid Levels and Quality: Ensure the hydraulic fluid is at the correct level and free from contaminants. Replace the fluid if necessary.

2. Inspect Clutch Packs: Examine the forward and reverse clutch packs for signs of wear or misadjustment. Consult the service manual for proper adjustment procedures.

3. Test the Reverser Solenoid: Use a multimeter to check the solenoid's functionality. If the solenoid is faulty, replacement may be required.

4. Examine Electrical Connections: Inspect all wiring and connections related to the reverser system for signs of corrosion or damage.

5. Monitor Transmission Fluid Levels: Regularly check and maintain the appropriate fluid levels to ensure optimal transmission performance.


• Regular Maintenance: Adhere to the manufacturer's recommended maintenance schedule, including fluid changes and component inspections.

• Timely Repairs: Address minor issues promptly to prevent them from escalating into major problems.

• Operator Training: Ensure operators are trained in the proper use and maintenance of the backhoe to minimize wear and tear.





Introduction

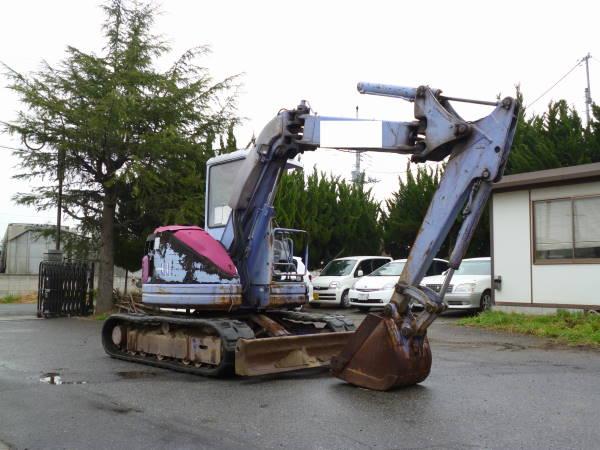

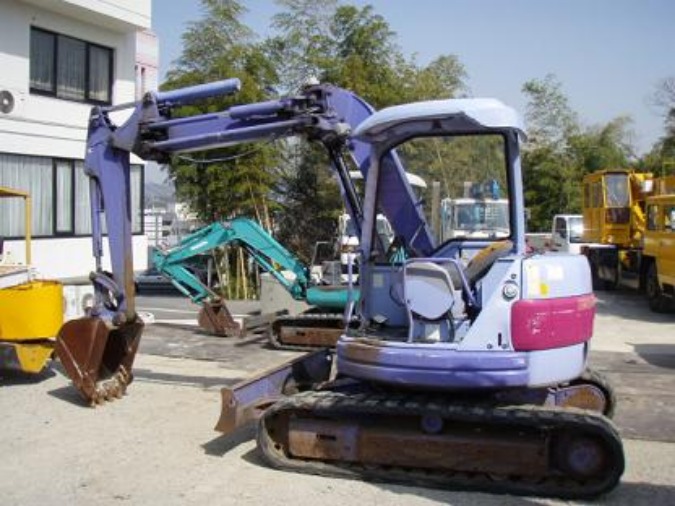

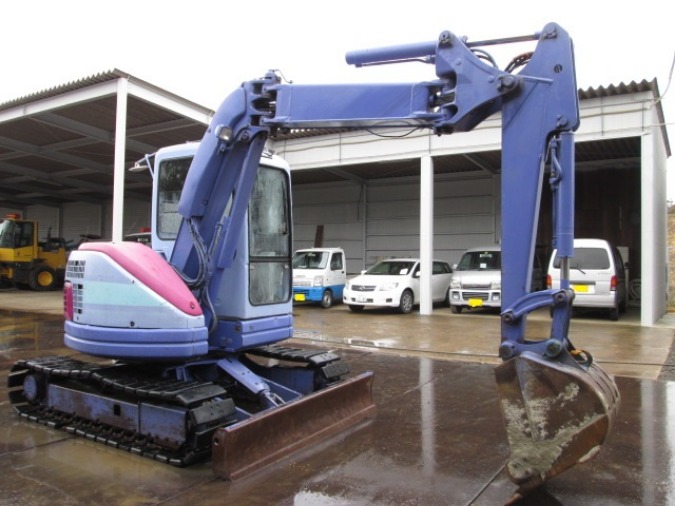

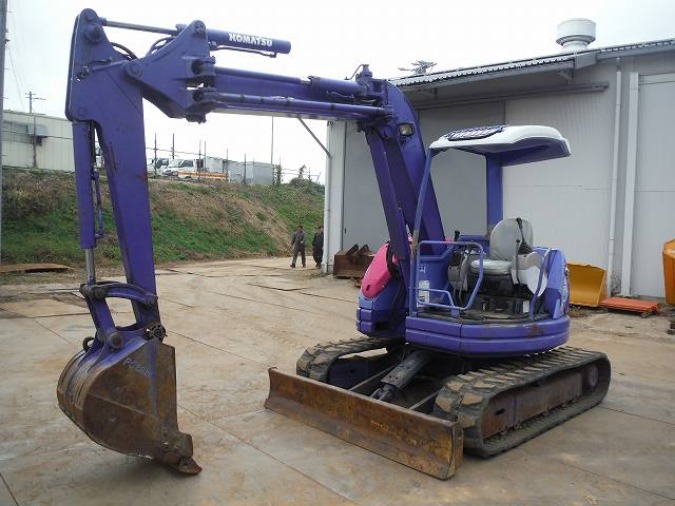

The Komatsu PC50UU-2 is a compact hydraulic excavator renowned for its versatility and performance in confined urban environments. Manufactured during the early 1990s, this model has become a staple for contractors requiring maneuverability without compromising on power. Its design reflects Komatsu's commitment to innovation and efficiency in construction machinery.
Development and Production
Komatsu, established in 1921, has been at the forefront of heavy equipment manufacturing. The PC50UU-2 was introduced as part of Komatsu's strategy to provide solutions for urban construction challenges. With a production run spanning several years, the PC50UU-2 has been widely used across various markets, including Japan, North America, and Europe. Its compact size and powerful performance have made it a popular choice among contractors and rental companies.
Specifications

• Operating Weight: Approximately 5,100 kg

• Engine: Komatsu 4D84, delivering around 39 horsepower

• Dimensions:
  • Length: 5,335 mm

  • Width: 2,000 mm

  • Height: 2,550 mm

• Digging Depth: Up to 3,800 mm

• Reach Along Ground: Approximately 6,070 mm

• Tail Swing Radius: 1,060 mm


Introduction
The Mercedes-Benz MBE 4000 is a 12.8-liter inline six-cylinder diesel engine designed for heavy-duty applications, particularly in the North American truck market. Developed by Detroit Diesel, this engine was introduced to offer a balance between performance, fuel efficiency, and reduced weight. While it has garnered attention for its innovative design, potential buyers and operators should be aware of its strengths and areas that may require attention.
Engine Specifications

• Configuration: Inline 6-cylinder, 4-stroke cycle

• Displacement: 12.8 liters (781 cubic inches)

• Bore x Stroke: 128 mm x 166 mm

• Compression Ratio: 18.0:1

• Power Output: Ranges from 370 hp to 450 hp @ 1900 rpm

• Torque: Up to 1550 lb-ft @ 1100 rpm

• Weight: Approximately 2270 lbs (1030 kg)

• Fuel System: Common rail direct injection

• Emissions: Equipped with Exhaust Gas Recirculation (EGR) system


• Injector Nozzles: Clogging or failure can lead to rough idling and power loss. Regular inspection and maintenance are recommended.

• Turbocharger: Boost leaks can reduce engine efficiency and increase fuel consumption. It's advisable to check for cracks or loose clamps in turbo hoses.

• Head Gasket: Early models experienced head gasket issues, but subsequent redesigns have addressed these concerns. Ensuring the engine has the updated components is crucial.


• Positive Aspects: Many appreciate the engine's fuel efficiency, quiet operation, and smooth performance. One operator noted, "They're a good engine. Good power, great fuel mileage, good durability, and much quieter than a series 60 Detroit."

• Challenges: Some have reported issues with injector nozzles and turbocharger components. It's essential to stay proactive with maintenance to mitigate these concerns.


The Kubota SVL90-2 and Its Cooling System Design
The Kubota SVL90-2 compact track loader, introduced in the early 2010s, was part of Kubota’s push into the high-performance CTL market. With an operating weight of over 11,000 lbs and a rated operating capacity of 2,800 lbs, it quickly became a favorite among contractors for its hydraulic power, cab comfort, and reliability. Kubota, founded in 1890 in Osaka, Japan, has sold tens of thousands of SVL-series machines globally, with the SVL90-2 being one of the most widely adopted in North America.
The SVL90-2 features a fully enclosed cab with HVAC systems designed for year-round operation. Its air conditioning system includes a belt-driven compressor, electric clutch, condenser fan, evaporator core, and a control circuit governed by relays and pressure sensors. When functioning properly, the system provides consistent cooling even in high ambient temperatures and dusty environments.
Terminology Clarification

• AC Compressor Clutch: An electromagnetic device that engages the compressor pulley when cooling is needed.

• Freon (Refrigerant): The fluid used in AC systems to absorb and release heat.

• Relay Pins 30 and 87: Terminals on a standard automotive relay used to control power flow.

• Low-Pressure Switch: A sensor that disables the clutch if refrigerant levels are too low.

• Evaporator Core: The component inside the cab that absorbs heat from the air.


• No cold air from vents despite AC switch activation

• Audible click missing when clutch should engage

• Compressor pulley spinning freely without load

• Warning lights or fault codes on the display panel


• Whether the engine is running (clutch won’t engage with engine off)

• If the condenser fan is packed with debris, which can blow fuses

• If the evaporator core is clogged, reducing airflow and triggering system shutdown

• Fuse integrity in the HVAC circuit


• Locate the AC relay in the fuse panel

• With the engine running, jump pins 30 and 87 using a fused jumper wire

• Listen for the clutch to click and observe whether the compressor engages

• If it does, the wiring from relay to clutch is intact

• If cold air flows, refrigerant charge is likely sufficient

• If no engagement occurs, suspect a failed clutch coil or open circuit


• Check for leaks using UV dye or electronic sniffers

• Recharge with the correct refrigerant type (typically R-134a)

• Monitor pressure readings during operation

• Replace damaged O-rings or fittings as needed


• Failed AC switch in the cab

• No ground at the relay coil

• No power signal from the switch to the relay

• Corroded connectors or broken wires


• Clean condenser and evaporator cores regularly

• Inspect and replace cabin air filters

• Check refrigerant levels seasonally

• Protect wiring harnesses from rodent damage and abrasion

• Use dielectric grease on connectors to prevent corrosion


Introduction
The EPC (Electronic Proportional Control) solenoid valve in Komatsu PC128UU hydraulic excavators plays a pivotal role in regulating hydraulic flow and pressure, ensuring optimal machine performance. A malfunction in this component can lead to various operational issues, including erratic boom movements, hydraulic pressure inconsistencies, and system alarms. Understanding its function, common failure modes, and maintenance practices is essential for operators and technicians to maintain the excavator's efficiency and longevity.
Function and Importance
The EPC solenoid valve is integral to the hydraulic system's proportional control mechanism. It modulates the flow of hydraulic fluid to different parts of the machine based on electronic signals, allowing for precise control of movements such as boom lifting, arm extension, and bucket operation. This precise control enhances productivity and ensures the safety and stability of the excavator during operations.
Common Failure Symptoms
Operators may encounter several symptoms indicating potential issues with the EPC solenoid valve:

• Erratic Boom Movements: Unpredictable or jerky movements during boom operations can suggest a malfunctioning solenoid valve.

• Hydraulic Pressure Fluctuations: Inconsistent pressure readings or sudden drops may point to issues within the EPC system.

• System Alarms: Diagnostic codes such as "74" (defective PC-EDC Solenoid) may appear, signaling electronic control problems.


1. Check Diagnostic Codes: Utilize the machine's onboard diagnostic system to retrieve any stored fault codes. Codes like "74" indicate specific solenoid-related problems.

2. Inspect Wiring and Connectors: Examine the wiring harness for signs of wear, corrosion, or disconnections. Ensure all connectors are secure and free from damage.

3. Test Solenoid Valve Operation: Using a multimeter, check the solenoid's resistance to ensure it falls within the manufacturer's specified range. A reading outside this range may indicate a faulty solenoid.

4. Verify Hydraulic Pressure: Measure the hydraulic pressure at various points to ensure it aligns with the specified values. Deviations can point to issues within the EPC system.


• Obtain the Correct Part: Ensure compatibility by sourcing the appropriate solenoid valve model for the PC128UU. Part numbers like 702-21-07010 are commonly used for this model.

• Install with Care: Follow the manufacturer's guidelines during installation to avoid damaging the new solenoid or related components.

• Regular Maintenance: Implement a routine maintenance schedule, including periodic inspections and cleaning of the EPC system, to prolong the solenoid valve's lifespan.


Introduction
In the world of mechanics, certain individuals leave an indelible mark through their expertise, dedication, and the relationships they build. Angus John Krug was one such individual. His passing on December 30, 2011, after a courageous battle with prostate cancer, marked the end of an era for many who had the privilege of working alongside him. Remembered not only for his technical prowess but also for his unwavering integrity and commitment to his craft, Angus's legacy continues to inspire.
A Life Dedicated to Mechanics
Angus's journey into the mechanical world was not just a profession but a passion. From a young age, he exhibited a natural aptitude for understanding complex systems and a hands-on approach to problem-solving. His career spanned several decades, during which he became renowned for his ability to diagnose and repair a wide array of mechanical issues. Whether it was a vintage tractor, a modern piece of heavy equipment, or a simple household appliance, Angus approached each challenge with the same meticulous attention to detail.
His reputation was built on more than just technical skills. Colleagues and clients alike spoke of his honesty, reliability, and the genuine care he took in his work. Angus believed that every job, no matter how small, deserved the highest standard of craftsmanship. This philosophy earned him the respect and admiration of everyone who had the pleasure of working with him.
The Man Behind the Wrench
Beyond the tools and machines, Angus was a man of character. He was known for his dry sense of humor, his willingness to lend a hand to those in need, and his deep sense of community. Angus was not just a mechanic; he was a mentor to many, sharing his knowledge and experience with the next generation of technicians. His shop was a place of learning, where young apprentices could observe and absorb the nuances of the trade.
Family was at the heart of Angus's life. He is survived by his wife, children, and grandchildren, all of whom were the center of his world. His passing left a void not only in the mechanical community but also in the hearts of those who knew him personally.
A Lasting Impact
The impact of Angus's work extended far beyond the immediate repairs he performed. His meticulous documentation, thoughtful problem-solving, and innovative approaches to mechanical challenges set new standards in the field. Many of his techniques and solutions have been passed down through the years, continuing to influence and guide mechanics today.
In the years following his passing, numerous tributes and remembrances have highlighted the profound effect Angus had on his community. Stories of his generosity, his commitment to excellence, and his unwavering work ethic serve as a testament to the kind of person he was. His legacy lives on in the countless individuals whose lives he touched, both professionally and personally.
Conclusion
Angus John Krug's life was a testament to the power of passion, dedication, and integrity. As we remember him, we celebrate not just the mechanic but the man who embodied the very best of his profession. His legacy serves as an inspiration to all who strive to approach their work with the same commitment and care that he did. Angus may no longer be with us, but his influence continues to resonate, reminding us of the profound impact one individual can have on the world around them.

Overview
This article describes rebuilding and resealing a Roosa-Master / Stanadyne DBG series injection pump as fitted to a classic tractor application (example: John Deere 4020). It focuses on common wear items, conversion/upgrades, pilot-tube fitment, sealing best practices, and practical rebuild tips drawn from hands-on experience. The goal is a readable, technician-oriented guide that adds missing context, explains terminology, and gives realistic parameter ranges and solutions.
Pump and Tractor Context
The Roosa-Master / Stanadyne DBG family are mechanical rotary distributor-style diesel injection pumps widely used on tractors, graders and small industrial engines from mid-20th century into later decades. They are simple, rugged pumps featuring a governor assembly, advance/cam adjustment, pilot tube (also called the pilot or transfer tube), and a weight/retainer arrangement that controls fuel delivery vs. engine speed. In the field these pumps are popular because replacement parts are available and many machine owners choose to rebuild rather than replace the whole unit.
Technical callouts

• Example application: John Deere 4020 tractor.

• Pump example ID: DBGVC633-3AJ (rotary distributor plumbing).

• Typical symptoms prompting rebuild: inability to hold steady RPM, over-revving with small throttle change, uneven running.


• Governor flex ring disintegration — the thin flex or “flex” ring that couples the governor weights to the control mechanism often cracks or fails. If missing or broken, governor behavior becomes erratic and the engine will not hold steady RPM.

• Worn rivets on weight retainer basket — rivet wear on the flyweight retainer reduces contact geometry and changes governor dynamics; if more than half worn it’s a clear sign parts need replacement.

• Incorrect pilot tube length or seating — wrong pilot tube protrusion changes fuel transfer timing/quantity and can cause over-rev or stalling. Measured protrusion values matter to tenths of an inch. One measured example: original tube protruded ≈0.315" before removal; fitting a longer replacement flush to the inside would have resulted in ≈0.290" protrusion (verify by test fit).

• Sealing failures and old seals — leaks and air ingression in the pump bore cause poor suction and inconsistent fuel metering.


• New governor weight retainer basket (part examples: modern replacement number 29111 for certain pivot heel styles).

• New governor flex ring (if original design used one).

• Pilot tube options: common part numbers include 16320 (standard) and a shorter 16323 for some JD applications — always test fit to confirm correct protrusion.

• Seal kit (pump-specific).

• New pilot tube pilot or pilot tube retaining epoxy.


• If rivets on the weight retainer are worn significantly, upgrading to the newer EID style governor ring is recommended because it modernizes the interface and eliminates repeated rivet failures. If the flex ring style is intact and retainer rivets are serviceable, retaining the original arrangement is possible — but replacement of worn parts is still required.


• Use a high-quality 2-part epoxy rated for fuel exposure (many rebuilders choose general 10-minute 2-part epoxies with known fuel resistance).

• Prepare mating bore and tube by cleaning and degreasing; lightly abrade if recommended by adhesive maker.

• Apply epoxy sparingly into grooves, press tube to correct protrusion, clean excess immediately.

• Full cure: ambient cure 24 hours OR accelerated cure by oven at 350°F for 30–45 minutes (some technicians use heat to shorten downtime — follow epoxy manufacturer instructions and safety cautions).

• Test mechanical seating before committing to final cure if possible — some rebuilders dry-fit to confirm protrusion then apply epoxy.


• Inspect and document condition of governor weights, retainers, ring, rivets, cam advance plug, and pilot tube. Measure protrusion and mark.

• Source a complete seal kit and any upgrade components (retainer basket, flex ring or EID governor ring). Confirm pilot tube part number by test fit (16320 vs 16323 or other).

• Disassemble pump carefully, noting orientation of weights and springs. Use correct tools for cam advance plug removal (they can seize).

• Replace worn rivets/retainer or swap in the upgraded basket per part compatibility.

• Fit pilot tube to correct protrusion; use fuel-resistant 2-part epoxy to secure if required. Allow full curing time.

• Replace seals, reassemble governor, and set initial linkage/preload to manufacturer tolerances.

• Bench test for free movement of governor and cam advance, then perform an on-engine run-in and final adjustments to idle and full throttle mapping.


• After reassembly, set throttle-to-hydraulic/gov linkage so full “rabbit” throttle corresponds to full pump command; misadjustment is a common cause of runaway or stalling behavior.

• Observe and adjust small protrusion differences in tenths of an inch — even 0.02–0.03" changes can affect delivery. Keep a caliper handy.

• Let epoxied pilot tube cure fully before final torqueing or pressurizing the fuel system.


• 2-part fuel-resistant epoxy (short cure type for workshop convenience)

• Precision calipers for measuring pilot tube protrusion (accuracy to 0.001" preferred but tenths of an inch commonly used in field work)

• Appropriate rivet or retainer replacement tools and press for safe removal/installation

• Clean solvent, lint-free rags, and torque wrench for reassembly


• Re-verify pilot tube protrusion and seating.

• Confirm governor flex ring or EID ring installed correctly and that weight heel geometry matches the retainer type.

• Check for stuck advance/cam mechanism or foreign debris.

• Inspect fuel supply and metering (filters, suction leaks) — pump issues can mimic fuel supply problems.


• Injection pumps control timing and fuel quantity precisely; incorrect reassembly or wrong pilot tube geometry can cause lean/rich conditions, hard starting, or engine damage.

• If you lack the correct tools or feel uncertain about cam advance settings or governor geometry, professional pump rebuilder services are a practical alternative; they can bench-test pump timing and deliver a warranty.


• Example pilot tube protrusion reported: ~0.315" (original) / ~0.290" (if longer tube fitted flush) — measure and confirm for your pump.

• Suggested epoxy cure: 24 hours at ambient OR 30–45 minutes in oven at ~350°F per some field practices (adhesive manufacturer guidance should be followed first).

• Replace retainer basket if rivets are >50% worn; consider part number 29111 for certain pivot heel types.

• Use 2-part fuel-resistant epoxy and follow safety procedures when heating cured parts.
