Introduction to the 977L Series
The Caterpillar 977L Crawler Loader, introduced in the early 1970s, represents a significant advancement in Caterpillar's line of tracked loaders. Building upon the foundation set by its predecessors, the 977L was designed to offer enhanced performance, durability, and versatility in various heavy-duty applications.
Key Specifications

• Engine: Powered by the Caterpillar 3306 turbocharged diesel engine, the 977L delivers approximately 190 horsepower, providing ample power for demanding tasks.

• Operating Weight: The machine has an operating weight of around 48,000 pounds (21,772 kg), making it suitable for a range of construction and mining operations.

• Bucket Capacity: Equipped with a 2.5 cubic yard (1.91 m³) bucket, the 977L is capable of handling substantial material loads.

• Dimensions:
  • Length with bucket on ground: 18.74 ft (5.71 m)

  • Width to outside of tracks: 7.85 ft (2.39 m)

  • Height to top of cab: 10.93 ft (3.33 m)

  • Ground clearance: 1.68 ft (0.51 m)

• Undercarriage:
  • Track gauge: 75.99 in (1.93 m)

  • Length of track on ground: 9.22 ft (2.81 m)

  • Number of shoes per side: 39

  • Track shoe width: 18 in (0.46 m)


• Material Handling: Its powerful engine and robust bucket capacity made it ideal for moving large quantities of materials on construction sites.

• Excavation: The machine's hydraulic system allowed for efficient digging and loading operations.

• Landscaping and Grading: With its precise control and maneuverability, the 977L was effective in shaping terrains and preparing sites for development.





Machine Heritage

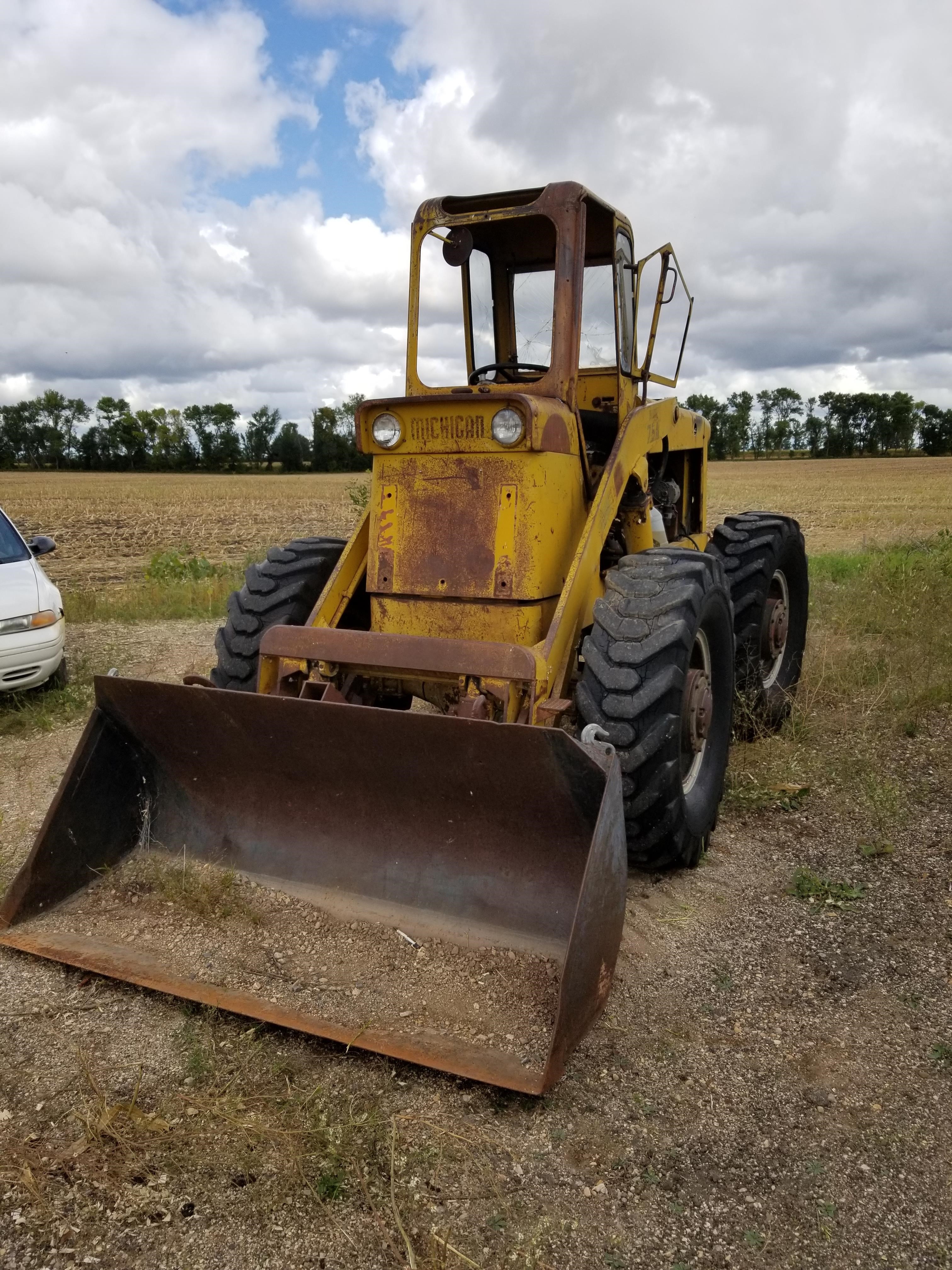

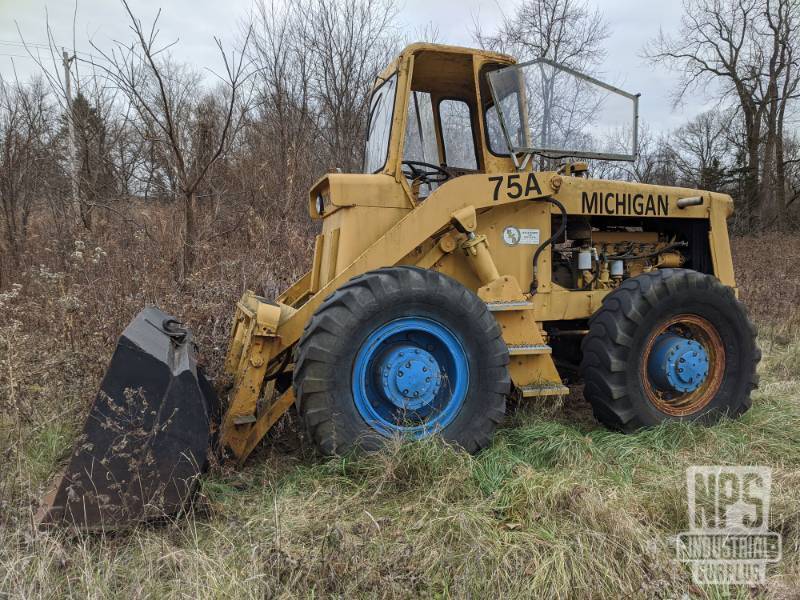

The Clark-Michigan 75A wheel loader traces its roots to the early 1960s, a period when Clark Equipment Company—having acquired Michigan Power Shovel in 1953—expanded into rugged, rigid-frame loaders. Launched in this era, the 75A served widespread industrial and agricultural applications, favored for its heft and simplicity. Production of its broader series stretched into the mid-1980s.
Technical Data Snapshot
Key specifications define the 75A’s utility:

• Weight: approximately 17.2 tons

• Maximum discharge height: around 2.74 meters

• Engine power: roughly 79.8 kW (about 107 HP)


• One owner recalled using a gas-engine 75A loader for decades, praising its durability. Despite needing brake repairs, they wondered if a sale price between $1,500 and $2,000 was reasonable. Advice from peers echoed that sentiment, suggesting that brake work might cost a similar amount—and falling into that price range could be fair for such a machine.

• Another recounted the nostalgia of his father operating a 75 with a Waukesha diesel for excavation and land clearing tasks. His skill earned him job offers—darkane Cadillac-laden trips—even before his father sold machines to a construction firm impressed by his loader’s performance.


• Condition and required repairs: Breakage or disrepair (e.g., nonfunctional brakes) can deduct several hundred to over a thousand dollars from value.

• Comparable sales: Loaders of similar vintage have fetched between $1,500 and $2,100 in past auctions despite varied conditions.

• Engine and transmission setup: Models upgraded with diesel engines and 4×4 hydrostatic transmissions (like the 75AG) tend to command higher auction bids.

• Rarity and collectibility: Series II models with intact safety upgrades and identifiable serials may bring a premium among collectors or vintage equipment enthusiasts.


• Assess and estimate brake repair costs (likely a few hundred dollars) to adjust asking price.

• Measure hours of operation, engine condition, hydraulic health, and physical wear.

• Use available auction comparisons (both loader and upgraded 75AG examples) to broadly gauge market interest.

• Highlight Series II design and any safety-related improvements in any listing or conversation—these features matter.

• Consider professional appraisal or parts valuation via tools like Lectura to refine expected market value.


• Model: Michigan 75A Series II, 1962 model year

• Weight: ~17.2 tons

• Lift height: ~2.74 m

• Power output: ~80 kW (107 HP)

• Upgraded variant: 75AG with 130 HP Isuzu engine, hydrostatic 4×4, rear steering, 1,160 hrs

• Value estimate: Roughly $1,500–$2,100 depending on condition and mechanical needs

• Key value factors: Brake condition, engine/transmission type, series type, historic appeal


Noticed Weakness in One Direction
A clear symptom emerged when the machine struggled to move in reverse: one of the final drive motors was sluggish, barely turning, while that same motor performed noticeably better when slewing. In forward gear, performance improved but did not match the other side’s speed, suggesting a genuine motor inconsistency rather than a systemic issue .
Testing to Isolate the Fault
A reliable diagnostic approach involves using inline pressure gauges on both feed lines of the affected motor. By comparing forward and reverse pressures, you can isolate the issue:

• If pressures are consistent, the fault likely lies within the motor—possibly a malfunctioning internal valve like a shock valve.

• If discrepancies appear, the issue may lie upstream in components like the rotary joint's main valve .


• Hydraulic fluid level or pressure deficiency results in insufficient torque for the travel motor.

• Blocked case drain filters or problematic swivel joints can also degrade motor performance.

• High friction drive components, like tight tracks, also place extra demand on the motor.
  These problems can mimic motor failures, so it’s important to rule them out first .


• Main bearings, which generate noise, heat, and vibration when failing

• Gears and gear bearings, where wear becomes evident as pointed or uneven surfaces

• Upper and lower shafts with splines, where worn splines may lose engagement

• Degraded seals, leading to fluid leakage
  Furthermore, clogged case drain filters or a weak charge pump often initiate failures and must be addressed to prevent recurrence .


1. Confirm equal pressure in both directions using pressure gauges.

2. Inspect swivel joint for leaks, check track tension, and ensure charge pump delivers rated pressure.

3. Clean or replace the case drain filter and test hydraulic fluid level and condition.

4. If external components check out, proceed to open-motor inspection: bearings, shafts, gears, and seals.


• Routinely monitor hydraulic pressure and case drain cleanliness.

• Rotate drive motors with refurbishments or replacements to distribute wear.

• Lubricate and inspect swivel joints regularly.

• Maintain proper track tension—both over- and under-tension damage motor performance.


• Final Drive Motor: The hydraulic motor driving track or wheel movement via a gear assembly.

• Swivel Joint: A hydraulic rotating coupling for continuous connection between static and rotating components.

• Case Drain Filter: Protects motor by filtering return oil; blockages can cause overpressure.

• Shock Valve: An internal valve that cushions sudden hydraulic pressure shifts.


The Importance of Accurate Oil Level Checks
Engine oil is the lifeblood of any internal combustion engine, especially in heavy equipment like dozers, excavators, and loaders. It lubricates moving parts, regulates temperature, and carries away contaminants. Checking oil levels regularly is a basic but critical maintenance task. Yet even this simple act can present confusing results—particularly when the dipstick appears dry on the first pull, only to show a proper level on the second.
This phenomenon, while seemingly illogical, has a mechanical explanation rooted in pressure dynamics and dipstick tube design.
Terminology Clarification

• Dipstick Tube: A narrow metal or plastic channel that houses the dipstick and connects to the oil pan.

• Blow-by: Combustion gases that escape past piston rings into the crankcase, potentially affecting internal pressure.

• PCV Valve (Positive Crankcase Ventilation): A valve that regulates crankcase pressure by venting gases back into the intake system.

• Vacuum Seal: A pressure differential that prevents fluid movement due to trapped air.

• Resticking: The act of reinserting the dipstick after the initial pull to get a true reading.


• Always restick the dipstick after the first pull.

• Wait 5–10 seconds before reading to allow oil to settle.

• Wipe the dipstick clean before reinserting.

• Check oil when the engine is cold or has been off for at least 10 minutes.

• Ensure the dipstick is fully seated before the first pull.


• Inspect the PCV valve and breather system for blockages.

• Check for signs of blow-by, such as oil mist around the dipstick or elevated crankcase pressure.

• Replace worn seals or grommets around the dipstick tube.


• Make oil checks part of the daily pre-start routine.

• Keep a log of oil consumption and refill intervals.

• Use high-contrast dipsticks or wear magnifying glasses if visibility is an issue.

• Train new operators on the importance of resticking and pressure equalization.


Machine Background
Mitsubishi Heavy Industries launched the BD2F model as part of its compact dozer lineup in the late 1970s. The company, established in 1884, has long been a global force in heavy equipment, particularly known for robust engineering and reliability. The BD2F was designed for versatile tasks—from small-scale site clearing to agricultural grading—and over its production span, thousands of units were deployed worldwide, valued for their compact footprint and simple mechanics.
Understanding Steering System Components
The BD2F’s steering relies on a system of brakes, clutches, linkages, and pedals. When steering is applied—especially during reversing—the right steering brake must engage precisely. If this engagement falters, turning becomes inconsistent or sluggish, particularly at low speeds. Components involved include the brake band (wrapped around a drum), clevis-controlled linkages, and adjustable nuts that control free play in pedals.
Identifying Steering Issues
Operators often notice that:

• Right turns while backing up are unreliable or unresponsive.

• The machine steers better at higher speeds.

• Steering is stubborn or uneven depending on RPM or direction.


• Adjust brake pedal free play between approximately 0.5 cm and 1.0 cm (3/16 to 3/8 inches) using a clevis—this ensures the brake stays properly engaged yet releasable.

• To correct drum clearance for the brake band: fully screw in the adjusting nut, then back it off by about 2⅔ rotations, ensuring proper contact and tension.

• Inspect and tighten the ball joint in the brake linkage. Loose or worn linkages can prevent the brake from fully engaging, especially in low gear.

• Ensure the linkage is lubricated and aligned, which helps maintain consistent brake engagement and minimizes premature wear.


• Brake pedal free play: Adjust to 0.5–1.0 cm range.

• Adjusting nut on brake drum: Screw fully in, then back off exactly 2⅔ turns.

• Linkage ball joint: Check tightness and wear; tighten or replace if loose.

• Lubrication: Apply regularly to pivot points and linkages.

• Test steering: Verify improved right-turn response in reverse at low speeds, and consistent engagement across speeds.


• Maneuverability improves notably in tight spaces.

• Operator fatigue drops, as steering turns feel more responsive and reliable.

• Safety increases, especially when backing in confined zones or on slopes.

• Wear on brake bands and drums is minimized, saving repair costs.


• Model: Mitsubishi BD2F dozer

• Critical free play: 0.5–1.0 cm (3/16–3/8 in.)

• Brake band nut adjustment: 2⅔ rotations from fully seated

• Inspect ball joint: Ensure secure, wear-free performance

• Lubricate: Key linkage points regularly

• Test under load: Especially back-up with right steering demand


Unpredictable Speed Control Stutter
Operators of the 750C Series II often experience sudden loss or fluctuation in speed—machines dropping to low speed “1,” jumping to “3,” or completely refusing to move—while fault codes flash simultaneously. One case reported error codes F654 and F658, which correspond to issues like:

• F654: Transmission Speed Control Switch voltage falling below 0.5 V

• F658: Decelerator/Speed Control Sensor signal shorted to ground



• A stable 5 V reference supply to the switch

• A signal output above 0.5 V when the switch is operated


• F627 / F635: Speed sensor/pickup alignment or wiring issues, typically causing steering faults or speed inconsistencies

• F640: Hydrostatic Pump Speed sensor malfunction—often speed drops or “return to neutral” messages appear; cleaning, repositioning, or replacing sensor resolves it



• F3 + 6x codes relate to transmission speed sensor or hydrostatic pump speed feedback issues

• Codes ending in 0, 2, or 5 signal open or short circuits—meaning voltage signal loss



• F654: Transmission Speed Control voltage < 0.5 V

• F658: Switch circuit short to ground

• F627/F635: Misaligned or wrong speed sensor or wiring

• F640: Hydrostatic pump speed sensor failure

• Sensor issues often show up after water exposure

• Deere codes (F3x) provide insight into specific circuit failures


• Use a multimeter/back-probe testing to trace voltage from switch through harness to TCU

• Visually inspect connectors for moisture, corrosion, or misalignment—especially after pressure washing

• Ensure sensors are correctly positioned relative to reluctor discs—too close or too far can trigger errors

• Replace suspect sensors incrementally—not all at once—to avoid unnecessary expense or failure

• Re-clean, secure, and protect connectors to prevent recurrence, and confirm readings post-repair


The XUD9 is a robust diesel engine born from Peugeot and Citroën's PSA engineering tradition. It premiered in the early 1980s and remained in production until about the mid-2000s, serving in a wide range of light vehicles and industrial machines. Its compact inline-four layout and durable construction made it especially popular—not just under bonnets but also beneath the frames of compact industrial equipment. As a direct ancestor to PSA’s modern HDi engines, the XUD9 represents a milestone in pre-injection, indirect-injection diesel development.
Design and Technical Characteristics
The XUD9 is a four-cylinder, inline configuration using indirect injection with a pre-chamber head derived from Ricardo’s Comet V design. It displaces 1.9 liters (1 905 cc), with a bore of 83 mm and stroke of 88 mm. Construction combines a cast-iron block with an aluminum cylinder head, forming a sturdy yet lightweight powerplant. It runs on a compression ratio around 23.5:1, idles at about 1600 RPM, and reaches a maximum around 3000 RPM.
Performance Figures
Depending on the variant, the XUD9 provided varying outputs:

• Naturally aspirated: approximately 47 kW (64 HP)

• Improved versions: around 51 kW (69 HP)

• Turbocharged TE variants: approximately 66 kW (90 HP).


• Replace the timing belt before age or mileage compromise—failure risks catastrophic engine damage given the interference-style design.

• Monitor compression via periodic testing; values should remain consistent across cylinders.

• Maintain clean fuel using proper filters; its mechanical pump tolerates little contamination.

• When remanufacturing, use genuine fastener torque specs (detailed in technical documentation) to preserve structural integrity.

• Consider upgrading to oval-port heads (XUD9A) for improved thermal efficiency and slight power gains.


• Configuration: inline-four, indirect-injection

• Displacement: ~1.9 L (1 905 cc)

• Bore × Stroke: 83 mm × 88 mm

• Compression Ratio: ~23.5:1

• Power Range: 64–90 HP (naturally aspirated to turbo variants)

• Torque Example: 125 Nm (XUD9 A)

• RPM Range: idle ~1600 RPM; max ~3000 RPM


The Machines Behind the Glass
The Gehl CTL80 and Mustang MTL25 are compact track loaders built on the same platform as the Takeuchi TL150, a model renowned for its durability and hydraulic power. Manufactured under license by Manitou Group, both Gehl and Mustang rebranded the TL150 chassis with minor cosmetic and cab differences. These machines feature vertical lift paths, high-flow hydraulics, and robust undercarriages, making them popular in demolition, land clearing, and grading. Thousands of units have been sold across North America since the mid-2000s, and their longevity means replacement parts—especially cab components—remain in high demand.
Terminology Clarification

• Tempered Glass: Heat-treated safety glass that shatters into small, blunt pieces when broken.

• Laminated Glass: Two layers of glass bonded with a plastic interlayer, which holds the glass together upon impact.

• Lexan: A brand of polycarbonate plastic often used as a shatter-resistant alternative to glass.

• Sticker Shock: A term used to describe unexpected or excessive pricing, especially for replacement parts.

• Wiper Motor Cutout: A hole or mounting point in the glass to accommodate the windshield wiper assembly.


• OEM glass often includes pre-drilled holes for wiper motors and mounting hardware.

• Tempered glass requires specialized fabrication and cannot be cut or drilled after treatment.

• Supply chain disruptions and low-volume production increase unit costs.

• Dealers may quote Lexan or polycarbonate panels, which are more expensive but offer higher impact resistance.


• Laminated glass: $120–$150 installed

• Tempered glass: $200–$300, with longer lead times

• Lexan/polycarbonate: $300–$600 depending on thickness and UV coating


• Providing a cardboard or plywood template with hole locations

• Verifying thickness and edge finish to match OEM specs

• Using rubber grommets or bushings to prevent stress fractures around mounting points


• Keep spare glass panels in the shop, especially if operating in wooded or rocky terrain

• Consider switching to Lexan if frequent breakage occurs

• Train operators to avoid overloading buckets or working under unstable debris

• Use protective films or guards on high-risk areas of the cab

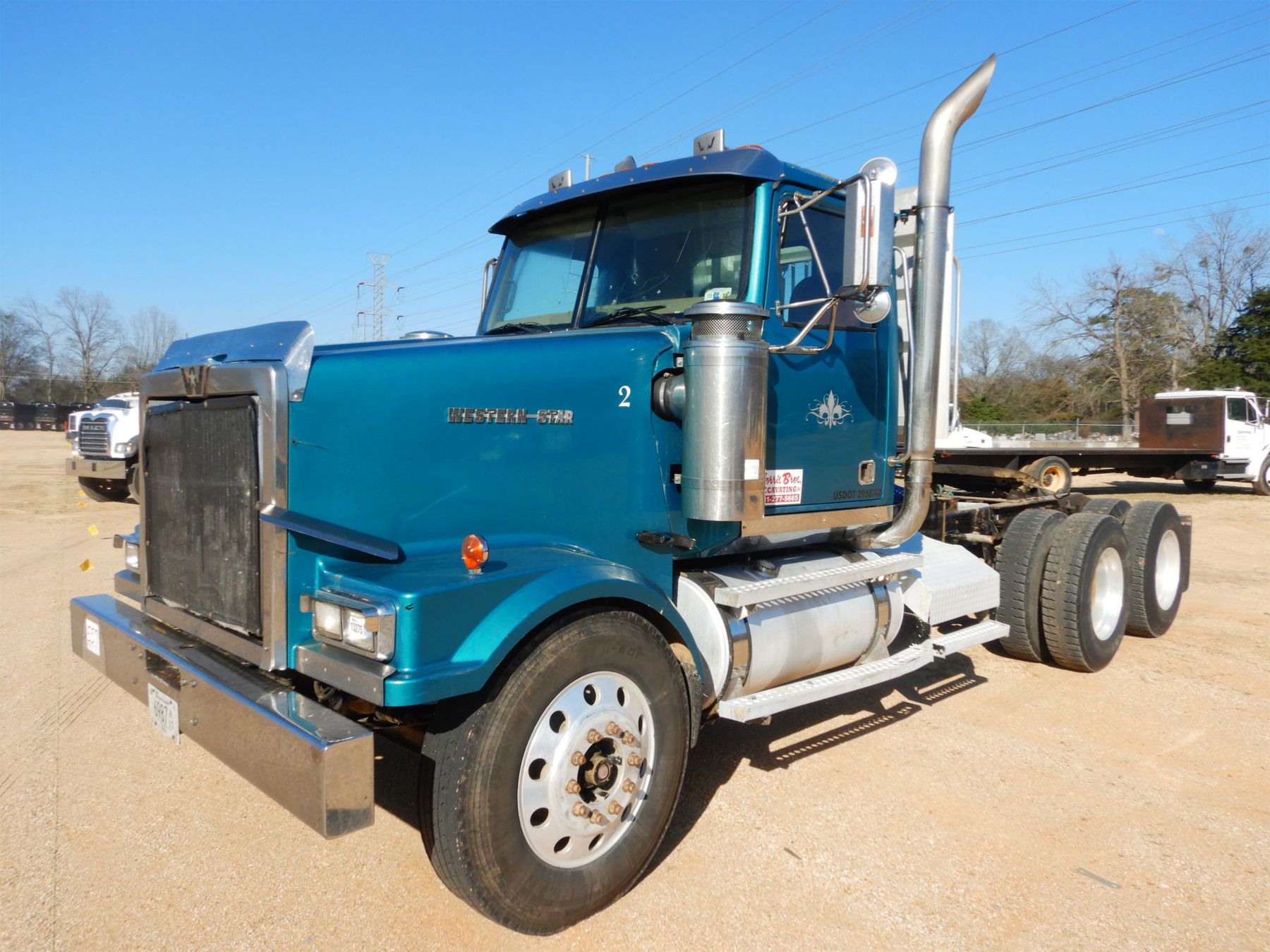

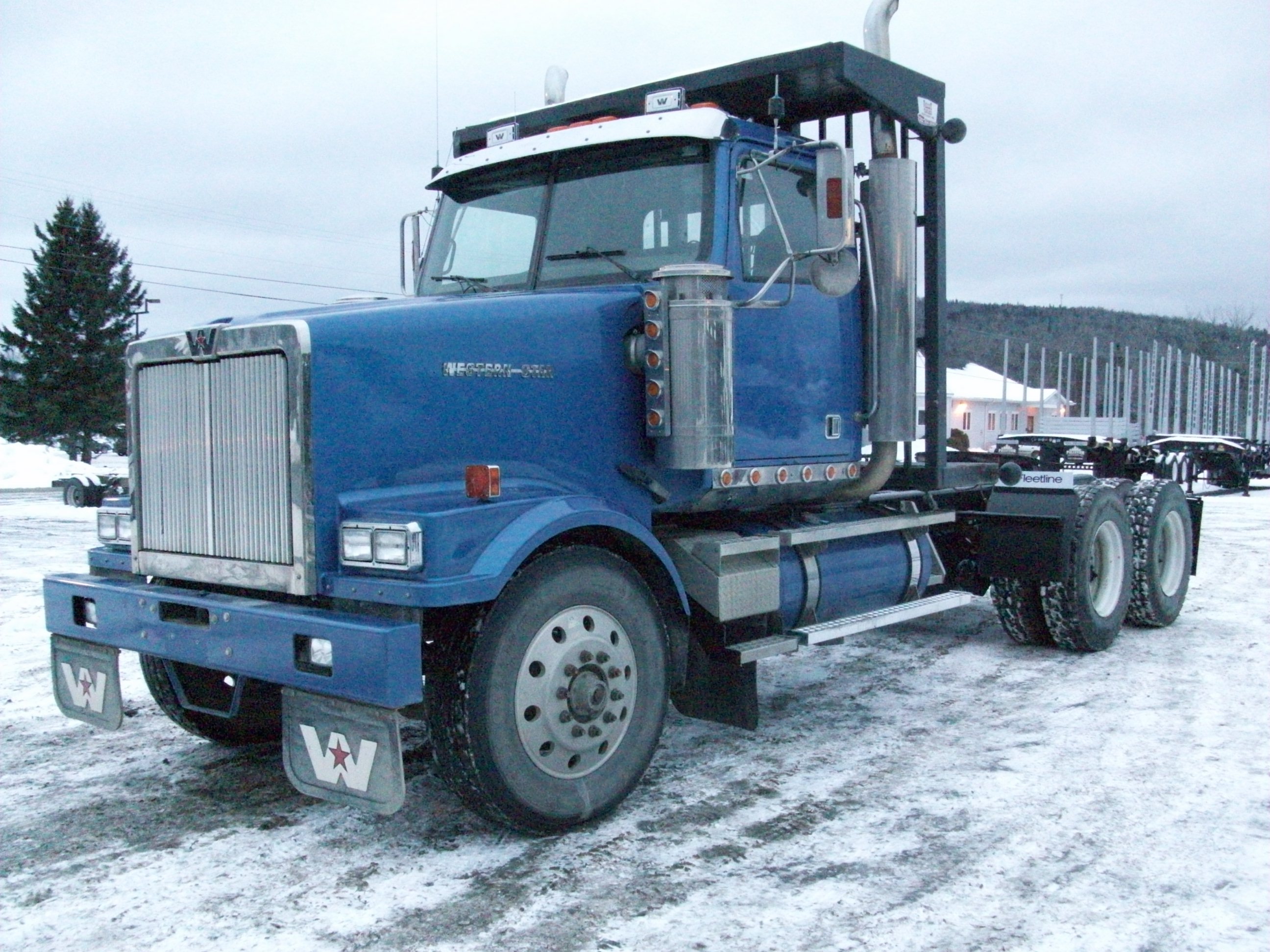

The 2006 Western Star 4900FA is a tough, Class 8 conventional cab truck built to endure heavy vocational duty, often used as a dump vehicle or tractor. Known for its rugged American construction and Mercedes-based power, it blends old-school durability with modern engineering.
Manufacturer Background
Western Star Trucks originated in 1967 under White Motor Corporation and grew into a respected brand specializing in heavy-duty and vocational trucks. In 2000, it became part of Daimler Truck North America, joining the same family as Freightliner. The 4900 series, with its long 123-inch bumper-back-of-cab design, served multiple industries including construction, concrete pumping, and even military haulage, reflecting its versatile build heritage.
Engine and Powertrain Details
Under the hood is a Mercedes-Benz MBE4000 inline-6 diesel engine producing around 430 – 450 hp. Some higher-spec variants claim 450 hp, supported by oil bath engine brakes and diesel drivetrains suited to high payloads. Paired with Eaton-Fuller 10-speed manual transmissions and 6×4 drivetrain layouts, these units were ready for tough terrain and heavy loads.
Chassis, Suspension and Axle Configuration
A fully steel tandem axle frame supports 12,000 lb on the front and 40,000 lb on the rear axle—ideal for Class 8 vocational assignments. Air-ride suspension cushions the ride, while differential lock, aluminum/steel rims, and 11R24.5 tires help maintain traction and longevity under harsh conditions.
Cab and Comfort Features
The cab is conventional and available as either day cab or sleeper configurations—including the 82″ Stratosphere sleeper with optional Webasto heating, insulation, and creature comforts like air conditioning, power mirrors, and Bluetooth audio. These features supported long haul comfort and extended work hours.
Production and Usage Context
By 2006, the 4900FA had established itself as a go-anywhere workhorse. Production took place in Daimler facilities in Portland, with later models added in Cleveland, North Carolina starting 2015. Its versatility across vocational and highway use reflected a broader trend of building trucks that operate reliably in hostile environments.
Real-World Mileage and Service History
Real-world examples show mileage approaching 700,000–980,000 miles—numbers achieved thanks to the robust Mercedes engine and conservative manual powertrain. At auction or resale, trucks with rebuilt engines or updated pistons/liners at around 450,000 miles offer compelling value and extended life.
Specifications Summary (List Form)

• Engine: Mercedes-Benz MBE4000 inline-6 diesel, 430–450 hp

• Transmission: Eaton-Fuller 10-speed manual

• Drivetrain: 6×4 with tandem axle

• Front axle capacity: ~12,000 lb

• Rear axle capacity: ~40,000 lb

• Suspension: Air-ride

• Differential lock: Yes

• Cab: Day cab or sleeper (e.g., Stratosphere 82″ sleeper)

• Comfort: A/C, engine brake, tarp control, power amenities


• Conventional Cab: A truck configuration with engine ahead of the cab (not cab-over) for improved ride comfort.

• MBE4000: Mercedes-Benz heavy-duty inline-6 engine known for diesel durability.

• Air-Ride Suspension: Pneumatic system offering smoother ride compared to leaf springs.

• Differential Lock: Mechanical feature that locks axle shafts together to improve traction.

• Stratosphere Sleeper: High-roof sleeper cab variant designed for enhanced driver comfort.


• Look for documented service history, especially engine rebuilds at 400k–600k miles.

• Inspect air-ride suspension for leaks—critical for comfort and stability.

• Verify that differential locks engage smoothly; hydraulic issues here can impair traction.

• Consider cab configuration based on haul length: day cabs suit short routes, sleepers are more efficient for long haul.


The Tadano TR250M-4 is a mid-range all-terrain crane designed for lifting operations in a variety of construction and industrial environments. Known for its balance of lifting power, mobility, and versatility, the TR250M-4 is an ideal choice for both on-road and off-road operations, making it a popular option in the crane industry.
History of Tadano and the TR250M-4 Model
Tadano, established in 1948 in Japan, has grown into a global leader in the design and manufacturing of cranes. The company is renowned for its commitment to innovation, safety, and reliability. The Tadano TR250M-4, introduced as part of the company’s rough-terrain crane series, is a testament to this philosophy. Designed to carry out heavy lifting in both urban and off-road environments, the TR250M-4 quickly gained a reputation for its robust build and exceptional performance.
The crane is equipped with a powerful engine, reliable hydraulics, and advanced safety systems, making it suitable for a wide range of applications, from construction to oil field work. The TR250M-4 has also become an attractive option for companies operating in rugged conditions due to its high degree of mobility and ease of maneuverability.
Key Specifications
The Tadano TR250M-4 features several notable specifications that set it apart in its class. These include:

• Maximum Lifting Capacity: 25 tons (22.7 metric tons)

• Boom Length: 35 meters (114.8 feet)

• Engine Power: Approximately 169 kW (227 horsepower)

• Travel Speed: 80 km/h (49.7 mph)

• Hydraulic System: Closed-center load sensing system

• Turning Radius: 7.3 meters (24 feet)

• Axles: 4-wheel drive and 4-wheel steering system for excellent off-road capabilities


1. Hydraulic System Failure
   The hydraulic system is the heart of any crane’s lifting and movement operations. Issues like poor lifting capacity, slow movements, or erratic operation often point to problems within the hydraulic system. This can result from low fluid levels, worn seals, or blocked hydraulic lines. Regular checks on hydraulic fluid levels, cleanliness, and pressure are essential to maintaining the crane’s functionality.

2. Engine Overheating
   The engine of the TR250M-4 is a vital component for overall performance. If overheating occurs, it can damage various engine parts, including the cooling system, leading to costly repairs. Overheating may be caused by factors such as a clogged radiator, low coolant levels, or faulty cooling fans. To prevent overheating, it’s important to perform regular checks on the cooling system, ensuring the radiator is clear of debris and the coolant is at the correct level.

3. Electrical System Malfunctions
   Modern cranes like the Tadano TR250M-4 rely heavily on electrical systems for control, monitoring, and safety functions. If the crane experiences power failure or malfunctions in its control systems, it may be due to issues with wiring, sensors, or the battery. Regular inspection of electrical connections and ensuring that the crane’s battery is fully charged are essential for preventing electrical failures.

4. Suspension and Axle Issues
   The TR250M-4’s mobility relies heavily on its suspension and axles, especially when operating off-road. A common problem in rough-terrain cranes is wear and tear on suspension components, which can lead to instability and poor handling. Regular inspection of the axles, tires, and suspension system can help mitigate these issues. If any abnormal wear or damage is found, components should be replaced to maintain optimal stability.

5. Control System Calibration Problems
   Cranes are equipped with sophisticated control systems that manage various functions, including lifting and slewing operations. Issues such as unresponsive controls or erratic movement often indicate a need for recalibration. Calibration should be performed by certified technicians using specialized tools to ensure the crane operates smoothly and safely.


1. Engine Maintenance
   The engine is one of the most important components of the crane. Regular engine oil changes, air filter replacements, and fuel filter replacements are essential for maintaining engine health. The manufacturer typically recommends oil changes every 500 hours of operation, but this may vary depending on usage.

2. Hydraulic System Care
   Hydraulic fluid should be checked regularly for contamination and replaced according to the manufacturer's recommended intervals. Seals and hoses should also be inspected for leaks or wear. Additionally, hydraulic filters should be replaced as needed to ensure smooth operation of the lifting mechanism.

3. Tire and Axle Inspection
   Given that the TR250M-4 is designed for rough-terrain operations, its tires and axles should be inspected frequently for signs of wear. Maintaining proper tire pressure and replacing tires with significant damage is essential for maintaining stability and reducing the risk of breakdowns.

4. Brake System Checks
   The crane's brake system is vital for safety. It’s crucial to check the brake pads, hydraulic brake fluid, and brake lines for any signs of wear or leakage. Regular brake testing should be done to ensure the crane can safely stop when necessary.

5. Control System Testing
   The control system, including the electronic modules and wiring, should be tested regularly. Any faulty sensors or wiring should be replaced immediately to avoid malfunctions during critical operations.


• Versatility: The TR250M-4 excels both on-road and off-road, making it suitable for a variety of work sites, from construction zones to rough terrains.

• Compact Design: The crane’s compact size makes it highly maneuverable, ideal for tight spaces where larger cranes might not fit.

• Reliability: Tadano’s reputation for building durable, high-quality equipment ensures that the TR250M-4 is a dependable tool on any job site.

• Advanced Safety Features: The TR250M-4 comes with advanced safety systems, including overload protection, which ensures the crane operates within safe limits at all times.
