Introduction
Skid steer loaders are indispensable machines in various industries, including construction, landscaping, and agriculture. These compact, versatile machines are designed to perform a wide range of tasks, from digging and lifting to grading and hauling. However, operators often face challenging working conditions, particularly in extreme temperatures. To enhance operator comfort and productivity, many manufacturers now offer skid steer loaders equipped with factory-installed air conditioning systems.
The Evolution of Air Conditioning in Skid Steers
Historically, air conditioning in skid steer loaders was considered a luxury feature, often added as an aftermarket modification. These retrofits, while effective, could be costly and time-consuming, involving complex installations and potential compatibility issues. Recognizing the need for improved operator comfort, manufacturers began integrating air conditioning systems directly into their skid steer designs. This shift not only streamlined the manufacturing process but also ensured better system compatibility and reliability.
Benefits of Factory-Installed Air Conditioning

1. Enhanced Operator Comfort: Factory-installed air conditioning systems provide consistent cooling, reducing operator fatigue and improving focus during long working hours.

2. Increased Productivity: A comfortable operator is more likely to maintain high levels of efficiency, leading to increased overall productivity on the job site.

3. Improved Air Quality: Modern air conditioning systems often include advanced filtration, reducing the intake of dust, fumes, and allergens, which is particularly beneficial in construction and agricultural environments.

4. Higher Resale Value: Skid steer loaders equipped with factory-installed air conditioning systems typically have higher resale values due to the added comfort and convenience they offer.


• Bobcat R-Series: The R-Series loaders feature a one-piece sealed and pressurized cab, which enhances the efficiency of heating and air conditioning systems. The design repels dust and dirt, isolates the operator from engine and hydraulic noise, and improves overall comfort.

• CASE SR130B and SR150B: CASE introduced advanced AC cab options in these models, marking the first air-conditioned small-frame skid steers in the Middle East and Africa market. These models offer improved comfort and productivity, especially in hot climates.

• Takeuchi TL8R2: The TL8R2 model is equipped with a cab that includes both air conditioning and heating, providing year-round comfort for operators. This feature is particularly beneficial for operations in regions with varying climates.


• Corunclima T20B: This 12V/24V DC-powered rooftop unit offers a cooling capacity of 2.2-2.5KW (8,500 BTU). It is designed for heavy-duty machinery and is durable enough to handle the vibrations common on construction sites. The system connects directly to the battery, eliminating the need for a mechanical compressor.

• Visionaire Model 7000: A compact rooftop-mounted air conditioner suitable for skid steers, mini excavators, and forklifts. Its all-steel construction ensures durability in harsh environments, and its compact design allows for installation in small operator cabs with limited roof space.


• System Compatibility: Ensure that the air conditioning system is compatible with the specific make and model of the skid steer loader.

• Professional Installation: While some aftermarket systems are designed for DIY installation, professional installation is recommended to ensure optimal performance and avoid potential issues.

• Maintenance: Regular maintenance of the air conditioning system is essential to ensure its longevity and efficiency. This includes cleaning filters, checking refrigerant levels, and inspecting components for wear and tear.


Why Good Grader Operators Are Hard to Find
In the world of earthmoving, motor graders occupy a unique space. They are not brute-force machines like bulldozers, nor are they precision tools like survey drones. They are both. Operating a grader demands a rare blend of spatial awareness, mechanical finesse, and intuitive feel—skills that cannot be taught in a few hours or downloaded from a GPS system.
Many contractors struggle to find experienced finish-grade operators. The best ones are already working, and those who try to break in often quit after realizing how much patience and practice the job requires. Unlike excavators or loaders, graders don’t offer immediate feedback. The blade’s effect is subtle, and mistakes compound slowly until the road profile is ruined. That’s why seasoned operators often say: “You learn with your eyes, your seat, and your mistakes.”
Training Realities and the Myth of Quick Learning
Some companies attempt to train new operators in a single morning, hoping to pass on decades of experience in a few hours. This rarely works. One veteran recalled spending an entire summer grading fill behind articulated dump trucks—known as “wiggle wagons”—before he was even allowed near a grade stake. That foundational experience taught him how material behaves under the blade, how to read the road, and how to adjust without overcorrecting.
New operators often get discouraged when their work is torn up and redone. They may not understand why a road needs only an inch of material in one section and three inches in another. Without that intuitive grasp of profile correction, they end up chasing the blade, overgrading, or worse—taking out the stakes entirely.
The Role of GPS and the Decline of Manual Skill
Modern graders are often equipped with GPS and automatic slope control systems. While these tools improve efficiency, they can also mask a lack of fundamental skill. Operators who rely solely on digital guidance struggle when the system fails or when they must blend new work into existing surfaces. That final merge—where the new grade meets the old—is where true skill shows.
In Australia, one contractor noted that young operators excel with GPS but falter when asked to finish manually. The transition from digital to tactile grading is jarring, and many quit rather than adapt. This reflects a broader trend in the industry: technology is advancing faster than operator training, creating a gap between capability and competence.
Mentorship and the Value of Letting Go
Experienced operators often debate how best to train newcomers. Some prefer hands-on instruction, while others advocate for a sink-or-swim approach. One veteran, bald from years of stress, joked that it’s better to let the trainee “drown a bit” than to hover over them. This method allows the learner to develop confidence and problem-solving skills without constant correction.
Another story involved a roller operator who was asked to mentor a government grader driver. The mentor downplayed his own expertise, allowing the trainee to work independently. By the end of the day, the trainee had improved and was more receptive to feedback. This approach—gentle guidance followed by autonomy—often yields better results than rigid oversight.
Grader Design and the Evolution of Control
Motor graders have evolved significantly since their early days. Originally developed in the 1920s by companies like Galion and Caterpillar, graders were mechanical beasts with hand levers and cable systems. By the 1950s, hydraulic controls became standard, improving precision and reducing operator fatigue.
Today’s graders feature joystick controls, climate-controlled cabs, and integrated telematics. Caterpillar’s M Series, for example, introduced steering wheel-less designs and fingertip blade control. These innovations improve ergonomics but also require a different learning curve. Operators must adapt not only to the machine but to the interface.
Despite these advances, the core challenge remains: reading the ground and shaping it with finesse. No amount of automation can replace the operator’s judgment when dealing with soft shoulders, variable subgrades, or unexpected drainage patterns.
Advice for Aspiring Operators and Fleet Managers
For those entering the field or managing grader crews, consider the following:

• Start trainees on fill work before introducing grade stakes

• Avoid over-reliance on GPS; teach manual blade control early

• Use string lines and tape measures to reinforce spatial awareness

• Encourage autonomy after basic instruction to build confidence

• Pair new operators with mentors who offer support without micromanagement

• Rotate tasks to expose operators to different grading scenarios


Why this matters
The Isuzu 3LD1 is a compact 3-cylinder diesel used in small excavators, forklifts and gensets; it’s roughly a 1.5-litre engine that commonly runs a Zexel (Bosch-style/VE family) inline injection pump. When the pump needs service — leak repair, seals, timing check or replacement — safe, methodical removal and correct marking/priming are essential to avoid timing errors, airlocks, or damage.
Preparations before you start

• Work area: level, clean, well lit.

• Tools: two opposing line wrenches for high-pressure lines, socket set, screwdriver, torque wrench, marker paint or scribe, soft-jaws or wood blocks, rags, container for diesel.

• Safety: wear gloves and eye protection; have a fire extinguisher handy; remove jewelry.

• Fuel handling: drain or isolate fuel supply, and depressurize the system if possible.

• Document the setup: take clear photos of the pump, fuel line routing, and electrical connectors before undoing anything.


• Isolate fuel and electrical supply (battery negative).

• Loosen and remove the high-pressure injector lines from the pump, using two wrenches to avoid twisting fittings. Catch any drips.

• Disconnect the pump solenoid/stop wire and any low-pressure feed lines.

• Mark the pump housing and mounting flange orientation relative to the engine/timing cover so re-installation preserves initial index.

• If required, lock the engine at TDC (cylinder 1 compression stroke) or follow the factory timing pin procedure.

• Remove the pump mounting bolts and withdraw the pump straight out, keeping it level to avoid spilling residual fuel into the gear train.


• Mark before you remove. If the pump housing is slotted or the drive gear can rotate, mark both pump housing and engine flange with a paint scribe (two matched marks). This preserves pump index and makes timing re-establishment much faster. Technicians commonly mark the pump body and engine case at two points to ensure orientation is repeatable.

• Use two wrenches on injector lines. The thin steel high-pressure lines are easily twisted; hold the injector nut and turn the line fitting body with the other wrench. Removing lines first and capping ports prevents dirt ingress.

• Note the solenoid and vacuum/advance linkages. On many Zexel/Bosch-style pumps the stop/idle solenoid or throttle linkages must be removed—label them so reassembly returns them to exact positions.

• Support the pump when unbolting. These units are heavy and awkward; support with a hand or block so it doesn’t drop and crack the drive coupling or housing.

• If engine timing marks are present, use them. Some engines provide a timing pin or groove for locking at TDC — use it. If not, set piston 1 to TDC and mark the pump. Reinstalling the pump with the engine at the same piston position simplifies timing.


• Seals and O-rings — replace the delivery valve O-rings and any pump case seals if there’s leakage. A common symptom of seepage is diesel smell or drips under the pump.

• Internal wear or contamination — disassembly (if you’re competent) will show whether plungers, delivery valves or drive gears are scored. Many DIYers send the unit to a specialist for re-seal or bench calibration if accuracy is required.


• Fit the pump in the exact orientation you marked. Hand-start the mounting bolts, then torque to manufacturer spec (don’t overtighten). If you don’t have exact torque values, snug the bolts evenly and consult the engine manual for final torque.

• Reconnect feed lines, injector lines (again use two wrenches), and electrical connectors.

• Prime the fuel system (pump/filters) before cranking — either with a hand primer or by cranking with the fuel solenoid/return lines open until solid diesel appears and no air bubbles are present. Air in the system prevents starting and can damage the pump.

• Static timing verification: with the engine at TDC and pump flanges aligned, rotate the pump drive slowly by hand and observe the pump’s timing marks (if fitted). Some VE-style pumps require a prestroke/dial indicator or tool for precise timing; if you lack the tool, conservatively re-prime and run the engine briefly to check for smoke, weird noises or mis-timing symptoms, then shut down and re-check.


• Twisted high-pressure lines — always use two wrenches. Twisting can stress injector seats and cause leaks.

• Losing pump index — never re-install an unmarked pump; if you do lose index, expect to need a timing tool or a professional bench re-timing.

• Airlocks after refit — always prime thoroughly and crack injectors to bleed air if necessary; repeated cranking without priming risks starter wear and no starts.

• Overlooked return/case drain — some pumps have case drains that must be connected and clear; blockages here cause overheating or cavitation damage.


• On a used machine, rebuilding or resealing a Zexel pump is often cheaper than a full exchange but requires skilled bench work (metering, plunger/cam inspection). Expect variable costs: simple seal kits are low cost; full bench calibration or replacement can be several hundred dollars depending on supplier and region. Many owners choose to send worn pumps to a specialist for reconditioning.


• VE pump — a family of inline distributor/inline pumps similar in operation to Zexel/Bosch designs.

• Index/Timing mark — matched reference marks that define pump orientation relative to engine TDC.

• Delivery valve — valve in each delivery port that helps shape injection and prevents backflow.

• Case drain — low-pressure return for leaked internal oil/fuel in some pumps.

• Prestroke/Timing tool — device or dial indicator used to set the pump’s injection timing precisely.


• If you’re comfortable with basic mechanical work and meticulous marking/bleeding, removal and reseal is doable at home.

• If the pump shows internal wear, or you lack timing tools, send it to a diesel specialist for bench timing and calibration — incorrect timing leads to poor performance and possible engine damage.

• Keep a small kit of common replacement O-rings and a hand primer on-site; they solve a large proportion of fuel-pump headaches quickly.


The Huber Legacy and Warco Partnership
The Huber Manufacturing Company, founded in 1875 in Marion, Ohio, was one of the earliest American firms to produce road-building machinery. Known for its steam traction engines and early graders, Huber played a pivotal role in shaping the motor grader industry. In the postwar era, Huber partnered with Warco to produce a series of rugged, military-grade graders, including the 4D model. These machines were built for durability, simplicity, and field serviceability, often deployed in remote regions and military installations.
The Huber Warco 4D grader, manufactured around 1960, was part of a fleet designed to meet U.S. Army specifications. Though exact production numbers are elusive, hundreds were built under government contracts and distributed across North America and overseas bases. Many units were later sold into civilian hands through surplus auctions, where they found second lives in rural road maintenance, land clearing, and snow removal.
Engine Configuration and Identification Challenges
The 4D grader is powered by a Detroit Diesel 4-71 engine—a 4-cylinder, 2-stroke diesel known for its distinctive whine and robust torque curve. The “4-71” designation refers to four cylinders with 71 cubic inches of displacement each, totaling 284 cubic inches. These engines were widely used in military vehicles, buses, and industrial equipment throughout the mid-20th century.
Identifying the engine model can be tricky due to serial number inconsistencies and replacement blocks. In one case, the engine bore a serial prefix “4A,” confirming it as a 4-71, but the block appeared to be a later replacement. This is common in older equipment, where field repairs often involved swapping entire engines or major components without updating documentation.
Operators should verify engine identity by cross-referencing serial numbers with Detroit Diesel archives or consulting military technical manuals, which often contain detailed schematics and part lists.
Filter Systems and Maintenance Considerations
The 4D grader uses a dual oil filtration system:

• A full-flow filter, typically mounted horizontally near the radiator

• A bypass filter, originally mounted vertically near the flywheel


• Wix 51133 for the full-flow filter (32-micron rating)

• Wix 51002 for the bypass filter (sock-type, now obsolete)


• Blade lift and tilt cylinders

• Steering assist

• Scarifier control (if equipped)


• Using military surplus manuals for part numbers and diagrams

• Cross-referencing filters and components through catalogs like Baldwin, Wix, and NAPA

• Consulting Detroit Diesel dealers for updated filter canisters or retrofit kits


• Verify engine model and serial number to ensure correct parts

• Replace both oil filters if possible, or increase oil change intervals

• Inspect hydraulic lines and cylinders for leaks and cold-weather compatibility

• Use military manuals for accurate diagrams and maintenance procedures

• Cross-reference parts through multiple catalogs to find modern equivalents

• Document all changes and repairs for future reference





Overview
On the Hitachi EX150 excavator, the battery relay acts as a safety switch—isolating nearly all electrical circuits when the machine is not running, except for the ignition circuit. It also enables alternator charging once the engine is running.
Wiring Configuration

• The battery’s positive terminal connects to one large terminal on the relay—this also includes a red fuseable link that feeds the key ignition switch.

• The other large terminal serves the alternator/starter circuit and is connected via a white wire, typically going to the alternator’s output or starter.


• Red wire → key switch (left side of the relay alongside the battery + cable)

• White wire → alternator output (right side of relay, alongside starter feed)


• Ignition On: The red fuseable link energizes the relay coil, allowing battery power to flow from the alternator/starter circuit and energize the vehicle’s electrical system.

• Engine Running: The alternator generates voltage (around 26–28V), feeding back through the relay to charge the battery and supply electrical circuits.


• Confirm red link goes to ignition circuit.

• Confirm white link ties to alternator and starter output.

• Ensure both batteries are grounded properly.

• Check for corrosion or damage in fuseable links and connectors.

• Measure voltages:
  • Battery (Engine OFF): ~24V

  • Battery (Engine RUNNING): ~26–28V


• Red fuseable link + battery positive feed the key switch circuit.

• White link provides alternator/starter output through the battery relay.

• The relay safely disconnects circuits when off and enables charging when running.

• Inspect and secure wiring for reliable electrical operation.


The Legacy of the D7F and Its Transmission Evolution
The Caterpillar D7F dozer, introduced in the 1970s, was part of Caterpillar’s long-standing D7 series, which began in the 1930s. The D7F featured the robust Cat 3306 engine and a transmission system that represented a transitional phase between earlier mechanical designs and more refined hydraulic systems. While the D7F transmission was considered an improvement over its predecessors, such as the D7E, it still fell short of the smoother, more efficient D6C transmission that followed.
Caterpillar, founded in 1925 through the merger of Holt Manufacturing and C.L. Best Tractor Co., became a global leader in earthmoving equipment. By the time the D7F was in production, Caterpillar had already established a reputation for durability and field serviceability. The D7F was widely used in road construction, land clearing, and mining operations, particularly in Australia and North America. Though exact sales figures are hard to pinpoint, the D7 series has sold in the tens of thousands globally.
Symptoms of Transmission Overheating
A recurring issue with the D7F is transmission overheating after 3–4 hours of operation. The machine starts the day performing normally, with both engine and transmission temperatures rising in tandem. However, after several hours of sustained work, the transmission temperature begins to climb disproportionately, eventually surpassing the engine temperature. Once overheated, the transmission loses pushing power, and the right-hand foot brake becomes erratic.
This behavior suggests internal hydraulic bypassing, possibly due to thermal expansion affecting valve tolerances or clutch pack integrity. The machine will cool overnight and operate normally the next day, indicating that the issue is heat-related rather than mechanical failure.
Initial Troubleshooting and Component Checks
Operators have attempted several remedies:

• Cleaning suction filters and inspecting for debris

• Flushing and inspecting the transmission cooler

• Replacing transmission fluid with a heavier grade

• Testing hydraulic and scavenger pump pressures

• Rebuilding the torque converter


• P1: Speed clutch pressure

• P2: Direction clutch pressure

• Converter output shaft pressure


• Install permanent pressure gauges for P1, P2, and converter output

• Perform cold and hot shaft engagement tests under idle conditions

• Verify transmission pump performance under thermal load

• Inspect clutch pack tolerances and valve body clearances

• Ensure cooler fins are clean and unobstructed

• Use oil with high thermal stability and monitor for aeration

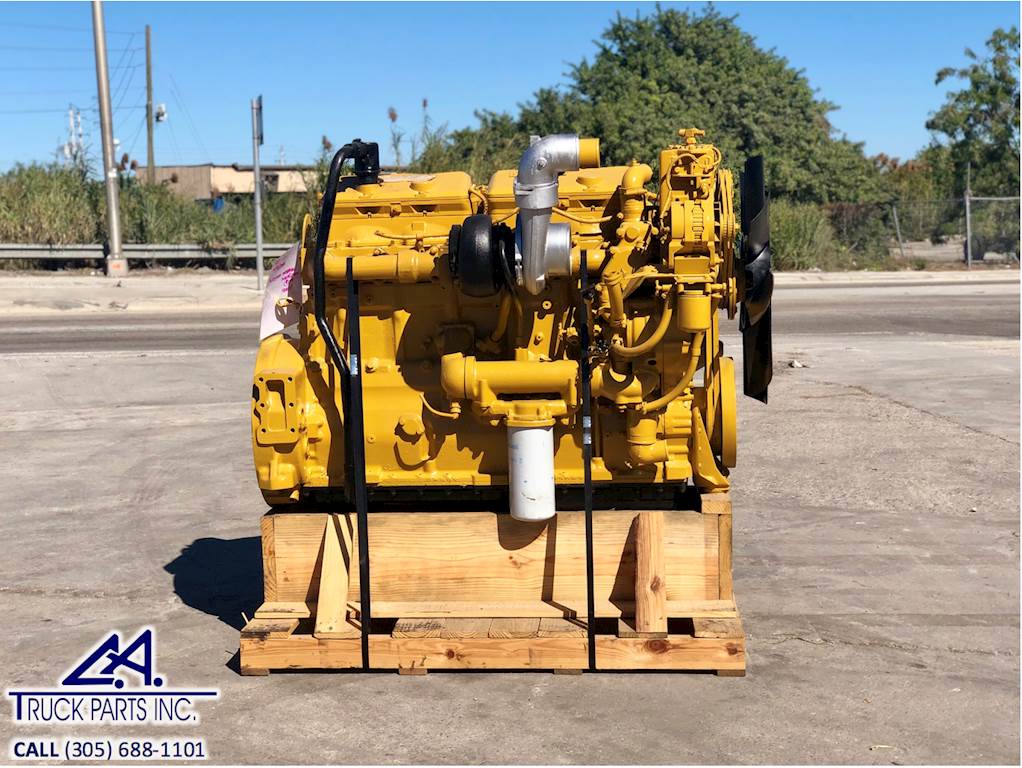

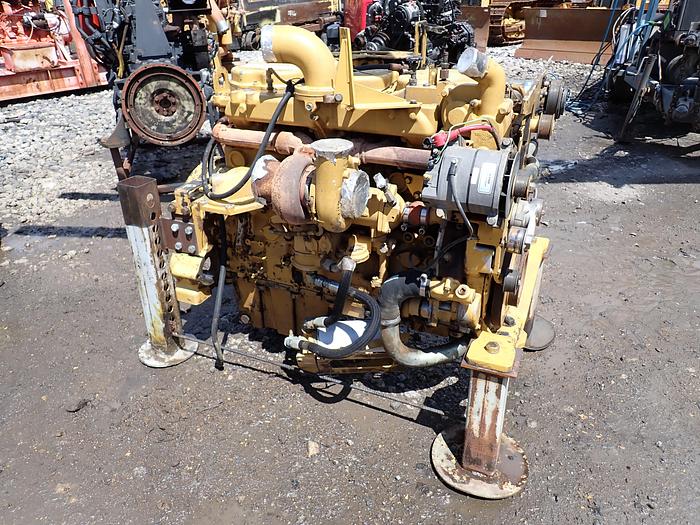

Choosing the Right Caterpillar Engine
When embarking on a “rat rod” or custom truck project using a mechanical Caterpillar engine, engine choice matters. Enthusiasts favor the Cat 3304 and 3306, with the 3306 notably capable of delivering up to 300 horsepower in truck setups. The slightly heftier 3406 is also workable—though its larger size means additional modifications may be required to fit into the chassis.
Other options like the 3116 are available in mechanical form, but this inline-six platform offers limited performance upgrade potential—its fuel system lacks an injection pump, making high-output tuning more difficult.
Why Stick with Mechanical?
Mechanical Cat engines—without electronic control units—are prized for their simplicity and ease of maintenance. These engines avoid the complexity of wiring harnesses, ECUs, and sensors that come with modern electronic models, making them ideal for older chassis or vintage builds.
Suggested Engine Choices Overview

• Cat 3304
  Mechanical engine with moderate horsepower. Compact size makes it easier to fit into older or smaller truck frames.

• Cat 3306
  Fully mechanical, capable of reaching up to around 300 horsepower in truck configurations. Well-balanced choice for power and practicality.

• Cat 3406
  A heavier engine with higher horsepower potential. Provides brute force but usually requires significant chassis modifications to accommodate the larger block.

• Cat 3116
  Mechanical inline-six, but limited tuning options. Lacks a traditional injection pump and does not have aftermarket hot rod parts available, making upgrades difficult.

• Cat 3126
  Primarily electronic versions exist, with rare mechanical variants. Generally not recommended due to added complexity and compatibility issues.


The Rise of Manitowoc Cranes
Founded in 1902 in Manitowoc, Wisconsin, the Manitowoc Company began as a shipbuilding enterprise before pivoting to cranes in the 1920s. By the mid-20th century, Manitowoc had become synonymous with lattice boom crawler cranes—machines known for their stability, reach, and lifting capacity. The company’s reputation grew through major infrastructure projects, including bridges, refineries, and high-rise construction across North America and beyond.
The Manitowoc 999, introduced in the late 1990s, quickly became one of the most recognized models in the 250-ton class. It was designed to fill the gap between mid-range and heavy-duty crawler cranes, offering a blend of mobility, modularity, and brute strength. By 2010, over 400 units had been sold globally, with strong demand from contractors in energy, marine, and civil engineering sectors.
Core Specifications and Capabilities
The Manitowoc 999 is a lattice boom crawler crane rated for a maximum lifting capacity of 250 U.S. tons (227 metric tons). Its design emphasizes modular boom configurations, allowing operators to tailor reach and capacity to site-specific needs. Key specs include:

• Maximum boom length: 330 feet (100.6 meters)

• Maximum jib length: 80 feet (24.4 meters)

• Maximum tip height: 410 feet (124.9 meters)

• Engine: Cummins QSX15, 600 HP

• Counterweight: 154,000 lbs (69,853 kg)

• Operating weight: Approximately 450,000 lbs (204,116 kg)


• Bridge girder placement

• Wind turbine erection

• Refinery and petrochemical module installation

• Marine dock construction

• Stadium and arena roof lifts


• Proven reliability across diverse job types

• Modular boom and counterweight options

• Strong resale value and global parts support

• Comfortable cab with intuitive controls

• Efficient transport and setup logistics


Introduction
The Caterpillar D8H is one of the most iconic machines in the world of heavy equipment, known for its power and reliability. The 1959 model, with its robust 8-cylinder diesel engine, continues to be a valuable tool in many industries, including construction and forestry. However, like all diesel engines, its fuel injectors can become clogged or dirty over time, leading to reduced engine performance, increased fuel consumption, and excessive smoke emissions. Cleaning these injectors is vital for maintaining the engine’s efficiency and longevity.
Why Cleaning Injectors Is Important
Fuel injectors are responsible for delivering fuel into the combustion chamber in a fine mist, allowing for efficient combustion. Over time, carbon deposits, dirt, and other contaminants can clog the injector nozzles, leading to poor fuel atomization. This results in incomplete combustion, misfires, and a lack of power. Regular maintenance, including cleaning the injectors, ensures that the engine runs smoothly and efficiently.
Tools and Materials Needed
Before beginning the cleaning process, make sure you have the following tools and materials:

• Injector cleaning kit (manual or ultrasonic)

• Wrenches and sockets (for removing the injectors)

• Injector puller (if needed)

• Fuel injector cleaning fluid (specific to diesel engines)

• Compressed air (for drying)

• Safety gloves and goggles


1. Preparation
   Start by preparing the workspace. Disconnect the battery to avoid any electrical issues, and make sure the engine is turned off and cooled down. Wear safety gloves and goggles to protect yourself from fuel and debris during the cleaning process.

2. Locate and Remove the Injectors
   On the D8H, the injectors are located on the cylinder head. You may need to remove a few engine components to gain better access, such as air filters or valve covers, depending on the machine’s configuration. Once the injectors are exposed, use a wrench or socket to remove the injector retaining bolts. Gently pull the injectors out of their mounting slots. If the injectors are stuck, an injector puller may be necessary.

3. Inspect the Injectors
   Before cleaning, inspect the injectors for any signs of severe damage or wear, such as cracks or corrosion. If an injector is damaged beyond repair, it should be replaced rather than cleaned.

4. Clean the Injectors
   There are two common methods for cleaning diesel injectors:
   • Manual Cleaning: Soak the injectors in a fuel injector cleaning fluid for several hours to loosen carbon deposits. Use a soft brush to scrub the nozzle and body of the injector gently. Afterward, rinse the injector with clean fuel and use compressed air to dry it.

   • Ultrasonic Cleaning: If available, ultrasonic cleaning is a more thorough method. The injectors are placed in an ultrasonic cleaning bath filled with a specialized cleaning solution. High-frequency sound waves create microscopic bubbles that remove stubborn carbon and dirt from the injectors.

5. Reinstall the Injectors
   After cleaning and drying, reinstall the injectors by reversing the removal process. Ensure that the injector seals are intact to prevent leaks. Tighten the injector bolts to the specified torque settings as per the manufacturer’s manual.

6. Test the Engine
   Once the injectors are reinstalled, reconnect the battery and start the engine. Monitor for smooth operation, reduced smoke, and improved fuel efficiency. If the engine continues to run roughly or shows signs of misfire, further inspection may be required.


• Use High-Quality Fuel: Contaminants in low-quality fuel can clog injectors quickly. Using clean, high-quality fuel reduces the need for frequent cleaning.

• Regular Maintenance: Perform regular checks on the injectors, especially in older equipment like the 1959 D8H. Cleaning or replacing the injectors every 500 to 1,000 hours of operation can keep the engine running optimally.

• Monitor Engine Performance: Pay attention to signs such as rough idling, increased exhaust smoke, or higher fuel consumption, as these can be indicators that the injectors need cleaning or replacement.


When a JCB 110 Robot—part of JCB’s “Robot” skid-steer loader series—is starved of diesel (for instance, after bogging or fuel depletion), it needs manual priming to remove air from the fuel system. Without this step, the engine won’t fire or may stall repeatedly.

Step-by-Step Fuel System Priming

1. Relieve Air via Injectors
   Start by slightly loosening the fuel line connections at each injector (beginning with those nearest the fuel tank). This creates an escape path for trapped air.

2. Manually Pump Out Air
   Operate the hand-primer pump or turn the ignition key to crank the engine slowly. Fuel (along with any air bubbles) should begin expelling from the loosened injector lines.

3. Sequentially Tighten Injectors
   Once clear, tighten the injector connections closest to the cab first. Continue cranking to purge additional air. Gradually move toward the final injector, leaving that one slightly loosened until no more bubbles appear.

4. Final Injector Closure and Engine Start
   Tighten the last injector line. Crank the engine again using the key. If primed correctly, the engine should start.

5. Fuel Filter Check
   Before or during the priming process, ensure you’ve replaced any dirty fuel filters—this keeps airflow minimal and supports clean fuel delivery.


• Robot Series: JCB’s line of compact skid-steer loaders, including models like the 110, designed for tight-space versatility.

• Injector Line: Small piping delivering fuel from the injection pump to each cylinder’s injector.

• Hand Priming Pump: A manual pump used to draw fuel through the system—stop air intrusion after a fuel run-out.

• Air Lock: When air pockets in the fuel system interrupt steady fuel delivery, preventing normal engine operation.
