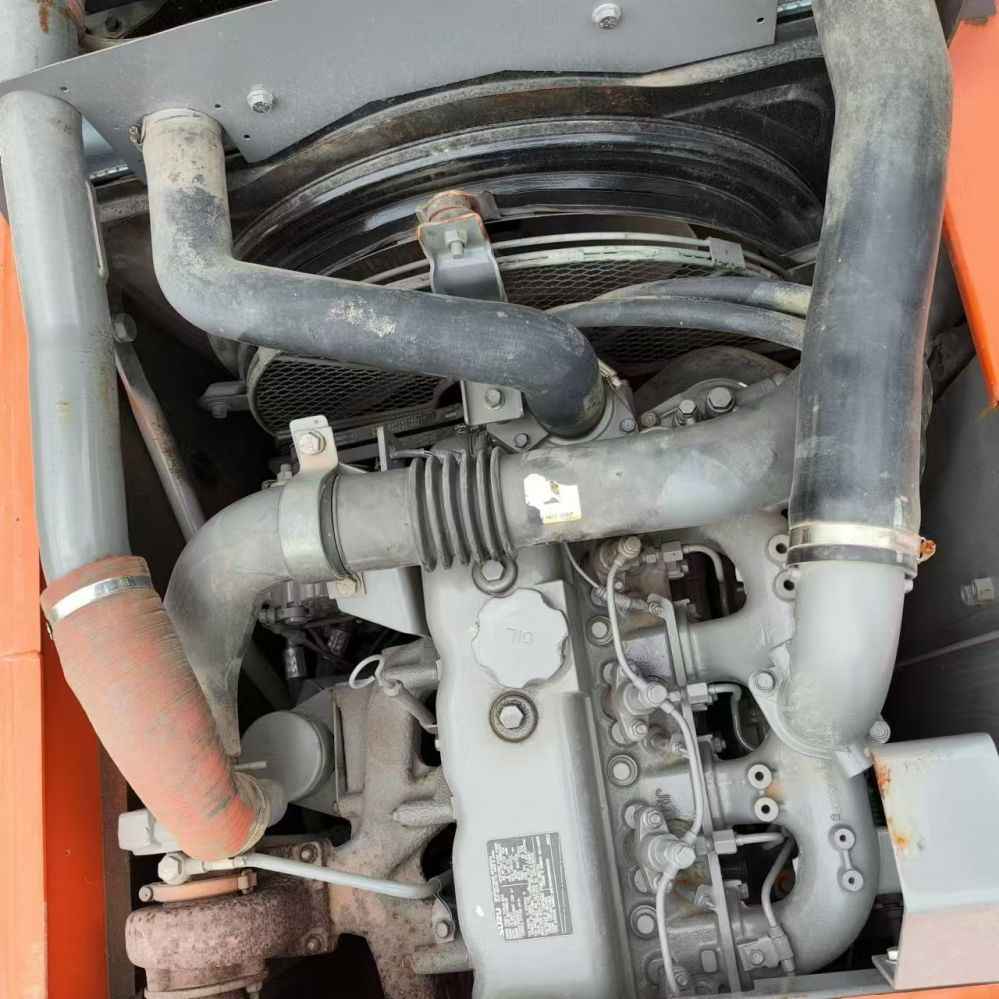

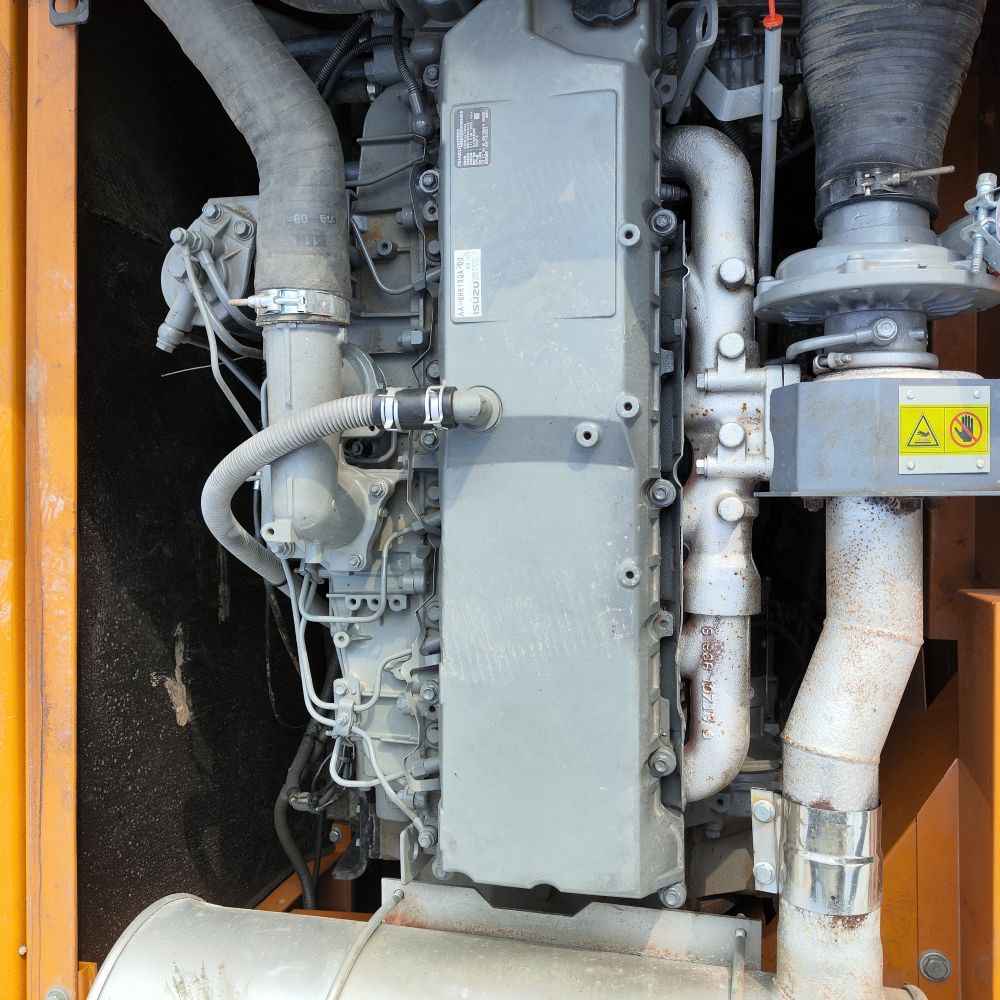

The Hitachi Zaxis 200-5 is a powerful and efficient hydraulic excavator, popular in construction, mining, and earthmoving projects. With its advanced hydraulics, durable design, and fuel-efficient engine, it’s built to handle demanding tasks with ease. However, like all complex machinery, it’s prone to electrical and mechanical issues that can disrupt operations. One such issue that operators often face is a problem with Fuse 19, a critical component in the excavator’s electrical system. Understanding the function of Fuse 19, the symptoms of a blown fuse, and how to troubleshoot it can save time and money while ensuring the excavator operates at peak efficiency.
What is Fuse 19 on the Hitachi Zaxis 200-5?
Fuse 19 is part of the electrical fuse system in the Hitachi Zaxis 200-5 excavator, designed to protect various electrical circuits and components. In most cases, Fuse 19 is responsible for safeguarding the electronic control units (ECUs), the sensors, and other crucial parts of the machine’s electrical network. When Fuse 19 blows, it typically indicates that there is an electrical issue, such as an overload or a short circuit, within the system.
The Zaxis 200-5 uses a fuse panel to distribute electrical power to different systems. Each fuse in the panel corresponds to a specific function, and Fuse 19 plays a pivotal role in ensuring the proper functioning of the excavator's electronic systems. When this fuse blows, it can lead to a variety of malfunctions, ranging from complete loss of electrical power to the engine or hydraulics, to specific issues with sensors or control systems.
Symptoms of a Blown Fuse 19
If Fuse 19 blows, you may notice several signs of malfunction that affect the performance of the Hitachi Zaxis 200-5. These symptoms can vary depending on which part of the electrical system is impacted. Some common indicators of a blown Fuse 19 include:

1. Loss of Engine Power
   One of the first signs of a blown Fuse 19 is a loss of engine power. The engine may fail to start, or if it does start, it may immediately stall or run erratically. Since Fuse 19 is tied to the electronic control unit (ECU) that manages engine functions, a blown fuse can prevent the ECU from properly controlling the engine’s performance.

2. Malfunctioning Hydraulic System
   Another symptom of a blown Fuse 19 is irregular behavior in the hydraulic system. The excavator’s hydraulic pumps, valves, and actuators rely on precise electronic signals, which are routed through the fuse system. If Fuse 19 is blown, the hydraulic system may fail to respond, causing slow or erratic movements, or the system might not operate at all.

3. Warning Lights or Error Codes
   Modern excavators like the Hitachi Zaxis 200-5 are equipped with sophisticated diagnostic systems that display warning lights or error codes when an issue is detected. A blown Fuse 19 may trigger one or more warning lights on the instrument panel, such as the electrical warning light or hydraulic warning light, depending on which component is affected. The error codes displayed on the system’s screen can often pinpoint the specific issue related to Fuse 19.

4. Inoperable Electronics
   If the fuse blows, you might also notice that certain electronic features of the excavator stop working, such as the display panel, radio, or lights. While these may seem like minor issues compared to a loss of engine power, they can still signal an electrical problem caused by the fuse failure.


1. Check the Fuse Panel
   The first step is to locate and visually inspect Fuse 19 in the fuse panel. The fuse panel is usually located in a compartment near the operator’s seat or on the side of the machine. Once you find Fuse 19, remove it and inspect it for any signs of damage. A blown fuse will typically have a broken metal strip or a blackened appearance. If the fuse appears damaged, replace it with a new one of the same rating.

2. Replace the Fuse
   If Fuse 19 is blown, replace it with a new fuse of the same amperage rating. It’s important to use the correct type of fuse to avoid overloading the electrical system or causing further damage. Consult the excavator’s manual for the recommended fuse type and specifications.

3. Inspect for Short Circuits or Overloads
   A blown fuse can indicate an underlying electrical issue, such as a short circuit or overload in the system. After replacing the fuse, observe whether the new fuse blows immediately or after a short period of operation. If the new fuse blows, this suggests that there is a deeper electrical fault, such as a damaged wire or malfunctioning component.

4. Check the Electrical Components
   Inspect the wiring harness, connectors, and components connected to the circuits protected by Fuse 19. Look for any visible signs of damage, such as frayed wires, loose connections, or corrosion. Pay particular attention to areas where the wiring could be pinched or exposed to heat, as these conditions can cause short circuits and blow fuses.

5. Test the System
   After replacing the fuse and inspecting the electrical system, perform a thorough test of the excavator’s systems. Start the engine and test the hydraulics, electronics, and other systems affected by Fuse 19. If the machine operates normally, it indicates that the fuse replacement was successful. However, if problems persist, further diagnostic work may be required.


1. Regular Fuse Inspections
   Periodically check all fuses in the excavator’s fuse panel for wear and tear. Replacing fuses proactively before they blow can help prevent unexpected downtime and keep the electrical system in optimal condition.

2. Check for Wiring Damage
   Inspect the wiring and connections regularly for signs of wear, corrosion, or damage. Ensure that all wires are properly insulated and protected from excessive heat or friction. This is especially important for the wiring around Fuse 19, which may be exposed to vibrations and environmental conditions.

3. Avoid Overloading the System
   Operating the excavator within its specified limits can reduce the risk of electrical overloads that could blow fuses. Be mindful of the machine’s load capacity and avoid overburdening it, particularly when using the hydraulic system at full capacity.

4. Proper Handling of Electrical Components
   When performing maintenance or repairs on electrical components, always handle wires, connectors, and fuses with care. Use appropriate tools, such as a multimeter, to test electrical systems before working on them. This ensures that you avoid accidentally causing a short circuit or damaging sensitive components.


The Monotrol Concept and Hyster’s Innovation
Hyster Company, founded in 1929, has long been a leader in material handling equipment. Among its most distinctive innovations is the Monotrol pedal system, introduced to simplify directional control in forklifts. Unlike conventional setups with separate forward/reverse levers and throttle pedals, Monotrol combines both functions into a single foot pedal. Pressing the toe initiates forward motion, while pressing the heel engages reverse. This design reduces operator fatigue and speeds up directional changes, especially in high-cycle warehouse environments. By the early 2000s, Monotrol-equipped Hyster trucks had become standard in many logistics fleets across North America and Europe.
Understanding the Pedal’s Dual Function
The Monotrol pedal is not just a throttle—it’s a directional selector. When the operator presses the toe, the system energizes the forward solenoid on the transmission valve body. Pressing the heel activates the reverse solenoid. The pedal also modulates engine RPM, so the deeper the press, the faster the machine moves. This dual function requires precise coordination, especially on inclines or during inching maneuvers.
Terminology Notes

• Monotrol Pedal: A single foot pedal that controls both travel direction and engine speed.

• Transmission Kick-Out: A hydraulic mechanism linked to the brake pedal that neutralizes the transmission when braking.

• Inching Spool: A valve component that modulates hydraulic pressure to allow slow, precise movement.


• Practice Pedal Modulation: Smooth transitions require gentle toe-heel movement and coordinated braking.

• Inspect Linkage Under Floorboard:
  • Locate the transmission valve body.

  • Identify the inching spool and its connection to the brake pedal.

• Consider Disconnecting Kick-Out:
  • Only if inching is difficult or lurching occurs.

  • Ensure safety protocols are followed and modifications are documented.

• Use Serial Number for Parts and Service:


• Hyster trucks vary by series (XL, XM, Fortis).

• Always reference the serial number when ordering components or consulting manuals.


The CAT 333D is a versatile and powerful compact track loader widely used in construction, landscaping, and other industries that require heavy lifting and precise maneuvering. This machine is known for its robust performance, but like any complex piece of equipment, it is subject to wear and tear over time. One common issue that operators face is problems with the face seal, which is crucial in keeping contaminants out of the drivetrain and hydraulic systems. A damaged face seal can result in leaks, excessive wear, and ultimately lead to the breakdown of critical components. This guide explores how to repair the face seal on a CAT 333D, discussing the common causes of seal failure, the necessary steps for replacement, and preventive measures.
What is a Face Seal and Why is it Important?
The face seal, sometimes referred to as a shaft seal or mechanical seal, is a critical component in various parts of the machine, including the hydraulic pumps, axles, and final drives. It is designed to prevent contaminants such as dirt, dust, and moisture from entering sensitive areas, while also keeping lubricants or hydraulic fluids contained.
In the case of the CAT 333D, the face seal is typically found in areas where the drivetrain or hydraulic lines interface with rotating parts. When these seals wear out or fail, they can cause fluid leaks, contaminant ingress, and, over time, component failure. A well-maintained seal ensures that the equipment continues to operate efficiently and reduces the risk of costly repairs or downtime.
Common Causes of Face Seal Failure
Several factors can contribute to the premature failure of a face seal on the CAT 333D. Understanding these causes can help operators prevent seal damage and improve the machine's longevity.

1. Improper Installation
   One of the most common causes of face seal failure is improper installation. If the seal is not installed correctly, it can cause uneven pressure distribution or allow contaminants to bypass the seal. It's essential to follow the manufacturer's instructions when installing a new face seal to ensure a proper fit.

2. Contamination of Seal Area
   Contaminants, such as dirt or debris, can damage the face seal's surface. If particles get trapped between the seal and the housing, they can cause abrasion and wear, eventually leading to a leak. Keeping the area around the seal clean and using clean tools during installation can reduce the risk of contamination.

3. Excessive Heat
   Overheating is another factor that can cause face seals to degrade prematurely. High temperatures can break down the rubber or elastomer materials used in the seal, causing them to harden or crack. This is especially true in high-stress areas such as the engine or hydraulic system. Keeping the operating temperature within the recommended range is essential to prolonging the life of the seal.

4. Overloading or Excessive Pressure
   When the loader is used beyond its rated capacity, it can create excessive pressure on the seals. This pressure can distort the seal or cause it to fail. It's important to operate the equipment within its specified limits to avoid overloading the system.

5. Aging and Wear
   Like any component, face seals are subject to wear over time. As the machine accumulates hours of operation, the seal material gradually degrades due to constant pressure, heat, and friction. Regular inspections can help identify aging seals before they fail completely.


1. Fluid Leaks
   One of the most obvious signs of a failed face seal is visible fluid leaks. These leaks can occur around the axle, final drive, or hydraulic components. If you notice fluid puddles or streaks near these areas, it's a clear indicator that the face seal is damaged.

2. Loss of Lubrication Pressure
   If the seal fails to contain hydraulic fluid or lubricants, you may experience a drop in system pressure. This can cause a noticeable reduction in performance or erratic behavior in the hydraulics, such as slow movement or jerky actions.

3. Contaminated Fluids
   Contaminants entering the hydraulic system due to a failed face seal can result in dirty or contaminated fluids. If the hydraulic fluid appears cloudy or contains debris, it's time to check the seals for damage.

4. Excessive Heat in the System
   A failed face seal can lead to increased friction and heat within the affected component. If you notice that the temperature is unusually high in the system or near the drive areas, it could be due to a compromised seal.


1. Preparation and Safety
   Before starting any repair work, ensure that the equipment is turned off, and the hydraulics are depressurized. Engage the parking brake and secure the loader to prevent movement. Wear appropriate safety gear, including gloves, safety goggles, and steel-toed boots.

2. Drain Fluids
   Depending on the location of the face seal, you may need to drain hydraulic fluid, oil, or other lubricants to avoid spills. Use a clean container to collect the fluids and dispose of them according to local regulations.

3. Remove the Affected Component
   In many cases, replacing the face seal requires removing the component that houses the seal. This might involve disassembling parts of the axle, final drive, or hydraulic pumps. Use the appropriate wrenches and sockets to carefully remove the parts, taking note of the order and position of each component for reassembly.

4. Inspect the Housing and Shaft
   Once the seal is exposed, inspect the housing and shaft for any damage, wear, or scoring. If the surfaces are damaged, you may need to replace the affected parts or smooth out the rough areas using specialized tools.

5. Remove the Old Seal
   Carefully remove the old face seal using a seal puller or a similar tool. Be sure not to damage the surrounding surfaces while removing the seal. Clean the area thoroughly before installing the new seal.

6. Install the New Seal
   Apply a small amount of clean lubricant to the new seal and the surrounding area to facilitate installation. Carefully place the new seal into the housing, ensuring that it fits snugly and evenly. Press it into place, ensuring that it seats properly without any gaps or misalignment.

7. Reassemble and Test
   Once the new seal is installed, reassemble the parts in the reverse order of removal. Refill the system with fresh hydraulic fluid or oil, as necessary. Test the machine by operating it under normal conditions to ensure the seal is functioning correctly and that there are no leaks.


1. Regular Inspections
   Check face seals periodically for any signs of wear or leakage. Inspect the hydraulic system and drivetrain for any unusual noises or performance issues that could indicate a problem with the seals.

2. Keep the Seal Area Clean
   Always keep the area around the seal free of dirt, debris, and contaminants. This will prevent damage to the seal during installation and operation.

3. Use Quality Lubricants
   Ensure that you are using the recommended hydraulic fluids and lubricants for the CAT 333D. High-quality fluids reduce wear on seals and other components.

4. Follow Operating Guidelines
   Adhere to the manufacturer’s guidelines for load capacity and operational limits. Avoid overloading the machine, as excessive pressure can lead to premature seal failure.


The Big Cam III and Its Legacy
The Cummins Big Cam III engine, part of the iconic 855 cubic inch series, was introduced in the early 1980s as a refinement of the Big Cam II. Cummins, founded in 1919, had already established dominance in the heavy-duty diesel market, and the Big Cam III continued that legacy with improved fuel control, dual-volute turbocharging, and enhanced emissions compliance. These engines powered thousands of Class 8 trucks across North America, and many remain in service today due to their rebuildability and parts availability.
Why Add Jake Brakes
Jake brakes, or engine compression release brakes, are essential for controlling speed on grades without relying solely on service brakes. On the Big Cam III, installing a Jake brake system improves downhill safety, reduces brake wear, and enhances driver control. The 401B model Jake brake is compatible with the Big Cam III, provided the engine has a dual-entry turbo and meets other configuration requirements.
Terminology Notes

• Jake Brake: A device that opens exhaust valves during the compression stroke, converting engine power into braking force.

• Crosshead: A bridge component between the rocker arm and valve stem, often modified to accommodate Jake brake actuation.

• Slave Piston: A hydraulic actuator inside the Jake housing that pushes on the crosshead to open the exhaust valve.

• Valve Lash: The clearance between the rocker arm and valve stem, critical for proper operation.


• Adjustment Screw Length: The original injector rocker adjustment screws were too short for the Jake brake setup. A longer screw was sourced from a salvage yard, resolving the initial issue.

• Exhaust Valve Clearance Screws: The screws provided with the Jake brake kit were also too short. Investigation revealed that the correct configuration requires a hollow adjustment screw with an internal pin that transmits force from the slave piston to the exhaust valve. The solid screws from non-Jake crossheads were incompatible.

• Crosshead Compatibility: The kit included wider crossheads, but installation was blocked by interference with the rocker boxes. The solution involved removing the rocker boxes entirely, replacing the crossheads, and re-running the overhead valve adjustment.

• Part Number Discovery: The correct adjustment screw and pin assembly was identified as part number 013555, which allowed the Jake brake to function properly.


• Valve Lash Settings:
  • Intake: 0.011 inches

  • Exhaust: 0.023 inches

• Injector Torque: 6 inch-pounds

• Adjustment Sequence:


• A valves #5, injector #3

• B valves #3, injector #6

• C valves #6, injector #2

• A valves #2, injector #4

• B valves #4, injector #1

• C valves #1, injector #5


• Verify Compatibility Using Cummins/Jacobs Charts: Ensure the Jake brake model matches the engine CPL and turbo configuration.

• Inspect Salvage Parts Carefully: Not all components from used kits are correct or complete.

• Use OEM or Verified Rebuild Sources: The 401 series Jake brakes are increasingly difficult to source, and parts availability is limited.

• Run the Overhead Twice: After any major top-end work, recheck valve and injector settings to catch misalignment or seating issues.


The CAT TH360B telehandler is a robust and versatile machine designed for material handling in various industries, including construction and agriculture. Known for its powerful lifting capacity and reach, the telehandler’s performance is crucial for efficiency in tasks such as lifting, moving, and placing heavy loads. However, like any complex piece of equipment, the TH360B can face issues over time. One common problem operators encounter is a slow retracting boom. This issue can cause significant delays in project timelines, especially when dealing with repetitive lifting tasks. Understanding the potential causes and solutions can help reduce downtime and keep the equipment running smoothly.
Understanding the TH360B Telehandler
The CAT TH360B is part of Caterpillar's telehandler lineup, known for its high lifting capacity, compact design, and off-road capabilities. It features a maximum lift capacity of 6,000 pounds and a lifting height of up to 36 feet, making it ideal for a variety of applications. The machine is powered by a four-cylinder diesel engine and operates through a hydraulic system that powers the boom, drive, and other essential functions.
In telehandlers like the TH360B, the boom extension and retraction rely heavily on hydraulic cylinders. These cylinders work by using hydraulic fluid to generate pressure and control the movement of the boom. Over time, issues within the hydraulic system can lead to a slow or unresponsive boom retraction, which directly affects the machine's productivity.
Common Causes of Slow Boom Retraction
Several factors could cause the boom on a CAT TH360B to retract slowly. Identifying the root cause is the first step in diagnosing the problem. Below are some common reasons for slow boom retraction:

1. Low Hydraulic Fluid Levels
   One of the most common reasons for slow boom retraction is low hydraulic fluid. The hydraulic system relies on fluid to transmit power to the boom’s hydraulic cylinders. If the fluid level drops too low, the system cannot generate sufficient pressure, resulting in sluggish or erratic boom movement. Checking the hydraulic fluid levels regularly and topping them off as needed can prevent this issue.

2. Contaminated Hydraulic Fluid
   Contaminated hydraulic fluid, caused by dirt, water, or other particles entering the system, can lead to a buildup of debris in the hydraulic lines and valves. This contamination can cause blockages or increased friction, impeding the flow of fluid and slowing the boom’s retraction. Regularly changing the hydraulic fluid and using high-quality filters can reduce the risk of contamination.

3. Worn Hydraulic Pump or Valves
   Over time, hydraulic pumps and valves can wear out due to the stress of continuous use. A worn hydraulic pump may fail to generate the necessary pressure for the boom’s operation, while damaged valves can cause fluid to flow irregularly. If either of these components is the cause, replacement may be necessary.

4. Leaking Hydraulic Cylinders
   Hydraulic cylinders are essential for controlling the boom’s movement. If these cylinders develop leaks, they lose pressure, which directly affects the retraction speed. Leaks may be visible as oil stains around the cylinders. Inspecting the cylinders for any signs of damage or leakage and replacing any faulty seals can restore normal boom function.

5. Damaged or Blocked Hydraulic Lines
   Hydraulic lines carry fluid from the pump to the cylinders and valves. If these lines become damaged, kinked, or blocked, the flow of hydraulic fluid is restricted, which can cause the boom to retract slowly or fail to move altogether. Regularly inspecting hydraulic lines for wear and tear can help identify potential problems before they escalate.

6. Faulty Control Valves
   The control valves on the telehandler direct the flow of hydraulic fluid to different parts of the machine, including the boom. If the control valves are malfunctioning, the boom’s retraction can be delayed or impeded. Ensuring the control valves are properly calibrated and functioning is critical for smooth operation.


1. Check Hydraulic Fluid Levels and Quality
   The first step in troubleshooting slow boom retraction is to check the hydraulic fluid levels. Low fluid levels are an easy fix and often the simplest cause of the problem. Additionally, inspect the fluid quality; if it looks dirty or contaminated, it may need to be replaced. Be sure to follow the manufacturer’s recommendations for fluid type and quantity.

2. Inspect for Leaks
   Look for visible leaks around the hydraulic cylinders and lines. Even a small leak can cause significant pressure loss, affecting the boom’s performance. If you find any leaks, replace the seals or hydraulic lines as needed.

3. Examine the Hydraulic Pump and Valves
   If the fluid level and lines are in good condition, the next step is to inspect the hydraulic pump and control valves. If the pump is worn or damaged, it may not be generating enough pressure. Similarly, if the control valves are malfunctioning, they may need to be cleaned or replaced.

4. Test the Cylinders
   Check the hydraulic cylinders for signs of wear, including visible damage or fluid leakage. If the seals are worn out, it’s essential to replace them to restore proper function. In some cases, the cylinders may need to be rebuilt or replaced entirely.

5. Clear Blockages in Hydraulic Lines
   If you suspect that the hydraulic lines are blocked, they may need to be cleaned or replaced. Blockages can occur due to debris, dirt, or other contaminants. Ensuring the hydraulic system is clean and free of obstructions will improve the performance of the boom.


1. Regular Fluid Checks
   Perform regular checks of the hydraulic fluid to ensure that the levels are sufficient and the fluid is clean. This can prevent issues related to fluid contamination and low pressure.

2. Inspect Hydraulic Components
   Regularly inspect the hydraulic cylinders, pump, valves, and lines for any signs of wear or damage. Catching problems early can help prevent major failures that lead to slow boom retraction.

3. Change Hydraulic Fluid
   Follow the manufacturer’s guidelines for changing the hydraulic fluid at the recommended intervals. Clean fluid reduces wear on the hydraulic components and ensures smooth operation.

4. Use High-Quality Filters
   Ensure that the telehandler’s hydraulic system uses high-quality filters that can effectively prevent contaminants from entering the system. This will prolong the life of the hydraulic components and improve the machine’s overall performance.


The Shift from Mechanical to Electronic Control
In the past, diagnosing equipment failure was a matter of checking tangible components—batteries, starters, fuel lines, or hydraulic pumps. If something didn’t work, the cause was usually mechanical. But today’s heavy equipment has evolved into a hybrid of steel and silicon. Machines like excavators, loaders, and tractors now rely on electronic control units (ECUs), sensors, and software logic to manage everything from throttle response to hydraulic timing. This shift has introduced a new layer of complexity: the possibility that the machine’s “brain” is the problem.
Terminology Notes

• ECU (Electronic Control Unit): A microprocessor-based module that controls engine and hydraulic functions based on sensor input.

• CAN Bus: A communication protocol that allows different electronic modules to exchange data in real time.

• Fail-Safe Mode: A protective operating state triggered when the ECU detects a fault, often limiting power or disabling functions.


• Pros:
  • Faster fault detection

  • Improved safety interlocks

  • Remote diagnostics and updates

• Cons:


• Increased complexity

• Dependence on proprietary software

• Higher repair costs for electronic failures


• Invest in Diagnostic Tools: Machines with ECUs require scan tools or software to access fault codes and perform resets.

• Maintain Sensor Integrity: Clean and inspect sensors regularly. A dirty or misaligned sensor can trigger false errors.

• Understand Safety Interlocks: Know which switches and conditions must be met for startup. Seat switches, parking brakes, and boom positions often affect ignition logic.

• Keep Software Updated: Manufacturers release firmware updates to fix bugs and improve performance. Schedule updates during routine service.


Heavy equipment is an integral part of construction, mining, and other industrial projects. The reliability of these machines is crucial for maintaining project timelines and ensuring safety. However, when issues arise, knowing how to troubleshoot can save time and money. This article explores common problems with heavy equipment, offers solutions, and delves into some real-life cases.
Common Issues in Heavy Equipment and Their Causes
Heavy machinery, such as excavators, bulldozers, and skid steers, face a range of issues, from engine failures to hydraulic malfunctions. A few of the most common problems include:

1. Engine Failure
   A frequent issue is engine failure, which can be caused by poor maintenance, fuel contamination, or issues with the electrical system. For instance, if an excavator’s engine suddenly stops working, it might be due to a clogged fuel filter or an issue with the fuel pump.

2. Hydraulic System Failures
   Hydraulic systems are crucial for lifting and moving heavy loads. Problems such as low fluid levels, leaks, or faulty pumps can lead to a loss of power. If you notice sluggish movement or failure to operate under load, it could be related to a hydraulic pump issue or dirty fluid.

3. Electrical Problems
   Electrical malfunctions are common, particularly with newer models that rely heavily on electronics. Issues such as a dead battery, damaged wiring, or faulty sensors can lead to the machine not starting or functioning intermittently. Inspecting the fuses, relays, and wiring harnesses is essential for identifying the root cause.

4. Transmission and Drivetrain Issues
   For machines with hydraulic or mechanical transmissions, slipping gears, delayed shifting, or failure to move can indicate problems. Common causes include low transmission fluid, worn-out clutch components, or a malfunctioning solenoid.


1. Routine Oil and Fluid Changes
   Engine oil, transmission fluid, and hydraulic fluid should be changed regularly based on manufacturer recommendations. Neglecting these fluid changes can result in engine overheating, increased wear, and reduced efficiency.

2. Check Air Filters and Fuel Systems
   Air and fuel filters should be cleaned or replaced regularly to ensure optimal engine performance. Clogged filters can cause the engine to run inefficiently or fail to start.

3. Inspect Hydraulic Lines and Seals
   Hydraulic systems should be checked for leaks, and the fluid level must be maintained. Leaky hydraulic lines or seals can significantly reduce a machine’s lifting power and operational capacity.

4. Test Electrical Systems
   Batteries should be tested regularly to ensure they have sufficient charge. Fuses and wiring should be inspected for any signs of wear, and sensors should be calibrated according to the manufacturer’s guidelines.


1. Identify the Problem
   Start by observing the symptoms of the malfunction. Is the machine not starting? Are there unusual noises? Is there a loss of power or function?

2. Consult the Manual
   Refer to the machine’s user manual to understand its components and troubleshoot based on known issues. This can help narrow down the problem quickly.

3. Check for Simple Issues First
   Often, the problem could be something simple, such as a blown fuse, low fluid levels, or a dirty air filter. These easy fixes can save time and reduce the need for costly repairs.

4. Perform Diagnostics
   If the issue isn’t immediately apparent, use diagnostic tools like multimeters, pressure gauges, and code readers to get a more in-depth analysis. Many modern machines come with onboard diagnostic systems that provide error codes.

5. Inspect Components
   Check individual components like the engine, transmission, hydraulic system, and electrical systems. Pay close attention to signs of wear, leaks, or damaged parts.

6. Test the Machine
   After addressing the issue, test the equipment under load to ensure that the fix has worked. If the problem persists, the issue may lie deeper in the system, requiring further inspection.


The Case 580K and Its Transmission Architecture
The Case 580K backhoe-loader, introduced in the late 1980s, was a continuation of the successful 580 series that had dominated the North American market since the 1960s. Manufactured by J.I. Case, the 580K featured a four-speed transmission integrated into a transaxle design, combining the gearbox and differential into a single unit. This configuration improved weight distribution and simplified drivetrain maintenance. By the early 1990s, the 580K had become one of the most widely used backhoes in municipal fleets and construction firms, with tens of thousands sold globally.
Symptoms of Gear Failure and Initial Observations
A common issue reported in older 580K units is the loss of first and second gear while third and fourth remain functional. This symptom typically points to a mechanical fault within the gear selector mechanism or internal shift forks. In the 580K Phase III variant, the gear shifter is located on the right console, with linkage routed to the right side of the transaxle. First and second gears are housed on one shaft, while third and fourth occupy another.
Terminology Notes

• Transaxle: A combined transmission and differential unit, often used in compact machinery to save space and reduce weight.

• Shift Fork: A metal arm inside the transmission that moves gears into position. If bent or broken, it can prevent gear engagement.

• Selector Shaft: A rod that connects the gear lever to the internal shift forks. Weld failures or misalignment can cause gear loss.


• Shift Fork Damage: Aggressive gear changes or wear over time can cause the fork controlling first and second gear to bend or break. This is especially common in machines operated without proper clutching technique.

• Selector Shaft Weld Failure: In one documented case, the weld securing the selector shaft failed, preventing the gear lever from engaging the lower gears. Once the front cover was removed, the fault was visible and easily repaired.

• Detent Spring and Ball Misalignment: The gearshift lever pivot includes a spring-loaded ball that helps lock gears into place. If dry or misaligned, it can cause vague shifting or prevent engagement.

• Linkage Binding or Misadjustment: External linkage may become stiff or misaligned, especially if the machine has been sitting unused. Disconnecting the linkage and manually testing the selector can isolate the issue.


• Accessing the Transaxle:
  • The 580K requires front cover removal to access internal components.

  • Dropping the transaxle may be necessary for full fork replacement.

• Parts to Inspect or Replace:
  • Selector shaft

  • Shift fork (especially for 1st/2nd gear)

  • Detent spring and ball

  • Linkage bushings and pins

• Estimated Repair Costs:
  • DIY weld repair: <$50 in materials

  • Shift fork replacement: $150–$300 in parts

  • Full transaxle rebuild (if gears are stripped): $1,500–$3,000 including labor

• Preventive Measures:


• Avoid gear jamming during operation

• Lubricate linkage and pivot points quarterly

• Inspect welds and bushings annually


The TB070 and Its Role in Compact Excavation
The Takeuchi TB070 was introduced in the late 1990s as part of Takeuchi’s expansion into mid-size compact excavators. With an operating weight of approximately 7,000 kg and a digging depth exceeding 4.5 meters, the TB070 was designed for utility work, site preparation, and trenching in confined spaces. Takeuchi, founded in Japan in 1963, pioneered the compact excavator category and became a global leader in the segment. The TB070 was widely adopted in North America and Europe, with thousands of units sold between 1998 and 2005. Its reputation for reliability and hydraulic strength made it a favorite among contractors and rental fleets.
Hydraulic Pump Identification and Compatibility

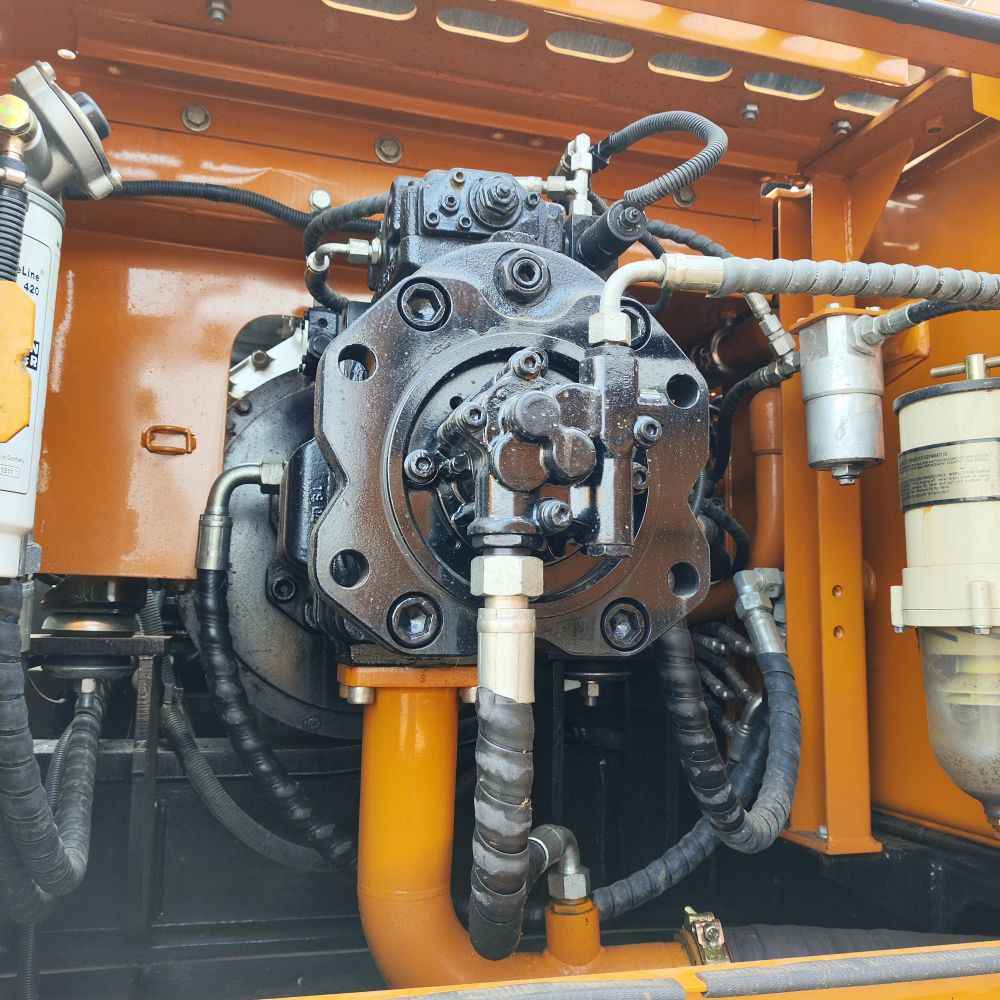

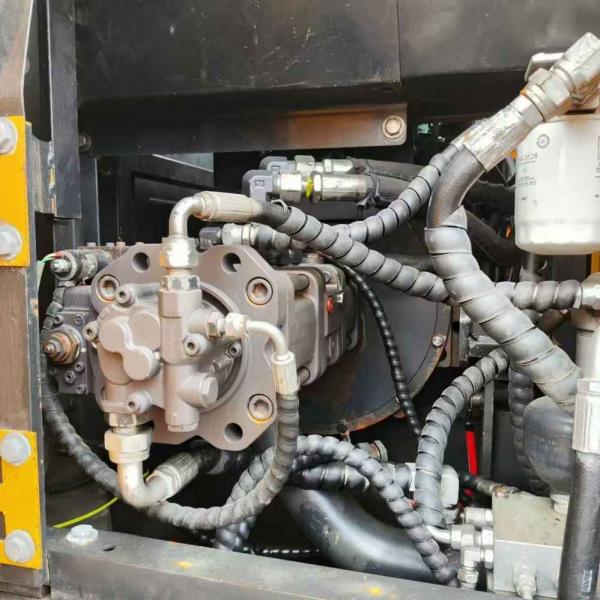

One of the most critical components in the TB070 is its main hydraulic pump, which powers the boom, arm, bucket, and travel motors. The part number often referenced for this unit is 19029-05800, though variations may exist depending on production year and regional configuration. This pump is typically a variable displacement axial piston type, designed to deliver consistent flow under varying load conditions.
Terminology Notes

• Axial Piston Pump: A hydraulic pump where pistons move parallel to the drive shaft, offering high efficiency and variable output.

• Variable Displacement: The pump adjusts its flow rate based on system demand, improving fuel efficiency and control.

• OEM Part Number: A manufacturer-assigned identifier used to match components precisely.


• Uncertainty in Part Number Accuracy: Older machines may have undocumented part substitutions or regional variants. Verifying the pump model against the serial number and service manual is essential.

• Limited Availability of New OEM Units: As the TB070 is no longer in production, new pumps may be scarce or prohibitively expensive. Prices for new OEM pumps can exceed $3,000 USD, depending on supplier and shipping.

• Used and Rebuilt Options: Many operators turn to rebuilt pumps, which typically cost 40–60% less than new units. Reputable rebuilders replace seals, bearings, and worn pistons, and test the unit under load before sale.


• Verify Pump Model and Mounting Specs:
  • Match flange pattern, shaft type, and displacement rating.

  • Confirm compatibility with TB070’s hydraulic control system.

• Choose Reputable Rebuilders:
  • Look for warranty coverage (minimum 6 months).

  • Request pressure test results and rebuild documentation.

• Inspect Hydraulic Lines and Filters:
  • Replace return filters and flush lines before installing a new pump.

  • Check for contamination that may have caused the original failure.

• Use Proper Torque and Alignment:


• Misaligned pumps can cause shaft wear and premature seal failure.

• Follow manufacturer torque specs during installation.


The CAT 966H is a powerful wheel loader designed for heavy-duty construction, mining, and material handling tasks. One of the key features of this machine, like many modern loaders, is the auxiliary hydraulic system, which is vital for operating various attachments. A properly functioning auxiliary valve is essential for ensuring that the loader can power attachments such as forks, grapples, and buckets. However, users often face issues with the auxiliary valve, which can lead to inefficiencies and downtime.
In this article, we’ll explore the purpose of the auxiliary valve in the CAT 966H, common issues that arise, troubleshooting steps, and maintenance tips to ensure optimal performance.
Overview of the CAT 966H Wheel Loader
The CAT 966H is part of Caterpillar’s renowned 966 series of wheel loaders, which are known for their versatility, power, and reliability. The 966H model, introduced in the mid-2000s, offers an operating weight of approximately 24,000 to 26,000 pounds, depending on configuration, and is powered by a 6-cylinder diesel engine. This wheel loader is designed for a variety of tasks, including lifting, digging, and material transport, especially in construction, mining, and aggregate industries.
The CAT 966H stands out for its fuel efficiency, enhanced lifting capacity, and improved hydraulics, making it a favorite among operators. It also incorporates advanced hydraulic systems that help optimize performance and improve fuel consumption rates. The auxiliary hydraulic system, in particular, is integral to the loader's ability to run attachments that make it suitable for a broad range of applications.
Role of the Auxiliary Valve in the CAT 966H
The auxiliary valve in the CAT 966H is a critical component that controls the flow of hydraulic fluid to auxiliary attachments. This valve allows operators to adjust the hydraulic pressure to suit the needs of specific tasks. For example, when the loader is equipped with a hydraulic attachment such as a snowplow, grapple, or auger, the auxiliary valve controls how much hydraulic fluid is sent to these attachments, ensuring they operate effectively.

• Function: Directs hydraulic flow to attachments.

• Adjustment: Allows control of hydraulic pressure and flow rate.

• Versatility: Essential for operating a variety of hydraulic tools and accessories.


• Symptoms: Reduced attachment performance, visible oil leaks around the valve or hoses.

• Cause: Worn-out seals or loose fittings.


• Symptoms: Slow or weak attachment performance.

• Cause: Blockages in the valve, faulty internal components.


• Symptoms: Difficulty in controlling attachments, unresponsive valve movements.

• Cause: Contamination or worn internal components.


• Symptoms: Inconsistent pressure output, inability to properly operate attachments.

• Cause: Faulty pressure regulating components, worn springs or seals.


• Regularly check for leaks: This can help prevent larger issues down the road. Replace seals and tighten connections as needed.

• Inspect hydraulic hoses: Hoses can wear out and crack over time. Look for signs of wear and replace damaged hoses promptly.

• Clean the hydraulic system: Keeping the hydraulic fluid clean is critical for the proper functioning of the auxiliary valve. Use only the recommended type of hydraulic fluid and change it according to the maintenance schedule.

• Calibrate the system: Regularly test and calibrate the hydraulic pressure to ensure that the system is functioning optimally.
