Introduction
The Komatsu PC300-7 is a reliable and powerful hydraulic excavator known for its robustness and performance in tough working conditions. However, like all heavy machinery, it can experience faults in its hydraulic system over time. Hydraulic faults can range from minor issues like leaks to more significant problems affecting performance and operational efficiency. In this article, we will explore common hydraulic issues that can arise with the Komatsu PC300-7, how to troubleshoot these problems, and provide insights into possible solutions and preventive measures.
Overview of the Komatsu PC300-7 Excavator
The Komatsu PC300-7 is a mid-sized hydraulic excavator designed for construction, mining, and other heavy-duty applications. It features a powerful engine, advanced hydraulic system, and a robust undercarriage, making it suitable for a wide range of tasks. Key specifications include:

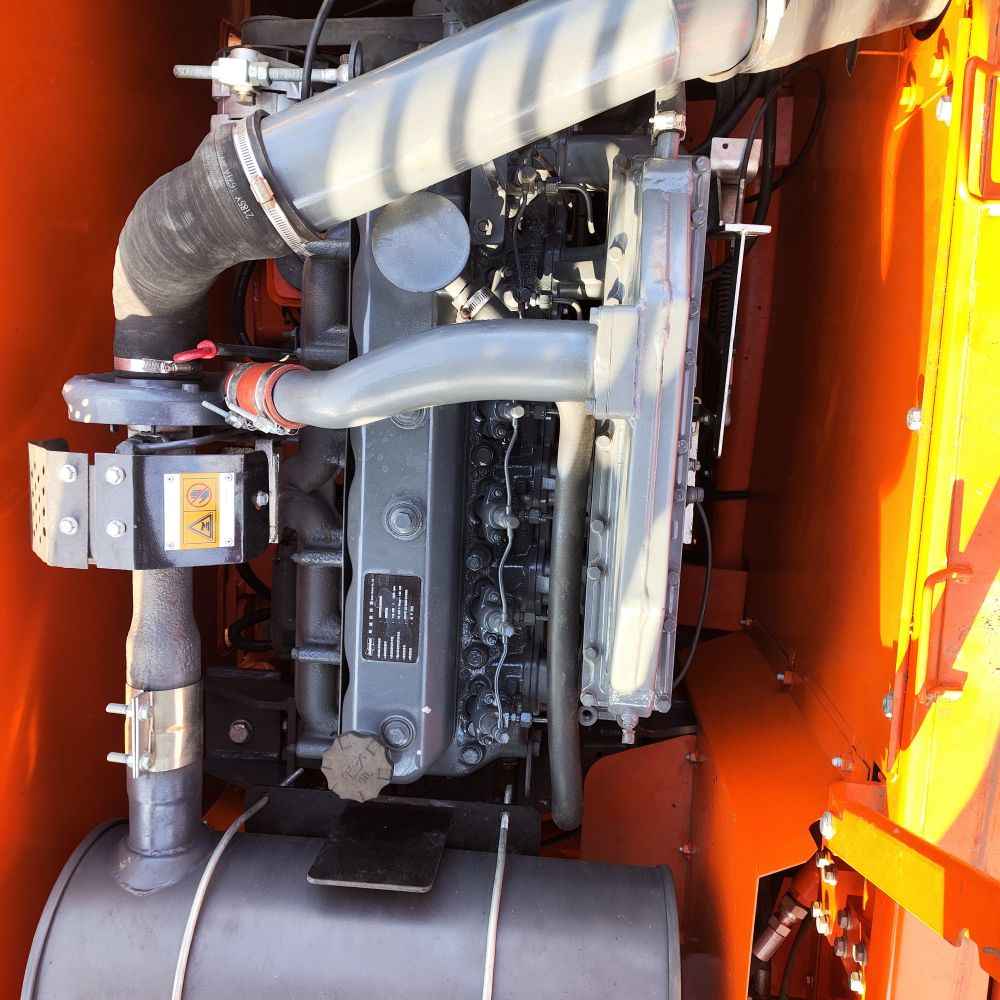

• Engine Power: Powered by a Komatsu SAA6D125E-5 engine, providing significant horsepower for digging, lifting, and other demanding tasks.

• Hydraulic System: The PC300-7 is equipped with a closed-center hydraulic system that ensures smooth and efficient operation, even in the most challenging conditions.

• Operating Weight: With an operating weight of around 30,000 kg (66,139 lbs), it offers a balance of power and maneuverability for medium to large-scale projects.

• Advanced Control System: The machine comes with a modern electronic control system that monitors performance and makes adjustments to improve fuel efficiency and overall operational efficiency.


1. Slow or Erratic Movements


• Low Hydraulic Fluid Levels: Insufficient fluid levels can cause the hydraulic system to struggle, leading to sluggish or jerky movements.

• Contaminated Hydraulic Fluid: Dirt or debris in the hydraulic fluid can clog the system and restrict the movement of hydraulic components.

• Faulty Hydraulic Pump: A worn or damaged hydraulic pump can result in inconsistent pressure, affecting the speed and smoothness of the excavator’s movements.

• Air in the Hydraulic Lines: If air is introduced into the hydraulic system, it can cause erratic movements and reduce the effectiveness of the hydraulic power.


1. Hydraulic Leaks


• Signs of Hydraulic Leaks: Visible oil spots around hoses or cylinders, a drop in hydraulic fluid levels, or decreased performance can all indicate a hydraulic leak.

• Common Leak Points: High-pressure hoses, cylinder seals, and valve fittings are typical areas where leaks can occur, especially in older machines or those used heavily in rough conditions.


1. Hydraulic System Pressure Issues


• Faulty Pressure Relief Valve: A malfunctioning pressure relief valve can cause the hydraulic system to operate at incorrect pressures, either too high or too low.

• Clogged Filters: Over time, hydraulic filters can become clogged with dirt, debris, and contaminants, restricting fluid flow and causing a drop in pressure.

• Damaged Hydraulic Lines: Cracked or damaged hydraulic lines can cause a drop in pressure and lead to inefficient operation.


1. Overheating of Hydraulic Fluid


• Low Hydraulic Fluid Levels: Low fluid levels reduce the cooling capacity of the hydraulic fluid, leading to overheating.

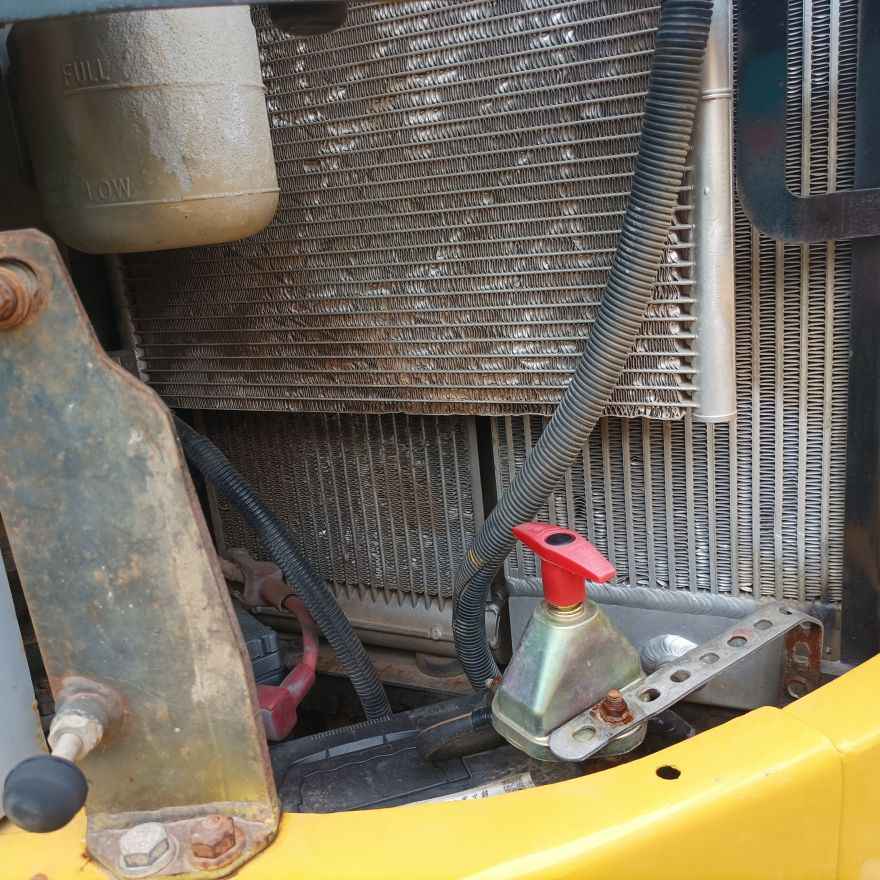

• Clogged or Dirty Hydraulic Oil Cooler: The oil cooler is responsible for maintaining the temperature of the hydraulic fluid. If it is clogged or dirty, the fluid can overheat.

• Excessive Load or Overworking: Running the machine under excessive load or for prolonged periods can increase the temperature of the hydraulic fluid.


• Check Fluid Levels Regularly: Always check hydraulic fluid levels before starting the machine, and top up as needed. Keep the fluid clean and free of contaminants.

• Replace Filters and Clean Coolers: Hydraulic filters should be replaced regularly, and coolers should be cleaned to prevent overheating.

• Inspect Hoses and Seals: Hoses and seals should be inspected for cracks, leaks, or wear, and replaced as necessary to avoid pressure loss.

• Regular System Diagnostics: Use the diagnostic systems available in the excavator to monitor performance and identify potential problems early.


The Ford F800 and Its Role in Heavy Transport
The Ford F800, part of the F-Series medium-duty truck lineup, was a workhorse throughout the 1980s and 1990s. Designed for vocational use—ranging from dump trucks to flatbeds and utility rigs—it featured robust suspension systems capable of handling significant payloads. Ford Motor Company, founded in 1903, had long been a leader in commercial vehicle innovation, and the F800 was a key player in its heavy-duty segment. By the late 1980s, Ford had sold hundreds of thousands of F-Series medium-duty trucks across North America, with the F800 often chosen for municipal fleets and construction contractors due to its reliability and ease of maintenance.
Understanding Overload Spring Perches
Overload spring perches are structural brackets mounted to the truck’s frame that support auxiliary leaf springs—commonly known as helper springs. These springs engage only under heavy load conditions, providing additional support and preventing excessive sagging or bottoming out.
Key terminology:

• Spring Perch: A bracket that holds the leaf spring in place and transfers load to the frame.

• Helper Spring: An auxiliary leaf spring that activates under heavy load.

• Mounting Hole Dimensions: The spacing and diameter of bolt holes used to secure the perch to the frame.


1. Measure Precisely
   Use calipers or a digital measuring tool to record both horizontal and vertical hole spacing, perch width, and bolt diameter. Document these values before searching for replacements.

2. Consult Legacy Parts Catalogs
   While many dealers no longer stock parts for older models, archived catalogs or specialized suppliers may still carry them. Some online vendors maintain databases of suspension components by year and model.

3. Custom Fabrication
   When OEM parts are unavailable, fabrication becomes a viable option. Skilled welders can replicate the perch using high-strength steel, ensuring proper alignment and load capacity. Always verify material grade and weld integrity.

4. Cross-Model Compatibility
   Some parts from Ford F750 or similar chassis may fit with minor modifications. However, always confirm compatibility with frame dimensions and spring geometry.


• Use Grade 8 Bolts for mounting to ensure tensile strength under load.

• Apply anti-corrosion coating to fabricated perches, especially in salt-prone regions.

• Inspect helper springs annually for wear, cracks, or misalignment.

• Torque bolts to manufacturer specs—typically between 120–150 ft-lbs depending on bolt size.


Introduction
Rough terrain forklifts are essential equipment for construction sites, forestry operations, and agriculture, providing the ability to transport heavy loads over uneven surfaces. One such machine in this category is the Enforcer Rough Terrain Forklift, known for its rugged build and reliability in harsh environments. In this article, we’ll explore the key features of the Enforcer Rough Terrain Forklift, discuss common issues, and provide maintenance tips to ensure the machine operates efficiently.
Enforcer Rough Terrain Forklift Overview
The Enforcer Rough Terrain Forklift is a versatile machine designed for lifting and transporting heavy materials in outdoor environments with challenging terrain, such as gravel, mud, and uneven ground. Unlike traditional forklifts, which are designed for smooth surfaces, rough terrain forklifts are equipped with larger tires, four-wheel drive, and a high ground clearance to tackle rough conditions.
Key specifications and features typically found in Enforcer rough terrain forklifts include:

• Powerful Engine: Equipped with a diesel engine, providing ample power to lift heavy loads and navigate uneven ground.

• Large Tires: The forklift is designed with large, knobby tires to provide better traction and stability on uneven surfaces.

• Four-Wheel Drive: The four-wheel drive system enables the forklift to distribute power effectively to all wheels, improving its ability to climb slopes and move over rough terrain.

• High Ground Clearance: With higher ground clearance, the Enforcer forklift can avoid obstacles and navigate through debris, making it ideal for construction sites.

• Hydraulic Lifting System: A robust hydraulic lifting system allows for precise control of the load, making it suitable for lifting materials to significant heights.


1. Hydraulic System Failures


• Low Hydraulic Fluid: If the hydraulic fluid is too low, it can cause slow or erratic lifting and tilting movements. Always check fluid levels regularly and top up as needed.

• Leaks: Hydraulic leaks can occur at hose connections, cylinders, or pumps. Leaks can lead to a loss of pressure, making the system less effective. Regularly inspect the system for any signs of leakage.

• Faulty Hydraulic Pump: If the hydraulic pump begins to fail, it may not provide the necessary pressure to lift loads properly. Replacing a faulty pump is essential to restore the forklift's performance.


1. Engine and Fuel System Problems


• Clogged Fuel Filters: Over time, fuel filters can become clogged with debris, reducing fuel flow and engine performance. Regularly replacing fuel filters can prevent this.

• Air Filter Blockages: Air filters are essential for keeping dirt and dust out of the engine. A clogged air filter can reduce engine efficiency and cause overheating. Check and clean or replace air filters as necessary.

• Battery Issues: Diesel engines rely on strong battery performance for starting. Weak or dead batteries can make starting the forklift difficult, especially in colder weather. Regularly check battery charge levels and clean the terminals to prevent corrosion.


1. Tire and Suspension Wear


• Tire Damage: Constant exposure to rocks, debris, and rough terrain can cause tires to wear down more quickly. Check for punctures, cracks, or worn-out tread, and replace tires when necessary.

• Suspension Wear: The suspension system is critical for providing stability while carrying loads on rough surfaces. Over time, the suspension components such as shocks and springs can wear out, leading to a bumpy ride and reduced stability. Regularly inspect and replace suspension components as needed.


1. Transmission and Drive System Issues


• Slipping Gears: If the transmission is slipping, it can affect the forklift’s ability to move efficiently. Slipping can be caused by low transmission fluid, worn gears, or a malfunctioning clutch. Regular fluid changes and inspections can help identify issues before they become severe.

• Overheating: A malfunctioning cooling system or low transmission fluid levels can cause the transmission to overheat, leading to damage. Always check fluid levels and the condition of the cooling system.

• Drive Shaft Failures: The drive shaft transmits power from the engine to the wheels. If the drive shaft is worn or damaged, the forklift may struggle to move or could experience jerky movements. Regular inspection is crucial for early detection of wear.


1. Control System Issues


• Unresponsive Controls: If the joystick or other control components become unresponsive, the forklift’s functions may not engage properly. This could be due to faulty wiring, a damaged controller, or software glitches.

• Sensor Failures: Many forklifts use sensors to detect load weight, lift height, and tilt angle. A sensor malfunction can lead to incorrect readings, affecting the forklift’s ability to perform tasks accurately.


• Regular Fluid Checks: Keep an eye on hydraulic fluid, engine oil, and transmission fluid levels. Change the fluids as per the manufacturer’s recommendations to prevent system failures.

• Tire Inspections: Check the condition of the tires frequently, particularly for wear, punctures, and cuts. Rotate tires regularly to ensure even wear and extend their lifespan.

• Engine and Battery Maintenance: Clean air and fuel filters periodically to avoid clogs. Check the battery regularly, especially in colder months, to ensure it provides reliable starts.

• Cleaning and Lubrication: Clean the forklift’s exterior and components, including the hydraulic cylinders, regularly to prevent buildup of dirt and debris. Lubricate moving parts to reduce friction and wear.

• Suspension and Steering Check: Inspect the suspension and steering components for wear and ensure that they are properly aligned to maintain the forklift's stability and handling.

• Diagnostic Checks: If your Enforcer forklift is equipped with a digital control system, perform regular diagnostics to detect any software or sensor issues early.


The Rise of the Cat 305CR
The Caterpillar 305CR compact excavator was introduced in the early 2000s as part of Caterpillar’s push into the mini-excavator market. Designed for urban construction, landscaping, and utility work, the 305CR offered a powerful hydraulic system, zero tail swing, and a compact footprint. Caterpillar Inc., founded in 1925, had long dominated the heavy equipment sector, and the 305CR helped expand its reach into smaller job sites. By 2010, global sales of the 305 series exceeded 50,000 units, with strong adoption in North America, Europe, and Southeast Asia.
Understanding the Travel System
The Cat 305CR uses a dual-track hydraulic travel system, each powered by a dedicated travel motor. These motors receive pressurized hydraulic fluid from the main control valve, which is governed by joystick input and safety interlocks. When the operator engages the travel lever, the control valve directs fluid to the appropriate motor, propelling the track forward or backward.
Key terminology:

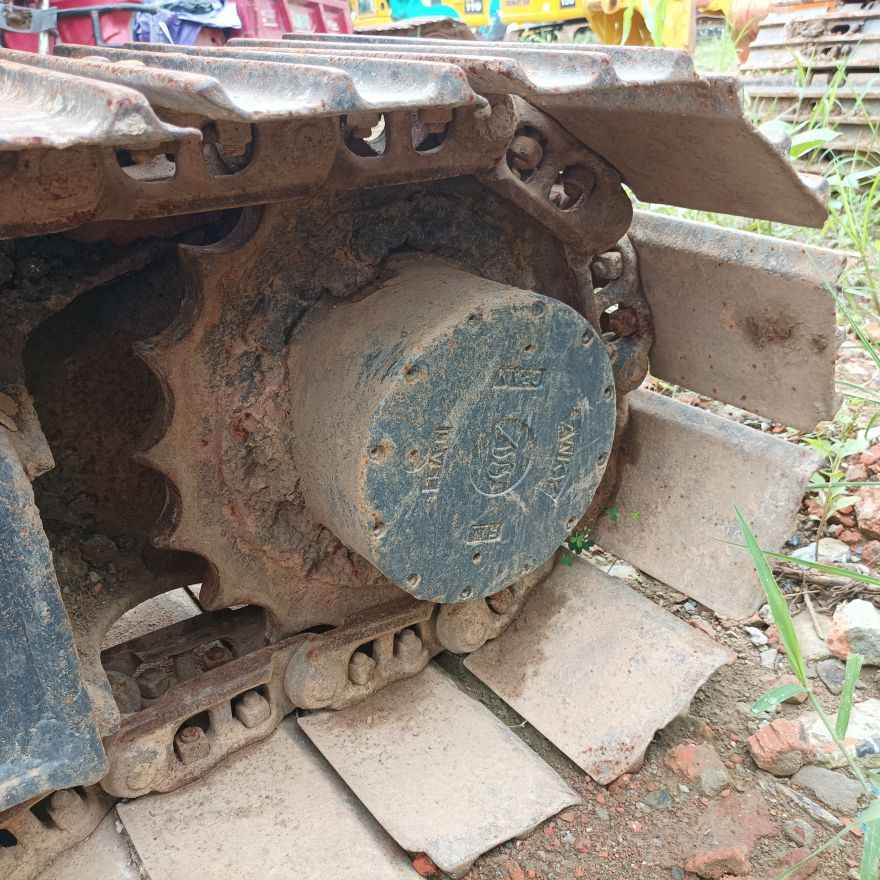

• Travel Motor: Hydraulic motor that drives each track.

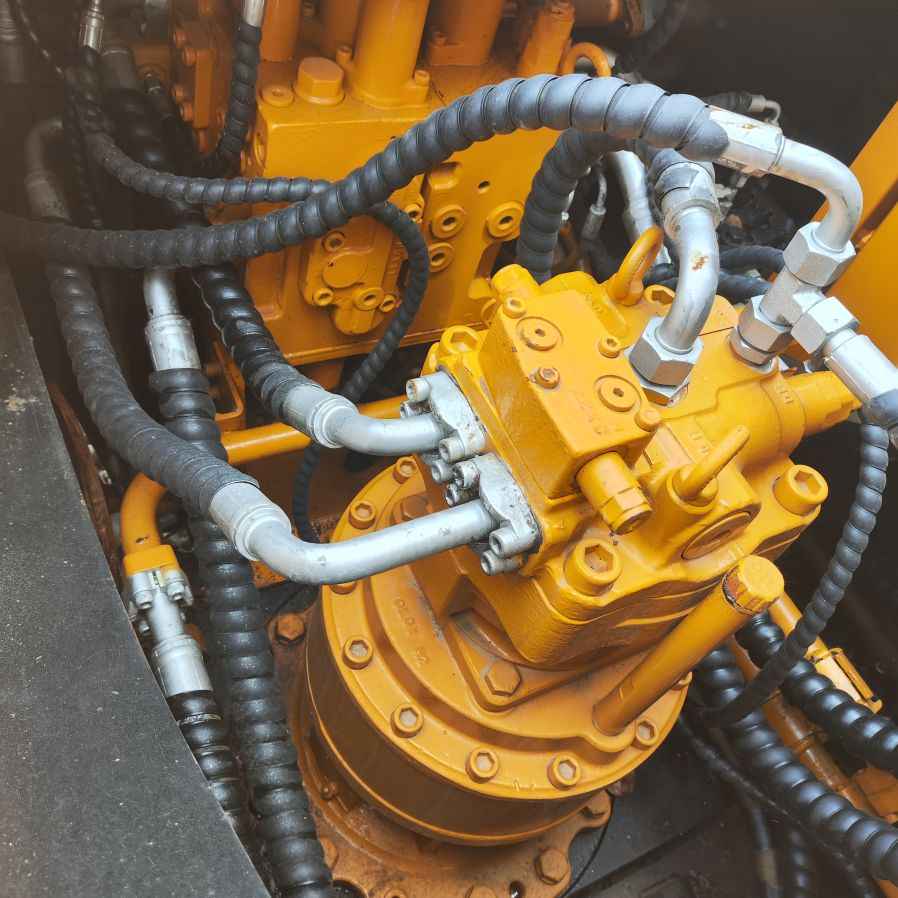

• Main Control Valve: Central hydraulic manifold that distributes fluid to various actuators.

• Spool Valve: Internal sliding valve within the control block that opens or closes fluid pathways.

• Safety Lever: Mechanical interlock that disables hydraulic functions when raised.


• The track begins moving as soon as the engine starts.

• The safety lever has no effect.

• The joystick appears to function normally.

• The issue persists regardless of operator input.


1. Safety First
   Shut down the machine and engage all safety locks. Place wheel chocks or blocks under the tracks to prevent movement.

2. Access the Control Valve
   Remove the operator platform or side panels to expose the hydraulic control block. Identify the spool valve corresponding to the affected track.

3. Manual Inspection
   Gently attempt to move the spool using a soft tool. Do not force it. If resistance is felt, apply hydraulic-safe solvent and allow time for penetration.

4. Flush and Clean
   Use clean hydraulic fluid or a manufacturer-approved cleaner to flush the spool bore. Remove any visible debris and inspect for scoring or wear.

5. Reinstall and Test
   Reassemble the valve and test the machine in a controlled environment. Confirm that both tracks respond correctly to joystick input and that the safety lever disables movement.


• Install inline hydraulic filters to catch debris before it reaches the control valve.

• Use high-quality fluid with anti-foaming and anti-corrosion additives.

• Schedule regular fluid changes every 500 operating hours or as recommended.

• Add magnetic drain plugs to capture metallic particles.


Introduction
The Bomag BW177 D-5 is a high-performance tandem roller used for compaction tasks in various construction and roadwork applications. One of the critical features of this machine is its vibratory compaction system, which provides powerful ground penetration and ensures smooth surfaces. However, when the vibration system fails, it can significantly affect the machine's performance, leading to inefficiency and increased operational time. In this article, we’ll explore the possible causes of a malfunctioning vibratory system in the Bomag BW177 D-5, troubleshooting steps, and possible solutions to get it working again.
Understanding the Vibratory System in Bomag BW177 D-5
The Bomag BW177 D-5 uses a hydraulically-driven vibratory system to compact surfaces. The vibrating rollers generate a high-frequency oscillation that helps to break down the soil, asphalt, or other materials, ensuring proper compaction. The vibration function is controlled by an onboard hydraulic system that powers the eccentric weights in the drum. These weights rotate at high speeds to create the vibrating motion that is essential for compaction.
Common Issues Leading to Vibration Failure

1. Hydraulic System Malfunctions


• Low Fluid Levels: If the hydraulic fluid is too low, it can reduce the system’s ability to generate enough pressure to power the vibration system.

• Clogged Filters or Lines: Dirt or debris in the hydraulic lines or filters can block the flow of fluid, preventing the vibratory system from working.

• Faulty Hydraulic Pump or Valve: If the hydraulic pump or valve that controls the vibration system is faulty, it will not generate enough pressure to operate the vibration mechanism effectively.


1. Electrical System Problems


1. Damaged Eccentric Weights


1. Control System Malfunctions


1. Drum Issues


1. Check Hydraulic Fluid Levels and Quality
   • Begin by checking the hydraulic fluid levels to ensure they are adequate. Low fluid levels can cause the hydraulic system to malfunction. Additionally, check the fluid quality; if it is dirty or contaminated, it may need to be replaced.

2. Inspect the Hydraulic Pump and Valves
   • Check for any signs of wear or leaks around the hydraulic pump and valves. If the pump is not functioning properly, it may need to be repaired or replaced. Also, verify that the hydraulic valves are operating correctly and that there are no obstructions blocking the fluid flow.

3. Examine the Electrical System
   • Inspect all electrical connections, wiring, and fuses associated with the vibratory system. A blown fuse or loose connection could be causing the system to fail. Also, check the sensors for any faults and test the operator’s control panel for any irregularities.

4. Inspect the Eccentric Weights
   • Inspect the eccentric weights inside the vibratory drum for any signs of damage or wear. If they are cracked or worn down, they may need to be replaced to restore the vibration function.

5. Check the Control System
   • Inspect the control system and ensure that it is properly set up to engage the vibratory function. Check for any diagnostic codes or warnings on the operator’s interface that might indicate a control system malfunction.

6. Examine the Drum and Bearings
   • Check the vibratory drum for any visible damage or imbalances. If the drum is not properly aligned or if there are issues with the bearings or hydraulic connections, it may affect the vibration performance. Repair or replace any damaged components.


1. Replace or Repair Hydraulic Components
   • If the hydraulic pump, valves, or filters are faulty, they may need to be replaced or repaired. Ensuring the hydraulic system is in top working condition is essential for the vibration function.

2. Repair Electrical and Control Systems
   • Fixing any issues with the electrical system, such as faulty sensors or wiring, should be a priority. If the control system is not functioning properly, it may require a software reset or reprogramming to restore the vibration function.

3. Replace Damaged Eccentric Weights
   • If the eccentric weights inside the drum are damaged, replacing them with new, properly balanced weights is necessary for restoring vibration.

4. Rebalance or Replace Drum Components
   • If the drum is misaligned or the bearings are damaged, these components should be repaired or replaced to ensure that the vibration is transmitted effectively.


Legacy of the Case 450 Dozer
The Case 450 crawler dozer, introduced in the mid-1960s by J.I. Case Company, quickly became a staple in small-to-medium earthmoving operations. Known for its compact frame, reliable transmission, and straightforward mechanical systems, the 450 series was designed to serve contractors, farmers, and municipal crews alike. By the early 1970s, Case had sold tens of thousands of units globally, with strong demand in North America and parts of Asia. The company itself, founded in 1842, had a long history of agricultural and construction equipment innovation, and the 450 dozer was part of its push into versatile, operator-friendly machines.
Understanding the Brake System Architecture
The braking system on the Case 450 is a dual hydraulic setup, consisting of two independent master cylinders—one for each track—and corresponding slave cylinders that actuate the brake arms. These components are mounted beneath the operator’s platform and connect to the brake pedals via mechanical linkages. When functioning properly, pressing a pedal sends hydraulic pressure through the master cylinder to the slave cylinder, which then pivots the brake arm to engage the internal brake bands.
Key terminology:

• Master Cylinder: Converts pedal force into hydraulic pressure.

• Slave Cylinder: Receives hydraulic pressure and moves the brake arm.

• Brake Arm: Mechanical lever that applies force to the brake band.

• Declutch Piston: Hydraulic valve component that disengages drive pressure for turning.


• Pedals moving freely with no resistance.

• Brake arms frozen in place due to rust or debris.

• Missing or seized slave cylinders.

• Parking brake only affecting one side.


1. Inspection and Penetration
   Begin by soaking all moving parts—especially pivot points and bolts—with a penetrating lubricant like PB Blaster. Allow several days for deep penetration. Avoid excessive force initially to prevent damaging aged components.

2. Component Replacement
   Replace both master cylinders and ensure both slave cylinders are present and functional. These parts are often available through aftermarket suppliers or salvage yards. Rebuild kits may be necessary if original parts are retained.

3. Brake Arm Alignment
   The brake arms should rest at approximately 13/16 inch downward angle from horizontal when properly adjusted. If one arm is frozen, gentle tapping with a rubber mallet may help free it, but only after lubrication and inspection.

4. Hydraulic System Check
   Inspect the declutch pistons in the transmission control valve. These regulate hydraulic pressure to the tracks and can affect braking and turning. Malfunctioning pistons may cause uneven braking or failure to disengage drive.

5. Manual Reference and Calibration
   A factory service manual is invaluable. It provides torque specs, adjustment procedures, and hydraulic diagrams. Without it, trial-and-error repairs can lead to misalignment or incomplete restoration.


• Upgrade to stainless steel hydraulic lines to resist corrosion.

• Install grease fittings on pivot points to allow regular maintenance.

• Use synthetic brake fluid for better temperature stability.

• Add inspection ports to the operator deck for easier access to brake components.


Introduction
In the world of heavy machinery, tire performance is crucial for both the efficiency and longevity of the equipment. Whether you're operating a skid-steer loader, an excavator, or a wheel loader, the tires play a significant role in providing traction, stability, and overall performance. However, an issue that often gets overlooked is the use of mismatched tires—where tires of different sizes, tread patterns, or even brands are installed on the same machine. While this may seem like a minor issue, mismatched tires can have substantial impacts on the performance, safety, and durability of heavy equipment. In this article, we will explore the potential consequences of using mismatched tires, how to avoid this issue, and best practices for tire maintenance.
What Does Mismatched Tires Mean?
Mismatched tires refer to the situation where the tires on the same vehicle or machine do not share uniform characteristics. These differences could be in:

• Tire size: Tires with different diameters or widths installed on the same axle or machine.

• Tread patterns: Different tread designs that affect traction and handling.

• Tire type: The use of different types of tires, such as pneumatic vs. solid rubber, or radial vs. bias ply.

• Brand or model: Tires from different manufacturers that may have different wear patterns or performance characteristics.


1. Uneven Wear and Tear


1. Reduced Traction and Stability


1. Compromised Hydraulic Efficiency


1. Increased Fuel Consumption


1. Potential for Overheating


• Uneven tire wear: If one tire wears down significantly faster than the others, it’s a strong sign that the tires may not be properly matched.

• Excessive vibrations: Mismatched tires can cause vibrations during operation, which can lead to discomfort for the operator and stress on the machine’s components.

• Difficulty in handling: If the equipment is harder to steer, or if it drifts to one side, it may be due to uneven traction between the tires.

• Noise: Unusual noises while driving can be caused by tires that are different in tread depth or type, which affects the balance and smoothness of the ride.


1. Ensure Uniform Tire Size and Type


1. Regular Tire Inspections


1. Tire Rotation


1. Consult with Professionals


Takeuchi TB135 and Its Hydraulic System
The Takeuchi TB135 is a compact excavator introduced in the early 2000s, designed for precision digging and maneuverability in tight spaces. With an operating weight around 7,000 lbs and a hydraulic flow rate of approximately 16.9 GPM, the TB135 relies heavily on a well-maintained hydraulic system to power its boom, arm, bucket, and auxiliary attachments. Takeuchi, founded in 1963 in Japan, pioneered the compact excavator category and has sold hundreds of thousands of units globally. The TB135 remains popular for its reliability and ease of service.
Its hydraulic system uses a variable displacement piston pump and multiple control valves, all of which depend on clean, properly specified hydraulic fluid to function efficiently. Choosing the correct oil is essential to prevent pump wear, valve sticking, and seal degradation.
Manufacturer Specifications and Viscosity Grades
Takeuchi’s official recommendation for hydraulic oil in the TB135 is based on ambient temperature ranges:

• VG32 for temperatures between -4°F and 86°F

• VG46 for 15°F to 104°F

• VG68 for 40°F to 150°F


• Bob: Uses machines aggressively and ignores maintenance until failure.

• Cliff: Intends to follow service schedules but delays them.

• Clark: Obsesses over cleanliness and precision, often exceeding manufacturer expectations.


• Use ISO VG46 AW hydraulic oil for most conditions unless operating in extreme temperatures.

• Avoid mixing engine oil with hydraulic fluid.

• Change hydraulic filters every 500 hours or annually.

• Flush the system if switching oil types to prevent additive incompatibility.

• Monitor fluid temperature during heavy use to avoid overheating.


Introduction
Selecting the correct tread pattern for your Bobcat T650 or any other skid-steer loader is a critical decision for ensuring optimal performance, traction, and longevity of the equipment. The T650, known for its powerful hydraulics and versatility, is used in a variety of environments and applications, such as construction, landscaping, and agriculture. The right tire or track tread pattern can make a significant difference depending on the surface and working conditions. This article will explore the different tread patterns available for the Bobcat T650, their benefits, and how to choose the best one for specific tasks.
Understanding the Bobcat T650 and Its Needs
The Bobcat T650 is a mid-size compact track loader that is widely used for its superior performance in both tough terrains and urban environments. With a rated operating capacity of 2,500 pounds and a strong breakout force, the T650 is equipped to handle a variety of attachments such as buckets, graders, and trenchers. Its versatility makes it suitable for everything from digging and grading to moving materials in challenging environments like muddy fields or loose gravel.
Choosing the right tread pattern is crucial because it impacts the loader’s ability to move efficiently, provide proper load distribution, and avoid wear that may affect the machine’s overall performance.
Types of Tread Patterns for Bobcat T650

1. Multi-Bar Tread Pattern
   • Description: Multi-bar tracks feature evenly spaced, rectangular or diamond-shaped lugs that offer a balance between traction and flotation. The bars provide good grip across a variety of surfaces.

   • Best Use: Ideal for general use on a variety of terrain, including paved roads, dirt, and light gravel. This tread pattern performs well in landscaping, light construction, and material handling jobs.

   • Advantages:
     • Offers a good compromise between traction and smooth movement.

     • Performs well on hard, flat surfaces like pavement and compacted dirt.

     • Great for general-purpose use.

2. Aggressive Tread Pattern
   • Description: Aggressive tread patterns feature larger and deeper lugs designed to provide superior traction. These tracks are often more pronounced, with sharp edges that dig into the ground for increased grip.

   • Best Use: Perfect for loose or soft surfaces such as mud, snow, sand, and loose gravel. It is highly effective for operations in challenging environments like construction sites, forestry, and in winter conditions.

   • Advantages:
     • Excellent traction in soft and loose soil.

     • Better control in muddy or snowy environments.

     • Reduced risk of slipping and getting stuck.

3. Smooth Tread Pattern
   • Description: Smooth tread patterns are characterized by a flat surface with minimal tread depth. This type of track pattern is often used in applications where traction is less of a concern, and operators need a smoother ride.

   • Best Use: Ideal for hard, compacted surfaces like asphalt or concrete. It’s commonly used in urban environments where minimal surface disruption is required, such as city construction, parking lot maintenance, or indoor applications.

   • Advantages:
     • Provides a smooth and quiet ride.

     • Less wear on paved surfaces, preventing damage to roads.

     • Offers better fuel efficiency in stable, hard surfaces.

4. Wide or Turf Tread Pattern
   • Description: The wide or turf tread pattern features broader lugs with a shallow depth, designed to distribute weight evenly across the ground. This reduces the chances of the loader leaving deep ruts or damaging delicate turf or grass.

   • Best Use: Perfect for use on turf, grass, or other soft, delicate surfaces. It’s ideal for landscaping, golf courses, or areas with manicured lawns where minimal soil disruption is critical.

   • Advantages:
     • Minimizes ground disturbance, preserving soft surfaces.

     • Helps prevent rutting in delicate environments.

     • Reduces wear on grass or turf areas.


1. Terrain Type
   • The surface on which you operate your Bobcat T650 is the most important factor when selecting the tread pattern. If your work environment is mainly on asphalt or compacted dirt, a smooth or multi-bar pattern would suffice. However, if your tasks frequently take place on uneven, muddy, or loose surfaces, an aggressive tread pattern will offer better traction.

2. Workload and Purpose
   • The type of work you do also influences your choice of tread. For heavy-duty construction tasks requiring maximum traction and load-bearing, aggressive treads are ideal. For light material handling or landscaping, smoother treads can ensure better maneuverability and surface protection.

3. Wear and Durability
   • Durability is always a consideration when purchasing any tread pattern. Aggressive tread patterns often wear faster on hard surfaces, while smoother patterns may not provide enough traction in loose terrain. Consider how much wear and tear you expect in your daily operations.

4. Surface Protection
   • If your Bobcat T650 will be used in areas where surface protection is important, such as soft grass, soil, or turf, then a wide or turf tread is the best option. This minimizes soil compaction and damage, helping to preserve the work area’s integrity.

5. Cost
   • Tread pattern and material quality can also impact cost. Aggressive treads, with their enhanced grip, are generally more expensive than multi-bar or smooth treads. Make sure to assess the cost against the expected usage frequency and working environment.


• Multi-Bar Tread Pattern
  • Pros: Versatile, good for a range of terrains, long-lasting.

  • Cons: Less traction in muddy or sandy environments.

• Aggressive Tread Pattern
  • Pros: Excellent traction in soft or loose terrain, better control in harsh conditions.

  • Cons: Faster wear on hard surfaces, noisier.

• Smooth Tread Pattern
  • Pros: Quiet ride, efficient on hard surfaces, less wear on roads.

  • Cons: Limited traction in soft or loose soil.

• Wide or Turf Tread Pattern
  • Pros: Protects turf and soft surfaces, reduces soil disruption.

  • Cons: Less traction in deep mud or soft soil.


The Legacy of the Caterpillar D8K
The Caterpillar D8K dozer, introduced in the 1970s, became a cornerstone of heavy earthmoving operations worldwide. Known for its mechanical simplicity and raw power, the D8K featured a 3408 V8 diesel engine, delivering up to 300 horsepower and weighing over 80,000 lbs in some configurations. Caterpillar, founded in 1925, built the D8K to endure harsh mining, forestry, and construction environments. Tens of thousands were sold globally, and many remain in service today due to their rebuild-friendly architecture and parts availability.
Signs of Internal Engine Failure
After 14 years of uninterrupted service, one D8K began consuming 4 imperial gallons of 15W40 CE/CF4 oil every 8-hour shift, a clear sign of internal wear. Upon teardown, technicians discovered severe damage in cylinder #5, including:

• Copper streaks in the bearing shells, indicating bearing fatigue and oil starvation.

• Valve impact marks on the piston crown, suggesting piston-to-valve contact due to excessive play or timing issues.

• Corroded liners, likely caused by prolonged use of water instead of proper coolant.


• Cutting and installing a repair sleeve

• Welding and machining the block surface

• Replacing the engine block, though this is rare due to cost


• Low oil pressure

• Contaminated oil

• Excessive engine load


• New pistons and liners

• Rod and main bearings

• Oil pump and drive gear

• Head gasket set

• Valve inspection and regrind


• Always use proper coolant, especially in wet sleeve engines

• Monitor oil consumption and pressure regularly

• Conduct periodic oil analysis to detect bearing wear

• Inspect counterbores during liner replacement

• Replace oil pump components during major rebuilds
