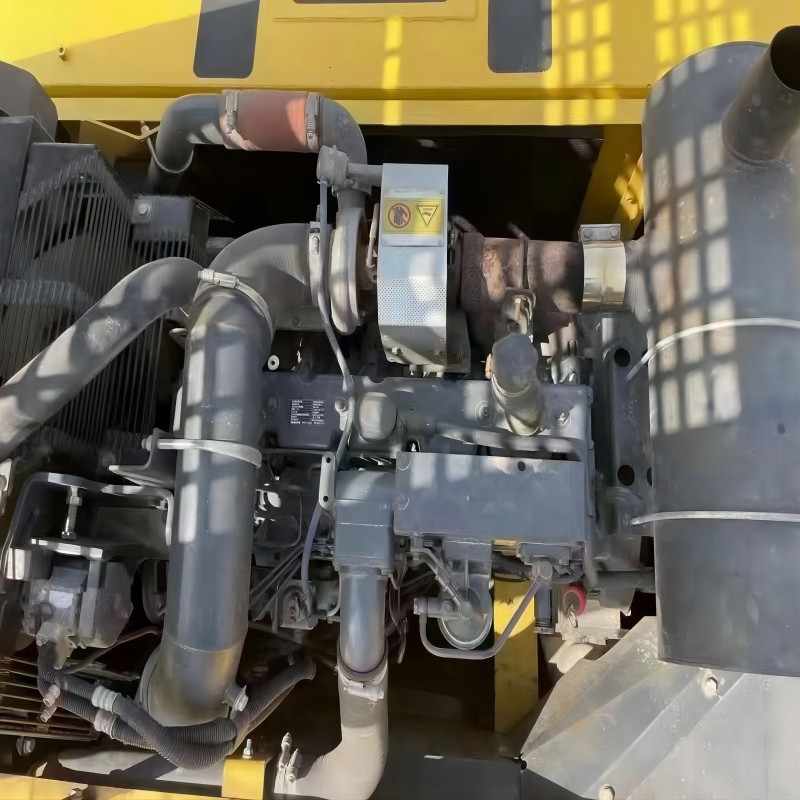

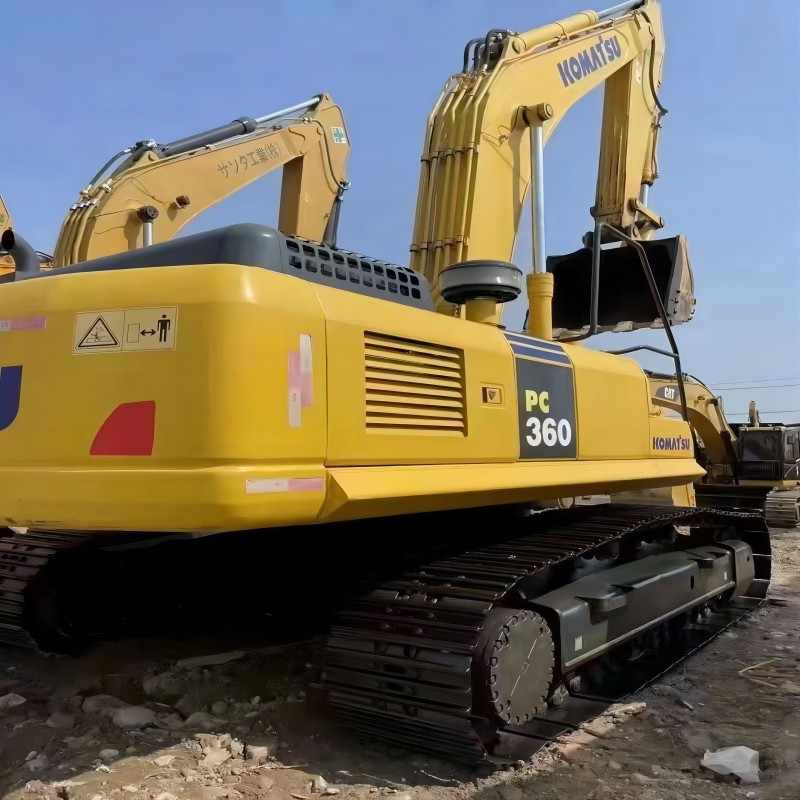

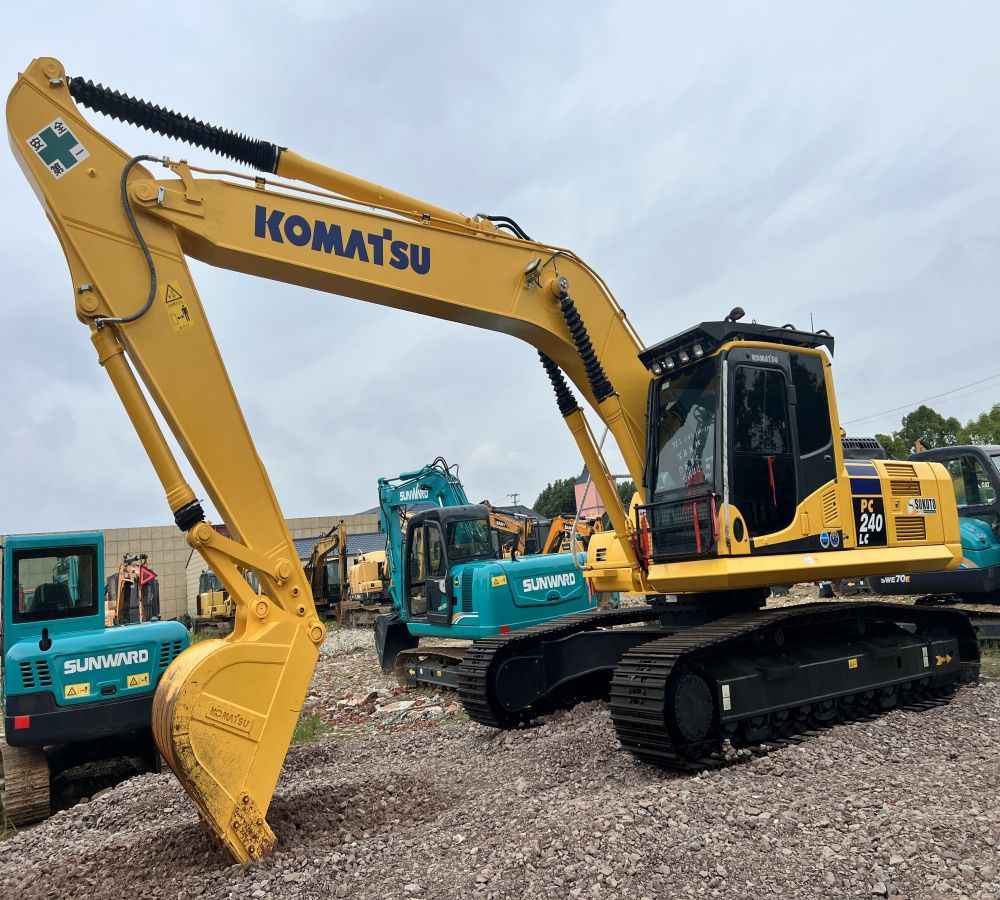

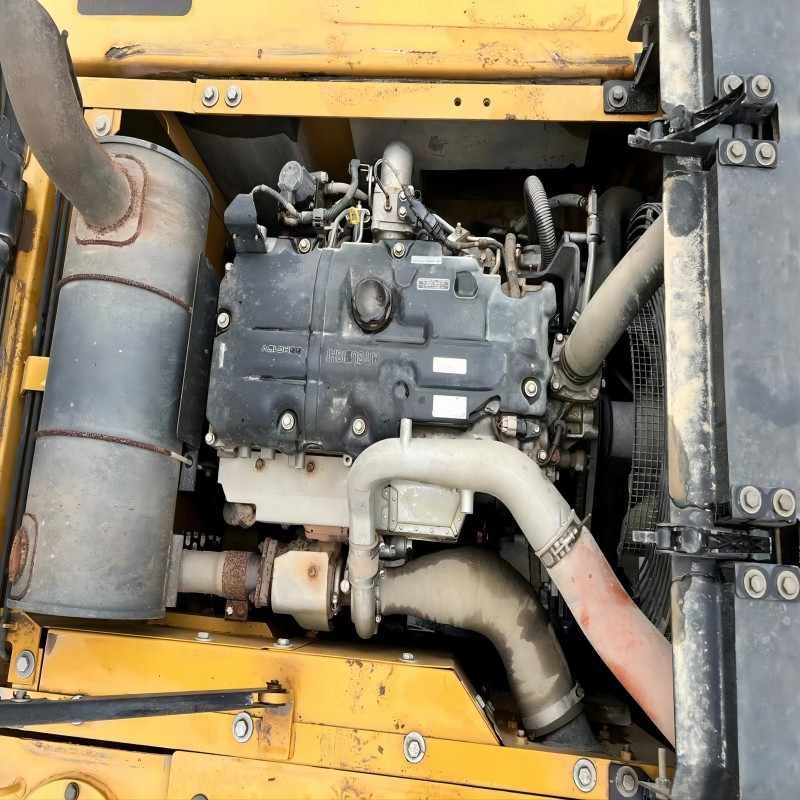

Komatsu is one of the world’s leading manufacturers of heavy equipment, known for producing reliable machinery that serves a variety of industries, including construction, mining, and forestry. Their range of products, from bulldozers and excavators to wheel loaders and dump trucks, has made them a go-to brand for many heavy equipment operators around the globe.
When considering Komatsu equipment, it’s important to understand both the strengths and challenges of the brand. In this article, we’ll explore the key aspects of choosing Komatsu equipment, from their durability and performance to the considerations you should keep in mind when deciding whether or not a Komatsu machine is right for your business.

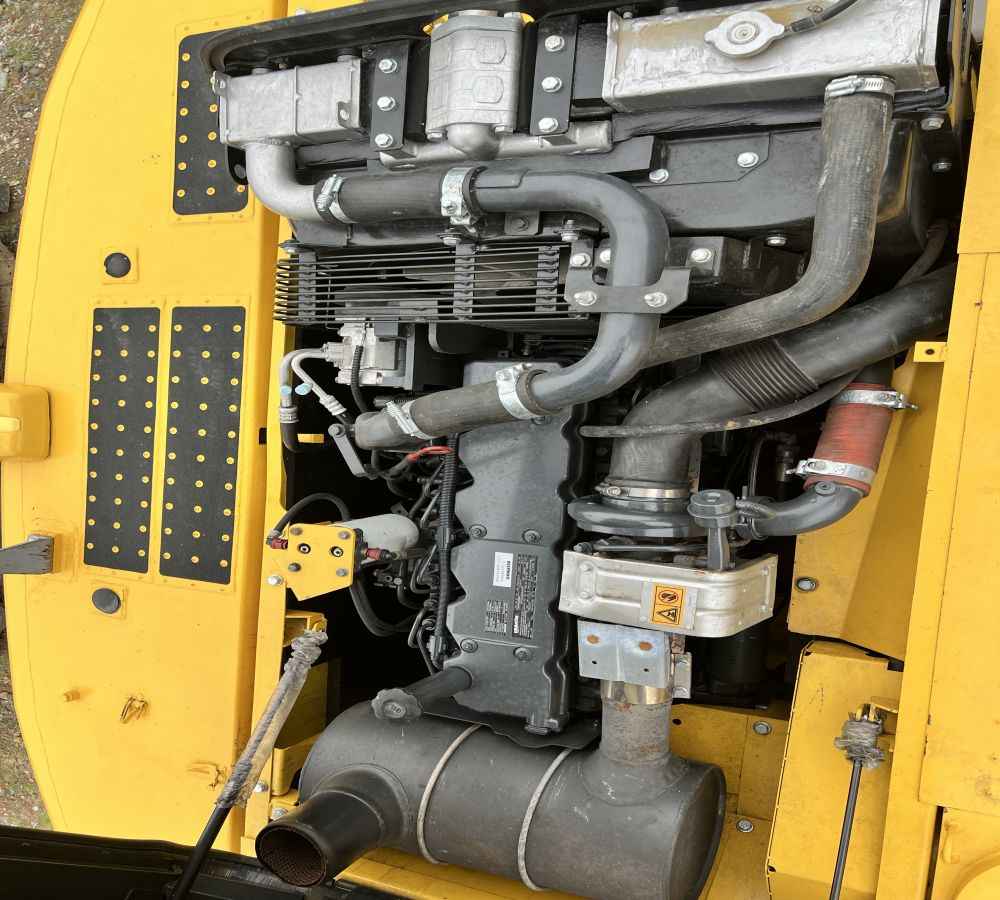

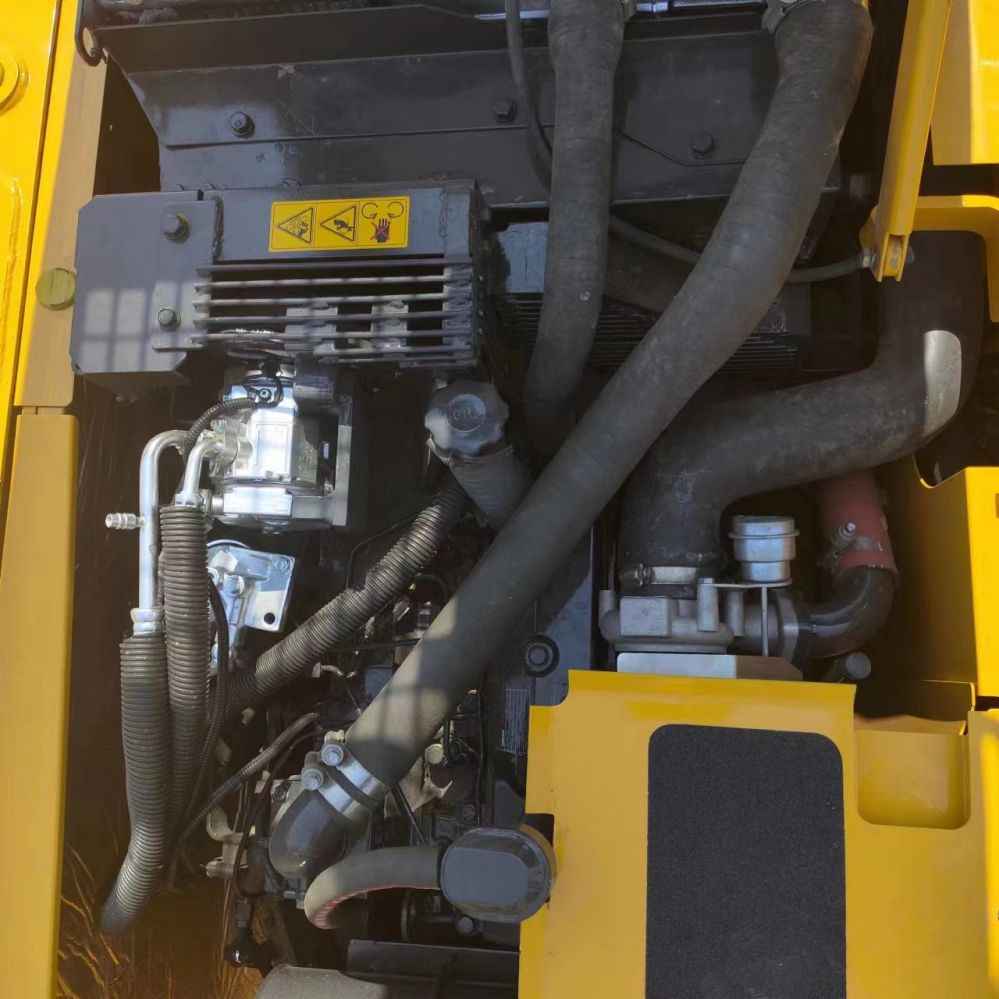

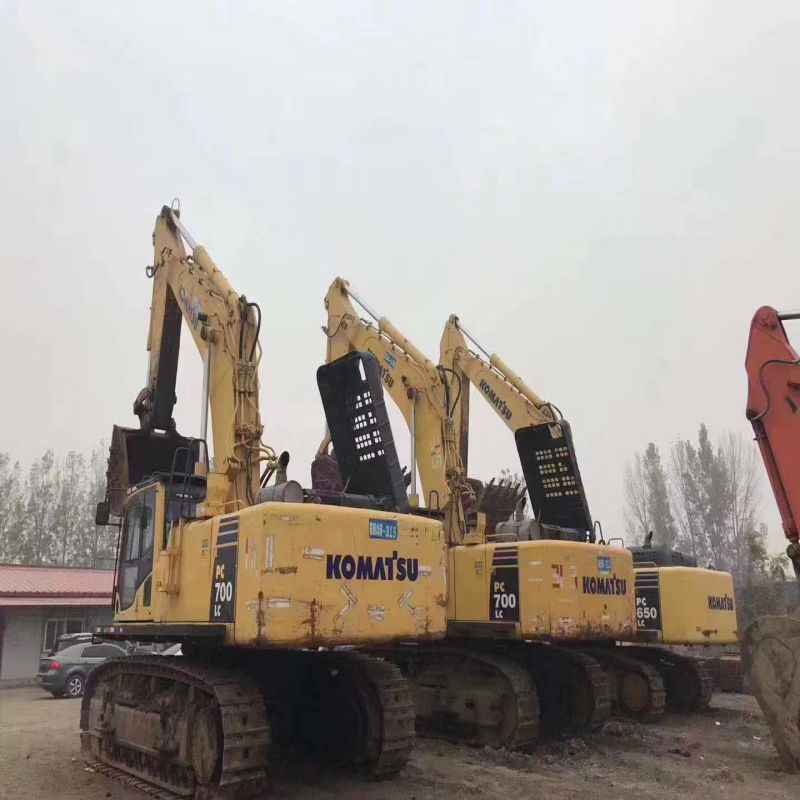

Komatsu’s Legacy and Global Presence
Komatsu, founded in 1921 in Japan, has grown into one of the most trusted names in heavy machinery. The company started as a subsidiary of Komatsu Iron Works, focusing on manufacturing construction and mining machinery. Over the years, Komatsu has expanded its presence worldwide, with operations in more than 150 countries.
The company has consistently invested in research and development, pushing the boundaries of technology in heavy equipment. This has led to innovations such as the Komatsu Intelligent Machine Control, which integrates GPS and other technologies for precision control in heavy-duty operations.
Komatsu’s commitment to producing durable and high-performing equipment has earned the company a loyal following. Whether you’re looking for construction machines, mining equipment, or forestry machines, Komatsu’s extensive catalog ensures that they have a product suited for the job.

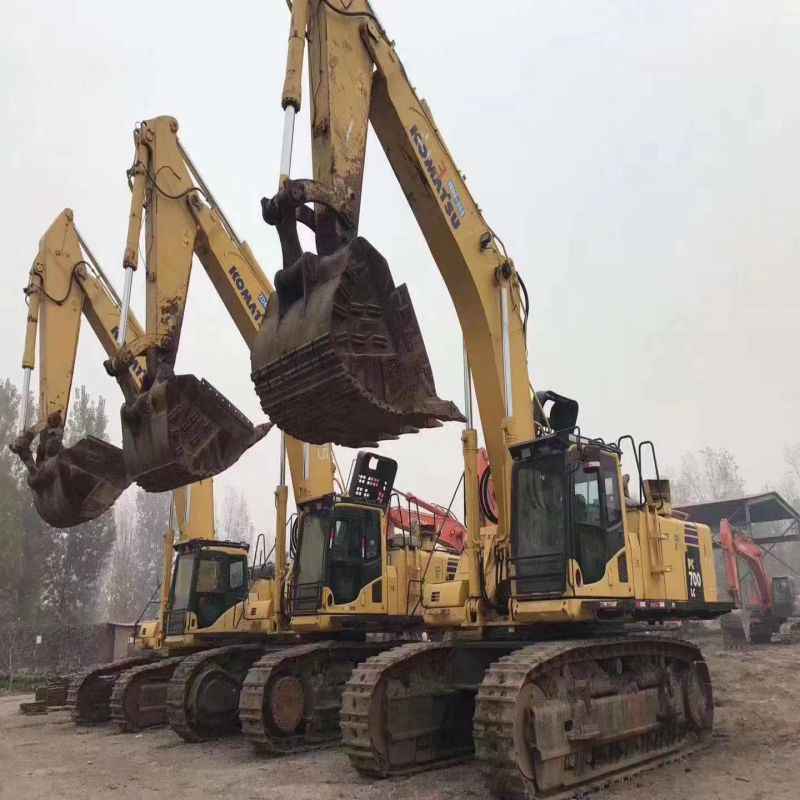

Strengths of Komatsu Equipment

1. Durability and Reliability

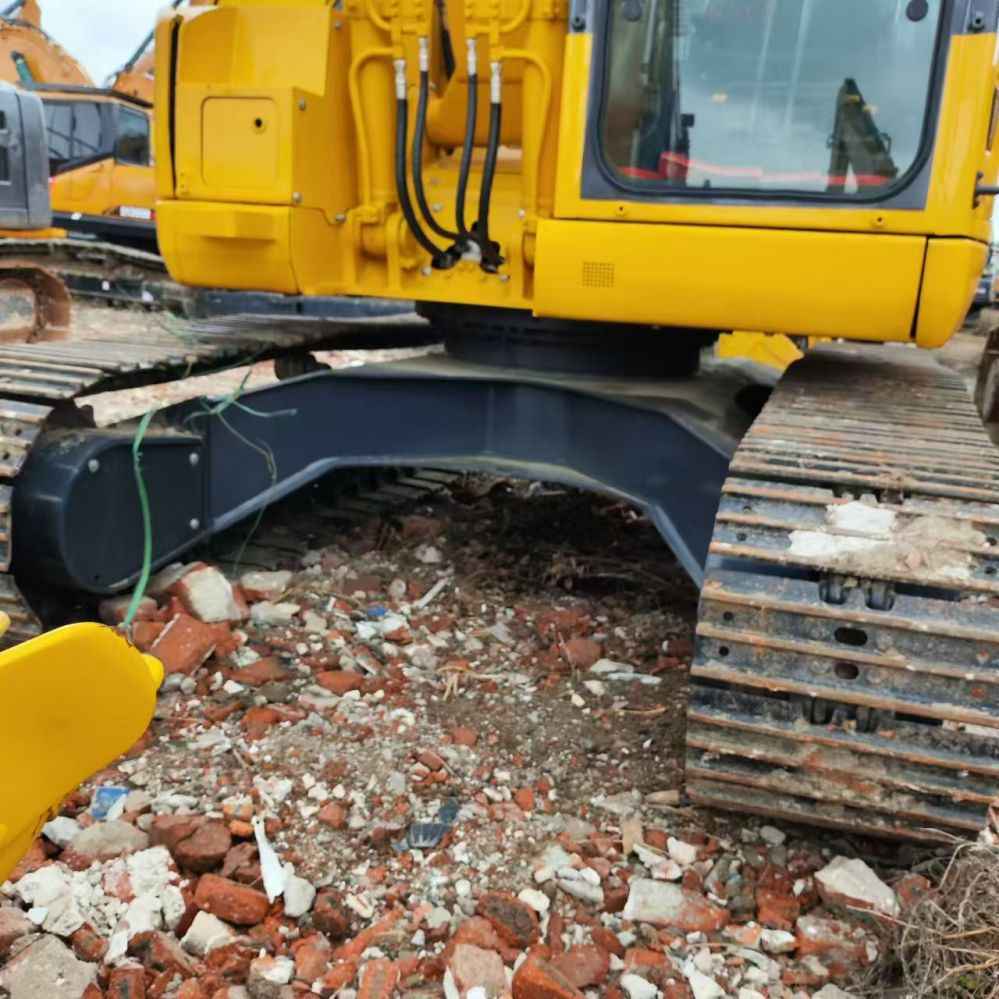

   • Komatsu machines are known for their rugged construction and long lifespan. These machines are designed to withstand harsh operating conditions and continue performing well after years of heavy use. Komatsu has built a reputation for manufacturing robust equipment that can handle demanding tasks, which is why many companies rely on their machines for long-term use.

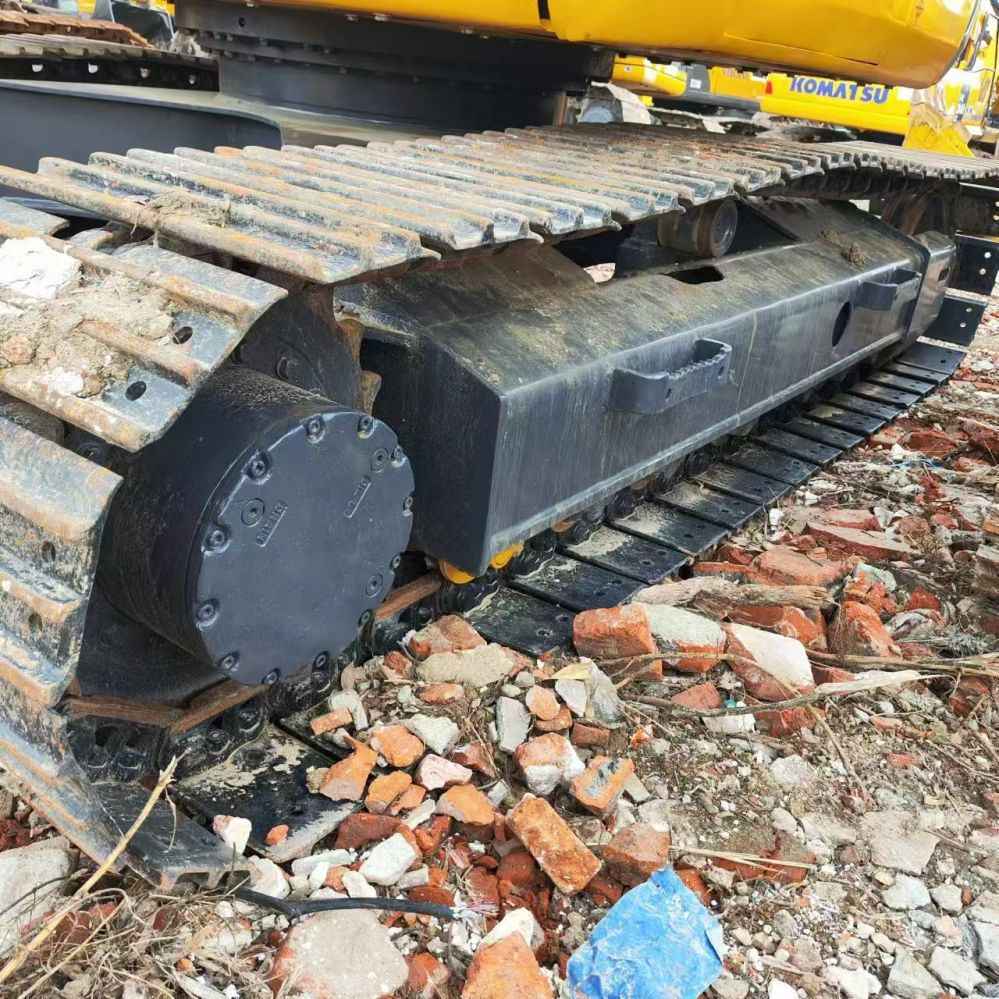

   • For example, Komatsu’s excavators and bulldozers are often found in extreme environments, from construction sites to mining operations, where reliability is paramount. Many users report that Komatsu machinery holds up well over time and can endure difficult conditions with minimal breakdowns.

2. Technological Advancements
   • Komatsu integrates advanced technology into its machines, improving both operator efficiency and machine performance. Features like the Komatsu Intelligent Machine Control (IMC) are designed to automate certain tasks, such as grading and excavating, increasing productivity and reducing errors.

   • The Komatsu KOMTRAX system is another example of their technological innovation. This telematics system allows operators to monitor their machines remotely, checking data such as fuel consumption, machine location, and health reports, which can help predict maintenance needs and improve operational efficiency.

3. Fuel Efficiency and Environmental Considerations

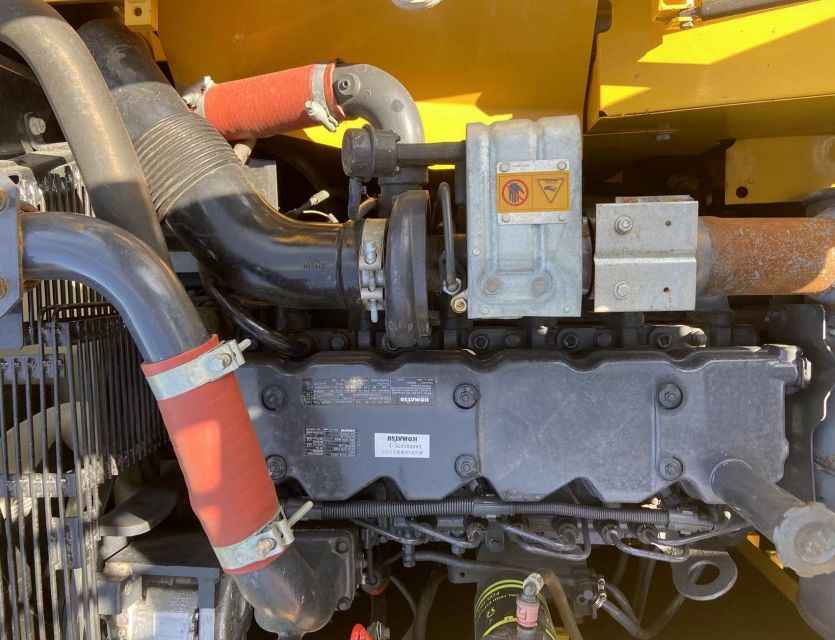

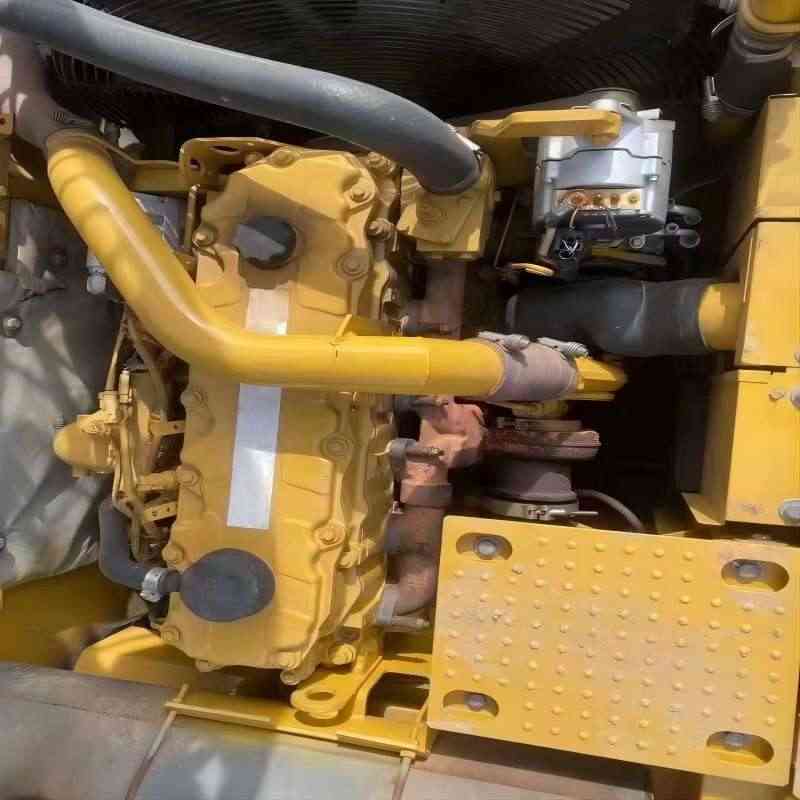

   • In today’s market, fuel efficiency and environmental impact are critical considerations for any piece of heavy equipment. Komatsu has made significant strides in producing fuel-efficient machines. Their engines are built to meet stringent emissions standards, while their systems are designed to optimize fuel usage, resulting in lower operational costs and reduced environmental impact.

   • Machines like the Komatsu PC490LC-11 excavator have been praised for their fuel efficiency, with operators reporting noticeable savings on fuel compared to other models in the same class.

4. Comfort and Operator Experience

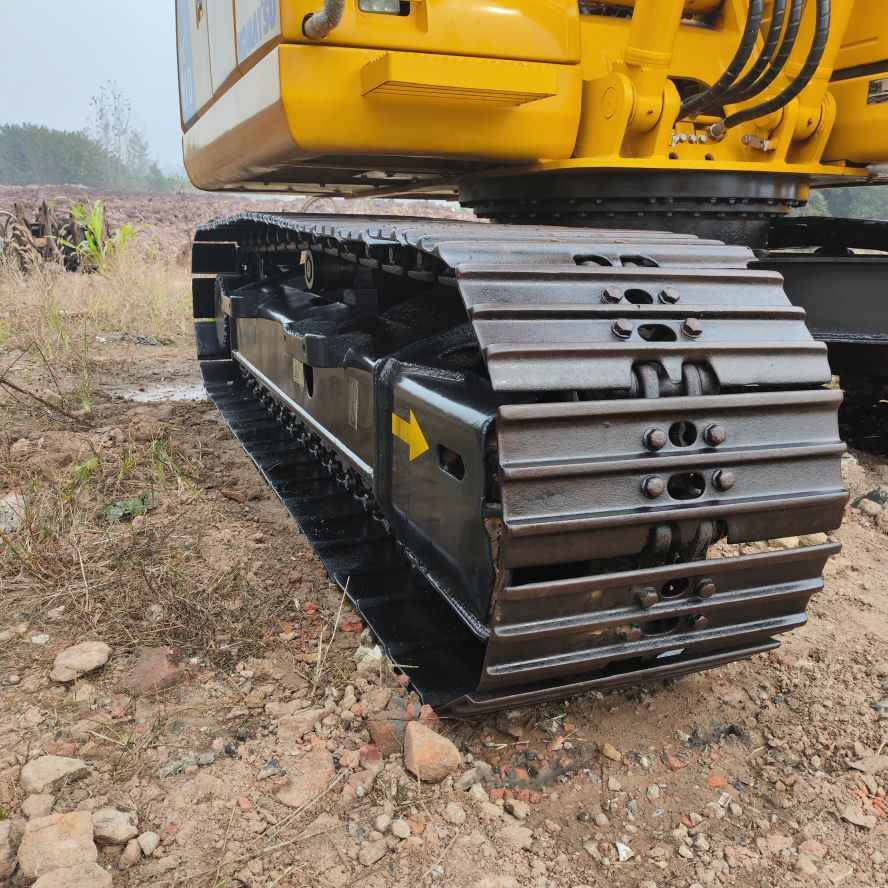

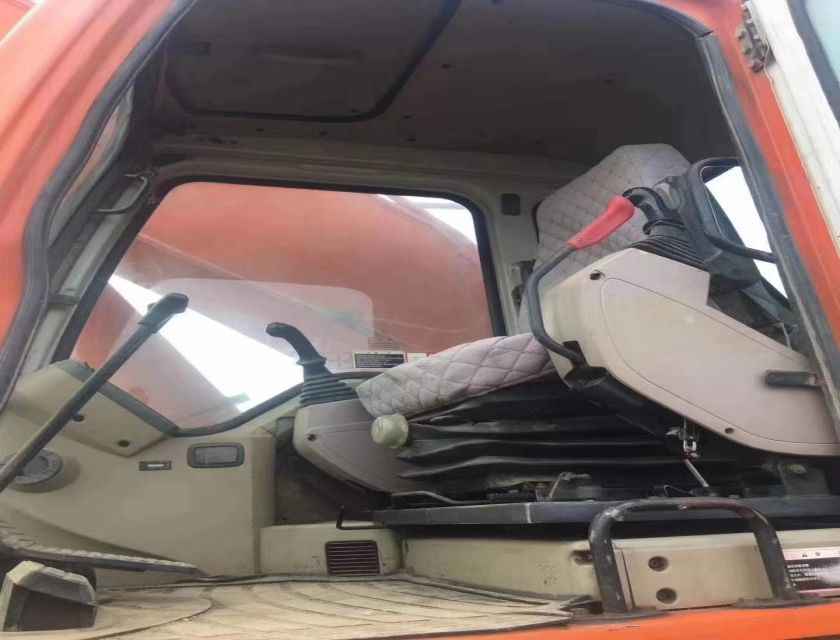

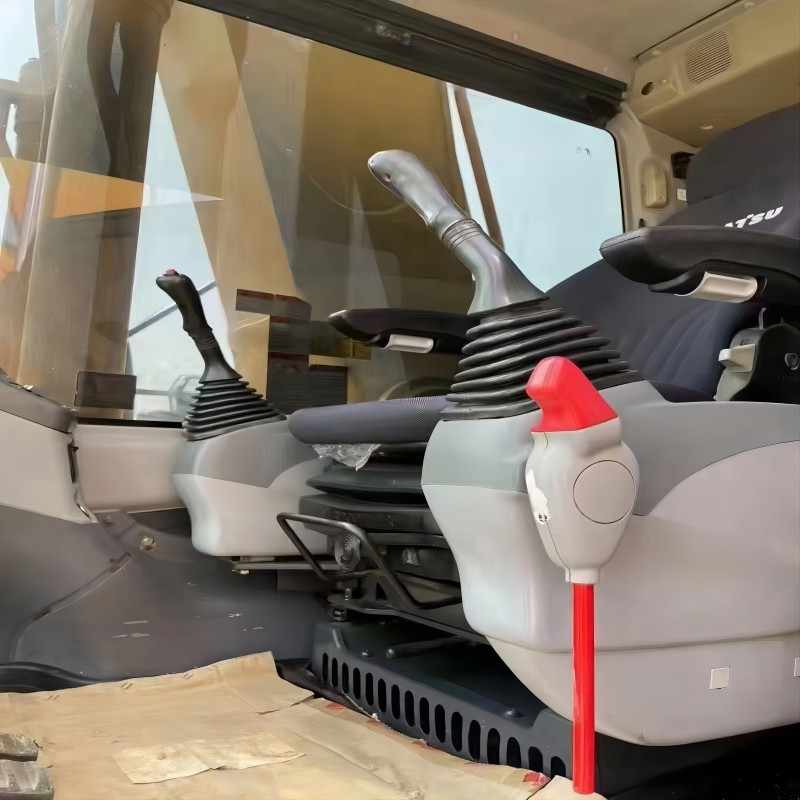

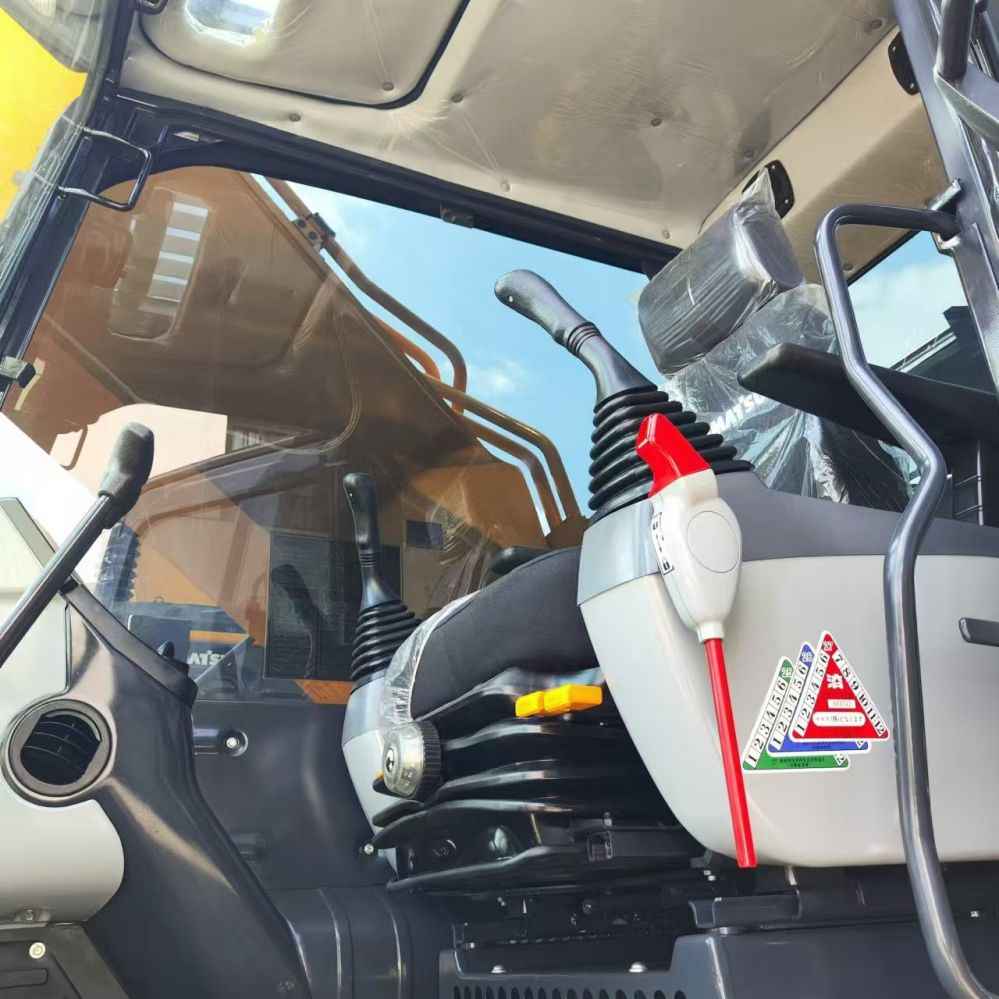

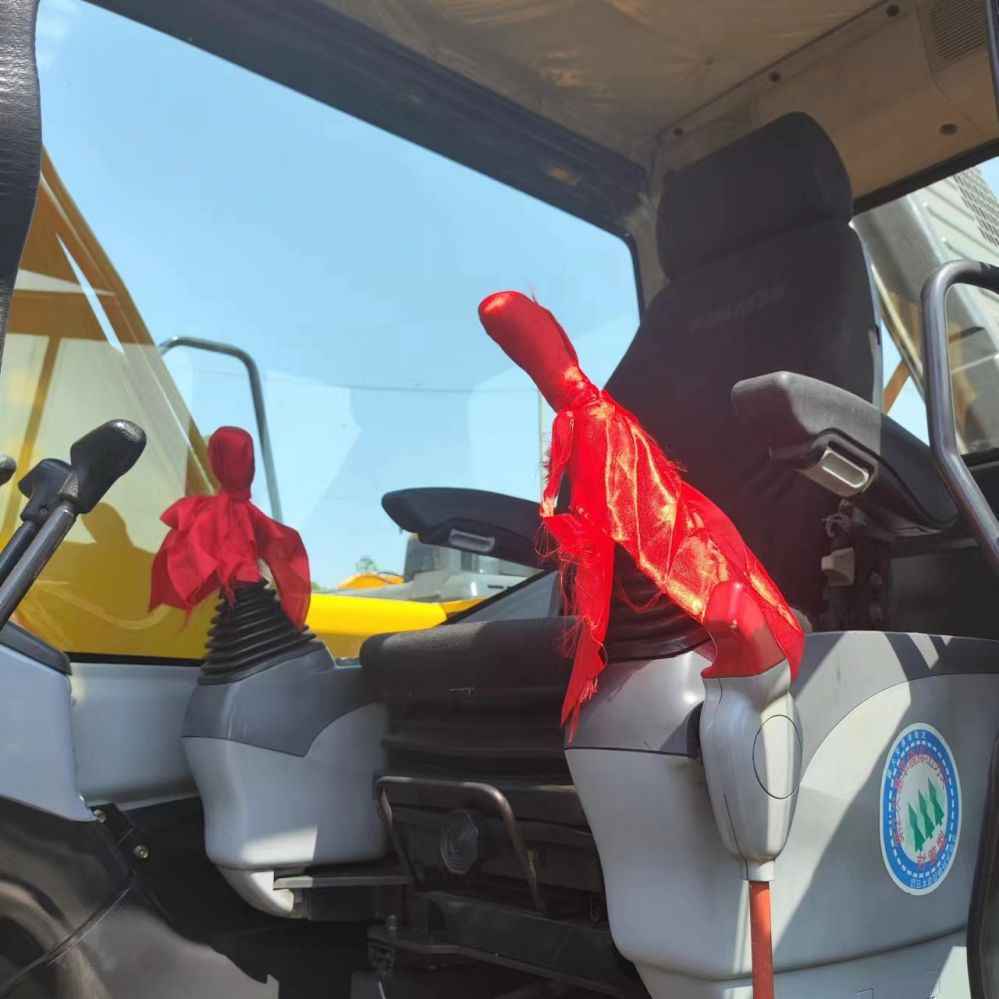

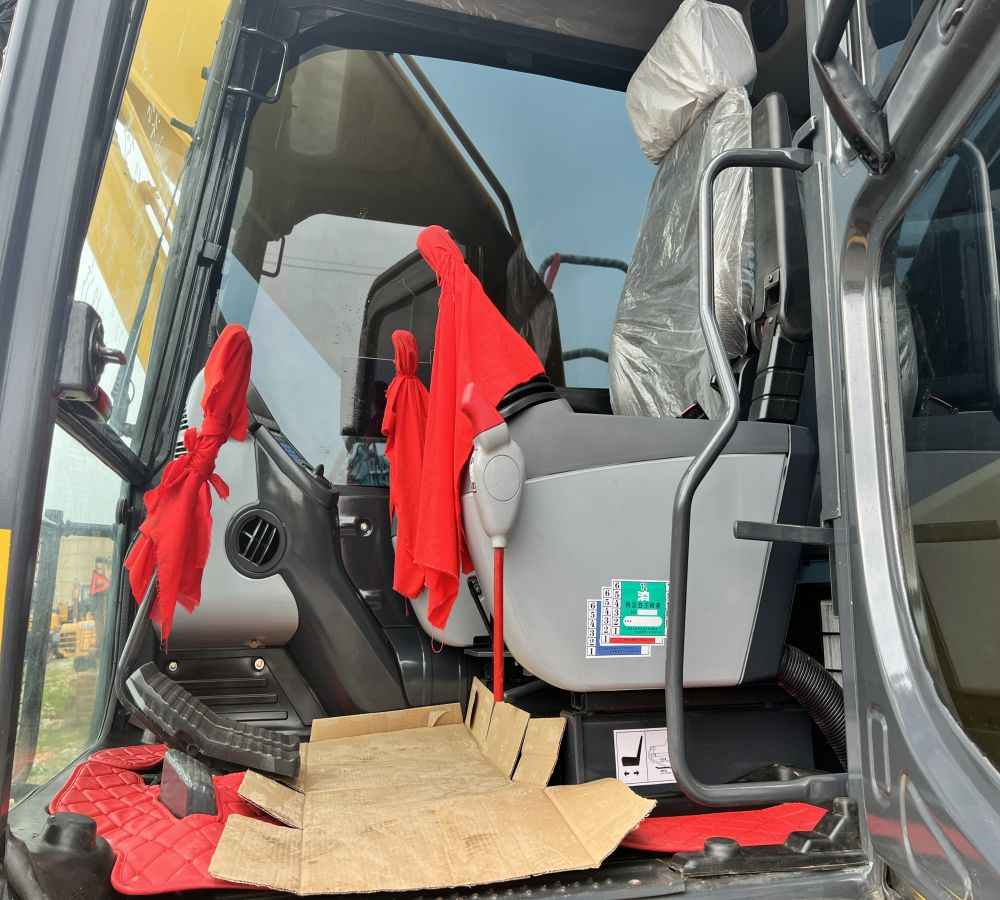

   • Operator comfort is another area where Komatsu stands out. Their cabs are designed with ergonomics in mind, providing a spacious, comfortable working environment. Features like adjustable seating, climate control, and intuitive controls are standard in many of their machines.

   • The Komatsu Dash-8 series excavators, for instance, are equipped with a modern cabin layout, offering excellent visibility and reduced vibration, which is essential for operators working long hours.


1. Cost of Ownership
   • While Komatsu equipment is generally regarded as durable and reliable, it’s important to consider the total cost of ownership, which includes not just the purchase price but also maintenance, fuel, and repairs over the machine’s lifespan.

   • In some cases, Komatsu equipment may come at a premium price, particularly when you’re buying newer models with advanced technologies. However, the long-term savings in terms of fuel efficiency and reduced downtime often make Komatsu machines a solid investment for companies looking for reliability and longevity.

2. Availability of Parts and Service
   • One of the challenges with Komatsu equipment, as with any brand, is ensuring that spare parts and qualified technicians are readily available in your region. Komatsu has an extensive network of dealers worldwide, but in remote areas, accessing parts or finding skilled mechanics who are familiar with Komatsu systems may be more difficult.

   • Before purchasing Komatsu equipment, especially if it’s going to be used in an area with limited support infrastructure, it’s advisable to check the availability of parts and service options.

3. Resale Value
   • Komatsu machines tend to have good resale value, thanks to their reputation for durability and reliability. However, this can vary depending on the specific model, age, and market conditions.

   • If you're considering purchasing used Komatsu equipment, it’s essential to assess the machine’s condition, maintenance history, and remaining lifespan to ensure you’re making a sound investment.

4. Machine Size and Specifications
   • When choosing Komatsu equipment, it’s crucial to select the right size and specification for your needs. Komatsu offers a wide range of machine sizes, from small skid-steer loaders to large mining trucks.

   • Whether you're buying an excavator, wheel loader, or bulldozer, it’s important to match the equipment to the scale of the job at hand. Over-sizing or under-sizing a machine can lead to inefficiencies or even cause unnecessary wear and tear on the equipment.


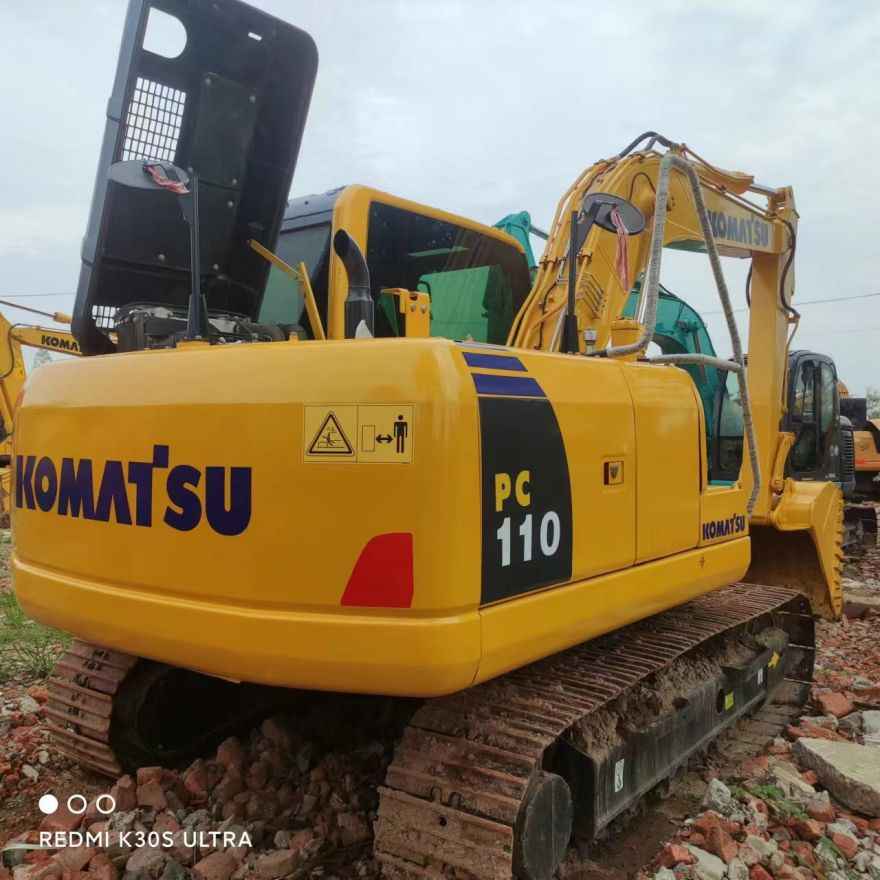

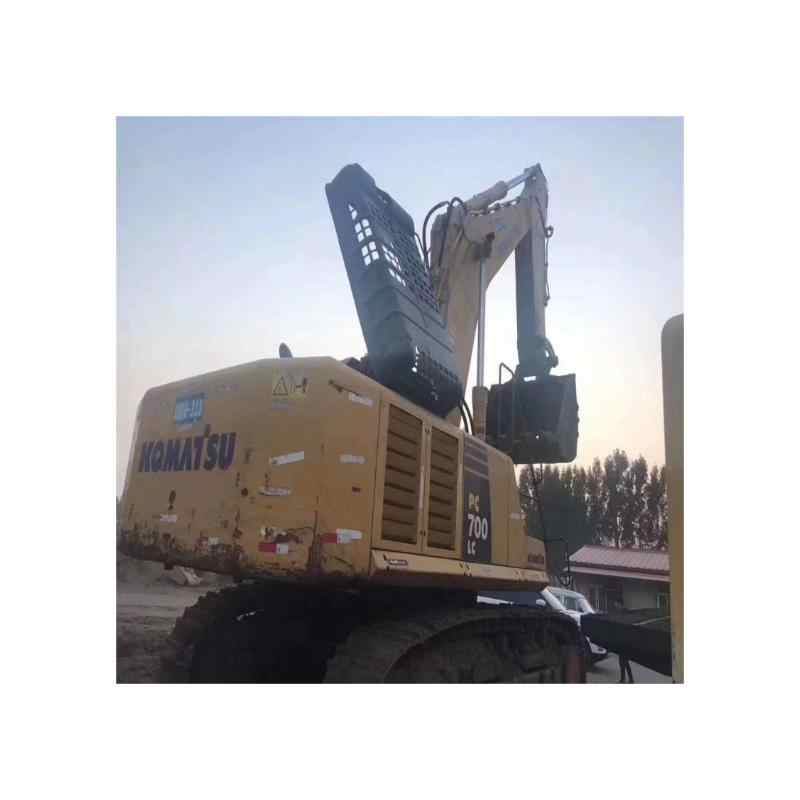

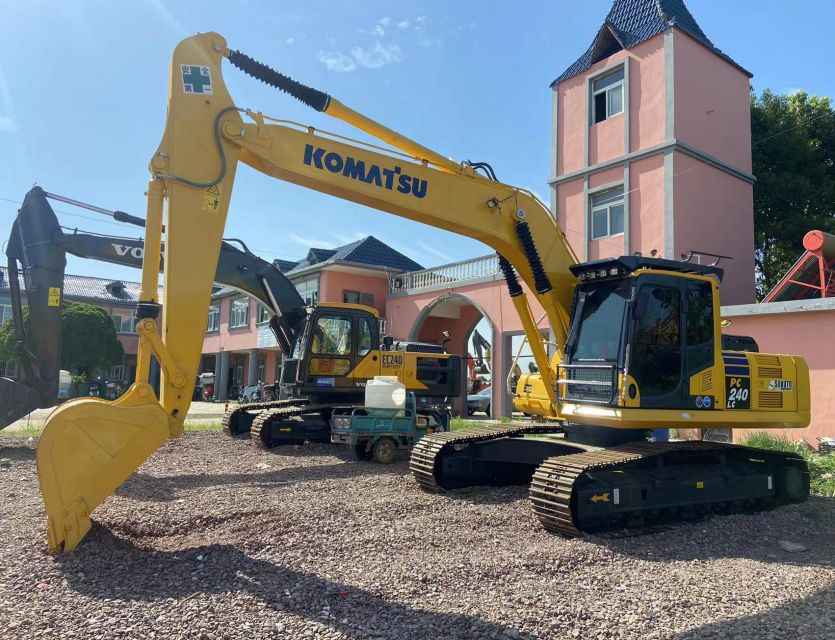

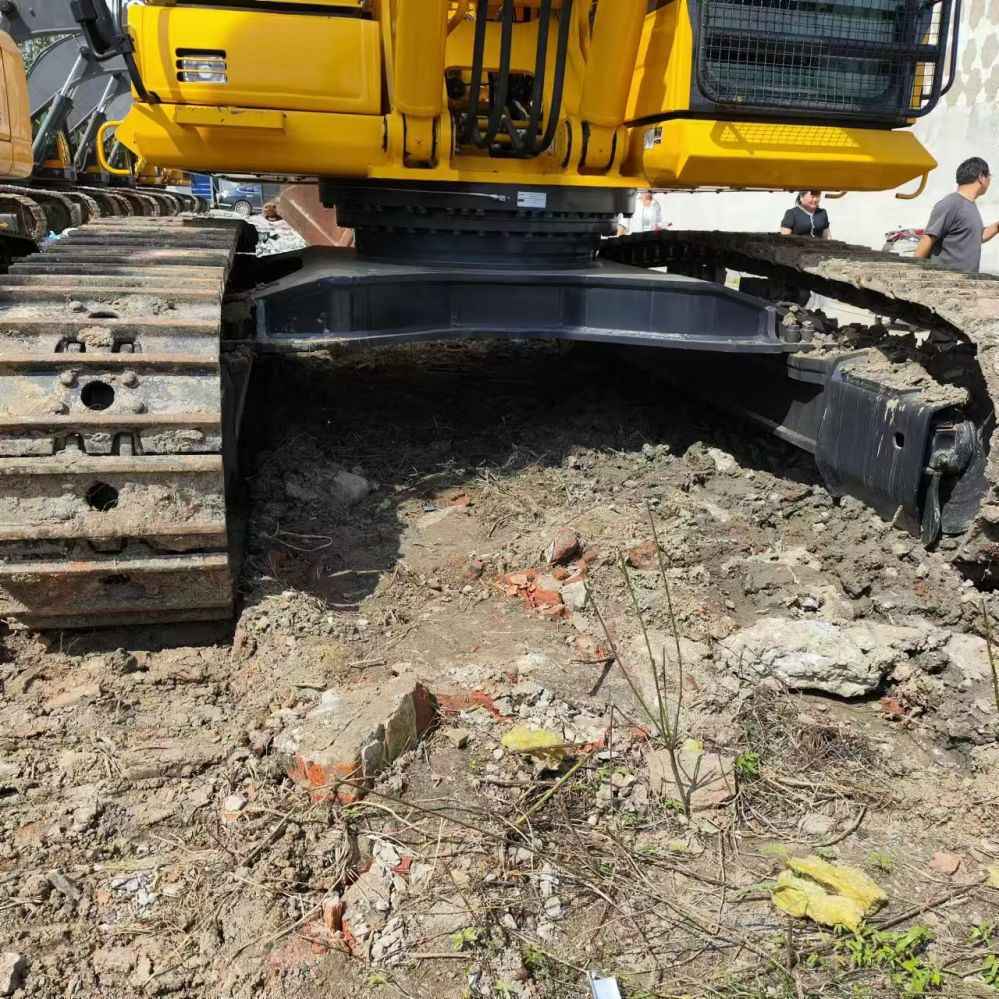

1. Komatsu PC210LC-11
   • A mid-sized hydraulic excavator, the PC210LC-11 is widely used in construction and earthmoving. It offers excellent lifting capacity, fuel efficiency, and comfort for operators.

2. Komatsu D65-18 Crawler Dozer
   • The Komatsu D65 is a versatile dozer used in grading, mining, and site preparation. With a powerful engine and rugged design, it’s known for handling tough tasks while offering high productivity.

3. Komatsu WA500-8 Wheel Loader
   • This large wheel loader is perfect for heavy-duty material handling, offering great lifting power and excellent fuel efficiency.

4. Komatsu HM400-5 Articulated Dump Truck
   • This large dump truck is known for its impressive payload capacity and efficient fuel consumption, making it ideal for large-scale construction and mining projects.


The Caterpillar D4C III Hystat is a versatile track-type tractor renowned for its hydrostatic drive system, which provides smooth and precise control. However, operators may occasionally encounter steering issues that hinder performance. Understanding the common causes and solutions for these problems can help maintain the machine's efficiency.
Hydrostatic Drive System Overview
The D4C III Hystat employs a dual-path, closed-loop hydrostatic transmission system. Each track is powered by its own variable-displacement piston pump, delivering hydraulic fluid to dedicated motors that drive the tracks. This design allows for infinite speed variation and direction control via a single joystick, offering exceptional maneuverability.
Common Steering Problems

1. Loss of Steering Control
   • Symptoms: The machine starts but fails to move forward or backward. The joystick responds, but there's no track movement.

   • Possible Causes:
     • Neutral Park Brake Switch Malfunction: If this switch fails, it may prevent the machine from moving, even if the joystick is engaged.

     • Hydraulic Pressure Issues: Insufficient hydraulic pressure can result from a failed pump coupling or other hydraulic system failures.

2. Erratic Steering Response
   • Symptoms: The machine steers unpredictably or requires excessive force to turn.

   • Possible Causes:
     • Steering Clutch Wear: Worn or damaged steering clutches can cause inconsistent engagement, leading to erratic steering behavior.

     • Control Valve Problems: Issues with the steering clutch control valves, such as sticking or contamination, can disrupt normal steering function.

3. Complete Loss of Steering
   • Symptoms: The machine moves straight but cannot be steered left or right.

   • Possible Causes:
     • Steering Clutch Failure: A complete failure of one or both steering clutches can render the steering system inoperative.

     • Hydraulic System Failure: A significant drop in hydraulic pressure or a failure in the hydrostatic drive system can lead to a total loss of steering control.


1. Check Hydraulic Pressure
   • Procedure: Use a pressure gauge to test the charge pressure and drive pressure. Standard values are approximately 350 psi for charge pressure and 5000 psi for drive pressure.

   • Interpretation: Low pressure readings may indicate issues such as a failed pump coupling or internal hydraulic leaks.

2. Inspect Steering Clutch Control Valves
   • Procedure: Remove and inspect the steering clutch control valves for signs of wear, contamination, or sticking. Cleaning or replacing damaged components may resolve steering issues.

   • Reference: Detailed procedures for disassembling and assembling steering clutch control valves can be found in the service manual.

3. Examine Steering Clutch Packs
   • Procedure: Inspect the steering clutch packs for wear or damage. Replace any worn components to restore proper steering function.

   • Note: It's essential to follow the manufacturer's specifications for clutch pack thickness and assembly to ensure optimal performance.


• Regular Fluid Checks: Monitor hydraulic fluid levels and condition to prevent issues related to low or contaminated fluid.

• Routine Inspections: Periodically inspect steering components, including clutches and control valves, for signs of wear or damage.

• Proper Storage: Store the machine in a dry, clean environment to prevent contamination of hydraulic systems.


The Challenge of Steep Driveway Deliveries
Dumping material on steep terrain presents a unique set of risks and operational decisions. Whether laying road base, gravel, or fill, the angle of the slope, traction conditions, and truck configuration all influence safety and efficiency. In rural and mountainous regions, contractors frequently face driveways with grades exceeding safe dumping thresholds. The situation becomes more complex when the site lacks turnaround space or when the customer’s property constraints limit maneuverability.
One operator, tasked with repairing a steep driveway for a client in distress, had to weigh compassion against caution. The driveway had washed out previously, and a proposed switchback was abandoned due to personal hardship. The operator, now equipped with a tri-axle dump truck and a compact grader known locally as a “maintainer,” sought the safest method to deliver and spread material on the slope.
Terminology Annotation
- Tri-Axle Dump Truck: A dump truck with three rear axles, offering increased payload capacity and stability.
- Wheelbase (WB): The distance between the front and rear axles, affecting turning radius and pitch sensitivity.
- Maintainer: A compact road grader used for shaping and compacting driveways, often equipped with a front bucket, rear rippers, and a mid-mounted blade.
- Tailgate Chains: Chains that limit how far the tailgate opens, used to control material flow during dumping.
- Pitch Over: A rollover caused by uneven weight distribution or slope instability during dumping.
Backing Up vs Driving Downhill to Dump
Experienced drivers agree that dumping while driving downhill is generally safer than backing uphill. When backing a loaded truck up a steep grade, traction loss can lead to wheel hop, spinout, or mechanical damage. If the bed is raised during this maneuver, the risk of tipping increases dramatically. Conversely, dumping while descending allows the operator to maintain better control, though it reduces the angle of the dump body and may affect material flow.
Key safety considerations include:
• Maintaining minimal side-to-side pitch to prevent lateral rollovers
• Keeping the truck in gear during descent to avoid relying solely on brakes
• Avoiding raised-bed movement on uneven terrain
• Using the maintainer to pre-grade the slope for better traction and material spread
Short Bed Advantage and Load Control
The operator’s truck had a short 12-foot bed and an 18-foot wheelbase, which offers a lower center of gravity and reduced pitch risk compared to longer dump bodies. Quarry loaders often spill material over the tailgate, so cleaning and load distribution become critical. A short bed also allows for more precise pile placement, especially when dumping in segments.
To control the load:
• Raise the bed incrementally and release small amounts of material
• Lower the bed between movements to maintain stability
• Use the maintainer to blade and compact each pile before proceeding
• Avoid tailgate chains if spreading is not required, to prevent uncontrolled flow
Using a Maintainer for Slope Grading
The maintainer, a 7-ton compact grader with a 10-foot blade and Cummins 4BT engine, plays a vital role in shaping and compacting the driveway. Unlike full-size graders, maintainers are nimble and ideal for residential work. They can rip, blade, and bucket material efficiently, especially on tight or sloped terrain.
Before dumping:
• Grade the slope to remove ruts and establish a level path
• Identify stable zones for pile placement
• Compact previous layers to improve traction for the dump truck
• Use the maintainer to feather edges and prevent washouts
Compaction and Final Finish
A vibratory roller was included in the bid to ensure proper compaction. On steep grades, loose material is prone to erosion and rutting. A 7-ton roller can firm up the base and lock in fines, reducing future maintenance. For best results:
• Compact each layer after blading
• Avoid over-watering, which can destabilize the slope
• Use edge rippers to blend material into adjacent terrain
Lessons from the Field
In one historical paving job in Dalhousie, trucks had to back into spreaders from driveways because the slope was too steep to descend safely. Hydraulic brakes and asphalt flow limitations made downhill paving impractical. The front wheels would lift under braking, and the spreader couldn’t hold the truck. These lessons underscore the importance of planning, equipment selection, and slope management.
Conclusion
Dumping on steep hills requires a blend of mechanical awareness, terrain preparation, and cautious execution. Backing uphill with a loaded dump truck is risky, especially without chains or a controlled tailgate. Driving downhill to dump, combined with incremental release and grading between loads, offers a safer alternative. With the aid of a maintainer and vibratory roller, even challenging driveways can be restored with precision and care. For operators committed to helping clients under pressure, thoughtful technique and respect for the terrain make all the difference.

Heavy equipment operators are integral to various industries, including construction, mining, and forestry. Operating machinery such as bulldozers, cranes, and excavators requires specialized skills and knowledge to ensure safety and efficiency on job sites. To regulate and standardize these operations, various licenses and permits are mandated, varying by equipment type, location, and job requirements.
Licensing Requirements for Heavy Equipment Operators
In the United States, the need for a specific "heavy equipment operator license" is not universally mandated. However, certain certifications and permits are required based on the type of equipment operated and the jurisdiction.

1. Crane Operators
   • OSHA Regulations: The Occupational Safety and Health Administration (OSHA) requires crane operators involved in construction to be certified by an accredited certification provider. This regulation, under 29 CFR 1926 Subpart CC, mandates that operators meet specific training and evaluation criteria before operating cranes on construction sites .

   • Certification Bodies: Accredited organizations, such as the National Commission for the Certification of Crane Operators (NCCCO), provide certification programs that align with OSHA standards. These programs typically include written and practical exams, ensuring operators possess the necessary skills and knowledge .

2. Commercial Driver’s License (CDL)
   • Federal Requirements: Operating heavy equipment that has a gross vehicle weight rating (GVWR) of more than 26,000 pounds or a trailer weighing more than 10,000 pounds necessitates a Commercial Driver’s License (CDL). This federal requirement ensures that operators have the requisite driving skills and knowledge to handle large vehicles safely .

   • State Regulations: While the federal government sets the standards for CDLs, individual states issue these licenses. Requirements may include written and road tests, medical examinations, and background checks.

3. Powered Industrial Trucks and Other Equipment
   • OSHA Standards: For equipment like forklifts and aerial work platforms, OSHA mandates that operators receive proper training and evaluation. Employers are responsible for ensuring that operators are competent to operate such equipment safely .

   • Employer Responsibility: Employers must provide training that covers equipment operations, hazards, safeguards, and safe practices. Operators should only use equipment after receiving this training and being authorized by the employer.


• Heavy Equipment Colleges of America: Offers programs that prepare individuals for certification exams, covering equipment operation, safety protocols, and maintenance .

• OSHA Education Center: Provides online courses for various equipment types, including excavators, skid steers, and dump trucks. These courses focus on safe operation and compliance with OSHA regulations .

• State Technical Colleges: Institutions like State Technical College of Missouri offer degree programs in heavy equipment operations, preparing students for certification and employment in the field .


• Employer-Sponsored Training: Many employers offer training programs that combine classroom instruction with hands-on experience. These programs often culminate in certification, enhancing employability.

• Apprenticeships: Structured apprenticeship programs allow individuals to learn under the guidance of experienced operators, gaining valuable skills and knowledge over time.


1. Power Transmission: Hydraulic oil is used to transmit power from the hydraulic pump to various hydraulic cylinders, which enable the movement of the loader's components like the lift arms and bucket.

2. Lubrication: Hydraulic oil lubricates the internal parts of the hydraulic system, reducing friction and wear on critical components like pumps, valves, and cylinders.

3. Heat Dissipation: Hydraulic oil helps dissipate heat generated during operation, preventing overheating and maintaining optimal performance.

4. Contaminant Removal: The oil also acts as a filter, trapping and removing contaminants from the system to ensure that the components remain free from abrasive particles.


1. Viscosity Grade
   • The viscosity of hydraulic oil refers to its thickness and its ability to flow at different temperatures. It is essential to select an oil with the right viscosity for the temperature conditions in which the machine operates.

   • For the 2008 L190, the recommended viscosity grade is typically ISO 46 or ISO 68, depending on the climate in which the machine is used. In warmer climates, a higher viscosity grade like ISO 68 may be preferred, while ISO 46 is more suitable for colder temperatures. Always check the operator’s manual for the recommended grade specific to your region.

2. Additives
   • Hydraulic oils contain additives that enhance performance by improving viscosity, preventing rust and corrosion, and reducing foam. When selecting hydraulic oil, it is important to choose a high-quality oil with the right additives for the L190’s hydraulic system.

   • Common additives include anti-wear agents, detergents, and antioxidants. For the 2008 L190, ensure the oil meets the specifications for anti-wear protection and rust inhibitors.

3. Oil Type: Mineral vs. Synthetic
   • Mineral oils are derived from refined crude oil and are the most commonly used type for construction equipment like the L190. They are affordable and widely available, but they may break down more quickly under extreme conditions.

   • Synthetic oils, on the other hand, are chemically engineered to offer better performance in extreme temperatures and extended service intervals. They typically provide enhanced protection against wear and better performance in both cold and hot conditions.

   • For general use, mineral oil may be sufficient, but if the machine is subjected to intense operations or extreme temperatures, switching to a synthetic option may provide superior performance.

4. Compatibility with Seals
   • When choosing hydraulic oil, it is also important to consider the compatibility of the oil with the seals and gaskets within the system. Certain oils, particularly those with high detergents or additives, can degrade seals over time, leading to leaks or premature failure of hydraulic components.

   • Make sure the oil you select is compatible with the materials used in the L190’s hydraulic system. The manufacturer may recommend a specific brand or product line to ensure seal compatibility.


1. Overheating
   • If the hydraulic oil is too thin or lacks sufficient thermal stability, it may not effectively dissipate heat, causing the system to overheat. This can result in loss of power, inefficient operation, and potential damage to the hydraulic components.

2. Increased Wear
   • Using the wrong oil or an oil with poor anti-wear properties can lead to excessive wear on the hydraulic pump, valves, and cylinders. This will reduce the lifespan of the system and may result in costly repairs.

3. Sluggish Operation
   • If the oil has the wrong viscosity or is contaminated, it can cause sluggish or unresponsive operation of the loader’s hydraulic functions. Slow arm movements, delayed bucket response, or a lack of lifting power may be symptoms of this issue.

4. Contamination
   • Low-quality oils or oils that do not contain the proper additives can leave contaminants in the system, leading to clogged filters, blocked lines, and even pump failure. Contaminated hydraulic fluid can degrade the performance of the entire system.


1. Check Fluid Levels Regularly
   • Regularly monitor the hydraulic fluid levels, and top them off as necessary to prevent the system from running low. Low oil levels can lead to air entering the hydraulic lines, causing erratic or unresponsive operation.

2. Change the Oil as Recommended
   • The manufacturer will provide a recommended interval for oil changes, typically based on operating hours. Changing the hydraulic oil at regular intervals ensures that contaminants are removed and that the system is protected from excessive wear.

3. Replace Filters Periodically
   • The hydraulic system’s filters should be replaced periodically to ensure that they are not clogged with contaminants. Clogged filters can reduce the flow of oil, leading to poor performance or even system failure.

4. Use Clean, High-Quality Oil
   • Always use clean, high-quality hydraulic oil to avoid introducing contaminants into the system. Ensure that the oil container is kept sealed and free of dirt or moisture.

5. Monitor for Leaks
   • Regularly inspect the hydraulic system for leaks in hoses, cylinders, and seals. A leak can result in low oil levels and reduce the system’s effectiveness. Repair any leaks promptly to prevent further damage.


Introduction to the Caterpillar D5G LGP Dozer
The Caterpillar D5G LGP (Low Ground Pressure) dozer is a versatile machine designed for various applications, including construction, land clearing, and grading. Introduced in the early 2000s, the D5G LGP is equipped with a 6-cylinder diesel engine and features a low ground pressure design, making it suitable for soft or marshy terrains. The dozer's air conditioning system plays a crucial role in providing comfort to the operator, especially in hot and humid working conditions.
Understanding the Air Conditioning System
The air conditioning system in the D5G LGP dozer is a closed-loop system that includes several key components:

• Compressor: The heart of the system, responsible for compressing and circulating refrigerant.

• Condenser: Dissipates heat from the refrigerant.

• Evaporator: Absorbs heat from the cabin air.

• Accumulator: Removes moisture and contaminants from the refrigerant.

• Orifice Tube: Regulates the flow of refrigerant into the evaporator.


• No Cool Air: The system blows warm air, indicating the compressor isn't circulating refrigerant properly.

• Unusual Noises: Grinding or squealing sounds may suggest internal damage or wear.

• Compressor Clutch Issues: If the clutch doesn't engage or disengage correctly, the compressor won't operate efficiently.


1. Preparation: Ensure the dozer is on a flat surface and the engine is turned off.

2. Discharge the Refrigerant: Before working on the system, safely discharge the refrigerant using appropriate recovery equipment.

3. Remove the Old Compressor:
   • Disconnect the battery to prevent electrical hazards.

   • Remove any components obstructing access to the compressor.

   • Disconnect the refrigerant lines from the compressor.

   • Unbolt and remove the compressor from its mounting.

4. Install the New Compressor:
   • Position the new compressor in place.

   • Secure it with bolts and reconnect the refrigerant lines.

   • Ensure all connections are tight to prevent leaks.

5. Replace the Accumulator and Orifice Tube:
   • The accumulator and orifice tube should be replaced to ensure the system operates efficiently.

   • The orifice tube is typically located inside the evaporator coil.

   • Accessing the evaporator may require removing the cab or specific panels inside the cabin.

6. Evacuate and Recharge the System:
   • Use a vacuum pump to evacuate the system to 300 microns or for 90 minutes.

   • Recharge the system with the specified amount of R134a refrigerant.

   • Check for leaks and ensure the system operates correctly.


• Cab Removal: In some cases, accessing the evaporator and orifice tube may require removing the cab. This is a labor-intensive process and should be considered if other methods are not feasible.

• System Contamination: If the compressor failed due to internal damage, it's crucial to replace the accumulator and orifice tube to prevent debris from circulating in the system.

• Proper Tools: Ensure you have the necessary tools, including a vacuum pump, refrigerant gauges, and the correct wrenches, to perform the replacement safely and effectively.

• Professional Assistance: If you're not experienced with air conditioning systems, consider seeking professional assistance to ensure the replacement is done correctly.


The Bobcat T300, a powerful track loader designed for tough construction tasks, offers a versatile range of features, including its auxiliary hydraulics system. The auxiliary hydraulics system is crucial for powering attachments like augers, breakers, and trenchers, providing the necessary force and flow to operate them efficiently. However, operators sometimes experience issues, such as the auxiliary hydraulics system locking into constant flow mode, which can significantly affect performance. Understanding the cause of this problem and how to address it is critical for maintaining machine functionality and minimizing downtime.
In this article, we will explore the nature of the "constant flow lock" issue, its potential causes, and how to troubleshoot and resolve the problem on the Bobcat T300.

Understanding the Auxiliary Hydraulics System
The auxiliary hydraulics system on the Bobcat T300 allows the loader to power various hydraulic attachments, making it a versatile tool in the field. The system operates by sending pressurized hydraulic fluid to the attachment via hoses connected to the loader's hydraulic circuits.

• Hydraulic Flow: The flow of hydraulic fluid is regulated by the loader’s hydraulic control valve, which ensures that the attachment receives the correct amount of fluid to operate at peak efficiency.

• Flow Control: Some attachments require a constant flow of hydraulic fluid, while others may need variable flow, depending on the nature of the task being performed.

• Auxiliary Hydraulics Lock: The T300 is equipped with a feature called "constant flow lock," which maintains a steady flow of hydraulic fluid to the attachment. This can be beneficial for certain types of work, but when the system locks into this mode unintentionally, it can cause issues with control and operation.


• Inability to Adjust Flow: The operator cannot adjust the hydraulic flow to match the requirements of the attachment, making it difficult to control the attachment’s speed and performance.

• Excessive Power or Heat: If an attachment is receiving too much hydraulic flow, it can cause the system to overheat, which can lead to damage to both the loader and the attachment.

• Unresponsive Attachment: Certain attachments may become unresponsive or difficult to operate due to the constant flow, especially when variable flow is required.


1. Incorrect Switch Settings
   • One of the simplest causes of the constant flow issue is incorrect settings on the flow control switch. The Bobcat T300 has a flow control switch that allows operators to switch between variable flow and constant flow modes. If the switch is mistakenly set to constant flow and not adjusted, the system will remain in this mode.

2. Faulty Hydraulic Valve or Solenoid
   • A malfunctioning hydraulic valve or solenoid can prevent the system from properly switching between flow modes. Solenoids are electrical components that control the opening and closing of hydraulic valves, and if they become stuck or fail, they can prevent the system from returning to variable flow.

3. Electrical Wiring Issues
   • The auxiliary hydraulics system relies on electrical signals to control the hydraulic valves and solenoids. If there is an issue with the wiring, such as a short or loose connection, the system may lock into constant flow mode. In some cases, a malfunctioning relay could also cause the issue.

4. Hydraulic Pressure Imbalance
   • An imbalance in hydraulic pressure can also cause the system to default to constant flow. If there is a blockage or restriction in the hydraulic lines, or if a pressure relief valve is not functioning properly, it may cause the system to behave unpredictably.

5. Software or Control System Error
   • The T300, like many modern machines, has a computerized control system that manages the hydraulics. If there is a bug or error in the system's software, it could lead to the constant flow mode being engaged unnecessarily.


1. Check the Flow Control Switch Settings
   • The first step in troubleshooting is to check the flow control switch. Ensure that the switch is set to the correct mode for the work being performed. If it is set to constant flow, switch it to the variable flow mode and see if the problem is resolved.

2. Inspect the Hydraulic Valves and Solenoids
   • Inspect the hydraulic valves and solenoids for any signs of wear or damage. Check that the solenoids are properly seated and that the valves are not clogged or stuck. If the solenoids are malfunctioning, they may need to be replaced.

3. Test the Electrical System
   • Perform an inspection of the electrical wiring and connections. Look for any loose or damaged wires, particularly those connected to the solenoids and control valves. Ensure that all electrical connections are clean and secure. If you find any wiring issues, repair or replace the damaged parts.

4. Check Hydraulic Pressure
   • Use a pressure gauge to check the hydraulic pressure in the system. Ensure that the pressure is within the manufacturer’s specified range. If there is a pressure imbalance, check the hydraulic lines for blockages or restrictions, and inspect the pressure relief valve for proper operation.

5. Reset the Control System
   • If no physical issues are found with the hydraulic components, the next step is to reset the machine's control system. A soft reset or system diagnostic may clear any errors or software glitches that could be causing the issue.

6. Consult the Operator’s Manual
   • If the problem persists, consult the Bobcat T300 operator’s manual for additional troubleshooting steps. The manual may provide more specific guidance for your model and configuration.


1. Regularly Inspect the Flow Control System
   • Periodically check the settings on the flow control switch and ensure that it is functioning properly. Perform a simple test by switching between variable and constant flow modes to ensure the system is responsive.

2. Maintain the Hydraulic System
   • Regularly service the hydraulic system, including checking for leaks, replacing filters, and maintaining proper hydraulic fluid levels. A well-maintained hydraulic system is less likely to experience pressure imbalances or component failures.

3. Check Electrical Connections
   • Inspect electrical connections and wiring regularly to ensure that they are in good condition. Properly functioning wiring and solenoids are essential for the correct operation of the hydraulic system.

4. Monitor Attachment Compatibility
   • Ensure that the attachments being used are compatible with the hydraulic flow settings of the T300. Some attachments may require different flow rates, and using the wrong setting can cause performance issues.


Introduction to the Caterpillar E110B Excavator
The Caterpillar E110B is a mid-sized hydraulic excavator introduced in the late 1980s and produced through the early 1990s. With an operating weight of approximately 25,574 lbs (11,600 kg) and a hydraulic system fluid capacity of 42.3 gallons (160 liters), the E110B was designed for various applications, including construction, demolition, and material handling. Powered by a 79.2 hp (59 kW) engine, it featured a hydraulic pump flow capacity of 57 gallons per minute (214 liters per minute) and a hydraulic system relief valve pressure of 4,270 psi.
Understanding the Hydraulic System
The hydraulic system in the E110B excavator powers essential functions such as the boom, arm, bucket, swing, and travel motors. Maintaining the correct hydraulic oil level is crucial for optimal performance and longevity of these components. The system operates under high pressure, and using the appropriate hydraulic fluid ensures efficient operation and prevents damage. It's essential to use a fluid that meets Caterpillar's TO-4 specifications, such as TDTO (Transmission/Drive Train Oil), typically in a 30W grade for most applications.
Step-by-Step Guide to Refilling Hydraulic Oil

1. Preparation
   • Ensure the excavator is on a level surface to obtain an accurate reading of the hydraulic oil level.

   • Engage the parking brake and turn off the engine to prevent any accidental movements.

   • Allow the hydraulic system to cool down if the machine has been in operation.

2. Locating the Hydraulic Oil Fill Cap
   • The hydraulic oil fill cap is typically located on the side of the excavator's upper structure, near the hydraulic tank.

   • Refer to the operator's manual for the exact location specific to your machine.

3. Checking the Hydraulic Oil Level
   • Remove the fill cap and wipe the dipstick clean.

   • Reinsert the dipstick fully and remove it again to check the oil level.

   • The oil level should be within the marked range on the dipstick.

   • If the level is low, proceed to add the recommended hydraulic fluid.

4. Adding Hydraulic Oil
   • Using a clean funnel, slowly add the hydraulic fluid into the fill port.

   • Add the fluid in small increments, checking the oil level frequently to avoid overfilling.

   • Overfilling can lead to increased pressure and potential damage to the hydraulic system.

5. Purging Air from the Hydraulic System
   • After refilling, it's essential to purge any air trapped in the hydraulic system to ensure proper operation.

   • Start the engine and allow it to idle.

   • Operate the boom, arm, bucket, and swing functions through their full range of motion.

   • This process helps to circulate the hydraulic fluid and expel any air pockets.

   • Monitor the hydraulic oil level during this process and add fluid as necessary.

6. Final Check
   • After purging the system, turn off the engine and allow the hydraulic fluid to settle.

   • Recheck the oil level and add fluid if needed to bring it within the recommended range.

   • Replace the fill cap securely.


• Regular Monitoring: Check the hydraulic oil level daily before operating the excavator to ensure it remains within the optimal range.

• Use Recommended Fluids: Always use hydraulic fluids that meet Caterpillar's TO-4 specifications to maintain system performance and longevity.

• Inspect for Leaks: Regularly inspect hydraulic hoses and fittings for signs of wear or leaks.

• Change Hydraulic Filters: Replace hydraulic filters as per the maintenance schedule to ensure clean fluid circulation.

• Monitor System Performance: If you notice sluggish or erratic hydraulic movements, it may indicate low fluid levels or air in the system.


Hydraulic systems are at the heart of most modern heavy machinery, particularly in excavators like the Hitachi ZX120-5. They control a range of essential functions such as the boom, arm, and bucket movements. Hydraulic malfunctions can severely impact the performance of the equipment, leading to reduced productivity, increased downtime, and potential damage to the machine’s components. One common issue faced by operators is the hydraulic system's failure to function unless the system is "deadheaded." This can point to a variety of underlying causes that need to be addressed.
This article will explore the possible reasons behind hydraulic failures in the Hitachi ZX120-5, examine how to troubleshoot these issues, and provide recommendations for repair and maintenance to avoid similar problems in the future.

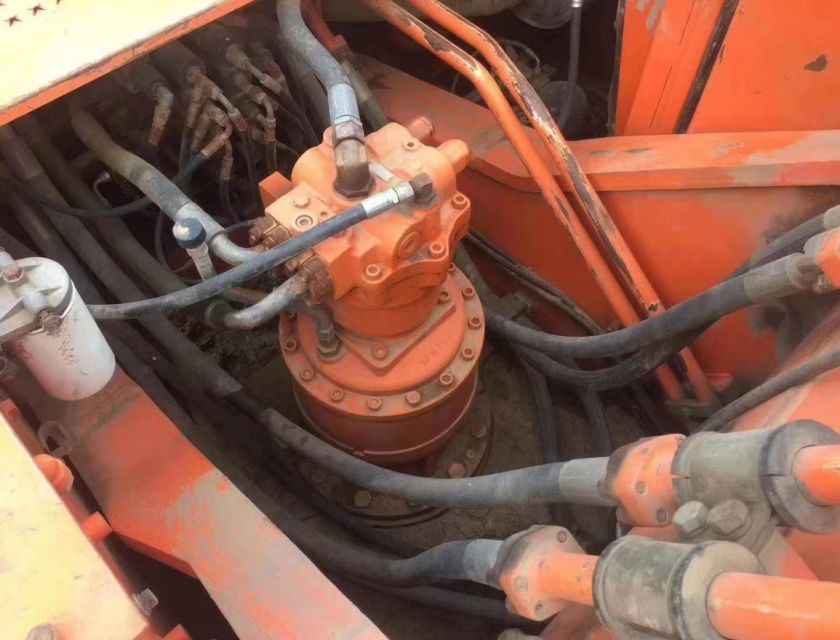

Understanding the Hydraulic System in the Hitachi ZX120-5
The Hitachi ZX120-5 is a mid-sized hydraulic excavator that relies on a sophisticated hydraulic system to perform heavy-duty tasks in construction, demolition, and material handling. The hydraulic system uses pressurized fluid to transfer power to various moving parts of the machine. When there is a problem with the hydraulic system, the efficiency and functionality of the machine can be significantly compromised.
Key components of the hydraulic system include:

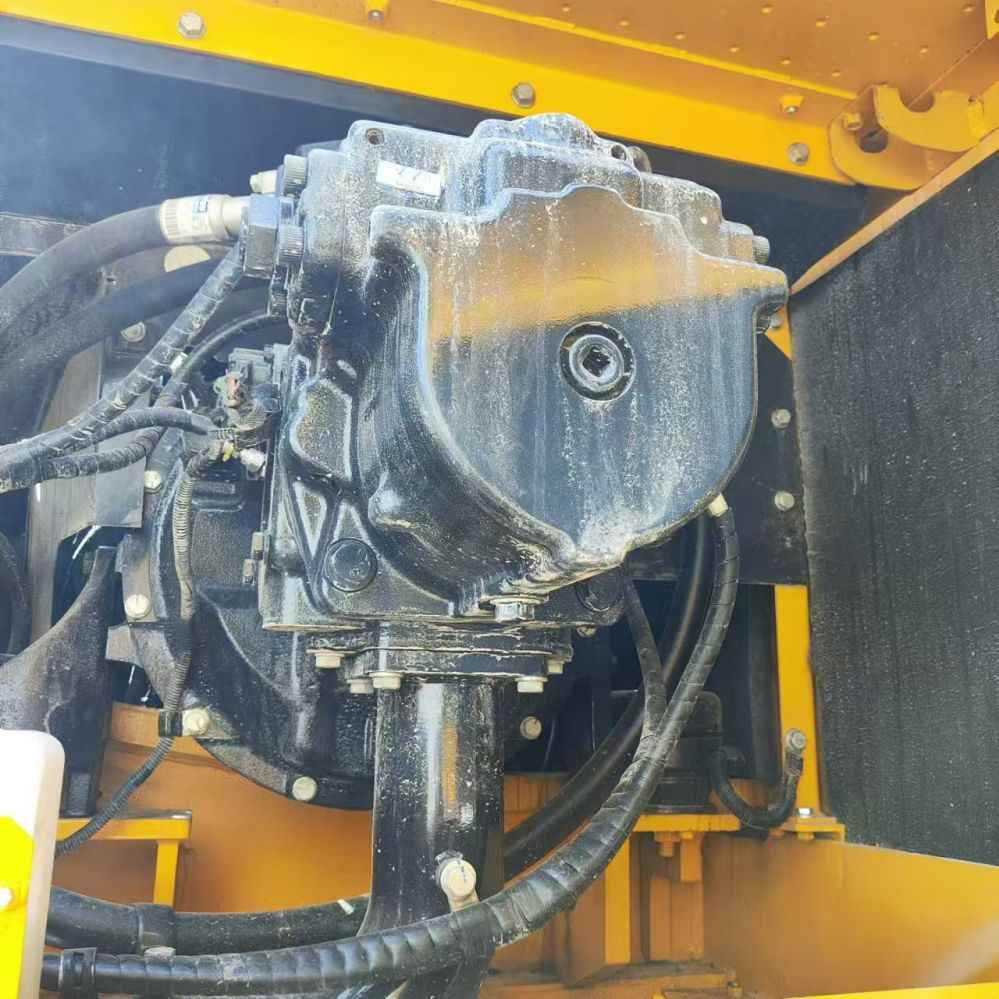

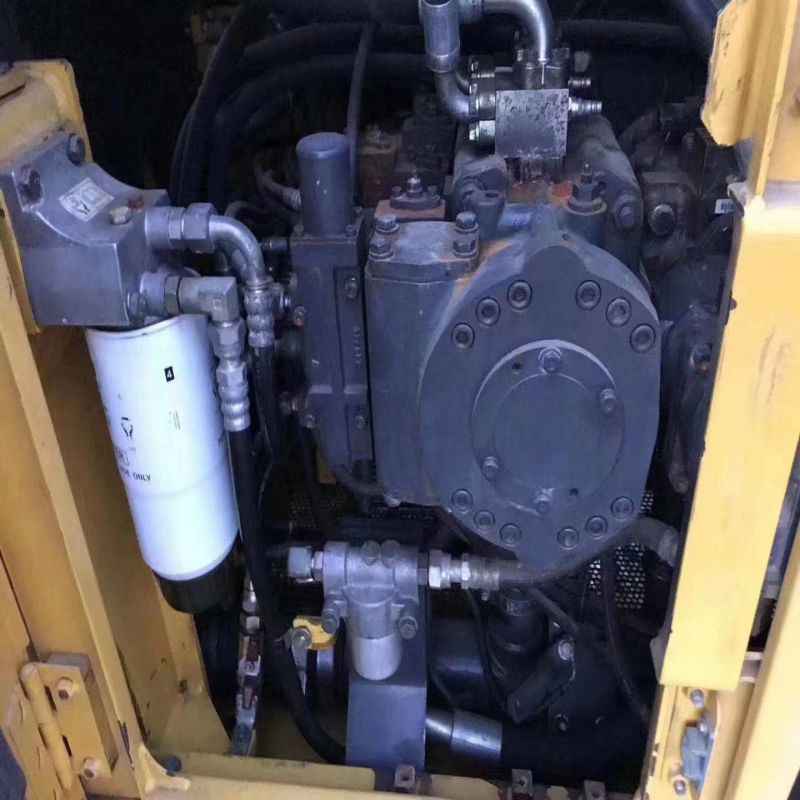

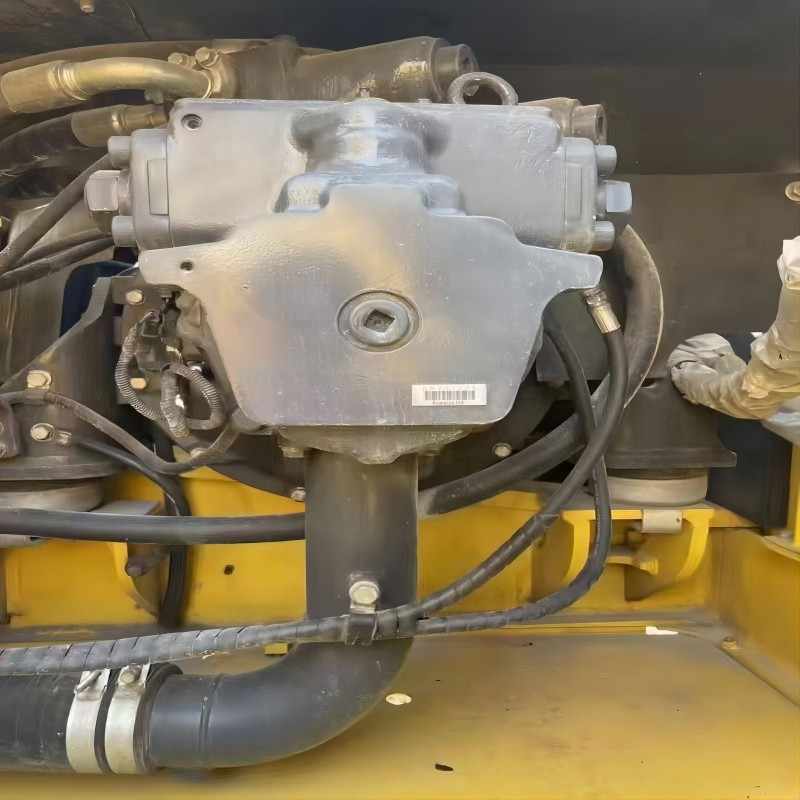

1. Hydraulic Pumps: These convert mechanical energy from the engine into hydraulic energy, driving the movement of the excavator’s arms, boom, and bucket.

2. Hydraulic Valves: These control the flow of hydraulic fluid to different parts of the system, enabling precise movement of the excavator’s arms and attachment tools.

3. Hydraulic Cylinders: These provide the force necessary to move the arms and bucket.

4. Hydraulic Hoses and Lines: These carry hydraulic fluid under pressure to various parts of the system.


• Inability to Operate Hydraulic Functions: The boom, arm, or bucket may not respond to control inputs unless deadheading occurs. This means that the machine’s hydraulics only work when the fluid is forced to recirculate in a loop, essentially bypassing the system’s normal operation.

• Slow or Inconsistent Movements: Even when the machine's hydraulics function, there may be sluggish or jerky movements in the arms, boom, or bucket.

• Unusual Noise or Vibration: In some cases, a failing hydraulic system may produce grinding, whining, or high-pitched noise, which can indicate air in the system or an issue with the hydraulic pump.


1. Air in the Hydraulic System
   Air contamination can cause erratic or inconsistent operation of the hydraulics. If air enters the hydraulic lines, it can create bubbles in the fluid, reducing its ability to transmit pressure effectively. This could be due to a leaking hydraulic seal, improperly installed fittings, or a damaged hose.

2. Low Hydraulic Fluid Levels
   Low hydraulic fluid levels can result in inadequate pressure being generated, leading to the malfunctioning of the hydraulic functions. This may be caused by fluid leakage from seals, hoses, or connections. Inadequate fluid levels can also cause overheating of the hydraulic fluid, further compromising the system’s efficiency.

3. Faulty Hydraulic Pump
   The hydraulic pump is responsible for creating the necessary pressure in the system. If the pump is worn or damaged, it may not be able to generate enough pressure for the hydraulic functions to operate. This could result in slow or non-functioning hydraulics unless deadheading forces the system to work in a bypassed mode.

4. Clogged Hydraulic Filters
   Over time, debris and contaminants can build up in the hydraulic fluid, clogging the filters. A clogged filter restricts the flow of fluid, preventing it from circulating properly through the system. This can lead to erratic or inconsistent hydraulic operation, particularly in high-demand conditions.

5. Malfunctioning Hydraulic Valves
   The hydraulic valves control the direction and flow of the hydraulic fluid. A malfunctioning valve could cause the system to lose pressure or restrict fluid flow to certain parts of the machine. This may cause the machine to only operate under certain conditions, such as when the system is deadheaded.

6. Internal Leakage in Hydraulic Cylinders
   Internal leakage in the hydraulic cylinders can result in reduced force and slow movement. The seals inside the cylinders may wear over time, allowing fluid to leak past and causing a loss of pressure in the system.


1. Check Hydraulic Fluid Levels
   • Inspect the hydraulic fluid levels and ensure they are at the recommended level. Low fluid levels should be topped off with the appropriate type of hydraulic fluid.

   • Check for signs of leaks in hoses, connections, or seals. If any fluid leakage is observed, it should be repaired immediately.

2. Inspect for Air in the System
   • If air is suspected in the system, bleed the system to remove any trapped air. This may involve operating the machine’s hydraulic functions in a specific sequence to allow air to escape.

   • Inspect all hydraulic lines for any visible signs of damage or leakage that could allow air to enter the system.

3. Test the Hydraulic Pump
   • If there are no issues with fluid levels or air in the system, the next step is to test the hydraulic pump. Use a pressure gauge to check the output pressure from the pump. If the pump is not generating sufficient pressure, it may need to be repaired or replaced.

4. Examine Hydraulic Filters
   • Inspect the hydraulic filters for any blockages or buildup of contaminants. If the filter is clogged, it should be replaced with a new one to ensure proper fluid flow.

5. Inspect Hydraulic Valves
   • Inspect the hydraulic valves for proper operation. Check for any signs of damage or malfunction that could be restricting fluid flow or causing inconsistent operation.

6. Inspect Hydraulic Cylinders
   • If the problem persists, inspect the hydraulic cylinders for signs of internal leakage. This may require removing the cylinders and checking the seals and components for wear. Replacing worn seals or components will restore proper functionality.


1. Regular Fluid Checks
   • Regularly check the hydraulic fluid levels and condition. Replace the fluid according to the manufacturer’s recommendations to avoid contamination and wear.

2. Scheduled Filter Replacements
   • Change hydraulic filters at regular intervals to prevent clogging and ensure optimal fluid flow. Clogged filters can lead to poor system performance and long-term damage to components.

3. Seal Inspections
   • Inspect hydraulic seals regularly for wear and tear. Replacing damaged seals early can prevent leaks and loss of pressure, ensuring that the system functions properly.

4. Hydraulic System Bleeding
   • Periodically bleed the hydraulic system to remove air pockets and ensure smooth fluid circulation. This is especially important after servicing the system or replacing hydraulic components.

5. Monitor Operating Conditions
   • Be mindful of the operating conditions in which the machine is used. Extreme temperatures, heavy-duty operations, or high-stress tasks can strain the hydraulic system and lead to premature wear.


Overview of the International 4300 and DT466 Engine
The International 4300 is a medium-duty truck introduced by Navistar in the early 2000s. It was designed to replace the 4900 series, offering improved performance and fuel efficiency. The 4300 series includes various models, such as the 4300LP (Low Profile), 4300 SBA (Set Back Axle), and 4300 SFA (Set Forward Axle), catering to different commercial needs. These trucks are equipped with the DT466 engine, a 7.6-liter inline-six diesel engine known for its durability and reliability. The DT466 has been a staple in medium-duty applications, powering vehicles like school buses, delivery trucks, and utility vehicles. Introduced in the 1970s, the DT466 underwent significant updates over the years, including the transition from mechanical to electronic fuel injection systems. By the early 2000s, the DT466E variant was commonly used in the 4300 series, featuring an electronically controlled fuel system and improved emission controls.
Common Engine Issues

1. Injector Stiction and Fuel Delivery Problems


1. Camshaft Sensor and IPR (Injection Pressure Regulator) Failures


1. Turbocharger and Cooling System Failures


1. Cold Start Difficulties


• Regular Oil Changes: Use high-quality oil and adhere to the manufacturer's recommended oil change intervals to prevent injector stiction and maintain the HEUI system's performance.

• Inspect and Replace Sensors and Regulators: Regularly check the camshaft position sensor and IPR valve for signs of wear or contamination and replace them as needed to ensure proper engine timing and fuel delivery.

• Monitor Turbocharger and Cooling System: Check the turbocharger for signs of wear or damage and inspect the cooling system for leaks or blockages to prevent overheating and engine damage.

• Address Cold Start Issues Promptly: Inspect glow plugs, intake air heaters, and fuel filters for proper operation and replace faulty components to improve cold weather starting performance.
