The challenge of gaining seat time
In the construction industry, operators often face a dilemma: they need more time on new machines to build skill, but companies must also maintain productivity. A young operator with three years of experience on backhoes, loaders, and excavators was recently asked by company leadership to expand his skills on a motor grader. While the Vice President encouraged him to gain more seat time, the foreman resisted, limiting his opportunities. This tension highlights a common conflict between training needs and jobsite efficiency.
Terminology Clarification

• Seat Time: The hours an operator spends actively running a machine, critical for skill development.

• Rough Grading: The initial shaping of soil or base material, less precise than final grading.

• Finish Grading: The precise leveling of surfaces to meet design specifications, often within fractions of an inch.

• Passes: The number of times a grader blade must travel over a section to achieve grade. Fewer passes usually indicate higher efficiency.


• Communicate directly: Approach the foreman respectfully and ask for specific opportunities to practice.

• Document progress: Keep track of hours spent on the grader and improvements in efficiency.

• Seek mentorship: Experienced operators can provide tips on blade control, slope management, and material handling.

• Leverage downtime: Use off-peak hours or less critical tasks to practice without slowing production.

• Involve management: If opportunities remain limited, politely inform leadership that directives are not being followed.


The Genie S60X is a versatile, reliable, and high-performance articulating boom lift used in a variety of industries, including construction, maintenance, and industrial applications. However, like all equipment, the S60X is not immune to malfunctions. One common issue users encounter is the limited extension of the boom, where the lift will only extend a few feet, often resulting in operational inefficiencies and delays. This problem can be particularly frustrating, as it hampers the lift's ability to perform tasks that require full extension. In this article, we'll explore the possible causes of this issue, troubleshooting steps, and solutions to get your Genie S60X back to full functionality.
Understanding the Genie S60X Boom Lift
The Genie S60X is part of the S60 series, known for its exceptional reach and maneuverability. It offers a working height of up to 66 feet (approximately 20 meters) and a horizontal reach of 30 feet (9 meters). These lifts are widely used for outdoor tasks such as tree trimming, building maintenance, and electrical work.
The boom features a combination of hydraulic and mechanical systems designed for smooth, precise extension. The platform controls are integral to the operation of the lift, allowing operators to extend and retract the boom, adjust the height, and control various other functions. Any malfunction in this system can prevent the lift from reaching its full extension, severely limiting its utility.
Common Causes of Limited Extension on the Genie S60X
When a Genie S60X lift will only extend a few feet from the platform control, it’s usually due to one or more of the following causes:

1. Hydraulic System Issues
   • The hydraulic system plays a key role in extending and retracting the boom. A malfunction in any part of this system can limit the extension of the lift. Common issues include low hydraulic fluid levels, air trapped in the hydraulic lines, or a malfunctioning hydraulic valve.

   • Low Hydraulic Fluid: Insufficient hydraulic fluid can reduce the lift's power and limit its ability to fully extend. It’s essential to check the fluid levels and top them off as needed.

   • Faulty Hydraulic Pump or Valve: If the hydraulic pump or valve is malfunctioning, it could fail to direct the appropriate amount of fluid to the boom's extension system. This can cause erratic or limited movement.

2. Control System Malfunction
   • The platform controls, responsible for commanding the movement of the boom, may malfunction. This could be caused by faulty wiring, a damaged controller, or issues with the control panel itself.

   • Controller Wiring or Connection Issues: Wires or connections that become loose or damaged can disrupt communication between the control panel and the lift’s hydraulic systems. This can lead to partial extension or failure to respond to full extension commands.

   • Faulty Control Switches: A damaged or faulty switch on the platform control could restrict the boom’s extension to a limited distance. Inspecting and testing the switches is a simple yet crucial step in troubleshooting.

3. Boom Lock or Safety Mechanisms
   • Many lifts, including the Genie S60X, are equipped with safety mechanisms to prevent operation if certain conditions are not met. These mechanisms can sometimes prevent the boom from extending fully if they detect unsafe operating conditions.

   • Boom Lock Engaged: The boom might have a safety lock engaged that prevents full extension. This lock can be a result of improper shutdown or failure to disengage it before use.

   • Overload or Unbalanced Load: If the lift is overloaded or not balanced properly, it could trigger a safety mechanism that limits the boom’s extension.

4. Electrical or Sensor Problems
   • Electrical issues can also prevent the boom from fully extending. The lift's sensors and electrical systems are designed to communicate the lift's position and adjust accordingly. A failure in any of these components can result in restricted movement.

   • Faulty Position Sensors: The position sensors detect the boom's location and ensure it functions smoothly. If the sensors are damaged or sending incorrect data, the system may fail to extend properly.

   • Battery or Electrical Connection Problems: Low battery voltage or faulty electrical connections can disrupt the system's functionality, including the boom's ability to extend fully.


1. Check Hydraulic Fluid Levels
   • Ensure that the hydraulic fluid is at the proper level. Low fluid levels can hinder the boom’s performance and limit its range of motion. Refill the hydraulic fluid if necessary and inspect the system for any leaks that may cause fluid loss.

2. Inspect the Hydraulic Pump and Valve
   • Test the hydraulic pump and valve to ensure they are functioning properly. A malfunctioning pump may not be able to provide the necessary pressure for full extension. Similarly, check the hydraulic valve for any signs of damage or blockage.

3. Examine the Control Panel and Wiring
   • Inspect the platform control panel for any visible damage or loose connections. Test the switches and ensure they are working correctly. If there’s any sign of wiring damage, it should be repaired or replaced.

4. Verify the Boom Lock and Safety Mechanisms
   • Make sure that the boom lock is disengaged and that there are no safety mechanisms (such as overload sensors) preventing full extension. If the lift is overloaded, reduce the weight to allow for proper operation.

5. Check the Electrical and Sensor Systems
   • Test the electrical connections, battery voltage, and sensor systems to ensure they are functioning correctly. If any sensors are malfunctioning, they may need to be replaced to restore full functionality.

6. Consult the User Manual and Service Documentation
   • For more specific troubleshooting steps and technical specifications, consult the Genie S60X user manual and service documentation. These resources provide detailed instructions and diagrams for diagnosing and resolving issues.


• Regularly Check Hydraulic Fluid Levels: Keeping the hydraulic fluid at optimal levels ensures smooth operation and prevents wear on the system.

• Inspect Control Systems and Wiring: Periodic checks of the control systems and wiring can help detect and address potential issues before they affect performance.

• Clean and Lubricate the Boom Components: Proper cleaning and lubrication of the boom and hydraulic components reduce the risk of mechanical failures and ensure smooth extension and retraction.

• Monitor for Overloading: Always ensure that the lift is not overloaded, as this can trigger safety mechanisms and limit the boom’s extension.


A machine built for tropical endurance
The Case A7000 sugar cane harvester was developed specifically for the high-yield, high-wear conditions of Brazilian cane fields. Manufactured by Case IH in Brazil between 2006 and 2009, the A7000 was designed to withstand the abrasive nature of sugar cane harvesting, which involves constant exposure to fibrous stalks, dust, mud, and high ambient temperatures. The machine features a robust chassis, modular cutting systems, and a high-capacity cleaning fan to separate cane from debris.
Case IH, a global agricultural equipment manufacturer with roots dating back to 1842, has long been active in Latin America. Its Brazilian operations have produced specialized harvesters tailored to the region’s unique agronomic demands. The A7000 was part of this effort, and while it was exported to select markets, its parts supply chain remains centered in Brazil.
Terminology Clarification

• Base Cutter: A rotating blade assembly that cuts cane stalks at ground level.

• Chopper Blades: High-speed blades that segment the stalks into billets for transport.

• Extractor Fan: A centrifugal fan that removes leaves and debris from the harvested cane.

• Feed Roller: A component that guides cane into the cutting system, often subject to wear.


• Use Brazilian agricultural parts distributors: Companies like Expansão BR specialize in supplying components for sugar cane harvesters, including Case and John Deere models. They offer parts such as cutter bars, couplings, deflectors, and hydraulic cylinders.

• Search by OEM number: Brazilian suppliers often catalog parts using original equipment numbers. Having the correct part code dramatically improves search accuracy.

• Contact Case IH Brazil directly: While Case IH North America may not stock A7000 parts, the Brazilian division maintains legacy support and can refer buyers to authorized dealers.

• Explore online catalogs: Platforms like Messicks and AVSpare host diagrams and part lists for the A7000, allowing users to identify components visually before ordering.


• Build a parts cross-reference library: Document every replaced part with its OEM number, supplier, and compatible alternatives.

• Stock high-wear items in advance: Chopper blades, seals, and bearings should be kept on hand during harvest season to avoid downtime.

• Partner with a freight forwarder: Brazilian exports often require specialized handling. A logistics partner familiar with agricultural equipment can streamline customs and delivery.


Caterpillar Inc., one of the largest manufacturers of construction and mining equipment, has a global network of manufacturing plants that are vital to the production of its heavy machinery. These plants are strategically located to serve regional demands and maintain the company’s reputation for high-quality, durable products. Understanding the role of these factories not only highlights Caterpillar's global reach but also showcases the company's emphasis on innovation, sustainability, and local economic development.
A Brief Overview of Caterpillar’s Global Presence
Founded in 1925, Caterpillar has grown into a global leader in the production of construction, mining, and agricultural machinery. With a presence in over 180 countries, Caterpillar has developed a vast network of factories, parts distribution centers, and service operations. These facilities are a key component of the company's ability to produce machinery that meets the diverse needs of industries such as construction, mining, forestry, and agriculture.
Over the years, Caterpillar has expanded its manufacturing footprint, adapting to global market trends and regional needs. The company not only builds machines but also manufactures a wide range of components, engines, and parts, which are integral to the machinery’s performance and reliability.
Key Manufacturing Locations for Caterpillar
Caterpillar operates numerous factories across the world, each specialized in different aspects of machinery production. Some of the key regions where Caterpillar has its manufacturing plants include North America, Europe, Asia, and South America.

1. North America
   • United States: Caterpillar’s headquarters are located in Peoria, Illinois, and the U.S. remains home to many of its largest and most advanced manufacturing plants. Notable factories include those in Illinois, Texas, and North Carolina, which produce a range of products, from engines to construction equipment.

   • Canada: In addition to plants in the U.S., Caterpillar operates manufacturing facilities in Canada. These plants are involved in the production of mining equipment, engines, and parts.

2. Europe
   • United Kingdom: Caterpillar has significant manufacturing operations in the UK, particularly for large-scale construction equipment. The UK facilities also handle the production of engines and mining machinery, supporting both European and global markets.

   • Germany: As a key player in Europe, Caterpillar's German manufacturing plants are involved in producing hydraulic excavators, large tractors, and forestry machinery.

3. Asia
   • China: With the rapid growth of the Chinese construction and mining industries, Caterpillar established several manufacturing facilities in China. These factories focus on producing a wide range of equipment, including excavators, loaders, and engine parts, to meet the demand in the Asian market.

   • India: Caterpillar’s Indian plants support the growing demand for infrastructure development in the region. These facilities manufacture smaller equipment, engines, and parts for both the domestic and international markets.

4. South America
   • Brazil: Caterpillar has manufacturing operations in Brazil that cater to the South American market. These plants produce various machines for construction, agriculture, and mining, contributing to the region's ongoing industrial development.


• Excavators: Used in construction, mining, and demolition, excavators are one of Caterpillar’s most popular products. These machines are manufactured in various sizes and configurations to meet the needs of different industries.

• Loaders: From wheel loaders to track-type tractors, Caterpillar loaders are designed for high-efficiency material handling in construction and mining operations.

• Mining Trucks: Large mining trucks, essential for transporting heavy materials over rough terrain, are produced in Caterpillar’s specialized plants.

• Engines: Caterpillar’s factories also produce high-performance engines that power their equipment, as well as engines for various industrial applications, including power generation.

• Parts and Components: A significant portion of Caterpillar’s manufacturing capacity is dedicated to producing spare parts, hydraulic systems, and other key components that ensure the continued performance of their equipment.


• Automation and Robotics: Many of Caterpillar’s plants feature robotic arms and automated assembly lines to streamline production and reduce human error. This integration of cutting-edge technology allows Caterpillar to produce equipment at higher volumes while maintaining product quality.

• Sustainable Manufacturing Practices: Caterpillar is committed to reducing its environmental footprint. The company has implemented energy-efficient manufacturing practices, such as using renewable energy sources in some plants and minimizing waste through recycling and repurposing materials.

• Emissions Control: Caterpillar’s factories also play a significant role in developing and producing machines that comply with stricter emissions regulations. The company has invested heavily in producing machines with cleaner engines and environmentally friendly technologies to meet global standards.


• Supply Chain Disruptions: Global supply chain issues, particularly in the wake of the COVID-19 pandemic, have affected the availability of raw materials and parts. Caterpillar has had to adjust its production schedules to cope with delays and shortages.

• Trade Tariffs: Trade tariffs, particularly between the United States and China, have impacted Caterpillar’s ability to produce and sell certain products in international markets. The company has navigated these challenges by diversifying its manufacturing base and increasing local production in key regions.

• Environmental Regulations: As environmental standards tighten worldwide, Caterpillar must continue to invest in cleaner technologies and sustainable practices in its manufacturing facilities. Complying with these regulations can be both costly and complex, but it is necessary for the company to maintain its market position.


A Museum Built on Passion and Preservation
Nestled in New Jersey, The Mahan Collection Foundation is a privately curated museum dedicated to preserving the legacy of American trucking and industrial transport. With over 200 meticulously restored vehicles, the collection spans decades of mechanical evolution—from early chain-drive rigs to postwar diesel giants. It’s not just a museum; it’s a living archive of engineering, craftsmanship, and the grit that built the highways.
Founded by a lifelong truck enthusiast, the foundation began as a personal restoration project and grew into one of the most respected truck museums in the country. Each vehicle is restored with historical accuracy, often using original parts sourced from across the continent. The museum also houses rare literature, service manuals, and period advertising that contextualize the machines within their economic and cultural eras.
Terminology Clarification

• Cabover (COE): A truck design where the cab sits over the engine, popular for maximizing trailer length under length regulations.

• Fifth Wheel: The coupling device that connects a tractor to a semi-trailer, allowing pivot and articulation.

• Two-Stroke Diesel: An engine type used in older trucks, notably Detroit Diesel, known for its distinctive sound and high RPM operation.

• Restoration Grade: A classification indicating the level of authenticity and mechanical completeness in a restored vehicle.


• Mack B-61: A postwar workhorse known for its bulldog hood ornament and bulletproof drivetrain.

• Autocar DC Series: Heavy-duty rigs with military lineage, often used in logging and mining.

• White Western Star: A rare transitional model from the White Motor Company era, featuring early sleeper cab innovations.

• Peterbilt 359: A long-nose classic revered by owner-operators for its style and durability.


• Schedule at least half a day to explore the full exhibit.

• Bring a camera—photography is encouraged, and the lighting is optimized for detail shots.

• Ask about restoration workshops or guided tours, which offer behind-the-scenes insights into the rebuilding process.

• If you're restoring a vintage truck, inquire about their parts archive or technical reference library.


The bucket coupler cylinder in heavy equipment, particularly in Case skid steers and loaders, plays an essential role in the locking mechanism of the bucket or other attachments. A well-functioning coupler cylinder ensures the smooth attachment and detachment of buckets, forks, and other tools without issues. However, over time and with heavy usage, the coupler cylinder can wear out, develop leaks, or fail altogether. Understanding how to rebuild the bucket coupler cylinder can save money and downtime, as opposed to replacing the entire assembly.
This article will delve into the process of rebuilding a Case bucket coupler cylinder, including the tools required, steps involved, and considerations to ensure a successful repair.
Understanding the Role of the Bucket Coupler Cylinder
The bucket coupler cylinder is a hydraulic component that operates the locking mechanism of attachments in loaders and skid steers. It is responsible for moving the coupler's arms to engage or disengage various attachments, such as buckets, forks, or grapples. The hydraulic system generates the necessary pressure to extend or retract the cylinder, enabling the quick attachment of tools without manual labor.
The coupler cylinder consists of several key components:

• Cylinder body: The outer casing of the cylinder, housing the piston and seals.

• Piston: The moving part inside the cylinder that transfers hydraulic pressure.

• Rod: The extended part of the piston, which moves in and out of the cylinder body.

• Seals and O-rings: These components prevent hydraulic fluid from leaking and maintain the system's pressure.

• Hydraulic connections: The points where hydraulic lines are connected to the cylinder to transfer fluid.


• Leaking hydraulic fluid: Visible hydraulic fluid leaking from the cylinder or around the coupler.

• Inconsistent attachment operation: Difficulty locking or unlocking attachments, or attachments not securing properly.

• Sluggish movement: Slow or jerky movement when trying to engage or disengage the bucket.

• Decreased lifting power: Loss of hydraulic pressure, resulting in weak lifting performance or the inability to lift attachments.


• Cylinder rebuild kit (specific to the model, containing O-rings, seals, and gaskets)

• Hydraulic oil (to replace any fluid lost during the rebuild)

• Torque wrench (for reassembling the cylinder with proper torque specifications)

• Seal pullers (to remove old seals without damaging the cylinder)

• Socket set and wrenches (for disassembling the cylinder)

• Hydraulic jack (for lifting and stabilizing the machine if necessary)

• Rags and cleaning supplies (to keep the area clean and dry during disassembly)

• Grease (for lubricating new seals during installation)

• Cylinder honing tool (for smoothing out any scratches or marks inside the cylinder)


1. Prepare the Equipment
   Before beginning, park the loader on a flat surface and ensure the hydraulic pressure is released. Lower the bucket to the ground and disconnect the hydraulic lines from the cylinder. Secure the loader to prevent any movement during the process. Use a hydraulic jack if necessary to stabilize the machine.

2. Remove the Cylinder
   • Start by loosening and removing the mounting bolts securing the coupler cylinder to the frame of the loader. Depending on your model, these bolts may require a wrench or impact driver.

   • After removing the bolts, carefully detach the cylinder from its mounting points. You may need to support the cylinder with a hoist or by hand, depending on its size and weight.

3. Disassemble the Cylinder
   • With the cylinder removed, place it on a clean and stable work surface.

   • Use a socket set and wrenches to remove the end caps of the cylinder. These are typically secured with bolts or screws. Carefully remove the end cap, being mindful not to damage the cylinder or seals inside.

   • Extract the piston and rod from the cylinder tube. If the piston is stuck, you may need to use a seal puller or hydraulic ram to carefully push it out.

4. Inspect the Cylinder
   Once disassembled, thoroughly inspect the cylinder body, piston, and rod for any signs of wear, pitting, or damage. If the cylinder walls are scratched or scored, they may need to be honed or replaced. Clean the internal components with a rag and check for any debris that could hinder the rebuild.

5. Replace the Seals and O-Rings
   The most common cause of cylinder failure is worn or damaged seals. Use seal pullers to remove the old O-rings, seals, and gaskets. Make sure to clean the seating areas to prevent contaminants from affecting the new seals.
   • Lubricate the new seals with a thin layer of hydraulic grease to make installation smoother and to avoid damaging them during reassembly.

   • Install the new seals and O-rings carefully, ensuring they sit in their grooves securely.

6. Reassemble the Cylinder
   Once the new seals are in place, begin reassembling the cylinder by inserting the piston and rod back into the cylinder tube. Carefully align the components to avoid damaging the new seals.
   • Replace the end cap and secure it with bolts or screws. Make sure all components are properly tightened to the manufacturer’s specifications using a torque wrench.

7. Test the Cylinder
   After reassembly, check for any leaks by reconnecting the hydraulic lines and filling the system with hydraulic fluid. Test the operation of the coupler cylinder by operating the loader and checking the hydraulic movement. Ensure that the bucket engages and disengages smoothly without any leakage or sluggish movement.

8. Reinstall the Cylinder
   Once the cylinder has been tested and is functioning properly, reinstall it onto the loader. Secure it with the mounting bolts and reconnect the hydraulic lines. Tighten all fasteners to the manufacturer’s torque specifications.


Blade movement slows as temperature rises
A Caterpillar D6U dozer experiencing sluggish blade response and rapid hydraulic bleed-down likely suffers from internal pump wear, relief valve malfunction, or linkage degradation. The issue worsens with heat, indicating viscosity-related inefficiency or pressure loss under thermal expansion.
A Legacy Machine with Mechanical Simplicity
The D6U is part of Caterpillar’s postwar dozer lineage, built for rugged earthmoving with a cable-to-hydraulic transition design. Most units were equipped with the #46 hydraulic system, a gear-type pump rated for approximately 1000 psi at 1200 rpm. These systems were robust but prone to wear after decades of service. With many D6Us now over 55 years old, hydraulic degradation is common.
Terminology Clarification

• Relief Valve: A pressure-limiting device that opens when system pressure exceeds a set threshold, protecting components from overload.

• Linkage Play: Excess movement in mechanical controls, often due to worn bushings or pins, reducing responsiveness.

• Hydraulic Bleed-Down: The unintended lowering of hydraulic cylinders due to internal leakage or valve failure.

• Viscosity Index: A measure of how oil thickness changes with temperature; lower index oils thin out more rapidly when hot.


• Blade raises and lowers slowly, especially when hot.

• Blade leaks down quickly after being raised.

• No audible relief valve activation during lift.

• Hydraulic fluid and filter replaced with SAE 30 weight oil, no improvement.

• Cylinders rebuilt 1000 hours ago, suggesting the issue lies elsewhere.


• Pressure Test the System: Disconnect a hose and install a gauge to verify output. Target pressure is 1000 psi at 1200 rpm for the #46 unit.

• Inspect Relief Valve: If pressure fails to reach spec and the relief valve doesn’t activate, it may be stuck open or miscalibrated.

• Check Pump Wear: Gear pumps lose efficiency as internal clearances widen. If the pump is original, it may be worn beyond tolerance.

• Evaluate Linkage: Excess play can prevent full valve actuation. Rebuild or shim worn joints to restore control fidelity.

• Test Cylinder Seals: Though rebuilt, seals may have degraded or been improperly installed. Perform a static hold test to confirm integrity.


The Volvo L120E, a mid-sized wheel loader, is renowned for its strong performance and versatility, commonly used in construction, agriculture, and material handling. Despite its durable design, like any piece of heavy machinery, the L120E is susceptible to mechanical issues that can affect its efficiency and lifespan. One of the common issues operators may encounter is the appearance of smoke from the engine or exhaust system. This can be an alarming sight, as it usually indicates a potential mechanical or operational problem.
In this article, we’ll explore the common causes of smoke in the Volvo L120E 2006 loader, the implications of different types of smoke, and how to address these issues efficiently.
Understanding the Volvo L120E
The Volvo L120E loader is part of Volvo’s E-series, which was introduced in the early 2000s. Designed for heavy-duty tasks, the L120E is powered by a turbocharged diesel engine that offers both power and fuel efficiency. With a rated bucket capacity of around 2.5 cubic meters, it can lift heavy loads, making it ideal for large-scale construction and industrial projects.
The L120E has a maximum operating weight of 18,400 kg, and like all modern wheel loaders, it combines advanced hydraulic systems with a sturdy chassis for optimal lifting performance and mobility on rough terrain. However, as with any equipment, regular maintenance and timely troubleshooting are crucial for ensuring the long-term performance of the machine.
Types of Smoke and Their Causes
When smoke appears from the L120E’s exhaust or engine bay, it’s important to identify the type of smoke, as different colors indicate different issues:

1. White Smoke
   • Cause: White smoke typically indicates that unburned fuel is entering the exhaust system. This can occur for several reasons:
     • Coolant Leaks: A coolant leak into the combustion chamber can cause white smoke. This may happen due to a blown head gasket or a cracked cylinder head, allowing coolant to mix with the fuel and burn off.

     • Injector Issues: Faulty fuel injectors may cause an improper fuel-to-air ratio, leading to incomplete combustion and white smoke.

   • Implications: Prolonged white smoke can lead to engine damage, especially if coolant continues to leak into the engine. This may result in severe overheating or eventual engine failure.

   • Solution: Check for coolant loss or leaks in the cooling system, especially around the head gasket and cylinder head. Replace any damaged parts, such as the head gasket or injectors, and ensure the fuel system is working correctly.

2. Blue Smoke
   • Cause: Blue smoke generally indicates that the engine is burning oil, which can happen for several reasons:
     • Worn Piston Rings: Over time, piston rings can wear down, allowing oil to seep into the combustion chamber. This results in the oil burning during the engine cycle and producing blue smoke.

     • Valve Seals Issues: The valve seals are responsible for preventing oil from entering the combustion chamber. Worn or damaged seals can lead to oil consumption, causing blue smoke.

     • Turbocharger Problems: If the turbocharger seals are worn, oil may leak into the intake or exhaust system, causing blue smoke. The turbocharger is responsible for pushing air into the engine and needs to maintain a tight seal to avoid oil contamination.

   • Implications: Burning oil can lead to a loss of engine lubrication, which can cause increased wear on internal engine components. Additionally, excess oil burning can lead to high emissions, causing environmental and regulatory concerns.

   • Solution: Inspect the piston rings, valve seals, and turbocharger seals for any signs of wear or leakage. If the problem is severe, an engine rebuild or turbo replacement may be necessary.

3. Black Smoke
   • Cause: Black smoke typically indicates that the engine is running too rich, meaning there’s an excess of fuel in the combustion chamber. This can be caused by:
     • Clogged Air Filter: If the air filter is dirty or clogged, the engine may not receive enough air, resulting in incomplete combustion and excessive fuel burning.

     • Faulty Fuel Injectors: When the fuel injectors are malfunctioning or clogged, they can spray too much fuel into the combustion chamber, leading to black smoke.

     • Faulty Turbocharger: A malfunctioning turbo can affect the air-to-fuel ratio, causing a rich condition and resulting in black smoke.

   • Implications: Black smoke indicates inefficient fuel use, reducing fuel economy and increasing emissions. It can also cause damage to the engine over time, as excessive fuel can lead to carbon buildup and increased engine wear.

   • Solution: Check and replace the air filter if it’s clogged. Inspect the fuel injectors for proper operation, and clean or replace them as necessary. Also, inspect the turbocharger for any performance issues and replace it if needed.


1. Inspect Fluid Levels: Check the oil, coolant, and fuel levels. Low levels can lead to smoke due to inadequate lubrication or coolant. Ensure there are no leaks around these systems.

2. Examine the Air Filter: A clogged or dirty air filter can restrict airflow into the engine, causing black smoke. Clean or replace the air filter as needed.

3. Check the Fuel System: Inspect the fuel injectors, fuel pump, and fuel lines for any blockages or malfunctions. If necessary, clean or replace the injectors. Ensure the fuel is not contaminated, as dirty fuel can cause incomplete combustion.

4. Perform a Compression Test: If you suspect issues with the engine’s internal components, perform a compression test to check for wear in the piston rings, valves, or cylinder head. Low compression can indicate issues that require engine disassembly and repair.

5. Inspect the Turbocharger: If your machine has a turbocharged engine, check the turbo for oil leaks or performance issues. A malfunctioning turbo can affect engine efficiency and cause excess smoke.

6. Check the Cooling System: Inspect the radiator, hoses, and thermostat for signs of failure. A coolant leak into the combustion chamber, as mentioned earlier, can cause white smoke and serious engine damage.

7. Look for Exhaust Leaks: Inspect the exhaust system for leaks that could be allowing unburned fuel or oil to escape before it’s fully combusted.


• Frequent Oil and Filter Changes: Regular oil changes prevent oil buildup and ensure the engine runs smoothly. Be sure to use the recommended grade of oil for the loader’s engine.

• Clean the Air Filter Regularly: Clogged air filters are a common cause of black smoke. Clean or replace the air filter every few hundred operating hours or as recommended in the user manual.

• Monitor Fluid Levels: Keep an eye on coolant and fuel levels, ensuring they are topped up and free from contamination. Regularly check for leaks in the fuel and cooling systems.

• Turbo Maintenance: Periodically inspect the turbocharger for any wear or leaks. Replacing worn seals before they fail can prevent oil contamination and engine damage.

• Routine Engine Checks: Perform routine inspections of the engine’s internal components, such as piston rings and valve seals. Early detection of wear can prevent more severe damage down the road.


Banjo bolts are small but critical
On the Case 580 Super E backhoe, the fuel system relies on a series of banjo bolts to secure fuel lines to the injection pump. These hollow bolts allow fuel to pass through their center and into the pump via side ports. When one of these bolts fails—whether through overtightening, corrosion, or missing washers—the result is fuel leakage, pressure loss, and potential engine shutdown.
Terminology Clarification

• Banjo Bolt: A hollow bolt used to connect fluid lines to components like pumps or filters, allowing flow through its body.

• Copper Crush Washer: A soft metal washer that deforms under torque to create a fluid-tight seal.

• Torque Specification: The precise force required to tighten a bolt without damaging threads or components.


• Heat them with a propane torch until red-hot.

• Cool them in air or water (copper does not harden when quenched).

• Inspect for cracks or deformation before reinstalling.


• Confirm thread pitch and diameter (usually metric for injection systems).

• Request bolts rated for high-pressure diesel use.

• Order extra washers to avoid delays during reassembly.


• Clean all mating surfaces with solvent and lint-free cloth.

• Use a calibrated torque wrench to tighten to 25 ft-lbs.

• Avoid thread sealant unless specified by the manufacturer.

• After installation, run the engine and inspect for leaks under load.


Backhoe loaders are among the most versatile pieces of machinery in the construction industry. Often referred to as the "Swiss Army knife" of construction equipment, these machines can handle a variety of tasks, thanks to their wide range of attachments. The backhoe attachment itself is a critical component of the backhoe loader, but the machine can be further enhanced by using different attachments designed for specific tasks. This article will explore the types of backhoe attachments, their uses, and important considerations for operators looking to maximize the efficiency of their equipment.
The Versatility of Backhoe Attachments
Backhoe loaders are typically equipped with a front loader bucket and a rear backhoe arm. However, with the right attachments, these machines can do much more than simply dig trenches or move materials. Attachments can be swapped in and out, allowing the machine to perform a variety of tasks such as lifting, hauling, auguring, breaking concrete, and even grading.
For construction companies, municipalities, and agricultural operations, backhoe loaders with attachments are essential for increasing productivity while keeping costs down. The ability to adapt to different jobs without needing a fleet of specialized machines makes backhoe loaders highly cost-effective and efficient.
Common Types of Backhoe Attachments

1. Buckets
   • Standard Digging Bucket: This is the most common backhoe attachment and is ideal for digging trenches, foundations, and holes. Available in various sizes, from small buckets for precision work to larger ones for heavy-duty digging, this attachment is a must-have for any backhoe operator.

   • Ditching Bucket: Featuring a curved shape, ditching buckets are designed for digging and shaping ditches. They are often used when creating trenches for drainage or utility installation.

   • Clamshell Bucket: The clamshell bucket opens and closes like the claws of a shellfish. It is designed for handling materials like gravel, soil, or debris in areas that are too confined for a regular bucket.

   • Trenching Bucket: Specifically made for digging narrow, deep trenches, these buckets are perfect for utility work or cable laying.

2. Auger
   An auger attachment allows a backhoe to bore holes into the ground with precision. These are especially useful for post-hole digging, fence installations, or setting up utility poles. Augers come in various sizes depending on the diameter of the hole that needs to be drilled.

3. Hydraulic Hammers (Breakers)
   For tasks that require breaking concrete, asphalt, or rock, hydraulic hammers are indispensable. These attachments use powerful hydraulic force to break up hard surfaces quickly and efficiently. Hydraulic breakers come in various sizes to match the power needed for different materials and project requirements.

4. Forks
   Forks are commonly used in material handling, allowing a backhoe loader to lift and transport items like pallets, concrete blocks, or construction materials. These are particularly useful in agricultural or warehouse settings, where lifting and moving goods is a regular part of operations.

5. Grapples
   The grapple attachment is perfect for handling and moving large or bulky materials, such as logs, scrap metal, or debris. This tool has two or more claws that can clamp down on material and hold it securely, allowing operators to lift, transport, and load heavy items easily.

6. Snow Removal Blades
   In regions with cold climates, backhoes are often outfitted with snow removal blades to clear snow from roads, parking lots, and construction sites. These attachments are similar to plows, but they are designed to be used with a backhoe’s hydraulics, providing added control and ease of operation.

7. Pavement Profiler
   For roadwork projects, pavement profilers are used to grind down asphalt or concrete. This attachment removes a layer of material from the surface, which is necessary for road repairs or resurfacing.

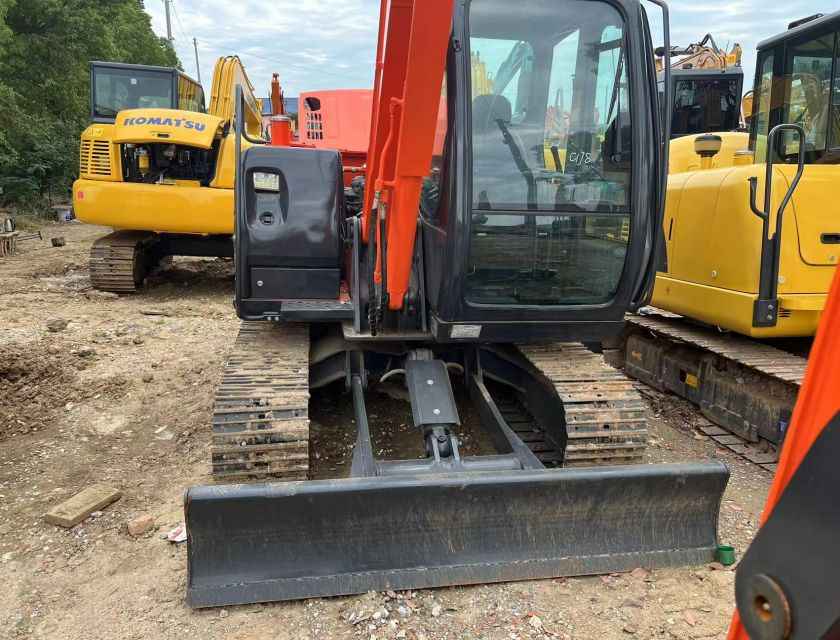

8. Dozer Blade
   A dozer blade attachment transforms the backhoe into a mini bulldozer. It’s used for grading, leveling, and pushing soil or materials. It can also be useful for snow removal, roadwork, or clearing land.

9. Post Driver
   A post driver is used for driving wooden or metal posts into the ground quickly and efficiently. This attachment is often used in fencing and utility installation projects.

10. Backhoe Hydraulic Thumb
    The hydraulic thumb attachment is designed to work in conjunction with the backhoe’s bucket. It helps grasp and manipulate objects like logs, rocks, and other materials by providing an additional level of control during digging and handling tasks.


1. Job Requirements
   The primary consideration when selecting an attachment should always be the specific job requirements. For example, if your work involves digging narrow trenches, a trenching bucket or a narrow bucket may be ideal. For large demolition projects, a hydraulic hammer may be necessary. It’s essential to understand the type of work you’ll be doing and select the attachment that fits those needs.

2. Machine Compatibility
   Attachments must be compatible with your backhoe’s model and hydraulic system. Always check the specifications to ensure the attachment will fit securely and work effectively with your equipment. Different backhoe models may have different attachment mounting systems, so compatibility is critical.

3. Operating Weight and Capacity
   Backhoe loaders have a specified lifting capacity, and attachments add to the overall weight and operating load. Always ensure that your backhoe can handle the attachment’s weight, especially when lifting or moving heavy materials. Overloading your machine can lead to excessive wear, decreased performance, or even damage to the machine.

4. Hydraulic Flow and Pressure
   Attachments like hydraulic hammers or augers require significant hydraulic flow and pressure to operate efficiently. Be sure to confirm that your backhoe’s hydraulic system can support the demands of the attachment. Most modern backhoes come with adjustable hydraulic settings to accommodate a variety of attachments, but it’s crucial to check the system’s specifications.

5. Durability and Build Quality
   Durability is a key factor in choosing attachments, especially when working in tough environments like construction sites or agricultural fields. Choose attachments made from high-quality materials that can withstand wear and tear. Quality attachments typically last longer, provide better performance, and help avoid frequent repairs or replacements.


• Regular Lubrication: Ensure that the moving parts of the attachments are regularly lubricated to reduce friction and wear.

• Hydraulic System Maintenance: Keep the hydraulic fluid clean and topped up. Check hydraulic lines for leaks and replace damaged seals or hoses.

• Inspect for Wear: Regularly inspect all attachments for signs of wear, such as cracks or bent components, especially on buckets and other high-stress parts.

• Proper Storage: When attachments are not in use, store them in a dry, secure location to prevent rust and corrosion, particularly for metal attachments.

• Cleaning: After each use, clean the attachments to remove dirt, debris, and material build-up that could impair their performance.
