Radial vs Vertical Lift in Skid Steers
Skid steer loaders come in two primary lift configurations: radial lift and vertical lift. Radial lift arms pivot in an arc, offering more breakout force at lower heights—ideal for digging and grading. Vertical lift arms, on the other hand, rise in a near-straight path, maintaining consistent reach and stability at full height—making them better suited for loading trucks, stacking materials, and precision tasks like post driving.
The choice between these two designs often depends on the nature of the work. For ranch operations involving fencing, augering, and pipe driving, vertical lift machines offer distinct advantages in alignment and control.
The Challenge of Driving Posts Straight
One of the most frustrating tasks in ranch maintenance is driving posts or pipes vertically into the ground. With a radial lift machine, the arc of the lift arm can cause the attachment to tilt forward or backward as it rises, making it difficult to maintain a true vertical line. This often requires a second person to guide the post or adjust the machine’s position repeatedly.
Vertical lift machines reduce this problem. While they may not be perfectly linear, their geometry keeps the attachment closer to vertical throughout the lift cycle. This helps maintain alignment when lowering augers or pressing posts into the soil. Operators report that vertical lift machines make it easier to “hit the mark” when setting culverts or driving pipe, especially when working solo.
Terminology Notes

• Radial Lift: A lift path that follows a curved arc, offering strong digging force at ground level.

• Vertical Lift: A lift path that rises nearly straight up, maintaining consistent reach and angle at height.

• Breakout Force: The amount of force a loader can exert to break into material, typically higher in radial lift designs.


• Vertical Lift Benefits:
  • Better reach at full height

  • Improved alignment for post driving

  • Easier truck loading

  • More stable lift geometry

• Radial Lift Benefits:


• Stronger breakout force

• Simpler linkage

• Lower cost in some models

• Better for ground-level work


• If your primary tasks include post driving, augering, and material stacking, a vertical lift machine will likely improve efficiency and reduce the need for a second operator.

• For grading, trenching, or digging, radial lift may still be preferable.

• Consider models with auxiliary hydraulics and quick-attach systems to support fencing attachments, post drivers, and augers.

• Evaluate lift path geometry in person if possible—some vertical lift machines still have slight curvature depending on brand and linkage design.


The Caterpillar 580D backhoe is a reliable and versatile piece of heavy equipment, widely used in construction, agriculture, and utility projects for tasks like digging, lifting, and trenching. Known for its robust build, this backhoe loader is favored for its power, agility, and ease of use. However, like any heavy machinery, it’s prone to operational issues over time, requiring proper maintenance and troubleshooting.
In this article, we will explore the common problems and solutions faced by operators using the Caterpillar 580D with a backhoe. From performance issues to maintenance tips, this guide will help users understand and address potential concerns, ensuring optimal machine operation.
Overview of the Caterpillar 580D Backhoe
The Caterpillar 580D is part of the D-series backhoe loaders, produced by the well-known American manufacturer, Caterpillar. This model is equipped with a 4.4L diesel engine that provides approximately 65 horsepower, making it suitable for medium to heavy-duty tasks. With a digging depth of up to 14 feet and a bucket capacity ranging from 0.9 to 1.2 cubic yards, the 580D is well-suited for digging trenches, foundations, and handling materials.
The backhoe is designed for superior maneuverability, thanks to its hydraulic system and articulated design, which allows it to dig in tight spaces and reach challenging angles. The loader section is also powerful enough to handle lifting tasks, offering a versatile machine that can switch between functions with ease.
Common Issues with the Caterpillar 580D Backhoe
Despite its reputation for durability, the Caterpillar 580D can develop several common issues over time, particularly if proper maintenance isn’t followed. Some of the most frequently reported problems include hydraulic system failures, engine issues, and complications with the backhoe's arm and bucket operation.
1. Hydraulic System Problems
Hydraulic issues are one of the most frequent causes of malfunctions in backhoe loaders. The 580D relies on hydraulic power for most of its functions, including lifting, digging, and moving the loader arms. Problems in the hydraulic system can cause slow operation, reduced power, or a complete failure of the backhoe’s functions.
Possible causes:

• Low hydraulic fluid levels: Hydraulic fluid plays a critical role in the performance of the system. If the fluid is too low, the hydraulic system will not operate efficiently.

• Contaminated hydraulic fluid: Dirt, debris, or water can contaminate the hydraulic fluid, leading to clogged filters, damaged seals, and overheating of hydraulic components.

• Worn-out hydraulic pump: Over time, the hydraulic pump can wear out, leading to a reduction in hydraulic pressure and performance.


• Clogged radiator: Dirt, debris, or old coolant can clog the radiator, preventing proper cooling of the engine.

• Faulty thermostat: If the thermostat fails, it may not regulate the engine’s temperature properly, causing overheating.

• Low coolant levels: Insufficient coolant will cause the engine to run at higher temperatures than normal.


• Low transmission fluid: Just like with the hydraulic system, low transmission fluid can cause issues with shifting and overall performance.

• Worn-out transmission components: Over time, parts within the transmission such as gears, seals, or shafts may wear out, leading to slipping gears or rough operation.


• Damaged or worn-out cylinders: The hydraulic cylinders in the arm and bucket are prone to wear over time, especially if they’re subjected to heavy use.

• Loose or worn pins and bushings: If the pins and bushings that connect the backhoe’s arms to the main frame become loose or worn, they can cause the arms to move erratically or fail to hold their position.

• Broken or worn bucket teeth: Bucket teeth wear down over time, especially when digging through hard or abrasive materials.


• Daily Inspections: Before starting work, inspect the machine for any visible issues, including leaks, cracks, or wear on critical parts.

• Hydraulic Fluid Checks: Regularly check the hydraulic fluid level and quality. Replace the fluid at the recommended intervals and clean the hydraulic filters.

• Engine Maintenance: Check engine oil, air filters, and fuel filters. Change the oil and replace the filters as per the manufacturer’s maintenance schedule.

• Cooling System Checks: Ensure that the cooling system, including the radiator and coolant levels, is functioning correctly. Clean the radiator and check for any signs of leaks.

• Lubrication: Lubricate moving parts regularly to prevent wear and keep them functioning smoothly.


1. Check the operator manual for guidance on specific issues.

2. Perform basic checks, such as fluid levels, filters, and hoses, before diving into more complex diagnostics.

3. If you notice irregularities in operation, such as slow movement or overheating, shut down the machine immediately and inspect the relevant components.

4. Consult a professional mechanic if the issue persists or if you’re unsure how to proceed with repairs.


The Case 580C and Its Mechanical Legacy
The Case 580C Construction King was introduced in the late 1970s as part of J.I. Case’s renowned backhoe-loader series. With a 3-cylinder diesel engine and mechanical fuel injection, the 580C became a staple on job sites across North America. Its simplicity and ruggedness made it a favorite among contractors and municipalities. By the early 1980s, Case had sold tens of thousands of these machines, many of which remain in service today due to their rebuildable components and widespread parts availability.
Symptoms of Intermittent Shutdown
A common issue with aging 580C units is that the engine starts easily, runs for a few minutes, and then stalls. After restarting, the machine repeats the cycle—running briefly before shutting down again. This behavior often mimics fuel starvation but can persist even after replacing filters and confirming fuel flow.
Initial Checks and Misleading Clues

• Fuel Filters and Lines: Replacing both primary and secondary filters is a logical first step. If the engine still stalls, check for blockages in the fuel lines, including the pickup tube inside the tank and the return line to the tank.

• Air Intake: Removing the air filter can rule out intake restriction, but in most cases, this has no effect on the stalling issue.

• Fuel Cap Venting: A clogged fuel cap vent can create a vacuum in the tank, restricting fuel flow. Loosening or removing the cap during operation can help diagnose this, though it’s often not the root cause.


• Flex Ring: A plastic ring inside the injection pump that connects the governor weight cage to the pump’s drive mechanism. Over time, it breaks down and sheds debris.

• Check Valve: A one-way valve that allows fuel to exit the pump but prevents backflow. When clogged, it traps pressure inside the pump.

• Governor Weight Cage: A rotating assembly inside the injection pump that regulates fuel delivery based on engine speed.


• Disassembling the pump and removing all debris.

• Replacing the flex ring with a modern one-piece weight cage that eliminates the original failure point.

• Reassembling and calibrating the pump using specialized tools and torque specifications.


• Timing the Pump: Before removal, align the timing marks inside the pump by rotating the engine until the stationary and rotating lines align. This ensures proper reinstallation.

• Torque Specs:
  • End Plate: 30–35 in-lbs

  • Delivery Valve: 90 in-lbs

  • Cam Screw: 300–350 in-lbs (requires special tool)

• Rebuild vs. Replace: A rebuilt pump typically costs $1,100–$2,000 with core exchange. DIY rebuilds are possible but require precision and experience.


The New Holland LX985 is a versatile skid steer loader that is widely used in construction, agriculture, and other heavy industries for tasks such as lifting, digging, and material handling. However, like any complex machinery, it can experience operational issues that may disrupt productivity. One such issue is the loader getting stuck in high speed, which can be both puzzling and frustrating for operators. In this article, we’ll explore the potential causes behind the New Holland LX985 being stuck in high speed, the implications of this problem, and offer troubleshooting tips to resolve it.
Overview of the New Holland LX985 Skid Steer
The New Holland LX985 is part of the LX series of skid steer loaders, which are known for their durability, power, and versatility. These machines are equipped with high-performance engines and hydraulic systems that allow them to handle demanding tasks on job sites. The LX985 is powered by a 74-horsepower engine, capable of providing significant lifting and digging capabilities.
One of the key features of the LX985 is its hydrostatic drive system, which allows the operator to control the machine’s speed and direction seamlessly. This system is what allows the loader to accelerate smoothly and adjust speeds based on the workload. However, like all mechanical systems, this drive system can experience issues over time, leading to performance problems.
Understanding the Hydrostatic Drive System
Before diving into the potential causes of the "stuck in high speed" issue, it’s important to understand how the hydrostatic drive system works. The system uses a combination of hydraulic pumps and motors to transfer power from the engine to the wheels, allowing for precise control of speed and direction.
The hydrostatic drive system typically consists of the following components:

• Hydraulic pumps: These draw fluid from the reservoir and pressurize it to generate power for the drive motors.

• Drive motors: These receive pressurized hydraulic fluid from the pumps and convert it into mechanical movement to drive the wheels.

• Hydraulic fluid: The fluid serves as both a power medium and a lubricant, helping the system operate smoothly.

• Control valves: These valves regulate the flow of hydraulic fluid to the pumps and motors, controlling the speed of the machine.


• Low hydraulic fluid: If the hydraulic fluid level is low, it can affect the pressure within the system, leading to erratic behavior in speed control.

• Contaminated hydraulic fluid: Dirt or debris in the hydraulic fluid can clog the system and cause poor performance. This may lead to inconsistent speed control or the machine becoming stuck in high speed.

• Worn-out hydraulic components: Over time, the hydraulic pump or motor may wear out, causing the system to malfunction and prevent the machine from slowing down.


• Valve sticking: Over time, the valve may become sticky due to dirt or fluid contamination, preventing it from moving freely.

• Internal damage: The valve may suffer internal damage from excessive wear or fluid contamination, leading to malfunction.


• Regularly check hydraulic fluid levels and replace fluid at recommended intervals.

• Inspect hydraulic filters to ensure they are not clogged with contaminants, which can impair system performance.

• Monitor the electrical system for any signs of issues, and ensure that all wiring and connections are secure.

• Perform routine inspections of the control valve and other key components of the hydrostatic drive system to ensure they are functioning properly.

• Follow the manufacturer's maintenance schedule to keep the machine in peak operating condition.


The DX140W and Its Role in Urban Construction
The Doosan DX140W wheeled excavator was introduced in the late 2000s as part of Doosan Infracore’s strategy to expand its compact and mid-size equipment portfolio. Designed for urban environments and roadwork, the DX140W combined mobility, hydraulic precision, and operator comfort. With an operating weight of approximately 14,000 kg and a digging depth of over 4.5 meters, it became a preferred choice for municipalities and contractors needing fast deployment and minimal surface damage. By 2015, Doosan had sold thousands of DX140W units across Europe, Asia, and the Middle East, with strong adoption in countries like Germany, South Korea, and the UAE.
Electrical Architecture and Control Modules
The DX140W’s electrical system is built around a modular architecture that integrates engine management, hydraulic control, and operator interface. Key components include:

• ECU (Engine Control Unit): Manages fuel injection, throttle response, and emissions compliance.

• VCU (Vehicle Control Unit): Coordinates travel motor behavior, steering input, and braking systems.

• MCU (Monitor Control Unit): Interfaces with the cabin display, warning lights, and diagnostic menus.

• CAN Bus Network: A communication protocol that links all control modules, allowing real-time data exchange and fault detection.


• Intermittent Power Loss: Often caused by corroded ground terminals near the battery tray or loose connectors under the operator seat. Symptoms include flickering display, unresponsive joystick, or engine derating.

• CAN Bus Faults: Triggered by damaged wiring near articulation points. Diagnostic codes such as E035 or E042 indicate communication loss between the MCU and ECU.

• Sensor Failures: Boom angle sensors and travel speed sensors may degrade over time, especially in high-humidity regions. Replacement requires recalibration using the service menu.

• Fuse Blowouts: The DX140W uses blade-type fuses located in a sealed box behind the right-side panel. Frequent failures in the 10A circuit often trace back to shorted work light wiring.


• CAN Bus: Controller Area Network, a digital protocol used to link electronic control units.

• ECU: Engine Control Unit, responsible for managing combustion and emissions.

• MCU: Monitor Control Unit, handles display and operator interface.

• VCU: Vehicle Control Unit, governs travel and steering functions.


• Use Dielectric Grease on Connectors: Especially in coastal or humid environments to prevent corrosion.

• Scan for Fault Codes Monthly: Even if no symptoms are present, early detection can prevent downtime.

• Label Wiring During Repairs: Color-coded tags help during reassembly and future diagnostics.

• Avoid Overloading Auxiliary Circuits: Use dedicated relays for aftermarket accessories.

• Replace Damaged Harnesses with OEM Parts: Generic replacements may lack shielding or proper pinout.


The Kohashi KS220 excavator is a robust and reliable piece of construction equipment, often found in both heavy-duty industrial work and general earthmoving projects. While Kohashi is not as widely known in some markets as brands like Caterpillar or Komatsu, it still provides a viable option for businesses looking for durable machinery at competitive prices. Like many excavators, the KS220 excels at digging, lifting, and moving heavy materials with precision. However, just like any piece of complex machinery, the Kohashi KS220 can face issues, some of which are more common than others. In this article, we'll take a deeper dive into the Kohashi KS220's features, potential issues, and solutions.
Kohashi Excavators: Company Background and Equipment History
Kohashi Machinery, a company specializing in manufacturing construction machinery, has been a significant player in the excavation and earthmoving equipment market. Known for producing durable, efficient machines, Kohashi excavators are primarily used for applications involving digging, trenching, lifting, and grading. The KS220 is part of Kohashi's range of mid-sized excavators, which are popular in both the commercial and residential construction sectors.
Despite not being a top-tier brand like Caterpillar, Komatsu, or Volvo, Kohashi has a loyal following in markets where cost-effective equipment is essential. The KS220 was designed with both efficiency and versatility in mind, featuring a compact yet powerful frame suitable for a variety of construction tasks.
Kohashi KS220 Excavator Specifications
The Kohashi KS220 excavator is engineered for tough jobs, offering a balance between power and maneuverability. Some notable features include:

• Operating Weight: Typically around 22,000 to 24,000 pounds (10,000 to 11,000 kg), making it ideal for medium-scale projects.

• Engine Power: The excavator is powered by a reliable diesel engine that produces approximately 120 horsepower, providing the necessary torque for demanding tasks.

• Hydraulic System: It comes equipped with a sophisticated hydraulic system, which ensures high lifting capacity and smooth operation when performing tasks such as digging, lifting, or material handling.

• Boom and Arm Reach: Designed for versatility, the Kohashi KS220’s boom and arm have a significant reach, which allows operators to handle a range of tasks, including deep digging and lifting heavy objects.

• Cab Features: The KS220 has a comfortable, user-friendly cabin equipped with essential controls for smooth operation, including air conditioning and ergonomic seats.


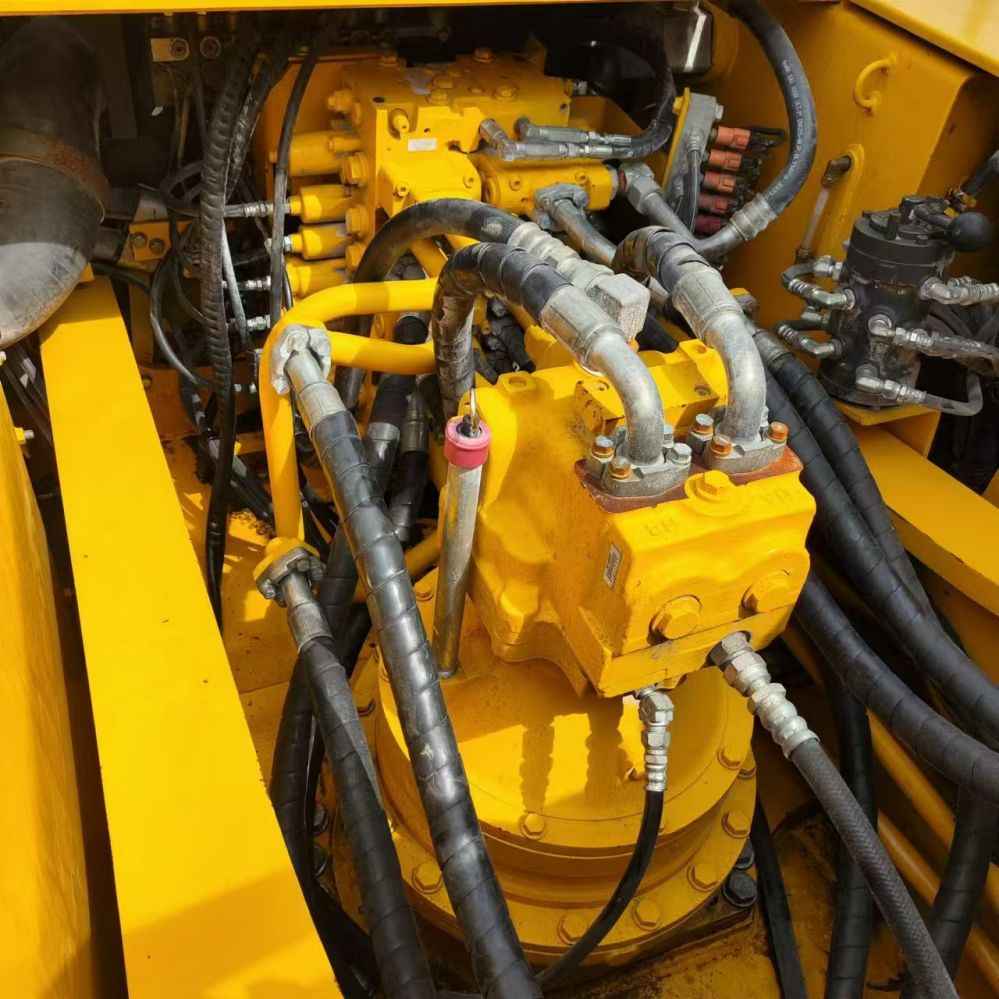

• Hydraulic leaks: Over time, hoses and seals can deteriorate, leading to fluid leaks, which reduce hydraulic power and efficiency.

• Slow response times: If the hydraulic system is not performing optimally, the boom, arm, or bucket may respond slowly to commands, affecting productivity.

• Oil contamination: Dirty or contaminated hydraulic fluid can cause valves and pumps to malfunction, leading to a loss of power or system failure.


• Poor fuel efficiency: If the engine is consuming more fuel than usual, it could be an indication of issues with the fuel injectors, fuel filters, or combustion system.

• Starting issues: Starting problems can arise due to a faulty fuel pump, clogged fuel filter, or issues with the battery.

• Overheating: Overheating can occur due to a malfunctioning radiator, coolant leaks, or issues with the engine’s thermostat.


• Faulty sensors or wiring: Over time, electrical components can wear out or become damaged, leading to inaccurate sensor readings or complete electrical failure.

• Dead battery: If the battery is not properly maintained or replaced at regular intervals, it can lead to starting issues.

• Electrical shorts: In some cases, electrical wiring can wear out or become exposed, creating a short circuit that affects the entire system.


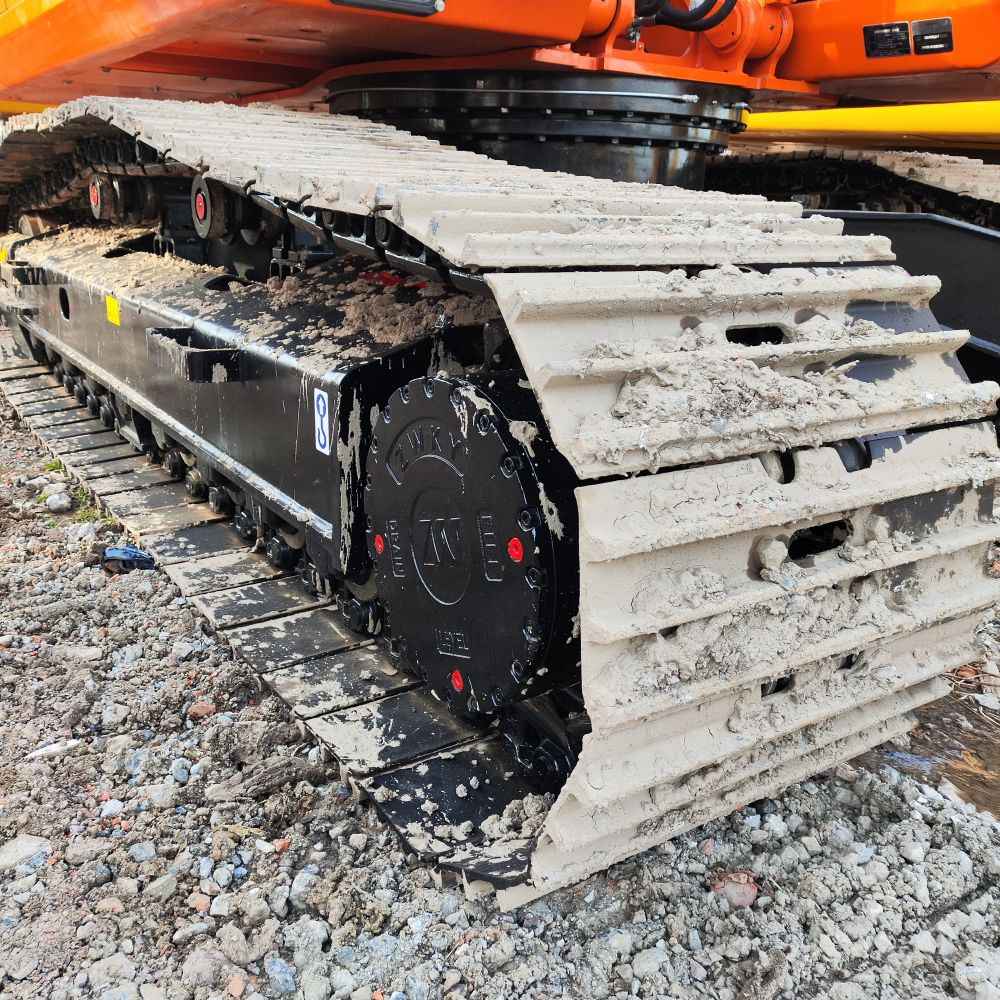

• Excessive wear: Tracks can become worn down over time, reducing the excavator's mobility and efficiency.

• Track misalignment: If the tracks are not properly aligned, they can wear unevenly, leading to further damage to the undercarriage.

• Track stretching or breaking: In extreme conditions, the tracks can stretch or even break, leading to costly repairs.


• Regularly inspect hydraulic systems for leaks, fluid levels, and pump condition.

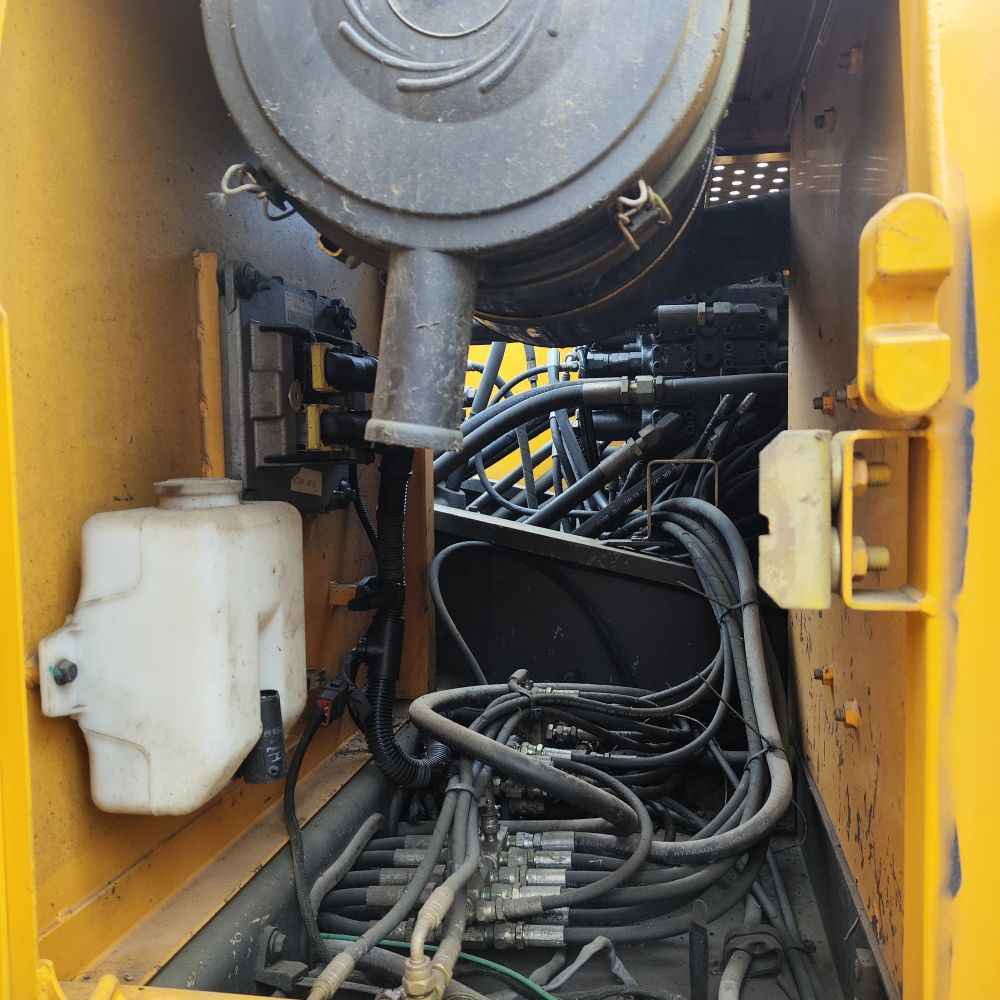

• Keep the engine and fuel system clean, checking for clogged fuel filters and replacing air filters as needed.

• Monitor the electrical system for faulty wiring or sensor issues.

• Ensure the undercarriage is properly maintained, including cleaning tracks and ensuring proper alignment.


The Lull 644B and Its Mechanical Legacy
The Lull 644B telehandler, manufactured in the mid-1990s by Lull Corporation before its acquisition by JLG Industries, was designed for rugged lifting tasks in construction and industrial settings. With a rated lift capacity of 6,000 pounds and a reach of up to 40 feet, the 644B became a staple on job sites across North America. Its Highlander variant, introduced around 1995, featured a robust drivetrain and a multi-speed transmission system that allowed operators to shift between low, medium, and high gears depending on terrain and load. By the early 2000s, Lull had sold thousands of these units, with many still in service today due to their mechanical simplicity and durable frame.
Symptoms of Gear Lock and Initial Observations
Operators encountering gear lock typically report the following:

• The machine starts in second or third gear but quickly reverts to low gear.

• Gear selection appears functional in neutral but fails to hold once forward motion begins.

• The issue arises after drivetrain or engine mount repairs, suggesting a mechanical or electrical disturbance.


• Transmission Control Module (TCM): An electronic unit that manages gear selection and shift timing based on input from sensors and operator controls.

• Motor Mounts: Structural supports that secure the engine and transmission to the frame. Misalignment can affect drivetrain geometry and wiring harness tension.

• Gear Selector: A mechanical or electronic interface allowing the operator to choose transmission range.

• Wiring Harness: A bundled set of electrical wires connecting sensors, actuators, and control modules.


• TCM Failure: In the case examined, the transmission control module was identified as the root cause. The timing of the failure coincided with motor mount replacement, but the module itself was faulty—likely due to age or internal component degradation.

• Pinched or Stressed Wiring: The wiring harness near the driver’s seat and motor mount area is vulnerable during engine mount replacement. If wires are pinched or stretched, signal loss or erratic behavior can occur.

• Drivetrain Misalignment: A broken motor mount can shift the engine-transmission assembly, placing stress on connected components. Even after replacement, residual misalignment may affect gear engagement.


• Inspect Wiring Harness During Mount Replacement: Always check for pinched, frayed, or stretched wires near engine mounts and control modules.

• Test TCM Functionality with Diagnostic Tools: Use a multimeter or scan tool to verify voltage and signal continuity.

• Secure Ground Connections: Loose grounds can mimic module failure and cause erratic gear behavior.

• Replace TCM with OEM or Certified Rebuilt Units: Avoid generic replacements that may not match the original programming.

• Check Gear Selector Linkage: Ensure mechanical linkages are properly aligned and lubricated.


The Lastec Articulator 3300 is a powerful and highly versatile piece of equipment designed for landscaping, grounds maintenance, and forestry. It is often used to maintain large areas of turf, grasslands, or road verges, thanks to its ability to handle tough vegetation. Powered by a PTO (Power Take-Off) system, the Articulator 3300 allows operators to efficiently control various attachments such as mowers, shredders, and mulchers.
However, as with any complex machinery, the Lastec Articulator 3300 can occasionally encounter problems with its PTO system. These issues can range from mechanical failures to electrical malfunctions, and addressing them in a timely manner is crucial to ensuring the longevity of the machine. This article explores common issues with the PTO system on the Articulator 3300, offering troubleshooting tips and potential solutions.
Understanding the Power Take-Off (PTO) System
A Power Take-Off (PTO) system is a mechanism that transfers mechanical power from an engine to an attached implement, such as a mower or mulcher. The PTO system on the Lastec Articulator 3300 is typically driven by the tractor’s engine, providing the necessary power to operate attachments without requiring a separate engine for each tool.
There are two main types of PTO systems:

• Independent PTO: Can be engaged or disengaged without affecting the operation of the tractor’s engine or drive system.

• Transmission PTO: Typically controlled by the tractor’s transmission and operates in conjunction with the tractor’s speed and gear settings.


• Worn or Damaged PTO Clutch: Over time, the PTO clutch can wear down or become damaged due to regular use or improper maintenance. A worn clutch will struggle to engage, preventing the attachment from receiving power.

• Faulty PTO Switch or Wiring: The electrical system that controls the PTO engagement may develop a fault, such as a broken wire or malfunctioning switch. This can prevent the PTO from being activated or deactivated correctly.

• Low Hydraulic Pressure: In some systems, PTO engagement relies on hydraulic pressure. If the system’s hydraulic fluid is low or the hydraulic pump is malfunctioning, the PTO may not engage properly.


• Worn PTO Components: Over time, components like the PTO shaft, bearings, or seals can wear out. If the components are damaged, they may fail to transmit power efficiently.

• Overloaded PTO: The PTO may be overloaded if the attachment being used exceeds its rated capacity. Overloading can cause the PTO system to slip or fail.

• Improper PTO Speed: The PTO operates most efficiently when running at the correct speed, typically 540 RPM for most applications. If the tractor is operating at too high or too low a speed, it can cause the PTO to slip.


• Sticking PTO Clutch: The PTO clutch may become stuck due to dirt, debris, or wear. If the clutch cannot disengage, the PTO will remain engaged.

• Faulty PTO Control Lever: The control lever or switch used to disengage the PTO may become damaged or malfunction, preventing the operator from shutting off the PTO.


• Misaligned PTO Shaft: If the PTO shaft is misaligned, it can cause friction between the shaft and other components, resulting in excessive noise.

• Damaged PTO Bearings: Worn or damaged bearings can cause grinding or squealing sounds as they fail to properly support the PTO shaft.

• Loose PTO Components: Loose bolts or fasteners can cause components to move, leading to knocking sounds.


• Regularly Inspect the PTO Clutch: Check the PTO clutch for signs of wear and replace it as necessary. Clean the clutch area to prevent debris buildup.

• Check the Hydraulic System: Ensure that the hydraulic fluid levels are correct and that the pump is functioning properly. Low fluid levels or hydraulic leaks can cause PTO engagement issues.

• Lubricate Moving Components: Apply lubricant to the PTO shaft, bearings, and other moving parts to prevent friction and wear.

• Monitor Load Limits: Always use attachments that are within the rated capacity of the machine to avoid overloading the PTO system.

• Clean the PTO Area: Keep the PTO and surrounding area clean to prevent debris from interfering with the system’s operation.


The GM 2.4L Engine and Its Industrial Applications
General Motors’ 2.4L inline-four engine, known internally as the LE5 or LN2 depending on configuration, was originally developed for passenger vehicles but later adapted for industrial use. In forklifts, aerial lifts, and compact construction equipment, this engine became a reliable powerplant due to its balance of torque, fuel efficiency, and ease of maintenance. By the mid-2000s, GM had partnered with equipment manufacturers like Snorkel, Hyster, and Yale to integrate the 2.4L into machines such as the TB60 lift and various warehouse forklifts. These industrial variants often featured simplified electronics and heavy-duty cooling systems to suit demanding work environments.
Challenges in Identifying the Correct Filter
Unlike automotive applications where VIN-based lookup is standard, industrial engines often lack centralized databases for parts. When a filter falls off or is missing, technicians must rely on physical inspection, cross-referencing, or trial-and-error. In one case, a technician spent over three hours searching online and contacting dealers, only to find that most parts suppliers required an exact filter number to proceed—highlighting the gap in support for industrial adaptations of automotive engines.
Recommended Oil Filter Models
For GM 2.4L engines used in industrial equipment, the following filters are commonly compatible:

• Wix 51040: A high-quality spin-on filter with anti-drainback valve and 21-micron nominal filtration. Known for durability in high-hour applications.

• NAPA Gold 1040: Manufactured by Wix, this filter offers identical specifications and is widely available in North America.

• Fram PH3387A: A budget option with basic filtration, suitable for light-duty use or emergency replacement.

• ACDelco PF47E: OEM-grade filter used in GM passenger vehicles, often interchangeable with industrial variants.


• Spin-On Filter: A self-contained unit that screws directly onto the engine block, simplifying replacement.

• Micron Rating: Indicates the size of particles the filter can trap. Lower numbers mean finer filtration.

• Anti-Drainback Valve: Prevents oil from draining out of the filter when the engine is off, reducing wear during startup.


• Keep Spare Filters On Hand: Especially for remote job sites or emergency service scenarios.

• Label Filters by Equipment: Use tags or bins to associate filters with specific machines to avoid confusion.

• Change Oil Every 250–300 Hours: Industrial engines often run longer and hotter than automotive counterparts.

• Inspect for Leaks After Installation: A misaligned gasket or over-tightened filter can cause oil loss and engine damage.


The Caterpillar 416C is a popular backhoe loader model in the construction industry, known for its powerful engine, reliability, and flexibility in a range of tasks. This machine is designed to provide efficient digging, lifting, and loading capabilities, making it an essential piece of equipment for contractors involved in construction, agriculture, and landscaping. In this article, we will dive into the features, maintenance, and common issues associated with the 416C, as well as the broader context of Caterpillar's role in the heavy equipment industry.
Caterpillar: A Legacy of Innovation
Caterpillar Inc., founded in 1925, has become a global leader in the manufacturing of heavy equipment, including bulldozers, excavators, and backhoe loaders. The company is known for its high-quality, durable machinery and has built a strong reputation among contractors and operators. Caterpillar’s commitment to technological innovation and product development has made it one of the largest manufacturers of construction equipment worldwide.
The 416C backhoe loader, part of Caterpillar’s extensive backhoe loader lineup, was designed to meet the demands of the construction industry for versatility, ease of use, and dependability. Introduced in the late 1990s, the 416C replaced earlier models and quickly became a favorite on job sites due to its combination of power, performance, and compact design.
Key Specifications of the Caterpillar 416C
The Caterpillar 416C is a robust machine built to handle a wide variety of construction tasks. Below are some of the key specifications that highlight its capabilities:
Engine Power

• Engine Type: Caterpillar 3054T

• Gross Power: 72 kW (97 hp)

• Rated Operating Capacity: 4,400 kg (9,700 lbs)


• Loader Lift Capacity: 3,200 kg (7,050 lbs)

• Backhoe Digging Depth: 4.5 meters (14.8 feet)


• Overall Length: 6,000 mm (19.7 feet)

• Width: 2,500 mm (8.2 feet)

• Operating Weight: 7,000 kg (15,400 lbs)


• Fuel Tank: 125 liters (33 gallons)


• Excavation and Trenching: The backhoe arm allows for precise digging and trenching, making the 416C an ideal tool for utility installation, foundation work, and drainage projects.

• Material Handling: With its strong lifting capacity and versatile bucket options, the 416C is well-suited for loading and moving materials like dirt, gravel, and construction debris.

• Landscaping and Site Preparation: The 416C’s maneuverability and digging depth make it perfect for landscaping tasks such as clearing land, grading, and digging ponds or drainage systems.

• Road Construction and Maintenance: Its powerful engine and hydraulic system make it suitable for road repair, pothole filling, and grading tasks.
