Hydraulic Systems and the Role of Return Line Valves
In modern excavators, particularly those from manufacturers like Hitachi and John Deere, the hydraulic system is a finely tuned network of pumps, motors, valves, and reservoirs. One often overlooked component is the restriction valve located in the return line after the hydraulic oil cooler. This valve is not merely a passive checkpoint—it plays a critical role in maintaining system pressure and ensuring oil circulation in key subsystems.

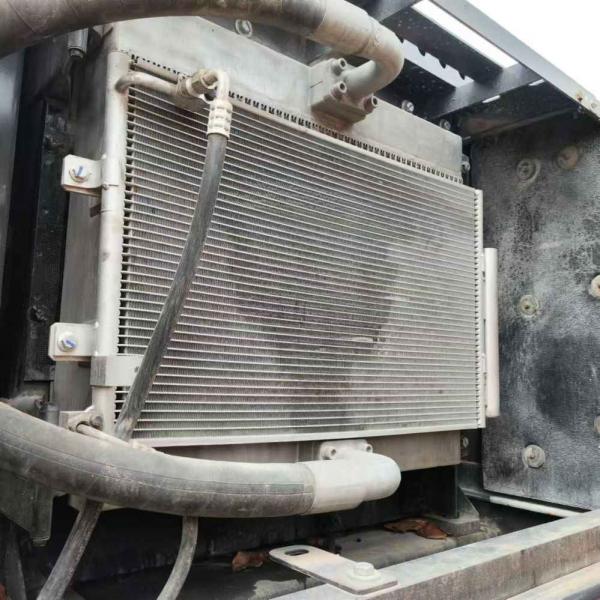

The oil cooler itself reduces the temperature of hydraulic fluid after it has passed through high-pressure components. Once cooled, the fluid returns to the reservoir or is redirected to other parts of the system. The restriction valve, placed after the cooler, introduces back pressure—a deliberate resistance that helps regulate flow dynamics.
Why Back Pressure Matters
Back pressure in the return line serves several purposes:

• Maintains oil volume in swing motor casing: The swing motor, responsible for rotating the upper structure of the excavator, requires a constant supply of oil to prevent dry operation. Without back pressure, oil may drain too quickly from the motor casing, leading to premature wear.

• Supports anticavitation valves: Cavitation occurs when vapor bubbles form in hydraulic fluid due to rapid pressure drops. These bubbles collapse violently, damaging internal surfaces. Anticavitation valves mitigate this by ensuring a steady flow of makeup oil. The restriction valve helps maintain the pressure needed for these valves to function properly.

• Stabilizes control valve operation: Control valves direct hydraulic flow to various actuators. Back pressure ensures smoother transitions and prevents erratic behavior, especially during simultaneous multi-function operations.


• Reduced swing motor lubrication: Without sufficient back pressure, the swing motor casing may not stay adequately filled, leading to dry starts and increased friction.

• Increased cavitation risk: Faster oil flow can cause pressure drops that trigger cavitation, especially during rapid actuator movements.

• Unstable system behavior: Removing the valve may lead to unpredictable control valve responses, particularly when multiple hydraulic functions are engaged.


• Restriction Valve: A hydraulic component that limits flow to create back pressure in a return line.

• Swing Motor: A hydraulic motor that rotates the upper structure of an excavator.

• Anticavitation Valve: A valve that prevents vapor bubble formation by ensuring consistent oil flow.

• Back Pressure: Resistance in a fluid system that helps regulate flow and maintain pressure balance.


• Do not remove the restriction valve unless advised by the manufacturer for a specific retrofit.

• Upgrade the oil cooler if operating in extreme heat. Look for models with higher BTU ratings and forced-air cooling.

• Monitor swing motor casing oil levels regularly, especially after long idle periods.

• Inspect anticavitation valves during routine service to ensure they are not clogged or damaged.


Chain and sprocket alignment issues are a common challenge faced by owners and operators of the Bobcat 1835C skid steer loader. These issues can lead to reduced performance, premature wear, and even catastrophic failure if left unaddressed. Proper alignment of the chain and sprockets is crucial for the longevity of the loader and its ability to handle demanding tasks. This article discusses the importance of chain and sprocket alignment, the problems that misalignment can cause, and how to properly align them for optimal performance.
Overview of the Bobcat 1835C
The Bobcat 1835C is a compact skid steer loader known for its versatility and ability to operate in tight spaces. It is equipped with a radial lift system, which allows it to lift and carry heavy loads in construction, landscaping, and agriculture applications. The 1835C features a robust chain and sprocket drive system that powers its wheels and allows it to maneuver effectively on various terrains. Like any heavy machinery, the 1835C's chain and sprocket system must be maintained and aligned correctly to ensure smooth operation.
The drive system consists of chains that transfer power from the engine to the wheels via sprockets. These components work together to move the loader and support its work capabilities. Over time, wear and tear can cause misalignment, leading to performance issues.
Why Chain and Sprocket Alignment Matter
Proper chain and sprocket alignment ensures that the load is distributed evenly across the system, reducing unnecessary wear and tear on both the chain and sprockets. When alignment is off, several issues can arise, including:

• Excessive Wear: Misaligned chains and sprockets cause uneven wear, leading to faster degradation of the components. This can shorten the life of the parts, resulting in costly replacements and downtime.

• Increased Friction: When chains are not properly aligned, the teeth of the sprockets may not mesh evenly with the chain links, leading to increased friction. This can cause overheating, further accelerating wear and reducing overall efficiency.

• Reduced Efficiency: Poor alignment decreases the efficiency of the drive system. The loader may experience power loss, reduced lifting capacity, and sluggish performance, which ultimately affects productivity.

• Potential for Chain Failure: In severe cases, misalignment can cause the chain to slip off the sprockets or even break. This results in a complete failure of the drive system, often necessitating expensive repairs and extended downtime.


1. Worn or Damaged Sprockets:
   Sprockets are subject to wear over time, particularly in high-stress applications. As the teeth of the sprocket wear down, they may no longer mesh properly with the chain, causing misalignment. Similarly, if the sprockets become damaged due to impact or improper use, they may no longer maintain proper alignment with the chain.

2. Stretched or Worn Chains:
   Chains stretch as they undergo regular use. A stretched chain can no longer sit correctly on the sprockets, leading to misalignment. Worn chains also tend to skip over the sprocket teeth, resulting in poor engagement and excessive friction.

3. Improper Installation:
   When installing new chains and sprockets, improper installation can lead to misalignment. If the sprockets are not seated correctly or the chain is not properly tensioned, the system will not operate efficiently.

4. Frame or Axle Damage:
   In some cases, frame or axle damage can result in misalignment of the drive components. Bent or warped frames or axles can cause the sprockets and chains to sit at an angle, which leads to misalignment.

5. Lack of Regular Maintenance:
   Skipping routine maintenance can exacerbate misalignment problems. Failure to clean, lubricate, and inspect the drive system regularly can result in excessive dirt, debris, and rust buildup, causing parts to wear unevenly.


1. Inspect the Components:
   Start by inspecting both the chain and sprockets for wear, damage, and stretching. Look for worn teeth on the sprockets, as well as any visible damage or elongation in the chain. If either component is heavily worn or damaged, it may need to be replaced before performing the alignment.

2. Loosen the Chain Tension:
   Before making any adjustments, loosen the chain tension. This will allow for easier adjustment of the sprockets and chain alignment. Use the tensioning mechanism on the machine to relieve pressure on the chain.

3. Check the Sprockets for Proper Alignment:
   Place a straightedge or ruler across the sprockets to check for any angular misalignment. If the sprockets are not aligned correctly, they will need to be repositioned. This can be done by adjusting the mounting bolts or brackets that hold the sprockets in place.

4. Inspect and Adjust the Chain Tension:
   After ensuring the sprockets are properly aligned, adjust the chain tension. The chain should have a small amount of slack, but not be too loose. Tightening the chain too much can cause excessive wear, while a loose chain may lead to skipping and poor engagement with the sprockets.

5. Reassemble and Test:
   Once the sprockets and chain are aligned and properly tensioned, reassemble the system. Start the machine and observe the operation to ensure everything is functioning smoothly. Listen for unusual sounds such as rattling or grinding, which may indicate further alignment issues.

6. Lubricate the System:
   After aligning and reassembling the components, be sure to lubricate the chain and sprockets. Proper lubrication reduces friction, prevents rust, and helps maintain optimal performance over time.

7. Perform Regular Inspections:
   Chain and sprocket alignment should be checked regularly as part of a routine maintenance schedule. Inspect the system after heavy use or harsh working conditions, and replace worn parts as needed to prevent further misalignment.


• Regular Cleaning: Clean the chain and sprockets regularly to remove debris, dirt, and buildup that can affect alignment and cause wear.

• Use High-Quality Parts: When replacing parts, always use OEM (Original Equipment Manufacturer) sprockets and chains. These components are designed to work together seamlessly and provide the best performance.

• Monitor Operating Conditions: Operating the Bobcat 1835C under extreme conditions, such as in muddy or abrasive environments, can accelerate wear on the chain and sprockets. Regularly monitor operating conditions and avoid excessive strain when possible.

• Preventive Maintenance: Schedule regular maintenance intervals, including chain and sprocket inspections, lubrication, and adjustments. Proactive maintenance can catch alignment issues early and prevent costly repairs down the road.


A Legacy of Versatility and Engineering
The Case 580 Construction King (CK), introduced in the late 1960s and refined through the early 1970s, became one of the most widely used tractor-loader-backhoes in North America. Manufactured by J.I. Case Company, which merged with International Harvester in 1985 to form Case IH, the 580 CK was part of a lineage that emphasized reliability, modular design, and ease of maintenance. By 1972, Case had already sold tens of thousands of these units, with the 580 CK becoming a staple on construction sites, farms, and municipal fleets. Its popularity stemmed from its dual-purpose capability—loader in the front, backhoe in the rear—and a robust drivetrain that could handle varied terrain and tasks.
Understanding the Oil System Architecture
The 580 CK’s lubrication system is divided into several distinct compartments, each serving a specific function:

• Engine Oil: The heart of the machine, typically requiring SAE 15W-40 or SAE 30 depending on climate. This oil lubricates the internal combustion engine’s moving parts, reducing friction and preventing overheating.

• Torque Tube and Shuttle System: This area houses the forward-reverse shuttle mechanism. It requires hydraulic transmission fluid such as Hy-Tran or equivalent high-grade hydraulic oil. The shuttle dipstick is located near the lower right corner of the four-speed shifter’s cover plate.

• Transaxle Gearbox: Positioned under the operator’s seat, this compartment uses gear oil—typically SAE 90 or SAE 85W-140 depending on ambient temperature. This oil ensures smooth gear transitions and protects against wear.

• Hydraulic System for Loader and Backhoe: Though not discussed directly, this system typically uses ISO 46 or ISO 68 hydraulic oil. It powers the lifting and digging functions and is critical for responsive operation.


• Two located near the front of the machine, beneath the torque tube.

• One positioned at the rear, draining the transaxle.


• Torque Tube: A structural housing that connects the engine to the transmission, often containing the shuttle mechanism.

• Hy-Tran Fluid: A proprietary hydraulic transmission oil developed by International Harvester, known for its anti-wear and anti-foaming properties.

• Rockshaft: A rotating shaft that actuates the lift arms of a 3-point hitch. It’s sealed by internal pistons that are vulnerable to scoring.


• Flush all systems before refilling.

• Use magnetic drain plugs to capture metal shavings.

• Monitor fluid levels monthly, especially in humid climates.


When it comes to construction and heavy machinery, comfort is often overlooked in favor of power and performance. However, as operators spend long hours in their cabs, comfort and air quality become essential components of overall productivity and well-being. For those operating the Kubota KX040-4 mini excavator, one common issue that has been brought up is related to HVAC (Heating, Ventilation, and Air Conditioning) cab filtration. Problems with HVAC systems can impact air quality, cooling, heating, and even the overall safety of the machine's occupants. In this article, we will delve into the HVAC filtration issues commonly experienced by KX040-4 owners, the underlying causes, and potential solutions.
Overview of the Kubota KX040-4
The Kubota KX040-4 is a 4-ton class mini-excavator designed for a variety of applications, including construction, landscaping, and utility work. Known for its powerful engine, compact size, and impressive digging depth, the KX040-4 is favored by operators who need both power and precision in tight spaces. One of the standout features of this model is its cab, which is designed to provide a high level of comfort, noise reduction, and climate control for extended operating hours.
However, like many machines in the same class, issues with the HVAC system have surfaced over time. These HVAC problems, particularly those concerning air filtration, can result in decreased performance, reduced cabin comfort, and even health concerns for the operator.
Common HVAC Filtration Issues in the KX040-4

1. Reduced Airflow
   • One of the most commonly reported HVAC issues in the KX040-4 is reduced airflow. This issue may arise from clogged or dirty filters, preventing the HVAC system from efficiently circulating air. When the air filters become saturated with dust and debris from the work environment, airflow is restricted, leading to poor ventilation and uncomfortable conditions inside the cab. The reduced airflow can also affect the cooling and heating capabilities, leaving the operator with an inadequate level of climate control.

2. Musty or Unpleasant Odors
   • Another symptom of HVAC filtration issues is the presence of musty or unpleasant odors inside the cab. This can be caused by the accumulation of mold, mildew, or bacteria in the air conditioning system, which often results from a buildup of moisture within the cabin filters. When moisture remains trapped inside the filters or air ducts, it creates a breeding ground for mold and bacteria. This can not only lead to foul odors but also pose health risks to the operator over time.

3. Inconsistent Temperature Control
   • HVAC issues may also manifest in the form of inconsistent temperature regulation. If the HVAC system's air filters are clogged, the system may struggle to regulate the temperature effectively. This can result in hot air being circulated in cold weather, or the air conditioning failing to cool the cab during hotter conditions. Proper filtration is critical for the proper functioning of the system, as airflow directly affects temperature control.

4. System Overheating
   • When the filters are blocked, the HVAC system may overheat due to the increased strain placed on its components. An overheated system may shut down intermittently or work inefficiently, leading to a breakdown in climate control and, ultimately, the performance of the machine. This overheating issue can also put stress on the air conditioning compressor, potentially leading to more severe problems like refrigerant leaks or system failure.


1. Exposure to Dust and Debris
   • The Kubota KX040-4 is typically used in dusty environments, such as construction sites and excavation areas. Over time, fine dust particles and dirt can clog the filters, restricting airflow. The more frequently the machine is used in such conditions, the faster the filters will become dirty.

2. Lack of Regular Maintenance
   • Like any other piece of heavy equipment, the KX040-4’s HVAC system requires regular maintenance to function optimally. If operators neglect to check and replace the filters periodically, the system is more prone to developing issues. A lack of cleaning and filter replacement can lead to a significant buildup of debris and contaminants, which hampers the efficiency of the air filtration system.

3. Moisture Accumulation
   • Moisture buildup within the HVAC system is another common cause of filtration problems. This can occur due to condensation or water entering the system during operation in wet conditions, leading to mold growth and bacterial contamination. When moisture is present in the filters, it can quickly turn into a source of unpleasant odors and reduce the system’s ability to cool or heat the cab effectively.

4. Incorrect or Low-Quality Filters
   • Using non-OEM (Original Equipment Manufacturer) filters or poor-quality aftermarket filters can also lead to filtration issues. These filters may not be properly designed to fit the HVAC system or fail to provide the necessary level of filtration, leading to the system becoming clogged more easily. The use of low-quality filters can also result in incomplete filtration, allowing particles and debris to bypass the filter, causing damage to the system's internal components.


1. Regular Filter Inspections and Replacements
   • One of the simplest and most effective ways to prevent HVAC filtration issues is to conduct regular inspections and replace the air filters when necessary. Operators should follow the manufacturer's recommendations for filter replacement intervals. Depending on usage and operating conditions, filters may need to be replaced more frequently in dusty or dirty environments. Regularly checking the filters for dirt, debris, and damage will help maintain optimal airflow and system performance.

2. Proper Cleaning and Maintenance
   • In addition to replacing the filters, cleaning the HVAC system can prevent the buildup of dirt and moisture that can lead to filtration problems. Periodic cleaning of the air ducts, evaporator coils, and drain lines helps ensure that moisture does not accumulate and that the system can run efficiently. It’s also important to check for signs of mold or mildew and clean these areas thoroughly to prevent odors.

3. Use High-Quality, OEM Filters
   • To ensure that the filtration system performs as intended, it’s essential to use high-quality, OEM-approved filters. These filters are designed specifically for the Kubota KX040-4 and provide the best protection against dirt, dust, and debris. Using aftermarket filters that do not meet the required specifications can lead to reduced performance and increased risk of HVAC issues.

4. Install Additional Filtration Systems
   • In environments where dust and debris are particularly problematic, consider installing an additional air filtration system or upgrading the existing HVAC filtration system. This can provide extra protection for the HVAC system and improve the overall air quality inside the cab. Some aftermarket companies offer additional filtration options that can be easily integrated into the KX040-4, providing enhanced protection against contaminants.


In the world of heavy machinery, diagnostic and control systems play a pivotal role in ensuring the longevity and efficiency of equipment. One common issue faced by operators of construction machinery, such as the John Deere 160CLC, involves problems with the Machine Performance Data Recorder (MPDR) system. The MPDR system is a crucial part of the equipment's control system, helping to monitor engine performance, hydraulic systems, and overall machine health.
In this article, we will explore the MPDR 3.9 version found in John Deere 160CLC excavators, discussing the system's functions, potential issues that arise, troubleshooting techniques, and solutions to keep the machine running smoothly.
Understanding the MPDR System in John Deere Equipment
The MPDR (Machine Performance Data Recorder) is a diagnostic tool used by operators and technicians to monitor the performance of a machine, especially its engine and hydraulic systems. It serves as the heart of the machine's diagnostics, providing real-time data on various performance metrics, including fuel consumption, engine temperature, pressure levels, and other key performance indicators. This system plays an essential role in identifying and resolving performance issues before they escalate into costly repairs.
John Deere's 160CLC excavators, which are often used in construction, mining, and other heavy-duty industries, come equipped with an MPDR system to ensure optimal performance. This model is part of Deere’s CLC (Crawler Loader) series, known for its high efficiency and durability in challenging working conditions. The MPDR 3.9 version is one of the more advanced iterations, offering enhanced diagnostics and improved data tracking.
Common Issues with the MPDR 3.9 System
While the MPDR system is designed to enhance machine performance, several issues can arise that can hinder its ability to monitor the machine effectively. Below are some of the most common problems:

1. Error Codes and Faults
   • One of the most common issues with the MPDR system is the appearance of error codes. These codes can be triggered by a wide variety of issues, including problems with the sensors, wiring, or communication between the engine and control systems. For example, if the MPDR is unable to receive data from the engine control unit (ECU) due to a faulty connection or damaged wire, it may display a generic error code that requires troubleshooting.

2. Inaccurate Data Reporting
   • Sometimes, the MPDR system might report inaccurate data, such as engine temperature, fuel usage, or hydraulic pressure. This can be caused by issues such as sensor malfunction, wiring faults, or incorrect calibration of the system. Inaccurate data can lead to poor decision-making and unnecessary repairs, which can impact operational efficiency and increase costs.

3. Communication Failures
   • The MPDR system relies on constant communication between various components of the machine, including the engine control module (ECM) and sensors. Communication failures can cause data to be incomplete or missing, leading to an inability to track critical machine performance metrics. In some cases, this can lead to the MPDR failing to display any data at all, which can make it difficult to diagnose problems and optimize performance.

4. Software Glitches or Malfunctions
   • Like any other advanced system, the MPDR system can be susceptible to software glitches or bugs. If the software is not functioning properly, it may cause unexpected behavior, such as the system freezing or crashing, or it might display incorrect or outdated data. These issues can often be resolved by updating the software or performing a system reset.


1. Check for Error Codes
   • The first step in troubleshooting an MPDR-related issue is to check for any error codes. These codes can often point directly to the source of the problem. Most modern John Deere machines allow operators to retrieve error codes from the machine’s display screen. If an error code is present, it can be cross-referenced with the service manual or online databases to understand the issue further.

2. Inspect Wiring and Connections
   • Faulty wiring or loose connections are common causes of communication failures and inaccurate data reporting. Inspect all wiring connections between the sensors, the MPDR, and the engine control system. Look for any visible signs of damage, corrosion, or wear. It’s also important to ensure that all connectors are securely fastened to prevent intermittent connection issues.

3. Test the Sensors
   • Since the MPDR system relies on input from various sensors, it is essential to test these sensors to ensure they are working correctly. Common sensors involved in the MPDR system include those that monitor engine temperature, fuel pressure, and hydraulic fluid levels. These sensors can often be tested with a multimeter or by performing a system self-test to confirm their accuracy.

4. Reset the System or Reinstall Software
   • If communication or software malfunctions are suspected, a simple reset of the MPDR system may resolve the issue. Some models may require a full software reinstall to eliminate bugs or glitches. Always ensure that the software is up-to-date, as outdated software can lead to performance problems. If necessary, refer to the machine’s user manual for instructions on how to reset or update the system.

5. Consult with a Professional Technician
   • If all else fails and the issue persists, it may be necessary to consult with a professional technician or service provider who specializes in John Deere equipment. Technicians can conduct more in-depth diagnostics and use specialized tools to troubleshoot the MPDR system thoroughly.


1. Regular Software Updates
   • Ensure that the software controlling the MPDR system is regularly updated. Manufacturers like John Deere periodically release updates to fix bugs, improve performance, and introduce new features. Keeping the system up to date will minimize the chances of software glitches or malfunctions.

2. Routine System Inspections
   • Perform regular inspections of the MPDR system and its associated components. This includes checking sensors, connectors, and wiring for signs of wear or damage. Routine maintenance helps catch potential issues before they escalate into serious problems that can lead to downtime.

3. Calibrate Sensors Periodically
   • Regular calibration of sensors is critical for accurate data reporting. Over time, sensors can drift and provide inaccurate readings, so calibration ensures that the system is collecting reliable data. Always follow the manufacturer’s recommendations for sensor calibration intervals.

4. Clean and Protect the System
   • Keep the MPDR system and its associated components clean and free from dirt, debris, and moisture. Dust and dirt can cause interference with sensors and connections, leading to communication issues and inaccurate data. Use compressed air or soft brushes to clean the system, and consider installing covers or seals to protect it from the elements.


An experienced operator tasked with training new hires may face legal exposure if an incident occurs, especially in the absence of formal certification, documented procedures, or safety oversight. However, liability typically falls on the employer unless negligence or misconduct can be proven.
Background of municipal training challenges
In many U.S. counties, especially following legislative changes that reduce collective bargaining rights, public works departments have seen waves of retirements and budget-driven hiring of lower-wage, less-experienced personnel. This shift often leaves seasoned operators in the position of informal trainers, without clear authority, safety credentials, or structured programs.
One such case involved a county-employed operator of a Badger Cruz-Air 1085C rubber-tired excavator. After a tragic accident in 2004 where a cyclist was struck and severely injured by the machine, the operator became cautious about training responsibilities. The county continued using the same equipment despite visibility concerns raised in court testimony, and the operator was later asked to train new hires without formal guidelines.
Legal exposure and safety regulations
In the United States, workplace safety is governed by OSHA (Occupational Safety and Health Administration), unless a state has its own safety agency. Wisconsin defers to OSHA via its Commerce Department. OSHA mandates that:

• Employees must be trained by qualified personnel

• Training must be documented

• Employers are responsible for ensuring safe operation of equipment


• Document all conversations with supervisors regarding training assignments, including dates, times, and conditions

• Maintain a daily work journal noting tasks performed, equipment used, and any training interactions

• Clarify job title and responsibilities—if training is not part of the formal role, this distinction matters

• Avoid giving unsafe or undocumented instructions

• Encourage new hires to read equipment manuals and ask questions, rather than offering ad hoc demonstrations


• Implement formal training programs with certified instructors

• Retire or retrofit equipment with known safety issues

• Provide written job descriptions and training expectations

• Offer OSHA 10 or OSHA 30 certification to operators

• Ensure all training is logged and signed by both parties


In the modern world of transportation and logistics, managing fuel expenses and ensuring efficiency are crucial aspects for truckers and fleet operators. The Exxon Mobil Smart Card has been marketed as a convenient tool to help truckers save money and streamline their operations. However, many have questioned its actual usefulness on the road. This article takes a deep dive into the Exxon Mobil Smart Card, evaluating its features, benefits, and limitations, and examining whether it’s truly a worthwhile investment for truckers.
What Is the Exxon Mobil Smart Card?
The Exxon Mobil Smart Card is a fuel card designed for drivers, particularly those in the trucking and transportation industry, to make fuel purchases easier, more convenient, and more cost-effective. It is issued by ExxonMobil, one of the world’s largest oil and gas companies, which operates a vast network of fueling stations across the United States and beyond. The card works much like a credit card or debit card but is specifically intended for purchasing fuel at Exxon and Mobil-branded stations.
The primary appeal of the Smart Card is the promise of savings on fuel purchases. Truckers can use the card to earn rebates, access discounts, and even track fuel consumption, making it an appealing option for managing the high costs associated with long-haul driving. However, the question remains: does it live up to the hype?
Key Features of the Exxon Mobil Smart Card

1. Fuel Discounts and Rebates
   • One of the most attractive features of the Exxon Mobil Smart Card is the opportunity to earn rebates or discounts on fuel purchases. Typically, these rebates are given based on the amount of fuel purchased over time or the total spending at Exxon or Mobil stations. These savings can add up significantly, especially for truckers who spend a large portion of their budgets on fuel.

2. Acceptance at a Wide Network of Stations
   • Exxon and Mobil stations are widespread across the United States, with over 10,000 locations. This extensive network allows truckers to use their Smart Cards for fuel purchases in most major cities, highways, and rural areas, making it a convenient option for truckers on the go. Having access to a broad network ensures that drivers can refuel without worrying about whether or not the station accepts the Smart Card.

3. Easy Management and Tracking
   • The Smart Card provides truckers with a convenient way to track their fuel purchases and expenditures. Many versions of the card come with online portals or mobile apps that allow drivers to view detailed transaction history, track fuel consumption, and even set spending limits for better control over costs. This feature is particularly useful for fleet managers who want to keep track of multiple vehicles and optimize fuel usage.

4. Fueling Benefits for Small Fleets
   • While some truckers may view the Smart Card as more suited to individual drivers, it can also be a useful tool for small to mid-sized fleet operators. Fleet managers can issue individual cards to drivers, allowing them to manage fuel purchases while keeping track of costs and savings across multiple vehicles. In this context, the Smart Card can help simplify billing, auditing, and reporting for small businesses.


1. Cost Savings
   • The most significant advantage of using the Exxon Mobil Smart Card is the potential for cost savings. By earning discounts or rebates, truckers can reduce the overall expense of refueling, which is one of the highest operational costs in the trucking industry. Over time, these savings can translate into substantial amounts, helping truckers and fleet operators increase their profitability.

2. Convenience
   • With the card being accepted at a vast number of Exxon and Mobil locations, truckers can conveniently fuel up during long trips without worrying about the hassle of finding a specific station that offers competitive prices. The ease of using the card also reduces the need for carrying large amounts of cash or using a credit card, providing an additional layer of convenience for truckers on the road.

3. Expense Tracking and Management
   • Managing fuel expenses is a significant challenge for truckers, especially for those operating small fleets. The Exxon Mobil Smart Card provides detailed reports on fuel purchases, enabling truckers and fleet managers to analyze and optimize fuel consumption. This can help identify trends, inefficiencies, and potential areas for cost reduction, contributing to more effective fleet management.

4. No Monthly Fees
   • One of the appealing aspects of the Exxon Mobil Smart Card is that it typically doesn’t have monthly fees or membership costs, unlike other fuel cards that may require ongoing payments or minimum spending requirements. This can make it an affordable option for drivers who want to avoid unnecessary charges while still enjoying the benefits of fuel savings.


1. Limited Network
   • Although ExxonMobil boasts a wide network of fueling stations, it may not be as extensive as some other fuel card programs. For example, competitors like Pilot Flying J or Loves often have larger networks of truck stops that cater specifically to the trucking industry. This limitation can pose a challenge for truckers who frequently travel in areas where Exxon or Mobil stations are sparse.

2. Fuel Savings May Be Limited
   • While the card promises discounts and rebates, these benefits may not always be as significant as expected. Some truckers have reported that the savings offered by the card are modest and don’t always offset the higher cost of fuel at certain Exxon and Mobil stations compared to other providers. Truckers need to carefully evaluate whether the savings are worth the trade-off in fuel prices.

3. Not Ideal for All Types of Fleet Operators
   • For larger fleet operators, the Exxon Mobil Smart Card may not provide the level of control and flexibility that more specialized fleet fuel cards offer. Some larger fleet management solutions come with features such as real-time monitoring, detailed route tracking, and a wider network of fueling options that the Smart Card lacks.

4. Potential for Misuse
   • The card is designed for fuel purchases, but there may be a temptation for drivers to use it for non-fuel expenses, particularly for personal use. This can complicate expense tracking and management, making it harder to distinguish between business and personal expenses.


The LCD display on a Kubota RX-303 compact excavator is factory-set to Japanese and cannot be changed to English through standard menu navigation. Accessing service mode via a button sequence may allow limited configuration, but full language conversion requires firmware replacement or display module swap.
Kubota RX-303 background and display system
The Kubota RX-303 is a compact hydraulic excavator designed for urban construction, landscaping, and utility trenching. It features:

• A zero-tail swing design for tight spaces

• Pilot-operated joystick controls

• Digital LCD display for engine status, maintenance alerts, and hydraulic settings

• Three-button interface for navigation and configuration


• The firmware only includes Japanese character sets

• Menu labels and system messages are hardcoded

• Service mode allows diagnostic access but not localization


• Google Translate with camera mode to interpret screen messages

• Manual translation of common alerts and menu paths

• Labeling buttons with English equivalents based on trial and error


• Left button: scroll or select

• Center button: confirm or enter

• Right button: back or cancel


• Swapping the LCD module with one from an English-market RX-series machine

• Replacing the control panel with a compatible unit from a KX or U-series excavator

• Installing an aftermarket display with custom firmware and CAN bus integration


• Matching connector types and voltage specifications

• Ensuring compatibility with the RX-303’s controller and sensors

• Reprogramming or calibrating the new display to match machine parameters


• Before purchasing a Japanese-market RX-303, verify display language and firmware version

• Request an English-language operator manual from Kubota or third-party suppliers

• Use laminated translation cards for common alerts and menu paths

• Consider display replacement only if language access is critical for daily operation


The John Deere 750C II is a widely used crawler dozer, known for its strength, durability, and versatility on construction sites. With its ability to handle tough terrains and heavy workloads, it is an essential piece of equipment in various industries, including construction, mining, and forestry. Like all heavy equipment, the 750C II relies on its undercarriage to ensure stability and performance. Proper undercarriage maintenance is crucial to avoid costly repairs and downtime. In this article, we’ll dive into the common issues related to the undercarriage of the John Deere 750C II and offer tips for maintenance and repair.
Background of the John Deere 750C II
John Deere, a company with over 180 years of experience in manufacturing agricultural and construction equipment, introduced the 750C II crawler dozer as part of their C-series lineup. This machine is designed for heavy-duty tasks such as earthmoving, grading, and trenching. The 750C II is powered by a 140-horsepower engine and boasts an operating weight of approximately 21,000 pounds, making it a formidable machine in its class.
The undercarriage of the 750C II plays a pivotal role in its overall performance. It consists of several key components, including tracks, rollers, sprockets, and the track frame. These components work together to provide the necessary traction, stability, and maneuverability on rough terrains. The maintenance and upkeep of the undercarriage are critical in prolonging the machine's life and ensuring optimal functionality.
Common Undercarriage Problems on the John Deere 750C II
Like any piece of heavy machinery, the undercarriage of the John Deere 750C II can experience wear and tear over time. The undercarriage components endure the majority of the stress while the dozer is in operation, so it is essential to regularly inspect and maintain them. Below are some of the most common undercarriage issues faced by 750C II owners and operators:

1. Excessive Wear of Tracks
   • Over time, the tracks on the 750C II can wear down, reducing their effectiveness and causing the machine to lose traction. The most common cause of excessive track wear is improper tension, which can lead to misalignment and uneven wear. In some cases, track wear may also be caused by exposure to abrasive materials or rough operating conditions.

   • Solution: Regularly check the track tension and ensure it is set correctly. Adjusting the track tension to the proper specifications can help prevent unnecessary wear and tear. If the tracks are significantly worn, replacing them may be necessary.

2. Track Rollers and Idlers
   • Track rollers and idlers are critical components of the undercarriage, as they support the weight of the dozer and help guide the tracks. Over time, these components can become worn, leading to reduced performance and potentially causing the tracks to slip or become misaligned.

   • Solution: Inspect the track rollers and idlers for signs of wear or damage. If you notice excessive wear or cracks, these components should be replaced promptly. It is also important to lubricate these parts regularly to reduce friction and extend their lifespan.

3. Sprockets and Teeth Damage
   • Sprockets are responsible for driving the tracks of the dozer. They can experience wear and damage over time, especially if the tracks are not properly tensioned or if they are exposed to extreme operating conditions. Worn sprockets can cause slippage and reduce the machine’s efficiency.

   • Solution: Inspect the sprockets and teeth for wear. If the teeth are excessively worn or damaged, replace them. Additionally, check for any signs of cracking or deformities, which could indicate structural issues that may require further repairs.

4. Track Frame Damage
   • The track frame is the foundation of the undercarriage, providing the structure that supports all the components. If the frame becomes damaged or bent, it can lead to misalignment of the tracks, causing the machine to operate inefficiently or even resulting in further damage to other components.

   • Solution: Inspect the track frame for any signs of damage or misalignment. If the frame is bent or cracked, it may need to be straightened or replaced. Regular maintenance of the track frame ensures that the undercarriage remains aligned and functional.

5. Seals and Leakage
   • Seals in the undercarriage components, including the track rollers and idlers, help retain lubricants and prevent dirt, dust, and water from entering sensitive parts. Over time, seals can wear out or become damaged, leading to leaks and contamination of the lubricants, which can cause parts to wear prematurely.

   • Solution: Check the seals on rollers, idlers, and sprockets for leaks or signs of deterioration. If you find damaged seals, replace them immediately to prevent further issues. Ensure that the undercarriage components are adequately lubricated to prevent premature wear.


1. Routine Inspections
   • Regular inspections of the undercarriage are crucial to catching early signs of wear and tear. Conduct visual inspections to check for any obvious damage, such as cracks, loose parts, or excessive wear. Additionally, check the track tension, lubricant levels, and alignment of the undercarriage components.

2. Proper Track Tensioning
   • Track tension is one of the most important factors in ensuring the longevity of the undercarriage. Over-tightened tracks can cause excessive wear on rollers and sprockets, while loose tracks can cause the machine to lose traction and increase the risk of damage. Make sure to adjust the track tension according to the manufacturer's guidelines.

3. Lubrication and Greasing
   • Proper lubrication of the undercarriage components is essential for reducing friction and minimizing wear. Be sure to lubricate the rollers, idlers, and other moving parts as recommended in the machine’s service manual. Regular greasing helps extend the life of these parts and ensures smooth operation.

4. Avoid Overloading the Machine
   • Overloading the dozer can put excessive strain on the undercarriage, causing it to wear out faster. Avoid operating the machine beyond its rated capacity and ensure that it is used for tasks that match its specifications.

5. Replace Worn Components Early
   • Replacing worn undercarriage components at the first sign of damage or excessive wear can prevent more significant issues down the line. Replacing a few components early can save you from costly repairs and downtime.


A Schaeff 831 loader equipped with a Bosch Rexroth hydrostatic transmission may suffer from sluggish reverse motion due to faulty pressure control valves, misaligned swash plates, or electrical-hydraulic control mismatches. Swapping directional solenoids and inspecting cartridge valve seals can restore performance without replacing major components.
Schaeff loader background and transmission architecture
The Schaeff 831 loader was designed in Germany for compact earthmoving and material handling. It features:

• A center-pivot articulated frame

• Transversely mounted Perkins diesel engine

• Bosch Rexroth hydrostatic transmission with swash plate pump and motor

• Electric-over-hydraulic control system with directional and speed switches

• Integrated drop box with dual drive motors


• Strong forward drive with full traction

• Sluggish or delayed reverse motion, especially on slopes

• High engine RPM with minimal wheel response in reverse

• Previous repairs improving forward but worsening reverse


• Electric directional switch linked to hydraulic servos

• Rocker switch for high/low speed selection

• Pressure feedback loop to prevent engine stall under load

• Cartridge-style pressure control valves for forward and reverse


1. Swap directional solenoids: Reverse the wiring or physical solenoids controlling forward and reverse. If the problem shifts direction, the fault is electrical.

2. Inspect pressure control valves: On the pump block, remove the cartridge valves for forward and reverse. These are located near the high-pressure outlets and test ports.

3. Check PTFE seal on valve plunger: The outermost seal may be worn or deformed. Carefully remove it with a pick, rotate 180°, and reinstall. Do not disturb the inner rubber O-ring.

4. Test pressure output: Use a 6,000 psi gauge on the test ports. Stall the machine against a dirt bank and compare forward and reverse pressure. Adjust the faulty valve using the hex screw on the plunger.

5. Replace hydraulic filters: Two filters under plastic caps in the tank may be clogged, especially the traction drive filter which filters inside-out.


• The loader’s design favors low-speed, high-force loading cycles. It may not perform well in high-speed transport or steep terrain.

• Brake interlocks and inching pedals may interfere with swash plate control if misadjusted.

• Over-pressurizing the relief valves can crack pump housings—adjust with caution.
