The EX100-3 and Its Hydraulic Architecture
The Hitachi EX100-3 is a mid-sized hydraulic excavator introduced in the 1990s, widely used in utility, forestry, and light construction. Powered by a four-cylinder Isuzu diesel engine, it features a dual-pump hydraulic system with electronically modulated control valves. Its reputation for reliability is well-earned, but aging units can develop elusive hydraulic issues—especially those related to heat, electrical sensors, and pilot pressure regulation.
Symptoms of Progressive Hydraulic Slowness
One operator reported that the machine operated normally for the first hour, then began to slow intermittently. The slowdown worsened with time, eventually causing all functions—including travel, boom, and swing—to alternate between normal and sluggish behavior every few seconds. A pulsing sound from behind the cab, resembling rapid pressurization and depressurization, was noted during warm operation.
This pattern suggests a thermal degradation of hydraulic control, possibly linked to sensor feedback, pilot pressure instability, or relief valve malfunction.
Initial Troubleshooting and Solenoid Replacement
The operator replaced the pump-mounted solenoid valve, suspecting it was failing under heat. Voltage checks confirmed 24V supply to both solenoids, but the replacement yielded no improvement. This ruled out basic electrical failure and pointed toward deeper control logic or mechanical feedback issues.

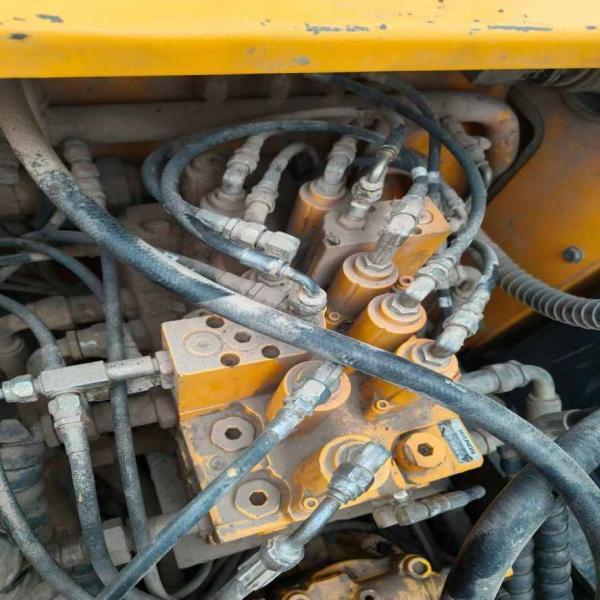

Pilot Pressure and Relief Valve Investigation

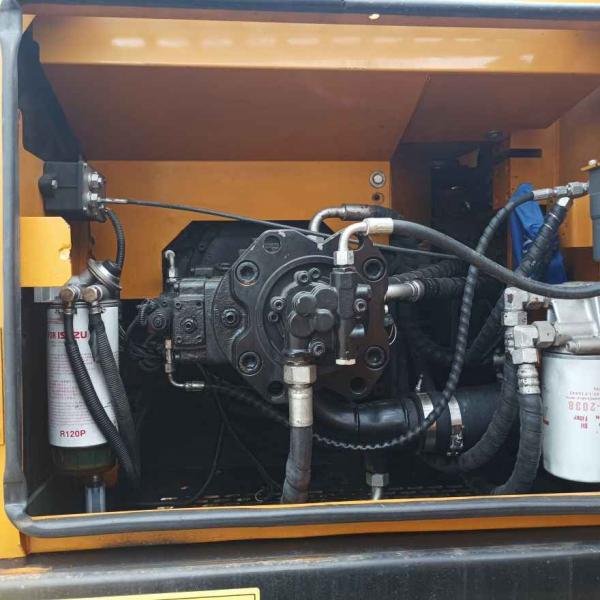

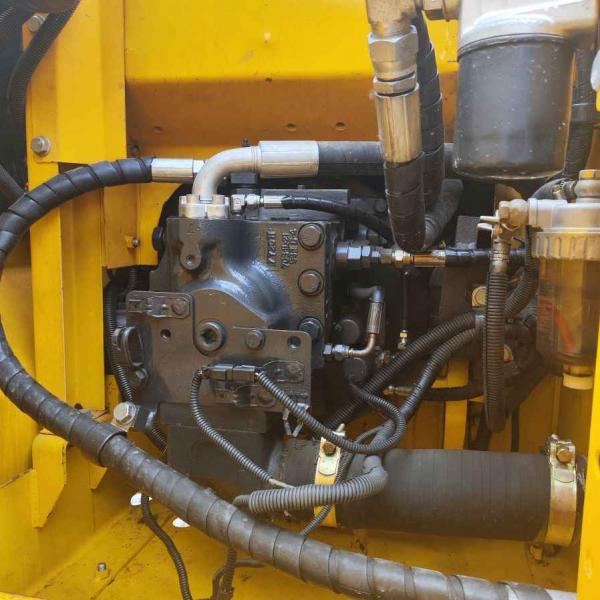

Hydraulic systems rely on pilot pressure—a low-pressure signal that controls high-pressure flow via proportional valves. If pilot pressure drops due to contamination, valve wear, or thermal expansion, the main pumps may reduce output or cycle erratically.
Technicians suggested checking:

• Main pump discharge pressure at startup and during slowdown

• Pilot pressure stability under load and heat

• Relief valve behavior, especially if it opens prematurely due to weak springs or debris


• Measure pilot pressure cold and hot (target: 45 bar ±5)

• Check pump discharge pressure under load

• Inspect and clean relief valves and pilot safety valve

• Test pump angle and engine speed sensors for heat-related failure

• Verify solenoid voltage and coil resistance

• Flush hydraulic fluid and replace filters if contamination is suspected


The Caterpillar 928H wheel loader is a versatile and powerful machine designed for a range of tasks in construction, mining, and material handling. As with any complex piece of machinery, issues can arise, particularly with the hydraulic system that powers the loader's critical functions such as lifting, digging, and loading. Hydraulic problems can manifest in various ways, and troubleshooting them effectively requires an understanding of the hydraulic system’s components and how they work together. This article will examine common hydraulic issues that may affect the CAT 928H loader, the potential causes of these issues, and how to resolve them.
Overview of the CAT 928H Loader
The CAT 928H is part of Caterpillar’s H-Series wheel loaders, which are known for their fuel efficiency, robust performance, and enhanced operator comfort. The 928H loader is designed to handle various tasks, including material handling, digging, lifting, and grading. Equipped with a powerful engine and a reliable hydraulic system, the 928H is a popular choice for operators who need both maneuverability and raw power in their equipment.
Key specifications for the 928H include:

• Engine Power: Approximately 130 horsepower.

• Operating Weight: Around 15,000 lbs (6,800 kg).

• Bucket Capacity: 1.7 to 2.5 cubic yards, depending on the attachment.

• Hydraulic System Pressure: Typically between 3,500 and 3,800 psi.


1. Hydraulic Pump: The pump is the heart of the hydraulic system, responsible for generating the necessary pressure to move hydraulic fluid through the system.

2. Hydraulic Fluid: The fluid transmits pressure and is essential for smooth operation. Contaminated or low fluid can cause system failures.

3. Valves: These control the direction and flow of hydraulic fluid to various parts of the system, including the lift cylinders and steering.

4. Hydraulic Cylinders: These actuators convert hydraulic energy into mechanical force to lift, tilt, or extend the loader’s arms.

5. Hoses and Fittings: These deliver hydraulic fluid between the components and are vulnerable to wear and leaks.


1. Slow or Jerky Lift:
   • If the loader's arms or bucket lift slowly or jerkily, it typically indicates a problem with the hydraulic system. This could be due to low fluid levels, air in the system, or a malfunctioning hydraulic pump. A common issue is a clogged hydraulic filter, which can restrict fluid flow and reduce system pressure.

2. Loss of Power to the Bucket or Arms:
   • A sudden loss of power to the bucket or arms can signal an issue with the hydraulic pressure. Possible causes include a malfunctioning hydraulic valve, low hydraulic fluid, or damage to the hydraulic pump. If there’s a loss of power when trying to lift heavy loads, it’s important to check the system for leaks or air.

3. Erratic Steering:
   • If the loader is experiencing erratic or slow steering, it could indicate a hydraulic pressure problem. Steering on a wheel loader is typically powered by hydraulic fluid, and issues such as low fluid or air in the system can prevent the wheels from turning smoothly. Leaks in the steering circuit or a failing steering pump can also contribute to this issue.

4. Hydraulic Leaks:
   • Leaks in the hydraulic system are a common problem that can lead to low pressure and poor performance. Leaks can occur in hoses, fittings, or seals. Fluid loss can cause system instability and a reduction in lifting power. It’s important to regularly inspect the hydraulic lines and components for any signs of leakage.

5. Overheating of Hydraulic Fluid:
   • If the hydraulic fluid is overheating, it can cause the system to lose efficiency, leading to sluggish performance and potential damage to components. Overheating may be caused by excessive load on the hydraulic system, poor fluid quality, or a malfunctioning cooling system. Overheating is a serious issue that can accelerate wear on the hydraulic components and lead to costly repairs if not addressed.


1. Check Hydraulic Fluid Level:
   • The first step is to ensure that the hydraulic fluid is at the correct level. Low fluid levels can cause many hydraulic issues, including slow or jerky movements and poor lifting power. If the fluid is low, top it up with the recommended type of hydraulic fluid. Also, check for any fluid leaks around the hoses, valves, and cylinders.

2. Inspect the Hydraulic Filter:
   • A clogged or dirty hydraulic filter can restrict fluid flow and cause a drop in hydraulic pressure. If you notice slow or erratic movements, it’s a good idea to replace the filter. Regularly changing the hydraulic filter is essential for maintaining the health of the system.

3. Check for Air in the System:
   • Air in the hydraulic system can cause erratic movements and a loss of power. If you suspect air in the system, it may need to be bled out. Check the hydraulic hoses for any signs of damage, and ensure that all connections are tight to prevent air from entering the system.

4. Examine Hydraulic Hoses and Fittings:
   • Inspect the hydraulic hoses and fittings for any signs of wear, cracks, or leaks. Even a small leak can reduce system pressure and lead to poor performance. If any hoses or fittings are damaged, replace them immediately.

5. Test the Hydraulic Pump:
   • If the hydraulic system is not providing enough power, the hydraulic pump may be failing. To check the pump, perform a pressure test to ensure that it is generating the correct pressure. If the pressure is low, the pump may need to be repaired or replaced.

6. Check the Steering System:
   • If there are issues with steering, inspect the steering pump and associated hydraulic lines for leaks. Also, check the fluid level in the steering system. If necessary, bleed the system to remove any air and ensure smooth operation.

7. Monitor Fluid Temperature:
   • If the hydraulic fluid is overheating, ensure that the cooling system is working properly. Check the condition of the cooling fan, radiator, and heat exchangers. Also, make sure that the hydraulic fluid is the correct type and has not become contaminated.


1. Regular Fluid Checks:
   • Check the hydraulic fluid levels regularly and top them up if necessary. Use only the recommended hydraulic fluid to ensure optimal system performance.

2. Change Filters on Schedule:
   • Replace the hydraulic filter at the intervals specified in the owner’s manual. This helps maintain fluid flow and keeps contaminants from damaging the system.

3. Inspect Hoses and Seals:
   • Regularly inspect hydraulic hoses and seals for wear or damage. Early detection of leaks can prevent major issues down the line.

4. Monitor Performance:
   • Keep an eye on the loader’s performance. If you notice any unusual behavior, such as sluggish movements, erratic steering, or fluid loss, investigate the cause immediately.

5. Hydraulic Fluid Maintenance:
   • Keep the hydraulic fluid clean and free of contaminants. Consider replacing the fluid periodically based on the machine's usage and the manufacturer's recommendations.


The Power of Pairing in Open-Pit Mining
In large-scale surface mining operations, productivity hinges on the seamless coordination between loading and hauling equipment. One of the most iconic combinations in this domain is the pairing of the Komatsu PC4000 hydraulic excavator with the Komatsu 730E haul truck. This duo is engineered to move massive volumes of overburden and ore efficiently, often operating in remote and extreme environments such as the steppes of Kazakhstan or the copper pits of Chile.
Komatsu PC4000 Excavator Overview
The PC4000 is a high-capacity hydraulic excavator designed for mining and heavy earthmoving. It features:

• Operating weight: approximately 400 metric tons

• Bucket capacity: up to 29 cubic meters (38 cubic yards)

• Engine: twin Komatsu SDA16V160E-2 diesel engines, delivering over 2,000 horsepower

• Digging force: over 1,000 kN, allowing penetration into compacted rock


• Payload capacity: 181 metric tons

• Engine: Komatsu SSDA16V160, rated at 2,000 horsepower

• Drive system: GE electric traction motors

• Top speed: 64 km/h (40 mph) unloaded


• PC4000: daily inspections of hydraulic lines, swing bearings, and undercarriage rollers

• 730E: regular checks on wheel motors, inverter cooling, and tire pressure


The Mitsubishi MX-35 excavator, though not as widely recognized as some of its larger counterparts, offers a powerful solution for smaller-scale excavation tasks. With its compact size, versatile performance, and impressive digging capabilities, the MX-35 has become a reliable choice for contractors in urban construction, landscaping, and infrastructure projects. In this article, we explore the features, advantages, and potential challenges associated with the Mitsubishi MX-35 excavator, providing a comprehensive look at its design, performance, and maintenance.
Introduction to Mitsubishi Excavators
Mitsubishi Heavy Industries, a leader in the global construction machinery market, has developed a wide range of excavators designed to meet the needs of different industries. While the company is more famous for its larger equipment, the Mitsubishi MX-35 stands out as a compact yet capable machine in its lineup. Mitsubishi's commitment to quality and innovation is evident in this model, which combines robust engineering with efficiency.
Mitsubishi entered the construction equipment market in the early 20th century, and over the decades, it has established itself as a reliable brand in the global machinery sector. While Mitsubishi excavators are not as widespread in certain markets as brands like Caterpillar or Komatsu, they are known for their longevity and solid performance in demanding environments.
Key Features of the Mitsubishi MX-35 Excavator

1. Engine and Power
   • The Mitsubishi MX-35 is powered by a reliable diesel engine, typically offering around 35-45 horsepower depending on the specific variant. This engine provides ample power for most small to medium excavation tasks, ensuring the machine can handle everything from digging trenches to lifting materials. The engine is designed for fuel efficiency, making it a cost-effective choice for operators who need to run the machine for extended hours.

2. Hydraulic System
   • One of the standout features of the Mitsubishi MX-35 is its hydraulic system. It is equipped with a powerful hydraulic pump that offers excellent lifting and digging capabilities. The hydraulic system powers the boom, arm, and bucket, allowing for smooth and precise control of the machine. The MX-35’s hydraulics are engineered to deliver high performance while minimizing fuel consumption, making it suitable for a variety of applications.

3. Compact Design
   • As a mini-excavator, the Mitsubishi MX-35 features a compact design that allows it to work in tight spaces where larger machines might struggle. Its smaller footprint makes it an ideal choice for urban construction, landscaping, and demolition projects, where space is often limited. The reduced size also means the machine can be transported easily between job sites, making it a convenient tool for contractors on the go.

4. Versatility and Attachments
   • The Mitsubishi MX-35 is designed for versatility. It can be equipped with a variety of attachments, including buckets, augers, and hydraulic hammers, allowing it to perform a range of tasks beyond just digging. This flexibility makes the MX-35 an excellent choice for contractors who need a machine that can adapt to different kinds of work on the same job site.

5. Operator Comfort
   • The operator’s cabin in the Mitsubishi MX-35 is designed to offer comfort during long workdays. It features ergonomic controls and a spacious seat, reducing operator fatigue and improving efficiency. Additionally, the cabin is designed for excellent visibility, allowing the operator to maneuver the excavator safely and efficiently, especially when working in tight spaces.

6. Durability
   • Despite its compact size, the Mitsubishi MX-35 is built to last. It is constructed with high-quality materials designed to withstand harsh working conditions. The robust frame, durable components, and advanced hydraulic system ensure that the machine performs reliably in tough environments, from construction sites to demolition zones.


1. Space-Saving and Efficient
   • The compact size of the MX-35 is one of its biggest advantages. It can easily navigate through narrow passages and confined spaces, making it ideal for urban areas or sites with limited accessibility. Despite its small size, it still delivers the power necessary to complete demanding excavation tasks effectively.

2. Fuel Efficiency
   • The Mitsubishi MX-35 is designed with fuel efficiency in mind, which helps reduce operational costs over time. Its engine and hydraulic system are optimized to provide excellent performance without excessive fuel consumption, which is a significant advantage for contractors working on budget-conscious projects or those running multiple machines.

3. Low Maintenance Requirements
   • The simplicity of the Mitsubishi MX-35’s design, combined with Mitsubishi's reputation for durable construction, means the excavator requires relatively low maintenance compared to some other models. Routine checks, fluid changes, and periodic inspections are enough to keep the machine running smoothly for years.

4. Ideal for Small to Medium Projects
   • The MX-35’s size and capabilities make it well-suited for smaller construction projects, landscaping, and excavation in tight or urban areas. It can handle tasks such as trenching, digging foundations, lifting materials, and other general construction work with ease.


1. Limited Lifting Capacity
   • While the MX-35 is a powerful machine for its size, its lifting capacity is limited compared to larger excavators. This may pose a challenge when dealing with particularly heavy materials or tasks that require significant lifting power. Operators should be mindful of the weight limits and plan their work accordingly.

2. Hydraulic System Sensitivity
   • The hydraulic system in the MX-35, while efficient, can be sensitive to contamination. Operators should ensure that the hydraulic fluid is clean and that filters are regularly changed. Failure to maintain a clean hydraulic system can lead to poor performance and premature wear on the components.

3. Availability of Parts and Service
   • While Mitsubishi excavators are known for their durability, finding replacement parts and service in some regions can be more challenging compared to more widely distributed brands. Contractors and operators may need to work with specialized dealers or service centers for parts, which can sometimes increase maintenance costs or lead times for repairs.


1. Hydraulic Problems:
   • If the hydraulic system is not responding or if there’s a noticeable drop in performance, check the hydraulic fluid level and quality. Dirty or low fluid can cause sluggish operation. Also, inspect for any leaks in the hydraulic lines, as even a small leak can result in significant pressure loss.

2. Engine Starting Issues:
   • If the engine fails to start, check the battery and ensure that all electrical connections are secure. Inspect the fuel system for blockages or air in the lines, and replace the fuel filter if necessary. Regular engine maintenance, such as oil and filter changes, can also help prevent starting issues.

3. Uneven Digging or Bucket Performance:
   • If the bucket or arm is not operating smoothly, check for any issues with the hydraulic cylinders. Look for leaks or damage to the seals, which could be causing pressure loss. Additionally, ensure that the control valves are functioning properly, as these are responsible for directing hydraulic fluid to the necessary components.


Why Drum Changes Matter in Road Milling
In the world of asphalt milling, time is money. Whether switching from a full-width drum to a half-lane configuration or replacing worn components, the speed and precision of drum changes directly affect jobsite productivity. Wirtgen, a leading manufacturer of cold milling machines, designs its equipment with modular drum assemblies to support rapid swaps. However, the process still demands careful planning, specialized carts, and crew coordination.
Typical Drum Configurations and Swap Scenarios
Wirtgen machines often operate with either a full-width 12-foot drum or a segmented half-lane drum. The half-lane drum typically comes in two pieces, allowing for easier handling and transport. Operators may switch configurations based on lane width, curb proximity, or project phasing. For example:

• Full drum: used for highway milling and large-area removal

• Half-lane drum: ideal for shoulder work, trenching, or urban intersections


• Caster wheels for easy maneuvering under the machine

• Low-profile skids to slide the drum out without lifting

• Bolt-on brackets to secure the drum during transport


• Water tanks

• Spray bars

• Pump lines


• Machine setup and safety checks

• Drum removal and cart positioning

• Belt housing adjustments

• Drum installation and bolt torqueing

• Hydraulic and electrical reconnections


The Caterpillar D9H is a formidable machine, renowned for its power, reliability, and efficiency in heavy-duty applications like construction, mining, and land reclamation. However, as with any complex piece of machinery, issues can arise that may hinder its performance. One such issue is a loss of drive coupled with low pressure at the priority valve. In this article, we will explore the potential causes of this problem, the role of the priority valve, and the steps to troubleshoot and resolve the issue.
Understanding the D9H Dozer and Its Hydraulic System
The Caterpillar D9H dozer is equipped with a highly sophisticated hydraulic system that powers various components, including the tracks, blade, and other auxiliary features. The hydraulic system relies on fluid pressure to transfer power and enable smooth operation. One critical component in this system is the priority valve, which regulates hydraulic flow and ensures that the most essential functions receive priority in power distribution. If the priority valve is experiencing issues, it can lead to low pressure and, consequently, a loss of drive, making the dozer inoperable or difficult to control.
The D9H model, introduced in the late 1970s, is part of Caterpillar's long line of heavy equipment designed for tough work environments. With a gross weight of around 80,000 pounds and a 330-horsepower engine, the D9H is known for its efficiency in moving large amounts of material. It is commonly used for earth-moving, grading, and heavy lifting. While the D9H is built for durability, its hydraulic system is highly intricate, and small faults can disrupt its operations.
What Is the Priority Valve?
The priority valve in the D9H dozer’s hydraulic system is responsible for directing fluid to the most critical functions of the machine. This valve ensures that the hydraulic system's power is distributed where it is needed most. In the D9H, this typically means giving priority to the drive motors, allowing the dozer to move under load, and controlling the blade for material handling. When the priority valve experiences issues, such as clogged or damaged components, it can cause a reduction in hydraulic pressure, leading to sluggish or non-functional movement.
Causes of Low Pressure at the Priority Valve

1. Clogged or Dirty Hydraulic Filter:
   • A common cause of low pressure at the priority valve is a clogged or dirty hydraulic filter. Hydraulic systems are highly sensitive to contamination, and dirt or debris can block the fluid’s flow. A restricted filter can cause a drop in pressure, preventing the priority valve from receiving enough fluid to operate correctly. Over time, this can lead to significant performance issues, including the loss of drive.

2. Faulty Priority Valve:
   • The priority valve itself can wear out or fail due to age or wear and tear. A faulty valve may not properly regulate fluid flow, which could result in uneven pressure distribution across the hydraulic system. In some cases, the valve's internal components, such as springs or seals, may become damaged or worn, causing fluid leakage and pressure loss.

3. Low Hydraulic Fluid Level:
   • Hydraulic fluid is essential for maintaining proper pressure in the system. If the fluid level is too low, the hydraulic pump may not generate enough pressure to power the system. This can affect the priority valve's performance and result in low pressure. Hydraulic fluid can also become contaminated over time, further exacerbating the issue.

4. Hydraulic Pump Issues:
   • The hydraulic pump plays a crucial role in generating pressure within the system. If the pump is malfunctioning or has worn-out components, it may not provide enough pressure to operate the priority valve correctly. A failing pump can cause a significant loss of hydraulic power, impacting the entire system.

5. Air in the Hydraulic System:
   • Air trapped in the hydraulic lines can interfere with fluid flow, reducing the overall pressure and causing erratic or inconsistent behavior from the hydraulic system. This can be particularly problematic when air enters the system through a leak or during fluid changes. The presence of air can lead to low pressure at critical points like the priority valve.

6. Valve Sticking or Blockage:
   • The priority valve itself could be obstructed by sludge, dirt, or worn seals, leading to reduced pressure or a complete failure to function. The internal mechanisms of the valve may stick, preventing the correct amount of fluid from reaching essential parts of the hydraulic system, including the drive motors.


1. Check Hydraulic Fluid Level:
   • The first step is to verify the hydraulic fluid level. If it’s too low, top it up with the recommended type of hydraulic fluid. Always use high-quality fluid that meets Caterpillar’s specifications to avoid contamination.

2. Inspect the Hydraulic Filter:
   • Check the hydraulic filter for signs of clogging or contamination. If the filter is dirty, replace it with a new one. A clean filter ensures optimal fluid flow and pressure.

3. Examine the Priority Valve:
   • If the fluid level and filter are fine, the next step is to inspect the priority valve itself. Look for any signs of leaks, wear, or damage. If the valve appears to be malfunctioning, it may need to be replaced or repaired.

4. Test the Hydraulic Pump:
   • Test the hydraulic pump to ensure it is generating the correct amount of pressure. If the pump is malfunctioning, it may not be delivering enough power to the priority valve, leading to low pressure and loss of drive. A pressure test can confirm whether the pump is functioning properly.

5. Look for Air in the System:
   • Air in the system can cause pressure fluctuations and should be purged. Bleed the system to remove any trapped air. Ensure that all fittings are properly sealed to prevent further air ingress.

6. Check for Leaks:
   • Inspect the hydraulic lines, hoses, and fittings for leaks. Any hydraulic fluid leaks can lead to pressure drops and erratic system behavior.


1. Replacing or Cleaning the Priority Valve:
   • If the priority valve is found to be faulty or clogged, it may need to be replaced or cleaned. Ensure that all parts are in good condition and functioning properly before reassembling the valve. Regular maintenance of the valve can help prevent future issues.

2. Hydraulic Fluid Replacement:
   • If the hydraulic fluid is contaminated or degraded, it should be replaced. Make sure to also replace the filter when changing the fluid to ensure the system remains clean and free of debris.

3. Regular System Maintenance:
   • Conduct regular maintenance on the hydraulic system to prevent issues like low pressure and loss of drive. Regular fluid checks, filter replacements, and pressure tests can keep the system in good working condition.

4. Professional Diagnosis:
   • If the issue persists or the cause of the low pressure remains unclear, it’s advisable to seek professional assistance. A qualified technician can perform a more thorough diagnosis and make repairs or replacements as necessary.


Introduction to the CAT 304.5
The Caterpillar 304.5 mini excavator was introduced in the early 2000s as part of CAT’s compact equipment lineup, targeting contractors, landscapers, and utility crews. With an operating weight of approximately 10,000 lbs and a 40-horsepower diesel engine, the 304.5 offered a solid balance of power and maneuverability. Its zero-tail swing design and hydraulic thumb compatibility made it a popular choice for tight job sites and light-to-medium-duty excavation.
Machine Overview and Purchase Considerations
A prospective buyer recently evaluated a used CAT 304.5 with 2,800 hours on the meter, priced $3,500 to $4,000 below typical market value. The machine appeared physically tight and free of external leaks, but several operational issues raised red flags. The buyer intended to use the excavator for light-duty farm work, including tree transplanting, road maintenance, and general cleanup—approximately 150 hours per year.
Hydraulic Performance Issues
Several hydraulic anomalies were noted during inspection:

• The dozer blade could lift the machine even at idle, suggesting strong hydraulic pressure in that circuit.

• However, the boom and arm required full throttle to lift the machine, indicating possible pump wear, flow restriction, or control valve imbalance.

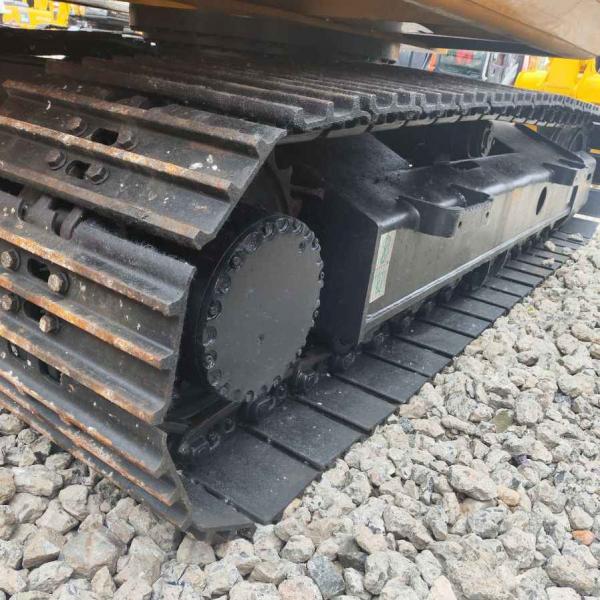

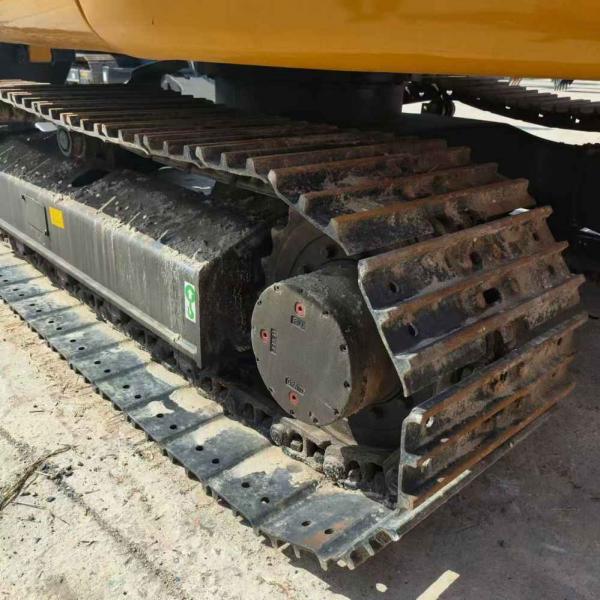

• When turning, the left track spun under load, but the right track did not. In straight-line travel, both tracks engaged, which may point to a drive motor imbalance, final drive wear, or pilot control inconsistency.

• The upper structure exhibited a slow rotational drift to the right—approximately two feet per hour—suggesting internal leakage in the swing motor or center swivel joint wear.


• Hydraulic pump rebuild or replacement: $2,000–$4,000

• Final drive or travel motor service: $1,500–$3,000 per side

• Swing motor reseal or replacement: $800–$2,500

• New tracks: $1,500 average


• Hire a qualified heavy equipment mechanic to perform a full inspection

• Conduct a hydraulic pressure test on all circuits

• Check for error codes or diagnostic history if the machine has an electronic control module

• Test all functions under load, including travel, swing, boom, and blade

• Factor in downtime and parts availability if repairs are needed


The John Deere 510 backhoe loader is a staple in the construction and excavation industries, valued for its reliability, versatility, and durability. Whether you’re digging trenches, lifting materials, or performing various earth-moving tasks, the 510 backhoe is equipped to handle a range of challenges. This article delves into the features, capabilities, and maintenance considerations for the John Deere 510, as well as its role in the broader landscape of heavy equipment.
The John Deere 510: A Brief Overview
John Deere, a globally recognized leader in agricultural and construction machinery, introduced the 510 backhoe loader as part of its series of versatile, compact, and powerful machines. As a backhoe loader, the 510 is designed to handle both front-end loader and backhoe functions, making it an ideal piece of equipment for contractors and operators who need to maximize productivity on the job site.
The 510 is part of John Deere’s mid-sized backhoe range and was introduced in the 1990s as a solution for users looking for a balance between power, maneuverability, and ease of use. With a robust engine and hydraulic system, the 510 can tackle a variety of tasks, from digging foundations to lifting heavy materials. Over the years, it has gained a reputation for being a dependable workhorse, particularly in applications that demand high performance in confined spaces.
Key Features of the John Deere 510 Backhoe

1. Engine and Power:
   • The John Deere 510 backhoe is powered by a four-cylinder diesel engine, typically in the range of 60 to 75 horsepower, depending on the specific model and year. This provides ample power for a range of tasks, ensuring the backhoe can operate efficiently under load.

   • The engine is designed for fuel efficiency, making it a cost-effective option for long days of operation in the field. It also offers low emissions, meeting environmental standards.

2. Hydraulic System:
   • The hydraulic system is one of the standout features of the John Deere 510. It utilizes a highly responsive hydraulic pump that provides significant lifting and digging capabilities. The hydraulic system powers both the front loader and the backhoe, ensuring that operators can switch between tasks seamlessly.

   • The backhoe features a large digging depth, often exceeding 14 feet, allowing it to handle deeper excavations. The front loader offers high lifting capacities, making it useful for moving heavy materials like gravel, dirt, and sand.

3. Operator Comfort:
   • The John Deere 510 features a spacious operator’s cabin, designed for comfort during long shifts. With adjustable seating, user-friendly controls, and good visibility, operators can work more efficiently and safely.

   • The cabin is often equipped with climate control options, making it a comfortable environment even in hot or cold weather.

4. Maneuverability:
   • Despite its solid power, the 510 is designed for high maneuverability. Its compact size allows it to work in tight spaces, making it ideal for urban construction sites, roadwork, and landscaping jobs. The backhoe’s turning radius is relatively small, enabling operators to navigate through confined areas easily.

5. Durability and Longevity:
   • Like all John Deere equipment, the 510 backhoe is built with durability in mind. With proper maintenance, these machines can provide years of reliable service. The rugged frame and heavy-duty components ensure that the backhoe can withstand the wear and tear of demanding environments.


1. Hydraulic Fluid and Filter Maintenance:
   • Regularly check the hydraulic fluid level and quality. Contaminated or low hydraulic fluid can lead to poor performance, increased wear, and potential damage to the pump and cylinders. Change the hydraulic fluid and filter at recommended intervals to ensure the system remains in good working condition.

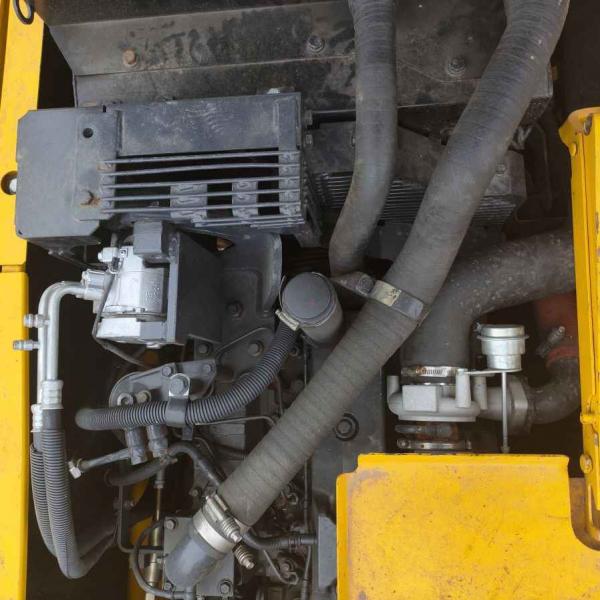

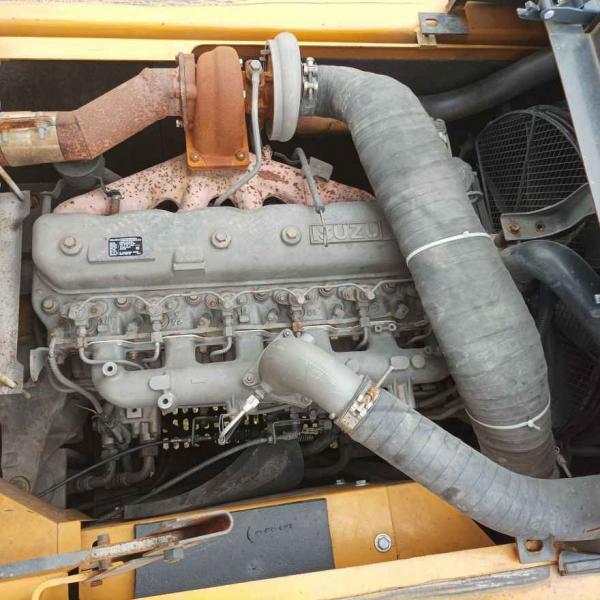

2. Engine Care:

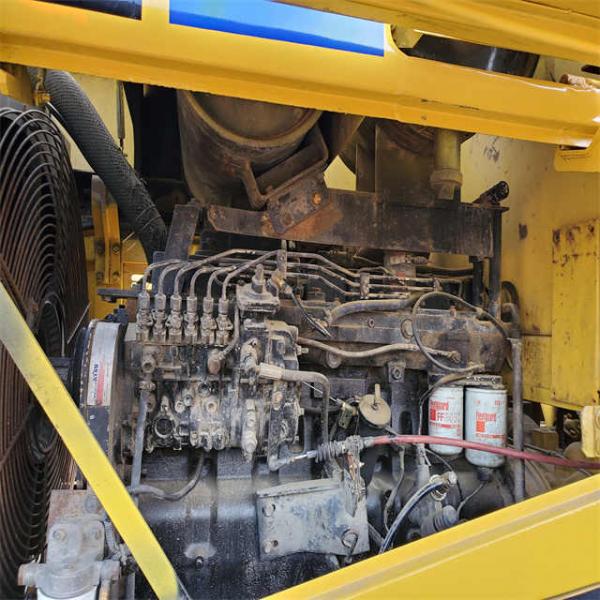

   • Keep the engine well-maintained by changing the oil and filters regularly. Diesel engines require proper fuel management, so use high-quality fuel to prevent clogs in the fuel system. Check the air filter and replace it when necessary to maintain optimal engine performance.

3. Cooling System:
   • The cooling system is vital for preventing engine overheating. Check the radiator and coolant levels frequently, especially during hot weather or long working hours. Inspect for any leaks or corrosion that might compromise the cooling system's efficiency.

4. Tire Pressure and Wear:
   • Ensure that the tires are properly inflated and check for any signs of excessive wear. Uneven tire wear can affect the backhoe’s maneuverability and stability. Rotate the tires if necessary, and replace them when they reach the end of their service life.

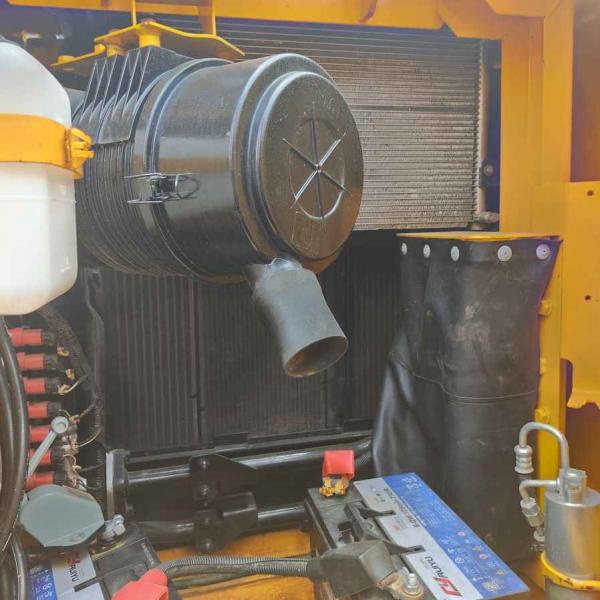

5. Battery and Electrical System:
   • Regularly inspect the battery for corrosion or leakage. Clean the terminals and ensure the battery is fully charged. Electrical issues, such as faulty connections or a failing alternator, can cause operational problems, so it’s important to address any electrical concerns promptly.

6. Boom and Bucket Inspection:
   • The boom and bucket are subject to high-stress loads, so they require frequent inspection for cracks or signs of wear. Check the bucket teeth, hydraulic cylinders, and pins for any damage that could affect performance. Lubricate moving parts regularly to reduce friction and prevent premature wear.


1. Slow or Erratic Hydraulic Function:
   • If the hydraulic functions, such as the boom or bucket, respond slowly or erratically, it may indicate air in the hydraulic lines, a fluid leak, or low fluid levels. Check the system for leaks, bleed the lines, and ensure the fluid is topped off.

2. Engine Stalling or Difficulty Starting:
   • Difficulty starting the engine can be caused by a weak battery, faulty fuel injectors, or air in the fuel lines. Inspect the battery and fuel system, and replace any worn components. Make sure the fuel filter is clean to ensure smooth engine operation.

3. Uneven Bucket Performance:
   • If the bucket isn’t lifting or dumping evenly, it may indicate a problem with the hydraulic cylinders or linkage. Inspect the cylinders for leaks or damage, and check the linkage for any loose or worn parts.


Hydraulic systems are integral to the smooth operation of many heavy machines, including graders like the John Deere 772A. These systems are responsible for powering a wide range of functions, from raising and lowering the blade to adjusting the machine's steering. However, one common issue that can disrupt the operation of hydraulic systems is the presence of air in the hydraulic lines. Air can cause erratic or sluggish hydraulic responses, and in some cases, may even lead to complete system failure. Properly bleeding air from the hydraulic lines is an essential maintenance task that ensures the system functions optimally. This article delves into how to bleed air from the hydraulic system of the John Deere 772A grader, the importance of maintaining the hydraulic system, and practical tips for troubleshooting.
Understanding the Hydraulic System of the John Deere 772A

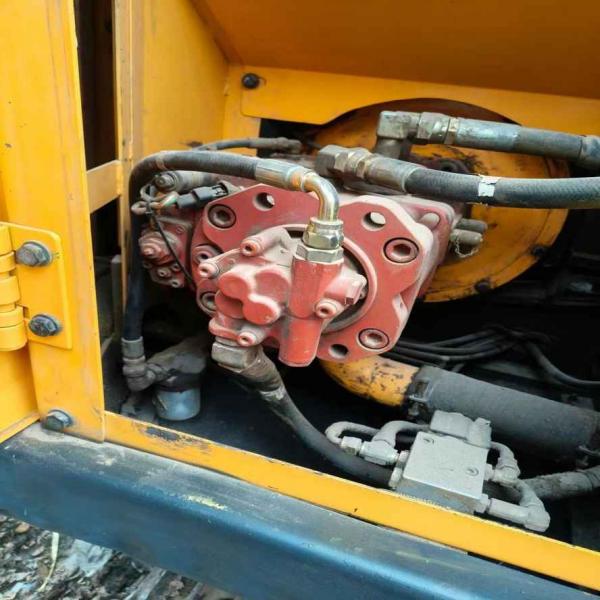

The John Deere 772A, a popular grader model in the construction and road maintenance industries, uses a sophisticated hydraulic system to control various components. These include the blade, the circle drive, and the articulation mechanism, which allows the grader to pivot for better maneuverability. The hydraulic system is powered by a high-pressure pump that circulates hydraulic fluid through a network of hoses and valves.
One of the most common issues with hydraulic systems is air entering the lines, which can result from various sources such as improper fluid levels, faulty seals, or a hydraulic fluid leak. When air is trapped in the lines, it can cause the hydraulic fluid to lose its pressurized properties, leading to poor performance. In extreme cases, air can prevent the hydraulic system from operating altogether, making it necessary to perform an air-bleeding procedure.
Symptoms of Air in Hydraulic Lines
Before getting into the procedure for bleeding the air, it’s important to recognize the symptoms of air in the hydraulic system. These include:

1. Erratic or Slow Hydraulic Movements: If the machine’s hydraulic functions, such as raising the blade or steering, respond sluggishly or in an unpredictable manner, this could indicate that air has entered the system.

2. Unusual Sounds: You might hear a gurgling or whining sound coming from the hydraulic system, which can be a sign of air bubbles circulating in the hydraulic fluid.

3. Reduced Performance: A noticeable reduction in the power or speed of hydraulic movements could indicate that the air is disrupting the pressure within the system.

4. Fluid Leaks: Sometimes, air in the hydraulic lines can lead to internal leaks or external leakage, as the seals may not maintain proper pressure.


1. Overheating: Air in the lines can cause the hydraulic fluid to heat up, which may lead to the degradation of the fluid and accelerated wear on the system.

2. Damage to Hydraulic Components: Consistent exposure to air can lead to cavitation, a condition where air bubbles form and collapse in the hydraulic fluid. This can cause significant damage to pumps, valves, and seals.

3. Decreased Efficiency: Air in the lines reduces the overall efficiency of the hydraulic system, causing slower responses and erratic behavior during operation.


1. Prepare the Equipment and Tools:
   • Ensure the machine is on a flat, stable surface.

   • Gather necessary tools, including wrenches, a drain pan for excess fluid, and a clean cloth to prevent contamination.

   • Wear gloves and eye protection to safeguard against hydraulic fluid splashes.

2. Check Hydraulic Fluid Levels:
   • Before starting the bleeding procedure, verify that the hydraulic fluid is at the correct level. Low fluid levels can contribute to air entering the system. Refer to the John Deere 772A owner’s manual for the exact fluid capacity and recommended type.

   • If needed, add the appropriate hydraulic fluid to bring the level up to specification.

3. Locate the Bleeding Valve or Ports:
   • The John Deere 772A typically has a bleed valve on each main hydraulic cylinder or at a convenient point in the system. These valves allow air to escape when the system is under pressure.

   • Consult the machine’s service manual to locate the exact positions of these bleed valves.

4. Start the Machine and Engage the Hydraulic System:
   • Start the engine of the John Deere 772A and engage the hydraulic functions, such as the blade and steering, to pressurize the hydraulic system.

   • Leave the machine running at idle to avoid overloading the pump during the process.

5. Open the Bleeding Valve:
   • Begin with the highest point in the hydraulic system, usually the main control valve or the most elevated cylinder, and open the bleed valve slowly.

   • Allow the air to escape while monitoring the fluid for any signs of air bubbles. The fluid should begin to flow steadily without foam or gurgling sounds.

   • Once the air has been purged from the system and only clean hydraulic fluid is coming out, close the valve tightly.

6. Repeat the Process for All Cylinders and Components:
   • Move through the hydraulic system, repeating the process for each component, such as the blade lift cylinders and steering mechanisms.

   • Be sure to check all valves and cylinders, as air could be trapped in any of these sections.

7. Test the System:
   • After bleeding all components, test the hydraulic system by operating the blade, steering, and other controls. The movements should be smooth and responsive without any jerky or slow actions.

   • If the problem persists, recheck the system for any hidden air pockets or leaks in the lines.

8. Check for Leaks:
   • After bleeding the air from the system, inspect the hydraulic lines and components for any fluid leaks. Leaks can be indicative of damaged seals or fittings that need to be replaced.


1. Check for Fluid Contamination: Contaminants in the hydraulic fluid, such as dirt or water, can affect the system's performance. Drain and replace the fluid if necessary.

2. Inspect for Leaks: Look for leaks around the pump, hoses, and cylinders, as these can allow air to enter the system.

3. Verify Hydraulic Pump Operation: Ensure that the hydraulic pump is functioning correctly and is not damaged. A malfunctioning pump can cause erratic pressure and poor performance.


1. Regular Fluid Checks: Keep an eye on the hydraulic fluid level and condition. Regularly inspect for signs of contamination or degradation.

2. Proper Seals: Ensure that all seals and O-rings are in good condition to prevent air from leaking into the system.

3. Avoid Overfilling: Do not overfill the hydraulic system, as this can cause excessive pressure and lead to air pockets.


Why DIY Well Drilling Still Matters
In regions where municipal water is unavailable or unreliable, drilling a private well becomes essential. While professional rigs offer speed and depth, they can be prohibitively expensive—often exceeding $10,000 for a single borehole. For landowners, homesteaders, and off-grid builders, a homemade well drilling rig offers a low-cost alternative, especially for shallow wells under 100 feet. The process demands mechanical creativity, patience, and a deep understanding of soil behavior.
Designing the Rig from Scratch
One operator constructed a homemade rig using salvaged steel, a hydraulic power unit, and a vertical mast mounted on a trailer. The drill head was powered by a hydraulic motor connected to a gearbox, driving a 2-inch drill stem with carbide-tipped bits. The rig included:

• A tripod or mast with pulley system for lifting drill pipe

• A mud pump to circulate drilling fluid and remove cuttings

• A rotary table or drive head to spin the pipe

• A water tank for mixing bentonite or detergent-based drilling mud


• Start with a soil survey or talk to local well drillers to understand subsurface conditions

• Use bentonite early to prevent borehole collapse

• Design for modularity—being able to swap bits, motors, or pumps is crucial

• Expect setbacks—broken bits, stuck pipe, and motor overheating are common

• Document every step for future maintenance or troubleshooting
