The Komatsu 700H is a robust, mid-sized track dozer known for its power and reliability in various construction, mining, and landscaping projects. Designed with a focus on ease of operation and long-term durability, the 700H has become a staple in many heavy equipment fleets worldwide. However, like all heavy machinery, it is not without its issues, especially concerning its hydraulics, transmission, and undercarriage components.
This article delves into the key features, common problems, maintenance tips, and troubleshooting techniques for the Komatsu 700H dozer. With proper understanding and care, operators can extend the life of their machine while avoiding costly downtime.
Overview of the Komatsu 700H Dozer
The Komatsu 700H is part of the H-series track dozers, a line of machines designed to offer superior traction, engine power, and operator comfort. The dozer’s engine typically offers between 130 to 160 horsepower, depending on the specific configuration, making it suitable for medium to heavy-duty tasks such as grading, pushing earth, and clearing obstacles. The 700H is widely used for projects that require high performance and minimal maintenance, including road construction, mining, and land clearing.
Key Features:

1. Powerful Engine: The Komatsu 700H typically comes with a 6-cylinder diesel engine. This engine is known for its fuel efficiency and ability to deliver consistent power over long periods, making it suitable for demanding tasks.

2. Hydraulic System: The dozer is equipped with a hydraulic system designed to provide smooth and powerful blade operations, including lifting, tilting, and angling of the dozer blade.

3. Track System: The 700H features an advanced track system, allowing for excellent ground contact and traction. This system is particularly useful for operations in difficult terrain and soft soils.

4. Operator Comfort: The dozer’s cabin is designed for optimal visibility and ease of operation. The controls are ergonomically arranged to reduce operator fatigue and enhance productivity.


1. Hydraulic System Failures: One of the most common issues with the 700H dozer is related to its hydraulic system. Hydraulic leaks, weak hydraulic pressure, and sluggish blade movement are often signs of a problem. These issues can be caused by:
   • Worn seals or hoses

   • Clogged hydraulic filters

   • Contaminated hydraulic fluid

   • Malfunctioning pumps or valves

   Regular maintenance of the hydraulic system is crucial, including checking for leaks, replacing filters, and ensuring fluid cleanliness.

2. Transmission Problems: Some operators report issues with the transmission, especially with the forward/reverse gear function becoming erratic. Common symptoms of transmission problems include:
   • Delayed or rough shifting

   • Inability to engage certain gears

   • Slipping in high gears

   Transmission problems may be attributed to worn or damaged transmission bands, low fluid levels, or malfunctioning control valves.

3. Undercarriage Wear: As with many heavy-duty track machines, the undercarriage of the Komatsu 700H can experience wear and tear over time. Issues such as track sag, damaged rollers, and worn sprockets are common. The undercarriage is a critical part of the machine as it supports the weight and facilitates movement.
   Regularly inspecting the tracks, rollers, and sprockets is essential for ensuring that the dozer operates smoothly. Replacing worn components on time can prevent more costly damage to the machine’s undercarriage.

4. Electrical System Failures: Electrical problems, though less frequent, can still occur, especially with older models. Issues can range from faulty sensors to problems with the battery charging system. A common sign of electrical failure is inconsistent operation of electronic components such as the blade tilt controls or engine monitoring systems.

5. Engine Overheating: The Komatsu 700H’s engine may overheat under certain conditions, particularly during extended operation in hot weather or when operating in heavy-duty environments. Overheating can result in:
   • Coolant system blockages

   • Faulty thermostats

   • Worn water pumps

   Regularly monitoring coolant levels, maintaining the radiator, and ensuring that the engine cooling system is functioning properly can help prevent overheating.


1. Hydraulic System Troubleshooting:
   • Check for Leaks: Inspect hoses, seals, and valves for any signs of leakage. Leaks can be easily detected by looking for puddles or oil stains beneath the machine.

   • Change the Hydraulic Fluid: If the fluid is contaminated or discolored, replace it with the recommended type. Clean hydraulic fluid ensures that the system operates at optimal pressure.

   • Inspect Filters: Replace clogged or dirty hydraulic filters to ensure proper flow and pressure throughout the system.

   • Pump and Valve Inspection: If the system remains sluggish despite fluid changes, the hydraulic pump or valves may need to be inspected or replaced.

2. Transmission Issues:
   • Check Fluid Levels: Low transmission fluid can cause erratic shifting. Ensure that fluid levels are within the recommended range and add fluid if necessary.

   • Inspect the Transmission Bands: Worn or damaged bands can lead to slipping. Replacing these bands can often resolve shifting issues.

   • Consult the Manual: If the transmission continues to fail, it may require more advanced repair, such as valve servicing or internal gear inspections.

3. Undercarriage Maintenance:
   • Track Tensioning: Regularly check the track tension to ensure it is properly adjusted. Loose tracks can cause excessive wear, while overly tight tracks can stress the undercarriage.

   • Roller and Sprocket Inspection: Inspect the rollers and sprockets for wear or damage. Replace worn components immediately to prevent further issues.

   • Lubrication: Ensure that the undercarriage components are properly lubricated to reduce friction and prolong their lifespan.

4. Electrical System Repairs:
   • Check Battery Voltage: Use a voltmeter to check the battery’s charge and ensure it is functioning correctly. A weak or dead battery should be replaced.

   • Inspect Wiring: Look for any loose or corroded wiring connections, particularly around the electrical components and sensors. Cleaning and tightening connections can resolve many electrical issues.

5. Preventing Engine Overheating:
   • Regular Coolant Checks: Ensure that the coolant levels are topped up and that there are no leaks in the cooling system.

   • Radiator Cleaning: Periodically clean the radiator to remove any dirt or debris that may impede airflow, particularly in dusty environments.

   • Thermostat and Pump Inspections: If the engine continues to overheat, check the thermostat and water pump for faults.


1. Scheduled Oil Changes: Regularly change the engine oil and hydraulic fluid as per the manufacturer's recommendations. This helps prevent wear and tear and ensures the system operates smoothly.

2. Inspect and Replace Filters: Check the air and fuel filters regularly and replace them when needed. Dirty filters can cause engine performance issues and fuel inefficiency.

3. Track and Undercarriage Maintenance: Keep the tracks in proper tension and regularly inspect the undercarriage components for wear. Replace any damaged parts promptly to avoid further issues.

4. Lubrication: Ensure that all moving parts are properly lubricated. This includes the blade controls, hydraulic pumps, and undercarriage components.

5. Electrical System Checks: Periodically inspect the electrical system, including the battery and wiring, to ensure everything is functioning correctly.


The Volvo EC210B excavator remains a benchmark in mid-size hydraulic excavators, and training programs like those offered by ZSOTRAC have helped operators across Africa and the Middle East master its systems, controls, and maintenance routines.
Volvo EC210B development and global impact
The EC210B was introduced by Volvo Construction Equipment in the early 2000s as part of its B-series excavator lineup. Designed for versatility, durability, and operator comfort, the EC210B quickly became a favorite in markets ranging from Europe to Asia and Africa. It features:

• Operating weight of approximately 21 tons

• Volvo D6D diesel engine with 150–160 hp output

• Advanced hydraulic system with load-sensing capabilities

• Ergonomic cab with climate control and adjustable controls

• Boom and arm configurations for digging, lifting, and demolition


• Machine startup and shutdown procedures

• Hydraulic system diagnostics

• Fuel efficiency techniques

• Safety protocols for confined and urban sites

• Preventive maintenance routines


• Hydraulic oil temperature: Should remain below 80°C under normal load

• Fuel consumption: Average 12–15 liters per hour depending on task

• Swing speed: Approximately 11 rpm, adjustable via mode settings

• Travel motor pressure: Should reach 350 bar under full load


• Boom drift due to worn cylinder seals

• Slow bucket response caused by clogged pilot filters

• Engine hesitation linked to air filter restriction

• Electrical faults traced to corroded connectors behind the cab


• Replace hydraulic filters every 500 hours

• Inspect undercarriage components every 250 hours

• Use Volvo-approved fluids to maintain warranty coverage

• Upgrade to LED work lights for night operations

• Retrofit with GPS or telematics for fleet tracking


Transporting small machinery like a mini-excavator in a dump trailer may seem like a straightforward task, but proper loading, securing, and ensuring the safety of both the equipment and the driver is critical. Mini excavators, particularly those around the 1.7-ton weight class, require careful handling to prevent damage during transit or even risk to road safety. Whether you’re using the excavator for a small landscaping job, construction, or maintenance work, it’s essential to follow best practices for secure transportation.
In this article, we’ll discuss the process of securing a mini-excavator in a dump trailer, highlighting important considerations such as weight distribution, tie-down techniques, and the role of equipment in ensuring a smooth transport experience.
Overview of the Mini Excavator and Dump Trailer
Mini excavators, such as the 1.7-ton machines, are compact but powerful tools used in a variety of applications, from digging small trenches to demolishing structures. These machines typically have an operating weight of about 1,700 kilograms (around 3,700 lbs), making them small enough to be transported easily with a standard dump trailer but still hefty enough that proper loading and securing are essential.
Dump trailers, which come in various configurations and sizes, are primarily designed to haul loose materials like sand, gravel, or debris. These trailers often feature hydraulic lifts for easy unloading but may require specific consideration when transporting heavy machinery. Since dump trailers are generally designed for bulk materials, securing machinery like mini-excavators requires special care, especially given their weight and the stability required during transport.
Choosing the Right Trailer for Transporting a Mini Excavator
While dump trailers are versatile, it’s essential to ensure that the specific trailer being used is adequate for carrying a mini-excavator. Here are the key features to check for:

1. Weight Capacity: The trailer must be rated to handle the combined weight of the mini-excavator and any other additional equipment, such as attachments or tools. A typical 1.7-ton mini-excavator, combined with additional gear, may weigh around 2,500-3,000 lbs. Ensure the trailer’s gross vehicle weight rating (GVWR) comfortably supports the load.

2. Bed Height and Clearance: The height of the trailer’s bed should be low enough to allow for easy loading and unloading. A steep incline may require a ramp or tilt deck trailer to facilitate smoother transitions for the mini-excavator.

3. Tie-Down Points: A good trailer for transporting mini-excavators should have multiple tie-down points located along the trailer’s bed. These points allow for secure attachment of the machine using high-quality straps or chains.

4. Stability: Make sure that the trailer is equipped with a strong suspension system that can handle the weight and shock absorption required when transporting heavy machinery.


1. Position the Trailer on a Level Surface: Before beginning, make sure the trailer is parked on a flat, level surface. This will prevent the machine from rolling or shifting during the loading process and ensure that the ramp angle is manageable.

2. Align the Excavator for Loading: Mini-excavators often feature tracks that can be driven up a ramp, which is usually provided with a dump trailer. Be sure to align the excavator in a straight line with the ramp to avoid tilting or scraping. If the dump trailer has a hydraulic tilt function, use it to raise or lower the bed to a safe angle for loading.

3. Drive the Excavator Up the Ramp: Slowly drive the mini-excavator up the ramp, making sure to keep the machine centered on the trailer. Always avoid accelerating too quickly or jerking the machine, as sudden movements can destabilize the load or cause the machine to shift.

4. Secure the Excavator Properly: Once the mini-excavator is positioned on the trailer, ensure it is in a stable, centered position. You should have enough clearance to secure the machine effectively without obstruction.


1. Use High-Quality Tie-Downs: The primary method for securing the mini-excavator is through the use of tie-down straps, chains, or a combination of both. Ideally, you should use ratchet straps or heavy-duty chain binders, which allow for precise tensioning and prevent the straps from loosening during transport. Ensure that the straps or chains are rated for the weight of the machine.

2. Position the Straps Correctly: Attach the straps to the excavator’s solid tie-down points or tracks. Straps should be positioned in a way that pulls the excavator toward the front and rear of the trailer, preventing it from shifting forward, backward, or side to side. The bucket should be lowered to the ground or locked in a secure position to prevent any movement.

3. Cross the Straps: To enhance stability, it’s recommended to cross the tie-down straps at a 45-degree angle across the mini-excavator’s tracks. This cross-pattern helps to stabilize the machine in both lateral and longitudinal directions.

4. Check the Tension: Ensure that the straps are tight enough to prevent any slack. Loose straps can allow the excavator to shift, especially when traveling over bumps or making turns. Check the straps after securing them to make sure they remain under constant tension.

5. Double-Check the Load: Once the excavator is secured, inspect all tie-down points and straps again to ensure that the machine will remain stable throughout the journey. Give the machine a slight shake to confirm that it is firmly anchored.


1. Transporting Attachments: If you are carrying attachments, such as buckets or augers, ensure that they are securely stored in the dump trailer. Small attachments can be placed within the excavator’s tracks and strapped down, while larger attachments should be stored separately and secured with their own tie-down points.

2. Weight Distribution: Make sure the mini-excavator is centered on the trailer and that the weight is evenly distributed. This prevents uneven wear on the trailer and ensures better handling during the drive.

3. Legal Requirements: Verify that the overall load is within legal limits for height, width, and weight. Some jurisdictions have specific regulations regarding oversized loads, and it’s important to comply with these laws to avoid fines or accidents.

4. Safety During Transport: While transporting the mini-excavator, keep the speed steady and avoid abrupt turns. Regularly check the load during long trips, especially if traveling over rough terrain. If necessary, stop and recheck the tie-downs for any loosening.


Overloading the platform on a Genie S-600 boom lift can trigger a protective lockout that disables platform controls intermittently, even after the excess weight is removed. This behavior is tied to the deadman switch and load-sensing system, which may require reset or inspection to restore full functionality.
Genie S-600 background and overload protection system
The Genie S-600 is part of Genie’s S-series telescopic boom lifts, designed for high-reach access in construction, maintenance, and industrial settings. Introduced in the early 2000s, the S-600 features:

• A working height of up to 60 ft (18.3 m)

• Platform capacity of 500–600 lbs depending on configuration

• Hydraulic drive with proportional joystick controls

• Ground and platform control stations

• Load-sensing system with platform overload protection

• Deadman foot switch to confirm operator presence


• Controls worked briefly, then stopped responding

• Stepping off the deadman switch and re-engaging it temporarily restored function

• No fault codes or alarms were displayed


• The deadman switch is cycled

• The control logic resets

• The load sensor recalibrates


• Ensure the platform is empty and within rated capacity

• Power down the machine completely and disconnect the battery for 5 minutes

• Inspect the deadman switch for wear, debris, or misalignment

• Check the load sensor wiring and connector at the platform base

• Cycle the key switch from ground to platform mode slowly

• Depress the deadman switch firmly and hold for 10 seconds before activating any controls


• Always verify platform load before operation

• Avoid sudden shifts in weight that may trigger false overloads

• Train operators to recognize overload symptoms and reset procedures

• Inspect deadman switch and load sensor monthly

• Keep platform floor clean to ensure proper pedal engagement


Transporting heavy equipment like the Caterpillar 325 excavator requires careful planning and execution. With a machine weight of approximately 50,000 to 60,000 pounds, ensuring safe and efficient transport is critical. Landoll trailers, known for their versatility in hauling equipment, are often the preferred choice for such heavy-duty transportation. However, using a CAT 325 or similar large excavators on a Landoll trailer requires attention to several important factors, from trailer specifications to loading and securing techniques.
In this article, we explore the best practices for transporting a CAT 325 on a Landoll trailer, focusing on key considerations such as trailer compatibility, loading procedures, safety measures, and the advantages of using this equipment combination.
Overview of the CAT 325 Excavator
The Caterpillar 325 is part of the 20-ton class of hydraulic excavators, typically used in construction, landscaping, and other heavy-duty applications. It features a robust engine and hydraulic system, designed to tackle tough digging, lifting, and material handling tasks. The 325 is popular for its versatility, high-performance capabilities, and ability to navigate various job site conditions.
With a maximum operating weight of around 54,000 pounds, the CAT 325 has a relatively compact footprint for its size, making it a popular choice for tight work environments. While it is a formidable machine, its size and weight require proper planning when transporting it.
Understanding the Landoll Trailer
Landoll trailers are specialized equipment used for transporting heavy machinery, with the Landoll lowboy trailers being among the most commonly used in the industry. These trailers are known for their versatility and ability to handle heavy loads due to their low deck height, ensuring equipment remains stable and within legal transportation limits.
The primary advantage of Landoll trailers is their hydraulic or mechanical tilt feature, which allows for easier loading and unloading of heavy equipment. This is especially useful when transporting equipment like the CAT 325 excavator, which can be cumbersome and heavy. Landoll trailers also provide a lower center of gravity, reducing the risk of tipping during transport.
Key features of Landoll trailers include:

1. Hydraulic or Mechanical Tilt: These trailers often feature hydraulic or mechanical tilting decks, which make loading and unloading equipment much easier, even without the use of ramps.

2. Low Profile Design: The low profile of these trailers minimizes the height of the load, making them ideal for hauling taller equipment like excavators and cranes.

3. Heavy Duty Suspension: The trailers are built with heavy-duty suspension systems that help absorb shock and reduce wear on the equipment being hauled.

4. Multiple Axles: Most Landoll trailers are designed with multiple axles to distribute the weight of the load more evenly, ensuring better stability and minimizing the risk of tire blowouts.


1. Weight Distribution: Ensuring proper weight distribution is critical. The CAT 325's weight should be evenly spread across the axles of the Landoll trailer to avoid overloading any single axle and to maintain the balance of the load. Proper weight distribution helps in maintaining road safety and prevents undue strain on the equipment and trailer.

2. Trailer Capacity: Before loading, it's essential to verify that the Landoll trailer has the appropriate weight capacity for the CAT 325 excavator. Most Landoll lowboys are designed to carry up to 50,000 pounds or more, but ensuring the exact specifications are met is critical.

3. Loading Ramp Setup: Ensure that the trailer's loading ramps are securely in place and are capable of handling the weight and size of the CAT 325. The excavator's tracks should be centered on the ramps to maintain stability during the loading process. If the ramps are adjustable, make sure they are set to the correct angle to prevent the equipment from tipping over.

4. Secure Attachment: Properly securing the CAT 325 on the Landoll trailer is crucial. Use high-quality chains or straps to secure the excavator’s tracks to the trailer. The equipment should be positioned at the center of the deck, with the tracks and boom locked down to prevent movement during transport. Additionally, ensure that any loose parts or attachments are secured or removed.

5. Hydraulic System Care: Before loading, check the CAT 325’s hydraulic system to ensure it is functioning properly. If the machine's hydraulics are not fully retracted or locked, it could cause instability or damage during transport. Verify that the boom is lowered and the bucket or attachments are securely stowed.

6. Height Clearance: Verify the clearance height of the loaded machine. Landoll trailers typically offer low-profile decks, but the height of the excavator, especially with an extended boom, must still be within legal limits for road transport.


1. Speed and Handling: Transporting heavy equipment like the CAT 325 requires careful driving. Maintain a moderate speed to avoid sudden stops or sharp turns, which could destabilize the load. Sudden maneuvers can also cause wear and tear on the equipment and the trailer.

2. Road Clearance: Pay attention to overhead obstacles, such as low bridges or power lines, particularly if the excavator’s boom is extended. Ensure that the loaded height of the trailer and excavator is within legal limits and that there is ample clearance for road signs and bridges.

3. Regular Checks: During transport, regularly check the load to ensure it remains secure. Stop periodically to inspect the condition of the straps, chains, and equipment to prevent any shifting.

4. Route Planning: Plan the route in advance to avoid any potential road hazards or weight limits. Check for restrictions on bridges or roads that may not support the weight of the Landoll trailer with the CAT 325 loaded.


1. Ease of Loading and Unloading: The hydraulic tilt feature of a Landoll trailer eliminates the need for additional ramps, making the loading and unloading process easier and safer.

2. Stability: The low deck height of Landoll trailers offers excellent stability for hauling heavy equipment, reducing the risk of tipping during transit.

3. Durability: Landoll trailers are designed to handle the heavy weight of large excavators and other construction machinery. They are built with heavy-duty materials and construction techniques to ensure long-term reliability.

4. Versatility: These trailers can be used for transporting a variety of equipment types, making them a useful investment for contractors and equipment owners who frequently haul heavy machinery.


Komatsu excavators often experience gradual track speed loss due to aging hydraulic components, particularly weakened valve springs in the load-sensing system. This issue is more common in older models like the PC120-3, PC130-6, and PC160-7, and can be corrected through hydraulic tuning and valve recalibration.
Komatsu excavator lineage and hydraulic architecture
Komatsu has produced a wide range of excavators since the 1960s, with the PC series becoming globally recognized for reliability and performance. The PC120-3 (1989), PC130-6 (1999), and PC160-7 (2004) represent three generations of mid-sized excavators, each with evolving hydraulic systems:

• PC120-3: Open-center load-sensing hydraulics with mechanical control

• PC130-6: Transition to closed-center hydraulics with improved efficiency

• PC160-7: Electronically modulated closed-center system with better responsiveness


• Sluggish tracking after warm-up

• Reduced travel speed compared to earlier performance

• No fault codes or warning lights

• Normal boom and arm function


• Valve response slows

• Pump output decreases under load

• Travel motors receive less flow

• Track speed drops, especially under resistance


• Extend stick and open bucket fully

• Place all implements on the ground

• Set engine to full throttle and mode to high

• Time the boom lift from ground to full stroke


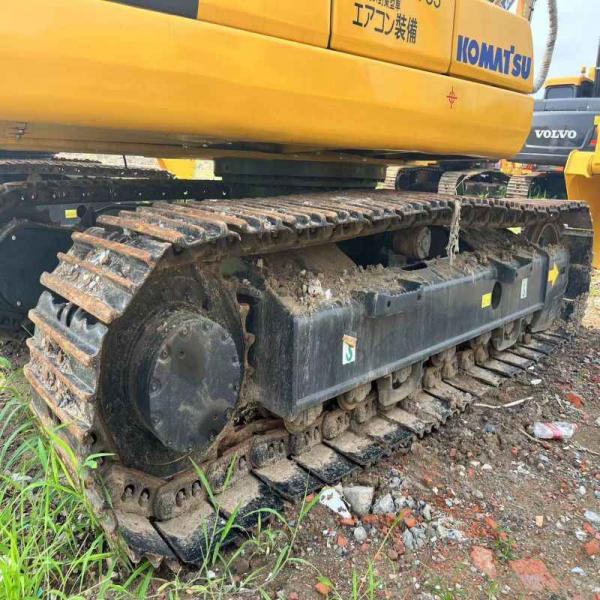

• Undercarriage wear: Worn rollers or sprockets increase friction

• Hydraulic oil degradation: Old fluid loses viscosity and cooling capacity

• Contaminated filters: Restrict flow and reduce pump efficiency

• Operator adaptation: Skilled operators may outpace the machine’s response, perceiving it as slow


• Recalibrate load-sensing valves to factory spec

• Replace weakened springs in valve bodies

• Flush and replace hydraulic oil every 2,000 hours

• Inspect and replace hydraulic filters

• Check undercarriage components for resistance

• Monitor travel motor pressure and flow rates


The Caterpillar 955L, a powerful and versatile tracked loader, has long been a favorite in construction and heavy equipment industries. As with any machine, wear and tear over time can lead to performance issues, which raises the question of whether a 955L could still serve as a useful "parts machine." This concept is explored extensively in various industries, where a machine is deemed too costly or impractical to repair but still has valuable components that can be salvaged for other machines or resale.
In this article, we will delve into the potential of the Caterpillar 955L as a parts machine. We’ll explore its history, identify key parts that can be salvaged, and offer insight into how such machines are typically assessed. Additionally, we will discuss factors like market demand for parts, the decommissioning process, and the overall cost-effectiveness of such a strategy.
The Caterpillar 955L: A Brief Overview
The 955L is part of Caterpillar's long-standing line of track-type loaders. It was designed to offer impressive power, durability, and versatility in a range of heavy-duty applications, including excavation, grading, and lifting. The model boasts a robust engine, a high lift capacity, and excellent maneuverability on rough terrain, making it ideal for various industries such as construction, mining, and forestry.
First introduced in the early 1970s, the 955L was one of the prominent models in the "L" series of loaders. Over the years, its design evolved to incorporate more advanced features, including improved hydraulics and a stronger undercarriage. Although it’s now considered older machinery, the 955L has earned a reputation for its reliability and ruggedness. These attributes contribute to its potential as a parts machine when the entire unit becomes uneconomical to repair.
When a 955L Becomes a Parts Machine
Machines like the Caterpillar 955L, after years of operation, may no longer be cost-effective to repair due to extensive damage or wear. In such cases, the machine may be stripped for parts. This process involves dismantling the loader and selling individual components, such as the engine, transmission, hydraulic pumps, or undercarriage components, that still have life left in them.
The decision to repurpose a 955L as a parts machine depends on various factors, including:

1. Machine Condition: A key factor in determining if a 955L can be used for parts is the overall condition of the machine. If the engine, transmission, or hydraulic systems are still in good working order, the machine can provide valuable components.

2. Age and Obsolescence: While the 955L was built for durability, machines of this vintage are often faced with the challenge of parts availability. Many components, like control systems or engine parts, may no longer be in production. This can make salvaging parts from an older machine like the 955L a more appealing option for operators of similar models.

3. Cost of Repair vs. Replacement: In some cases, the cost of repairing a 955L to restore it to full operational condition may be too high compared to purchasing a new or refurbished machine. At this point, the best option may be to break it down for parts.


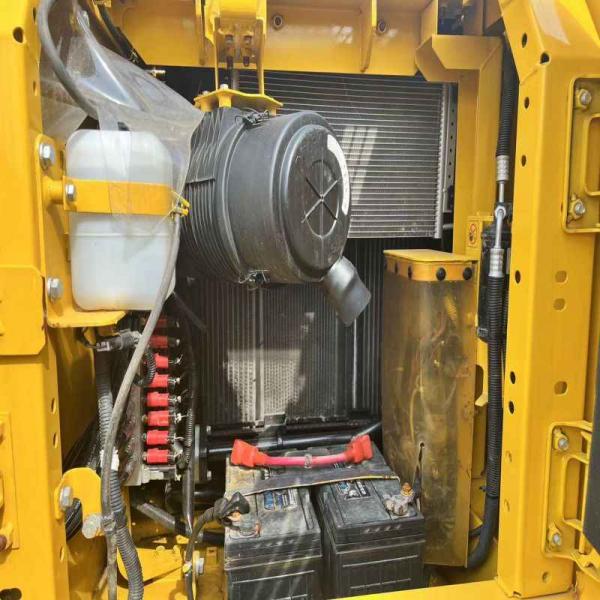

1. Engine: The heart of the machine, the engine, is often the most valuable component in a parts machine. If the engine has been well-maintained and is in decent condition, it can be sold to other equipment owners or dealers in need of a replacement.

2. Transmission: The transmission is another critical component that can be reused in similar models. A functioning transmission can fetch a good price, especially if it is part of a machine still in high demand.

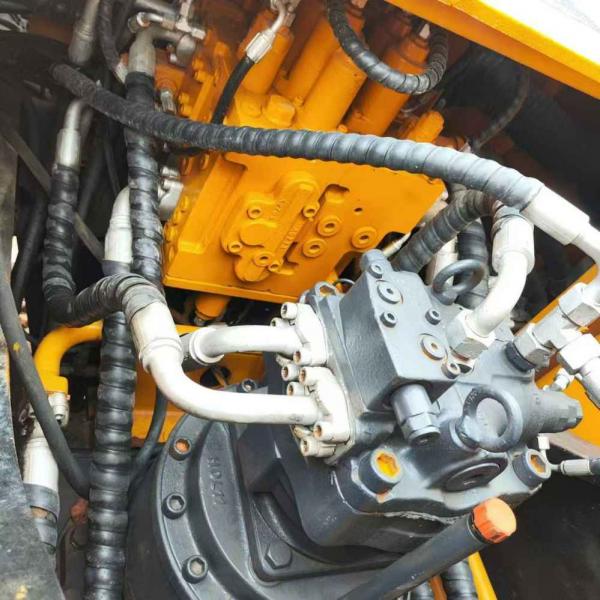

3. Hydraulic Pumps and Cylinders: The 955L’s hydraulic system is known for its strength, and hydraulic pumps or cylinders can be salvaged for reuse in other machines with similar specifications. These components are frequently in demand.

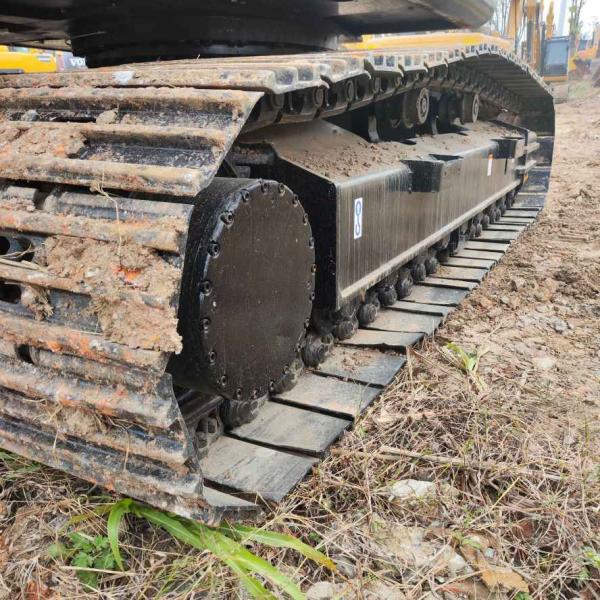

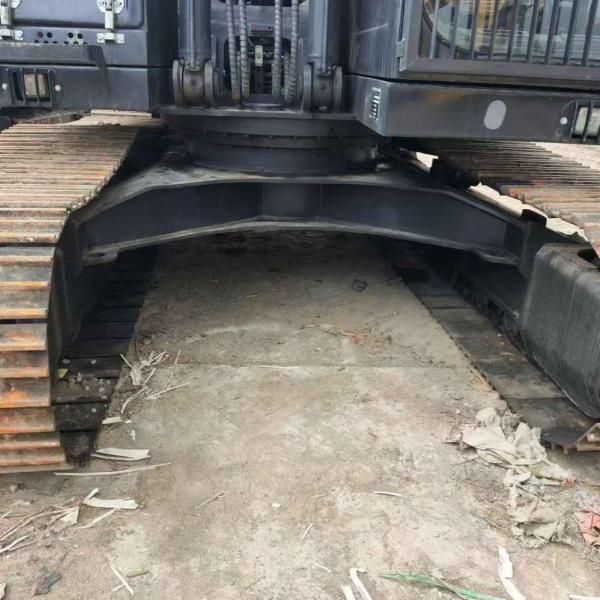

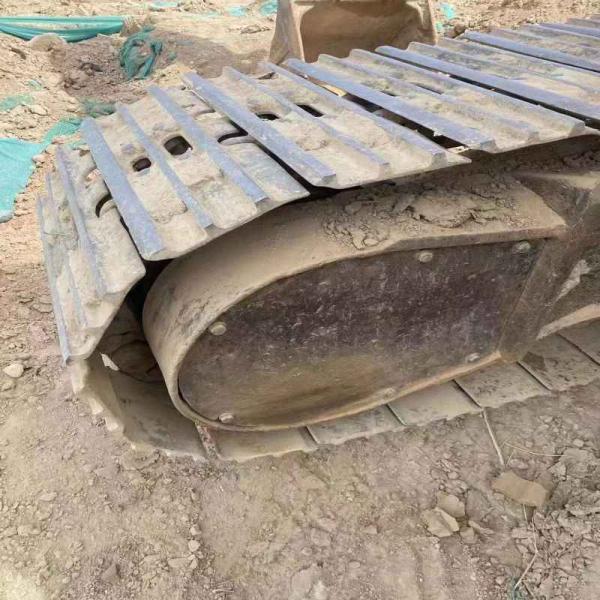

4. Undercarriage: The tracks, sprockets, rollers, and other undercarriage components often endure significant wear but can still have valuable life left. When properly maintained, these parts can be repurposed for machines in similar conditions.

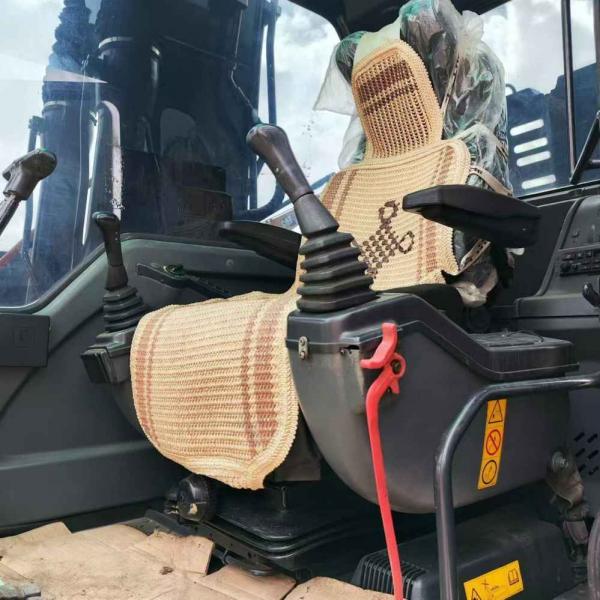

5. Cab and Operator Controls: The cab, including the seats, controls, and dashboard instruments, can be salvaged and sold as individual parts. In particular, the operator’s controls can be used in similar Caterpillar models.

6. Hydraulic Hoses and Fittings: While hoses can wear out over time, many hydraulic fittings, valves, and hoses can still be in serviceable condition, especially when they are from a well-maintained machine.

7. Electrical Components: Electrical systems, such as alternators, wiring harnesses, and lights, may still have usable parts, depending on the machine’s wear. These items often have a decent resale value.


1. Inspection: A thorough inspection is conducted to assess the condition of the machine. Components that are too worn or damaged beyond repair are discarded, while those in good condition are flagged for removal.

2. Dismantling: After identifying reusable parts, the machine is disassembled. This process requires experienced technicians to ensure that parts are removed without damaging them, preserving their resale value.

3. Cleaning and Refurbishment: Once the parts are removed, they are cleaned and may be refurbished or tested. Many components, such as the engine or transmission, may require minor repairs or cleaning to bring them back to optimal working condition.

4. Market Placement: The refurbished or tested parts are then listed for sale. These parts may be sold through online marketplaces, equipment dealers, or auction houses that specialize in used machinery parts.


The oil temperature sensor on the Case 580SK Phase 3 backhoe is mounted on one of the hydraulic return lines just before the hydraulic pump—not on the transaxle or the hydraulic oil return housing as commonly assumed.
Case 580SK background and hydraulic system evolution
The Case 580SK was introduced in the early 1990s as part of the long-running 580 series of tractor-loader-backhoes. The “SK” designation marked a significant update over the earlier “K” model, with improvements in hydraulic performance, operator comfort, and emissions compliance. The Phase 3 variant, often found in export markets like South Africa and Europe, incorporated regional design changes, including different sensor placements and hydraulic routing.
The 580SK features:

• A 4-cylinder diesel engine (typically Case 4-390 or Cummins B3.9)

• Open-center hydraulic system with gear pump

• Mechanical shuttle transmission

• Dual hydraulic return lines routed to the reservoir

• Instrument cluster with analog gauges and warning lights


• On the transaxle housing

• Near the hydraulic oil filter base

• On the return manifold at the hydraulic tank


• Trace the hydraulic return lines from the loader and backhoe valves toward the pump

• Look for a threaded sensor body with a single wire or two-pin connector

• The sensor is typically mounted in a welded boss or threaded T-fitting

• It may be partially obscured by hoses or brackets near the right side of the engine compartment


• Always depressurize the hydraulic system before removing the sensor

• Use thread sealant compatible with hydraulic oil

• Torque to manufacturer spec to avoid cracking the fitting

• If replacing the sensor, match the resistance curve to the original part

• Clean surrounding area to prevent contamination during removal


Inlet pricing by vertical foot is a crucial concept for industries that deal with the installation of infrastructure such as HVAC systems, water distribution lines, or any vertical installation where height directly impacts cost. Understanding how to properly calculate and assess these costs is vital for ensuring profitability and efficiency in projects.
This article will provide a detailed exploration of inlet pricing, discuss the variables that affect the pricing structure, and offer guidance on best practices for accurately estimating and managing costs. Additionally, we will dive into real-world examples to make the concepts clearer.
What is Inlet Pricing by Vertical Foot?
Inlet pricing by vertical foot refers to the method of pricing installations or services based on the vertical distance the installation covers. In many industries, such as construction and HVAC, the cost of installing systems is often based on the height or depth of the installation, with longer installations requiring more labor, materials, and time.
For instance, when installing ductwork for an HVAC system, the vertical distance between the entry point and the point of installation can significantly impact the total cost. The more feet of vertical space that need to be covered, the more resources are required to complete the job. This pricing model helps contractors, engineers, and project managers calculate fair and consistent rates for projects that involve vertical installations.
Factors Influencing Inlet Pricing by Vertical Foot
Several factors affect inlet pricing, and understanding them can help professionals avoid underpricing or overpricing their services. Some of the key factors include:

1. Material Costs
   The materials required for vertical installations, such as pipes, ducts, or other infrastructure, play a significant role in determining the overall price. The cost of materials increases as the length of the installation rises. For example, a project requiring a 20-foot vertical installation would require more materials than one requiring only 5 feet, resulting in a proportional increase in material costs.

2. Labor Costs
   Labor is a critical factor in any installation job, especially when dealing with vertical systems. The more vertical feet involved, the more labor is needed for tasks like setting up scaffolding, lifting materials, and ensuring proper installation. Labor costs may also increase based on the complexity of the installation. High-rise buildings or deep underground installations will require specialized skills and safety measures, further driving up costs.

3. Equipment Requirements
   Vertical installations often necessitate the use of specialized equipment like lifts, cranes, scaffolding, or hoists. The need for these tools directly affects the pricing structure. For instance, installing ducts 10 feet in the air may require a smaller lift, while installing equipment 50 feet up could require a much larger crane, resulting in a significant increase in equipment costs.

4. Environmental Conditions
   The working environment also plays a role in inlet pricing. Installations in hazardous or hard-to-reach locations, such as in extreme weather conditions, near water, or in areas with limited access, may incur additional costs. For example, working in a confined space or on a high-rise building in windy conditions may increase both safety concerns and the need for specialized equipment, which would, in turn, drive up costs.

5. Complexity of the Installation
   The complexity of the vertical installation—such as the number of bends, connections, or the need for precision in placement—can increase the time and labor required. The more complex the job, the higher the cost per vertical foot, as skilled labor and additional time are required to ensure that everything is correctly installed.


1. Determine the Total Vertical Distance
   Begin by measuring the total vertical distance that needs to be covered. This is the number of feet that materials, equipment, and labor will be required to cover. For example, if you are installing HVAC ductwork in a high-rise building, measure the vertical distance from the ground to the highest point of installation.

2. Estimate Material Costs
   Material costs can be calculated based on the length of the installation and the type of materials used. Multiply the price per foot of material by the total vertical feet needed for installation. For example, if the cost of ductwork is $10 per foot, and you need to cover 50 feet, the material cost would be $500.

3. Calculate Labor Costs
   Labor costs depend on the complexity of the installation and the amount of time required. You can calculate this by estimating the number of labor hours needed to complete the project and multiplying it by the hourly wage rate for each worker. For example, if it takes 10 hours to complete an installation and the labor rate is $25 per hour, the total labor cost would be $250.

4. Add Equipment Costs
   Equipment costs vary depending on the type of machinery required. If heavy equipment like cranes or lifts are needed, calculate the cost of renting or using these machines. The rental rate might be per hour, per day, or based on the project’s length, and it can be added to the overall cost calculation.

5. Factor in Environmental and Safety Costs
   If the installation is being carried out in a hazardous or difficult environment, additional costs such as safety measures, insurance, and environmental precautions should be added. For example, if working at high elevations, safety harnesses, fall protection equipment, and additional insurance coverage may be required, which could add to the total price.

6. Final Pricing
   Finally, add up the costs for materials, labor, equipment, and environmental factors to get the total cost. Then, divide this total by the number of vertical feet to get the price per vertical foot. This will give you a fair and competitive price for your service, ensuring that all costs are accounted for.


The Takeuchi TL240 compact track loader may appear completely dead—no ignition, no crank, no power—due to a damaged starter cable that interrupts the main electrical circuit. Replacing the cable restores full function, but diagnosis requires careful inspection beyond fuses and relays.
Takeuchi TL240 background and electrical system layout
The TL240 was introduced by Takeuchi in the mid-2000s as a high-performance compact track loader designed for grading, excavation, and material handling. It features:

• A 2.4-liter diesel engine (typically Yanmar or Isuzu)

• Pilot-operated hydraulic controls

• Manual or electronic ignition switch depending on year

• Centralized fuse and relay panel

• Starter motor mounted low on the engine block

• Battery located under the operator seat or rear panel


• Frayed internally

• Cracked or pinched

• Corroded at the terminal

• Loosely crimped or improperly torqued


• Use a multimeter to check voltage drop across the cable during cranking

• Wiggle the cable while monitoring voltage to detect intermittent faults

• Inspect the cable for heat damage or melted insulation

• Replace with a heavy-gauge OEM or aftermarket cable rated for starter load


• Fusible links: These resemble fuses but are embedded in the wiring harness. A blown fusible link can mimic total electrical failure.

• Ignition switch wiring: Even with a new switch, corroded terminals or broken wires can prevent signal transmission.

• ECM power supply: If equipped with electronic engine control, verify that the ECM receives stable voltage and ground.

• Ground path integrity: Frame-to-battery ground must be clean, tight, and free of paint or rust.


• Inspect starter and ground cables annually

• Use dielectric grease on terminals to prevent corrosion

• Torque cable lugs to spec—loose connections cause arcing

• Replace aging cables with high-strand-count copper

• Avoid routing cables near heat sources or sharp edges
