The Case 1845C skid steer loader is widely recognized for its versatility and durability in tough working conditions. However, like any piece of heavy equipment, the 1845C can encounter mechanical issues that affect its performance, particularly with its steering system. Steering problems in skid steer loaders are not uncommon and can lead to reduced maneuverability, making it crucial to diagnose and fix them quickly.
This article will explore the common steering issues experienced by owners of the Case 1845C, explain the underlying causes, and provide detailed solutions for troubleshooting and repairs. Whether you're an operator or a mechanic, understanding these common issues and knowing how to address them will help keep your equipment running smoothly.
Understanding the Steering System in the Case 1845C
Before diving into the troubleshooting process, it is essential to understand the steering system of the Case 1845C. This model, like many skid steer loaders, utilizes a hydrostatic steering system, which provides precise control over the machine's direction. The system typically includes:

1. Hydraulic Pump: Powers the steering by supplying hydraulic fluid to the steering cylinders.

2. Steering Cylinders: Actuate the wheels to turn the machine.

3. Steering Controls: Typically joystick-operated, these allow the operator to control the steering with minimal effort.

4. Hydraulic Lines: Deliver the hydraulic fluid from the pump to the steering cylinders.


1. Difficulty in Turning or Unresponsive Steering
   One of the most frequent complaints among owners of the Case 1845C is difficulty in turning the machine or unresponsive steering. This can manifest as sluggish or stiff steering, making it difficult to maneuver the skid steer.
   • Potential Causes:
     • Low Hydraulic Fluid: If the hydraulic fluid level is low, the steering system won't function effectively. This can lead to difficulty turning or complete steering failure.

     • Hydraulic Leaks: Leaking hydraulic lines or seals can reduce the pressure required for smooth steering operation, resulting in unresponsive or erratic steering.

     • Contaminated Hydraulic Fluid: Dirty or contaminated fluid can cause clogging in the hydraulic lines, reducing the efficiency of the steering system.

2. Steering Drift
   Steering drift occurs when the machine tends to drift in one direction, even if the steering wheel or joystick is in a neutral position. This can cause the machine to veer off course unintentionally.
   • Potential Causes:
     • Faulty Steering Cylinder Seals: Worn or damaged seals in the steering cylinders can allow hydraulic fluid to bypass, causing one side to lose pressure and leading to a drift.

     • Uneven Pressure: If the pressure is unequal between the left and right sides of the steering system, it may cause the skid steer to pull in one direction.

3. Overheating of Hydraulic System
   Overheating can be a sign that the hydraulic system is under stress, leading to poor steering response or complete failure.
   • Potential Causes:
     • Clogged Hydraulic Filter: A clogged filter can restrict the flow of fluid, causing the system to overheat and reducing its performance.

     • Worn Hydraulic Pump: A failing hydraulic pump may not circulate fluid effectively, leading to increased friction and heat.


1. Check Hydraulic Fluid Levels
   Start by checking the hydraulic fluid levels. Low fluid levels can lead to steering issues, so ensure the reservoir is full. If the fluid is low, top it up with the recommended type of hydraulic fluid.

2. Inspect for Hydraulic Leaks
   Examine the hydraulic lines, cylinders, and hoses for any visible signs of leaks. Pay special attention to the seals around the steering cylinders, as they are a common point of failure. If leaks are found, they should be repaired or replaced promptly.

3. Flush the Hydraulic System
   If the hydraulic fluid appears dirty or contaminated, it is essential to flush the system. Dirty fluid can cause clogging and inefficient operation. Use a proper hydraulic fluid cleaner and replace the old fluid with fresh, clean fluid that meets the manufacturer’s specifications.

4. Inspect Steering Cylinder Seals
   If the steering system is drifting, inspect the seals in the steering cylinders for wear or damage. Worn seals may allow fluid to bypass, causing uneven pressure. If damaged, the seals must be replaced.

5. Test the Hydraulic Pump
   A failing hydraulic pump can lead to reduced steering performance. Check the pump for signs of wear or overheating. If the pump is damaged or inefficient, it may need to be replaced to restore proper steering function.

6. Check the Hydraulic Filter
   A clogged hydraulic filter can reduce fluid flow and cause overheating. Inspect the filter and replace it if it appears dirty or clogged. Regular filter replacement is an essential part of ongoing maintenance for the hydraulic system.


1. Regular Fluid Checks
   Regularly monitor the hydraulic fluid levels and inspect the fluid for any signs of contamination. Clean fluid is essential for optimal performance.

2. Scheduled Hydraulic System Flushing
   Over time, hydraulic systems accumulate debris and contaminants that can affect performance. Flushing the hydraulic system on a regular basis ensures that the system remains free of impurities and runs efficiently.

3. Routine Inspections
   Conduct routine inspections of the steering components, including the hydraulic lines, cylinders, and seals. Catching minor issues early can prevent major problems later.

4. Use Manufacturer-Recommended Fluids
   Always use the hydraulic fluid recommended by Case for the 1845C. Using the wrong type of fluid can lead to system failures and void warranties.


The JD160CLC excavator may fail to start or run properly despite replacing the injector pump, injectors, filters, and checking the ECM if the issue lies deeper in fuel delivery timing, compression, or overlooked electrical faults. A systematic approach beyond computer diagnostics is essential.
JD160CLC background and engine configuration
The John Deere 160CLC is a mid-sized hydraulic excavator introduced in the early 2000s, designed for general construction, trenching, and site prep. It features:

• A Tier II-compliant diesel engine (typically Isuzu 4BG1 or 4JJ1)

• Electronically controlled fuel injection via ECM

• High-pressure common rail or rotary injection pump depending on year

• Pilot-operated hydraulic controls

• Integrated diagnostics via CAN bus


• Would not start or run properly

• Had a new injector pump, injectors, and filters installed

• Had the ECM tested and verified by a John Deere dealer

• Showed no fault codes on dealer or independent diagnostic tools

• Had a new engine wiring harness and ECO short harness installed


• Fuel transfer pump pressure: Even if the injector pump is new, low feed pressure from the lift pump can prevent proper atomization. Test for 5–10 psi minimum at cranking.

• Fuel timing: If the pump is not timed correctly to the engine, injection may occur too early or late, causing no-start or rough running. Recheck timing marks and gear alignment.

• Compression loss: Worn rings, valves, or head gasket failure can prevent ignition. Perform a compression test—minimum 350 psi per cylinder is typical.

• Exhaust smoke during cranking: White smoke indicates fuel is present but not igniting. No smoke suggests no fuel delivery.

• Ether response: If the engine fires briefly on ether, fuel delivery is likely the issue. If not, compression or timing may be at fault.

• Grounding and power supply: ECMs require clean ground and stable voltage. Check battery cables, frame grounds, and ECM power pins for corrosion or voltage drop.


• Perform a full compression test across all cylinders

• Verify fuel delivery pressure at both lift pump and injector rail

• Recheck injector pump timing and gear alignment

• Inspect ECM ground and power supply with a multimeter

• Use a noid light or oscilloscope to confirm injector pulse signals

• Try a brief ether start to isolate ignition vs. fuel issues


The Mitsubishi 180 track loader, part of the renowned Mitsubishi heavy machinery lineup, is often utilized in demanding environments where reliable performance is essential. One of the most crucial components of this equipment is the track system, specifically the track springs and idlers, which are vital for smooth operation. This article will provide an in-depth look at the role of track springs and idlers, challenges in sourcing replacement parts, and offer guidance for maintenance and optimal part replacement.

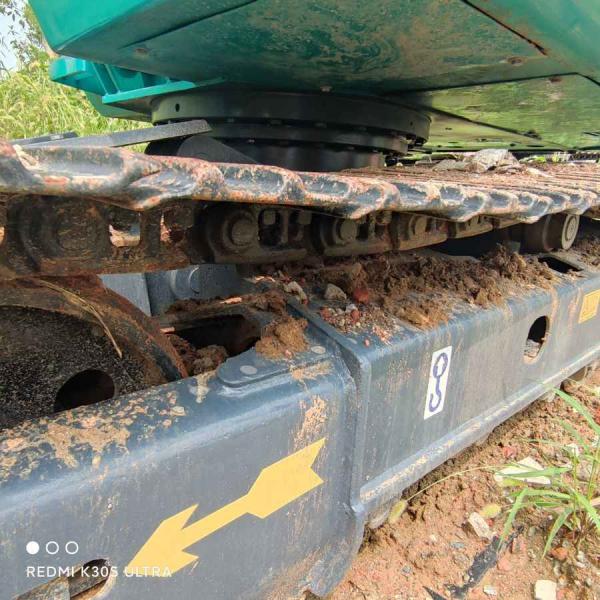

Understanding Track Springs and Idlers
In any track-based machinery, the track system plays a crucial role in ensuring stability, load distribution, and mobility. The track springs and idlers are two components that help manage the tension and alignment of the tracks, contributing to smoother and more efficient operation. Here’s a closer look at their roles:

1. Track Springs
   Track springs are designed to maintain tension within the track system, ensuring that the track remains securely in place while preventing it from becoming too tight or loose. The springs absorb the shock loads experienced during operation, protecting other components from excessive wear.
   • Function: Track springs help adjust and control the tension of the track. This is essential for preventing slippage and ensuring that the machine can move smoothly without excessive strain on the drive motor or other parts.

   • Design: These springs are typically made from high-tensile steel or other durable materials to withstand the heavy-duty nature of the work they perform. They must also endure extreme environmental conditions such as dirt, mud, and temperature variations.

2. Track Idlers
   Track idlers guide the track along the undercarriage of the vehicle, helping to maintain proper track alignment and preventing excessive wear. They also help support the track’s weight, ensuring smooth operation.
   • Function: Idlers are positioned at the rear of the track system and serve to keep the track in position. They reduce the chances of the track becoming misaligned, which could cause damage to the drive sprockets or other parts.

   • Design: Idlers are typically made from cast iron or steel and feature rollers or wheels that rotate along with the track. They are engineered to handle high-pressure loads, especially in heavy-duty machinery like the Mitsubishi 180.


1. Outdated Models and Parts Availability
   Older models of machinery, including the Mitsubishi 180, often face challenges in sourcing replacement parts. The age of the machinery may make certain parts obsolete or unavailable through original equipment manufacturers (OEM). This is where aftermarket suppliers come into play.

2. Aftermarket vs OEM Parts
   While OEM parts are always preferred for their guaranteed fit and quality, aftermarket parts are often the go-to solution when OEM availability is limited. However, operators should exercise caution when selecting aftermarket parts. It is important to ensure that the aftermarket supplier provides parts that meet the required specifications and durability.
   • Pros of Aftermarket Parts: Typically more affordable and widely available, aftermarket parts can be a great solution when OEM parts are not an option.

   • Cons of Aftermarket Parts: The quality of aftermarket parts can vary. Lower-quality parts may wear out faster, leading to increased maintenance costs and potential downtime.

3. Identifying Trusted Suppliers
   Finding reliable suppliers for Mitsubishi 180 track springs and idlers can be a daunting task. However, numerous reputable companies offer parts for a wide range of heavy machinery. Some specialized suppliers focus specifically on tracks and undercarriage components.
   • Reputable Suppliers: When sourcing parts, it’s essential to work with established suppliers who have experience in the heavy machinery industry. Ensure that the parts are engineered to the same standards as the original components to avoid unexpected failure.

   • Online Platforms: Websites that cater specifically to heavy equipment parts, like machinery parts distributors, can be invaluable resources. They often provide parts diagrams, customer reviews, and compatibility checks to ensure you’re ordering the correct items.


1. Proper Sizing
   When replacing track springs or idlers, it is crucial to ensure that the new components match the required specifications for your Mitsubishi 180. Even minor discrepancies in size or design can lead to improper fitment, which could result in further damage to the undercarriage or a reduction in operational efficiency.

2. Quality and Durability
   Given the harsh working conditions that a Mitsubishi 180 often faces, quality is paramount. Opting for high-quality materials for both the track springs and idlers will ensure that the components can withstand extreme loads, vibration, and temperature changes.

3. Professional Installation
   While some operators may attempt to replace track springs and idlers themselves, it is often recommended to have a professional mechanic perform the installation. Improper installation can lead to further issues, such as misalignment or premature wear.

4. Regular Inspection and Maintenance
   Even after replacing track springs and idlers, regular maintenance and inspection are key to ensuring their longevity. Regularly checking for signs of wear or damage, such as unusual vibrations, noise, or misalignment, can help catch potential issues before they become major problems.


1. Lubrication
   Regularly lubricating the track system, including the springs and idlers, will help minimize friction and prevent wear. Proper lubrication helps ensure that moving parts operate smoothly, especially in high-stress environments.

2. Track Tension Adjustment
   The tension of the track should be checked periodically to ensure that it is within the recommended range. A loose track can cause slippage and inefficiency, while a tight track can put excessive strain on the entire undercarriage system.

3. Cleanliness
   Keeping the track system clean is crucial for the longevity of the components. Dirt, debris, and moisture can accelerate wear and cause corrosion over time. Regular cleaning of the undercarriage will help maintain the efficiency of the track springs and idlers.

4. Monitoring Wear Patterns
   Over time, idlers and springs will naturally wear down due to the stresses of continuous operation. Monitoring wear patterns on these components will help determine when replacements are necessary, preventing failure during operation.


Quick answer
A 2007 Kobelco ED150 Blade Runner excavator displaying intermittent loss of travel speed and a two-speed solenoid error likely suffers from a faulty solenoid coil, poor electrical connection, or hydraulic contamination. Locating and testing the solenoid near the travel valve block is the first step toward restoring consistent two-speed function.
Kobelco ED150 Blade Runner background and travel system design
The Kobelco ED150 Blade Runner is a specialized 15-ton class excavator equipped with a full-width dozer blade and enhanced undercarriage for grading and mobility. Introduced in the mid-2000s, it was designed for contractors needing both excavation and finish grading in a single machine.
Key features include:

• Isuzu 4-cylinder turbo diesel engine

• Two-speed travel system with electronic solenoid control

• Hydraulic pilot-operated joystick controls

• Blade integrated with the main frame for stability

• Travel valve block mounted near the center frame


• Not receiving electrical signal

• Failing to shift internally

• Stuck due to contamination or wear


• Remove the floor plate or side panel to access the valve block

• Identify the solenoid by its electrical connector and cylindrical coil body

• Disconnect the plug and inspect for corrosion or bent pins

• Use a multimeter to test coil resistance—should read 10–20 ohms

• Apply 12V power directly to the coil and listen for a click

• If no click is heard, the solenoid is likely seized or burned out


• Check fuse and relay associated with travel control circuit

• Inspect wiring harness for abrasion or loose connectors

• Clean solenoid spool and bore with brake cleaner if sticking is suspected

• Replace hydraulic filters and test for contamination

• Monitor travel pressure during operation—low pressure may indicate valve blockage


• Cycle two-speed travel weekly to prevent spool sticking

• Use dielectric grease on electrical connectors

• Replace hydraulic fluid every 1,000 hours or annually

• Keep undercarriage clean to prevent debris from entering valve block

• Label solenoid connectors for easier future diagnostics


Highway log trucks are essential in the transportation of timber and forestry products. These specialized vehicles are designed to carry heavy, oversized loads over long distances. With a combination of power, durability, and specialized configurations, they are vital in industries such as logging, construction, and even certain agricultural sectors. Understanding the features, performance considerations, and proper maintenance of highway log trucks is crucial for operators and fleet managers to maximize efficiency and longevity.
The Role of Highway Log Trucks
Highway log trucks are designed to transport logs from forests to mills or distribution centers, covering significant distances over public roads and highways. They are often used in logging operations, which require efficient transportation of raw timber, while minimizing road damage. These trucks are equipped with specialized beds, often fitted with hydraulic systems for loading and unloading logs, and feature extended wheelbases for better stability when hauling large loads.
Given their frequent operation in rugged terrains, highway log trucks need to meet specific performance standards for safety, reliability, and regulatory compliance.
Key Features of Highway Log Trucks

1. Engine and Powertrain
   Highway log trucks are typically powered by large, heavy-duty diesel engines. These engines range from 400 to 600 horsepower (HP), depending on the weight and load capacity of the truck. This allows the truck to haul large, heavy logs while maintaining performance on various types of terrain.
   • Torque and Power: Torque is a critical element for these vehicles, especially when towing heavy logs over steep grades. High torque ensures that the truck can climb inclines without straining the engine.

   • Transmission: Many highway log trucks use manual transmissions, although automatic transmission options have become more common for ease of use and to improve fuel efficiency.

2. Chassis and Suspension
   The chassis of a log truck is built for heavy loads. It is typically made from high-strength steel to endure the stress and weight of logs. The suspension system is designed to handle the weight distribution, providing stability and reducing strain on the tires and axles. Many log trucks also have air suspension systems, which are adjustable for different load sizes.
   • Axles: Log trucks often feature multiple axles—ranging from 3 to 5 axles—depending on the weight of the load. More axles help distribute the load evenly and prevent overloading any one set of tires.

3. Load-Bearing Design
   A key feature of highway log trucks is their specialized log beds or flatbeds. These beds are designed to accommodate logs in a manner that is both secure and stable during transport. The bed is typically outfitted with hydraulic arms or bunks that hold logs in place.
   • Log Bunks: These are vertical posts or crossbars that secure the logs to the truck bed, preventing them from rolling off. They can be adjustable or fixed depending on the design of the truck.

   • Hydraulic System: Many log trucks feature hydraulic systems for loading and unloading logs, particularly when used in remote areas where cranes or other machinery might not be available.

4. Tires and Wheels
   Log trucks require heavy-duty tires capable of carrying substantial weight while ensuring adequate traction on both smooth highways and rough, uneven terrain. The tires must also meet the legal requirements for tire load ratings in various regions.
   • Tire Types: Off-road tires are often used on highway log trucks, especially if they need to operate on unpaved roads in forests or construction sites.


1. Road Conditions
   Operating on highways is relatively straightforward, but log trucks frequently encounter unpaved, rough roads or steep gradients when navigating forestry areas. These challenging road conditions increase the wear and tear on the truck’s tires, suspension, and brakes. Drivers must exercise caution and have experience navigating difficult terrain to avoid accidents.

2. Load Management
   The size and weight of logs require careful management to ensure that the truck is loaded safely. Overloading or improperly securing logs can lead to road safety hazards, including potential accidents and road damage. Furthermore, trucks must comply with weight regulations set by local governments to avoid fines and operational delays.
   • Weight Regulations: Different regions have different regulations on how much weight a truck can legally carry. Exceeding these weight limits can cause costly fines and even vehicle damage.

3. Environmental Impact
   As with all heavy-duty vehicles, highway log trucks have a significant environmental impact. The diesel engines, in particular, contribute to emissions that contribute to air pollution. Many manufacturers are now working on hybrid or fully electric versions of these trucks, though they are still in the experimental phase.
   • Fuel Efficiency: Operators should focus on maximizing fuel efficiency through proper maintenance and by adopting eco-friendly driving habits.


1. Engine Maintenance
   • Oil Changes: Regular oil changes are crucial for engine performance, ensuring that the engine operates at optimal efficiency.

   • Air and Fuel Filters: These filters should be checked and replaced regularly to ensure clean air intake and fuel flow, particularly if the truck operates in dusty or wooded environments.

   • Cooling System: Overheating is a significant concern for heavy trucks. Ensure that the radiator, hoses, and cooling system are functioning properly to prevent engine damage.

2. Brake System
   Brakes are under considerable strain when hauling heavy loads, especially when navigating downhill or stopping after a long haul. Ensuring that the brake pads, rotors, and hydraulic systems are in good condition is crucial for road safety.
   • Brake Fluid: Check the brake fluid regularly and replace it as necessary to maintain optimal braking performance.

3. Tire Inspection
   Inspect tires frequently for wear and tear. Uneven tire wear can signal alignment or suspension issues, which should be addressed to prevent further damage.

4. Suspension and Axles
   Because log trucks often operate under heavy loads, the suspension system must be checked regularly for signs of damage or wear. Overworked suspension components can lead to handling problems and premature tire wear.

5. Hydraulic System
   If the truck has a hydraulic system for loading and unloading logs, this system needs regular inspection and maintenance. Check for leaks, ensure the pump operates correctly, and confirm that the hydraulic fluid is at the proper level.


1. Telematics and GPS Tracking
   Many modern log trucks come equipped with telematics systems that monitor engine performance, fuel consumption, and maintenance needs in real-time. GPS tracking allows operators to track the truck’s location and optimize routes, improving delivery efficiency.

2. Autonomous Features
   Although fully autonomous log trucks are still under development, some trucks are equipped with semi-autonomous features such as automatic braking, lane-keeping assist, and adaptive cruise control. These technologies help reduce driver fatigue and improve safety during long hauls.

3. Electric and Hybrid Log Trucks
   The push toward greener alternatives has led to the development of electric and hybrid log trucks. These trucks reduce the environmental impact of logging operations by lowering emissions and improving fuel efficiency, though their adoption is still in its early stages.


Quick answer
To replace a broken bolt in the manual quick-tach system of a Gehl 4680 skid steer, the sliding pin must be removed by first extracting a retaining element—typically a roll pin or set screw—located within the locking mechanism. Careful disassembly and cleaning are essential to avoid damaging the latch housing or misaligning the coupler.
Gehl 4680 background and quick-tach design
The Gehl 4680 skid steer was part of Gehl’s compact equipment lineup in the late 1990s and early 2000s. Known for its mechanical simplicity and rugged build, the 4680 featured:

• A 46-hp diesel engine

• 1,500–1,700 lb rated operating capacity

• Manual quick-tach coupler for bucket and attachment changes

• Mechanical locking pins operated by levers on each side of the coupler


• Clean the area thoroughly with degreaser and compressed air

• Inspect the pin housing for a small hole or recess—this is where the retaining element is located

• Use a punch and hammer to drive out the roll pin or set screw

• Apply penetrating oil and allow it to soak for several hours

• Tap the pin gently with a brass drift to avoid mushrooming the end

• If the pin is still stuck, heat the surrounding metal with a torch to expand the housing slightly


• Grease the quick-tach pins monthly to prevent seizure

• Replace roll pins annually or during major service

• Consider upgrading to a hydraulic quick-tach system if frequent attachment changes are required

• Inspect coupler alignment and weld integrity during each service interval


Trucks are the backbone of various industries, from construction to logistics. Their versatility and durability make them indispensable, but like all heavy machinery, they require consistent maintenance and troubleshooting to ensure optimal performance. Whether it's a general-purpose truck or a specialized vehicle like a dump truck, regular upkeep can prevent major failures and extend the vehicle’s lifespan. In this article, we’ll explore common truck maintenance questions and solutions, focusing on issues like engine performance, fuel systems, electrical components, and more.
Understanding Truck Systems
A truck is a complex machine with numerous systems working in tandem, including the engine, transmission, suspension, brakes, fuel system, and electrical components. Maintenance and troubleshooting must take into account the interdependence of these systems. For example, a small issue in the fuel system could affect engine performance, and a malfunctioning electrical system might trigger warning lights or cause failures in other components like sensors or lights.
Common Truck Issues and Solutions

1. Engine Performance Problems
   Symptoms:
   • Difficulty starting.

   • Rough idling or stalling.

   • Loss of power or poor acceleration.

   Possible Causes:
   • Fuel Issues: Contaminated or poor-quality fuel can clog injectors and damage the fuel pump. It’s important to use the right type of fuel and regularly clean or replace fuel filters.

   • Ignition System: Problems with spark plugs, ignition coils, or the battery can cause engine misfires, leading to poor performance. Always check the ignition system if the engine isn’t firing correctly.

   • Air Intake and Filters: Blocked air filters or intake ducts can lead to a decrease in engine power. This is a common issue, particularly in dusty environments or if filters are not changed regularly.

   Solution:
   • Replace Filters Regularly: Ensure air filters and fuel filters are replaced according to the manufacturer’s recommendations.

   • Check Fuel Quality: Always use clean, high-quality fuel and consider adding fuel additives to keep the fuel system running smoothly.

   • Inspect the Ignition System: Regularly check spark plugs and ignition coils for wear and replace them as needed.

2. Transmission and Shifting Issues
   Symptoms:
   • Difficulty shifting gears.

   • Grinding or slipping gears.

   • Unusual noises when the vehicle is in gear.

   Possible Causes:
   • Low Transmission Fluid: Low or dirty transmission fluid can cause slipping, difficulty shifting, and overheating of the transmission components.

   • Worn Clutch: For manual transmissions, a worn clutch can result in poor gear engagement and difficulty shifting.

   • Transmission Pump Failure: The pump circulates transmission fluid. If the pump fails, fluid pressure decreases, causing shifting problems.

   Solution:
   • Check Fluid Levels and Quality: Regularly check transmission fluid levels and quality. Replace fluid and the filter if it’s old or contaminated.

   • Inspect the Clutch: If using a manual transmission, the clutch should be inspected for wear and adjusted or replaced as necessary.

   • Consult with Professionals for Major Transmission Repairs: Transmission issues may require professional inspection and repair, especially if there’s significant damage.

3. Electrical System Failures
   Symptoms:
   • Lights flickering or not working.

   • Dashboard warning lights illuminated.

   • Difficulty starting the vehicle, even with a fully charged battery.

   Possible Causes:
   • Battery Issues: A weak or dead battery can cause starting issues. Even if the battery seems fine, check for loose connections or corrosion on the terminals.

   • Alternator Failure: The alternator charges the battery. If it’s malfunctioning, the truck may not start, or the electrical components may fail due to lack of power.

   • Fuses and Wiring: Blown fuses or damaged wiring can disrupt electrical systems, including lights, sensors, and other components.

   Solution:
   • Check the Battery: Clean the battery terminals and check for corrosion. If the battery is old or no longer holds a charge, replace it.

   • Inspect the Alternator: Have the alternator tested to ensure it’s functioning properly. If it’s faulty, it will need to be replaced.

   • Check Fuses and Wiring: Regularly inspect the truck’s wiring for wear, corrosion, or fraying. Replace any damaged fuses or wiring.

4. Brake and Suspension Problems
   Symptoms:
   • Uneven braking or grinding noises when braking.

   • Vehicle pulls to one side during braking.

   • Excessive bouncing or poor handling.

   Possible Causes:
   • Brake Pads and Rotors: Worn-out brake pads can cause grinding noises and reduced braking efficiency. Uneven wear on brake pads or rotors can cause pulling during braking.

   • Brake Fluid Leaks: Leaks in the brake lines or cylinders can lead to a loss of brake fluid, compromising braking performance.

   • Suspension Wear: Worn-out suspension components, such as shocks or struts, can cause the vehicle to bounce excessively or result in poor handling.

   Solution:
   • Inspect and Replace Brake Pads and Rotors: Regularly inspect the brake pads for wear. If the pads are worn down, replace them along with the rotors if necessary.

   • Check Brake Fluid Levels: Always ensure the brake fluid is at the correct level. If there’s a leak, repair the lines or cylinders immediately.

   • Check Suspension Components: Inspect the suspension for worn shocks, struts, and bushings. Replace damaged parts to improve ride quality and handling.

5. Fuel System Issues
   Symptoms:
   • Poor fuel economy.

   • Engine misfires or hesitates when accelerating.

   • Fuel smell or leakage.

   Possible Causes:
   • Fuel Injectors: Clogged or malfunctioning fuel injectors can affect fuel delivery to the engine, causing rough idling or poor acceleration.

   • Fuel Pump Failure: A failing fuel pump can result in inadequate fuel pressure, leading to engine hesitation or stalling.

   • Fuel Leaks: Leaking fuel lines or a damaged fuel tank can lead to fuel loss, affecting performance and creating a fire hazard.

   Solution:
   • Clean or Replace Fuel Injectors: Fuel injectors should be cleaned periodically to maintain optimal performance. If they’re clogged or damaged, replacement may be necessary.

   • Check the Fuel Pump: Test the fuel pump to ensure it’s delivering the correct fuel pressure. If the pump is failing, replace it promptly.

   • Inspect for Leaks: Regularly check for any signs of fuel leaks, including around the fuel lines, tank, and injectors.


• Regular Oil Changes: Always follow the manufacturer’s recommended oil change intervals. Clean oil is essential for maintaining engine health and preventing premature wear.

• Tire Maintenance: Inspect tires regularly for wear, correct pressure, and signs of damage. Proper tire maintenance improves safety and fuel efficiency.

• Air Filter Replacement: Replace air filters regularly to ensure the engine receives clean air, which is critical for efficient combustion and performance.

• Fluid Inspections: Regularly check fluid levels for engine oil, transmission fluid, brake fluid, and coolant. Keeping fluids at the right levels prevents component damage and ensures smooth operation.


Quick answer
A 2019 CAT 908M compact wheel loader experiencing random electrical shutdowns and crank-no-start behavior was ultimately repaired by replacing an unlabeled main relay. The relay was not listed in the fuse panel diagram or manual, making diagnosis difficult until the fault became permanent.
CAT 908M background and electrical system architecture
The CAT 908M is a compact wheel loader designed for urban construction, landscaping, and utility work. It features:

• A 74–100 hp Tier 4 Final engine

• Enclosed cab with password-protected ignition

• CAN-based electronic control system with multiple ECMs

• Integrated fuse and relay panel behind the operator seat

• Diagnostic interface compatible with CAT Electronic Technician (ET)


• Crank-no-start condition after password entry

• Red flashing exclamation mark on the dash

• No glow plug activation

• Asterisks in the upper right corner of the display

• No power to the right-side switch panel

• Random shutdowns during operation


• Intermittent electrical faults often stem from relays, connectors, or grounding issues

• Unlabeled components may still be critical—visual inspection and part cross-reference are essential

• Permanent failure can simplify diagnosis by eliminating variables

• CAT ET diagnostics require full ECM scan with “All ECMs” box checked to capture hidden events


• Replace both Main Relay A and B if one fails

• Label all relays manually for future reference

• Keep a spare relay in the cab for field replacement

• Use dielectric grease on relay terminals to prevent corrosion

• Perform ECM scans quarterly to catch early faults


Hydraulic systems are an integral part of heavy equipment, providing the necessary force to move various components like lift arms, blades, and booms. When these systems become weak or slow, it can severely impact productivity and cause delays on the job site. A common issue faced by operators and technicians is the decrease in hydraulic performance after cylinder seal replacements. Despite the work done to repair or replace seals, the hydraulic system may exhibit symptoms like slower operation or weak pressure, undermining the efficiency of the equipment.
This article will explore potential causes for slow or weak hydraulics after cylinder seal replacements and provide steps to diagnose and resolve these issues. Understanding the intricacies of hydraulic systems and following proper troubleshooting procedures can help get equipment back to peak performance.
The Role of Hydraulic Cylinders in Heavy Equipment
Hydraulic cylinders are responsible for converting hydraulic energy into mechanical movement. These cylinders are used in various functions such as lifting, pushing, pulling, and tilting equipment. When a cylinder seal is compromised, it can result in leaks, loss of pressure, or contamination of the hydraulic fluid, all of which negatively affect the cylinder’s performance. Seals are typically replaced during routine maintenance or when a cylinder is showing signs of failure, such as leaking fluid or poor performance.
Replacing cylinder seals should restore the hydraulic system to its intended efficiency, but in some cases, performance issues may arise if the replacement isn't done correctly or if there are underlying issues not addressed during the seal change.
Possible Causes for Slow or Weak Hydraulics After Seal Change

1. Incorrect Seal Installation
   Symptoms:
   • Sluggish or unresponsive hydraulic movement.

   • Uneven operation of hydraulic components.

   • Hydraulic fluid leaking from the cylinder.

   Possible Causes:
   • Seal Misalignment: If the seals are installed incorrectly, they may not form a proper seal within the cylinder, causing fluid leakage and a drop in pressure.

   • Damaged Seals: New seals can be damaged during installation, leading to premature failure and resulting in weak hydraulics.

   Solution:
   • Verify Seal Installation: Ensure the seals are correctly aligned and seated. Recheck the manufacturer’s specifications for correct installation procedures.

   • Inspect Seals: After installation, inspect the seals for any visible damage or tears. Replace seals if necessary.

   • Proper Handling: Handle seals carefully during installation, using appropriate tools to avoid damage during the process.

2. Contaminated Hydraulic Fluid
   Symptoms:
   • Reduced hydraulic pressure.

   • Erratic or slow movement of hydraulic components.

   • Increased operating temperatures or abnormal noises in the hydraulic system.

   Possible Causes:
   • Fluid Contamination: During the cylinder seal replacement, dirt, debris, or moisture can enter the hydraulic system, contaminating the fluid. Contaminants in the hydraulic fluid can clog filters and affect the performance of the hydraulic components.

   • Improper Fluid Type: Using the wrong type of hydraulic fluid after seal replacement can cause performance issues. Each machine requires a specific fluid with the correct viscosity and additives to operate efficiently.

   Solution:
   • Change the Hydraulic Fluid: Flush the hydraulic system and replace the fluid with the correct type and amount, following the equipment manufacturer's specifications.

   • Check Fluid Quality: Inspect the fluid for any signs of contamination, such as discoloration or particulates. If the fluid is contaminated, it may need to be replaced completely.

   • Install or Replace Filters: Ensure that hydraulic filters are properly installed and in good condition. Replace any clogged or damaged filters to prevent further contamination.

3. Air in the Hydraulic System
   Symptoms:
   • Jerky or uneven operation of the hydraulic components.

   • Slow or incomplete movement of hydraulic parts.

   • Hydraulic fluid foaming or bubbling when checked.

   Possible Causes:
   • Trapped Air: When replacing cylinder seals, air can sometimes become trapped in the hydraulic lines. This trapped air compresses under pressure, causing the system to behave sluggishly and affecting the responsiveness of the hydraulics.

   • Improper Bleeding Procedure: Failing to properly bleed the hydraulic system after seal replacement can result in air pockets that impair system efficiency.

   Solution:
   • Bleed the System: Follow the manufacturer's guidelines to properly bleed the air from the hydraulic system. This may involve operating the hydraulic components to allow any trapped air to escape through the venting valves.

   • Check for Leaks: Ensure all connections are tight and that no air is leaking into the system through improperly sealed lines or connectors.

4. Hydraulic Pressure Issues
   Symptoms:
   • Weak or fluctuating hydraulic pressure.

   • Slow movement of the hydraulic cylinder.

   • The hydraulic system fails to meet expected load capabilities.

   Possible Causes:
   • Pressure Valve Malfunction: The pressure relief valve or other control valves in the hydraulic system could be malfunctioning. These valves regulate the pressure within the system, and a failure can lead to inadequate hydraulic pressure.

   • Internal Cylinder Damage: If the hydraulic cylinder is damaged, either by improper seal installation or wear and tear, it may cause inefficient pressure management.

   Solution:
   • Check Pressure Relief Valve: Inspect the pressure relief valve and other control valves for proper operation. If the valve is stuck or not functioning correctly, it may need to be replaced.

   • Inspect the Cylinder: If the hydraulic cylinder was not fully inspected during the seal change, internal damage to the piston or bore could be causing inefficiency. Inspect the cylinder thoroughly and replace any damaged parts.

5. Incorrect Seal Selection
   Symptoms:
   • Hydraulic system exhibits weak pressure and sluggish movement.

   • Unusual noise or high operating temperatures in the hydraulic system.

   Possible Causes:
   • Seal Material: If the wrong seal material is selected, it may not withstand the pressure or temperature of the hydraulic system, leading to failure.

   • Seal Size: Using seals that are not the correct size can result in leaks or inadequate sealing, which impacts system performance.

   Solution:
   • Verify Seal Specifications: Double-check that the seals used for the replacement match the manufacturer’s specifications. Ensure they are made from the right material and are the correct size for the application.

   • Use OEM Seals: Whenever possible, use Original Equipment Manufacturer (OEM) seals that are designed to meet the exact specifications for your machine.


1. Routine Maintenance: Regular inspections and maintenance of hydraulic components can help prevent issues. Keep the hydraulic fluid clean, check seals for wear, and ensure all connections are tight.

2. Proper Installation Techniques: Always follow the manufacturer’s guidelines for seal replacement, and use the correct tools and techniques to ensure proper installation. Incorrect installation can lead to premature failure.

3. Hydraulic Fluid Monitoring: Monitor the quality of hydraulic fluid, checking for signs of contamination, low levels, or abnormal viscosity. Changing fluid regularly can extend the lifespan of hydraulic components and prevent system failures.

4. Address Leaks Promptly: Any sign of leaks, either from seals or connections, should be addressed immediately. Hydraulic leaks can quickly reduce system pressure and efficiency.


Quick answer
A Bobcat 435 mini excavator that struggles to swing or loses swing power entirely may have a failed swing brake assembly or hydraulic restriction under the cab floor. The swing brake bolts can shear off, causing the brake to remain engaged and stall the swing motor.
Bobcat 435 background and swing system design
The Bobcat 435 was introduced in the mid-2000s as a compact zero-tail-swing excavator designed for urban construction, trenching, and utility work. It features:

• A 3.3-ton operating weight

• Pilot-operated hydraulic controls

• Variable displacement piston pumps

• Swing motor with integrated brake assembly

• Enclosed cab with floor-mounted access panels


• Hydraulic valves could be heard activating

• All other functions (boom, arm, travel) worked normally

• The swing motor appeared to receive signal but lacked torque


• The brake remains partially engaged

• Hydraulic pressure cannot fully release the brake

• The swing motor stalls or moves sluggishly

• The machine may emit a groaning or dragging sound during attempted swing


• Remove the cab floor panel on the right side

• Inspect the swing brake housing for loose or missing bolts

• Check hydraulic lines for kinks or internal collapse

• Test brake release pressure—should be 300–500 psi

• Replace sheared bolts with OEM-grade fasteners and torque to spec

• Clean brake surfaces and inspect for scoring or wear


• Inspect swing brake bolts annually, especially after heavy use

• Use thread locker and torque wrench during reassembly

• Flush hydraulic fluid every 1,000 hours to prevent valve sticking

• Avoid abrupt swing reversals that stress the brake mechanism
