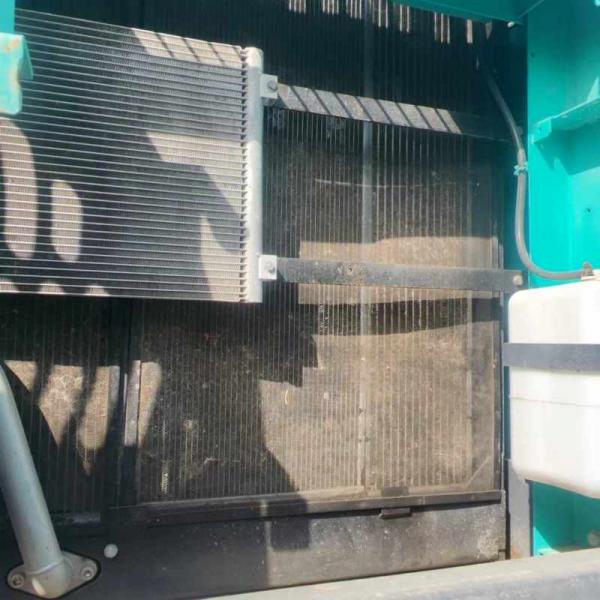

The Kobelco SK120 and Its Hydraulic Legacy
The Kobelco SK120 hydraulic excavator was introduced in the late 1990s as part of Kobelco’s push into electronically managed, pilot-controlled machines. Kobelco Construction Machinery, a division of Kobe Steel founded in 1930, became known for its advanced hydraulic systems and fuel-efficient engines. The SK120, with its 28,000-pound operating weight and 90–100 horsepower engine, was widely adopted in Asia, North America, and Australia. By the early 2000s, thousands of SK120 units had been sold globally, often praised for their smooth pilot controls and responsive travel motors.

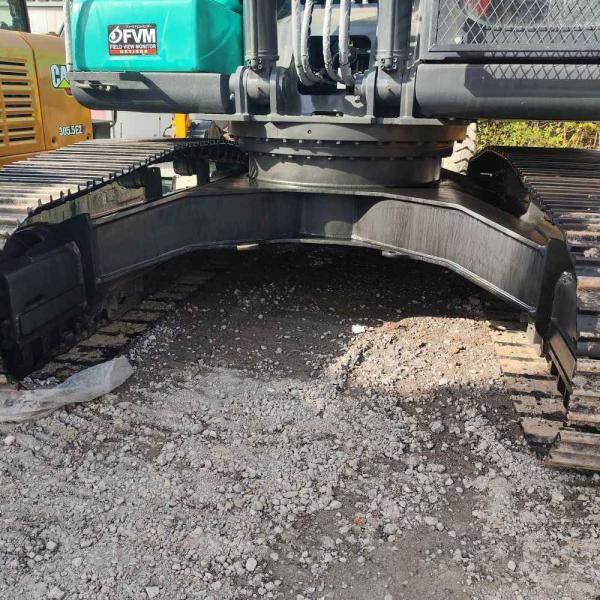

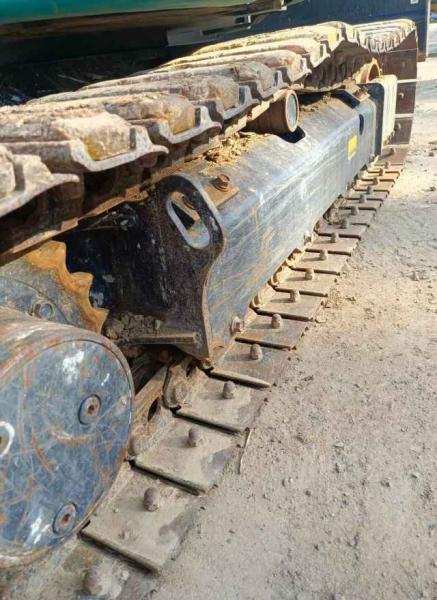

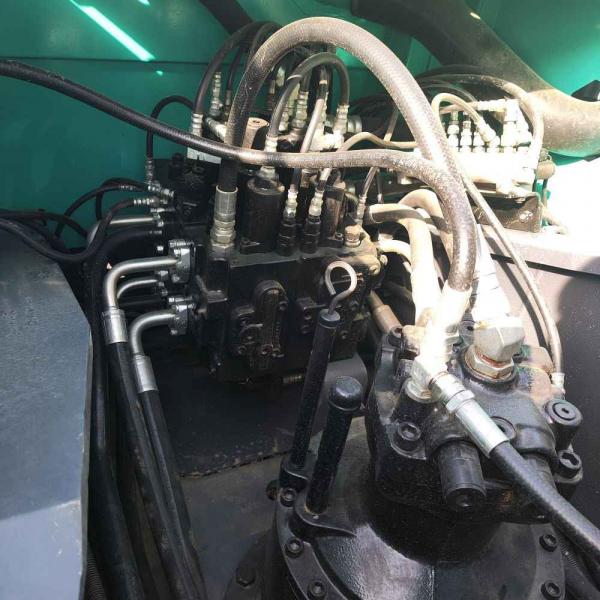

Understanding the Travel System Architecture
The SK120 uses a dual-track hydraulic travel system powered by two independent travel motors. These motors receive pressurized fluid from the main pump, which is controlled by pilot pressure signals. The travel levers are cable-actuated, sending mechanical input to pilot valves that regulate flow to the motors.
Key terminology:

• Pilot Pressure: Low-pressure hydraulic signal used to control high-pressure functions.

• Negative Control Pump: A pump whose displacement is reduced by pilot pressure, common in older Kobelco models.

• Swash Plate: An internal pump component that adjusts flow rate based on angle.

• Brake Spool: A valve that releases hydraulic brakes on the travel motors when pressure is applied.


• Left travel worked occasionally, with pressure increase at the pump.

• Right travel required holding the pedal down for several seconds before engaging.

• Measured pressure at A1 and A2 ports was only 200 psi when travel valves were activated.

• No pressure was detected at the pump outlet or travel motor inlet during failure.


1. Measure Pilot Pressure at Neutral
   With all levers in neutral and engine at full throttle, pilot pressure should read around 500 psi at both pumps. This confirms baseline signal integrity.

2. Engage Travel Levers and Observe Pressure Drop
   A healthy system will show a pressure drop when a travel lever is engaged, indicating the pump is responding to demand. In this case, the left lever showed no drop, while the right dropped below 200 psi—suggesting weak or blocked pilot signal.

3. Check Swash Plate Response
   If the pump does not advance the swash plate, flow to the travel motors remains low. This can be caused by:
   • Faulty pilot valve

   • Blocked pilot line

   • Internal pump regulator failure

4. Inspect Brake Spool and Springs
   If the brake spool fails to release, the travel motor remains locked. In this case, the spool and springs were confirmed functional.


• Deadhead and Tee Test Pilot Lines
  Use both methods to isolate upstream and downstream faults. A deadhead test checks maximum pressure; a tee test monitors flow under load.

• Clean or Replace Pilot Valves
  Contaminants or wear can reduce signal strength. Rebuild kits are available for most Kobelco pilot valves.

• Verify Pump Control Linkage
  Ensure mechanical linkages to the swash plate actuator are intact and properly adjusted.

• Flush Hydraulic System
  Contaminated fluid can block pilot passages. Use manufacturer-recommended flushing procedures and filters.


Introduction to Travel Problems in Heavy Equipment
In the world of heavy equipment, one of the most critical aspects of machine performance is its ability to travel efficiently. Whether it's a skid steer, excavator, or track loader, weak travel (also known as sluggish or reduced travel speed) can significantly impact productivity. It’s essential for operators and maintenance teams to identify the root causes of travel issues and address them quickly to avoid costly downtime and repair bills.
Travel speed issues can stem from a variety of sources, from hydraulic system malfunctions to engine performance issues. Understanding the key components involved in the travel function, diagnosing the problem, and taking the correct corrective actions can save both time and money.
Key Components That Affect Travel Performance
Before diving into troubleshooting, it’s important to understand the primary components that directly affect the travel function of heavy equipment:

1. Hydraulic System: The hydraulic system is responsible for powering the movement of the tracks or wheels, as well as the lift and tilt functions of the machine. A weak or malfunctioning hydraulic system can drastically reduce the travel performance.

2. Tracks and Wheels: For tracked machines, the condition of the tracks is crucial. Worn-out tracks, damaged rollers, or poorly adjusted track tension can all result in reduced speed and mobility. Similarly, for wheeled machines, tire wear or incorrect inflation can affect speed.

3. Drive Motors/Final Drives: The drive motors or final drives convert hydraulic power into movement. If there’s a malfunction in this area, it can cause weak travel performance.

4. Engine Power: The engine must generate sufficient power to drive the hydraulic system and move the equipment. If the engine is underperforming or not producing enough power, the travel speed will suffer.

5. Control Systems: The joystick, pedals, or levers that control the travel speed and direction can also cause issues. A problem with the control system, like a faulty sensor or wiring issue, could result in weak travel.


1. Check Hydraulic Fluid Levels and Condition
   • Why: Hydraulic fluid plays a critical role in the movement of your equipment. Low fluid levels or contaminated fluid can cause sluggish movement or weak travel speeds.

   • How: Inspect the hydraulic fluid level using the machine’s dipstick. Ensure that it’s within the recommended range. Also, check the fluid for signs of contamination (e.g., dark color or foam). If the fluid is dirty, it may need to be flushed and replaced.

2. Inspect the Hydraulic Pump
   • Why: A weak or failing hydraulic pump can reduce the pressure and flow required for proper travel performance.

   • How: Check for any signs of leaks, unusual noises, or a decrease in pressure. If the hydraulic pump is suspected to be faulty, you may need to test the pump with a pressure gauge to ensure it’s operating correctly.

3. Examine the Tracks or Tires
   • Why: Worn or damaged tracks (or tires on wheeled machines) can cause resistance, reducing the travel speed of the equipment.

   • How: Inspect the tracks for wear, damage, or debris buildup. Ensure the track tension is properly adjusted—too tight or too loose can hinder travel performance. For wheeled machines, check the tires for signs of wear or underinflation.

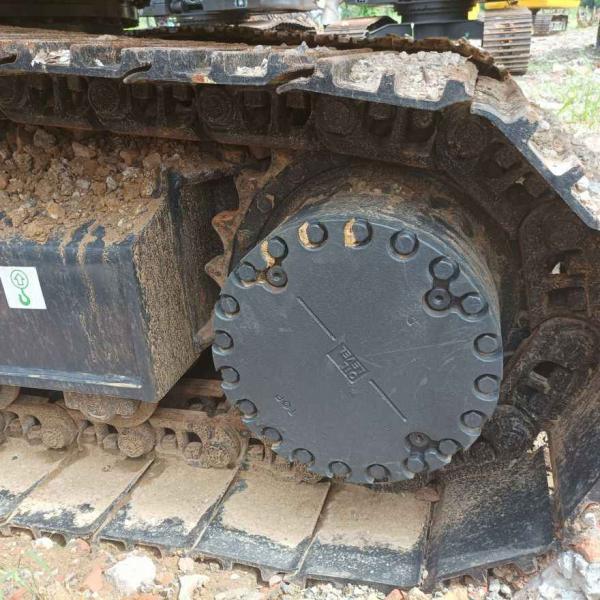

4. Evaluate the Drive Motors and Final Drive
   • Why: The drive motors or final drives are responsible for converting hydraulic power into movement. A malfunction in either of these components can lead to weak travel performance.

   • How: Check the motor for leaks, strange noises, or overheating. It may be necessary to remove the cover and inspect the motor or consult a technician for more detailed testing.

5. Assess the Engine Performance
   • Why: The engine provides the power necessary for all functions of the equipment, including travel. A lack of engine power could cause slow movement.

   • How: Check for engine error codes or signs of poor performance, such as rough idling, smoke, or loss of power. Regular maintenance like air filter replacement, fuel system cleaning, and timely servicing can ensure the engine operates at peak efficiency.

6. Inspect the Control Systems
   • Why: The controls that regulate the travel speed and direction might malfunction, especially if there are issues with the joystick, wiring, or sensors.

   • How: Check the control system for calibration issues, faulty sensors, or worn-out components. Testing the sensors and recalibrating the system might resolve travel issues.


1. Low Hydraulic Fluid Pressure: If the hydraulic system doesn’t generate sufficient pressure, the machine will struggle to move efficiently. This could be caused by a failing hydraulic pump, clogged filters, or leaks in the system.

2. Track Tension Issues: Incorrect track tension can lead to sluggish movement. If the tracks are too tight, the machine’s ability to move freely will be hindered. Conversely, if the tracks are too loose, they may slip, causing poor traction and slow movement.

3. Worn Tracks or Tires: Worn-out tracks or tires can decrease efficiency and cause weak travel. Uneven wear patterns, such as flat spots or deep grooves, will affect movement and create unnecessary friction.

4. Clogged Filters: Dirty or clogged hydraulic filters can restrict fluid flow, leading to weak performance. Regular maintenance and timely replacement of filters can prevent this issue.

5. Drive Motor Failures: A malfunction in the drive motors or final drives can significantly impact travel speed. These components are complex and often require professional diagnostics.

6. Engine Underperformance: If the engine isn’t delivering sufficient power, travel performance will be affected. This could be due to fuel delivery problems, clogged air filters, or internal engine issues.


1. Regular Fluid Checks and Changes: Regularly check the hydraulic fluid level and condition. Ensure that the fluid is clean, and replace it according to the manufacturer's recommended intervals.

2. Track and Tire Maintenance: Inspect tracks or tires frequently for wear, proper tension, and damage. For tracked machines, keep the tracks clean and free from debris to avoid unnecessary strain on the system.

3. Scheduled Engine Maintenance: Regular engine maintenance is crucial. Change air filters, fuel filters, and perform system diagnostics to ensure the engine is running smoothly.

4. Hydraulic System Maintenance: Periodically inspect hydraulic pumps, hoses, and valves for leaks or wear. Replace parts before they fail to prevent further damage to the system.

5. Timely Repairs of Control Systems: If the travel control systems (joystick, pedals, or levers) show signs of malfunction, address the issue early to avoid operational delays.


The Case CX Series and Its Evolution
The Case CX series excavators were introduced in the early 2000s as part of Case Construction Equipment’s push into electronically controlled hydraulic systems. Case, a brand under CNH Industrial, has been manufacturing construction machinery since 1842 and is known for its innovations in loader backhoes and crawler excavators. The CX series, ranging from compact CX17s to full-sized CX470s, features electronically managed engines, load-sensing hydraulics, and advanced onboard diagnostics. These machines have been widely adopted in North America, Europe, and Asia, with tens of thousands of units sold globally.
Understanding Diagnostic Codes in the CX Series
Case CX excavators use a combination of fault codes and machine codes to report system errors, sensor failures, and control mismatches. These codes are displayed on the operator’s monitor and are essential for troubleshooting.
Key terminology:

• ECM (Engine Control Module): The onboard computer that manages engine performance and diagnostics.

• Machine Code (M-Code): A prefix used to identify system-level faults not directly tied to engine sensors.

• TR Code: Refers to transistor circuit faults in the control system.

• Sensor Error: A fault triggered by abnormal voltage or signal loss from a sensor.


• 111: ECM internal hardware error

• 115: No engine speed detected at the speed sensor

• 122: Boost pressure sensor high voltage

• 123: Boost pressure sensor low voltage


• M00A0: Computer reset

• M00B0: ECM matching error

• M00C0: Boom cylinder pressure sensor fault (Europe models only)

• M00D0: Throttle motor error (CX130/CX160 with Case 4TAA-390 engine)

• M00E0: Water temperature sensor error

• M00F0: Engine speed sensor error


• TR1-0011: Circuit 1 in TR1 has a fault

• TR2-0001: Circuit 1 in TR2 has a fault

• M0010: Transistor output short-circuit, often linked to a specific actuator or solenoid


1. Check Display for Electrical Problem Message
   If the screen shows “Electrical Problem,” begin by scanning for M-codes and TR codes.

2. Use a Diagnostic Tool
   A Case-compatible scan tool or laptop with CNH EST software can read and clear codes, test actuators, and monitor live data.

3. Inspect Wiring and Connectors
   Many faults are caused by corroded connectors, pinched wires, or loose grounds. Focus on areas near the boom base and under the cab.

4. Test Sensors and Actuators
   Use a multimeter to verify voltage and resistance. Replace any sensor that shows out-of-range values.

5. Reset ECM if Needed
   Some faults require a hard reset or ECM reprogramming. This should be done by a certified technician.


• Keep a printed fault code chart in the cab for quick reference.

• Log all codes and symptoms before clearing them to aid in future diagnostics.

• Schedule ECM software updates annually to maintain compatibility with new sensors and components.

• Train operators to recognize early signs of electrical issues, such as flickering displays or sluggish controls.


Introduction to John Deere Equipment and Its Parts
John Deere is one of the most recognized names in the heavy equipment industry, known for its agricultural machinery, construction equipment, and forestry machines. With a history that dates back to 1837, John Deere has built a reputation for producing durable, reliable, and innovative machines. Whether you are working with a John Deere tractor, excavator, loader, or any other piece of machinery, maintaining its performance and longevity depends on having access to quality parts.
For owners and operators, sourcing the right parts is essential for ensuring the continued efficiency and reliability of their equipment. With the growing importance of online resources, many people seek digital solutions for finding and purchasing John Deere parts. This guide explores various avenues for finding John Deere parts, the importance of using genuine components, and tips for maintaining and replacing parts efficiently.
Why Choosing Genuine John Deere Parts Matters
John Deere machines are built to last, but like all heavy equipment, they require regular maintenance and occasional parts replacement. The choice between genuine parts and aftermarket parts plays a significant role in the performance, safety, and longevity of the machine.

1. Quality Assurance: Genuine John Deere parts are specifically designed and manufactured for your equipment. They are tested for durability and compatibility, ensuring optimal performance.

2. Warranty Protection: Using genuine parts helps maintain the warranty on your John Deere equipment. Many warranties stipulate that only OEM (Original Equipment Manufacturer) parts should be used.

3. Perfect Fit and Function: Genuine parts are engineered to fit your equipment exactly, reducing the risk of malfunctions or improper operation. Using non-genuine parts can lead to a poor fit, which might affect performance and cause further damage over time.

4. Long-Term Value: Although OEM parts might cost a little more upfront, they often save money in the long run by extending the lifespan of the equipment and reducing the frequency of repairs.


1. John Deere Official Website:
   • John Deere’s official website offers a comprehensive parts lookup tool that allows you to search for the parts specific to your model. By entering the machine model or serial number, you can find diagrams, part numbers, and pricing information.

   • Benefits: Access to a complete catalog of genuine John Deere parts, detailed diagrams, and warranty support.

   • How to Use: Go to the parts section of the website, enter your equipment details, and explore the available parts.

2. John Deere Dealers and Service Centers:
   • Authorized John Deere dealerships and service centers often have robust online ordering systems. These dealers can provide genuine parts and even offer delivery or on-site repair services.

   • Benefits: Access to expert support, including guidance on proper parts selection and installation.

   • How to Use: You can find a list of authorized John Deere dealers through the official John Deere website. Many dealers have their own websites for part orders.

3. Online Marketplaces:
   • Websites like eBay, Amazon, and Alibaba often feature sellers who offer both genuine and aftermarket John Deere parts. While these platforms can provide competitive pricing, it's essential to verify the authenticity of the parts and the credibility of the seller.

   • Benefits: Potential for lower prices, a variety of sellers, and global shipping options.

   • How to Use: Search for the specific part number or machine model to find listings. Always check the seller’s ratings and reviews to ensure quality.

4. Third-Party Parts Retailers:
   • Many independent online retailers specialize in parts for John Deere machines. Some well-known names include Tractor Supply Company, The Green Dealer, and Messick’s.

   • Benefits: Often, these retailers offer both OEM and aftermarket parts, and some provide quick shipping, competitive prices, and specialized customer support.

   • How to Use: Browse the parts catalogs on these websites, and use filters to narrow down your search based on your machine's model.


1. Correct Part Number: The most critical step is ensuring you have the correct part number for your machine. If you’re unsure, you can look up the part number in the equipment manual or use an online lookup tool to verify it.

2. Condition of Parts: Check whether the parts are new or refurbished. While refurbished parts can be a cost-effective solution, new parts are generally recommended for vital components to ensure maximum longevity and performance.

3. Genuine vs. Aftermarket: As mentioned earlier, genuine parts are the best choice for maintaining your machine’s integrity. However, for non-critical components, aftermarket parts can sometimes be a cost-effective alternative. Always make sure that the aftermarket parts are compatible and from a reputable supplier.

4. Return Policies and Warranties: Before finalizing any purchase, check the return policy and warranty coverage. Many online stores offer warranties for their parts, which can provide peace of mind in case the part does not function as expected.

5. Shipping Costs and Lead Time: Take into account the shipping costs and the estimated delivery time, especially if the part is needed urgently. Some suppliers offer expedited shipping or free shipping for larger orders.


1. Follow Manufacturer’s Instructions: Always follow the installation instructions provided by the manufacturer or consult with a professional if you're uncertain about the process.

2. Use Genuine Tools: Whenever possible, use tools specifically designed for John Deere equipment to prevent damage during installation.

3. Regular Maintenance: Routine inspections and maintenance are crucial to prevent breakdowns and prolong the life of your equipment. Regularly check key components like filters, belts, hoses, and fluid levels.

4. Keep Spare Parts: For frequently replaced parts, it’s a good idea to keep a few spares on hand, especially if your machine is critical to your daily operations.


A Portable Powerhouse for Root Removal
In the rugged terrain of Northern California, one fabricator-engineer devised a compact hydraulic stump puller that rivals the brute force of full-sized dozers. Built around a 6-horsepower diesel engine and a two-stage 16 GPM hydraulic pump, this homemade unit powers two 2.5-inch double-acting cylinders through a load-checked two-spool valve. The entire system is mounted on a frame small enough to fit in the bed of a pickup truck, making it ideal for remote or tight-access sites.
The cylinders are connected via quick-disconnects to chains that wrap around stumps and anchor points. When activated, the cylinders pull with a combined force of over 16,000 pounds, enough to extract stumps that even a Caterpillar D8 has failed to dislodge. The key lies in the method: by first severing the roots with an excavator or axe, then applying steady hydraulic tension, the system can uproot massive stumps with minimal soil disturbance.
Key Components and Technical Specs

• Engine: 6 HP diesel, pull-start, air-cooled

• Pump: Two-stage hydraulic, 16 GPM at low pressure, 4 GPM at 2200 PSI

• Cylinders: Two 2.5-inch bore, 24-inch stroke, 1.25-inch rod

• Control Valve: Two-spool, load-checked, with quick-disconnects

• Pulling Force: ~8,100 lb per cylinder at full pressure

• Chains: 3/8-inch Grade 70, selected for strength and break behavior

• Anchor Protection: Worn-out rubber excavator track used to shield trees or stumps


• Removing stubborn hedge rows

• Extracting wind-felled trees with deep taproots

• Emergency lifting of logs or trailers

• Towing or tensioning in forestry operations


• Chain Safety: Always use chains rated above the system’s peak force. Grade 70 is preferred for its predictable failure mode (it breaks cleanly rather than bending).

• Hydraulic Line Length: Maintain sufficient distance between the operator and the pulling zone. A 20-foot hose is recommended.

• Remote Control Option: For added safety, consider integrating a radio-controlled valve actuator.

• Force Calculation: Use the formula:
  Force = Pressure × (π × (Cylinder Radius² – Rod Radius²))
  For 2200 PSI and a 2.5-inch bore with 1.25-inch rod, each cylinder delivers ~8,100 lb.


Introduction to Cat 426 and Outrigger Pads
The Caterpillar 426 is a versatile backhoe loader, commonly used in construction, agricultural, and utility work. Known for its durability and reliability, the Cat 426 is equipped with various features, including outriggers, which are critical to stabilizing the machine during operations like digging, lifting, and trenching.
The outrigger pads are essential components that support the weight of the machine, ensuring it remains stable when the outriggers are deployed. These pads are typically made from steel, composite, or plastic materials and serve to distribute the load evenly, preventing the machine from tipping or sinking into soft ground.
Despite their importance, outrigger pads on the Cat 426 and similar machines can face issues that lead to premature wear, damage, and failure. This article will explore the common problems with outrigger pads on the Cat 426, possible reasons for their breakdown, and solutions to prevent these issues from occurring.
The Function of Outrigger Pads
Before addressing the issues, it's essential to understand the role of outrigger pads in a backhoe loader like the Cat 426:

1. Weight Distribution: The pads spread the weight of the machine over a larger surface area, reducing the pressure on the ground and preventing the outriggers from sinking, especially in soft or uneven terrain.

2. Stabilization: When the outriggers are extended, the pads keep the machine stable during lifting, digging, and other high-load tasks. This is particularly important when working on inclines or in tight spaces.

3. Safety: Properly functioning outrigger pads ensure the safety of operators and workers by preventing machine tipping and ensuring safe lifting operations.


1. Cracking and Breaking of Pads:
   • Problem: One of the most common issues is the cracking or breaking of the outrigger pads, especially when they are exposed to high impact, improper handling, or frequent use on rough or uneven surfaces. The pads may also break if they are too thin or made from inferior materials.

   • Cause: Overloading, improper installation, or using the pads on surfaces that are too rough or soft can lead to cracking. If the machine is operated on unstable ground without proper stabilization, the pads may break under pressure.

2. Pads Sinking into Soft Ground:
   • Problem: In softer terrain, such as mud, sand, or loose dirt, the outrigger pads may sink, making the machine unstable and potentially causing it to tip or become stuck.

   • Cause: This issue is often due to using pads that are too small for the weight of the machine or using the machine in environments that the pads are not designed to handle.

3. Pad Slippage:
   • Problem: Sometimes, the outrigger pads may slide or shift under the weight of the machine, leading to instability and potential damage to the machine and the surrounding environment.

   • Cause: This can happen if the pads are not correctly positioned, if they are worn down and lose their grip, or if the surface they are placed on is too smooth or slippery.

4. Excessive Wear and Tear:
   • Problem: Repeated use of the outrigger pads can lead to excessive wear, especially if the machine is operated on rough or abrasive surfaces. This wear can affect the functionality of the pads, making them less effective at stabilizing the machine.

   • Cause: Continuous friction, improper handling, and lack of maintenance contribute to the gradual wear and tear of outrigger pads.

5. Uneven Load Distribution:
   • Problem: If the pads are not level or are not correctly placed, they can cause uneven load distribution. This can lead to tipping, especially when the machine is lifting or performing heavy-duty tasks.

   • Cause: Incorrect placement or damaged pads can cause this issue. Uneven terrain or improper use of the outriggers can exacerbate this problem.


1. Overloading: Exceeding the machine’s weight capacity puts unnecessary stress on the outrigger pads. This can lead to cracking, bending, or even complete failure of the pads.

2. Improper Use: Using the pads on uneven, soft, or unstable surfaces can cause them to sink or break. Additionally, improper positioning of the pads when deploying the outriggers can lead to slippage or uneven load distribution.

3. Material Quality: The quality of the material used to manufacture the outrigger pads plays a significant role in their durability. Cheap, low-quality materials are more likely to crack, bend, or wear out faster than high-quality ones.

4. Lack of Maintenance: Failure to inspect and maintain outrigger pads regularly can lead to unnoticed wear and damage. Proper care and timely replacement of pads can prevent major issues.

5. Environmental Conditions: Harsh operating environments, such as extreme temperatures or exposure to chemicals, can degrade the outrigger pads and cause them to deteriorate faster.


1. Upgrade to High-Quality Pads: One of the most effective ways to avoid frequent pad failure is by using high-quality, durable outrigger pads. Look for pads made from materials like composite plastic or heavy-duty steel, which offer superior strength and longevity.

2. Proper Pad Size: Ensure that the outrigger pads are appropriately sized for the machine and the terrain on which it will be used. For soft or uneven ground, consider using larger pads or additional support to distribute the weight evenly.

3. Regular Inspection and Maintenance: Regularly inspect the outrigger pads for signs of wear, cracking, or damage. Clean the pads after each use and replace any pads that show signs of wear or are no longer functional.

4. Use on Suitable Surfaces: Avoid deploying the outrigger pads on loose, soft, or unstable surfaces. If working on such surfaces is unavoidable, consider using outrigger pad mats or other additional stabilization measures.

5. Proper Installation and Adjustment: Always ensure that the outrigger pads are correctly installed and level. This helps prevent slippage and ensures even load distribution when the machine is in use.

6. Overload Prevention: Always adhere to the machine’s weight limits and avoid overloading the equipment. This reduces the stress on the outrigger pads and ensures they perform optimally.


The Caterpillar 299C and Its Design Legacy
The Caterpillar 299C compact track loader was introduced in the late 2000s as part of Caterpillar’s high-performance C-series. Built for demanding grading, lifting, and land-clearing tasks, the 299C featured a powerful 90-horsepower engine, vertical lift design, and advanced pilot controls. Caterpillar Inc., founded in 1925, had long dominated the compact equipment market, and the 299C helped solidify its reputation for durability and hydraulic precision. By 2015, tens of thousands of 299C units had been sold globally, with strong adoption in North America and Australia.
Understanding the Tilt Cylinder Rod End
The tilt cylinder on the 299C controls the angle of the attachment plate, allowing operators to tilt buckets, forks, or blades. At the rod end of the cylinder, a pin passes through an eyelet to secure the cylinder to the loader frame. Over time, this eyelet can become oblonged due to wear, contamination, and repeated stress.
Key terminology:

• Rod End: The end of the hydraulic cylinder where the piston rod exits and connects to the machine.

• Eyelet: A circular opening at the rod end designed to house a pin.

• Bushing: A cylindrical sleeve inserted into the eyelet to reduce wear and allow smoother pin movement.

• Pressed Fit: A method of installing a bushing by forcing it into a precisely bored hole for a tight, interference fit.


1. Inspect the Rod End
   Clean the eyelet thoroughly using degreaser and a wire brush. Measure the internal diameter and check for ovality.

2. Bore the Eyelet
   Use a precision boring tool to enlarge the eyelet to the required diameter. Maintain concentricity to avoid misalignment.

3. Press in the Bushing
   Chill the bushing slightly and press it into the bore using a hydraulic press. Ensure it seats flush and does not rotate.

4. Reinstall the Pin
   Use a new or inspected pin with proper lubrication. Verify that the pin rotates freely without excessive play.


• Grease all pivot points weekly, especially in dusty environments.

• Inspect rod ends every 250 hours for signs of wear or elongation.

• Replace pins and bushings together to maintain proper fit.

• Use hardened pins with corrosion-resistant coatings for longer service life.


Introduction to JCB TLBs
JCB is a globally recognized manufacturer of heavy machinery, and their TLB (Tractor Loader Backhoe) models are some of the most popular in construction, agriculture, and general utility work. These machines combine the capabilities of both a loader and a backhoe, offering a powerful and versatile solution for digging, lifting, and material handling tasks.
A key feature that enhances the performance and longevity of a JCB TLB is its robust construction, which includes a series of vital components, such as bushings. Over time, these bushings may wear down due to the stresses of heavy use, especially in demanding applications. Replacing these worn bushings is critical to maintaining the smooth operation of the machine, improving its efficiency, and preventing further damage to the surrounding parts.
Understanding the Role of Bushings in JCB TLBs
Bushings are essential components used to reduce friction between moving parts. They are generally made from durable materials such as bronze, steel, or composite materials and are typically placed where one part of the machine’s moving components connects to another. In a JCB TLB, bushings are found in areas such as the boom, arm, bucket, and various pivot points.
The primary role of bushings is to:

1. Reduce Friction: Bushings help minimize the wear and tear between moving parts by providing a smooth surface for them to interact with, reducing the heat and friction generated during movement.

2. Absorb Shock Loads: In machines like the TLB, where there are frequent lifting, digging, and shifting tasks, bushings help absorb the shock loads that are transmitted through the equipment.

3. Protect the Components: By reducing direct contact between metal parts, bushings prevent damage to more expensive components, such as pivot points and pins.


1. Increased Play or Loose Movement: If the moving parts of the backhoe or loader feel loose or exhibit excessive play, it’s likely that the bushings are worn out. This could result in poor control and instability during operation.

2. Unusual Noises: If you hear clunking, squeaking, or grinding noises coming from the joints and moving parts, this could indicate that the bushings are worn or damaged. The lack of lubrication or a decrease in the material’s integrity leads to metal-on-metal contact, producing these sounds.

3. Uneven Wear: If there’s noticeable uneven wear on components such as the loader arm or backhoe boom, it could be due to degraded bushings, which no longer align the parts correctly.

4. Decreased Performance: A worn bushing can hinder the movement of the equipment, leading to sluggish performance and reduced lifting capacity. The machine might struggle to lift loads or perform tasks at its usual pace.

5. Excessive Heat Generation: Overworked and worn bushings can cause excessive heat due to the increased friction between the components, leading to further damage if not addressed.


1. Preparation and Safety:
   • Ensure the machine is parked on a stable surface and the engine is turned off.

   • Engage the parking brake to prevent any movement during the repair.

   • Gather the necessary tools, such as a hydraulic jack, socket wrenches, hammer, and press tool (if required).

2. Identifying the Worn Bushings:
   • Inspect the machine to identify the bushings that need replacement. Start by examining areas where pivot points and load-bearing components are located. This could include the bucket pivot, boom pins, or loader arms.

   • Check for play in the joints, and inspect the bushing surfaces for signs of wear, damage, or scoring.

3. Disassembling the Affected Components:
   • Depending on the location of the bushing, you may need to remove or loosen surrounding components such as the pins or bolts that hold the pivot points in place. For example, if you’re replacing a boom bushing, you may need to remove the bucket attachment or other accessories that block access to the bushing.

   • Using a press or a hammer, carefully remove the old, worn bushings. If the bushings are particularly stubborn, a hydraulic press may be required to push them out of their housing.

4. Cleaning and Inspecting the Area:
   • Before installing the new bushings, thoroughly clean the housing area to remove any debris, dirt, or rust that could affect the performance of the new bushings.

   • Inspect the surrounding components, such as the pins and housing, for wear or damage. If these parts are also worn, consider replacing or refurbishing them to ensure proper functioning.

5. Installing New Bushings:
   • Ensure that the new bushings are of the correct size and material for the specific application. JCB recommends using high-quality OEM (original equipment manufacturer) parts to ensure the best performance and compatibility.

   • Lubricate the new bushings before installation to minimize friction during the initial use.

   • Carefully press or hammer the new bushings into place. If using a press, apply even pressure to avoid damaging the bushings or the surrounding components.

6. Reassembling the Machine:
   • Once the new bushings are in place, reassemble the removed parts, ensuring that all bolts and pins are properly secured. Double-check that all components are aligned correctly and tightened to the recommended torque specifications.

   • Perform a final inspection of the machine, ensuring no tools or parts have been left behind.

7. Testing and Operation:
   • Start the machine and test the repaired components. Move the loader or backhoe arms to check for smooth operation and proper movement.

   • Pay attention to any unusual noises or performance issues that may arise during operation, and make adjustments if necessary.


1. Regular Lubrication: Ensure all moving parts are regularly lubricated with the recommended grease to minimize wear and friction on the bushings.

2. Routine Inspections: Regularly inspect the bushings and pivot points for signs of wear. Early detection of damage can help prevent costly repairs down the line.

3. Proper Load Handling: Avoid overloading the machine beyond its rated capacity. Excessive stress on the machine’s components can lead to premature bushing failure.

4. Clean Work Environment: Keep the worksite clean to reduce the amount of dirt and debris that can enter the machine’s components. This reduces wear and tear on the bushings and other moving parts.


The Rise of the Caterpillar D-Series Dozers
Caterpillar’s D-series dozers have long been a cornerstone of earthmoving operations worldwide. Among them, the smaller D3 and D4 models, as well as mid-range units like the D5 and D6, have served in construction, forestry, and agriculture since the 1960s. Caterpillar Inc., founded in 1925, built its reputation on rugged, reliable machines, and by the early 1970s, its dozer lineup had expanded to meet a wide range of operational needs. The company’s serial number system became a key identifier for production year, engine type, and configuration, especially for legacy machines still in use today.
Decoding Serial Numbers and Engine Data
A dozer’s serial number is typically stamped on a metal plate affixed to the frame or engine block. This number reveals the manufacturing year, model variant, and sometimes the factory of origin. In one example, a dozer with a serial number linked to the D330C engine was traced to a production year between 1970 and 1972, depending on source interpretation.
Key terminology:

• D330C Engine: A naturally aspirated inline-four diesel engine with a 4.75-inch bore, used in smaller Caterpillar machines during the late 1960s and early 1970s.

• Top-Stop Injector: A fuel injector design used in Caterpillar engines that simplifies timing and installation.

• Performance Handbook: Caterpillar’s official reference guide listing horsepower ratings, torque curves, and operating weights.


• One source may list the serial number as a 1970 build, based on engine configuration and casting codes.

• Another may suggest 1971 or 1972, referencing production records or dealer catalogs.


• Cross-reference with Caterpillar dealer archives or legacy parts catalogs.

• Inspect casting dates on the engine block and transmission housing.

• Compare component configurations with known model-year changes (e.g., hydraulic layout, seat design).


• Measure the neck diameter and thread pitch directly if possible.

• Specify engine model and serial number to parts suppliers.

• Consider upgrading to magnetic plugs to monitor internal wear.


• Change engine oil every 250 hours or sooner in dusty conditions.

• Use SAE 30 or 15W-40 diesel-rated oil, depending on climate.

• Inspect filler plug seal and threads during each oil change.


Introduction to the Komatsu PC18
The Komatsu PC18 is a compact excavator from the renowned Japanese heavy machinery manufacturer, Komatsu. This small but robust machine has been widely used in construction, landscaping, and other industries requiring efficient digging and lifting in confined spaces. The PC18 offers versatility, maneuverability, and power in a compact form, making it ideal for tight, urban environments or areas where larger machinery cannot operate effectively. Understanding the production year and model specifics of this machine is crucial for owners and operators to ensure they have the correct parts and maintenance schedules.
Understanding the Importance of Manufacturing Year
Determining the exact year of manufacture for any Komatsu equipment, including the PC18, is essential for several reasons:

• Parts Compatibility: Different production years may have slight variations in design, components, or features. Knowing the exact year helps to find the right parts and ensure proper compatibility.

• Service and Maintenance: Komatsu may release updates or revisions for different model years, affecting service intervals, repair procedures, and maintenance requirements. By identifying the production year, an operator can align with the manufacturer’s recommended service practices.

• Resale Value: The manufacturing year can also impact the resale value of the equipment. Newer models may come with upgraded features, making them more valuable on the used equipment market.


1. Serial Number Lookup:
   • Every Komatsu machine, including the PC18, comes with a serial number that can be used to determine its year of manufacture. This number is typically located on the machine’s frame or undercarriage, and in the case of the PC18, it can often be found near the operator’s compartment.

   • By contacting Komatsu dealers or accessing online databases, you can input the serial number and get detailed information about the equipment, including its year of manufacture, specifications, and service history.

2. Model Identification Plate:
   • The model identification plate typically found on the side or rear of the excavator contains key details about the machine, including the model number, serial number, and sometimes the manufacturing date.

   • This plate is crucial for identifying specific features that may differ from other versions of the same model.

3. Komatsu Service Manual:
   • The service manual for the machine will also contain the year of manufacture and model specifics. If you don’t have a physical copy, many manuals are available online or through Komatsu dealers.


• Operating Weight: The PC18 typically weighs around 1.8 to 2 tons (depending on configurations).

• Engine Power: It comes with an engine delivering approximately 15-20 horsepower, offering enough power for light to medium-duty digging, lifting, and trenching tasks.

• Digging Depth: The maximum digging depth is usually in the range of 2.3 to 2.5 meters, allowing the PC18 to reach typical trenching depths.

• Bucket Capacity: The standard bucket capacity is typically around 0.04 to 0.06 cubic meters, making it suitable for small-scale excavating projects.

• Hydraulic System: The PC18 comes equipped with an efficient hydraulic system, which is crucial for improving digging efficiency and lifting power in its class.


1. Track Conditions: Since the PC18 is a compact tracked machine, the condition of the undercarriage and tracks is critical. Regularly inspect the tracks for wear and replace them as necessary to avoid costly repairs and downtime.

2. Hydraulic System Care: The hydraulic system is the backbone of the machine’s digging and lifting capabilities. Ensure that hydraulic fluid is maintained at proper levels, and always check for leaks that could lead to performance issues.

3. Engine Maintenance: A well-maintained engine is key to extending the life of the PC18. Regular oil changes, air filter replacements, and engine cooling checks are essential practices for maintaining engine health.

4. Operator Skill: The versatility and capability of the PC18 depend significantly on the operator’s skill. Proper operation and understanding of the machine’s limits, as well as knowing how to adjust for different working conditions, will lead to better productivity and longer equipment life.

5. Regular Servicing: Like all heavy machinery, the PC18 requires routine servicing to ensure it stays in peak operating condition. Make sure to follow the manufacturer’s service intervals for oil changes, hydraulic fluid checks, and other key maintenance tasks.


• Age and Condition: A well-maintained PC18 with low operating hours will fetch a higher resale price, even if it’s a few years old. Machines that have been used for light work (such as landscaping) will generally retain value better than those subjected to heavy-duty tasks (such as construction or demolition).

• Market Demand: Small excavators like the PC18 are in high demand for use in residential construction, landscaping, and infrastructure development. The resale value may increase in areas experiencing growth in these sectors.

• Upgrades and Attachments: Adding attachments such as augers, buckets, or hydraulic hammers can increase the resale value of the PC18, as it becomes more versatile for potential buyers.
