The Fiat-Allis 7G-B and Its Mechanical Lineage
The Fiat-Allis 7G-B track loader was a product of the merger between Fiat and Allis-Chalmers in the 1970s, combining Italian diesel engineering with American heavy equipment design. Built for rugged earthmoving, the 7G-B featured a turbocharged six-cylinder diesel engine, a robust undercarriage with six bottom rollers, and a 2F-2R gear transmission. Its 80-inch-wide bucket and 45-inch-high face made it ideal for quarry work, land clearing, and industrial loading. Though production numbers were modest compared to Caterpillar or Komatsu, the 7G-B earned a reputation for mechanical simplicity and brute strength.
Understanding the Rear Pin Assembly
The rear pin of the bucket lift cylinder—part number 70625755—is a hex-shaped pivot pin that secures the cylinder to the loader frame. It is designed as a slip-fit component, held in place by an external strap and seated within a boss that often accumulates debris and corrosion over time.
Key terminology:

• Slip Fit: A non-threaded, non-press-fit connection that allows easy insertion and removal under ideal conditions.

• Boss: A reinforced housing or sleeve that supports the pin and absorbs load stress.

• Puller Tool: A mechanical or hydraulic device used to extract seized pins or shafts.


• Cleaning the internal threads and installing a ¾-10 bolt.

• Using a slide hammer with no effect.

• Fabricating a puller from a 4-inch pipe coupling and ½-inch steel plate.

• Applying light heat and impact torque, followed by heavy heat and a 1-inch impact wrench.


1. Relieve Load Pressure
   Ensure the bucket and cylinder are fully supported or removed to eliminate residual stress on the pin.

2. Inspect for Retainers or Grooves
   Remove the skid plate if necessary to check for internal retainers or stepped grooves that may be locking the pin.

3. Use a Hydraulic Center-Hole Cylinder
   Apply axial force through a threaded rod and support tube. This method allows controlled pressure without damaging surrounding components.

4. Alternate Force Application
   Apply tension, release, and reapply—mimicking the “back-and-forth” technique used in bolt removal to break corrosion bonds.

5. Last Resort: Thermal Extraction or Cutting
   If mechanical methods fail, preheat the boss and pin with a torch to expand the metal and break the bond. If access permits, drill or cut the pin to relieve internal tension.


• Clean pin bosses annually, especially after working in clay or gravel.

• Apply anti-seize compound on pins during reinstallation.

• Install grease fittings if possible to allow regular lubrication.

• Document pin orientation and removal force for future service records.


Introduction
Rough terrain forklifts are an essential piece of equipment for construction sites, industrial operations, and outdoor logistics. Among the leading manufacturers in this category is Hyster, a company known for its robust and reliable forklifts that are designed to withstand challenging environments. The Hyster Rough Terrain 4x4x4 is one such model that has gained recognition for its durability and versatility. In this article, we will explore the features, advantages, and challenges of using the Hyster Rough Terrain 4x4x4 forklift, along with insights into its applications and maintenance.
Understanding the Hyster 4x4x4 Rough Terrain Forklift
The Hyster 4x4x4 forklift is designed for use in rugged, off-road environments where traditional forklifts would struggle. It combines the power and stability of a four-wheel drive system with the maneuverability of a compact forklift. This model is part of Hyster’s commitment to providing equipment capable of handling tough terrains while offering operational flexibility for various industries.
Key Features of the Hyster 4x4x4

1. All-Wheel Drive (4x4x4)
   The Hyster Rough Terrain forklift comes equipped with an all-wheel drive system that ensures excellent traction and stability on uneven or loose surfaces. This system is essential when operating in locations where mud, gravel, or inclines are prevalent. The 4x4x4 configuration allows the forklift to move across rough terrain with ease, reducing the risk of getting stuck or losing traction.

2. High Ground Clearance
   One of the standout features of the Hyster Rough Terrain forklift is its high ground clearance. This allows it to navigate obstacles such as rocks, curbs, and uneven ground without damaging the underside of the vehicle. High ground clearance is particularly beneficial when working in construction sites or agricultural fields where natural debris and irregular surfaces are common.

3. Powerful Lift Capacity
   Hyster forklifts are known for their impressive lifting capacities, and the 4x4x4 is no exception. With the ability to lift heavy loads at significant heights, the forklift is useful for a variety of tasks, from loading and unloading materials to moving bulky items around construction sites. The model’s lift capabilities make it a versatile tool for handling a range of industrial and agricultural products.

4. Durability and Build Quality
   Hyster forklifts are built with durability in mind. The 4x4x4 model is constructed with heavy-duty components that can withstand harsh conditions, including extreme weather, rough terrain, and heavy use. The robust construction ensures that the forklift will last longer and require fewer repairs, making it a cost-effective option in the long term.

5. Operator Comfort and Control
   Despite its rugged design, the Hyster 4x4x4 forklift prioritizes operator comfort. The cockpit is designed to reduce operator fatigue, with features such as ergonomic seating, easy-to-reach controls, and visibility improvements for safety. The inclusion of features like air conditioning or heating options in some models helps operators work comfortably in varying weather conditions.


1. Construction Sites
   On construction sites, where uneven ground and debris are common, a rough terrain forklift like the Hyster 4x4x4 is indispensable. It can handle lifting heavy materials like steel beams, pipes, and cement blocks, helping to ensure the smooth running of construction operations.

2. Agricultural Operations
   For agricultural applications, the 4x4x4 forklift is ideal for transporting large bales of hay, fertilizer bags, or pallets of equipment across fields. Its all-wheel drive system and high ground clearance make it an excellent choice for working in rough, often muddy conditions where traditional forklifts may not be suitable.

3. Landscaping and Outdoor Projects
   In landscaping and outdoor logistics, the forklift is used to carry heavy landscaping equipment, soil, and other materials. It can easily move across undeveloped terrain or areas with minimal infrastructure, making it an asset for large outdoor projects.

4. Warehousing and Distribution
   The Hyster Rough Terrain forklift can also be found in warehousing operations, especially in environments where forklifts need to traverse outdoor areas or operate in large yards. Its versatility in maneuvering on different surfaces makes it an excellent choice for logistics operations that require mobility across both paved and unpaved surfaces.


1. Fuel Efficiency
   Like many rough terrain forklifts, the 4x4x4 model can consume more fuel compared to standard forklifts due to its larger engine and the demand for power on tough terrain. Operators and fleet managers should factor in fuel consumption when planning operational costs and use strategies to minimize fuel usage where possible.
   • Solution: Using fuel-efficient driving techniques, such as reducing idle times and optimizing load management, can help reduce fuel consumption.

2. Maintenance Costs
   Given the harsh conditions under which the forklift operates, maintenance is a crucial factor in keeping the equipment running smoothly. While the Hyster 4x4x4 is built for durability, the constant exposure to rugged environments can increase wear and tear, leading to more frequent maintenance and repair needs.
   • Solution: Regular inspections, timely servicing, and using high-quality lubricants and parts can extend the lifespan of the forklift and reduce repair costs. Preventative maintenance is key to avoiding unexpected breakdowns.

3. Size and Maneuverability
   While the 4x4x4 forklift is designed for rough terrain, its size and weight can be a disadvantage in tighter spaces. Operators may find it challenging to maneuver in small yards or congested construction sites.
   • Solution: Operators should undergo thorough training to improve their ability to navigate tight spaces. In cases where space is extremely limited, smaller forklifts or specialized equipment may be more appropriate.

4. Operator Skill and Training
   As with any piece of heavy equipment, the skill and training of the operator can greatly influence the safety and efficiency of the operation. Rough terrain forklifts require precise handling, particularly on uneven ground, to avoid accidents and equipment damage.
   • Solution: Proper training, regular refreshers, and adherence to safety protocols can help mitigate the risk of accidents and ensure optimal forklift performance.


1. Regular Fluid Checks
   Like all heavy equipment, regular oil and fluid checks are vital. Hydraulic fluids, transmission fluids, and engine oil should be checked and replaced according to the manufacturer’s guidelines to avoid costly repairs.

2. Tire Inspections
   Given the challenging terrain on which this forklift operates, tire inspections are critical. Check for wear and tear, especially when operating on sharp or uneven surfaces that could cause punctures or degradation.

3. Brake System Maintenance
   The brake system should be inspected regularly to ensure it remains in optimal condition. Given the weight and movement of the forklift, a reliable braking system is essential for safe operation on slopes and uneven ground.

4. Engine and Transmission Checks
   The engine and transmission systems should be serviced regularly, with special attention to components that can experience heavy stress due to rough terrain operations.


The Ford L8000 and Its Place in Vocational Trucking
The Ford L8000 series was a staple in the vocational truck market throughout the 1980s and early 1990s. Built for durability and simplicity, these trucks were commonly used in municipal fleets, construction, and agriculture. Ford Motor Company, founded in 1903, produced the L-series until the mid-1990s, after which the line transitioned into Sterling Trucks under Daimler ownership. The L8000 tandem dump configuration was often paired with Caterpillar’s 3208 diesel engine or gasoline powerplants, depending on application and budget.
Understanding the 3208 CAT Engine
The Caterpillar 3208 is a V8 diesel engine introduced in the 1970s and widely used in trucks, buses, and industrial equipment. It is a non-sleeved block, meaning it lacks replaceable cylinder liners, which complicates in-frame overhauls. While the engine is known for its simplicity and decent torque, it is also criticized for being underpowered in heavy-duty applications and difficult to rebuild without full disassembly.
Key terminology:

• In-frame overhaul: Rebuilding an engine without removing it from the chassis, typically replacing pistons, rings, and bearings.

• Sleeved block: An engine design with removable cylinder liners, allowing easier rebuilds.

• Automatic transmission: Common in vocational trucks for ease of use, but often less efficient and harder to repair in older models.


• Low entry cost: At $1,000, the financial risk is minimal.

• Learning opportunity: Ideal for a technician seeking hands-on experience.

• Parts availability: Common drivetrain components and tires are accessible.


• Engine limitations: The 3208 lacks in-frame rebuild capability and may require full replacement.

• Transmission concerns: Older automatics are prone to failure and expensive to repair.

• Inspection and registration costs: Bringing the truck up to roadworthy standards could cost thousands.

• Insurance hurdles: Older trucks may require inspections before coverage is approved.


• Consider newer platforms: Trucks from the late 1990s or early 2000s with Cummins or Detroit engines offer better performance and rebuild options.

• Manual transmission swap: If the automatic fails, a 9-, 10-, or 13-speed Eaton Fuller manual could be retrofitted.

• Part-out strategy: If the truck proves unviable, selling the axles, drivetrain, and dump body could recoup the initial investment.

• Scrap value: A tandem dump truck can yield more than $1,000 in scrap metal alone.


Introduction
Trenching for tile installation, particularly in the context of agricultural drainage, is an essential task in many construction and farming projects. Tile drainage, commonly used to manage water flow in fields, helps improve soil structure, increases crop yields, and prevents waterlogging. Proper trenching for these tiles requires precision, the right equipment, and a well-thought-out plan. In this article, we’ll explore the key techniques, challenges, and considerations involved in trenching for tile installation, with a focus on ensuring durability, efficiency, and effectiveness.
Understanding Tile Drainage Systems
Tile drainage is a system that involves installing perforated pipes (often referred to as “tiles”) beneath the soil surface to redirect excess water. These systems are commonly used in agriculture, but they also serve urban infrastructure by improving water flow and preventing flooding in certain areas.
The tiles are usually installed in trenches that range from a few inches to several feet deep, depending on the area’s needs and soil composition. The installation of these drainage systems can vary in complexity, requiring a careful balance between soil conditions, water tables, and the overall landscape.
Key Equipment for Trenching

1. Trenchers
   Trenchers are specialized machines designed to dig narrow, deep trenches with high precision. They can range from small walk-behind models to large, powerful machines used for industrial-scale projects. For tile installation, trenchers allow for consistent trench depth and width, ensuring that the pipes are placed properly.
   • Chain trenchers: These trenchers use a continuous chain with teeth to dig through soil. Ideal for soft to moderately hard soils, they are excellent for agricultural drainage work.

   • Wheel trenchers: These are often used for larger-scale trenching. They employ a rotating wheel with teeth that dig into the ground to create wide, deep trenches. They can handle tough soil conditions and are efficient for large installations.

2. Backhoes
   Backhoes are versatile machines that can be used for both digging and lifting materials. They are commonly used when precision digging is required in tight spaces or where trenching machines cannot operate effectively.

3. Plows
   For lighter trenching jobs, or when minimal disruption to the landscape is desired, plows are used. They can be attached to tractors and pull through the soil, creating shallow trenches for tile installation. These are often used for smaller, residential-scale drainage projects.


1. Soil Testing
   Conducting a soil test is essential to understanding the soil's composition, permeability, and how water flows through it. This helps determine the ideal depth and spacing of the tiles, as well as the type of pipe to use.

2. Drainage Design
   A well-designed drainage system involves calculating the required slope of the trenches and tile placement to ensure water flows in the desired direction. Generally, the pipes should slope downhill at a slight angle (typically 1-2%) to allow gravity to carry the water efficiently.

3. Mapping the Area
   Mapping the area before starting any work is crucial for avoiding underground utilities or obstructions, such as rocks or tree roots, which could complicate the installation process. This mapping also helps in determining the layout and spacing for the tiles, ensuring maximum efficiency.


1. Excavation Depth
   The depth of the trench is vital for the success of the drainage system. If the trench is too shallow, the tile may not drain properly, and if it’s too deep, the installation may be too expensive and time-consuming. Standard depths for agricultural tile installations are typically between 3 to 5 feet, depending on water table levels and soil conditions.

2. Trench Width
   The width of the trench is just as important as its depth. The trench should be wide enough to accommodate the tile, as well as any required gravel or other backfill material. A trench that’s too narrow can cause the tile to become blocked or incorrectly placed, reducing the effectiveness of the drainage system.

3. Tile Placement
   Once the trench is ready, the tiles are laid carefully along the bottom of the trench. Tiles should be placed with their perforated sides facing down to allow water to flow in from the surrounding soil. Additionally, the tiles must be spaced adequately to maintain proper water flow, with the perforations aligned to prevent clogs.

4. Backfilling
   After the tiles are placed, it’s important to backfill the trench with the right materials. A layer of gravel or coarse sand is typically used to help water flow into the tiles and filter out debris. The trench is then filled with soil, ensuring the tile system remains stable.


1. Soil Conditions
   One of the biggest challenges in trenching for tile installation is dealing with varying soil conditions. Hard, compacted soils can make it difficult for trenchers to cut through, while loose, sandy soils may collapse into the trench during installation. The type of soil will determine the type of equipment needed and the depth of the trench.
   • Solution: For challenging soils, more powerful trenching equipment or additional tools like backhoes may be required. It’s also crucial to work with soil experts to determine the best method for installing tiles in different soil types.

2. Weather Conditions
   Weather can have a significant impact on the efficiency of trenching projects. Wet conditions can make the soil too soft for digging, while dry conditions may make the soil too hard. Extreme weather can also delay work, especially in remote locations.
   • Solution: Monitoring weather forecasts is essential to ensuring the project stays on track. Additionally, having a contingency plan for adverse weather conditions can help keep the project moving forward.

3. Underground Obstacles
   Rocks, tree roots, or existing underground infrastructure can interfere with trenching efforts. These obstacles can delay progress or damage equipment, adding additional costs to the project.
   • Solution: Conducting thorough pre-trenching surveys and using equipment that can handle such obstacles can minimize disruptions. Sometimes, smaller hand tools are required to clear rocks or roots, while more powerful trenchers or backhoes may be needed for tougher conditions.


The 938F and Its Role in Mid-Size Earthmoving
The Caterpillar 938F wheel loader, introduced in the early 1990s, was part of Caterpillar’s F-series lineup that emphasized improved operator comfort, hydraulic responsiveness, and serviceability. With an operating weight of approximately 30,000 pounds and a 150-horsepower 3116 turbocharged diesel engine, the 938F was widely used in construction, material handling, and municipal operations. Caterpillar Inc., founded in 1925, had already established itself as a global leader in heavy equipment, and the 938F helped solidify its dominance in the mid-size loader segment. By the late 1990s, thousands of 938F units had been sold across North America and Europe.
Understanding the Hydraulic Control Valve System
The hydraulic control valve on the 938F governs the loader’s lift, tilt, and auxiliary functions. It receives pressurized fluid from the gear-driven hydraulic pump and routes it to the cylinders based on joystick input. The valve includes multiple spools, each with internal seals and centering springs, and is equipped with load-holding check valves to prevent drift.
Key terminology:

• Drift: Unintended movement of the loader arms or forks when the control lever is in neutral.

• Internal Leakage: Fluid bypassing within a cylinder or valve due to worn seals.

• Relief Valve: A pressure-limiting valve that protects the system from overload.

• Load Check Valve: Prevents backflow and maintains cylinder position under load.


• Internal bypass in the tilt cylinders due to worn piston seals.

• Bypassing in the control valve spool, allowing fluid to leak past the neutral position.

• Relief valve leakage, especially under high load conditions.


1. Cylinder Isolation Test
   Disconnect the tilt cylinders and cap the hydraulic lines. If drift stops, the cylinders are the likely source. If drift continues, the valve is suspect.

2. Flow Meter Test
   Use a hydraulic flow meter to measure leakage past the control valve in neutral. Excessive flow indicates internal spool wear or faulty load checks.

3. Relief Valve Inspection
   Remove and inspect the relief valve for contamination, scoring, or weak springs. Replace if pressure settings are inconsistent with factory specs (typically around 3,000 psi for the tilt circuit).

4. Visual Inspection
   Check for external leaks at hose fittings, cylinder seals, and valve body. Even minor leaks can contribute to pressure loss over time.


• Rebuild Tilt Cylinders
  Install new piston seals, wear rings, and rod seals. Use OEM kits or high-quality aftermarket equivalents.

• Control Valve Rebuild
  Disassemble the valve, inspect spools and bores for scoring, and replace O-rings and centering springs. If the valve body is worn, consider replacement.

• Valve Replacement
  New or remanufactured control valves are available from Caterpillar dealers and specialized rebuilders. Expect prices between $1,200 and $2,500 depending on configuration.


Introduction
The JCB 714 Rock Truck is a powerful and durable piece of heavy machinery used in the construction and mining industries. It is known for its high-performance capabilities, especially in rugged terrain. However, like all heavy-duty equipment, the JCB 714 can experience mechanical issues, particularly with its transmission system. Transmission problems in rock trucks can lead to decreased productivity, increased repair costs, and potential operational delays. Understanding the causes and solutions for these issues is essential for operators and maintenance teams to keep the machine running efficiently.
In this article, we will delve into common transmission issues in the JCB 714 Rock Truck, discuss the symptoms of these problems, and explore potential solutions.
The Importance of the Transmission System
The transmission in any vehicle, including the JCB 714 Rock Truck, plays a crucial role in transferring power from the engine to the wheels or tracks. In a rock truck, the transmission is responsible for controlling the vehicle’s speed, torque, and direction of travel. It ensures that the engine’s power is efficiently distributed to move the truck and haul heavy loads across challenging terrain.
If the transmission begins to malfunction, it can severely affect the truck’s performance, leading to issues like erratic shifting, loss of power, or complete failure to engage. Therefore, regular inspection and maintenance of the transmission system are vital.
Common Transmission Issues in the JCB 714 Rock Truck

1. Slipping Gears
   • Symptom: One of the most common signs of transmission trouble is slipping gears. Operators may notice that the truck revs higher than usual without increasing speed, or it may feel like the vehicle is losing power during acceleration.

   • Cause: Gear slippage can be caused by low transmission fluid, worn-out clutches, or damaged gear teeth. It can also be a result of improper fluid levels, which cause the transmission components to overheat or not engage correctly.

2. Delayed or Harsh Shifting
   • Symptom: Another frequent issue in rock trucks is delayed or rough shifting between gears. The transmission may hesitate before shifting, or it may lurch forward or jerk as it changes gears. This can affect the truck’s ability to maintain consistent speed and stability.

   • Cause: Delayed or harsh shifting often results from a problem with the transmission fluid. Contaminated or low-quality fluid, or fluid that has broken down due to overheating, can affect the solenoids and valve bodies, leading to improper shifting. Additionally, worn clutch packs or damaged seals can also contribute to shifting problems.

3. Transmission Fluid Leaks
   • Symptom: Leaking transmission fluid is a clear sign that the system needs attention. Operators may notice puddles of fluid beneath the truck or a noticeable drop in the fluid level on the dipstick.

   • Cause: Fluid leaks can be caused by cracked or damaged seals, loose connections, or worn-out gaskets in the transmission system. A lack of proper fluid levels can also lead to overheating and further damage to the transmission components.

4. Loss of Power or Stalling
   • Symptom: Loss of power or stalling can occur during acceleration or when trying to engage the transmission. The truck may struggle to move, and in some cases, it may completely stall when trying to shift into gear.

   • Cause: A malfunctioning torque converter, low fluid pressure, or issues with the control valve can lead to power loss or stalling. When these components are not functioning properly, the engine’s power is not transferred to the wheels, preventing the truck from moving or operating efficiently.

5. Overheating Transmission
   • Symptom: Overheating of the transmission is often indicated by a burning smell, unusual heat coming from the transmission area, or an increase in operating temperatures as shown on the dashboard gauge.

   • Cause: Overheating can result from low fluid levels, fluid contamination, or improper use of the truck. When the transmission fluid is not circulating properly, it cannot effectively cool and lubricate the internal components, leading to increased friction and heat buildup.


1. Check Fluid Levels and Quality
   • The first step in diagnosing transmission issues is to check the fluid levels. Low fluid levels can be a sign of leaks or improper fluid maintenance. The fluid’s color and smell can also provide clues—dirty, dark, or burnt-smelling fluid indicates the need for a fluid change.

2. Inspect for Leaks
   • Look for signs of fluid leakage around the seals, gaskets, and hoses of the transmission system. Leaks can lead to a loss of pressure, which may affect the truck’s ability to shift properly or engage gears.

3. Examine the Torque Converter
   • The torque converter is a critical component in transmitting power from the engine to the transmission. If the truck is stalling or struggling to accelerate, it may be due to a malfunctioning torque converter. A professional mechanic can test the torque converter to ensure it is functioning correctly.

4. Inspect the Transmission Pump
   • The transmission pump circulates fluid throughout the system. If the pump is malfunctioning, it can lead to low fluid pressure and inadequate cooling, causing overheating and improper shifting. A mechanic can check the pump for signs of wear or failure.

5. Perform a Test Drive
   • A test drive can help assess the shifting performance and identify any irregularities. During the test drive, the operator should pay attention to how the truck shifts, whether it hesitates, and if there are any abnormal sounds coming from the transmission area.


1. Fluid Replacement
   • If the transmission fluid is low or contaminated, replacing it with the manufacturer-recommended fluid is often the first step in resolving many transmission issues. Ensure that the fluid is of the correct type and that the system is properly flushed if needed.

2. Seals and Gasket Replacement
   • For leaking transmission fluid, replacing worn or damaged seals and gaskets will help prevent further fluid loss and maintain the integrity of the transmission system.

3. Torque Converter Repair or Replacement
   • If the torque converter is the issue, it may need to be repaired or replaced. This is often a complex repair and may require the expertise of a qualified mechanic.

4. Transmission Pump Repair
   • If the pump is found to be faulty, repairing or replacing it can help restore proper fluid pressure and cooling, ensuring smooth operation of the transmission.

5. Regular Maintenance
   • Regular transmission fluid checks, timely fluid changes, and periodic inspections of the seals, hoses, and gaskets can prevent most transmission issues. Adhering to the manufacturer’s maintenance schedule is essential to avoid premature wear and avoid costly repairs down the line.


The IH E200 and Its Mechanical Foundation
The International Harvester E200 motor scraper was developed during the 1970s as part of IH’s expansion into earthmoving equipment. Powered by the DT414 turbocharged diesel engine and paired with a Clark 4-speed transmission, the E200 was designed for medium-duty land leveling and haulage. International Harvester, founded in 1902, had a long history in agricultural and industrial machinery, and the E200 represented its push into self-propelled scraper technology. Though production numbers were modest compared to Caterpillar or Terex, the E200 found a niche among contractors and farmers for its simplicity and reliability.
Understanding the Regulating Valve Assembly
At the heart of the E200’s hydraulic system is the pressure regulating valve, mounted on the rear of the hydraulic pump. This valve maintains system pressure and protects components from overloading. It includes several key parts:

• Stop Valve Seal (#10): Prevents oil from escaping the valve body.

• Metal Cap (#7): Retains internal components and seals the valve.

• Roll Pin (#9): Locks the cap in place and prevents rotation or loosening.


• Operator’s Manual: Recommends 170–185 psi, with filter service if readings deviate.

• Service Manual: Lists 240–280 psi as normal across all gears.


1. Seal Orientation Error
   The stop valve seal may have been installed upside down, compromising its ability to seat properly. Replacing it with a correctly oriented seal is the first step.

2. Missing Roll Pin
   Without the roll pin, the cap may rotate or shift under pressure. Locate the pin hole (possibly hidden by the seal) and install a new roll pin to secure the assembly.

3. Cap Damage or Deformation
   Punch marks suggest prior attempts to secure the cap. If the cap is deformed, replace it to ensure proper sealing.

4. Hydraulic Filter Service
   Although the filter appeared clean, replacing it ensures optimal flow and pressure regulation. Use IH-approved hydraulic oil to maintain compatibility.


• Inspect valve seals annually, especially after winter storage.

• Verify pressure readings with a calibrated gauge before diagnosing pump or valve faults.

• Use OEM or high-quality aftermarket seals rated for hydraulic systems.

• Document all modifications to valve assemblies for future reference.


Introduction
The Terex TC 35 is a compact, versatile tracked excavator designed for a wide range of construction and landscaping tasks. Like other pieces of heavy equipment, the TC 35 relies on a complex system of hydraulics and drive motors to perform its functions efficiently. The drive motors are responsible for propelling the machine and driving the tracks, and any issue with these components can lead to a significant loss in performance, which can result in costly downtime.
In this article, we will examine common problems with the drive motors on the Terex TC 35, how to diagnose them, and solutions for fixing or preventing these issues. A good understanding of the system and proper maintenance practices are crucial to keep your Terex TC 35 running smoothly.

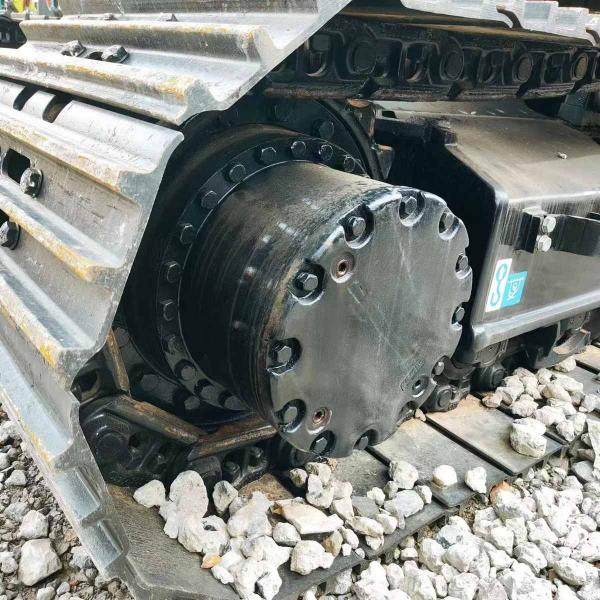

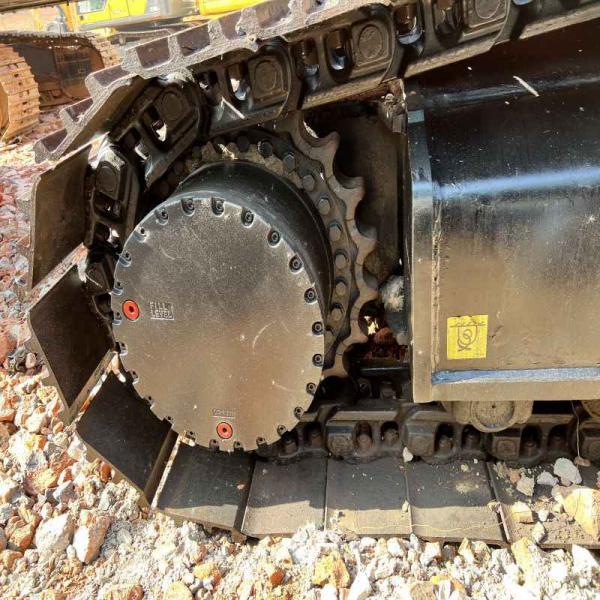

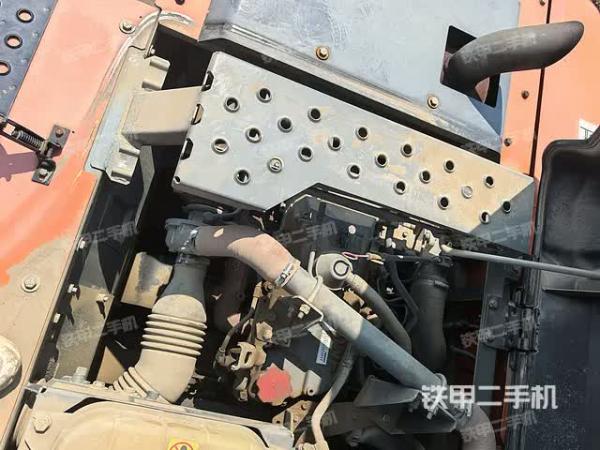

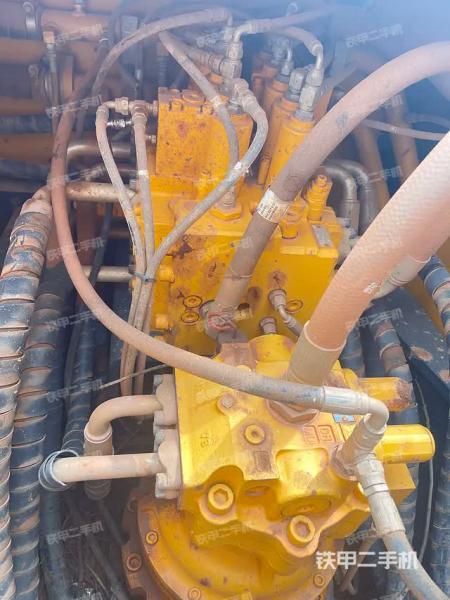

Understanding the Drive Motors of the Terex TC 35

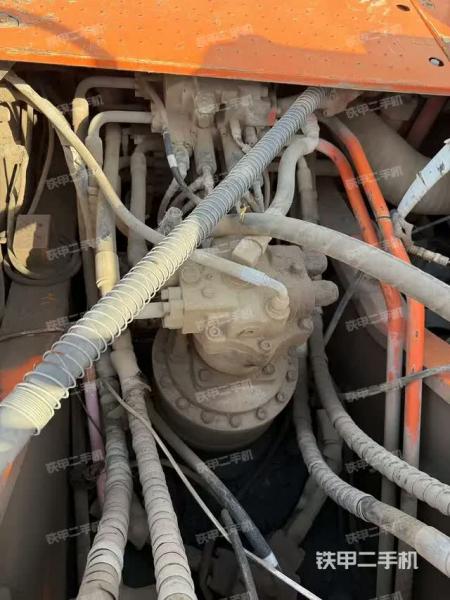

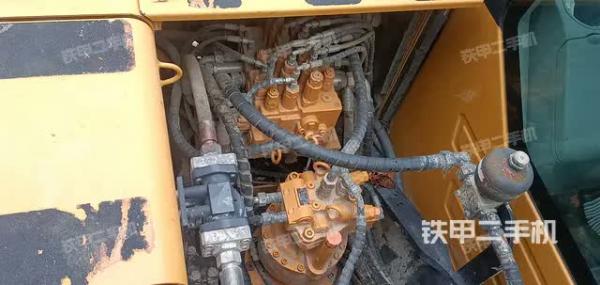

The Terex TC 35, like many tracked excavators, uses hydraulic drive motors to control the movement of its tracks. These motors are typically housed in a sealed, durable casing and connected to the hydraulic system, which powers them through high-pressure fluid. The drive motors allow the machine to move forward, backward, and rotate by providing torque to the sprockets that drive the tracks.
Hydraulic drive motors in machines like the TC 35 are designed for high efficiency and reliability. However, their effectiveness can be compromised by wear and tear, lack of maintenance, or external factors like contamination in the hydraulic fluid.
Common Problems with Terex TC 35 Drive Motors

1. Loss of Power or Slow Movement
   • Symptom: One of the most common problems reported by operators of the Terex TC 35 is a loss of power or slow movement, even when the throttle and controls are set properly. The machine may struggle to move, and tracks may feel sluggish when trying to turn or move forward.

   • Cause: This issue can be caused by several factors. The most common causes include:
     • Low Hydraulic Fluid Pressure: If the hydraulic pump is not generating enough pressure, the drive motors won’t get the required power to move the tracks effectively.

     • Hydraulic Fluid Contamination: Contaminated hydraulic fluid can clog filters or damage internal components of the drive motor, resulting in slow operation or complete failure.

     • Worn or Faulty Drive Motors: Over time, wear and tear on the internal components of the motor, such as seals or bearings, can reduce its efficiency and cause sluggish movement.

2. Unusual Noises or Vibrations
   • Symptom: Unusual grinding, whining, or other abnormal noises from the drive motor area can indicate serious issues. These noises may be accompanied by excessive vibrations while the machine is in operation.

   • Cause: The causes of unusual noises in the drive motor system may include:
     • Worn Bearings or Gears: Over time, bearings inside the drive motor can wear out, leading to grinding noises and vibrations. This can also be a sign of a misalignment in the motor components.

     • Internal Damage from Contamination: If foreign particles enter the hydraulic system, they can cause internal damage to the motor components, leading to malfunction and noise.

     • Loose or Faulty Hydraulic Hoses: Vibrations or noise might also arise from improperly secured or cracked hydraulic hoses supplying the drive motor.

3. Uneven Track Movement
   • Symptom: If the tracks are not moving in sync, or if the machine drifts to one side when trying to move in a straight line, this can indicate a problem with the drive motor or the hydraulic system.

   • Cause: Uneven track movement can often be traced to:
     • Drive Motor Imbalance: If one motor is malfunctioning or less effective than the other, it may cause uneven movement in the tracks.

     • Hydraulic Pressure Imbalance: Uneven hydraulic pressure in the system can result from blockages or issues in the pump, hoses, or valves.

     • Drive Motor Seal Leaks: Leaks in the seals of the drive motor can cause a drop in hydraulic pressure, leading to uneven power distribution between the motors.

4. Leaks from the Drive Motor Area
   • Symptom: Hydraulic fluid leaks around the drive motor area, particularly near seals and hoses, are another common issue that can cause poor machine performance.

   • Cause: Leaks can occur for several reasons:
     • Worn Seals: As seals age, they can become brittle and lose their ability to hold hydraulic fluid. This can lead to fluid loss and pressure drop in the hydraulic system.

     • Damaged Hoses: Over time, hydraulic hoses may crack or degrade, leading to leaks at connection points.

     • Improper Assembly or Installation: Incorrect installation of seals or hoses can cause leaks, which may worsen over time if not addressed.


1. Check Hydraulic Fluid Levels and Quality
   • Ensure that the hydraulic fluid is at the proper level and in good condition. If the fluid appears dirty or has a burnt odor, it may need to be replaced. Dirty or contaminated fluid can cause blockages in the system, reducing the performance of the drive motors.

   • Recommendation: Regularly change the hydraulic fluid based on the manufacturer's recommended intervals to maintain optimal performance.

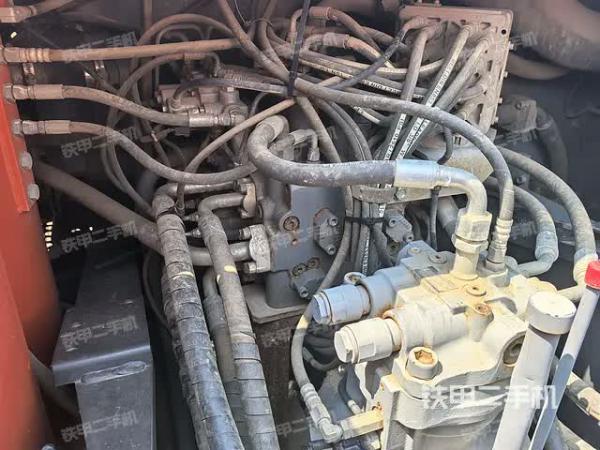

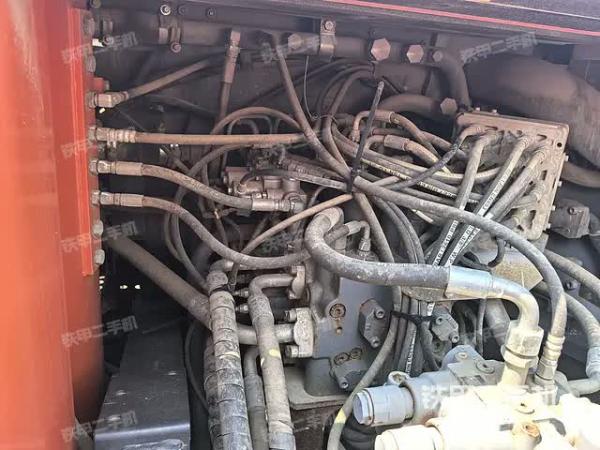

2. Inspect Hydraulic Hoses and Connections
   • Check all hoses for cracks, leaks, or signs of wear. Pay special attention to the connections at the drive motors. A small leak can cause significant pressure loss, affecting the efficiency of the drive motors.

   • Recommendation: Replace any damaged hoses and re-tighten any loose connections to ensure proper hydraulic fluid flow.

3. Test the Drive Motors
   • Perform a test to check for any imbalance or unusual noises in the drive motors. If one motor is functioning significantly slower than the other or making abnormal noises, it may need to be replaced or serviced.

   • Recommendation: If the drive motor is worn or damaged beyond repair, consider replacing it with a new, OEM motor to restore full functionality.

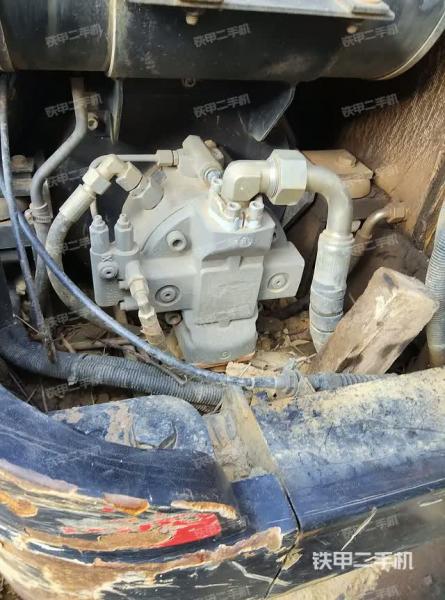

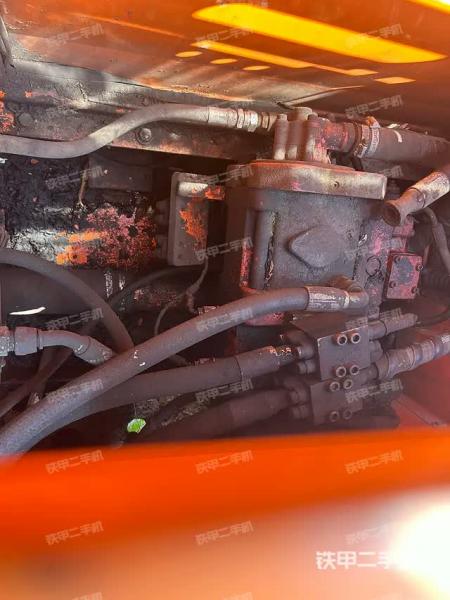

4. Inspect the Hydraulic Pump
   • A weak or failing hydraulic pump can also lead to insufficient pressure for the drive motors. Check the pump for any signs of wear, leaks, or low pressure readings.

   • Recommendation: If the pump is underperforming, it may need to be repaired or replaced.


1. Replacing the Drive Motor
   • If the motor is found to be defective or excessively worn, replacing it with a new motor is often the best solution. Ensure that the replacement motor is compatible with the Terex TC 35 model to maintain optimal performance.

2. Rebuilding the Drive Motor
   • In cases where the damage is not severe, rebuilding the drive motor may be a viable option. This process involves replacing worn parts, such as seals and bearings, and cleaning the motor components to restore function.

   • Recommendation: A professional repair service may be required to ensure that the rebuild is done correctly.

3. Hydraulic Fluid Maintenance
   • Keep the hydraulic system clean by regularly replacing the hydraulic fluid and checking for contamination. Regularly changing the filters can also help prevent debris from entering the motor and causing further damage.

   • Recommendation: Use high-quality hydraulic fluid that meets the specifications of the Terex TC 35.

4. Sealing and Hoses Replacement
   • Replace worn or damaged seals and hoses promptly to prevent further leaks. Using high-quality seals and hoses can extend the lifespan of the hydraulic system and improve performance.


The HD11C and Its Industrial Heritage
The Allis-Chalmers HD11C crawler dozer was produced during the mid-1950s, a time when Allis-Chalmers Manufacturing Company was a dominant force in agricultural and construction machinery. Founded in 1901, the company had already made its mark with tractors, turbines, and industrial engines. The HD11 series, introduced in the early 1950s, was designed to compete with Caterpillar’s D6 and International Harvester’s TD9. With an operating weight of approximately 30,000 pounds and a turbocharged diesel engine producing around 130 horsepower, the HD11C was built for land clearing, grading, and heavy earthmoving.
By 1957, Allis-Chalmers had sold thousands of HD11 units across North America, especially to forestry contractors and municipal road departments. The HD11C variant featured an enclosed cab, improved hydraulic controls, and a more refined transmission system compared to earlier models.
Mechanical Overview and Known Issues
The HD11C is powered by the Allis-Chalmers 9500 series diesel engine, known for its torque-rich performance and mechanical simplicity. The transmission is a torque converter type with multiple clutch packs for steering and directional control. Over time, common wear points include:

• Steering Clutches: These multi-disc clutches engage left or right track movement. Failure often results in loss of steering on one side.

• Hydraulic Leaks: Typically occur at cylinder seals or hose junctions, especially after long periods of inactivity.

• Track Rails and Pads: Subject to wear and elongation, especially in rocky or abrasive terrain.


• Inspect and Rebuild Steering Clutches
  Remove the final drive covers and inspect clutch discs for wear. Replacement kits are available from vintage parts suppliers or can be custom fabricated.

• Repair Hydraulic Leaks
  Identify leak sources using dye or pressure testing. Replace seals and hoses with modern equivalents rated for 3,000 PSI.

• Evaluate Track Condition
  Measure rail height and pad thickness. If extra rails and pads are available, they can be swapped in to extend service life.

• Flush and Replace Fluids
  Use modern diesel-rated oils and hydraulic fluids. Clean reservoirs and filters to prevent contamination.


• Transport Considerations
  The HD11C requires a lowboy trailer rated for at least 35,000 pounds. If the machine cannot self-load due to clutch failure, a winch or crane may be necessary.

• Documentation and Serial Tracking
  Keep records of serial numbers, casting codes, and part replacements. This aids future maintenance and resale.

• Join Vintage Equipment Networks
  Online forums and regional clubs often have members with experience restoring HD11s. They can offer advice, parts, and even service manuals.


Introduction
The CAT D3C III is a well-known model in Caterpillar's line of small track-type tractors. It is widely used in construction, forestry, and land development projects due to its durability and versatility. However, like all heavy machinery, the D3C III requires periodic maintenance and repair, especially in critical areas like the lift cylinders. The lift cylinder pin is an essential component for the operation of the lift system, which is responsible for raising and lowering the loader arms or implement attachments.
A malfunction in this component can severely affect the overall performance and efficiency of the machine. This article explores the role of the lift cylinder pin, common issues associated with it, and how to diagnose and address these problems.
The Function of the Lift Cylinder Pin
The lift cylinder pin connects the lift cylinders to the frame or the arms of the machine, enabling them to pivot smoothly. The lift cylinders themselves use hydraulic power to move the arms up and down, allowing the machine to lift and carry loads. The pin, often made of steel or heavy-duty materials, bears the load from the hydraulic force and ensures smooth movement during operation.
Over time, these pins can wear out or become damaged, resulting in a variety of operational issues, including instability in the lift system, reduced lifting capacity, or even complete failure of the lift mechanism.
Common Issues with the Lift Cylinder Pin
Several common problems can arise with the lift cylinder pin. These issues can range from minor wear to significant damage that could affect the machine's performance. Understanding these problems is key to timely intervention.

1. Wear and Tear
   • The most common issue with lift cylinder pins is wear caused by friction over time. The constant movement of the lift arms puts stress on the pin, and over time, it can begin to degrade.

   • Symptoms: Uneven lifting, loose pins, or even a noticeable "slop" in the movement of the lift arms.

   • Cause: The constant load on the pin from the hydraulic system causes it to wear down. Lack of proper lubrication can accelerate this process.

2. Loose or Worn Pin Bushings
   • Bushing failure is another frequent problem that arises with lift cylinder pins. The pin is often supported by bushings that help reduce friction. Over time, these bushings can wear out or become loose, causing instability in the lift mechanism.

   • Symptoms: Increased play in the lift arms, difficulty raising the arms smoothly, or squeaking noises when the lift is in operation.

   • Cause: Lack of regular maintenance or poor-quality bushings can result in premature failure.

3. Pin Misalignment or Damage
   • Misalignment of the pin can result from impact or incorrect installation, causing uneven stress on the entire lift system. This misalignment can cause the lift to perform inefficiently or unevenly.

   • Symptoms: Uneven lifting, difficulty operating the arms, and abnormal wear patterns.

   • Cause: Improper installation, collision, or misuse of the equipment can lead to pin misalignment.

4. Corrosion
   • Over time, pins can suffer from corrosion, especially if the machine is used in wet or muddy conditions. Corroded pins can fail unexpectedly, leading to costly repairs.

   • Symptoms: Difficulty moving the lift arms, rust or pitting visible on the pin, and potential failure of the hydraulic system.

   • Cause: Exposure to water, chemicals, or abrasive materials can cause the pin to rust and weaken.


1. Visual Inspection
   • Inspect the lift cylinder pin and surrounding components for visible signs of wear, corrosion, or misalignment. If the pin looks worn or damaged, it will likely need to be replaced or repaired.

   • Pay close attention to the bushings around the pin. Worn or loose bushings are a common sign of trouble and can contribute to further damage.

2. Check for Play or Slop in the Lift Arms
   • With the machine off, attempt to move the lift arms manually. If there is noticeable play or slop in the arms, this is a sign that the pin may be loose or worn.

   • Similarly, check for excessive movement in the arms when the lift is in operation. This could be caused by a loose or damaged pin.

3. Hydraulic System Check
   • Conduct a check of the hydraulic system to ensure the lift cylinder is performing properly. Weak or sluggish lifting could indicate a problem with the pin or other related components, such as the hydraulic pump or valves.

4. Noise Check
   • If you notice unusual noises (e.g., squeaking or grinding) when lifting the arms, this could be a sign of worn bushings or misalignment in the pin. Listen for these sounds during operation to help pinpoint the issue.


1. Replacing the Pin and Bushings
   • If the pin is worn, damaged, or corroded, replacement is usually the most effective solution. Depending on the severity of the damage, you may also need to replace the bushings. New, high-quality pins and bushings can help restore the lift's functionality and extend the life of the machine.

   • Recommendation: Always use OEM (Original Equipment Manufacturer) parts to ensure compatibility and durability.

2. Re-aligning the Pin
   • If the pin has become misaligned due to impact or improper installation, realigning it can solve the problem. In some cases, the pin may need to be removed and repositioned to ensure proper alignment.

   • Note: It’s essential to have the pin properly installed to prevent further damage to the lift system.

3. Lubrication and Preventive Maintenance
   • Preventive maintenance is key to ensuring the longevity of the lift cylinder pin. Regular lubrication reduces friction and wear, while keeping the pin clean from debris can prevent unnecessary corrosion.

   • Recommendation: Regularly check and lubricate the pin during scheduled maintenance intervals.
