The JD 550B and Its Transmission System
The John Deere 550B crawler dozer, produced in the late 1980s, was part of Deere’s mid-size earthmoving lineup. Designed for forestry, road maintenance, and land clearing, the 550B featured a torque converter drive system paired with a powershift transmission and hydraulic steering clutches. Deere & Company, founded in 1837, had by then become a dominant force in construction equipment, and the 550B was widely adopted across North America. With an operating weight of around 16,000 pounds and a 4-cylinder diesel engine producing roughly 70 horsepower, the machine offered a balance of maneuverability and pushing power.
The transmission system shares fluid with the steering clutch housings, creating a combined reservoir that must be carefully monitored. The manufacturer recommends using John Deere Hy-Gard transmission-hydraulic fluid, with a dry fill capacity of approximately 13.5 gallons.
Symptoms and Risks of Overfilling
Operators have reported transmission fluid levels reading significantly above the full mark on the dipstick—even after draining and refilling with less than the recommended volume. In one case, the fluid level remained high despite removing over five gallons. This raised concerns about:

• Residual fluid in the torque converter, which does not drain during standard service

• Cross-contamination from steering clutch housings, especially if previous owners added oil through incorrect fill points

• Dipstick misreading, due to splashback or incorrect seating during measurement

• False fill capacity assumptions, as the manual lists dry fill volume without accounting for retained oil


1. Verify Dipstick Procedure
   The dipstick should be checked with the engine running at high idle, resting on the filler tube—not threaded in. Ensure oil is dripping from the stick, not just smeared.

2. Identify Dipstick Modifications
   Some units feature a welded washer on the dipstick shaft. This is a splash baffle, not a fill indicator. Ignore it when reading fluid level.

3. Use a Manual Extraction Tool
   A “suck bucket” or fluid transfer pump can remove excess oil through the filler tube. Quarter-inch tubing may be needed to reach the fluid.

4. Monitor Temperature Gauge
   If operating temporarily with excess fluid, watch the transmission temperature closely. Stop immediately if overheating occurs.

5. Inspect for Cross-Leakage
   Leaks from the steering clutch housing into the transmission may cause gradual overfill. Check for signs of leakage near the final drives and clutch compartments.


• Drain and refill only when warm, to ensure better flow and accurate measurement

• Use Hy-Gard or equivalent fluid, and avoid mixing brands

• Change transmission and clutch housing fluid together, using all three drain points

• Keep a log of fluid volumes and dipstick readings, especially after service

• Train operators on proper dipstick use, including seating and temperature conditions


Introduction
The Ford F800 is a versatile medium-duty truck commonly used for transporting heavy loads, often equipped with a hydraulic lift bed for easy unloading. The truck’s hydraulic system is powered by the engine, with controls linked to the vehicle's transmission, ensuring the bed raises when needed. However, some owners have reported issues where the bed does not raise in gear, particularly in automatic transmission models. This article will explore the potential causes for this issue, offer troubleshooting steps, and provide solutions to restore full functionality.
Understanding the Ford F800 and Its Bed Lift System
The Ford F800 is part of Ford's larger F-series trucks, designed to handle more substantial loads and tough construction, industrial, and transport jobs. Often configured with a hydraulic lift bed, the F800 allows operators to load and unload heavy materials quickly and efficiently. The hydraulic bed lift is typically controlled by a switch or lever, with the lifting mechanism powered by a hydraulic pump that draws power from the engine or the truck’s PTO (Power Take-Off) system.
The truck’s automatic transmission should allow the hydraulic bed to raise when the truck is in gear, but when issues arise, it can cause serious delays in operations.
Common Causes of the Bed Not Raising in Gear

1. Hydraulic System Failures
   The most likely culprit for a malfunctioning bed lift system is a problem within the hydraulic system itself. The hydraulic system in the F800 is responsible for raising and lowering the bed, and if there are issues with the hydraulic fluid, pump, or valve, it can prevent the bed from lifting.
   Potential Problems:
   • Low or contaminated hydraulic fluid: If the fluid is low or contaminated, the hydraulic pump won’t generate the pressure needed to lift the bed. Hydraulic fluid should be inspected and replaced regularly to avoid contamination.

   • Clogged or malfunctioning control valves: Control valves are responsible for directing fluid to the lifting mechanism. If the valve is clogged or malfunctioning, it may not be able to properly control the hydraulic flow, causing the bed to stay down.

   • Damaged or leaking hydraulic lines: Leaks in the hydraulic system can cause a loss of pressure, reducing the system's ability to raise the bed.

   Troubleshooting Hydraulic Issues:
   • Check the hydraulic fluid levels and replace or top up as necessary.

   • Inspect the hydraulic lines for leaks, cracks, or damage.

   • Clean or replace any clogged control valves.

   • If necessary, replace the hydraulic pump if it is not functioning properly.

2. Transmission and PTO Connection Problems
   Since the bed lift is powered through the truck’s PTO (Power Take-Off) system, a malfunction in the transmission or PTO could prevent the bed from raising. The PTO system connects to the truck’s transmission, and issues within this connection could limit the truck’s ability to provide power to the hydraulic lift mechanism.
   Potential Problems:
   • Faulty PTO engagement: If the PTO is not engaging correctly, it cannot supply power to the hydraulic pump that raises the bed.

   • Transmission issues: Problems within the automatic transmission, such as low transmission fluid, could prevent the PTO from working properly, thus inhibiting the hydraulic system from operating.

   Troubleshooting Transmission and PTO Issues:
   • Check the PTO engagement and ensure it is properly connected.

   • Inspect the PTO clutch for any signs of wear or damage.

   • Verify that the transmission fluid is at the correct level and in good condition.

3. Electrical or Control System Malfunctions
   The bed lift system in the Ford F800 may also rely on electrical components, especially if the truck features electric switches or sensors for operating the lift. If the wiring or control system fails, it could prevent the hydraulic lift from functioning as intended.
   Potential Problems:
   • Faulty electrical switches or relays: If the switch that controls the hydraulic bed lift is malfunctioning, it could prevent the bed from being raised. Similarly, a faulty relay could disrupt the electrical flow to the hydraulic pump.

   • Wiring issues: Damaged or corroded wiring can cause electrical failures, leading to intermittent or complete malfunction of the bed lift system.

   Troubleshooting Electrical Issues:
   • Inspect the electrical switches, relays, and fuses related to the bed lift system for proper operation.

   • Check all wiring for signs of wear, corrosion, or loose connections.

   • Test the electrical components using a multimeter to ensure they are functioning correctly.

4. Mechanical or Physical Blockages
   While less common, physical obstructions or mechanical issues within the bed lift system can also prevent the bed from raising. This could include damage to the lift cylinders or the lift mechanism itself.
   Potential Problems:
   • Damaged lift cylinders: The hydraulic cylinders that lift the bed can become damaged or stuck, preventing the bed from moving.

   • Blockages in the lift arms or frame: Dirt, debris, or even accumulated rust can hinder the smooth movement of the lift mechanism.

   Troubleshooting Mechanical Issues:
   • Inspect the lift cylinders for leaks, damage, or signs of wear.

   • Check the lift arms and frame for physical blockages or debris.

   • Lubricate moving parts as recommended by the manufacturer to prevent friction and wear.


1. Regular Fluid Checks
   • Make it a habit to check the hydraulic fluid levels frequently, particularly before operating the truck. Replace any dirty or contaminated hydraulic fluid with the recommended fluid.

2. PTO and Transmission Maintenance
   • Ensure the PTO is properly engaged and checked for wear during regular service intervals. Keep the transmission fluid topped up and inspect for leaks or worn-out components.

3. Electrical System Inspection
   • Regularly inspect the electrical wiring, relays, and switches associated with the hydraulic bed lift system to ensure they are functioning correctly and free of corrosion or damage.

4. Lubrication of Lift Mechanisms
   • Lubricate the bed lift arms and hydraulic cylinders to ensure smooth operation and reduce the risk of mechanical failure.


The 544H and Its Mechanical Heritage
The John Deere 544H wheel loader was introduced in the late 1990s as part of Deere’s H-series, which emphasized improved cab ergonomics, hydraulic responsiveness, and simplified maintenance. Built in Dubuque, Iowa, the 544H featured a 6.8L PowerTech diesel engine producing around 140 horsepower, paired with a full powershift transmission and load-sensing hydraulics. Deere & Company, founded in 1837, had already established itself as a leader in agricultural and construction machinery, and the 544H became a staple in municipal fleets, quarries, and material yards. Thousands of units were sold across North America and Europe, with strong aftermarket support continuing today.
Locating and Accessing the Drain Plug
On the 544H, the engine oil drain plug is located beneath the belly pan, positioned between the front axle and engine block. While the plug is visible from below, access is restricted due to limited clearance between the pan and axle. The plug itself is typically a 15/16-inch hex head, threaded directly into the oil pan.
Operators often struggle to reach the plug due to tight spacing. From the left side of the engine compartment, with the access door open and shield lowered, the plug can be seen and touched—but leverage is limited. A mirror may be required to visually confirm the plug’s condition and orientation.
Drain Plug Behavior and Handling
Unlike some Caterpillar dozers that use a retained plug design, the 544H’s drain plug is a conventional threaded type. Once loosened, it will fully disengage and drop unless held carefully. This means:

• Prepare a wide drain pan to catch oil and prevent splash

• Use a socket extension or flex-head wrench to reach the plug from the side

• Clean the plug area thoroughly before removal to avoid contamination

• Expect the plug to fall if not gripped securely during final turns


• Inspect the frame near the engine mount for a recessed valve

• Look for an arrow or label indicating drain direction

• Use a flashlight and mirror to check for hidden fittings


• Change engine oil every 250–300 hours or annually

• Use John Deere Plus-50 II 15W-40 or equivalent API CJ-4 oil

• Replace oil filter with each change, using OEM or high-quality aftermarket brands

• Inspect plug threads and gasket for wear or damage

• Consider installing a remote valve if frequent oil changes are required


Introduction
The New Holland C227 is a robust and versatile compact track loader (CTL) designed for heavy-duty tasks, from digging and lifting to grading and material handling. As part of New Holland's highly respected C-series, the C227 combines power, efficiency, and maneuverability in a compact form. However, like any piece of equipment, it may experience issues over time. In this article, we'll explore common issues with the 2020 New Holland C227, offer troubleshooting tips, and discuss preventive maintenance practices to keep it running smoothly.
Overview of the New Holland C227
The New Holland C227 is a compact track loader built for both indoor and outdoor use, especially in tight spaces where traditional wheeled loaders may struggle. Powered by a 74.3 horsepower (55.4 kW) engine, it delivers impressive lifting capacity and breakout force, making it ideal for tasks like excavation, landscaping, and material transport.
This model also features New Holland’s advanced hydraulic system, which ensures high-flow capabilities for specialized attachments such as augers, hydraulic hammers, and planers. Its durable undercarriage and track system provide superior traction and stability in rough or uneven terrain, making it an excellent choice for various industries, including construction, agriculture, and landscaping.
Despite its high performance, there are instances where operators encounter issues that could hinder productivity. Understanding these issues and how to address them is vital for maintaining the C227’s functionality.
Common Issues with the New Holland C227

1. Hydraulic System Failures
   The hydraulic system is crucial to the operation of the C227, powering the loader arms, tilt cylinders, and various attachments. Hydraulic failures can manifest in several ways:
   • Loss of power to attachments: If attachments aren’t functioning at full capacity, it may indicate a hydraulic fluid leak or low fluid levels.

   • Slow or jerky movement: This could point to issues with the hydraulic pump, clogged filters, or contaminated fluid.

   Troubleshooting Hydraulic Issues:
   • Check the fluid levels and top up if necessary. Low fluid can lead to sluggish operation and potential damage.

   • Inspect hydraulic lines for leaks or signs of wear and tear.

   • Replace the hydraulic filters as part of regular maintenance to ensure proper flow and prevent clogging.

   • Ensure the hydraulic pump is working within the correct pressure range by testing the pressure with a gauge.

2. Electrical and Control System Problems
   Modern machinery, including the C227, relies heavily on electrical components and control systems. Faulty wiring or sensors can lead to erratic behavior or complete system failure. Some common symptoms include:
   • Error codes displayed on the dashboard: New Holland C227 features an advanced diagnostic system that communicates issues through error codes, which can help pinpoint electrical or sensor malfunctions.

   • Inconsistent performance or failure to start: If the loader starts intermittently or doesn't start at all, there could be issues with the battery, starter motor, or the electrical control system.

   Troubleshooting Electrical Issues:
   • Check the battery voltage and ensure it's fully charged. Replace old or worn-out batteries to avoid starting problems.

   • Inspect the fuses and wiring for any signs of damage or wear.

   • Use the onboard diagnostics to check for error codes and address the specific issue identified.

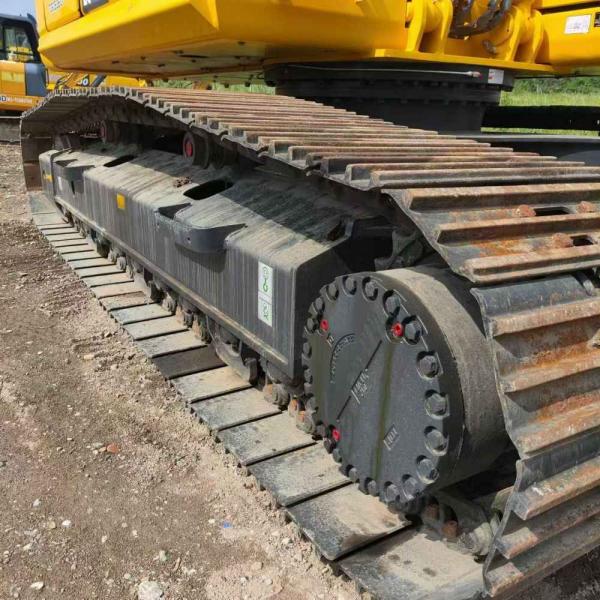

3. Track and Undercarriage Wear
   Given that the C227 is a compact track loader, the undercarriage and tracks are crucial components that experience significant wear during operation, especially in harsh conditions. Some common problems include:
   • Track tension: Over time, track tension can loosen, leading to decreased efficiency and track misalignment.

   • Track damage: Tracks can become damaged due to excessive wear or contact with sharp objects, such as rocks or debris.

   • Undercarriage components: Rollers, idlers, and sprockets may wear down, affecting the overall stability and performance of the machine.

   Troubleshooting Track and Undercarriage Issues:
   • Regularly inspect the track tension and adjust it as necessary to ensure optimal performance.

   • Look for signs of wear on the tracks and undercarriage components. Replace damaged or worn-out parts promptly to avoid further damage.

   • Grease the undercarriage components regularly to maintain smooth movement and reduce wear.

   • Clean the tracks and undercarriage thoroughly to prevent debris buildup, which can cause unnecessary strain on the machine.

4. Engine Performance and Overheating
   Like any powerful machine, the engine is the heart of the C227. Overheating or poor engine performance can be caused by various factors:
   • Dirty air filters: Clogged air filters can reduce engine efficiency, leading to sluggish operation and increased fuel consumption.

   • Coolant system issues: An insufficient coolant supply or a malfunctioning radiator can cause the engine to overheat.

   • Fuel system problems: Fuel injectors, fuel filters, or the fuel pump could be clogged or malfunctioning, causing poor engine performance.

   Troubleshooting Engine Issues:
   • Clean or replace the air filters regularly to ensure proper airflow to the engine.

   • Monitor coolant levels and inspect the radiator for any blockages or leaks.

   • Check the fuel system for blockages or leaks and replace filters as part of routine maintenance.

   • Ensure the engine is running at optimal temperatures by checking the temperature gauge and ensuring there are no coolant leaks.


1. Regular Fluid Checks and Changes
   Maintaining the proper fluid levels is one of the simplest but most important tasks for keeping the C227 in top condition. Regularly check:
   • Engine oil: Change the oil every 250 hours of operation or as recommended in the owner’s manual.

   • Hydraulic fluid: Inspect the fluid levels and check for contamination regularly. Clean or replace hydraulic filters every 500 hours.

   • Coolant: Check coolant levels and flush the system as necessary to prevent overheating.

2. Track Maintenance
   Tracks are an essential part of the C227’s performance, and regular maintenance is key to prolonging their lifespan:
   • Ensure proper track tension and adjust as needed.

   • Inspect for debris, sharp objects, or other sources of damage that could impair track performance.

   • Lubricate the track system regularly to prevent friction and wear.

3. Cleaning and Inspection
   Keeping the C227 clean and well-maintained is essential for extending the machine’s lifespan:
   • Regularly clean the machine, especially around the engine, hydraulic system, and tracks.

   • Perform visual inspections after each operation to identify potential issues early on.


The Volvo EC140B and Its Engine Platform
The Volvo EC140B hydraulic excavator was introduced in the early 2000s as part of Volvo Construction Equipment’s push into electronically monitored, fuel-efficient mid-size machines. With an operating weight of approximately 14,000 kg and a bucket breakout force exceeding 85 kN, the EC140B was designed for urban excavation, utility trenching, and light demolition. It was powered by the Volvo D4D diesel engine, a 4-cylinder turbocharged unit known for its mechanical injection system and robust torque curve.
Volvo CE, founded in 1832 and headquartered in Sweden, had already established a reputation for operator comfort and hydraulic precision. The EC140B was widely adopted in Europe and Asia, with thousands of units sold globally.
Understanding the Mechanical Injector System
The D4D engine uses a mechanical fuel injection system with spring-loaded injectors. Each injector is mounted into the cylinder head and actuated by a camshaft-driven rocker arm. Proper installation requires precise angular alignment to ensure correct spray pattern and timing.
Key terminology:

• Injector Angle: The rotational position of the injector body relative to the combustion chamber.

• Spring-Loaded Injector: Uses internal spring tension to control needle movement and fuel delivery.

• Injection Timing: The moment fuel is delivered into the cylinder, critical for combustion efficiency.


• Failure to start

• Rough idle or misfiring

• Excessive smoke during cranking

• Unusual knocking or vibration


1. Refer to Engine Service Manual
   The D4D injector installation procedure includes diagrams showing correct angular orientation. Each injector must be aligned using a reference mark on the body and head.

2. Use Torque Specifications
   Injector hold-down bolts must be torqued to factory specs—typically around 25–30 Nm. Over-tightening can distort the injector body and affect spray pattern.

3. Prime Fuel System
   After installation, bleed air from the fuel lines and pump to ensure consistent pressure. Use manual priming or crank cycles with fuel cutoff disabled.

4. Verify Compression and Injector Seating
   Use a compression tester to confirm cylinder integrity. Poor seating can lead to blow-by and injector overheating.

5. Check for ECM Faults
   Although the D4D is mechanically injected, some EC140B units include electronic monitoring. Scan for fault codes related to fuel delivery or crank position.


• Inspect injectors every 1,000 hours for signs of leakage or carbon buildup

• Replace injector seals during each removal to prevent compression loss

• Use OEM or certified aftermarket injectors to ensure spray pattern compatibility

• Document injector orientation and torque values for future reference

• Train technicians on mechanical injection principles, especially in mixed fleets


Introduction
Excavation and backfilling are critical steps in the construction of subdivisions, particularly when it comes to creating basements. These processes not only support the structural integrity of the buildings but also ensure that water management, safety, and long-term durability are addressed from the outset. Proper excavation and backfill techniques are crucial for avoiding costly future repairs, foundation issues, and drainage problems. In this article, we’ll discuss key practices for subdivision basement excavations and backfilling, the importance of materials used, and tips for avoiding common pitfalls.
Understanding Subdivision Basement Excavation
Excavating for basements involves the process of digging down to the required depth and shaping the area to accommodate the structure. The depth of the excavation depends on several factors, including the design of the basement, local building codes, soil conditions, and water table levels.

1. Planning and Site Assessment
   Before the excavation begins, a thorough assessment of the site is required. The site should be evaluated for:
   • Soil Composition: Different soil types react differently under pressure and water retention. Clay soils, for example, retain water and can expand or shrink, potentially causing foundation issues if not handled correctly. Sand and gravel, on the other hand, drain well but may require additional stabilization techniques.

   • Water Table: The level at which the ground is saturated with water is crucial in determining how deep the excavation should be and what measures need to be taken to avoid water infiltration.

   • Access for Equipment: Excavation requires large machinery such as backhoes, bulldozers, and excavators. Adequate space must be available for these machines to operate effectively without obstructing other parts of the project.

2. Excavation Techniques
   When it comes to the actual digging, it's essential to follow the excavation plan closely. The excavation should be level, with a proper slope for drainage around the basement. Some techniques include:
   • Step Excavation: This method involves digging the basement floor in steps, creating different levels for foundation walls to rest on. This is particularly useful for sloped sites.

   • Trench Excavation: For foundation walls, trench excavations are dug to a specific depth, where the concrete footings will be poured.

   • Full Excavation: This technique involves excavating the entire basement area at once, allowing for efficient foundation installation.

   The depth of the excavation is typically between 8 to 12 feet, though it may vary depending on local codes and the type of building.

3. Dealing with Rock and Hard Soil
   In certain areas, rock or particularly compacted soil can present significant challenges during excavation. Specialized equipment, such as hydraulic breakers or blasting tools, may be required to break up the rock or soften hard soils for easier removal. In some cases, soil stabilization techniques, such as soil compaction or chemical treatments, are employed to ensure that the basement’s foundation remains secure.


1. Choosing the Right Backfill Material
   The material used for backfilling is crucial for the long-term stability of the basement. Common backfill materials include:
   • Granular Soil: This includes sand, gravel, or crushed stone. Granular materials provide good drainage, which is essential for preventing water accumulation around the basement walls.

   • Clay Soil: While not ideal for drainage, clay can be used in backfilling in certain situations, especially when additional water diversion measures are in place.

   • Cohesive Soil: Mixtures of sand and clay are often used as cohesive backfill. These materials provide a balance between structural support and drainage.

   It’s important to avoid using organic materials such as peat or mulch in backfill, as these can decompose over time, causing instability and shifting of the foundation.

2. Compaction of Backfill
   One of the most critical steps in backfilling is compaction. The backfill material must be compacted in layers to ensure it is stable and can support the weight of the building. The compaction process typically involves:
   • Layering: Backfill is placed in layers, often 6 to 8 inches deep, and compacted with machinery such as vibratory rollers or mechanical compactors.

   • Moisture Control: Sometimes, moisture is added to the backfill material to achieve optimal compaction. Too much moisture, however, can lead to issues such as swelling or erosion.

   • Testing for Compaction: Testing the compaction of the backfill is important, as insufficient compaction can lead to settling or uneven foundation support. Standard tests like the Proctor test can help determine the moisture content and compaction required for optimal stability.

3. Drainage and Waterproofing
   Proper drainage is essential to prevent water accumulation around the basement, which could lead to foundation damage. Several measures should be taken to ensure effective drainage:
   • French Drains: These are perforated pipes installed around the foundation, which help to divert water away from the basement.

   • Waterproofing Membranes: A waterproof membrane is often applied to the outside of the foundation walls to prevent water from seeping into the basement.

   • Proper Sloping: The backfill should be sloped away from the foundation to ensure that water flows away from the structure rather than collecting near the walls.

4. Backfill Around Utilities
   If utilities such as pipes or wiring are installed around the basement, care must be taken during the backfilling process to avoid damaging them. Utilities should be adequately protected, and backfilling should be done slowly and carefully to prevent stress or shifting of the pipes.


1. Improper Soil Testing: Before beginning excavation, failure to properly assess the soil conditions can lead to future complications, such as settling or water infiltration.

2. Neglecting Drainage: Inadequate drainage measures are one of the leading causes of basement flooding and foundation damage. Ensuring a reliable drainage system should be a priority.

3. Overloading Backfill Material: Using heavy, non-draining material like clay without proper drainage solutions can lead to water buildup and damage to the foundation.


Evolution of the Volvo L70 Series
The Volvo L70E and L70F wheel loaders represent two successive generations in Volvo Construction Equipment’s mid-size loader lineup. The L70E was introduced in the early 2000s, followed by the L70F around 2007. Volvo CE, founded in 1832 and headquartered in Sweden, has long emphasized operator comfort, fuel efficiency, and hydraulic precision. By the time the L70F was released, Volvo had already integrated Tier 3 emissions compliance and more advanced electronic control systems across its loader range. Both models were widely adopted in cement plants, quarries, and municipal fleets, with thousands sold globally.
Engine and Emissions Differences

• L70E: Equipped with a Tier 2-compliant Volvo D6D engine, producing around 150 horsepower. Known for mechanical simplicity and fewer electronic components.

• L70F: Upgraded to a Tier 3-compliant D6E engine with similar power output but improved fuel mapping and emissions control.


• L70E: Some units experienced transmission failure around 8,000 hours. In one case, a replacement failed again within 1,000 hours, prompting a warranty claim and eventual trade-in.

• L70F: Transmission design was updated, though not significantly different in layout. Hydraulic pipe failures and head gasket issues have been reported under extreme heat and heavy-duty cycles.


• L70E: Basic electronic interface with analog gauges and limited diagnostics. Easier to troubleshoot manually.

• L70F: Enhanced onboard computer with digital display, fault logging, and programmable settings. Offers better feedback but requires more technical knowledge to service.


• Transmission cost: Replacement for the L70E was reported at $28,000 including cooler.

• Hydraulic hoses and seals: More prone to failure in the L70F under high heat, but easier to source due to standardized fittings.


• Choose L70E if you prioritize mechanical simplicity, lower electronic dependency, and easier field repairs.

• Choose L70F if you need better diagnostics, smoother hydraulics, and emissions compliance for regulated environments.

• Inspect transmission history before purchase, especially for units over 6,000 hours.

• Upgrade hydraulic lines with heat-resistant materials if operating in high-temperature zones.

• Keep spare sensors and diagnostic tools for F-series units to reduce downtime.


Introduction
The decision to purchase a used truck, particularly a specialized model like the 2010 Kenworth T370, is a significant one, especially for businesses in need of reliable transportation for heavy-duty tasks. Known for its robustness, the T370 is a versatile medium-duty truck that's used in a variety of industries, from construction to transportation. However, buying a used vehicle involves thorough inspection and understanding its history, capabilities, and potential for long-term performance. In this article, we’ll break down the key considerations to make when evaluating a used 2010 Kenworth T370, covering everything from engine performance to after-sales support.
Overview of the Kenworth T370
Kenworth has long been recognized for its high-quality trucks, and the T370 is no exception. The T370 is part of Kenworth’s medium-duty lineup, designed for applications such as delivery, utility, and vocational use. With a gross vehicle weight (GVW) of up to 33,000 lbs, the T370 is well-suited for a range of commercial tasks requiring both power and versatility.
Introduced in the late 2000s, the 2010 T370 was built to meet growing demands for fuel efficiency, comfort, and reliability in the medium-duty market. This model features a durable chassis, a variety of engine options, and improved aerodynamics compared to earlier models. Whether you're considering it for construction, heavy lifting, or freight, the T370 offers a solid platform for various job site demands.
Key Features of the 2010 Kenworth T370

1. Engine Options
   The 2010 Kenworth T370 is typically equipped with the PACCAR PX-6 engine, which is known for its durability and efficiency. The PX-6 offers various horsepower configurations, typically ranging from 200 to 300 hp, depending on the specifications chosen by the original buyer. This engine is paired with either an automatic or manual transmission, providing flexibility for various drivers and usage scenarios.
   • Power and Torque: The 2010 T370 engine delivers impressive torque, making it ideal for hauling and demanding tasks. The torque range is generally between 560 to 860 lb-ft, depending on the engine configuration.

   • Fuel Economy: Known for good fuel economy in the medium-duty category, the T370 is engineered to balance power with efficiency. However, fuel economy can be influenced by how the vehicle was maintained and the type of work it was used for.

2. Transmission and Drivetrain
   A reliable drivetrain is critical for the smooth operation of any truck, especially one used for heavy-duty applications. The 2010 Kenworth T370 is typically available with several transmission options, including the Allison automatic transmission or a manual transmission for those preferring greater control.
   • Automatic Transmission: The Allison transmission provides smooth shifting and is well-suited for urban driving, where stop-and-go traffic is common. It also offers easier handling for drivers unfamiliar with manual transmissions.

   • Manual Transmission: While more challenging for some, manual transmissions can offer better control over the vehicle, especially in heavy-duty conditions like towing and hauling.

   If you're considering buying a used T370, check for any signs of wear or issues with the clutch and gearbox, as these components take a significant amount of strain in work trucks.

3. Suspension and Handling
   The Kenworth T370's suspension system is designed to offer both comfort and strength. The front suspension typically features a leaf spring, while the rear suspension uses air ride or spring options, depending on the truck's configuration.
   • Air Ride Suspension: Air suspension is often preferred in the T370 for its ability to absorb shock and improve ride quality, particularly on rough roads or job sites.

   • Leaf Spring Suspension: In cases where heavy loads are common, leaf spring suspension offers more durability and load-bearing capacity.

   It's important to ensure that the suspension system has been properly maintained, as issues with the suspension can significantly affect the vehicle’s handling and comfort.

4. Cab and Interior Features
   The 2010 Kenworth T370 boasts a comfortable and ergonomic cab designed for long hours of driving. The cabin is spacious, with options for both standard and extended cabs. The interior features modern amenities, including a climate control system, comfortable seating, and easy-to-use controls.
   • Ergonomics: The cabin layout of the T370 prioritizes operator comfort, with features like adjustable seats and a well-positioned steering wheel, which are essential for reducing fatigue on long trips.

   • Visibility and Safety: The T370’s design provides excellent visibility, a key consideration for navigating tight spaces or construction sites. Additionally, it comes equipped with safety features such as airbags, seatbelt sensors, and advanced braking systems.

5. Payload Capacity and Towing Ability
   One of the T370’s strongest selling points is its payload capacity, which varies depending on the specific configuration and upgrades installed. The truck can handle a GVW of up to 33,000 lbs, which makes it a solid choice for hauling heavy materials, construction equipment, or large cargo.
   • Towing Capacity: The T370 can tow substantial loads, making it suitable for a variety of tasks, including pulling trailers or large equipment.

   • Cargo Area: The size of the truck bed or cargo area will depend on the configuration, but the T370 can be fitted with flatbeds, box trucks, or other specialized bodies.

   Always verify the exact payload and towing capacity of the specific truck you are considering, as these can vary based on the model and upgrades.

6. Maintenance and Durability
   As with any used vehicle, one of the most critical considerations when purchasing the T370 is its maintenance history. Kenworth trucks, in general, are known for their durability, but any used truck's longevity depends on how well it has been maintained.
   • Service Records: When considering a used 2010 T370, ensure that you have access to complete service records, including oil changes, brake inspections, and other routine maintenance tasks.

   • Component Inspection: Pay close attention to key components like the engine, transmission, suspension, and braking system. If the truck has been used in demanding conditions, certain parts may have undergone excessive wear and require replacement.

7. After-Sales Support and Warranty
   Another important aspect when purchasing a used truck like the 2010 Kenworth T370 is the availability of after-sales support. Ensure that there are local dealerships or service centers that can provide parts, repairs, and warranty services for the model you are interested in.
   • Parts Availability: Kenworth’s strong dealer network ensures that parts are readily available, making repairs more efficient and cost-effective.

   • Warranty: While most warranties may have expired on a 2010 model, some used trucks come with limited warranties, or you may be able to purchase extended warranties for peace of mind.


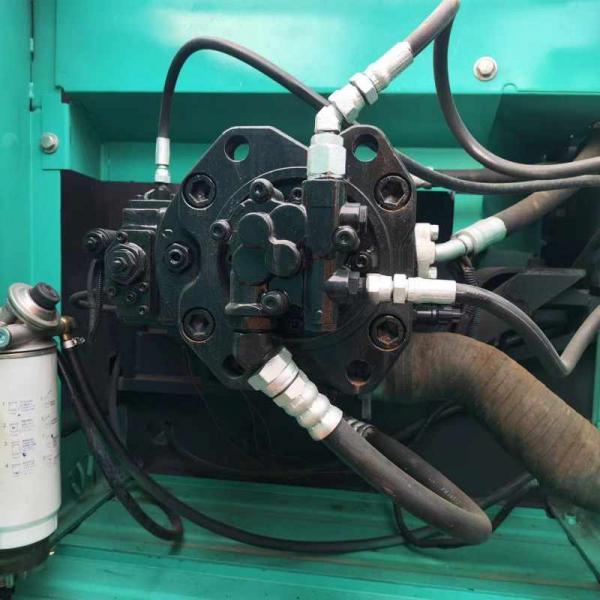

The Kobelco SK130RU and Its Hydraulic Control System
The Kobelco SK130RU is a compact-radius hydraulic excavator designed for urban and utility work, part of Kobelco’s mid-size lineup introduced in the early 2000s. Kobelco Construction Machinery, a division of Kobe Steel founded in 1930, became known for its advanced hydraulic systems and fuel-efficient engines. The SK130RU features pilot-controlled hydraulics, load-sensing pumps, and electronic fault monitoring. With an operating weight of approximately 13,000 kg and a bucket breakout force exceeding 90 kN, the machine is widely used in Asia and Australia for trenching, grading, and demolition.
Understanding Fault Code B3 and the Arm Out Sensor
Code B3 on the SK130RU typically refers to a fault in the arm out sensor circuit, which monitors the position and movement of the dipper arm during extension. This sensor is part of the machine’s electronic control system and feeds data to the hydraulic controller to regulate flow and prevent overextension.
Key terminology:

• Dipper Arm: The hydraulic arm segment between the boom and bucket.

• Arm Out Sensor: A position sensor, often magnetic or potentiometric, that tracks arm extension.

• Pilot Signal: Low-pressure hydraulic signal used to control high-pressure functions.

• ECM (Electronic Control Module): The onboard computer that processes sensor inputs and manages hydraulic response.


• Intermittent locking or jittering during arm extension

• Slower-than-normal outward movement of the dipper arm

• No visible hydraulic leaks or mechanical obstruction

• Code persists even after restarting the machine


1. Inspect Sensor Wiring and Connectors
   Check for corrosion, loose pins, or damaged insulation near the arm base. Use a multimeter to verify voltage and continuity.

2. Test Sensor Output
   If the sensor is potentiometric, measure resistance across its range. If magnetic, verify pulse frequency or voltage swing. Replace if readings are erratic or out of spec.

3. Check Hydraulic Response
   Use a pressure gauge to measure flow to the arm cylinder during extension. If pressure is low or delayed, inspect pilot valve and spool for contamination.

4. Scan ECM for Stored Faults
   Use a Kobelco-compatible diagnostic tool to retrieve fault history. Clear codes after repair and monitor for recurrence.

5. Verify Sensor Mounting and Alignment
   Ensure the sensor is securely mounted and aligned with the actuator or magnet. Misalignment can cause false readings or signal dropout.


• Inspect sensor wiring quarterly, especially after boom or arm service

• Use dielectric grease on connectors to prevent corrosion

• Log fault codes and symptoms for pattern analysis

• Train operators to recognize early signs of sensor failure, such as sluggish arm movement or dashboard warnings

• Keep spare sensors and cables on hand for rapid replacement


Introduction
Mini excavators are versatile and efficient machines, ideal for digging, landscaping, trenching, and various other tasks in confined spaces. These compact machines offer the power and functionality of their larger counterparts but with the added benefit of being more maneuverable and easy to transport. However, choosing the right mini excavator can be challenging, especially with the many different models and specifications available in the market. In this article, we’ll explore some of the key considerations when selecting a mini excavator, and provide some insights on what to look for based on the type of work you intend to perform.

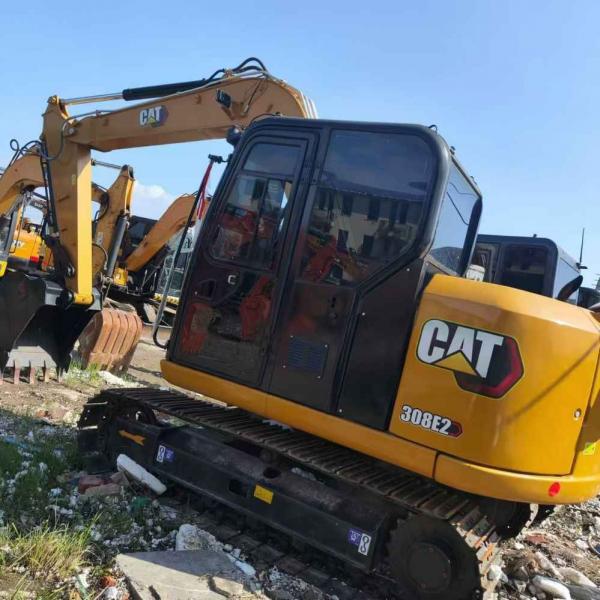

Understanding Mini Excavators

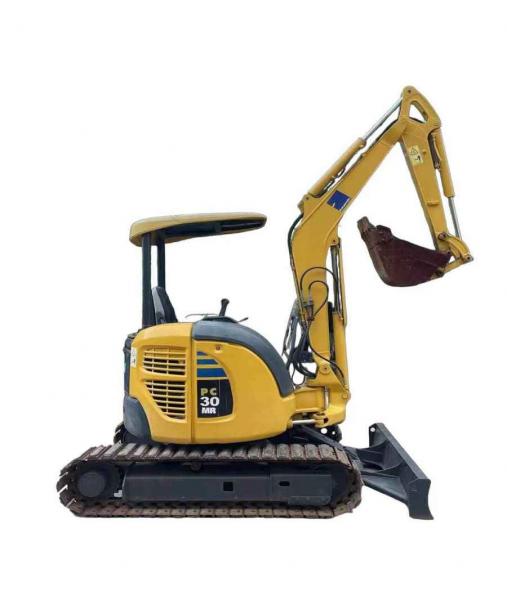

A mini excavator, also known as a compact excavator, is a smaller version of the standard hydraulic excavator. They typically range in operating weight from 1 to 6 tons, though some models can reach up to 10 tons. Mini excavators are often favored for their ability to work in tight spaces, making them ideal for urban construction, landscaping, and smaller-scale projects where larger machines cannot fit.
These machines come equipped with tracks or wheels and have various attachments, including buckets, hammers, augers, and grapples, allowing them to perform a wide variety of tasks. Their versatility and relatively low cost compared to larger machines make them a popular choice for many small and medium-sized businesses.
Key Factors to Consider When Buying a Mini Excavator

1. Weight and Size of the Machine
   One of the first factors to consider when choosing a mini excavator is the weight and size of the machine. The weight of the mini excavator determines its stability, lifting capacity, and its suitability for different types of work.
   • Lightweight models (1–2 tons): Ideal for light landscaping, digging, or working in small yards or tight spaces. These machines are easier to transport but have lower lifting capacity and reach.

   • Medium-weight models (3–4 tons): Suitable for a wider range of tasks, such as trenching, grading, and digging in more extensive areas. These machines strike a good balance between power and maneuverability.

   • Heavyweight models (5–6 tons): These machines offer more lifting capacity, reach, and digging power. They are suitable for more demanding tasks but may not be as agile in confined spaces.

   The right size depends on the type of work you plan to do, as well as the space constraints of your job site.

2. Operating Depth and Reach
   The digging depth and reach of a mini excavator are essential when performing tasks like trenching or digging foundations. Generally, mini excavators have a maximum digging depth of 8 to 12 feet, depending on the model. The maximum reach, which is the horizontal distance the arm can extend, also varies.
   • Shallow digging (up to 8 feet): Lightweight models are sufficient for light trenching, landscaping, or working in narrow spaces.

   • Deeper digging (over 8 feet): If you require deeper digging or need to reach farther distances, a larger, heavier mini excavator with an extended arm may be necessary.

   It’s important to choose a model with the right combination of reach and depth for your specific tasks.

3. Engine Power and Hydraulic Flow
   The engine power and hydraulic flow of a mini excavator determine its efficiency and capability to handle various attachments. Higher horsepower engines typically provide better digging performance and can handle more challenging tasks.
   • Hydraulic flow: Hydraulic flow refers to the amount of fluid circulated by the hydraulic system, which directly influences the performance of the machine’s attachments. Higher flow ensures more efficient operation of attachments such as hydraulic hammers or augers.

   Consider the tasks you plan to undertake—if you intend to use attachments like breakers or augers, higher hydraulic flow and more engine power are recommended.

4. Maneuverability and Tracks vs. Tires
   Mini excavators typically come with either rubber tracks or tires, and the choice depends on the type of terrain you’ll be working on.
   • Tracks: Rubber tracks are common on mini excavators and offer better traction, especially on soft, uneven, or muddy ground. They distribute the machine’s weight more evenly, reducing soil compaction and increasing stability.

   • Tires: Wheeled mini excavators are easier to transport on paved roads and are suitable for working in areas with solid, firm ground. They may not perform as well on soft or uneven terrain compared to tracked models.

   For landscaping or urban projects with irregular terrain, tracked machines are typically the best choice. For smoother, firmer ground, wheeled mini excavators are more cost-effective and efficient.

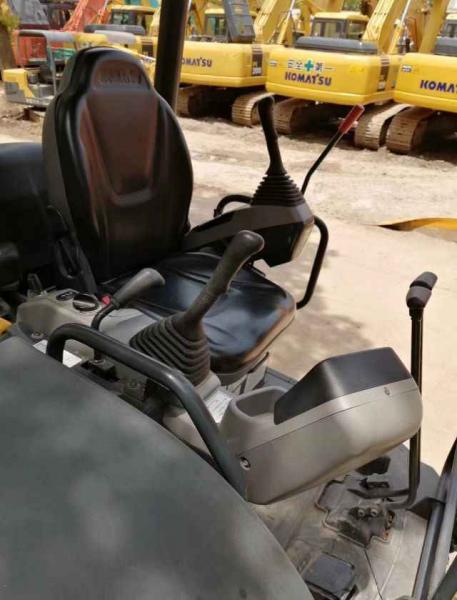

5. Operator Comfort and Controls
   Operator comfort is another important consideration. Long hours of operation can be taxing on the operator, so it’s essential to look for a machine that offers a comfortable cabin with ergonomic controls.
   • Cabin space: A spacious cabin can make a significant difference in operator comfort, especially for those who will be operating the machine for extended periods.

   • Control system: Most mini excavators are equipped with either mechanical or hydraulic joysticks. The joystick control system should be smooth and responsive. Some models offer optional air-conditioned cabs for added comfort in hot or dusty environments.

   Prioritize ease of use and comfort to improve the overall work experience and reduce fatigue.

6. Attachments and Versatility
   Mini excavators are known for their versatility, largely due to the wide range of attachments that can be added to the machine. These attachments allow operators to perform various tasks, such as digging, lifting, breaking concrete, or drilling holes.
   • Common attachments: Bucket, auger, breaker, grapple, thumb, and ripper.

   • Attachment compatibility: It’s crucial to verify that the attachments you need are compatible with the mini excavator’s hydraulic system, lifting capacity, and mounting system.

   Be sure to select a mini excavator that can easily accommodate the attachments needed for your business, ensuring you get the most value out of your investment.

7. Brand Reputation and After-Sales Support
   Choosing a reliable brand is important for long-term success and machine longevity. Brands like Caterpillar, Kubota, and Bobcat are known for producing high-quality mini excavators that offer strong performance, durability, and excellent after-sales service.
   • Service network: Consider the availability of service centers and the reputation of the brand’s customer support. A solid warranty and accessible parts are also important factors.

   • Parts availability: Availability of spare parts is crucial for minimizing downtime. Ensure that the brand you choose has a strong parts distribution network in your region.
