The Caterpillar D8H bulldozer, a mid-sized track-type tractor, is renowned for its rugged performance and durability in heavy-duty applications. As with any complex piece of machinery, proper maintenance and quick attention to any signs of malfunction are essential to keep the D8H running efficiently. One of the critical systems to monitor in any bulldozer is the engine oil pressure. If the engine oil pressure drops below the recommended range, it could indicate a serious issue that requires immediate attention. This article explores the common causes of engine oil pressure problems in the CAT D8H, provides insights into diagnosing these issues, and offers solutions to ensure optimal engine performance.
Understanding the Role of Engine Oil Pressure
Engine oil pressure is essential for lubricating the internal components of the engine, such as pistons, crankshafts, and bearings. The oil creates a thin film that prevents direct contact between these moving parts, which could otherwise lead to excessive wear, overheating, or failure. The oil pressure is generated by the oil pump and is maintained at a specific level to ensure adequate lubrication throughout the engine.
In a bulldozer like the CAT D8H, maintaining proper oil pressure is crucial, as the engine operates under heavy loads and high-stress conditions. Insufficient oil pressure can lead to engine damage, a decrease in performance, and in extreme cases, a complete engine failure.
Common Causes of Low Oil Pressure in the CAT D8H
Low oil pressure in the D8H engine can result from a variety of issues. Below are some of the most common causes that operators should be aware of:

1. Worn or Faulty Oil Pump
   The oil pump is responsible for circulating oil throughout the engine. Over time, the pump may become worn, damaged, or lose its efficiency, resulting in lower oil pressure. If the oil pump fails, it can lead to inadequate lubrication, causing engine components to wear out prematurely.

2. Low Oil Level
   One of the most straightforward reasons for low oil pressure is a low oil level in the engine. If the oil is not filled to the proper level, the oil pump cannot generate enough pressure to circulate oil effectively throughout the engine. This can cause low pressure readings and poor lubrication.

3. Dirty or Clogged Oil Filter
   The oil filter is designed to trap contaminants such as dirt, metal shavings, and carbon buildup. Over time, the filter can become clogged, restricting the flow of oil and leading to low oil pressure. Regular oil filter changes are essential to maintaining proper engine health and oil pressure.

4. Oil Viscosity Issues
   The oil's viscosity, or thickness, plays a significant role in oil pressure. If the oil is too thin or too thick, it may not generate the proper pressure required for efficient lubrication. This could be due to using the wrong type of oil for the operating conditions or contamination of the oil by water, fuel, or coolant.

5. Worn Engine Bearings
   Engine bearings, which allow the moving parts of the engine to rotate smoothly, can wear out over time. As the bearings become worn, they allow more oil to flow past them, reducing the overall oil pressure. This is a common issue in older bulldozers or those that have been subjected to heavy use.

6. Oil Leaks
   Oil leaks from seals, gaskets, or damaged components can cause a loss of oil, leading to a decrease in oil pressure. Leaks may be visible as oil stains around the engine or on the ground where the machine has been parked.

7. Faulty Pressure Relief Valve
   The pressure relief valve regulates the oil pressure by redirecting excess oil back to the oil sump. If this valve becomes stuck or fails, it can cause the oil pressure to either drop too low or increase excessively, both of which can be harmful to the engine.


1. Warning Lights or Gauges
   The most immediate indicator of low oil pressure is the oil pressure warning light on the dashboard or the oil pressure gauge reading in the red zone. These warnings should not be ignored and require immediate investigation.

2. Engine Noises
   A drop in oil pressure can result in increased friction between engine components, which may lead to knocking or ticking noises. These noises are often caused by insufficient lubrication of the engine parts.

3. Reduced Engine Performance
   When oil pressure is low, the engine may struggle to maintain power and efficiency. This can result in reduced performance, sluggishness, or stalling, especially under load.

4. Increased Exhaust Smoke
   Low oil pressure can lead to incomplete combustion, which may result in increased smoke coming from the exhaust. This could indicate that the engine is not operating as efficiently as it should be.


1. Check the Oil Level
   Start by checking the engine oil level. If the level is low, top it up to the recommended level and monitor the oil pressure again. Ensure that you are using the correct grade and type of oil for the specific operating conditions.

2. Inspect the Oil Filter
   If the oil filter is clogged, it can restrict the oil flow and cause low oil pressure. Replace the filter with a new one to ensure proper oil circulation.

3. Test the Oil Pump
   If the oil level and filter are fine, the next step is to inspect the oil pump. A worn or damaged oil pump will need to be replaced to restore proper oil pressure.

4. Examine the Pressure Relief Valve
   Check the pressure relief valve to ensure it is functioning correctly. If the valve is stuck or malfunctioning, it should be replaced to restore the correct oil pressure.

5. Inspect for Oil Leaks
   Check for any oil leaks around the engine. Common areas to inspect include the oil pan gasket, valve cover seals, and the oil cooler. Repair any leaks to prevent further oil loss.

6. Replace Worn Engine Bearings
   If the engine bearings are excessively worn, they may need to be replaced. This is a more involved repair and may require professional assistance.


1. Regular Oil Changes
   Changing the oil at the recommended intervals is one of the most effective ways to prevent oil pressure issues. Fresh oil ensures proper lubrication and reduces the risk of clogged filters and contaminants.

2. Monitor Oil Pressure
   Regularly monitor the oil pressure gauge and warning light to catch any signs of trouble early. This can help prevent more severe engine damage down the line.

3. Use the Correct Oil
   Always use the correct oil viscosity for the climate and operating conditions. This helps maintain proper oil pressure and ensures that the engine operates efficiently.

4. Schedule Routine Inspections
   Routine inspections of the oil pump, filters, and engine components can help catch potential issues before they lead to low oil pressure or other engine problems.


Historical Context and Machine Evolution
The debate between single-engine and twin-engine scrapers dates back to the 1950s, when Caterpillar and other manufacturers began producing self-loading earthmoving machines for large-scale grading and mining. Twin-engine scrapers like the Cat 637 and 651 series were designed to eliminate the need for push tractors, allowing the machine to load independently. Single-engine scrapers, such as the TS-14 or Cat 621, relied on external assistance for loading but offered lower operating costs and simpler maintenance.
Over the decades, both configurations have evolved. Twin-engine units gained popularity in regions with hard soils and steep grades, while single-engine machines remained dominant in areas with soft ground and short haul distances. Today, the choice between the two depends on terrain, job size, fuel economics, and fleet strategy.
Terminology Clarification

• Twin-Engine Scraper: A machine with one engine powering the front tractor and another powering the rear bowl, allowing self-loading without assistance.

• Single-Engine Scraper: A machine with one engine, typically requiring a push tractor to assist during loading.

• Push-Pull Configuration: A setup where two single-engine scrapers assist each other during loading, reducing the need for a dedicated push tractor.

• Self-Loading: The ability of a scraper to fill its bowl without external help, typically achieved through twin-engine power or push-pull technique.


• Self-loading capability in tough soils

• Higher productivity in long-haul operations

• Reduced reliance on support equipment


• Double fuel consumption

• Higher maintenance costs

• More complex drivetrain and synchronization issues


• Lower fuel usage

• Simpler maintenance routines

• Easier transport and logistics


• Fuel cost per hour: Twin-engine machines may consume 2× the fuel of a single-engine unit.

• Operator count: Single-engine setups may require additional personnel for push tractors.

• Transport logistics: Twin-engine scrapers are heavier and may require special permits.

• Rental vs. ownership: Twin-engine machines are more expensive to rent and insure.


• Use twin-engine scrapers for long-haul, high-volume jobs with tough loading conditions.

• Deploy single-engine scrapers in soft soils, short hauls, or when push tractors are readily available.

• Consider push-pull configurations to balance productivity and cost.

• Track fuel usage, maintenance hours, and loading cycle times to guide future purchases.


The HD11 Allis-Chalmers bulldozer, a reliable and tough piece of construction machinery, has been a go-to machine for many years. However, like any piece of equipment, it can encounter mechanical issues over time. One of the common issues reported by operators is related to the equalizer pin—a crucial component in maintaining the proper alignment of the machine's undercarriage. In this article, we will explore the significance of the equalizer pin in the HD11 bulldozer, the issues that can arise with it, and potential solutions for fixing or preventing these issues.
What is the Equalizer Pin?
The equalizer pin is a key component in the undercarriage of the bulldozer, designed to balance the weight distribution and help maintain proper alignment between the tracks and the machine's body. This pin is particularly vital in machines like the HD11, where the undercarriage must endure constant stress and heavy loads. Over time, wear and tear on the equalizer pin can lead to misalignment, resulting in more severe mechanical failures if left unaddressed.
The equalizer pin typically connects the track frames on either side of the machine. By maintaining the proper position and alignment, the pin ensures that the bulldozer moves smoothly and effectively, without undue stress on the undercarriage components. When this pin starts to wear or becomes damaged, it can lead to significant operational issues.
Common Issues with the Equalizer Pin
Several issues can arise with the equalizer pin on the HD11 Allis-Chalmers bulldozer. Below are the most commonly encountered problems:

1. Wear and Tear
   Over time, the equalizer pin experiences wear due to constant friction and pressure. This wear can lead to the pin becoming loose or misaligned, affecting the overall performance of the machine. In extreme cases, the pin may even break, leading to a complete failure of the undercarriage system.

2. Misalignment
   A worn or damaged equalizer pin can lead to misalignment between the track frames, which impacts the smooth operation of the bulldozer. Misalignment can cause uneven wear on the tracks, leading to premature track damage and higher maintenance costs.

3. Excessive Play
   If the equalizer pin becomes excessively worn, there may be noticeable play or movement in the undercarriage, which can make the machine feel unstable or rough during operation. This play may also cause vibrations that can lead to further damage to the machine's other components.


1. Track Misalignment
   If the tracks begin to track unevenly or show signs of excessive wear, the equalizer pin may be misaligned or damaged. This is one of the first symptoms that should raise concern.

2. Uneven or Excessive Track Wear
   A failing equalizer pin will often result in uneven track wear. If one side of the track wears faster than the other, or if the tracks seem to "sag" in certain areas, this could be a sign that the pin needs to be replaced or adjusted.

3. Increased Vibrations
   Increased vibrations or a rough ride while operating the machine could point to an issue with the equalizer pin. If the pin is loose or damaged, it can cause instability in the undercarriage, leading to these vibrations.

4. Difficulty Steering
   A worn-out or misaligned equalizer pin may cause difficulty when steering the bulldozer. This is due to the lack of proper alignment in the tracks, which can make the machine harder to control.


1. Regular Inspections
   Inspect the equalizer pin regularly for signs of wear, damage, or misalignment. Early detection can prevent more significant issues down the line.

2. Lubrication
   Proper lubrication of the equalizer pin and surrounding components can reduce friction and wear, ensuring smoother operation and longer service life.

3. Tightening and Replacement
   If the equalizer pin starts to show signs of looseness, it should be tightened immediately. If the pin is excessively worn or damaged, it is essential to replace it with a new one to avoid further damage to the undercarriage.


1. Repairing the Pin
   In some cases, a worn equalizer pin may be able to be repaired rather than replaced. This can involve welding or reshaping the pin to restore its functionality. However, this method is only feasible if the wear is minimal and the pin remains structurally sound.

2. Replacing the Pin
   If the equalizer pin is too worn or damaged for repair, replacement is necessary. When replacing the pin, it is important to ensure that the new one matches the specifications for the HD11 bulldozer. It’s also crucial to check the surrounding components for any additional damage that may have occurred due to the faulty pin.

3. Alignment and Calibration
   After replacing or repairing the equalizer pin, ensure that the track frames are properly aligned and calibrated. Any misalignment could lead to further damage or inefficient operation.


The Bobcat 335 and Its Shared Cab Design
The Bobcat 335 compact excavator, produced in the mid-2000s, shares its cab layout with the more common 331 model. This design includes a molded dashboard console housing the instrument panel, ignition switch, and various electrical components. While the machine is known for its reliability and ease of service, accessing the instrument panel for replacement or repair can be deceptively tricky due to hidden clips and limited clearance.
Why Instrument Panels Fail and Need Replacement
Over time, the LCD display on the Bobcat 335 may fail due to vibration, moisture intrusion, or electrical degradation. In one case, the screen had been non-functional for months, and the operator opted to replace the panel after the machine failed to start. Although all relays and fuses were intact, the lack of display and ignition feedback prompted a full panel swap.
Terminology Clarification

• Instrument Panel: The dashboard-mounted unit displaying engine data, warnings, and system status.

• Console Clips: Spring-loaded fasteners that hold the panel in place within the molded console.

• Ignition Switch Retaining Nut: A threaded fastener securing the ignition switch from inside the console.

• Molded Console: A solid plastic housing that integrates the dashboard and control surfaces.


• Use a plastic trim tool or thin pry bar to gently lift the panel upward.

• While lifted, press inward on both side edges to release the spring clips.

• Avoid pulling directly outward, as this may snap the clip tabs.

• Once released, tilt the panel forward to expose wiring harnesses.

• Disconnect all connectors carefully, noting their orientation for reinstallation.


• Reach inside the console cavity to locate the ignition switch body.

• Use a deep socket or needle-nose pliers to loosen the retaining nut.

• Slide the switch out from the front and disconnect its wiring.


• Apply dielectric grease to all connectors during reinstallation to prevent corrosion.

• Consider replacing the ignition switch with a weather-sealed model if operating in wet environments.

• Label all wires before disconnection to avoid miswiring.

• If the panel is being replaced due to LCD failure, inspect the voltage regulator and ground connections to prevent recurrence.


JCB’s Mid-Size Telehandler and Perkins Powertrain
The JCB 505-22 telehandler was introduced in the 1990s as part of JCB’s expanding lineup of compact and mid-size material handlers. With a rated lift capacity of 5,000 lbs and a reach of 22 feet, it was designed for construction, agriculture, and industrial use. The model often came equipped with a Perkins 1004-4 diesel engine—a naturally aspirated 4-cylinder unit producing approximately 76 horsepower. This engine was known for its mechanical simplicity and long service intervals, making it a popular choice for fleet operators and independent contractors alike.

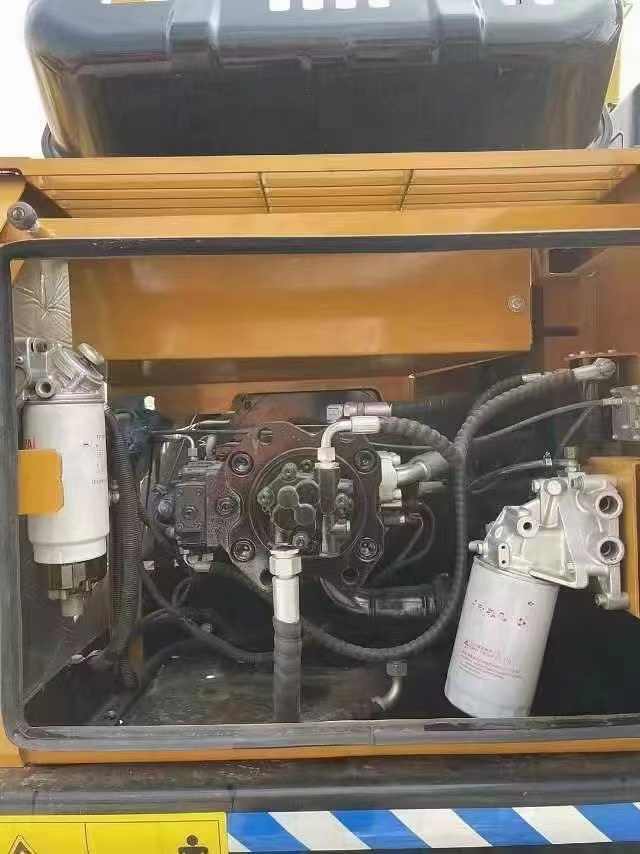

Injector Pump Configuration and Mounting Challenges
The Perkins 1004-4 engine uses a gear-driven injector pump mounted to the front gear housing. Replacing this pump is not a plug-and-play task. The drive gear is bolted from the rear, and access is restricted by the bulkhead and surrounding components. In some cases, it may appear that engine removal is necessary, but experienced technicians have found that by reaching behind the bulkhead and removing a small access panel, the gear bolt can be reached and unfastened without pulling the engine.
Terminology Clarification

• Injector Pump: A mechanical or electronic device that pressurizes and delivers fuel to the engine’s injectors.

• Drive Gear: A toothed wheel that transmits rotational force from the camshaft or crankshaft to the injector pump.

• Bulkhead: A structural partition in the engine bay that separates compartments and often restricts access.

• Bleed Screws: Small valves on the injector pump used to purge air from the fuel system during priming.


• No fuel at bleed screws despite pressure at the pump inlet

• Air bubbles in the fuel lines

• Weak flow from the shutoff solenoid


• Always verify engine serial number and pump model before ordering parts

• Use a mirror and flashlight to locate hidden access panels behind the bulkhead

• Replace old fuel lines and clamps to prevent air intrusion

• Prime the system using the manual lift pump or electric pump before cranking

• Keep a copy of the Perkins 1004-4 workshop manual for timing diagrams and torque specs

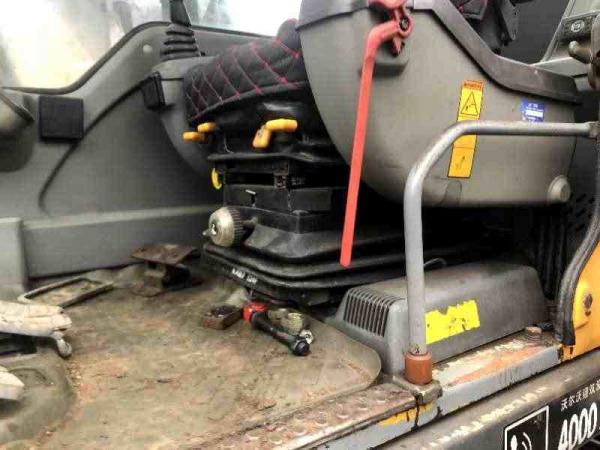

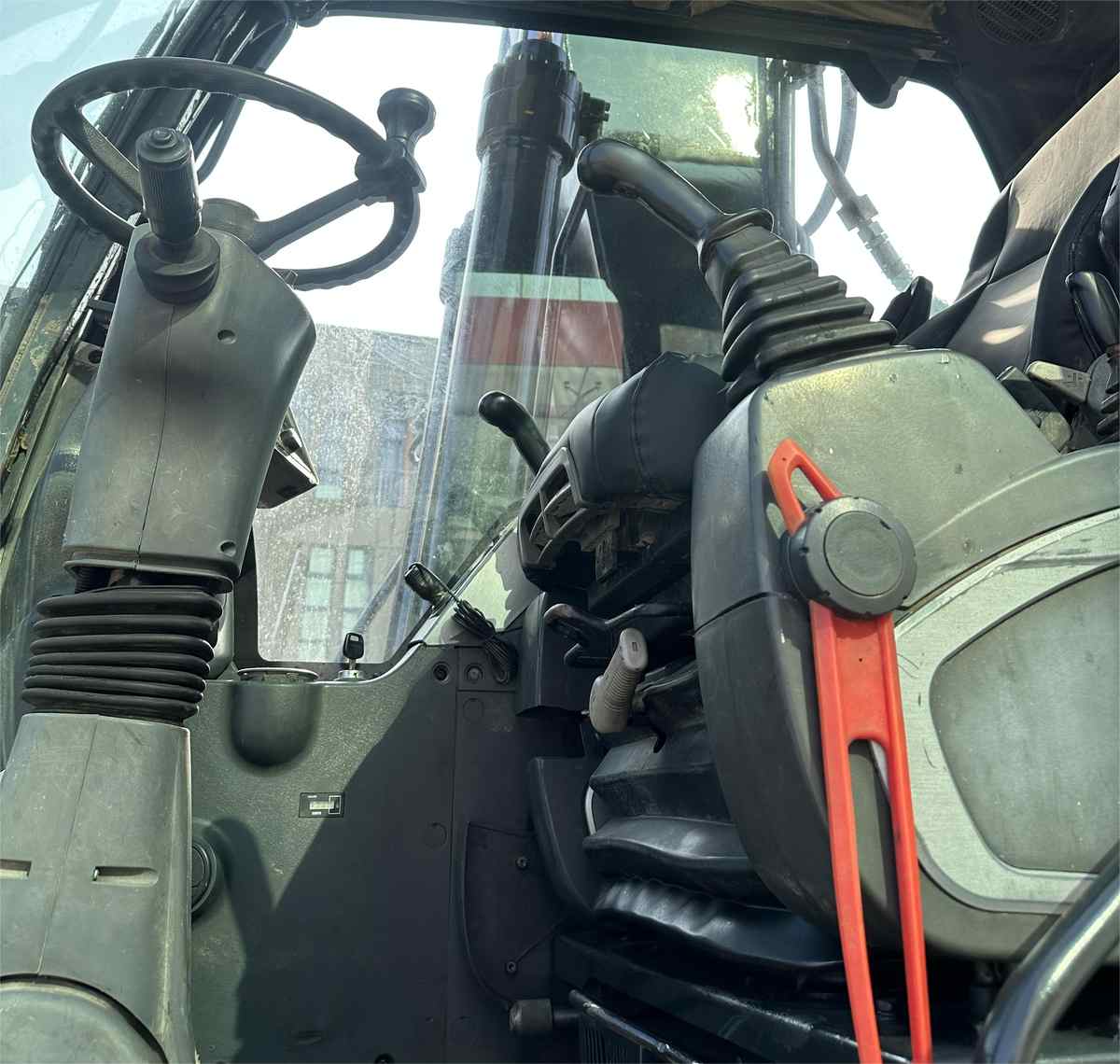

Why Suspension Seats Fail and Air Ride Matters
The Case 580 Super L (580SL) backhoe loader, introduced in the early 1990s, remains one of the most widely used utility machines in North America. With its robust hydraulic system, reliable diesel engine, and enclosed cab option, it’s a staple on farms, construction sites, and municipal fleets. However, one persistent complaint among operators is the rapid wear and discomfort of the factory-installed mechanical suspension seat. These seats often tear, lose spring tension, or bottom out after a few seasons of use—especially in machines with enclosed cabs where the seat is protected from weather but subjected to constant vibration.
Air ride seats offer a solution by replacing mechanical springs with a pneumatic bladder system that adjusts to the operator’s weight and absorbs shock more effectively. This upgrade not only improves comfort but also reduces fatigue and long-term back strain.
Terminology Clarification

• Air Ride Seat: A seat equipped with an air suspension system that uses compressed air to cushion the operator from vibration and shock.

• Swivel Base: A rotating platform that allows the seat to turn, useful for backhoe operation.

• Sears Seating: A manufacturer known for producing high-quality air ride seats for agricultural and construction equipment.

• Suspension Seat: A seat with mechanical springs or dampers designed to absorb vertical movement.


• Adjustable armrests

• Fore-aft slide rails

• Integrated compressor (12V)

• Swivel base rated for 180 degrees


• Measure the mounting bolt pattern on the original seat base before ordering.

• Ensure the cab has sufficient clearance for the seat’s height and swivel radius.

• If the machine lacks a 12V accessory port, wire the compressor directly to the fuse panel with an inline fuse.

• Retain the original seat for resale or backup; reupholstering and listing it online can recover part of the upgrade cost.


• Larger footprint

• Higher voltage compressor (24V)

• Limited swivel range


Komatsu equipment is well-known for its durability and robust performance in demanding construction and mining environments. However, like any heavy machinery, it is prone to various issues over time, particularly with the drivetrain. One common problem that operators face is a sluggish or rough drive, where the machine moves very slowly, even when the throttle is fully engaged. This type of issue can occur in several models of Komatsu machines, including bulldozers, excavators, and wheel loaders. In this article, we will explore the potential causes of sluggish drive performance in Komatsu machines and provide possible solutions.
Potential Causes of Sluggish Drive
Several factors could be responsible for the sluggish performance of a Komatsu machine. Understanding the root cause is essential in determining the right course of action for repair. Below are the most common issues that could cause a Komatsu machine to drive slowly or feel rough during operation.
1. Hydraulic System Issues
Komatsu machines heavily rely on hydraulic systems to control the movement of the tracks, wheels, and other essential components. If there is a fault in the hydraulic system, the performance of the machine can be significantly affected. Common hydraulic issues include:

• Low Hydraulic Fluid Levels: If the hydraulic fluid level is too low, the system will not be able to generate sufficient pressure to power the machine's movements.

• Contaminated Hydraulic Fluid: Contamination from dirt, debris, or water can cause the hydraulic system to malfunction, leading to sluggish movement or loss of power.

• Faulty Hydraulic Pumps: The hydraulic pumps provide the necessary pressure for moving the machine's drive system. If the pumps are worn out or malfunctioning, the drive may feel sluggish.

• Clogged Filters: Over time, hydraulic filters can become clogged with debris, leading to a decrease in fluid flow and a subsequent reduction in machine performance.


• Low Transmission Fluid: Insufficient transmission fluid can cause the gears to slip or fail to engage properly, resulting in a slow drive.

• Worn-out Gears or Clutches: Over time, the gears and clutches in the transmission system can wear out, causing poor engagement and sluggish operation.

• Transmission Fluid Contamination: Similar to hydraulic fluid, transmission fluid can also become contaminated with dirt, metal shavings, or moisture, which can cause the transmission to fail.


• Fuel System Malfunctions: If there is a problem with the fuel delivery system, such as clogged fuel filters or a failing fuel pump, the engine may not receive the necessary amount of fuel, leading to low power output.

• Dirty Air Filters: A clogged or dirty air filter can restrict airflow into the engine, resulting in a lack of power and a rough drive.

• Engine Overheating: If the engine is overheating, it may enter a protective mode and reduce power output to prevent further damage. This could be due to a malfunctioning cooling system or low coolant levels.


• Low Track Tension: If the track tension is too low, the tracks may slip or not engage properly, causing slow movement.

• Worn-out Drive Sprockets: Over time, the drive sprockets can wear out, reducing their ability to grip the track and transfer power efficiently.

• Track Obstructions: Debris, mud, or large rocks can get lodged in the tracks, obstructing movement and causing sluggish performance.


• Faulty Sensors: Sensors that monitor engine speed, hydraulic pressure, and transmission performance may fail, leading to incorrect readings and poor machine performance.

• Wiring Issues: Damaged or corroded wiring can disrupt the flow of information to critical components, causing the machine to run inefficiently.


• Check fluid levels and top up with the appropriate hydraulic oil if necessary.

• Change the hydraulic fluid and replace filters if the fluid appears dirty or contaminated.

• Inspect the hydraulic pumps and valves for signs of wear and replace if necessary.

• Clean or replace hydraulic filters to ensure smooth fluid flow.


• Verify transmission fluid levels and add more if needed.

• Flush the transmission and replace the fluid if it is contaminated.

• Inspect gears and clutches for wear and replace them if necessary.


• Replace fuel filters and inspect the fuel system for any blockages or leaks.

• Clean or replace the air filter to ensure the engine gets the proper airflow.

• Check the engine coolant system and ensure there are no leaks or overheating issues.


• Check track tension and adjust it according to the manufacturer’s specifications.

• Inspect the drive sprockets and replace them if they show signs of excessive wear.

• Clean the tracks of any debris that might be obstructing movement.

• For wheel-driven models, inspect the axles and wheel bearings for wear and tear.


• Use diagnostic tools to check for any faulty sensors or electrical issues.

• Repair or replace damaged wiring to ensure proper communication between components.


Understanding the Role of the Air Compressor and Mounting Gasket
The Cummins C8.3 engine, widely used in vocational trucks, construction equipment, and agricultural machinery, is known for its balance of power and serviceability. One of its auxiliary components—the engine-mounted air compressor—plays a critical role in supplying compressed air for braking and pneumatic systems. This compressor is typically gear-driven and bolted directly to the engine’s front gear housing or accessory drive plate. The mounting gasket between the compressor and engine block seals oil and air passages, and when it fails, it can lead to oil leaks, air loss, or even coolant seepage depending on the configuration.
Common Symptoms of Gasket Failure

• Oil seepage around the compressor base

• Air system pressure loss over time

• Residual sealant or caulking applied by previous owners

• Loose or missing support bracket bolts

• Visible cracks in the aluminum accessory drive housing


• Accessory Drive Plate: A cast aluminum housing on the front of the engine that supports gear-driven accessories.

• Holset Compressor: A brand of engine-mounted air compressors commonly used with Cummins engines.

• Olive Seals: Small blue seals used on coolant line fittings to prevent leaks.

• Timing: Some compressors are gear-timed to reduce vibration, though minor misalignment typically does not affect function.


• Drain coolant and air system before removal.

• Disconnect coolant lines and air discharge lines.

• Remove the power steering pump if mounted behind the compressor (some configurations allow it to be shifted without full removal).

• Carefully unbolt the compressor and inspect the mounting surface for cracks or warping.

• Clean all mating surfaces with brake cleaner and a lint-free cloth.


• Gasket #26 (rear interface)

• Olive seals for coolant lines (typically 4 required)

• Mounting bolts (if corroded or stretched)

• Rear support bracket bolt (if missing)


• Always inspect support brackets during routine service.

• Avoid using silicone or caulk as a long-term sealant—it masks symptoms without solving the root cause.

• If air leaks persist after gasket replacement, inspect the compressor head and discharge fittings.

• For manuals, paper versions are often more reliable than digital copies and can be sourced from reputable resellers.


Maintaining the hydraulic fluid level in heavy machinery, such as the Case 580K, is critical for ensuring optimal performance and avoiding costly repairs. As a vital component in construction and farming equipment, hydraulic systems control many aspects of operation, including lifting, digging, and power steering. This article discusses the importance of proper hydraulic fluid levels, potential consequences of neglecting them, and the steps involved in maintaining the fluid in your Case 580K tractor loader.
Importance of Hydraulic Fluid in the Case 580K
The Case 580K is equipped with a robust hydraulic system designed to handle a variety of tasks on construction and agricultural sites. Hydraulic systems use fluid to transfer power, allowing operators to perform heavy-duty tasks such as lifting materials, operating attachments, and controlling machine movements. Proper fluid levels are essential for several reasons:

1. Efficient Operation: Hydraulic fluid transmits power through the system, making it essential for smooth and efficient functioning. Low or dirty fluid can lead to sluggish performance and may reduce the overall efficiency of the machine.

2. Preventing Wear and Tear: Hydraulic fluid acts as a lubricant for various parts of the hydraulic system, reducing friction between moving parts. Without sufficient fluid, metal components may grind against each other, causing excessive wear and even failure of critical parts.

3. Cooling: Hydraulic fluid also helps dissipate the heat generated during the operation of hydraulic components. Low fluid levels can result in overheating, which can lead to permanent damage to hydraulic pumps and motors.

4. Corrosion Prevention: Clean hydraulic fluid helps prevent rust and corrosion within the system. Contaminants in the fluid can damage seals and valves, leading to leaks and potentially costly repairs.


1. Erratic or Slow Response: If the hydraulic system is responding sluggishly or erratically, it could indicate that the fluid level is low. For example, if the loader arms or bucket lift movements are slower than usual, this is a sign that the hydraulic fluid needs checking.

2. Unusual Noises: A hydraulic system running low on fluid often produces whining or grinding noises, as the pump struggles to function without adequate lubrication.

3. Fluid Leaks: Leaking hydraulic fluid from hoses, seals, or cylinders is a direct sign that there is an issue with the hydraulic system. Leaks often occur when seals wear down due to poor maintenance or contamination of the fluid.

4. Pressure Loss: Low fluid levels can also cause a drop in system pressure, resulting in loss of power for the hydraulic system and failure to operate attachments like the bucket, backhoe, or grapple.


1. Park the Machine on Level Ground: Ensure the machine is on flat, level ground to ensure an accurate reading. If the machine is on an incline, the reading may be inaccurate.

2. Locate the Dipstick: The hydraulic dipstick is typically located near the hydraulic reservoir. On the Case 580K, the dipstick is found near the side of the machine, often marked with a clear symbol or label indicating “hydraulic fluid.” Make sure the engine is off before proceeding.

3. Clean the Dipstick: Before taking a reading, wipe the dipstick clean with a cloth to ensure no debris or old fluid affects the reading.

4. Check Fluid Level: Insert the dipstick fully back into the tube, then remove it again to check the fluid level. The dipstick will have markings that indicate whether the fluid level is within the normal range.

5. Add Fluid if Necessary: If the level is below the recommended range, add hydraulic fluid as needed. It is important to use the correct type and grade of fluid for your specific machine, which can be found in the Case 580K owner’s manual or through the manufacturer’s specifications.

6. Recheck the Fluid Level: After adding fluid, recheck the level with the dipstick to ensure it is within the optimal range.


1. AW (Anti-Wear) Fluids: These are the most common hydraulic fluids used in machinery like the Case 580K. They contain additives that help prevent wear and corrosion.

2. Mineral Oil-based Fluids: This type of fluid is commonly used in systems with moderate pressure, temperature, and contamination levels.

3. Synthetic Fluids: While more expensive, synthetic fluids can perform better in extreme temperatures and high-stress environments.

4. Biodegradable Fluids: For environmentally sensitive areas, biodegradable hydraulic fluids are often used as they are less harmful in case of spills.


1. Foaming: Air bubbles in the hydraulic fluid can cause foaming, which results in decreased lubrication and system efficiency.

2. Discoloration: A sudden change in the color of the hydraulic fluid, such as turning milky or dark brown, can indicate contamination from water or excessive heat.

3. Sluggish Performance: Contaminated fluid can cause sluggish or inconsistent movement of the machine's hydraulic components, such as the loader arm or backhoe.


A Legacy of Durability and Simplicity
The Case 1845C skid steer loader, introduced in the late 1980s and produced through the early 2000s, remains one of the most iconic and widely used compact machines in North America. With over 60,000 units sold, its reputation for mechanical simplicity, reliability, and ease of maintenance has made it a favorite among farmers, landscapers, and small contractors. Powered by a Cummins 4B diesel engine producing around 58 horsepower, the 1845C features a rated operating capacity of 1,750 lbs and a tipping load of approximately 3,500 lbs.
Understanding the Float Function and Hydraulic Linkage
One of the most misunderstood features on the 1845C is the float function, which allows the loader arms to follow ground contours without hydraulic resistance. This is especially useful for grading and plowing. The float is activated by pushing the left-hand control lever down past its normal range until it locks into a detent position. However, on older machines, this detent mechanism may be rusted or obstructed by debris.
In one restoration case, the float detent was jammed with rust and dirt, and an aftermarket spring had been added externally to compensate for lost internal tension. Upon disassembly, it was discovered that a key internal washer (part #20) had been replaced with a flat washer, preventing proper spool travel. After cleaning and reinstalling the correct components, the float function was restored.
Terminology Clarification

• Float Function: A hydraulic mode where the loader arms are allowed to move freely downward without pressure, useful for surface following.

• Detent: A mechanical catch that holds a control lever in a fixed position.

• Spool Valve: A sliding valve inside the hydraulic control block that directs fluid flow.

• Auxiliary Hydraulics: Additional hydraulic lines used to power attachments like plows or grapples.


• Cleaning couplers thoroughly before connection

• Capping unused lines to prevent contamination

• Ensuring compatible hydraulic oil types between machine and attachment

• Cycling the attachment functions several times to purge air


• Replace missing or modified internal valve components with OEM parts

• Keep the machine indoors during winter to prevent chain case water intrusion

• Drain and inspect chain cases annually

• Use dielectric grease on electrical connectors to prevent corrosion

• Maintain a log of all modifications and repairs for future reference
