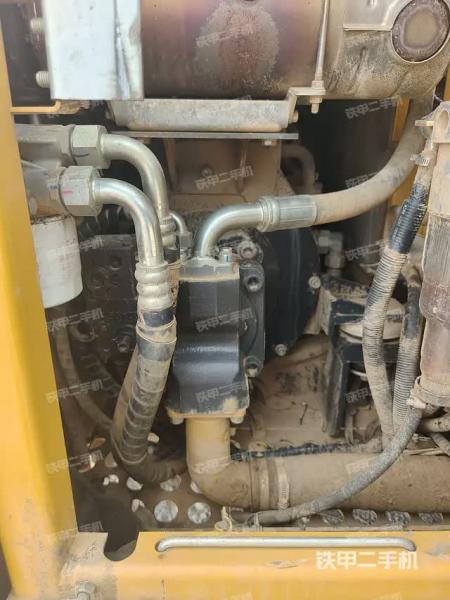

Overview of the CX330 and Its CAPS Fuel System
The Case CX330 is a mid-size hydraulic excavator powered by an 8.3-liter Cummins diesel engine equipped with the CAPS (Cummins Accumulator Pump System) electronic fuel injection. Introduced in the early 2000s, the CX330 was designed for heavy-duty excavation, site prep, and demolition. While the machine is mechanically robust, its electronic fuel system has earned a reputation for being temperamental—especially as components age.
The CAPS system uses a high-pressure accumulator, electronic solenoids, and a cam-driven injection pump to deliver precise fuel quantities. Unlike traditional mechanical pumps, the CAPS relies heavily on sensor feedback and ECU control, making it vulnerable to electrical faults.
Initial Symptoms and Diagnostic Clues
In one case, the CX330 would crank and briefly run on ether but failed to stay running. Fuel flow to the injection pump was confirmed to be strong, and new batteries were installed. The machine had previously run fine after ether-assisted starts, but the condition worsened over time.
Early suspicion focused on the load and unload solenoids on the CAPS pump, which are controlled by the engine ECU. If the ECU fails to energize these solenoids, fuel delivery is interrupted, and the engine stalls.

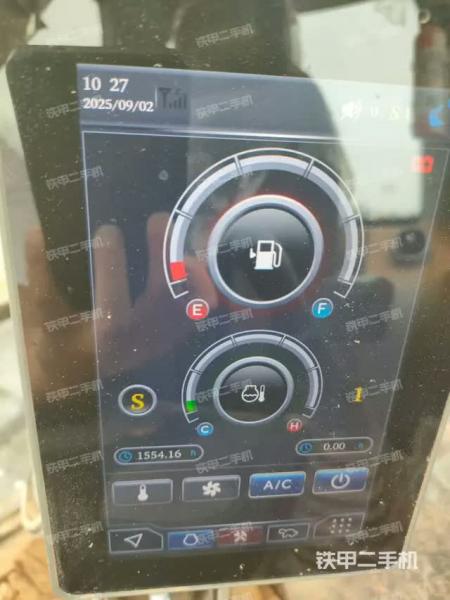

Sensor Dependencies and Shutdown Logic
According to Cummins documentation, the ECU monitors several critical sensors:

• Engine coolant temperature

• Oil pressure

• Intake manifold temperature

• Camshaft position sensors (two on this engine)


• 0141: Typically related to sensor voltage out of range or missing signal

• 0433: Often associated with camshaft position sensor failure or ECU miscommunication


• CAPS (Cummins Accumulator Pump System): An electronically controlled fuel injection system using a high-pressure accumulator and solenoids.

• ECU (Engine Control Unit): The computer that manages fuel delivery, timing, and sensor inputs.

• INSITE: Cummins diagnostic software used to read fault codes and live data.

• Derate: A reduction in engine power output triggered by fault conditions.


• Always verify sensor voltage and ground integrity before condemning the ECU.

• Use INSITE or equivalent software to check for fault codes and live data.

• If communication fails, test the ECU at both the machine harness and engine connector.

• Replace the ECU only after confirming that mechanical components (pump, camshaft, solenoids) are functional.


The Case 1155E is a powerful and reliable wheel loader that has earned a strong reputation in the construction and mining industries. This machine is known for its exceptional durability, solid performance, and versatility in handling a wide range of materials. Whether it’s for lifting, loading, or transporting heavy loads, the Case 1155E proves to be a valuable asset on the job site. However, for new owners or operators, understanding the intricacies of this machine is crucial for maximizing its efficiency and longevity.
Overview of the Case 1155E
The Case 1155E is a part of Case Construction Equipment's wheel loader lineup, which has been trusted in heavy-duty environments for decades. Manufactured by Case, a company with a long history of producing construction and agricultural equipment, the 1155E is engineered to deliver high performance while being cost-effective. The model was introduced during a time when wheel loaders were becoming more efficient, with a focus on operator comfort, fuel economy, and ease of maintenance.
As a mid-size loader, the 1155E provides the perfect balance between power and maneuverability, making it ideal for a variety of tasks. It has a powerful engine, high lift capacity, and superior hydraulic efficiency, which ensures that operators can complete tasks quickly and efficiently. The machine's reliability, coupled with its relatively simple design, makes it a popular choice for many construction fleets.
Key Features and Specifications

1. Engine and Performance
   The Case 1155E is powered by a reliable diesel engine that delivers strong horsepower and torque, enabling the loader to handle demanding tasks such as lifting and transporting heavy materials. The engine is designed for durability, ensuring that it can operate for extended hours without failure.
   • Horsepower: Approximately 115 hp (varies depending on the exact model year)

   • Operating Weight: Around 18,000 lbs (8,160 kg)

   • Bucket Capacity: Typically between 1.5 to 2.0 cubic yards (1.1 to 1.5 cubic meters)

   • Maximum Lift Capacity: About 6,000 to 7,000 lbs (2,721 to 3,175 kg)

2. Hydraulic System
   The hydraulic system is one of the standout features of the Case 1155E, allowing for smooth and responsive control when lifting and dumping materials. The loader is equipped with a high-flow hydraulic pump, ensuring that operators can easily operate attachments and perform heavy lifting with minimal effort.

3. Transmission
   The transmission in the Case 1155E is designed for smooth shifting and optimal power delivery to the wheels. It offers a balance of power and fuel efficiency, ensuring that the loader performs efficiently on both smooth and rough terrain.

4. Operator Comfort
   Case understands the importance of operator comfort, especially when using equipment for long hours. The 1155E features a spacious, ergonomically designed cabin that allows operators to work efficiently without discomfort. It includes features like adjustable seating, good visibility, and easy-to-use controls, which contribute to increased productivity and reduced fatigue.

5. Durability and Build Quality
   Built for tough conditions, the Case 1155E is engineered to withstand the rigors of construction sites, including heavy lifting, rough handling, and harsh weather. The loader is known for its long service life, with many owners reporting minimal downtime and a high return on investment.


1. Hydraulic System Leaks
   The hydraulic system is crucial for the loader’s performance, and leaks can cause a significant decrease in efficiency. Regularly inspect hydraulic hoses and seals for any signs of wear or damage. If leaks are detected, replace the affected components immediately to prevent further issues.

2. Cooling System Maintenance
   Overheating can be a common issue, particularly when the machine is used in demanding conditions for extended periods. Ensure that the cooling system is working properly by regularly checking the radiator and cleaning it to remove any debris or dirt that could restrict airflow.

3. Engine and Fuel System Care
   The engine of the Case 1155E is designed for long hours of operation, but it requires regular oil changes and fuel filter replacements to maintain optimal performance. Check the engine for any signs of oil leaks and replace filters as needed to prevent clogs that could affect performance.

4. Transmission Fluid
   The transmission in the 1155E should be checked regularly for fluid levels and condition. Low fluid levels can cause shifting problems and lead to premature wear. It is important to follow the manufacturer's guidelines for fluid replacement and maintenance intervals to keep the transmission functioning smoothly.

5. Tire Maintenance
   As with any wheel loader, tire maintenance is crucial for performance. Keep an eye on tire pressure and tread wear to ensure the loader is operating at peak efficiency. Uneven tire wear may indicate a mechanical issue that needs to be addressed.


1. Invest in Operator Training
   If you’re new to the Case 1155E or operating large machinery, investing in operator training is essential. Proper training will ensure that operators can fully utilize the machine’s capabilities, reducing the risk of damage and improving efficiency.

2. Develop a Maintenance Schedule
   Setting up a routine maintenance schedule will help you stay on top of essential tasks such as oil changes, hydraulic fluid checks, and tire inspections. Regular servicing can help prevent costly repairs and downtime, allowing you to keep the loader running for years to come.

3. Know Your Attachments
   The Case 1155E can be fitted with a variety of attachments, such as forks, grapples, and snowplows. Familiarize yourself with these attachments and their capabilities to ensure that you’re using the right tool for the job.

4. Monitor Fuel Efficiency
   The 1155E is known for its relatively good fuel efficiency, but like all equipment, fuel consumption can vary based on usage and load. Monitoring fuel usage and adjusting operating practices, such as reducing idle time, can help lower operating costs.


Kobelco’s Compact Excavator Legacy
The Kobelco SK50 is a compact hydraulic excavator designed for urban construction, utility trenching, and landscaping. As part of Kobelco’s SK series, the SK50 blends maneuverability with digging power, offering an operating weight of approximately 5 metric tons and a dig depth of over 3.5 meters. Kobelco, a Japanese manufacturer with roots dating back to 1905, has long been recognized for its innovation in hydraulic systems and fuel-efficient engines. The SK50, in particular, has gained popularity in Southeast Asia, Europe, and North America for its reliability and ease of service.
Service Manual as a Diagnostic Compass
A complete service manual for the SK50 is more than a reference—it’s a roadmap for technicians and operators. It includes:

• Hydraulic circuit diagrams

• Electrical schematics

• Engine maintenance procedures

• Torque specifications

• Valve clearance settings

• Troubleshooting flowcharts


• Valve Lash: The clearance between the rocker arm and valve stem, adjusted to ensure proper valve timing.

• Hydraulic Pilot Circuit: A low-pressure control system that actuates main hydraulic valves.

• Travel Motor: A hydraulic motor that drives the tracks, allowing the machine to move.

• Swing Motor: Controls the upper structure’s rotation.


• Engine oil and filter change every 250 hours

• Hydraulic oil filter replacement every 500 hours

• Final drive oil inspection every 100 hours

• Air filter cleaning every 50 hours in dusty environments

• Greasing all pivot points daily


• Check pilot pressure at the control valve (should be ~35 bar)

• Inspect for clogged main relief valve

• Verify spool movement in the main control valve

• Test pump output pressure (should exceed 280 bar under load)


The Bobcat S-Series skid-steer loaders have become a staple in the construction, landscaping, and agricultural industries, offering a versatile and powerful solution for operators who need precision and control. A key feature that has garnered attention in the S-Series is the joystick control system, which provides operators with the ability to manage the loader's functions with greater ease and accuracy. This system is a significant advancement over previous models and offers a host of benefits, but it can also come with certain challenges. Understanding how this system works, common issues that can arise, and how to maintain it is crucial for maximizing the efficiency of your machine.
The Evolution of Bobcat's Joystick Control System
Bobcat’s joystick control system has undergone significant improvements over the years. Initially, skid-steer loaders operated with mechanical controls that required more physical effort and precision to maneuver. As technology advanced, Bobcat introduced electronic joystick controls, offering operators more convenience and less physical strain, while improving the responsiveness of the loader’s movements.
The S-Series joysticks are part of Bobcat's continued evolution, providing greater control over loader functions such as lift, tilt, drive, and auxiliary hydraulics. With these improvements, operators can easily handle complex tasks, whether it's lifting heavy loads or performing delicate tasks that require precision. The joystick is typically positioned in the operator’s cabin for ease of use, allowing the operator to control multiple functions with one hand.
Key Features of the S-Series Joystick Control

1. Improved Precision and Responsiveness
   The S-Series joystick control system features enhanced precision, allowing operators to make finer adjustments to the loader’s movements. Whether lifting heavy materials or maneuvering in tight spaces, the joystick offers smoother control, reducing the likelihood of jerky movements or equipment damage.

2. Ergonomic Design
   The joystick has been designed for comfort, minimizing hand strain during long operating hours. Its ergonomic shape and responsive feedback ensure that operators can work for extended periods without experiencing discomfort. Additionally, the controls are customizable, allowing operators to adjust the sensitivity and function of the joystick to their preferences.

3. Multi-Functionality
   One of the standout features of the S-Series joystick is its multi-functionality. The joystick doesn’t just control the basic movements of the loader; it also controls auxiliary hydraulics, which can be used to operate various attachments, such as augers, snowplows, or grapples. This system streamlines operations by consolidating multiple controls into one.

4. Enhanced Operator Safety
   The S-Series joystick controls are designed with operator safety in mind. The intuitive control layout helps reduce operator fatigue, allowing them to focus on the task at hand rather than wrestling with complicated mechanical controls. Additionally, the smooth and precise operation minimizes the risk of accidents caused by sudden jerks or loss of control.


1. Electrical Malfunctions
   Since the S-Series joystick system relies on electronic components, electrical malfunctions are one of the most common issues. Loose connections, damaged wiring, or blown fuses can result in the joystick not responding correctly or failing to control the loader's movements. These issues often require professional repair and diagnosis, as they can be difficult to detect without the proper tools.

2. Calibration Issues
   Over time, the joystick's calibration can drift, which may result in less responsive control or uneven movement of the loader. In some cases, the joystick may need to be recalibrated to restore its original precision. Operators should regularly check the joystick’s calibration and reset it as needed.

3. Hydraulic Pressure Problems
   The joystick system controls the loader's hydraulic functions. If there are issues with hydraulic pressure, it can affect the performance of the joystick, causing sluggish or unresponsive movement. Low hydraulic fluid levels, air in the system, or worn-out seals can lead to pressure problems, requiring a system inspection to identify and fix the issue.

4. Wear and Tear
   Like any mechanical system, the joystick can experience wear over time, especially if it’s used in harsh conditions or subjected to heavy workloads. The moving parts inside the joystick can degrade, leading to issues with control. Regular maintenance and inspection can help prevent these problems and extend the life of the joystick.


1. Inspect Wiring and Connections
   Regularly inspect the electrical wiring and connections to ensure that there are no loose, frayed, or corroded components. If any issues are found, repair or replace the wiring immediately to prevent electrical malfunctions.

2. Check Hydraulic System
   Periodically check the hydraulic fluid levels and the condition of the hydraulic lines and fittings. Ensure that there are no leaks, and that the system is free of air. Low hydraulic fluid levels can lead to reduced performance or even system failure.

3. Calibrate the Joystick
   If the joystick starts to feel unresponsive or erratic, it may need recalibration. Bobcat provides specific guidelines on how to calibrate the joystick for different models. Following the manufacturer’s instructions can restore the joystick’s precision and responsiveness.

4. Lubricate Moving Parts
   Ensure that the joystick’s moving parts are adequately lubricated to reduce friction and prevent premature wear. Check for any signs of wear or damage and address these issues promptly to avoid further complications.

5. Clean the Joystick Regularly
   Dirt and debris can accumulate inside the joystick housing, leading to malfunction. Periodically clean the joystick to keep it functioning smoothly. Use a soft cloth to wipe down the control and ensure that nothing is blocking the internal mechanisms.


Overview of the CAT 65E Challenger
The Caterpillar 65E Challenger is a tracked agricultural tractor originally developed by Caterpillar in the 1990s before the Challenger brand was acquired by AGCO. Designed for high-horsepower fieldwork, the 65E features a Cummins diesel engine, a suspended undercarriage, and multiple hydraulic remotes for controlling implements such as planters, scrapers, and tillage tools. Its hydraulic system is known for high flow rates and robust performance, but aging units may suffer from valve body wear and detent failures.
Symptoms of Remote Valve Malfunction
Operators have reported issues with specific hydraulic remotes—particularly #2 and #3—on the 65E. In one case, remote #2 failed to activate any implement function despite the valve appearing to move correctly. Remote #3 began to feel stiff, suggesting internal resistance or detent degradation. These symptoms are common in older tractors where detents lose spring tension or spools become misaligned.
Understanding Detent Mechanisms
Hydraulic detents are mechanical devices that hold the spool in a set position—typically neutral, extend, or retract. Most detents use a spring-loaded ball that engages a groove or notch on the spool. Over time, the spring may weaken or the groove may wear, causing the detent to lose its holding force or fail to engage altogether.
Key components:

• Spool: The sliding valve element that directs hydraulic flow.

• Detent Ball and Spring: Holds the spool in position.

• Valve Body: Houses the spool and detent assembly.

• Remote Lever Linkage: Transfers operator input to the spool.


• Access the valve from the side panel if possible, avoiding cab removal.

• Replace detent springs and balls with OEM or matched aftermarket parts.

• Inspect spool grooves for wear and polish lightly if needed.

• Lubricate linkage and detent housing to prevent stiffness.


• Cycle each remote weekly, even during off-season, to prevent sticking.

• Flush hydraulic fluid annually to remove contaminants that accelerate wear.

• Adjust detent tension using the manufacturer’s recommended preload settings.

• Use high-quality hydraulic oil with anti-wear additives.


• Remote Valve: A hydraulic control valve used to operate external implements.

• Detent: A mechanical lock that holds the valve spool in a set position.

• Spool Groove: A machined notch that engages with the detent ball.

• Cab Lift: A procedure to raise the operator cab for deeper mechanical access.


The Caterpillar D4H Series 2 is a versatile and highly durable crawler dozer, designed to handle a wide range of heavy-duty tasks on construction sites, mines, and other rugged environments. A key component of its operation is the Engine Monitoring System (EMS), which plays an essential role in monitoring engine health, optimizing fuel consumption, and ensuring the overall performance of the machine. However, like many complex systems in heavy machinery, the EMS can encounter issues that require attention.
In this article, we explore common problems with the EMS on the Caterpillar D4H Series 2, how these issues can be diagnosed, and the steps that operators and maintenance personnel can take to resolve them.
The Role of the EMS in the Caterpillar D4H Series 2
The EMS in the Caterpillar D4H Series 2 is responsible for collecting data from various engine sensors and providing real-time feedback to the operator. It helps monitor critical parameters such as:

• Engine Temperature

• Oil Pressure

• Fuel Pressure

• Coolant Temperature

• Exhaust Temperature

• Engine Speed


1. Faulty Sensors or Wiring Issues
   One of the most frequent causes of EMS failure is a malfunctioning sensor. Sensors that monitor engine temperature, oil pressure, and other critical metrics can become damaged or contaminated over time. Additionally, wiring issues, such as corrosion or loose connections, can interfere with the proper transmission of data from these sensors to the EMS, leading to inaccurate readings or complete system failure.

2. Communication Failure Between Modules
   The D4H Series 2's EMS consists of several interconnected modules, including the Engine Control Module (ECM) and the Transmission Control Module (TCM). A communication failure between these modules can prevent the EMS from properly reading data or sending alerts. This can happen due to software glitches, damaged wiring, or problems with the connectors.

3. Software Malfunctions
   Occasionally, the software that runs the EMS can encounter bugs or errors. These software issues may cause the system to provide false warnings or fail to display critical information. In such cases, a software update or reprogramming may be required to restore proper functionality.

4. Battery Voltage Issues
   Low or inconsistent battery voltage can impact the performance of the EMS system. The EMS relies on the electrical power supplied by the machine's battery to operate its sensors and data logging functions. If the battery voltage drops too low, the EMS may fail to read parameters accurately or stop functioning entirely.

5. Faulty EMS Relay or Fuses
   Another possible issue is the failure of the EMS relay or fuses. These components are responsible for supplying electrical power to the EMS system. If the relay or fuse becomes faulty, it can cause the EMS to lose power, resulting in the system not working or triggering a fault code.


1. Check for Warning Lights or Error Codes
   The first step in diagnosing an EMS issue is to check for any warning lights or error codes on the machine’s display. The D4H Series 2 is equipped with a diagnostic screen that will display fault codes related to any malfunction in the EMS system. These codes can provide valuable insights into the specific issue, such as a faulty sensor or wiring problem.

2. Inspect the Sensors and Wiring
   Once you have identified potential fault codes, the next step is to inspect the sensors and wiring that connect to the EMS. Look for signs of wear, corrosion, or damage to the wiring. Check each sensor for loose connections or physical damage. If you find any issues, replacing the faulty sensor or repairing the wiring may resolve the problem.

3. Test the Battery Voltage
   Ensure that the machine's battery is providing adequate voltage. Use a multimeter to check the voltage at the battery terminals. If the voltage is low or unstable, recharge or replace the battery as needed. If the battery is in good condition, check the connections for corrosion or loose terminals.

4. Inspect the EMS Relays and Fuses
   If the EMS is not receiving power, inspect the relays and fuses associated with the system. These components are usually located in the fuse box or electrical panel. If you find any blown fuses or damaged relays, replace them with the appropriate parts.

5. Perform a Software Update or Reprogramming
   If there are no apparent hardware issues but the EMS is still malfunctioning, a software issue might be the cause. In such cases, consult the manufacturer's guidelines to determine if a software update or reprogramming is required. Caterpillar dealers often provide this service, and it may resolve any glitches or bugs in the EMS software.


1. Regular Sensor and Wiring Inspections
   Make sensor and wiring inspections a routine part of your maintenance schedule. Clean the connectors and inspect the wiring for any signs of wear, corrosion, or loose connections.

2. Keep the Battery in Good Condition
   Ensure the battery is always in top shape by checking its voltage regularly and replacing it when necessary. Clean the battery terminals and apply anti-corrosion grease to prevent buildup.

3. Keep Software Up-to-Date
   Periodically check for software updates from Caterpillar. Manufacturers often release updates to improve system performance, fix bugs, and enhance diagnostic capabilities.

4. Properly Maintain Fluid Levels
   Always maintain the proper fluid levels in the engine, transmission, and hydraulic systems. Low fluid levels can cause sensor readings to be inaccurate, which may affect the EMS’s performance.

5. Consult the Operator’s Manual
   Familiarize yourself with the Caterpillar D4H Series 2's operator's manual, particularly the sections covering the EMS system. This can provide valuable information on troubleshooting, maintenance, and proper operation.


Track Tensioning and the Role of the Idler
Large excavators like the Daewoo 400 rely on hydraulic track tensioning systems to maintain proper engagement between the track chain and undercarriage components. The system uses a grease-filled cylinder behind the front idler to push it forward, tightening the track. When a track falls off, the pressure must be released to retract the idler and allow reinstallation. Once the track is back on, the idler must be pumped forward again to restore tension.
Challenges in Re-pressurizing the Idler
Operators often encounter difficulty when attempting to pump the idler back out. In one case, a hand-operated grease gun failed to build sufficient pressure, stalling midway through the process. This is a common issue with large machines, where the volume and resistance exceed the capacity of manual tools.
Solutions include:

• Using a pneumatic grease gun capable of delivering higher pressure and volume

• Verifying that the track adjuster is not seized or internally damaged

• Lifting the track off the ground to remove weight and reduce resistance during tensioning


• Track Adjuster: A hydraulic cylinder filled with grease that pushes the idler forward to tighten the track.

• Idler: The front wheel in the track system that guides and tensions the track chain.

• Grease Nipple: A fitting through which grease is pumped into the adjuster.

• Porta Power: A hydraulic hand pump system used for high-pressure applications.


• Faulty grease nipple: The internal ball may block grease flow. Replacing or cleaning the nipple can restore function.

• Twisted idler alignment: If the idler binds sideways due to frame wear, it may resist movement. Inspect both sides of the housing for uneven travel.

• Seal failure inside the adjuster: Grease may bypass internally, filling both sides of the cylinder without moving the piston.


• Grease the adjuster regularly, especially in dusty or wet conditions

• Inspect the idler alignment during routine service

• Replace worn seals and nipples before they fail

• Use high-quality grease rated for heavy equipment applications


The Takeuchi TL130, a powerful and reliable compact track loader, is a versatile piece of equipment commonly used for construction, landscaping, and material handling tasks. However, like any heavy machinery, it requires regular maintenance to keep it operating at peak efficiency. One common issue that operators face is getting the hydraulic filters stuck during routine maintenance, leading to delays and frustrations. This article explores the possible causes of stuck hydraulic filters on the Takeuchi TL130 and provides solutions for resolving this problem, ensuring that the machine remains in top working condition.
Understanding the Hydraulic System of the Takeuchi TL130
Before delving into the issue of stuck hydraulic filters, it’s essential to understand the role of the hydraulic system in the Takeuchi TL130. The machine’s hydraulic system powers critical components such as the lift arms, tracks, and auxiliary hydraulic attachments. It uses a hydraulic fluid reservoir, hoses, and filters to ensure proper fluid flow and prevent contaminants from damaging the system. The hydraulic filters are essential for protecting the system from dirt, debris, and other contaminants that could cause wear and tear on vital components.
Over time, these filters need to be replaced to maintain the health of the hydraulic system. However, a common problem is when the filters become stuck, making it difficult or impossible to remove them during maintenance. This issue can arise for a variety of reasons, and it’s important to address it promptly to avoid compromising the performance of the hydraulic system.
Why Do Hydraulic Filters Get Stuck?
Several factors contribute to hydraulic filters becoming stuck in the Takeuchi TL130, including:

1. Corrosion and Age
   Over time, the metal surfaces where the hydraulic filters are seated can develop corrosion, particularly in machines that have been exposed to harsh weather conditions or poor maintenance practices. This corrosion can cause the filter to bond tightly to the filter housing, making it difficult to remove.

2. Dirt and Debris Build-up
   A build-up of dirt, grime, or other contaminants in and around the filter housing can lead to the filter becoming jammed. This is especially common if the machine has been used in dusty or muddy environments, where contaminants can clog the filter area and make removal difficult.

3. Improper Installation
   When the hydraulic filter is not properly installed, it may not seat correctly, leading to misalignment or tightness during future removals. In some cases, filters may be over-tightened during installation, which can make it nearly impossible to remove them without additional tools or force.

4. Seal Failure
   The O-ring or gasket that seals the filter in place can degrade over time, especially if exposed to extreme temperatures or chemicals. When this seal fails, it can cause the filter to become stuck or even result in leakage around the filter, making removal a more complicated process.


1. Use the Correct Tools
   First, ensure that you’re using the proper tools for the job. A filter wrench or strap wrench is ideal for gripping and loosening the filter. These tools provide additional leverage, making it easier to remove stubborn filters without damaging them or the housing. Avoid using pliers or other makeshift tools, as they can easily cause damage to the filter or the housing.

2. Apply Penetrating Oil
   If the filter is stuck due to corrosion or dirt build-up, applying a penetrating oil or rust dissolver around the filter’s base can help loosen it. Let the oil sit for 10-15 minutes to allow it to seep into the threads and loosen any rust or debris. This will make the filter easier to remove with minimal force.

3. Gently Tap the Filter Housing
   In some cases, gently tapping around the filter housing with a rubber mallet can help break up any corrosion or debris that is holding the filter in place. Be careful not to hit the filter directly, as this can cause damage to the filter or the housing.

4. Use Heat (if necessary)
   In extreme cases, where corrosion is significant, applying heat to the filter housing can help expand the metal and loosen the filter. Use a heat gun or torch to carefully heat the area around the filter for a few seconds. Be cautious with this method, as excessive heat can damage surrounding components or seals.

5. Replace the Filter Housing (if damaged)
   If the filter housing is severely damaged or the filter remains stuck despite all attempts, you may need to replace the filter housing. This is a more expensive solution but may be necessary if the housing is corroded beyond repair.


1. Regular Maintenance
   Regularly inspect the hydraulic system, including the filters, seals, and hoses, to ensure they are in good condition. Keeping up with routine maintenance will help you catch potential issues before they become major problems.

2. Clean Environment
   Work in cleaner environments whenever possible to reduce the accumulation of dirt, dust, and debris in and around the filter area. If you’re working in particularly dirty or muddy conditions, consider cleaning the area around the filter before attempting to remove it.

3. Proper Installation
   Always ensure that the hydraulic filter is properly installed. Avoid overtightening the filter during installation, as this can make future removal difficult. Use the manufacturer’s guidelines for torque specifications to ensure the filter is securely installed without being overly tight.

4. Replace Filters Regularly
   Follow the manufacturer’s recommendations for filter replacement intervals. Regularly replacing filters will prevent clogging and reduce the likelihood of debris accumulation that can lead to stuck filters.

5. Check for Seal Integrity
   Inspect the O-ring or gasket seals on the filter and replace them if they show signs of wear or degradation. A good seal will help prevent leaks and ensure that the filter remains securely in place during operation.


Understanding the 4-in-1 Bucket Design
The 4-in-1 loader bucket is a versatile attachment that combines four functions—loading, dozing, clamshell grabbing, and back dragging—into a single hydraulic implement. Its design includes a fixed rear shell and a hydraulically actuated front jaw, which opens and closes to grip or dump material. The lower jaw, often referred to as the clamshell or front section, endures the most abuse during operation. It is subject to impacts, twisting forces, and wear from contact with rock, debris, and uneven terrain.
Common Failure Points and Structural Weaknesses
Over time, the lower section of the bucket may develop:

• Centerline splits due to flexing under load

• Tears at the trailing edge, where the lower jaw meets the hinge

• Bent cutting edges from repeated contact with hard surfaces

• Fatigue cracks along weld seams or previous repairs


• Cutting out the damaged rear edge

• Welding in a 3/4-inch thick steel plate, approximately 4 inches wide, to replace the trailing edge

• Straightening the jaw before welding to ensure proper alignment

• Using high-tensile steel for the replacement plate to resist future deformation

• Gouging out old welds and re-welding with proper preheat and post-weld cooling to prevent cracking


• Trailing Edge: The rear edge of the lower jaw, often where the clamshell pivots.

• Bubba Repair: Informal or improvised repair, typically lacking structural soundness.

• Clamshell: The movable front jaw of a 4-in-1 bucket.

• Boxed Design: A hollow structural section used to increase stiffness without excessive weight.


• Crack propagation near hinge points

• Worn bushings or pins

• Bent jaws or misaligned cylinders

• Hydraulic cylinder leaks


• Wear strips or bolt-on cutting edges to extend life

• Greaseable bushings for easier maintenance

• Hardfacing welds on high-wear areas


The 4-in-1 bucket is one of the most innovative and versatile attachments for skid steers and track loaders, particularly when paired with equipment like ASV’s machines. It offers a remarkable range of capabilities, from digging and lifting to gripping and dumping, making it a highly sought-after tool for construction, landscaping, and other heavy-duty industries. This article dives deep into the benefits, features, and applications of the ASV 4-in-1 bucket, a must-have for operators seeking efficiency, flexibility, and superior performance in their equipment.
What is the ASV 4-in-1 Bucket?
The 4-in-1 bucket is a multifunctional attachment designed to enhance the capabilities of skid steers, compact track loaders, and other compatible machines. ASV, known for its high-performance machinery, has tailored this bucket to meet the needs of operators who require an all-in-one solution for material handling.
As the name suggests, the 4-in-1 bucket can perform four distinct functions:

1. Bucket Function – Standard loading and scooping for materials like dirt, gravel, and sand.

2. Clamshell Gripping – With hydraulic-powered jaws, it can grip and move materials, making it ideal for handling bulky or irregular objects.

3. Dozing – The bucket can be used to level or push materials across a surface, offering a dual function of both digging and grading.

4. Dumping – The ability to quickly dump materials with precision is a key feature, especially when moving debris or waste.


1. Enhanced Versatility
   The ASV 4-in-1 bucket’s multifunctionality makes it a versatile attachment, capable of taking on tasks that would otherwise require multiple specialized buckets or attachments. This not only saves time but also reduces the need for operators to switch between different pieces of equipment. Whether you’re moving soil, clearing debris, or lifting heavy objects, the 4-in-1 bucket can handle it all.

2. Improved Efficiency
   One of the main selling points of the ASV 4-in-1 bucket is its efficiency. By eliminating the need for multiple attachments and minimizing the time spent changing tools, operators can get more done in less time. This is particularly beneficial in busy work environments like construction sites where every minute counts.

3. Durable Construction
   Built to withstand harsh working conditions, the ASV 4-in-1 bucket is made with high-strength steel and reinforced components. It is designed for tough jobs, from heavy-duty digging to gripping and dumping, without compromising on durability. ASV equipment is known for its robust build, and the 4-in-1 bucket is no exception.

4. Cost-Effectiveness
   Investing in a 4-in-1 bucket can be cost-effective for businesses, especially those with a variety of tasks to tackle. Instead of purchasing multiple separate attachments, the 4-in-1 bucket provides a single solution that can perform the functions of several attachments. This reduces the overall equipment cost and simplifies inventory management.

5. Ease of Use
   The ASV 4-in-1 bucket is designed with operator ease in mind. Thanks to its hydraulic operation and smooth function transitions, even operators who are new to this type of attachment can quickly get the hang of using it. The intuitive design allows for easier control and more precision in handling materials.


1. Construction – Whether it's moving dirt, grading sites, or lifting heavy materials, the 4-in-1 bucket excels in construction environments. It can scoop, push, and grip materials, making it essential for clearing sites, leveling land, and performing backfilling tasks.

2. Landscaping – For landscapers, the 4-in-1 bucket is an indispensable tool for moving mulch, topsoil, and large rocks. Its clamshell grip function is perfect for picking up and transporting irregularly shaped materials, such as logs or rocks, that would be difficult to move with a standard bucket.

3. Agriculture – In agricultural settings, the bucket’s ability to move large quantities of material quickly can be used for tasks like clearing fields, lifting hay bales, or spreading fertilizer.

4. Waste Management – The gripping function is particularly useful in waste management, where operators need to handle and transport heavy or bulky debris quickly and efficiently.

5. Forestry and Logging – In forestry, the 4-in-1 bucket can be used to handle logs, branches, and other debris. Its clamshell functionality is perfect for gripping and moving heavy timber, helping to streamline operations.


1. Hydraulic Power Requirements
   Since the 4-in-1 bucket relies on hydraulic power to operate its clamshell function, it's important to ensure that your ASV machine has adequate hydraulic capacity to handle the additional load. Machines with higher hydraulic flow rates will allow for quicker transitions and more efficient operation of the bucket.

2. Compatibility
   Not all skid steers or compact track loaders are compatible with the ASV 4-in-1 bucket. Be sure to check that your machine can support this attachment. ASV machines are typically designed for these kinds of tools, but it's always good practice to verify compatibility before making a purchase.

3. Operator Training
   While the 4-in-1 bucket is relatively easy to operate, training is still recommended to ensure that operators can use the bucket safely and efficiently. Understanding how to use the various functions—such as properly controlling the clamshell grip or ensuring smooth dumping—can significantly improve productivity.

4. Maintenance
   As with any heavy machinery attachment, proper maintenance is key to ensuring longevity. Regularly inspect the hydraulic hoses, bucket teeth, and pins for wear and tear. Proper care will prevent costly repairs and maintain the bucket’s performance over time.
