Introduction
The E70B, an excavator by Volvo, is widely used in construction and excavation due to its reliability and powerful performance. Like all heavy machinery, the E70B faces common issues, one of which is related to its fuel system, specifically the injector pump. The fuel injector pump is responsible for delivering the proper amount of fuel to the engine at the correct time, ensuring optimal combustion and power output.
When issues arise with the injector pump, it can affect the engine’s efficiency, leading to poor performance or even complete engine failure if not addressed. This article aims to provide a comprehensive overview of the E70B’s injector pump, common problems, troubleshooting tips, and maintenance practices to ensure that the engine runs smoothly.
Understanding the Role of the Injector Pump
The injector pump in an engine is responsible for pumping fuel under high pressure into the engine’s injectors. The injector pump operates in tandem with the fuel injection system, ensuring the fuel is delivered at the correct pressure and timing. If the fuel isn’t delivered accurately, it can lead to misfires, sluggish performance, and, in severe cases, engine damage.
For the E70B, the injector pump is integral to the engine’s diesel powertrain system, controlling how much fuel is injected into the combustion chamber during each cycle.
Common Problems with the E70B Injector Pump

1. Fuel Leaks


• Worn seals around the injector pump.

• Cracked fuel lines or connectors.

• Corrosion on components that create a seal, leading to fuel seepage.


1. Injector Pump Failures


• Fuel contamination: Dirt or water in the fuel can clog the injector pump or cause it to wear prematurely.

• Overheating: Prolonged periods of operation under heavy load or inadequate cooling can cause the injector pump to overheat.

• Wear and tear: Like all mechanical parts, the injector pump components can wear out with time and usage.


1. Low Fuel Pressure


• Clogged fuel filters or fuel lines.

• A malfunctioning lift pump.

• Issues with the injector pump itself, such as internal wear or damage.


1. Rough Engine Operation


• Incorrect fuel timing.

• Worn injectors or injector pump components.

• Low-quality or contaminated fuel.


1. Hard Starting or No Start


• Air in the fuel lines.

• Worn-out injectors or injector pump components.

• A clogged fuel filter or dirty fuel system.

• Improper fuel injection timing.


1. Check the Fuel Quality:
   Poor-quality fuel or contaminants in the fuel can significantly affect the injector pump’s performance. Always use clean, high-quality diesel and install fuel filters to prevent debris from reaching the pump.

2. Test the Fuel Pressure:
   Use a fuel pressure gauge to check if the injector pump is delivering fuel at the correct pressure. Low pressure may indicate problems within the pump or fuel delivery system.

3. Inspect the Injector Pump and Seals:
   Look for any visible signs of damage, such as cracks, corrosion, or leakage. Replace seals and components if necessary, as worn parts can lead to fuel leaks or improper fuel delivery.

4. Clean and Replace Fuel Filters:
   Clogged fuel filters are a common cause of fuel flow restrictions. Replace fuel filters regularly to ensure the injector pump receives an adequate supply of clean fuel.

5. Check for Air in the Fuel System:
   Air trapped in the fuel lines can cause hard starting or rough engine operation. Bleed the fuel system to remove any air and restore proper fuel flow.

6. Perform a Timing Adjustment:
   If the fuel injectors are not timed properly with the engine’s cycles, it can cause poor engine performance. Use the manufacturer’s guidelines to adjust the injector timing if necessary.


• Regular Inspection: Check the injector pump and related components regularly for leaks, wear, and damage.

• Clean Fuel: Always use clean, high-quality fuel to prevent contamination and clogging of the fuel system.

• Replace Filters: Regularly replace fuel filters to ensure the injector pump is not clogged with dirt or debris.

• Proper Timing: Ensure that the injector timing is correct to avoid poor engine performance.

• Use OEM Parts: When replacing components of the injector pump, always use Original Equipment Manufacturer (OEM) parts to ensure compatibility and durability.


The Challenge of Stuck Bushings
Mechanics working on the lower arm of a Takeuchi TL150 often face extremely tight-fitting bushings—designed to withstand years of heavy-duty use. Traditional tools can struggle; these bushings may not budge even when hit with heavy sledgehammers. Their firm fit necessitates controlled force and clever tactics to avoid damaging the arm assembly.
Method: Chain and Porta‑Power Strategy
One effective method involves using a ratcheting binder chain to draw the two lift arms together, paired with a 10‑ton Porta‑Power hydraulic spreader placed between them. This combo creates focused pressure that can gradually push the old bushing out and simultaneously draw a new one in. Light taps on the outside of the arm assist alignment and ease movement.
Homemade Puller Technique
Another successful DIY approach involves crafting a makeshift puller using:

• A long bolt (around 7–8 inches; ¾″ or 1″ diameter),

• Washers sized to fit inside the bushing bore,

• A pipe to guide the bushing outward.


• Porta‑Power: A compact hydraulic spreader capable of delivering several tons of pushing or pulling force—used here to push bushings out.

• Ratcheting binder (chain): A tensioning chain system that draws components together tightly and securely.

• Makeshift puller: A rig built using a threaded bolt, internal washers, and a guiding pipe—used to pull bushings out without special tools.


• Secure the arms using a ratcheting binder or chain to prevent spreading during removal.

• Position a Porta‑Power (10‑ton hydraulic spreader) between arms, gently applying pressure to coax the bushing out.

• Add light sledge taps around the bushing area for improved alignment and movement.

• If needed, build a homemade puller: bolt, washers, pipe guide, and impact tool to thread out the bushing gradually.

• Always use a replacement bushing immediately—waiting can cause movement, corrosion, or misalignment.


• Chain + Porta‑Power Method: Align and press bushings out with controlled hydraulic force and a tethered chain.

• DIY Puller Method: Threaded bolt with internal washers and external pipe to mechanically extract the bushing.

• Visual Guides: Adapt ideas from videos demonstrating hydraulic presses and homemade jigs.


Introduction
The Case 770CH is a workover machine commonly used in the oil and gas industry for well servicing and maintenance. This powerful machine is designed to handle various tasks, including drilling, maintenance, and other operations on active wells. However, like all heavy equipment, the Case 770CH is prone to wear and tear, especially considering the tough environments it operates in. This article delves into common issues faced by operators of the Case 770CH and outlines the troubleshooting and maintenance strategies to keep it running efficiently.
Understanding the 2000 Case 770CH Workover Machine
The Case 770CH is part of the larger family of workover rigs, known for their ruggedness and reliability in harsh conditions. These machines are typically equipped with large hoisting systems, hydraulic pumps, and a powerful engine to lift and move heavy equipment like pumps, motors, and drilling gear.
The 770CH model comes with a variety of configurations, making it versatile for different workover jobs. Over the years, many operators have noted specific issues and maintenance concerns with this machine. Below, we will explore some of these challenges and offer advice on how to address them effectively.
Common Issues with the Case 770CH Workover

1. Hydraulic System Failures


• Leaks: Hydraulic fluid leaks are a common issue, especially in older machines. These leaks can lead to a loss of pressure and cause equipment failure. Leaks often occur in hoses, fittings, and seals. Regularly inspecting hydraulic lines and replacing worn or damaged components is crucial.

• Poor Hydraulic Performance: If the machine is struggling to lift or operate hydraulically, the issue could be related to pump failure, low hydraulic fluid, or air in the system. The hydraulic filters may also become clogged, which can restrict fluid flow. Regular fluid changes and filter replacements help prevent these problems.


1. Engine Performance Issues


• Fuel System Problems: A dirty fuel filter or clogged fuel injectors can cause fuel delivery issues, leading to poor engine performance. Replacing filters and ensuring proper fuel flow is essential to keeping the engine running smoothly.

• Air Intake Restrictions: A blocked air filter can restrict airflow to the engine, leading to poor combustion and decreased power. Regular air filter cleaning or replacement is necessary to maintain optimal engine function.

• Exhaust System Clogging: If the exhaust system becomes clogged or damaged, it can cause a reduction in engine performance, leading to overheating and reduced power output. Regular inspection and cleaning of the exhaust system will help avoid these issues.


1. Electrical Problems


• Battery Issues: A weak or dead battery can cause starting problems, especially in cold weather conditions. Regularly testing the battery's voltage and replacing old batteries will prevent starting failures.

• Fuses and Relays: Burned-out fuses or faulty relays can disrupt the electrical flow and cause the machine to lose power or malfunction. Checking and replacing fuses or relays as needed will help keep the electrical system intact.

• Alternator Failure: If the alternator is not charging the battery properly, it can lead to electrical malfunctions. Checking the alternator's voltage output and replacing it if necessary will help prevent these issues.


1. Transmission and Drivetrain Issues


• Low Transmission Fluid: Just like any other hydraulic system, the transmission relies on fluid to function correctly. Low or dirty fluid can cause gears to slip or make shifting difficult. Regularly checking and replacing the transmission fluid will help avoid such issues.

• Worn Clutch or Transmission Components: Over time, the clutch and transmission components can wear out, leading to difficulty in shifting or jerky movements. These parts should be inspected periodically and replaced when necessary.


1. Structural Wear and Tear


• Frame Cracks: Over time, stress from heavy lifting can cause cracks to form in the frame. These cracks can compromise the integrity of the machine. Regularly inspecting the frame and welding up any cracks promptly will help prevent further damage.

• Lift Arm Issues: The lift arms often experience significant wear due to the heavy lifting they perform. Lubricating the arms and inspecting the lifting mechanism regularly will help maintain smooth operation.


• Inspect the hydraulic fluid for signs of contamination. If it’s dirty, replace it and the filter.

• Look for any visible leaks in the hoses, fittings, and cylinders. Use a pressure gauge to check the hydraulic system’s pressure.

• If there’s air in the hydraulic lines, bleed the system using the appropriate procedure from the operator’s manual.


• Check the fuel filter and injectors for blockages, and replace them if necessary.

• Inspect the air filter and clean or replace it if it’s clogged.

• Examine the exhaust system for blockages and clean the system if needed.


• Test the battery with a multimeter. If the voltage is low, replace the battery.

• Check for blown fuses or faulty relays and replace them.

• Measure the alternator’s output to ensure it's charging the battery correctly.


• Check the transmission fluid level and add more if necessary. If the fluid is dirty, replace it and the filter.

• Inspect the clutch and transmission components for wear and replace them if needed.


• Examine the frame and hoist arms for cracks or signs of stress. Weld any cracks immediately to prevent further damage.

• Lubricate all moving parts to reduce friction and prevent premature wear.


• Hydraulic Fluid Maintenance: Regularly change the hydraulic fluid and filter to keep the hydraulic system running smoothly.

• Battery Checks: Periodically check the battery voltage and clean terminals to prevent starting issues.

• Regular Inspections: Inspect the frame, hoist arms, and other structural components at least once every few months, or after every major job.

• Oil and Filter Changes: Ensure that engine oil and fuel filters are replaced regularly to keep the engine performing at its best.

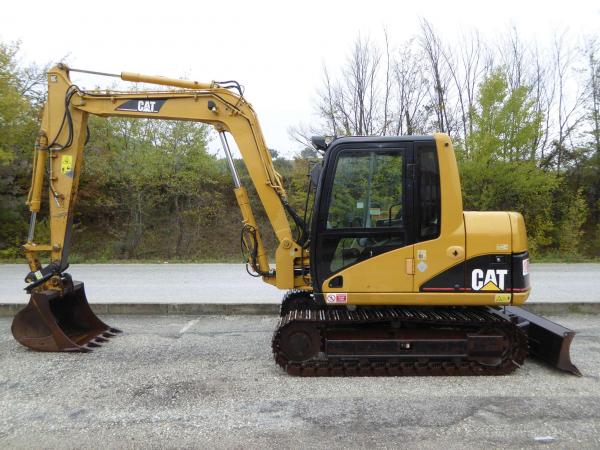

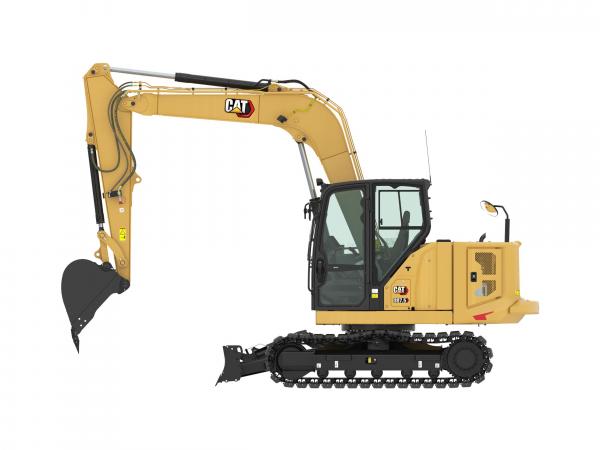

Compact Performance with Purpose
The Cat 307 mini hydraulic excavator is valued for its sturdy design and efficient performance. It features a standard tail swing and a fixed side boom, delivering high productivity at low operational cost. Comfort is a focus too, with a sealed cab, suspension seat, radio, and improved air conditioning system to keep operators working comfortably all day.
Specs That Stand Out
This model brings together compact dimensions and surprising capability:

• Engine: Cat C2.4 turbo, around 50 hp net power

• Operating weight: roughly 7,200 kg (about 15,900 lb)

• Digging reach: up to 22 ft (6–7 m), digging depth up to 15 ft (4–5 m), loading height approximately 18 ft (5–6 m)

• Hydraulic flow: around 64 L/min (17 gal/min), with a robust load‑sensing hydraulic system


• Stability and lift capacity thanks to its counterweight and tail swing design

• Operator‑friendly controls complete with 100 % pilot controls, auto‑idle function, nice cabin ergonomics, and a monitor console

• Versatility and durability, with options like hydraulic lines, blade, and GPS available to match a variety of job needs


• Hydraulic system problems: leaks from worn seals or hoses may cause slow attachment function or malperformance. Regular inspections are key.

• Engine and cooling concerns: overheating, low oil pressure, or stalling can occur if radiator, oil pressure, fuel delivery, or head gasket integrity are compromised.

• Unexpected shutdowns: electrical failures such as faulty solenoid wiring have been reported.

• Fuel starvation after running: initial runs may be smooth, but fuel filters or hidden screens can clog and restrict flow.

• Gray‑market variants: some Cat 307 models are imported and differ slightly. Always verify part compatibility via local dealers.


Quote:“They lift very well and are very stable… engine proven to be good… track gear and final drives would be the things to look at.”
Such praise points to the Cat 307’s capabilities and reliability alongside advice to monitor high‑load components.

Quote:“At 7 tons it will do the bigger work I need… still fairly transportable… runs great.”
Affirming the balance of size and portability that makes the 307 accessible for varied workloads.

• Inspect hydraulic hoses, seals, and fluid levels.

• Monitor cooling system components, fuel delivery lines, and oil pressure regularly.

• Check electrical solenoids and wiring for intermittent shutdowns.

• Use genuine Cat parts to preserve performance and prevent premature wear.

• Verify compatibility on gray‑market machines or parts.


Introduction
Experiencing slow cranking or a red-hot starter wire in a machine like the Case 1835B skid steer can be frustrating, especially when you're on a tight schedule. This issue can be caused by a variety of problems, including faulty wiring, a weak starter motor, or insufficient electrical connections. Understanding these potential causes and knowing how to troubleshoot the issue is crucial for maintaining the reliability of your equipment.
In this article, we’ll walk through the possible reasons why a Case 1835B starter wire might become red-hot and why it might exhibit slow cranking. We’ll also provide practical steps for diagnosing and fixing the issue. By following these instructions, you can restore your machine's starting performance and avoid more serious electrical failures.
Understanding the Problem: Slow Cranking and Hot Starter Wire
Slow cranking or the starter wire becoming red-hot during cranking is usually an indication of electrical resistance somewhere in the starting circuit. The starter motor, which relies on high amperage to engage the engine, can overheat or operate inefficiently if it’s not receiving enough power, or if there’s a short or weak connection in the electrical path.
In simple terms, slow cranking means that the starter motor is turning the engine slower than usual, likely because the battery voltage is not being delivered effectively. If the starter wire becomes red-hot, this could be due to excessive current flow, which is often the result of a poor connection or short circuit.
Potential Causes of the Problem
Several factors can contribute to slow cranking and overheating of the starter wire in a Case 1835B. Here’s a breakdown of common causes:

1. Faulty Battery:
   • A weak or old battery can fail to supply the necessary power to the starter motor, resulting in slow cranking. If the battery voltage drops under load, the starter motor may struggle to engage the engine.

2. Corroded or Loose Battery Terminals:
   • Corrosion or loose connections at the battery terminals can restrict the flow of electricity, reducing the current available to the starter motor and causing the wire to heat up.

3. Bad Ground Connection:
   • A poor ground connection can create resistance in the circuit, leading to slow cranking and potentially overheating the starter wire.

4. Worn Starter Motor:
   • Over time, starter motors can wear out, causing them to draw excessive current. This increased amperage demand can result in the starter wire overheating.

5. Faulty Starter Solenoid:
   • The starter solenoid, which engages the starter motor, can also be a source of problems. A malfunctioning solenoid may not properly activate the motor, causing it to run inefficiently and slowly.

6. Faulty or Damaged Wiring:
   • Any damaged or frayed wiring along the starting circuit can create resistance, leading to slow cranking and overheating of wires.

7. Bad Starter Relay:
   • A defective starter relay can cause an intermittent connection, leading to improper voltage delivery to the starter motor and resulting in sluggish cranking.


• Check the Voltage: Start by checking the battery voltage using a multimeter. A fully charged 12V battery should read around 12.6V when the engine is off. If the voltage is lower, it could be a sign of a bad battery that needs replacing.

• Test Under Load: Crank the engine while observing the battery voltage. If the voltage drops significantly under load (below 9.5V), the battery is likely faulty and needs replacing.


• Inspect Terminals: Check the battery terminals for corrosion. Corrosion can cause poor connections and restrict the flow of current. Clean the terminals with a wire brush or battery terminal cleaner.

• Tighten Connections: Ensure that both the positive and negative battery cables are tightly secured to the terminals. Loose connections can increase resistance in the electrical system.


• Check Ground Cable: Follow the ground cable from the battery to the frame of the skid steer. Ensure that the connection is clean and free from corrosion. A poor ground connection can cause significant electrical resistance and lead to slow cranking and overheating.

• Test Continuity: Use a multimeter to test the continuity of the ground connection. If there is no continuity or if the resistance is high, replace the ground cable.


• Inspect the Starter: If the battery and wiring seem to be in good condition, the problem may lie with the starter motor itself. A worn or faulty starter motor will require more current to turn the engine over. You can remove the starter motor and have it tested at a local repair shop.

• Check for Signs of Wear: Look for any visible signs of wear, such as burnt spots or excessive buildup of debris on the motor. These are indicators that the starter needs replacement.


• Check Solenoid Operation: The starter solenoid should engage the starter motor smoothly when you turn the key. If you hear clicking or grinding noises but the motor doesn’t engage properly, the solenoid may be faulty.

• Test the Relay: Use a multimeter to test the starter relay for continuity. If the relay doesn’t work properly, replace it to ensure that the correct voltage is being sent to the starter motor.


• Inspect the Wiring: Examine all wiring involved in the starting system, especially the starter wire itself. Look for signs of fraying, breaks, or damage that could cause increased resistance. Pay particular attention to areas where the wire may be rubbing against metal parts, which can lead to short circuits.

• Test Continuity: Use a multimeter to check for continuity along the starter circuit. If the wiring is damaged or has a high resistance reading, replace the faulty wire.


1. Regularly Inspect the Battery: Check the battery voltage and clean the terminals periodically.

2. Tighten Connections: Ensure that all electrical connections, including those to the battery and starter motor, are tight and free from corrosion.

3. Replace Worn Components Promptly: Address any signs of wear on the starter motor, solenoid, or wiring before they lead to more serious issues.

4. Use the Right Tools: Always use a multimeter to test electrical components, as it helps you pinpoint the issue more accurately.


Compact Power, Precise Design
Produced between approximately 2002 and 2011, the Yanmar VIO75 is a compact crawler excavator known for its zero‑tail‑swing design and robust performance. It weighs around 7.72 tons, features a transport length of about 6.29 meters, width near 2.27 meters, and a height of 2.71 meters, with its undercarriage’s track width measuring approximately 450 mm. It also includes a dozer blade integrated into its compact frame.
Service Documentation and Manuals
Service and maintenance of the VIO75 are facilitated through detailed manuals and parts catalogs. These documents typically comprise:

• Technical specifications and operational guidance

• Assembly and disassembly procedures for components

• Troubleshooting flowcharts and diagnostic guidance

• Parts catalog listings with reference numbers and interchangeability notes


• Zero‑tail‑swing: A design where the rear of the excavator remains within the width of its tracks during rotation—ideal for tight workspaces.

• Track width: The width of each crawler track—here around 450 mm—impacts stability and ground pressure.

• Transport dimensions: Critical for logistics, including towing, shipping, or storage—length ~6.29 m, width ~2.27 m, height ~2.71 m.

• Parts catalog: A detailed listing of every component, including part numbers, diagrams, assembly locations, and quantity details.


• Consult the service manual to understand component placements and wiring paths.

• Use the parts catalog to identify correct part numbers before ordering replacements.

• Follow assembly/disassembly instructions to avoid damaging tight or delicate connections.

• Reference wiring diagrams to trace electrical faults in sensors, motors, or cabin features.

• Replace worn components with correct interchangeable parts identified in the catalog.


• Ergonomic cab layout paired with precise hydraulic control gives operators confidence in tight spaces.

• Strong hydraulic response, especially for its size, supports attachments like breakers or augers without compromising stability.


• The Yanmar VIO75 combines compact design with reliable functionality, making it ideal for confined job sites.

• Comprehensive service and parts manuals ensure maintenance is accurate and efficient.

• Real‑world repair stories—and manual-guided fixes—highlight the importance of solid documentation in resolving issues.

• Familiarity with technical terms, diagrams, and disassembly processes empowers operators and technicians alike.


Introduction
The throw-out bearing (also known as the clutch release bearing) is a critical component in the clutch system of heavy machinery. It plays a key role in disengaging the clutch when the operator presses the clutch pedal, allowing for smooth gear shifting. If this bearing begins to wear out or malfunction, it can lead to a variety of issues, including difficulty shifting gears, unusual noises, or even complete transmission failure.
Changing a throw-out bearing is a maintenance task that many mechanics and operators of heavy equipment will encounter. While it can be challenging, especially for those unfamiliar with the process, with the right tools and a step-by-step approach, it is a manageable repair.
In this guide, we will explore the process of changing a throw-out bearing in a heavy equipment transmission, offering detailed instructions, tools, and tips to ensure the job is done correctly.
Understanding the Throw-Out Bearing
Before diving into the replacement process, it’s important to understand the function of the throw-out bearing. The throw-out bearing is located between the clutch release fork and the clutch diaphragm spring. When the clutch pedal is depressed, the throw-out bearing presses against the diaphragm spring, disengaging the clutch. This allows the gears to shift smoothly.
Over time, the bearing can wear down due to constant friction and pressure. This wear can cause the bearing to become noisy, sticky, or fail entirely, making it difficult to disengage the clutch properly.
Signs of a Worn Throw-Out Bearing
Knowing when to replace the throw-out bearing is crucial. Some common symptoms of a worn throw-out bearing include:

1. Noisy Operation:
   • A squealing or grinding noise when the clutch pedal is pressed often indicates a failing throw-out bearing.

2. Difficulty Shifting Gears:
   • A worn bearing may cause difficulty in shifting gears, or the gears may slip out of place.

3. Vibration or Resistance:
   • If you feel resistance or vibrations in the clutch pedal, it could indicate that the throw-out bearing is not moving smoothly.

4. Clutch Pedal Sticking:
   • A stiff or sticky clutch pedal can be caused by friction in the bearing, leading to improper disengagement.


1. Basic Hand Tools:
   • Wrenches, sockets, screwdrivers, and pliers to remove bolts, fasteners, and components.

2. Lift or Jack Stand:
   • A lift or heavy-duty jack stand to safely raise the vehicle or machine for access to the transmission.

3. Transmission Jack:
   • A transmission jack is essential for safely lowering and removing the transmission once it is detached.

4. Clutch Alignment Tool:
   • A clutch alignment tool helps properly position the clutch disc and pressure plate during reassembly.

5. Replacement Throw-Out Bearing:
   • Be sure to use the correct replacement bearing based on the make and model of your equipment.

6. Lubricant or Grease:
   • Use high-quality grease to lubricate the throw-out bearing and other related components.

7. Cleaning Materials:
   • Cleaning supplies like rags, brake cleaner, or solvent to remove debris and old grease from components.

8. Torque Wrench:
   • A torque wrench is necessary to ensure bolts are tightened to the manufacturer’s specifications.


1. Ensure Safety:
   • Before starting, ensure that the vehicle is parked on level ground and the parking brake is engaged. Use a jack to raise the vehicle or equipment if needed. Place jack stands under the frame to secure the vehicle.

2. Remove the Clutch Assembly:
   • To access the throw-out bearing, you will need to remove the clutch assembly. This typically involves removing the transmission. Depending on the machine, this may involve:
     • Disconnecting the battery.

     • Removing the driveshaft or axles if necessary.

     • Detaching any electrical connectors and linkages connected to the transmission.

     • Unbolting the transmission from the engine and carefully lowering it using a transmission jack.

3. Inspect the Clutch:
   • With the transmission removed, inspect the clutch assembly for wear. If the clutch disc or pressure plate is worn, it’s a good idea to replace them at the same time to prevent further issues.

4. Remove the Old Throw-Out Bearing:
   • Locate the throw-out bearing, which is typically mounted on the clutch fork. Remove any retaining clips or bolts holding the bearing in place. Carefully slide the bearing off the fork or mounting shaft.

5. Clean the Components:
   • Clean the clutch fork, bearing surface, and any other components that may have been exposed to dirt, grease, or old lubricants. Use a solvent or brake cleaner to ensure all surfaces are free of debris.

6. Install the New Throw-Out Bearing:
   • Lubricate the new throw-out bearing with the recommended grease. Slide the new bearing onto the clutch fork or mounting shaft, ensuring it fits securely.

7. Reassemble the Clutch Assembly:
   • With the new bearing in place, reinstall the clutch pressure plate and disc. Use the clutch alignment tool to ensure that the disc is properly aligned with the pressure plate.

   • Tighten the clutch bolts to the manufacturer’s torque specifications.

8. Reinstall the Transmission:
   • Lift the transmission back into position using the transmission jack. Reattach it to the engine, ensuring all bolts are tightened securely.

9. Reconnect All Components:
   • Reconnect any electrical connectors, linkages, and the driveshaft. Make sure everything is reattached in the proper order.

10. Test the Clutch Operation:


• Before fully reassembling the machine, test the clutch operation by pressing the clutch pedal and ensuring smooth disengagement. Check for any abnormal noises or resistance.


1. Final Checks:


• Once the clutch is functioning properly, lower the vehicle back onto the ground, remove the jack stands, and tighten the wheels if necessary.


• Clutch and Transmission Alignment: Proper alignment of the clutch and transmission is crucial to avoid premature bearing wear. Use a clutch alignment tool to ensure everything is aligned correctly.

• Quality Parts: Always use high-quality OEM or aftermarket parts to ensure durability and performance.

• Check for Leaks: While the transmission is removed, inspect for any oil or coolant leaks that could affect the clutch system.


Strange Behavior on Familiar Ground
A certain 2011 skid loader drove and maneuvered flawlessly—but when the operator tried to release the bucket, an ominous warning light flickered and an auxiliary override lamp began flashing. Despite the engine running smoothly and no error codes showing, the bucket remained stubbornly locked.
Initial Troubleshooting Steps
Several logical checks were performed:

• All related fuses were inspected and confirmed intact.

• The harness leading to the rocker switch was unplugged—yet the bucket still refused to release, and no codes appeared in the system.


• Auxiliary override light: Indicates that auxiliary functions—like bucket control—are temporarily locked out.

• Rocker switch harness: The wire assembly connected to the switch used to operate auxiliary functions.

• Interlock circuit: A safety feature that prevents certain operations unless specific conditions are met (e.g., operator presence, seatbelt engagement).


• One operator discovered that a faulty relay pin—loosened by machine vibration—could disrupt control signals. Tightening the relay pin restored function to the loader’s drive system. Vibration can wear down even secure electrical contacts.

• Another technician highlighted the danger of worn wiring in junction boxes—especially under or near the air filter housing. Over time, vibration and accumulated dirt can wear away insulation, causing shorts. Packing the box with silicone after separating the wires proved an effective and low-cost fix.


• Verify fuses are intact and not repeatedly failing.

• Unplug switches or even bypass certain circuits temporarily to isolate faults.

• Inspect relay bases and connectors—especially for signs of looseness or wear.

• Examine junction boxes for wire abrasion, especially under vibration-exposed locations.

• Consider packing wire bundles with silicone tubing or caulking after repairs to protect against wear.


• Even when no codes appear, safety interlocks and electrical integrity can silently prevent function.

• Vibration is the silent enemy, loosening connections and damaging insulation over time.

• Protecting electrical systems is as much about prevention—organization, cleaning, securing—as it is about component replacement.

• When in doubt, trace logic paths methodically: power → switch → relay → actuator—test each link.


Introduction
Screen machines are essential in construction, mining, and other heavy industries, designed to separate materials like gravel, sand, and rocks according to size. These machines often operate under harsh conditions, and as with all machinery, they are prone to issues. One common and frustrating problem operators face is when the machine refuses to crank or start.
This article delves into the causes of a "no crank" situation in screen machines, providing a comprehensive breakdown of the problem, common troubleshooting steps, and key solutions to get your equipment back to work.
Understanding the "No Crank" Issue
A "no crank" situation in a screen machine typically means that when the operator turns the ignition, the machine does not start. There is no sound of the engine attempting to turn over or crank. This issue can arise from several causes, and it's important to address the root problem efficiently to avoid unnecessary downtime.
Possible Causes of "No Crank" in Screen Machines
Several factors can lead to a machine’s failure to crank. The most common causes include:

1. Battery Issues:
   • Dead or Weak Battery: A dead or weak battery is one of the most common reasons for a no-crank situation. Without sufficient power, the engine cannot turn over.

   • Corroded Battery Terminals: Over time, battery terminals can accumulate corrosion, leading to poor connections. This can prevent the starter motor from receiving the necessary power to crank the engine.

   • Battery Cable Damage: Worn or damaged battery cables can also lead to poor electrical connections.

2. Starter Motor Problems:
   • The starter motor is responsible for physically turning the engine over. If the motor is faulty or worn out, it may fail to engage properly, resulting in no cranking.

   • Solenoid Failure: The solenoid, which engages the starter motor, could fail to function properly, even if the starter motor is working. A malfunctioning solenoid will not send the necessary signal to the motor.

3. Ignition Switch Failure:
   • A faulty ignition switch can prevent the electrical signal from reaching the starter motor, causing the engine not to crank. This can occur from wear and tear or internal electrical issues within the switch.

4. Fuses or Relays:
   • Electrical fuses or relays are critical for directing power to the starter system. A blown fuse or malfunctioning relay can stop the engine from cranking.

   • Blown Starter Relay: The starter relay connects the battery to the starter motor. If it’s damaged or blown, it will prevent the engine from starting.

5. Neutral Safety Switch Issue:
   • Screen machines typically have a neutral safety switch that prevents the engine from cranking unless the transmission is in neutral. If this switch malfunctions, it may incorrectly signal that the machine is in gear, even when it’s in neutral, preventing the engine from cranking.

6. Engine Grounding Issues:
   • A poor engine ground connection can prevent the electrical current from completing its circuit, resulting in no crank. Ensure that the engine is grounded properly to avoid electrical issues.

7. Faulty or Dirty Starter Relay or Connections:
   • In some cases, connections to the starter relay may become dirty, corroded, or loose over time, interrupting the electrical flow necessary to power the starter motor.


1. Check the Battery:
   • Inspect the Battery: Begin by checking the battery’s charge and condition. Use a voltmeter to check the battery voltage. A fully charged battery should read approximately 12.6 volts or higher.

   • Inspect Battery Terminals: Examine the battery terminals for signs of corrosion. Clean any corrosion with a mixture of baking soda and water, and ensure that the terminals are securely fastened.

   • Test Battery Connections: Check the battery cables for signs of wear or damage. Replace any frayed or damaged cables.

2. Inspect the Starter Motor:
   • Test the Starter Motor: Use a multimeter to check if the starter motor is receiving power. If the motor does not engage, it could be faulty and require replacement.

   • Listen for Clicking Sounds: When you attempt to start the machine, listen for any clicking sounds. A single click could indicate a faulty solenoid, while continuous clicking could indicate a weak or dead battery.

   • Check the Solenoid: If the solenoid is faulty, it will need to be replaced to restore normal function.

3. Check the Ignition Switch:
   • Test the Ignition Circuit: Ensure that the ignition switch is sending power to the starter system. If the switch is faulty, it may need to be repaired or replaced.

   • Inspect the Wiring: Look for any loose or damaged wiring in the ignition circuit, as it can prevent the starter motor from receiving the necessary power.

4. Examine Fuses and Relays:
   • Check Starter Relay: Locate and inspect the starter relay for damage or signs of failure. Replace the relay if needed.

   • Test Fuses: Inspect all relevant fuses, such as the main fuse and the starter system fuse, and replace any that are blown.

5. Verify Neutral Safety Switch:
   • Test the Neutral Safety Switch: Make sure that the neutral safety switch is properly aligned and functioning. If the machine is in gear, the engine will not crank. A malfunctioning switch may need to be adjusted or replaced.

6. Check Grounding:
   • Inspect Engine Grounds: Ensure that the engine is properly grounded. A loose or disconnected ground wire can prevent the electrical system from completing its circuit.

   • Clean Ground Connections: Clean any rust, dirt, or corrosion from the engine’s ground connection.

7. Look for Starter Relay Issues:
   • Inspect Relay Connections: Clean any dirty or corroded starter relay connections. Tighten any loose wires and ensure proper connectivity.


Engine and Idle Behavior
In a telehandler equipped with a Cummins QCB4.5 engine and an electronic throttle pedal, the operator experienced a peculiar fault: the machine would start, but idle erratically—cutting in and out around 400 rpm—with absolutely no throttle response. Even engaging hydraulic functions wouldn’t stabilize idle; the engine remained rough or nearly stalled.
Troubleshooting Attempts Made
The mechanic meticulously replaced multiple components to no avail:

• Throttle pedal sensor

• Fuel filters

• Lift pump

• Shut‑off solenoid

• High‑pressure pump (searched even though timing was verified)


• Idle (Rough Idle): Engine runs without load (e.g., stationary), but rpm fluctuates or remains unusually low.

• Electronic Throttle Pedal: A pedal that sends electrical signals (not mechanical linkage) to control engine speed.

• Throttle Response: The engine’s ability to increase power when the pedal is pressed.

• Fuel Filters / Lift Pump / Shut‑off Solenoid / High‑pressure Pump: Components involved in fuel delivery and engine management.

• ECM (Engine Control Module): The onboard computer regulating engine operations.

• Intake Pressure Switch: A sensor monitoring air pressure in the intake manifold; faulty readings can disrupt engine behavior.


• A loader suddenly lost throttle response as though the pedal were dead. The culprit? A corroded connector behind the joystick—cleaning contact points restored function.

• In another case, a forklift quietly stalled due to a misreading oxygen sensor, causing the ECM to choke off fuel temporarily, leading to stalling at idle.


• Start engine, observe rough, low idle and no throttle response.

• Replace commonly suspected components: throttle sensor, fuel-related parts, solenoid, pump.

• Check fuses and fault codes; none found.

• Identify and locate intake pressure switches on manifold.

• Unplug rear-mounted intake switch—throttle and idle return immediately.

• Replace the faulty switch to restore full, lasting functionality.


• Don’t overlook minor sensors or switches—even when major components seem suspect.

• A visual inspection of the intake manifold and associated sensors can be quicker than swapping major parts.

• Even in modern, electronically controlled engines, age and weather can degrade sensors or cause hidden shortcuts.

• Always consider sensor unplug tests—performed cautiously—as part of diagnostics.
