Introduction to the CAT 955K
The Caterpillar 955K is a well-known and widely used crawler loader, known for its power and reliability in various applications, such as construction, mining, and demolition. It is equipped with a hydraulic transmission system that enables smooth and efficient operation, even in tough conditions. However, like all heavy machinery, the 955K may face occasional mechanical issues that require attention. One such issue that operators may encounter is a transmission shaft leak, which can lead to a loss of hydraulic fluid and, eventually, cause system failure if not addressed in a timely manner.
In this article, we will explore the common causes of transmission shaft leaks, how to diagnose and fix the issue, and some preventive measures that can help avoid future leaks.
Understanding the Transmission Shaft System
Before diving into the causes and solutions for a transmission shaft leak, it's important to understand how the transmission system works in the CAT 955K.
The CAT 955K uses a hydrostatic transmission system, where hydraulic fluid is pumped through a series of valves and cylinders to create the necessary movement for the machine's operations. The transmission shaft connects various parts of the machine, transmitting the power from the engine to the drivetrain. A leak in the shaft can cause hydraulic fluid to escape, affecting the performance of the machine.
Hydraulic systems rely on precise seals and gaskets to keep the fluid within the system, ensuring proper lubrication and cooling. If a seal fails or becomes damaged, hydraulic fluid can leak, leading to low fluid levels, overheating, and eventually, damage to the transmission system.
Causes of Transmission Shaft Leaks
There are several possible causes of a transmission shaft leak in the CAT 955K. Some of the most common causes include:

1. Worn or Damaged Seals: The seals around the transmission shaft are designed to prevent fluid from leaking out. Over time, these seals can become worn or damaged due to heat, friction, or contamination. When this happens, hydraulic fluid can escape from the system, causing a leak.

2. Improper Installation: If the transmission shaft or its components are not installed correctly, it can lead to misalignment, putting stress on the seals and other parts. This can result in leaks at the shaft connection points.

3. Overheating: Overheating can occur due to several factors, including low fluid levels, excessive load, or poor ventilation. High temperatures can cause seals and gaskets to deteriorate more quickly, leading to leaks.

4. Contamination: Dirt, debris, or metal particles in the hydraulic fluid can damage seals and cause leaks. Contamination can come from external sources or from inside the machine if the filtration system is not functioning correctly.

5. Excessive Pressure: If the hydraulic system is subjected to higher-than-normal pressure, it can put extra strain on the seals and other components. This can cause them to fail and result in a leak.


1. Check Fluid Levels: The first step is to check the hydraulic fluid levels. Low fluid levels can indicate a leak, and topping up the fluid may temporarily fix the issue. However, if the leak persists, you’ll need to investigate further.

2. Inspect for Visible Leaks: Look around the transmission shaft and its components for any visible signs of leaking fluid. You may notice fluid around the seals, on the ground beneath the machine, or on the transmission case.

3. Pressure Test: If you cannot locate the source of the leak visually, you may need to perform a pressure test. This can help identify if there is a problem with the hydraulic system or if the transmission shaft seals are failing.

4. Examine Seals and Gaskets: Check the seals and gaskets around the transmission shaft for any signs of wear or damage. If the seals appear cracked, deformed, or hardened, they may need to be replaced.

5. Inspect for Contamination: Contaminated hydraulic fluid can accelerate wear and tear on the seals. Check the fluid for any signs of debris or discoloration. If contamination is present, the entire system may need to be flushed.


1. Replace Worn Seals: If the seals are damaged or worn, they will need to be replaced. Be sure to use OEM (original equipment manufacturer) seals to ensure a proper fit. Clean the area thoroughly before installing the new seals to prevent any debris from contaminating the hydraulic system.

2. Check for Misalignment: If improper installation is the cause of the leak, check for misalignment in the transmission shaft. Align the components correctly and reassemble them with the proper torque specifications.

3. Flush the Hydraulic System: If contamination is the cause of the leak, flush the entire hydraulic system to remove any dirt or metal particles. Replace the hydraulic fluid with fresh fluid and replace any clogged filters.

4. Address Overheating Issues: If overheating is the cause, address the root cause of the overheating. This may involve adding more cooling capacity, improving ventilation, or adjusting the load on the machine. Additionally, monitor the fluid temperature regularly to ensure that it stays within the recommended range.

5. Test the System: After completing the repairs, test the system to ensure that the leak has been fixed and the machine is operating correctly. Check for any signs of continued leakage and verify that the fluid levels are stable.


1. Regular Maintenance: Perform regular maintenance on the hydraulic system, including changing the fluid, replacing filters, and inspecting seals and gaskets. Regular checks can help detect issues before they become serious problems.

2. Monitor Fluid Levels: Keep an eye on hydraulic fluid levels and top up when necessary. Regularly inspect for leaks and address any issues immediately.

3. Keep the Hydraulic System Clean: Ensure that the hydraulic system is free of dirt and contamination. Use high-quality filters and replace them at the recommended intervals to keep the fluid clean.

4. Check for Overheating: Monitor the temperature of the hydraulic fluid and ensure that the system is operating within the recommended temperature range. Avoid overloading the machine to prevent unnecessary strain on the transmission.

5. Inspect Seals and Gaskets: Inspect the seals and gaskets around the transmission shaft regularly for signs of wear or damage. Replace them at the first sign of deterioration to prevent leaks from occurring.


First Signs: Oil Under the Wheel
When fat, dark fluid drips under the rear wheel of a Bobcat A300 with minimal hours on the clock, your first thought might be a hydraulic leak—but often, the culprit is simpler: a failing axle seal.
Key Technical Terms

• Axle seal: A small gasket located between the wheel hub and axle to retain chain case oil and prevent leakage.

• Chain case: The gear housing that sends power to the wheels; its lubricant may seep past worn seals.

• Wheel hub removal: The process of taking off the wheel so the hub and seal can be accessed.

• All‑wheel‑steer loader: A machine where all wheels steer, meaning axle and hub assemblies are more complex and may have multiple seals.


• Remove the wheel and hub by unbolting retaining nuts or bolts.

• Access the axle seal and gently pry it out—drilling tiny holes and using screw heads as leverage is a classic trick for seal extraction.

• Replace the seal with a correct part (genuine or verified aftermarket) sized to fit the Bobcat model.

• Reassemble in reverse—securely torque the hub, then reinstall the wheel.


• Park safely on level ground and secure the machine.

• Remove wheel and hub carefully.

• Extract the failing axle seal—drilling small holes and prying is acceptable with care.

• Identify and install the appropriate replacement seal.

• Secure the hub and re-mount the wheel using proper torque.

• Test for leaks and fluid retention after operation.


• A severe rear leakage from a seemingly new machine often indicates a seal failure—not necessarily wear from mileage.

• All-wheel-steer systems use more complex hub assemblies, increasing the number of seals that can fail.

• DIY approaches—with patience and correct parts—can resolve this issue without expensive dealership service.


Introduction to the Komatsu WD600-6
The Komatsu WD600-6 is a part of Komatsu’s lineup of heavy-duty wheel dozers, designed for demanding earth-moving operations. Known for its robustness, versatility, and advanced technology, the WD600-6 is engineered to tackle a variety of tasks in industries such as mining, construction, and infrastructure development. Whether it's moving large amounts of material, grading, or even fine-tuning a surface, the WD600-6 delivers impressive performance.
Overview of the Komatsu WD600-6
The WD600-6 is a machine built for durability and high productivity. Its 6-wheeled design gives it superior mobility compared to tracked dozers, while still providing the required stability for heavy earth-moving tasks. Here’s a look at its specifications and key features:

• Engine Power: The Komatsu WD600-6 is powered by a 6-cylinder, turbocharged, intercooled engine. It offers an impressive output of around 600 horsepower, providing the necessary power for heavy pushing, grading, and lifting tasks. The engine has been designed for fuel efficiency without sacrificing power.

• Hydraulic System: The hydraulic system in the WD600-6 is engineered for efficiency, allowing smooth and precise control of the blade, making it an ideal choice for grading and fine-tuning work. The hydraulic components are also designed to be durable, with features that help reduce wear and tear over time.

• Transmission: The WD600-6 is equipped with a high-performance, fully automatic transmission. This system allows for smoother gear shifts and improved fuel efficiency, making it easier for operators to handle large-scale earth-moving tasks with minimal operator fatigue.

• Tire Design: The 6-wheel design of the WD600-6, combined with heavy-duty tires, ensures stability and mobility in a variety of terrain types, from soft, uneven ground to compacted surfaces. The tires are designed to withstand the challenges of mining and construction sites, providing better traction and reducing the risk of slippage.

• Cab and Operator Comfort: The WD600-6 comes with an ergonomic cab designed for operator comfort and ease of use. Features such as adjustable seating, climate control, and intuitive controls make long working hours less taxing for operators. Additionally, the cab provides excellent visibility, enhancing safety and productivity on the job site.

• Blade Options: The WD600-6 is compatible with a variety of blades, allowing it to be used for a wide range of applications, including rough grading, finish grading, and pushing heavy material. The blade is equipped with advanced hydraulics that provide precise control and responsiveness.


1. Fuel Efficiency: The engine of the WD600-6 is designed with fuel efficiency in mind. By utilizing advanced fuel management technologies, it minimizes consumption without compromising on performance, which is especially important in industries where operational costs are a concern.

2. Superior Mobility: The WD600-6’s 6-wheel design offers greater maneuverability compared to tracked machines. This makes it ideal for applications where precision and quick movement around the job site are essential. Its ability to maintain stability while navigating uneven terrain ensures that the machine can handle even the toughest jobs.

3. Durability and Longevity: Komatsu machines are known for their durability, and the WD600-6 is no exception. Its components are built to last, with reinforced structural elements that can withstand harsh conditions like rocky ground and heavy material handling. The high-quality hydraulic and transmission systems also help in reducing wear, which contributes to longer machine life.

4. Ease of Maintenance: The WD600-6 is designed with maintenance in mind. Regular servicing tasks like oil changes, filter replacements, and system checks are simplified with easily accessible components. Additionally, Komatsu’s remote monitoring systems help operators and maintenance personnel track the condition of the machine, identifying potential issues before they become serious problems.

5. Operator Safety: Safety is a top priority in any Komatsu machine. The WD600-6 is equipped with a variety of safety features, including a reinforced cab, excellent visibility, and intuitive controls. These features help ensure that operators can work safely even in challenging environments.

6. Versatility: The WD600-6 is designed to handle a wide range of tasks, from heavy material pushing to fine grading. It can be used on mining, construction, and landfill sites, making it a versatile addition to any fleet.


1. Cost: The WD600-6 is a high-performance machine with advanced features, which means it comes with a higher upfront cost. However, its long-term durability, efficiency, and versatility can provide excellent value for money if maintained properly.

2. Maintenance Complexity: While the machine is designed for ease of maintenance, the complexity of its systems may require specialized knowledge or the help of experienced technicians. Regular training for operators and maintenance staff is important to ensure that the machine remains in top condition.

3. Size and Weight: The 6-wheel design makes the WD600-6 a powerful machine, but it also makes it bulkier than tracked dozers. This can sometimes make it less suitable for certain jobs that require extreme precision in confined spaces.

4. Tire Wear: The tires of the WD600-6 are heavy-duty, but like all tires, they can experience wear over time, especially when working on rough or rocky terrain. Keeping an eye on tire health and replacing them when needed is essential to ensure the machine’s ongoing performance.


Unexpected Movement on Inclines
Even when the parking brake appears engaged, a Cat 304 mini excavator can sometimes drift when parked on a slope. This unsettling behavior often stems from a combination of hydraulic load, inadequate brake force, and system design tolerances that allow slight creep—especially when parked without additional safeguards.
Understanding the Parking Brake System
Key components and terms involved in this issue:

• Hydrostatic drive: A system using hydraulic fluid to drive the tracks; when pressure bleeds off, it can allow unintended roll-back under gravity.

• Parking brake: A hydraulic or mechanical mechanism designed to lock the drive systems when the machine is stationary.

• Brake flag/indicator: A visual cue showing brake status—often seen on dash or control panels.

• Leveraging the bucket: A cross-industry strategy of using the bucket or arm to physically brace the machine.


• Insufficient brake holding force on steep grades, especially when the hydrostatic system warms up and becomes more fluid.

• Brake wear, poor maintenance, or seals that don’t fully hold pressure.

• Operator habits, such as relying exclusively on the parking brake instead of using a combination of mechanical braking and machine geometry.


• Use the bucket as a chock: Lowering the bucket into the slope—angled downhill—acts as a physical stop against movement.

• Grade equipment gently into reverse: When shutting down on a slope, leaving the machine engaged in drive toward the bank leverages the hydraulic system’s resistance.

• Apply bucket and boom pressure: Leaving pressure applied via the machine hydraulics adds another layer of resistance.

• Reapply the parking brake after hydraulics settle: A short pause lets hydraulic pressure stabilize before the brake sets.

• Inspect brake components regularly: Check for wear, seal integrity, and system leakage that could diminish brake effect.


• Choose a level spot whenever possible.

• Lower the bucket downhill to act as a physical restraint.

• Optionally, leave the travel lever gently engaged toward the slope.

• Wait briefly for hydraulic pressure to settle before engaging the parking brake.

• Confirm the brake indicator and flag show green or “set.”

• For long-term parking, consider using wheel chocks rated for slope and weight.


• Mini excavators with hydrostatic drives are susceptible to roll‑back on hills, especially if brake holding force is marginal.

• Physical strategies—like deploying the bucket—are essential safety backups.

• Routine inspection and maintenance of the brake system can help ensure solid performance when it matters most.


Introduction to the John Deere 450E
When considering a dozer for various earth-moving tasks, the John Deere 450E is a model that stands out for its performance, durability, and versatility. Often used in construction, landscaping, and forestry, the 450E provides a good balance between power and size, making it an ideal choice for both heavy-duty and lighter tasks. In this article, we will explore the John Deere 450E’s features, performance, maintenance considerations, and tips for buying a used model.
Overview of the John Deere 450E Dozer
The John Deere 450E is a mid-sized crawler dozer that offers both power and maneuverability. This model is well-regarded for its robust design, efficient operation, and reliability across a wide range of construction and grading applications. Whether you're clearing land, leveling fields, or pushing material, the 450E has been engineered to handle a variety of tasks with ease.

• Engine Power: The 450E is equipped with a 6-cylinder diesel engine, typically delivering between 85 to 95 horsepower, depending on the specific model and configuration. This power output makes it well-suited for moderate to heavy-duty operations.

• Operating Weight: The dozer’s operating weight is approximately 15,500 to 16,000 pounds (7,000 to 7,260 kg), which provides a stable base for operations while maintaining maneuverability in tight spaces.

• Track and Undercarriage: The 450E is a tracked dozer, which gives it superior traction on uneven and loose terrain. Its tracks are designed for stability and durability, making it a great choice for difficult job sites.

• Blade Options: The John Deere 450E can be equipped with a variety of blades, such as straight blades or semi-U blades, depending on the type of work you intend to perform. These blades range from 6 to 8 feet in width.

• Transmission: Featuring a hydrostatic transmission system, the 450E provides excellent control over speed and direction. This makes it especially useful for precise grading tasks and maneuvering in tight spaces.

• Cab and Operator Comfort: The operator’s cab in the John Deere 450E is designed for comfort and ease of use, with a spacious interior, good visibility, and ergonomic controls that reduce operator fatigue during extended shifts.


1. Fuel Efficiency: One of the most notable features of the 450E is its fuel efficiency. John Deere engineered the 450E’s engine and transmission system to ensure that it delivers the maximum amount of power while consuming less fuel compared to other dozers in the same class.

2. Versatility: The 450E’s design makes it adaptable to a variety of work environments. Whether you are working in construction, landscaping, or road construction, its capabilities allow it to handle various tasks with minimal downtime.

3. Ease of Maintenance: John Deere equipment is known for its durability, and the 450E is no exception. Regular maintenance tasks such as oil changes, filter replacements, and track inspections are straightforward and do not require specialized knowledge. This makes it easier for operators to perform basic maintenance, reducing downtime and repair costs.

4. Maneuverability: Thanks to its smaller size compared to larger dozers, the 450E is highly maneuverable. This makes it ideal for working in confined spaces or areas with a lot of obstacles. It can easily navigate through narrow spaces while still delivering impressive power.

5. Operator Comfort: Long hours behind the wheel of a dozer can be taxing, but the John Deere 450E’s cabin has been designed to minimize operator fatigue. With its adjustable seat, well-placed controls, and a climate-controlled environment, operators can work for longer hours without discomfort.


1. Hydraulic System: The hydraulic system of the 450E plays a critical role in blade control and other functions. Over time, seals can wear, causing fluid leaks, which can lead to a decrease in performance. Regular inspection and maintenance of hydraulic components are necessary to prevent these issues.

2. Tracks and Undercarriage: As with all tracked dozers, the undercarriage is an essential part of the 450E's durability. The tracks should be inspected regularly for signs of wear or damage, as worn tracks can significantly reduce the machine's performance and increase operating costs. Ensure that the track tension is also regularly checked to avoid excessive wear.

3. Electrical System: Like many older machines, the electrical system of the 450E can experience issues such as poor connections, faulty wiring, or dead batteries. These problems can lead to starting difficulties and other electrical malfunctions. Make sure to inspect the wiring and battery condition before making a purchase.

4. Engine Wear: As the engine is the heart of any dozer, it’s crucial to check for signs of excessive wear. Listen for any unusual engine noises, check the exhaust for black smoke (which could indicate improper combustion), and inspect oil levels and quality to ensure the engine has been properly maintained.


• Age and Hours of Operation: Check the number of hours the dozer has been used. The more hours it has, the closer it may be to needing major repairs or components replacements. However, don’t overlook a well-maintained older dozer with higher hours if it has been regularly serviced and taken care of.

• Condition of Tracks and Blade: As mentioned, the condition of the tracks and blade is crucial. Inspect these components carefully. Worn or damaged tracks can be costly to replace, and a worn blade will impact your dozer’s grading efficiency.

• Maintenance History: Ask the seller for records of maintenance and repairs. Regular service intervals, including oil changes, track tensioning, and hydraulic checks, are essential for keeping the 450E running smoothly.

• Test Drive: Before purchasing the 450E, it’s important to take it for a test run. Check the operation of all controls, the smoothness of the hydraulic system, and the responsiveness of the blade. Also, test its performance in different speeds and directions to ensure there are no mechanical issues.

• Warranty and Seller Reputation: If buying from a dealership, ask about any available warranties. Buying from a reputable seller who provides after-sale support can offer peace of mind and ensure you have support if any issues arise post-purchase.


Foundation of a Trusted Brand
JLG Industries, founded in 1969 by John Landis Grove, pioneered the aerial lift market—and today remains a leader in manufacturing aerial work platforms and telehandlers. Headquartered in Pennsylvania, JLG now operates under Oshkosh Corporation, with manufacturing sites across the U.S. and worldwide. Its machines are standard in construction, industrial maintenance, and facilities throughout the globe.
Understanding and Responding to Fault Codes
When a JLG aerial lift or telehandler displays an alert, the hidden headaches are often revealed through diagnostic trouble codes (DTCs), which pinpoint specific electronic or hardware failures. Modern machines store DTCs for retrieval using:

• Machine analyzer readers (wired, Bluetooth, or remote)

• Ground display interfaces on newer models

• Telematics apps and fleet management platforms


• Every 150 operating hours or quarterly: A certified mechanic should perform detailed maintenance checks—especially following long idle periods or after buying used equipment .

• Annual inspection: Required under updated ANSI A92.22 standards—must be conducted within 13 months of the last annual check. This includes all frequent items plus safety bulletins and record verification .

• Platform-specific checks: Boom lifts, for example, must see regular inspection of controls, chassis, hydraulics, turntable, decals, and safety systems during annual reviews .


• Cleaning battery banks and maintaining dryness to avoid surface discharge

• Periodic amp-draw and charge tests using a quality battery tester

• Early identification and replacement of weak batteries to avoid unplanned downtime—note that good care can double battery lifespan from 1 to 3 years .


• A lift arm that won’t retract might be due to hydraulic override valve issues or misaligned leveling sensors—flushing hydraulic lines and reseating connections often restores function .

• If drive wheels don’t engage while other systems function, check hydraulic levels, filters, solenoids, and drive motor connections to restore mobility .


• JLG maintains a wide network of Authorized Service Providers trained via JLG University, offering warranty support, local parts distribution, mobile service, inspections, and preventive maintenance .

• Additional support is available at local repair centers equipped with diagnostic tools and manufacturer-approved components.


• Understand and respond to fault codes with the right diagnostic tools.

• Follow scheduled maintenance to stay compliant and safe.

• Invest in diligent battery upkeep for electric models.

• Troubleshoot using both hydraulic and electrical system checks.

• Partner with trained service providers for efficient repairs and genuine parts.


Introduction to the Komatsu D31 Dozer
The Komatsu D31 dozer is part of Komatsu’s D-series lineup, known for its robust performance and reliability in a range of construction and landscaping projects. As a mid-sized crawler dozer, the D31 strikes a balance between power, maneuverability, and fuel efficiency, making it a popular choice for various industries.
In this article, we’ll dive deep into the performance, features, advantages, and challenges of the Komatsu D31. We’ll explore its specifications, maintenance needs, and why it has earned a place in the hearts of operators. Additionally, we’ll touch on its legacy in the dozer world and discuss what makes this particular model stand out among others in its class.
Komatsu D31 Dozer: Key Specifications
Before delving into the performance and advantages of the Komatsu D31, it’s essential to understand its technical specifications. Knowing the engine, dimensions, and other critical factors will give you a clearer picture of what makes this dozer stand out.

• Engine: The Komatsu D31 is equipped with a reliable, diesel-powered engine that delivers impressive horsepower. It features a 4-cylinder, turbocharged engine, typically offering around 75 to 85 horsepower, depending on the specific model variant.

• Weight: The operating weight of the D31 is approximately 16,000 to 18,000 pounds (7,260 to 8,164 kg), which gives it a solid, stable base for various grading and pushing tasks.

• Blade Types: The D31 can be fitted with various blade options, including straight, semi-U, and full-U blades, depending on the required job and terrain. The width typically ranges from 7 to 9 feet (2.13 to 2.74 meters).

• Track: The Komatsu D31 is fitted with durable crawler tracks, providing superior traction on rough and uneven terrain. These tracks help the dozer maintain stability and allow for more precise movements.

• Fuel Capacity: The fuel tank holds approximately 35 to 40 gallons (132 to 151 liters), offering a good range for extended work periods in the field.

• Transmission: The dozer uses a hydrostatic transmission, offering smooth control of speed and direction. This makes it easier for operators to maintain consistent movements during operations.

• Dimensions: With a length of approximately 13 to 14 feet (3.96 to 4.27 meters) and a height of 9 feet (2.74 meters), the Komatsu D31 is compact enough for confined spaces while still offering sufficient power for heavy-duty tasks.


1. Maneuverability: The D31’s hydrostatic transmission provides smooth and easy directional changes. Operators can make sharp turns without the need for manual shifting, which is particularly useful in tight spaces or when handling small grading projects. The overall compact size also allows for easier navigation around obstacles and structures.

2. Power and Efficiency: While not the most powerful dozer in Komatsu's lineup, the D31 delivers a solid balance of horsepower and fuel efficiency. Its engine is designed to deliver consistent performance over extended periods, making it ideal for projects where productivity and uptime are essential.

3. Hydraulic System: The D31 is equipped with a hydraulic system that provides quick and responsive blade control. This system ensures that the blade can be adjusted smoothly, whether for rough grading or fine-tuning, enhancing the precision of work done.

4. Traction and Stability: The crawler tracks give the D31 excellent traction on uneven and soft ground. Its low ground pressure allows it to work in challenging terrains where traditional wheeled equipment might struggle. Additionally, the dozer's weight distribution ensures good stability, even during heavy pushing or lifting tasks.


• Fuel Efficiency: The D31’s engine is designed for fuel efficiency, reducing operating costs over long periods. Its turbocharged engine and hydraulic efficiency minimize fuel consumption while maximizing power output.

• Durability: Komatsu’s reputation for durable machinery holds true with the D31. Its heavy-duty construction, robust engine, and well-designed hydraulic system allow it to handle harsh working conditions without compromising performance.

• Operator Comfort: The cabin of the D31 is designed for operator comfort, offering a spacious layout with good visibility. The controls are ergonomically placed, reducing operator fatigue during long shifts.

• Ease of Maintenance: Like many Komatsu machines, the D31 is built for easy maintenance. Regular servicing such as fluid checks, air filter replacements, and track adjustments can be performed without excessive downtime. This is crucial for keeping the machine running efficiently throughout its lifecycle.


• Parts Availability: As with many older dozers, finding parts for the D31 can sometimes be a challenge, especially as the model ages. However, Komatsu’s extensive dealer network ensures that critical components like engine parts, tracks, and hydraulic seals are readily available.

• Weight Limitations: While the D31 is considered a mid-sized dozer, its weight can sometimes limit its ability to perform heavy pushing tasks. In extremely hard or compacted earth, operators may need a larger dozer for the task.

• Hydraulic Issues: Like many machines in its category, the D31 can experience hydraulic system issues if not properly maintained. Issues such as leaks or reduced pressure can lead to slower or less responsive blade operation, which impacts overall productivity.


• Track and Undercarriage Care: The tracks on the D31 should be regularly inspected for wear, cracks, or stretching. Keeping the undercarriage well-maintained extends the life of the tracks and ensures smooth operation.

• Hydraulic System Maintenance: Regularly check the hydraulic fluid levels and inspect hoses for wear. Any signs of leakage should be addressed promptly to avoid downtime and costly repairs.

• Engine Care: Keeping the engine clean and the filters regularly replaced can prevent engine strain and maintain optimal power output. Also, always follow Komatsu’s recommended intervals for oil changes and other engine services.

• Storage: If the D31 is not in use for an extended period, it’s essential to store it properly by securing it in a dry location to prevent rust and corrosion from setting in.





Understanding the Scope
Land clearing starts with careful assessment. Factors to evaluate include vegetation type and density, terrain conditions, stump presence, erosion risks, and long-term site goals (e.g., construction or wildfire prevention). This groundwork ensures the chosen method fits both needs and regulations.
Key Terminology Glossary

• Grubbing: Mechanical removal of stumps, roots, and rocks—typically with bulldozers or excavators—to eliminate regrowth potential.

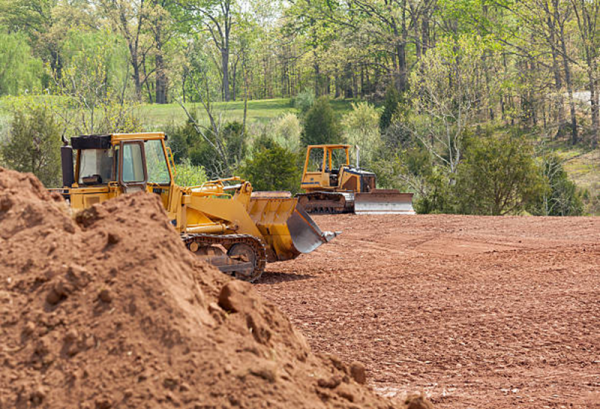

• Dozing: Using bulldozers to topple and push through dense vegetation—often paired with grubbing.

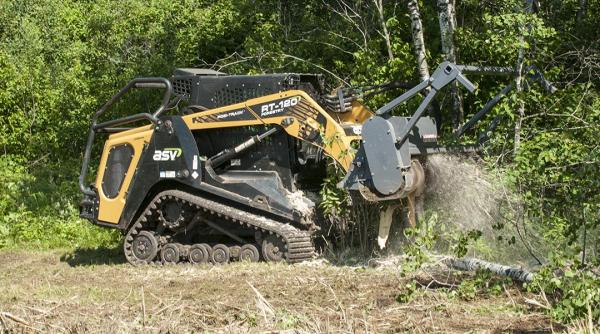

• Forestry mulching: A single-machine method that shreds standing brush, saplings, and small trees into mulch, dramatically improving speed, soil health, and environmental impact.

• Bush hogging: A rotary mower (often PTO-driven) cuts grass, weeds, and light brush, returning mulch to the ground—ideal for fields and pastures.

• Pushover: Heavy machines push over trees or brush to clear ground quickly—useful for dense areas.


• Excavators: Capable of clearing stumps and debris with attachments like grapples or mulchers—offering precision for complex terrains.

• Bulldozers: Equipped with various blades (straight, U‑blade, semi‑U) for pushing over vegetation and leveling land.

• Skid Steer Loaders and Compact Track Loaders: Their compact size and ability to use mulching heads, augers, or grapples make them versatile options, particularly for tight spaces.


• Dozing + Grubbing
  • Bulldozers push down trees

  • Excavators dig out stumps/roots

• Forestry Mulching
  • One machine shreds vegetation in place

  • Organic residue remains as protective mulch

• Bush Hogging
  • Rotary mower cuts back grass and light brush

  • Mulch remains on surface

• Pushover Technique
  • Heavy machinery forces trees/brush aside for quick clearing

• Manual Clearing (Chainsaws, etc.)
  • Labor-intensive, suited for small or sensitive areas


• Match method to landscape: Dense woods favor mulching; open fields suit bush hogging; development sites benefit from full grubbing.

• Environmental balance counts: Mulching supports soil health; clear-cutting risks ecological damage.

• Efficiency gains: Mulching often simplifies workflow by eliminating separate cut, haul, and dispose steps.

• Safety and planning: Pre-site surveys prevent surprises; maintaining a defensible space protects both people and property.


Introduction
The Caterpillar 215 series is a widely used hydraulic excavator that has stood the test of time in the construction and mining industries. Over time, certain components such as the sprocket can wear down or become damaged due to the constant stress placed on them during operation. Proper maintenance, including sprocket removal and replacement, is critical to ensuring the continued efficient performance of the CAT 215.
This article provides a detailed guide on the process of removing the sprocket on a CAT 215 excavator. From understanding the role of the sprocket to addressing common issues and offering helpful tips for a successful removal process, this guide aims to equip operators and mechanics with the knowledge necessary to carry out the task effectively.
Understanding the Role of the Sprocket
The sprocket is a key component of the track system on an excavator. It works in conjunction with the track chain and rollers to transfer power from the drive motor to the track itself, allowing the machine to move. Over time, the sprocket can wear out, especially the teeth, which can lead to a reduction in traction and overall efficiency. If the sprocket becomes severely worn or damaged, it must be replaced to avoid further damage to the track system.
Tools Required for Sprocket Removal
Before starting the removal process, ensure that you have all the necessary tools. The task requires precision and the right equipment for safety and efficiency. Below is a list of essential tools for removing the sprocket on the CAT 215:

• Hydraulic jacks or lifting equipment

• Impact wrench or a torque wrench

• Sprocket removal tool (specific to CAT models)

• Wrenches and socket sets

• Heat torch (optional, for stubborn bolts)

• New sprocket (if replacement is needed)

• Safety gear (gloves, goggles, steel-toed boots)


1. Preparation
   Before you begin the removal process, ensure that the CAT 215 is parked on level ground, and the engine is turned off. Place the machine in neutral and engage the parking brake to prevent movement. For safety, disconnect the battery to avoid any accidental electrical issues during the removal.

2. Lift the Track Assembly
   Using a hydraulic jack or lifting equipment, raise the machine to relieve tension from the track. This will allow for easier removal of the sprocket and prevent damage to the track assembly during the process. Depending on your workspace, it might be helpful to use a jack stand for additional stability.

3. Remove the Track Guard and Cover Plate
   The sprocket is often covered by a guard or protective plate. Use a wrench or socket set to remove any bolts securing these components. Once removed, you’ll have access to the sprocket assembly.

4. Loosen the Sprocket Bolts
   Locate the bolts securing the sprocket to the drive shaft. Depending on the wear and tear, these bolts may be extremely tight, requiring the use of an impact wrench or a large torque wrench. If the bolts are too tight to remove by hand, you can use a heat torch to loosen them by applying heat directly to the bolts.
   Tip: Make sure to apply the heat evenly and not excessively, as it may weaken the surrounding components.

5. Remove the Sprocket
   After loosening the bolts, carefully remove the sprocket from the drive hub. If the sprocket is stuck due to corrosion or rust, use a sprocket puller tool. This tool is designed to exert even pressure and gradually separate the sprocket from the axle without damaging surrounding components.

6. Inspect the Sprocket and Surrounding Components
   Once the sprocket is removed, take the time to inspect it for signs of wear or damage. Check the teeth of the sprocket for signs of significant wear or cracks. This inspection will help determine whether the sprocket needs to be replaced or if it can be reconditioned.
   Also, inspect the drive shaft, bearings, and any other components that interact with the sprocket. If any parts are damaged or worn, they should be replaced at the same time as the sprocket to prevent future issues.

7. Install the New Sprocket
   If you’re replacing the sprocket, take the new sprocket and align it with the drive shaft. Make sure the teeth are facing the correct direction and that the sprocket is securely seated on the shaft. Tighten the bolts carefully using the proper torque specification to ensure the sprocket is properly mounted.
   Tip: Avoid over-tightening the bolts, as this could cause them to strip or damage the threads.

8. Reassemble the Track Guard and Cover Plate
   After installing the new sprocket, reattach the track guard and cover plate. Tighten all bolts securely. Check for any loose components before moving on to the next step.

9. Lower the Track Assembly
   Slowly lower the machine using the hydraulic jack or lifting equipment. Ensure that the track is properly aligned with the sprocket. You can check the alignment by manually rotating the track to ensure smooth movement.

10. Test the Sprocket


• Stubborn bolts: One of the most common challenges during sprocket removal is dealing with rusted or over-tightened bolts. Applying heat and using the right tools is key to solving this issue.

• Corrosion and rust: Over time, moisture and dirt can cause corrosion, making it difficult to remove the sprocket. Regular maintenance and lubrication can help prevent this from happening.

• Incorrect alignment: If the sprocket isn’t installed correctly, it can cause uneven wear on the track, leading to premature failure. Always double-check alignment before lowering the track assembly.


• Regular Inspection: Inspect the sprocket periodically for signs of wear, cracks, or other damage.

• Lubrication: Keep the sprocket and track components well-lubricated to reduce friction and wear.

• Track Maintenance: Ensure that the track system is properly tensioned and aligned to prevent undue stress on the sprocket.

• Cleaning: Regularly clean the sprocket and surrounding areas to remove dirt, debris, and moisture that can cause corrosion.





Origins of a Skid‑Steer Pioneer
The story begins in 1888 when the Owatonna Manufacturing Company (OMC) in Minnesota produced agricultural implements. In 1965, the company introduced its first skid‑steer loader—known then as a “self‑propelled, four‑wheel‑drive unit,” or the Owatonna Mustang Series 1000. With a 30‑hp Wisconsin engine, a 1,200‑lb rated lift capacity, and a tight turning radius, it was among the most powerful compact machines of its era .
Mustang is the world’s second-oldest skid‑steer loader manufacturer, trailing only one other brand . In 1997, the brand was acquired by Gehl Company, which was later acquired in 2008 by Manitou Group .
On its 50th anniversary in 2015, Mustang offered a full range of skid‑steer models—eight radial‑lift and three vertical‑lift—that highlighted its enduring innovation and versatility .
Technological Evolution
Over the decades Mustang expanded its lineup to suit diverse applications:

• Small‑frame models like the 2012 and 2026 feature compact widths (as narrow as 36") with lift capacities up to 1,050 lb .

• Medium‑frame units such as the 2041, 2044, and 2054 offer between 1,350 and 1,650 lb operating capacities with efficient hydraulic systems .

• Large‑frame machines include radial‑lift models (1900R, 2200R, 2600R) and vertical‑lift models (2700V NXT2, 3300V NXT2, 4000V). Features like self‑leveling hydraulics and suspension seats were standard .


• Radial‑lift model: Lift arms follow an arc-shaped path—ideal for excavating and grading.

• Vertical‑lift model: Offers greater reach at full height—better for stacking and high loading.

• Rated operating capacity: The maximum load recommended for safe operation.

• Self‑leveling hydraulics: Automatically keeps the attachment level during lift arm movement.

• Hydraglide: A suspension feature reducing material bounce during travel—often standard on larger models.


• Longevity through adaptation: From farm implements to advanced loader designs, Mustang consistently evolved to meet industry demands.

• Versatile product range: Small, medium, and large models cover workloads from tight urban sites to heavy material handling.

• Built‑in productivity features: Hydraulics, comfort enhancements, and durable frames maximize operator efficiency.

• Enduring brand strength: Decades of innovation, now under Manitou, reinforce Mustang’s legacy of durability and reliability .
