Introduction
The Caterpillar 248, a skid steer loader, is a reliable and versatile machine often used in construction, landscaping, and other heavy-duty industries. However, like all machines, it can experience issues that affect its ability to start properly. A "no-start" situation can be caused by various factors, ranging from electrical issues to fuel system problems. In this article, we’ll explore the most common causes of a no-start condition in the CAT 248 and provide a systematic troubleshooting guide to help you diagnose and resolve the issue.
Understanding the CAT 248 System
Before diving into troubleshooting, it’s essential to understand the key systems that contribute to starting the CAT 248. The primary components involved in the starting process are:

• Battery and Electrical System: Provides power to the starter motor, fuel system, and other essential systems for starting.

• Starter Motor and Solenoid: Responsible for turning the engine over when the ignition is activated.

• Fuel System: Delivers fuel to the engine. Issues in this system, such as clogged filters or faulty injectors, can prevent the engine from starting.

• Ignition System: Includes the ignition switch, relays, and safety interlocks. A failure here can prevent the machine from starting, even if the other systems are functioning properly.

• Safety Interlocks: These are designed to ensure that the machine is in the proper operating condition to start. For example, the machine must be in neutral, and the parking brake must be engaged.


1. Dead or Weak Battery
   • Symptoms: When you attempt to start the machine, there may be no response, or you may hear clicking sounds but no engine turnover.

   • Cause: A weak or dead battery is one of the most common reasons for a no-start. If the battery is not providing sufficient power, the starter motor will not function properly.

   • Solution: Test the battery voltage using a multimeter. A fully charged battery should read around 12.6 volts. If the voltage is low, try jump-starting the machine or replacing the battery if needed.

2. Faulty Starter Motor or Solenoid
   • Symptoms: The starter motor does not turn the engine over, or you hear a clicking noise when attempting to start the machine.

   • Cause: A malfunctioning starter motor or solenoid could prevent the engine from cranking.

   • Solution: Check the connections to the starter motor and solenoid to ensure they are tight and free from corrosion. If the motor or solenoid is faulty, it may need to be replaced. You can test the solenoid by applying direct voltage to it to see if it engages.

3. Fuel System Problems
   • Symptoms: The engine cranks but does not start, or it starts briefly and then stalls.

   • Cause: Issues in the fuel system, such as clogged fuel filters, air in the fuel lines, or faulty fuel injectors, can prevent the engine from receiving the necessary fuel to start.

   • Solution: Begin by checking the fuel tank for sufficient fuel. Inspect the fuel filter and replace it if necessary. Next, check for any air bubbles in the fuel lines, which could indicate an air leak. If you suspect the injectors are faulty, they should be tested and cleaned or replaced as needed.

4. Ignition System Issues
   • Symptoms: The engine does not crank or starts intermittently.

   • Cause: A faulty ignition switch, damaged wiring, or malfunctioning relays can cause starting problems.

   • Solution: Check the ignition switch for proper function. If it is faulty, it may need to be replaced. Inspect the wiring and relays associated with the ignition system for damage or loose connections.

5. Safety Interlocks
   • Symptoms: The machine does not respond when attempting to start, even though all other systems seem functional.

   • Cause: The CAT 248 is equipped with safety interlocks that prevent starting unless certain conditions are met. For instance, the machine must be in neutral, and the parking brake must be engaged.

   • Solution: Ensure that the machine is in neutral and that the parking brake is fully engaged. Check the wiring and switches for the interlocks to make sure they are functioning properly.

6. Faulty Sensors or Control Modules
   • Symptoms: The engine cranks but does not start, or there is an intermittent starting issue.

   • Cause: Malfunctioning sensors or control modules, such as the crankshaft position sensor or fuel pressure sensor, can prevent the engine from starting or cause erratic behavior.

   • Solution: Use a diagnostic tool to check for error codes. If a sensor or control module is malfunctioning, replace it with a new one.


• Action: Inspect the battery’s voltage. A fully charged battery should read around 12.6 volts.

• Action: Ensure the battery terminals are clean and tightly connected.

• Action: If the battery is weak or dead, recharge or replace it.


• Action: Test the starter motor by applying direct power to the solenoid to see if it engages.

• Action: Check the connections to the starter motor and solenoid. Tighten any loose connections.

• Action: If the starter motor is faulty, replace it.


• Action: Verify that there is enough fuel in the tank.

• Action: Inspect the fuel filter for clogs and replace it if necessary.

• Action: Check the fuel lines for air bubbles, which could indicate an air leak.

• Action: Test the fuel injectors. If necessary, clean or replace them.


• Action: Test the ignition switch to ensure it is functioning properly.

• Action: Inspect the ignition wiring and relays for damage or loose connections.

• Action: If the ignition switch is faulty, replace it.


• Action: Ensure the machine is in neutral and the parking brake is engaged.

• Action: Inspect the safety interlock switches and wiring for damage or malfunctions.


• Action: Use a diagnostic tool to check for error codes related to sensors or control modules.

• Action: Replace any faulty sensors or control modules based on the diagnostic results.


The Unexpected Stall
Operators of the Bobcat 324 sometimes report the engine “almost dying” during digging—appearing to stall under load, even after replacing the fuel and air filters and cleaning them thoroughly.
Key Technical Terms

• Transfer pump: A pump that moves fuel from the tank to the engine’s primary fuel system.

• Primer bulb: A flexible fuel-suction bulb used to manually prime the fuel system.

• Sump point: A low area in the fuel tank where water, debris, or contaminants collect—useful for diagnostics.

• Fuel screen: A mesh element that filters debris before fuel enters the pump—often found inside the tank or at pump inlets.


• Water or contaminants in fuel: Draining fuel from the tank’s sump can reveal accumulated water or sludge obstructing flow.

• Primer bulb buildup: Bulbs often contain integrated check valves that can clog with dirt, slowing suction. Cleaning or removing them is recommended.

• Transfer pump inlet obstruction: Between the tank and pump, a hidden screen or debris may block fuel entry. Follow the fuel line carefully and inspect for inline filters.

• Debris in tank: Foreign objects—like organic matter, rust, or even small hardware—can intermittently block fuel flow, especially under load or vibration.

• Insufficient fuel flow under high demand: Fuel restrictions may suffice at idle but become noticeable when demanding higher RPM or load.


• One veteran operator recommends draining the tank’s sump to check for visible gunk—clarifying whether water or dirt is the culprit.

• Many users have had success removing the primer bulb and cleaning it in reverse using kerosene or diesel to restore fuel suction.

• Instances have occurred where small debris (even bugs or bits of tank hardware) caused recurring engine hiccups—solved by tank cleaning or screen installation.

• In a case from a comparable tractor, the engine stumbled on hills but ran fine on flat ground—consistent with insufficient fuel flow under load.


1. Drain the tank's sump and check for water or contaminants.

2. Remove and clean or replace the primer bulb, ensuring valves are clear.

3. Trace the fuel line from tank to transfer pump—inspect any inline screen or filters.

4. Consider flushing the fuel line or running the engine from a clean container to bypass tank debris.

5. Clean or inspect the tank interior—use a fine hose or shop-vac to remove sludgy residues.

6. Reassemble and test under load, paying attention to performance during digging or heavy throttle use.


• Use fuel additives or biocides to deter algae or microbial growth in stored diesel.

• Keep the fuel tank as full as practical, minimizing condensation that promotes contamination.

• Install a screen in the tank fill opening to block large debris or insects.

• Regularly replace the fuel filter and clean the primer bulb, even if they appear relatively new.


Introduction
Bobcat 975 skid steer loaders, particularly those from the early production years, feature a hydrostatic drive system that requires specialized testing and maintenance. Hydrostatic systems are commonly found in various heavy equipment for their ability to provide smooth, variable-speed control without the need for a manual transmission. However, diagnosing and troubleshooting issues with the hydrostatic drive system requires a methodical approach, as failure to pinpoint the right cause can lead to costly repairs or inefficiencies in operation.
This article will explore how to test the hydrostatic drive in the early Bobcat 975 models, discussing the components involved, common issues that can arise, and step-by-step procedures for troubleshooting the system effectively.
Understanding the Hydrostatic Drive System
The hydrostatic drive system in the Bobcat 975 is designed to provide infinite speed control, allowing the operator to vary the machine's speed smoothly without shifting gears. This system consists of several key components:

• Hydraulic Pump: The hydraulic pump is powered by the engine and provides the flow of hydraulic fluid that drives the motor.

• Hydraulic Motor: This motor is connected to the wheels or tracks and converts hydraulic pressure into rotational motion, propelling the machine forward or backward.

• Transmission Control Valve: The valve regulates the flow of hydraulic fluid to the motor, controlling speed and direction.

• Drive Axles: These are connected to the hydraulic motor, transferring the rotational energy to the wheels or tracks of the skid steer.


1. Loss of Power: If the Bobcat 975 is struggling to move, the issue may lie with the hydraulic fluid, the hydraulic pump, or the motor.

2. Erratic Movement or Stalling: Irregular movement can be a sign of air trapped in the system, a clogged filter, or faulty control valves.

3. Poor Steering Control: The hydrostatic steering system might be malfunctioning, leading to poor directional control or uneven steering.

4. Overheating: Overheating of the system can occur due to low fluid levels, old fluid, or a clogged cooler.

5. Inconsistent Speeds: Sudden speed variations can be a result of a malfunctioning valve or issues with the pump.


• Fluid Inspection: Check the fluid level using the dipstick or the fill sight glass. Ensure the fluid is at the proper level and is clean.

• Fluid Quality: Look at the condition of the hydraulic fluid. If it is dark or has a burnt smell, it is likely that the fluid has degraded and needs to be replaced.

• Fluid Type: Ensure the correct type of hydraulic fluid is being used. Using the wrong fluid can cause damage to the system.


• Pressure Test: Using a pressure gauge, test the pressure coming from the hydraulic pump. The pressure should match the specifications listed in the Bobcat 975 service manual.

• Flow Test: A flow test checks if the pump is supplying the proper amount of hydraulic fluid. This test requires the use of a flow meter and is typically done at various engine speeds.

• Check for Leaks: Inspect the pump for any signs of leaks, which could indicate internal damage or seal failure.


• Test for Proper Operation: With the engine running, check if the motor is rotating properly. If it is sluggish or making strange noises, it could indicate internal wear or failure.

• Check for Fluid Flow: Ensure that the hydraulic fluid is reaching the motor. If the motor is not receiving sufficient fluid, it could be due to a clogged hose or valve.

• Test for Leaks: Inspect the motor for any signs of external leakage.


• Check Valve Operation: Test the valve to ensure it is switching smoothly between forward, reverse, and neutral positions.

• Check for Obstructions: Ensure that the valve is not clogged with debris or dirt, which can interfere with its function.

• Test for Leaks: Inspect the valve housing and seals for any signs of hydraulic fluid leakage.


• Check for Wear: Inspect the drive axles for signs of excessive wear, such as scoring or uneven surfaces. If the axles are worn, they may need to be replaced.

• Inspect Wheel Motors: Ensure that the wheel motors are turning smoothly and not making grinding or whining noises. If the motors are defective, the machine may lose power or fail to move altogether.


• Bleed the System: Use the bleeder valves located on the hydraulic lines or fittings to remove any trapped air.

• Check for Bubbles: After bleeding the system, observe the fluid in the reservoir for any bubbles, which can indicate air is still present.

• Test Again: After purging the air, test the system again to ensure smooth operation.


• Steering Control: Check the steering to ensure smooth and responsive operation.

• Speed Control: Test the speed control by gradually increasing the throttle and noting any irregularities in speed or acceleration.


Overheating Symptoms and Initial Observations
When the hydraulic oil temperatures climb above 90°C within just 30 minutes of work, especially with a thermal camera showing the hydraulic pump at around 110°C, it’s clear the system is overheating swiftly. While a faulty cooling fan might seem the obvious suspect, deeper symptoms often point elsewhere.
Critical Technical Terms Explained

• Hydraulic fan: A cooling device powered by hydraulic pressure instead of engine belts, used to cool oil in hydraulic systems.

• PWM solenoid (proportional valve): Controls fan speed based on temperature signals.

• Cooling differential: The temperature drop between oil entering and exiting the radiator—key to assessing cooling performance.

• No-load vs. loaded fan rpm: Fan speed when idle versus under hydraulic load pressure conditions.


• Temperature drop through the cooler: at least 30°F (~17°C), similar to engine settings, applied to hydraulic oil systems.

• Fan speed RPM ranges (approximate values):
  • No-load: 1100 rpm (low), up to 1500 rpm (high)

  • Loaded: 1000 rpm (low), up to 1400 rpm (high)

  • Maximum system pressure typically around 2987 psi


1. Establish temperature differentials—measure oil temp before and after the radiator.

2. Check fan rpm—use a photo tachometer to ensure fan speed falls within expected ranges.

3. Inspect hydraulic temperature sensor—malfunction here can mislead the controller, resulting in inappropriate fan speeds.

4. Test the PWM solenoid valve—this component modulates fan speed; failure here can cause sluggish or unresponsive operation.

5. Examine associated components—fan motor, wiring, shunt valves, and non-return valves may be worn or clogged.


• Mechanic commentary emphasizes, “a fan can spin slower than expected even after adjusting the proportional valve,” highlighting the critical role of the PWM solenoid.

• Issues like a crumbling non-return valve or insufficient residence time of oil in the cooler can hinder heat shedding—prompting a close look at flow restrictions or valve integrity.


• Measure temperature differential across the hydraulic oil cooler.

• Verify actual fan RPM with a tachometer under both no-load and loaded conditions.

• Test and, if needed, replace temperature sensors that trigger fan activation.

• Check PWM solenoid valve functionality for proper proportional control.

• Evaluate non-return valves and flow paths for restrictions or failure.

• After repairs, retest temperature differentials to ensure cooling efficacy.


Introduction
Starter issues in heavy equipment can be frustrating, especially when the machine is essential for daily operations. One of the most common problems faced by operators of skid steers like the LS170 is starter failure, which can cause significant delays in work and even result in costly repairs if not addressed promptly. In this article, we will discuss the common causes of starter issues in the LS170, provide a step-by-step guide for troubleshooting, and share practical tips for fixing or replacing the starter system.
Common Symptoms of Starter Issues
Before diving into troubleshooting, it’s important to recognize the symptoms of starter problems. On the LS170, these signs could include:

1. Engine Won’t Crank: When you turn the key, you hear no cranking noise or the engine doesn’t turn over at all.

2. Slow Cranking: The engine cranks but slowly, sometimes taking several attempts before it starts.

3. Clicking Noise: When attempting to start, the starter makes a repetitive clicking noise, indicating that the starter is not engaging properly.

4. No Sound: There may be no sound at all, signaling an electrical issue or a failed starter motor.


1. Dead or Weak Battery: The most common culprit in starting problems is a weak or dead battery. If the battery doesn’t have enough charge to provide the required power to the starter motor, the engine may fail to crank or start. Batteries can lose charge due to prolonged inactivity, extreme weather conditions, or age.

2. Corroded Battery Terminals: Corrosion around the battery terminals can prevent proper electrical contact, leading to poor power flow. This can result in slow cranking or no cranking at all.

3. Faulty Starter Solenoid: The starter solenoid is a critical component that connects the battery’s power to the starter motor. If it becomes damaged or fails, it can prevent the starter motor from engaging, leading to clicking sounds or no action when attempting to start the engine.

4. Worn-out Starter Motor: Over time, the starter motor can wear out due to excessive use, especially under harsh conditions. A worn-out starter will struggle to turn the engine over and may eventually fail entirely.

5. Faulty Ignition Switch: If the ignition switch is damaged, it may fail to send the proper signal to the starter solenoid to engage the starter motor.

6. Electrical Wiring Issues: Any loose, damaged, or corroded wires in the starting circuit can lead to intermittent or complete failure of the starting system.

7. Weak or Old Battery Cables: The battery cables themselves can become worn or damaged, affecting their ability to deliver power to the starter motor. Poor cable connections can create resistance, reducing the voltage available to the starter.


• Test the battery voltage: Using a multimeter, measure the battery voltage. A healthy 12-volt battery should read around 12.6 volts when fully charged. If the voltage is significantly lower, the battery may need to be charged or replaced.

• Check the battery charge: If the voltage is low, try charging the battery. If it does not hold a charge, it may need to be replaced.


• Clean the terminals: Use a mixture of baking soda and water to clean any corrosion off the terminals. Be sure to wear gloves and safety goggles, as the corrosion can be hazardous.

• Tighten connections: Ensure that the battery terminals are tight and secure. Loose connections can prevent the proper flow of electricity.

• Check the battery cables: Inspect the battery cables for wear or damage. If any cables are frayed, cracked, or corroded, they may need to be replaced.


• Listen for clicks: When attempting to start the engine, listen carefully for a clicking sound. If you hear a single click or rapid clicking, it could indicate a faulty solenoid.

• Check for voltage: Use a multimeter to check the voltage going to the solenoid. If there is no voltage at the solenoid when the ignition is turned to the start position, the issue may be in the ignition switch or wiring.


• Check for wear: Over time, starter motors can wear out and become inefficient. If the motor is making a grinding noise or is unable to turn the engine over, it may need to be replaced.

• Test the motor directly: To test the starter motor, remove it from the engine and connect it directly to the battery. If it does not turn over, the motor is likely faulty and will need to be replaced.


• Check continuity: Use a multimeter to check for continuity in the ignition switch. If the switch is faulty, it may need to be replaced.

• Inspect wiring: Look for any loose or damaged wires in the starting circuit. A damaged wire can cause intermittent starting issues, and may need to be repaired or replaced.


• Inspect fuses: Replace any blown fuses and ensure that all fuses are the correct amperage for the system.

• Test relays: If a relay is clicking but not engaging, it may be defective and should be replaced.


Understanding the Symptom
On the Cat CS433 roller, operators sometimes notice that the front roller moves faster than the rear axle—or vice versa. This subtle speed mismatch can disrupt compaction performance and machine control, undermining the machine’s precision and safety.
Key Terms Defined

• Axle pump: A hydraulic pump dedicated to powering the rear drive or axle of the compactor.

• Roller pump: A separate hydraulic pump that powers the front compaction drum.

• Linkage: Mechanical connection that conveys motion or pressure between components—in this case, between pump and pumps.

• Neutral link: A position adjustment that ensures proper alignment of pump controls and avoids unintended motion.


• The mechanic adjusted the neutral link, tuning both linkage and hydraulic pressure.

• With the front pump driving the roller and the second pump driving the axle, he tested calibration by placing duct tape on both wheel and roller—adjusting until their speeds matched visually.


• Park the roller securely—ideally with wheels/rollers off the ground.

• Inspect both the axle and roller pump linkages for looseness or misalignment.

• Set the neutral link correctly between the two systems.

• Fine-tune hydraulic pressure on both pumps as needed.

• Use duct tape or visible markers to confirm that both front drum and rear axle rotate at the same rate.

• Recheck after a short test run to ensure consistency.


• Speed mismatch in a compactor like the Cat CS433 is more often linkage misalignment—not necessarily a pump failure.

• A precise alignment of linkage and pressure restores synchronized motion.

• Visualization tricks like duct-tape markers provide an effective, low-tech check for speed calibration.


Introduction to Engine Storage
Storing engines properly is a critical aspect of maintaining their longevity and ensuring their reliable performance when they are eventually brought back into service. Whether it's an engine removed from a piece of heavy equipment for a seasonal break, a spare engine kept in storage, or an engine being preserved for a long-term storage period, following the correct procedures can prevent damage, deterioration, and costly repairs down the road.
This article explores the best practices for storing engines, from preparation to preservation, along with tips and recommendations that will extend the lifespan of your engine during idle periods.
Why Proper Engine Storage is Important
Improper engine storage can result in various problems, including corrosion, fuel contamination, rubber seal degradation, and even internal damage due to lack of lubrication or moisture buildup. Just like any machine, engines require attention and care during long-term storage to ensure they remain in good working condition.

• Corrosion: Metals in the engine, such as the crankshaft, pistons, and cylinder walls, are susceptible to rust if exposed to moisture during storage.

• Fuel Degradation: If fuel is left in the engine or fuel tank for too long, it can degrade, causing blockages or damage to fuel lines and injectors.

• Seal Damage: Rubber seals and gaskets can dry out, crack, and become brittle if exposed to air for extended periods without use.

• Lubrication Issues: When an engine is not in use, the oil can settle or break down, leading to inadequate lubrication when the engine is started again.


• Wash the engine: Use a degreaser and pressure washer to clean the engine. Pay particular attention to areas around the intake and exhaust to prevent dirt buildup that could lead to blockages.

• Dry the engine: After cleaning, make sure the engine is completely dry. Any remaining moisture can promote rusting during storage.


• Drain the fuel: If possible, drain the fuel tank and fuel lines to avoid the fuel degrading. For engines with a fuel filter, change the filter before storage.

• Drain the oil: Drain the engine oil from both the engine and the oil filter. Old oil contains contaminants that can damage the engine over time.

• Drain the coolant: If the engine has a coolant system, drain the coolant to prevent it from freezing during the winter months. In areas with cold climates, consider using antifreeze in the system.

• Other fluids: Don’t forget to drain other fluids such as transmission fluid, hydraulic fluid, and power steering fluid if applicable.


• Disconnect and remove the battery: Remove the battery from the engine and store it in a cool, dry place. Ensure the battery terminals are cleaned and coated with a protective layer, such as petroleum jelly, to prevent corrosion.

• Charge the battery: If storing the battery for an extended period, charge it periodically to maintain its health.


• Lubricate the internal components: Pour a small amount of oil into the cylinders to prevent rust from forming on the cylinder walls. Rotate the crankshaft by hand to distribute the oil evenly across the surfaces.

• Protect the air intake and exhaust: Cover the air intake and exhaust ports with plastic or rubber caps to prevent debris, moisture, and insects from entering. A piece of duct tape can also work in a pinch, but it’s best to use covers specifically designed for engine storage.

• Spray rust inhibitor: Use a rust inhibitor or protective oil coating on exposed metal parts like the crankshaft, valve springs, and other parts that may be susceptible to corrosion.


• Seal the engine openings: To prevent dust, moisture, and contaminants from entering the engine, seal the intake and exhaust ports tightly with plastic or rubber caps. This will also help protect the internal components from environmental elements during storage.

• Check for leaks: Inspect the engine for any leaks or potential areas where moisture might enter. Tighten any loose bolts or screws and replace any damaged seals.


• Temperature: Store the engine in a dry, temperature-controlled environment. Extreme temperatures—either too hot or too cold—can cause the engine’s internal parts to expand or contract, leading to damage.

• Ventilation: Ensure proper ventilation in the storage area to prevent the buildup of moisture. Avoid storing engines in damp, humid conditions.

• Cover the engine: Consider placing a cover or tarp over the engine to further protect it from dust and debris.


• Inspect the engine regularly: Once a month, check the engine for any signs of rust, leaks, or degradation. Reapply lubrication and rust inhibitors if necessary.

• Turn the engine over: If the engine is stored for long periods, occasionally turn the crankshaft to ensure that all moving parts remain lubricated and free from corrosion.

• Charge the battery: If you left the battery in storage, charge it periodically to keep it in good working condition.


• Replace all fluids: Refill the engine with fresh fuel, oil, coolant, and any other necessary fluids. Make sure to replace the fuel filter as well.

• Install the battery: Reinstall the battery and ensure the connections are clean and secure.

• Check for leaks: Inspect the engine thoroughly for any fuel or oil leaks before starting it.

• Start the engine: Crank the engine slowly to allow the oil to circulate before turning it on fully. Listen for any unusual noises and check that the engine runs smoothly.




When “Go See This Now” Becomes an Industry Mantra
There are machines so extreme in scale and complexity that a simple phrase like “go see this now” evolves from casual suggestion into equipment folklore—and none embody that more than the Bagger 288. Inspired by such urgings, this article unpacks why this German-engineered behemoth captivates mechanics, engineers, and machine enthusiasts alike.
The Engineering Marvel

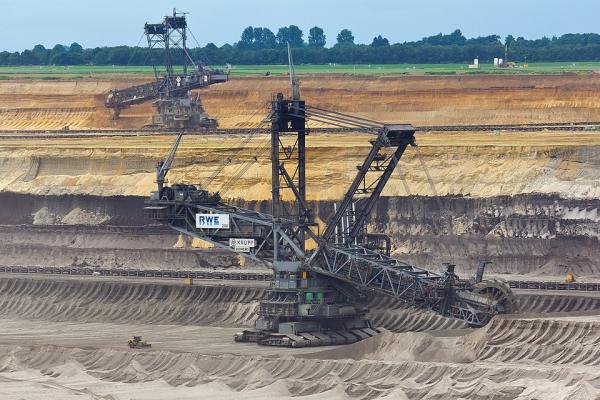

Large-scale excavation reached a new level when this bucket-wheel excavator debuted:

• Weighing in at around 13,500 tons, it held the title of the heaviest land vehicle on Earth for decades.

• It's approximately 220 meters long (about two football fields) and 96 meters tall, towering over job sites.

• Powered externally, it requires 16.56 MW of electricity and moves at about 2–10 meters per minute—equating to a crawl but with cosmic capability.

• Its excavating wheel spans 21 meters in diameter, fitted with 18 buckets, each hauling up to 6.6 m³ of material per scoop.

• Fully crewed by only five people, it exemplifies technological efficiency and massive automation.


• Designed for mobile strip mining, it excelled at removing overburden—up to 240,000 cubic meters daily, similar to digging a soccer field 30 meters deep.

• In one iconic move, the machine traveled 22 km across rivers, highways, railroads, and highways—transported whole rather than dismantled—for about 15 million German marks in cost.


• Experiencing such a colossal machine in person is beyond ordinary—it shifts your understanding of "mass" and mechanical power.

• Its quiet, almost serene forward motion contrasts sharply with the internal power it wields—an electrifying paradox.

• The logistics behind relocating it—designing temporary infrastructure, reseeding ground, and managing electrical power—highlight human ingenuity confronting monumental scale.


• Bucket-wheel excavator: A mining machine with a rotating wheel fitted with buckets for continuous digging.

• Overburden: Material such as soil or rock overlaying a mineral deposit, typically removed in mining.

• Externally powered: Drawing energy from an outside source (e.g., fixed power supply) rather than onboard fuel.

• Strip mining: Removing large surface layers to reach underlying mineral deposits.


• The Bagger 288 is more than a machine—it’s a moving monument to human ambition and mechanical prowess.

• Its combination of size, precision, and limited crew invokes awe—and the urgent call to "go see this now" remains completely justified.

• From mining speed to power demands to relocation logistics, it stands as a touchstone in heavy-equipment history.


Introduction to the CAT D6C Dozer
The Caterpillar D6C is a medium-sized track-type tractor (dozer) known for its versatility and reliability in a variety of industries, including construction, mining, and forestry. One of the key components that power the D6C's engine is the fuel injector pump, which plays a critical role in the engine's performance by delivering the correct amount of fuel to the injectors at the right pressure and timing.
Over time, the fuel injector pump can experience issues such as leaks, wear, or failure, necessitating repair or replacement. When replacing or installing a new fuel injector pump on a CAT D6C, it’s crucial to follow the correct procedures to ensure optimal engine performance and longevity. In this guide, we'll walk you through the process of installing a fuel injector pump on a CAT D6C Dozer, including the necessary steps, tools, and common pitfalls to avoid.
Understanding the Fuel Injector Pump System
The fuel injector pump on the CAT D6C is responsible for pressurizing and injecting fuel into the engine’s combustion chamber. The pump operates in conjunction with the injectors to control the timing and amount of fuel that enters the engine. This precision is necessary to maintain smooth engine operation and reduce emissions.
The fuel injector pump is driven by the engine's camshaft, and it is typically located on the side of the engine, connected to the fuel lines and injectors. It is vital that the pump is installed correctly and aligned properly to ensure that the engine runs efficiently and smoothly.
Signs of Fuel Injector Pump Problems
Before delving into the installation process, it’s important to recognize the signs that may indicate the fuel injector pump needs attention:

• Hard starting: Difficulty starting the engine, especially in colder conditions, can be a sign of a malfunctioning fuel pump.

• Engine misfire: An engine that misfires or runs roughly may be a result of poor fuel delivery.

• Poor fuel economy: Excess fuel consumption without a corresponding drop in performance can be due to fuel delivery issues.

• Fuel leaks: Any visible signs of fuel leaking around the pump or injectors can signal a problem with the pump's seals or gaskets.


• Wrenches and sockets (metric and SAE sizes)

• Torque wrench

• Injector pump alignment tool (if applicable)

• New fuel injector pump (OEM recommended)

• Gaskets and seals (replace old ones to prevent leaks)

• Fuel lines and clamps

• Clean rags for wiping down parts

• Diesel fuel or fuel system cleaner (for flushing lines)

• Diesel engine oil (for lubrication)


1. Prepare the Engine for Work


1. Remove the Old Fuel Injector Pump


• Disconnect Fuel Lines: Start by removing the fuel lines connected to the fuel injector pump. These are usually secured with clamps. Make sure to catch any fuel that may spill by placing a container underneath the pump.

• Remove the Pump Mounting Bolts: Use the appropriate size wrench to remove the bolts securing the pump to the engine. Depending on your specific model, there may be multiple bolts, so make sure all are removed.

• Inspect the Old Pump: Once removed, inspect the old fuel injector pump for signs of damage or wear. This is also a good opportunity to clean the area around the pump to ensure that no dirt or debris gets into the system during the installation of the new pump.


1. Install the New Fuel Injector Pump


• Install New Seals and Gaskets: Before installing the new pump, make sure that you replace all seals and gaskets. Old seals can be a major source of fuel leaks, so replacing them is essential to ensuring a secure, leak-free installation.

• Position the New Pump: Carefully position the new fuel injector pump onto the engine, ensuring it aligns with the mounting holes. It is essential that the new pump is aligned with the timing marks on the engine, as incorrect timing will lead to poor engine performance.

• Bolt the Pump into Place: Use a torque wrench to tighten the mounting bolts to the manufacturer’s specifications. Ensure that the pump is firmly secured, but avoid overtightening the bolts to prevent damage to the pump or mounting bracket.


1. Reconnect Fuel Lines


• Attach Fuel Lines: Reconnect the fuel lines to the new fuel injector pump, making sure they are secure and free from leaks. Use clamps to ensure the fuel lines are properly attached to the pump.

• Check for Leaks: Before moving on, double-check all fuel line connections for any signs of leakage. Fuel leaks can be dangerous and can cause performance issues if not addressed.


1. Align the Pump (if required)


1. Flush the Fuel System


1. Reconnect the Battery and Test the Engine


• Reconnect the Battery: Once everything is properly installed and tightened, reconnect the battery to restore electrical power to the machine.

• Test the Engine: Start the engine and check for smooth operation. Listen for any unusual noises or rough idling. If the engine runs smoothly and the fuel system operates without leaks, the installation is complete.


1. Check for Leaks and Recheck Fuel Lines


Understanding the DPF Regeneration Process
The Cat 336E excavator features a Diesel Particulate Filter (DPF) to capture soot and carbon emissions. For optimal engine function and regulatory compliance, the filter needs periodic cleaning through a regeneration cycle. This process burns off accumulated particles to restore airflow and performance .
Technical Terms Explained

• DPF (Diesel Particulate Filter): Captures soot from exhaust to reduce emissions.

• Regeneration: The process of burning off trapped soot, either passively (during normal operation) or actively (when induced via diagnostic tools).

• ASH Service Regeneration (Ash Regen): A specific cycle designed to reduce soot to ash levels in preparation for cleaning or replacing the DPF .

• ECM (Engine Control Module): Monitors soot load and controls regeneration cycles.

• ARD (Aftertreatment Regeneration Device) Nozzle/Head: A component that assists in initiating the regeneration process.


• Ash Service Regeneration: Used to prepare for cleaning or replacement—executed via service tools. The ECM logs which technician’s tool performed it, so unauthorized tools may not be accepted .

• DPF Cleaning vs. Replacement: A cost-effective approach is to clean the DPF, especially when replacement expenses are high. Cleaning can restore performance and extend service intervals .

• ARD Head Maintenance: When DPF regenerations become frequent or inefficient, inspect the ARD head. Sometimes replacing or cleaning this component resolves recurring issues .


• A technician notes that passive regenerations rarely reduce soot levels to zero—often stopping at 30–40%. This demonstrates why full cleaning or replacement remains beneficial .

• Units approaching 5,000 hours—especially those exposed to heavy duty cycles—may require DPF service sooner than expected.

• ARD heads that show signs of erosion or wear can disrupt future regenerations; replacing them concurrently with DPF service often avoids costly downtime .


• Monitor soot load via the ECM fuel/soot tracking system.

• Attempt a passive regeneration—ensure machine reaches required temperatures.

• If soot remains high, perform an Ash Service Regeneration using diagnostic tools.

• Evaluate whether a DPF clean (via professional cleaning) is sufficient.

• If persistence of soot or frequent regenerations occur, factor in DPF replacement.

• Inspect and, if needed, replace the ARD head during DPF servicing.

• Use genuine parts and dealer-supported tools to maintain integrity and compliance.
